VTS30

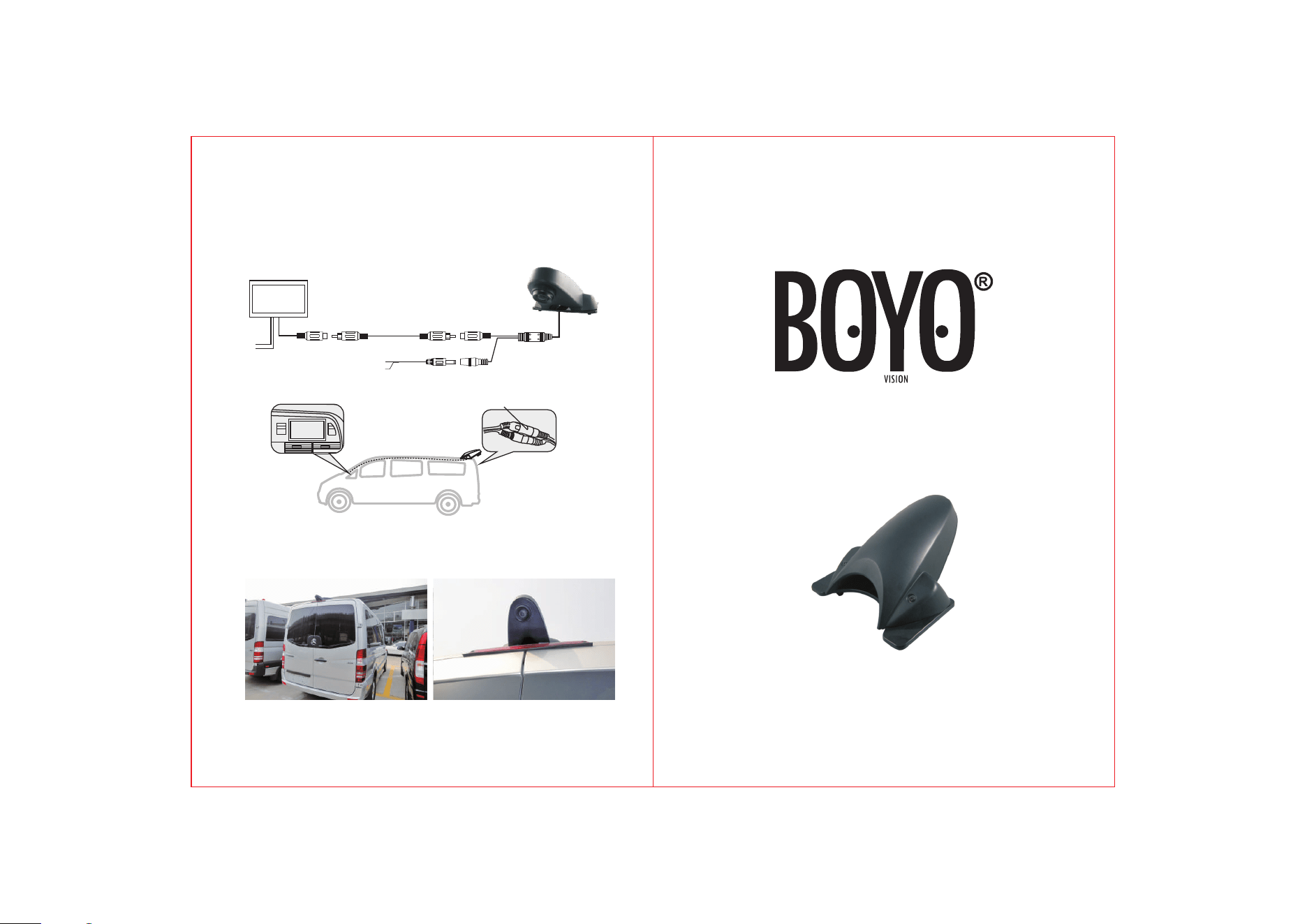

3.Installation
The installation and position of the camera
3
The effect of camera's installation
Signal Wire
DC +12V RED
(GND)Black
Encase with insulating tape
Monitor
size:105x148mm
For Sprinter
①
②
③
21
④
⑤
Sequence Number
1
2
3
4
Name
Camera
Signal Wire (8M)
Power Line (3M)
User`s manual
5
Positioning Sheet
2.Accessories
Technical term Technical Parameters
SONY CCD
DC 9V-16V
57 mA
0.7 W
768(H)X494(V)NTSC, 752(H)X582(V)PAL
1/60 (NTSC)1/50(PAL)-100000s
0.1 Lux
48 dB
600 TV
NTSC / PAL
D=130°± 10° H=90°±5° V=68°±5°
1.0Vp-p 75ohm
IP 67
AUTO
AUTO
AUTO
-31°F～167°F
Images sensors
Power Supply(DCV)
Current Consumption
Power
Effective pixels
Electionic shutter
Minimum illumination
Resolution(TV Lines)
TV System
Lens Angle(Deg.)
Video output
IP rating
White Balance AUTO
AGC
BLC
Operating Temperature(°F)
S/N Ratio
1.Specification
VTS30
For Sprinter
