Fluke-700HTH-1
Hydraulic Test Hose
Instruction Sheet
Introduction
The Fluke-700HTH-1 Hydraulic Test Hose is designed to
work with the Fluke-700HTP-1 Hydraulic Test Pump. It is
self-sealing, with an easy, finger-tight connection, and low
volumetric expansion. The hose has the following
specifications:
• Maximum pressure: 690 bar / 10,000 psi
• Minimum bend radius: 60 mm / 2.36 in.
• Working temperature: - 40 ºC to + 120 ºC
( - 40 ºF to + 250 ºF)
• Construction: nylon, stainless steel, zinc, plated steel,
and nitrile
• Outer diameter: 6.0 mm (0.20 in.)
• Fluids: water, mineral-based hydraulic oil
Box Contents
• (1) .84 m (33 in) self-sealing hose assembly
• (2) ¼ in NPT male hose fittings
• (1) Adapter: 1/4 in NPT female to 1/4 in BSP male
• Instruction Sheet
2
3
1

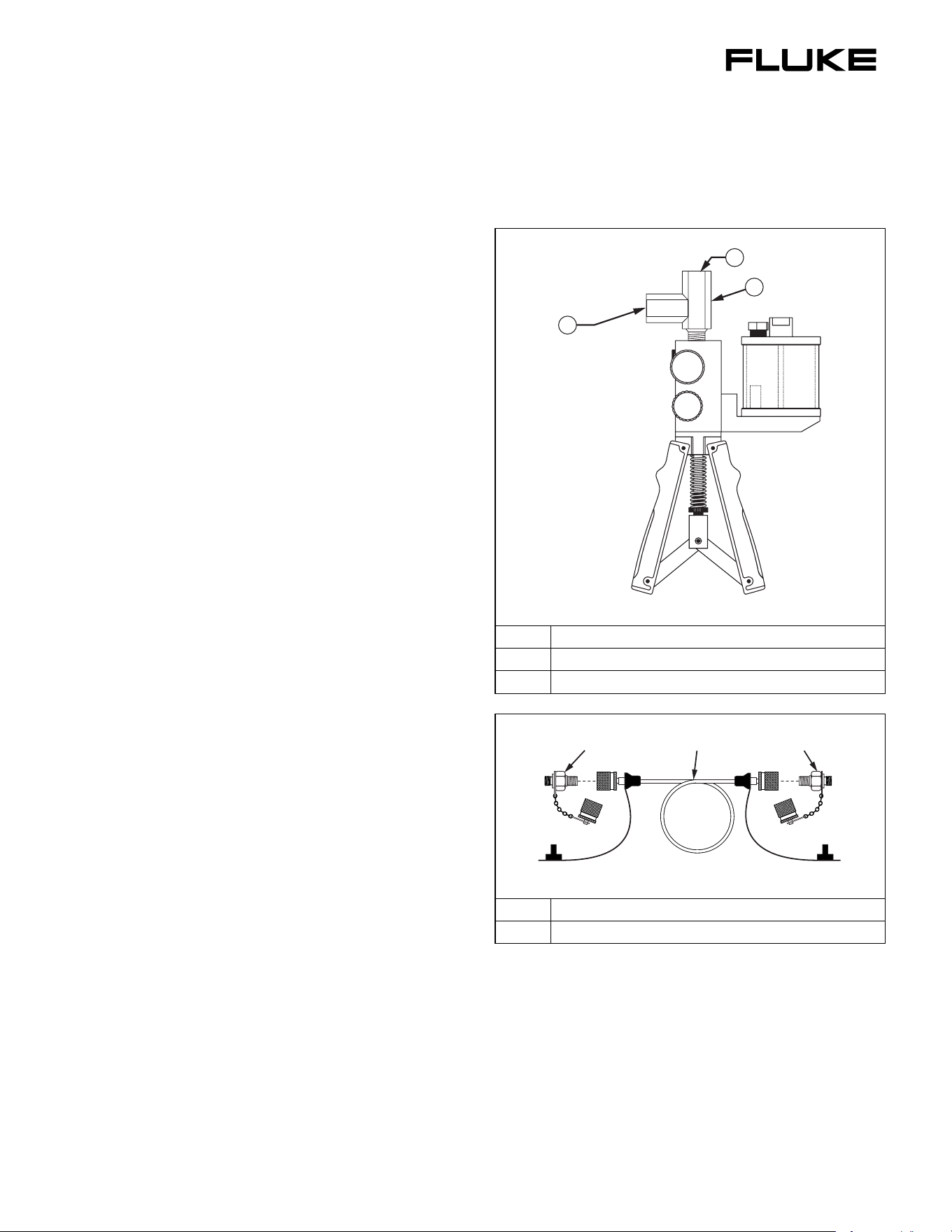

eve01f.eps
A Master Pressure Port
B Test Pressure Port
C Tee
B
A
A
eve02f.eps
A Hose Fitting
B Hose Assembly
