SUBMERSIBLE CLEAN WATER PUMP 100L/MIN
MODEL NO: WPC100.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using.
Inspect power supply leads, plugs and all electrical connections for wear and damage.
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
8 DO NOT use worn or damaged cables, plugs or connectors.
9 Ensurethatanyfaultyitemisrepairedorisreplacedimmediatelybyaqualiedelectrician.
9 If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Ensurethatrepairsarecarriedoutbyaqualiedelectrician.
9 Sealey recommend that an RCD (Residual Current Device) is used with all electrical products.
Important:Ensurethatthevoltageratingontheappliancesuitsthepowersupplytobeusedandthattheplugisttedwiththe
correct fuse.
8 DO NOT pull or carry the appliance by the power cable.
8 DO NOT pull the plug from the socket by the cable.
1.2. GENERAL SAFETY
WARNING! Pump must be used in accordance with Health & Safety, government, local authority, and water authority rules and
regulations.
WARNING! Pollution of liquid could occur due to leakage of lubricants.
For cleaning and other maintenance to a swimming pool:
9 The pump must not be used when people are in the water.
9 The pump must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.
9 The pump is to be supplied by an isolating transformer or supplied through a residual current device having a rated residual operating
current not exceeding 30mA.
9 Familiarise yourself with application and limitations, as well as the specific potential hazards peculiar to the pump.
WARNING! Disconnect the pump from the mains power before changing accessories, servicing or performing any maintenance.
9 Maintain the pump in good condition (use an authorised service agent). Keep the pump clean.
9 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agents.
9 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Only use for pumping liquids under 35°C.
CAUTION in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
9 If pump is used to pump water from a well, drain or deep receptacle, take adequate precautions to stop persons or animals from
falling in.
9 Use the built-in handle to lower or raise the pump. It may be necessary to attach a suitable rope or pulley to the handle.
9 If the bottom of the water container is covered with sludge, sand, gravel or mud etc, suspend the pump or place it on a raised base to
operate above the solid matter. Sand and such substances will reduce working life of pump, and invalidate your warranty.
9 The pump is to be located where flooding can not occur.
9 In flood situations, user is responsible for ensuring that appropriate back-up procedures, alarms etc are correctly installed in case of pump
failure.
9 In swimming pools, fish ponds, etc, ensure location is clear of people and animals, including removal of fish from pond.
8 This pump is not designed for continuous use in a fish pond or similar water feature or display.
8 DO NOT operate the pump if any parts are damaged or missing as this may cause failure and/or possible personal injury.
8 DO NOT use the pump for any purpose other than for that which it is designed.
8 DO NOT use to pump chemicals, fuels or salt water.
8 DO NOT insert hands into the mouth of the pump as this could lead to injury.
8 DO NOT use to pump septic tanks or settling pits. DO NOT pump any liquids other than water.
8 DO NOT operate the pump out of water. The pump pick up area must be completely submerged during operation.
8 DO NOT exceed the maximum submersible depth - see specifications.
8 DO NOT operate the pump during freezing temperatures. DO NOT leave the pump in water that may freeze.
8 DO NOT use in swimming pools if people could come into contact with the water whilst pump is in use.
8 DO NOT use for pumping sea water or inflammable, corrosive, explosive or dangerous liquids.
8 DO NOT carry the pump by its electrical cable, or outlet pipe. Use the handle only.
WPC100.V3 Issue:2 (1) 10/11/23
Original Language Version
© Jack Sealey Limited
Refer to
instructions
8 When not in use switch off pump and remove plug from power supply. Rinse pump, drain out any water and store in a frost free, safe
location.
WARNING! DO NOT allow uncontrolled discharge of contaminated water which would pollute the environment.
Children from age 8 years and above, persons with reduced physical, sensory or mental capabilities, those with lack of experience
and knowledge can use the appliance, if they have been given supervision or instruction concerning use of the appliance In a safe
way to understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance on the
appliance shall not be maintained by children without supervision.

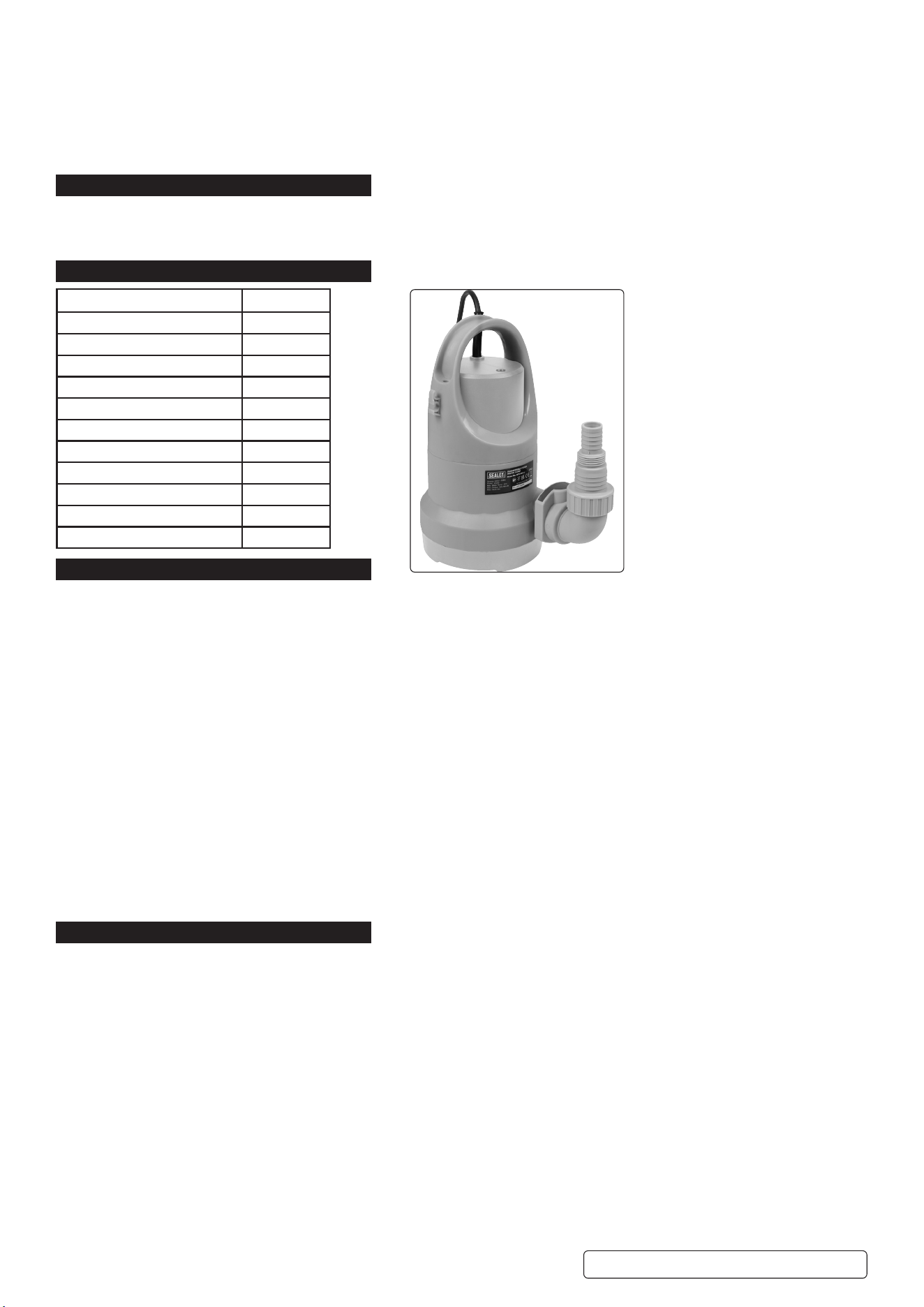

2. INTRODUCTION
Manufactured from corrosion resistant materials with steel motor case and polypropylene base cover. Max. Output: 100L(22gal)/min,
Max. Head: 6m. Minimum water depth of just 5mm. Designed for clean water although this pump will accept small particles up to 5mm.
Suitable for the effective drainage of cellars, sinks, cisterns, baths and the general transfer of water.
3. SPECIFICATION
4. BEFORE USE
4.1. Readallsafetywarningsandallinstructions.Failuretofollowallwarningsandinstructionsmayresultinelectricshock,reand/or
serious injury. Save all warnings and instructions for future reference.
4.2. The pump can be connected to any shock-proof plug which has been installed according to regulations in force.
WARNING! When the pump is to be used near swimming pools or garden ponds and in their area of protection, it must be
equipped with a PRCD (residual current circuit breaker) with a nominal trip current of max.30mA . The pump must not be
operated while people are in the swimming pool or in the garden pond. Please contact your electrician.
WARNING! (Important for your own security) Before starting to run your new submersible pump, please have the following items
checked by an electrician:
• Ground connection
• Zero conductor
• Fault current breaker switch must correspond the safety regulations in force in that region.
They must work faultlessly.
4.3. The electrical connections must be protected from moisture.
4.4. Ifthereisdangerofooding,theelectricalconnectionsmustbetakentohigherground.
4.5. Circulationofaggressiveuids,aswellasthecirculationofabrasivematerialsmustbeavoidedatallcosts.
4.6. The submersible motor-driven pump must be protected from frost.
4.7. The pump must be protected from running dry.
4.8. Access on the part of children should also be prevented with appropriate measures.
4.9. These submersible pumps is designed for the circulation of water with a maximum temperature of 35° C. This pump may not be
usedforotheruids,especiallymotorfuels,cleaninguids,andotherchemicalproducts.
5. INSTALLATION
5.1. The submersible pump is installed as follows:
•Inastationarypositionwithxedpipelineor
•inastationarypositionwithaexiblehosepipe.
NOTE: Never install the pump by suspending it unsupported from its delivery pipe or power cable. The submersible pump must be
suspended from the specially provided handle or be placed on the bottom of the shaft.
5.2. To guarantee that the pump works properly, the bottom of the shaft must be kept free of sludge and dirt of all kinds. If the level of
water sinks too far, any sludge in the shaft will dry out quickly and stop the pump from starting up. Therefore it is necessary to
check the submersible motor pump regularly (by carrying out start-up tests).
5.3. Theoatswitchmustbeadjustedinawaythatthepumpcanstartimmediately.
NOTE: Thepumpshaftshouldhaveminimumdimensionsof40x40x50cm,sothattheoatingswitchcanmovefreely.
5.4. MAINS SUPPLY
5.4.1. Submersible pump is equipped with a shock-proof plug according to regulations. The pump is designed to be connected to a 230V - 50
Hzearthedsocket.Makesurethatthesocketissufcientlysecured(min.6Amp.)andisinexcellentcondition.
5.4.2. IMPORTANT NOTE! If the mains cable or plug suffers any damage from external action, repairs to the cable should be serviced by a
qualiedspecialistusinggenuinespareparts.
5.5. Fit appropriate discharge pipe to pump outlet and secure with clip. Ensure the diameter of the discharge pipe is the same as, or
greater than, the outlet diameter. A smaller pipe will adversely effect the pump flow rate.
Model No. WPC100.V3
Cut out Manual
Fuse rating 5A
Maximum head 6m
Maximum output/min 100L/min
Maximum particle size 5mm
Maximum water depth 7m
Minimum water depth 5mm
Motor power 250W
Outlet OD 25mm/38mm
Power supply cable 10m
Supply 230V
Original Language Version
© Jack Sealey Limited
WPC100.V3 Issue:2 (1) 10/11/23
6. OPERATION
6.1. After having read these instructions carefully, you can set your pump to work, after checking the following:
• Check if the pump rests on the ground of the shaft.
• Check of hose has been attached properly.
•Checkifelectricalconnectionistocorrectspecication.
• Check if socket is in good condition.
• Make sure that water and humidity can never come to the mains supply.
• Avoid pump running dry.
6.2. VENT THE PUMP BEFORE USE
6.2.1. Always ensure that the pump is vented properly before commissioning the pump. Tilting back and forth several times until no more air
bubbles appear, wait at least 15 seconds before starting pump.
6.2.2. CAUTION! RISK OF DRY-RUNNING
6.2.3. The water into which the pump is placed will act as the motor cooling agent. For this reason the pump must remain submerged at all
times. Should the pump have to be used in shallow water DO NOT operate for more than 10 minutes. Failure to follow this rule will
damage the unit and will invalidate your warranty.
This appliance cannot be used by children or people who are physically, mentally or developmentally impaired, or people who lack
experience or knowledge, except in case these people receive instruction from a person responsible for their safety, a supervisor, or by
studying the preceding instructions concerning use of this appliance.
NOTE: Refer to Specification section to determine minimum clearance required if using pump in a restricted area i.e. well, etc.
7. MAINTENANCE
WARNING! With the exception listed below, all pump, float and electrical cable service maintenance and repair must only be
undertaken by an authorised service agent. Failure to observe this rule may be dangerous and will invalidate your warranty.
WARNING! Ensure the pump is disconnected from the mains power supply before attempting any service or maintenance.
7.1. When the pump is often transported in the course of operation, it should be cleaned out with clear water after every use.
7.2. In case of stationary installation, the function of the floating switch should be checked every 3 months.
7.3. All fibrous particles which may have built-up inside the pump housing should be removed with a water jet.
7.4. Every 3 months the shaft ground and as should be cleaned of mud.
7.5. Remove deposits on the floater with clear water.
7.6. CLEANING THE IMPELLER
7.6.1. If excessive deposits collect in the pump case you must dismantle the bottom part of the pump as follows:
1. Remove the intake cage from the pump case.
2. Clean the impeller with clear water.
Important! DO NOT put down or rest the pump on the impeller!
3. Re-assemble in reverse order
8 DO NOT dismantle any other part of the unit.
8. STORAGE
8.1. Thoroughly clean the whole machine and its accessories.
8.2. Store out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.
8.3. Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
8 DO NOT keep pump in a plastic bag to avoid a build up in humidity.
9. TROUBLESHOOTING
Original Language Version
© Jack Sealey Limited
WPC100.V3 Issue:2 (1) 10/11/23
Problem Causes Remedy
Pump does not start No mains supply
Float does not switch
Check for mains supply
Bringoatertoahigherposition
Noow Inlet sieve is blocked
Pressure hose is bent
Clean inlet
Reset hose
Insufcientow Inlet sieve is clogged
Reduced pumping capacity due to dirty and
abrasive water
Clean inlet sieve
Clean pump and replace worn out parts
Pump shuts off after a short operating period Thermal cut out stops pump due to dirty water
Water too hot
Thermal cut out stops pump
Remove mains plug
Clean pump and shaft
Ensure that max. water temperature of 35°C
is not exceeded
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
