1
Gaming Headphones with RGB
Model No. AVS1565
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2
Gaming Headphones with RGB
Model No. AVS1565
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Contents
Page No.
2 Contents
3 Reading and Storing the User Manual
3 Important Safety Instructions for Proper Use
4 Explanation of Symbols
4 Before the First Time You Use Your Gaming Headphones
5 Description of Parts
6 Connecting up your Gaming Headphones when…
6 …Using a PC
6 …Using a Laptop
7 …Using a PS4 Controller/Xbox One/S Controller
7 Wearing Your Headphones
8 Care and Use of Your Gaming Headphones
8 Technical Specification
8 Recycling Information

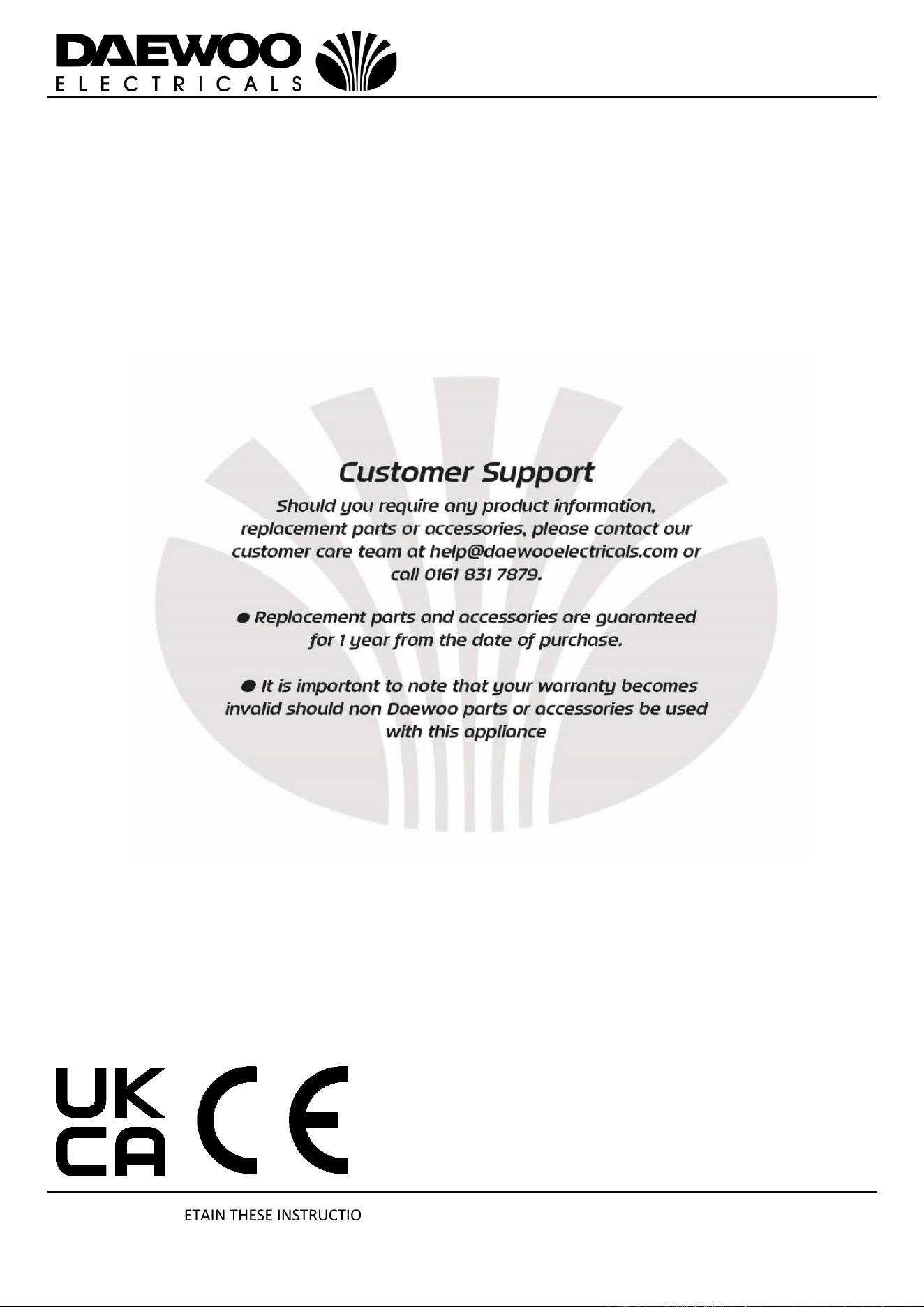

9 Customer Support
Back Page Warranty Information
3
Gaming Headphones with RGB
Model No. AVS1565
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should always
be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
• Read and familiarise yourself with all operating instructions before
using these headphones.
• Before using your headphones, visually check that the unit is intact
and has not suffered any transit damage.
• Only connect items as described in this manual, incorrect
connections may cause permanent damage to the product.
• DO NOT operate this product after a malfunction or after being
dropped or damaged in any way.
• Never allow children to play with the product. Small parts and
cables may be a choking hazard.
• DO NOT allow cables to hang over sharp edges or come in contact
with hot surfaces.
• This product is intended for household use only and should not be
used for industrial or commercial purposes.
• DO NOT use this product for anything other than its intended use.
• DO NOT immerse the product in water or any other liquids.
• DO NOT expose the product to moisture, rain or humidity, they are
not waterproof.
• Never clean the product with solvents or harsh or abrasive cleaners.
• DO NOT attempt to dismantle the product, it does not contain any
user serviceable parts.
• Whilst not in use, store the product in a cool dry place free from
extreme temperatures, humidity or dust.
4
Gaming Headphones with RGB
Model No. AVS1565
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Explanation of Symbols
The following symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable provisions
of the European Economic Area.
This symbol provides useful additional information on the use of
this product.
This symbol identifies voltage and the current rating for direct
current.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with your
Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk, enter your postcode to find out your
nearest recycling site.
Before the first time you use your Universal Gaming Headphones
Remove all packing materials and discard responsibly.
Check that all the parts are present with your headphones see ‘Description of
Parts’ below.
5
Gaming Headphones with RGB
Model No. AVS1565
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Description of Parts
*Adaptor converts 2x 3pole 3.5mm plugs to 1x 4pole 3.5mm plug.
The supplied Adaptor (9) may not be suitable for the device being used and
another Adaptor (not supplied) may be required.
1
2
3
8
1. Headband
2. Padded Earpieces
3. Flexible Microphone
4. USB Power Plug
5. Mic 3.5mm Plug (Red)
6. Headphone 3.5mm Plug (Green)
7. Cable
8. Volume Control (Rear)
9. Adaptor*
7
9
4
6
5
6
Gaming Headphones with RGB
Model No. AVS1565
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Connecting up your Universal Gaming Headphones when…
…Using a Laptop
…Using a PC
a. Insert the green Headphone 3.5mm Plug (6)
into the Green coloured Headphone socket on
your PC.
b. Insert the red Mic 3.5mm Plug (5) into the
Red/Pink coloured Mic. socket on your PC.
c. Insert the USB Power Plug (4) into any spare
USB socket on your PC.
a. Insert the green Headphone 3.5mm Plug (6) into the
Green coloured socket in the Adaptor (9).
b. Insert the red Mic 3.5mm Plug (5) into the Red/Pink
coloured socket in the Adaptor (9).
c. Insert the plug of the Adaptor (9) into the headphone
socket in your Laptop.
d. Insert the USB Power Plug (4) into any spare USB
socket on your Laptop.
7
Gaming Headphones with RGB
Model No. AVS1565
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Wearing your Universal Gaming Headphones
1. Place the Headphones on your Head
until the Headband (1) automatically
adjusts and they sit comfortably.
2. Adjust the Flexible Microphone (3)
so that it is level with your mouth.
3. Adjust the Volume Control (8) as
desired.
The Headphones are now ready to use.
…Using a PS4 Controller
*PS4 is a registered trademark of Sony Group Corporation.
…Using an Xbox One/S Controller
*S Controller & Xbox One are trademarks of the Microsoft group of companies.
1
3
8
a. Insert the green Headphone 3.5mm Plug (6) into the
Green coloured socket in the Adaptor (9).
b. Insert the red Mic 3.5mm Plug (5) into the Red/Pink
coloured socket in the Adaptor (9).
c. Insert the plug of the Adaptor (9) into the headphone
socket in your PS4/Xbox One/S Controller.
2015 Xbox One/S Controller model onwards shown. Earlier models will require a Microsoft adaptor.
*
*
8
Gaming Headphones with RGB
Model No. AVS1565
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Care and Use of your Gaming Headphones
• Always unplug the headphones before cleaning.
• Clean the outside of the headphones with a clean damp cloth. Never clean with
harsh or abrasive cleaners.
• Do not submerge the headphones in water or any other liquids.
Technical Specification
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling
facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling
facilities.
Dispose of non-recyclable plastics in the appropriate plastics
collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
Model Number
AVS1565
Impedance
16Ω ±15%
Speaker Sensitivity
108 ±3dB @1Khz; 1mW
Speaker Diameter
50mm
Rated Power
10mW (20mW max.)
Frequency Response
20Hz – 20Khz
Microphone Diameter
6.5mm
Microphone Current
≤0.3mA
Microphone Sensitivity
-40dB ±3db
Connectors
2x 3.5mm Jack Plugs, USB Plug
USB Supply
5V DC
Cable Length
1800mm (inc. connectors)
Weight (approx.)
299g
Dimensions (approx.)
225mm (h) x 190mm (w) x 100mm (d)
Adaptor
2x 3.5mm Sockets to 1x 4 pole 3.5mm plug
9
Gaming Headphones with RGB
Model No. AVS1565
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
10
Gaming Headphones with RGB
Model No. AVS1565
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo Audio product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo audio product is guaranteed for 1 year from the date of original purchase, with
proof of purchase or receipt. If any defect should occur due to faulty workmanship or material,
your faulty product should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the requirements
contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and covers
the main body and housing). If you do not register your product within 28 days of the original
purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28 days
of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo Electricals is a registered trademark.
Imported by Eurosonic Group Ltd. M3 1JS UK
EU Rep: Euromagppie Ireland Ltd. D05 X006
Produced under licence by ESG Ltd
www.esgltd.com
