2/3 level heavy duty workshop
trolley
Model no: CX105.v3 & CX108.v3
thank you for purchasing a sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. safety
warNING! ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this trolley.
9 Always load evenly with the centre of gravity of the load as near centre of the trolley as possible.
8 do Not overload the trolley - see specifications.
9 Use the trolley in a suitable work area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the trolley clean and tidy in accordance with good workshop practice.
8 do Not use the trolley for any purpose other than that for which it is designed.
8 do Not stand on the trolley, use it as a ladder or allow others to ride on the trolley.
9 Use the wheel locks to prevent the trolley from inadvertently moving.
8 do Not leave unattended, especially when loaded, unless the wheels are locked, chocked or the trolley otherwise secured.
8 do Not use trolley on uneven ground and do not run over curbs or steps - use a ramp.
8 do Not use trolley if any part is significantly damaged, paying particular attention to the wheels.
9 Keep children and unauthorised persons away from the work area.
2. INtroduCtIoN
Ideal for regularly used workshop items such as body repair kits, power tools and bulky equipment too big for a tool chest. Strong build quality
and extra large castors also make this an excellent dismantling trolley for smaller vehicle components.
3. speCIfICatIoN
Model No: ................................................................. CX105.v3 ................................................. CX108.v3
overall Size (W x d x H): .......................... 840 x 405 x 810mm ..................................840 x 405 x 810mm
Shelf Size (W x d x H): ............................... 790 x 400 x 80mm ....................................790 x 400 x 80mm
Capacity: ......................................................100kg (50kg/level) .................................... 150kg (50kg/level)

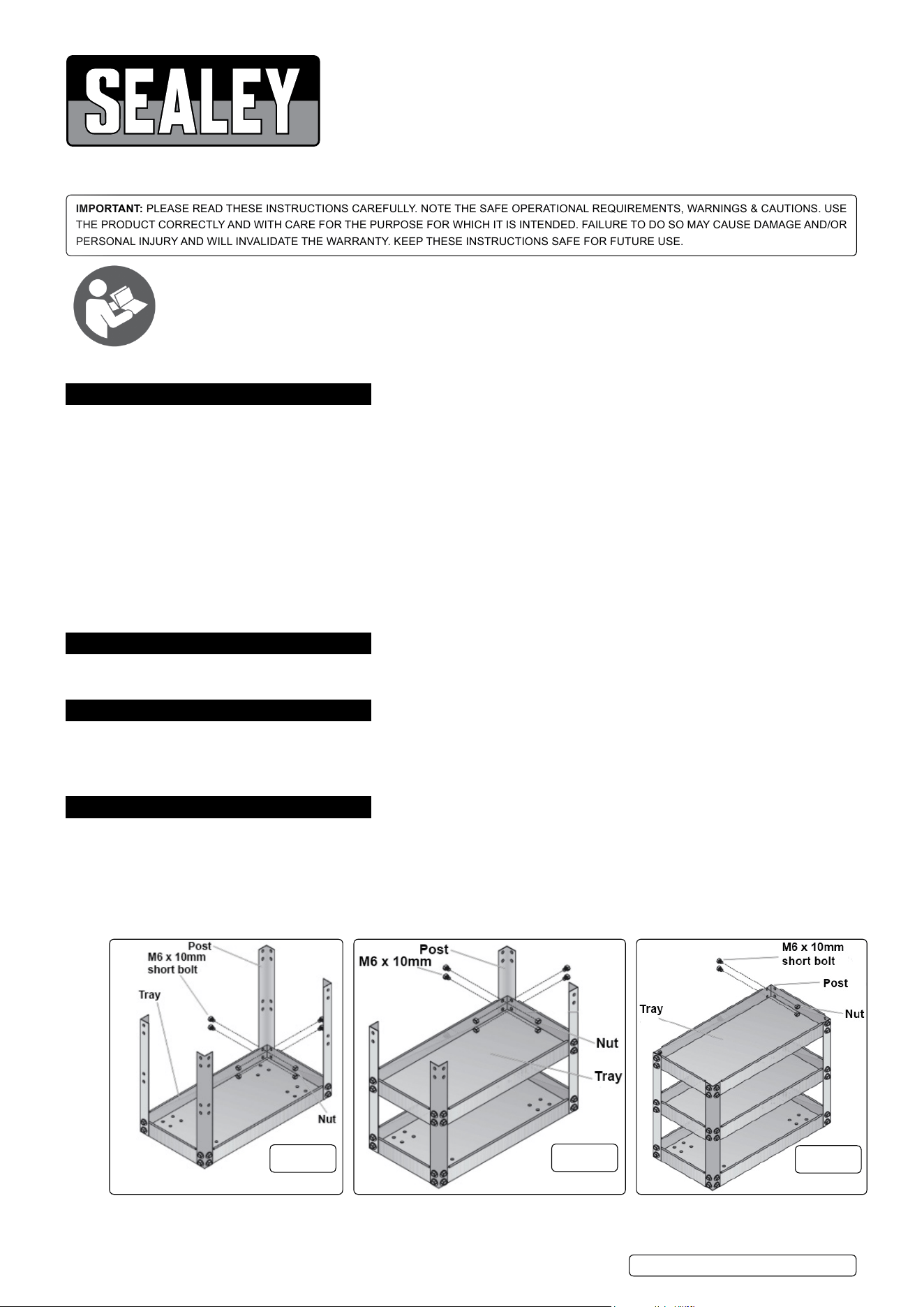

4. asseMbly
4.0.1. Attachpoststotrays(g.1)
4.0.2. Layonetray(theonewiththefoursetsofcastorholesonthebottom)ontheoorandattachpoststotheoutsidecornersofthe
tray using 32 x M6 short bolt and nut sets.
4.0.3. This step is NOT applicable for CX105.V3 go to g.3. Attach the other tray to the inside top of the posts using 32 x M6 short bolt
andnutsets(g.2).
4.0.4. Put the trolley on its side and work on two posts at a time,for ease of assembly.
4.0.5. Attach the last tray to the inside top of the posts using 32 x M6 short bolt and nut sets.
4.0.6. The two holes on one end of this top tray are reserved for attaching the tubular steel handle using 2 x M5 long bolt and nuts.
4.0.7. Set the trolley on its side and work on two posts at a time for ease of assembly.
CX105.V3 CX108.V3 Issue 3 10/08/18
Original Language Version
© Jack Sealey limited
Refer to
instructions
g.1
g.2
g.3
4.0.8. Bolt the castors to the trolley using 16 x M8 x 10mm wheel bolt and nut sets.
4.0.9. The braked castor needs to be at the handle end.
4.0.10. Checkallxingsaretightbeforeuse.
5. MaINteNaNCe
5.1. oil the castors periodically with a light oil. Clean with a damp cloth. do Not use solvent based cleaners.
sealey Group, kempson way, suffolk business park, bury st edmunds, suffolk. Ip32 7ar
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
eNvIroNMeNt proteCtIoN
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: no liability is accepted for incorrect use of this product.
warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
