VIDEO
GND (Black)
(White)
(Blue)
(Red)
+12V (Red)
LED On/O
Parking Lines On/O
Mirror Image On/O

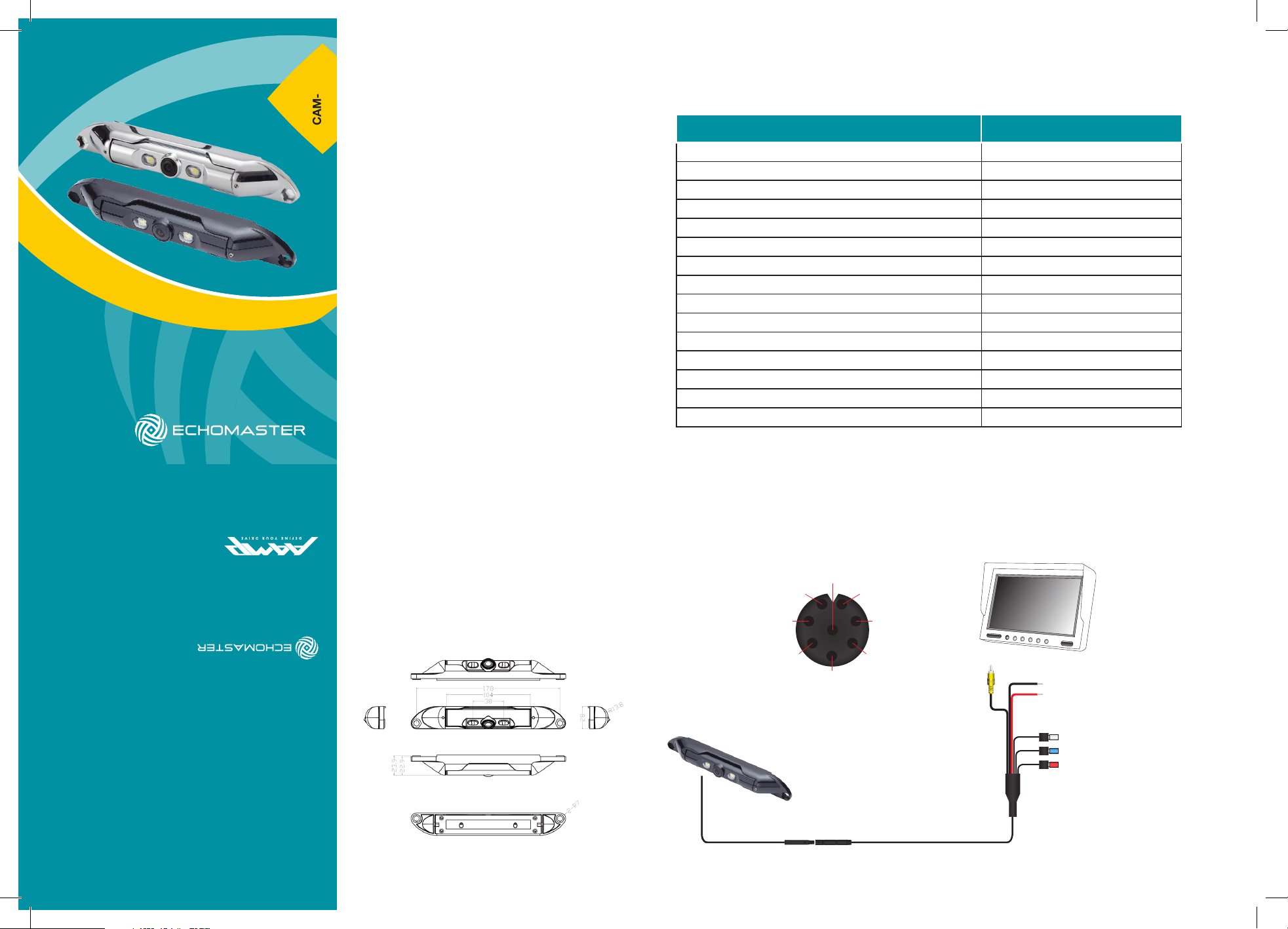

User Manual
License Plate Mount
Reversing Camera
CAM-LB1
Introduction
Key Features
u 1/4” CMOS Sensor
u Operates at 0.1 LUX
u 2 LEDs
u IP67 Rated
u 170° Viewing Angle
u Selectable Image (mirrored / non-mirrored)
Box Contents
Wiring Diagram & Pin Out
Specications
Dimensions
CAM-LB1B-N / CAM-LB1C-N
Sensor ¼” CMOS
LEDs 2
Illumination 0.1 LUX
Viewing Angle 170 degrees
Mirror Image YES
Normal Image YES
Water/Debris-Proof IP67
Audio NO
Power Supply 7-12V DC
Current <70mA
Working Temperature -20ºC - +50ºC
Dimensions (mm) D (24) x W (180) x H (28)
System NTSC
TV Lines 480
Resolution (HxV) 648 x 488
u Camera
u Manual
u Wiring Harness
u Mounting Hardware
Thank you for purchasing your EchoMaster
automotive camera.
The following part numbers are supported:
u CAM-LB1B-N u CAM-LB1C-N
EchoMaster cameras are designed to improve safety during
driving by providing high quality images of surrounding areas
and obstacles in the vicinity of the vehicle. They will also
improve vehicle maneuvering capability by displaying blind
spots not normally visible to the driver.
Please ensure you read and understand all aspects of this
manual before tting or using your EchoMaster Camera.
Choose a suitable mounting place dependent on the
application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
Mirror
N/C
Parking
Lines
Shield
LED
+12V
GND
Video
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
email - [email protected] (US)
email - [email protected] (Europe)
