USER GUIDE
4-Burner
Electric Range
NS-RGRCESS4
183D6379P119
www.insigniaproducts.com
2
Contents
IMPORTANT SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Using the radiant surface units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
About the radiant surface units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Temperature limiter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Selecting types of cookware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Stainless steel: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Aluminum: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Copper bottom:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Porcelain enamel-covered cast iron: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Glass-ceramic: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Stoneware: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Home canning tips: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Surface cookware tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Wok cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using the surface units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
How to set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Indicator lights (on radiant glass models only) . . . . . . . . . . . . . . . . . . . . . .13
Using the oven controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Oven control, clock and timer features and settings . . . . . . . . . . . . . . . . .14
Using the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Preheating and pan placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Aluminum foil and oven liners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
How to set the oven for broiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Broiling guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Using the clock and timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
To set the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
To turn off the clock display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
To set the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
To reset the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
To cancel the timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
End of cycle tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Power outage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Special features of your oven control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
12 Hour shut-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Using the Sabbath feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
How to set for regular baking/roasting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
How to exit the Sabbath feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Adjust the oven thermostat? Easy to do yourself! . . . . . . . . . . . . . . . . . . . . . . .24
The type of margarine will affect baking performance! . . . . . . . . . . . . . . . . .24
Care and cleaning of the range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
3
4-Burner Electric Range
www.insigniaproducts.com
Cleaning the oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Lift-off oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Oven heating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Oven racks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Oven light replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Storage drawer removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Porcelain enamel cooktop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Painted surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Stainless steel surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Glass window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Cleaning the glass cooktop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Normal daily use cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Burned-on residue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Heavy, burned-on residue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Metal marks and scratches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Cooktop seal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Glass surface – potential for permanent damage. . . . . . . . . . . . . . . . . . . . . . .33
Damage from sugary spills and melted plastic . . . . . . . . . . . . . . . . . . . . . .33
Before you call for service.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
4
www.insigniaproducts.com
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
Read all safety instructions before using the product and save
these instructions. Failure to follow these instructions may result in fire, electrical
shock, serious injury or death.
Anti-Tip Device
To reduce the risk of tipping the range, the range must be secured by a properly
installed anti-tip bracket. See installation instructions shipped with the bracket
for complete details before attempting to install.
For Free-Standing and Slide-In Ranges
To check if the bracket is installed and engaged properly, look underneath the
range to see that the rear leveling leg is engaged in the bracket. The storage
drawer or kick panel can be removed for easy inspection. If visual inspection is
not possible, slide the range forward, confirm the anti-tip bracket is securely
attached to the floor or wall, then slide the range back so the rear leveling leg is
under the anti-tip bracket.
If the range is pulled from the wall for any reason, always repeat this procedure
to verify the range is properly secured by the anti-tip bracket.
Never completely remove the leveling legs or the range will not be secured to
the anti-tip device properly.
WARNING
Tip Over Hazard
• A child or adult can tip the range and be killed.
• Install the anti-tip bracket provided with the unit to the wall or floor.
• Engage the range to the anti-tip bracket by sliding the range back such
that the foot is engaged.
• Re-engage the anti-tip bracket if the range is moved.
• Failure to do so can result in death or serious burns to children or adults.
WARNING
Anti-tip bracket
Leveling leg
5
4-Burner Electric Range
www.insigniaproducts.com
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
General Safety Instructions
• Use this appliance only for its intended purpose as described in this Owner’s
Manual.
• FIRE HAZARD: Never leave the range unattended with the cooktop ON.
Keep flammable items away from the cooktop. Turn off all controls when
done cooking. Failure to follow these instructions can result in fire, serious
injury or death.
• Be sure your appliance is properly installed and grounded by a qualified
installer in accordance with the provided installation instructions.
• Do not attempt to repair or replace any part of your range unless it is
specifically recommended in this manual. All other servicing should be
transferred to a qualified technician.
• Before performing any service, unplug the range or disconnect the power
supply at the household distribution panel by removing the fuse or
switching off the circuit breaker.
• Do not leave children alone—children should not be left alone or
unattended in an area where an appliance is in use. They should never be
allowed to climb, sit or stand on any part of the appliance.
• Do not store items of interest to children above a range or
on the backguard of a range—children climbing on the range to reach items
could be seriously injured.
• Use only dry pot holders—moist or damp pot holders on hot surfaces may
result in burns from steam. Do not let pot holders touch hot surface units or
heating elements. Do not use a towel or other bulky cloth in place of pot
holders.
• Never use your appliance for warming or heating the room.
• Do not touch the surface units, the heating elements or the interior surface
of the oven. These surfaces may be hot enough to burn even though they are
dark in color. During and after use, do not touch, or let clothing or other
flammable materials contact the surface units, areas nearby the surface units
or any interior area of the oven; allow sufficient time for cooling first. Other
surfaces of the appliance may become hot enough to cause burns.
Potentially hot surfaces include the cooktop, areas facing the cooktop, oven
vent opening, surfaces near the opening and crevices around the oven door.
• Do not heat unopened food containers. Pressure could build up and the
container could burst, causing an injury.
• Do not use any type of foil or liner to cover the oven bottom or anywhere in
the oven, except as described in this manual. Oven liners can trap heat or
melt, resulting in damage to the product and risk of shock, smoke or fire.
WARNING
CAUTION
6
www.insigniaproducts.com
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
• Avoid scratching or impacting glass doors, cook tops or control panels.
Doing so may lead to glass breakage. Do not cook on a product with broken
glass. Shock, fire or cuts may occur.
• Cook food thoroughly to help protect against foodborne illness. Minimum
safe food temperature recommendations are provided by the USDA and
FDA. Use a food thermometer to take food temperatures and check several
locations.
KEEP FLAMMABLE MATERIALS AWAY FROM THE RANGE
Failure to do so may result in fire or personal injury.
• Do not store or use flammable materials in an oven or near the cooktop,
including paper, plastic, pot holders, linens, wall coverings, curtains, drapes
and gasoline or other flammable vapors and liquids.
• Never wear loose-fitting or hanging garments while using the appliance.
These garments may ignite if they contact hot surfaces causing severe burns.
• Do not let cooking grease or other flammable materials accumulate in or
near the range. Grease in the oven or on the cooktop may ignite.
• Clean ventilating hoods frequently. Grease should not be allowed to
accumulate on the hood or filter.
IN THE EVENT OF A FIRE, TAKE THE FOLLOWING STEPS
TO PREVENT INJURY AND FIRE SPREADING
• Do not use water on grease fires. Never pick up a flaming pan. Turn the
controls off. Smother a flaming pan on a surface unit by covering the pan
completely with a well-fitting lid, cookie sheet or flat tray. Use a
multi-purpose dry chemical or foam-type fire extinguisher.
• If there is a fire in the oven during baking, smother the fire by closing the
oven door and turning the oven off or by using a multi-purpose dry chemical
or foam-type fire extinguisher.
• If there is a fire in the oven, turn the oven off and wait for the fire to go out.
Do not force the door open. Introduction of fresh air may lead to a burst of
flame from the oven. Failure to follow this instruction may result in severe
burns.
COOKTOP SAFETY INSTRUCTIONS
• Never leave the surface units unattended with the cooktop ON. Boilovers
cause smoking and greasy spillovers that may catch on fire.
• Always be present at the range when cooking with oil or grease. Surface
cooking is an "attended" activity.
• Never leave oil unattended while frying. If allowed to heat beyond its
smoking point, oil may ignite resulting in fire that may spread to surrounding
cabinets. Use a deep fat thermometer whenever possible to monitor oil
temperature.
WARNING
WARNING
WARNING
7
4-Burner Electric Range
www.insigniaproducts.com
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
• To avoid oil spillover and fire, use a minimum amount of oil when shallow
pan-frying and avoid cooking frozen foods with excessive amounts of ice.
• Use proper pan size—select cookware having flat bottoms large enough to
cover the surface heating element. The use of undersized cookware will
expose a portion of the surface unit to direct contact and may result in
ignition of clothing. Proper relationship of cookware to surface unit will also
improve efficiency.
• Only certain types of glass, glass/ceramic, earthenware or other glazed
containers are suitable for cooktop service; others may break because of the
sudden change in temperature.
• To minimize the possibility of burns, ignition of flammable materials and
spillage, the handle of a container should be turned toward the center of the
range without extending over nearby surface units.
• When preparing flaming foods under a hood, turn the fan on.
• If power is lost to an electric cooktop while a surface unit is ON, the surface
unit will turn back on as soon as power is restored. In the event of power loss,
failure to turn all surface unit knobs to the OFF position may result in ignition
of items on or near the cooktop, leading to serious injury or death.
RADIANT COOKTOP SAFETY INSTRUCTIONS
• Use care when touching the cooktop. The glass surface of the cooktop will
retain heat after the controls have been turned off.
• Do not cook on a broken cooktop. If glass cooktop should break, cleaning
solutions and spillovers may penetrate the broken cooktop and create a risk
of electric shock. Contact a qualified technician immediately.
• Avoid scratching the glass cooktop. The cooktop can be scratched with items
such as knives, sharp instruments, rings or other jewelry, and rivets on
clothing.
• Do not place or store items that can melt or catch fire on the glass cooktop,
even when it is not being used. If the cooktop is inadvertently turned on,
they may ignite. Heat from the cooktop or oven vent after it is turned off may
cause them to ignite also.
• Use ceramic cooktop cleaner and a non-scratch cleaning pad to clean the
cooktop. Wait until the cooktop cools and the indicator light goes out before
cleaning. A wet sponge or cloth on a hot surface can cause steam burns.
Some cleaners can produce noxious fumes if applied to a hot surface.
NOTE: Sugar spills are an exception. They should be scraped off while still
hot using an oven mitt and a scraper. See the Cleaning the glass cooktop
section for detailed instructions.
• Read and follow all instructions and warnings on the cleaning cream label.
WARNING
8
www.insigniaproducts.com
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
OVEN SAFETY INSTRUCTIONS
• Stand away from the range when opening the oven door. Hot air or steam
which escapes can cause burns to hands, face and/or eyes.
• Do not use the oven if a heating element develops a glowing spot during use
or shows other signs of damage. A glowing spot indicates the heating
element may fail and present a potential burn, fire, or shock hazard. Turn the
oven off immediately and have the heating element replaced by a qualified
service technician.
• Keep the oven vent unobstructed.
• Keep the oven free from grease buildup. Grease in the oven may ignite.
• Place oven racks in desired location while oven is cool. If rack must be moved
while oven is hot, do not let pot holder contact hot heating element in oven.
• When using cooking or roasting bags in the oven, follow the manufacturer’s
directions.
• Pull the oven rack to the stop-lock position when loading and unloading
food from the oven. This helps prevent burns from touching hot surfaces of
the door and oven walls.
• Do not leave items such as paper, cooking utensils or food in the oven when
not in use. Items stored in an oven can ignite.
• Never place cooking utensils, pizza or baking stones, or any type of foil or
liner on the oven floor. These items can trap heat or melt, resulting in
damage to the product and risk of shock, smoke or fire.
WARNING
9
4-Burner Electric Range
www.insigniaproducts.com
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
FIRE HAZARD: Never leave the range unattended with
the cooktop ON. Keep flammable items away from the cooktop. Turn off all
controls when done cooking. Failure to follow these instructions can result in
fire, serious injury or death.
SAVE THESE INSTRUCTIONS
Using the radiant surface units
About the radiant surface units
The radiant cooktop features heating units beneath a smooth glass surface.
Cooktop temperatures increase with the number of surface units that are on.
With 3 or 4 units turned on, surface temperatures are high. Always use caution
when touching the cooktop. An indicator light will come on when the surface
unit is turned on. The appropriate HOT surface indicator light will glow when its
corresponding radiant element is turned on and will remain on until the surface
has cooled below 65.5°C (150°F).
It is safe to place hot cookware from the oven or surface on the glass cooktop
when the surface is cool.
Note: A slight odor is normal when a new cooktop is used for the first time. It is caused
by the heating of new parts and insulating materials and will disappear in a short time.
Note: On cooktops, it is normal for the cooking zones to change color when hot or
cooling down. This is temporary and will disappear as the glass cools to room
temperature.

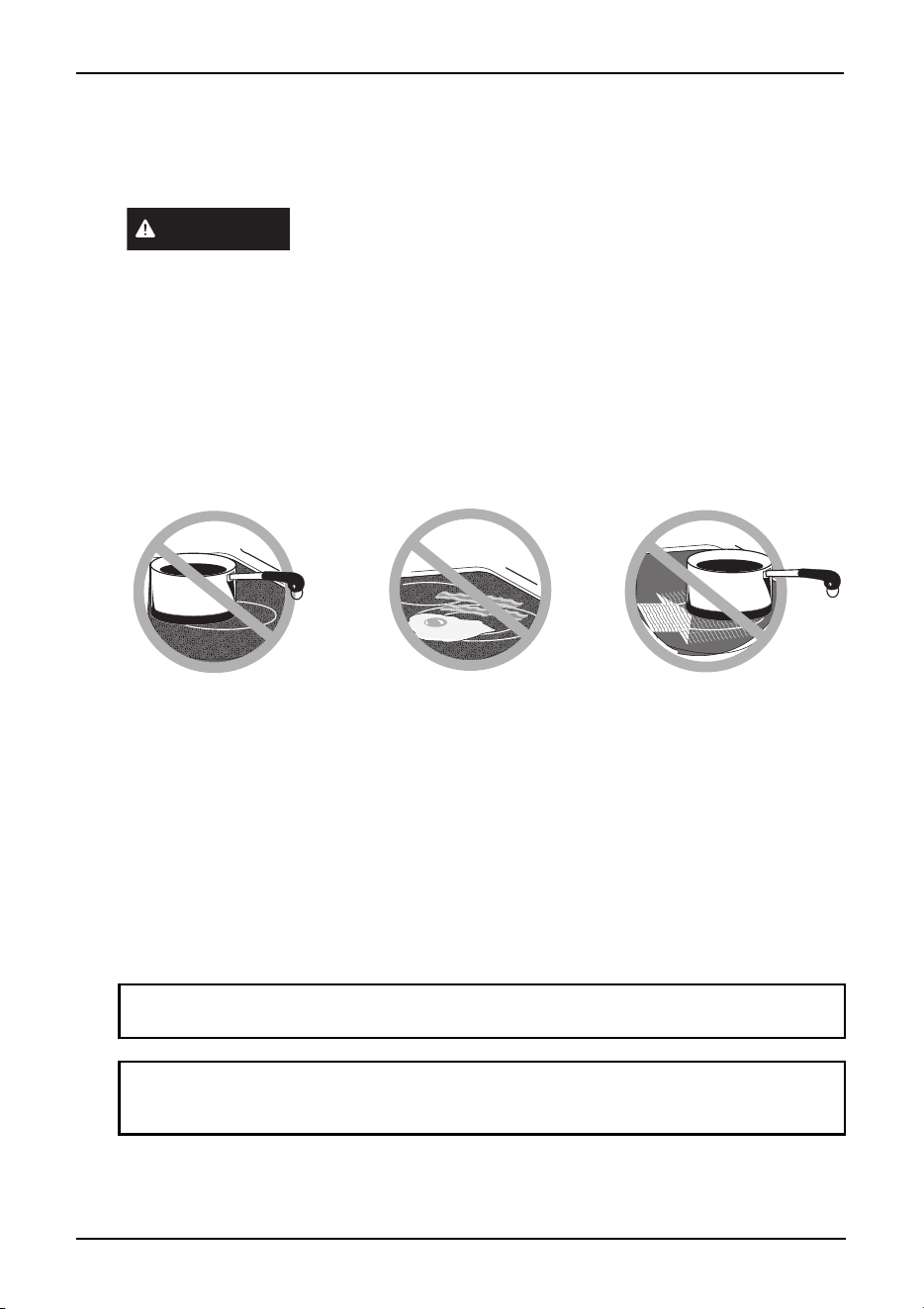

WARNING
Never cook directly on the
glass. Always use cookware.
Always place the pan in the center of
the surface unit you are cooking on.
Do not slide cookware across the
control or cooktop surface
because it can scratch the glass.
The glass is scratch-resistant,
not scratch proof.
10
www.insigniaproducts.com
Even after the surface units are turned off, the glass cooktop retains enough
heat to continue cooking. To avoid overcooking, remove pans from the surface
units when the food is cooked. Avoid placing anything on the surface unit until
it has cooled completely.
• Water stains (mineral deposits) are removable using the cleaning cream.
• Use of window cleaner may leave an iridescent film on the cooktop. The
cleaning cream will remove this discoloration.
• Don’t store heavy items above the cooktop. If they drop onto the cooktop,
they can cause damage.
• Do not use the surface as a cutting board.
Temperature limiter
Every radiant surface unit has a temperature limiter.
The temperature limiter protects the glass cooktop from getting too hot.
The temperature limiter may cycle the units for a time if:
• The pan boils dry.
• The pan bottom is not flat.
• The pan is off center.
• There is no pan on the unit.
Selecting types of cookware
The following information will help you choose cookware which will give good
performance on glass cooktops.
Check pans for flat bottoms
by using a straight edge.
11
4-Burner Electric Range
www.insigniaproducts.com
Stainless steel:
Recommended
Aluminum:
Heavy weight recommended
Good conductivity. Aluminum residues sometimes appear as scratches on the
cooktop, but can be removed if cleaned immediately. Because of its low melting
point, thin-weight aluminum should not be used.
Copper bottom:
Recommended
Copper may leave residues which can appear as scratches. The residues can be
removed, as long as the cooktop is cleaned immediately. However, do not let
these pots boil dry. Overheated metal can bond to glass cooktops. An
overheated copper bottom pot will leave a residue that will permanently stain
the cooktop if not removed immediately.
Porcelain enamel-covered cast iron:
Recommended
As long as the cookware is covered completely with porcelain enamel, this
cookware is recommended. Caution is recommended for cast-iron cookware
that is not completely covered with smooth porcelain enamel, as it may scratch
the glass-ceramic cooktop.
Glass-ceramic:
Usable, but not recommended
Poor performance. May scratch the surface.
Stoneware:
Usable, but not recommended
Poor performance. May scratch the surface.
Home canning tips:
Be sure the canner is centered over the surface unit.
Make sure the canner is flat on the bottom.
Use recipes and procedures from reputable sources. These are available from
manufacturers such as Ball
®
and Kerr
®
and the Department of Agriculture
Extension Service.
To prevent burns from steam or heat, use caution when canning.
12
www.insigniaproducts.com
Surface cookware tips
The following information will help you choose cookware which will give good
performance on coil cooktops.
Use medium- or heavy-weight cookware. Aluminum cookware conducts heat
faster than other metals. Cast-iron and coated cast-iron cookware are slow to
absorb heat, but generally cook evenly at low to medium heat settings. Steel
pans may cook unevenly if not combined with other metals. For best cooking
results, pans should be flat on the bottom. Match the size of the saucepan to the
size of the surface unit. The pan should not extend over the edge of the surface
unit more than 2.5 cm (1 inch).
Wok cooking
We recommend that you use only a flat-bottomed wok. They are available at
your local retail store.
Do not use woks that have support rings. Use of these types of woks, with or
without the ring in place, can be dangerous.
Placing the ring over the surface unit will cause a buildup of heat that will
damage the porcelain cooktop. Do not try to use such woks without the ring.
You could be seriously burned if the wok tips over.
1”
Not over 1 inch
13
4-Burner Electric Range
www.insigniaproducts.com

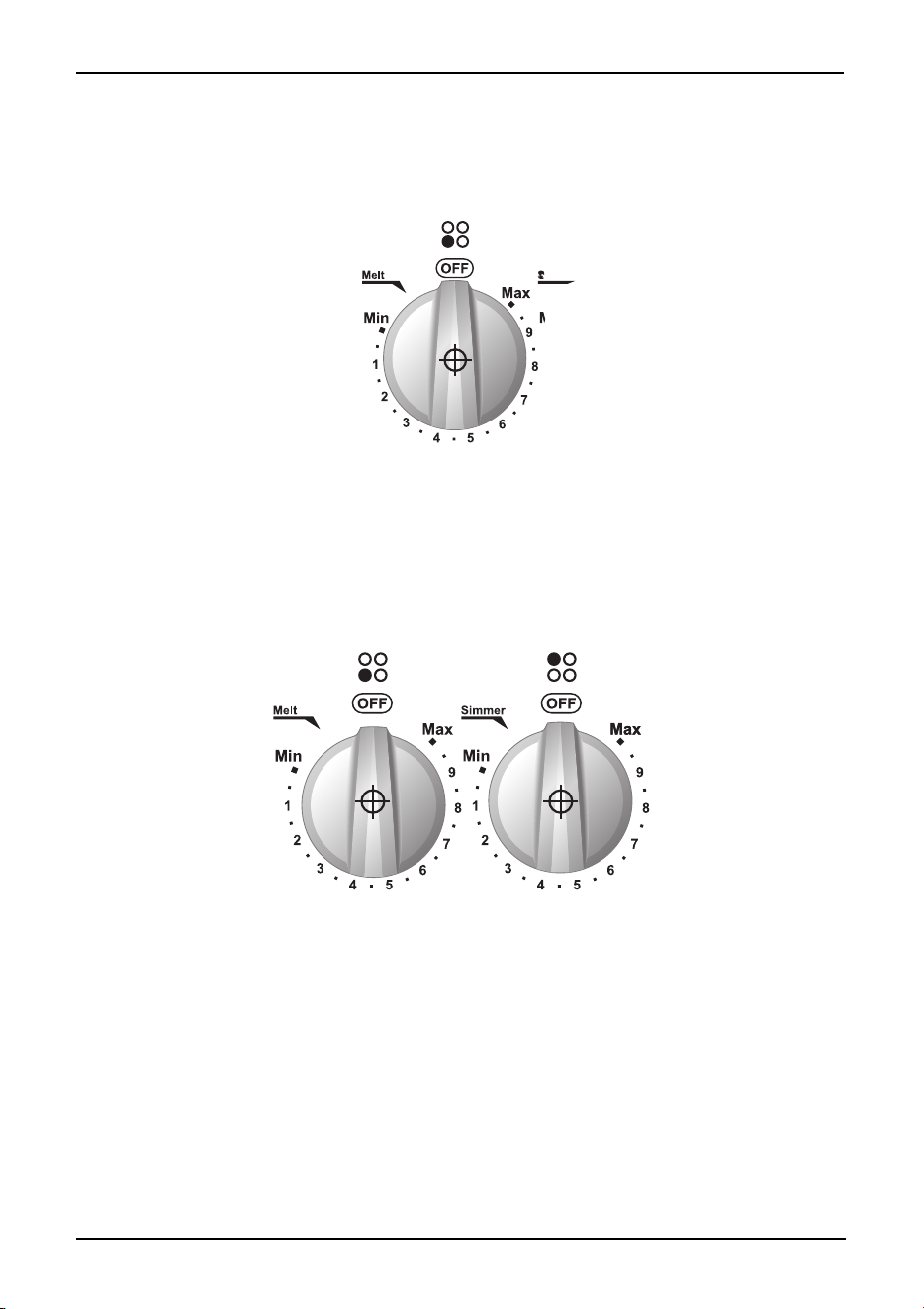

Using the surface units
How to set
Push the knob in and turn in either direction to the setting you want.
At both OFF and Max the control clicks into position. You may hear slight
clicking sounds during cooking, indicating the control is keeping the power
level you set.
Indicator lights (on radiant glass models only)
A Hot indicator light will glow when any radiant element is turned on, and will
remain on until the surface is cool enough to touch.
A Burner On indicator light will glow when any surface unit is on.
14
www.insigniaproducts.com

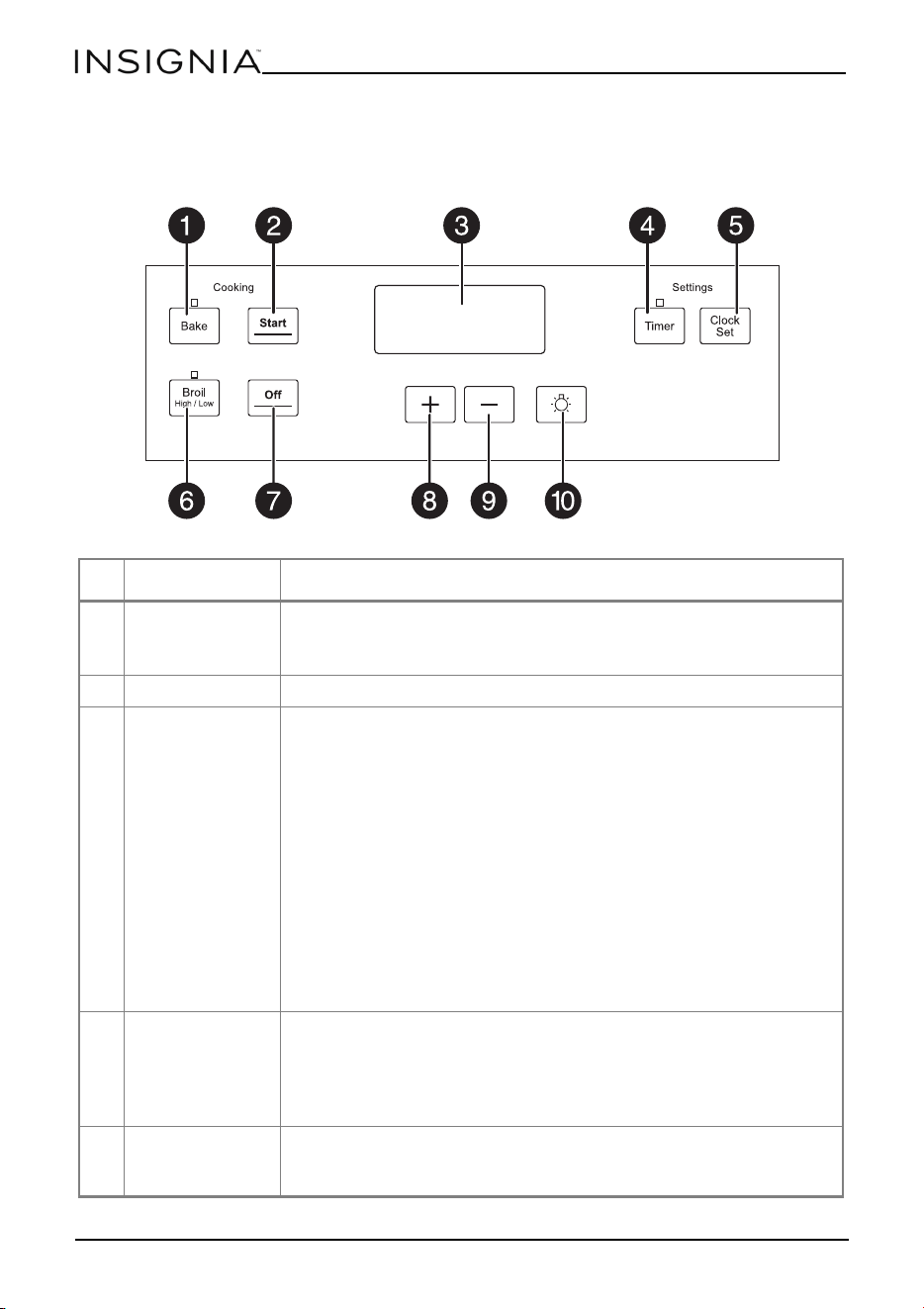

Using the oven controls
Oven control, clock and timer features and settings
#ITEM FUNCTION
1 Bake pad Touch this pad to select the bake function.
Flashes while in edit mode–you can change the oven temperature
at this point. Glows when the oven is in bake mode.
2 Start Pad Must be touched to start any cooking or cleaning function.
3 Display Shows the time of day, oven temperature, whether the oven is in
the bake or broil mode and the times set for the timer or automatic
oven operations. The display will show PRE while preheating. When
the oven reaches the selected temperature, the oven control will
beep and the display will show the oven temperature.
If “F– and a number or letter” flash in the display and the oven
control signals, this indicates a function error code.
If your oven was set for a timed oven operation and a power outage
occurred, the clock and all programmed functions must be reset.
The time of day will flash in the display when there has been a
power outage. Reset the clock.
Touch the OFF pad. Allow the oven to cool for one hour. Put the
oven back into operation. If the function error code repeats,
disconnect the power to the range and call for service.
4 Timer Pad Touch this pad to select the timer feature. Then touch the + and –
pads to adjust the timer.
Flashes while in edit mode–you can change the set time at this
point. Glows when the timer has been activated. Flashes again
when the time has run out until the control is reset.
5 Clock Set Pad To set the clock, press this pad twice and then press the + and –
pads. The time of day will flash in the display when the oven is first
turned on.
1
15
4-Burner Electric Range
www.insigniaproducts.com
Temperature conversions
Power outage
If a flashing time is in the display, you have experienced a power failure. Reset
the clock.
To reset the clock, touch the CLOCK pad. Enter the correct time of day by
touching the + or – pads. Touch the START/ON pad.
Using the oven
Before you begin…
The racks have stops, so that when placed correctly on the supports, they will stop
before coming completely out, and will not tilt.
6 Broil High/Low
Pad
Touch this pad to select the broil function.
Flashes while in edit mode–you can switch from HI to LO BROIL at
this point. Glows when the oven is in broil mode.
7 Off Pad Touch this pad to cancel ALL oven operations except the clock and
timer.
8 + Pad Short taps to this pad will increase the time or temperature by
small amounts. Touch and hold the pad to increase the time or
temperature by larger amounts.
9 – Pad Short taps to this pad will decrease the time or temperature by
small amounts. Touch and hold the pad to decrease the time or
temperature by larger amounts.
10 Oven light Pad Touch this pad to turn the oven light on or off.
°F 140 150 170 200 250 275 300 325 350 375 400 425 450 475 500 525 550
°C 60 65 75 95 120 135 150 160 175 190 205 220 230 245 260 275 290
#ITEM FUNCTION
E
C
D
B
A
R

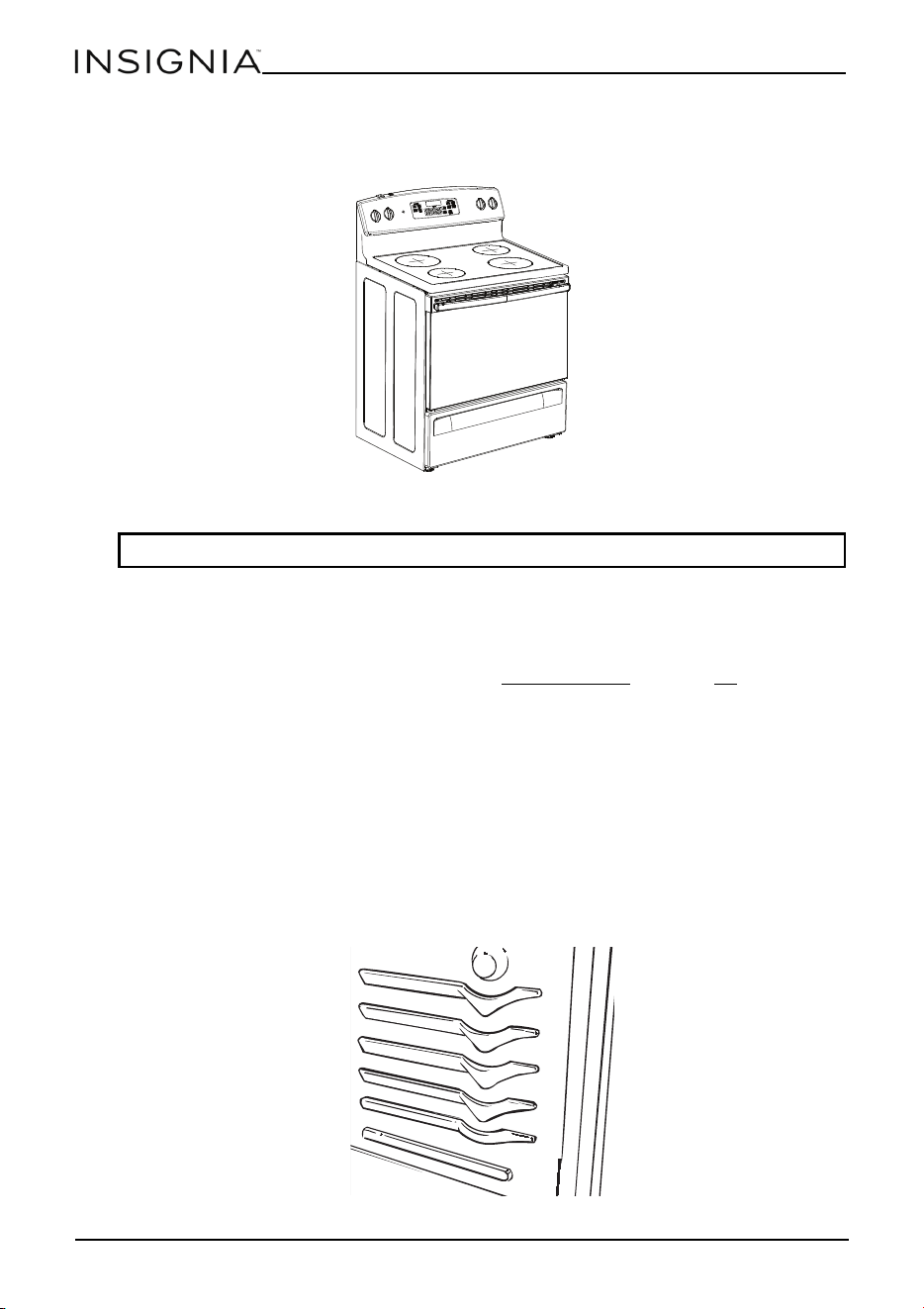

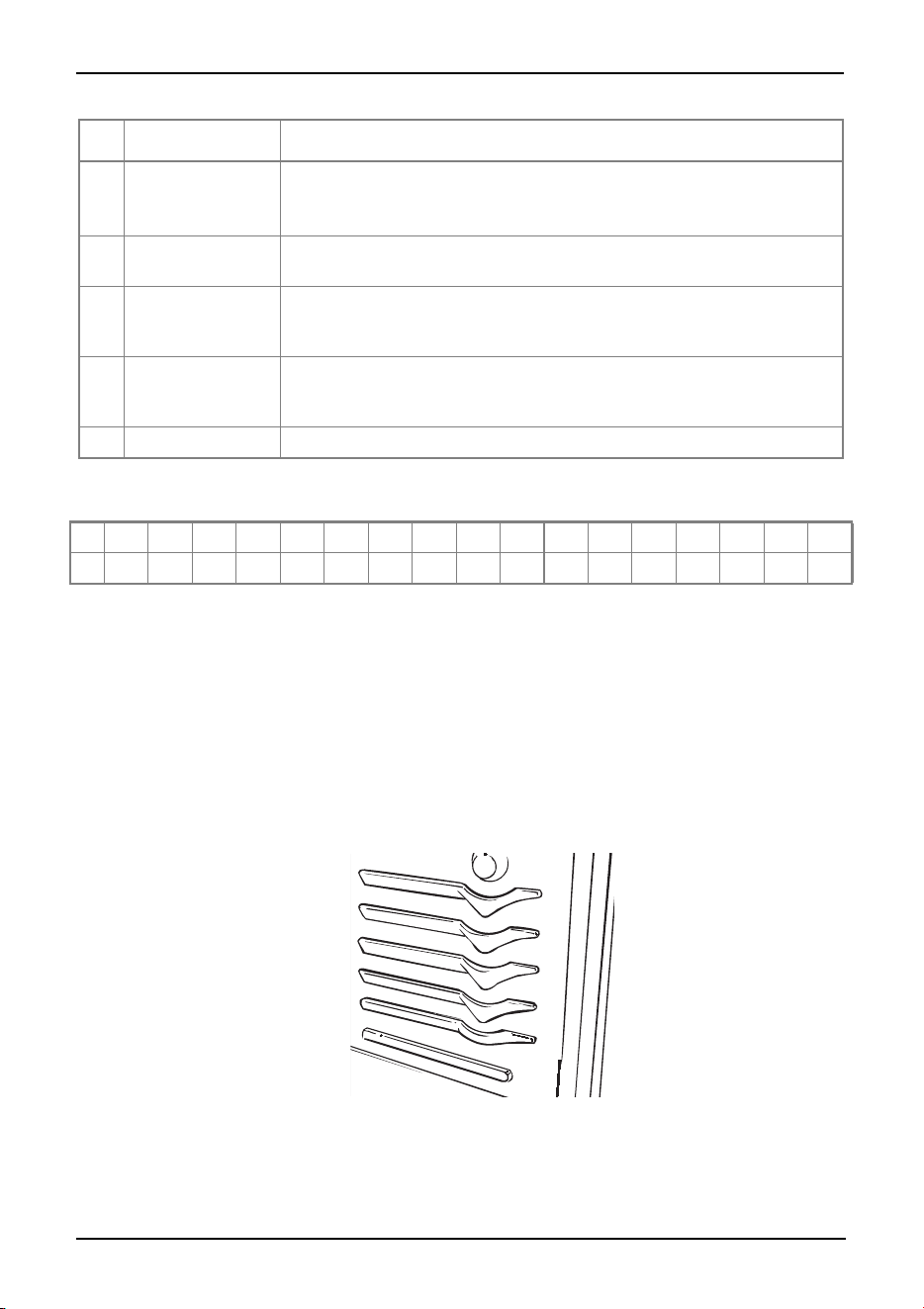

The oven has 5 rack positions. It also has a
special lower rack position (R) for extra large
items, such as a large turkey.
16
www.insigniaproducts.com
When placing and removing cookware, pull the rack out until it stops.
To remove a rack, pull it toward you, tilt the front end up and pull it out.
To replace, place the end of the rack (stop-locks) on the support, tilt up the front
and push the rack in.
When you are using a rack in the lowest position (R), you will need to use caution
when pulling the rack out. We recommend that you pull the rack out several
inches and then, using two pot holders, pull the rack out by holding the sides of
it. The rack is low and you could be burned if you place your hand in the middle
of the rack and pull all the way out.
Be very careful not to burn your hand on the door when using the rack in the
lowest position (R).
How to set the oven for baking or roasting
1 Touch the BAKE pad.
2 Touch the + or – pads until the desired temperature is displayed.
3 Touch the START/ON pad.
The oven will start automatically. The display will show “PRE” while
preheating. When the oven reaches the selected temperature, the oven
control will beep and the display will show the oven temperature.
To change the oven temperature during BAKE cycle, touch the BAKE pad and
then the + or – pads to get the new temperature.
4 Check food for doneness at minimum time on recipe. Cook longer if
necessary.
5 Touch the OFF pad when baking is finished and then remove the food from
the oven.

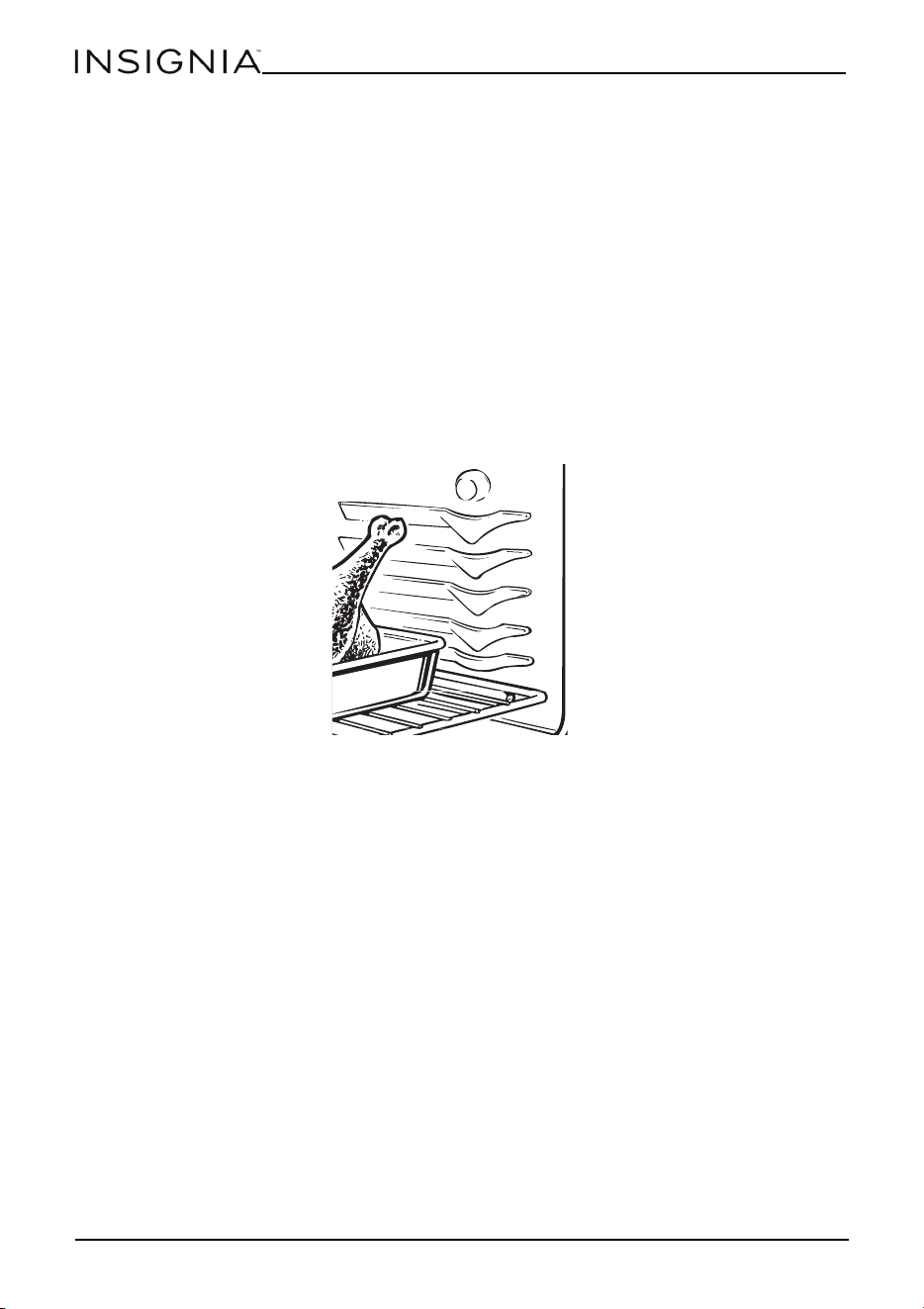

The oven has a special lower rack (R) position
just above the oven bottom. Use it when
extra cooking space is needed, for example,
when cooking a large turkey. The rack is not
designed to slide out at this position.
E
C
D
B
A
R
17
4-Burner Electric Range
www.insigniaproducts.com
Preheating and pan placement
Preheat the oven if the recipe calls for it. To preheat, set the oven at the correct
temperature. Preheating is necessary for good results when baking cakes,
cookies, pastry and breads.
The control will beep when the oven is preheated and the display will show your
set temperature. This will take approximately 15–20 minutes.
Baking results will be better if baking pans are centered in the oven as much as
possible. If baking with more than one pan, place the pans so each has at least
1" to 1½” of air space around it.
Aluminum foil and oven liners
Do not use any type of foil or oven liner to cover the oven
bottom. These items can trap heat or melt, resulting in damage to the
product and risk of shock, smoke or fire. Damage from improper use of
these items is not covered by the product warranty.
Foil may be used to catch spills by placing a sheet on a lower rack, several inches
below the food. Do not use more foil than necessary and never entirely cover an
oven rack with aluminum foil. Keep foil at least 1-1/2” from oven walls to prevent
poor heat circulation.
TYPE OF FOOD RACK POSITION
Frozen pies (on cookie sheet) C
Angel food cake, bundt or pound cakes B
Biscuits, muffins, brownies, cookies,
cup cakes, layer cakes, pies
B or C
Casseroles B or C
Turkey R or A
Roasting R, A or B
CAUTION
18
www.insigniaproducts.com
How to set the oven for broiling
Use LO Broil to cook foods such as poultry or thick cuts of meat thoroughly
without overbrowning them.
1 Place the meat or fish on a broiler grid in a broiler pan designed for broiling.
2 Follow suggested rack positions in the Broiling guide
on page 18.
3 Touch the BROIL HI/LO pad once for HI Broil.
To change to LO Broil, touch the BROIL HI/LO pad again.
4 Touch the START pad.
5 When broiling is finished, touch the CLEAR/OFF pad.
Broiling guide
The size, weight, thickness, starting temperature and your preference of
doneness will affect broiling times. This guide is based on meats at refrigerator
temperature.
Note: Close the door before start any broiling function.
E
C
D
B
A
R
The oven has 5 rack positions.
19
4-Burner Electric Range
www.insigniaproducts.com
FOOD
QUANTITY
AND/OR
THICKNESS
RACK*
POSITION
FIRST SIDE
TIME (MIN.)
SECOND
SIDE TIME
(MIN.)
COMMENTS
Ground
beef
454 g (1 lb.) (4
patties)
1.25 to 1.9 cm (1⁄2 to
3⁄4”) thick
1.8 kg (4 lbs.) (16
patties)
C
C
10
15
7-10
11
Space evenly.
Beef
Steaks
Rare †
Medium
Well Done
Rare
Medium
Well Done
1.9 to 2.5 cm (3⁄4 to
1”) thick
454 to 680 g (1 to
11⁄2 lbs.)
3.8 cm (11⁄2”) thick
900 g to 1.14 kg (2 to
21⁄2 lbs.)
C
D
D
C
D
D
6
8
10
10
15
20
4
6
7-10
8
10-12
20
Steaks less
than 1.9
cm(3⁄4”) thick
are difficult to
cook rare.
Slash fat
Chicken 1 whole cut up 900 g
to 1.14 kg (2 to 21⁄2
lbs.)
split lengthwise
Breast
B
B
25
25
25
15
Brush each
side with
melted butter.
Broil
skin-side-dow
n first.
Bakery
Product
Bread
(toast)
English
Muffin
2 to 4 slices
2 (split)
D
E
3
3-4
1
Space evenly.
Place English
muffins
cutside up and
brush with
butter if
desired.
Lobster
Tails
2-4 B 18-20 Do not turn
over.
Cut through
back of shell.
Spread open.
Brush with
melted butter
before broiling
and after half
of broiling
time.
Fish
Fillets
450 g (1 lb.) (0.6 to
1.25 cm
[1/4 to 1/2”] thick)
D 5 5 Handle and
turn very
carefully. Brush
with lemon
butter before
and during
cooking, if
desired.
20
www.insigniaproducts.com
*See illustration for description of rack positions.
Salmon
Steaks
Fillets
2 (2.5 cm [1”] thick)
2 (1.25 to 1.9 cm [1⁄2
to 3⁄4”] thick)
D
D
10
10
5 Turn carefully.
Do not turn
skin side
down.
Ham
Slices
(precooke
d)
1.25 cm (1⁄2”) thick
2.5 cm (1”) thick
C
C
6
8
6
8
Pork
Chops
Well Done
2 (1.25 cm [1⁄2”]
thick)
2 (2.5 cm [1”] thick)
about 454 g (1 lb.)
C
C
10
15
10
15
Slash fat
Lamb
Chops
Medium
Well Done
Medium
Well Done
2 (2.5 cm [1”] thick)
about
312 to 375 g (10 to
12 oz.)
2 (3.8 cm [11⁄2”]
thick)
about 454 g (1 lb.)
D
D
D
D
7
10
9
14
4
9
6
10
Slash fat
FOOD
QUANTITY
AND/OR
THICKNESS
RACK*
POSITION
FIRST SIDE
TIME (MIN.)
SECOND
SIDE TIME
(MIN.)
COMMENTS
21
4-Burner Electric Range
www.insigniaproducts.com
Using the clock and timer
To set the clock
The clock must be set to the correct time of day for the automatic oven timing
functions to work properly. The time of day cannot be changed during a timed
baking.
1 Touch the CLOCK pad twice.
2 Touch the + or – pads.
If the + or – pads are not touched within one minute after you touch the
CLOCK pad, the display reverts to the original setting.
If this happens, touch the CLOCK pad and reenter the time of day.
3 Touch the START/ON pad until the time of day shows in the display. This
enters the time and starts the clock.
To check the time of day when the display is showing other information,
simply touch the CLOCK pad. The time of day shows until another pad is
touched.
To turn off the clock display
If you have several clocks in your kitchen, you may wish to turn off the time of
day clock display on your range.
1 Touch the CLOCK pad once to turn off the time of day display. Although you
will not be able to see it, the clock maintains the correct time of day.
2 Touch the CLOCK pad again to recall the clock display.
To set the timer
The timer does not control oven operations. The maximum setting on the timer
is 9 hours and 59 minutes.
1 Touch the TIMER pad.
2 Touch the + or – pads until the amount of time you want shows in the
display.
The maximum time that can be displayed in minutes is 59. Times entered
more than 59 minutes will display in hours and minutes.
If you make a mistake, touch the TIMER pad and begin again.
3 Touch the START/ON pad. The time will start counting down, although the
display does not change until one minute has passed.
4 When the timer reaches :00, the control will beep 3 times followed by one
beep every 6 seconds until the TIMER pad is touched.
Note: The timer is a minute timer only. The OFF pad does not affect the timer.
22
www.insigniaproducts.com
To reset the timer
If the display is still showing the time remaining, you may change it by touching
the TIMER pad, then touch the + or – pads until the time you want appears in
the display.
If the remaining time is not in the display (clock is in the display), recall the
remaining time by touching the TIMER pad and then touching the + or – pads to
enter the new time you want.
To cancel the timer
•Touch the TIMER pad twice.
End of cycle tones
Clear the tones by pressing the pad of the function you are using.
Power outage
If a flashing time is in the display, you have experienced a power failure. Reset
the clock.
• To reset the clock, touch the CLOCK pad twice. Enter the correct time of day
by touching the + or – pads. Touch the START/ON pad.
Special features of your oven control
Your new touch pad control has additional features that you may choose to use.
The following are the features and how you may activate them.
The special feature modes can only be activated while the display is showing
the time of day. They remain in the control’s memory until the steps are
repeated.
When the display shows your choice, touch the START/ON pad. The special
features will remain in memory after a power failure.
12 Hour shut-off
With this feature, should you forget and leave the oven on, the control will
automatically turn off the oven after 12 hours during baking functions or after 3
hours during a broil function.
If you wish to turn OFF this feature, follow the steps below.
1 Touch the BAKE and BROIL pads at the same time for 3 seconds until the
display shows SF.
2 Touch the CLOCK pad. The display will show ON (12 hour shut-off). Touch
the CLOCK pad repeatedly until the display shows OFF (no shut-off ).
3 Touch the START/ON pad to activate the no shut-off and leave the control
set in this special features mode.
Note: The Sabbath feature and the Thermostat Adjustment feature are also Special
Features, but they are addressed separately in the following sections.
23
4-Burner Electric Range
www.insigniaproducts.com
Using the Sabbath feature
(Designed for use on the Jewish Sabbath and Holidays)
The Sabbath feature can be used for baking/roasting only. It cannot be used for
broiling.
How to set for regular baking/roasting
Make sure the clock shows the correct time of day and the oven is off.
1 Touch and hold both the BAKE and BROIL pads, at the same time, until the
display shows SF.
2 Tap the CLOCK pad until SAb appears in the display.
3 Touch the START/ON pad and will appear in the display.
4 Touch the BAKE pad. No signal will be given.
5 The preset starting temperature will automatically be set to 350°F (176.7°C).
Tap the + or - pads to increase or decrease the temperature in 25° F (13.9°C)
increments. The temperature can be set between 170° F (76.7°C) and 287.8°C
(550°F). No signal or temperature will be given.
6 Touch the START/ON pad.
7 After a random delay period of approximately 30 seconds to 1 minute,
will appear in the display indicating that the oven is baking/roasting. If
doesn’t appear in the display, start again at Step 4.
To adjust the oven temperature, touch the BAKE pad and tap the + or – pads
to increase or decrease the temperature in 25°F (13.9° C) increments. Touch
the START/ON pad.
How to exit the Sabbath feature
1 Touch the OFF pad.
2 If the oven is cooking, wait for a random delay period of approximately 30
seconds to 1 minute, until only is in the display.
3 Touch and hold both the BAKE and BROIL pads, at the same time, until the
display shows SF.
Note: The oven light comes on automatically when the door is opened and goes off
when the door is closed. The bulb may be removed. See Oven light replacement on
page 29. On models with a light switch on the control panel, the oven light may be
turned on and left on.
Note: To understand how the oven control works, practice using regular baking
(non-Sabbath) before entering Sabbath mode.
Note: The OFF pad is active during the Sabbath feature.
24
www.insigniaproducts.com
4 Tap the CLOCK pad until ON or OFF appears in the display. ON indicates that
the oven will automatically turn off after 12 hours. OFF indicates that the
oven will not automatically turn off. See 12 Hour shut-off
on page 22.
5 Touch the START/ON pad.
Adjust the oven thermostat? Easy to do yourself!
To adjust the thermostat
1 Touch the BAKE and BROIL pads at the same time for 2 seconds until the
display shows SF.
2 Touch the BAKE pad. A two-digit number shows in the display.
3 The oven temperature can be adjusted up to (+) 17.5°C (35°F) hotter or (–)
17.5°C (35°F) cooler.
Touch the + pad to increase the temperature in 0.5°C (1°F) increments.
Touch the – pad to decrease the temperature in 0.5°C (1°F) increments.
4 When you have made the adjustment, touch the START/ON pad to go back
to the time of day display. Use your oven as you would normally.
The type of margarine will affect baking performance!
Most recipes for baking have been developed using high fat products such as
butter or margarine (80% fat). If you decrease the fat, the recipe may not give
the same results as with a higher fat product.
Recipe failure can result if cakes, pies, pastries, cookies or candies are made with
low-fat spreads. The lower the fat content of a spread product, the more
noticeable these differences become.
Federal standards require products labeled “margarine” to contain at least 80%
fat by weight. Low-fat spreads, on the other hand, contain less fat and more
water. The high moisture content of these spreads affects the texture and flavor
of baked goods. For best results with your old favorite recipes, use margarine,
butter or stick spreads containing at least 70% vegetable oil.
Note: If a power outage occurred while the oven was in Sabbath, the oven will
automatically turn off and stay off even when the power returns. The oven control
must be reset.
Note: This adjustment will not affect the broiling temperatures. It will be retained in
memory after a power failure.
25
4-Burner Electric Range
www.insigniaproducts.com
Care and cleaning of the
range
Be sure that all controls are off and all surfaces are cool before cleaning any art
of the range.
Oven interior
With proper care, the porcelain enamel finish on the inside of the oven–top,
bottom, sides, back and inside of the door–will stay new-looking for years.
Let the range cool before cleaning.
We recommend that you wear rubber gloves when cleaning the range.
Soap and water will normally do the job. Heavy spattering or spillovers may
require cleaning with a mild abrasive cleaner.
Soap-filled scouring pads may also be used.
Do not allow food spills with a high sugar or acid content (such as milk,
tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface. They
may cause a dull spot even after cleaning.
If necessary, you may use an oven cleaner. Follow the package directions.
Do not spray oven cleaner on the electrical controls and switches because it
could cause a short circuit and result in sparking or fire.
Do not allow a film from the cleaner to build up on the temperature sensor–it
could cause the oven to heat improperly. (The sensor is located at the top of the
oven.) Carefully wipe the sensor clean after each oven cleaning, being careful
not to move the sensor as a change in its position could affect how the oven
bakes.
Do not spray any oven cleaner on the oven door, handles or any exterior surface
of the oven, cabinets or painted surfaces. The cleaner can damage these
surfaces.
If your range is removed for cleaning,
servicing or any reason, be sure the anti-tip device is
reengaged properly when the range is replaced. Failure to
take this precaution could result in tipping of the range
and can result in death or serious burns to children or
adults.
WARNING
26
www.insigniaproducts.com
Cleaning the oven door
To clean the inside of the door:
• The area outside the gasket and the door liner can be cleaned with a
soap-filled or plastic scouring pad, hot water and detergent. Rinse well with a
vinegar and water solution.
To clean the outside of the door:
• Use soap and water to thoroughly clean the top, sides and front of the oven
door. Rinse well. You may also use a glass cleaner to clean the glass on the
outside of the door. Do not let water drip into the vent openings.
• If any stain on the door vent trim is persistent, use a soft abrasive cleaner and
a sponge-scrubber for best results.
• Spillage of marinades, fruit juices, tomato sauces and basting materials
containing acids may cause discoloration and should be wiped up
immediately. When surface is cool, clean and rinse.
• Do not use oven cleaners, cleaning powders or harsh abrasives on the
outside of the door.
Lift-off oven door
The door is very heavy. Be careful when removing and lifting the door. Do
not lift door by the handle.
If improperly removed, oven door hinges may suddenly
open and can cause personal injury to appendages near the hinge. Follow
instructions below to avoid a risk of injury when removing and re-installing the
oven door.
The gasket is designed with a gap at the
bottom to allow for proper air circulation.
Do not rub or clean the door gasket-it has an
extremely low resistance to abrasion.
If you notice the gasket becoming worn,
frayed or damaged in any way or if it has
become displaced on the door, you should
have it replaced.
WARNING
27
4-Burner Electric Range
www.insigniaproducts.com
To remove the door:
1 Fully open the oven door.
2 With thumb and forefinger, pull the hinge lock on each hinge up to the
unlocked position.
3 Firmly grasp both sides of the door near the top.
4 Close door until the top of the door is approximately 3" from the range
frame.
5 Lift door up and away from the range until both hinge arms are clear of the
slots in the range frame.

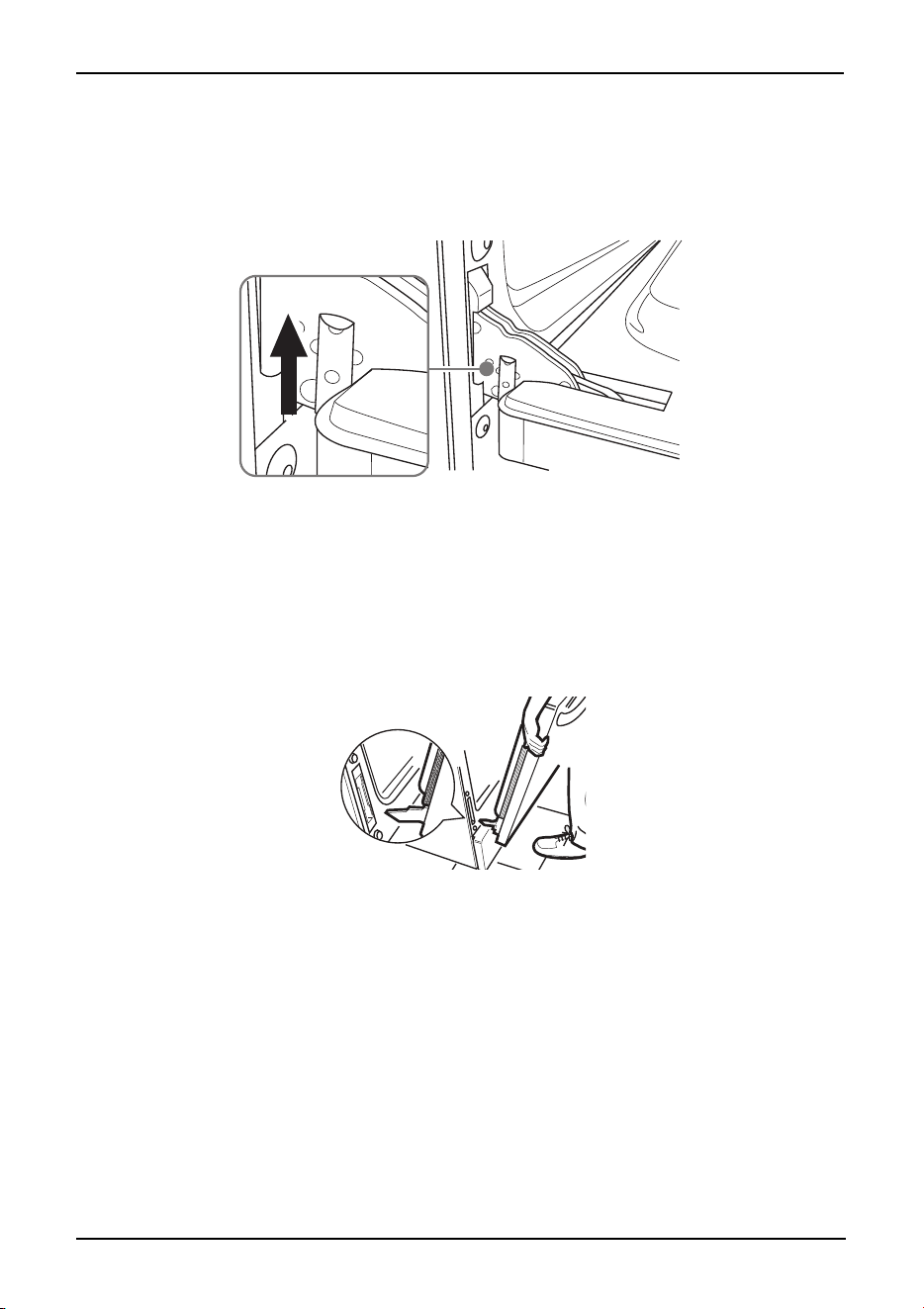

Pull hinge locks up to unlock
28
www.insigniaproducts.com
To replace the door:
1 Firmly grasp both sides of the door near the top.
2 With the door at the same angle as the bottom of the left hinge arm on the
bottom edge of the left hinge slot. The notch in the hinge arm must be fully
seated onto the bottom of the slot. Repeat for the right side.
3 Fully open the door. If the door will not fully open, the notches in the
bottoms of the hinge arms are not seated correctly onto the bottom edge of
the slot. Lift the door off the range and repeat Step 2.
4 Push the hinge locks down to the locked position.
5 Close the oven door.

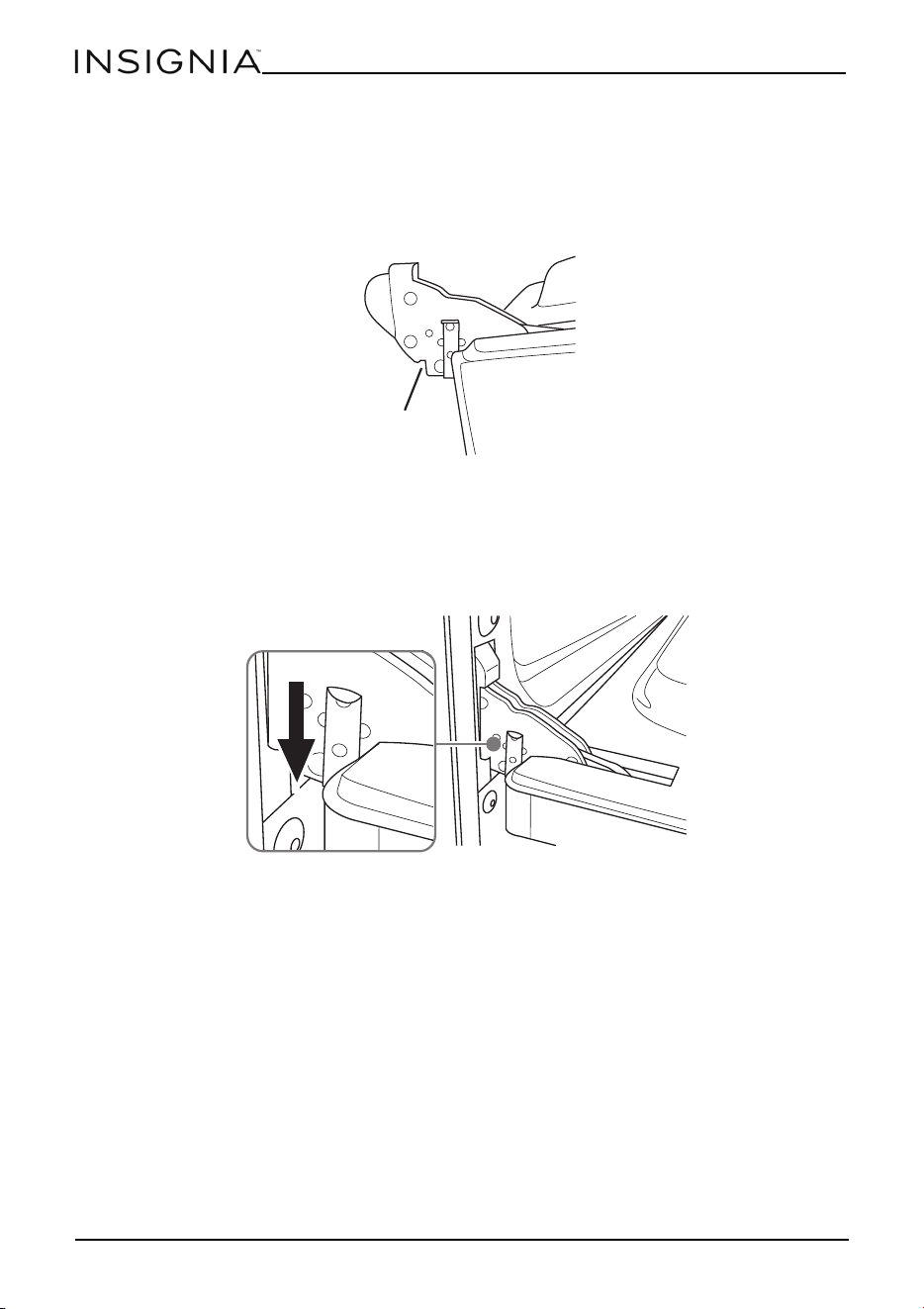

Notch
Push hinge locks down to lock
29
4-Burner Electric Range
www.insigniaproducts.com
Oven heating elements
Do not clean the bake element or the broil element. Any soil will burn off when
the elements are heated.
To clean the oven floor, gently lift the bake element. Clean with warm soapy
water.
Oven racks
All oven racks may be cleaned by hand with an abrasive cleaner or steel wool.
After cleaning, rinse the racks with clean water and dry with a clean cloth.
Oven light replacement
SHOCK OR BURN HAZARD: Before replacing oven
light bulb, disconnect the electrical power to the range at the main fuse or
circuit breaker panel. Failure to do so may result in electric shock or burn.
BURN HAZARD: The glass cover and bulb should be
removed when cool. Touching hot glass with bare hands or a damp cloth can
cause burns.
To remove the cover:
1 Hold a hand under the cover so it doesn't fall when released. With fingers of
the same hand, firmly push back the wire cover holder. Lift off the cover.
Do not remove any screws to remove the cover.
2 Replace bulb with a 40-watt household appliance bulb.
WARNING
CAUTION

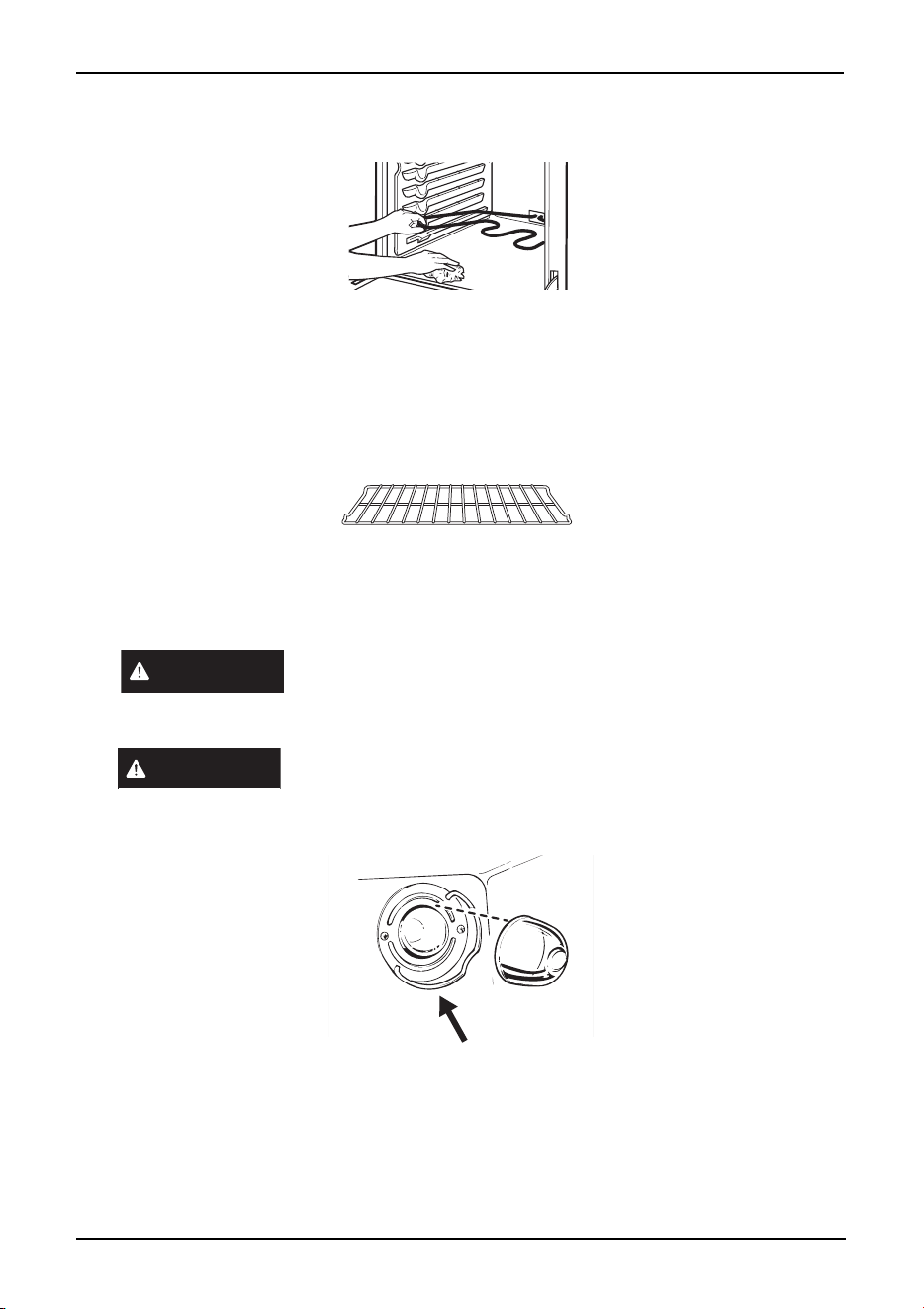

Wire cover holder
30
www.insigniaproducts.com
To replace the cover:
1 Place it into groove of the light receptacle. Pull wire forward to the center of
the cover until it snaps into place.
2 Connect electrical power to the range.
Storage drawer removal
To remove the storage drawer:
1 Pull the drawer out all the way.
2 Tilt up the front and remove it.
To replace the storage drawer:
1 Insert glides at the back of the drawer beyond the stop on range glide.
2 Lift the drawer if necessary to insert easily.
3 Let the front of the drawer down; then push in to close.
Porcelain enamel cooktop
The porcelain enamel finish is sturdy but breakable if misused. This finish is
acid-resistant. However, any acidic foods spilled (such as fruit juices, tomato or
vinegar) should not be permitted to remain on the finish.
If acids spill on the cooktop while it is hot, use a dry paper towel or cloth to wipe
it up right away. When the surface has cooled, wash with soap and water. Rinse
well.
For other spills such as fat spatterings, wash with soap and water or cleansing
powders after the surface has cooled. Rinse well. Polish with a dry cloth.
Painted surfaces
Painted surfaces include the sides of the range and the sides of the door trim.
To clean the painted surfaces, use a hot, damp cloth with a mild detergent
suitable for these surfaces. Use a clean, hot, damp cloth to remove soap. Dry
with a dry, clean cloth.
Do not use steel-wood pads, commercial oven cleaners, cleaning powders or
other abrasive cleaners. They will damage the surface.
31
4-Burner Electric Range
www.insigniaproducts.com
Stainless steel surfaces
Do not use a steel wool pad; it will scratch the surface.
To clean the stainless steel surface, use warm sudsy water or a stainless steel
cleaner or polish. Always wipe the surface in the direction of the grain. Follow
the cleaner instructions for cleaning the stainless steel surface.
Glass window
To clean the outside glass window, use a glass cleaner. Rinse and polish with a
dry cloth.
Cleaning the glass cooktop
Normal daily use cleaning
ONLY use ceramic cooktop cleaner on the glass cooktop. Other types of
cleaners may not be as effective.
To maintain and protect the surface of your glass cooktop, follow these steps:
1 Before using the cooktop for the first time, clean it with ceramic cooktop
cleaner. This helps protect the top and makes cleanup easier.
2 Daily use of ceramic cooktop cleaner will help keep the cooktop looking
new.
3 Shake the cleaning cream well. Apply a few drops of ceramic cooktop cleaner
directly to the cooktop.
4 Use a paper towel for ceramic cooktops to clean the entire cooktop surface.
5 Use a dry cloth or paper towel to remove all cleaning residue. No need to
rinse.
Note: It is very important that you DO NOT heat the cooktop until it has been cleaned
thoroughly.
32
www.insigniaproducts.com

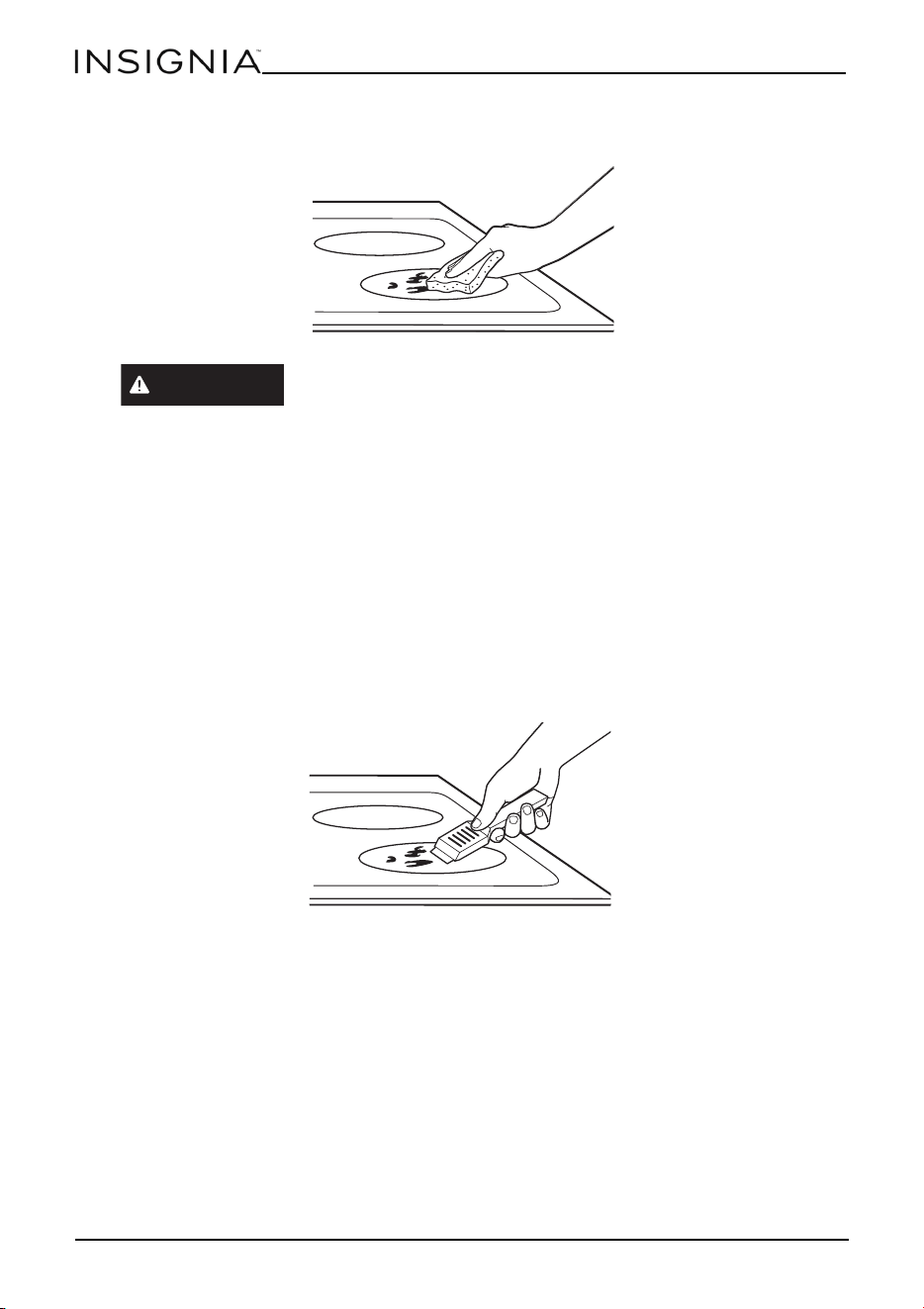

Burned-on residue
DAMAGE to your glass surface may occur if you use scrub
pads other than those recommended.
1 Allow the cooktop to cool.
2 Spread a few drops of ceramic cooktop cleaner on the entire burned residue
area.
3 Using the included cleaning pad for ceramic cooktops, rub the residue area,
applying pressure as needed.
4 If any residue remains, repeat the steps listed above as needed.
5 For additional protection, after all residue has been removed, polish the
entire surface with ceramic cooktop cleaner and a paper towel.
Heavy, burned-on residue
1 Allow the cooktop to cool.
2 Use a single-edge razor blade scraper at approximately a 45° angle against
the glass surface and scrape the soil.
3 It will be necessary to apply pressure to the razor scraper in order to remove
the residue.
4 After scraping with the razor scraper, spread a few drops of ceramic cooktop
cleaner on the entire burned residue area. Use the cleaning pad to remove
any remaining residue.
5 For additional protection, after all residue has been removed, polish the
entire surface with ceramic cooktop cleaner and a paper towel.
WARNING
33
4-Burner Electric Range
www.insigniaproducts.com
Metal marks and scratches
1 Be careful not to slide pots and pans across your cooktop. It will leave metal
markings on the cooktop surface.
These marks are removable using the ceramic cooktop cleaner with the
cleaning pad for ceramic cooktops.
2 If pots with a thin overlay of aluminum or copper are allowed to boil dry, the
overlay may leave black discoloration on the cooktop.
This should be removed immediately before heating again or the
discoloration may be permanent.
Carefully check the bottom of pans for roughness that would
scratch the cooktop.
Cooktop seal
To clean the cooktop seal around the edges of the glass, lay a wet cloth on it for
a few minutes, then wipe clean with nonabrasive cleaners.
Glass surface – potential for permanent damage.
Damage from sugary spills and melted plastic
1 Turn off all surface units. Remove hot pans.
2 Wearing an oven mitt:
• Use a single-edge razor blade scraper to move the spill to a cool area on
the cooktop.
• Remove the spill with paper towels.
3 Any remaining spillover should be left until the surface of the cooktop has
cooled.
4 Don't use the surface units again until all of the residue has been completely
removed.
Note: If pitting or indentation in the glass surface has already occurred, the cooktop
glass will have to be replaced. In this case, service will be necessary.
WARNING
34
www.insigniaproducts.com
Before you call for service....
Troubleshooting Tips
Save time and money! Review the charts on the following pages first and you
may not need to call for service.
PROBLEM POSSIBLE CAUSES WHAT TO DO
COOKTOP
Surface units will not
maintain a rolling boil or
cooking is not fast
enough
Improper cookware being
used.
Use pans which are flat and match
the diameter of the surface unit
selected.
Surface units do not work
properly
A fuse in your home may be
blown or the circuit breaker
tripped.
Replace the fuse or reset the circuit
breaker.
Cooktop controls
improperly set.
Check to see the correct control is
set for the surface unit you are
using.
Scratches (may appear as
cracks) on cooktop glass
surface
Incorrect cleaning methods
being used.
Scratches are not removable. Tiny
scratches will become less visible
in time as a result of cleaning
methods being used.
Cookware with rough
bottoms being used or
coarse particles (salt or
sand) were between the
cookware and the surface of
the cooktop.
To avoid scratches, use the
recommended cleaning
procedures. Make sure bottoms of
cookware are clean before use, and
use cookware with smooth
bottoms.
Cookware has been slid
across the cooktop surface.
Areas of discoloration on
the cooktop.
Food spillovers not cleaned
before next use.
See Cleaning the glass cooktop
on
page 31.
Hot surface on a model with
a light-colored glass
cooktop.
This is normal. The surface may
appear discolored when it is hot.
This is temporary and will
disappear as the glass cools.
Plastic melted to the
surface
Hot cooktop came into
contact with plastic placed
on the hot cooktop.
See Glass surface – potential for
permanent damage. on page 33.
Pitting (or indentation) of
the cooktop
Hot sugar mixture spilled on
the cooktop.
Call a qualified technician for
replacement.
Frequent cycling off and
on of surface units
Improper cookware being
used.
Use only flat cookware to minimize
cycling.
Surface unit stops
glowing when turned to a
lower setting
This is normal. The unit is
still on and hot.
35
4-Burner Electric Range
www.insigniaproducts.com
Surface units not
functioning properly
The surface units are not
plugged in solidly.
With the controls off, check to
make sure the surface unit is
plugged completely into the
receptacle.
The surface unit controls
improperly set.
Check to see the correct control is
set for the surface unit you are
using.
OVEN
Oven light does not work Light bulb is loose or
defective.
Tighten or replace the bulb.
Switch operating light is
broken.
Call for service.
Oven will not work Plug on range is not
completely inserted in the
electrical outlet.
Make sure electrical plug is
plugged into a live, properly
grounded outlet.
A fuse in your home may be
blown or the circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
Oven controls improperly
set.
See Using the oven
on page 15.
Food does not bake or
roast properly
Oven controls improperly
set.
See Using the oven
on page 15.
Rack position is incorrect or
the rack is not level.
See Using the oven on page 15.
Incorrect cookware or
cookware of improper size
being used.
See Using the oven
on page 15.
Oven thermostat needs
adjustment.
See Adjust the oven thermostat?
Easy to do yourself! on page 24.
Food does not broil
properly
Improper rack position
being used.
See the Broiling guide on page 18.
Food being cooked in a hot
pan.
Use the broiling pan and grid that
came with your range. Make sure it
is cool.
Aluminum foil used on the
broiling pan and grid has
not been fitted properly and
slit as recommended.
See Using the oven
on page 15.
In some areas the power
(voltage) may be low.
Preheat the broil element for 10
minutes.
Broil for the longest period of time
recommended in the Broiling
guide on page 18.
PROBLEM POSSIBLE CAUSES WHAT TO DO
36
www.insigniaproducts.com
Display flashes “bAd”
then “linE” with a loud
tone
The installed connection
from the house to the unit is
miswired.
Contact installer or electrician to
correct miswire.
The words “CLOSE DOOR”
flashes or scrolls in the
display
This is a normal condition.
The “CLOSE DOOR” is a
reminder message to keep
the oven door closed during
broil mode.
This is normal. Keep oven door
closed during broil mode.
Oven temperature too
hot or too cold
Oven thermostat needs
adjustment.
See Adjust the oven thermostat?
Easy to do yourself! on page 24.
Clock and timer do not
work
Plug on range is not
completely inserted in the
electrical outlet.
Make sure electrical plug is
plugged into a live, properly
grounded outlet.
A fuse in your home may be
blown or the circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
Oven controls improperly
set.
See Using the clock and timer
on
page 21.
Display goes blank A fuse in your home may be
blown or the circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
The clock is turned off from
showing in the display.
See To turn off the clock display
on
page 21.
Oven door is crooked The door is out of position. Because the oven door is
removable, it sometimes gets out
of position during installation. To
straighten the door, push down on
the high corner.
Oven makes clicking
noise
This is the sound of the
heating element turning off
and on during cooking
functions.
This is normal.
“F” and a number or letter
flash in the display
You have a function error
code.
Press the OFF pad. Put the oven
back into operation.
If the function code repeats: Disconnect all power to the range
for at least 30 seconds and then
reconnect power. If the function
error code repeats, call for service.
Power outage clock
flashes
Power outage or surge. The range will automatically
resume its setting once the power
is restored. You must reset the
clock. If the oven was in use, you
must reset it by pressing the OFF
pad, setting the clock and
resetting any cooking function.
PROBLEM POSSIBLE CAUSES WHAT TO DO
37
4-Burner Electric Range
www.insigniaproducts.com
Specifications
Display flashes Power failure. Reset the clock.
Unable to get the display
to show “SF”
Oven control pads were not
pressed properly.
The BAKE and BROIL pads must
be pressed at the same time and
held for 3 seconds.
Strong odor An odor from the insulation
around the inside of the
oven is normal for the first
few times the oven is used.
This is temporary.
Dimensions (H × W × D) 47 3/4 × 29 7/8 × 29 5/8 in. (121.3 × 75.9 × 75.2 cm)
Weight Gross weight: 176 lbs. (80 kg)
Net weight: 174 lbs. (79 kg)
Power requirements 208 ~ 240VAC, 60Hz, 48 ~ 55A
Cooktop elements Right front: 8 in. (20.32 cm) 2,000W
Left front: 6 in. (15.24 cm) 1,500W
Right rear: 6 in. (15.24 cm) 1,500W
Left rear: 8 in. (20.32 cm) 2,000W
Oven element Broil element: 3,410W
Bottom element: 2,585W
Oven temperatures 170° ~ 550° F (76.6° ~ 287.7° C)
Oven light 40W Incandescent E26
PROBLEM POSSIBLE CAUSES WHAT TO DO
38
www.insigniaproducts.com
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new
Insignia-branded product (“Product”), that the Product shall be free of defects in the original
manufacturer of the material or workmanship for a period of one (1) year from the date of your
purchase of the Product (“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada from a
Best Buy branded retail store or online at www.bestbuy.com
or www.bestbuy.ca and is packaged
with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your
purchase date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the
Product is determined to be defective by an authorized Insignia repair center or store personnel,
Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the
Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced
under this warranty become the property of Insignia and are not returned to you. If service of
Products or parts are required after the Warranty Period expires, you must pay all labor and parts
charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period.
Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website
(www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any
Best Buy store. Make sure that you place the Product in its original packaging or packaging that
provides the same amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-877-467-4289. Call agents may
diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or
websites to the original purchaser of the product in the country where the original purchase was
made.
What does the warranty not cover?
This warranty does not cover:
• Food, beverage, and/or medicine loss/spoilage.
• Customer instruction/education
•Installation
•Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
•Misuse
•Abuse
•Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in
communal areas of a multiple dwelling condominium or apartment complex, or otherwise used
in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
39
4-Burner Electric Range
www.insigniaproducts.com
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly
illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5)
pixel failures throughout the display. (Pixel based displays may contain a limited number of
pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR
BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT,
INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR
LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO
THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH
ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY
PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH
VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A
©2023 Best Buy. All rights reserved.
www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2023 Best Buy. All rights reserved.
V1 ENGLISH
23-0198
