FREEZER
OPERATING INSTRUCTIONS
Fire/Flammable refrigerant
Maintenance work shall only be carried out at workshop by well-trained maintenance worker.
Please read this manual carefully and follow the information contained within. In particular, be sure to read the safety precautions before using this freezer.
Be sure to receive your copy of the warranty from the retailer and confirm that the purchase date and retailer name are written on the warranty.
Store this operating instructions manual and the warranty in a safe place.
This freezer was manufactured for freezing of foods in general households. For commercial use, please use a commercial freezer.
The principal plastic components indicate the material name to facilitate recycling.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
This appliance is intended to be used in household application only.
WARNING - When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING - Do not place multiple portable socket-outlets or portable power supplies at the rear of the appliance.
WARNING - Just in case of having damaged the refrigerant circuit, do not use electric items or fire equipments near by, and open the window to ventilate
the room. And contact the retail store at which you purchased it or the following MITSUBISHI ELECTRIC SERVICE CENTRE.
WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING - Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
The user manual should be handed over to any person who would use or handle the freezer whenever the freezer would be transferred to another
location and delivered to a recycling plant.
This freezer uses flammable foaming gas for insulation. Please deliver the unit to specialized industrial waste dealer when you do away it.
Please follow the rules in your country.
R600a Refrigerant Warning
This appliance contains a small quantity of R600a refrigerant which is flammable.
During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
Leaking refrigerant can ignite and may damage eyes.
In the event any damage does occur, avoid exposure to open fires and any device which creates a spark. Disconnect the appliance from the mains power.
Thoroughly ventilate the room in which the appliance is located for several minutes.
The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant.
The refrigerant quantity contained in this appliance is noted on the Rating Label of the appliance.
●
●
●
●
●
●
It is strongly recommended to use only lukewarm water
and a soft cloth when cleaning. Cleaning agents can cause
cracking to the plastic components of your freezer.
Cleaning Instruction - Important!
Contents
Page
2-3
4
5
6
7
8
9
10
11
For your safety, please be sure to follow
these instructions
From installation to operation
Part names and usage
How to adjust the temperature
How to remove and clean accessories
What to do in these situations
Troubleshooting
Accessories

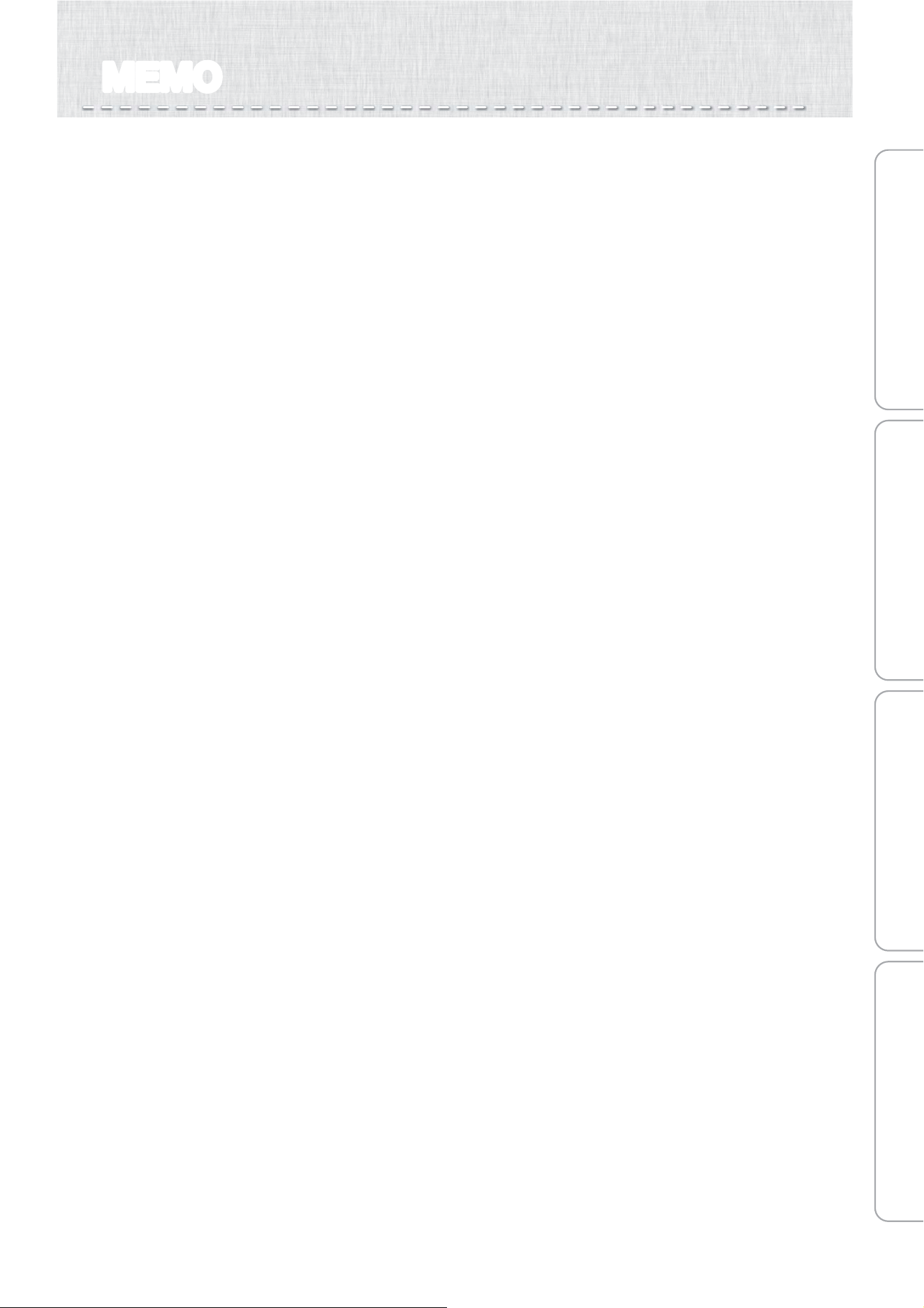

MEMO
Before useOperation
Cleaning
When in trouble
SERIES MODEL
MF-U218ET
The types of danger that can result from improper
handling are explained in the sections below.
ٹ
The symbols illustrated below have
the following meanings.
Mishandling can lead to serious injury
or death.
Mishandling can lead to bodily injury or
loss of home and household contents.
Do not do
Do not get
wet
CAUTION
Always connect
an earth wire
Always unplug
electrical plug
from socket
Always follow
instructions
Do not install in an outdoor area
where water can get on it or
where there is a lot of moisture.
➡ Page 4
Due to insulation failure, it may cause
an electric shock or fire.
Remove dust from the electrical
plug.
Not doing so can cause a fire
from insulation failure.
Wipe out the dust in power plug
periodically.
It may cause fire or insulation
failure.
Allow some space around the freezer.
If the refrigerant (gas) leaks, it can remain in
the area and there’s a risk that it may cause
a fire or explosion.
➡ Page 4
To be prepared for an earthquake, affix to
a strong wall or column.
Not doing so may cause injuries from
the freezer toppling over.
Attach ground wire and earth leakage breakers
when used in a humid place or moist place.
It may cause electric shock when electric leakage.
And the following ground connection may
cause electric shock, explosion and fire.
・
・
Water pipe/gas pipe.
Telephone ground lines and lightning rod.
(Please consult with the shop).
➡ Page 4
When installing your unit
About the electrical outlet and electrical plug
About the electrical outlet and electrical plug
Do not push the electrical plug with
the back of the freezer.
Do not damage the electrical cord.
If the plug is pressed by the freezer,
or if the cord is bent, bundled, or a
heavy object is placed on it, it can
cause an electric shock or a fire.
Using them can result in an electric shock or injury.
Do not use damaged cords or plugs or loose outlets.
Do not remove the electrical plug by pulling the cord.
The cord can become damaged and can cause
an electric shock or a fire.
Do not plug or unplug the electrical plug with wet hands.
It can cause an electric shock.
Using an extension cord or plugging in too many power cords
into the outlet can cause heat buildup or a fire.
➡ Page 4
Use a dedicated outlet for the power supply that
meets the rating specified on the rating label.
(The rating label is located on the door-liner.)
If it is plugged with the cord facing upward, extra pressure
gets exerted on it which can cause it to heat up or ignite.
Keep the electrical plug cord facing
downwards and insert the plug in fully.
If the power cord is damaged call Mitsubishi Electric
Service Centre for a technician to replace power cord.
The power cord should be designed for this model.
If the power cord is damaged.
WARNING
When replacing the interior freezer
light or when taking care of the unit,
pull out the electrical plug.
Not doing so can result in an electric shock
or injury.
For your safety, please be sure to follow
these instructions
For your safety, please be sure to follow
these instructions
About using your freezer
Do not damage the refrigerant circuit (piping)
of the freezer; do not drive in screws.
Because a flammable refrigerant (gas) is used,
there is the danger of igniting or explosion.
Do not use electrical products inside
the freezer unit.
If the refrigerant (gas) is leaking inside the unit,
there is a risk that a spark from the electrical product’s
contact can be a source for ignition or explosion.
Do not store volatile products that can easily ignite.
Benzine, cosmetics and hair styling products can
be the cause for igniting fires and explosion.
Do not store pharmaceuticals or scientific test material.
Anything that needs strict supervision must not
be stored in a home-use freezer.
Do not place unstable items on top of the freezer.
Items may drop from opening and
closing the door and can cause injury.
Do not hang on the door or door handle.
The freezer can topple over causing injury.
Do not apply a strong impact to the
shelf or basket
Breakage or dropping may cause injury.
Do not use flammable sprays nearby.
A spark from the electrical contact can ignite
and cause a fire.
Do not do
Always follow
instructions
Always follow
instructions
Do not get wet
Always connect
an earth wire
Do not do
Always follow
instructions
2
WARNING
CAUTION
This appliance is not intended for use by young children or infirm
persons unless they have been adequately supervised by a responsible
person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they
do not play with the appliance.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
Always unplug electrical
plug from socket
Before use Operation Cleaning When in trouble
CAUTION
WARNING
When something abnormal or unusual
occurs, turn off immediately and consult with
“the store where you purchased the unit” or
with a “Mitsubishi Electric repair centre.”
Do not use in a shed or a garage.
If small animals damage the wiring,
it can cause an electric shock or a fire.
Do not put any vessels, jars, etc. that
contain water on top of the freezer.
If water gets onto electrical parts, it will cause
an electric shock or a fire.
If you sense a gas leakage, do not touch the freezer.
Open the window and ventilate the room.
About using your freezer
About Malfunctions / Long Term Care
Do not take apart, repair or convert.
Do not continue to use with damaged parts.
This can cause injury, an electric shock or
a fire.
If the refrigerant circuit (piping) is
damaged, do not touch the freezer,
open the window and ventilate the room.
If you will not be using the freezer for a long
period of time, after pulling out the electrical
plug, open the door and let the interior dry out.
If it is not dried adequately, the cooling unit may
corrode causing the refrigerant (gas) to leak which
can then cause the danger of ignition or explosion.
If it continues to run in an abnormal state,
it can cause an electrical shock or a fire.
If something abnormal occurs (such as a
burning smell), pull out the electrical plug
and stop the freezer from running.
It is dangerous if the child gets shut inside.
If there is a possible danger of a child
getting trapped inside while the freezer
is not in use, please pull off the door seal.
Always follow
instructions
Do not do
Install on a strong level floor and adjust
the adjustable legs to fix firmly.
The freezer may move and cause injury.
➡ Page 4
Carefully move the freezer with two or
more people.
Holding the lower front interior and the handy-grip
recesses on the upper rear of the unit.
Be careful not to damage the floor
or injure yourself when moving
the freezer.
Lay a protective sheet on the floor
and move the freezer slowly.
➡ Page 8
Installing and Transporting
About using your freezer
If insufficiently attached, it may fall out
and may cause injury.
Make sure that shelves or baskets
are attached properly.
Always follow
instructions
Do not do
Do not encapsulate refrigerant other than
already specified.
It may cause rupture, explosion, fire, etc.
when using, repairing, disposal, etc.
Do not do
Do not get wet
Do not wash with water or spill liquid
food items on the unit.
If water and food liquids get on the unit, it can cause an
electric shock or a fire. If that happens, dry off immediately.
A spark from the electrical contact can cause
an explosion or a fire.
The door or furniture may be damaged and
cause any injury.
When the doors are opened or closed,
beware not to hit any furniture.
When the refrigerant circuit is damaged,
please consult the store in which the unit
was purchased.
Always follow
instructions
Always unplug
electrical plug
from socket
When Recycling
If it is neglected and refrigerant (gas) leaks, ignition or
an explosion may be caused due to heat from a fire.
When disposing of the unit, transfer it to the
store that you purchased it or to the municipality.
Do not force food items into the freezer.
Do not use force to pull out shelves.
Food items may fall out, causing injury.
Do not store bottles in the freezer
compartment.
If the center freezes and bottles crack,
it will cause injury.
Do not place your hands or feet
under the freezer.
You can get injured from something
such as the steel plate.
Do not eat foods that have a bad smell
or are discolored.
Doing so may cause food poisoning or other
illnesses.
Observe the following when opening and
closing the doors.
another person is touching the freezer.
Do not open or close the doors with excessive
force. (Food may fall out and cause injury.)
any other part of your body.
bottom drawer. (Danger of your
toes caught by the drawer.)
Not doing this may cause injury.
Do not touch foods or containers
in the freezer compartment
with wet hands.
Doing so can cause freezer burn.
Always follow
instructions
Always follow
instructions
Do not put fingers near the frame or
hinges of the door when closing the door.
Doing so may hurt your fingers or hands.
Wear protective equipment (thick work
gloves).
Not doing this may cause injury.
3
4
From installation to operationFrom installation to operation
Where to install your freezer
Installation
If the freezer adjustment feet sink easily into the flooring
material, please lay a strong board on top of the flooring.
Install in a place where there is no direct
sunlight or heat, and with good ventilation.
This protects against a decrease in cooling power
and saves on electricity bills.
Install in a place with low humidity.
This prevents rust, electric shock or fires from occurring.
This prevents vibrations, noise, and partially
open doors or doors left ajar.
Prevent changes or discoloring by its mass or heat.
Install on a solid and level floor.
Install away from other appliances.
Do not remove the silver tape on the back.
This prevents noise or image disturbances to the television, etc.
Leave a space of more than 2 cm to the left and
right, and more than 10 cm from the ceiling, and
more than 5 cm from the back.
When placing objects on top, leave a space of at least 10 cm
from the top surface.
This is to allow heat to escape from the top, the back and sides.
Use in hot spring areas
Corrosion control treatment may be required for the refrigerant
circuit (pipe) due to generation of corrosive gases.
Contact the retail store where you purchased the freezer.
If freezer is too close to the wall, it will cause an increase
in sound levels. Please care to remove the dust within the gap.
Turning on the power
The freezer will not be damaged even if you turn on
the power immediately after the installation.
Turn on the power of the freezer as soon as possible.
Use a dedicated outlet for the power supply that
meets the rating specified on the rating label.
Remove the energy label carefully. A glue residue may remain,
particularly if the label has been in place for a long period of time.
Apply either Eucalyptus or Tea Tree oil directly on any residue.
Do not allow the oil to run or drip onto plastic parts as it may
cause the plastic to degrade and potentially crack over time.
Allow the oil to sit for approximately 1-2 minutes, or until the
glue residue has softened.
Wipe off with a damp cloth.
If any residue remains, repeat the above process.
Rinse with clear water.
Dry thoroughly.
●
●
●
●
●
●
●
●
How to remove the energy label
To get the freezer
cooled down faster, plug
it in right after installing.
Lower back section
Earth screw connection
Exterior gets hot
The freezer is equipped with piping to prevent condensation and
heat ventilation from the sides and above the unit. When the freezer
is first used and during the summer, warm air can flow from under
the freezer, especially when the exterior temperature is 50-60 ™C.
This is necessary for cooling and is not a malfunction.
Do not damage the refrigerant circuit (piping)
of the freezer; do not drive in screws.
Do not install in an outdoor area where water
can get on it or where there is a lot of moisture.
Because a flammable refrigerant (gas) is used,
there is the danger of igniting or explosion.
Do not do
Due to insulation failure, it may cause
an electric shock or fire.
Do not get wet
Preparation for the earthquake
We recommend you to fix in the strong places such as walls,
pillars.
Adjustment and affixing
(to provide half-opened
door/noise/move/vibrate)
Turn the adjustable legs to get them to touch the floor, then affix.
WARNING
When the tilt cannot be corrected with the adjustable legs.
If installed in a corner of a room, there are times when one side of the back legs sinks into the floor.
When that happens, please make adjustments in the rear with caster support or a strong board underneath.
It takes time to cool down.
●
●
●
Leave space between food items.
Put in warm food items or ice cream after the freezer has
been adequately cooled down.
Keep opening and closing of the door to a minimum,
and open in a short time.
The freezer will not immediately cool after power is turned on.
Espacially during hot summers, it may take 24 hours for the freezer to cool.
Fix firmly by adjustable legs in the level and
strong floor.
Always follow
instructions
CAUTION
The freezer may move and cause injury.
Allow some space around the freezer.
Always follow
instructions
If the refrigerant (gas) leaks, it can remain
in the area and there’s a risk that it may
cause a fire or explosion.
Turn in the direction of the
arrows and lower the adjustable
legs to place on the floor.
Adjustable leg
Do not wipe off the lubricant on the contact surface
between the door/basket and the main unit.
Attention
5
Before use Operation Cleaning When in trouble
CAUTION
Do not put fingers near
the frame or hinges of
the door when closing
the door as you may hurt
your fingers or hands.
Do not do
Notice
● This freezer is not an ice machine so it is not suitable for making large amount of ice at once.
Also, no ice maker you cannot freeze a large amount of food or ice packs at once.
Concave
part
You can store frozen food, ice cream, bread, meat, fish, etc.
Glass shelf (upper)
Freezer compartment (upper), (lower) Approx. -22~-16 ™C
Temperature control
LED light
Aluminum tray
Basket (large)Basket (small)
Top table
Adjustable Glass shelf
(lower)
●
Do not put thermal appliances that
can exceed 100 ™C such as oven
toasters on the top table (allowable
temperature limit is 100 ™C).
Depending on the type and size of
the microwave oven, it may not be
possible to place it.
●When placing a microwave oven, etc.,
Allowable loading limit is 30 kg.
Please put it in the concave part.
High thermal conductivity that
is suitable for rapid cooling.
Freezer compartment (upper)Freezer compartment (lower)
●
●
●
●
●
Placing heavy items, 11 kg or more, in the freezer drawer could result in the freezer drawer being cracked or deformed.
Do not remove the baskets (large) and (small). If you remove it before use, the cooling performance will deteriorate
and it may cause a malfunction.
When the freezer is well chilled and stable, there is a pressure difference between the inside and outside of the freezer
so the door may require more effort to open. Open it slowly and firmly by placing your other hand on the unit itself.
It may smell of plastic. The smell will gradually disappear.
Please ensure room is adequately ventilated to remove odors.
Do not heat the glass surfaces of the glass shelves or place hot objects on them.
Adjustable leg
Part names and usagePart names and usage
Attention
6
Operation panel
How to adjust the temperatureHow to adjust the temperature
You can adjust the temperature with the operation panel located
on the upper front side of the freezer.
Temperature control
Temperature adjustment position light
Temperature adjustment position and temperature level
Status of rapid freeze light
Light off…Rapid freeze is stopped.
Light on…Rapid freeze is working.
Rapid freeze switch
Press when you want to activate rapid
freezing operation. The rapid freezing will
run for about 3 hours. After that, it will
return to normal operation.
・
・
・
When you want to stop rapid freeze, press the
same switch once again. The rapid freeze light
is turned off and operation returns to normal.
When the power plug is pulled out or a power
cut occurs, press the switch again to start the
operation once power is restored.
If you press rapid freeze switch while defrosting
or soon after the compressor has stopped, the
light will turn on, it will take a little while to get
started even though turns on immediately.
Temperature control switch
Press to adjust the temperature
The less number of lights, the higher temperature.
The more number of lights, the lower temperature.
RAPID FREEZE
Position light
Cold
Temperature
Use
2-3 ™C higher
than "Mid"
About -19 ™C
2-3 ™C colder
than "Mid"
●
Little frozen food
When the door usually stays shut
●
●
A lot of frozen food
When the door is opened frequently
●
●
For normal use
Mid
Colder
※
※
The temperatures described here are measured in the lower center of the freezer after the temperature has stabilized
when the surrounding temperature is 32 ™C and the doors are closed without any food inside.
The temperature fluctuates with factors such as food storage conditions and how often the doors are opened and closed.
Before and after defrosting, the temperature inside the freezer may temporarily drop or rise.
Level
●To chill the freezer rapidly. Rapid
freezing will run for about 3 hours.
●When you want to cool more.
When it is too cold.
●
Notice
When you press the temperature control and
hear a “beep beep” sound, the temperature is
set to "cold" or "colder".
In addition, a sound notifies you that the temperature
cannot be adjusted even if you press the same switch.
Door opening time
1 min. 2 min. 3 min. 4 min.
More than 5 min.
Alarm sound
Pi Pi Pi Pi
Piiii Piiii
Pi Pi Pi Pi
Piiii Piiii Piiii
Pi Pi Pi Pi Piiii
Piiii Piiii Piiii
Piiii continuity
after
Pi Pi Pi Pi
Pi Pi
continuity
When the freezer door is open for more than 1 minute,
the door alarm will sound to inform you.
The number of times of sound by the door opening time are as the follows.
・
・
Make sure that the door is not half-opened, and
pinching the foods (at the back of packing/case)
(please check once a month).
Door open-close sensor is attached in the doors
of freezing compartment.
When door alarm ringing
If alarm does not stop after the door is closed, please check “When alarm non-stop” ➡ Page 8
7
Before use Operation Cleaning When in trouble
How to remove and clean accessoriesHow to remove and clean accessories
※Wait 10 minutes or more before you replug the electrical plug into the outlet. If you plug it in
immediately after unplugging it, the freezer will not run.
Do not take apart, repair or convert.
Do not continue to use with damaged parts.
This can cause injury, an electric shock
or a fire.
Do not do
Always unplug electrical
plug from socket
Unplug the electrical plug.
If it is not unplugged, it will
cause an electric shock.
WARNING
How to maintain Q&A
Q. If dirt is noticed.
A.
Please wipe as soon as possible.
●Wipe with soft towel soaked with warm water.
●For hard to remove dirt, please use a kitchen
detergent (neutral type) and wipe off with water.
●In particular, oil may lead to cracks and citrus
fruit juices to discoloration, so be sure to wipe
them off right away.
●Door packing may cause damage or cold air
leakage if you leave the dirt. Please wipe off
the moisture with dry towel after wiping off with
soft and soaked towel.
Q. Can the shelves and baskets be removed?
A. See below for removable parts.
How to remove and reinstall the sliding basket
❶Pull the sliding case towards you.
Hold the handle, lift the front part and pull it out.
❷
●
To reinstall the basket, please do it in the reverse order.
❶
❷
❶Lift up the front side
with both hands.
※If forcefully pulled outward damage may occur
to door side. Please slowly pull and take out.
❷Pull forward and take out.
How to remove glass shelf
❶
❷
Dust
Power Plug
For safety, please do periodically care of
power plug and cords.
Unplug the electrical plug from
the outlet and inspect.
Is there any damage or abnormal
heat coming from the plug or cord?
Wipe away dust from the plug
and around the plug area with
a dry cloth.
Insert the electrical plug fully
into the outlet.
Change
Maintain
Wipe out the dust in power plug
periodically.
It may cause fire or insulation failure.
Always follow
instructions
Freezer rear side and floor
Dust and dirt can accumulate in the ventilation
space behind the freezer. Please clean
periodically for energy saving purposes.
Turn the adjustable supports to raise
them from the floor,and pull out the freezer.
Remove the dust from the rear panels,
walls and floor, and wipe off any dirt.
Check for water dripping on the floor.
Soot and dust
Do not put your hands or feet
under the freezer.
It may cause injury.
Do not do
CAUTION
● Do not use the following items.
Alkalinity or alkalescent kitchen detergent, undiluted
neutral kitchen detergents, polishing powder, soap
powder, alcohol, benzine, thinner, petroleum, acid,
scrub brush, hot water, etc.
Plastic parts (door handle, cap, case, etc.)
will crack, and glass shelf or painted surface may
damage or rust.
●
Do not wipe off the lubricant on the contact
surface between the door/basket and the main unit.
The lubricant complies with the Food Sanitation Act.
Please take heed
8
・Minimize opening/closing of doors and avoid putting in more food.
When not in use for a long time (Remove the power plug)
❶Clean the interior after unplugging the freezer.
Keep the door open for 2 - 3 days to let it dry.
❷
※
If not allowed to dry properly, mold and odors can occur, or refrigerant (gas)
may leak due to corrosion of the cooling unit.
When transporting
❶Wear protective gear (gloves).
Rotate and raise the adjustable leg.
Remove the power plug.
Lay towels under the drainage port and the lower rear edge of the freezer and position
a container or tray with a height of about 3 cm. on the towels to collect the water.
❷ ➡ Page 4
❸
❹
※
The towels prevent floor damage, and water from being spilled on the floor.
❺
Tilt the freezer slowly to the rear by about 30 degrees, and drain the water
from the evaporation tray via the drainage port on the lower rear side.
(The evaporation tray is not visible from the outside.)
※
※
Because the freezer is heavy, the work must be performed by at least 2 people.
The work must not be performed by small children or people who are not
capable of doing heavy work. Ask a specialist transportation company.
❻2 or more people should hold the hand-holds on the lower inside of the
front and the upper side of the rear, and carry the freezer slowly.
When you want to adjustment the temperature precisely (temperature fine adjustment mode)
The internal temperature can be set in 7 levels using the (temperature control switch) on the operation panel.
❶
Hold simultaneously until you hear a beep (5 seconds or more).
When there’s a power failure
When transporting or
moving the product, wear
protective equipment and
have two or more people
hold the parts indicated.
Holding other parts may
cause injury.
Always follow
instructions
When alarm rings continuously
Make sure that each door closes without any gaps.
Inspection is required due to a possibility that an abnormality has occurred.
Please contact the store where you purchased the unit.
When the rapid freeze light (white) blink
You can stop the alarm sound temporarily until repair.
Press button and on the operation panel.
Press 3 places at the same time for 10 seconds or more.
How to stop alarm (PiPi continuous sound)
Inspection is required due to a possibility that the abnormality has occurred such as the freezer not cooling.
Please contact the store where you purchased the unit.
❷
Press or to adjustment the temperature.
※If alarm did not stop, or if alarm
continue ring periodically, please
check around the device.
How to cancel
●
●
If you are moving, it will not be necessary to convert the electrical power frequency.
The frost may melt, and the water may spill from the cooler in
back of freezer compartment during transport.
It may take 1 day from unplug until frost melt.
●
●
Do not lay or load on its side (it will cause damage to the compressor.)
Use the carrying handles or the parts instructed when carrying the freezer.
Holding other parts may result in floor damage or injury.
●
Temperature fine adjustment mode is indicated by a combination of lighting and blinking indicator lamps.
●
Adjust the temperature by 1-2
o
C.
To cancel the mode, please follow step of setting.
It is also canceled when the power plug is unplugged
and plugged in or after a power failure.
After canceling, please check the temperature
control setting position.
❶
Water discharge
outlet
What to do in these situationsWhat to do in these situations
Attention
Notice
CAUTION
Lavels
Temperature setting
1
2
3
5
6
4
7
: Light on
: Blinking
: Light off
※Definition of
status light
9
Before use Operation Cleaning When in trouble
Please check the following points before request for repair or contacting us.
If the problem cannot be solved, please contact the store where you purchased the unit.
Especially when starting use or summer time
Not cooling at all!
・It takes time to cool when starting use.
In summer time, it may take approx. 24 hours
until cooling.
➡ Page 4
・Check that it is not unplugged or the circuit
breaker has tripped.
Outside of the freezer is hot!
・
It may be hot outside especially after installation
or during the summer (approx. 50 – 60
o
C).
It is because there is the heat radiation
and dew formation preventing pipes on
the side and ceiling.
There is no problem in this situation
because this operation is necessary
to keep the unit cool.
Heat radiation
pipe
Dew formation
preventing pipe
If this happens…
Please check this out.
Please do this. This is the reason.
It doesn’t cool
properly.
The ice is melting.
How to cool
❶Is it right after installing the unit?
❷Is the temperature adjustment
set on “COLD”?
❸
Is the flow of cold air being blocked?
Are doors being opened often, or
are doors improperly sealed shut?
❹
Is there not enough space around the unit, is the sun
directly on it, or is the radiation of heat being blocked?
It will take about 4~5 hours to cool down.
Espacially during hot summers, it may take
24 hours for the freezer to cool.
Please adjust the temperature to “MID” or
“COLDER.”
Do not overpack food and keep it below the
height of the basket.
Avoid opening and shutting the door for a while.
Check that there is enough space around the
freezer and that it is properly installed.
❶The sound suddenly gets louder.
The sound changes.
❷
There’s a “phyoon” sound when I close the door.
❸
When I open the door, there’s sometimes
a “krik” sound coming from the inside.
❹
Sometimes the sound of flowing
or boiling water can be heard.
If it is right after installation, or hot out, or
if doors are open/closed often, it goes into
high-speed operation to chill with greater power.
This is the sound of the fan motor starting up.
This creaking sound occurs when warm air
enters and the plastic expands.
This is the sound of the refrigerant (gas)
flowing.
❶Did the surrounding items make
contact with the freezer?
Leave space around the freezer. When objects or walls
are in contact with the freezer, sounds may be heard.
Sound
Clattering sound.
Loud noises
Worrisome noises
(Noises described
on the right are
normal)
Doors don’t close
Doors open easily.
❶
Is food or a baskets in the freezer
blocking the door?
❷
There is food in the back of the basket,
or is the electrical cord caught between
the body of the unit and the door?
❸
Does the freezer wobble or seem
unstable?
Are the adjustable legs touching the floor?
Please store it so that it will not hit when the door is closed.
Store food so that it does not protrude from shelves or baskets.
Remove any objects. Make sure that the
door does not trap objects such as food,
power cords or plastic bags.
Bring the adjustable leg down, and raise
the front higher, with a slightly raised front,
closing doors becomes easier.
❶Please check again if the doors
are closed.
Please check “When door alarm ringing”,
“When alarm rings continuously”.
This is normal. Since each compartment is connected by a passage of cold air, the wind
pressure of closing the door may cause other doors to open or float for a moment.
Alarm sound.
When close the door,
another door opens.
❶
Did you open the door frequently,
or are there gaps?
❷Is there a time of rainy weather
or elevated humidity?
When moisture in the air cools, it forms frost or condensation.
When there is high humidity, condensation or frost will form
even in very small gaps. Open the doors less frequently.
Close the doors so that there are no gaps.
Dew may temporarily attach. Please wipe with dry towel.
And frost is easily attach in the freezer compartment.
❶Does the light reflected on the
surface appear distorted?
Warping and surface waviness occurs in the
manufacturing process. When light hits the surface,
it may appear warped, but this is not an abnormality.
❶
Is the freezer installed near a TV?
❷
Is the power source for the freezer
taken from near the antenna cable inlet?
Please set your freezer at a distance from TVs, etc.
We recommend a single power outlet and
that earthing is checked.
Others DoorsDew/Frost
Dew attached in the
outer or inside the freezer
Frost forms in the
freezer compartment
Water dripping
on the floor.
I get static noise
from the TV, etc.
The surface of
the sides or doors
is warped.
Due to the temperature difference between the inside and outside of the freezer, making it difficult
to open the door. Please open it slowly and firmly by placing your other hand on the unit itself.
Door is difficult
to open.
➡ Page 6
➡ Page 4
➡ Page 4
➡ Page 6, 8
TroubleshootingTroubleshooting
10
AccessoriesAccessories
Freezer compartment
Accessories
Model name
Quantity
MF-U218ET
Glass shelf (upper)
Glass shelf (lower)
Aluminum tray
Basket (large)
Basket (small)
1
1
1
1
3
MODEL NAME COUNTRY NAME
MF-U218ET-A AUSTRALIA / NEW ZEALAND
This appliance is designed for use in Australia and New Zealand only and cannot be used in any other country.
No service is available outside of Australia and New Zealand."
CAUTION
1. This appliance is designed for use in ambient temperature listed below.
The internal temperatures could be affected by such factors as the location of the refrigerating appliance, ambient
temperature and the frequency of door opening, and, if appropriate, a warning that the setting of any temperature
control device might have to be varied to allow for these factors.
2.
A rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
3.
Food to be frozen is not to be placed in direct contact with food in storage and, if appropriate, that it could be necessary
to reduce the quantity to be frozen if freezing every day is anticipated.
4.
The electrical power failure for 1-2 hour will only slightly affect the inside temperature. However, opening and closing the
door results in temperature loss. In case there is more than 24 hours electrical power failure, the food should be taken
out from the freezer.
5. In case you are leaving or there is no food in the freezer for more than 3 weeks, it should be unplugged and cleaned.
MODEL NAME AMBIENT TEMPERATURE RANGE CLIMATIC CLASS
MF-U218ET-A 16
o
C ~ 43
o
C T
When you hear noise from the lower rear of the freezer
Part of the cooling system is the compressor, which operating, does create a more noticeable increase in noise level.
This is normal. However, if the noise is quite loud, this could be because the freezer is not installed correctly on
a hard level surface, or there may be a problem that may need service.
■ This freezer uses non-freon foam insulation material. Non-freon foam insulation material (cyclopentane)
does not deplete the ozone layer and their contribution to global warming is extremely low.
Non-Freon Freezer
Power Saving
Even a little effort can help
to save electricity.
Let's all try to save power.
Are you putting hot
items directly into the
freezer without allowing
them to cool first?
Are you opening
the doors more
often than
necessary?
Is the freezer
cooling too
much?
11
Before use Operation Cleaning When in trouble
MEMOMEMO
NZ79G038H01
The appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance.
WARNING - Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING - Do not use electrical appliances
inside the food storage compartments of
the appliance, unless they are of the type
recommended by the manufacturer.
WARNING - Just in case of having damaged the
refrigerant circuit, do not use electric items or fire
equipments near by, and open the window to
ventilate the room. And contact the retail store
at which you purchased it or the following
MITSUBISHI ELECTRIC SERVICE CENTRE.
WARNING - When positioning the appliance,
ensure the supply cord is not trapped or damaged.
WARNING -
Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
The freezer contains flammable refrigerant
(R600a: iso-butane).
The refrigeration system behind and inside the
freezer contains refrigerant.
Do not allow any sharp objects to come into
contact with the refrigeration system.
Do not block the openings on the circumstances
of the freezer.
The user manual should be handed over to any
person who would use or handle the freezer
whenever the freezer would be transferred to
another location and delivered to a recycling plant.
This freezer uses flammable foaming gas for
insulation.
Please deliver the unit to specialized industrial
waste dealer when you do away it.
Please follow the rules in your country.
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
This appliance is intended to be used in
household application only.
348 Victoria Road, Rydalmere NSW 2116
For more information and support contact
www.mitsubishielectric.com.au
Call 1300 651 808
SOLE AGENT in Australia
MITSUBISHI ELECTRIC AUSTRALIA PTY LTD.
(Incorporated in New South Wales) ABN 58 001 215 792
Wellington Office (Head Office)
1 Parliament Street Lower Hutt PO Box 30772 Phone: (04) 560 9147, Fax: (04) 560 9133
Auckland Office
Unit 1, 4 Walls Road Penrose PO Box 12726 Phone: (09) 526 9347, Fax: (09) 526 9348
Christchurch Office
44 Halwyn Drive Hornby PO Box 16904 Phone: (03) 341 2837, Fax: (03) 341 2838
SOLE AGENT in New Zealand
BLACK DIAMOND TECHNOLOGIES LIMITED (BDT)
If an abnormality or malfunction occurs, stop operation immediately and contact the retail store where
you purchased the freezer or MITSUBISHI ELECTRIC SERVICE CENTRE or its service agent.
R600a Refrigerant Warning
NOTE: MITSUBISHI ELECTRIC AUSTRALIA PTY LTD. DO NOT ALLOW SERVICE
TO THE REFRIGERATION CIRCUIT OF THIS APPLIANCE.
This appliance contains a small quantity of R600a refrigerant which is flammable.
During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
Leaking refrigerant can ignite and may damage the eyes.
In the event any damage does occur, avoid exposure to open fires and any device which creates a spark.
Disconnect the appliance from the mains power.
Thoroughly ventilate the room in which the appliance is located for several minutes.
Notify Mitsubishi Electric Australia Pty Ltd. for necessary action and advice.
The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant.
The refrigerant quantity contained in this appliance is noted on the Rating Label of the appliance.
If your Mitsubishi Electric freezer should require service, please contact Mitsubishi Electric Australia
Pty Ltd see back page of this user manual for contact details.
●
●
●
●
●
●
●
●
