1
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

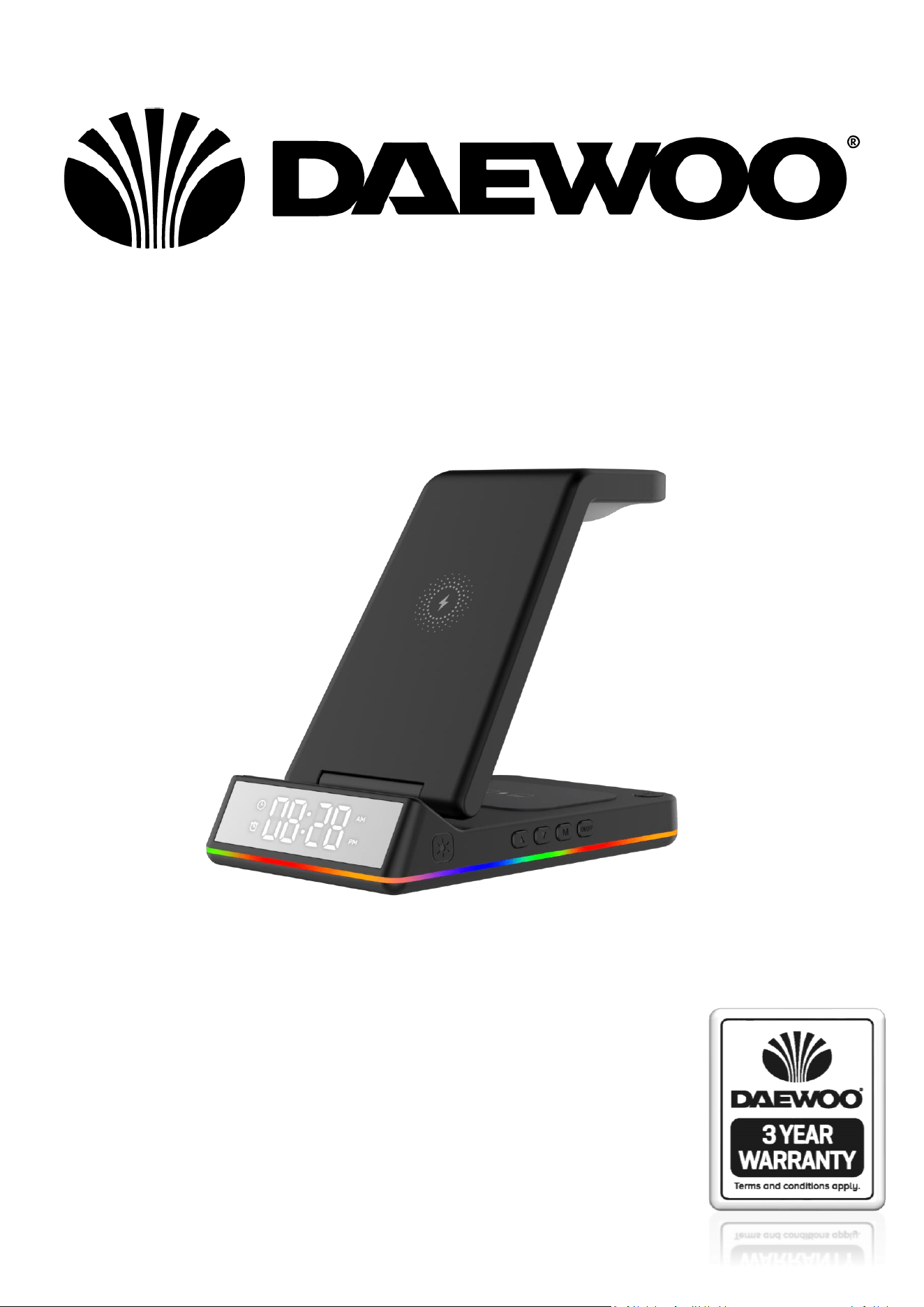

Folding 5 in 1 Wireless Charger
Model No. ELA1435
User Manual
User Manual
5 in 1 Wireless Charger
2
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Folding 5 in 1 Wireless Charger
Model No. ELA1435
User Manual
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
Whilst using electrical appliances, basic safety precautions should
always be followed:
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
Read and familiarise yourself with all operating instruction before
using this 5 in 1 Wireless Charger.
• Before using your Wireless Charger, visually check that the
unit is intact and has not suffered any transit damage.
• Only charge the Wireless Charger from a suitable USB
outlet, any other power source may cause permanent
damage to the product.
• Do not operate this product after a malfunction or after
being dropped or damaged in any way.
• Never allow children to play with the product. Small parts
may be a choking hazard.
• Do not allow the USB charging cable to hang over sharp
edges or come in contact with hot surfaces.
• This product is intended for household use only and
should not be used for industrial purposes.
• Do not use this product for anything other than its
intended use.
• Do not immerse the product in water or any other liquids.
• Do not expose the product to moisture, rain or humidity,
as it is not waterproof.
• Before cleaning, ensure the product is not connected to
the USB supply.
3
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Folding 5 in 1 Wireless Charger
Model No. ELA1435
User Manual
• Never clean the product with solvents or harsh or abrasive
cleaners.
• Do not attempt to dismantle the product, it does not
contain any user serviceable parts.
• Whilst not in use, store the product in a cool dry place free
from extreme temperatures, humidity or dust and away
from direct sunlight.
4
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Folding 5 in 1 Wireless Charger
Model No. ELA1435
User Manual
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
This symbol provides useful additional information on the
use of this product.
This symbol identifies voltage and the current rating for direct
current.
This symbol means batteries and rechargeable batteries may
not be disposed of with household waste!
As the end user you are required by law to bring all batteries
and rechargeable batteries to a collection point run by the Local
Authority or to a retailer, so that they can be disposed of in an
environmentally friendly manner.
You should now recycle your waste electrical goods and in
doing so help the environment. This symbol means waste
electrical products at the end of their useful life should not be
disposed of with normal household waste. Please ensure it is
taken to a suitable facility for disposal. Check with your Local
Authority or retailer for recycling advice or visit www.recycle-
more.co.uk enter your postcode to find out your nearest
recycling site.
Notes on Your 5 in 1 Wireless Charger
• Whilst using this 5 in 1 Wireless Charger use a fast charge USB cable and ensure
that a QC/PD3.0 type USB supply (minimum 18W) is used.
• Do not place metal objects onto the Charging Pads during use as this may cause
permanent damage to the unit.
Before first use of Your 5 in 1 Wireless Charger
Remove all packing materials and discard responsibly.
Check that all the parts are present with your product see ‘Description of Parts’
below.
5
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Folding 5 in 1 Wireless Charger
Model No. ELA1435
User Manual
Description of Parts
Using Your Folding 5 in 1 Wireless Charger
Powering Up and Charging Mode
1. At power up, the Charging Indicator (4) will flash and then turn off, indicating
that the product is in standby.
2. Place the Phone on the appropriate Charging Pad – See Description of Parts
above. The Charging Indicator (4) will come on to show it is charging.
3. Remove the Phone the indicator light turns off, and the product returns to the
standby state.
1
3
4
2
1. Smart Watch Wireless Charging Pad
2. Mobile Phone Charging Area
3. Time Display
4. Charging Indicator
5. Wireless Earphone/Mobile Charging Pad
6. Nightlight Button
5
6
7
8
9
10
11
12
7. Nightlight
8. Display On/Off
9. Mode
10. Down Button
11. Up Button
12. Phone Charging Indicator Switch
6
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Folding 5 in 1 Wireless Charger
Model No. ELA1435
User Manual
Using the Clock
The Time Display (3)
1. On the Time Display (3) there are small icons to indicate Time, Alarm (on/off) and
AM/PM.
2. If the alarm is set, the Alarm Clock icon will illuminate, when the alarm is not set
the icon will go out.
3. The default is time mode, after powering up the time icon will light.
4. The Time Display (3) can be switched off and on by pressing the Display On/Off
button (8)
Setting the Correct Time
1. Press and hold the Mode (9) button for 3 seconds, the hour digits will flash,
press the Up (11) and Down (10) buttons to set the time hour. Briefly press the
Mode (9) button again and press the Up (11) and Down (10) buttons to set the
time minute.
2. Once the correct time is set, briefly press the Mode (9) button to confirm the set
time.
Switching the Alarm on and off
Press and hold the Up (11) button for 3 seconds to switch the alarm on, press and
hold the Down (10) button for 3 seconds to switch the alarm off. The alarm icon
on the Time Display (3) will light when the alarm is set.
NOTE After enabling the alarm, the last set alarm time will be used.
Setting the Alarm Time
1. Press the Mode (9) button for 2 seconds, the hour digits will flash, press the Up
(11) or Down (10) buttons to set the alarm hour. Briefly press the Mode (9)
button again and press the Up (11) or Down (10) buttons to set the alarm
minute.
2. Once the correct alarm time is set, briefly press the Mode (9) button to confirm
the set alarm time.
NOTE Once the alarm time is set, the default setting is for the alarm to sound
every day.
Time
Icon
Alarm
Icon
AM
Icon
PM
Icon
7
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Folding 5 in 1 Wireless Charger
Model No. ELA1435
User Manual
Silencing the Alarm
Once the alarm goes off, press any button to silence the alarm.
Using the Nightlight (7)
Press the Nightlight Button (6) to switch the Nightlight (7) on and off.
Notes on the Up (11) and Down (10) buttons
1. Up (11) button: Whilst entering the setting mode, briefly press to increase by 1,
long press to quickly increase, in clock mode, long press this key for 3 seconds to
turn on the alarm, short press has no function.
2. Down (10) button: Whilst entering the setting mode, briefly press to decrease
by 1, long press to decrease rapidly, in clock mode, long press this button for 3
seconds to turn off the alarm, short press has no function.
Memory Back-Up Battery
Insert the CR2032 button battery into the battery compartment. The battery
powers the memory back up so that the time and alarm settings are held once
the power is disconnected.
Technical Specification
Recycling Information
Disposal of the Product
You should now recycle your waste electrical goods and in doing so help
the environment. This symbol means waste electrical products at the end
of their useful life should not be disposed of with normal household
waste and not sent to landfill. Please ensure it is taken to a suitable
facility for disposal. Check with your Local Authority or retailer for
recycling advice or visit enter your postcode to find out your nearest
recycling site.
Model Number
ELA1435
Input Type and Power Rating
QC/PD USB Type C 18W min.
USB Output
5V – 1.5A
Rated Output (Smart Phone)
5W/7.5W/10W/15W (max)
Rated Output (TWS)
5W
Rated Output (Smart Watch)
2.5W
Transmission Distance
3 – 8mm
Conversion Efficiency
80% - 85% max.
Dimensions
169 x 75 x 57mm
Weight
192g
b.
c.
8
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Folding 5 in 1 Wireless Charger
Model No. ELA1435
User Manual
9
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Folding 5 in 1 Wireless Charger
Model No. ELA1435
User Manual
#
Qi and the Qi symbol are trademarks of the Wireless Power Consortium.
10
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Folding 5 in 1 Wireless Charger
Model No. ELA1435
User Manual
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House, 1 Brightgate Way, Manchester, M32 0TB, UK.
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006.
www.esgltd.com
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee.
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with
proof of purchase or receipt. If any defect should occur due to faulty workmanship or
material, your faulty product should be returned to the place of purchase, replacement or
refund is at the discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged
through inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of
the original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
