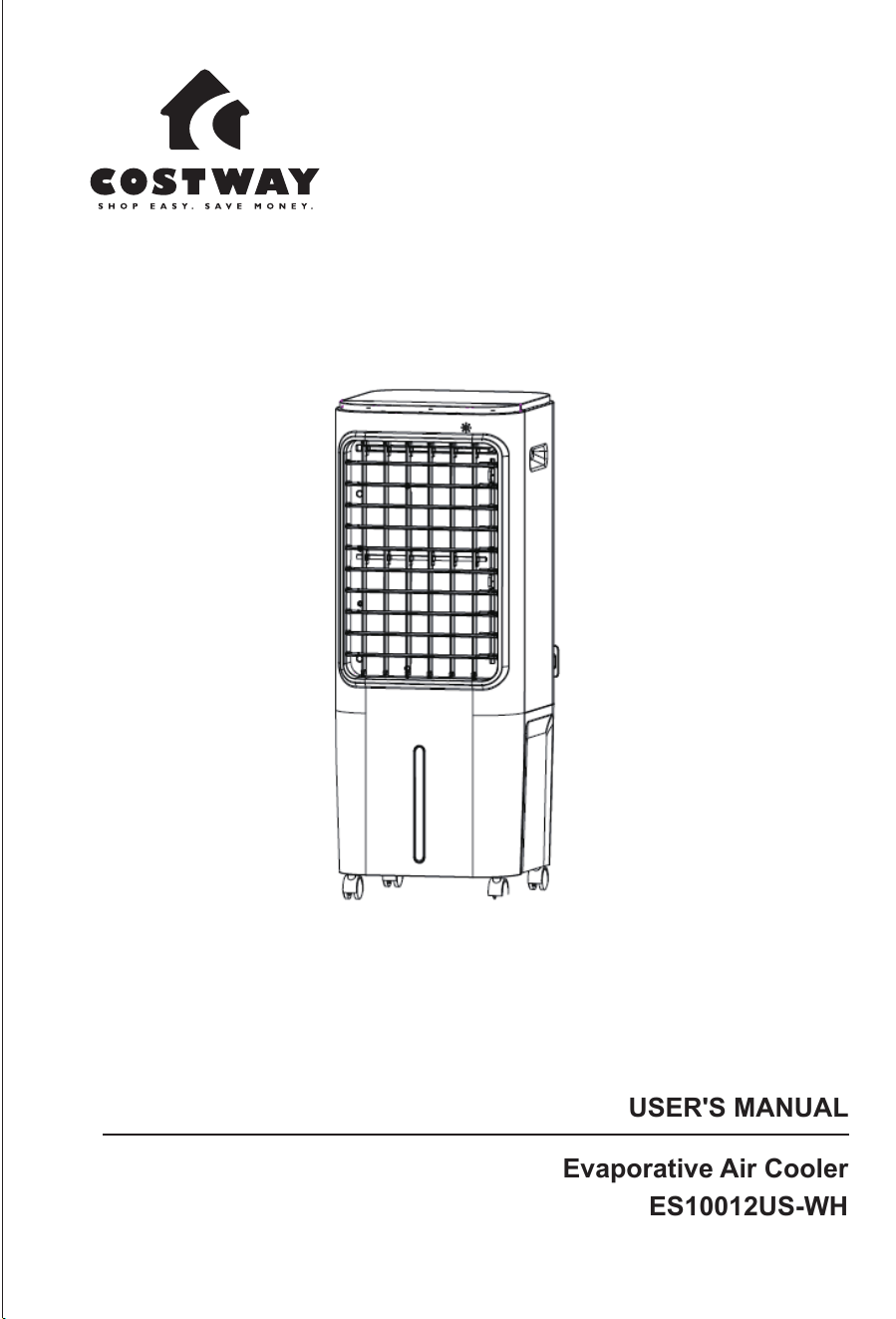

USER'S MANUAL
Evaporative Air Cooler
ES10012US-WH
UNITED STATES
CANADA
UNITED KINGDOM
GERMANY
FRANCE
ITALY
SPAIN
JAPAN
RUSSIA
AUSTRALIA

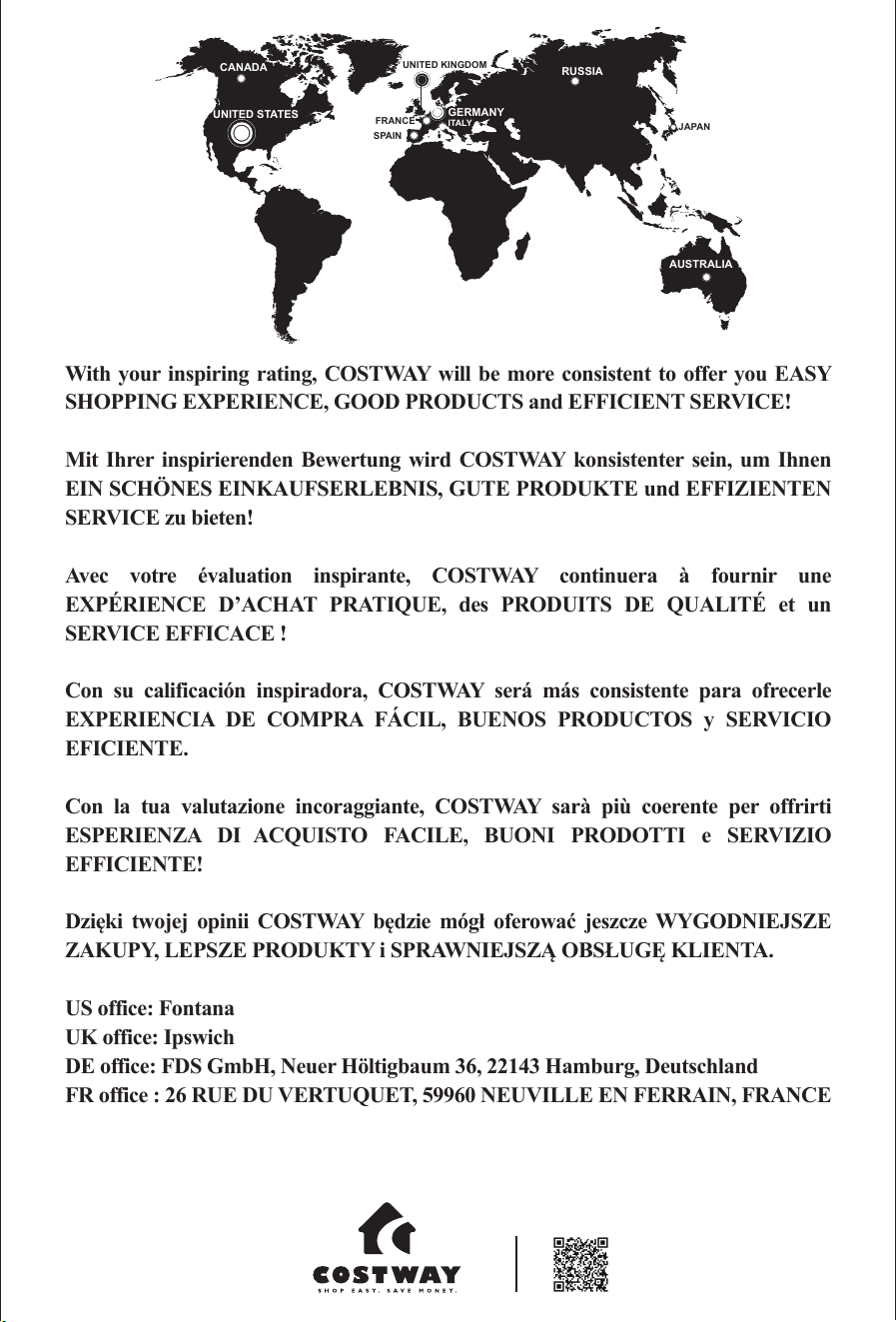

With your inspiring rating, COSTWAY will be more consistent to offer you EASY
SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen
EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN
SERVICE zu bieten!
Avec votre évaluation inspirante, COSTWAY continuera à fournir une
EXPÉRIENCE D’ACHAT PRATIQUE, des PRODUITS DE QUALITÉ et un
SERVICE EFFICACE !
Con su calificación inspiradora, COSTWAY será más consistente para ofrecerle
EXPERIENCIA DE COMPRA FÁCIL, BUENOS PRODUCTOS y SERVICIO
EFICIENTE.
Con la tua valutazione incoraggiante, COSTWAY sarà più coerente per offrirti
ESPERIENZA DI ACQUISTO FACILE, BUONI PRODOTTI e SERVIZIO
EFFICIENTE!
Dzięki twojej opinii COSTWAY będzie mógł oferować jeszcze WYGODNIEJSZE
ZAKUPY, LEPSZE PRODUKTY i SPRAWNIEJSZĄ OBSŁUGĘ KLIENTA.
US office: Fontana
UK office: Ipswich
DE office: FDS GmbH, Neuer Höltigbaum 36, 22143 Hamburg, Deutschland
FR office : 26 RUE DU VERTUQUET, 59960 NEUVILLE EN FERRAIN, FRANCE
USER'S MANUAL
Evaporative Air Cooler
ES10012US-WH
UNITED STATES
CANADA
UNITED KINGDOM
GERMANY
FRANCE
ITALY
SPAIN
JAPAN
RUSSIA
AUSTRALIA
With your inspiring rating, COSTWAY will be more consistent to offer you EASY
SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen
EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN
SERVICE zu bieten!
Avec votre évaluation inspirante, COSTWAY continuera à fournir une
EXPÉRIENCE D’ACHAT PRATIQUE, des PRODUITS DE QUALITÉ et un
SERVICE EFFICACE !
Con su calificación inspiradora, COSTWAY será más consistente para ofrecerle
EXPERIENCIA DE COMPRA FÁCIL, BUENOS PRODUCTOS y SERVICIO
EFICIENTE.
Con la tua valutazione incoraggiante, COSTWAY sarà più coerente per offrirti
ESPERIENZA DI ACQUISTO FACILE, BUONI PRODOTTI e SERVIZIO
EFFICIENTE!
Dzięki twojej opinii COSTWAY będzie mógł oferować jeszcze WYGODNIEJSZE
ZAKUPY, LEPSZE PRODUKTY i SPRAWNIEJSZĄ OBSŁUGĘ KLIENTA.
US office: Fontana
UK office: Ipswich
DE office: FDS GmbH, Neuer Höltigbaum 36, 22143 Hamburg, Deutschland
FR office : 26 RUE DU VERTUQUET, 59960 NEUVILLE EN FERRAIN, FRANCE

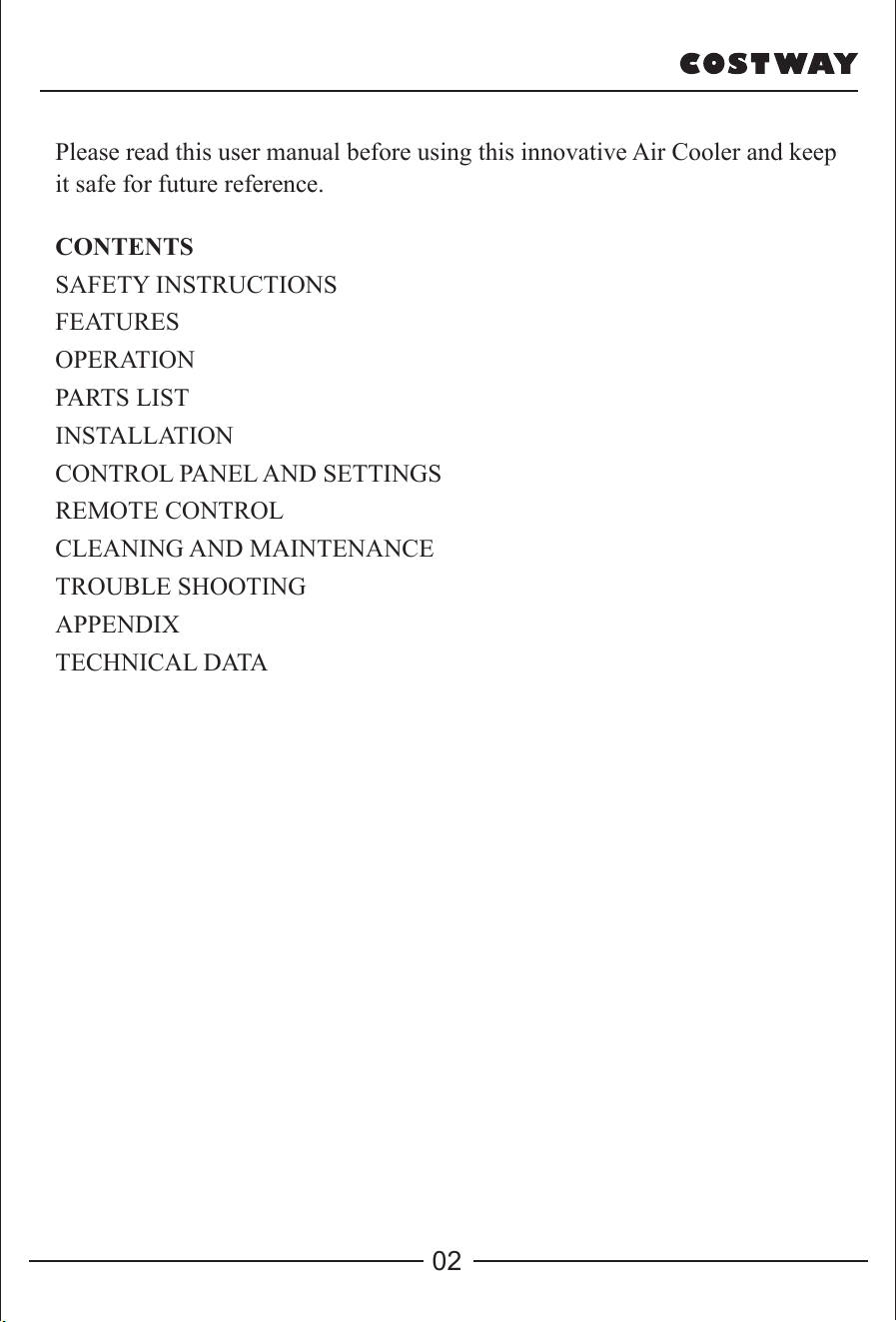

Please read this user manual before using this innovative Air Cooler and keep
it safe for future reference.
CONTENTS
SAFETY INSTRUCTIONS
FEATURES

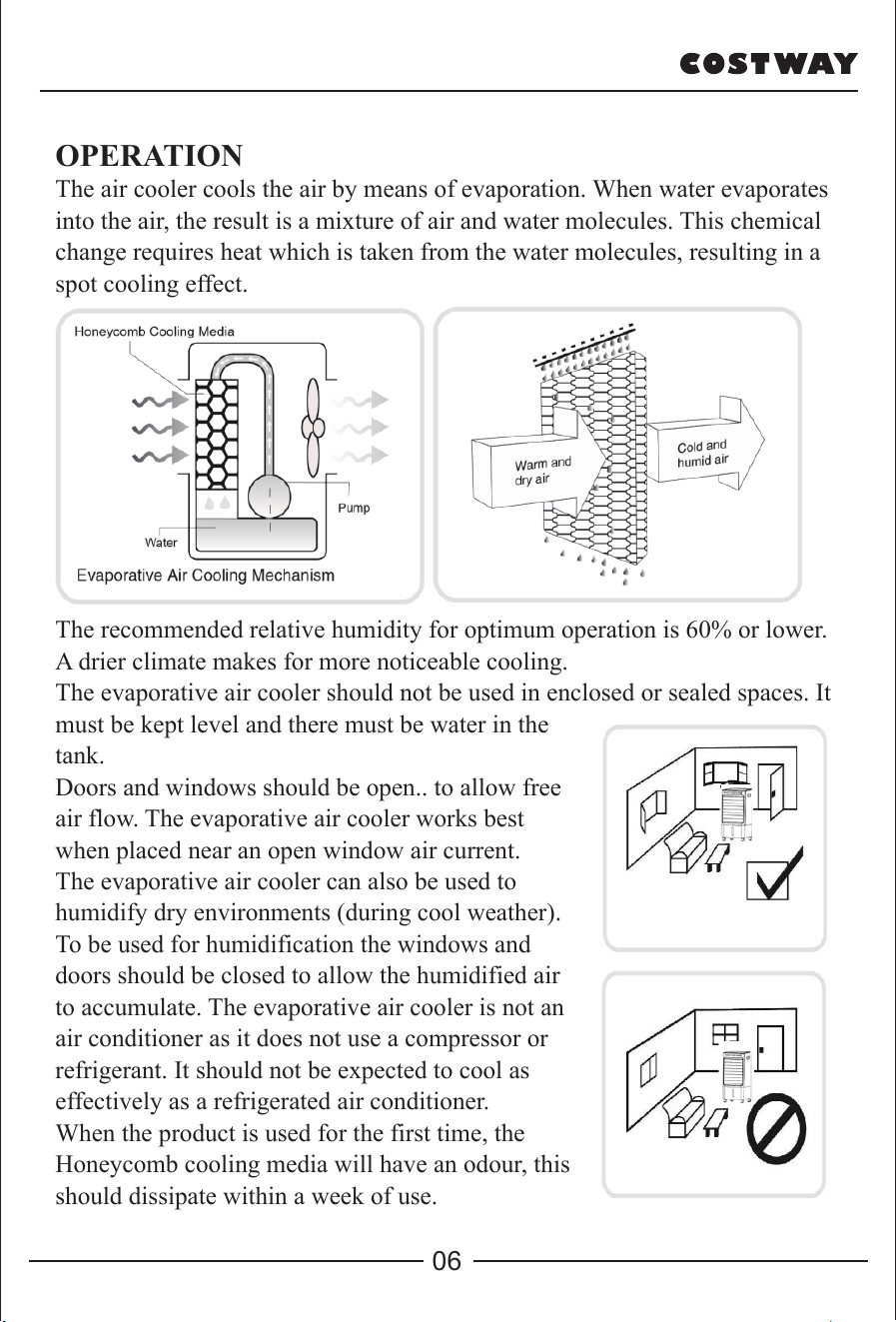

OPERATION

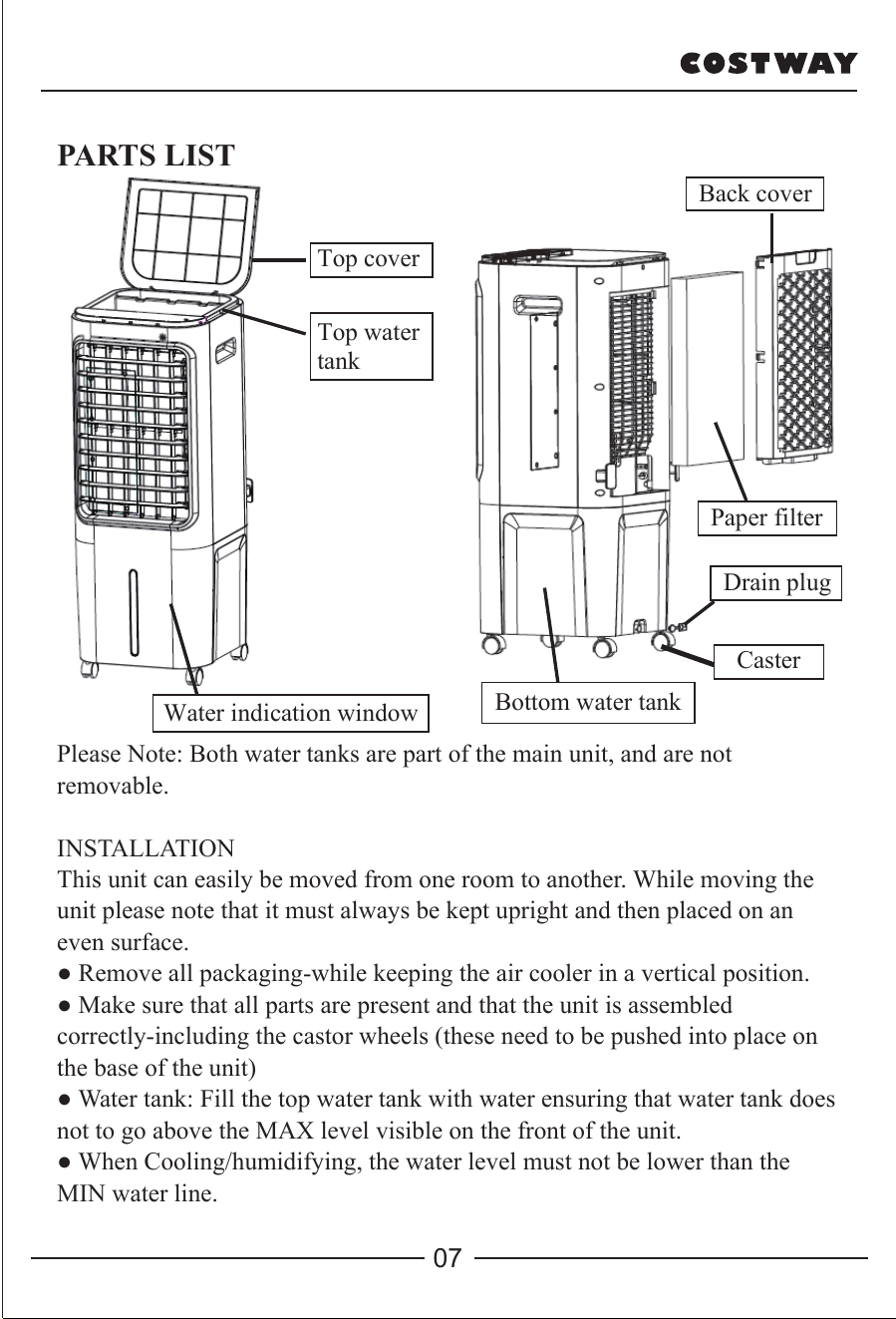

PARTS LIST
INSTALLATION
CONTROL PANEL AND SETTINGS

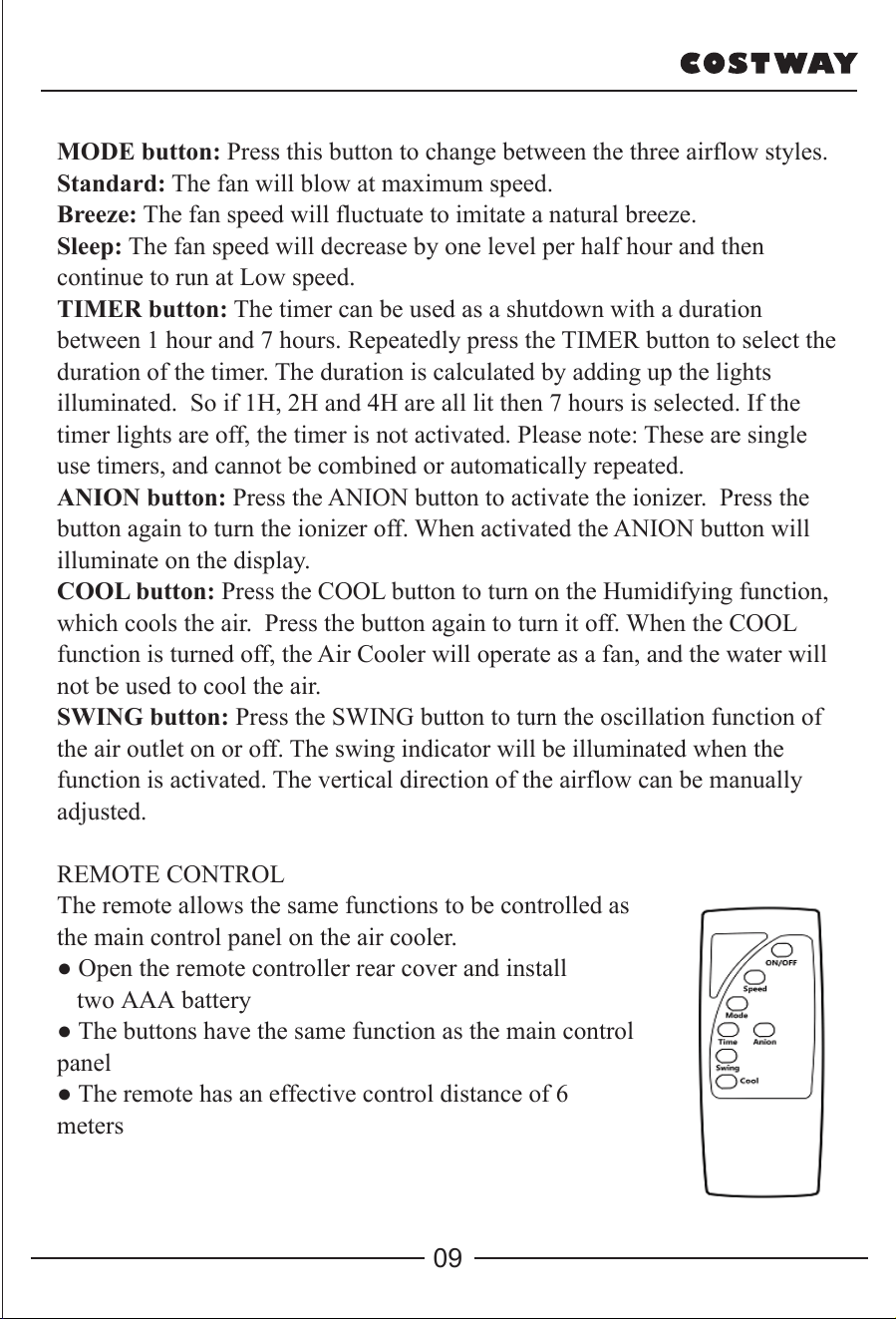

REMOTE CONTROL

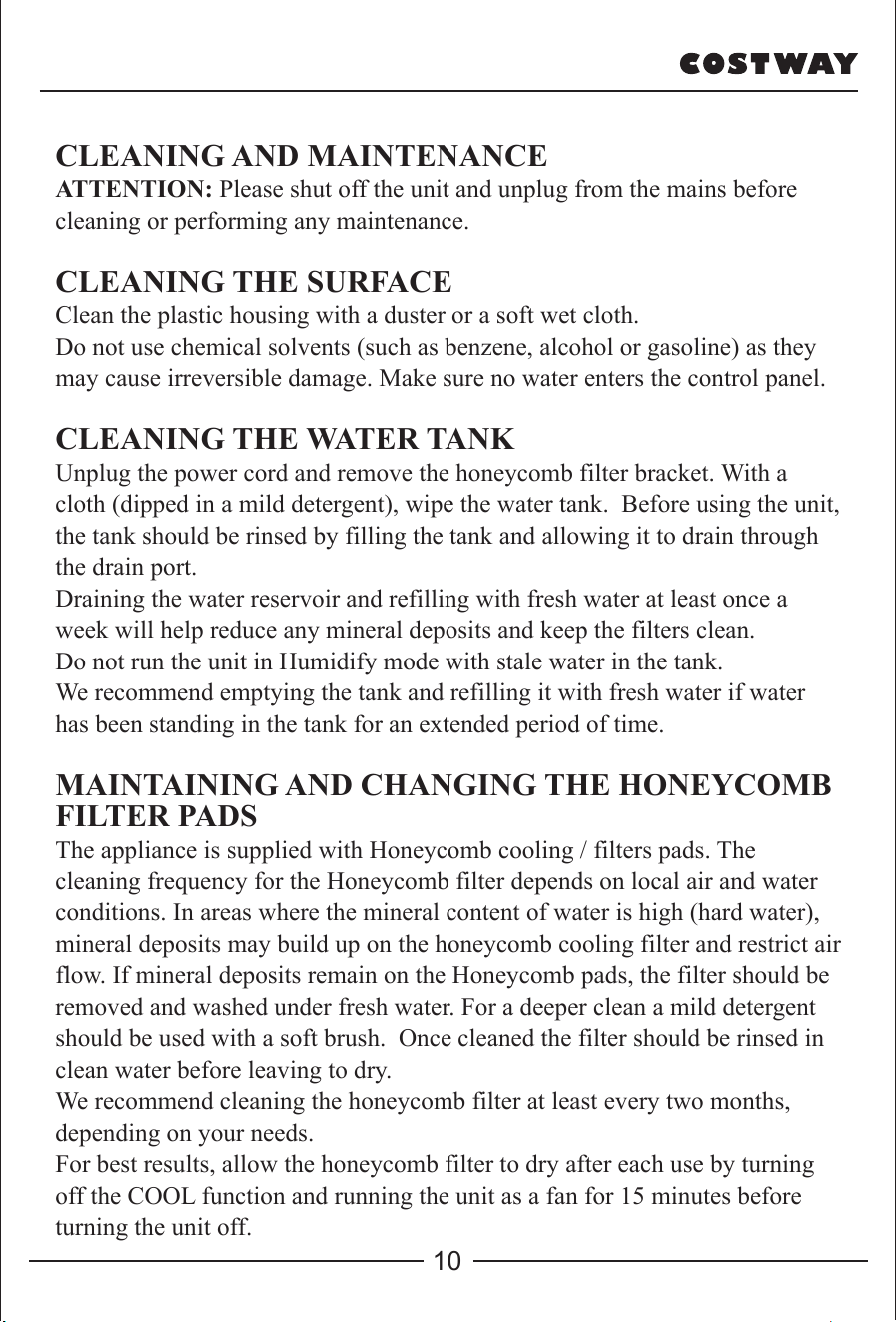

CLEANING AND MAINTENANCE

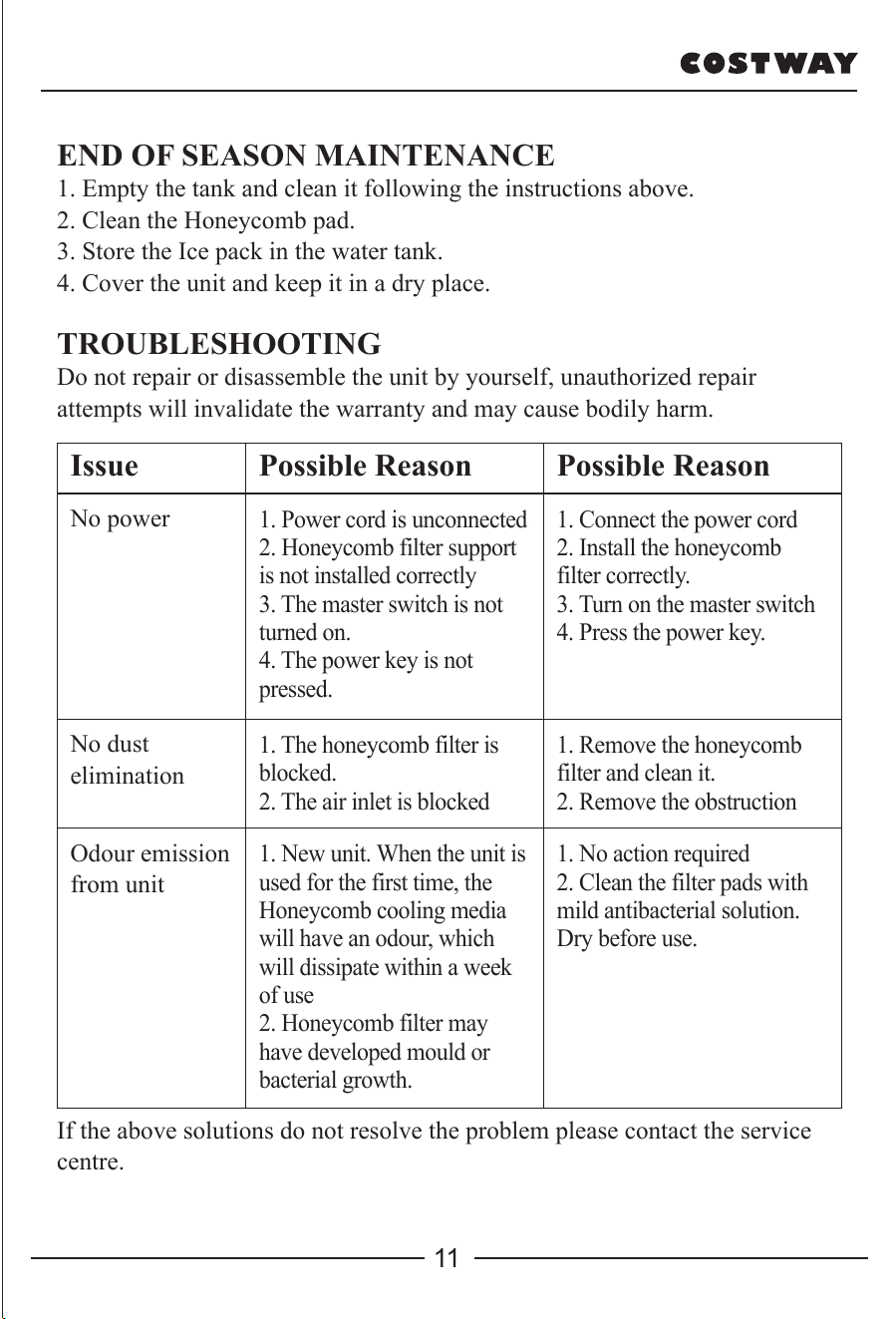

TROUBLE SHOOTING

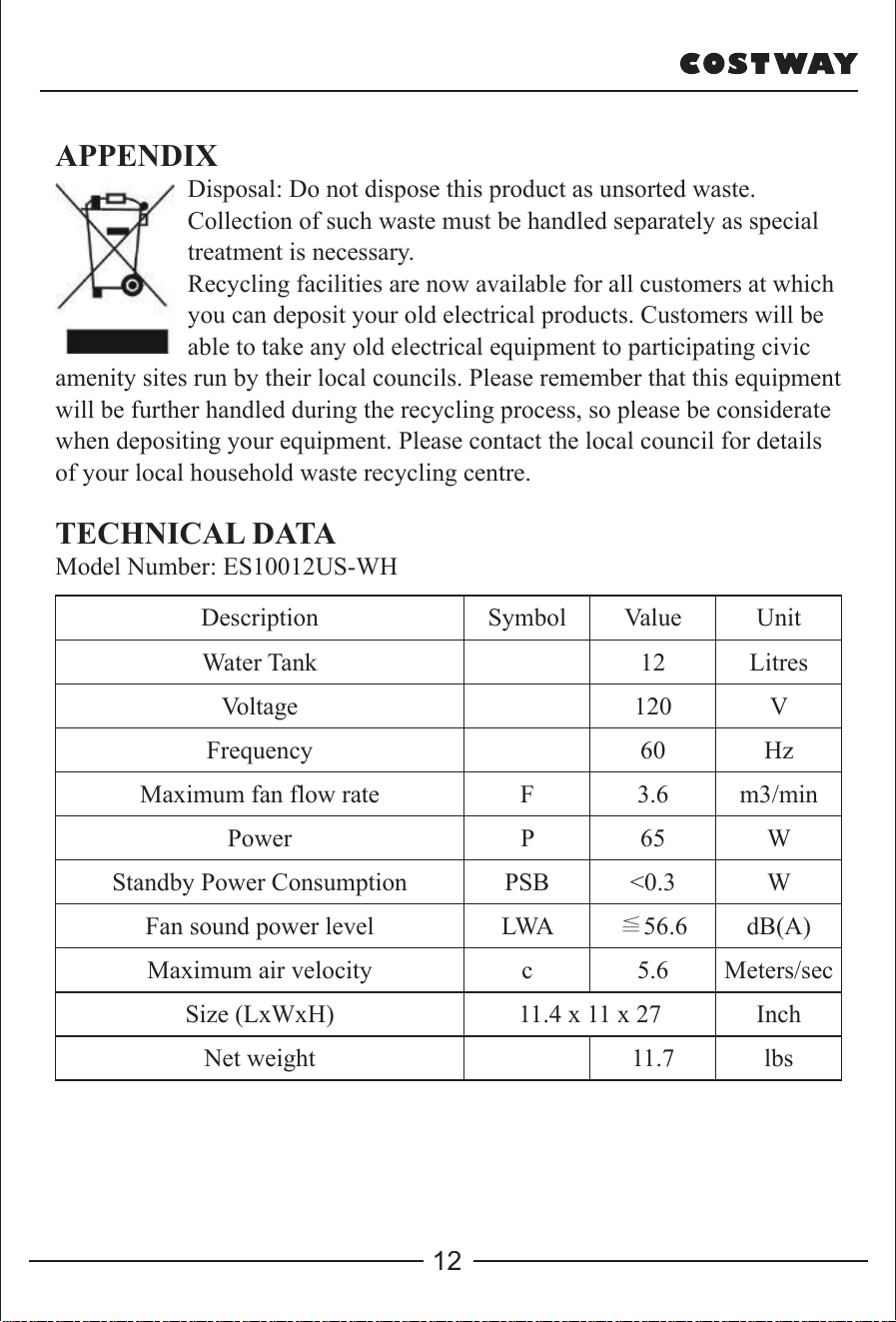

APPENDIX
TECHNICAL DATA

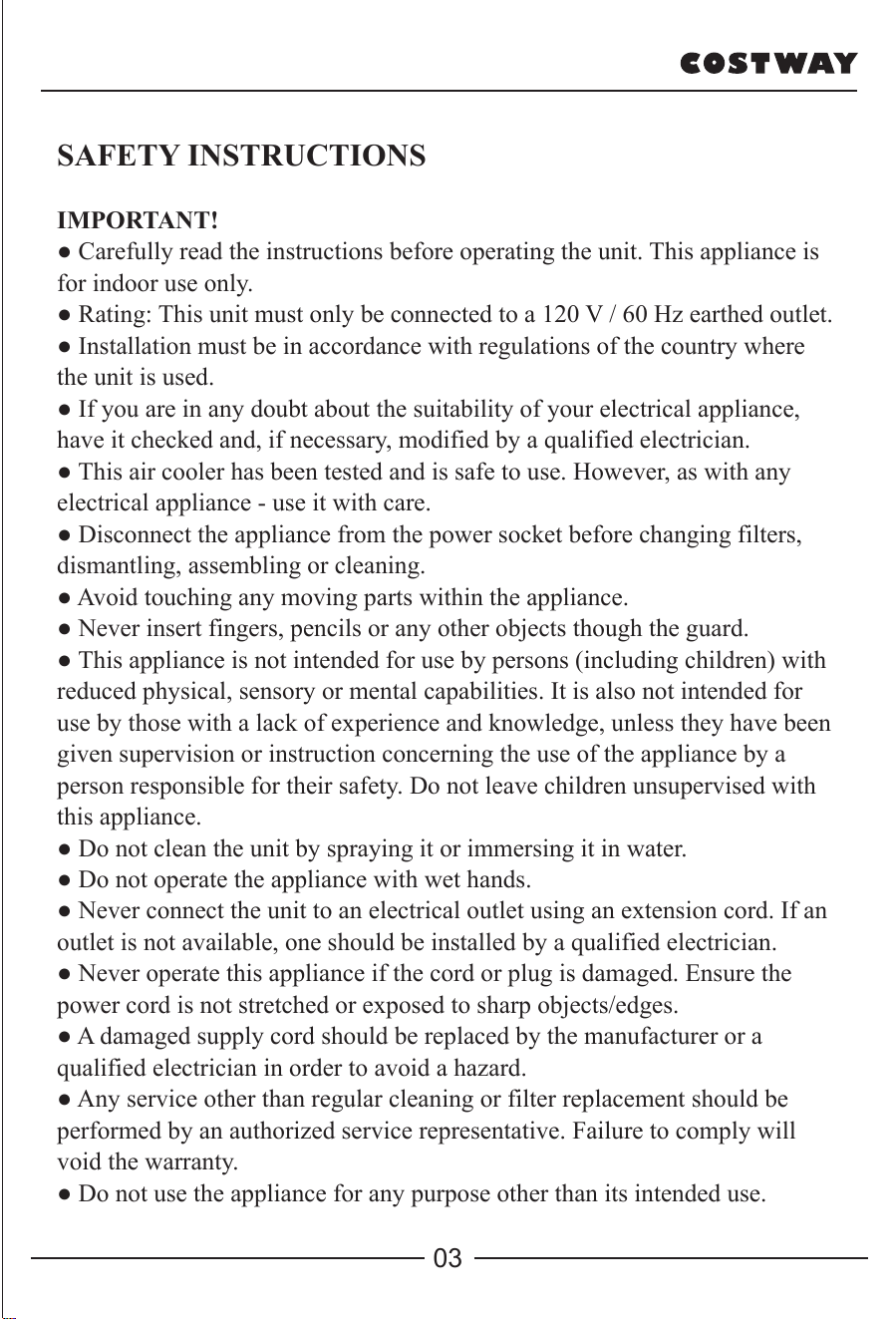

SAFETY INSTRUCTIONS
IMPORTANT!
● Carefully read the instructions before operating the unit. This appliance is
for indoor use only.
● Rating: This unit must only be connected to a 120 V / 60 Hz earthed outlet.
● Installation must be in accordance with regulations of the country where
the unit is used.
● If you are in any doubt about the suitability of your electrical appliance,
have it checked and, if necessary, modified by a qualified electrician.
● This air cooler has been tested and is safe to use. However, as with any
electrical appliance - use it with care.
● Disconnect the appliance from the power socket before changing filters,
dismantling, assembling or cleaning.
● Avoid touching any moving parts within the appliance.
● Never insert fingers, pencils or any other objects though the guard.
● This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities. It is also not intended for
use by those with a lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by a
person responsible for their safety. Do not leave children unsupervised with
this appliance.
● Do not clean the unit by spraying it or immersing it in water.
● Do not operate the appliance with wet hands.
● Never connect the unit to an electrical outlet using an extension cord. If an
outlet is not available, one should be installed by a qualified electrician.
● Never operate this appliance if the cord or plug is damaged. Ensure the
power cord is not stretched or exposed to sharp objects/edges.
● A damaged supply cord should be replaced by the manufacturer or a
qualified electrician in order to avoid a hazard.
● Any service other than regular cleaning or filter replacement should be
performed by an authorized service representative. Failure to comply will
void the warranty.
● Do not use the appliance for any purpose other than its intended use.
02 03
Please read this user manual before using this innovative Air Cooler and keep
it safe for future reference.
CONTENTS
SAFETY INSTRUCTIONS
FEATURES
OPERATION
PARTS LIST
INSTALLATION
CONTROL PANEL AND SETTINGS
REMOTE CONTROL
CLEANING AND MAINTENANCE
TROUBLE SHOOTING
APPENDIX
TECHNICAL DATA
SAFETY INSTRUCTIONS
IMPORTANT!
● Carefully read the instructions before operating the unit. This appliance is
for indoor use only.
● Rating: This unit must only be connected to a 120 V / 60 Hz earthed outlet.
● Installation must be in accordance with regulations of the country where
the unit is used.
● If you are in any doubt about the suitability of your electrical appliance,
have it checked and, if necessary, modified by a qualified electrician.
● This air cooler has been tested and is safe to use. However, as with any
electrical appliance - use it with care.
● Disconnect the appliance from the power socket before changing filters,
dismantling, assembling or cleaning.
● Avoid touching any moving parts within the appliance.
● Never insert fingers, pencils or any other objects though the guard.
● This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities. It is also not intended for
use by those with a lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by a
person responsible for their safety. Do not leave children unsupervised with
this appliance.
● Do not clean the unit by spraying it or immersing it in water.
● Do not operate the appliance with wet hands.
● Never connect the unit to an electrical outlet using an extension cord. If an
outlet is not available, one should be installed by a qualified electrician.
● Never operate this appliance if the cord or plug is damaged. Ensure the
power cord is not stretched or exposed to sharp objects/edges.
● A damaged supply cord should be replaced by the manufacturer or a
qualified electrician in order to avoid a hazard.
● Any service other than regular cleaning or filter replacement should be
performed by an authorized service representative. Failure to comply will
void the warranty.
● Do not use the appliance for any purpose other than its intended use.
02 03

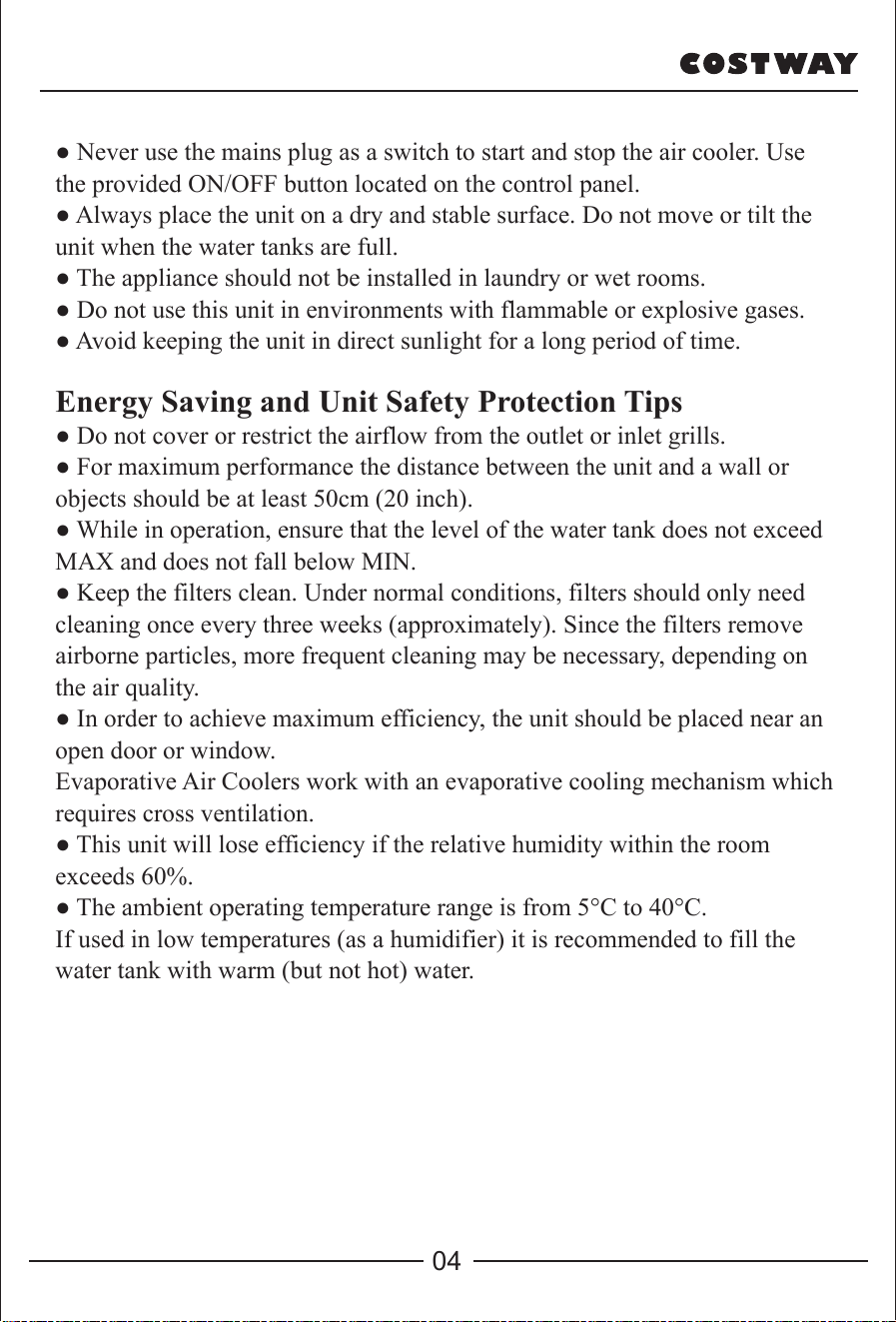

● Never use the mains plug as a switch to start and stop the air cooler. Use
the provided ON/OFF button located on the control panel.
● Always place the unit on a dry and stable surface. Do not move or tilt the
unit when the water tanks are full.
● The appliance should not be installed in laundry or wet rooms.
● Do not use this unit in environments with flammable or explosive gases.
● Avoid keeping the unit in direct sunlight for a long period of time.
Energy Saving and Unit Safety Protection Tips
● Do not cover or restrict the airflow from the outlet or inlet grills.
● For maximum performance the distance between the unit and a wall or
objects should be at least 50cm (20 inch).
● While in operation, ensure that the level of the water tank does not exceed
MAX and does not fall below MIN.
● Keep the filters clean. Under normal conditions, filters should only need
cleaning once every three weeks (approximately). Since the filters remove
airborne particles, more frequent cleaning may be necessary, depending on
the air quality.
● In order to achieve maximum efficiency, the unit should be placed near an
open door or window.
Evaporative Air Coolers work with an evaporative cooling mechanism which
requires cross ventilation.
● This unit will lose efficiency if the relative humidity within the room
exceeds 60%.
● The ambient operating temperature range is from 5°C to 40°C.
If used in low temperatures (as a humidifier) it is recommended to fill the
water tank with warm (but not hot) water.

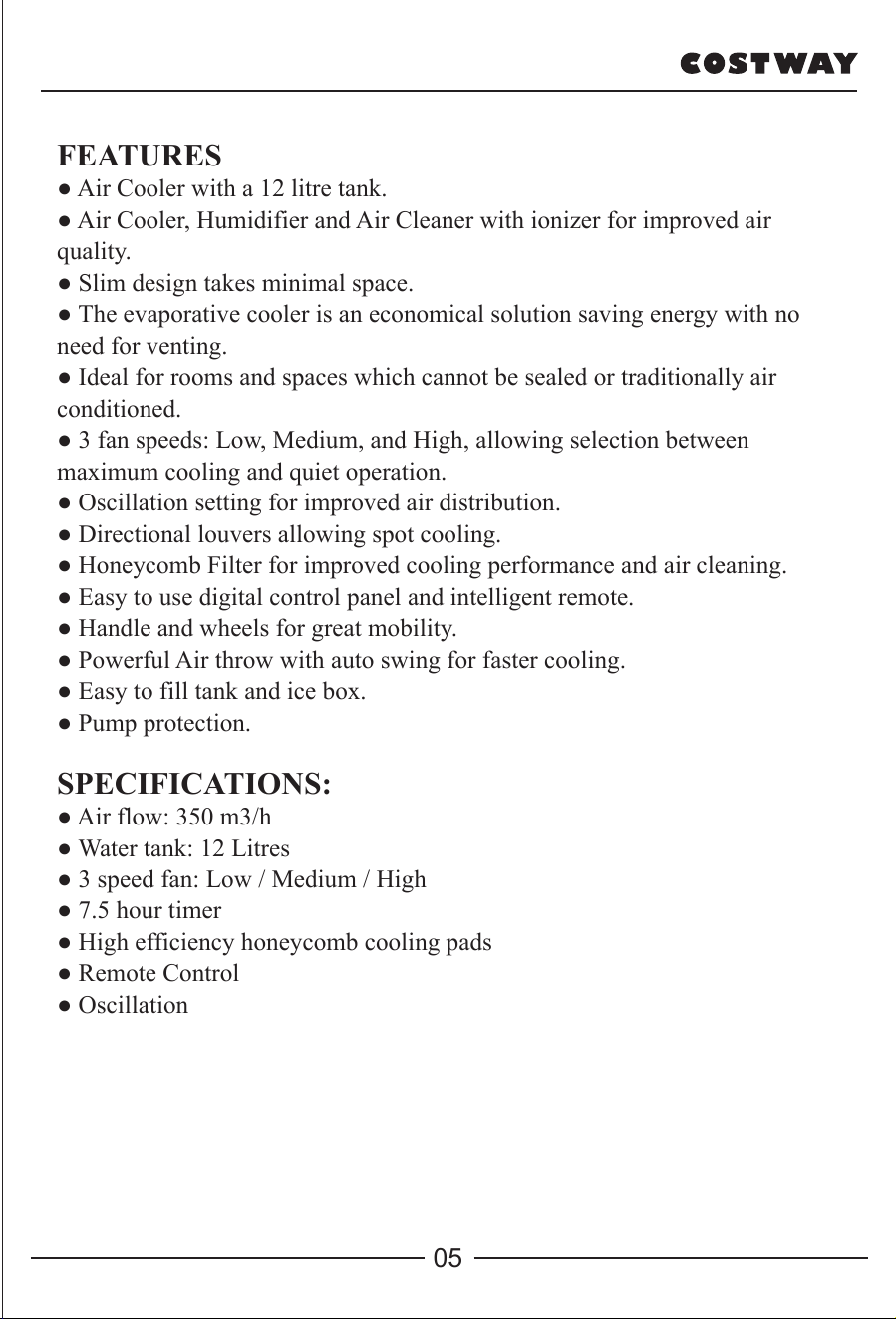

FEATURES
● Air Cooler with a 12 litre tank.
● Air Cooler, Humidifier and Air Cleaner with ionizer for improved air
quality.
● Slim design takes minimal space.
● The evaporative cooler is an economical solution saving energy with no
need for venting.
● Ideal for rooms and spaces which cannot be sealed or traditionally air
conditioned.
● 3 fan speeds: Low, Medium, and High, allowing selection between
maximum cooling and quiet operation.
● Oscillation setting for improved air distribution.
● Directional louvers allowing spot cooling.
● Honeycomb Filter for improved cooling performance and air cleaning.
● Easy to use digital control panel and intelligent remote.
● Handle and wheels for great mobility.
● Powerful Air throw with auto swing for faster cooling.
● Easy to fill tank and ice box.
● Pump protection.
SPECIFICATIONS:
● Air flow: 350 m3/h
● Water tank: 12 Litres
● 3 speed fan: Low / Medium / High
● 7.5 hour timer
● High efficiency honeycomb cooling pads
● Remote Control
● Oscillation
04 05
● Never use the mains plug as a switch to start and stop the air cooler. Use
the provided ON/OFF button located on the control panel.
● Always place the unit on a dry and stable surface. Do not move or tilt the
unit when the water tanks are full.
● The appliance should not be installed in laundry or wet rooms.
● Do not use this unit in environments with flammable or explosive gases.
● Avoid keeping the unit in direct sunlight for a long period of time.
Energy Saving and Unit Safety Protection Tips
● Do not cover or restrict the airflow from the outlet or inlet grills.
● For maximum performance the distance between the unit and a wall or
objects should be at least 50cm (20 inch).
● While in operation, ensure that the level of the water tank does not exceed
MAX and does not fall below MIN.
● Keep the filters clean. Under normal conditions, filters should only need
cleaning once every three weeks (approximately). Since the filters remove
airborne particles, more frequent cleaning may be necessary, depending on
the air quality.
● In order to achieve maximum efficiency, the unit should be placed near an
open door or window.
Evaporative Air Coolers work with an evaporative cooling mechanism which
requires cross ventilation.
● This unit will lose efficiency if the relative humidity within the room
exceeds 60%.
● The ambient operating temperature range is from 5°C to 40°C.
If used in low temperatures (as a humidifier) it is recommended to fill the
water tank with warm (but not hot) water.
FEATURES
● Air Cooler with a 12 litre tank.
● Air Cooler, Humidifier and Air Cleaner with ionizer for improved air
quality.
● Slim design takes minimal space.
● The evaporative cooler is an economical solution saving energy with no
need for venting.
● Ideal for rooms and spaces which cannot be sealed or traditionally air
conditioned.
● 3 fan speeds: Low, Medium, and High, allowing selection between
maximum cooling and quiet operation.
● Oscillation setting for improved air distribution.
● Directional louvers allowing spot cooling.
● Honeycomb Filter for improved cooling performance and air cleaning.
● Easy to use digital control panel and intelligent remote.
● Handle and wheels for great mobility.
● Powerful Air throw with auto swing for faster cooling.
● Easy to fill tank and ice box.
● Pump protection.
SPECIFICATIONS:
● Air flow: 350 m3/h
● Water tank: 12 Litres
● 3 speed fan: Low / Medium / High
● 7.5 hour timer
● High efficiency honeycomb cooling pads
● Remote Control
● Oscillation
04 05
OPERATION
The air cooler cools the air by means of evaporation. When water evaporates
into the air, the result is a mixture of air and water molecules. This chemical
change requires heat which is taken from the water molecules, resulting in a
spot cooling effect.
The recommended relative humidity for optimum operation is 60% or lower.
A drier climate makes for more noticeable cooling.
The evaporative air cooler should not be used in enclosed or sealed spaces. It
must be kept level and there must be water in the
tank.
Doors and windows should be open.. to allow free
air flow. The evaporative air cooler works best
when placed near an open window air current.
The evaporative air cooler can also be used to
humidify dry environments (during cool weather).
To be used for humidification the windows and
doors should be closed to allow the humidified air
to accumulate. The evaporative air cooler is not an
air conditioner as it does not use a compressor or
refrigerant. It should not be expected to cool as
effectively as a refrigerated air conditioner.
When the product is used for the first time, the
Honeycomb cooling media will have an odour, this
should dissipate within a week of use.
PARTS LIST
Please Note: Both water tanks are part of the main unit, and are not
removable.
INSTALLATION
This unit can easily be moved from one room to another. While moving the
unit please note that it must always be kept upright and then placed on an
even surface.
● Remove all packaging-while keeping the air cooler in a vertical position.
● Make sure that all parts are present and that the unit is assembled
correctly-including the castor wheels (these need to be pushed into place on
the base of the unit)
● Water tank: Fill the top water tank with water ensuring that water tank does
not to go above the MAX level visible on the front of the unit.
● When Cooling/humidifying, the water level must not be lower than the
MIN water line.
Paper filter
Back cover
Drain plug
Bottom water tank
Caster
Top cover
Top water
tank
Water indication window
06 07
OPERATION
The air cooler cools the air by means of evaporation. When water evaporates
into the air, the result is a mixture of air and water molecules. This chemical
change requires heat which is taken from the water molecules, resulting in a
spot cooling effect.
The recommended relative humidity for optimum operation is 60% or lower.
A drier climate makes for more noticeable cooling.
The evaporative air cooler should not be used in enclosed or sealed spaces. It
must be kept level and there must be water in the
tank.
Doors and windows should be open.. to allow free
air flow. The evaporative air cooler works best
when placed near an open window air current.
The evaporative air cooler can also be used to
humidify dry environments (during cool weather).
To be used for humidification the windows and
doors should be closed to allow the humidified air
to accumulate. The evaporative air cooler is not an
air conditioner as it does not use a compressor or
refrigerant. It should not be expected to cool as
effectively as a refrigerated air conditioner.
When the product is used for the first time, the
Honeycomb cooling media will have an odour, this
should dissipate within a week of use.
PARTS LIST
Please Note: Both water tanks are part of the main unit, and are not
removable.
INSTALLATION
This unit can easily be moved from one room to another. While moving the
unit please note that it must always be kept upright and then placed on an
even surface.
● Remove all packaging-while keeping the air cooler in a vertical position.
● Make sure that all parts are present and that the unit is assembled
correctly-including the castor wheels (these need to be pushed into place on
the base of the unit)
● Water tank: Fill the top water tank with water ensuring that water tank does
not to go above the MAX level visible on the front of the unit.
● When Cooling/humidifying, the water level must not be lower than the
MIN water line.
Paper filter
Back cover
Drain plug
Bottom water tank
Caster
Top cover
Top water
tank
Water indication window
06 07

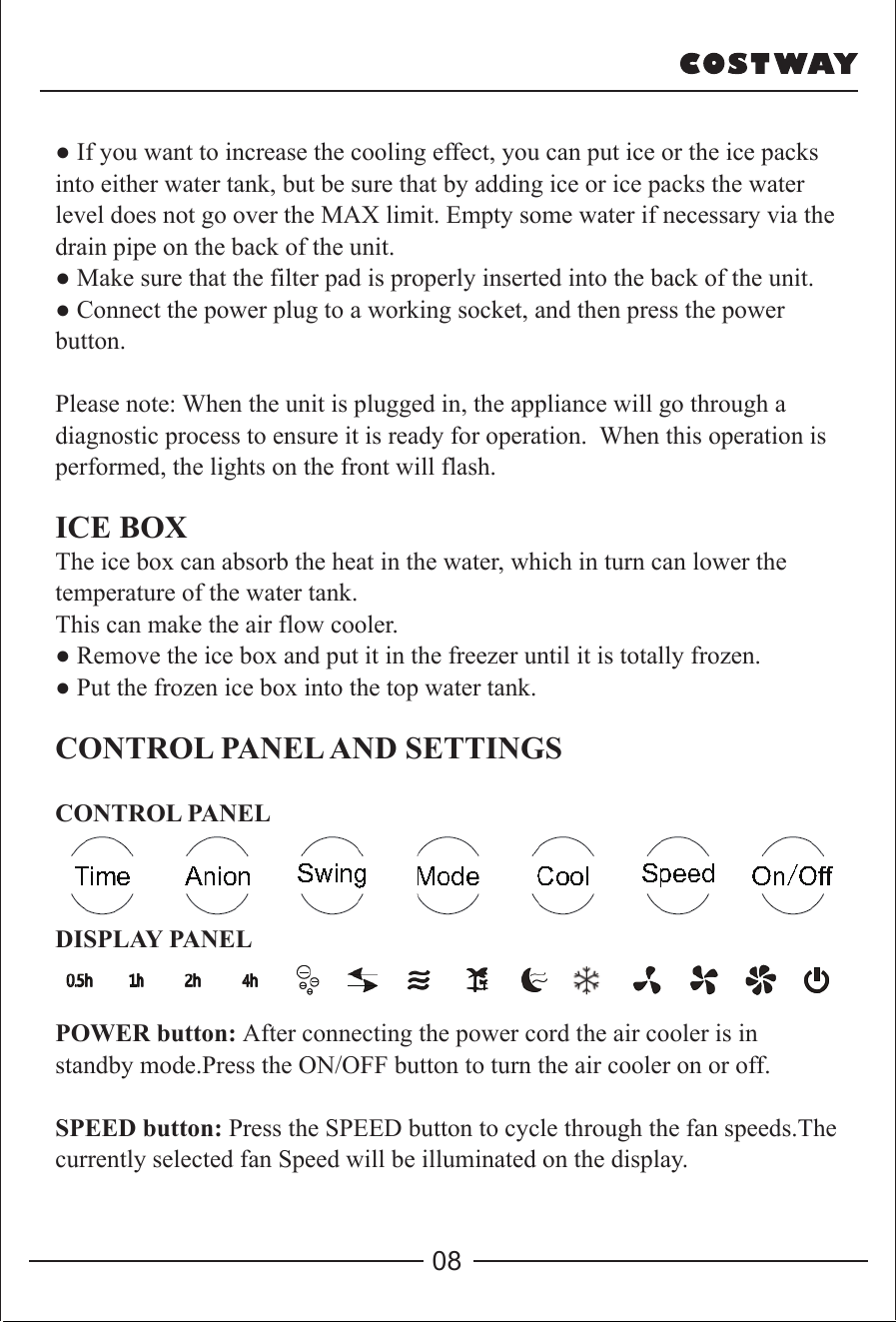

● If you want to increase the cooling effect, you can put ice or the ice packs
into either water tank, but be sure that by adding ice or ice packs the water
level does not go over the MAX limit. Empty some water if necessary via the
drain pipe on the back of the unit.
● Make sure that the filter pad is properly inserted into the back of the unit.
● Connect the power plug to a working socket, and then press the power
button.
Please note: When the unit is plugged in, the appliance will go through a
diagnostic process to ensure it is ready for operation. When this operation is
performed, the lights on the front will flash.
ICE BOX
The ice box can absorb the heat in the water, which in turn can lower the
temperature of the water tank.
This can make the air flow cooler.
● Remove the ice box and put it in the freezer until it is totally frozen.
● Put the frozen ice box into the top water tank.
CONTROL PANEL AND SETTINGS
CONTROL PANEL
DISPLAY PANEL
POWER button:
After connecting the power cord the air cooler is in
standby mode.Press the ON/OFF button to turn the air cooler on or off.
SPEED button: Press the SPEED button to cycle through the fan speeds.The
currently selected fan Speed will be illuminated on the display.
MODE button: Press this button to change between the three airflow styles.
Standard: The fan will blow at maximum speed.
Breeze: The fan speed will fluctuate to imitate a natural breeze.
Sleep: The fan speed will decrease by one level per half hour and then
continue to run at Low speed.
TIMER button: The timer can be used as a shutdown with a duration
between 1 hour and 7 hours. Repeatedly press the TIMER button to select the
duration of the timer. The duration is calculated by adding up the lights
illuminated. So if 1H, 2H and 4H are all lit then 7 hours is selected. If the
timer lights are off, the timer is not activated. Please note: These are single
use timers, and cannot be combined or automatically repeated.
ANION button: Press the ANION button to activate the ionizer. Press the
button again to turn the ionizer off. When activated the ANION button will
illuminate on the display.
COOL button: Press the COOL button to turn on the Humidifying function,
which cools the air. Press the button again to turn it off. When the COOL
function is turned off, the Air Cooler will operate as a fan, and the water will
not be used to cool the air.
SWING button: Press the SWING button to turn the oscillation function of
the air outlet on or off. The swing indicator will be illuminated when the
function is activated. The vertical direction of the airflow can be manually
adjusted.
REMOTE CONTROL
The remote allows the same functions to be controlled as
the main control panel on the air cooler.
● Open the remote controller rear cover and install
two AAA battery
● The buttons have the same function as the main control
panel
● The remote has an effective control distance of 6
meters
08 09
● If you want to increase the cooling effect, you can put ice or the ice packs
into either water tank, but be sure that by adding ice or ice packs the water
level does not go over the MAX limit. Empty some water if necessary via the
drain pipe on the back of the unit.
● Make sure that the filter pad is properly inserted into the back of the unit.
● Connect the power plug to a working socket, and then press the power
button.
Please note: When the unit is plugged in, the appliance will go through a
diagnostic process to ensure it is ready for operation. When this operation is
performed, the lights on the front will flash.
ICE BOX
The ice box can absorb the heat in the water, which in turn can lower the
temperature of the water tank.
This can make the air flow cooler.
● Remove the ice box and put it in the freezer until it is totally frozen.
● Put the frozen ice box into the top water tank.
CONTROL PANEL AND SETTINGS
CONTROL PANEL
DISPLAY PANEL
POWER button:
After connecting the power cord the air cooler is in
standby mode.Press the ON/OFF button to turn the air cooler on or off.
SPEED button: Press the SPEED button to cycle through the fan speeds.The
currently selected fan Speed will be illuminated on the display.
MODE button: Press this button to change between the three airflow styles.
Standard: The fan will blow at maximum speed.
Breeze: The fan speed will fluctuate to imitate a natural breeze.
Sleep: The fan speed will decrease by one level per half hour and then
continue to run at Low speed.
TIMER button: The timer can be used as a shutdown with a duration
between 1 hour and 7 hours. Repeatedly press the TIMER button to select the
duration of the timer. The duration is calculated by adding up the lights
illuminated. So if 1H, 2H and 4H are all lit then 7 hours is selected. If the
timer lights are off, the timer is not activated. Please note: These are single
use timers, and cannot be combined or automatically repeated.
ANION button: Press the ANION button to activate the ionizer. Press the
button again to turn the ionizer off. When activated the ANION button will
illuminate on the display.
COOL button: Press the COOL button to turn on the Humidifying function,
which cools the air. Press the button again to turn it off. When the COOL
function is turned off, the Air Cooler will operate as a fan, and the water will
not be used to cool the air.
SWING button: Press the SWING button to turn the oscillation function of
the air outlet on or off. The swing indicator will be illuminated when the
function is activated. The vertical direction of the airflow can be manually
adjusted.
REMOTE CONTROL
The remote allows the same functions to be controlled as
the main control panel on the air cooler.
● Open the remote controller rear cover and install
two AAA battery
● The buttons have the same function as the main control
panel
● The remote has an effective control distance of 6
meters
08 09
CLEANING AND MAINTENANCE
ATTENTION: Please shut off the unit and unplug from the mains before
cleaning or performing any maintenance.
CLEANING THE SURFACE
Clean the plastic housing with a duster or a soft wet cloth.
Do not use chemical solvents (such as benzene, alcohol or gasoline) as they
may cause irreversible damage. Make sure no water enters the control panel.
CLEANING THE WATER TANK
Unplug the power cord and remove the honeycomb filter bracket. With a
cloth (dipped in a mild detergent), wipe the water tank. Before using the unit,
the tank should be rinsed by filling the tank and allowing it to drain through
the drain port.
Draining the water reservoir and refilling with fresh water at least once a
week will help reduce any mineral deposits and keep the filters clean.
Do not run the unit in Humidify mode with stale water in the tank.
We recommend emptying the tank and refilling it with fresh water if water
has been standing in the tank for an extended period of time.
MAINTAINING AND CHANGING THE HONEYCOMB
FILTER PADS
The appliance is supplied with Honeycomb cooling / filters pads. The
cleaning frequency for the Honeycomb filter depends on local air and water
conditions. In areas where the mineral content of water is high (hard water),
mineral deposits may build up on the honeycomb cooling filter and restrict air
flow. If mineral deposits remain on the Honeycomb pads, the filter should be
removed and washed under fresh water. For a deeper clean a mild detergent
should be used with a soft brush. Once cleaned the filter should be rinsed in
clean water before leaving to dry.
We recommend cleaning the honeycomb filter at least every two months,
depending on your needs.
For best results, allow the honeycomb filter to dry after each use by turning
off the COOL function and running the unit as a fan for 15 minutes before
turning the unit off.
END OF SEASON MAINTENANCE
1. Empty the tank and clean it following the instructions above.
2. Clean the Honeycomb pad.
3. Store the Ice pack in the water tank.
4. Cover the unit and keep it in a dry place.
TROUBLESHOOTING
Do not repair or disassemble the unit by yourself, unauthorized repair
attempts will invalidate the warranty and may cause bodily harm.
If the above solutions do not resolve the problem please contact the service
centre.
Issue
No power
Possible Reason
1. Power cord is unconnected
2. Honeycomb filter support
is not installed correctly
3. The master switch is not
turned on.
4. The power key is not
pressed.
Possible Reason
1. Connect the power cord
2. Install the honeycomb
filter correctly.
3. Turn on the master switch
4. Press the power key.
No dust
elimination
1. The honeycomb filter is
blocked.
2. The air inlet is blocked
1. Remove the honeycomb
filter and clean it.
2. Remove the obstruction
Odour emission
from unit
1. New unit. When the unit is
used for the first time, the
Honeycomb cooling media
will have an odour, which
will dissipate within a week
of use
2. Honeycomb filter may
have developed mould or
bacterial growth.
1. No action required
2. Clean the filter pads with
mild antibacterial solution.
Dry before use.
10 11
CLEANING AND MAINTENANCE
ATTENTION: Please shut off the unit and unplug from the mains before
cleaning or performing any maintenance.
CLEANING THE SURFACE
Clean the plastic housing with a duster or a soft wet cloth.
Do not use chemical solvents (such as benzene, alcohol or gasoline) as they
may cause irreversible damage. Make sure no water enters the control panel.
CLEANING THE WATER TANK
Unplug the power cord and remove the honeycomb filter bracket. With a
cloth (dipped in a mild detergent), wipe the water tank. Before using the unit,
the tank should be rinsed by filling the tank and allowing it to drain through
the drain port.
Draining the water reservoir and refilling with fresh water at least once a
week will help reduce any mineral deposits and keep the filters clean.
Do not run the unit in Humidify mode with stale water in the tank.
We recommend emptying the tank and refilling it with fresh water if water
has been standing in the tank for an extended period of time.
MAINTAINING AND CHANGING THE HONEYCOMB
FILTER PADS
The appliance is supplied with Honeycomb cooling / filters pads. The
cleaning frequency for the Honeycomb filter depends on local air and water
conditions. In areas where the mineral content of water is high (hard water),
mineral deposits may build up on the honeycomb cooling filter and restrict air
flow. If mineral deposits remain on the Honeycomb pads, the filter should be
removed and washed under fresh water. For a deeper clean a mild detergent
should be used with a soft brush. Once cleaned the filter should be rinsed in
clean water before leaving to dry.
We recommend cleaning the honeycomb filter at least every two months,
depending on your needs.
For best results, allow the honeycomb filter to dry after each use by turning
off the COOL function and running the unit as a fan for 15 minutes before
turning the unit off.
END OF SEASON MAINTENANCE
1. Empty the tank and clean it following the instructions above.
2. Clean the Honeycomb pad.
3. Store the Ice pack in the water tank.
4. Cover the unit and keep it in a dry place.
TROUBLESHOOTING
Do not repair or disassemble the unit by yourself, unauthorized repair
attempts will invalidate the warranty and may cause bodily harm.
If the above solutions do not resolve the problem please contact the service
centre.
Issue
No power
Possible Reason
1. Power cord is unconnected
2. Honeycomb filter support
is not installed correctly
3. The master switch is not
turned on.
4. The power key is not
pressed.
Possible Reason
1. Connect the power cord
2. Install the honeycomb
filter correctly.
3. Turn on the master switch
4. Press the power key.
No dust
elimination
1. The honeycomb filter is
blocked.
2. The air inlet is blocked
1. Remove the honeycomb
filter and clean it.
2. Remove the obstruction
Odour emission
from unit
1. New unit. When the unit is
used for the first time, the
Honeycomb cooling media
will have an odour, which
will dissipate within a week
of use
2. Honeycomb filter may
have developed mould or
bacterial growth.
1. No action required
2. Clean the filter pads with
mild antibacterial solution.
Dry before use.
10 11
APPENDIX
Disposal: Do not dispose this product as unsorted waste.
Collection of such waste must be handled separately as special
treatment is necessary.
Recycling facilities are now available for all customers at which
you can deposit your old electrical products. Customers will be
able to take any old electrical equipment to participating civic
amenity sites run by their local councils. Please remember that this equipment
will be further handled during the recycling process, so please be considerate
when depositing your equipment. Please contact the local council for details
of your local household waste recycling centre.
TECHNICAL DATA
Model Number: ES10012US-WH
Description
Water Tank
Voltage
Frequency
Maximum fan flow rate
Power
Standby Power Consumption
Fan sound power level
Maximum air velocity
Size (LxWxH)
Net weight
Symbol
F
P
PSB
LWA
c
Value
12
120
60
3.6
65
<0.3
≦56.6
5.6
11.7
Unit
Litres
V
Hz
m3/min
W
W
dB(A)
Meters/sec
Inch
lbs
11.4 x 11 x 27
12
APPENDIX
Disposal: Do not dispose this product as unsorted waste.
Collection of such waste must be handled separately as special
treatment is necessary.
Recycling facilities are now available for all customers at which
you can deposit your old electrical products. Customers will be
able to take any old electrical equipment to participating civic
amenity sites run by their local councils. Please remember that this equipment
will be further handled during the recycling process, so please be considerate
when depositing your equipment. Please contact the local council for details
of your local household waste recycling centre.
TECHNICAL DATA
Model Number: ES10012US-WH
Description
Water Tank
Voltage
Frequency
Maximum fan flow rate
Power
Standby Power Consumption
Fan sound power level
Maximum air velocity
Size (LxWxH)
Net weight
Symbol
F
P
PSB
LWA
c
Value
12
120
60
3.6
65
<0.3
≦56.6
5.6
11.7
Unit
Litres
V
Hz
m3/min
W
W
dB(A)
Meters/sec
Inch
lbs
11.4 x 11 x 27
12
