J8 (NAA)
Instructions for Use
For your safety: read and understand manual before use.
Figure: Your machine may look
different than the one shown.
2
Table of contents
Your J8
1 IMPORTANT SAFEGUARDS ........................................................................................4
2 Control elements ....................................................................................................8
3 Preparing and using for the first time .......................................................................10
Setting up the machine ...........................................................................................10
Filling the bean container .........................................................................................10
Determining the water hardness ................................................................................10
First-time use .........................................................................................................11
Managing your J8 – the JURA Cockpit ........................................................................ 13
Coffee Eye ............................................................................................................. 13
Connecting milk ..................................................................................................... 13
Establishing a WiFi connection .................................................................................. 13
4 Preparation .......................................................................................................... 14
Preparation with preselection (Specialty Selection) ........................................................ 15
Espresso and coffee ................................................................................................15
Sweet latte (prepared with syrup attachment) ..............................................................16
Latte macchiato, cappuccino and other specialty coffees with milk .................................... 17
Milk and milk foam ................................................................................................. 17
Americano and lungo ............................................................................................. 17
Espresso doppio .....................................................................................................18
Ground coffee ........................................................................................................18
Hot water .............................................................................................................19
Adjusting the product settings ..................................................................................19
5 Daily operation .................................................................................................... 20
Switching the machine on and off ............................................................................. 20
Filling the water tank .............................................................................................. 20
Maintenance actions ............................................................................................... 21
6 Machine settings .................................................................................................. 22
7 Maintenance ........................................................................................................ 23
Rinsing the machine .............................................................................................. 23
Rinsing the milk system .......................................................................................... 24
Cleaning the milk system ........................................................................................ 24
Dismantling and rinsing the professional fine foam frother ............................................. 25
3
Table of contents
Inserting/changing the filter ..................................................................................... 26
Cleaning the machine ............................................................................................ 27
Descaling the machine .......................................................................................... 28
Descaling the water tank ......................................................................................... 30
Cleaning the bean container .................................................................................... 30
8 Display messages .................................................................................................. 31
9 Troubleshooting ................................................................................................... 32
10 Transport and environmentally friendly disposal ........................................................ 33
Transport/ Emptying the system .............................................................................. 33
Disposal .............................................................................................................. 33
11 Technical data ....................................................................................................... 34
12 Index .................................................................................................................. 35
13 JURA contact details/ Legal information ................................................................... 40
1 IMPORTANT SAFEGUARDS
4
1 IMPORTANT SAFEGUARDS
Failure to observe the instructions for use may result in serious
injuries or damage to property. Safety information is therefore
indicated as follows:
J
This is the safety alert symbol. lt is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which,
if not avoided, will result in death or serious
injury.
WARNING indicates a hazardous situation
which, if not avoided, could result in death or
serious injury.
J
CAUTION CAUTION, used with the safety alert symbol,
indicates a hazardous situation which, if not
avoided, could result in minor or moderate
injury.
NOTICE NOTICE is used to address practices not related
to personal injury.
When using electrical appliances, basic safety precautions shall
always be followed, to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:
Z Read all instructions.
Z Do not touch hot surfaces. Use handles or knobs.
Z To protect against fire, electric shock and injury to persons, do
not immerse power cord, plugs, or body of machine in water
or other liquid.
Z Close supervision is necessary when any appliance is used by
or near children.
Z Unplug from outlet when not in use and before cleaning.
Allow to cool before putting on or taking off parts, and before
cleaning the appliance.
Z Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions, or has been damaged in any
manner. Return appliance to the nearest authorized service
facility for examination, repair or adjustment.
Comply with the
instructions for use
J DANGER
J WARNING
Follow the basic safety
precautions
1 IMPORTANT SAFEGUARDS
5
SAVE THESE INSTRUCTIONS. Pass them on to any subsequent user.
The appliance is designed and intended for household use only. It
shall only be used for coffee preparation and to heat milk and water,
according to these instructions. Use for any other purpose will be
deemed improper. JURA Elektroapparate AG cannot accept any
responsibility for the consequences of improper use.
People, including children, who
Z do not have the physical, sensory or mental capabilities to use
the appliance safely or
Z are inexperienced or lack knowledge in how to use the
appliance safely
must be supervised by a responsible person when using it, or must
be instructed in how to use it correctly.
Z A short power-supply cord is to be provided to reduce risks
resulting from becoming entangled in or tripping over a
longer cord.
Z The cord shall be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children
or tripped over.
Z This appliance has a 3-pin grounded plug.
Z Do not modify the plug in any way.
Intended use
Special power cord set
instructions
Z The use of an accessory attachment not recommended by the
appliance manufacturer may result in fire, electric shock, or
injury to persons.
Z Do not use outdoors.
Z Do not let the cord hang over the edge of a table or counter,
or touch hot surfaces.
Z Do not place on or near a hot gas or electric burner, or in a
heated oven.
Z To disconnect, turn any control to ‘OFF’ then remove plug
from wall outlet.
Z Do not use appliance for other than intended use.
Z Use extreme caution when dispensing hot steam, hot water
or hot coffee.
1 IMPORTANT SAFEGUARDS
6
Extension cords are available an may be used if care is exercised in
their use.
If the user chooses to use an extension cord,
Z the marked electrical rating of the extension cord should be
at least as great as the electrical rating of the appliance, and
Z if the appliance is of the grounded type, the extension cord
should be a grounding type 3-wire cord, and
Z the longer cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on by
children or tripped over.
To reduce the risk of fire or electric shock, DO NOT remove any
service covers. DO NOT modify the appliance in any way that is not
described in these instructions. NO user serviceable parts included.
Repair MUST be done by authorized personnel only.
In the event of signs of damage, for example if there is a smell of
burning, unplug the machine immediately from outlet and contact
JURA customer service.
This appliance is for household use. Any servicing other than
cleaning and user maintenance shall be performed by an authorized
service representative:
Z Do not immerse base in water or try to disassemble.
Z Do not put the appliance or any individual parts in the
dishwasher.
Z Check voltage to be sure that the voltage indicated on the
name plate complies with your voltage. The name plate is
located on the underside of the appliance.
Z Never use warm or hot water to fill the water container. Use
cold water only.
Z Keep your hands and the cord away from hot parts of the
appliance during operation.
There is a risk of scalds or burns on the spouts and the cappuccino
frother / nozzle.
Z Keep children away.
Z Do not touch any hot parts. Use the handles or knobs
provided.
Z Ensure that the cappuccino frother / nozzle is correctly fitted
and clean. If incorrectly fitted or if they become blocked, the
cappuccino frother or its parts might come off.
J WARNING
J CAUTION
1 IMPORTANT SAFEGUARDS
7
Z Never clean with scouring powders or hard implements.
Z Ensure that the ventilation slots are not covered.
Z Never pull out the drip tray during the brewing process. Only
pull the drip tray when the display instructs you or when the
appliance is ready for use.
Z Never fill instant coffee, chocolate mix etc. into the bean
container or ground coffee funnel (filler funnel for ground
coffee). It will damage the functioning of the brewing
chamber.
Z Never fill sugar coated coffee beans into the bean container.
In case of doubt, call your dealer.
Z Never fill anything other than coffee beans into the bean
container (no chocolate, no rice, no nuts, no spices, nothing
other than roasted coffee beans).
Z Never fill frozen beans into the bean container. If you store
beans in the freezer, let them thaw 3 to 4 hours before filling
them into the bean container.
Z Never fill anything but fresh, cold and clean water into the
water tank, except when decalcifying.
Z Never use mineral or carbonated water. You can use tap water,
bottled water, spring water and reverse osmosis water.
Z Never do anything with the machine which is not described in
these instructions. In case of doubt, call your dealer.
NOTICE
NEVER DO
(or you will void your
warranty protection):
2 Control elements
8
2 Control elements
1
171615
13
11
12
14
2
3
4
5
6
7
10
9
8
J HOT
J HOT
J HOT
Figure: Your machine may look
different than the one shown.
2 Control elements
9
q
On/Off button Q
w
Bean container with aroma preservation cover
e
Touchscreen display
r
Milk system with professional fine foam frother (height-adjustable)
t
Height-adjustable coffee spout
z
Hot-water spout
u
Cup platform
i
Insert for drip tray
o
Drip tray
p
Coffee grounds container
a
Power cord
s
Water tank
d
Water tank cover
f
Service socket with JURA WiFi Connect (under cover)
g
Filler funnel cover
h
Filler funnel for ground coffee (removable)
j
Grinder adjustment switch
k
Container for milk system cleaning
l
Measuring spoon for ground coffee
y
Syrup attachment
18 19
20
3 Preparing and using for the first time
10
3 Preparing and using for the first time
T
Choose a spot for your J8 which protects the machine against
overheating. Ensure that the ventilation slots are not covered.
T
Place the J8 on a horizontal surface that is not sensitive to water.
The bean container has an aroma preservation cover. This will ensure
that your coffee beans retain their aroma for longer.
Coffee beans which have been treated with additives (e.g. sugar),
ground coffee or freeze-dried coffee will damage the grinder.
T
Only use roasted, untreated coffee beans to fill the bean
container.
T
Remove the aroma preservation cover.
T
Remove any dirt or foreign objects from inside the bean
container.
T
Fill the bean container with coffee beans and close the aroma
preservation cover.
When you use the machine for the first time, you must set the water
hardness. If you know the hardness of your water, go straight to the
next section. If you do not know the water hardness, you can find
this out first:
T
Hold the test strip under flowing water for one second. Shake
off the water.
T
Wait for about 1minute.
T
You will then be able to read the degree of water hardness from
the discoloration of the Aquadur® test strip and the description
on the packaging.
Setting up the machine
Filling the bean container
NOTICE
Determining the water
hardness
3 Preparing and using for the first time
11
Level Display German
Degree (°dH)
Degrees of general
hardness (°dGH)
Parts per
million (ppm)
Indicator Strip number
of ‘reddish’ fields
Not active – – – –
Very soft water <3 <3 < 53.4 None
Soft water > 4 > 4 > 71 1
Hard water > 8.4 > 8.4 > 150 2
Very hard water > 14 > 14 > 250 3
If the machine is operated with a defective power cord, there is a
danger of potentially fatal electric shock.
T
Never use a machine which is damaged.
T
Never use a machine which has a defective power cord.
Milk, sparkling mineral water or other liquids can damage the
water tank or the machine.
T
Only fill the water tank with fresh, cold water.
E The water volume is given as standard in ‘oz’. You can
change this setting to ‘ml’ in programming mode (see
Chapter 6 ‘Machine settings’).
Precondition:The bean container has been filled.
T
For machines with a plug-in power cord: Connect the power
cord to the machine.
T
Insert the power plug into a power socket.
T
Press the On/Off button Q to switch the J8 on.
‘Choose language’ / ‘English’
E To display more languages, touch 9 or 0 until the desired
language comes into focus (e.g. ‘English’).
T
Touch ‘Save’.
‘Saved’ appears briefly on the display.
‘Water hardness’
E Please refer to the section above for a description of how to
determine the water hardness.
T
Touch 9 or 0 to change the water hardness setting.
T
Touch ‘Save’.
‘Saved’ appears briefly on the display.
‘Insert filter’
First-time use
J WARNING
NOTICE
3 Preparing and using for the first time
12
T

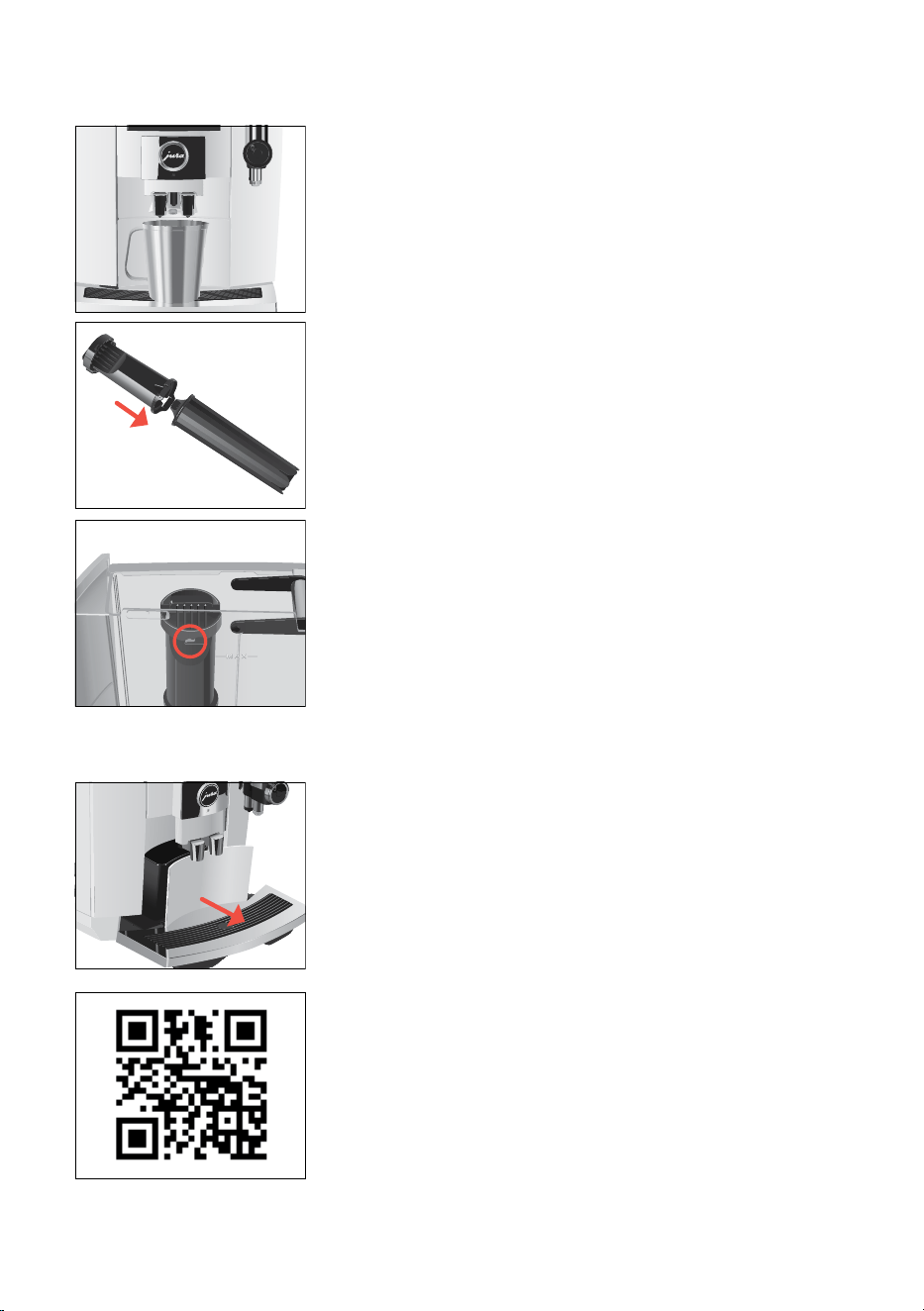

Place a receptacle under the coffee spout.
T
Remove the water tank and rinse it with cold water.
T
Fit the filter cartridge extension supplied on top of the CLEARYL
Smart filter cartridge.
T
Insert the filter cartridge with its extension into the water tank.
T
Turn the filter cartridge clockwise until it audibly clicks into
place.
T
Fill the water tank with fresh, cold water and reinsert the tank.
E The machine automatically detects that you have just
inserted the filter cartridge.
‘Saved’
‘Filter is being rinsed’, water flows directly into the drip tray.
‘System is filling’
‘Empty drip tray’
T
Empty the drip tray and put it back into the machine.
‘Accessory’
E You have the option of connecting the J8 to the JURA Cool
Control milk cooler (wireless connection). To do this, touch
‘Connect’ and follow the instructions on the display.
T
Touch ‘Next’.
‘Wi-Fi connection’
T
If necessary, scan the QR code with your mobile device to
download the JURA app (J.O.E.
®
).
E If you would like to connect the J8 to your home network,
touch ‘Connect’ and follow the instructions on the display.
You can also establish the connection later on (in the
machine settings under ‘Wi-Fi connection’.
T
Place a receptacle under the coffee spout.
3 Preparing and using for the first time
13
T
Touch ‘Next’.
‘Machine is rinsing’
The start screen is displayed. Your J8 is ready for use.
The JURA Cockpit allows you to manage your J8. Touch f on the
start screen to open the JURA Cockpit.
Symbol Meaning
c
‘Maintenance’ section (blue)
f
‘Machine setting’ section (green)
#
The ‘Coffee Eye’ function (for cup detection) is
enabled
4 (white)
Your J8 is connected with the network and/or
Cool Control via JURA WiFi Connect
4 (red)
No connection to the WiFi network
$
Filter mode
The J8 has an automatic cup detection feature. The ‘Coffee Eye’
detects when you place a cup under the coffee spout. The adapted
start screen will now show the black coffee and hot water specialties
that you can prepare.
Your J8 creates fine, creamy, feather-light milk foam with a perfect
consistency. The most important requirement for frothing milk is
a milk temperature of 39–46 °F (4–8 °C). We would therefore
recommend using a milk cooler or a milk container.
T
Remove the protective cover from the professional fine foam
frother.
T
Connect the milk pipe to the professional fine foam frother.
T
Connect the other end of the milk pipe to a milk container or a
milk cooler.
E Your J8 is equipped with the HP3 milk system.
Your J8 can be connected with your JURA app (J.O.E.
®
).
Precondition:J.O.E.
®
is installed on your mobile device. The JURA
WiFi Connect is inserted into the service socket of your J8.
T
Touch f.
Managing your J8 – the
JURA Cockpit
c
4
$
#
Coffee Eye
Connecting milk
Establishing a WiFi
connection
3 Preparing and using for the first time
14
T
Touch the ‘Machine setting’ f symbol.
T
Touch ‘Wi-Fi connection’.
T
Touch ‘Connect’.
T
Add a new network in your JURA app (J.O.E.
®
) and follow the
instructions.
4 Preparation
Hot coffee, hot steam and hot water can cause scalding. Scalding
is a serious burn.
T
Use extreme care when handling hot liquid or steam.
T
Allow liquid to cool down before drinking.
T
In the event of scalding, rinse affected area with cold water and
seek medical attention.
T
Keep children AWAY.
Basic information about preparing drinks:
Aim What to do
Display more products
Touch öää to display additional pages of the start
screen; touch the product selector symbol at bottom
right to access the product selector view
Change the coffee strength of a single
product
While the grinder is operating, swipe across the
display with your finger
Change the amount for a single product During preparation, swipe across the display with your
finger
Permanently change the coffee
strength, quantity and temperature for
any given product
Tap and hold a product for around 2 seconds and
configure the settings under ‘Product settings’
Changing the consistency of grind Turn the grinder adjustment switch to the desired
position
Stop preparation Touch ‘Cancel’
Place a product on the start screen as a
favorite
Tap and hold a product for around 2 seconds and
place another product under ‘Replace product’
E If the screensaver is active, touch the display to return to the
start screen.
E The water volume is given as standard in ‘oz’. You can
change this setting to ‘ml’ in programming mode (see
Chapter 6 ‘Machine settings’).
J WARNING
4 Preparation
15
E Coffee tastes best served hot. A cold porcelain cup cools the
beverage – and impairs the taste. We therefore recommend
prewarming the cups. You can purchase a JURA cup warmer
from your specialized dealer.
Touch ‘Z Z Z Z’ to call up the Specialty Selection and activate the
desired preselection for your next product:
Specialty Selection Meaning
‘S’ – ‘Sweet milk foam’
(all specialty coffees
with milk)
Use the syrup attachment provided
to prepare the product with sweet
milk foam.
s – ‘Extra Shot’
(sweet latte, cappuccino,
caffe latte, latte
macchiato, flat white)
The product is prepared with two
brewing operations, with half the
amount of water – for a specialty
coffee with a particularly intense
taste.
e – Double product
(espresso, coffee)
The product is prepared twice in
succession (2 strokes).
£ – Ground coffee
(all specialty coffees
except for espresso
doppio)
The product is prepared with ground
coffee.
E The Specialty Selection closes after 10 seconds.
E If you press your preselection briefly, the next product will
be prepared according to your preselection.
E If you press and hold your preselection (for 2 seconds), the
preselection will be active until you switch off your J8.
Example:Coffee
T
Place a cup under the coffee spout.
T
Touch ‘Coffee’.
The preset amount of water for coffee flows into the cup.
Preparation with
preselection (Specialty
Selection)
Espresso and coffee
4 Preparation
16
The sweet latte is a specialty coffee with sweet milk foam. To make
this specialty, use the syrup attachment provided.
E All specialty coffees with milk can also be prepared with
sweet milk foam. To do this, use the syrup attachment
provided and before starting preparation, select the
Specialty Selection ‘S’.
Precondition:Milk is connected to the professional fine foam
frother.
T

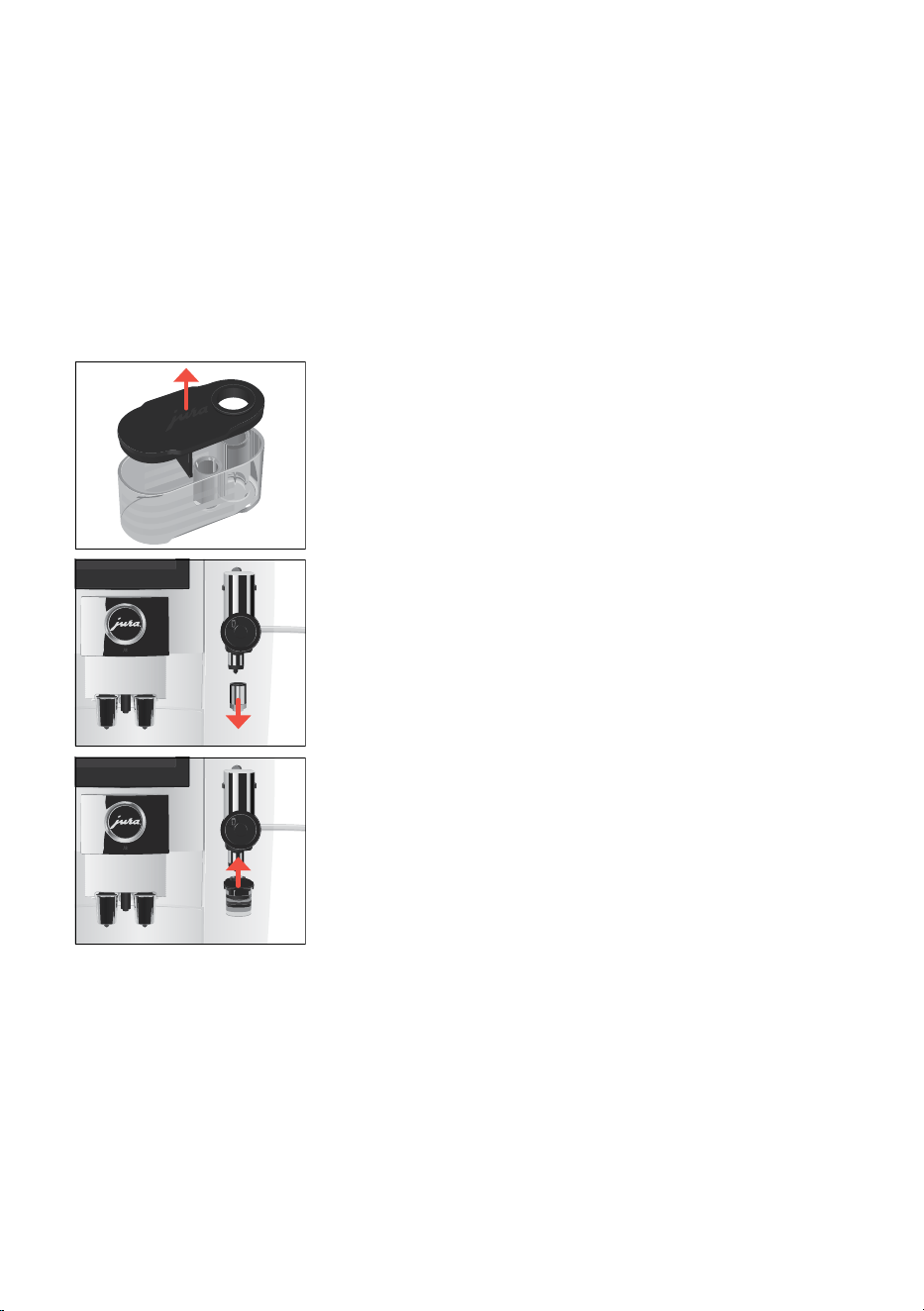

Remove the cover from the syrup attachment.
T
Fill the syrup attachment with syrup. Fill it to the first, second or
third mark depending on the desired sweetness.
T
Close the syrup attachment.
T
Touch ‘Sweet Latte’.
‘Please connect the syrup attachment, ensuring it is filled with
syrup’
T
Remove the lower part of the professional fine foam frother.
T
Connect the syrup attachment to the professional fine foam
frother.
T
Turn the setting wheel of the professional fine foam frother to
the ‘Milk Foam’ position.
T
Place a cup under the professional fine foam frother.
T
Touch ‘Next’.
The preset amounts of coffee and milk foam flow into the cup.
‘Please remove the syrup attachment’
T
Remove the syrup attachment and rinse it thoroughly under
running water.
T
Touch ‘Next’.
E 8 minutes after preparation, the milk system is
automatically rinsed. Therefore always place a receptacle
under the professional fine foam frother after preparing
milk.
To ensure that the professional fine foam frother always works
properly, you must clean it daily when you have been preparing milk
(see chapter 7 ‘Maintenance – Cleaning the milk system’).
Sweet latte (prepared with
syrup attachment)
4 Preparation
17
Your J8 prepares the following specialty coffees with milk at the
touch of a button:
U
Latte macchiato
U
Flat white
U
Cappuccino
U
Cortado
U
Macchiato
U
Caffe latte
U
Sweet latte
Example:Latte macchiato
Precondition: Milk is connected to the professional fine foam
frother.
T
Place a glass under the professional fine foam frother.
T
Turn the setting wheel of the professional fine foam frother to
the ‘Milk Foam’ position.
T
Touch ‘Latte macchiato’ (page äöä).
The preset amount of milk foam flows into the glass.
E There is a short interval while the hot milk separates from
the milk foam. This allows the typical layers of a latte
macchiato to form.
The preset amount of water for espresso flows into the glass.
E 8 minutes after preparation, the milk system is
automatically rinsed. Therefore always place a receptacle
under the professional fine foam frother after preparing milk.
To ensure that the professional fine foam frother always works
properly, you must clean it daily when you have been preparing milk
(see chapter 7 ‘Maintenance – Cleaning the milk system’).
Your J8 prepares hot milk and milk foam. To do this, turn the setting
wheel of the professional fine foam frother to the ‘Milk Foam’ or
‘Milk’ position.
E 8 minutes after preparation, the milk system is
automatically rinsed. Therefore always place a receptacle
under the professional fine foam frother after preparing milk.
For the americano and lungo, the J8 blends the coffee with hot water
using a special preparation method. This results in a full-bodied
specialty coffee which is particularly easy to digest. You can change
the amount of this additional water (see chapter 4 ‘Preparation –
Adjusting the product settings’).
Latte macchiato, cappuccino
and other specialty coffees
with milk
Milk and milk foam
Americano and lungo
4 Preparation
18
‘Doppio’ is Italian for ‘double’. When you select Espresso doppio,
two espressi are prepared one after the other. The result is an extra
full-bodied and aromatic specialty coffee.
You can choose to use a second coffee variety, for example
decaffeinated coffee, with the filter funnel for ground coffee.
U
Never add more than two level measuring spoons of ground
coffee.
U
Use ground coffee which is not ground too finely. Very fine
coffee can block up the system so that the coffee only comes
out in drips.
U
If you did not fill the machine with a sufficient amount of
ground coffee, ‘Not enough ground coffee’ is displayed and the
J8 stops the operation.
U
The desired specialty coffee must be prepared within approxi-
mately one minute after filling with the ground coffee.
Otherwise the J8 stops the operation and is once more ready
for use.
Example:Proceed as follows to prepare an espresso using ground
coffee.
T
Place an espresso cup under the coffee spout.
T
Touch ‘Z Z Z Z’ to call up the Specialty Selection.
T
Touch £.
T
Touch ‘Espresso’.
‘Please add ground coffee’
T
Open the cover of the filler funnel for ground coffee.
T
Add the desired amount of ground coffee to the filler funnel
(max. 2 level measuring spoons).
E The amount of ground coffee determines the intensity and
aroma of the beverage, so you can adjust it to your personal
preferences.
T
Close the cover of the filler funnel.
T
Touch ‘Next’.
The preset amount of water for espresso flows into the cup.
Espresso doppio
Ground coffee
4 Preparation
19
The J8 allows you to prepare different variants of hot water:
U
‘Hot water’
U
‘Hot water for green tea’ (in the product selector view)
There is a danger of scalding from hot water splashes.
T
Avoid direct contact with the skin.
Example:Hot water
T
Place a cup under the hot-water spout.
T
Touch ‘Hot water’.
The preset amount of water flows into the cup.
Touch a product for approximately 2 seconds to access the settings:
U
‘Product settings’: Specify individual settings such as coffee
strength, amount of water, etc.
U
‘Product name’: Change the name of the product.
U
‘Permanent preselection’: Specify a permanent preselection
(Specialty Selection).
U
‘Replace product’: Replace the products on the start screen
with your favorites.
E If there is a cup under the coffee spout (‘Coffee Eye’
enabled), not all settings will be possible.
Example:Proceed as follows to change the coffee strength for one
coffee.
T
Touch ‘Coffee’ for approximately 2 seconds.
T
Touch ‘Product settings’.
E Depending on the selected product, there will be different
settings available which are represented by symbols on your
display.
T
Touch the _ symbol.
The _ symbol appears in white.
T
Swipe across the coffee beans with your finger to change the
coffee strength setting.
T
Touch ‘Save’.
T
Touch ‘Back’ to return to the start screen.
Hot water
J
CAUTION
Adjusting the product
settings
5 Daily operation
20
5 Daily operation
T
Place one receptacle under the coffee spout and another under
the professional fine foam frother.
T
Press the On/Off button Q.
‘Machine is rinsing’
Your J8 is switched on or off.
E When the machine is switched off, the system is only rinsed
if a specialty coffee has been prepared.
E If milk has been prepared before switching off, you will be
prompted to carry out milk system cleaning (‘Clean the milk
system’). After 30 seconds the switch-off process continues
automatically.
Daily maintenance of the machine and hygiene when handling milk,
coffee and water are key to a perfect coffee result in the cup every
time. You should therefore change the water daily.
Milk, sparkling mineral water or other liquids can damage the
water tank or the machine.
T
Only fill the water tank with fresh, cold water.
T
Remove the water tank and rinse it with cold water.
T
Fill the water tank with fresh, cold water and reinsert the tank.
Switching the machine on
and off
Filling the water tank
NOTICE
5 Daily operation
21
Optimal coffee quality depends on many factors. One important
prerequisite is regular maintenance of your J8. Carry out the
following steps:
Maintenance action Daily If necessary Note
Empty the drip tray and coffee
grounds container and rinse with
warm water
(The insert for the drip tray,
including the drip tray itself, and
the coffee grounds container are
dishwasher-safe)
Z
Always empty the coffee grounds
container when the machine is
switched on. This is the only way of
resetting the coffee grounds
counter.
Clean the milk system (if heavily
soiled, also dismantle it)
Z
See chapter 7 ‘Maintenance –
Dismantling and rinsing the
professional fine foam frother’
Rinse the milk pipe
Z
Rinse the water tank
Z
Wipe the surface of the machine
with a clean, soft, damp cloth (e.g.
microfiber cloth)
Z
Changing milk pipe with connector
HP3
approx.
every
3 months
Change the interchangeable milk
spout CX3
approx.
every
3 months
Clean the inside of the water tank
with a brush
Z
Clean the top and bottom of the
cup platform
Z
Thoroughly clean the drip tray and
coffee grounds container
Z
In the ‘Maintenance’ area c of the
Cockpit, the message ‘Maintenance
information’ appears.
E You will find more information about maintenance of your J8
in the ‘Maintenance’ c section in the program item
‘Maintenance information’.
Maintenance actions
6 Machine settings
22
6 Machine settings
Touch f to open the Cockpit. In the ‘Machine setting’ f section, you can make the following
settings:
Program item Explanation
Page ‘1/3’
‘Coffee Eye’ Enable/disable automatic cup detection with the ‘Coffee Eye’
‘Product name’ Display product images with/without product names on the start screen
‘Number of start
screens’
Define number of start screens (1–4)
‘Number of
products’
Set the number of products on the start screen: 2 products / 5 products
‘Wi-Fi
connection’
Connect the J8 wirelessly with the JURA app (J.O.E.
®
) or disconnect again (see
chapter 3 ‘Preparing and using for the first time – Establishing a WiFi
connection’)
‘Switch off after’ Set the automatic switch-off time to save energy (switch-off after 15minutes,
30minutes or 1 – 9 hours after the last action on the machine)
‘Choose
language’
Set language
‘Factory setting’ Reset your J8 to factory settings (the machine then switches off)
Page ‘2/3’
‘Water hardness’ Set the hardness of the water used (1°dH to 30°dH) to prevent limescale
building up in your machine
‘Units’ Set the unit for the amount of water (ml or oz)
‘Accessory’ Establish a wireless connection between your J8 and the Cool Control milk
cooler or disconnect it again
‘Display’ Change display brightness (in 10% increments)
‘Product counter’ View product counter
‘Maintenance
counter’
View the maintenance counter
‘Operating
instructions ’
Show instructions for using the syrup attachment and professional fine foam
frother and switching between milk and milk foam
‘Aroma control’ Show recommended settings for consistency of grind (enabled/disabled)
Page ‘3/3’
‘Rinse the milk
system’
Set whether milk system rinsing takes place automatically or needs to be
started manually
‘Empty system’ Empty the system to protect the J8 from frost during transport
‘Information’ View software version
7 Maintenance
23
7 Maintenance
Use of maintenance products that are harmful to health and
discharge of liquids during maintenance program. Harmful if
swallowed. Irritating to eyes and skin.
T
Keep children AWAY.
T
Keep children away from the machine while it is performing a
maintenance program.
T
Avoid contact with skin and eyes.
T
Avoid generation of dust. Do not inhale dust.
T
When using do not eat or drink.
T
Keep maintenance products away from food, drink and
animal food.
T
Keep container tightly closed and dry. Keep in a cool place.
Basic information about maintenance:
U
Touch f to open the Cockpit. This area consists of a
‘Maintenance status’ c section and a ‘Machine setting’ f
section. You can manage the maintenance of your J8 in
the c section.
U
The Cockpit shows maintenance programs that need to be
carried out in the form of messages with red backgrounds.
Touch a message to go straight to the corresponding
maintenance program. Maintenance programs that are due
imminently are indicated on your J8 by means of a bar display
within the message.
U
Carry out each maintenance program when you are prompted
to do so.
You can start coffee system rinsing manually at any time.
Precondition:The start screen is displayed.
T
Place one receptacle under the coffee spout and another under
the professional fine foam frother.
T
Touch f.
T
Touch the ‘Maintenance’ symbol c.
T
Touch ‘Rinse the coffee system’ to start the rinse operation.
‘Machine is rinsing’
The rinse stops automatically. The start screen is displayed.
J WARNING
Rinsing the machine
7 Maintenance
24
After each milk preparation, the J8 prompts you to perform a milk
system rinse.
In the machine settings you can define whether milk system
rinsing takes place automatically or needs to be started manually
(see chapter 6 ‘Machine settings’).
Precondition:The start screen is displayed.
T
Place a receptacle under the professional fine foam frother.
T
Touch f.
T
Touch the ‘Maintenance’ symbol c.
T
Press the ‘Rinse the milk system’ button to start the rinse
operation.
‘Milk system is being rinsed’
The rinse stops automatically. The start screen is displayed.
To ensure that the milk system always works properly, you must
clean it daily when you have been preparing milk.
Non-recommended cleaning agents will not optimally remove
milk residues. This may cause the cappuccino frother to become
blocked and fly off the machine. Discharge of hot steam.
T
Use only original JURA milk system cleaner.
Harmful and irritating cleaning agent. Harmful if swallowed.
Irritating to eyes and skin.
T
Keep children AWAY.
T
Avoid contact with skin and eyes.
T
After contact with skin, wash immediately with plenty of water.
In case of skin irritation, seek medical advice.
T
After eye contact, immediately flush eyes with plenty of water
and seek medical advice.
T
If swallowed, rinse mouth immediately and drink large
quantities of water. Do not induce vomiting. Seek medical
advice immediately and show label.
E JURA milk system cleaner is available from specialized
dealers.
E Use the container supplied for milk system cleaning.
Precondition:The start screen is displayed. ‘Clean the milk
system’ is displayed in the Cockpit.
T
Touch ‘Clean the milk system’.
Rinsing the milk system
Cleaning the milk system
J WARNING
J WARNING
7 Maintenance
25
T
Touch ‘Next’.
‘Cleaning agent for milk system’ / ‘Connect the milk tube’
T
Remove the milk pipe from the milk container or milk cooler.
T
Pour one dosing unit of milk system cleaner into the container
for milk system cleaning.
T
Place the container under the coffee spout and the professional
fine foam frother.
T
Connect the milk pipe to the container.
E To connect the milk pipe to the container correctly, the pipe
must be fitted with a connector.
T
Touch ‘Start’.
The professional fine foam frother and the milk pipe are
cleaned.
The operation stops automatically.
If insufficient foam is produced when the milk is frothed or milk
sprays out of the professional fine foam frother, the frother may be
need to be cleaned . If this happens, dismantle and rinse the
professional fine foam frother.
T
Remove the milk pipe and rinse it thoroughly under running
water.
T
Remove the professional fine foam frother.
T
Dismantle the professional fine foam frother into its individual
parts.
T
Rinse all the parts under running water. If there are severely
dried-on milk residues, firstly immerse the individual parts in a
solution of 8.5 oz (250ml) water and one dosing unit of JURA
milk system cleaner. Then rinse the individual parts thoroughly.
Dismantling and rinsing the
professional fine foam
frother
1
2
7 Maintenance
26
T
Re-assemble the professional fine foam frother.
E Ensure that all individual parts are correctly and firmly
connected to ensure optimum operation of the professional
fine foam frother.
T
Re-fit the professional fine foam frother on the milk system.
Once the filter cartridge stops working (depending on the water
hardness setting), the J8 will prompt you to change the filter.
E Your J8 no longer has to be descaled if you are using the
CLEARYL Smart filter cartridge.
E CLEARYL Smart filter cartridges are available from
specialized dealers.
Precondition:The start screen is displayed. (Alternatively, ‘Change
the filter’ is displayed in the Cockpit if the filter's capacity has been
exhausted.)
T
Remove and empty the water tank.
T
Turn the filter cartridge anticlockwise and remove it along with
the extension from the water tank.
T
Remove the old CLEARYL Smart filter cartridge.
T
Fit the filter cartridge extension on top of a new CLEARYL Smart
filter cartridge.
T
Insert the filter cartridge with its extension into the water tank.
Inserting/changing the filter
7 Maintenance
27
T
Turn the filter cartridge clockwise until it audibly clicks into place.
T
Fill the water tank with fresh, cold water and reinsert the tank.
The machine automatically detects that you have just inserted/
changed the filter cartridge.
‘Filter is being rinsed’, water flows directly into the drip tray.
‘Empty drip tray’
T
Empty the drip tray and coffee grounds container and put them
back into the machine.
The start screen is displayed.
After 180preparations or 80switch-on rinses, the J8 will prompt you
to clean it.
Non-recommended (e.g. liquid) cleaning agents may contain
substances that could damage the machine or leave residues.
T
Use only original JURA cleaning tablets. These are formulated
especially for your machine.
Harmful and irritating cleaning agent. Harmful if swallowed.
Irritating to eyes and skin.
T
Keep children AWAY.
T
Avoid contact with skin and eyes.
T
Avoid generation of dust. Do not inhale dust.
T
After contact with skin, wash immediately with plenty of water.
In case of skin irritation, seek medical advice.
T
After eye contact, immediately flush eyes with plenty of water
and seek medical advice.
T
If swallowed, rinse mouth immediately and drink large
quantities of water. Do not induce vomiting. Seek medical
advice immediately and show label.
E The cleaning program lasts approximately 20 minutes.
E Do not interrupt the cleaning program. The quality of
cleaning will be impaired if you do so.
E JURA cleaning tablets are available from specialized dealers.
Precondition:‘Clean’ is displayed in the Cockpit.
T
T
Fill the water tank
T
Touch ‘Clean’.
T
Touch ‘Start’.
‘Empty drip tray’ / ‘Empty coffee grounds container’
T
Empty the drip tray and coffee grounds container and put them
back into the machine.
Cleaning the machine
J WARNING
J WARNING
7 Maintenance
28
T
Place one receptacle under the coffee spout and another under
the professional fine foam frother.
T
Touch ‘Next’.
‘Machine is being cleaned’
The operation is interrupted, ‘Add cleaning tablet’.
T
Open the cover of the filler funnel for ground coffee.
T
Insert a JURA cleaning tablet into the filler funnel.
T
Close the cover of the filler funnel.
T
Touch ‘Next’.
‘Machine is being cleaned’
‘Empty drip tray’ / ‘Empty coffee grounds container’
T
Empty the drip tray and coffee grounds container and put them
back into the machine.
The J8 builds up deposits of limescale over time and automatically
prompts you to descale it when necessary (unless you are using a
CLEARYL Smart filter cartridge)
Non-recommended descaling agents (e.g. vinegar) may contain
substances that could damage the machine or leave residues.
T
Use only original JURA descaling tablets. These are formulated
especially for your machine.
Harmful and irritating descaling agent. Harmful if swallowed.
Irritating to eyes and skin.
T
Keep children AWAY.
T
Avoid contact with skin and eyes.
T
Avoid generation of dust. Do not inhale dust.
T
After contact with skin, wash immediately with plenty of water.
In case of skin irritation, seek medical advice.
T
After eye contact, immediately flush eyes with plenty of water.
Remove contact lenses. Seek medical advice.
T
If swallowed, rinse mouth immediately and drink large
quantities of water. Do not induce vomiting. Seek medical
advice immediately and show label.
If the descaling operation is interrupted, there may be damage to
the machine.
T
Allow the descaling program to run to the end.
E The descaling program lasts approximately 45minutes.
Descaling the machine
J WARNING
J WARNING J WARNING
NOTICE
7 Maintenance
29
E JURA descaling tablets are available from specialized dealers.
E If the descaling agent comes into contact with sensitive
surfaces (e.g. marble), damage cannot be ruled out. Clean up
any splashes immediately.
Precondition:‘Descale’ is displayed in the Cockpit.
T
Touch ‘Descale’.
T
Touch ‘Start’.
‘Empty coffee grounds container’ / ‘Empty drip tray’
T
Empty the drip tray and coffee grounds container and put them
back into the machine.
‘Pour descaling agent into water tank’
T
Remove and empty the water tank.
T

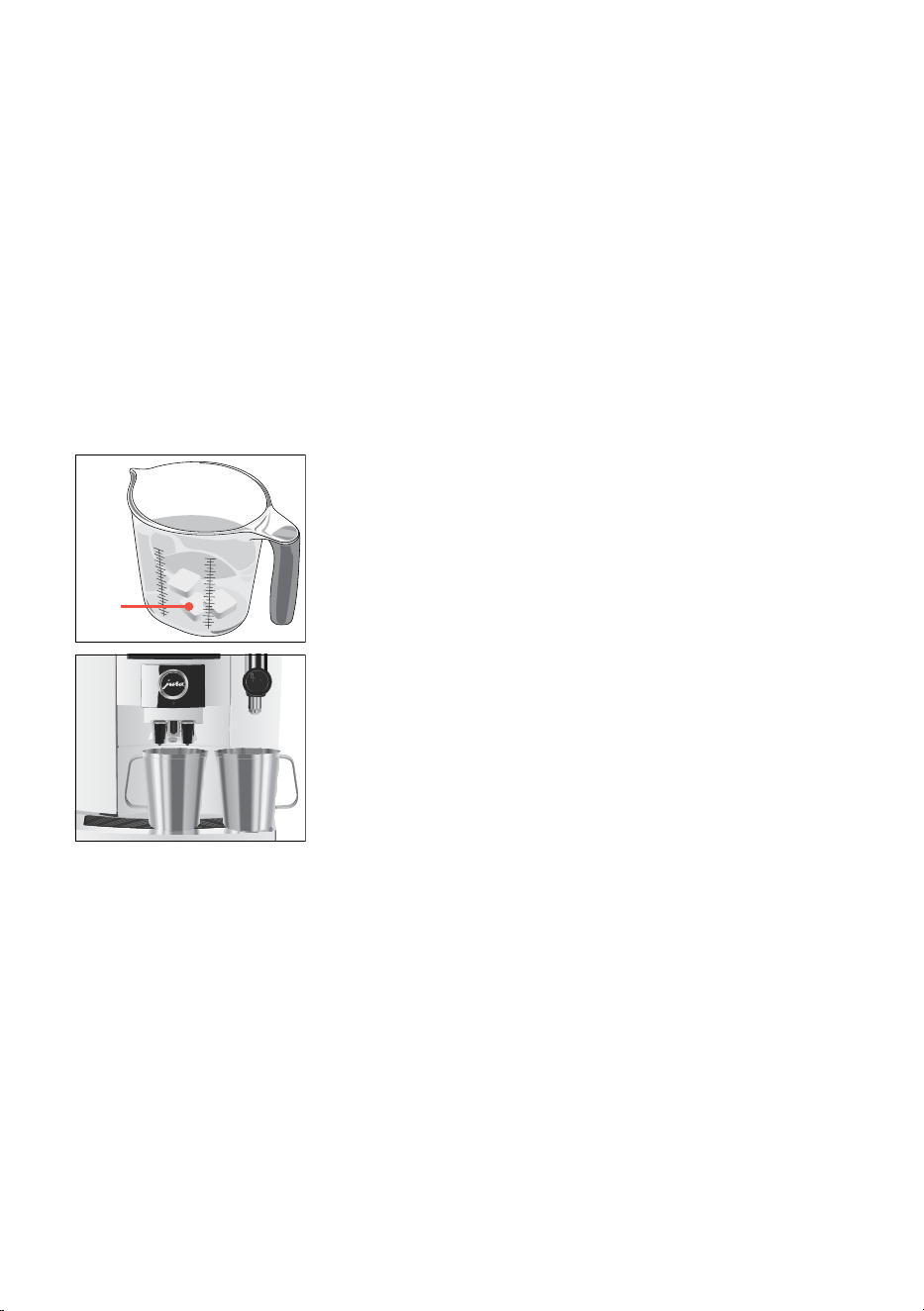

Completely dissolve 3JURA descaling tablets in a receptacle
holding 17 oz (500ml) of water. This may take several minutes.
T
Pour the solution into the empty water tank and insert it into
the machine.
T
Place one receptacle under the coffee spout and another under
the professional fine foam frother.
T
Touch ‘Next’.
‘Machine is being descaled’, water flows repeatedly out of the
hot-water spout and professional fine foam frother straight into
the drip tray.
‘Empty coffee grounds container’ / ‘Empty drip tray’
T
Empty the drip tray and coffee grounds container and put them
back into the machine.
‘Rinse the water tank’ / ‘Fill water tank’
T
Empty the receptacles and place them back under the coffee
spout and the professional fine foam frother.
T
Remove the water tank and rinse it thoroughly.
T
Fill the water tank with fresh, cold water and reinsert the tank.
T
Touch ‘Next’.
Water flows repeatedly out of the hot-water spout and profes-
sional fine foam frother straight into the drip tray.
‘Empty coffee grounds container’ / ‘Empty drip tray’
T
Empty the drip tray and coffee grounds container and put them
back into the machine.
E If the descaling operation stops unexpectedly, rinse the
water tank thoroughly.
3x
7 Maintenance
30
Limescale deposits may form in the water tank. To ensure correct
function of the machine, descale the water tank from time to time.
T
Remove the water tank.
T
If you use a CLEARYL Smart filter cartridge, remove this.
T
Completely fill the water tank and dissolve 3 JURA descaling
tablets in it.
T
Leave the water tank with the descaling solution for several
hours (e.g. overnight).
T
Empty the water tank and rinse it thoroughly.
T
If you use a CLEARYL Smart filter cartridge, insert this again.
T
Fill the water tank with fresh, cold water and reinsert the tank.
Coffee beans may be covered with a slight oil film which remains on
the walls of the bean container. These traces may negatively affect
the coffee result. For this reason clean the bean container from time
to time.
Precondition:‘Fill bean container’ is displayed.
T
Switch the machine off with the On/Off button Q.
T
Remove the aroma preservation cover.
T
Clean the bean container with a soft, dry cloth.
T
Fill the bean container with coffee beans and close the aroma
preservation cover.
Descaling the water tank
Cleaning the bean container
8 Display messages
31
8 Display messages
Messages on the start screen
Message Cause/Result Action
‘Fill water tank’ The water tank is empty. You cannot
prepare any products.
T
Fill the water tank (see chapter 5
‘Daily operation – Filling the
water tank’).
‘Empty coffee
grounds container’ /
‘Empty drip tray’
The coffee grounds container is full. /
The drip tray is full. You cannot
prepare any products.
T
Empty the coffee grounds
container and the drip tray
(see chapter 5 ‘Daily operation –
Maintenance actions’).
‘Drip tray not fitted’ The drip tray is not inserted correctly
or is not inserted at all. You cannot
prepare any products.
T
Fit the drip tray.
‘Fill bean container’ The bean container is empty. You
cannot prepare any specialty coffees,
but you can prepare hot water and
milk.
T
Fill the bean container (see
chapter 3 ‘Preparing and using
for the first time – Filling the
bean container’).
‘Not enough ground
coffee’
There is insufficient ground coffee in
the machine; the J8 stops the
operation.
T
The next time you prepare a
beverage, add more ground
coffee (see chapter 4
‘Preparation – Ground coffee’).
Messages in the Cockpit
Message Cause/Result Action
The filter symbol $
lights up red.
‘Change the filter’
The filter cartridge no
longer works.
T
Replace the CLEARYL Smart filter cartridge (see
chapter 7 ‘Maintenance – Inserting/changing the
filter’).
‘Clean’ The J8 is prompting you
to clean it.
T
Perform cleaning (see chapter 7 ‘Maintenance –
Cleaning the machine’).
‘Descale’ The J8 is prompting you
to descale it.
T
Perform descaling (see chapter 7 ‘Maintenance –
Descaling the machine ’).
‘Clean the milk
system’
The J8 prompts you to
clean the milk system.
T
Perform milk system cleaning (see chapter 7
‘Maintenance – Cleaning the milk system’).
9 Troubleshooting
32
9 Troubleshooting
Problem Cause/Result Action
Insufficient foam is
produced when the milk
is frothed or milk sprays
out of the professional
fine foam frother.
The professional fine foam
frother is dirty.
T
Clean the professional fine foam
frother (see chapter 7 ‘Maintenance –
Cleaning the milk system’).
T
Dismantle and rinse the professional
fine foam frother (see chapter 7
‘Maintenance – Dismantling and
rinsing the professional fine foam
frother’).
The ‘Coffee Eye’ reports a
cup under the coffee
spout even though no cup
has been placed there.
The cup detection sensor
behind the coffee spout is
dirty.
T
Clean the sensor with a damp cloth.
Coffee only comes out in
drips when it is being
prepared.
The coffee is ground too
finely and obstructs the
system.
T
Put the grinder on a coarser setting
or use coarser ground coffee.
The water hardness may not
have been correctly set.
T
Perform descaling (see chapter 7
‘Maintenance – Descaling the
machine ’).
There is dry ground
coffee behind the coffee
grounds container.
The beans used are resulting
in an above-average volume
of ground coffee.
T
Reduce the coffee strength or
choose a finer grinder setting (see
chapter 4 ‘Preparation – Adjusting
the product settings’).
‘Fill water tank’ is not
displayed although the
water tank is empty.
There is a lot of limescale in
the water tank.
T
Descale the water tank (see
chapter 7 ‘Maintenance –
Descaling the water tank’).
Grinder is making a very
loud noise.
There are foreign objects in
the grinder.
T
Contact customer support in your
country (see chapter 13 ‘JURA contact
details/ Legal information’).
‘Error2’ or ‘Error5’ is
displayed.
If the machine has been
exposed to the cold for a long
period of time, heating may
be disabled for safety reasons.
T
Warm the machine at room
temperature.
Other ‘Error’ messages
are displayed.
–
T
Switch the J8 off with the On/Off
button Q. Contact customer support
in your country (see chapter 13 ‘JURA
contact details/ Legal information’).
E If you were unable to solve the problem, contact customer support in your country (see
chapter 13 ‘JURA contact details/ Legal information’).
10 Transport and environmentally friendly disposal
33
10 Transport and environmentally friendly disposal
Keep the packaging for your J8. It should be used to protect the
machine during transport. In order to protect the J8 from frost
during transport, the system must be emptied.
Precondition:The start screen is displayed.
T
Remove the milk pipe from the professional fine foam frother.
T
Place a receptacle under the professional fine foam frother.
T
Touch f.
T
Touch the ‘Machine setting’ f symbol.
T
Switch to the ‘3/3’ page.
T
Touch ‘Empty system’.
T
Remove and empty the water tank.
T
Touch ‘Next’.
Steam will continue to be discharged from the professional fine
foam frother until the system is empty.
Your J8 is switched off.
Please dispose of old machines in an environmentally neutral way.
H
Transport/ Emptying the
system
Disposal
11 Technical data
34
11 Technical data
Voltage 120V~, 60Hz
Power 1450W
Conformity mark
Pump pressure static, max. 15bar
Holding capacity of water tank (without filter) 64 oz (1.9 l)
Holding capacity of bean container 10 oz (280g)
Holding capacity of coffee grounds container max. 16 portions
Cord length approx. 47 in. (1.2 m)
Weight 22.7 lb (10,3 kg)
Dimensions (W×H×D) 12.5 × 13.7 × 17.6in.
(31.8 × 34.8 × 44.6cm)
Milk system with connector HP3
CLEARYL filter cartridge Smart (RFID technology) Frequency band 13.56 MHz
Max. transmission power < 1 mW
JURA WiFi Connect Frequency band 2.4 GHz
Max. transmission power < 100 mW
JURA type 765
The machine complies with the following directives:
U
Standard UL 1082
U
Canadian Standard CSA C22.2 No. 64
This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to part 15 of the FCC Rules.
Directives
FCC Rules
12 Index
35
12 Index
A
Addresses 40
Adjusting the product settings 19
Americano 17
Aroma preservation cover
Bean container with aroma preservation
cover 9
B
Bean container
Bean container with aroma preservation
cover 9
Cleaning 30
Filling 10
Bus bar
Technical data 34
Button
On/Off button 9
C
Caffè latte 17
Cappuccino 17
Cleaning
Bean container 30
Machine 27
CLEARYL Smart filter cartridge
Changing 26
Inserting 26
Cockpit 13, 22, 23
Coffee 15
Coffee Eye 13
Coffee grounds container 9
Coffee spout
Height-adjustable coffee spout 9
Connecting an accessory 13
Consistency of grind
Grinder adjustment switch 9
Contact details 40
Cover
Filler funnel for ground coffee 9
Water tank 9
Cup detection
Coffee Eye 13
Cup platform 9
Customer support 40
D
Descaling
Machine 28
Water tank 30
Display
Cockpit 13
Touch display 9
Display messages 31
Disposal 33
Drip tray 9
Insert 9
E
Emptying the system 33
Errors
Troubleshooting 32
Espresso 15
Espresso doppio 18
F
Filler funnel
Filler funnel for ground coffee 9
Filling
Bean container 10
Water tank 20
Filter
Changing 26
Inserting 26
Fine foam frother
Professional fine foam frother 9
First-time use 11
Flat white 17
G
Grinder adjustment switch 9
Ground coffee 18
Measuring spoon for ground coffee 9
H
Height-adjustable coffee spout 9
Hotline 40
Hot water 19
Hot-water spout 9
I
Important safeguards
Safety 4
Insert for drip tray 9
Instant coffee
Ground coffee 18
12 Index
36
J
JURA
Contact details 40
L
Latte macchiato 17
Lungo 17
M
Macchiato 17
Machine
Cleaning 27
Descaling 28
Rinsing 23
Setting up 10
Machine settings 22
Mains cable 9
Maintenance 23
Maintenance actions 21
Measuring spoon for ground coffee 9
Messages, display 31
Milk 17
Connecting milk 13
Milk foam 17
Milk system 34
Clean 24
Professional fine foam frother 9
Rinsing 24
Syrup attachment 9, 16
Milk system rinsing 24
P
Preparation 14, 17
Americano 17
Caffè latte 17
Cappuccino 17
Coffee 15
Espresso 15
Espresso doppio 18
Flat white 17
Ground coffee 18
Hot water 19
Latte macchiato 17
Lungo 17
Macchiato 17
Milk 17
Milk foam 17
Specialty Selection 15
Sweet latte 16
Problems
Troubleshooting 32
Product settings
Adjusting 19
Professional fine foam frother 9
Dismantling and rinsing 25
R
RFID 34
Rinsing
Machine 23
S
Safety
Important safeguards 4
Service socket 9
Setting up
Setting up the machine 10
Specialty Selection
Extra Shot 15
Ground coffee 15
Spout
Hot-water spout 9
Sweet latte 16
Switching off 20
Switching on 20
Syrup attachment 9, 16
T
Technical data 34
Milk system 34
Tel 40
Touch display 9
Transport 33
Troubleshooting 32
U
Use, First-time 11
W
Water hardness
Determining the water hardness 10
Water tank 9
Descaling 30
Filling 20
WiFi 34
WiFi Connect 9, 13
WiFi connection 13
Wireless connection 13, 26, 34
37
38
39
13 JURA contact details/ Legal information
40
13 JURA contact details/ Legal information
JURA Elektroapparate AG
Kaffeeweltstrasse 10
CH-4626 Niederbuchsiten
Switzerland
USA: JURA Inc.
Canada: FAEMA
Customer Service
Phone
E-Mail
1-800-220-5701
1-(855)-544-8600
info@juracanada.ca
Opening Hours (EST) Mon – Thu 9 am – 9 pm,
Fri 9 am – 8 pm,
Sat 9 am – 5 pm
Distributor Address
Phone
Fax
20 Craig Road
Montvale, NJ 07645
001 (201) 767-3999
001 (201) 767-9684
115 Matheson Boulevard East
Mississauga, Ontario, L4Z 1X8
1-(905)-501-8600
Internet us.jura.com ca.jura.com
@ You will find additional contact details for your country at
jura.com.
We reserve the right to make technical changes. The diagrams used
in these instructions for use are for illustration purposes only and do
not represent the original colors of the machine. Some details of
your J8 may vary.
Your opinion is important to us! Use the contact details at
jura.com.
The instructions for use contain information which is protected by
copyright. It is not permitted to photocopy these instructions for use
or translate them into another language without the prior written
consent of JURA Elektroapparate AG.
Technical changes
Feedback
Copyright
J75263/J8
(NAA)
/US-en/202211
