Ashley AP5000 36" Wall Mount Direct Vent Pellet Stove User Manual

* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.

THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.

Owner’s Instruction and Operation Manual

U.S. Environmental Protection Agency

Certied to comply with 2020 particulate

emissions standards.

SAFETY NOTICE: If this heater is not properly installed, a house re may result.

For your safety, follow the installation instructions. Never use make-shift

compromises during the installation of this heater. Contact local building or

re ofcials about permits, restrictions and installation requirements in your

area. NEVER OPERATE THIS PRODUCT WHILE UNATTENDED.

CAUTION! Please read this entire manual before you install or use your new room

heater. Failure to follow instructions may result in property damage, bodily injury,

or even death. Improper Installation Will Void Your Warranty!

Save These Instructions In A Safe Place For Future Reference.

CALIFORNIA PROPOSITION 65 WARNING:

This product can expose you to chemicals including carbon

monoxide, which is known to the State of California to cause

cancer, birth defects, and/or other reproductive harm. For

more information, go to www.P65warnings.ca.gov

853627C-2502J

Certied to ASTM Std E1509-12 (2017)

and Certied to ULC-S627-00-REV1

Report #: F20-598

Model Number:

AP5000

This manual describes the installation and operation of the Ashley, AP5000 wood heater. This heater meets

the 2020 U.S. Environmental protection agency’s crib wood emission limits for wood heaters sold after may

15, 2020. Under specic test conditions this heater has been shown to deliver heat at rates ranging from

8,141 to 12,161 btu/hr output.

Heating Specications

Heating Capacity 500 - 1,000 sq. ft.

*Pellet size may effect the actual rate of fuel feed and

burn times. Fuel feed rates may vary by as much as 20%.

Use PFI listed fuel for best results.

Fuel Burn Rate 3/4 - 2 1/2 lbs./hr.

Burn Time (lowest setting) 35 hours

Hopper Capacity 28 lbs

Electrical Specications

Electrical Rating 110-120 volt, 60Hz, 3.0 Amp

Watts (operational) 175 approximately

Watts (igniter running) 425 approximately

Dimensions

Height X Width X Depth 27” [685.7 mm] X 36” [914.4 mm] X 12.43” [315.77 mm]

Depth with Mounting Wall

Bracket

Approx. 14.27” [362.4 mm]

For Customer Service, please call:

1-800-750-2723 Ext 5050 or;

Text to 423-301-5624 or;

Email us at:

customerservice@usstove.com

Note: Register your product online at

www.usstove.com or download the

free app today. This app is available only

on the App Store for iPhone and iPad.

Search US Stove. Save your receipt with

your records for any claims.

WARNING:

IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER

INCONSISTENT WITH THE OPERATING INSTRUCTIONS IN THE OWNER’S MANUAL.

INTRODUCTION

INSTALLATION CHECKLIST

Your Wood Stove should be installed by a qualied installer only. An NFI qualied Installer can be found at

www.ncertied.org/public/nd-an-n-pro/

CUSTOMER SERVICE

1-800-750-2723 ext 5050

Text to 423-301-5624

Email to: Customerservice@usstove.com

COMMISSIONING CHECKLIST

This Checklist is to be completed in full by the qualied person who installs this unit. Keep this page for

future reference.

Failure to install and commission according to the manufacturer’s instructions and complete this checklist

will invalidate the warranty.

Please Print

Customer Name: Telephone Number:

Address:

Model:

Serial Number:

Installation Company Name: Phone Number:

Installation Technician’s Name: License Number:

DESCRIPTION OF WORK

Location of installed appliance: _________________________________________________________________________

Venting System: New Venting System Yes No If yes, Brand __________________________________

If no, Date of inspection of existing venting system: ______________________________________________________

COMMISSIONING

Conrm Hearth Pad Installation as per Installation Instructions ..............................................................................................

Conrm proper placement of internal parts ...........................................................................................................................................

Check soundness of door gasket and door seals .................................................................................................................................

Conrm clearances to combustibles as per installation instructions in this manual .................................................

Check the operations of the air controls ....................................................................................................................................................

Conrm the venting system is secure and sealed ...............................................................................................................................

Conrm the stove starts and operates properly ....................................................................................................................................

Check to ensure a CO alarm is installed as per local building codes and is functional .............................................

Explain the safe operation, proper fuel usage, cleaning, and routine maintenance requirements .................

Declaration of Completion: As the qualied person responsible for the work described above, I conrm that

the appliance as associated work has been installed as per manufacturer’s instructions and following any

applicable building and installation codes.

Signed: ___________________________________Print Name: ______________________________ Date: _____________

Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE

WARNING:

• A POWER SURGE PROTECTOR IS REQUIRED.

THIS UNIT MUST BE PLUGGED INTO A 110

- 120V, 60 HZ GROUNDED ELECTRICAL

OUTLET. DO NOT USE AN ADAPTER PLUG

OR SEVER THE GROUNDING PLUG. DO NOT

ROUTE THE ELECTRICAL CORD OVER THE

HEATER. DO NOT ROUTE THE CORD IN

FOOT TRAFFIC AREAS OR PINCH THE CORD

UNDER FURNITURE.

• THE EXHAUST SYSTEM SHOULD BE

CHECKED BIMONTHLY DURING THE

BURNING SEASON FOR ANY BUILD-UP OF

FLYASH, SOOT OR CREOSOTE.

• THIS APPLIANCE IS NOT INTENDED FOR

COMMERCIAL USE.

• NEVER USE GASOLINE, GASOLINE-TYPE

LANTERN FUEL, KEROSENE, CHARCOAL

LIGHTER FLUID, OR SIMILAR FLAMMABLE

LIQUIDS TO START OR “FRESHEN UP” A

FIRE IN THIS HEATER. KEEP ALL SUCH

LIQUIDS WELL AWAY FROM THE HEATER

WHILE IT IS IN USE.

• DO NOT CONNECT TO OR USE IN

CONJUNCTION WITH ANY AIR

DISTRIBUTION DUCTWORK UNLESS

SPECIFICALLY APPROVED FOR SUCH

INSTALLATIONS.

• DO NOT CONNECT THIS UNIT TO A CHIMNEY

FLUE SERVING ANOTHER APPLIANCE.

• DO NOT INSTALL A FLUE DAMPER IN THE

EXHAUST VENTING SYSTEM OF THIS UNIT.

ATTENTION:

• THIS HEATER MUST BE INSTALLED ON AN

EXTERIOR WALL TO THE OUTSIDE.

• A WORKING SMOKE DETECTOR MUST BE

INSTALLED IN THE SAME ROOM AS THIS

PRODUCT.

ATTENTION:

• THE HEATER WILL NOT OPERATE DURING

A POWER OUTAGE. IF A POWER OUTAGE

DOES OCCUR, CHECK THE HEATER FOR

SMOKE SPILLAGE AND OPEN A WINDOW

IF ANY SMOKE SPILLS INTO THE ROOM.

• NEVER BLOCK FREE AIRFLOW THROUGH

THE OPEN VENTS OF THE UNIT.

• THE CHIMNEY CONNECTOR SHALL NOT

PASS THROUGH AN ATTIC OR ROOF SPACE,

CLOSET OR SIMILAR CONCEALED SPACE,

OR A FLOOR, OR CEILING. WHERE PASSAGE

THROUGH A WALL, OR PARTITION OF

COMBUSTIBLE CONSTRUCTION IS DESIRED,

THE INSTALLATION SHALL CONFORM TO

CAN/CSA-B365, INSTALLATION CODE FOR

SOLID-FUEL-BURNING APPLIANCES AND

EQUIPMENT

• DO NOT PLACE CLOTHING OR OTHER

FLAMMABLE ITEMS ON OR NEAR THIS

HEATER.

Ensure the ame impingement bafe is installed

properly. If the bafe is not installed properly, push

the plate up in the void at an angle, rotate it to

horizontal and place it on the metal stops.

Flame Impingement Bae

ASSEMBLY INSTRUCTIONS

INSTALLATION

FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050

CAUTION:

CONTACT YOUR LOCAL BUILDING OFFICIALS

TO OBTAIN A PERMIT AND INFORMATION

ON ANY ADDITIONAL INSTALLATION

RESTRICTIONS OR INSPECTION

REQUIREMENTS IN YOUR AREA.

US Stove highly recommends your stove be installed

by a qualied NFI (US) or WETT (Canada) technician.

To nd the nearest qualied installer, go to:

https://ncertied.org,

https://www.wettinc.ca/

INSTALLATION OPTIONS

Read this entire manual before you install and

use your pellet stove. Failure to follow instructions

may result in property damage, bodily injury, or

even death! Before installing your heater, you must

perform an initial burn in an OUTSIDE environment.

Follow the Start-Up Procedure in the “Operation”

section of this manual. See specic installation

details for clearances and other installation

requirements. Your pellet stove may be installed

to code in either a conventional or mobile home

(see Standard Mobile Home Requirements). It is

recommended that only a authorized technician

install your heater, preferably a National Fireplace

Institute (NFI) certied specialist. This heater must

be installed on an exterior wall to allow exhaust

venting to meet the minimum required clearances.

Once the desired location is selected, and before

cutting a hole, check the outside of the structure

for anything obstructing clearances to the exhaust

vent. Also clear away leaves, shrubs/bushes, or trees

that may be around the exhaust outlet.

CAUTION:

BEFORE INSTALLING YOUR HEATER, YOU

MUST PERFORM AN INITIAL BURN IN AN

OUTSIDE ENVIRONMENT. FOLLOW THE

START-UP PROCEDURE IN THE OPERATION

SECTION OF THIS MANUAL.

IMPROPER INSTALLATION

The manufacturer will not be held responsible

for damage caused by the malfunction of a stove

due to improper venting or installation. Consult a

professional installer if you have any questions.

FLOOR PROTECTION

This heater must have a non-combustible oor

protector (ember protection) installed beneath it if

the oor is of combustible material. If a oor pad

is used, it should be UL listed or equal. The oor

protector should be large enough to extend under

the stove and beyond each side as indicated. A

Floor Protector of 1/4” thick is recommended for

this installation

Floor Protector

A Sides

USA 2” (51 mm)

CAN 8” (200 mm)

B Front

USA 6” (152 mm)

CAN 18” (450 mm)

INSTALLATION

CLEARANCES

Your pellet stove has been tested and listed

for installation in residential, mobile home in

accordance with the clearances given below. For

safety reasons, please adhere to the installation

clearances and restrictions. Any reduction in

clearance to combustibles may only be done by

means approved by a regulatory authority.

Side Wall

Back Wall

Ceiling

Mantle/Sill

Back Wall

C Side Wall To Stove 6” (152 mm)

D Front Of Stove 24” (607 mm)

Ceiling To Stove (allow

for fuel loading)

18” (457 mm)

F Floor (allow for brace)

8” (203 mm vent

must meet min.

ground clearances)

G Mantle/Sill 11” (279 mm)

MOBILE HOME REQUIREMENTS

WARNING! -

DO NOT INSTALL IN A SLEEPING ROOM

CAUTION! -

THE STRUCTURAL INTEGRITY OF THE MOBILE

HOME FLOOR, WALL, AND CEILING/ROOF

MUST BE MAINTAINED.

• The heater must be permanently attached to the

wall.

• The heater must be electrically grounded to the

steel chassis of the mobile home with 8 GA copper

wire using a serrated or star washer to penetrate

paint or protective coating to ensure grounding.

• When moving your mobile home, the heater

must be removed while the mobile home is

being relocated. After relocation, heater may be

reinstalled and securely fastened.

• Check with your local building ofcials as other

codes may apply.

GENERAL INSTALLATION NOTES

• Do not install heater where the exhaust will

terminate in a window well or any opening below

ground level.

• Special precautions may be required to prevent

snow build-up within 12” of the air intake.

• Clearances around heater must provide adequate

room for service, cleaning, and air circulation.

• Residential Garage Installation: The heater shall

be located or protected so it is not subject to

damage by a moving vehicle. Use care when

selecting a good location within the garage. DO

NOT locate the heater where the discharge air

will be directed onto a nearby parked vehicle. DO

NOT store containers of paint, gasoline, or other

ammable liquids in the same area as the heater,

inside or outside the home or structure.

INSTALLATION

ATTENTION:

DO NOT VENT UNDER ANY PORCH, DECK,

AWNING, OR IN ANY SEMI ENCLOSED OR

ROOFED AREA. DOING SO MAY RESULT IN

UNPREDICTABLE AIRFLOW AT THE VENT

CAP UNDER CERTAIN CONDITIONS AND CAN

AFFECT THE PERFORMANCE OF YOUR STOVE,

AS WELL AS, OTHER UNFORESEEABLE ISSUES.

WALL INSTALLATION

Select a wall to the exterior of the building. This wall

should have the required clearance to combustibles

inside and out as mentioned in this manual. Make

certain that electrical wires, conduit, water or

gas pipes do not pass through the area you have

selected.

5/8”

[16mm]

16”

[406mm]

3”

[75mm]

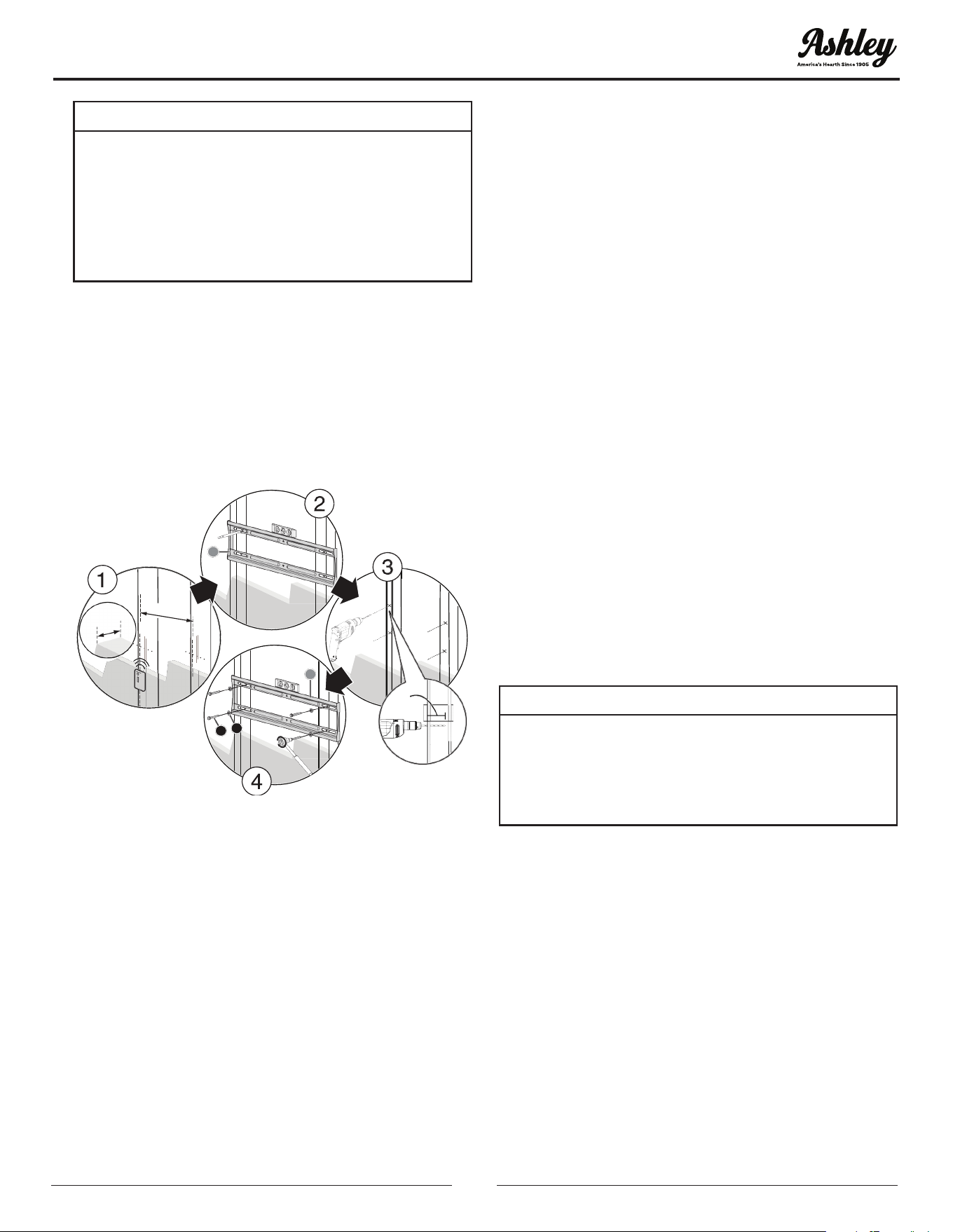

A. Step 1 - Mount the wall plate

Note: Any material covering the wall (such as sheet

rock) must not exceed 5/8” (16 mm).

Option 1: Mounting on a wood-stud wall

1. Locate the studs in exterior wall. Verify the center

of the stud with an edge-to-edge stud nder.

Mark center point at predetermined height

which meets all clearance requirements of the

appliance. Note: Make sure that the opening for

the exhaust thimble is not to close to a stud in

the wall before the hole is cut.

2. At the wall height that was determined in the

previous step, place a mid-sized nail through

the center triangular shaped hole of the

mounting plate to hold it while the locations

of the mounting holes and the exhaust/intake

through hole are marked. Make sure that the

wall mounting plate is ush against the wall,

then level the mounting plate and verify that

pilot holes are centered properly on the studs.

Use a pencil to mark the pilot hole locations,

and intake/ exhaust through hole, then remove

the mounting plate from the wall.

3. Drill the four pilot holes to a depth of 2” (75 mm)

using a 5/32” (3.96 mm) diameter drill bit.

4. Find the center of the through hole for the wall

thimble and drill a pilot hole all the way through

the wall to the exterior with an installer bit.

Use this hole as a center point to cut your hole

through the exterior wall.

5. Carefully cut exhaust/intake through hole in

exterior wall completely through to the outside

(see “Vent Clearances” section to ensure proper

installation).

6. Install the wall thimble included with the vent

kit to the manufactures instructions.

7. Realign the wall mount with the pilot holes and

exhaust/intake through hole. Insert the four 1/4”

x 2” lag bolts with washers, and tighten the lag

bolts until the wall mounting bracket is pulled

rmly against the exterior wall.

WARNING:

AVOID POTENTIAL INJURIES OR PROPERTY

DAMAGE! DO NOT OVER-TIGHTEN THE LAG

BOLTS. THIS COULD POTENTIALLY STRIP THE

MOUNTING HOLES AND CAUSE THE BOLTS

NOT TO HOLD CORRECTLY.

Option 2: Mounting on a solid concrete or

concrete block wall

1. Level the wall plate and mark the hole locations.

2. At the wall height you determined in the

previous step, place a small nail thru center

triangle hole of bracket and align the wall

mount against the wall. Level bracket and verify

that pilot holes are not located in the mortar of

the cinder blocks. Use a pencil to mark the pilot

hole locations, and intake/exhaust thru hole

then remove the wall plate.

3. Drill pilot holes to a depth of 2” (75 mm) using a

5/32” (3.96 mm) diameter masonry drill bit.

INSTALLATION

4. Carefully cut intake/exhaust thru hole in exterior

wall thru to the outside (see “Vent Clearances”

section to ensure proper installation).

5. Insert 1/4” concrete wall anchors into the pilot

holes and make sure that the anchors are

seated ush with the concrete surface.

6. Align the wall plate with the anchors. Place

washers over the screw holes in the wall plate,

insert 1/4” x 2” lag bolts through the washers,

and then tighten the lag bolts until the washers

are pulled rmly against the wall plate and the

wall mount is pulled rmly against the exterior

wall.

B. Step 2 - Mounting the Heating Unit to the

wall plate

Note: The Heating Unit is heavy. You will need

assistance with this step.

1. Before hanging the unit on the wall bracket

the exhaust/intake transition piece needs to

be mounted on the back of the unit. On the

exhaust side of the unit there is a ring that is

held on with four screws, it needs to be removed

so the transition piece can be mounted. Use the

supplied Phillips head self-tapping screws to

attach the transition piece. Once the transition

piece is mounted the ring on the outside of the

unit can be put back on.

2. After you have your hole cut and mounting

bracket secured to the wall, the heating unit

can hung on the bracket.

3. Align /intake with the hole in the wall mounting

bracket and thimble, and carefully insert heating

unit. Tilt the top of the heating unit towards the

wall and lower onto the wall mounting bracket

making sure that the right and left bracket

mounted to the unit hooks over the top of the

wall mounting bracket. Allow the Heating Unit

to pivot downward becoming parallel to the

wall mounting bracket. Lift the unit up and the

lower hooks will engage with the mounting

bracket.

4. Once the unit is securely hanging on the wall

mounting bracket there are two 7/16” head bolt

on the bottom of the bracket that need to be

tightened down to lock the unit to the bracket.

5. Once the unit is locked down the exhaust/

intake pipe can be attached to the unit on the

outside of the house.

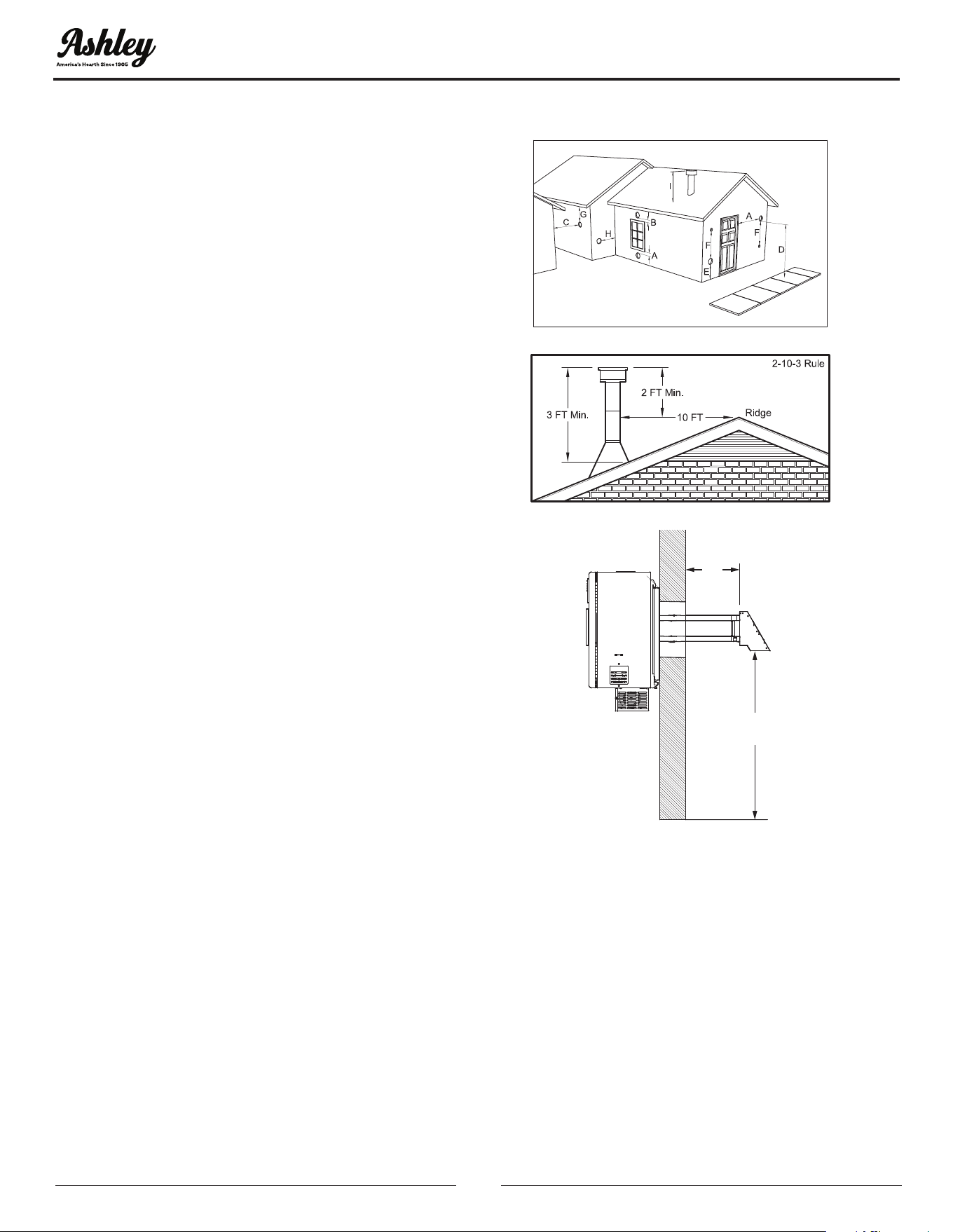

VENT TERMINATION CLEARANCES

6”

(152 mm)

24”

(609 mm)

A. Minimum 4-foot [1.2m] clearance below or

beside any door or window that opens.

B. Minimum 1-foot [0.3m]clearance above any

door or window that opens.

C. Minimum 2-foot [0.6m] clearance from any

adjacent building.

D. Minimum 7-foot [2.1m] clearance from any

grade when adjacent to public walkways.

E. Minimum 2-foot [0.6m] clearance above any

grass, plants, or other combustible materials.

F. Minimum 4-foot [1.2m] clearance from an forced

air intake of any appliance.

G. Minimum 2-foot [0.6m] clearance below eves or

overhang.

INSTALLATION

H. Minimum 1-foot [0.3m] clearance horizontally

from combustible wall.

NOTICE: This unit shall be installed in such a way

that the exhaust gases are directed so they do not

jeopardize people, overheat combustible structures,

or enter buildings. The chimney connector shall

not pass through an attic or roof space, closet or

similar concealed space, or a oor, or ceiling. Where

passage through a wall, or partition of combustible

construction is desired, the installation shall

conform to CAN/CSA-B365, Installation Code for

Solid-Fuel-Burning Appliances and Equipment.

IMPROPER INSTALLATION:

THE MANUFACTURER WILL NOT BE HELD

RESPONSIBLE FOR DAMAGE CAUSED BY

THE MALFUNCTION OF A HEATER DUE TO

IMPROPER VENTING OR INSTALLATION.

A source of fresh air shall be provided when required.

To ensure this make sure that the intake to the

concentric vent system is clear of all obstructions

during use. You must use the Duravent FasNSeal

Concentric Vent System designed to work with this

appliance from United States Stove Company. DO

NOT substitute other venting systems. The 3”

x 5” horizontal square termination kit (35CVS-KUS)

includes:

• 3” x 5” stove adapter

• Adjustable Horizontal Square Cap 35CVS-HZSQ

• Wall Thimble 35CVS-WT

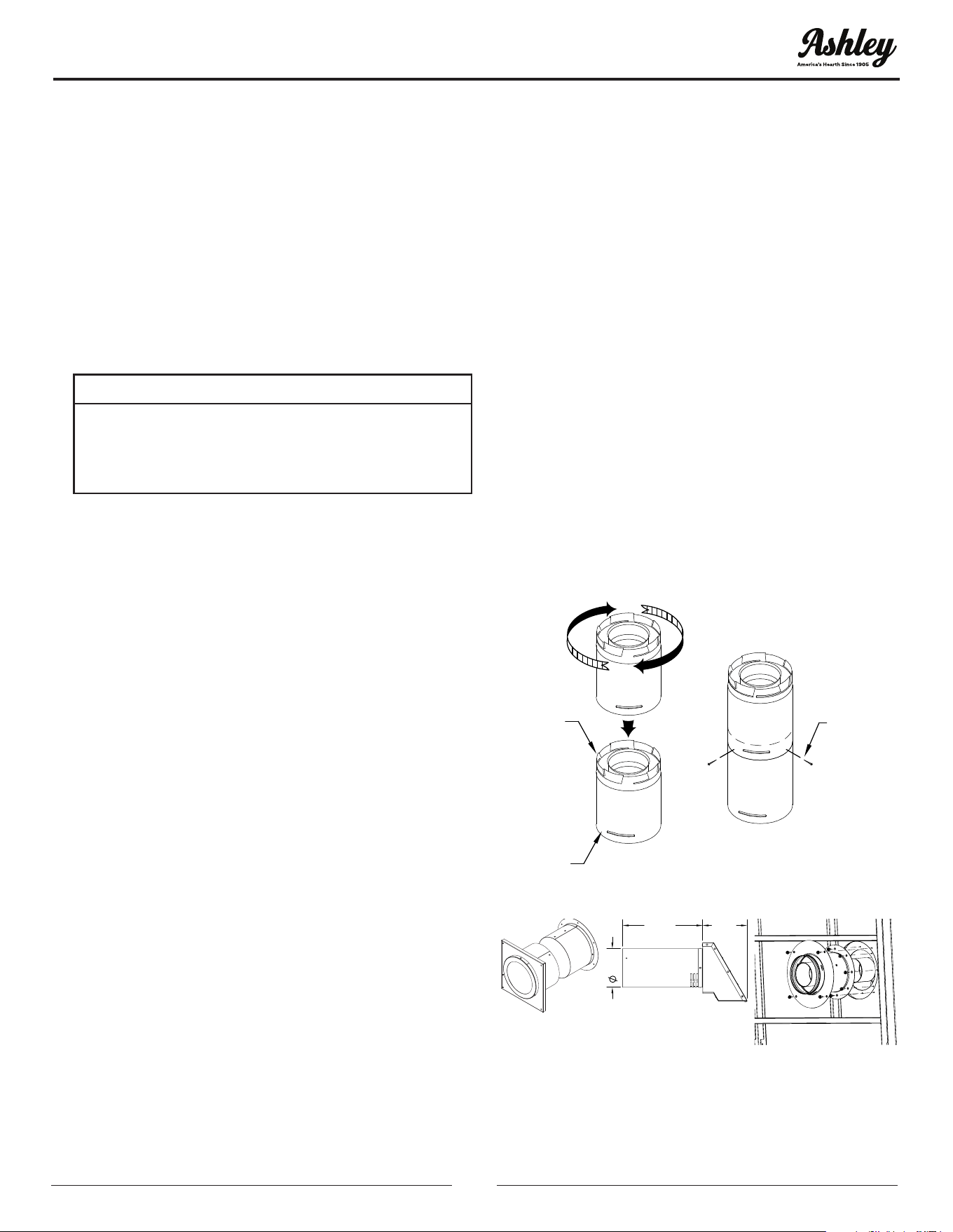

1. DirectVent Pro pipe and ttings are designed

with special twist-lock connections. To connect

the venting system to the appliance ue outlet,

a twist-lock Appliance Adaptor is required. The

adaptor will be supplied for installation in the

eld. Assemble the desired combination of Pipe

Sections and Elbows to the Appliance Adaptor.

Notes:

• Twist-lock procedure - Line up locking lugs on

male and female ends of pipe sections. Insert

the male end of pipe into the female end until

the locking lugs are covered. Twist the female

end clockwise an eighth of a turn to lock sections

together. Three screws are required to secure the

joint, ensure they do not penetrate the inner wall

of the vent pipe.

• Horizontal runs of vent pipe must be supported

to prevent any downward sags. Horizontal pipe

sections should be supported at least every 4 feet.

Wall Straps can be used for this purpose.

• Seal all joints with high temperature silicone.

2. With the appliance adaptor and pipe section

attached to the appliance, slide the appliance

into its correct location, and mark the wall for a

hole of the appropriate size. The center line of

the pipe should line up with the center of the

hole. Cut and frame the hole in the exterior

wall where the vent will be terminated. A Wall

Thimble is required.

Notes:

• The horizontal run of venting must be level, or

have a 1/4 inch rise for every 1 foot of run towards

the termination. Never allow the vent to run

downward. A downward slope can trap heat and

become a possible re hazard.

• The location of the Horizontal Vent Termination on

an exterior wall must meet all local and national

building codes, and must not be easily blocked or

obstructed. Termination clearances as shown in

the “Vent Termination Clearances” section.

MALE

END

MALE

END

SCRE

Duravent Fasnseal Concentric

Vent System Twist-lock Procedure

Exterior Wall Thimble

Concentric Vent

Attachment

10.52

5.85

5.10

Adjustable Horizontal

Square Cap

HOW YOUR HEATER WORKS

Your pellet heater operates on a timer based auger

fuel feed system, that is controlled by a digital circuit

board. The fuel is delivered from the auger into a

burn pot, which is the vessel where the combustion

process takes place. Based upon the heat ranges

(1-5), the heater will feed the appropriate amount

of fuel to reach a set temperature range. Note that

the amount of heat produced by the heater is

proportional to the rate of the fuel that is burned.

Your heater is equipped with an automatic ignition

system that should ignite the fuel within 5-10

minutes from pressing the ON button. As pellets

fall into the burn pot and ignite, outside air is drawn

in to feed the re by a combustion blower. The post

combustion gases are then pulled through the heat

exchanger as they are traveling out the exhaust. As

the heater warms up, room air is circulated around

the heat exchanger by means of a room air blower,

distributing warm air into the room. Because a

forced draft pressure is required for the combustion

process inside your heater, it is extremely important

that the exhaust system be properly maintained.

And, that when operating your heater, you make

sure that the viewing and combustion doors are

properly closed and/or sealed.

CONTROL PANEL OVERVIEW

Turning the heater ON/OFF, as well as adjustments

for the fuel feed rate is performed by pressing the

appropriate button(s) on the control panel which is

located on the front, lower left-hand corner of your

heater.

ON/OFF

• Pressing the “ON” button on the control panel will

begin the start-up sequence for the heater. Fuel

will begin to feed through the auger feed system

then ignite after approx. 5 minutes.

• Pressing the “OFF” button on the control panel

will cause the heater to enter its shut-down

sequence. The fuel feed system will stop pulling

fuel from the hopper and, once the re goes out

and the heater cools down, the fans will stop

running.

HEAT RANGE

• Pressing the “Heat Range” arrows, up or down,

will adjust the amount of fuel being delivered to

the burn pot.

• The exhaust blower will start. Note that this

appliance pulses the exhaust blower in order to

achieve the proper air to fuel ratio, and to also aid

in the cleaning of the burn pot.

• Once the heater reaches a set temperature, the

room fan will come on.

LIGHT (LED) INDICATORS

• Heat Range LED - displays the selected heat

setting. Number “1” LED lights to display that

there is power to unit even if the heater is off.

• Door Sw LED - lights when front viewing door is

opened or if the hopper lid is raised.

• Press Sw LED - lights if pressure is lost inside the

combustion chamber (see “Errors”).

• E LED - Operational Error (see “Errors”).

• ON LED - Flashes in start-up mode. On solid

during Run mode

• OFF LED - Flashes during shut down mode.

ATTENTION:

THIS HEATER IS DESIGNED AND APPROVED

FOR PREMIUM HARDWOOD PELLET FUEL

ONLY. ANY OTHER TYPE OF FUEL BURNED

IN THIS HEATER WILL VOID THE WARRANTY

AND SAFETY LISTING.

This heater is designed to burn only PFI Premium

grade pellets. This appliance can also burn pellets

rated as standard after May 16, 2015. DO NOT BURN:

1. Garbage;

2. Lawn clippings or yard waste;

3. Materials containing rubber, including tires;

4. Materials containing plastic;

5. Waste petroleum products, paints or paint

thinners, or asphalt products;

OPERATION INSTRUCTIONS

NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

OPERATION INSTRUCTIONS

6. Materials containing asbestos;

7. Construction or demolition debris;

8. Railroad ties or pressure-treated wood;

9. Manure or animal remains;

10. Salt water driftwood or other previously salt

water saturated materials;

11. Unseasoned wood; or

12. Paper products, cardboard, plywood, or

particleboard. The prohibition against burning

these materials does not prohibit the use of re

starters made from paper, cardboard, saw dust,

wax and similar substances for the purpose

of starting a re in an affected wood heater.

Burning these materials may result in release of

toxic fumes or render the heater ineffective and

cause smoke.

UNIT PREPARATION

CAUTION:

• KEEP FOREIGN OBJECTS OUT OF THE

HOPPER.

• THE MOVING PARTS OF THIS HEATER ARE

PROPELLED BY HIGH TORQUE ELECTRIC

MOTORS. KEEP ALL BODY PARTS AWAY

FROM THE AUGER WHILE THE HEATER IS

PLUGGED INTO AN ELECTRICAL OUTLET.

THESE MOVING PARTS MAY BEGIN TO

MOVE AT ANY TIME WHILE THE HEATER IS

PLUGGED IN.

After properly installing your heater, you will need

to attach the electrical cord to the right side blower

housing rst; then plug it into a 110 Volt outlet (an

outlet surge protector is highly recommended).

PERFORMING AN INITIAL BURN

You must perform an initial burn in this appliance

before installing it in your home or garage.

This process is to ensure that the appliances is

functioning correctly, to cure the high temperature

paint and burn off any oil that is present in the sheet

metal components of the combustion chamber.

For the initial burn, only add a small amount of fuel,

approximately 4-5 lbs or about the amount to ll

a 2 lb coffee can. Operate the appliance on the 3

or 4 heat setting for approximately 30 minutes to

an hour. There will probably be a small amount

of smoke or fumes irradiating from the appliance

during this process. Follow the Start-Up procedure

below to begin your burn.

START-UP PROCEDURE

WARNING:

• DO NOT USE CHEMICALS OR FLUIDS TO

START THE FIRE; DO NOT BURN GARBAGE

OR FLAMMABLE FLUIDS SUCH AS

GASOLINE, NAPHTHA OR ENGINE OIL.

• HOT WHILE IN OPERATION. KEEP

CHILDREN CLOTHING AND FURNITURE

AWAY. CONTACT MAY CAUSE SKIN BURNS.

DO NOT TOUCH THE HOT SURFACES OF

THE HEATER. EDUCATE ALL CHILDREN ON

THE DANGERS OF A HIGH-TEMPERATURE

HEATER. YOUNG CHILDREN SHOULD BE

SUPERVISED WHEN THEY ARE IN THE

SAME ROOM AS THE HEATER.

• NEVER USE GASOLINE, GASOLINE-TYPE

LANTERN FUEL, KEROSENE, CHARCOAL

LIGHTER FLUID, OR SIMILAR LIQUIDS TO

START OR “FRESHEN UP” A FIRE IN THIS

HEATER. KEEP ALL SUCH LIQUIDS WELL

AWAY FROM THE HEATER WHILE IT IS IN

USE.

1. Verify that the hopper is clean and free of

foreign matter.

2. Fill the hopper with wood pellets; do not allow

any part of the bag or any other foreign material

into the hopper, as this may jam the auger.

3. Ensure that all pellet matter is cleared from the

hopper seating surface.

4. Close the hopper lid. The unit WILL NOT feed

fuel with the hopper lid open.

5. Verify that there is no pellet fuel, ash, or foreign

matter in the burn-pot before starting the

appliance.

6. Make sure that the viewing door and combustion

door is securely closed (the safety switch will not

allow the heater to feed fuel if they are left open.

7. Press the “ON” button on the control pad and

set the “heat RANGE” to your desired setting.

The ON light will be ashing and the light

corresponding with the heat setting will be

light.

The heater will begin to feed fuel and the exhaust

(draft) blower is running. Note that the exhaust

blower is pulsing. The auto-start ignitor will ignite

the fuel in approximately 5-10 minutes. In the start-

up mode, the “ON” LED will ash until it reaches a

factory preset temperature. At that point, the “ON”

LED will come on solid and the heater will begin to

ramp up to your selected heat range. The Room Air

Blower will not function until the heater reaches a

factory preset temperature. Attempts to achieve

heat output rates that exceed heater design

specications can result in permanent damage to

the heater.

SHUT DOWN PROCEDURE

WARNING:

NEVER SHUT DOWN THIS UNIT BY UNPLUGGING

IT FROM THE POWER SOURCE.

Press the “OFF” button on the control pad to put

the stove in shut down mode. At this time, the red

light above the OFF will blink and the “ON” light will

go off. The auger will stop feeding pellets, but the

distribution blower and exhaust blower will continue

to operate. When the internal temperature of the

unit drops below the factory preset temperature,

the distribution blower and exhaust blower will

cease to operate. The red light will then shut off

and the unit will be completely shut down. The

hotter the unit is during its operation, the longer it

will take for the stove to complete the shut down

cycle. If the stove stays on for more than 1 hour after

pressing the “OFF” button and you are sure that

the re is out, the stove can be unplugged from

the outlet. After approximately 10 seconds, the unit

can be re-connected to the power source and the

control board will be reset.

DAILY OPERATION

• Never place your hand near the auger while the

heater is in operation.

• This unit should be lled when the hopper level

drops below 3-inches.

• In the event of a power outage, the heater will

not function. If the unit was “ON” when the power

outage occurred, one of the following will take

place:

1. If the heater is still warm, it will resume feeding

fuel and continue to operate normally. If the re

has gone out, you will have to press the “OFF”

button and then the “ON” button again to begin

a new start-up sequence.

2. If the heater has cooled-off, it will reset to its

“OFF” condition. At this point, you may press

the “ON” button and the unit will begin a new

start-up sequence. Make it a habit to empty the

burn pot in these situations.

NOTE: The unit will also shut down in the event of an

exhaust blower failure; if this is the case, the unit will

not re-start and you must contact Customer Service.

The amount of visible smoke being produced can be

an effective method of determining how efciently

the combustion process is taking place at the given

settings. Visible smoke consist of unburned fuel

and moisture leaving your stove. Learn to adjust

the air settings of your specic unit to produce the

smallest amount of visible smoke. Wood that has

not been seasoned properly and has a high wood

moisture content will produce excess visible smoke

and burn poorly.

SAFETY AND CONVENIENCE FEATURES

Your heater incorporates safety switches that helps

ensure that everything is in proper working order

before feeding fuel to the burn pot. The heater will

not operate if the viewing or combustion door is left

open; or if the exhaust blower fails or the exhaust

system is blocked. The RTD, Resistance Temperature

Device, will prevent your heater from operating at

abnormally high temperatures. The heater has two

over temperature limits. If the unit reaches the rst

limit, it will reduce fuel consumption in order to

reduce temperatures. If the unit reaches the second

limit, it will shut down and will need to be restarted.

Your heater also includes an auto-start igniter as

a standard feature. The use of other re starter

materials (wood chips, starter gel, etc.) is not

necessary. By simply pressing the “ON” button on

the digital control panel, your heater will begin to

feed fuel and automatically start within 5 minutes.

This wood heater has a manufacturer-set minimum

burn rate that must not be altered. It is against

federal regulations to alter this setting or otherwise

operate this wood heater in a manner inconsistent

with operating instructions in this manual.

OPERATION INSTRUCTIONS

WARNING:

• DISCONNECT THE POWER CORD BEFORE

PERFORMING ANY MAINTENANCE! NOTE:

TURNING THE ON/OFF SWITCH TO ”OFF”

DOES NOT DISCONNECT ALL POWER TO

THE ELECTRICAL COMPONENTS OF THE

HEATER.

• TURN THE HEATER OFF AND ALLOW TO

COMPLETELY COOL BEFORE PERFORMING

ANY MAINTENANCE.

• DO NOT UNPLUG THE HEATER IF YOU

SUSPECT A MALFUNCTION. TURN THE

ON/OFF SWITCH TO ”OFF’ AND CONTACT

YOUR DEALER.

• NEVER DISABLE OR BYPASS THE SAFETY

DEVICES IN THIS UNIT. DOING SO COULD

RESULT IN DAMAGE TO THE UNIT OR

ENDANGER YOURSELF OR SOMEONE ELSE.

EXHAUST SYSTEM

The by products of combustion contain small

particles of y ash. Fly ash will collect in the exhaust

venting system and restrict the ow of ue gases.

Incomplete combustion, such as during startup,

shutdown, or incorrect operation of the heater will

lead to soot or creosote formation which will collect

in the exhaust system and if ignited, an extremely

hot re could result. Therefore, it is important that

the exhaust system be inspected and cleaned at

least bi-monthly during the burning season. Contact

your local municipal or provincial re authority for

information on how to handle a re. Have a clearly

understood plan to handle a re if one should ever

occur. Cleaning or monitoring the areas behind the

front cleanout door should be done frequently to

ensure minimum y ash or soot/creosote build-up.

INTERIOR CHAMBERS

Periodically remove and clean the burn pot, ame

impingement plate and the areas behind the

cleanout door. In particular, it is advisable to clean

out the holes in the burn pot to remove any build up

that may prevent air from moving through the burn

pot freely. As good practice, you should remove and

clean the burn pot each time you restart the heater,

weekly or as needed as this ensures that the best

efciency is achieved. If a vacuum is used to clean

your heater, we suggest using a vacuum designed

for ash removal. Some regular vacuum cleaner (i.e.

shop vacs) may leak ash into the room.

ASH REMOVAL

Remove the ashes periodically to avoid unnecessary

ash build up. Ash removal is as follows:

1. Let re burn out and allow unit cool to room

temperature.

2. Clean the heat exchanger tubes (see Heat

Exchanger Cleaning section) – Make sure Pellet

Stove is at room temperature before touching .

3. Open the ash pan door, remove the burn pot

and empty into metal container.

4. Vacuum to remove ashes from the rebox.

5. BE SURE THAT ASHES ARE COOL TO THE

TOUCH BEFORE VACUUMING. Some vacuum

cleaners may leak ash into the room. Your

vacuum cleaner should have a special lter or

bag to eliminate leakage.

6. Remove ash pan and dispose of ashes into

metal container.

7. Reinstall ash pan.

8. Reinstall burn pot.

ASH DISPOSAL

CAUTION:

ASHES MUST BE DISPOSED IN A METAL

CONTAINER WITH A TIGHT FITTING LID. THE

CLOSED CONTAINER OF ASHES SHOULD BE

PLACED ON A NON-COMBUSTIBLE SURFACE

OR ON THE GROUND, WELL AWAY FROM ALL

COMBUSTIBLE MATERIALS, PENDING FINAL

DISPOSAL.

Ashes should be placed in a metal container with a

tight tting lid. The closed container of ashes should

be placed on a non-combustible oor or on the

ground, well away from all combustible materials,

pending nal disposal. If the ashes are disposed of

by burial in soil or otherwise locally dispersed, they

should be retained in the closed container until all

cinders have been thoroughly cooled. Do not place

other waste in the same container.

MAINTENANCE

NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

SMOKE AND CO MONITORS

Burning wood naturally produces smoke and

carbon monoxide(CO) emissions. CO is a poisonous

gas when exposed to elevated concentrations

for extended periods of time. While the modern

combustion systems in heaters drastically reduce

the amount of CO emitted out the chimney,

exposure to the gases in closed or conned areas

can be dangerous. Make sure your stove gaskets

and chimney joints are in good working order and

sealing properly to ensure unintended exposure. It

is recommended that you use both smoke and CO

monitors in areas having the potential to generate

CO.

CHECK AND CLEAN THE HOPPER

Check the hopper periodically to determine if there

is any sawdust or pellets that are sticking to the

hopper surface. Clean as needed.

DOOR AND GLASS GASKETS

CAUTION:

DO NOT OPERATE YOUR HEATER WITH THE

VIEWING OR COMBUSTION DOOR OPEN.

THE AUGER WILL NOT FEED PELLETS UNDER

THESE CIRCUMSTANCES AND A SAFETY

CONCERN MAY ARISE FROM SPARKS OR

FUMES ENTERING THE ROOM.

Inspect the door’s and ash pan’s gaskets periodically.

These may need to be removed to have frayed,

broken, or compacted gaskets replaced. Keep door,

glass, and ash pan seals in good condition. This

unit’s door uses a 3/8” diameter rope gasket.

BLOWER MOTORS

Clean the air holes on the motors of both the

exhaust and distribution blowers annually. Remove

the exhaust blower from the exhaust duct and

clean out the internal fan blades as part of your fall

start-up.

PAINTED SURFACES

Painted surfaces may be wiped down with a damp

cloth. If scratches appear, or you wish to renew your

paint, contact your Authorized pellet heater Dealer

to obtain a can of suitable high-temperature paint.

GLASS

Cleaning - We recommend using a high quality

glass cleaner. Should a buildup of creosote or

carbon accumulate, you may wish to use 000 steel

wool and water to clean the glass. DO NOT use

abrasive cleaners. DO NOT perform the cleaning

while the glass is HOT. In the event you need to

replace the glass, Do not attempt to operate the

unit with broken glass. Replacement glass may

be purchased from your U.S. Stove Pellet Burning

Room Heater Dealer. If glass is broken, follow these

removal procedures:

1. Remove the retainers and any broken glass or

gasket from the sealing face of the door.

2. Install a new glass gasket.

3. Re-install the retainers to hold the glass. Be

careful not to over-tighten the screws for this

could damage the glass.

4. To replace the viewing door glass remove

the back of the door and the insulation, then

proceed as described for the rebox door glass

replacement.

5. DO NOT abuse the door glass by striking,

slamming or similar trauma. Do not operate

the stove with the glass removed, cracked or

broken.

FALL START UP

Prior to starting the rst re of the heating season,

check the outside area around the exhaust and air

intake systems for obstructions including leaves,

bushes/shrubs, and/or trees. Clean and remove any

y ash from the exhaust venting system. Clean any

screens on the exhaust system and on the outside

air intake pipe. Turn all of the controls on and make

sure that they are working properly. This is also a

good time to give the entire heater a good cleaning

throughout.

SPRING SHUT DOWN

After the last burn in the spring, remove any

remaining pellets from the hopper and the auger

feed system. Scoop out the pellets and then run

the auger until the hopper is empty and pellets

stop owing. Vacuum out the hopper. Thoroughly

clean the burn pot, and rebox. The exhaust system

should be thoroughly cleaned. If removing the unit

for storage, store the heater in a dry location.

MAINTENANCE

YEARLY SERVICING

A yearly servicing and cleaning by your Authorized

pellet heater dealer is recommended. A fee may be

charged for this service.

MAINTENANCE SCHEDULE

Use the following as a guide under average use

conditions.

Gaskets around door and door glass should be

inspected and repaired or replaced when necessary.

• Failure to clean and maintain this unit as indicated

can result in poor performance, safety hazards

and void your warranty.

• Unplug your heater’s electrical cord prior

to removing the back panel or opening the

exhaust system for any inspection, cleaning, or

maintenance work.

• Never perform any inspections, cleaning, or

maintenance on a hot heater.

• Do not operate heater with broken glass , leakage

of ue gas may result.

Daily Weekly

Monthly or

as needed

Burn Pot Stirred Empty

Combustion

Chamber

Brushed

Ashes Check Empty

Interior

Chambers

Vacuumed

Combustion

Blower Blades

Vacuumed

/ Brushed

Convection

Blower Impeller

Vacuumed

/ Brushed

Vent System Cleaned

Gaskets Inspected

Glass

Wiped/

Cleaned

Hopper (end of

season)

Emptied &

Vacuumed

Heat Exchanger

Tubes

Bi-Weekly

MAINTENANCE

• Disconnect the power cord before performing any maintenance! NOTE: Switching the appliance to ”OFF”

does not disconnect all power to the electrical components of the heater.

• Never try to repair or replace any part of the heater unless instructions for doing so are given in this

manual or supplied from the factory. All other work should be done by a trained technician.

PROBLEM CAUSE: To rich air/fuel mixture

Orange, lazy ame, excessive

fuel build-up in the burn pot

Clean out the burn pot and behind the cleanout door.

Make sure that the combustion door is closed and sealed properly. If

not, adjust door catch and/or replace door gaskets.

Check that the exhaust is clear of any obstructions. Clean as needed

Check for proper seating of the burn pot.

PROBLEM CAUSE: Burn pot burns out of fuel

Fire goes out or heater shuts

down.

Hopper is empty, rell the hopper.

Loss of draft pressure. Make sure that the combustion door is closed

and sealed properly. If not, adjust door catch and/or replace door

gaskets. Check that the exhaust is clear of any obstructions. Clean as

needed.

Make sure the viewing door and hopper lid is closed completely.

Auger system is jammed or there is a “bridging” of the fuel in the

hopper, preventing fuel from owing into the auger feed system.

PROBLEM CAUSE: Auto-Start Igniter fails to ignite the fuel in the burn pot.

Heater does not start a re when

the “ON” button is pushed

Turn the heater “OFF”. Clear the unburnt fuel from the burn pot and

try again.

Check the pellet quality. Replace if moist, wet, or dirty.

Loss of draft pressure. Make sure that the combustion door is closed

and sealed properly. If not, adjust door catch and/or replace door

gaskets. Check that the exhaust is clear of any obstructions. Clean as

needed.

Check that the auto-start igniter is not blocked with ash or soot.

(The igniter is located behind the burn pot on the back wall of the

combustion chamber.)

The auto-start igniter gets “red hot” during start-up. If you can not

visibly see the igniter glowing during start-up, then the igniter may

need to be replaced or there is a problem with the electrical control

system.

Check for proper alignment between the burn pot and the igniter tube.

PROBLEM CAUSE: Heater has reached the 2nd over temperature limit.

Heater enters shut-down mode

To much fuel in the burn pot. Restart heater after heater has cooled.

RTD sensor in the room discharge air may be faulty causing the room

fan not to come on. Contact your dealer.

The air inlet, burnpot, interior

combustion air chambers,

combustion blower, or exhaust

pipe are blocked with ash or

foreign material.

Follow all cleaning procedures in the maintenance section of the

owner’s manual.

Pressure switch hose or stove

attachment pipes for hose are

blocked.

Unhook air hose from the pressure switch and blow through it. If air

ows freely, the hose and tube are ne. If air will not ow through the

hose, use a wire coat hanger to clear the blockage.

TROUBLE SHOOTING ERRORS

The rebox is not properly

sealed.

Make sure the door is closed and that the gasket is in good shape.

Vent pipe is incorrectly installed

Check to make sure vent pipe installation meets criteria in owner’s

manual.

The pressure switch wire

connections are bad.

Check the connectors that attach the wires to the pressure switch.

Combustion blower failure.

With the stove on, check to see if the combustion blower is running.

If it is not, you will need to check for power going to the combustion

blower. It should be a full current. If there is power, the blower is bad.

Control board not sending

power to combustion blower.

If there is no current going to the combustion blower, check all wire

connections and fuse. If all wires are properly connected, you have a

bad control board.

Control board not sending

power to pressure switch.

There should be a 5-volt current (approximately) going to the air switch

after the stove has been on for 30 seconds.

Pressure switch has failed.

To test the pressure switch, you will need to disconnect the air hose

from the body of the stove. With the other end still attached to the

pressure switch, very gently suck on the loose end of the hose (you

may want to remove the hose entirely off the stove and the pressure

switch rst and make sure it is clear). If you hear a click, the air switch

is working. BE CAREFUL too much vacuum can damage the air switch!

TROUBLE SHOOTING ERRORS

CAUTION:

THIS WOOD HEATER NEEDS PERIODIC INSPECTION AND REPAIR FOR PROPER OPERATION. IT IS

AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT

WITH OPERATING INSTRUCTIONS IN THIS MANUAL.

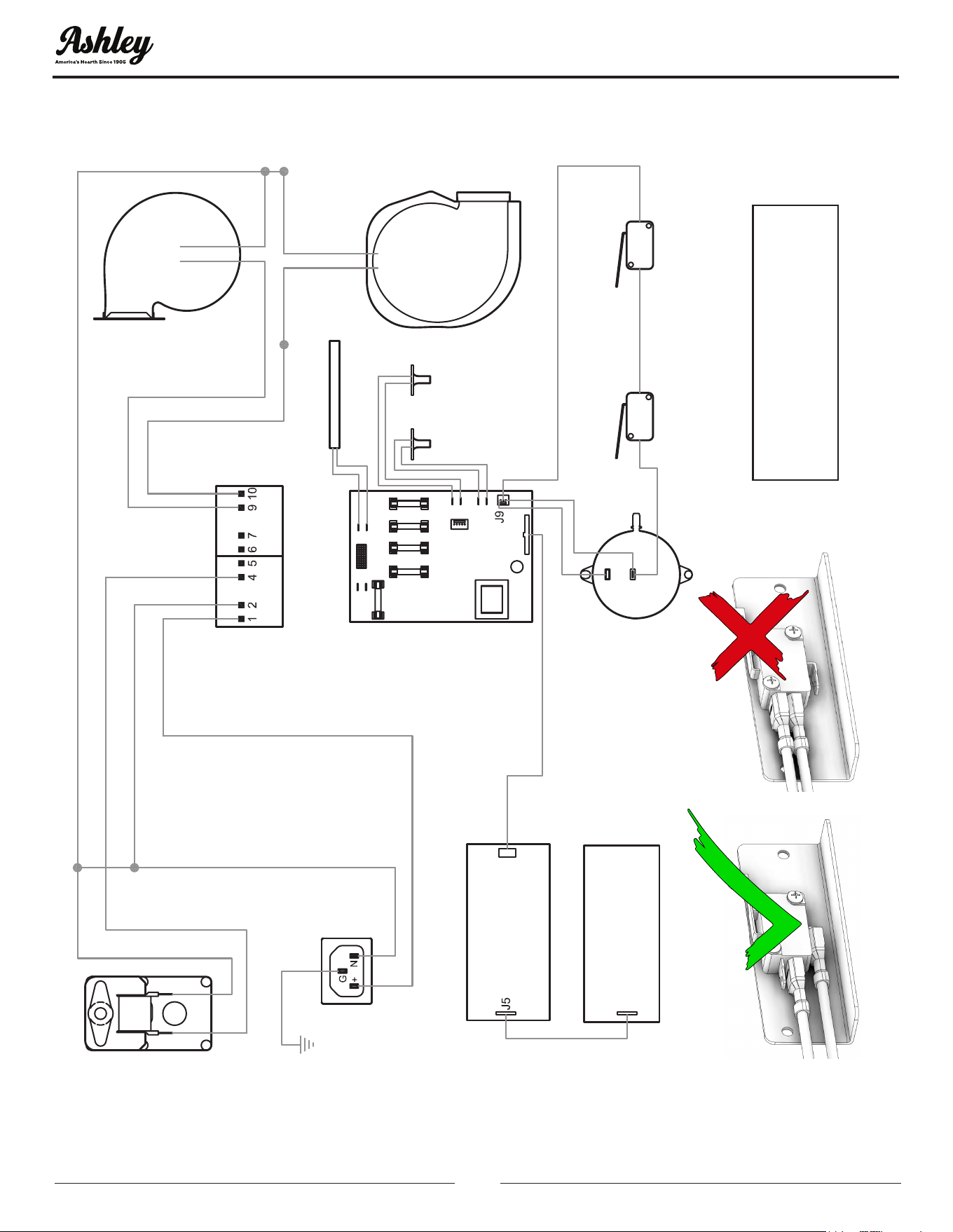

WIRING DIAGRAM

For Parts Assistance Call: 800-750-2723 Ext 5051 or Email: parts@usstove.com

The information in this owner’s manual is specic to your unit. When ordering replacement parts the

information in this manual will help to ensure the correct items are ordered. Before contacting customer

service write down the model number and the serial number of this unit. That information can be found on

the certication label attached to the back of the unit. Other information that may be needed would be the

part number and part description of the item(s) in question. Part numbers and descriptions can be found

in the “Repair Parts” section of this manual. Once this information has been gathered you can contact

customer service by phone 1-800-750-2723 Ext 5051 or Email parts@usstove.com.

Model Information

Model Number

Serial Number

HOW TO ORDER REPAIR PARTS

CORRECT WRONG

Ensure the wires are connected

to the bottom two prongs of the

hopper switch as shown.

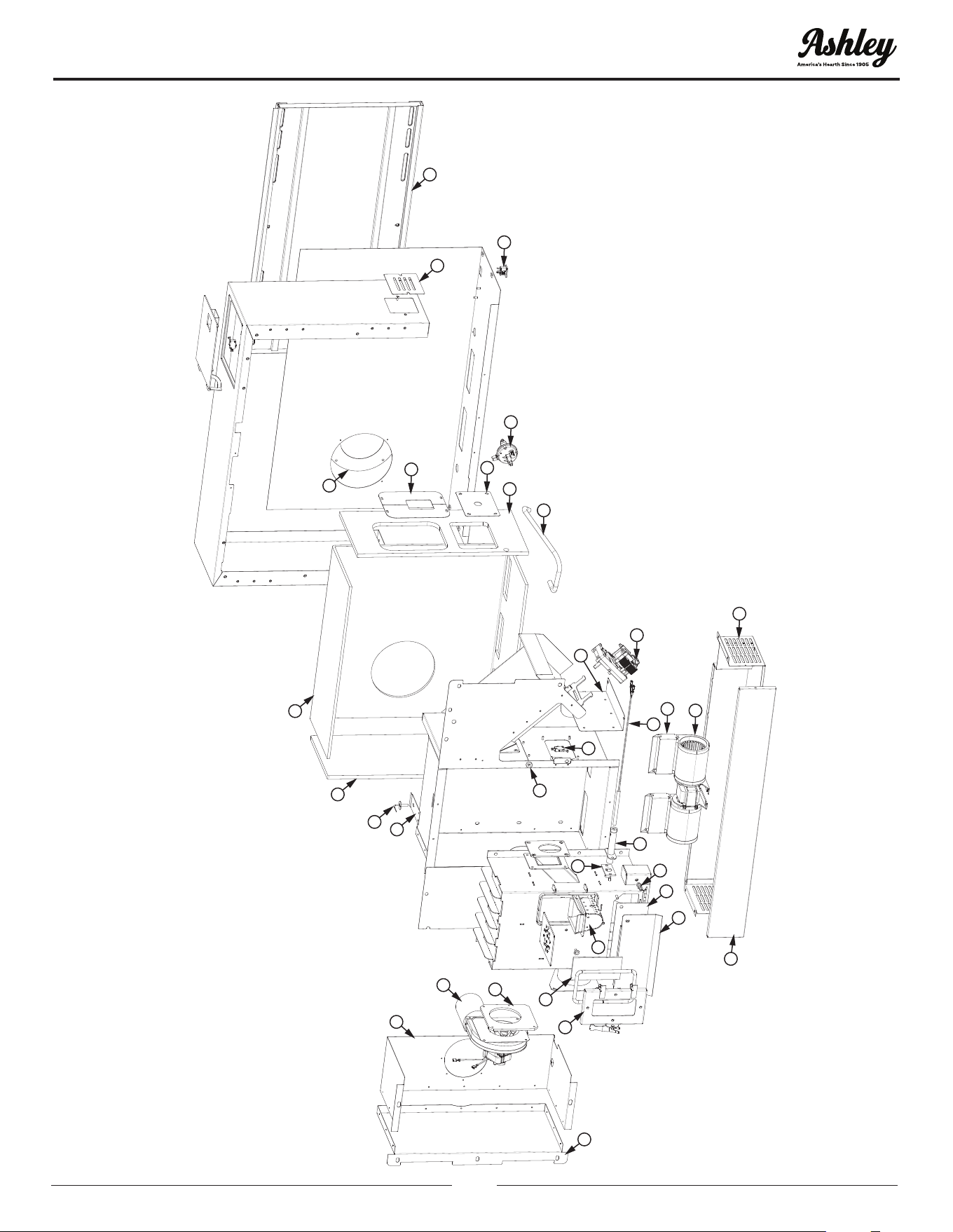

REPAIR PARTS

Key Part # Description Qty

1 893318

Distribution Fan Enclosure

Panel

2 893319 Distribution Fan Enclosure 1

3 80542

3" Double Centrifugal

Blower - 125CFM

4 26210 Room Fans Extenders 2

5 80619 Ignitor Cartridge 1

6 80529 Auger Motor 1

7 26211

Pressure Switch/PC Board

Mounting Bracket

8 69814 Door Switch Assembly 1

9 892004 Magnet 1

10 88118 Ignitor Flange Gasket 1

11 69820 Ignitor Tube 1

12 89586 Auger Nipple 1

13 88184

Burn Chamber Gasket

Clean Door

14 26175 Burn Chamber Clean Door 1

15 892397 Burn Chamber Door 1

16 88033

Combustion Chamber

Gasket

17 891748 Burnpot Weldment 1

18 26187 Right Side Exhaust Panel 1

19 88182 Exhaust Blower Gasket 1

20 80573 Exhaust - 70 CFM Blower 1

21 26185

Exhaust Panel, Top, Bottom,

And Back Side

22 26231 RTD Mounting Bracket 1

23 80531 Platinum RTD 1

24 88179 LT Chamber Insulation 1

25 88178

Wrapped Chamber

Insulation

26 26360 Exhaust/Intake Beauty ring 1

27 26196 Feed Tube Cover 2

28 26195 Ignitor Cover 1

29 88180 Chamber Insulation RT 1

30 891121 Vacuum Hose 1

31 80549 Pressure Switch 1

32 80462 3 Prong Receptacle 1

33 26229 Auger Access Cover 1

34 69808 Wall Mount Bracket Assy. 1

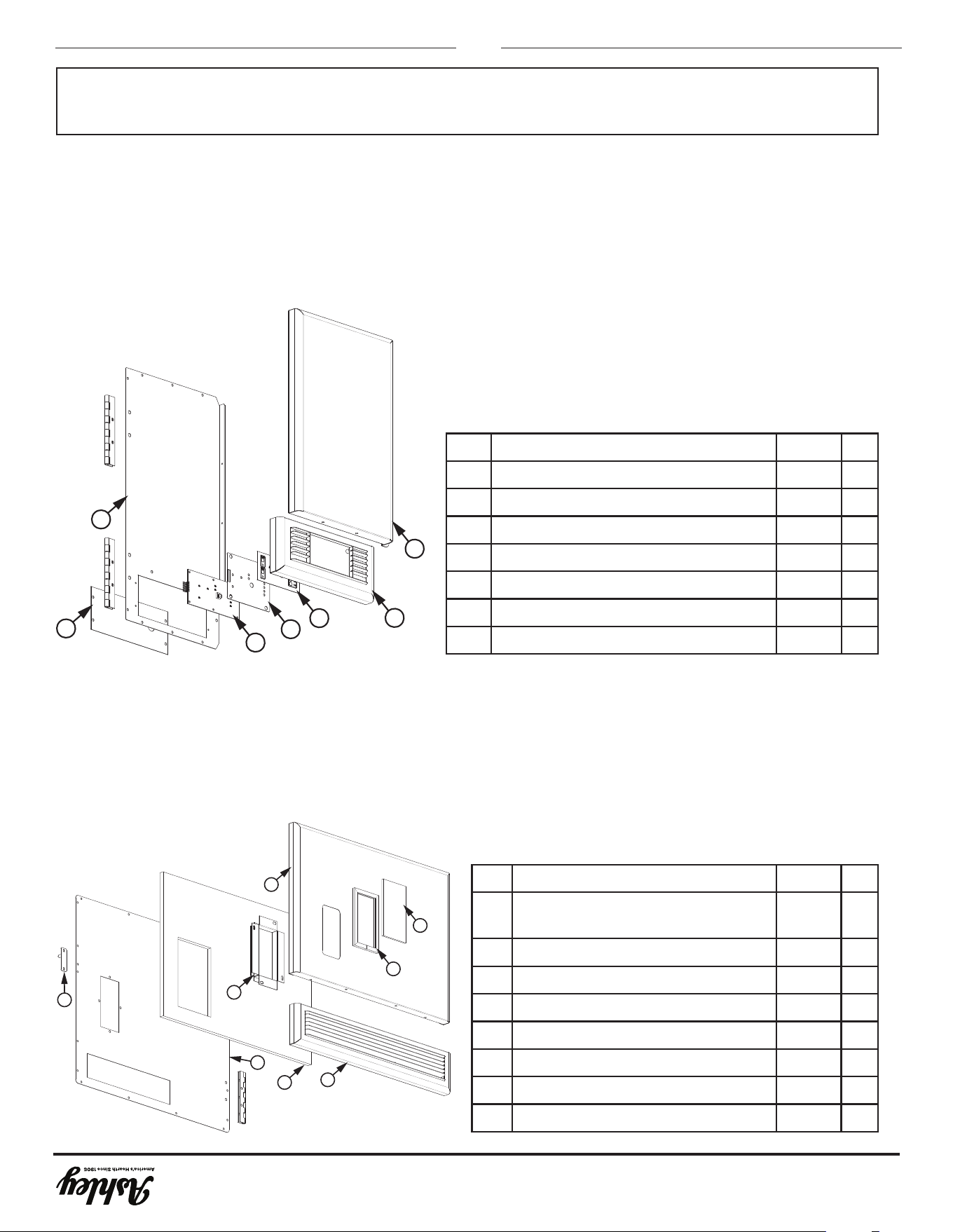

REPAIR PARTS

IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ASHLEY PARTS

PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM ASHLEY. USE OF THIRD PARTY

COMPONENTS WILL VOID THE WARRANTY.

To order parts:

Call 1-800-750-2723 Ext 5051 or

Email to: parts@usstove.com

Key Part # Description Qty

1 893314 Left Door Assembly 1

2 893315

Control Board

Weldment

3 80550 Keypad Assembly 1

4 893316 Control Board Plate 1

5 80545

Controller Board

Assembly

6 893317 PC Board Cover Plate 1

7 893320 Left Door Back Panel 1

Key Part # Description Qty

1 892215 Door Viewing Glass 1

2 88341 Window Gasket 1

3 893307 Main Left Front Door 1

4 893310 Door Spacer 1

5 893311

Exhaust Louver

Weldment

6 88342

Left Front Door

Insulation

7 893313 Main Door Back Panel 1

8 892174 Door Plunger 1

REPAIR PARTS

IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ASHLEY PARTS

PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM ASHLEY. USE OF THIRD PARTY

COMPONENTS WILL VOID THE WARRANTY.

To order parts:

Call 1-800-750-2723 Ext 5051 or

Email to: parts@usstove.com

To order parts:

Call 1-800-750-2723 Ext 5051 or

Email to: parts@usstove.com

It is recommended that your heating system is serviced regularly and that the appropriate Service Interval

Record is completed.

SERVICE PROVIDER

Before completing the appropriate Service Record below, please ensure you have carried out the service

as described in the manufacturer’s instructions. Always use the manufacturer's specied spare part when

replacement is necessary.

Service 01 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 03 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 05 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 07 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 02 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 04 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 06 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 08 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

SERVICE RECORD

Il est recommandé que votre système de chauffage est desservi régulièrement et que le Service Interval enregistrement

approprié est terminée.

FOURNISSEUR DE SERVICES

Avant de terminer l’enregistrement de service approprié ci-dessous, s’il vous plaît vous assurer que vous avez effectué le

service tel que décrit dans le les instructions du fabricant. Toujours utiliser pièce de rechange indiquée par le fabricant

lors de remplacement est nécessaire.

ENREGISTREMENT DE SERVICE

Service de 01 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 03 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 05 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 07 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 02 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 04 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 06 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 08 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Il est recommandé que votre système de chauffage est desservi régulièrement et que le Service Interval enregistrement

approprié est terminée.

FOURNISSEUR DE SERVICES

Avant de terminer l’enregistrement de service approprié ci-dessous, s’il vous plaît vous assurer que vous avez effectué le

service tel que décrit dans le les instructions du fabricant. Toujours utiliser pièce de rechange indiquée par le fabricant

lors de remplacement est nécessaire.

ENREGISTREMENT DE SERVICE

Service de 01 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 03 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 05 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 07 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 02 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 04 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 06 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 08 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: __________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

AFIN DE CONSERVER LE BÉNÉFICE DE LA GARANTIE, LES COMPOSANTS DOIVENT ÊTRE REMPLACÉS PAR

DES PIÈCES D'ORIGINE DES FABRICANTS ACHETÉS CHEZ VOTRE REVENDEUR OU DIRECTEMENT AUPRÈS DU

FABRICANT DE L'APPAREIL. L'UTILISATION DE COMPOSANTS TIERS ANNULE LA GARANTIE.

Clé Partie La Description Qté

1 893318

Panneau De Boîtier De

Ventilateur De Distribution

2 893319

Boîtier De Ventilateur De

Distribution

3 80542

Soufeur Centrifuge Double 3

"- 125 CFM

4 26210

Ventilateurs De Salle

Extenseurs

5 80619 Cartouche D'allumeur 1

6 80529 Moteur De Vis Sans Fin 1

7 26211

Interrupteur De Pression /

Support De Montage Pour

Carte Pc

8 69814

Ensemble Interrupteur De

Porte

9 892004 Aimant 1

10 88118 Joint De Bride D'allumeur 1

11 69820 Tube Allumeur 1

12 89586 Mamelon De Tarière 1

13 88184

Joint De Chambre De

Combustion Porte Propre

14 26175

Chambre Propre Porte De

Combustion

15 892397

Porte De La Chambre De

Combustion

16 88033

Joint De Chambre De

Combustion

17 891748

Soudure De Pot De

Combustion

18 26187

Panneau D'échappement Côté

Droit

Clé Partie La Description Qté

19 88182

Joint Principal De Soufante

D'échappement

20 80573

Échappement - Ventilateur De

70 CFM

21 26185

Panneau D'échappement, En

Haut, En Bas Et À L'arrière

22 26231 Support De Montage RTD 1

23 80531 Platine RTD 1

24 88179

Isolation De La Chambre Côté

Gauche

25 88178

Isolation De La Chambre

Enveloppée

26 26360

Bague De Beauté

D'échappement / Admission

27 26196

Couvercle Du Tube

D'alimentation

28 26195 Couvercle D'allumeur 1

29 88180 Isolation Chambre Droite 1

30 891121 Tuyau D'aspiration 1

31 80549 Pressostat 1

32 80462 Prise À 3 Broches 1

33 26229 Couvercle D'accès À La Vis 1

34 69808

Ensemble De Support De

Montage Mural

PIÈCES DE RECHANGE

Pour commander des pièces:

Appelez le 1-800-750-2723 Ext 5051 ou

Envoyez un courriel à: parts@usstove.com

Clé Partie La Description Qté

1 893314 Porte Gauche 1

2 893315 Soudure Du Panneau De Commande 1

3 80550 Assemblage Du Clavier 1

4 893316 Plaque De Carte De Commande 1

5 80545 Assemblage De La Carte Contrôleur 1

6 893317 Plaque De Couverture De Carte PC 1

7 893320 Panneau arrière de la porte gauche 1

Clé Partie La Description Qté

1 892215 Verre de visualisation de porte 1

2 88341 Joint de fenêtre 1

3 893307 Porte avant gauche principale 1

4 893310 Entretoise de porte 1

5 893311 Soudure des volets d'échappement 1

6 88342 Isolation de la porte avant gauche 1

7 893313

Panneau arrière de la porte

principale

8 892174 Piston de porte 1

AFIN DE CONSERVER LE BÉNÉFICE DE LA GARANTIE, LES COMPOSANTS DOIVENT ÊTRE REMPLACÉS PAR

DES PIÈCES D'ORIGINE DES FABRICANTS ACHETÉS CHEZ VOTRE REVENDEUR OU DIRECTEMENT AUPRÈS DU

FABRICANT DE L'APPAREIL. L'UTILISATION DE COMPOSANTS TIERS ANNULE LA GARANTIE.

PIÈCES DE RECHANGE

Pour commander des pièces:

Appelez le 1-800-750-2723 Ext 5051 ou

Envoyez un courriel à: parts@usstove.com

Pour commander des pièces:

Appelez le 1-800-750-2723 Ext 5051 ou

Envoyez un courriel à: parts@usstove.com

* Toutes les images de ce manuel sont à des ns d’illustration uniquement. Le produit réel peut varier.

CE MANUEL EST SUJET À MODIFICATION SANS PRÉAVIS.

Manuel D’instructions et D’utilisation Du Propriétaire

AGENCE AMÉRICAINE DE PROTECTION

DE L’ENVIRONNEMENT

Certié conforme aux normes d’émissions

de particules 2020.

AVIS DE SÉCURITÉ: Si ce radiateur n’est pas correctement installé, un incendie

peut en résulter. Pour votre sécurité, suivez les instructions d’installation. N’utilisez

jamais de compromis de fortune lors de l’installation de ce radiateur. Contactez les

responsables locaux du bâtiment ou des pompiers pour connaître les permis, les

restrictions et les exigences d’installation dans votre région. NE JAMAIS UTILISER CE

PRODUIT SANS SURVEILLANCE.

MISE EN GARDE! Veuillez lire l’intégralité de ce manuel avant d’installer ou d’utiliser

votre nouveau radiateur. Le non-respect des instructions peut entraîner des dommages

matériels, des blessures corporelles ou même la mort. Une installation incorrecte pourrait

annuler votre garantie!

Conservez ces instructions dans un endroit sûr pour référence ultérieure.

AVERTISSEMENT SUR LA PROPOSITION 65 DE LA

CALIFORNIE:

Ce produit peut vous exposer à des produits chimiques,

y compris le monoxyde de carbone, qui est connu dans

l’État de Californie pour provoquer le cancer, des anomalies

congénitales et / ou d’autres troubles de la reproduction.

Pour plus d’informations, visitez www.P65warnings.ca.gov

Certié ASTM Std E1509-12 (2017)

et Certié ULC-S627-00-REV1

Report #: F20-598

Numéro De Modèle:

AP5000

LISTE DE CONTRÔLE D’INSTALLATION

Votre poêle à bois ne doit être installé que par un installateur qualié. Un installateur qualié NFI est disponible à

l’adresse www.ncertied.org/public/nd-an-n-pro/

SERVICE CLIENTS

1-800-750-2723 poste 5050

Texte au 423-301-5624

E-mail à: customerservice@usstove.com

LISTE DE CONTRÔLE DE MISE EN SERVICE

Cette liste de contrôle doit être remplie intégralement par la personne qualiée qui installe cet appareil. Conservez

cette page pour référence future.

Le fait de ne pas installer et mettre en service selon les instructions du fabricant et de remplir cette liste de contrôle

annulera la garantie.

S’il te plaît imprime

Nom du client: Numéro de téléphone:

Adresse:

Modèle:

Numéro de série:

Nom de la société d’installation: Numéro de téléphone:

Nom du technicien d’installation: Numéro de licence:

DESCRIPTION DU TRAVAIL

Emplacement de l’appareil installé: _________________________________________________________________________________

Système de ventilation: nouveau système de ventilation Oui Non Si oui, marque ________________________

Si non, date d’inspection du système de ventilation existant: _________________________________________________________

MISE EN SERVICE

Conrmer l’installation du tapis de foyer conformément aux instructions d’installation ..................................................................

Conrmer le bon placement des pièces internes ...........................................................................................................................................................

Vérier la solidité du joint de porte et des joints de porte ........................................................................................................................................

Conrmer les dégagements aux combustibles selon les instructions d’installation de ce manuel ...........................................

Vérier le fonctionnement des commandes pneumatiques .................................................................................................................................

Conrmez que le système de ventilation est sécurisé et scellé ............................................................................................................................

Conrmer que le poêle démarre et fonctionne correctement ..............................................................................................................................

Assurez-vous qu’un avertisseur de CO est installé conformément aux codes du bâtiment locaux et qu’il est

fonctionnel .................................................................................................................................................................................................................................................

Expliquer le fonctionnement en toute sécurité, l’utilisation appropriée du carburant, le nettoyage et les exigences

d’entretien de routine .........................................................................................................................................................................................................................

Déclaration d’achèvement: En tant que personne qualiée responsable des travaux décrits ci-dessus, je conrme

que l’appareil en tant que travail associé a été installé selon les instructions du fabricant et en suivant les codes de

construction et d’installation applicables.

Signé: ___________________________________ Nom en lettres moulées: ____________________________Date: ______________

Propriétaire du domicile: CONSERVEZ CETTE INFORMATION POUR RÉFÉRENCE FUTURE

Caractéristiques De Chauffage

Capacité de chauffage 500 - 1 000 sq. ft.

La taille des granulés peut inuer sur le taux

réel d’alimentation en combustible et sur le

temps de combustion. Le taux d’alimentation en

combustible peut varier de près de 20 %. Pour

les meilleurs résultats, utilisez un combustible

homologué PFI.

Taux de combustion du combustible 3/4 - 2 1/2 lbs./h.

Durée de combustion (à bas régime) 35 heures

Capacité de la trémie 28 lbs

Caractéristiques Électriques

Tarif Electrique 110-120 Volts, 60 Hz, 3,0 A

Watts (opérationnel) 175 environ

Watts (allumeur en marche) 425 environ

Dimensions

Hauteur X Largeur X Profondeur 685,7 mm [27 po] X 914,4 mm [36 po] X 315,77 mm [12,43 po]

Profondeur avec le support de xation murale Environ 362,4 mm [14,27 po]

Ce manuel décrit l’installation et l’utilisation du poêle à bois Ashley, AP5000. Cet appareil de chauffage respecte les

limites d’émission de bois des appareils de chauffage au bois vendues après le 15 mai 2020 par l’Agence de protection

de l’environnement des États-Unis pour la protection de l’environnement. Dans des conditions de test spéciques, il a

été démontré que cet appareil de chauffage fournissait de la chaleur à des débits allant de 8 141 à 12 161 btu / h.

Pour le service client, veuillez appeler:

1-800-750-2723 poste 5050 ou;

Texte au 423-301-5624 ou;

Écrivez-nous à:

customerservice@usstove.com

Remarque: enregistrez votre produit en ligne sur

www.usstove.com ou téléchargez l’application

gratuite dès aujourd’hui. Cette application est

disponible uniquement sur l’App Store pour iPhone

et iPad. Rechercher US Stove. Conservez votre reçu

avec vos dossiers pour toute réclamation.

INTRODUCTION

ATTENTION:

IL EST CONTRE LES RÈGLEMENTS FÉDÉRAUX DE FAIRE FONCTIONNER CE CHAUFFE À BOIS D’UNE MANIÈRE

INCOMPATIBLE AVEC LES INSTRUCTIONS D’UTILISATION DU MANUEL DU PROPRIÉTAIRE.

LISTE DE CONTRÔLE D’INSTALLATION

Votre poêle à bois ne doit être installé que par un installateur qualié. Un installateur qualié NFI est disponible à

l’adresse www.ncertied.org/public/nd-an-n-pro/

SERVICE CLIENTS

1-800-750-2723 poste 5050

Texte au 423-301-5624

E-mail à: customerservice@usstove.com

LISTE DE CONTRÔLE DE MISE EN SERVICE

Cette liste de contrôle doit être remplie intégralement par la personne qualiée qui installe cet appareil. Conservez

cette page pour référence future.

Le fait de ne pas installer et mettre en service selon les instructions du fabricant et de remplir cette liste de contrôle

annulera la garantie.

S’il te plaît imprime

Nom du client: Numéro de téléphone:

Adresse:

Modèle:

Numéro de série:

Nom de la société d’installation: Numéro de téléphone:

Nom du technicien d’installation: Numéro de licence:

DESCRIPTION DU TRAVAIL

Emplacement de l’appareil installé: _________________________________________________________________________________

Système de ventilation: nouveau système de ventilation

Oui Non Si oui, marque ________________________
