INSTALLATION GUIDE
for the
SB-GM-COEXT2G/10TW3
SKU# 94660
2015-Up Chevrolet Colorado & GMC Canyon Extended Cab
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your
authorized JL Audio dealer. The installation professionals employed by your
dealer have the necessary tools and experience to disassemble and reassemble
your vehicle properly. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely
vital that the Stealthbox
®
be properly mounted to the vehicle
according to these instructions. Failure to mount the enclosure
properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the
enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a
collision or sudden deceleration.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
1 HOUR
Enclosure Type: Sealed
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
Continued on Next Page
1
5
OUT
OF
SB-GM-COEXT2G/10TW3 INSTR_SKU# 011505

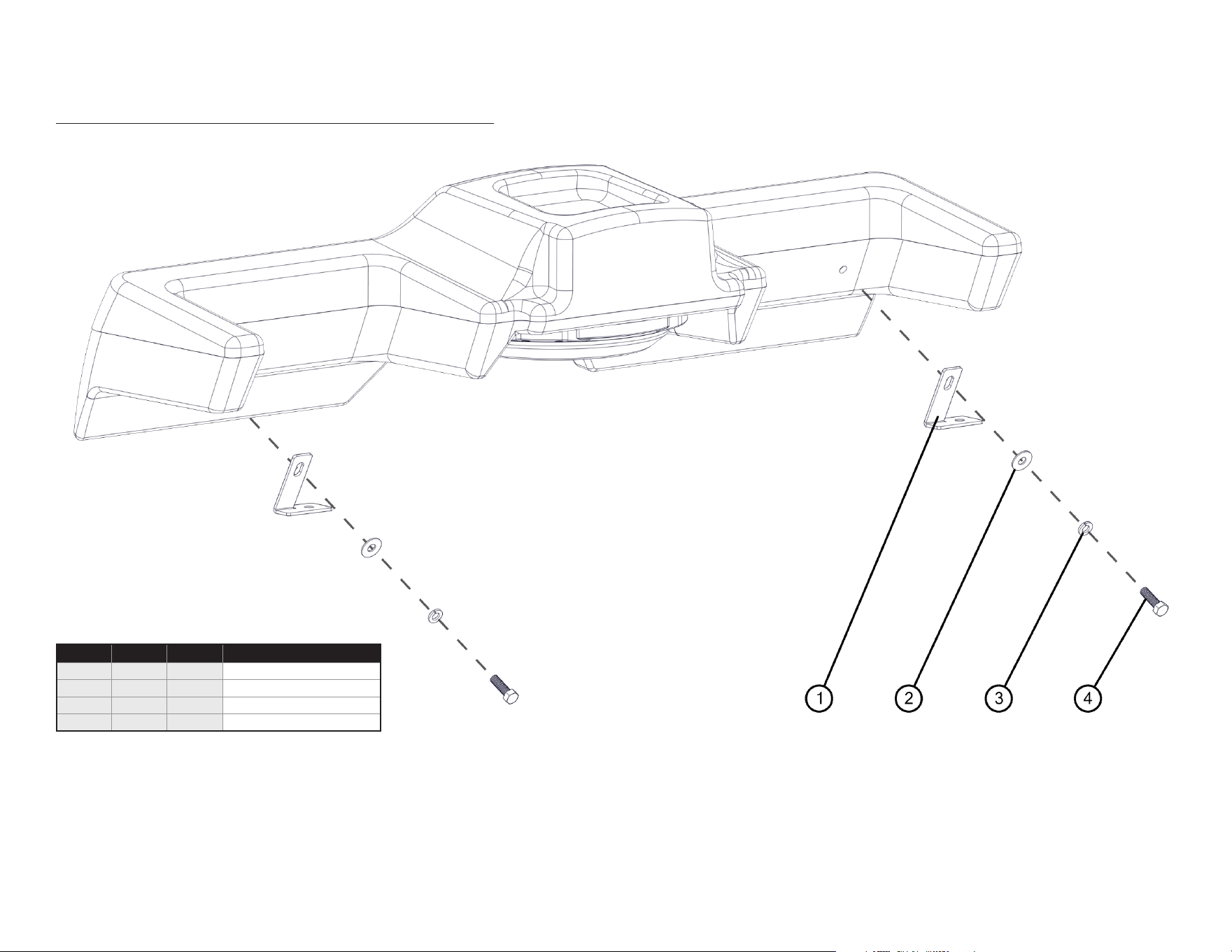

INCLUDED HARDWARE
Continued on Next Page
Page 2 • JL Audio, Inc., 2018
SB-GM-COEXT2G/10TW3 INSTR_SKU# 011505
BOM ID Qty SKU Description
1 2 153960 Bracket
2 2 151096
3/8” Flat Washer
3 2 151081 3/8” Split Lock Washer
4 2 151079 3/8 - 16 x 1-1/4” Hex Bolt

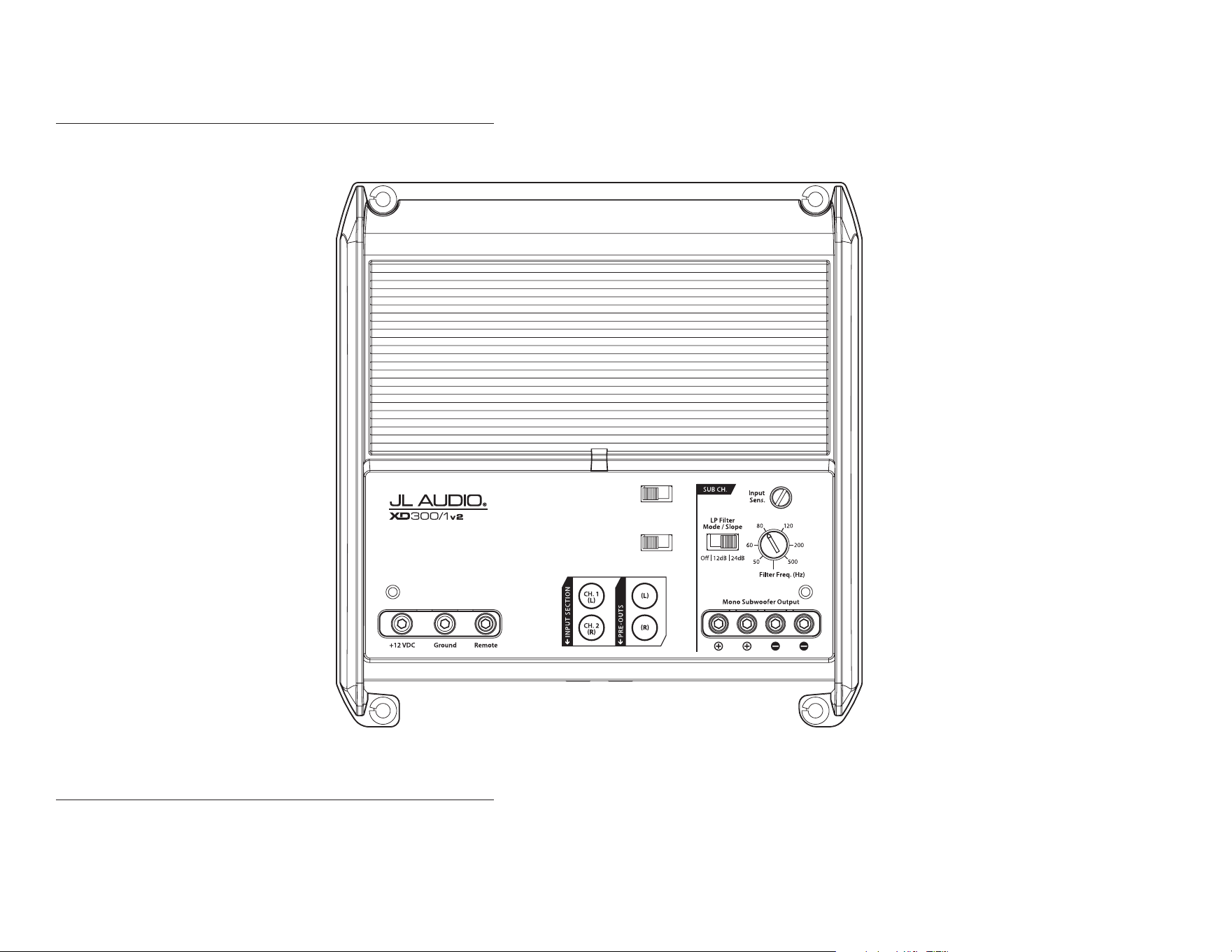

POWER RECOMMENDATION
JL Audio recommends high quality ampliers such as the JL Audio XD300/1v2. The diagram below shows the recommended crossover settings for the XD300/1v2. For a detailed description of the
amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
Rem.
|
Oset
|
Signal
Input Voltage
Low
|
High
Turn-On Mode
Monoblock Subwoofer Amplifier
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your
Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for
both channels of the amplier. JL Audio recommends using 12 AWG speaker wire for subwoofers such as our XC-BCS12-25.
Continued on Next Page
Page 3 • JL Audio, Inc., 2018
SB-GM-COEXT2G/10TW3 INSTR_SKU# 011505
Page 4 • JL Audio, Inc., 2018 Continued on Next Page

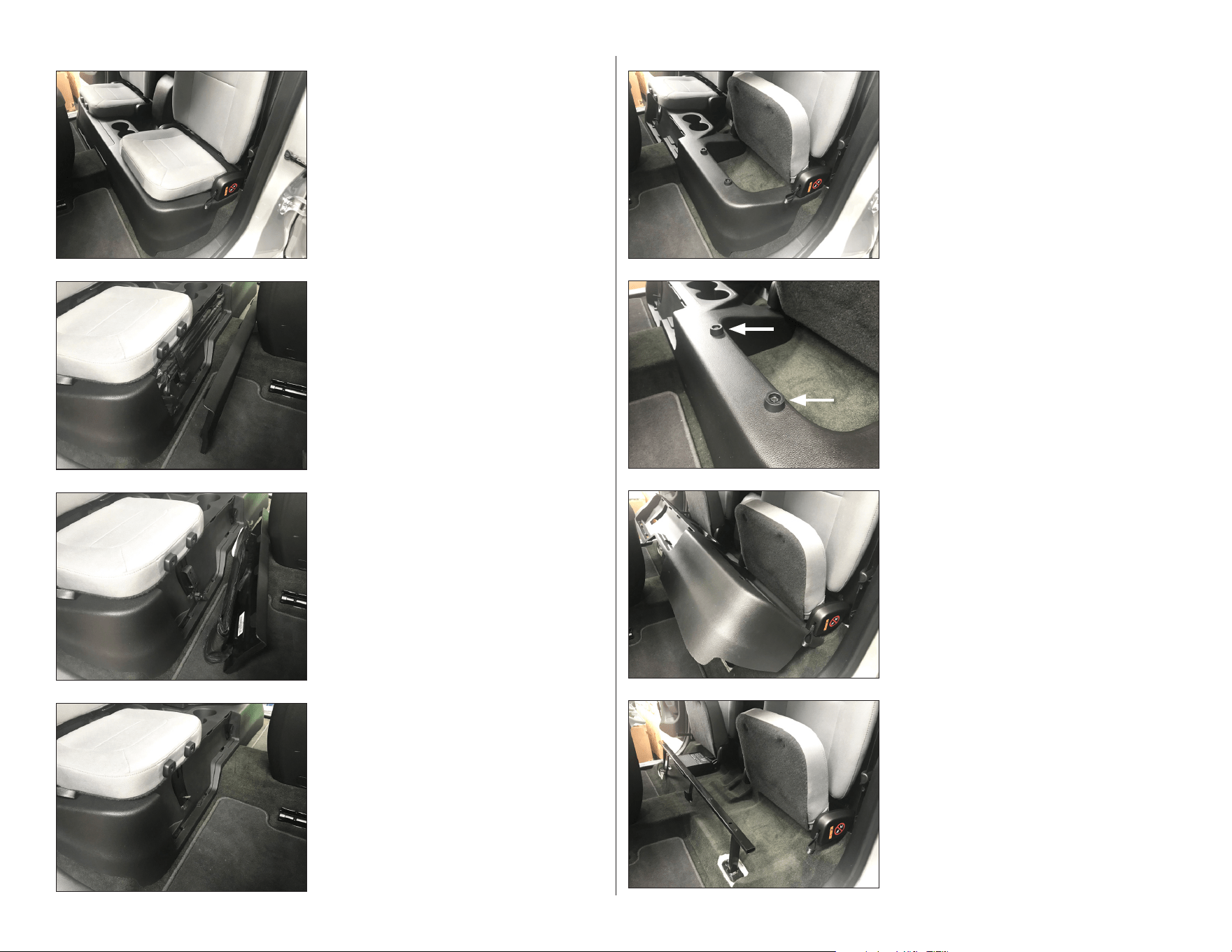

STEP 8
Remove the storage tray from the vehicle. It
will not be reinstalled.
STEP 7
Lift up on the storage tray from the front to
unclip it from the storage tray bracket.
STEP 6
Remove the two screws and bumpers from
the top of the storage tray on each side of the
vehicle. They will not be reinstalled.
STEP 5
Lift the seat bottoms.
STEP 4
Remove the bracket from the storage tray. It
will not be reinstalled.
STEP 3
Remove the wing nut from the bracket
securing the jack tools. Lift the bracket, and
remove the tools. The wing nut will not be
reinstalled.
STEP 2
Unclip and remove the access panel from the
storage tray below the rear seat on the
passenger side. It will not be reinstalled.
STEP 1
Empty the rear seat area.
SB-GM-COEXT2G/10TW3 INSTR_SKU# 011505
Page 5 • JL Audio, Inc., 2018 Continued on Next Page

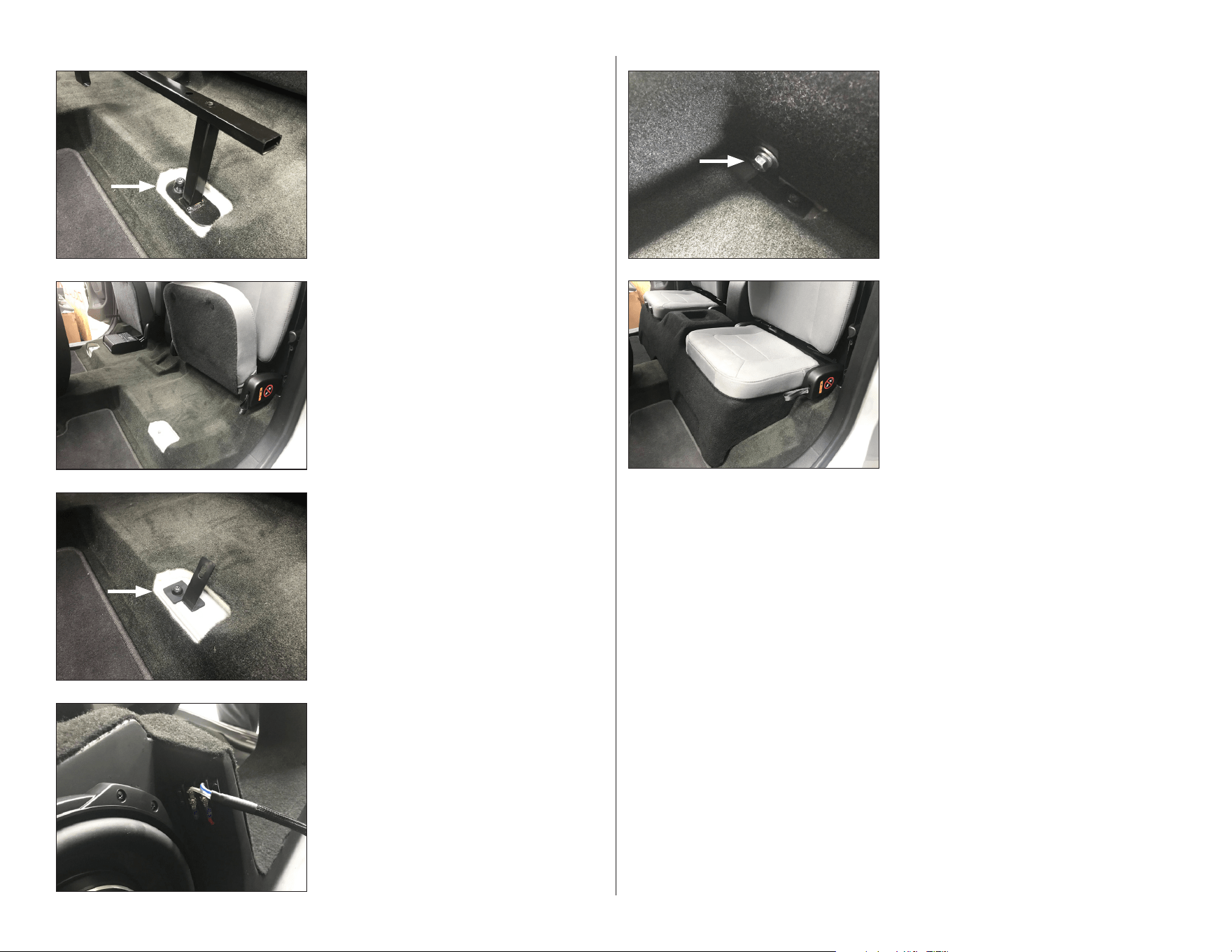

STEP 14
Stow the jack tools under one of the seats
behind the enclosure, and fold the seat
bottoms back down.
STEP 13
Align the slots in the Brackets with the
threaded inserts in the back of the enclosure.
Slide a 3/8” Split Lock Washer and a 3/8” Flat
Washer over a 3/8 - 16 x 1-1/4” Hex Bolt, and
pass the assembly through the slot in the
Bracket, into the threaded insert in the
enclosure, and hand tighten.
Repeat for the opposite side, then fully tighten
both 3/8 - 16 x 1-1/4” Hex Bolts.
STEP 12
Connect speaker cable to the barrier strip on
the bottom of the enclosure.
Place the Stealthbox into the vehicle in front of
the two Brackets.
Route the cable as necessary.
ST E P 11
Align the hole in a Bracket with the factory
hole in the floor. Position the Bracket with the
slotted tab angled toward the rear, as shown.
Secure the Bracket to the vehicle with a factory
Torx bolt removed in Step 9.
Repeat for the opposite side.
STEP 10
Remove the storage tray bracket from the
vehicle. It will not be reinstalled.
STEP 9
Remove the Torx bolt securing the storage tray
bracket from both sides of the vehicle.
SB-GM-COEXT2G/10TW3 INSTR_SKU# 011505
Page 6 • JL Audio, Inc., 2018

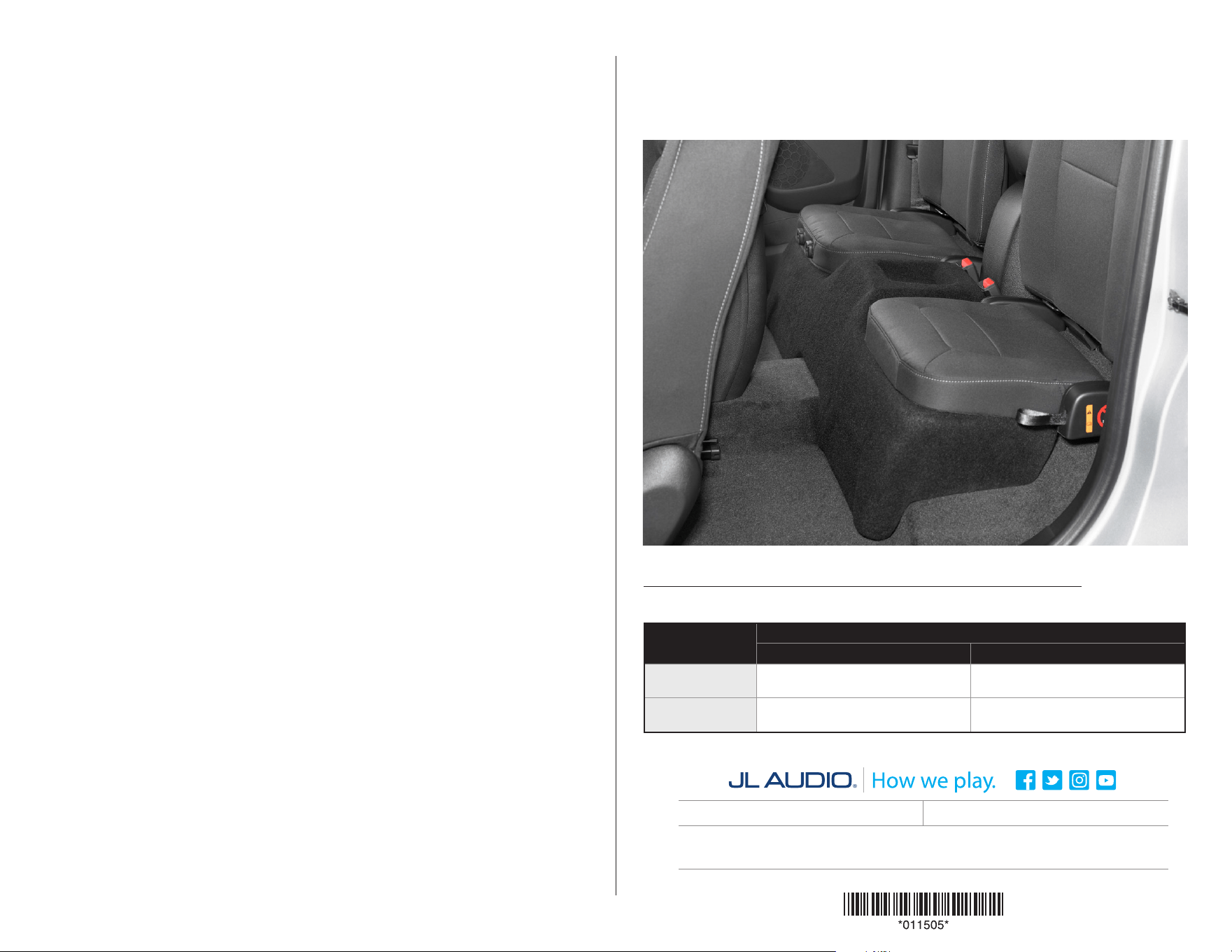

CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
SB-GM-COEXT2G/10TW3 INSTR_SKU#
All specifications are subject to change without notice. “JL Audio®” and “How we play®” are registered trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo are trademarks
of JL Audio, Inc.
Printed in USA • ©2018 JL Audio, Inc. • For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
JLA-SKU# 011505 • ver. 05.11.2018 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
®
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle.
Location / OEM
Speaker Size
Suggested JL Audio Speaker Models
Coaxial Models Component Models
Front Doors /
6 x 9-inch
C1-690x
(1)
, C1-690tx
(1)
, C2-690tx
(1)
C2-650x
(1)
, C5-650x
(1)
C1-690
(1)
, C1-650
(1)
,
C2-650
(1)
,
C3-650
(1)
, C5-650
(1)
, C7-650cw
(1,2)
Rear Doors /
6.5-inch
C1-650x, C2-650x, C5-650x
C1-650, C2-650, C3-650,
C5-650, C7-650cw
(2)
1 - Installation may require adaptor, 2 - Component woofer only
