Model 24V-LT12-LTE
Form No. SJ-24V-LT12-LTE-800E-FTY-M
CORDLESS TRIMMER + EDGER
24V* IONMAX
TM
| 2.0 Ah | 12 INCH | 2-IN-1
R
OPERATOR’S MANUAL
Original instructions.
© 2023 Snow Joe, LLC. All rights reserved.
*Initial no-load voltage, when fully charged, peaks at 24V;
nominal voltage under typical load is 21.6V.
SAVE THESE INSTRUCTIONS
1
A Division of Snow Joe, LLC
TM
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
mCAUTION!
Before using this cordless tool, carefully read and observe the
safety rules and instructions listed below. Before starting work,
make sure that you know how to stop the machine in case of
an emergency. The incorrect use of this machine could cause
serious injury. Keep these instructions in a safe place and on
hand so that they can be consulted when required.
mCAUTION!
The cordless grass trimmer + edger should only be used for
cutting lawns and for trimming along the borders of flower beds.
Other uses of the trimmer + edger that are not indicated in these
instructions could damage the trimmer + edger or seriously
injure the operator.
GENERAL Safety Rules
mWARNING! When using the cordless grass trimmer
+ edger basic safety precautions should always be followed
to reduce the risk of fire, electric shock, and personal injury,
including the following:
1. Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to battery pack, picking up
or carrying the appliance. Carrying the appliance with your
finger on the switch or energizing appliance that have the
switch on invites accidents.
2. Disconnect the battery pack from the appliance before
making any adjustments, changing accessories, or storing
appliance. Such preventive safety measures reduce the risk
of starting the appliance accidentally.
3. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
4. Use appliances only with specifically designated battery
packs. Use of any other battery packs may create a risk of
injury and fire.
5. When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
6. Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs, flush
with water. If liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause irritation or
burns.
7. Do not use a battery pack or appliance that is damaged
or modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk
of injury.
8. Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above 265°F (130°C) may cause explosion.
9. Follow all charging instructions and do not charge the
battery pack or appliance outside of the temperature range
specified in the instructions. Charging improperly or at
temperatures outside of the specified range may damage
the battery and increase the risk of fire.
10. Have servicing performed by a qualified repair person using
only identical replacement parts. This will ensure that the
safety of the product is maintained.
11. Do not modify or attempt to repair the appliance or the
battery pack (as applicable) except as indicated in the
instructions for use and care.
12. Replacement parts – When servicing, use only identical
replacement parts.
13. Avoid dangerous environments – Do not use appliances in
damp or wet locations. Do not use in rain.
14. Keep children and bystanders away – Children and other
spectators, including pets, should be kept at least 50 feet
(15 meters) away from the work area. When the grass is cut,
stones and debris contained in the grass can be picked up
by the trimmer + edger and dispersed into the air. These
flying projectiles can cause blindness or other bodily injury.
15. Dress properly – Always wear suitable clothing when using
the trimmer + edger to prevent head, hand, or feet injuries.
Do not wear loose clothing or jewelry. They can get caught
in moving parts.
16. Use safety glasses – Also use safety footwear,
snug-fitting clothing, protective gloves, hearing and
head protection.
2
17. Use the right tools – Do not use tools for any job except
that for which they are intended.
18. Do not force the tool – It will do the job better and with
less likelihood of injury if it is used at the rate for which it
was designed.
19. Do not overreach – Keep proper footing and balance at all
times.
20. Stay alert – Watch what you are doing. Use common sense.
Do not operate the trimmer + edger when you are tired, or
under the influence of alcohol or drugs.
21. Store idle tools indoors – When not in use, tools should
be stored indoors in a dry and high or locked-up place out
of the reach of children.
22. Maintain tools with care – Keep cutting edges sharp
and clean for best performance and to reduce the risk
of injury. Follow instructions for lubricating and changing
accessories. Inspect the trimmer + edger periodically and
replace if damaged. Repair the trimmer + edger only at an
authorized service facility. Keep handles dry, clean, and free
from oil and grease.
23. Checked for damaged parts – Before continuing to use
the trimmer + edger, a guard or other part that is damaged
should be carefully checked to determine that it will operate
properly and perform its intended function.
Check for the alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other condition
that may affect the trimmer + edger’s operation. A guard or
other part that is damaged should be properly repaired or
replaced by an authorized service center unless indicated
elsewhere in this manual.
ADDITIONAL SAFETY INSTRUCTIONS FOR
GRASS TRIMMER + EDGER
1. Keep guards in place and in working order.
2. Keep hands and feet away from the cutting area.
mWARNING! Never use steel blades or other devices.
Use of any other accessories or attachments will increase the
risk of injury.
mCAUTION! The safety guard is critical to the safety
of the operator and the safety of people standing within a safe
distance of the trimmer + edger. The safety guard keeps the
trimmer + edger in good working order and must always be in
place during operation.
• Do not try to stop the cutting device (line spool)
with your hands. Always let it come to a stop by itself.
mWARNING! After switching off the tool, the cutting
device (line spool) continues to rotate for a few seconds.
• Only use the original type of line spool. Do not
under any circumstances use metal line or nylon line
instead of line spool.
• Do not use the tool to cut grass which is not on the ground.
For example, do not cut grass growing on walls or rocks.
• Do not switch on the tool in an enclosed or poorly ventilated
space or in the presence of flammable and/or explosive
substances such as liquids, gases and powders.
• Only cut during broad daylight or with adequate
artificial light.
• Check that all grass cuttings and dirt have been removed
from the ventilation vents.
• Do not cross roads or gravel paths while the tool is
still running.
• When the tool is not in use, store it in a dry place and out of
reach of children.
• After use, remove the battery and check for damage. If you
have any doubt about the condition of the tool, contact an
authorized service center or call the Snow Joe
®
+ Sun Joe
®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).
• Only use the tool according to the instructions given
in this manual.
• Check regularly that the screws are tight.
• Do not try to repair the tool or access internal parts.
Contact an authorized service center or call the Snow Joe
®
+
Sun Joe
®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).
Battery + Charger
Safety Instructions
We pay a great deal of attention to the design of every battery
pack to ensure that we supply you with batteries that are safe,
durable and have a high energy density. The battery cells have
a wide range of safety devices. Each individual cell is initially
formatted and its electrical characteristic curves are recorded.
This data is then used exclusively to be able to assemble the
best possible battery packs.
Despite all the safety precautions, caution must always be
exercised when handling batteries. The following points must
be obeyed at all times to ensure safe use. Safe use can only be
guaranteed if undamaged cells are used. Incorrect handling of
the battery pack can cause cell damage.
IMPORTANT! Analyses confirm that incorrect use and poor care
of high-performance batteries are the main factors responsible
for personal and/or product damage.
3
mWARNING! Use only approved replacement batteries;
other batteries may damage the cordless trimmer + edger
and cause it to malfunction, which can lead to serious
personal injury.
mWARNING! Do not use a battery pack or appliance that
is damaged or modified. Damaged or modified batteries may
exhibit unpredictable behavior resulting in fire, explosion or risk
of injury.
Do not modify or attempt to repair the battery pack except as
indicated in the instructions for use and care.
Have your battery pack serviced by a qualified repair person
using only identical replacement parts. This will ensure that the
safety of the battery pack is maintained.
mCAUTION! To reduce the risk of injury, charge the
Snow Joe
®
24V* IONMAX
TM
lithium-ion battery pack only in its
designated Snow Joe
®
24V* IONMAX
TM
lithium-ion charger.
Other types of chargers present risk of fire, personal injury and
damage. Do not wire a battery pack to a power supply plug or
car cigarette lighter. Such misuse will permanently disable or
damage the battery pack.
• Avoid dangerous environments – Do not charge the battery
pack in rain, snow or in damp or wet locations. Do not use
the battery pack or charger in the presence of explosive
atmospheres (gaseous fumes, dust or flammable materials)
because sparks may be generated when inserting or
removing the battery pack, which could lead to a fire.
• Charge in a well-ventilated area – Do not block the charger
vents. Keep them clear to allow for proper ventilation. Do not
allow smoking or open flames near a charging battery pack.
Vented gases may explode.
NOTE: The safe temperature range for the battery is
41°F – 105°F (5°C – 40.5°C). Do not charge the battery
outside in freezing weather; charge it at room temperature.
• Maintain charger cord – When unplugging the charger,
pull the plug, not the cord, from the receptacle to reduce the
risk of damage to the electrical plug and cord. Never carry
the charger by its cord or yank it by the cord to disconnect it
from the receptacle. Keep the cord away from heat,
oil and sharp edges. Make sure the cord will not be stepped
on, tripped over or subjected to damage or stress when the
charger is in use. Do not use the charger with a damaged
cord or plug. Replace a damaged charger immediately.
• Do not use an extension cord unless it is absolutely
necessary – Using the wrong, damaged or improperly wired
extension cord poses a risk of fire and electric shock. If
an extension cord must be used, plug the charger into a
properly wired 16 gauge or larger extension cord with the
female plug matching the male plug on the charger. Make
sure that the extension cord is in good electrical condition.
• Charger XZ2600-0450 is rated for 100 – 240 volt AC
only – The charger must be plugged into an
appropriate receptacle.
• Use only recommended attachments – Use of an
attachment not recommended or sold by the battery charger
or battery pack manufacturer may result in risk of fire, electric
shock or personal injury.
• Unplug charger when not in use – Make sure to remove
battery packs from unplugged chargers.
mWARNING! To reduce the risk of electric shock,
always unplug the charger before performing any cleaning or
maintenance. Do not allow water to flow into the charger.
Use a Ground Fault Circuit Interrupter (GFCI) to reduce
shock hazards.
• Do not burn or incinerate battery packs –
Battery packs may explode, causing personal injury or
damage. Toxic fumes and materials are created when battery
packs are burned.
• Do not crush, drop or damage battery packs – Do not use
the battery pack or charger if they have sustained a sharp
blow, been dropped, run over or have been damaged in any
way (i.e. pierced with a nail, hit with a hammer, stepped on,
etc.).
• Do not disassemble – Incorrect reassembly may pose
a serious risk of electric shock, fire or exposure to toxic
battery chemicals. If the battery or charger are damaged,
contact an authorized Snow Joe
®
+ Sun Joe
®
dealer or
call the Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563) for assistance.
• Battery chemicals cause serious burns – Never let a
damaged battery pack contact the skin, eyes or mouth. If a
damaged battery pack leaks battery chemicals, use rubber
or neoprene gloves to safely dispose of it. If skin is exposed
to battery fluids, wash the affected area with soap and
water and rinse with vinegar. If eyes are exposed to battery
chemicals, immediately flush with water for 20 minutes and
seek medical attention. Remove and dispose of contaminated
clothing.
• Do not short circuit – A battery pack will short circuit if a
metal object makes a connection between the positive and
negative contacts on the battery pack. Do not place a battery
pack near anything that may cause a short circuit, such as
paper clips, coins, keys, screws, nails and other metallic
objects. A short-circuited battery pack poses a risk of fire
and severe personal injury.
• Store your battery pack and charger in a cool, dry place –
Do not store the battery pack or charger where temperatures
may exceed 105°F (40.5°C), such as in direct sunlight or
inside a vehicle or metal building during the summer.
4
Information about the battery
1. The battery pack supplied with your cordless trimmer +
edger is only partially charged. The battery pack has to
be charged completely before you use the tool for the
first time.
2. For optimum battery performance, avoid low discharge
cycles by charging the battery pack frequently.
3. Store the battery pack in a cool place, ideally at
77°F (25°C) and charged to at least 40%.
4. Lithium-ion batteries are subject to a natural aging process.
The battery pack must be replaced at the latest when
its capacity falls to just 80% of its capacity when new.
Weakened cells in an aged battery pack are no longer
capable of meeting the high power requirements needed for
the proper operation of your trimmer + edger, and therefore
pose a safety risk.
5. Do not throw battery packs into an open fire as this poses a
risk of explosion.
6. Do not ignite the battery pack or expose it to fire.
7. Do not exhaustively discharge batteries. Exhaustive
discharge will damage the battery cells. The most common
cause of exhaustive discharge is lengthy storage or
non-use of partially discharged batteries. Stop working as
soon as the performance of the battery falls noticeably or
the electronic protection system triggers. Place the battery
pack in storage only after it has been fully charged.
8. Protect batteries and the tool from overloads. Overloads
will quickly result in overheating and cell damage inside the
battery housing even if this overheating is not
apparent externally.
9. Avoid damage and shocks. Immediately replace batteries
that have been dropped from a height of more than one
meter or those that have been exposed to violent shocks,
even if the housing of the battery pack appears to be
undamaged. The battery cells inside the battery may have
suffered serious damage. In such instances, please read the
waste disposal information for proper battery disposal.
10. If the battery pack suffers overloading and overheating,
the integrated protective cutoff will switch off the equipment
for safety reasons.
IMPORTANT! Do not press the ON/OFF switch any more if
the protective cut-off has been activated. This may damage
the battery pack.
11. Use only original battery packs. The use of other batteries
poses a fire risk and may result in injuries or an explosion.
Information about the charger and the charg-
ing process
1. Please check the data marked on the rating plate of the
battery charger. Be sure to connect the battery charger to
a power supply with the voltage marked on the rating plate.
Never connect it to a different mains voltage.
2. Protect the battery charger and its cord from damage. Keep
the charger and its cord away from heat, oil and sharp
edges. Have damaged cords repaired without delay by a
qualified technician at an authorized Snow Joe
®
+ Sun Joe
®
dealer or call the Snow Joe
®
+ Sun Joe
®
customer service
center at 1-866-SNOWJOE (1-866-766-9563).
3. Electrical plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodified plugs and matching
outlets will reduce the risk of electric shock.
4. Keep the battery charger, battery pack and the cordless tool
out of the reach of children.
5. Do not use the supplied battery charger to charge other
cordless tools.
6. During periods of heavy use, the battery pack will become
warm. Allow the battery pack to cool to room temperature
before inserting it into the charger to recharge.
7. Do not overcharge batteries. Do not exceed the maximum
charging times. These charging times only apply to
discharged batteries. Frequent insertion of a charged or
partially charged battery pack will result in overcharging and
cell damage. Do not leave batteries in the charger for days
on end.
8. Never use or charge batteries if you suspect that it has been
more than 12 months since the last time they were charged.
There is a high probability that the battery pack has already
suffered dangerous damage (exhaustive discharge).
9. Charging batteries at a temperature below 41°F (5°C) will
cause chemical damage to the cells and may cause a fire.
10. Do not use batteries that have been exposed to heat during
the charging process, as the battery cells may have suffered
dangerous damage.
11. Do not use batteries that have suffered curvature or
deformation during the charging process or those that
exhibit other atypical symptoms (gassing, hissing, cracking,
etc.).
12. Never fully discharge the battery pack (maximum
recommended depth of discharge is 80%). A complete
discharge of the battery pack will lead to premature aging of
the battery cells.
5
Protection from environmental influences
1. Wear suitable work clothes. Wear safety goggles.
2. Protect your cordless tool and the battery charger from
moisture and rain. Moisture and rain can cause dangerous
cell damage.
3. Do not use the cordless tool or the battery charger near
vapors and flammable liquids.
4. Use the battery charger and cordless tools only in dry
conditions and at an ambient temperature of 41°F – 105°F
(5°C – 40.5°C).
5. Do not keep the battery charger in places where the
temperature is liable to reach over 105°F (40.5°C).
In particular, do not leave the battery charger in a car that is
parked in the sunshine.
6. Protect batteries from overheating. Overloads, overcharging
and exposure to direct sunlight will result in overheating and
cell damage. Never charge or work with batteries that have
been overheated – replace them immediately, if possible.
7. Store the charger and your cordless tool only in dry
locations with an ambient temperature of 41°F – 105°F
(5°C – 40.5°C). Store your lithium-ion battery pack in a
cool, dry place at a temperature of 77°F (25°C). Protect the
battery pack, charger and cordless tool from humidity and
direct sunlight. Only place fully charged batteries in storage
(charged to at least 40%).
8. Prevent the lithium-ion battery pack from freezing.
Battery packs that were stored below 32°F (0°C) for more
than 60 minutes must be discarded.
9. When handling batteries, be wary of electrostatic charge.
Electrostatic discharges can damage the electronic
protection system and the battery cells. Avoid electrostatic
charging and never touch the battery poles.
6
Safety Symbols
The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.
READ THE OPERATOR'S
MANUAL(S) – Read, understand,
and follow all instructions in the
user manual(s) before attempting to
assemble and operate.
SAFETY ALERT – Indicates
a precaution, a warning, or
a danger.
Disconnect the battery pack before
any repair or maintenance.
WARNING! Do not expose the unit
to rain or wet conditions.
WEAR EYE AND HEARING
PROTECTION – For protection
against injury, wear ear defenders
and safety goggles.
Keep bystanders and children
a safe distance away.
Symbols SymbolsDescriptions Descriptions
Wear safety gloves during
use to protect hands.
Wear non-slip footwear that will
protect your feet and improve your
footing on slippery surfaces.
Beware of flying objects
and debris.
Indoor use only. Only use
battery charger indoors.
DANGER! Beware of thrown objects to bystanders. Keep bystanders at least 15
m (50 ft) away from the machine.
7

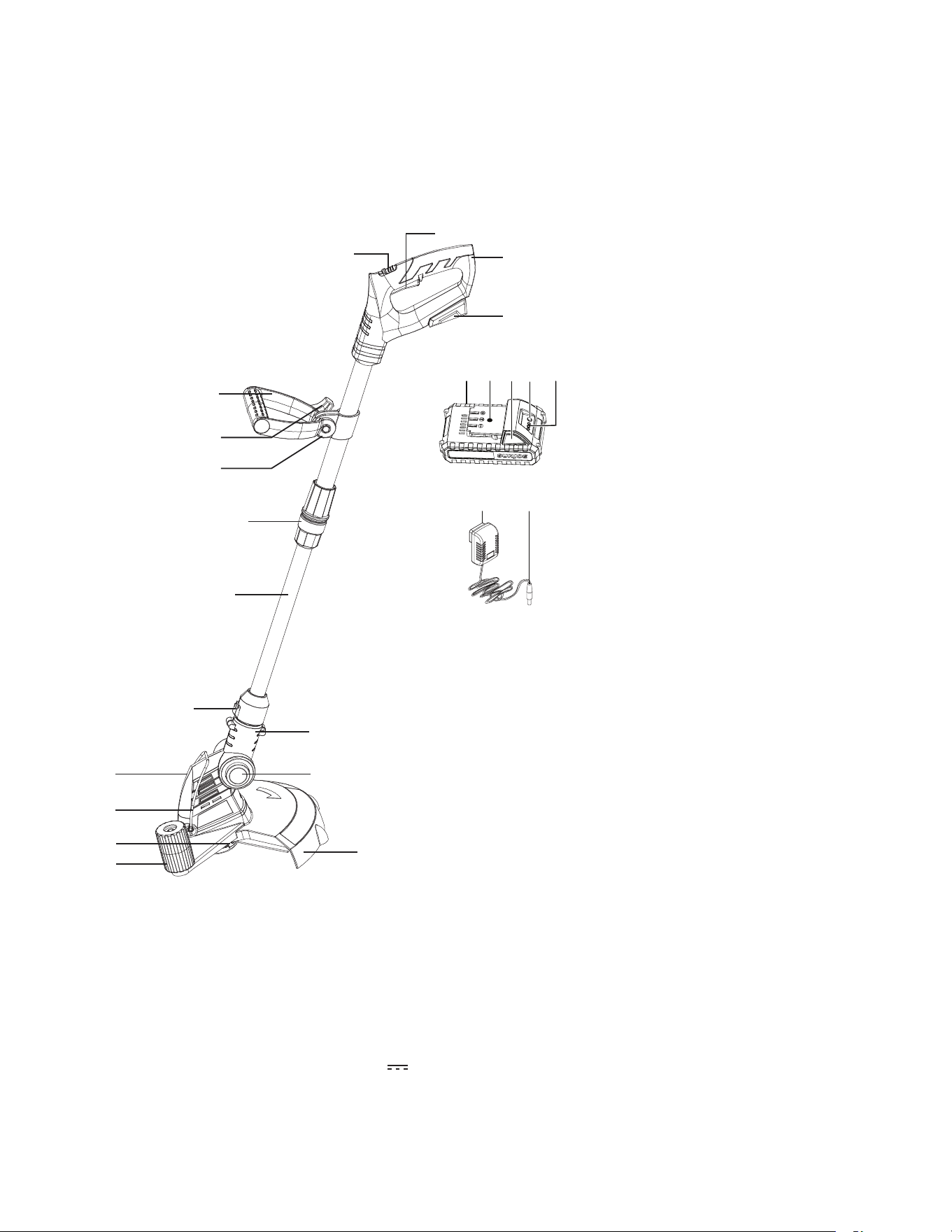

Know Your Cordless Grass Trimmer + Edger
Read the owner’s manual and safety instructions carefully before operating the cordless grass trimmer + edger. Compare the
illustration below to the cordless trimmer + edger in order to familiarize yourself with the location of the various controls and
adjustments. Save this manual for future reference.
Technical Data
Motor .............................................................................................. 400 W
Battery Voltage Max* ............................................................. 24V D.C.
Battery Capacity ......................................................................... 2.0 Ah
Charger Input ............................................................. 100 – 240V AC,
50 – 60 Hz, 0.4 A
Charger Output .............................................. 26V D.C.
450 mA
Charge Time Max ...................................................................... 5 hours
No Load Speed ..................................................................... 8000 RPM
Cutting Swath ...........................................................12 inch (30.5 cm)
Spool Length ...................................................................... 15 ft (4.5m)
Telescoping Pole ............................................. 27.6 inch to 39.4 inch
(70 cm to 100 cm)
2 Tools In 1 .............................................................Twist rotating head
Cutting Angle ......................................................................... 0° to 60°
Net Weight .................................................................. 4.6 lbs (2.1 kg)
*Initial no-load voltage, when fully charged, peaks at 24-volts; nominal voltage under typical load is 21.6-volts.
1. Unlock knob
2. Switch handle
3. Main handle
4. Battery compartment
5. Auxiliary handle
6. Handle lock nut
7. Handle support
8. Locking sleeve(length adjustment)
9. Telescopic pole
10. Lock sleeve and edgingfunction
button
11. Angle adjustment handle
12. Trimmer head
13. Flower guard
14. Cutting device ( spool)
15. Angle adjustment button
16. Edging function wheel
17. Safety guard
18. 24V* IONMAX
TM
lithium-ion battery
(24VBAT-LTE) featuring exclusive
EcoSharp® technology
19. Charge socket
20. Push button for battery indicator
21. Push button for battery indicator
22. Battery indicator
23. 24V* IONMAX
TM
lithium-ion battery
charger (XZ2600-0450)
24. Charger plug
1
2
3
4
5
6
7
8
9
10
11
15
17
12
13
14
16
18 19 2120 22
23
24
25
26
27
8
Unpacking
Carton Contents
• Grass trimmer + edger
• Safety guard
• Auxiliary handle with knob and bolt
• Line spool x 2
• 24V* IONMAX
TM
lithium-ion battery
• 24V* IONMAX
TM
lithium-ion charger
• Manual with registration card
1. Carefully remove the cordless grass trimmer + edger and
check to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you find damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe
®
+ Sun Joe
®
customer service center at
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use the cordless grass
trimmer + edger. The packaging is made of recyclable
materials. Properly dispose of these materials in
accordance with local regulations or save the packaging for
long-term product storage.
IMPORTANT! The equipment and packaging material are
not toys. Do not let children play with plastic bags, foils, or small
parts. These items can be swallowed and pose a suffocation
risk!
Battery Pack Operation
The equipment is powered by a lithium-ion battery. The battery
pack is completely sealed and maintenance free.
mWARNING! Before first use, the battery requires at least
1 hr 20 min charge time to be fully charged. When the battery is
at low capacity, recharge for 1 hr 20 min again before resuming
operation.
Battery Charge Level Indicator
The battery pack is equipped with a push button for checking
the charge level. Simply press the push button to read off the
battery charge level from the LEDs of the battery indicator:
• All 3 level monitoring LEDs are lit: Battery charge level
is high.
• 2 level monitoring LEDs are lit: Battery charge level is
decreasing. Stop work as soon as possible.
• 1 level monitoring LED is lit: Battery is flat. Stop work
IMMEDIATELY and charge the battery. Otherwise the
battery’s service life will be greatly shortened.
Charge level button
The battery is at 30% capacity
and requires charging
The battery is at 60% capacity
and requires charging soon
The battery is at full capacity
Light IndicatorsLights
NOTE: If the charge level button does not appear to be working,
insert the battery into the charger and charge as needed.
NOTE: Immediately after using the battery pack, the charge level
button may display a lower charge than it will if checked a few
minutes later. The battery cells “recover” some of their charge
after resting.
Charger Operation
m
WARNING! Charge only IONMAX
TM
24V lithium-ion
battery packs with its compatible 24V* IONMAX
TM
lithium-ion
charger. Other types of batteries may cause personal injury and
damage.
To reduce the risk of electric shock, do not allow water to flow
into the charger's AC/DC plug.
When to Charge the IONMAX
TM
24VBAT-
LTE Lithium-Ion Battery
NOTE: The IONMAX
TM
24VBAT-LTE lithium-ion battery packs
do not develop a "memory" when charged after only a partial
discharge. Therefore, it is not necessary to run down the battery
pack before placing it into the charger.
• Use the battery charge indicator lights to determine when to
charge your IONMAX
TM
24VBAT-LTE lithium-ion battery pack.
• You can "top-off" your battery pack's charge before starting a
big job or after a long day of use.

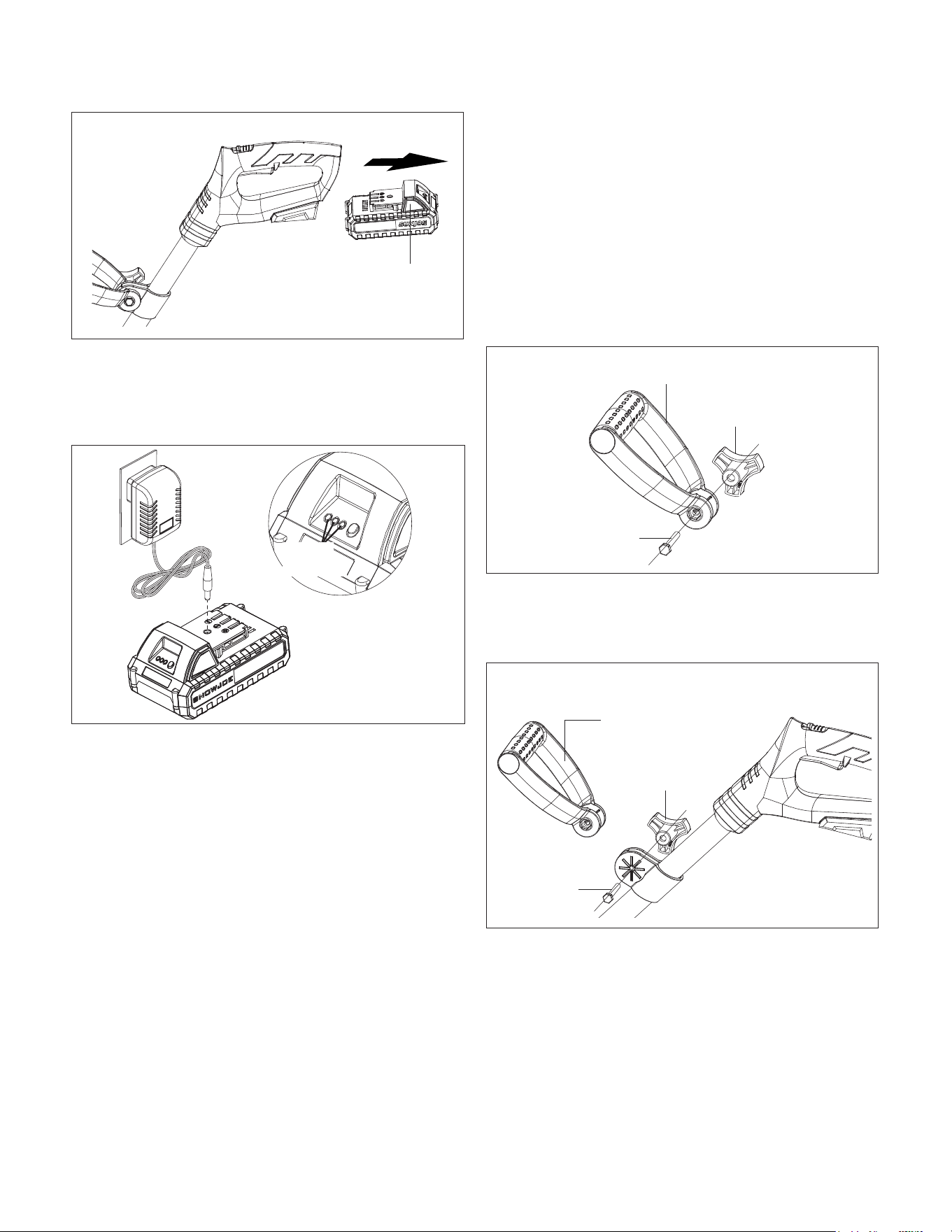

Charging the Battery
1. Press the push lock buttons on the battery to pull the
battery pack out of the equipment (Fig. 1).
9
Fig. 1
Push lock
button (on
both sides)
Fig. 1
2. Check that the mains voltage is the same as that marked
on the rating plate of the battery charger. Then, plug the
charger adapter into an appropriate AC power outlet.
Connect the charger plug into the charge socket of the
battery to start charging (Fig. 2).
Fig. 2
Battery
indicators
3. The battery will take approximately 1 hr 20 min to charge.
The battery indicator LEDs will twinkle and illuminate one
by one during the charging process. Unplug the charger
immediately when the 3 LEDs are all illuminated.
mCAUTION! FIRE HAZARD. When disconnecting the
charger from the battery, be sure to unplug the charger from the
outlet first, then disconnect the charger from the battery.
mWARNING! This charger does not automatically turn
off when the battery is fully charged. Please take care not
to leave the battery plugged into the charger. Switch off or
unplug the charger at the mains when charging is complete.
4. Timely recharging of the battery will help prolong the
battery's life. You must recharge the battery pack when you
notice a drop in the equipment's power.
IMPORTANT! Never allow the battery pack to become fully
discharged as this will cause irreversible damage to the battery.
Assembly
Before using the cordless grass trimmer + edger, follow these
instructions to assemble.
mWARNING! Do not insert the battery until assembly is
complete. Failure to comply could result in accidental starting
and possible serious personal injury.
Fitting the Auxiliary Handle
1. Remove the handle knob and bolt that that come
pre-assembled on the auxiliary handle (Fig. 3).
Fig. 3
Auxiliary handle
Handle knob
Bolt
Fig. 3
2. Fit the auxiliary handle into position and align the holes. Fix
by the bolt and the handle knob. Tighten the handle knob to
secure (Fig. 4).
Fig. 4
Auxiliary handle
Handle knob
Bolt
Fig. 4
Fitting the Safety Guard
mWARNING! The safety guard must be properly installed.
The safety guard provides partial protection from the risk of
thrown objects to the operator and other bystanders.

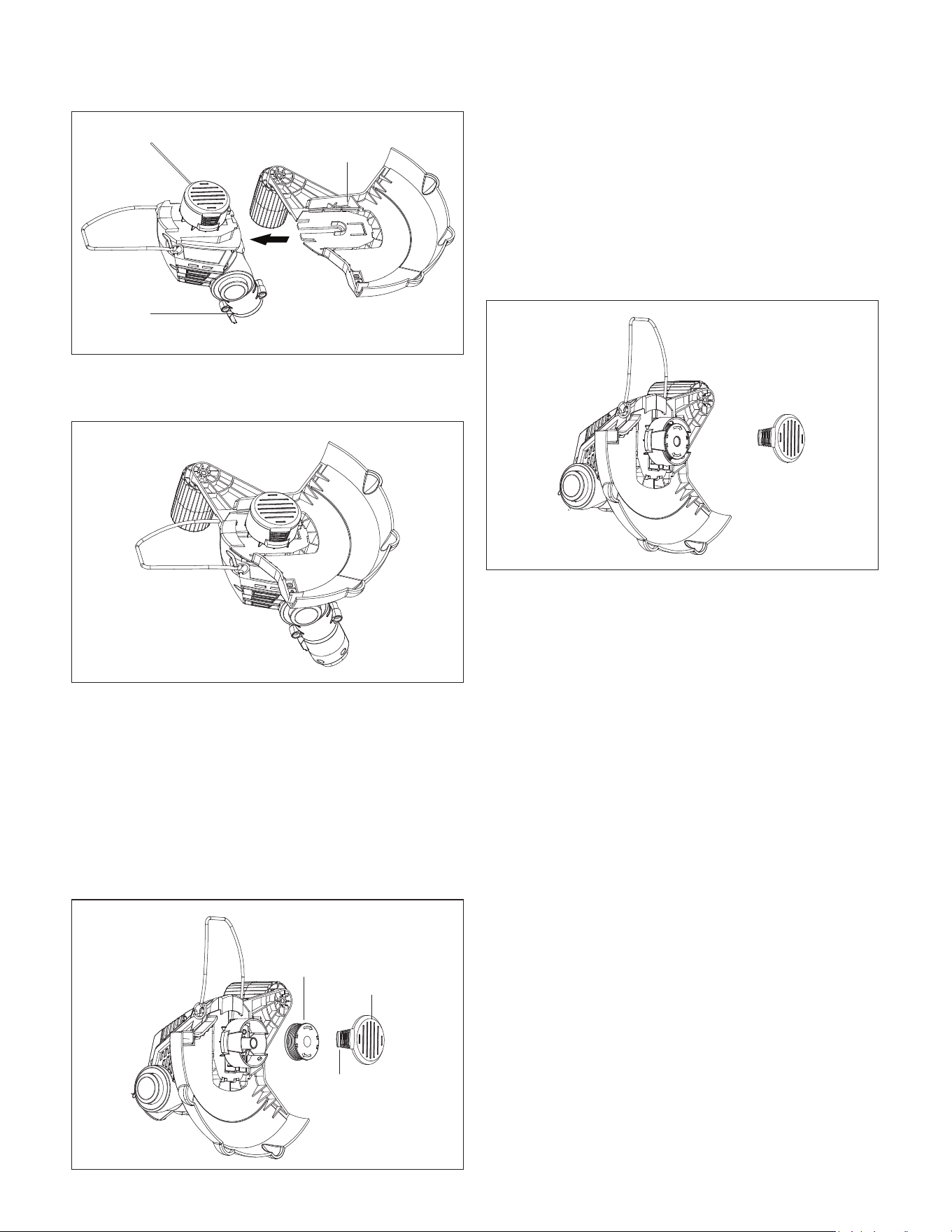

1. Align the guard with the trimmer head as shown (Fig.5).
10
Safety guard
Motor
housing
Fig. 5
2. Firmly press the safety guard into place until it clicks into
the position . (Fig. 6)
Fig. 6
Fig. 6
Replacing the spool
A dual-line factory wound spool (model LT12-RS-3PK) is
available for easy spool replacement on the 24V-LT12-LTE
cordless grass trimmer. Visit snowjoe.com to purchase this
accessory online.
1. Switch off the machine and remove the battery. Wait until
the machine comes to a complete stop.
2. Press together both release tabs on the line spool cover
and remove the cover by pulling it straight off (Fig. 7).
Fig. 7
Spool
Spool cover
Locking devices
Fig. 7
3. Lift and remove the spool out of the hub and clean out any
dirt or grass residue.
4. Insert the new spool with the smooth side facing upwards
in the cutting head and thread the two lines through the
line eyelets. Ensure that the line ends do not slip out of the
spool slots.
5. Return the hood. Ensure that the locks of the hood are
accurately inserted in the corresponding recesses of the
cutting head. They lock in audibly. (Fig 8).
Fig. 8
Fig. 8
6. Press the retaining head, release it again and pull the ends
of the cord out a little.
7. NOTE: The length of the line will adjust automatically.
Operation
The cordless grass trimmer + edger is designed to cut grass
and weeds under bushes, and on slopes and edges that cannot
be reached with the lawn mower. The trimmer + edger must be
used outdoors only, at an ambient temperature between 32°F
(0°C) and 113°F (45°C).
mWARNING! Remove stones, small sticks and other
objects from the cutting area. The line spool continues to rotate
for a few seconds after the trimmer + edger is switched off. Let
the motor come to a complete stop before switching the trimmer
+ edger back on. Do not rapidly switch the trimmer + edger off
and on.
mWARNING! Rocks or debris may ricochet or be thrown
into eyes and face, cause blindness, or other serious injury.
Never lean over the trimmer head and always wear eye
protection.
When operating the machine, check for the following:
• Wear eye protection and heavy clothing.
• Hold the rear handle with one hand and auxiliary handle with
the other hand.
• Keep the trimmer + edger below your waist level.
11
• Cut only from your right to your left to ensure debris is thrown
away from you. Without bending over, keep the trimmer +
edger near and parallel to the ground.
mWARNING! Use only Sun Joe
®
spool replacement LT12-
RS-3PK this unit. Other products will not work properly and will
result in improper cutting head function or can cause serious
injury.
Do not use other materials such as steel blades, wire, string,
rope, etc. Other materials can break off during cutting and
become a dangerous missile that can cause serious injury.

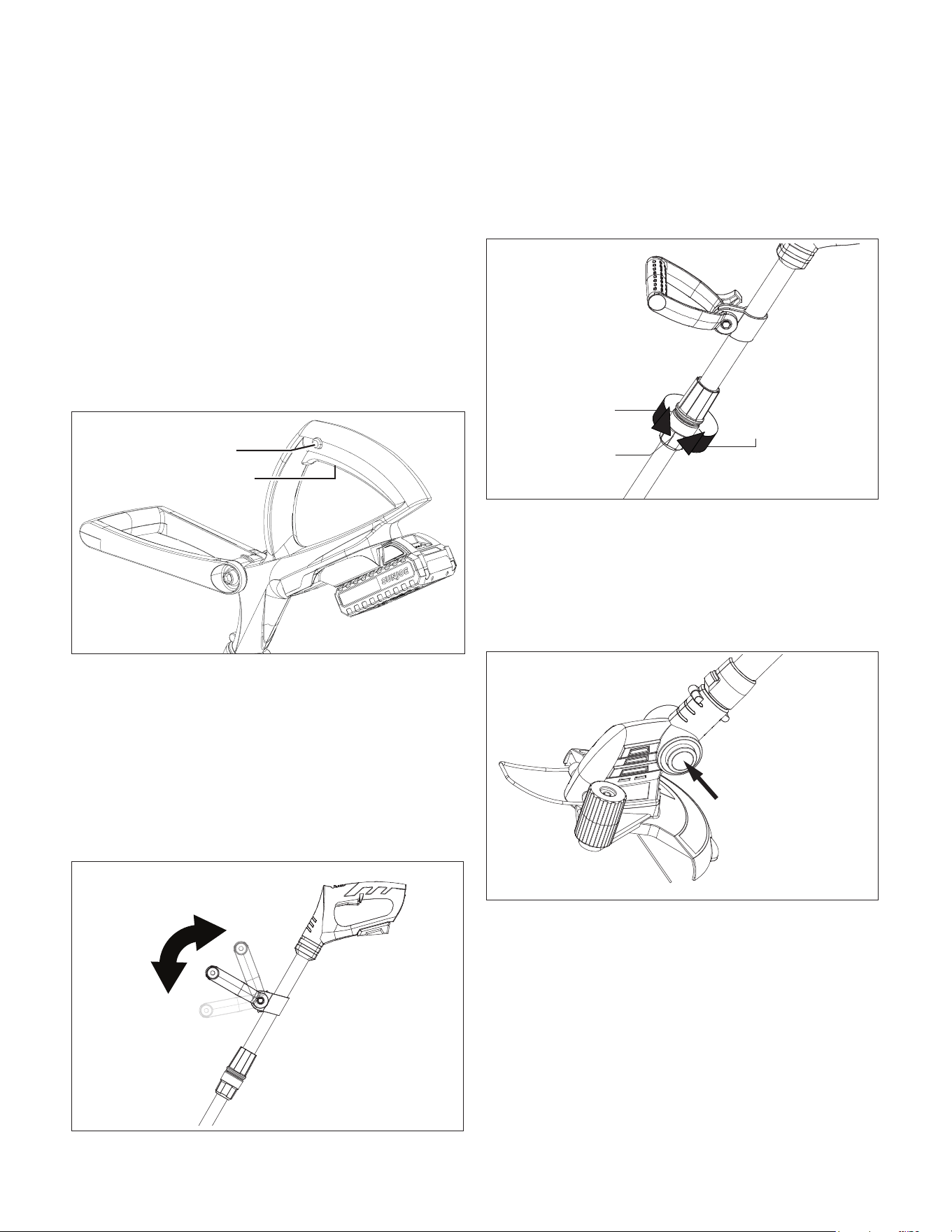

ON/OFF Switch
1. Insert the battery into the battery compartment on the back
of the machine. To start the tool, slide the safety lock switch
upward,then squeeze the On/Off trigger (Fig. 9).
Fig. 9
Safety button
ON/OFF switch
2. To turn the tool OFF, release the On/Off trigger. Remove the
battery.
Adjusting Auxiliary handle
1. The auxiliary handle is height and angle adjustable.
2. To adjust the handle, first release the handle lock nut on the
side of the handle.
Rotate the auxiliary handle to desired position and slide the
handle support to the desired height, clamp in position and
then tighten the lock nut (Fig 10).
Fig. 10
Fig. 10
Adjusting the Telescoping Shaft
1. Switch off the machine and remove the battery. Wait until
the blade comes to a complete stop.
2. To extend the pole,loose the locking collar clockwise
to a desired length, then tighten the locking collar
counterclockwise to screw in place (Fig. 11).
Fig. 11
Locking sleeve
Lock
Unlock
Fig. 11
Setting the trimmer head angle
1. The angle of trimmer head can be set to different working
positions.
2. Press the angle adjustment button with one hand and rotate
the trimmer head to the required position (Fig. 12).
Angle adjustment button
Fig. 12
3. Release the button and the head will lock into place.
There are 3 preset lock positions.

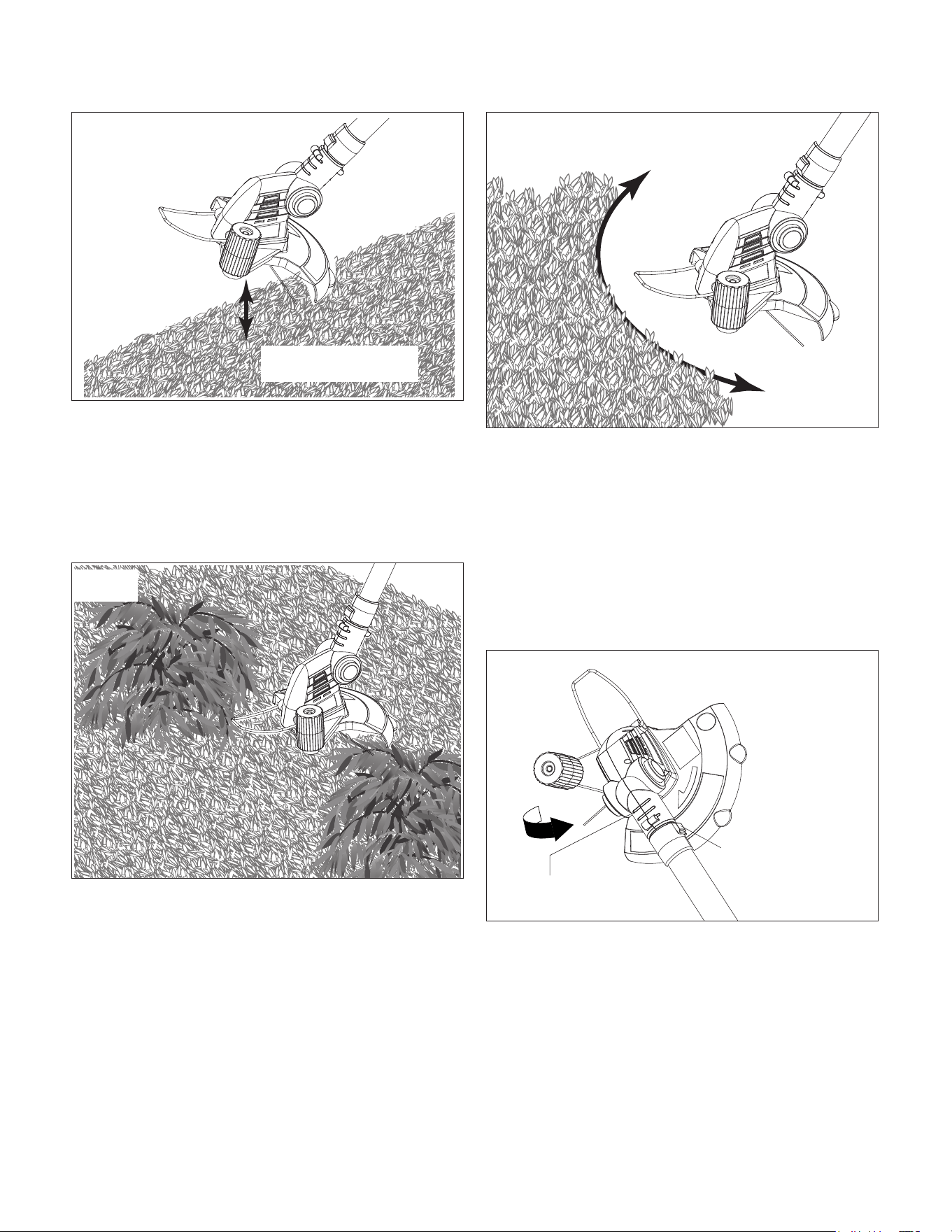

Trimming
Hold the trimmer at an angle of approximately 15-degrees to the
work area (Fig. 13).
12
Fig. 17
Grass blade above the
ground
Fig. 13
Mowing
Your trimmer is ideal for mowing in places conventional lawn
mowers cannot reach. In the mowing position, keep the trimmer
head parallel to the ground. Avoid pressing the head into the
ground as this can scalp the ground and damage the tool (Fig.
14).
Fig. 14
Sweeping
Fanning action can be used for quick and easy clean up.
Keep the trimmer head parallel to and above the surfaces being
swept and move the tool from side to side (Fig. 15).
Fig. 20
Fig. 15
Edging
mWARNING! Because this procedure is close to the
On/Off switch, make sure to remove the battery before
converting the machine.
1. To convert your trimmer into an edger, slide the lock sleeve
and edging function button and rotate the lower part of the
trimmer 90° until the button aligns with the angle adjustment
handle.(Fig. 16)
Fig. 16
Angle adjustment handle
Lock sleeve and
edging function button
Fig. 16
2. Then release the locking knob and set the trimmer head
angle as shown (Fig. 16). The trimmer will lock into edging
mode.

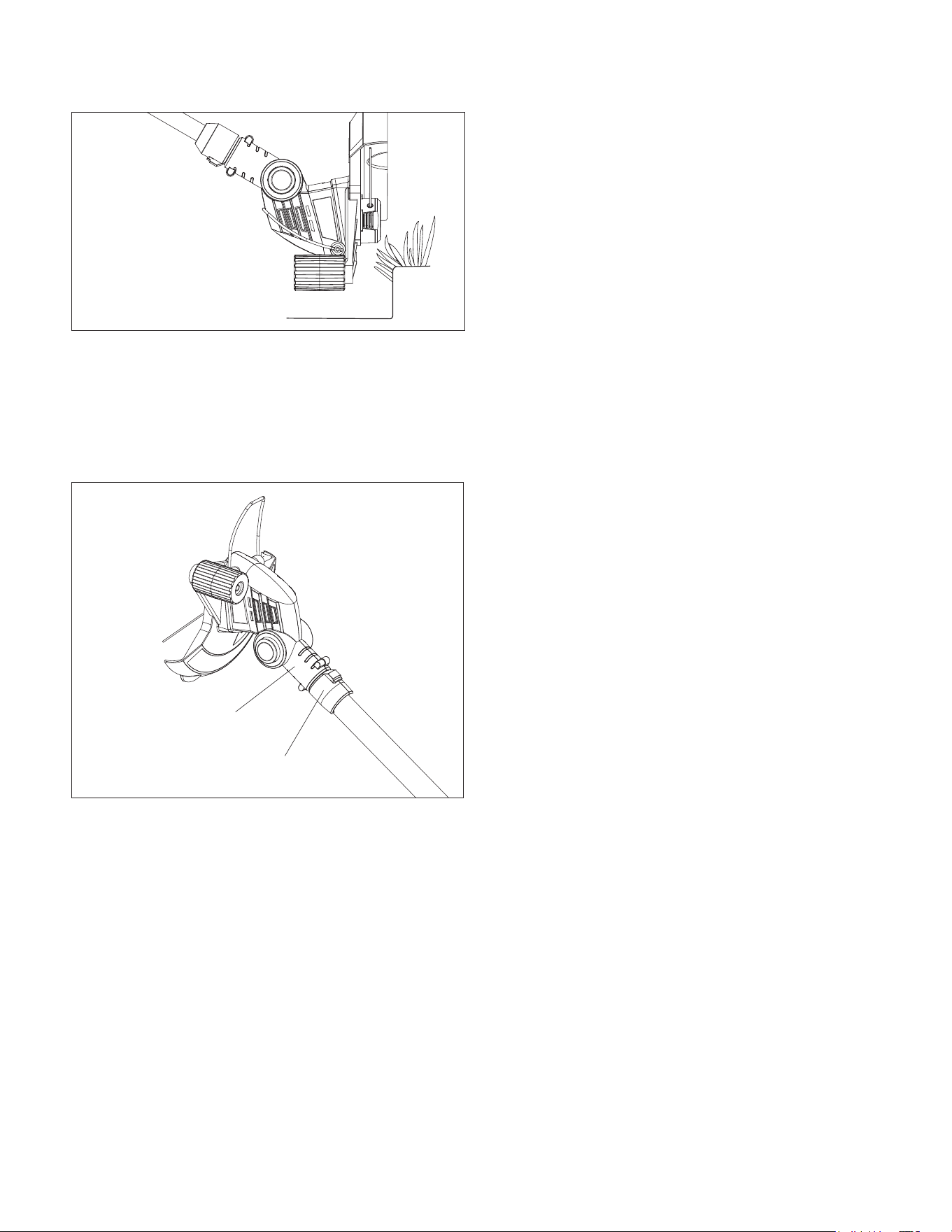

3. Use the edge of the guard as a guide when cutting near
fences and walls (Fig. 17).
13
Fig. 18
Fig. 17
mWARNING! Do not trim near electrical wires.
4. To convert your edger back to a trimmer, hold the handle,
slide lock sleeve and edging function button on the edger
head up, meanwhile turn the lower part of the edger head to
the side until the head is locked into position. (Fig. 18)
Fig. 18
Angle adjustment handle
Lock sleeve and edging function button
Fig. 18
Maintenance
mWARNING! Before performing any maintenance task, turn
off the machine and remove the battery.
mWARNING! Always wear protective gloves during
maintenance tasks. Do not carry out maintenance when the
engine is running or hot.
• Regular cleaning and maintenance of you grass trimmer +
edger will ensure efficiency and prolong the life of
your machine.
• After each cutting operation, take apart and clean out the
grass and soil from the whole trimmer + edger and guard.
• During operation, keep the air vents clean and free
from grass.
• Only use a cloth soaked with hot water and a soft brush to
clean the grass trimmer + edger.
• Do not spray or wet the appliance with water.
• Do not use detergents or solvents as these could ruin
the trimmer. The plastic parts can easily be damaged by
chemical agents.
• For repairs which have not been explained in these
instructions, contact an authorized service center at
1-866-SNOWJOE (1-866-766-9563).
IMPORTANT! Repairs, maintenance, and adjustments to this
power tool should be performed only by a qualified repair
person using only identical replacement parts. This will ensure
that the safety of the product is maintained. Contact your
authorized Snow Joe
®
+ Sun Joe
®
dealer or call the Snow Joe
®
+ Sun Joe
®
customer service center at 1-866-SNOWJOE
(1-866-766-9563) for assistance.
Proper Care for Battery + Charger
mWARNING! To reduce the risk of injury, always unplug
the charger and remove the battery pack from the charger
before performing any maintenance task. Never disassemble the
battery pack or charger. Contact your Snow Joe
®
+ Sun Joe
®
dealer or the Snow Joe
®
+ Sun Joe
®
customer service center for
ALL repairs.
1. To reduce the risk of injury and damage, never immerse
your battery pack or charger in liquid or allow any liquid to
flow inside these components.
2. Clean out dust and debris from charger vents and electrical
contacts by blowing with compressed air.
3. Use only a soft, clean and dry brush to clean the battery
pack and charger, keeping away from all electrical contacts.
Certain cleaning agents and solvents are harmful to plastics
and other insulated parts. Some of these include gasoline,
turpentine, lacquer thinner, paint thinner, chlorinated
cleaning solvents, ammonia and household detergents
containing ammonia. Never use flammable or combustible
solvents around battery packs, battery chargers or tools.
4. The XZ2600-0450 lithium-ion battery charger has no
serviceable parts.
Storage
Follow these recommendations for storing the
grass trimmer + edger.
• Clean the grass trimmer + edger thoroughly before storing.
• Store the trimmer + edger in a stable and safe location out
of the reach of children. Keep the trimmer + edger in a dry
place where the temperature is not too hot or too cold.
• Do not store the grass trimmer + edger resting against the
floor. Hang it by the upper handgrip so that the guard does
not touch anything. If the guard rests against a surface,
its shape and dimensions could be permanently altered, and
could render the machine unsafe to use.
14
Battery + Charger Off-Season Storage
1. Do not expose your battery pack or charger to water, rain
or allow them to get wet. This could permanently damage
the charger and the battery pack. Do not use oil or solvents
to clean or lubricate your battery pack as the plastic casing
can become brittle and crack, causing a serious risk of
injury.
2. Store the battery pack and charger at room temperature
away from moisture. Do not store in damp locations where
corrosion of terminals may occur. As with other battery
pack types, permanent capacity loss can result if the pack
is stored for long periods of time at high temperatures (over
120°F/49°C).
3. IONMAX 24VBAT-LTE lithium-ion battery packs maintain
their charge during storage longer than other battery pack
types. As a general practice, it is best to unplug the battery
charger and remove the battery pack when they are not
in use. Recharge the battery pack every 6 months to 50%
capacity (2 lights on) during off-season storage to maintain
optimal battery performance.
Battery Caution + Disposal
Always dispose of your battery pack according to federal, state,
and local regulations. Contact a recycling agency in your area
for recycling locations.
mCAUTION! Even discharged battery packs contain
some energy. Before disposing, use electrical tape to cover the
terminals to prevent the battery pack from shorting, which could
cause a fire or explosion.
mWARNING! To reduce the risk of injury or explosion,
never burn or incinerate a battery pack even if it is damaged,
dead or completely discharged. When burned, toxic fumes and
materials are emitted into the surrounding atmosphere.
1. Batteries vary according to device. Consult your manual for
specific information.
2. Install only new batteries of the same type in your product
(where applicable).
3. Failure to insert batteries in the correct polarity, as
indicated in the battery compartment or manual, may
shorten the life of the batteries or cause batteries to leak.
4. Do not mix old and new batteries.
5. Do not mix Alkaline, Standard (Carbon-Zinc) or
Rechargeable (Nickel Cadmium, Nickel Metal Hydride,
or Lithium-Ion) batteries.
6. Do not dispose of batteries in fire.
7. Batteries should be recycled or disposed of as per state
and local guidelines.
Service + Support
If your Sun Joe
®
24V-LT12-LTE cordless grass trimmer + edger
requires service or maintenance, please call the Snow Joe
®
+
Sun Joe
®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).
Model + Serial Numbers
When contacting the company, reordering parts, or arranging
service from an authorized dealer, you will need to provide the
model and serial numbers, which can be found on the decal
located on the housing of the unit. Copy these numbers into the
space provided below.
Record the following numbers from the housing or handle of your
new product:
24V-LT12-LTE
Model #:
Serial #:
15
XZ2600-0450
Federal Communications Commission
(FCC)
mWARNING! Any changes or modifications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
Class B Device:
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment to an outlet on a circuit different
than the one the receiver is connected to.
• Consult the dealer or an experienced radio/TV technician
for help.
16
Troubleshooting
Most difficulties are easy to fix. Consult the troubleshooting table for common problems and their solutions. If you continue to
experience problems or need repairs beyond these minor adjustments, please call 1-866-SNOWJOE (1-866-766-9563)
for assistance.
mWARNING! Always remove the battery before performing any adjustments, maintenance or repairs to your cordless
grass trimmer + edger.
Problems Possible Solution
Grass trimmer + edger vibrates
Grass trimmer + edger
does not start
• Remove the line spool and clean the slots, carefully remove any grass and weeds
and so forth.
• If vibration persists after reassembly, replace the line spool with a new one.
• In the event of the problem not disappearing, Contact your authorized
Snow Joe
®
+ Sun Joe
®
dealer or call Snow Joe
®
+ Sun Joe
®
customer service
center at 1-866-SNOWJOE (1-866-766-9563).
• Make sure the battery has enough power and is inserted properly.
• Make sure the battery is not overheated.
• If the trimmer + edger does not start after completing the checks, contact your
authorized Snow Joe
®
+ Sun Joe
®
dealer or call Snow Joe
®
+ Sun Joe
®
customer
service center at 1-866-SNOWJOE (1-866-766-9563).
17
Optional Accessories
m
WARNING! ALWAYS use only authorized Snow Joe
®
+ Sun Joe
®
replacement parts and accessories. NEVER use replacement
parts or accessories that are not intended for use with this cordless trimmer + edger. Contact Snow Joe
®
+ Sun Joe
®
if you are
unsure whether it is safe to use a particular replacement part or accessory with your cordless trimmer + edger. The use of any other
attachment or accessory can be dangerous and could cause injury or mechanical damage.
NOTE: Accessories are subject to change without any obligation on the part of Snow Joe
®
+ Sun Joe
®
to provide notice of such
changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe
®
+ Sun Joe
®
customer service
center at 1-866-SNOWJOE (1-866-766-9563).
24V* IONMAX
TM
Lithium-Ion Battery Quick Charger
24VCHRG-QC
ModelAccessories Item
1
2
3
4
5
24V* IONMAX
TM
2.0 Ah Lithium-Ion Battery
24VBAT-LTE
24V* IONMAX
TM
2.5 Ah Lithium-Ion Battery
24VBAT-LT
24V* IONMAX
TM
4.0 Ah Lithium-Ion Battery 24VBAT
6
7
24V* IONMAX
TM
5.0 Ah Lithium-Ion Battery 24VBAT-XR
24V* IONMAX
TM
Lithium-Ion Battery Dual Port Charger
3-PK 15 FT Spools
24VCHRG-DPC
LT12-RS-3PK
18
R5_05112023
SNOW JOE
®
+ SUN JOE
®
CUSTOMER PROMISE
OUR WARRANTY:
Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for
ordinary household use for a period of two years from the date of delivery of the Product to the original, end-user purchaser when purchased
from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality
of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from
unauthorized sellers. If your Product does not work or there’s an issue with a specific part that is covered by the terms of this Warranty,
Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge,
or (3) repair the Product. How cool is that!
This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.
PRODUCT REGISTRATION:
Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and
mailing in a registration card available online from our website, or by calling our Customer Service Department at 1-866-SNOWJOE
(1-866-766-9563), or by e-mailing us at [email protected]. Failure to register your Product will not diminish your warranty rights. However,
registering your Product will allow Snow Joe to better serve you with any of your customer service needs.
WHO CAN SEEK LIMITED WARRANTY COVERAGE:
This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.
WHAT IS NOT COVERED?
This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also
does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do
not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at
snowjoe.com/support or by calling 1-866-SNOWJOE (1-866-766-9563).
Keep your warranty intact. Only use CERTIFIED AUTHENTIC Snow Joe
®
, Sun Joe
®
, Aqua Joe
®
+ Auto Joe
®
replacement parts +
accessories. Use of any other parts + accessories will void the warranty. Genuine parts + accessories can be found and purchased online at
snowjoe.com/support by entering the model number of your product.
ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as
possible. Unfortunately, there are times when a Snow Joe
®
, Sun Joe
®
, Aqua Joe
®
, or Auto Joe
®
product (“Product”) does not work or breaks
under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited
Warranty (“Warranty”) for our Products.
TM
19
TM
sunjoe.com
TM
