User Manual
Dual View AHD Camera
with Night Vision
Introduction
Thank you for purchasing your EchoMaster Pro
automotive camera.
The following part numbers are supported:
u PCAM-870-AHD
EchoMaster cameras are designed to improve safety
during driving by providing high quality images of
surrounding areas and obstacles in the vicinity of the
vehicle. They will also improve vehicle maneuvering
capability by displaying blind spots not normally visible
to the driver.
Please ensure you read and understand all aspects
of this manual before tting or using your EchoMaster
Camera. Choose a suitable mounting place dependent
on the application. Ensure that there are no wiring
harnesses or hoses/pipes located behind this panel
before drilling.
Key Features
u 1/3” CMOS Analog High Denition (AHD) Sensor
u Operates at 0.1 LUX
u 15 IR LEDs
u IP67 Rated
u 105/120 Degree Diagonal Viewing Angle
Box Contents
u Camera
u Allen Wrench
u User Manual
u Warranty Card

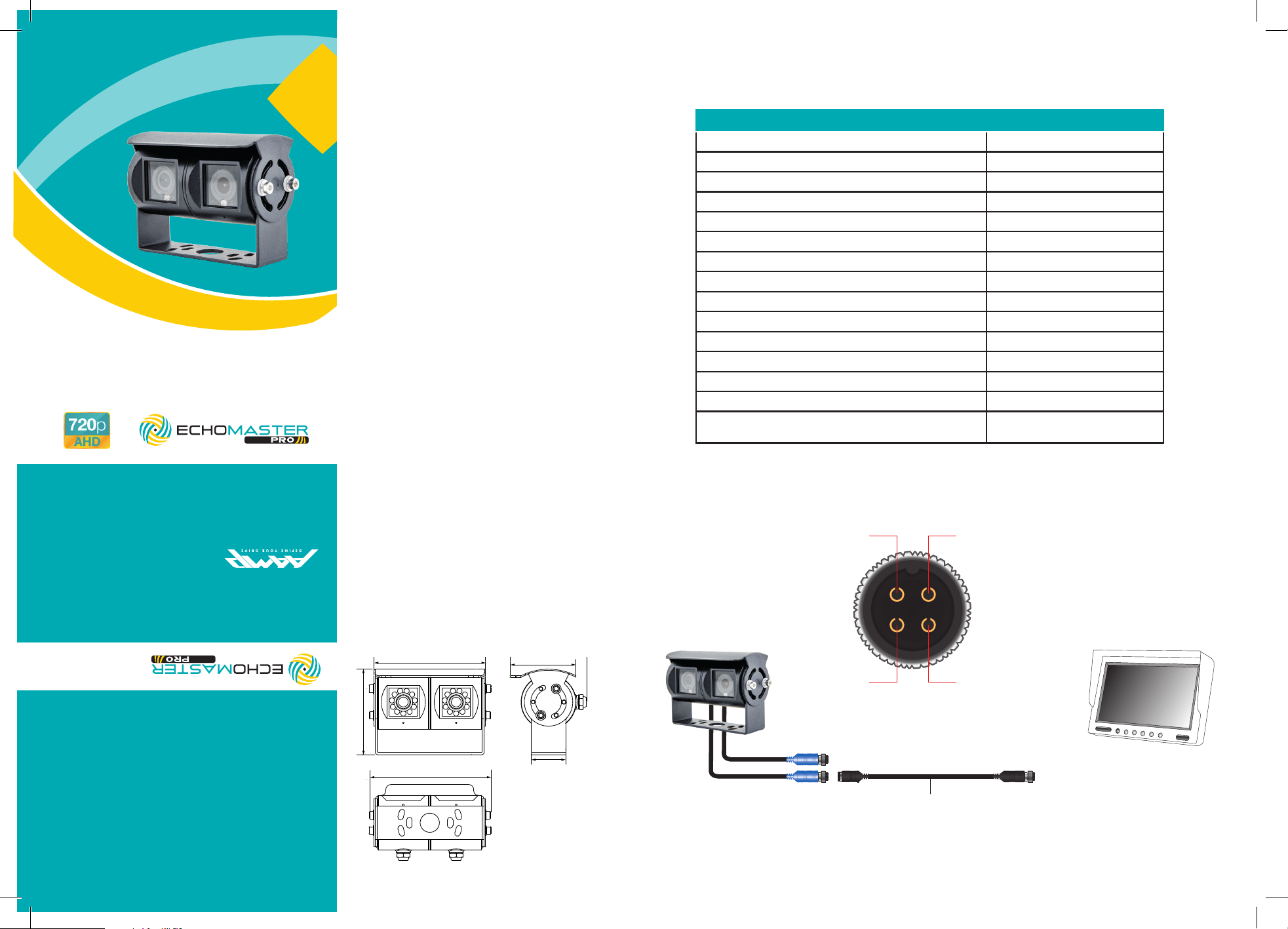

Wiring Diagram & Pin Out
Dimensions
Specications
PCAM-870-AHD
Sensor Type
1/3” CMOS AHD
LEDs
15
Illumination
0.1 LUX
Viewing Angle (Diagonal)
105/120 degrees
Mirror Image
YES
Parking Lines
NO
Water/Debris-Proof
IP67
Audio
YES
Power Supply
9V-12V DC
Current
<130mA
Working Temperature
-20ºC - +70ºC
Resolution
1280 x 720
System
NTSC AHD
TV Lines
720P
Dimensions W x D x H
101.4 x 60 x 78 mm
3.99 x 2.36 x 3.07 in
60mm / 2.36in
112.81mm / 4.44in
31mm / 1.22in
69.5mm / 2.74in
101.4mm / 3.99in
78mm / 3.07in
1
23
4
POWER +12V
VIDEO
AUDIO
GROUND
1
2 3
4
Extension Harness (Sold Separately)
GXE-6 - 6M/19.7ft Extension
GXE-10 - 10M/32.8ft Extension
GXE-15 - 15M/49.2ft Extension
GXE-20 - 20M/65.6ft Extension
REV. 082819
PLEASE NOTE:
The monitor must be AHD compatible
