MODEL 1PAFBX20
OWNER’S MANUAL
20" BOX FAN
3
SAFETY INSTRUCTIONS
CAUTION
Read Rules for Safe Operation and Instructions Carefully.
WARNING
1. This appliance has a polarized plug (one blade is wider than the other). To reduce
the risk of electric shock, this plug is intended to t in a polarized outlet only one way.
If plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a
qualied electrician. Do not attempt to defeat this safely feature.
2. To reduce the risk of re or electric shock, DO NOT use this fan with any solid- state
speed control devices.
RULES FOR SAFE OPERATION
1. Never insert ngers, pencils, or any other object through the grille when fan is running.
2. Disconnect fan when moving from one location to another.
3. Disconnect fan when removing grilles for cleaning.
4. Be sure fan is on a stable surface when operating to avoid overturning.
5. Do not use fan in window. Rain may create electrical hazard.
6. Ensure that the fan is switched o from the supply mains before removing the grille.
The rules about cord and plug as below:
• This product employs overload protection (fuse). A blown fuse indicates an overload or
short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace
the fuse as per the user servicing instructions (follow product marking for proper fuse
rating) and check the products. If the replacement fuse blows, a short-circuit may be
present and the product should be discarded or returned to an authorized service
facility for examination and/or repair.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an
authorized service facility for examination and/or repair.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away from trac area and where it will not be tripped over.
4
SAFETY & PRECAUTIONS
ASSEMBLY
ASSEMBLY OF FAN
Take out the fan from the packing carton, place the fan upside down, rotate the support
90° counterclockwise to make it on the using position (Fig 2) then turn the fan upright.
It will be ready to work when you plug. (Fig 3)

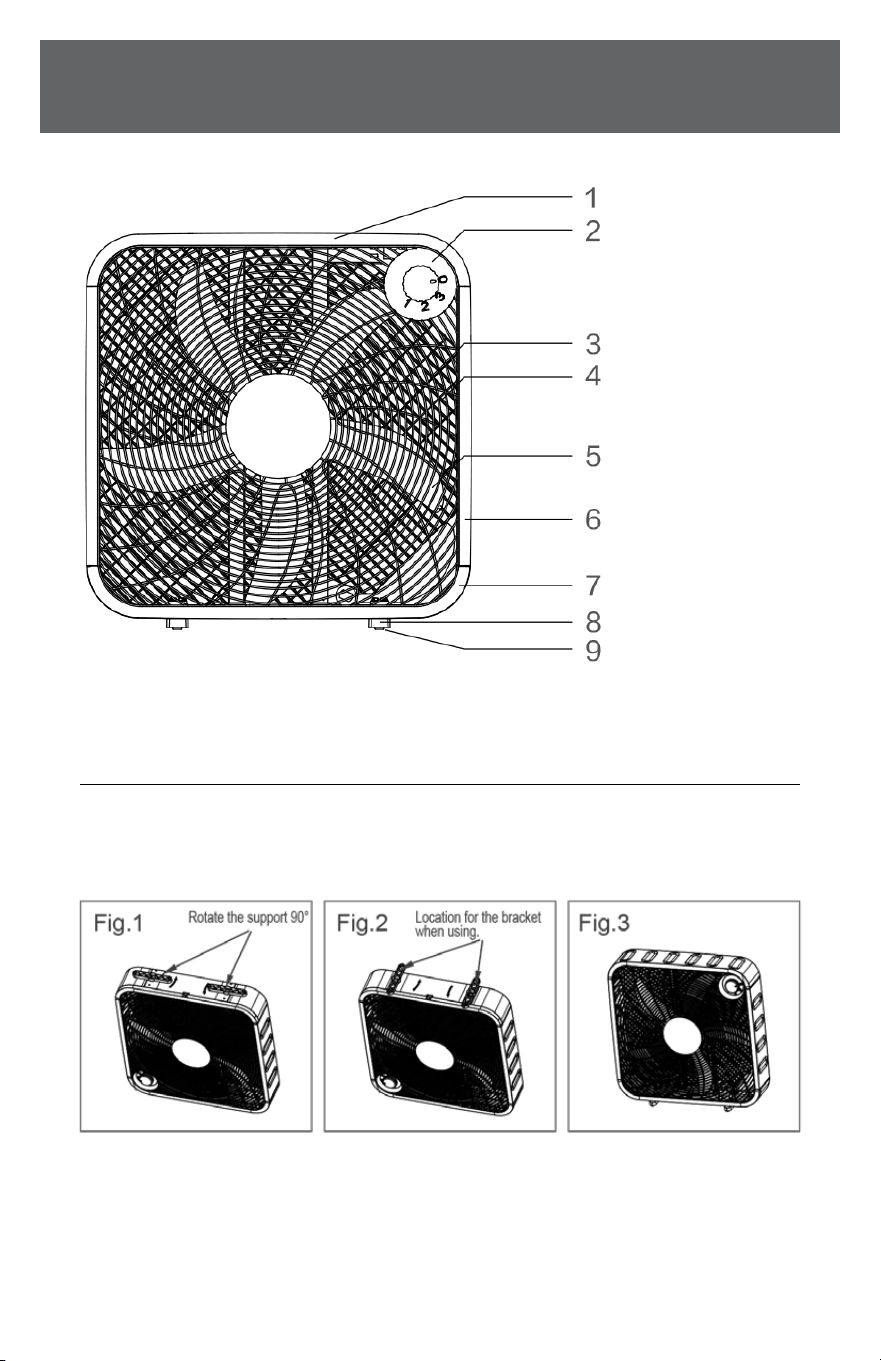

PART FIGURE
1. Top Cover
2. Switch Knob
3. Front Grill
4. Rear Grill
5. Blade
6. Side panel
7. Base cover
8. Rotating feet
9. Rubber feet
5
OPERATION
OPERATING INSTRUCTION
Speed control: Speed is controlled by the switch knob:
0—O;
1—Low;
2—Medium;
3—High
USER SERVICING INSTRUCTIONS
a) Grasp plug and remove from the
receptacle or other outlet device.
Do not unplug by pulling on cord.

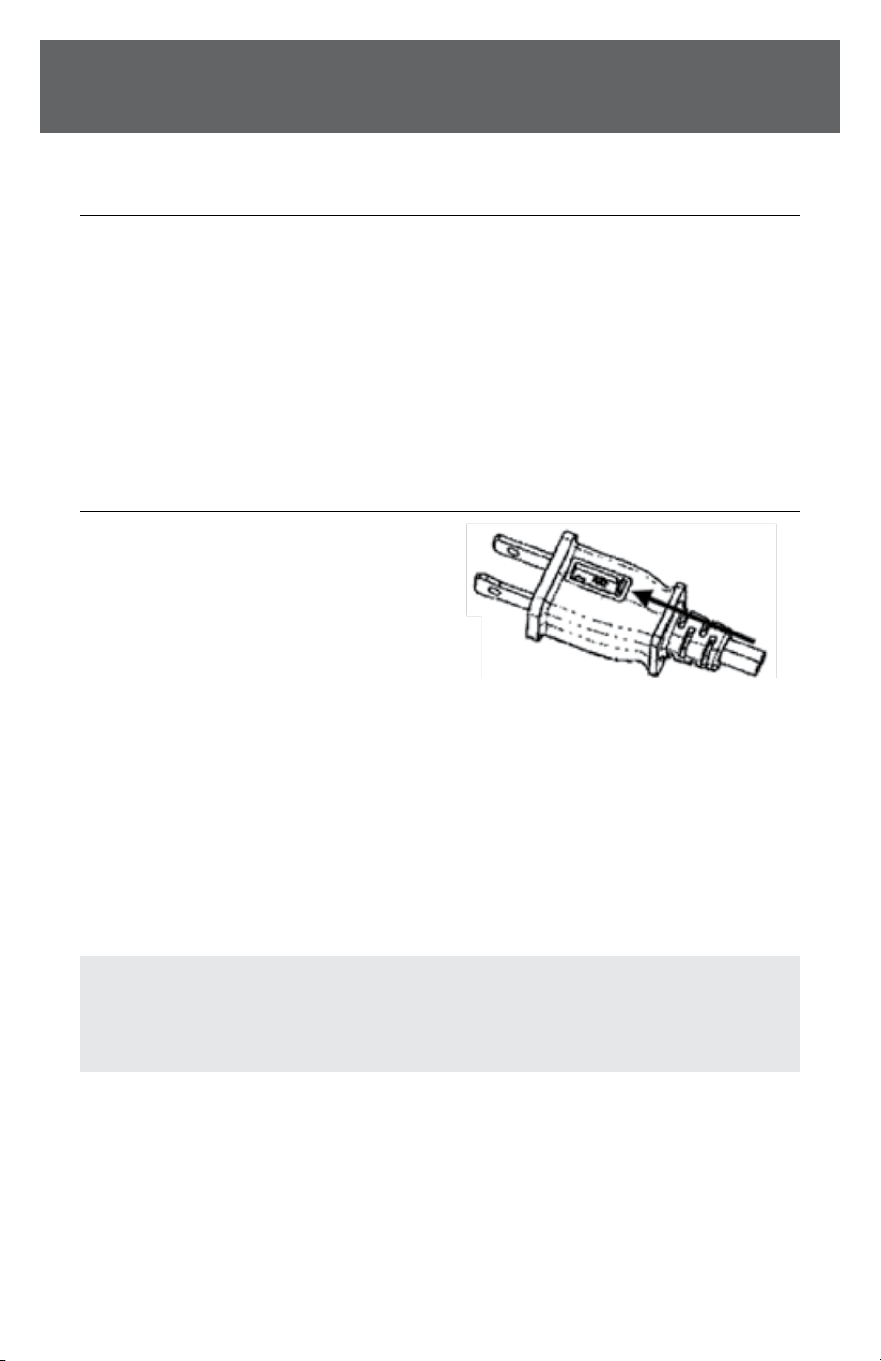

b) Open fuse cover. Slide open fuse access
cover on top of attachment plug towards
blades.
c) Remove fuse carefully. Insert the tip of your tool into fuse slot (close with the terminal),
then prize the fuse gradually and slowly, but not overexert. If you feel tight, you can try
it at several times and prize the fuse little by little. When one side of the fuse has been
prized, then you can get the fuse out entirely.
d) Risk of re. Replace fuse only with 2.5 Amp, 125 Volt fuse.
e) Close fuse cover. Slide closed the fuse access cover on top of attachment plug.
f) Risk of re. Do not replace attachment plug. Contains a safety device (fuse) that should
not be removed. Discard product if the attachment plug is damaged.
NOTICE: When you replace the fuse, please don’t operate suddenly or overexert,
or else the product will be damaged or cause an accident.
If it feels hard to replace the fuse, please make sure you have it inserted the right way.
6
SAFETY & PRECAUTIONS
CLEANING
CLEANING
NOTE: Remove any clear shipping tape from sides of the fan before dissembling.

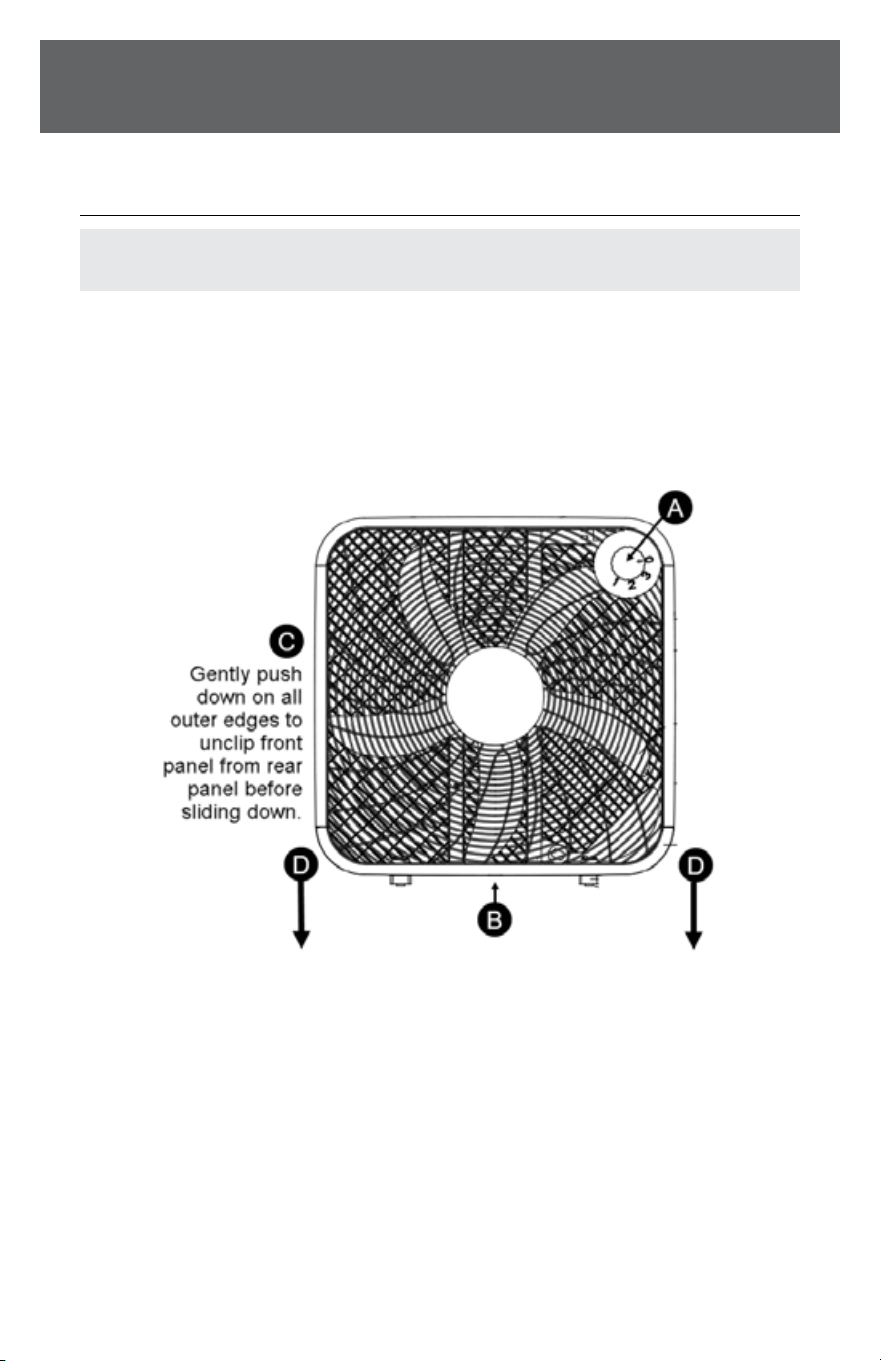

A. Be sure to unplug from the electrical supply source before cleaning. Turn knob to 0 and rmly
pull to remove it.
B. Unscrew front panel from back panel.
C. Gently push down on all outer edges to unclip front panel from back panel.
D. Pull down on the front panel to slide it down and remove.
Plastic parts can be cleaned with mild soap and a damp cloth or sponge. Thoroughly wipe with
a clean water and cloth/sponge to remove soap lm. Be sure not to allow water or other liquid
enter inside of motor
Wipe with a dry cloth or fully air dry, reassemble fan.
