Contents
1
1. Safety and operating instructions __________________________ 2
1. Installation and hook-up _________________________________ 7
2. Description of the controls _______________________________ 9
3. Operating instructions __________________________________ 19
4. Cleaning and maintenance ______________________________ 24
5. Troubleshooting ______________________________________ 38
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use of
your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the controls.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions about
the use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of the
appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.
Installation instructions
2
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE; IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER FOR FUTIRE
REFERENCE. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE
INSTRUCTIONS CONTAINED IN THIS MANUAL. THEY CONTAIN IMPORTANT
INFORMATION FOR THE INSTALLATION, USE AND MAINTENANCE OF THE
APPLIANCE. IN THE EVENT OF SALE OR TRANSFER, ENSURE THAT THE
MANUAL ALWAYS ACCOMPA
NIES THE APPLIANCE.
THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD AND SIMILAR
APPLICATIONS SUCH AS:
- STAFF KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKING
ENVIRONMENTS;
- FARM HOUSES;
- BY CLIENTS IN HOTELS, MOTELS AND OTHER RESIDENTIAL TYPE
ENVIRONMENTS;
-
BED AND BREAKFAST TYPE ENVIRONMENTS
THIS APPLIANCE IS DESIGNED TO BE USED ONLY IN STATIONARY
LOCATIONS.
THIS APPLIANCE COMPLIES WITH DIRECTIVES 2006/95/EC AND
2004/108/EC CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND
ELIMINATION OF RADIO FREQUENCY INTERFERENCE AND IS DESIGNED
FOR THE FOLLOWING PURPOSE: WASHING AND DRYING OF DISHES; ANY
OTHER USE SHALL BE CONSIDERED IMPROPER. THE MANUFACTURER
DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE
DESCRIBED ABOVE.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT!
IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. DO NOT ALLOW CHILDREN TO PLAY WITH PACKAGING
MATERIALS. SEPARATE THE VARIOUS MATERIALS WHICH MAKE UP THE
PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND
MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR.
THE NAME PLATE MUST NEVER BE REMOVED.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
Installation instructions
3
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
DURING THE INSTALLATION THE APPLIANCE MUST BE DISCONNECTED
FROM THE NETWORK..
DO NOT INSTALL THE APPLIANCE IN A PLACE SUBJECT TO FREEZING.
IF THE APPLIANCE IS INSTALLED ON A CARPET FLOOR, TAKE CARE THAT
THE OPENINGS IN ITS BASE ARE NOT OBSTRUCTED.
DO NOT INSTALL THE APPLIANCE NEAR EQUIPMENT WITH HIGH
IRRADIATION TEMPERATURES (EG. GAS BURNERS, FIREPLACES, ETC.) AS
THEY MAY CAUSE DAMAGE.
IF THE APPLIANCE IS INSTALLED IN A COMPARTMENT ABOVE OR BELOW
ANOTHER EQUIPMENT (EG. GAS BURNERS, OVENS, ETC.), READ
CAREFULLY THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OF
THE EQUIPMENT. IF THE INSTRUCTIONS OF THE EQUIPMENT DO NOT
CONTAIN INFORMATION, CONTACT THE MANUFACTURER OF THE
EQUIPMENT TO ENSURE THAT THE APPLIANCE CAN BE INSTALLED ABOVE
OR BELOW IT.
BUILDING-IN THE APPLIANCE UNDERNEATH A HOB IS ABSOLUTELY
FORBIDDEN.
INSTALL A HOB ON TOP OF A FREE-STANDING APPLIANCE IS ABSOLUTELY
FORBIDDEN.
TO ENSURE STABILITY, INSTALL THE APPLIANCE ONLY UNDER
CONTINUOUS WORKTOP, SECURELY FIXED TO ADJACENT CABINETS. IF
THE APPLIANCE IS INSTALLED IN A HIGH CABINET BOTH, THE APPLIANCE
AND THE CABINET, MUST BE ADEQUATELY FIXED.
IF THE APPLIANCE IS NOT BUILT-IN AND IS THEREFORE ACCESSIBLE ON
ONE SIDE, THE DOOR HINGE AREA MUST BE COVERED FOR SAFETY
REASON (INJURY HAZARD). THE COVERING FIXTURES ARE AVAILABLE AS
AN ACCESSORY FROM SPECIALIST DEALERS OR THE AFTER
-
SALES.
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE.
THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATION IN
FORCE.
DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID
THE POSSIBILITY OF OVERHEATING OR BURNING.
THE PLUG OF THE APPLIANCE MUST BE ACCESSIBLE AFTER
INSTALLATION.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER CORD.
IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD, A
CIRCUIT BREAKER PROVIDING A FULL DISCONNECTION IN OVERVOLTAGE
Installation instructions
4
PROTECTION CLASS III MUST BE INSTALLED IN AN EASILY ACCESSIBLE
POSITION ON THE SUPPLY LINE.
THE DISHWASHER MUST ALWAYS BE CONNECTED TO THE WATER
SYSTEM USING NEW HOSE SETS.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE. IF THE DISHWASHER FAILS TO OPERATE
CORRECTLY, DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY
AND CALL THE NEAREST TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT
TO REPAIR THE APPLIANCE.
THE APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING
CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL
CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY
HAVE BEEN GIVEN SUPERVISED OR INSTRUCTION CONCERNING USE OF
THE APPLIANCE BY A RESPONSIBLE PERSON FOR THEIR SAFETY.
YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO
NOT PLAY WITH THE APPLIANCE.
WARNING: SOME DISHWASHER DETERGENTS ARE STRONGLY ALKALINE.
THEY CAN BE EXTREMELY DANGEROUS IF SWALLOWED. AVOID CONTACT
WITH SKIN AND EYES AND KEEP CHILDREN AWAY FROM THE DISHWASHER
WHEN THE DOOR IS OPEN.
KEEP CHILDREN AWAY FROM THE DISHWASHER WHEN THE DOOR IS
OPEN. ALWAYS CHECK THAT THE DETERGENT RECEPTACLE IS EMPTY
AFTER COMPLETION OF THE WASH CYCLE.
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR APPLIANCE AT THE END OF THE WASHING PROGRAM.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE IN
THE APPLIANCE, AS THIS MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINT.
PLEASE DO NOT LEAVE THE DOOR OPEN AS THIS WILL CAUSE A TRIPPING
HAZARD.
WARNING: KNIVES AND OTHER UTENSILS WITH SHARPS POINTS MUST BE
LOADED IN THE BASKET WITH THE POINTS DOWN OR PLACED IN A
HORIZONTAL POSITION.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY TRAINED AND AUTHORISED TECHNICIANS: REPAIRS
CARRIED OUT BY UNAUTHORISED PERSONS WILL VOID THE WARRANTY,
AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
Installation instructions
5
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE
MANUFACTURER OR ITS SERVICE AGENT OR A SIMILARLY QUALIFIED
PERSON IN ORDER TO AVOID HAZARD.
SOME COMPONENTS ARE LIVE EVEN WITH THE ON/OFF BUTTON IN THE
OFF POSITION. BEFORE MAINTENANCE WORK ON THE APPLIANCE,
DISCONNECT THE PLUG OR TURN OFF THE MAINS SWITCH IN THE FIXED
WIRING
CLEANING AND REGULAR MAINTENANCE OF THE APPLIANCE BY
CHILDREN IS ONLY PERMITTED UNDER THE SUPERVISION OF A PERSON
RESPONSIBLE FOR THEIR SAFETY.
DO NOT USE STEAM CLEANERS TO CLEAN THE DISHWASHER.
MODELS WITH “AQUASTOP” DEVICE
THE “AQUASTOP” DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE “AQUASTOP” DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
INSIDE THE “AQUASTOP” WATER INTAKE HOSE, THERE ARE ELECTRICAL
PARTS. DO NOT CUT THE HOSE AND DO NOT ALLOW THE “AQUASTOP”
DEVICE TO DROP INTO WATER. IN THE EVENT OF DAMAGE TO THE
“AQUASTOP” WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM
THE ELECTRICAL SUPPLY AND FROM THE WATER SUPPLY.
MODELS WITH INTERNAL LIGHTING
THE LIGHTING SYSTEM OF THE APPLIANCE BELONGS TO RISK GROUP 1
UNDER THE IEC/EN 62471 STANDARD. THIS MEANS THAT THERE IS NO
PHOTOBIOLOGICAL RISK IN NORMAL CONDITIONS OF USE.
IN ACCORDANCE TO ART. 26 OF THE LEGISLATIVE DECREE 14 MARCH
2014, NR. 49 “IMPLEMENTATION OF THE DIRECTIVE 2012/19/EU ON WASTE
OF ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)”.
THE SYMBOL OF A CROSSED OUT WHEELIE BIN ON THE DEVICE OR
PACKAGE SHOWS THAT THE PRODUCT MUST BE COLLECTED SEPARATE
FROM OTHER WASTE, AT THE END OF ITS SERVICE LIFE. THEREFORE, THE
USER HAS TO TAKE ANY EQUIPMENT THAT HAS REACHED THE END OF ITS
SERVICE LIFE TO LOCAL WASTE DISPOSAL CENTRES FOR ELECTRICAL
AND ELECTRONIC EQUIPMENT WASTE.
AS AN ALTERNATIVE TO THE IDEPENDENT MANAGEMENT, IT IS POSSIBLE
TO DELIVER THE EQUIPMENT WHICH HAS TO BE DISPOSED OF TO THE
DEALER, AT THE MOMENT OF PURCHASING A NEW EQUIVALENT DEVICE
AT THE ELECTRONIC EQUIPMENT DEALERS WITH A SALES AREA OF AT
LEAST OF 400 M
2
. ALSO, FOR DISUSED DEVICES WITH DIMENSIONS
INFERIOR TO 25 CM, FREE DELIVERY TO THE DEALERS IS POSSIBLE, WITH
NO PURCHASE OBLIGATION
Installation instructions
6
A PROPER SEPARATE WASTE COLLECTION AND THE CONSEQUENT
HEADING OF THE DISUSED DEVICE TOWARDS ITS RECYCLING, TREATMENT
AND ENVIRONMENTALLY COMPATIBLE DISPOSAL, CONTRIBUTES IN
PREVENTING ANY POSSIBLE NEGATIVE EFFECTS ON ENVIRONMENT AND
HEALTH; ALSO, IT SUPPORTS THE REUSE AND/OR RECYCLE OF THE
MATERIALS WHICH COMPOSED THE DEVICE.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, CABLES, HOSES, ETC.).
The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original spare
parts.
TECHNICAL DATA
TECHNICAL DATA
Width
597
599 mm
Depth measured flush with the
outer edge of the control panel
Free standing: 600 mm
Semi
-
integrated: 570 mm
Height (depending on models)
Free standing: from 850 mm to 890 mm
Semi-integrated: from 820 mm to 890 mm
Capacity
1
4
Standard place settings
Water supply pressure min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar)
Electrical characteristics See rating plate
Installation instructions
7
2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other furniture
units. If the dishwasher is installed near a heat source, fit the special
insulating panel to prevent overheating and malfunction of the appliance.
To ensure stability, install integrated or built-under dishwashers only under
continuous worktops, and screw them to the adjacent units. To facilitate
the installation procedure, the intake and drain hoses can be positioned in
any direction; make sure that the hoses are not kinked, crushed or pulled
too tightly. Make sure to tighten the locking ring-nut once the pipes have
been placed in the direction required. A hole at least 8 cm in diameter is
required to allow the power supply cable and pipes to pass. Before putting
the dishwasher into its definitive position, turn on the water tap and check
that there are no leaks from the tap connection, the dishwasher
connection or the hose.
Level the appliance on the floor using its adjustable feet. This operation is
essential for ensuring correct operation of the dishwasher.
Some models are equipped with only one adjustable foot at the rear, which
can be adjusted by turning the screw on the lower front part of the
appliance.
Building-in a dishwasher underneath a hob is absolutely forbidden.
Moreover, dishwashers may not be installed directly touching appliances
which are not conventional built-in kitchen appliances (e.g. fireplaces,
stoves, etc.).
When installing the dishwasher in a compartment next to one or more other
appliances, it is essential to comply with all the recommendations provided
by the appliance’s manufacturer (minimum distances, installation
procedures, etc.).
Installation instructions
8
2.1 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance.
The dishwasher must always be connected to the water system with
new hoses; old or used hoses must never be reused.

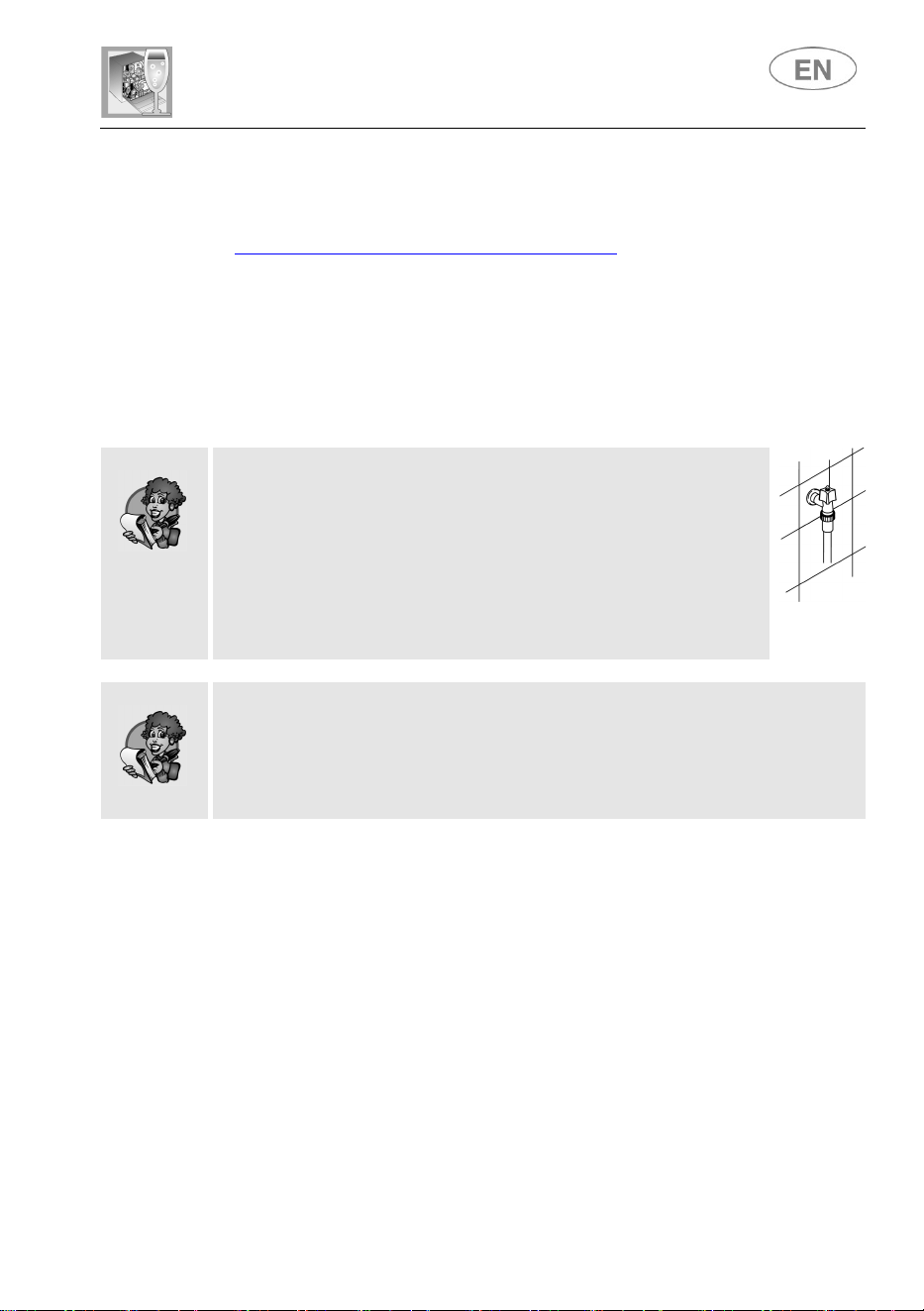

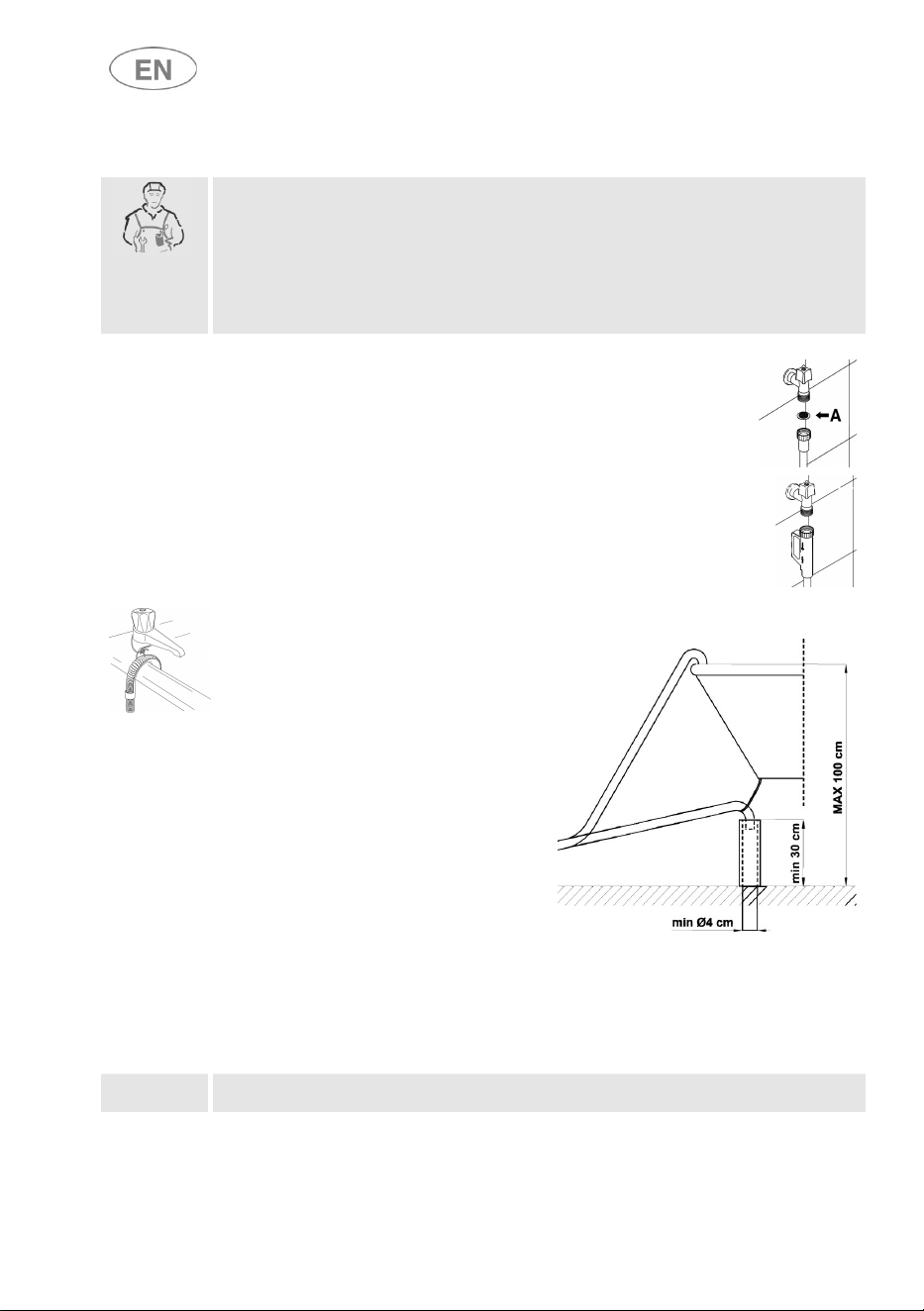

CONNECTING TO THE WATER SUPPLY

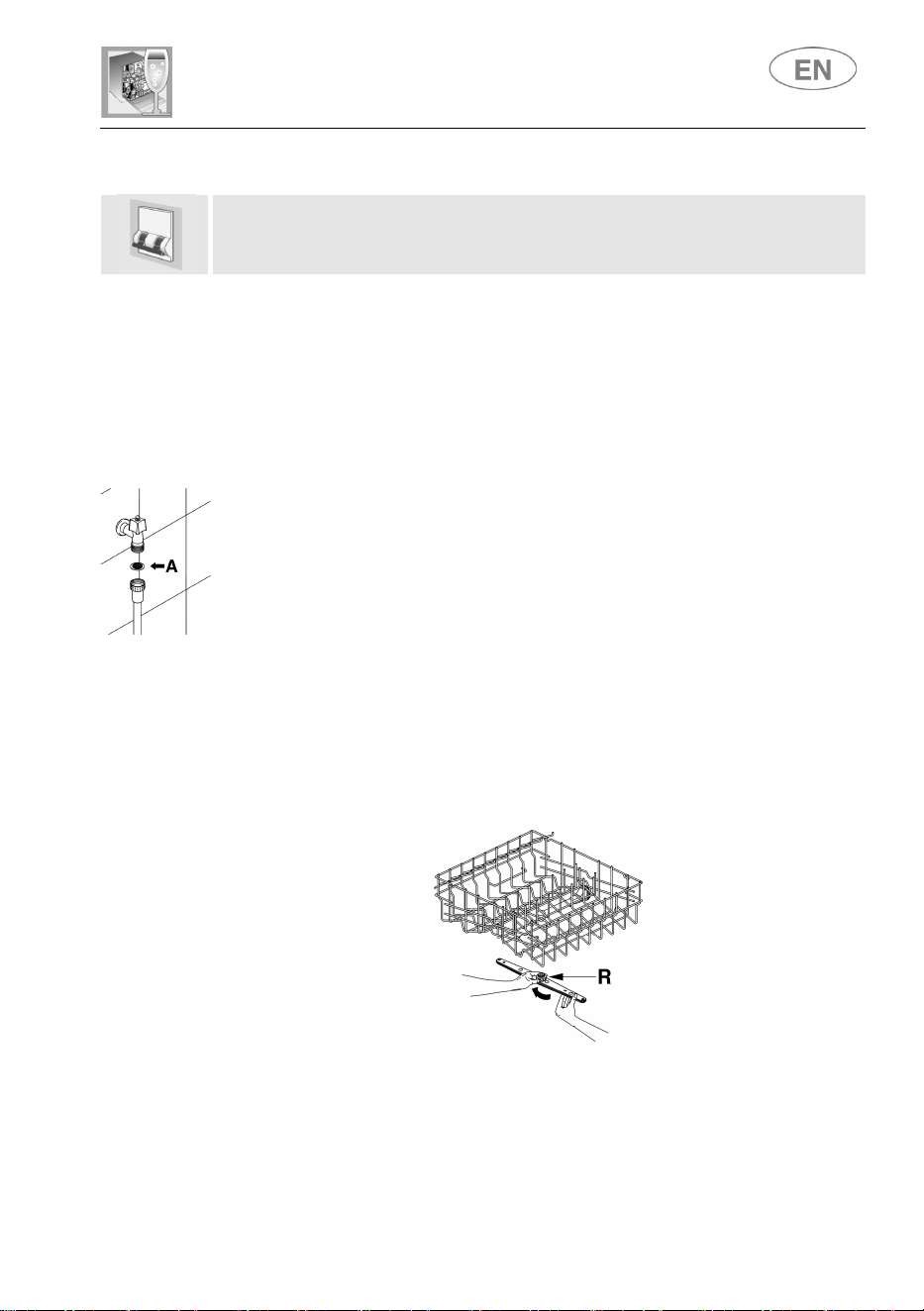

Connect the intake hose to a cold water supply with ¾” gas
thread, inserting the filter A supplied with the dishwasher.
Take care to screw the hose firmly into place with your
hands and then complete by
tightening about ¼ of a
turn with pliers.
In dishwashers equipped with the ACQUASTOP device,
the filters is already fitted inside the threaded ring.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm, or alternatively,
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between 30 and 100 cm,
and should never be submerged in water. If a horizontal drain extension
hose is used (for a maximum of 3 m) the drain hose can be placed at a
maximum height of
85 cm
from the ground.
Class of protection against moisture: IPX0
User instructions
9
3. Description of the controls

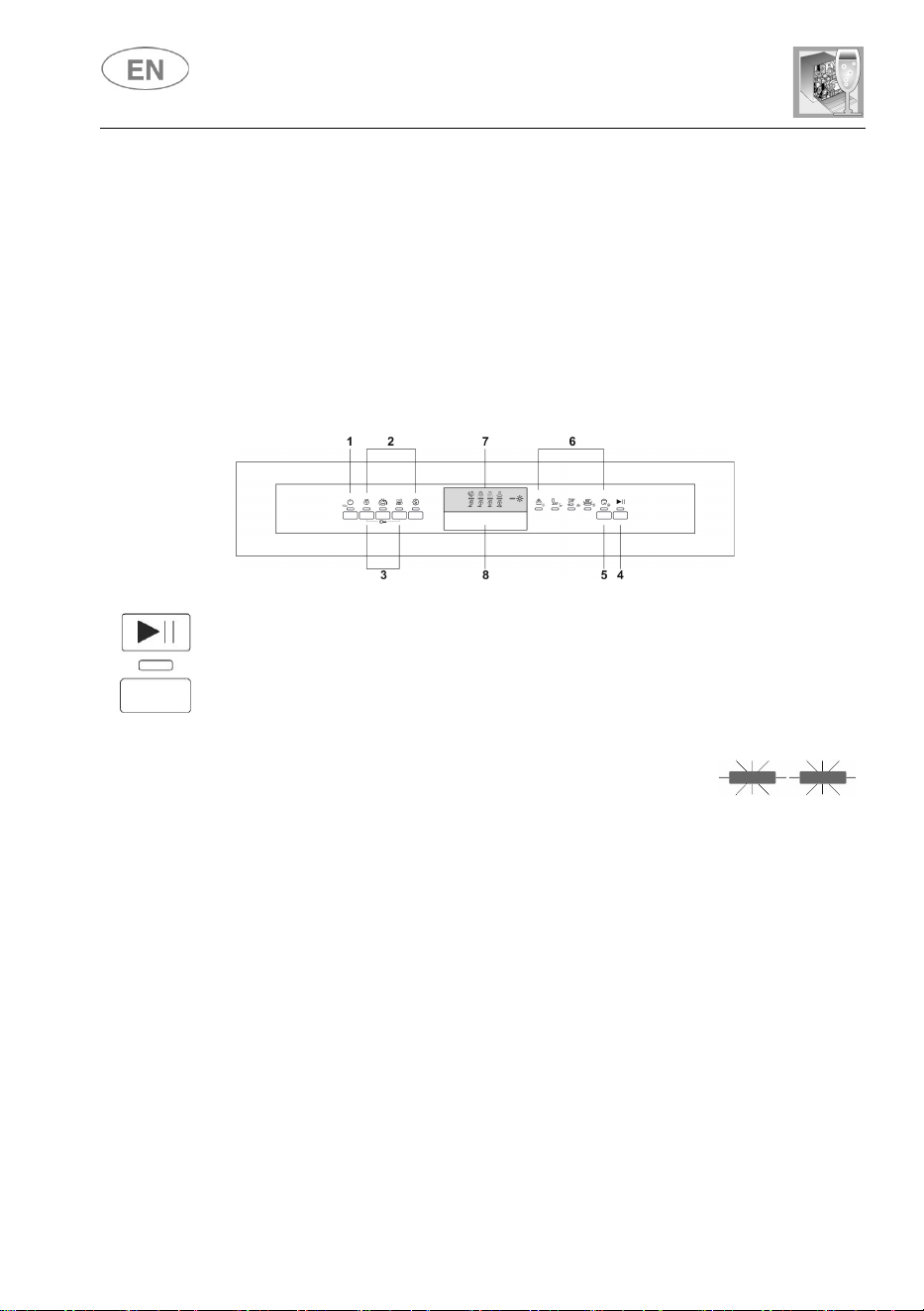

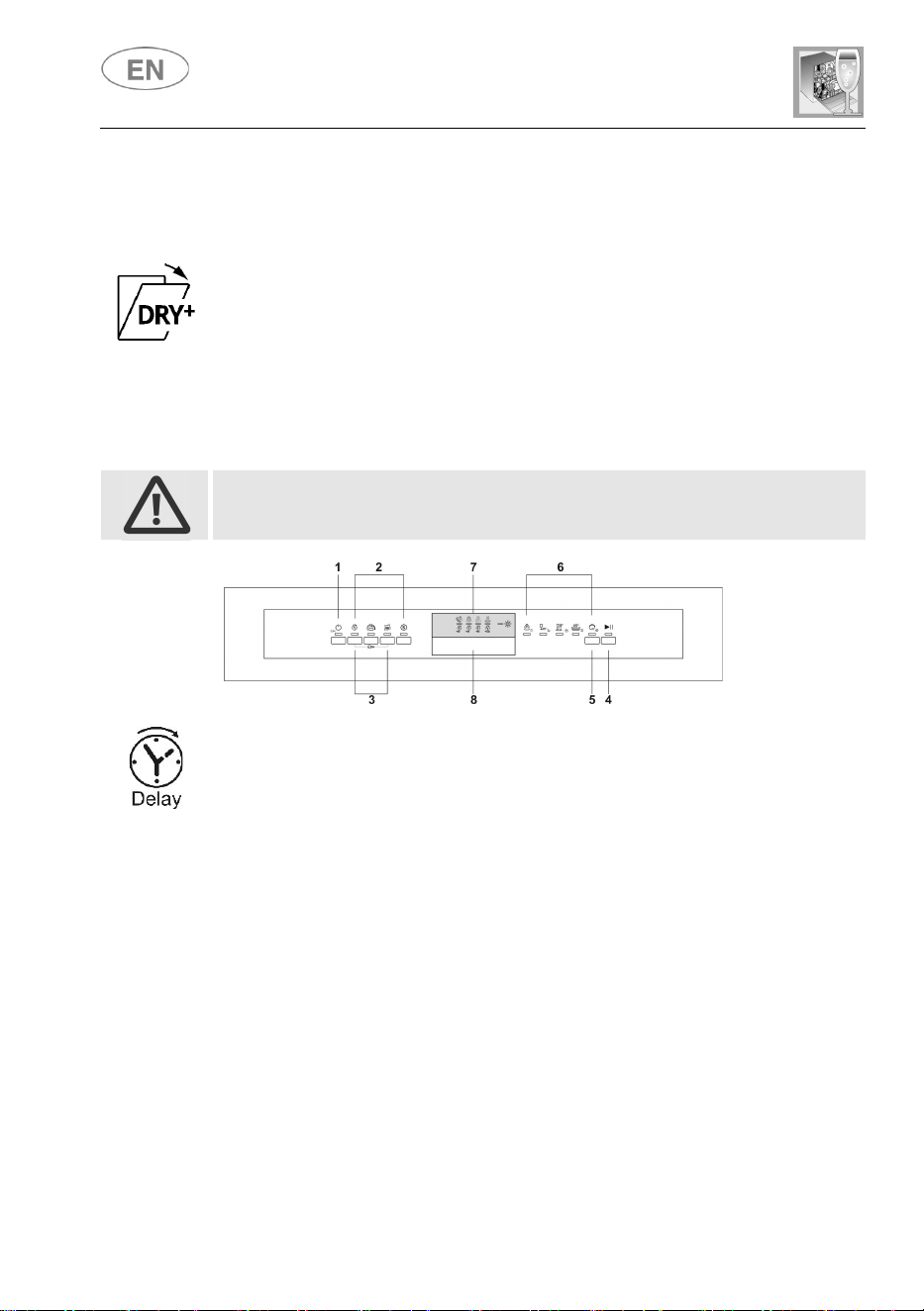

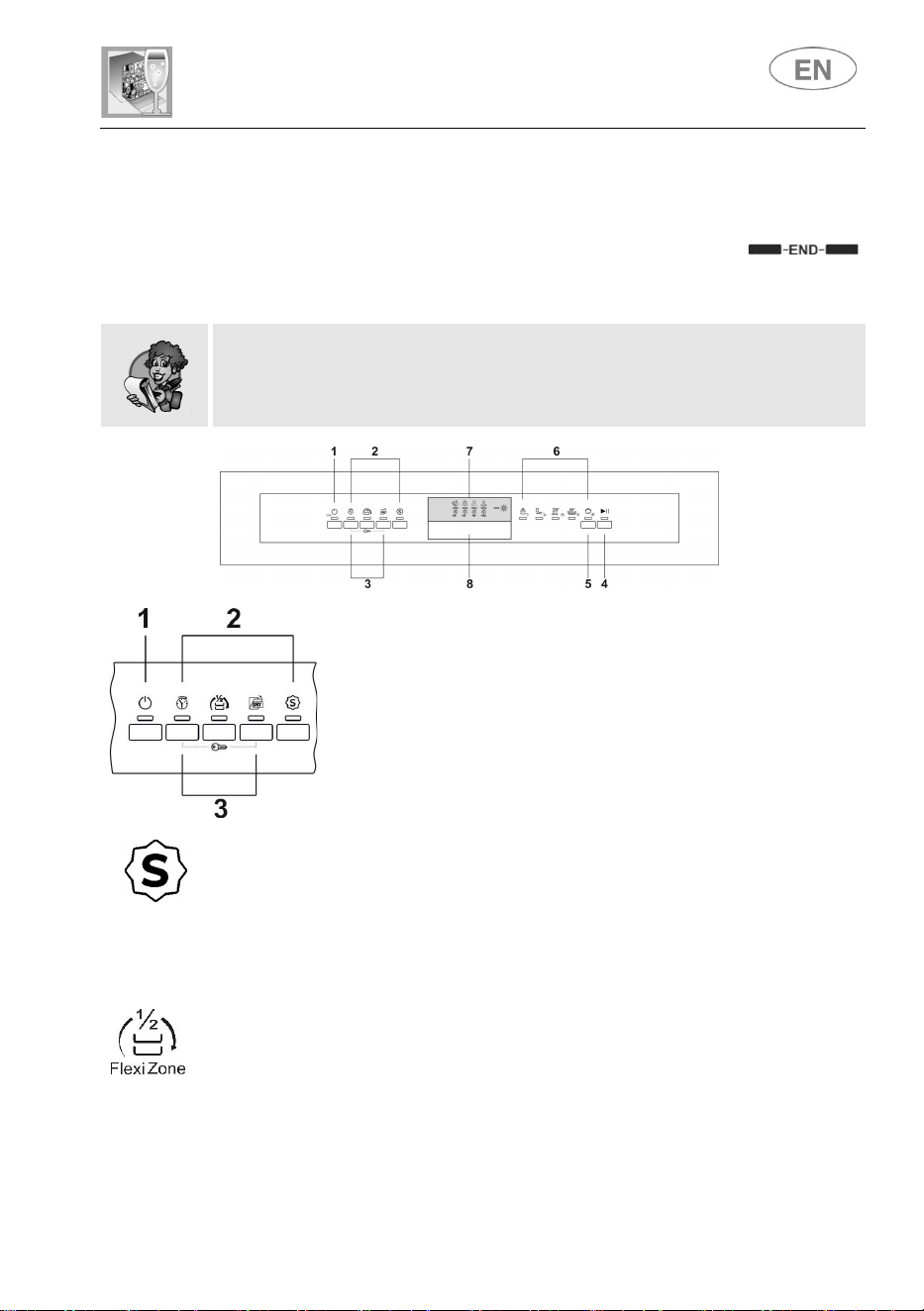

3.1 Front panel
All the dishwasher controls are grouped on the front panel. Programming
and option selection are only possible with the door closed.
1 ON/OFF BUTTON AND WARNING LIGHT
2 OPTION SELECTION BUTTONS AND WARNING LIGHTS
3 “CHILD LOCK” ACTIVATION BUTTONS
4 START/PAUSE BUTTON
5 PROGRAM SELECTION BUTTON
6 PROGRAM LIGHTS
7
LEDS: rinse aid, program phases and delayed start
8 HANDLE TO OPEN THE DOOR
N.B.: symbols and styling are guideline and may vary depending on
the model or version of the dishwasher purchased.
User instructions
10

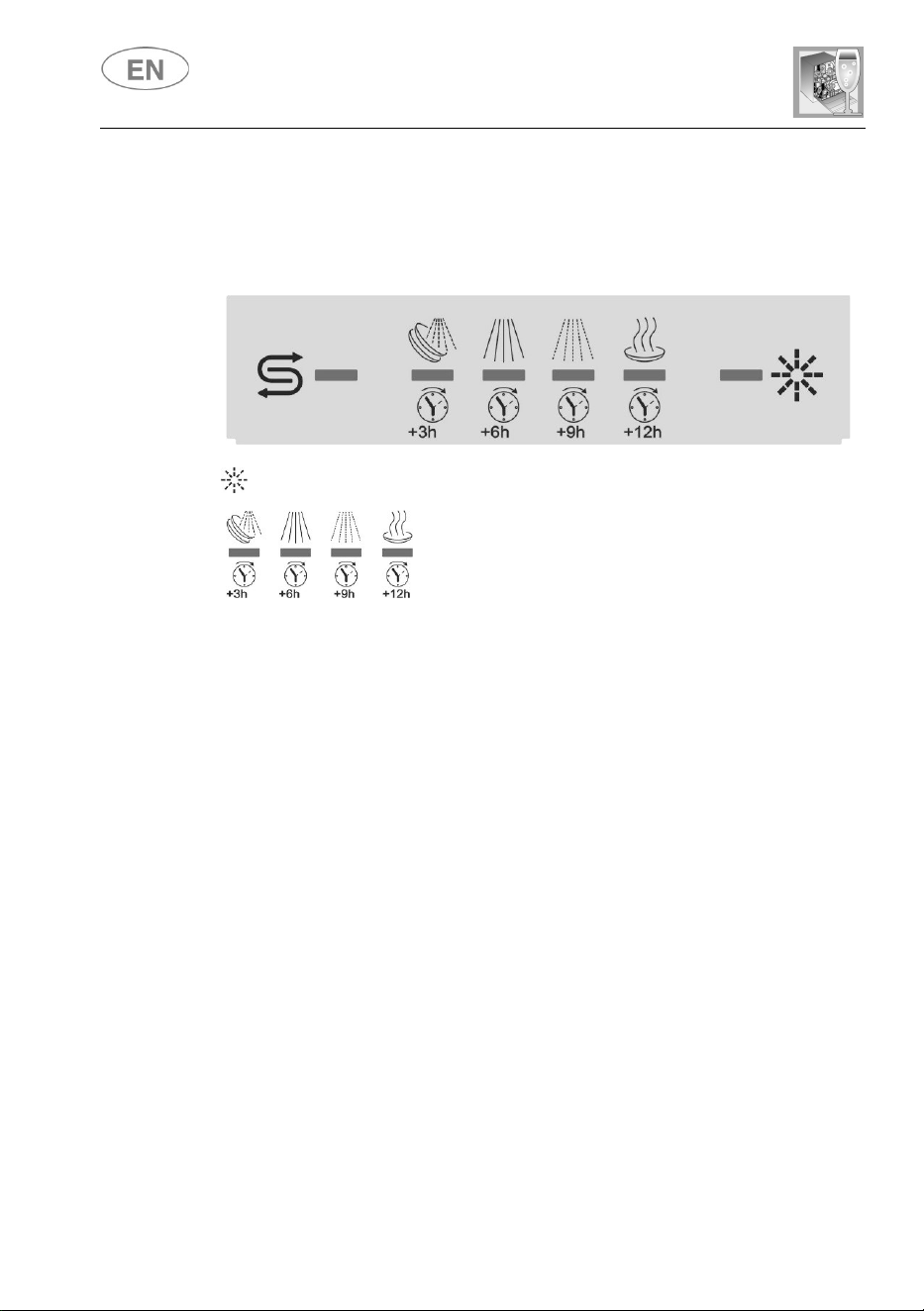

3.2 Control LEDS
In this area there are control LEDS for the washing progression state,
rinse aid
refill indicator, and
delayed start.
Rinse aid refill indicator
The four LEDs have a double function:
- Once the program is running, they highlight the
following phases: pre-wash (if present), wash,
rinse, drying.
- Before the start of the washing cycle they
highlight if the delayed start has been selected
(3, 6, 9, or 12 hour delay).
User instructions
11

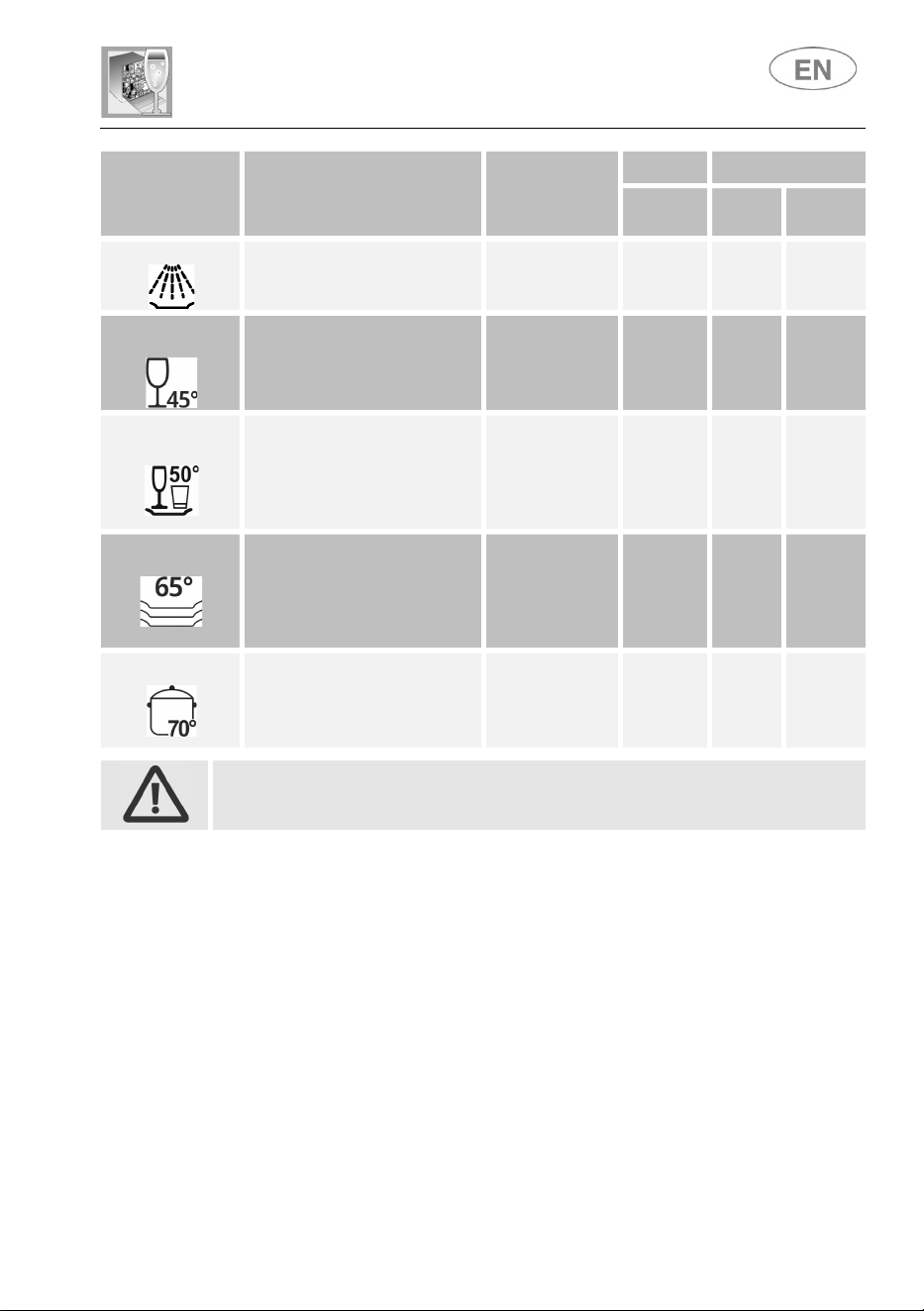

PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES
POWER
KWh (1)
1 SOAK
Pans and dishes awaiting
completion of the load.
Cold prewash
15 3,9 0,02
2 CRYSTAL
(**)
Wine glasses and lightly soiled
fine china.
Wash at 45°C
2 cold rinses
Rinse at
55°C (2)/70°C
Dry
125(2)
/85
12,5
1,00(2)
/1,30
3 NORMAL
ECO (*) (**)
Crockery and cutlery normally
soiled
Cold prewash
Wash at 48°C
Wash sump
Rinse at
33°C (2)/64°C
Dry
260 (2)
/195
11,3
0,62(2)
/1,10
4 MIX 65° (**)
Moderately soiled mixed loads
such as dishes, glasses and
pans, even with dried-on
residues.
Cold prewash
Wash at 65°C
Cold rinse
Rinse at
55°C (2)/70°C
Dry
160(2)
/120
12,5
1,20(2)
/1,60
5 INTENSIVE
Very dirty pans and dishes,
even with dried-on residues.
Hot prewash
Wash at 70°C
2 cold rinse
Rinse at 70°C
Dry
170 15,5 1,85
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
* Reference program as per AS/NZS 2007.
During the comparative tests the dishwasher shall to be set as follow:
- Dry assist option must be active (default), the light will be on.
- At
the end of the cycle
the
door
must be
opened
about
15 cm
.
(1) The cycle duration and power consumption may vary according to the water
and room temperatures, and the type and amount of dishes.
(2) With dry assist option active (default).
The dry assist option (automatic opening door at the end of the cycle) is available in
the programs indicated with (**.)
User instructions
12

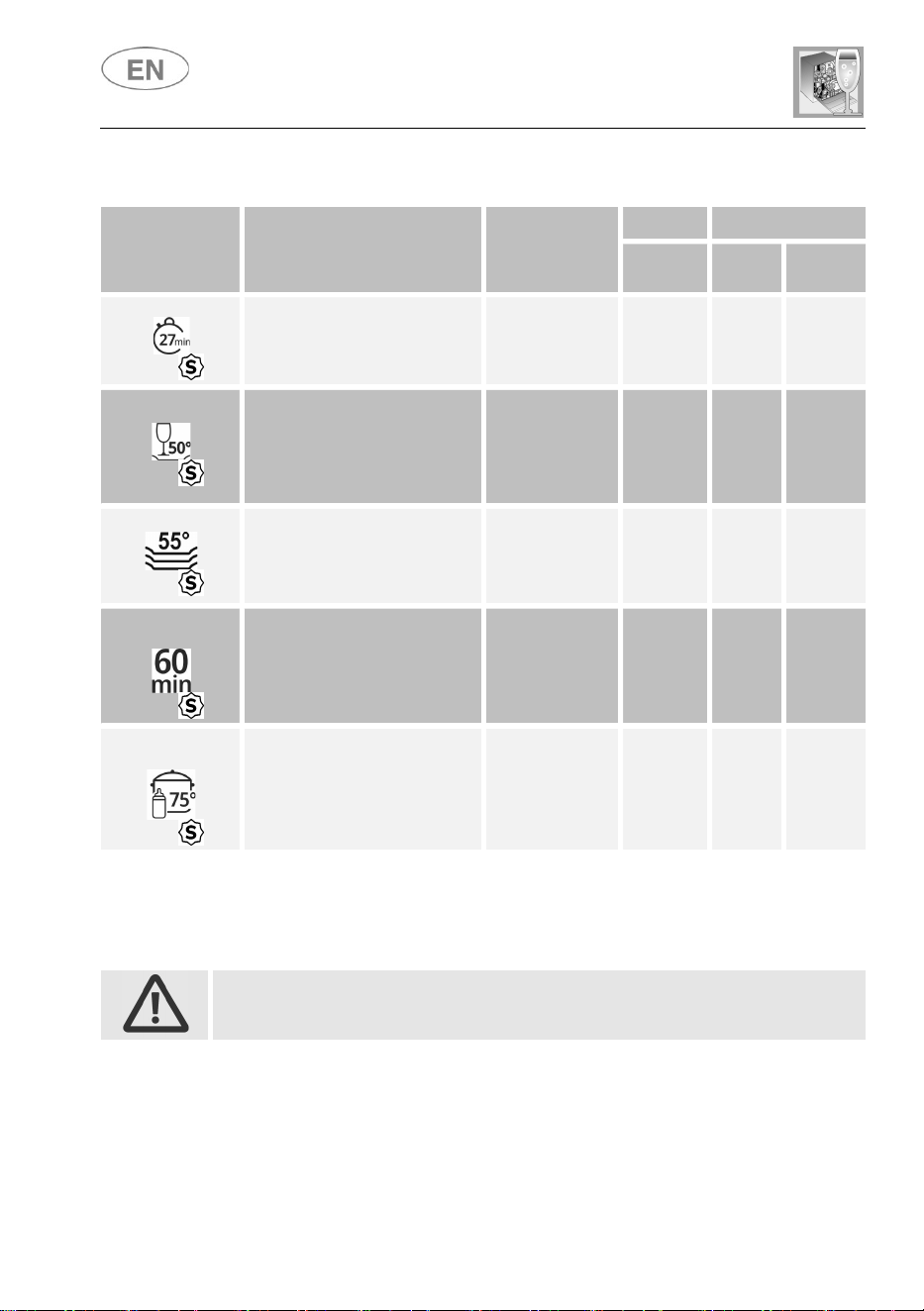

ADDITIONAL PROGRAMS
(see relevant section for explanation of functioning modes)
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES
POWER
KWh (1)
6
EXPRESS 27’
P1+
Dishes with very light soiled,
washed immediately after use
Wash at 38°C
Rinse at 50°C
27 6,7 0,70
7 DELICATE (**)
P2+
Wash cycle for mixed loads
such as wine glasses and
lightly soiled dishes.
Cold prewash
Wash at 50°C
2 cold rinses
Rinse at
55°C/70°C (2)
Dry
135(2)
/90
15,8
1,05(2)
/1,35
8 LIGHT SOIL
P3+
Wash cycle with low water and
energy consumption. Suitable
for moderately soiled mixed
loads, washed immediately
after use.
Wash at 55°C
Cold rinse
Rinse at 70°C
Dry
90 10 1,35
9 FULL
EXPRESS 60’
P
4
+
Quick cycle for moderately
soiled mixed loads such as
dishes, glasses and pans
shortly after use. The load is
washed and dried in 60
minutes.
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
60 9,7 1,40
10 HYGIENE
99,9%
P
5
+
Intensive cycle for plates, pots,
pans, feeding bottles. Ideal for
baby dishes or if there are
allergy sufferers in the family
in order to achieve a higher
level of hygiene.
Hot prewash
Wash at 70°C
2 cold rinses
Rinse at 75°C
Dry
145 15,7 1,90
HYGIENE
Increases the temperature of the final rinse to obtain a greater level of hygiene.
Suitable for the intensive washing of plates, pots, pans, cutting boards, feeding
bottles. Ideal for baby dishes or if there are allergy sufferers in the family.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
(1) The cycle duration and power consumption may vary according to the water
and room temperatures, and the type and amount of dishes.
(2) With dry assist option active (default).
The dry assist option (automatic opening door at the end of the cycle) is available in
the programs indicated with (**.)
User instructions
13
Notice for testing institutes
Testing institutes are provided with guidelines for comparative tests (e.g. according to
AS/NZS 2007). request the guidelines by contacting us at the following
e-mail address:
When making a request, please specify the model (MOD) and the serial number (S/N)
indicated on the plate on the side of the door.
3.2 Washing programs
The dishwasher is equipped with a control panel and an INFORMATION
DISPLAY from which it is possible to carry out all the power switch-on,
switch-off and programming operations.
Before starting a washing program make sure that:
The water supply tap is open.
The correct amount of detergent has been added to the
dispenser.
The baskets have been correctly loaded.
The spray arms are able to rotate freely and without
obstruction.
The dishwasher door is securely closed.
Warning:
during the initial phase of the washing program, the operation of sprayers
is not perceived because they start rotating about 5 minutes after the start.
This is the normal operation of the washing cycle.
User instructions
14
SWITCHING ON
When the ON/OFF button (1) is pressed, the dishwasher switches on.
The indicator lights will display the dishwasher's "status".
PROGRAMMING
Programming operations are only possible with the door closed.
As long as the door is open, the
PROGRAMS (
6
)
lights remain off.
PROGRAM SELECTION
Press the PROGRAM SELECTION button (5) several times until the light of
the program required comes on.
STARTING THE PROGRAM
To start the dishwasher, press the START/PAUSE button (4) for a few
seconds, until the light of the selected program starts to flash (confirmation
beep).
The light will flash as long as the program is in progress, to indicate that it
is being performed.
END OF PROGRAM
At the end of the program the beeper sounds briefly and
the program
lights
4
and
5
flash.
INTERRUPTING A PROGRAM
To interrupt a program in progress:
press the START/PAUSE button (4); the light of the program in
progress remains on (confirmation beep);
you may now restart the program by pressing button (4) again
until it restarts, or change or cancel the program (see "CHANGING
A PROGRAM", or "
C
ANCELLING A PROGRAM").
CHANGING A PROGRAM
To change the running program it is necessary:
to interrupt the running program (see “INTERRUPTING A PROGRAM”);
select the new program;
start the program (see “
S
TARTING THE PROGRAM”).
User instructions
15
CANCELLING A PROGRAM
To annul the program, keep the START/PAUSE button (4) pressed until
the program is interrupted (light on and confirmation beep).
Press button (4) again and keep it pressed until the
lights
4
and
5
(marked "end") come on.
The water in the tank will be pumped out and the program will end at the
point where it was interrupted.
In case that the tub temperature is higher than 50°C the program will
start about 60 seconds later.
OPTION SELECTION
Options are selected by pressing the relative button by the
symbol of the option required; the light comes on to confirm
that the option has been activated.
It is not possible to select any options when the soak
program is being used.
SPECIAL
Allows you to enable additional programs when selected together with any
wash cycle. After having selected the required wash cycle, press the
button (the light turns on). It turns off automatically when the cycle has
finished.
½ LOAD FLEXI ZONE
Ideal if just a few dishes need to be washed, allowing energy savings. The
dishes should be placed in both baskets and less detergent should be
placed in the detergent dispenser compared to the amount used for a full
load.
User instructions
16
AUTOMATIC DOOR OPENING – DRY ASSIST
The program ends with a drying cycle that consists of a time during which
the door is closed, and a time during which the door is slightly open (just
waiting, to assist drying). The duration depends on the program and
model.
Any intervention (opening / closing the door, switching off etc.) during this
stage will end the program early.
The program can be interrupted during the drying cycle and the
dishwasher can unloaded before the cycle has completely ended, which
is indicated by a visual and/or audible alarm (depending on the model),
but best drying results may not be obtained.
The complete program ends only when indicated by a visual and/or
audible signal (depending on the model).
There must be sufficient space available for the door to open. The
door must not be forced open and closed before the wash cycle has
ended completely.
DELAY
Press the DELAY button to set the dishwasher cycle to start during the
required time period (e.g. night). According to the model, this may be
indicated on the display or by specific lights. The option cannot be
selected once the cycle is running. To cancel the setting, press the
button several times until the lights switch off. After the door has been
closed, the dishwasher will carry out a pre-wash cycle, after which the set
“cycle delay” option will be activated.
User instructions
17

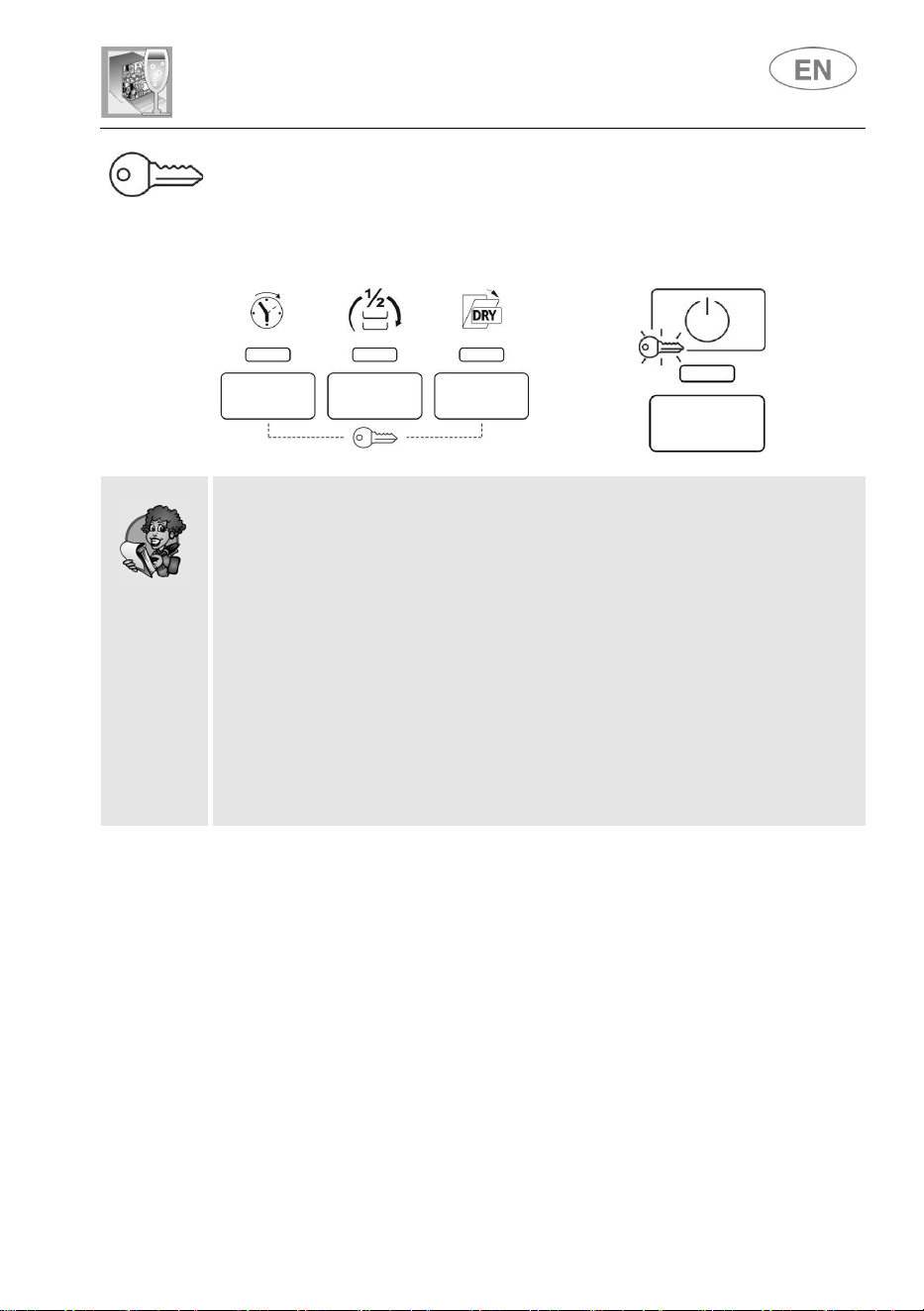

“CHILD LOCK” OPTION
By pressing the indicated buttons (3) at the same time, the controls are
locked, which is confirmed by the flashing ON/OFF (1) warning light. This
option stays active (and the warning light keeps flashing) until the buttons
(3)
are pressed again.
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
Always use the dishwasher with a full load.
Load the dishwasher as indicated in the instructions manual. If the
dishwasher is loaded incorrectly, it may lead to poor results as well
as waste water, energy and detergent.
Do not wash dishes under running water before placing them in the
dishwasher. It would just waste water and energy.
Use the washing program that is most appropriate for each type of
load.
If available, connect the dishwasher to a hot water supply up to 60°C.
If the manufacturer's instructions and recommendations are followed,
washing the same number of similarly soiled dishes in a dishwasher
consumes less water and energy than if they were washed by hand.
User instructions
18
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
separate the more delicate items from dishes that are more
resistant to aggressive detergents and high temperatures;
do not pour
detergent directly onto the dishes.
If the door has to be opened while washing is in progress, the program will
be interrupted. The relative light will keep flashing and a beeper will signal
that the cycle has not been completed. You must wait about 1 minute
before closing the door to restart the program. When the door is closed
the program will continue from where it was interrupted. This operation
should only be carried out if strictly necessary, because it might cause
problems in
running
of the program.
ENERGY MANAGEMENT
After 5 minutes (washing cycle completed, stopped or set but not started)
the dishwasher switches off.
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower basket,
it is
advisable
to unload the lower basket first, and then the upper basket.
User instructions
19
4. Operating instructions
Once the dishwasher has been correctly installed, prepare it for use by
loading the rinse aid and detergent into the appropriate containers.

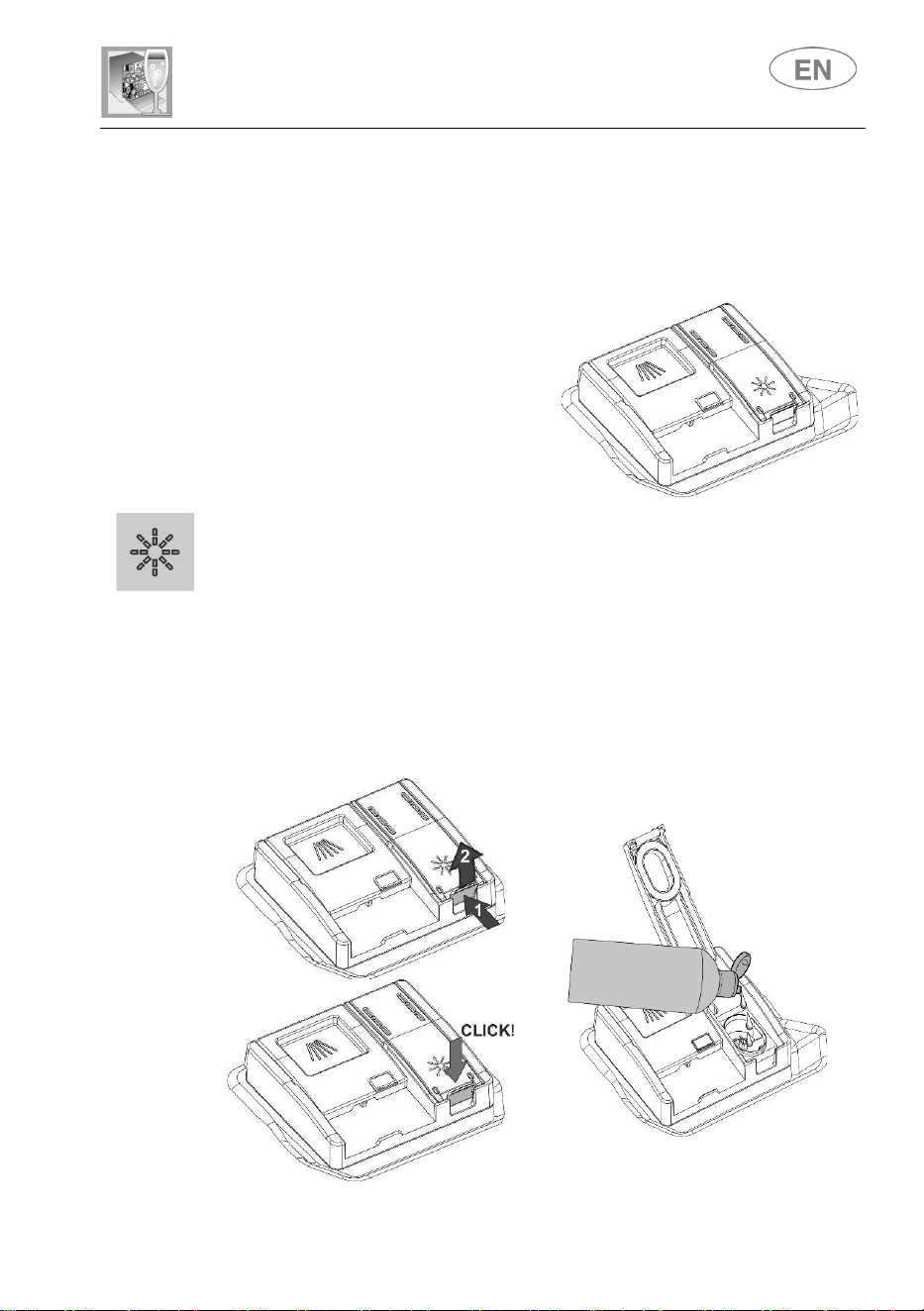

4.1 Using the rinse aid and detergent dispensers
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the rinse
aid dispenser is on the right.
ADDING RINSE AID
Rinse aid helps the dishes dry faster and prevents the formation of scale
deposits and staining; it is automatically added to the water during the final
rinse cycle, from the container situated on the inner side of the door.
To add rinse aid:
Open the dispenser by pressing and lifting the tab on the cover.
Fill the dispenser with rinse aid. Top up again when the rinse aid
indicator light turns on.
Close the cover, a click indicates when it is closed.
Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
User instructions
20

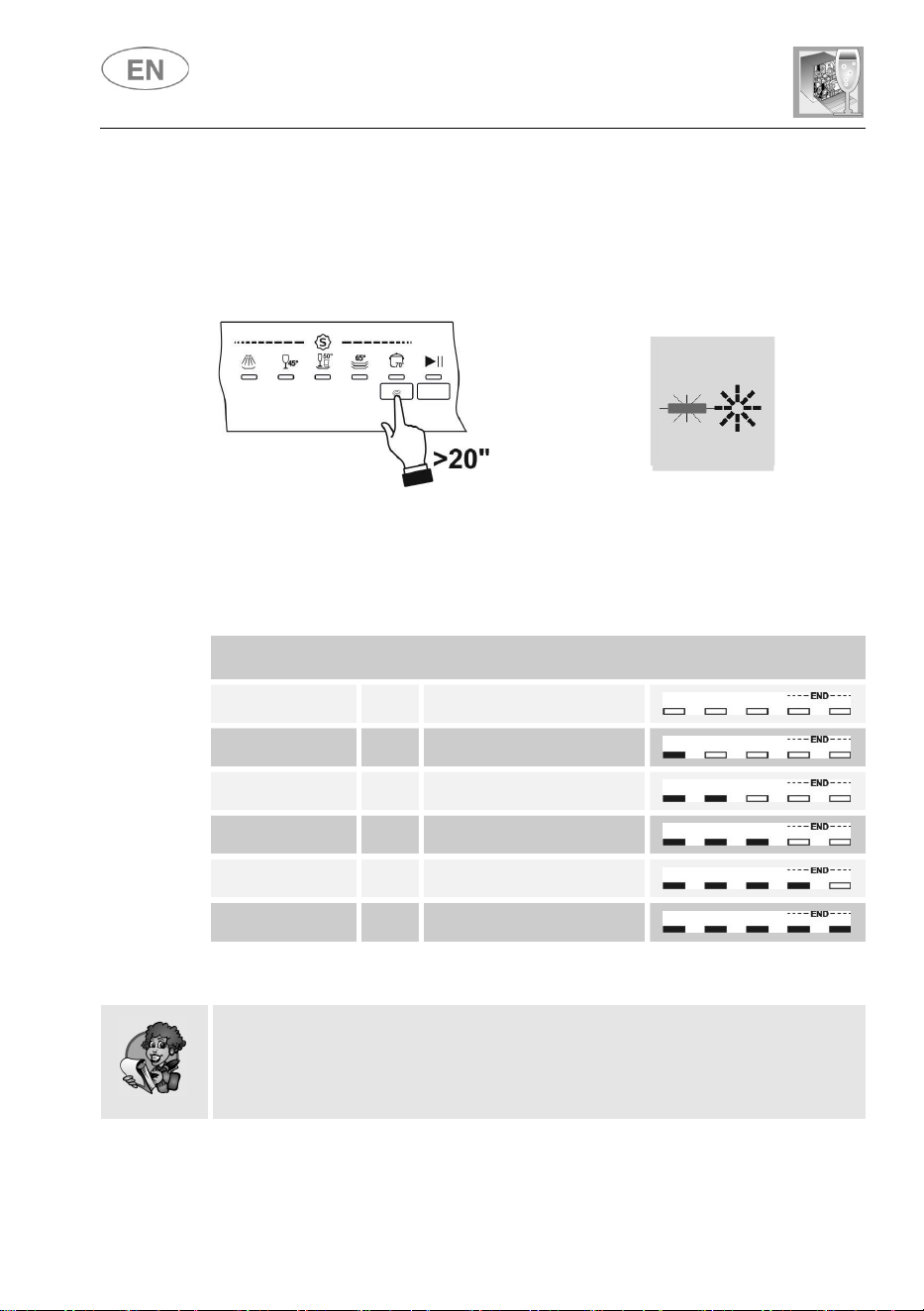

ADJUSTING THE RINSE AID DISPENSER MODE
Press and hold the PROGRAM SELECTION button (5), after about 20"
the RINSE AID DISPENSER MODE INDICATOR LIGHT (7) flashes and
the SELECTED PROGRAM LIGHTS (6) indicate the current setting.
Press several times to choose the desired dosage according to the
following table:
>
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
RINSE AID ADJUSTMENT TABLE
0 – not
dispensed
b0 All indicator lights off
Minimum. 2 ml b1 One indicator light on
3 ml b2 Two indicator lights on
4 ml b3 Three indicator lights on
5 ml b4 Four indicator lights on
Maximum. 6 ml b5 Five indicator lights on
Default settings:
b
4
–
5ml
The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
If, on the other hand, the dishes are sticky or have white streaks, it is
necessary to reduce the rinse aid setting.
User instructions
21

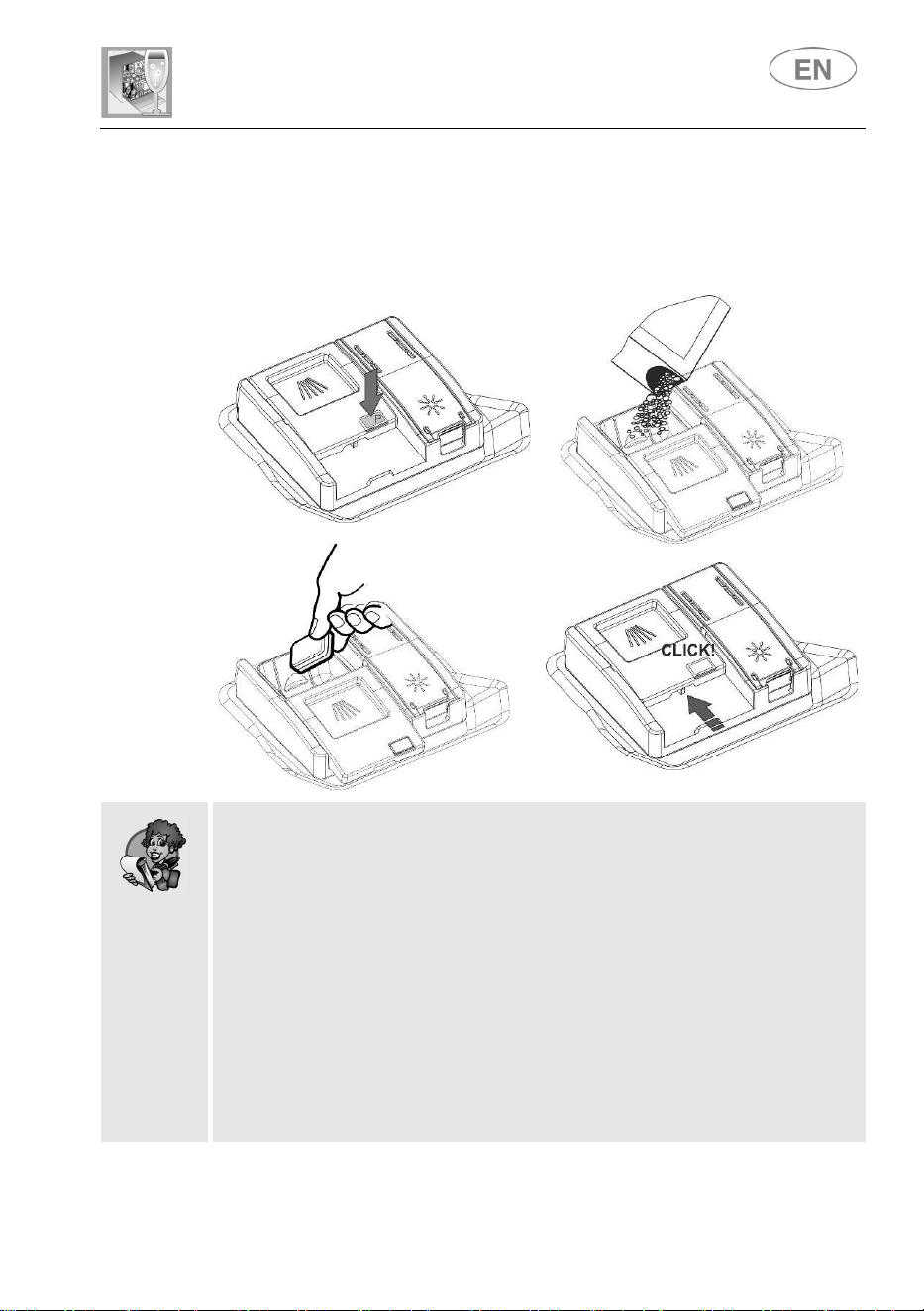

ADDING DETERGENT
To open the detergent dispenser cover, lightly press button P. Add the
detergent or tablet and close the cover by sliding it until it stops, indicated
by a click.
The dispenser will open automatically during the wash cycle.
Only add the detergent (also in tablet form) if the dispenser is dry
When a program with hot prewash is selected (see program table),
extra detergent must be placed in the cavity on the lid of the detergent
dispenser.
Use only detergents specially formulated for dishwashers. The
detergent packs must be sealed and stored in a dry place to prevent
the formation of lumps which may negatively affect washing results.
Once opened the detergent packs should not be kept for too long,
otherwise the detergent loses its effectiveness.
Do not use detergents for washing dishes by hand because they may
affect the operation of the dishwasher.
Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
User instructions
22
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
4.2 General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and their
loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
remove coarse food remains: e.g. bones, fish-bones, etc. which may
clog the filter or damage the wash pump.
soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the LOWER BASKET.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.
Correct loading of the dishes helps ensure optimal washing results.
User instructions
23
WARNING!
Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the washing
cycle.
Do not place very small objects in the baskets as these could fall and
obstruct the spray arms or the wash pump.
Containers such as cups, bowls, glasses and pots should always be
loaded with the opening facing downwards and with any cavities at
an angle, to allow the water to drain out.
Do not stack dishes or place them in such a way that they cover one
other.
Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the point
where they touch.
MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:
Wooden dishes, pots or pans: these may be damaged by the high
washing temperatures.
Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.
Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.
Dishes and objects in copper, tin, zinc or brass: these tend to
stain.
Aluminium dishes: items made from anodised aluminium may lose
their colour.
Silverware: silver items may stain.
Glass and crystal: in general, glass and crystal objects can be
washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many washes.
Therefore, for these items we recommend using the least aggressive
program available.
Decorated items: the decorated objects available on the market are
generally able to withstand washing in the dishwasher, although the
colours may fade after a great many washes. If in doubt as to the
fastness of the colours, it is advisable to wash just a few items at a
time for approximately one month.
User instructions
24

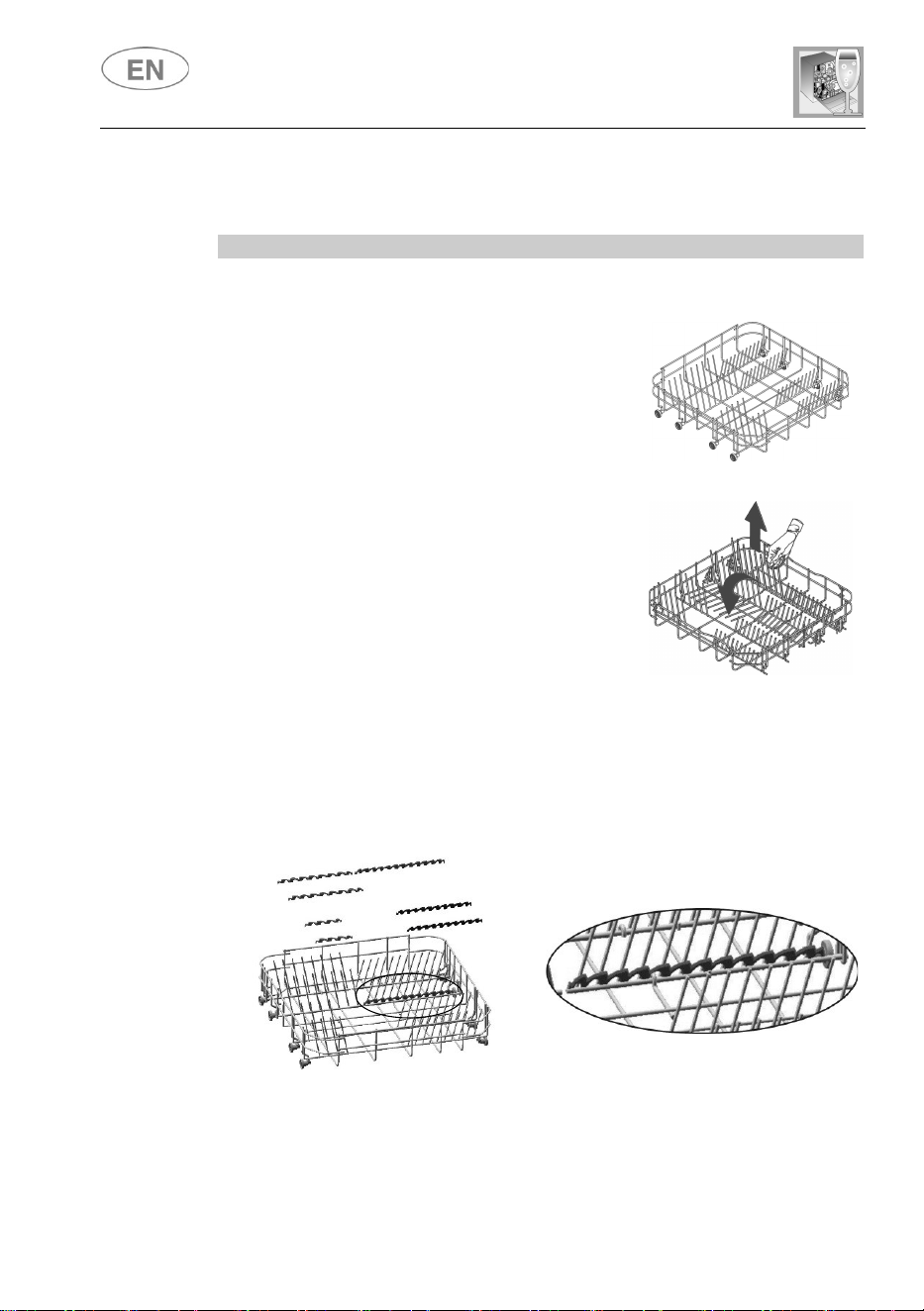

4.3 Using the baskets
The dishwasher has a capacity of 14 place-settings.
LOWER BASKET
The lower basket receives the full force of the lower spray arm, and should
therefore be used for the “toughest” items with a heavier degree of soiling.
All types and combinations of loads are
permitted, provided that the dishes, pots and
pans are arranged with all the soiled surfaces
exposed to the water jets coming from the
bottom.
With fixed
supports
To make the most of the space inside the
basket when loading large items, certain
models are equipped with fold down supports
for plates in 2 or 4 sections.
With
fold down
supports
BOTTOM BASKET INSERTS
Some models are equipped with bottom basket inserts which improve
the drying of dishes. The inserts are supplied in the accessories bag; to
use them, simply fit them into place as shown.
User instructions
25

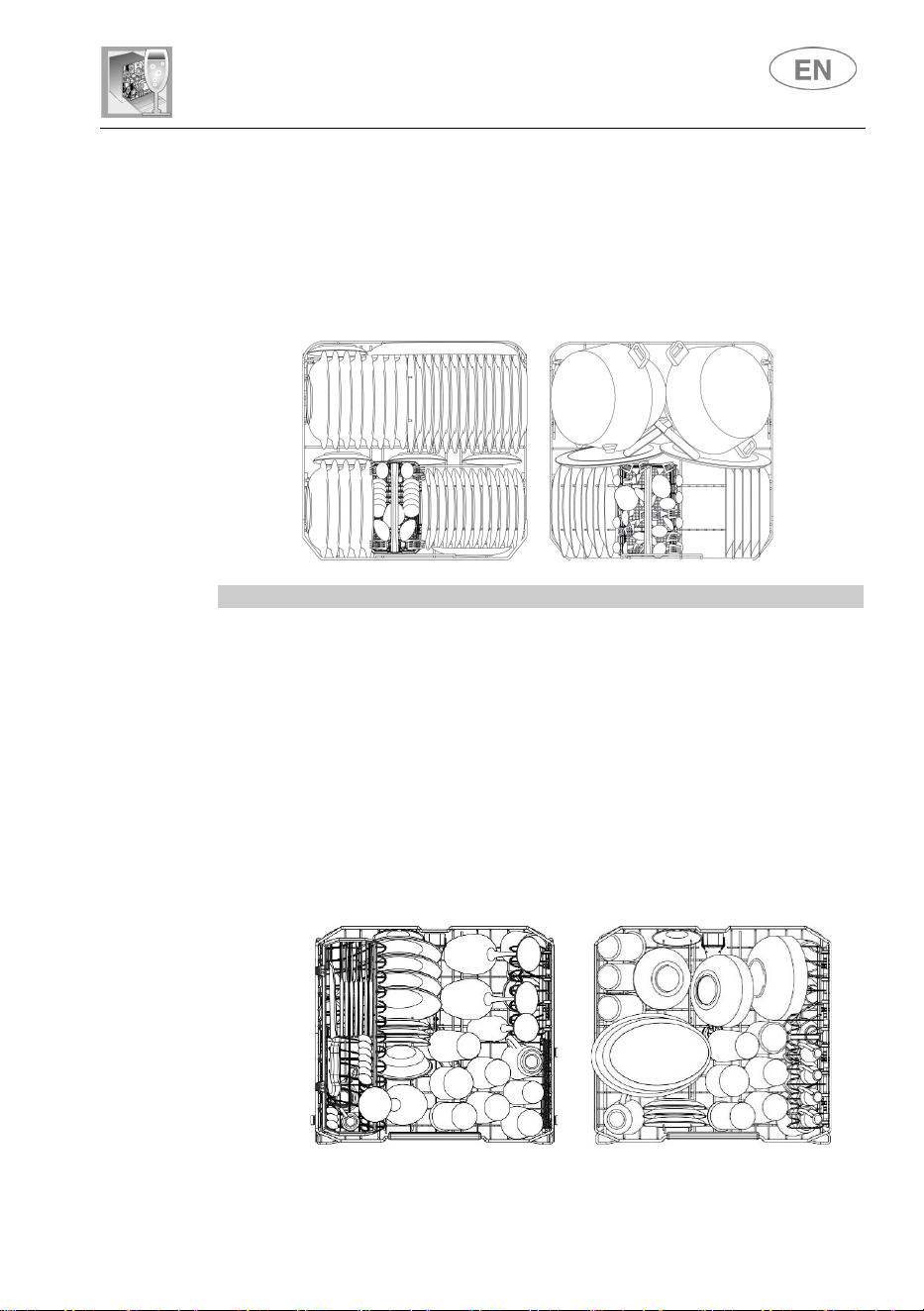

LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plates and dessert bowls, be sure to
leave a gap between them.
Loading examples:
UPPER BASKET
The upper basket should be loaded with small or medium-sized items
such as glasses, small plates and saucers, tea or coffee cups, shallow
bowls and light objects. If the upper basket is used in the lowest position,
it can also be loaded with serving dishes, provided they are only lightly
soiled.
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left side of the basket can be loaded with cups and
glasses on two levels. In the centre section, plates and saucers can be
loaded vertically into the supports provided.
Loading examples:
User instructions
26

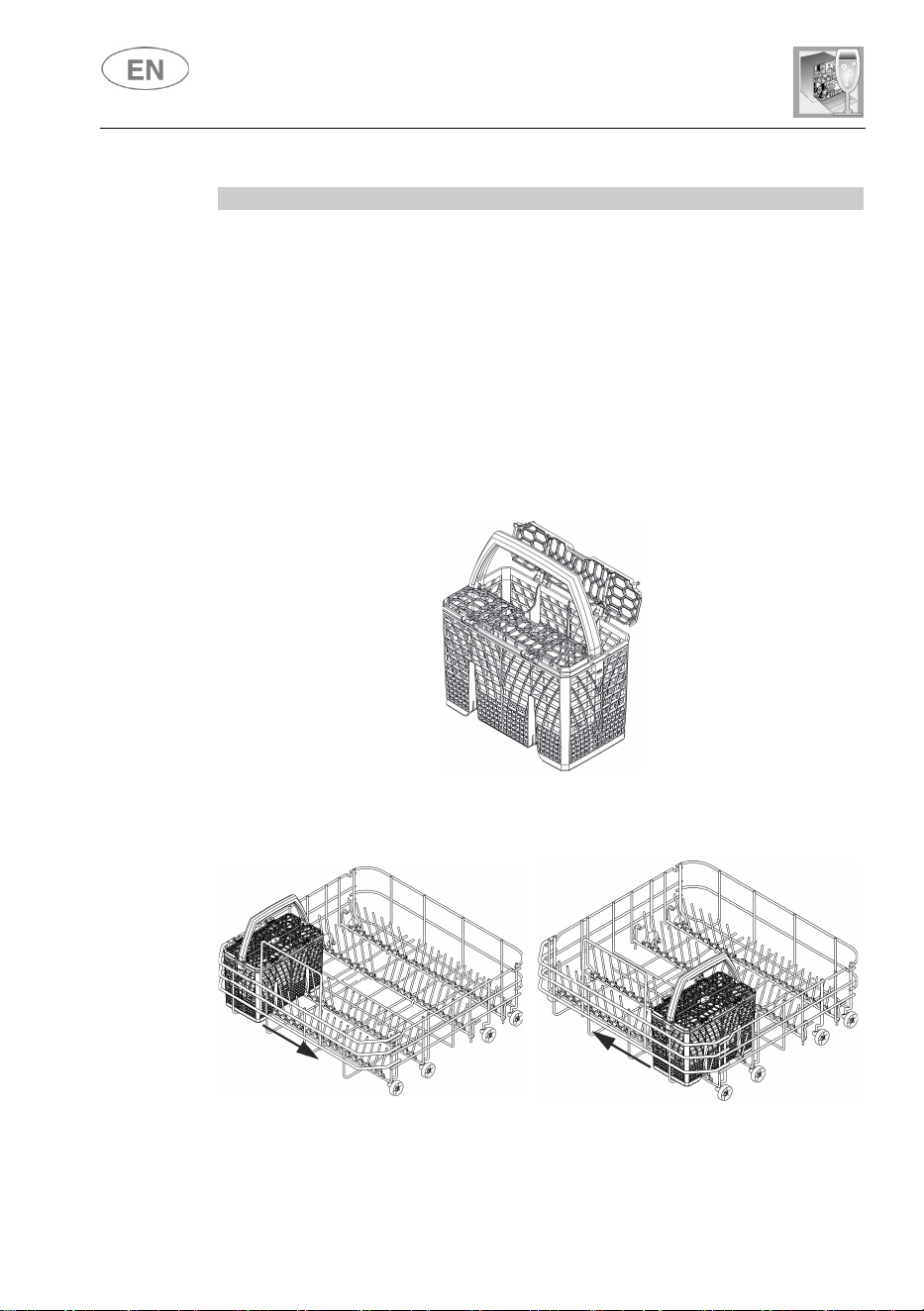

CUTLERY BASKET
The basket is suitable for all types of cutlery, except long items that may
interfere with the upper spray arm. The cutlery should be arranged in the
spaces in the upper racks to allow the water to pass effectively between
the items.
Forks and spoons should be positioned with the handle facing
downwards, taking care not to injure yourself with the prongs of the forks.
Knives should be placed in the tray on the upper rack or in the cutlery
drawer, if present (depending on the model), otherwise position them with
the handles facing upwards.
Ladles, wooden spoons and kitchen knives can be placed on the upper
rack, making sure that the blades of the knives do not protrude from
the basket. The upper racks can be opened in order to insert, for example,
small items.
The cutlery basket slides across the dishwasher and can be placed in
any position
to allow optimal use of the space in the bottom basket.
User instructions
27

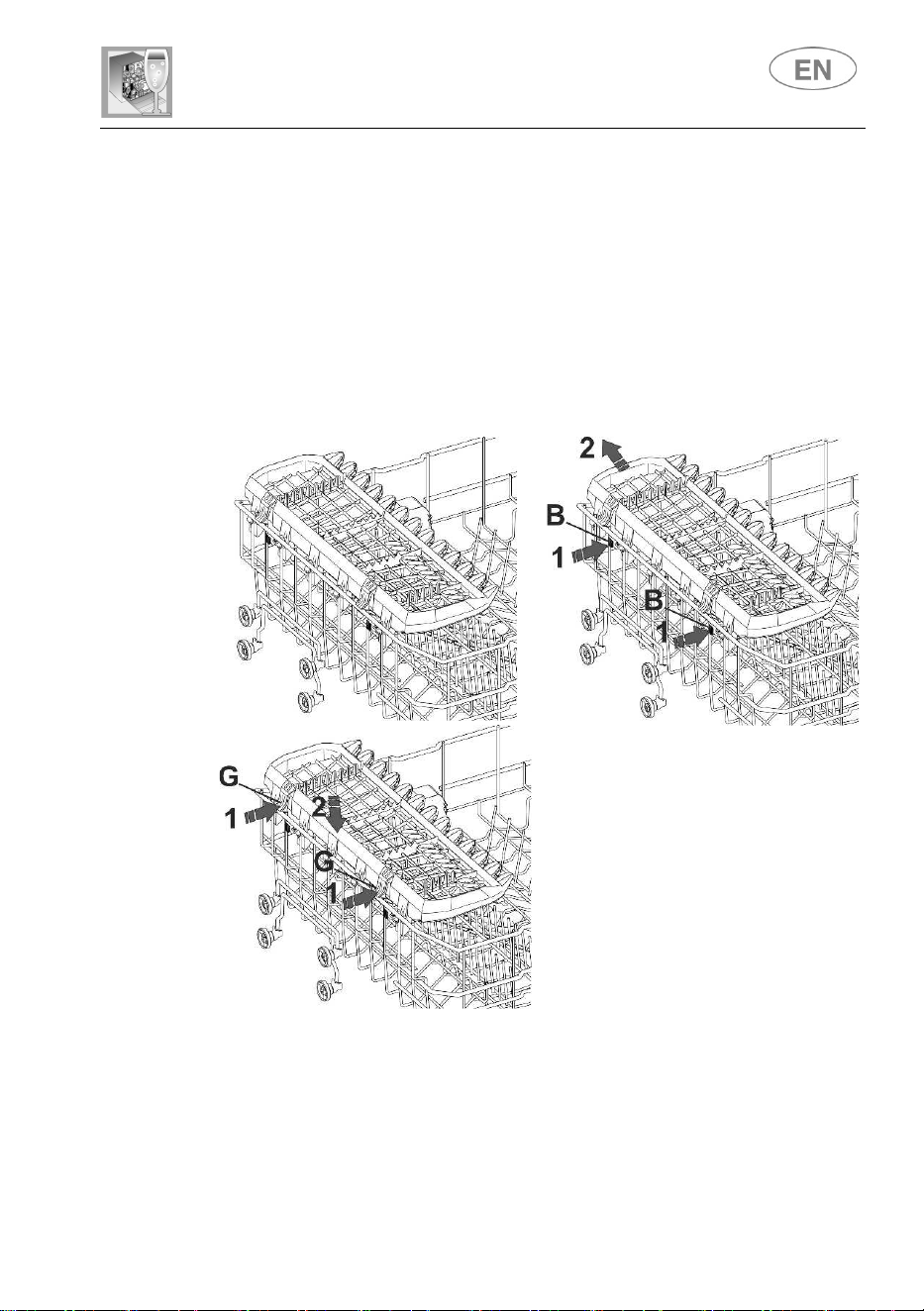

UPPER BASKET ACCESSORY
(depending on the model)
Cutlery tray
For knives, spoons (tea and
dessert) and long objects. The ends are
designed to hold long stemmed glasses.
- It can be removed by pressing and pushing the release levers (B)
at the
same time.
- It has to be lowered if the upper basket is in the
topmost position. Press the catches (G) simultaneously.
User instructions
28

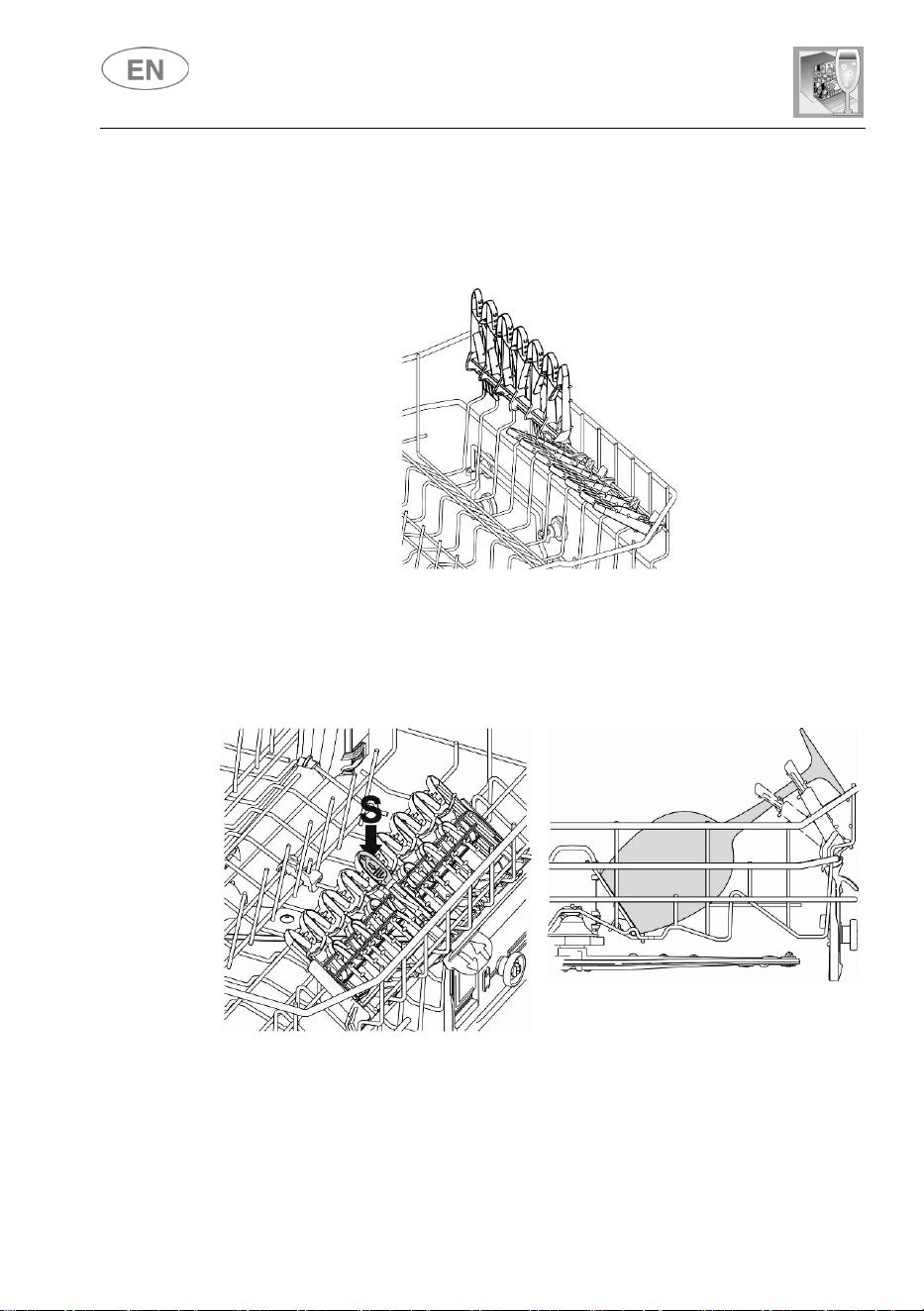

Fold-down shelves
For mugs, cups and long objects. The ends are designed to hold long
stemmed glasses
When not used they can be moved to a vertical position (until a click is
heard).
Shelves with expandable wings (depending on the model).
For small objects, mugs and cups.
They can be used either closed or open (pull the upper, sliding part). To
close them, press the release device (S) and slide them downwards.
The ends are designed to hold long stemmed glasses (even when closed).
When not used they can be moved to a vertical position (until a click is
heard).
User instructions
29

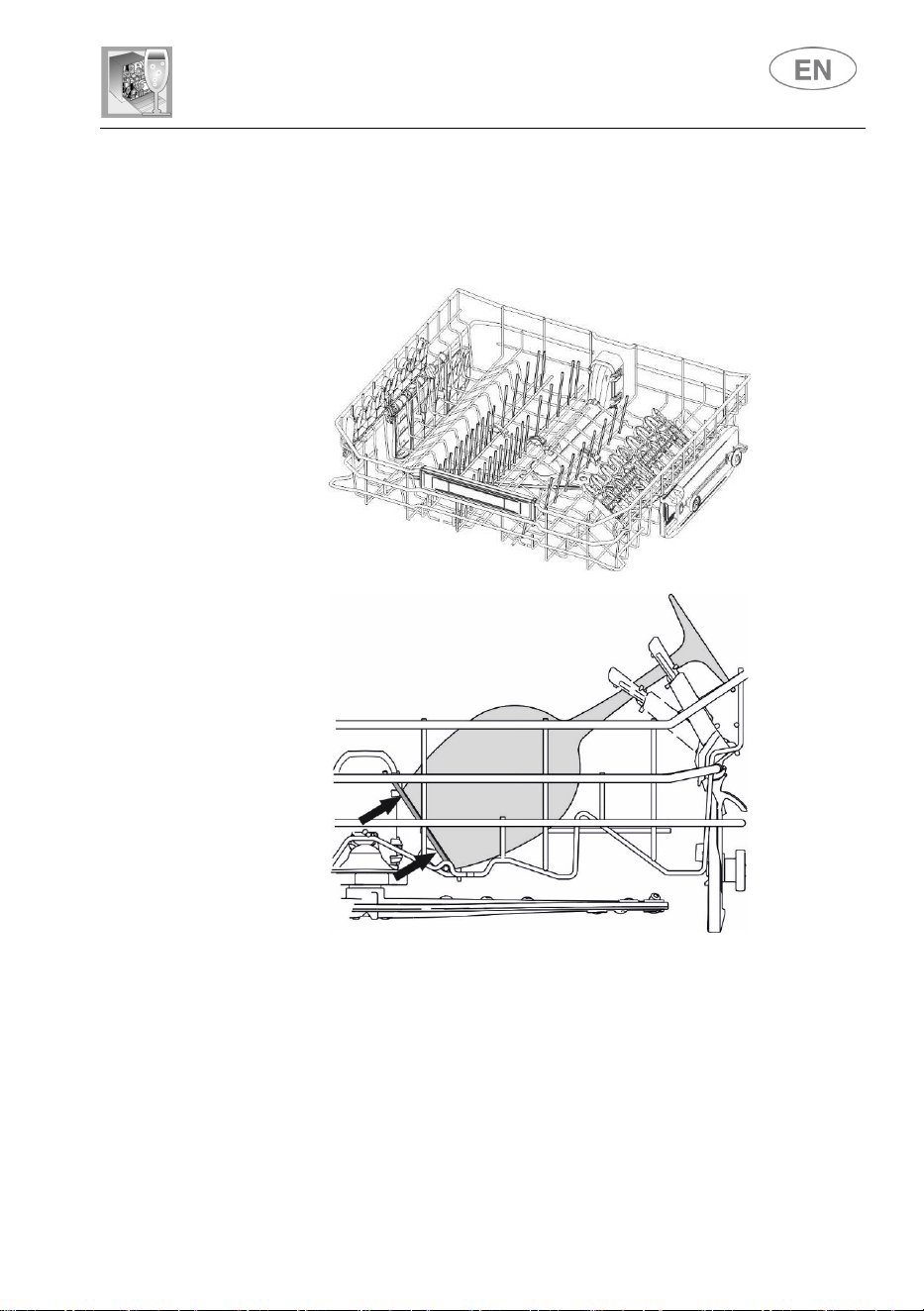

Fold-down tines (depending on the model).
These can be secured in a vertical position, resting on the
bottom of the
basket if unused, or placed in an intermediate position, as required.
The single tine on the right is ideal for supporting long stemmed glasses.
User instructions
30
ADJUSTING THE UPPER BASKET
The height of the top basket can be adjusted to allow large dishes or pans
to be placed in the bottom basket.
The sides of the basket must always be set at the same height.

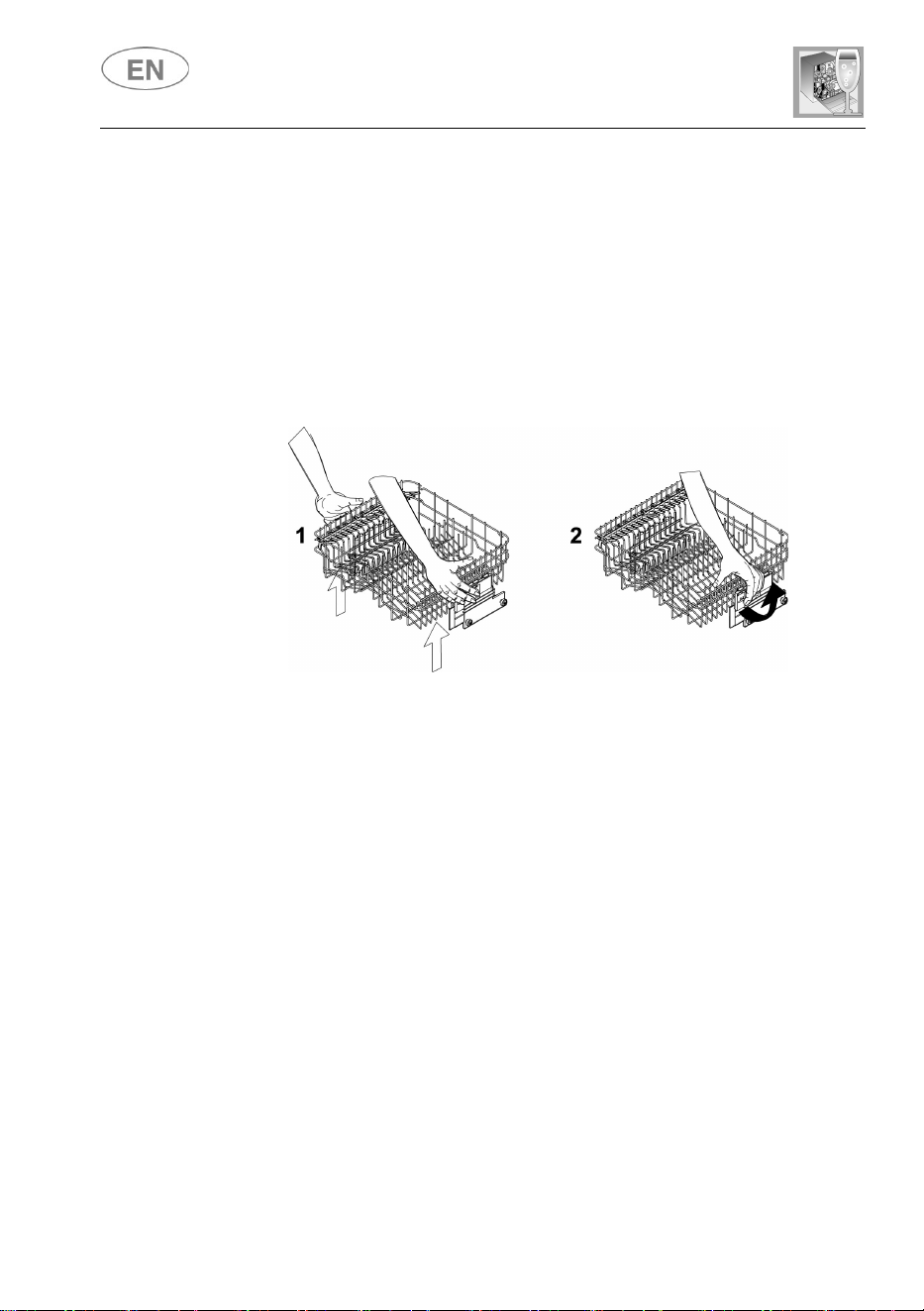

Raise the basket by pulling on the top edge (1), to the first or second
catch depending on the height required.
To lower the basket, first release it by pulling the release lever (2).
Adjustment is also possible with the basket loaded, but in this case when
lowering the basket it should be held steady with one hand to avoid
knocking the dishes.
User instructions
31
5. Cleaning and maintenance
Before carrying out any work, always unplug the appliance from the
electrical supply or switch off the all-pole disconnection device.
5.1 General warnings and recommendations
Avoid the use of acidic or abrasive detergents.
Clean the outer surfaces and door-lining of the dishwasher regularly using
a soft cloth moistened with water or with a normal detergent suitable for
painted surfaces. Clean the door gaskets with a damp sponge.
Periodically (once or twice a year) it is advisable to clean the tank and
gaskets, using a soft cloth and water to remove any deposits.
CLEANING THE WATER INTAKE FILTER
The water intake filter A located at the outlet of the water supply tap needs
to be cleaned periodically.
After having closed the water supply tap, unscrew the end of the water
intake hose, remove the filter A and clean it delicately under running
water. Reassemble filter A in its seat and carefully screw the water intake
hose back into position.

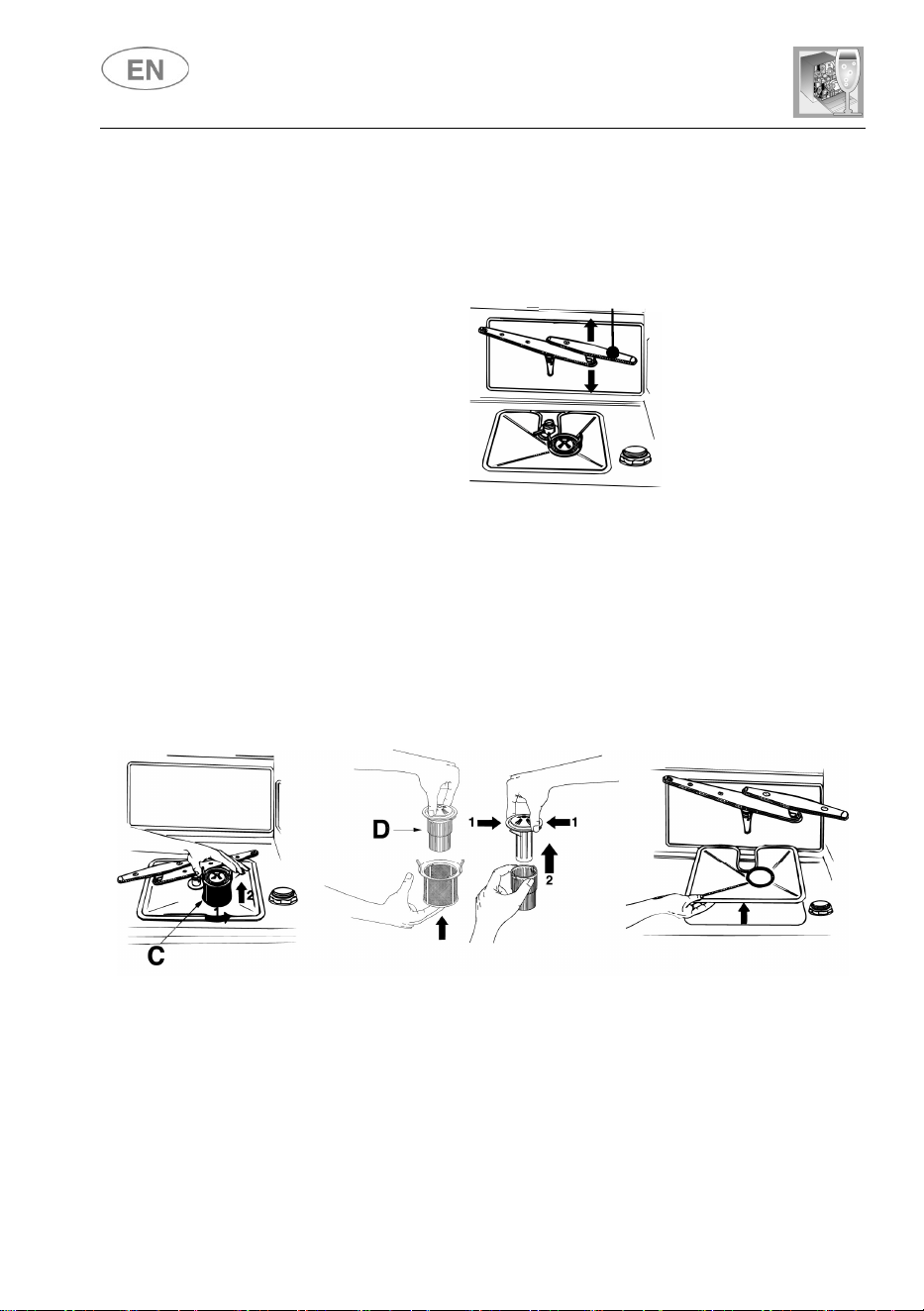

CLEANING THE SPRAY ARMS
The spray arms can be easily removed for periodic cleaning of the
nozzles, to prevent possible clogging. Wash them under running water
and carefully replace them in their seats, checking that their rotary
movement is in no way impeded.
To remove the upper spray arm, unscrew locking ring R.
User instructions
32
To remove the orbital spray arm assembly, take hold of the longer
arm and pull the orbital unit upward. Wash the arms under a jet of
running water and return them carefully to their seat. After
reassembly, check that the spray arms turn freely. Otherwise,
check that they have been installed correctly.
CLEANING THE FILTER UNIT
It is advisable to periodically inspect the centre filter C and, if
necessary, to clean it. To remove the filter, grip the tabs, turn them
anticlockwise and lift upwards;
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
ORBITAL
User instructions
33
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:
The filters should be cleaned under running water using a stiff
brush.
When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block hydraulic
components, or block the spray arm nozzles.
It is essential to thoroughly clean the filters according to the above
instructions: the dishwasher cannot function if the filters are clogged.
Carefully replace the filters in their seats, to avoid damaging the
wash pump.
PROLONGED DISUSE:
Run the soak program twice in succession.
Unplug the power cord from the socket.
Leave the door slightly open, in order to prevent the formation of
unpleasant odours inside the washing tank.
Fill the rinse aid dispenser.
Shut off the water supply tap.
User instructions
34
BEFORE STARTING THE DISHWASHER AFTER PROLONGED
DISUSE:
Check that there are no deposits of sludge or rust inside the water
pipe: if there are, allow the water to run from the water supply tap for
a few minutes.
Plug the power cord back into the socket.
Reconnect the water intake hose and open the tap again.
TROUBLESHOOTING MINOR PROBLEMS
In some cases it is possible to remedy minor problems by referring to the
following instructions:
If the program fails to start, check that:
the dishwasher is connected to the electrical power supply;
there is no power failure;
the water tap is open;
the dishwasher door is properly closed.
If water remains inside the dishwasher, check that:
the drain hose is not kinked;
the drain siphon is not obstructed;
the dishwasher filters are not clogged.
If the dishes are not being cleaned properly, check that:
the correct amount of detergent has been added;
the dishes are being loaded correctly;
the selected program is suitable for the dish types and their degree of
soiling;
all the filters are clean and positioned correctly;
the spray arm nozzles are not obstructed;
there is no object obstructing the rotation of the spray arms.
User instructions
35
If the dishes fail to dry or remain dull, check that:
there is rinse aid inside the rinse aid container;
the rinse aid dispenser setting is correct;
the detergent used is of good quality and has not lost its effectiveness
(for example, through incorrect storage, with the box left open).
Non-dry synthetic dishes.
Synthetic material has a lower heat storage capacity and is therefore
harder to dry.
If the dishes show signs of streaking, staining, etc., check that:
the rinse aid dispenser setting is not too high.
If there are visible traces of rust inside the tank:
the tank is made of steel, and therefore any rust marks are due to
external elements (fragments of rust from the water pipes, pots,
cutlery, etc.). Special products are commercially available to remove
such marks;
check that the amount of detergent being used is correct. Certain
detergents can be more corrosive than others.
User instructions
36
Only for models with this lock version.

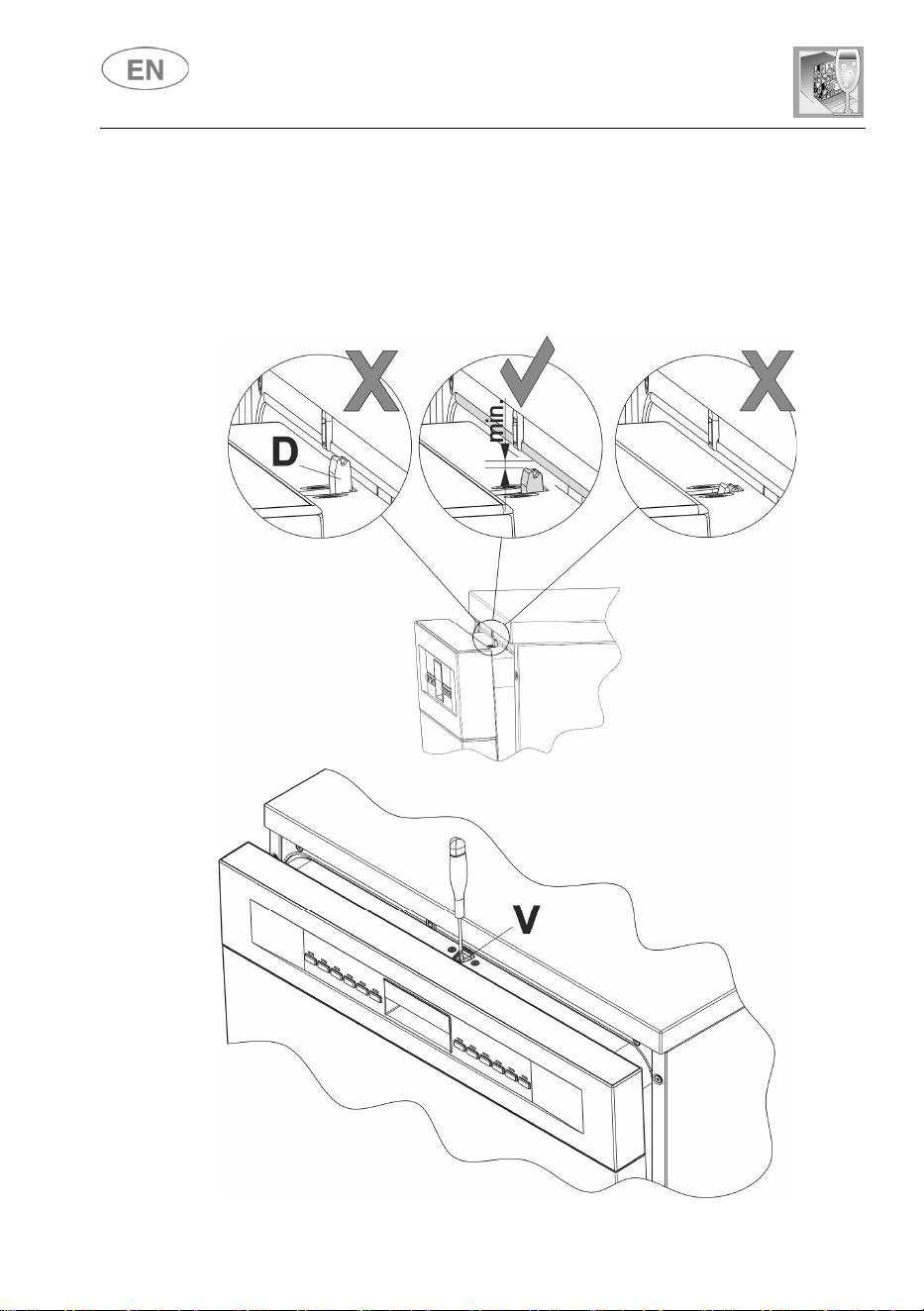

If the door does not close:
1 - Check the position of the door lock catch (D)
2 - If necessary, raise it by adjusting the plastic screw (V) next to the
catch.

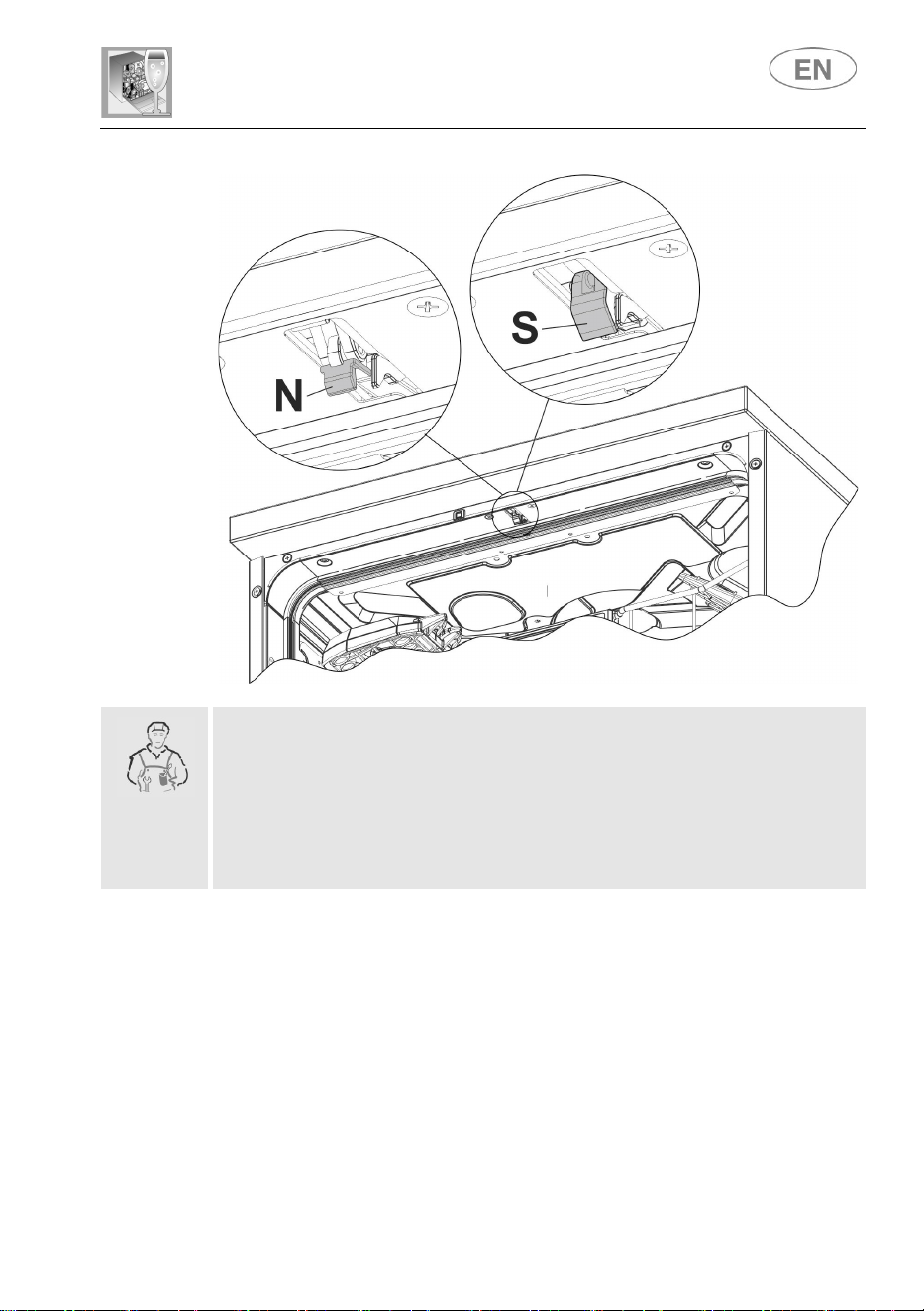

3 - Check the condition of the lock hook; if it has not triggered (reference
N), the door opens and closes normally. If it has triggered (reference S),
close the door with force until it resets; open and close the door.
User instructions
37
If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.
WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and shall be
paid for by the user.
User instructions
38
6. Troubleshooting

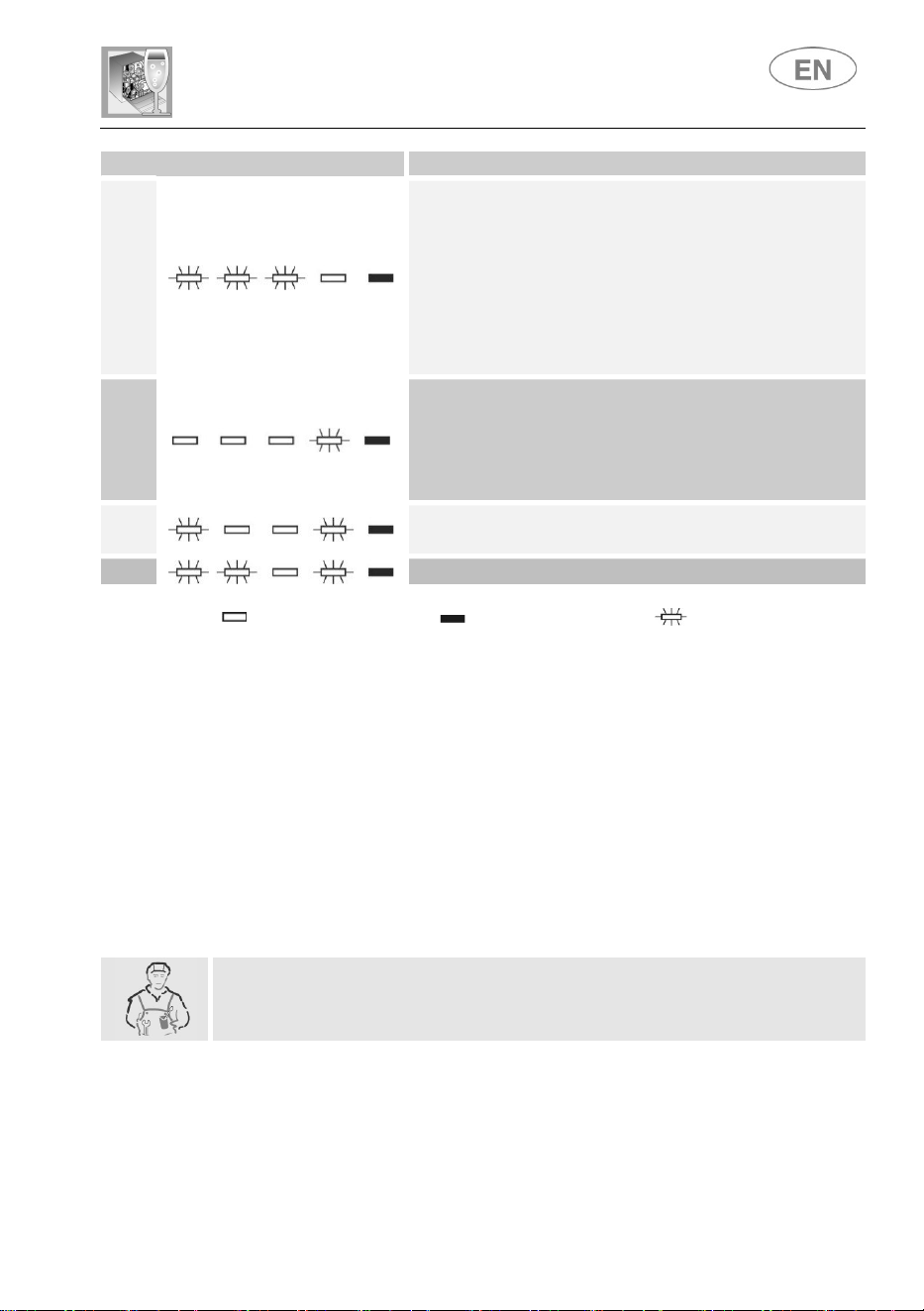

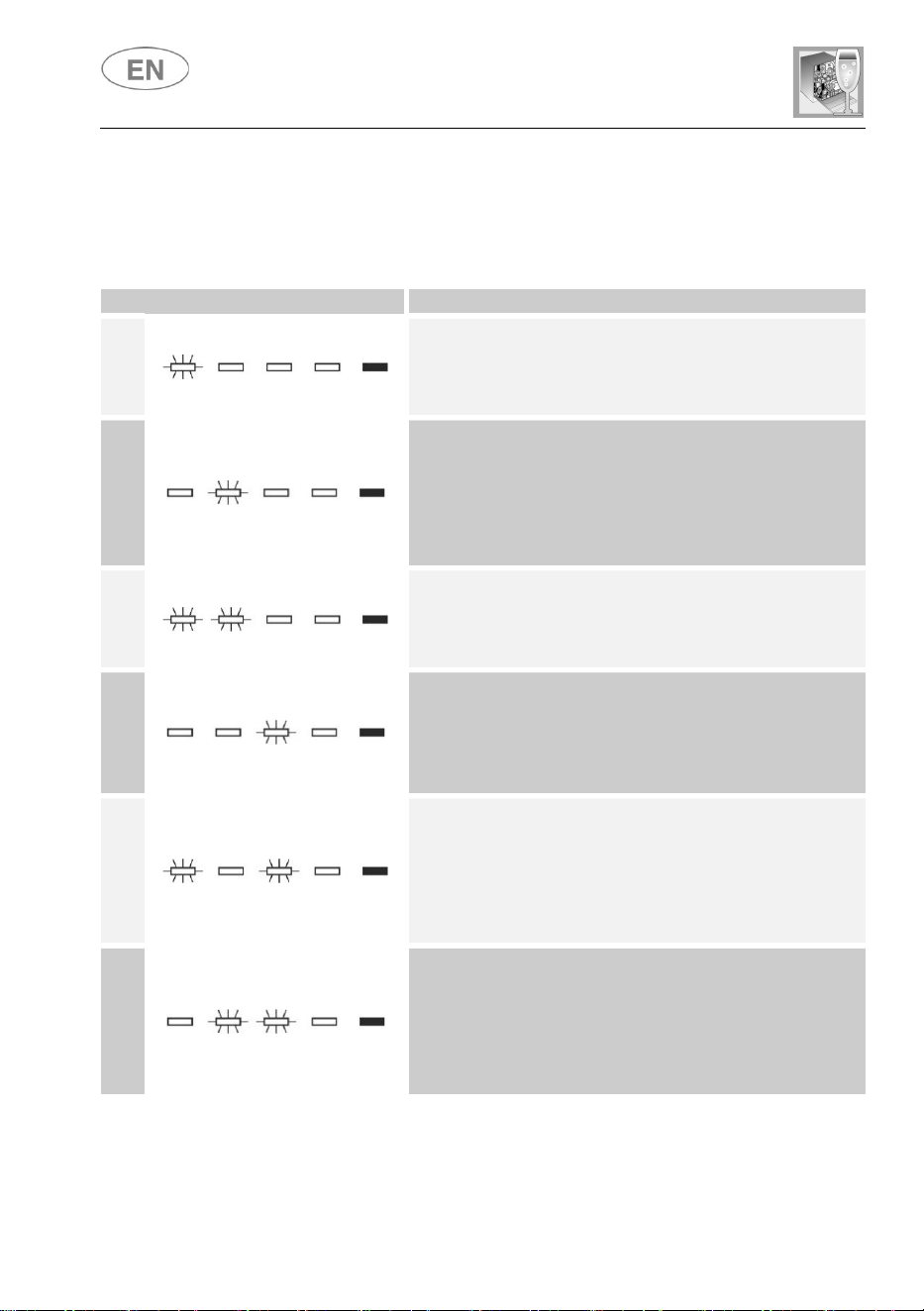

The dishwasher is capable of signalling a number of faults through the
simultaneous illumination of several indicator lights, with the following
meanings:
FAULT
DESCRIPTION
E1
Acquastop failure
The anti-flooding system has been activated (for the
relevant models only). The system is tripped in case of
water leaks. Contact the after-sales service.
E2
Safety level
The system which limits the water level inside the
dishwasher has been tripped. Interrupt the program
and switch off the dishwasher. Switch the dishwasher
back on, program it again and start the washing cycle.
If the problem persists, contact the after-sales service.
E3
Water heating malfunction
The water is not heated or the heating parameters are
not correct. Repeat the washing program; if the
problem persists, contact the after-sales service.
E4
Water temperature monitoring malfunction
Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists, contact
the after-sales service.
E5
Water intake malfunction
The appliance does not take in water or does not do
so correctly. Check that the water connections are
correct, the water intake tap is turned on and the filter
is not blocked. If the problem persists, contact the
after-sales service.
E6
Water pump-out malfunction
The appliance does not pump out the water or does
not do so correctly. Check that the drain hose is not
kinked or crushed and that the siphon and filter are not
blocked. If the problem persists, contact the after-
sales service.
User instructions
39
FAULT
DESCRIPTION
E7
Turbine flow-regulator malfunction
(for the relevant models only)
The appliance is not able to "measure" the amount
of water loaded accurately. Interrupt the program
and switch off the dishwasher. Switch the
dishwasher back on, program it again and start the
washing cycle. If the problem persists, contact the
after-sales service.
E8
Alternate washing system malfunction
Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists, contact
the after-sales service.
E9
Water intake system malfunction
Contact the after-sales service.
E11
Wash motor pump does not work
Light off
Light on
Light flashing
If an alarm occurs the appliance interrupts the program in progress and signals
a fault.
Alarms E1, E2, E3, E4, E8 and E9 interrupt the current program
immediately.
The E5, E6 alarms interrupts the running program, once the cause is
resolved, the program will continue to run.
The alarm E7 is shown at the end of the cycle however, the dishwasher
has completed the cycle without causing any damage to the machine.
Alarm E11: Contact your authorised Service Centre
To “reset” an alarm is necessary:
Open and close the door, or turn off and on the machine. At this point it is
possible to program the dishwasher again.
If the malfunction persists, contact your authorised Service Centre.
