Tripp Lite B064C-16-1-IP 16-Port Cat5 KVM over IP Switch User Manual

Owner’s Manual

PRODUCT REGISTRATION

chance to win an ISOBAR

surge

protector in our monthly drawing!

Tripplite.Eaton.com/warranty

Este manual está disponible en español en la página de Eaton:

Tripplite.Eaton.com/support

Ce manuel est disponible en français sur le site Web de Eaton :

Tripplite.Eaton.com/support

Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar:

Tripplite.Eaton.com/support

Questo manuale è disponibile in italiano sul sito web di Eaton:

Tripplite.Eaton.com/support

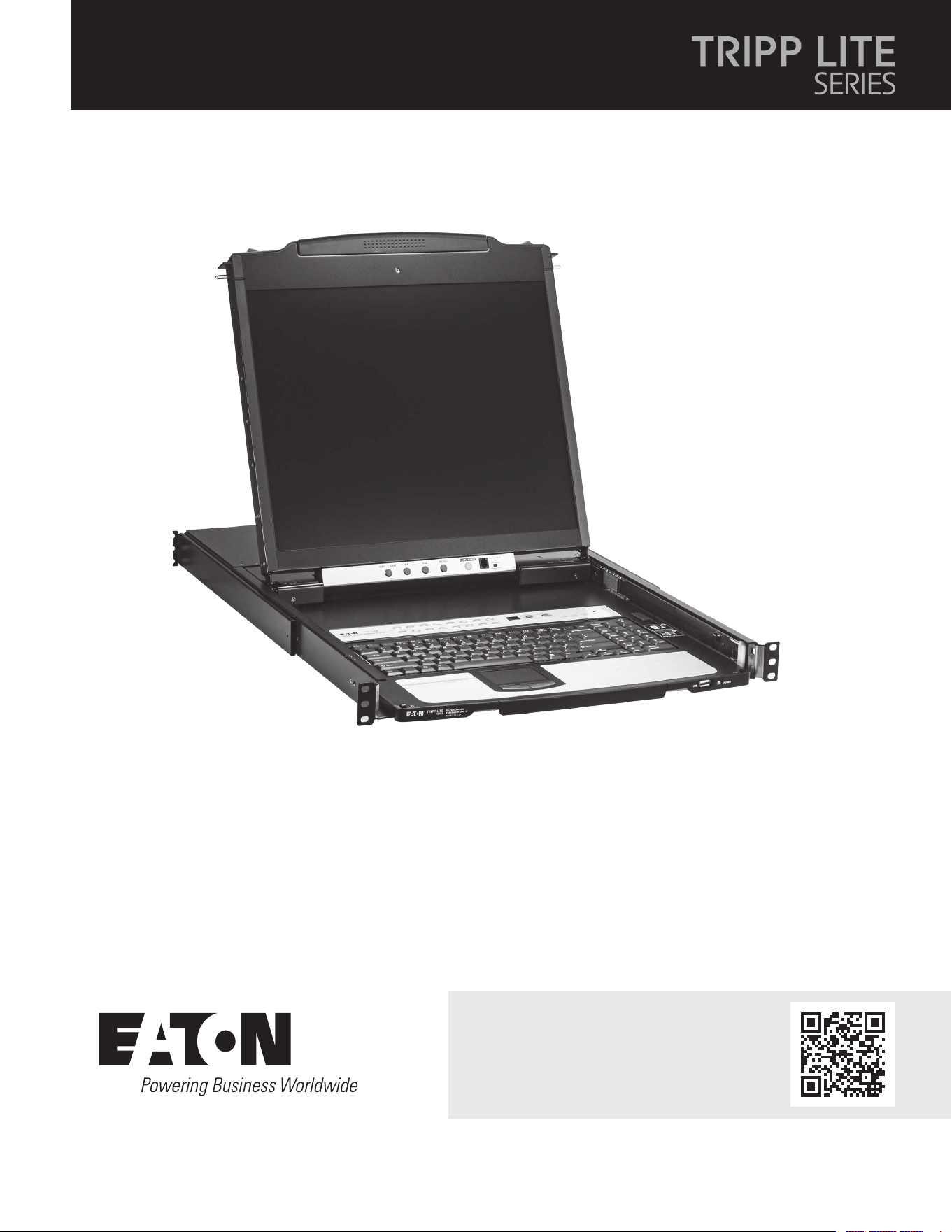

Purchased product

may differ from image.

Model:

B064C-16-1-IP

NetDirector

16-Port Cat5 KVM

over IP Switch

Table of Contents

1. FCC Information 4

2. User Notice 4

3. Package Contents 4

4. Introduction 5

4.1 Overview 5

4.2 Features 6

4.3 Requirements 7

4.3.1 General 7

4.3.2 External Console 7

4.3.3 Computers 7

4.3.4 KVM Adapter Cables 7

4.3.5 Adapter Cable Resolutions 8

4.3.6 Operating Systems 8

4.4 Components 9

4.4.1 Front View 9

4.4.2 Keyboard Module 10

4.4.3 LCD Module 11

4.4.4 Rear View 12

5. Installation 13

5.1 General Safety Instructions 13

5.2 Standard Rack Mounting 15

5.3 Front-L Brackets Mounting 16

5.4 Single-Stage Installation 18

5.5 KVM Adapter Cable Installation 19

5.6 Daisy Chaining 21

6. KVM Operation 22

6.1 Basic Operation 22

6.1.1 Opening the Console 22

6.1.2 Closing the Console 25

6.2 LCD OSD Configuration 27

6.2.1 LCD Buttons 27

6.2.2 Adjustment Settings 27

6.3 Port Selection 28

6.4 Hot Plugging 28

6.4.1 Hot Plugging Console Ports 28

6.5 Powering Off and Restarting 29

6.6 Port ID Numbering 29

7. Administration 30

7.1 IP Address Determination 30

7.1.1 IPv6 31

7.1.2 Trusted Certificates 32

7.1.3 Self-Signed Private Certificates 33

7.2 OSD Operation 34

7.2.1 OSD Overview 34

7.2.2 OSD Main Screen 34

7.2.3 OSD Navigation 35

7.2.4 OSD Main Screen Headings 35

7.2.5 OSD Functions 35

7.3 Hotkey Operation 41

7.3.1 Hotkey Port Control 41

7.3.2 Invoking Hotkey Mode 41

7.3.3 Selecting the Active Port 42

7.3.4 Auto Scan Mode Switching 42

7.3.5 Skip Mode Switching 43

7.3.6 Computer Keyboard / Mouse Reset 43

7.3.7 Setting the Hotkey Beeper ON / OFF 43

7.3.8 Setting the Hotkey Key-Combination 44

7.3.9 Setting the OSD Hotkey Combination 44

7.3.10 Setting the Port Operating System 44

7.3.11 Restore the Default Values 44

7.3.12 Hotkey Summary Table 45

7.4 Keyboard Emulation 46

7.4.1 Mac Keyboard 46

7.4.2 Sun Keyboard 47

7.5 Logging In 48

7.5.1 Local Login 48

7.5.2 Browser Login 48

7.5.3 Windows Client AP Login 49

7.5.4 Java Client AP Login 51

7.6 User Interface 53

7.6.1 Web Browser Main Page 53

7.6.2 AP GUI Main Page 55

7.6.3 Control Panel 56

Table of Contents

7.7 Port Access 75

7.7.1 Sidebar 76

7.7.2 Filter 78

7.7.3 Connections 79

7.7.4 Favorites 80

7.7.5 User Preferences 81

7.7.6 Sessions 82

7.7.7 Access 83

7.7.8 Port Configuration 84

7.7.9 Associated Link 85

7.7.10 Occupy Timeout 85

7.8 User Management 86

7.8.1 Users 87

7.8.2 Device Assignment 90

7.9 Device Management 91

7.9.1 KVM Devices 91

7.9.2 Operating Mode 92

7.9.3 Network 93

7.9.4 ANMS 95

7.9.5 Security 98

7.9.6 Date/Time 104

7.10 Log 105

7.10.1 Log Information 106

7.11 Maintenance 107

7.11.1 Device IP Card Firmware Upgrade 108

7.11.2 Mainboard and KVM Adapter 108

Cable Firmware Upgrade

7.11.3 Recovering from Failed Firmware 110

Upgrade

7.11.4 Backup/Restore 111

7.11.5 Ping Host 112

7.11.6 System Operation 113

7.12 Download 113

7.13 Port Operation 114

7.13.1 Connecting to a Port 114

7.13.2 Port Toolbar 115

7.13.3 Panel Array Mode 117

7.13.4 Multiuser Operation 118

7.14 Log Server 119

7.14.1 Log Server Installation 119

7.14.2 Log Server Start Up 120

7.14.3 The Log Server Main Screen 123

8. Troubleshooting 125

8.1 Administration 125

8.2 General Operation 125

8.3 Windows Client 126

8.4 Java Client 127

8.5 Log Server 127

8.6 Panel Array Mode 127

8.7 Sun Systems 128

8.8 Screen Resolutions Higher than 128

1280 x 1024

8.9 Additional Mouse Synchronization 129

Procedures

8.9.1 Windows 129

8.9.2 Sun / Linux 130

8.10 Clear Login Information 131

8.11 OSD Factory Default Settings 132

9. Specications 133

10. Warranty 135

1. FCC Information

2. User Notice

3. Package Contents

This is an FCC Class A product. This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own

expense. The user must use shielded cables and connectors with this equipment. Any changes or modifications to this equipment not

expressly approved by Eaton could void the user’s authority to operate this equipment.

All information, documentation, and specifications contained in this manual are subject to change without prior

notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or

implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for

any particular purpose. Any of the manufacturer’s software described in this manual is sold or licensed “as is.” Should

the programs prove defective following their purchase, the buyer (and not the manufacturer, its distributor, or its

dealer), assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting

from any defect in the software.

The manufacturer of this system is not responsible for any radio and/or TV interference caused by unauthorized

modifications to this device. It is the responsibility of the user to correct such interference.

The manufacturer is not responsible for any damage incurred in the operation of this system if the correct operational

voltage setting was not selected prior to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS CORRECT BEFORE

USE.

This package consists of:

• B064C-16-1-IP NetDirector

16-Port Cat5 KVM over IP Switch

• Power Cord

• Standard Rack-Mount Kit

• Firmware Upgrade Cable

• User Documentation

4. Introduction

4.1 Overview

The B064C-16-1-IP NetDirector Dual-Rail LCD KVM Switch is a control unit that allows secure access and control of up to

16 computers from a single KVM (keyboard, video, and mouse) console. A single unit can control up to 16 computers. It

consists of an integrated LED-backlit LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding

housing.

The B064C-16-1-IP features IP-based connectivity that allows one local operator and multiple remote operators to

concurrently monitor and access the computers on your installation. It uses TCP/IP for its communications protocol,

allowing it to be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down

the hall, down the street, or halfway around the world.

By daisy-chaining up to 15 additional switches, as many as 256 computers can be controlled from the original KVM

console. An auto-sensing function recognizes the position of each station on the chain, eliminating the need to manually

set the position, and a two digit seven-segment LED display on the keyboard module that shows each station’s position

for easy identification.

Compact, high-density, RJ45 connectors and CAT 5e/6 cable make for a compact, efficient, wiring configuration, while the

use of PS/2 and USB KVM Adapter Cables to link to the computers, permits any combination of Windows, Macs, Sun

computers, and serial devices to coexist on the installation.

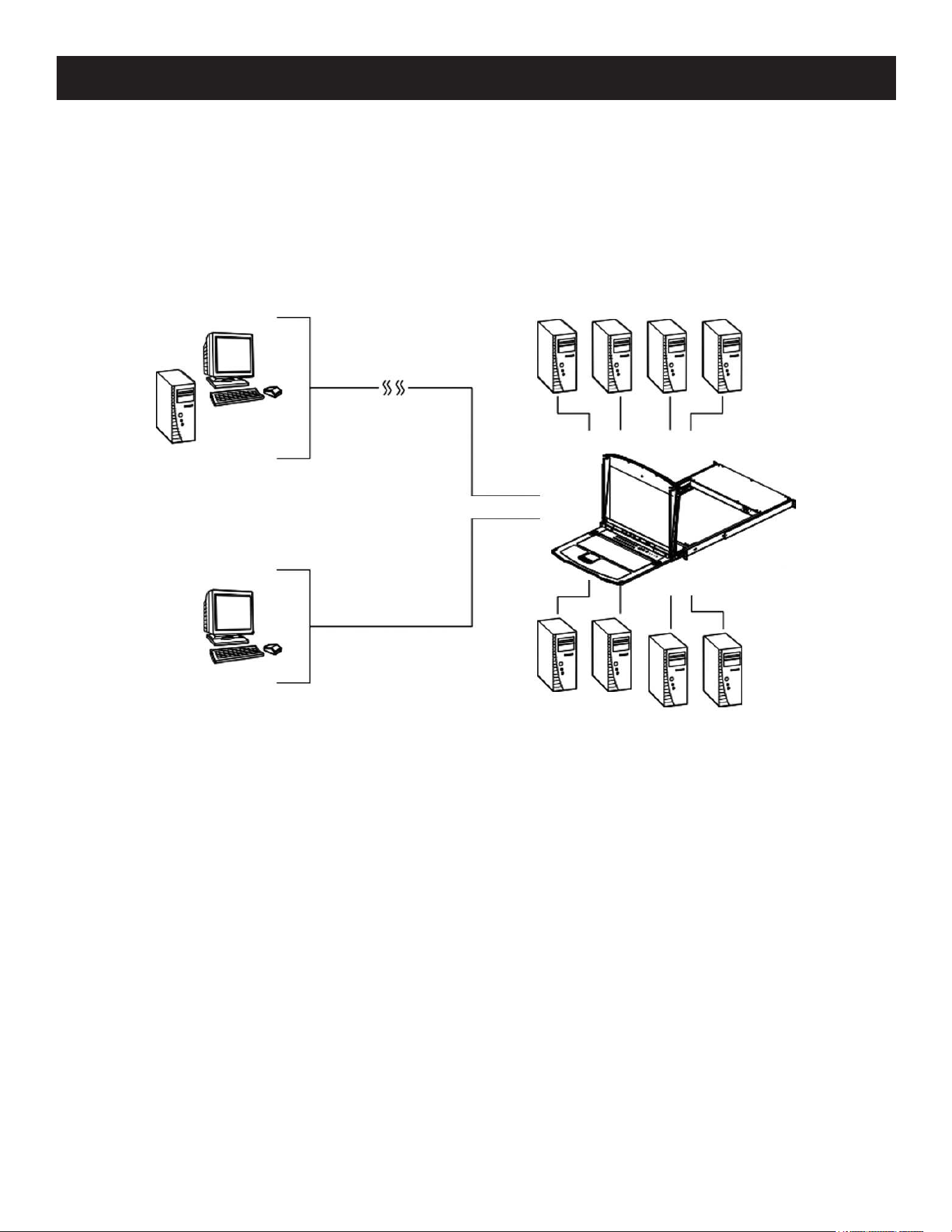

Remote user

External local console

4. Introduction

4.2 Features

Hardware

• Integrated KVM console with LED-backlit LCD monitor in a dual-rail housing.

• A single console controls up to 16 computers.

• Daisy-chain up to 15 additional B022-U08 KVM switches to control up to 256 computers.

• One bus for remote KVM over IP access.

• Space-saving RJ45 connectors and Cat 5e/6 cabling.

• KVM adapter cables designed with auto conversion to allow interface combinations (PS/2, USB, Sun and serial) to

control all computer types.

• Superior Video Quality - supports input video resolutions up to 1920 x 1080 @ 60 Hz up to 98 ft. (30 m), 1600 x 1200

@ 60 Hz up to 131 ft. (40 m), 1280 x 1024 @ 75 Hz up to 164 ft. (50 m) and 1920 x 1200 @ 60 Hz up to 164 ft. (50 m).

• Extra console ports manage computers on the LCD KVM switch from an external console (monitor, USB or PS/2

keyboard, and USB or PS/2 mouse).

• Multiplatform support: PC, Mac, Sun and serial.

• Supports an external USB mouse.

• Dual-rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space.

• Dual-rail LCD monitor slides independently of the keyboard/touchpad.

• LCD module rotates up to 120 degrees for a comfortable viewing angle.

Management

• Supports 64 user accounts - up to 32 users can be logged in at the same time for control and management.

• End session feature - administrators can terminate any running session.

• Adapter ID stores port information allowing administrators to relocate servers to different ports without having to

reconfigure the adapters and switch.

• Port Share Mode allows multiple users to gain access to a server simultaneously.

• Event logging and Windows-based Log Server support.

• Local Log Event.

• Firmware upgradeable.

• IPv6 capable.

Easy-to-Use Interface

• Easy computer selection via pushbuttons, Hotkey Mode, OSD (On-Screen Display) and Browser-based GUI.

• Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and

increase productivity.

• Multi-platform client support (Windows, Mac OS X, Linux, Sun).

• Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Netscape.

• Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for

Java to be pre-installed.

• Panel Array Mode.

• Keyboard broadcast - keyboard input can be duplicated on all the attached servers.

• Keyboard Language support: English (US), English (UK), German, German (Swiss), French, Spanish, Traditional Chinese,

Japanese, Korean, Swedish, Italian, Russian, Hungarian and Greek.

4. Introduction

Advanced Security

• Remote authentication support: RADIUS, LDAP, LDAPS and MS Active Directory.

• Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure user log in from a browser.

• Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for

independent keyboard/mouse and video data encryption.

• IP/MAC Filter support for enhanced security protection.

• Configurable user and group permissions for server access and control.

Virtual Remote Desktop

• Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting,

threshold and noise settings for compression of the data bandwidth in low bandwidth situations.

• Full-screen or sizable and scalable Virtual Remote Desktop.

• Message board feature allows logged-in users to communicate.

• Automatically synchronizes the local and remote mouse movements.

• On-screen keyboard with multi language support.

• BIOS-level access.

4.3 Requirements

4.3.1 General

• Computers with at least a P 4 2 GHz processor and 1 GB RAM.

• Browsers must support TLS 1.2 encryption.

• Network transfer speed of at least 512 kbps is recommended.

• For the Log Server, Microsoft Jet OLEDB 4.0 or higher driver installed.

4.3.2 External Console

• VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the

installation.

• USB or PS/2 style mouse.

• USB or PS/2 style keyboard.

4.3.3 Computers

• VGA, SVGA or Multisync port.

• USB Type-A port and USB host controller (for USB KVM Adapter Cable Connection).

• 6-pin mini-DIN keyboard and mouse ports (for PS/2 KVM Adapter Cable Connection).

Note:

• The integrated LCD monitor’s maximum screen resolution is 1280 x 1024 @ 75 Hz. To use a higher setting for the screen resolutions of

the attached computers, refer to 8.8 Screen Resolutions Higher than 1280 x 1024.

4.3.4 KVM Adapter Cables

• Cat 5e/6 cable is required to connect the B064C-16-1-IP to one of the KVM adapters.

4. Introduction

4.3.5 Adapter Cable Resolutions

The table below provides the maximum resolutions available for each KVM adapter.

Model No. Computer Ports Video Resolution

B055 Series

B055-001-PS2 2 x PS/2, 1 x HDB-15 1600 x 1200

B055-001-UDV 2 x USB Type A, 1 x DVI-D

1920 x 1080 (30 m)

B055-001-UHD 2 x USB Type A, 1 x HDMI

B055-001-UDP 2 x USB Type A, 1 x DisplayPort

B055-001-USB 1 x USB Type A, 1 x HDB-15

B055-001-C 1 x USB-C 1920 x 1200 (50 m)

4.3.6 Operating Systems

Supported operating systems are shown in the table below:

OS Version

Windows NT

, Server 2003, Server 2008, 2000 or later

Linux

RedHat 9.0, Fedora or later, RHEL AS 4, RHEL 5

SuSE 10 or later, OpenSUSE 10.2; SLES 10 SP1

Debian 3.1, 4.0

Ubuntu 7.04, 7.10

UNIX

IBM AIX4.3, 5L (V5.2,V5.3), V6 (V6.1)

FreeBSD 5.5, 6.1, 6.2

Novell Netware 5.0 or later

Sun Solaris 8, 9, 10

Mac 9.0, 9.1, 10.1, 10.2, 10.3, 10.4 , 10.5

DOS 6.2 or later1

1. Does not support USB.

2. Kernels below 2.6 do not support USB 2.0.

4. Introduction

4.4 Components

4.4.1 Front View

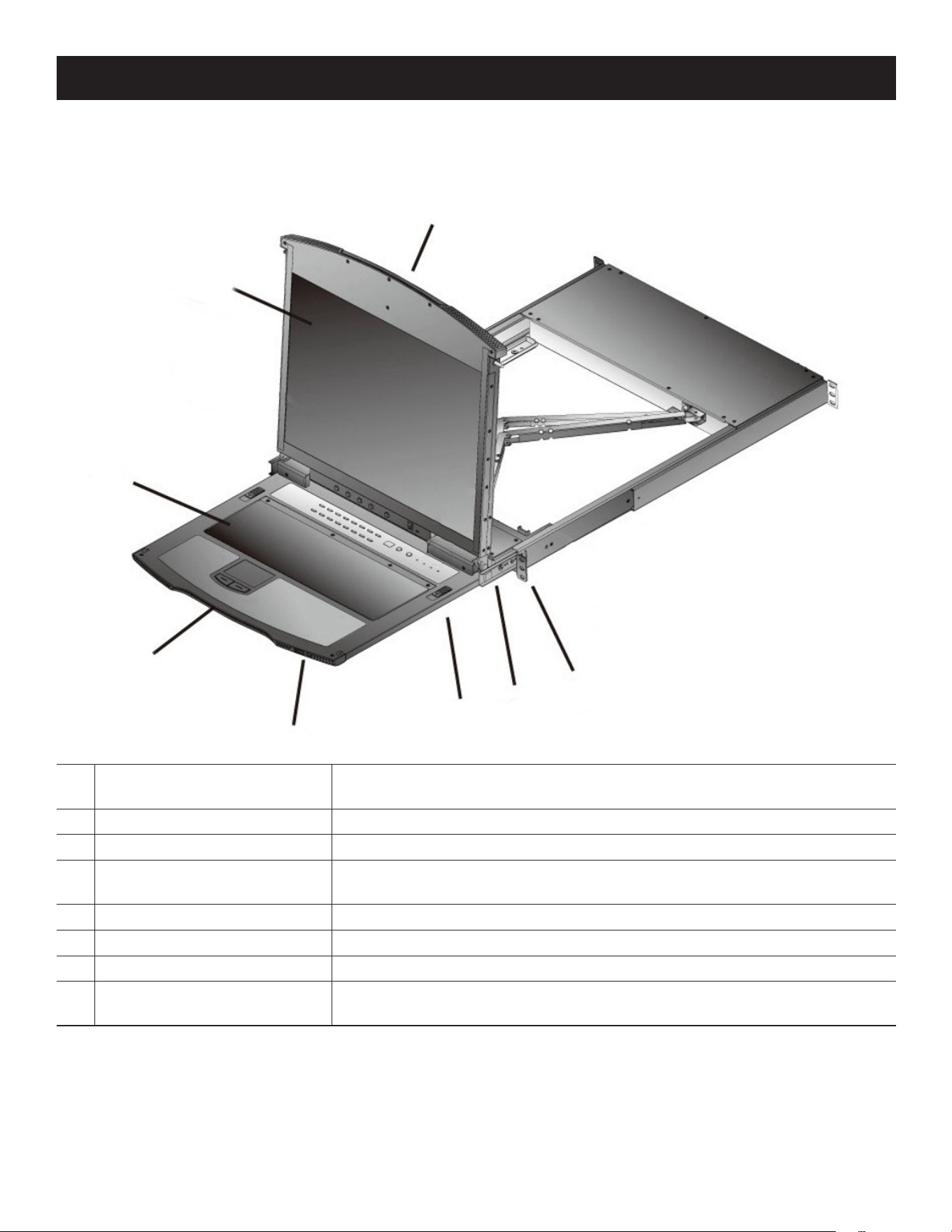

Upper Handle

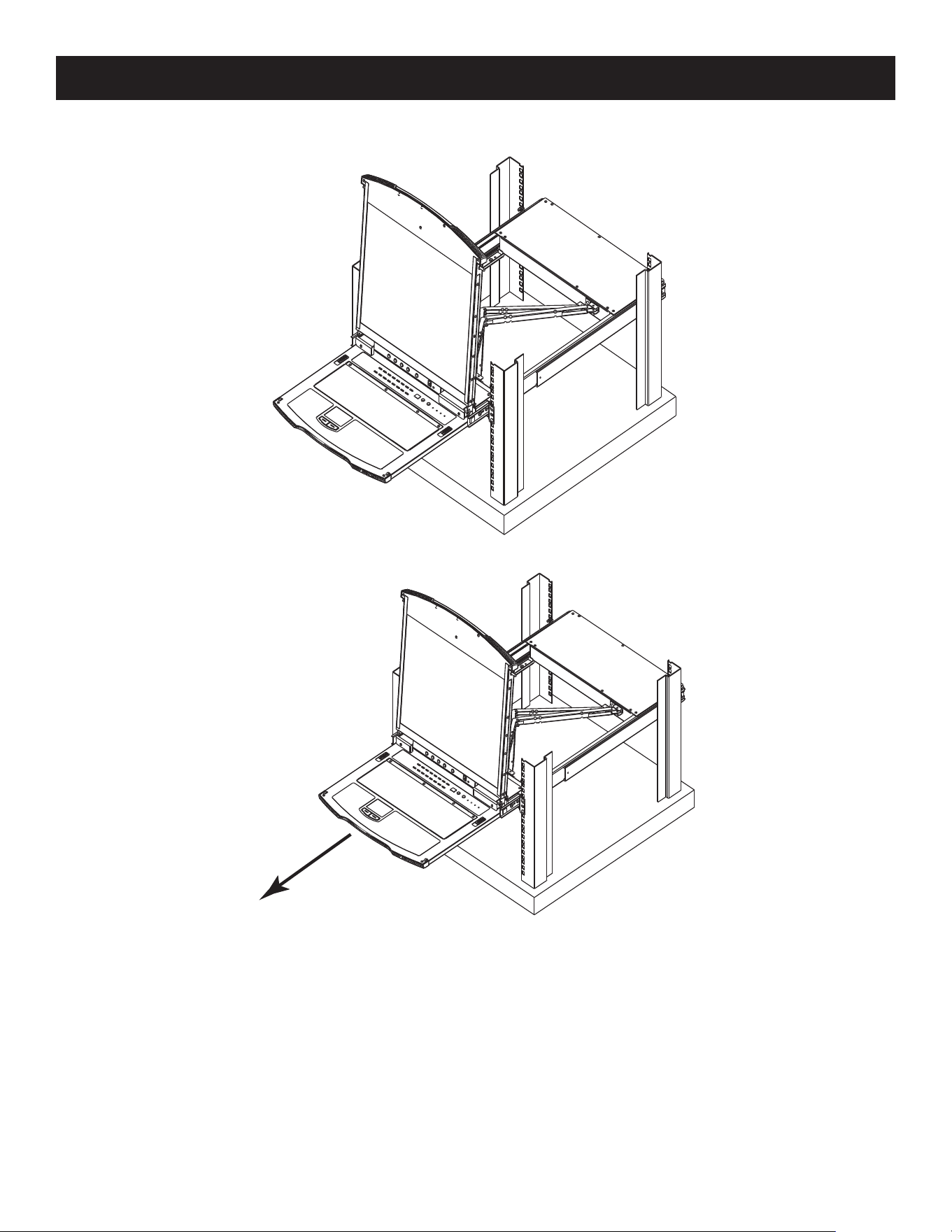

Pull to slide the LCD module out; push to slide the module in. See 6.1.1 Open-

ing the Console for more information.

LCD Module Refer to 4.4.2 LCD Module for a detailed description.

Keyboard Module Refer to 4.4.3 Keyboard Module for a detailed description.

Lower Handle

Pull to slide the keyboard module out. See 6.1.1 Opening the Console for

more information.

Power LED Illuminates (blue) to indicate the unit is receiving power.

Keyboard Release Catch These (one on each side) release the keyboard module to slide it out.

LCD Release Catch These (one on each side) release the LCD module to slide it out.

Rack-Mount Brackets

The rack-mount brackets located at each corner of the unit secure the chassis

to a system rack. See 5.2 Standard Rack Mounting for more information.

4. Introduction

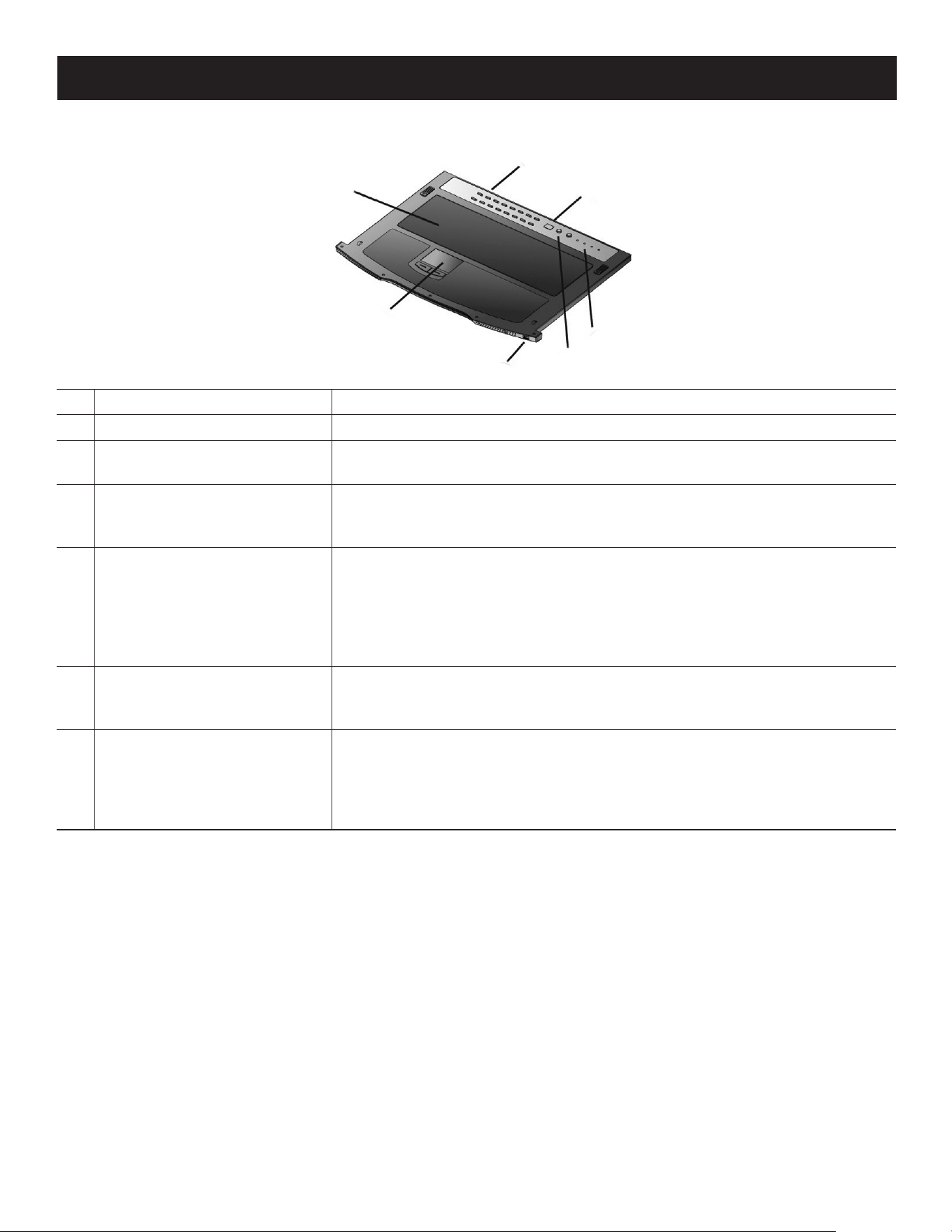

4.4.2 Keyboard Module

Keyboard Standard 105-key QWERTY keyboard.

Touchpad Standard mouse touchpad.

External Mouse Port

A USB Type-A mouse port is provided for users who prefer to use an external

mouse.

Station ID LED

In a daisy-chained installation, the station ID of the currently selected station

displays as a 2-digit gure in this panel. See 6.6 Port ID Numbering for more

details.

Station Selection Area

• The LED displays the station number that the port with the KVM focus is

located on.

• The left button shifts the KVM focus down the chain (station 2  station 1,

etc.). After station 1, it cycles back to the last station.

• The right button shifts the KVM focus up the chain. After the last station, it

cycles to station 1.

Lock LEDs and Reset Button

The Num Lock, Caps Lock, Scroll Lock LEDs are located here.

A reset button is located just to the right of the Lock LEDs. Press this button

using a thin object to perform a system reset.

Port Selection Buttons and

LEDs

To access a port on the currently selected station, press its corresponding port

selection button. Indicator LEDs are built into the switches:

• An On-Line LED illuminates to indicate the computer attached to its

corresponding port is up and running.

• A Selected LED illuminates to indicate which port has the KVM focus.

4. Introduction

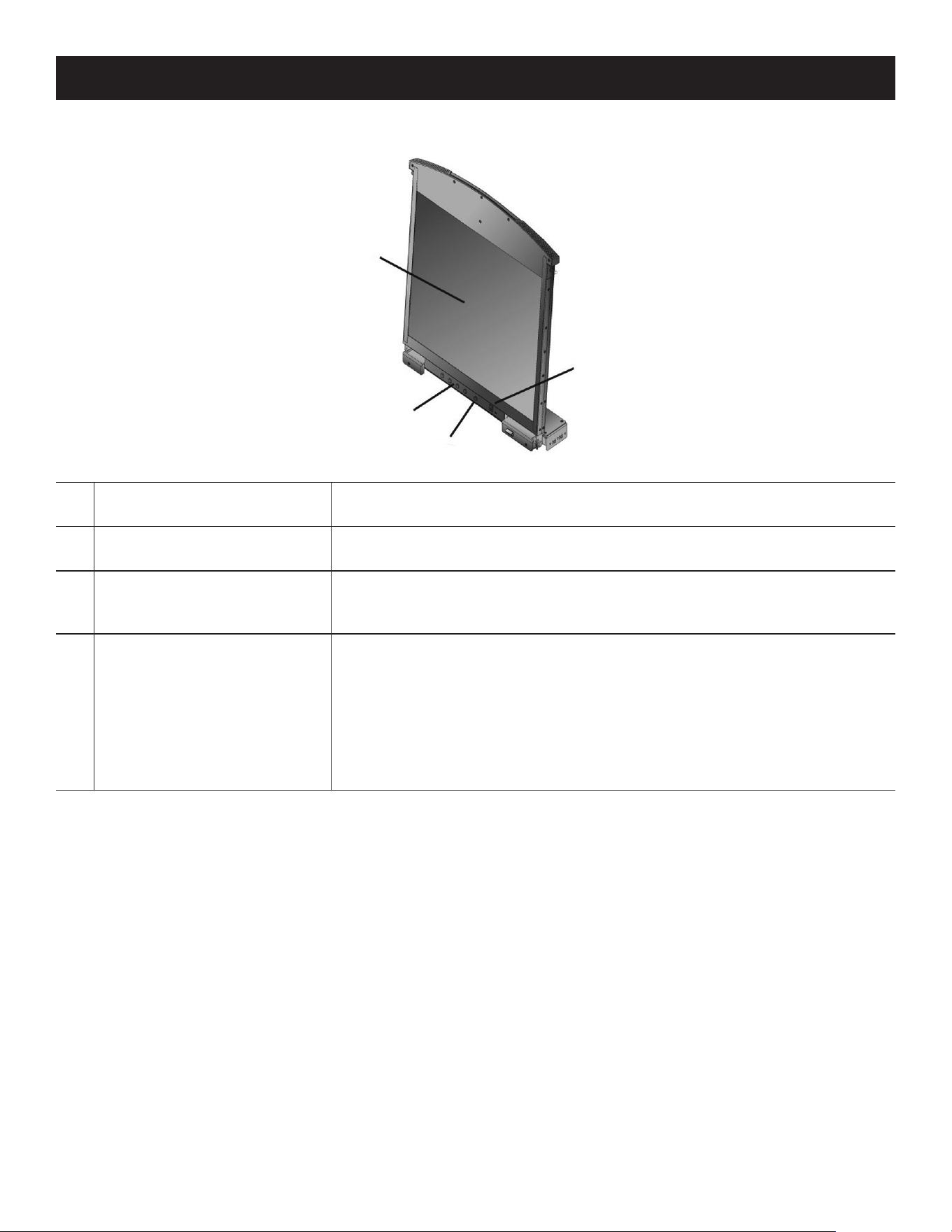

4.4.3 LCD Module

LCD Display

To access the LCD monitor, slide the LCD module out and ip up the cover. See

6.1.1 Opening the Console for more information.

LCD Controls

These buttons control the position and picture settings of the LCD display. See

6.2 LCD OSD Conguration for more information.

LCD On / O Button

Push this button to turn the LCD monitor on and o. The button illuminates

when the LCD monitor is o to indicate that only the monitor is o and not the

KVM switch itself.

Firmware Upgrade Section

Firmware upgrade port: The rmware upgrade cable plugs into this RJ11

port to transfer rmware upgrade data from the administrator's computer to

the B064C-16-1-IP.

Firmware upgrade switch: During normal operation, this switch should be in

the NORMAL position. If rmware upgrade fails, this switch is used to recover

the settings.

See 7.11.3 Recovering from Failed Firmware Upgrade for more

information.

4. Introduction

4.4.4 Rear View

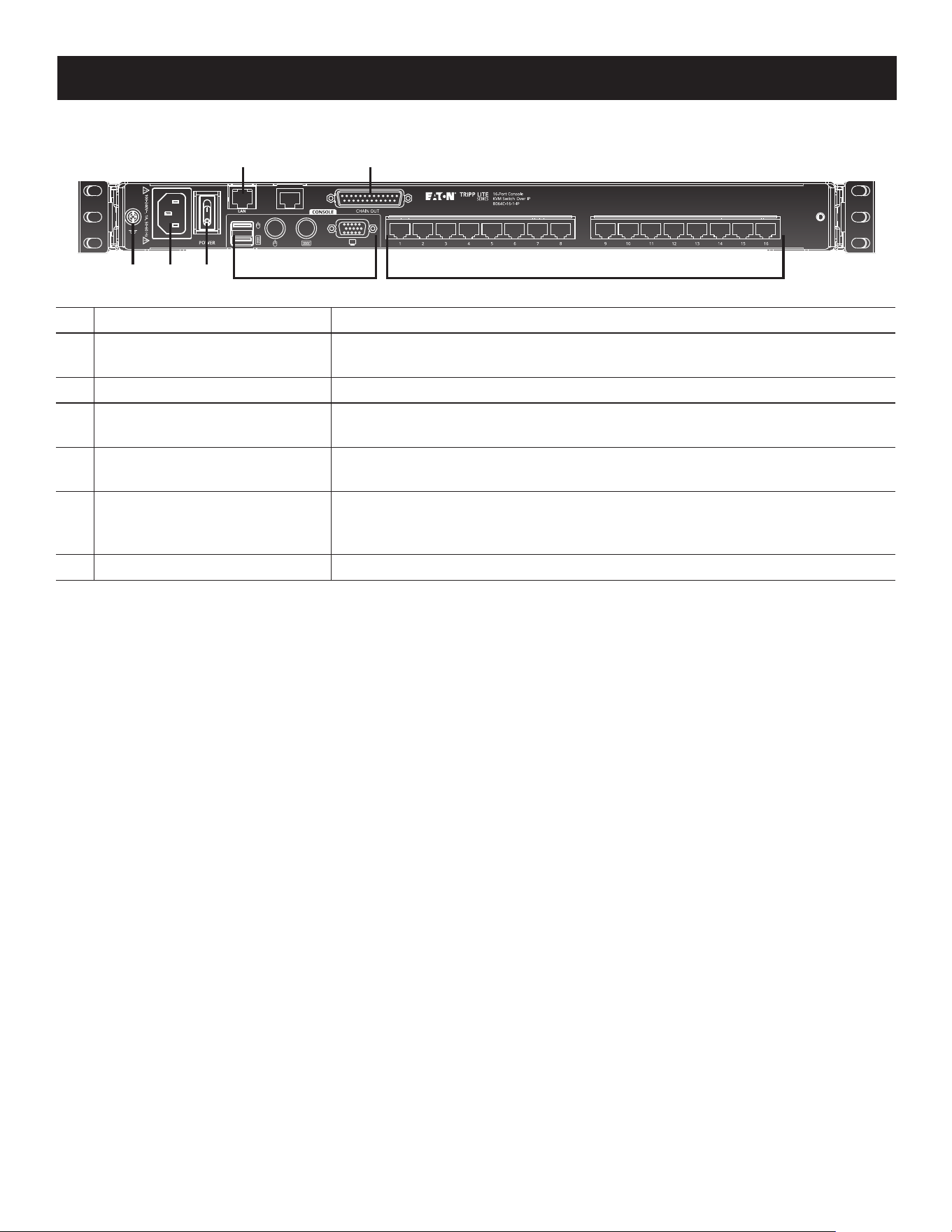

Grounding Terminal The grounding wire used to ground the switch attaches here.

Power Socket

This is a standard C14 AC power socket. The power cord from an AC source

plugs in here.

Power Switch This is a standard rocker switch that powers the unit on and o.

LAN Port

The cable that connects the to the LAN plugs in here. The LEDs indicate data

transmission speed: orange 100 Mbps / green: 1000 Mbps.

Daisy-Chain Port

When daisy-chaining units (see 5.6 Daisy Chaining), the daisy-chain cable

plugs in here.

Local Console Port Section

If this is a single-station installation or the rst station of a daisy-chained

installation, the keyboard, monitor and mouse for the local console plug in

here.

KVM Port Section The Cat 5e/6 cables that link to the KVM Adapter Cables plug in here.

44 55

11 22 33 66 77

5. Installation

5.1 General Safety Instructions

• Read all of these instructions. Save them for future reference.

• Follow all warnings and instructions marked on the device.

• This product is for indoor use only.

• Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.

• Do not use the device near water.

• Do not place the device near or over radiators or heat registers.

• The device cabinet is provided with slots and openings to allow for adequate ventilation. To ensure reliable operation

and to protect against overheating, these openings must never be blocked or covered.

• The device should never be placed on a soft surface (bed, sofa, rug, etc.) as this will block its ventilation openings.

Likewise, the device should not be placed in a built-in enclosure unless adequate ventilation has been provided.

• Never spill liquid of any kind on the device.

• Unplug the device from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for

cleaning.

• The device should be operated from the type of power source indicated on the marking label. If you are not sure of

the type of power available, consult your dealer or local power utility.

• The device is designed for IT power distribution systems with 230V phase-to-phase voltage.

• To prevent damage to your installation, it is important that all devices are properly grounded.

• The device is equipped with a 3-wire grounding type plug. This is a safety feature. If you are unable to insert the plug

into the outlet, contact your electrician to replace your obsolete outlet. Always follow your local/national wiring codes.

• Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be

stepped on or tripped over.

• Avoid circuit overloads. Before connecting equipment to a circuit, know the power supply’s limit and never exceed it.

Always review the electrical specifications of a circuit to ensure that you are not creating a dangerous condition or

that one does not already exist. Circuit overloads can cause a fire and destroy equipment.

• If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on

this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the

wall outlet does not exceed 15 amperes.

• To help protect your system from sudden, transient increases and decreases in electrical power, use a surge

suppressor, line conditioner or uninterruptible power supply (UPS).

• Position system cables and power cables carefully; be sure nothing rests on any cables.

• Never push objects of any kind into or through cabinet slots. They may touch dangerous voltage points or short out

parts, resulting in a risk of fire or electrical shock.

• Do not attempt to service the device yourself. Refer all servicing to qualified service personnel.

• If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for

repair:

o The power cord or plug has become damaged or frayed.

o Liquid has been spilled into the device.

o The device has been exposed to rain or water.

o The device has been dropped, or the cabinet has been damaged.

o The device exhibits a distinct change in performance, indicating a need for service.

• The device does not operate normally when the operating instructions are followed.

• Only adjust those controls that are covered in the operating instructions.

• Improper adjustment of other controls may result in damage that will require extensive work by a qualified technician

to repair.

• Do not connect the RJ11 connector marked “UPGRADE” to a public telecommunications network.

5. Installation

Rack-Mounting Safety Instructions

• Prior to installation, ensure KVM is powered OFF and de-energized.

• Before working on the rack, make sure the stabilizers are secured to the rack, extended to the floor and that the full

weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined

multiple racks before working on the rack.

• Always load the rack from the bottom to top; load the heaviest item in the rack first.

• Make sure the rack is level and stable before extending a device from the rack.

• Use caution when pressing the device rail release latches and sliding a device into or out of a rack; the slide rails can

pinch your fingers.

• After a device is inserted into the rack, carefully extend the rail into a locking position, then slide the device into the

rack.

• Do not overload the AC supply branch circuit that provides power to the rack. The total rack load should not exceed

80 percent of the branch circuit rating.

• Make sure that all equipment used on the rack - including power strips and other electrical connectors - are properly

grounded.

• Ensure that proper airflow is provided to devices in the rack.

• Ensure that the operating ambient temperature of the rack environment does not exceed the maximum ambient

temperature specified for the equipment by the manufacturer.

• Do not step on or stand on any device when servicing other devices in a rack.

• Caution: Slide/rail (LCD KVM) mounted equipment is not to be used as a shelf or a workspace.

5. Installation

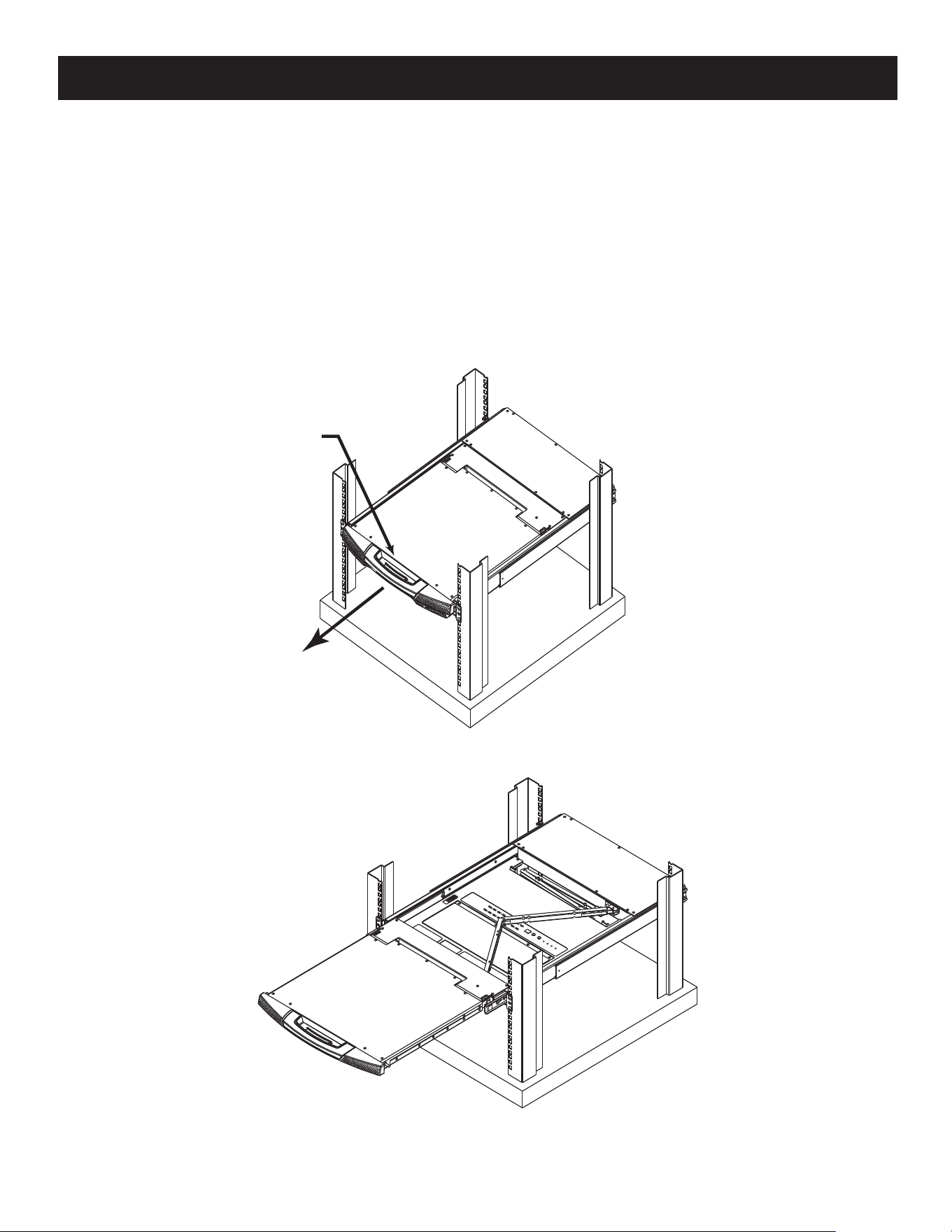

5.2 Standard Rack Mounting

A standard rack-mount kit is provided with your B064C-16-1-IP. The kit enables the switch to be mounted in a rack with

a depth of 15.5-30 in. (42-77 cm).

Notes:

• Two people are required to mount the console.

• The standard rack-mount kit does not include screws or cage nuts.

• If you need additional screws or cage nuts, contact your rack dealer.

To rack mount the switch:

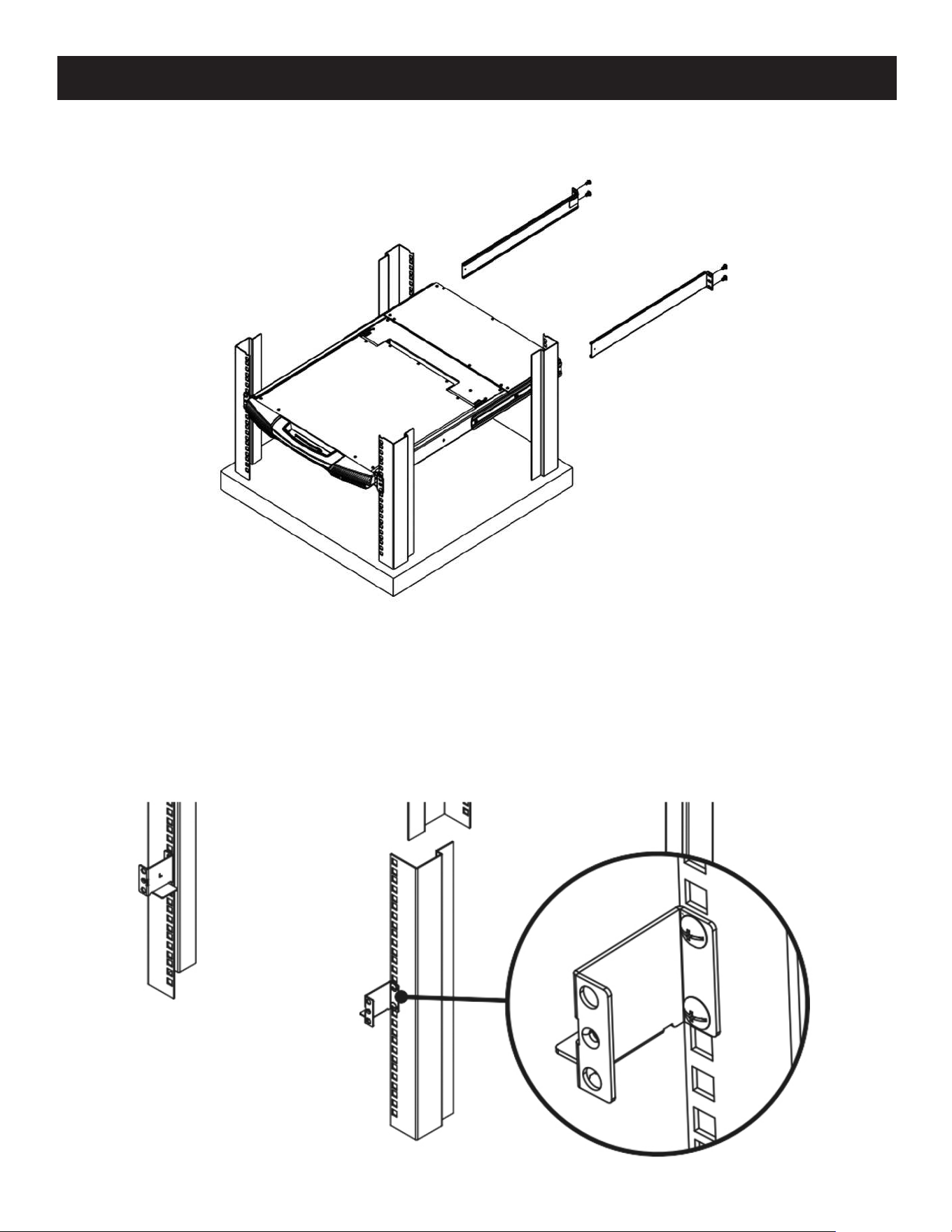

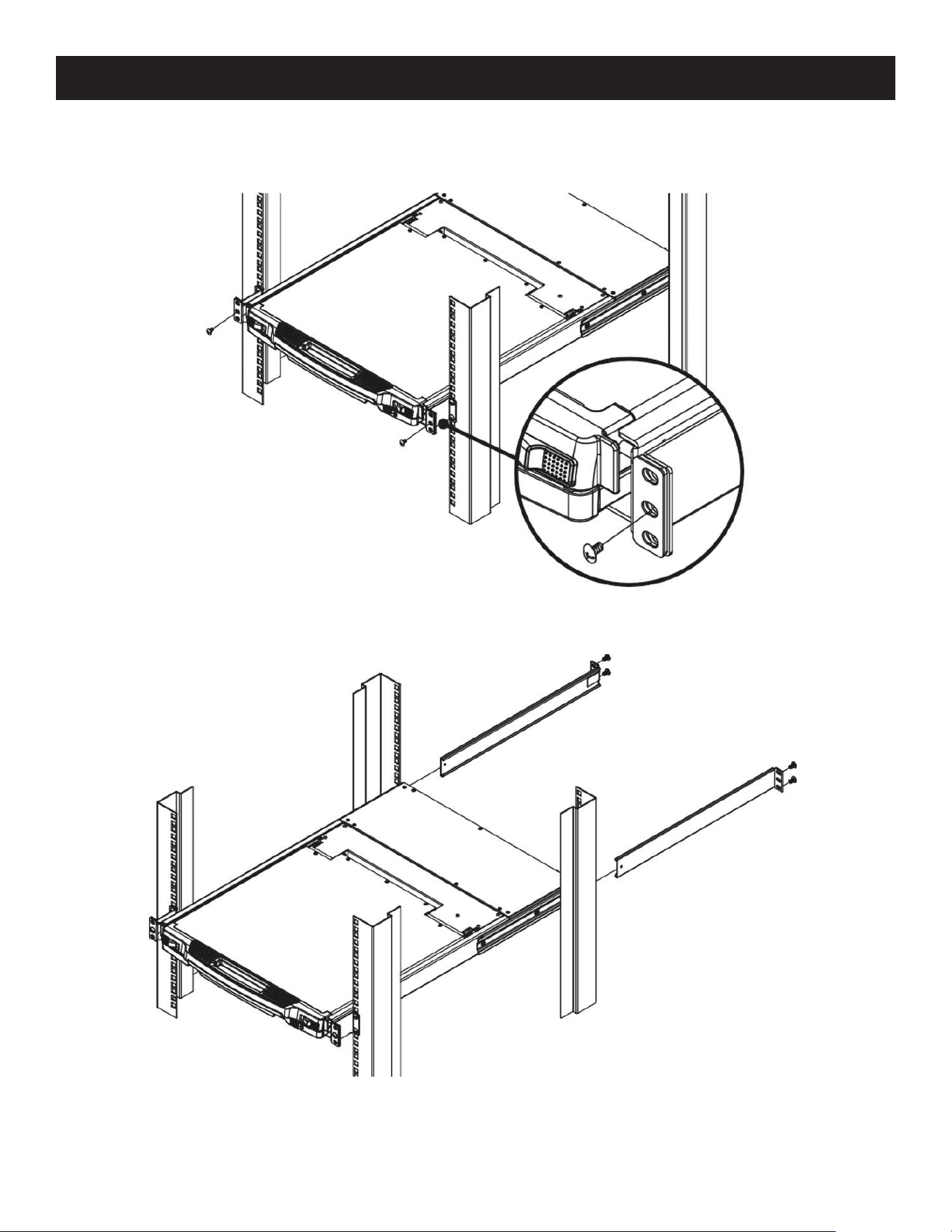

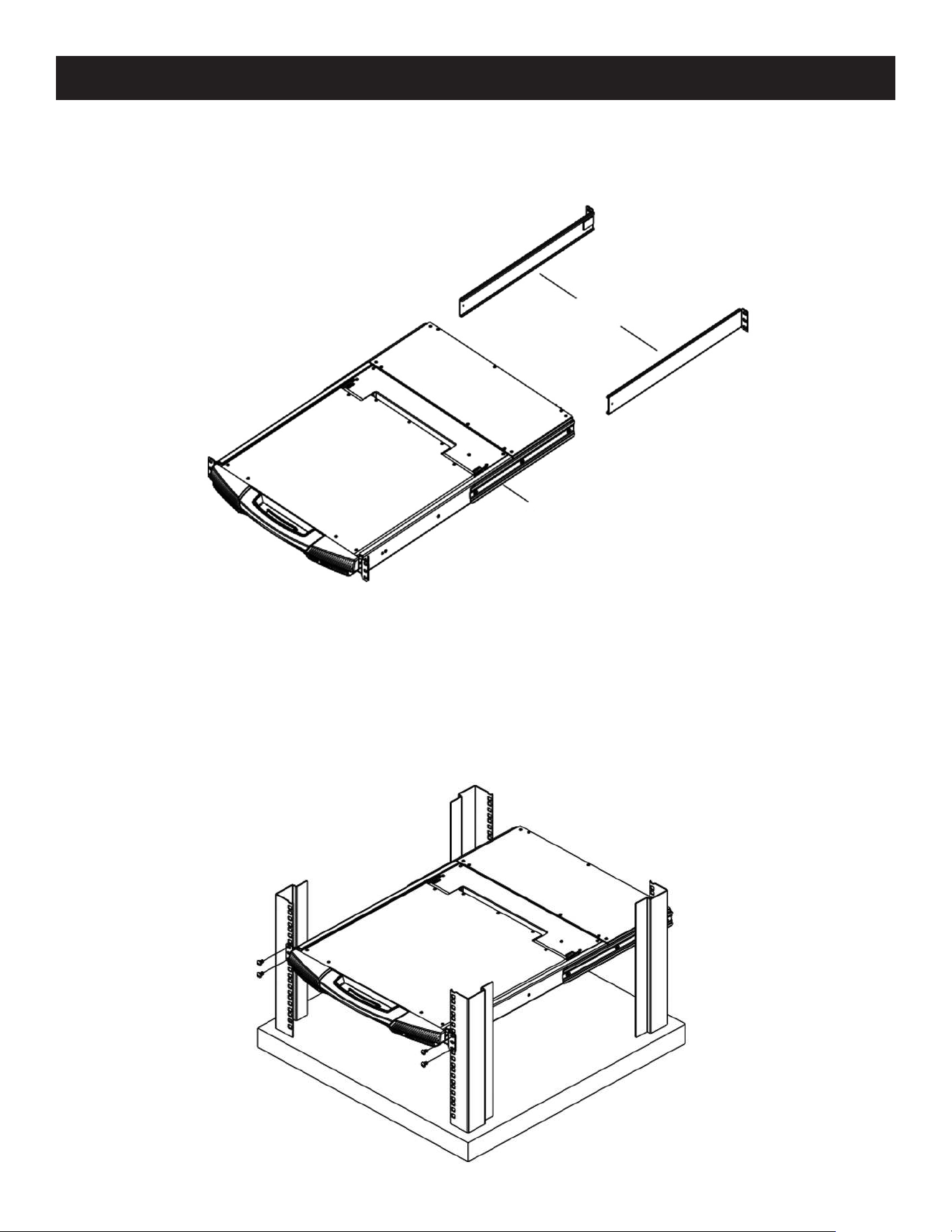

1. Have one person position the unit in the rack and hold it steady, then the second person attaches the front brackets

to the rack.

Side Mount Bracket

Left and Right L-Brackets

5. Installation

2. While the first person continues to hold the unit in place, the second person slides the left and right L-brackets into

the unit’s side mount brackets from the rear. Secure the brackets in place using the four screws.

3. Once the L-brackets are secured, tighten all the screws.

Allow at least 2 in. (5.1 cm) on each side for proper ventilation, and at least 5 in. (12.7 cm) at the back for power cord

and cable clearance.

5.3 Front-L Brackets Mounting

To better enable the tilt function of the LCD screen, lnstall the front L-brackets at the front of the rack.

1. To attach the left and right front L-brackets to the front of the rack, first place screws in the tabs to secure them in

place.

5. Installation

Note: Rack screws are not provided to mount the unit. We recommend using M5 x P0.8 screws.

2. Have one person position the unit in the rack and hold it steady. Then have the second person screw the front

brackets to the front-L bracket.

3. While the first person continues to hold the unit in place, the second person slides the left and right L-brackets into

the unit’s side mount brackets from the rear. Secure the bracket using four screws.

4. Once the L-brackets are secured, tighten all screws.

Allow at least 2 in. (5.1 cm) on each side for proper ventilation, and at least 5 in. (12.7 cm) at the back for power cord

and cable clearance.

5. Installation

5.4 Single-Stage Installation

In a single-stage installation, there are no additional switches daisy-chained down from the first unit. To set up your

console KVM switch, refer to the following steps and installation diagram.

Ground the unit by connecting one end of a grounding wire to the grounding terminal and the other end of the

wire to a suitable grounded object.

Note: Do not omit this step. Proper grounding helps to prevent damage to the unit from power surges or static electricity.

(Optional) If you choose to install an external console, plug your keyboard, monitor and mouse into the console

ports located on the switch’s rear panel. The ports are color coded and marked with an icon for easy identification.

For each computer you are installing, use Cat5e cable to connect any available KVM port to a KVM adapter cable

that is appropriate for the computer you are installing (see 4.3.4 KVM Adapter Cables for details).

Note: The maximum supported distance to the adapter cable is 164 ft. (50 m).

Connect the KVM Adapter cable to the computer. Refer to the KVM Adapter Cable lnstallation Diagram to plug

the adapter cable connectors into their respective ports on the computers you are installing.

Plug the LAN or WAN cable into the B064C-16-1-IP’s LAN port.

Connect the power cord to the switch and to an AC power source.

Once the B064C-16-1-IP is connected properly, you can turn on the power. After the switch is powered on, then turn

on the servers.

2233

5. Installation

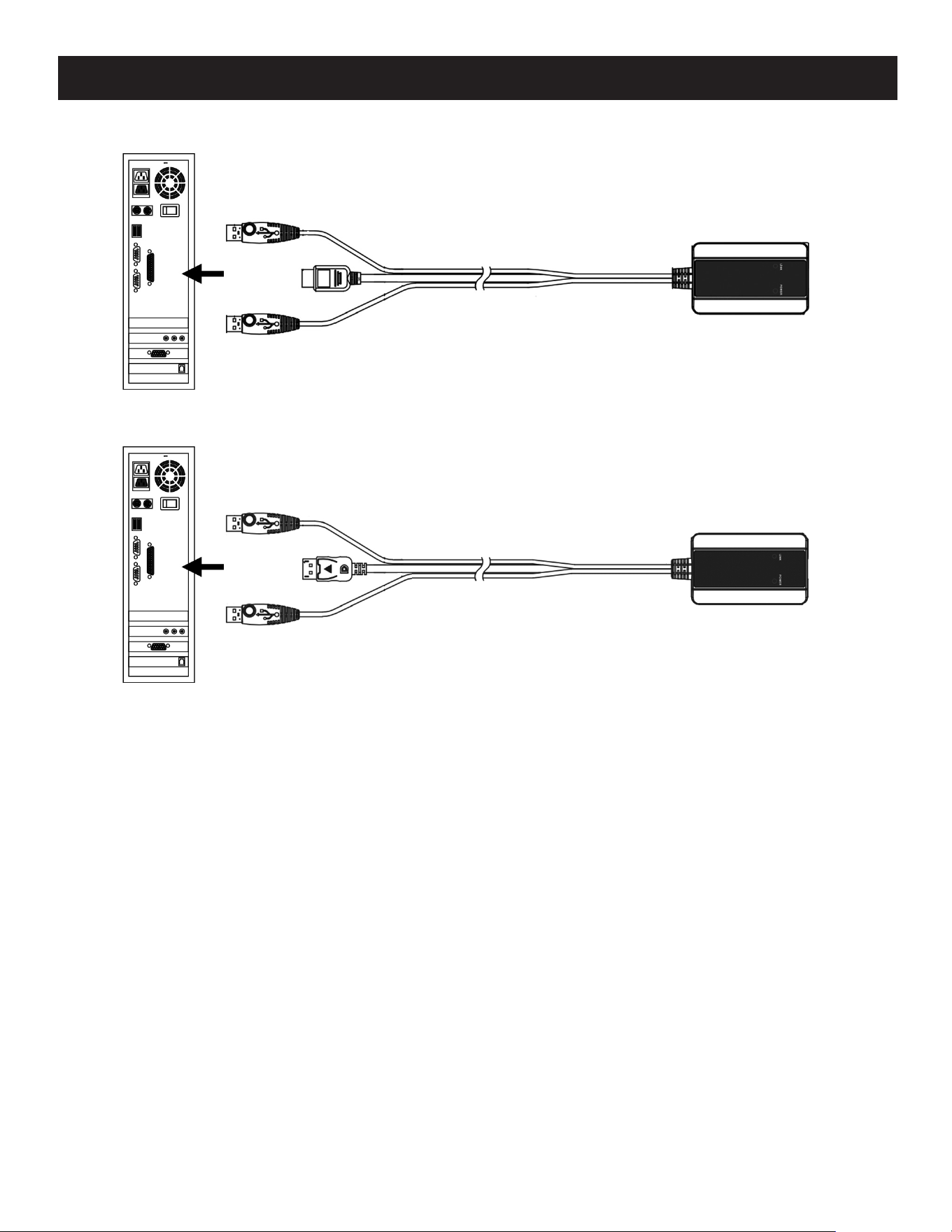

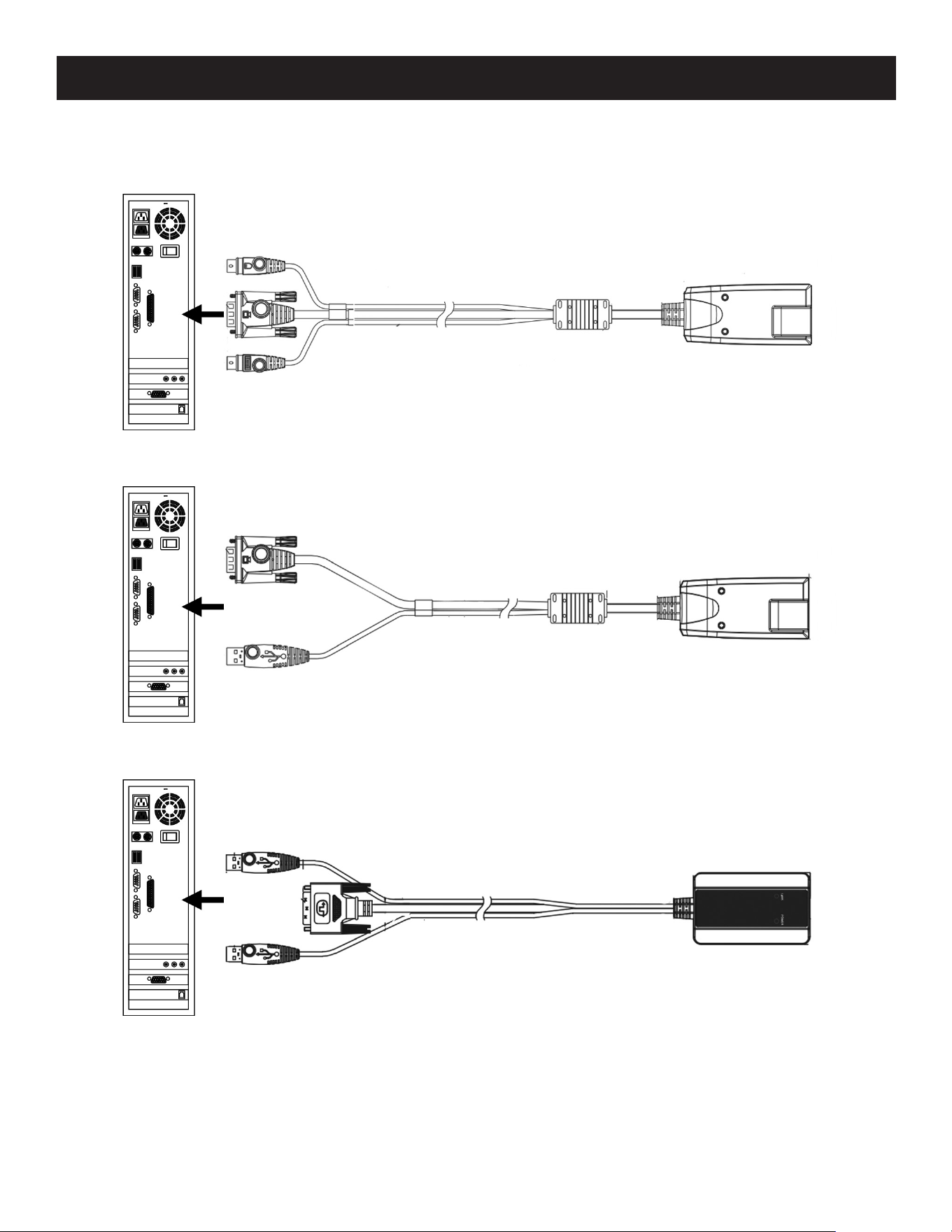

5.5 KVM Adapter Cable Installation

B055-001-PS2

B055-001-USB

B055-001-UDV

5. Installation

B055-001-UHD

B055-001-UDP

5. Installation

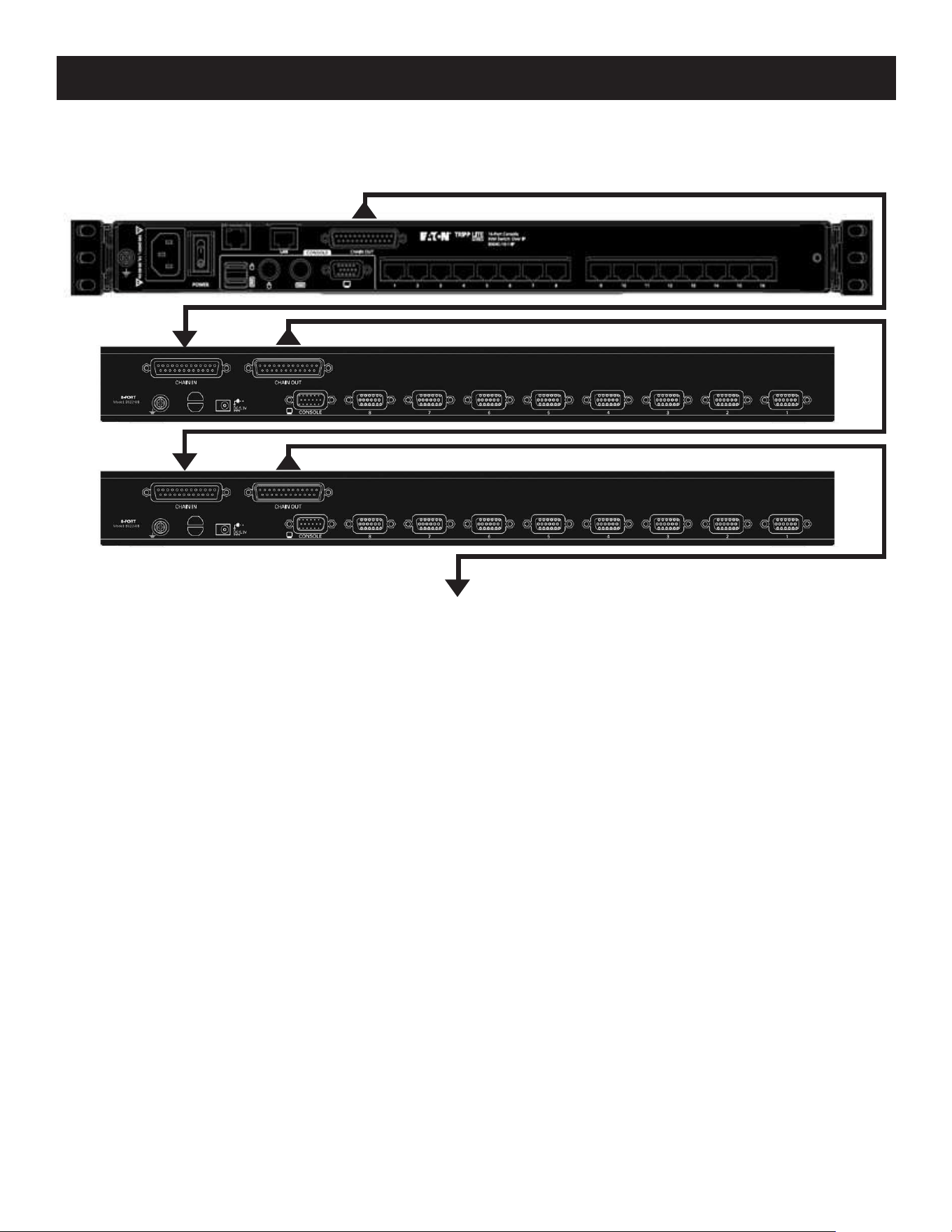

5.6 Daisy Chaining

To set up a daisy-chained installation, make sure that power to all the devices you will be connecting up has been

turned off.

1. Use a daisy daisy-chain set to connect the chain out port of the first station to the chain in port of the chained

compatible KVM Switch unit (first station out to second station in, second station out to third station in, etc.).

Notes:

• You cannot use the chain in port of the first station.

• Daisy-chain cable sets require a separate purchase. See your dealer for details.

2. Connect the computers and the switch according to the instructions provided in 5.4 Single-Stage lnstallation.

3. Repeat the above steps for any other switches you want to add to the chain.

4. Plug in the power cord for the first station. Wait for the unit to acquire its station ID and display it on the station ID

LED. The station ID for the first stage unit is 01, the ID for the second stage unit is 02, the ID for the third stage unit

is 03, etc.

5. Power on each additional station in the installation (second station, then third station, etc.). In each case, wait for the

station ID to be acquired and displayed before powering on the next station.

6. Once all the stations are up, power on the computers.

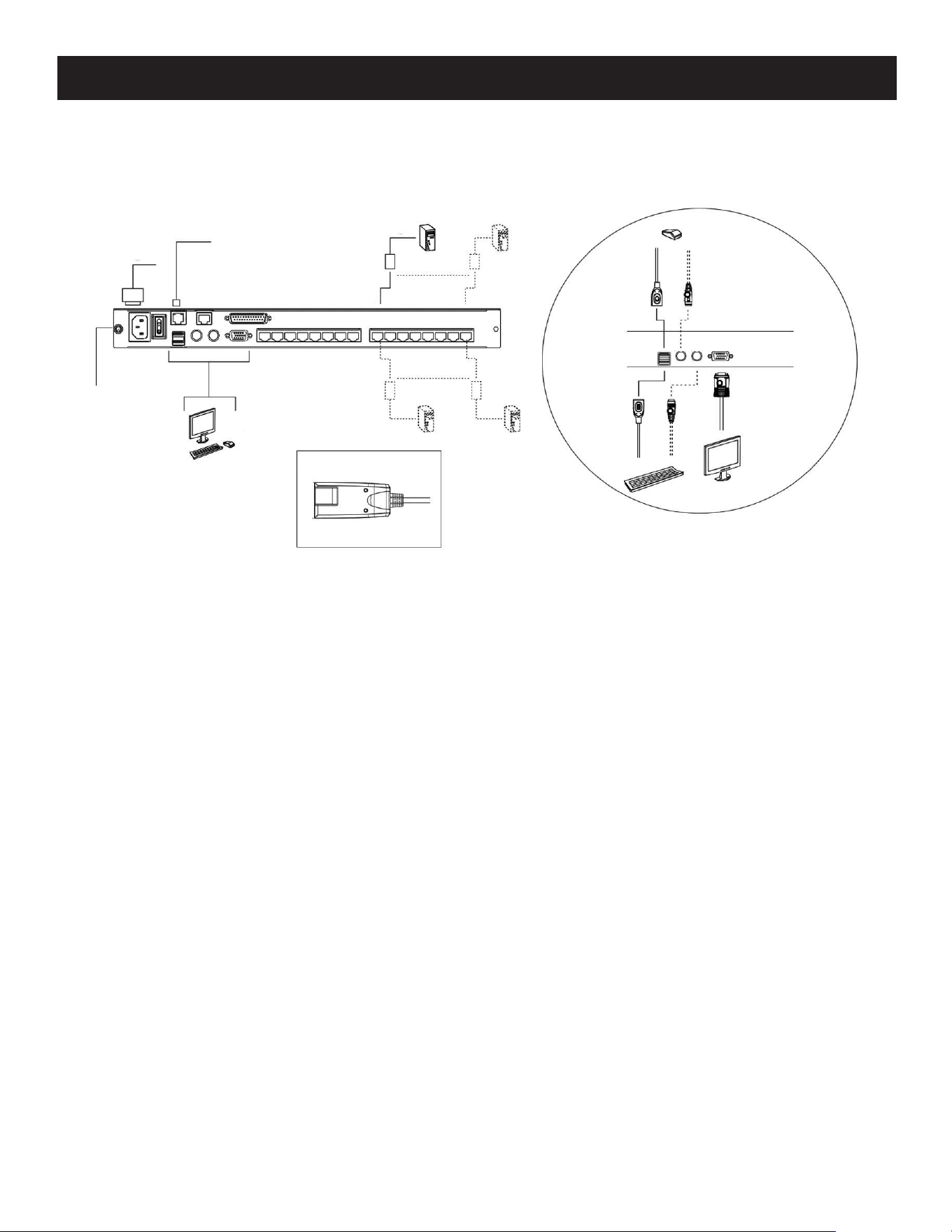

B064C-16-1-IP rear view

B022-U08 rear view

6. KVM Operation

6.1 Basic Operation

6.1.1 Opening the Console

The B064C-16-1-IP consists of two modules: an LCD display module located under the top cover and a keyboard /

touchpad module below the LCD module.

The modules can slide together or independently. This allows you to have the LCD display available for viewing while

the keyboard / touchpad module is conveniently out of the way when not in use.

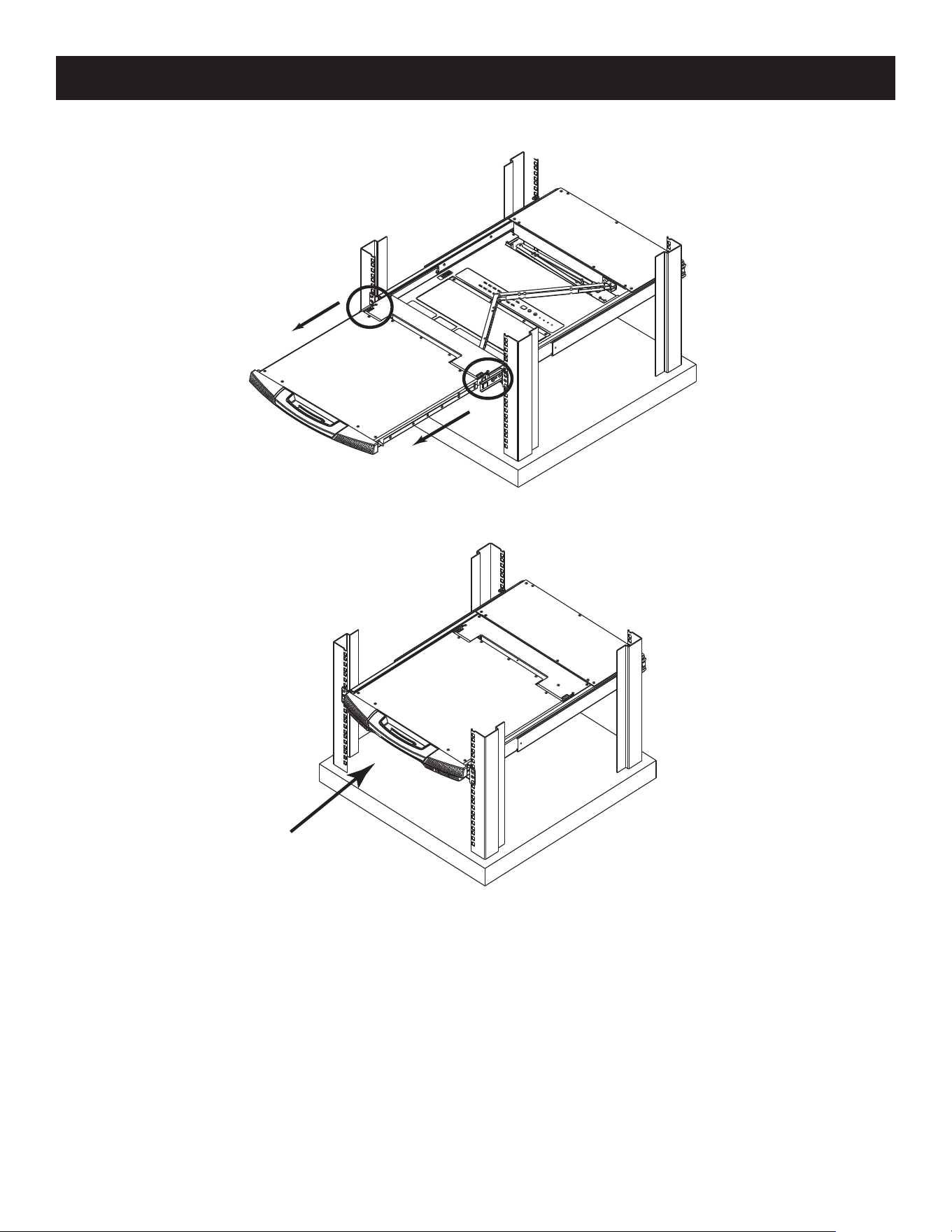

Opening Separately

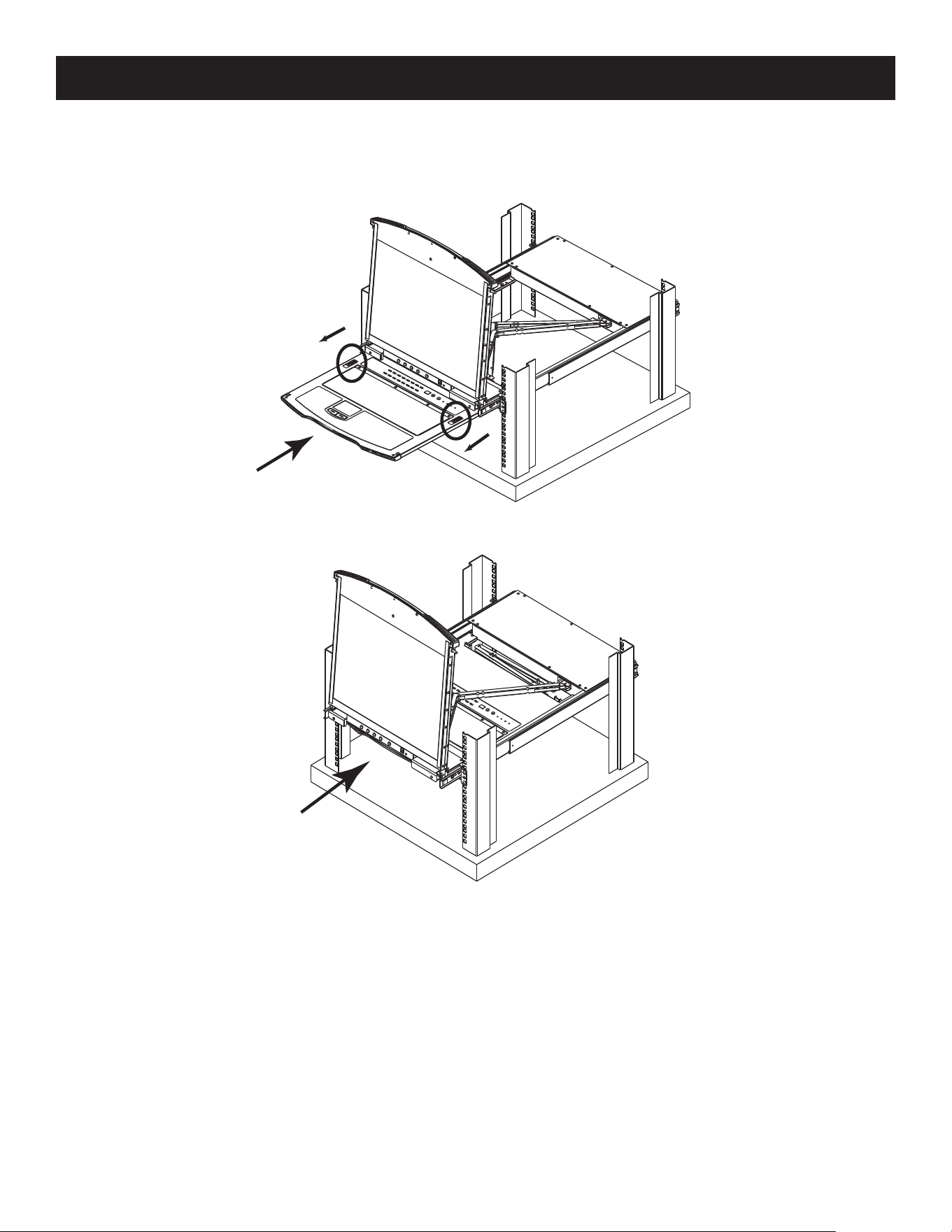

1. Pull the release catch to disengage the console and pull the top panel slightly toward you. Once the console has

been released, let go of the release catch.

2. Pull out the top panel completely until it clicks into place.

Release catch

6. KVM Operation

3. Rotate the top panel backward to expose the LCD screen.

4. Reach underneath and pull out the keyboard module completely until it clicks into place.

Opening Together

Refer to the diagrams in the Opening Separately section as you do the following:

1. While holding the release catch, pull the top and bottom panels out until the keyboard module clicks into place.

Note: Once the console has been released, release the release catch.

2. Pull the top panel the rest of the way out until it clicks into place.

3. Rotate the top panel backward to expose the LCD screen.

6. KVM Operation

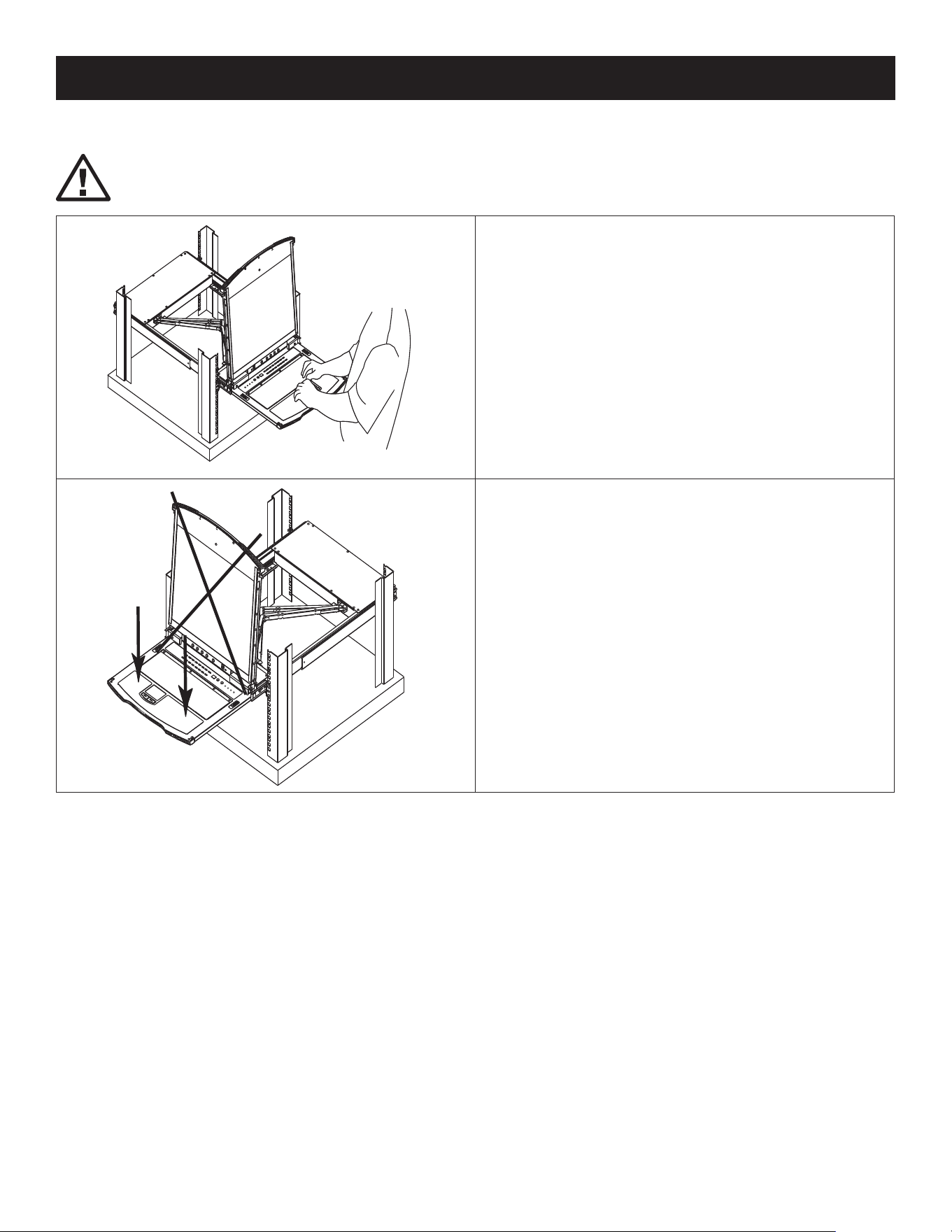

Operating Precautions

The maximum load bearing capacity of the keyboard module is 44 lb. (20 kg). Failure to heed the following

information may result in damage to the keyboard module:

Correct

Rest your hands and arms lightly on the keyboard module

as you work.

Incorrect

• DO NOT lean your body weight on the keyboard

module.

• DO NOT place heavy objects on the keyboard module.

6. KVM Operation

6.1.2 Closing the Console

1. Pull the release catches located on each side of the keyboard toward you to release the keyboard module, then slide

in the module slightly.

2. Release the release catches. Using the front handle, push in the keyboard module completely.

6. KVM Operation

3. Rotate the LCD module completely, then pull the rear release catches to release the LCD module.

4. Using the front handle, push in the module completely.

6. KVM Operation

6.2 LCD OSD Configuration

6.2.1 LCD Buttons

The LCD OSD allows you to set up and configure the LCD display. Four buttons are used to perform the configuration,

as described in the table below:

Button Function

When you have not entered the LCD OSD Menu function, pressing this button invokes the Menu

function and opens the Main Menu.

When navigating through the menus, this button moves you right or up. When making an

adjustment, it increases the value.

When navigating through the menus, this button moves you left or down. When making an

adjustment, it decreases the value.

EXIT

• When you have not entered the LCD OSD Menu function, pressing this button performs an auto

adjustment. An auto adjustment automatically congures all settings for the LCD panel to what

the OSD considers their optimum values.

• When you have entered the LCD OSD Menu function, pressing this button exits the current

menu and returns you to the previous menu. Use it to leave an adjustment menu when you are

satised with the adjustment you have made.

• When you are at the Main Menu, pressing this button exits the LCD OSD.

6.2.2 Adjustment Settings

An explanation of the LCD OSD adjustment settings is provided in the table below:

Setting Explanation

Brightness Adjusts the background black level of the screen image.

Contrast Adjusts the foreground white level of the screen image.

Phase

If pixel jitter or horizontal line noise is visible on the display, your LCD may have the wrong phase

setting. Adjust the phase setting to eliminate these problems.

Clock

If vertical banding is visible on the display, your LCD may have the wrong clock setting. Adjust the

clock setting to eliminate vertical banding.

H-Position Positions the display area on the LCD panel horizontally (moves the display area left or right).

V-Position Positions the display area on the LCD panel vertically (moves the display area up or down).

Color

Temperature

Adjusts the color quality of the display. You can adjust the "warmth" value, color balance, etc. The

Adjust Color selection has a further submenu that lets you ne tune the RGB values.

Language Selects the displayed language of the OSD.

OSD Duration

Lets you set the amount of time that the OSD displays on the screen. If there is no input for the

amount of time you choose, the OSD turns o.

Reset

Resets the menu and submenu adjustments (except for language settings) to the original factory

default settings.

6. KVM Operation

6.3 Port Selection

The B064C-16-1-IP provides three methods to obtain instant access to any computer in your installation: Manual, OSD/

GUI and Hotkeys.

Manual

For manual port selection, simply press the port switch that corresponds to the device you wish to access.

OSD / GUI

The B064C-16-1-IP provides menu-driven interfaces to the computer switching procedure. There are two systems: A

text-based OSD when you log in from the local console; and a graphical user interface (GUI) when you log in remotely

over the internet.

Hotkeys

Hotkeys allow you to conveniently provide KVM focus to a particular computer from the local console keyboard instead

of having to manually select them by pressing port selection switches. See 7.3.1 Hotkey Port Control for details.

6.4 Hot Plugging

The B064C-16-1-IP supports hot plugging, where components can be removed and added back into the installation by

unplugging and replugging their cables from their ports without needing to shut down the unit. For hot plugging to

work properly, the procedures described below must be followed:

Hot Plugging Stations

You can switch station positions by simply unplugging from the old parent and plugging into a new one. After you do, in

order for the OSD menus to correspond to the change, you must reset the OSD.

Hot Plugging KVM Ports

After switching KVM ports, for the OSD menus to correspond to the change, you must manually reconfigure the OSD

information for the new port information.

Note: If the computer’s operating system does not support hot plugging, this function may not work properly.

6.4.1 Hot Plugging Console Ports

The keyboard, monitor and mouse can all be hot plugged. When hot plugging the mouse:

You may unplug the mouse and plug it back in again (to reset the mouse, for example), as long as you use the same

mouse.

If you plug in a different mouse, all the stations and all the computers on the installation must be shut down for 10

seconds, then restarted following the power up sequence.

Notes:

• Some older operating systems may not support hot plugging.

• If after hot plugging (or at any other time), there is no response to keyboard and/or mouse input, perform a keyboard and mouse reset.

See 7.3.6 Computer Keyboard / Mouse Reset for details.

6. KVM Operation

6.5 Powering Off and Restarting

If it becomes necessary to power off the unit or if the switch loses power and needs to be restarted, follow these steps:

1. Shut down all connected computers.

Note: You must unplug the power cords of any computers that have the Keyboard Power On function.

2. Wait 10 seconds, then power the unit back on. If you have shut down more than one station, power up the highest

station first and work your way down to the lowest one. Wait for each station to display its Station ID on the front

panel LED before powering on the next one.

3. After the station(s) is (are) up, power on the computers once again.

6.6 Port ID Numbering

Each computer on the installation is assigned a unique Port ID. The Port ID is a one or two segment number that is

determined by the stage level and KVM port number of the KVM switch that the computer is connected to.

The first segment represents the KVM port number of the first stage unit; the second segment represents the KVM port

number of the second stage unit.

A computer attached to a first stage unit has a one segment Port ID (from 1- 16) that corresponds to the KVM port

number that it is connected to.

A computer attached to a second stage unit has a two segment Port ID:

• The second segment (from 1-16), represents the KVM port number on the second stage unit that the computer is

connected to. The first segment (from 1-16) represents the KVM port number on the first stage unit that the second

stage unit links back to.

• For example, a port ID of 12-3 refers to a computer that is connected to KVM Port 3 of a second stage unit that links

back to KVM Port 12 of the first stage unit.

7. Administration

7.1 IP Address Determination

If you are an administrator logging in for the first time, you need to access the B064C-16-1-IP in order to give it an IP

address that users can connect to. There are three methods to choose from. In each case, your client computer must

be on the same network segment as the B064C-16-1-IP. After you have connected and logged in you can give the

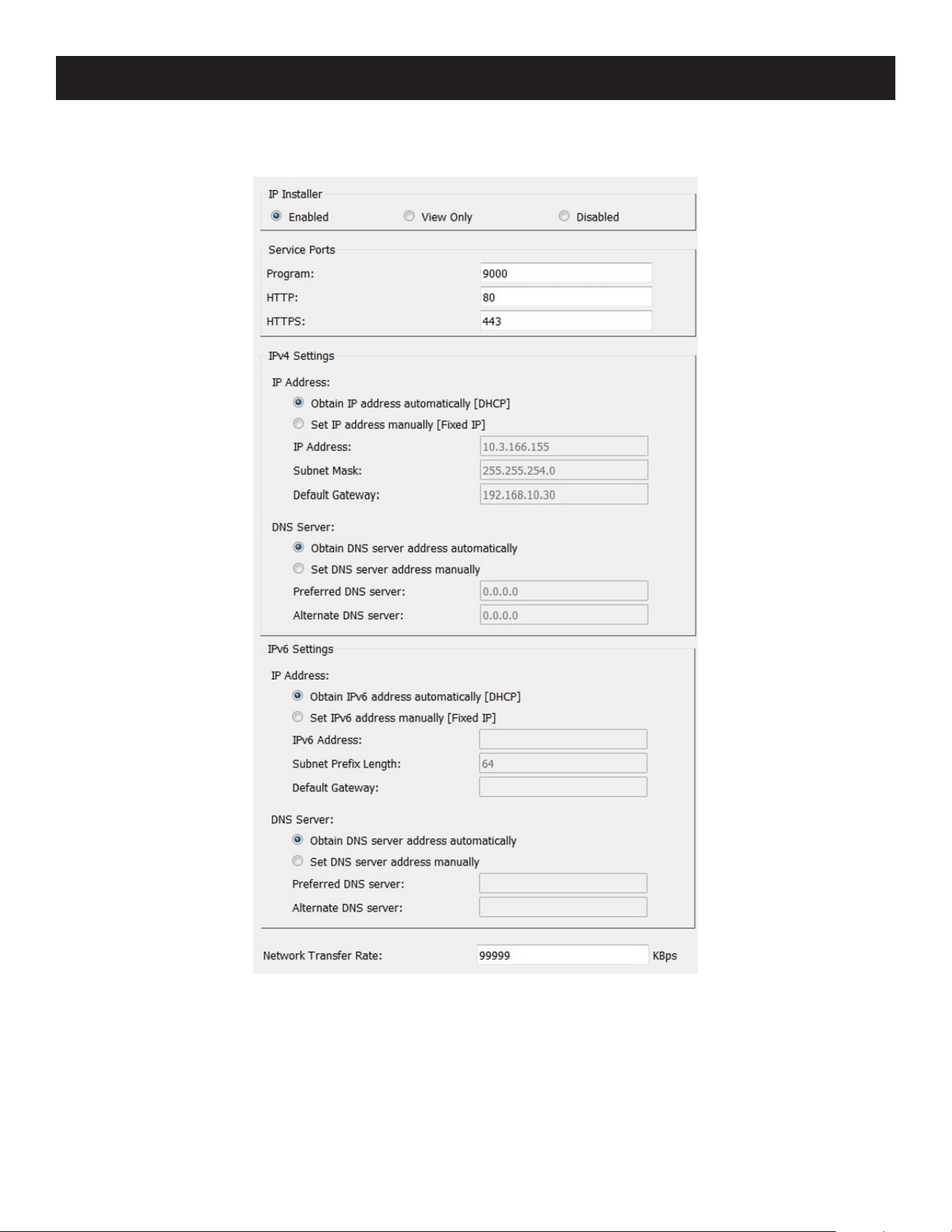

B064C-16-1-IP its fixed network address (see 7.9.3 Network for more information.)

The Local Console

The easiest way to assign an IP address is from the local console.

IP Installer

For client computers running Windows, an IP address can be assigned with the IP lnstaller utility. The utility can be

obtained from the Download area of our website. Look under DriverISW, and the model of your switch. After

downloading the utility to your client computer, do the following:

1. Unzip the contents of lPlnstaller.zip to a directory on your hard drive.

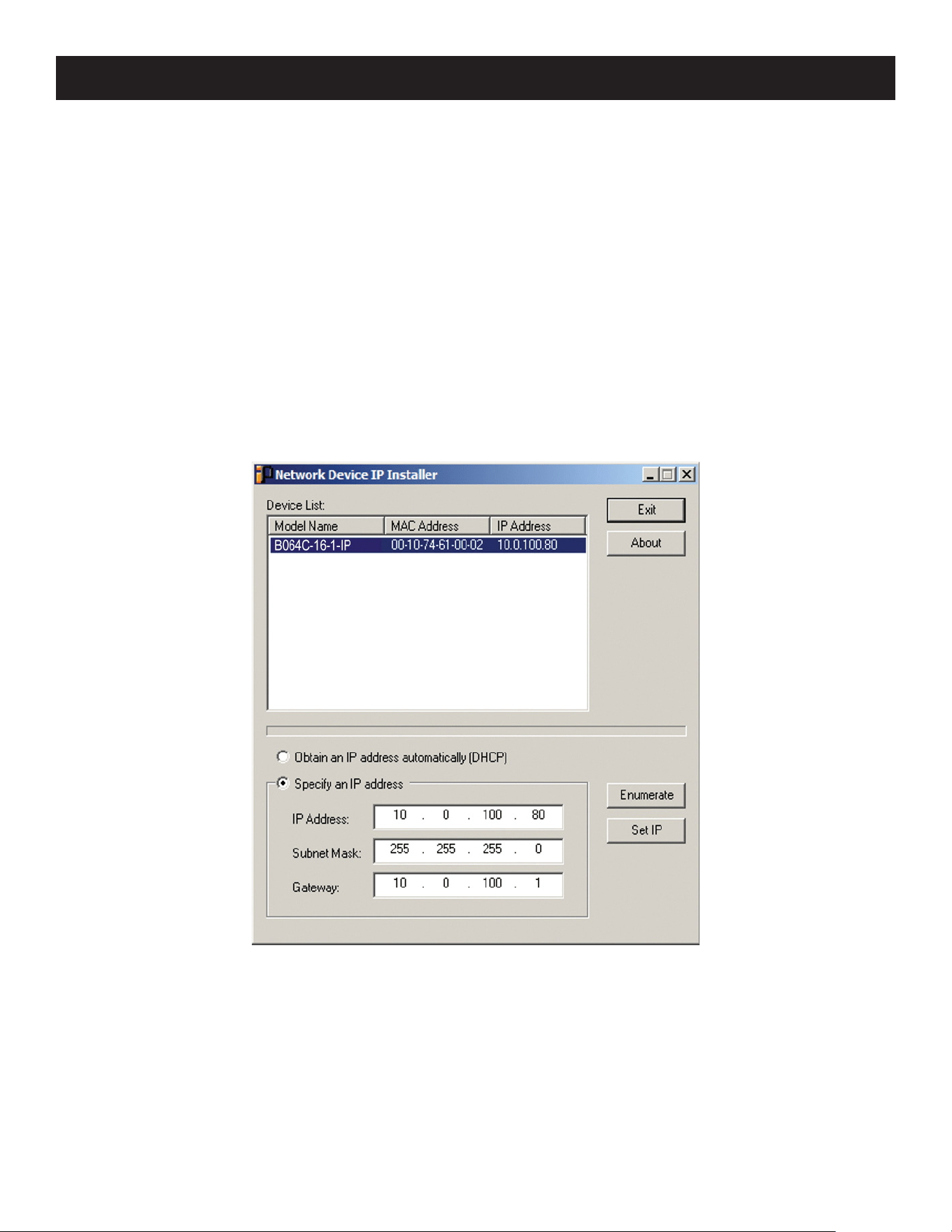

2. Go to the directory that you unzipped the IPInstaller program to and run lPlnstaller.exe. A dialog box similar to the

one below appears:

3. Select B064C-16-1-IP in the Device List.

Notes:

• If the list is empty, or your device does not appear, click Enumerate to refresh the Device List.

• If there is more than one device in the list, use the MAC address to pick the one you want.

4. Select either Obtain an lP address automatically (DHCP), or Specify an lP address. If you chose the latter, fill the IP

Address, Subnet Mask and Gateway fields with the information appropriate to your network.

5. Click Set IP.

6. After the IP address shows up in the Device List, click Exit.

7. Administration

Browser

1. Set your client computer’s IP address to 192.168.0.XXX

Where XXX represents any number or numbers except 60 (192.168.0.60 is the default address of the B064C-16-1-IP).

2. Specify the switch’s default IP address (192.168.0.60) in your browser to connect.

3. Assign a fixed IP address for the B064C-16-1-IP that is suitable for the network segment that it resides on.

After you log out, reset your client computer’s IP address to its original value.

7.1.1 IPv6

The B064C-16-1-IP supports three IPv6 address protocols: Link Local lPv6 Address, lPv6 Stateless Autoconfiguration and

Stateful Autoconfiguration (DHCPv6).

Link Local IPv6 Address

At power on, the B064C-16-1-IP is automatically configured with a Link Local IPv6 Address (for example,

fe80::210:74ff:fe61:1ef). To determine what the Link Local IPv6 Address is, log in with the B064C-16-1-IP IPv4 address

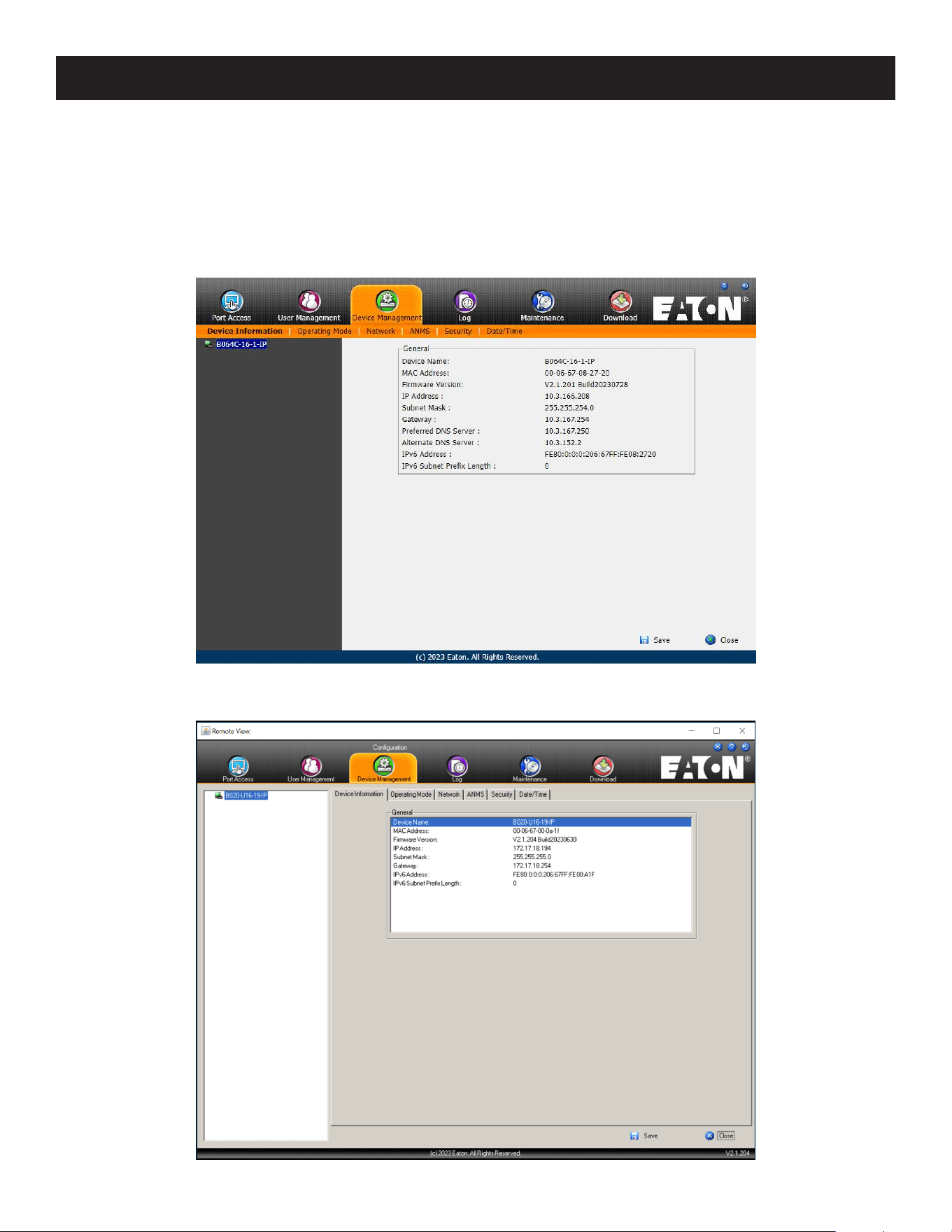

and open the Device Management  Device Information page. The address is displayed in the General list box.

Once you have determined the IPv6 address, you can use it when logging in from a browser or the Win and Java Client

AP programs.

For example:

If you are logging in from a browser, you would key:

http://[fe80::2001:74ff:fe6e:59%5]

for the URL bar.

If you are logging in with the AP program, you would key:

fe80::2001:74ff:fe6e:59%5

for the IP field of the Server panel (see 7.5.3 Windows Client AP Login).

Notes:

• To log in with the Link Local IPv6 Address, the client computer must be on the same local network segment as the B064C-16-1-IP.

• The %5 is the %interface used by the client computer. To see your client computer’s IPv6 address: from the command line issue the

following command: ipconfig /all. The % value appears at the end of the IPv6 address.

IPv6 Stateless Autoconfiguration

If the B064C-16-1-IP network environment contains a device (such as a router) that supports the IPv6 Stateless

Autoconfiguration function, the B064C-16-1-IP can obtain its prefix information from that device to generate its IPv6

address. For example: 2001::74ff:fe6e:59.

As above, the address is displayed in the General list box of the Device Management  Device Information page.

Once you have determined the IPv6 address, you can use it when logging in from a browser or the Win and Java Client

AP programs.

For example:

If you are logging in from a browser, you would key:

http://[2001::74ff:fe6e:59]

for the URL bar.

If you are logging in with the AP program, you would key:

2001::74ff:fe6e:59

for the IP field of the Server panel (see 7.5.3 Windows Client AP Login).

7. Administration

7.1.2 Trusted Certificates

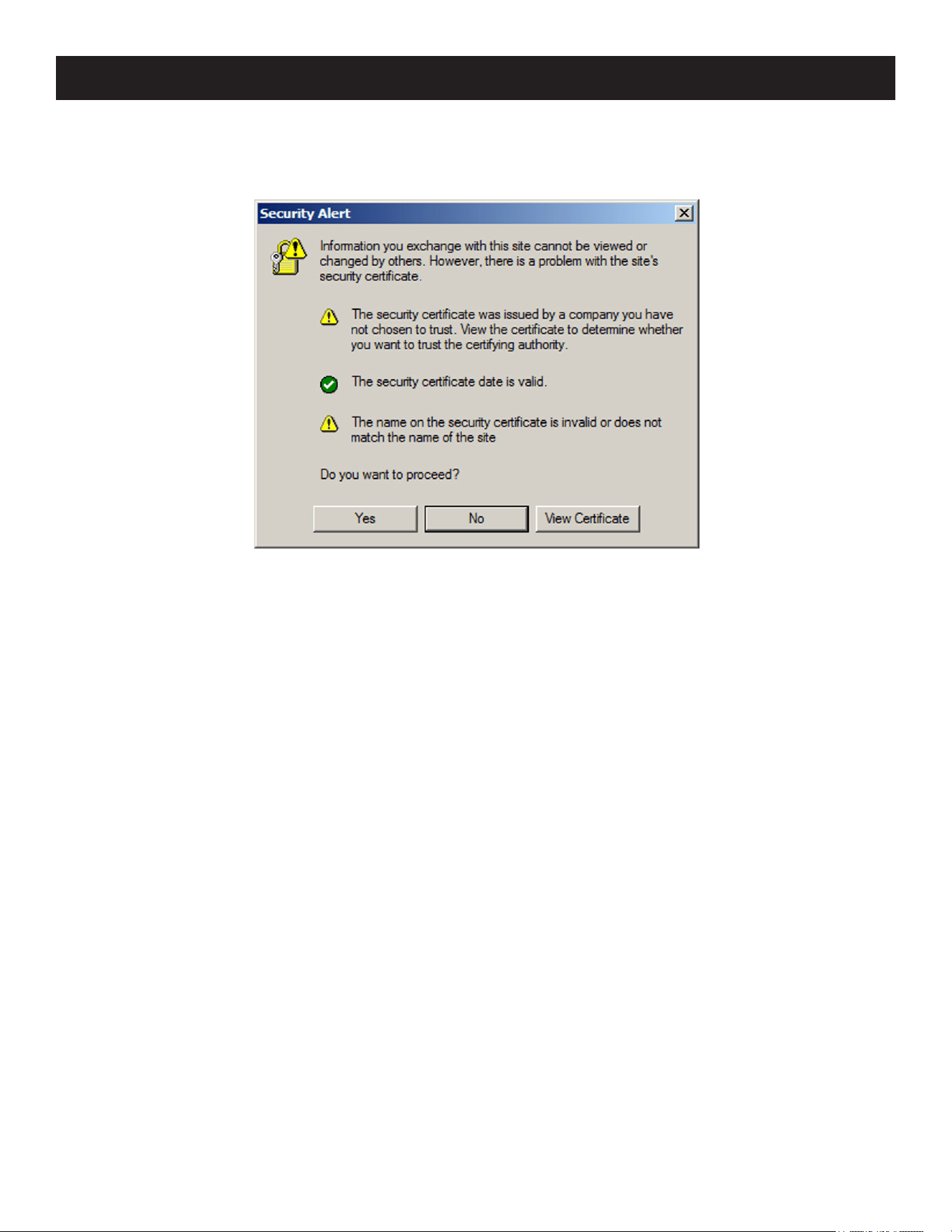

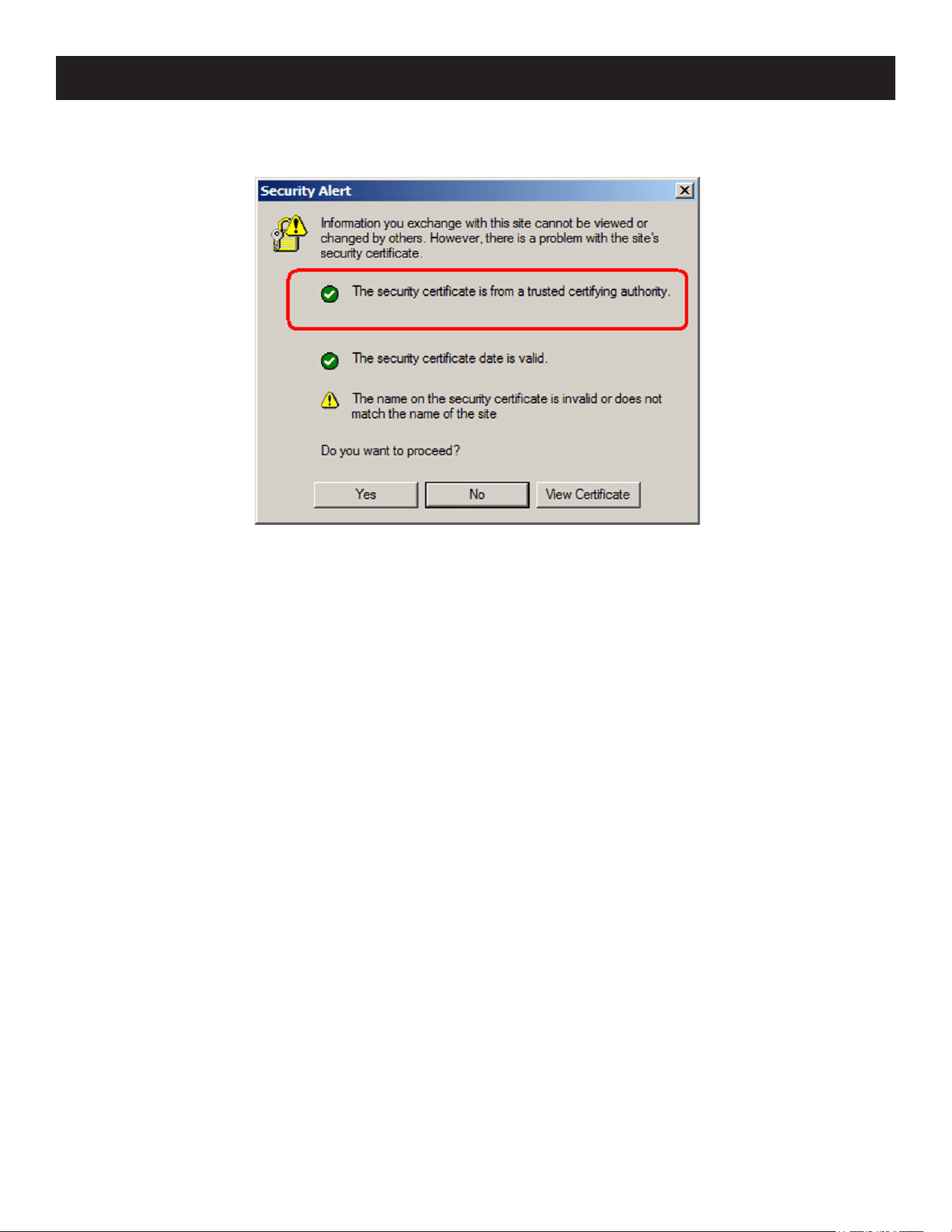

When you try to login to the B064C-16-1-IP from your Web browser, a Security Alert message will appear to inform you

the device’s certificate is not trusted and ask if you want to proceed.

The certificate can be trusted, but the alert is triggered because the certificate’s name is not found on Microsoft’s list of

Trusted Authorities. You have two options: 1) Ignore the warning and click Yes to proceed; or 2) Install the certificate

and have it be recognized as trusted.

• If you are working on a computer at another location, accept the certificate for just this session by clicking Yes.

• If you are working at your own computer, install the certificate on your computer (see below for details). After the

certificate is installed, it will be recognized as trusted.

Installing the Certificate

To install the certificate:

1. In the Security Alert dialog box, click View Certificate. The Certificate dialog box will appear.

Note: There is a red and white X logo over the certificate to indicate it is not trusted.

2. Click Install Certificate.

3. Follow the Installation Wizard instructions to complete the installation. Unless you have a specific reason to choose

otherwise, accept the default options.

4. The Wizard will present a caution screen. Click Yes.

5. Click Finish to complete the installation.

6. Click OK to close the dialog box.

7. Administration

Certificate Trusted

The certificate is now trusted:

When you click View Certificate, you can see the red and white X logo is no longer present to indicate the certificate

is trusted.

7.1.3 Self-Signed Private Certificates

If you wish to create your own self-signed encryption key and certificate, a free utility (openssl.exe) is available for

download at www.openssl.org. To create your private key and certificate:

1. Go to the directory where you downloaded and extracted openssl.exe.

2. Run openssl.exe with the following parameters:

openssl req -new -newkey rsa:1024 -days 3653 -nodes -x509

-keyout CA.key -out CA.cer -config openssl.cnf

Notes:

• The command should be entered all on one line (i.e., do not press [Enter] until all the parameters have been keyed in).

• If there are spaces in the input, surround the entry in quotes (e.g., “Eaton Corporation”).

To avoid having to input information during key generation the following additional parameters can be used:

/C /ST /L /O /OU /CN /emailAddress.

Example

openssl req -new -newkey rsa:1024 -days 3653 -nodes -x509

-keyout CA.key -out CA.cer -config openssl.cnf -subj

/C=yourcountry/ST=yourstateorprovince/L=yourlocationor city/

O=yourorganiztion/OU=yourorganizationalunit/ CN=yourcommonname/

[email protected]

Importing Files

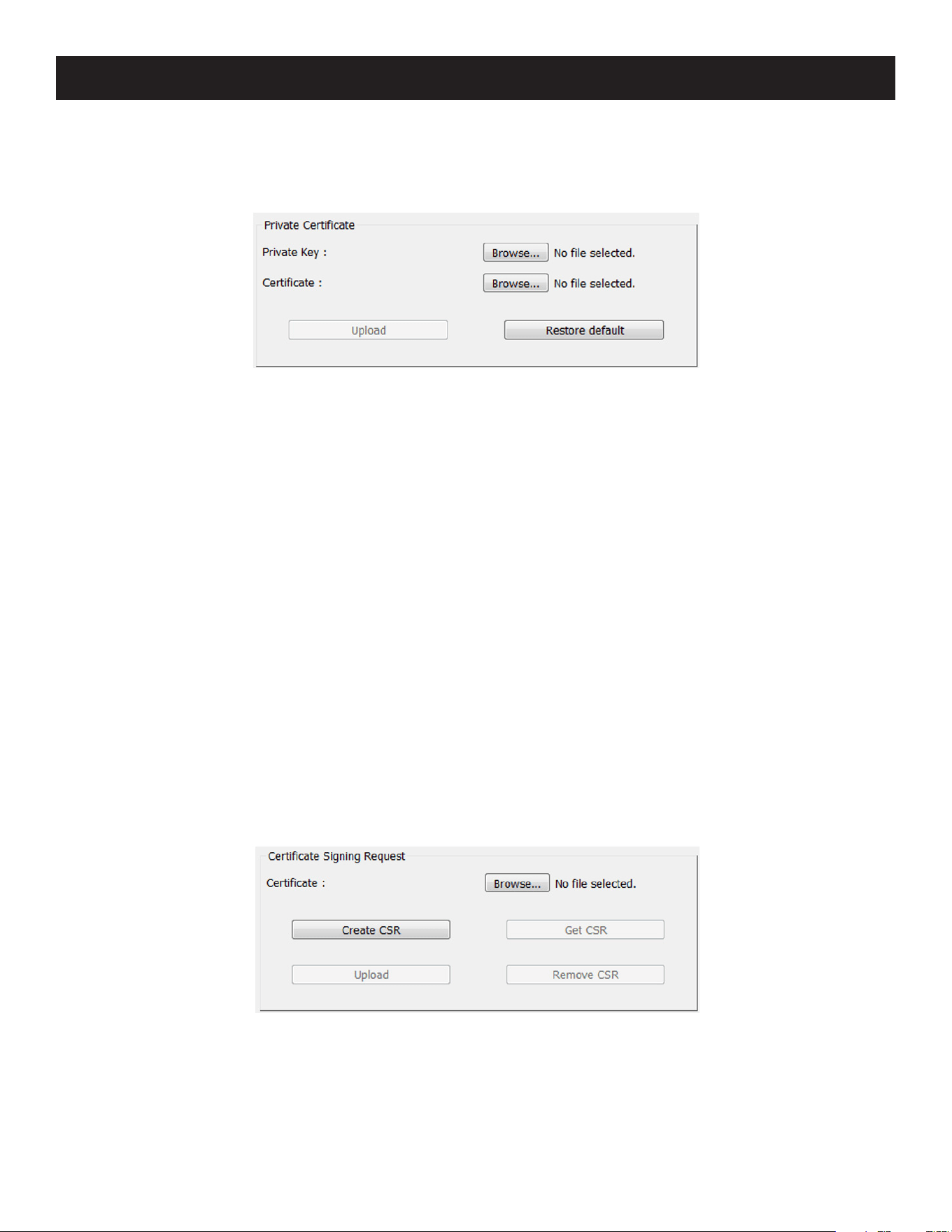

Once the openssl.exe program completes, two files - CA.key (the private key) and CA.cer (the self-signed SSL

certificate) - are created in the directory that you ran the program from. These are the files that you upload in the

Private Certificate panel of the Security page.

7. Administration

7.2 OSD Operation

7.2.1 OSD Overview

The On Screen Display (OSD) is a menu-driven method to handle computer control and switching operations. All

procedures start from the OSD main screen. To display the main screen, press the dedicated invocation key KVM OSD

provided on the keyboard module.

OSD Login

The OSD incorporates a two-level (administrator / user) password system. Before the OSD main screen opens, a login

dialog box appears that asks for a username and password. You must provide a valid username and password to

continue.

The first time the OSD is accessed, you must use the default username and password: administrator and password. For

security purposes, we strongly recommend changing these to something unique.

After logging in with the default username and password, the OSD main screen opens in Administrator mode. In this

mode, you have administrator privileges, with access to all administrator and user functions, and can set up operations

(including password authorization for the future).

OSD Hotkey

The OSD Hotkey is enabled to [Scroll Lock] [Scroll Lock] by default. Using the OSD hotkey, users can access the OSD, on

the LCD or an external console while also displaying any port on the unit.

Note: To adjust the OSD hotkey settings, see 7.3.9 Setting the OSD Hotkey Combination for details.

7.2.2 OSD Main Screen

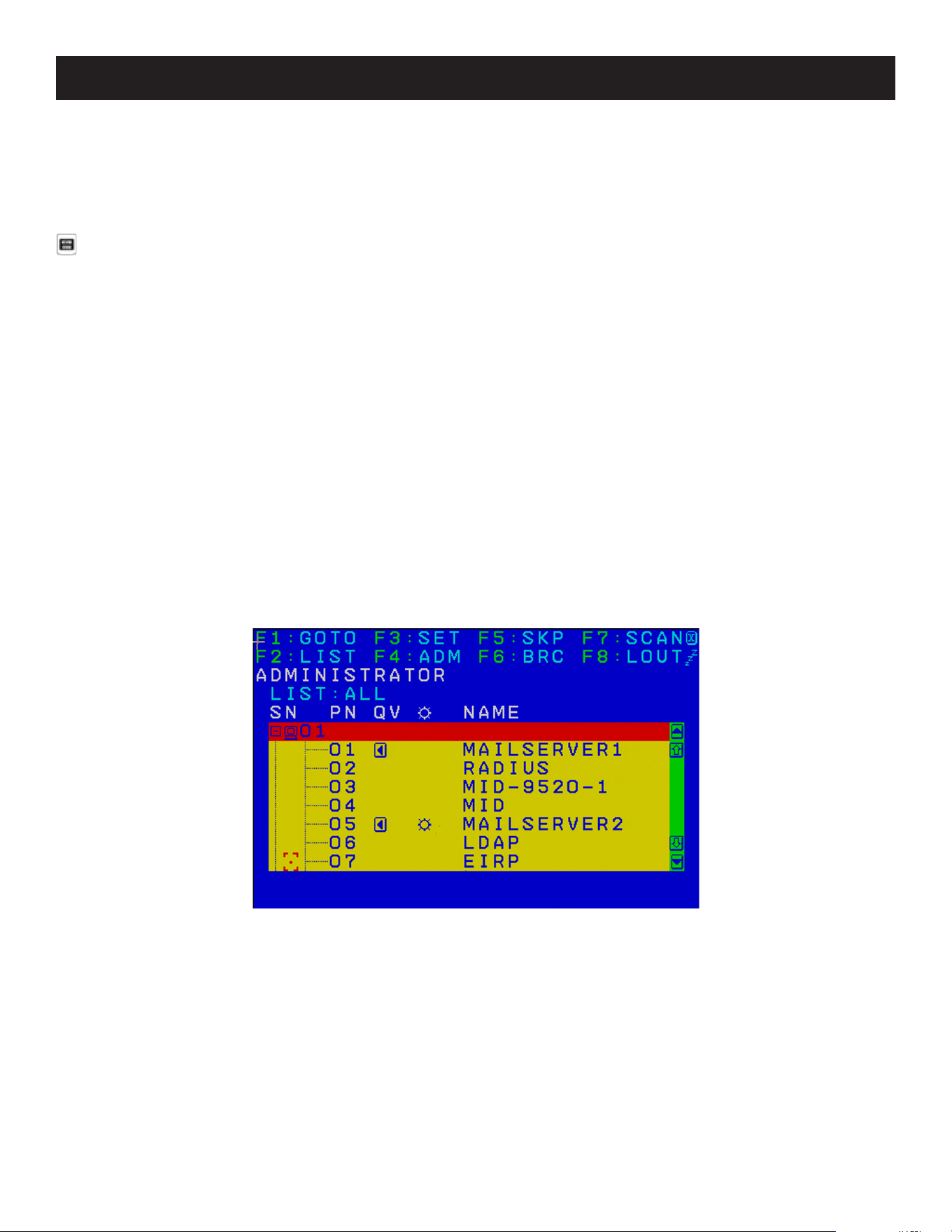

When you invoke the OSD, a screen similar to the one below appears:

Note: The diagram depicts the Administrator’s Main Screen. The User Main Screen does not show the F4 and F6 functions, as these are

reserved for the administrator and cannot be accessed by ordinary users.

7. Administration

7.2.3 OSD Navigation

• To dismiss the menu and deactivate the OSD, click the X at the upper right corner of the OSD Window or press Esc.

• To Logout, click F8 or the

symbol at the top of the Main Screen or press [F8].

• The OSD uses a tree view. To see the ports for a particular station, click the plus sign [ + ] in front of the station

number. The port number list drops down. To dismiss the list, click the circle symbol [ o ] in front of the station

number.

• To move up or down through the list one line at a time, click the up and down triangle symbols () or use the up

and down arrow keys. If there are more list entries than there is room for on the Main Screen, the screen will scroll.

• To move up or down through the list one screen at a time, click the up and down arrow symbols (56), or use the

[Pg Up] and [Pg Dn] keys. If there are more list entries than there is room for on the Main Screen, the screen will

scroll.

• To bring the KVM focus to a port, double-click or move the highlight bar and press [Enter].

• After executing any action, you automatically go back to the menu one level above.

7.2.4 OSD Main Screen Headings

Heading Explanation

SN-PN

This column lists the port ID numbers (station number-port number) for all the KVM ports on the

installation. The simplest method to access a particular computer is to click it or move the highlight

bar to it and press [Enter].

QV If a port has been selected for Quick View scanning, an arrowhead displays in this column.

Computers that are powered on and are online have a sun symbol in this column.

NAME If a port has been given a name, its name appears in this column.

7.2.5 OSD Functions

OSD functions are used to configure and control the OSD. For example, you can rapidly switch to any port, scan

selected ports only, limit the list you wish to view, designate a port as a Quick View Port, create or edit a port name or

make OSD setting adjustments.

To access an OSD function:

1. Click a function key field at the top of the Main Screen or press a function key on the keyboard.

2. In the submenus that appear, make your choice by double clicking or moving the highlight bar to it and pressing

[Enter].

3. Press [Esc] to return to the previous menu level.

F1: GOTO

Accessing the GOTO function allows you to switch directly to a port either by keying in the port’s name or its port ID.

• To use the Name method, key in “1”, key in the port’s name, then press [Enter].

• To use the Port ID method, key in “2”, key in the port ID, then press [Enter].

Note: You can key in a partial name or port ID. The screen will show all the computers that the user has View rights to that match the

name or port ID pattern, regardless of the current List settings (see F2: List for details).

To return to the OSD Main Menu without making a choice, press [Esc].

7. Administration

F2: LIST

Many of the switch’s OSD functions only operate on the computers currently selected for listing on the Main Screen.

Accessing this function lets you broaden or narrow the scope of ports that get listed. The submenu choices and their

meanings are provided in the table below:

Choice Meaning

ALL Lists all ports on the installation.

QUICK VIEW Lists only the ports that have been selected as Quick View Ports.

POWERED ON Lists only the ports that have attached computers Powered On.

QUICK VIEW +

POWERED ON

Lists only the ports that have been selected as Quick View Ports, and that have their attached

computers Powered On.

Move the highlight bar to the choice you want, then press [Enter]. An icon will appear before the choice to indicate that

it is the currently selected one.

F3: SET

Accessing this function allows the administrator and each user to set up an individual working environment. A separate

profile for each operator is stored by the OSD and is activated according to the username provided during login.

To change a setting:

1. Double-click or move the highlight bar to it, then press [Enter].

2. After you select an item, a submenu with further choices appears. To make a selection, either double click or move

the highlight bar to it, then press [Enter]. An icon appears before the selected choice to indicate which one it is. The

settings are explained in the following table:

Setting Function

OSD HOTKEY

Selects which hotkey activates the OSD function: [Scroll Lock] [Scroll Lock]; [Ctrl] [Ctrl] or [Alt] [Alt],

or O.

Since the [Ctrl] or [Alt] key combinations may conict with programs running on the computers, the

default is the [Scroll Lock] combination.

PORT ID DISPLAY

POSITION

Allows you to position where the port ID appears on the monitor. The default is the upper left

corner, but you can choose to have it appear anywhere on the screen.

Use the mouse or the arrow keys plus Pg Up, Pg Dn, Home, End, and 5 (on the numeric keypad with

Num Lock o) to position the port ID display. Then click or press [Enter] to lock the position and

return to the Set submenu.

Note: The setting aects the currently selected port. If you do not want to use the default position, you must

change the setting for each port individually.

PORT ID DISPLAY

DURATION

Determines how long a port ID displays on the monitor after a port change has taken place. There

are two choices: 3 seconds and O.

PORT ID DISPLAY

MODE

Selects how the port ID is displayed: the port number alone (PORT NUMBER); the port name alone

(PORT NAME); or the port number plus the port name (PORT NUMBER + PORT NAME). The

default is (PORT NUMBER + PORT NAME).

SCAN DURATION

Determines how long the focus dwells on each port as it cycles through the selected ports in Auto

Scan mode (see Fl: SCAN). Key in a value from 1-255 seconds, then press [Enter]. Default is 5

seconds; a setting of 0 disables the Scan function.

7. Administration

Setting Function

SCAN/SKIP

MODE

Selects which computers will be accessed under Skip mode (see F5: SKP), and Auto Scan mode (see

Fl: SCAN).

The choices are:

ALL - All the ports which have been set Accessible.

POWERED ON - Only those ports which have been set Accessible and are Powered On.

QUICK VIEW + POWERED ON - Only those ports which have been set Accessible and have been

selected as Quick View Ports and are Powered On. The default is ALL..

SCREEN

BLANKER

If there is no input from the console for the amount of time set with this function, the screen is

blanked. Key in a value from 1-30 minutes, then press [Enter]. A setting of 0 disables this function.

The default is O.

HOTKEY

COMMAND

MODE

Enables / Disables the Hotkey function (see 7.2 OSD Operation) in case a conict with programs

running on the computers occurs. The default is On.

HOTKEY

This setting selects the Hotkey invocation keys (see 7.3 Hotkey Operation). Choices are [NUM

LOCK] + [-], or [CTRL] + [F12]. The default is [NUM LOCK] + [-].

OSD LANGUAGE

Sets the language that the OSD displays in. Choices are: English, German, Japanese, Simplied

Chinese, Traditional Chinese, Spanish, Russian and French. The default is English.

SET CONSOLE

KEYBOARD

Sets the keyboard language mapping of the console keyboard. The default is Auto. If the switch

does not automatically receive language mapping from the keyboard, it will set to English (US).

SET LOGOUT

TIMEOUT

If there is no input from the console for the amount of time set with this function, the operator is

automatically logged out. A login is necessary before the console can be used again.

This enables other operators to gain access to the computers when the original operator is no

longer accessing them but has forgotten to log out. To set the timeout value, key in a number from

1-180 minutes, then press [Enter]. If the number is 0 (zero), this function is disabled. Default is O.

ACTIVATE

BEEPER

Choices are Y (for Yes), or N (for No). When activated, the beeper sounds whenever a port is

changed when activating the Auto Scan function (see Fl: SCAN) or an invalid entry is made on an

OSD menu. The default is On.

PREFERRED

RESOLUTION

This function allows you to set the preferred resolution for a second external display connected to

the switches console port, which will be sent by way of the KVM adapter cables. The KVM adapter

cables provide the connected computer’s video card with EDID information about the monitor

connected to the switch. This aects the video quality displaying on the external console monitor.

Choices are:

• MONITOR DEFAULT SETTING - Sends the EDID information provided by the switch’s LCD

monitor to the KVM adapter cable.

• Alternative Resolution - Sends the alternative resolution (EDID information) selected for the

external display connected to the switches console port to the KVM adapter cables. Select a

resolution that best suits the video display for the monitor connected to the switches console

port.

Note: When using the built-in LCD monitor, the default resolution must be set to 1280 x 1024 60 Hz. Only change

the preferred resolution when connecting an external display to the console monitor port.

TOUCHPAD

Enables / Disables the touchpad function of the console. Choices are Y (for Yes), or N (for No). The

active status (Touchpad On / Touchpad O) is also shown.

7. Administration

F4: ADM

F4 is an administrator-only function. Accessing this function allows the administrator to configure and control the

overall operation of the OSD. To change a setting, double-click it or use the up and down arrow keys to move the

highlight bar to it, then press [Enter].

After you select an item, a submenu with further choices appears. Double click the choice you want or move the

highlight bar to it, then press [Enter]. An icon appears before the selected choice.

Setting Function

SET IP ADDRESS

This function is used to select whether to assign the IP address automatically (DHCP) or to give it a

xed IP address.

• Enable DHCP to assign the IP address automatically.

• Disable DHCP to assign a xed IP address and specify the IP, Mask, and Gateway in the

appropriate elds.

Note: The default setting for DHCP is disabled.

EDIT PORT

NAMES

To identify which computer is attached to a particular port, every port can be assigned a name. This

function allows the administrator to create, modify or delete port names. To assign a port name:

1. Click the port you want or use the navigation keys to move the highlight bar to it, then press

[Enter].

2. Key in the new port name or modify/delete the old one. The maximum number of characters

allowed for the port name is 14. Legal characters include:

• All alpha characters: A-Z*

• All numeric characters: 0-9

* You can enter the port names in either upper or lower case. However, the OSD displays the port name

only in UPPERCASE.

3. When you have nished editing, press [Enter] to have the change take eect. To abort the

change, press [Esc].

RESTORE

DEFAULT

VALUES

This function is used to undo all changes and return the setup to the original factory default

settings (see 8.11 OSD Factory Default Settings for details) except for the Names settings that

were assigned to the ports, which are saved.

CLEAR THE

NAME LIST

This function clears the port name list.

RESET STATION

IDS

If you change the position of one of the stations in the daisy chain, the OSD settings will no longer

correspond to the new situation. This function directs the OSD to rescan the station positions of

the entire installation and updates the OSD so that the OSD station information corresponds to the

new physical layout.

Note: Only the station numbers get updated. Except for the port names, all administrator settings for all of the

computers aected by the change have to be reentered manually.

SET OPERATING

SYSTEM

Species the operating platform of the computer attached to each port. You must congure each

port on the installation. For each port, press the [Spacebar] to cycle through the choices (PC, Mac

or Sun). Repeat until all the ports have been set, then press [Esc]. The default is PC.

Note: If you are installing a Sun or Mac computer, it may not boot when you run it for the rst time unless you rst

set the correct operating system for the port it is connected to.

SET CAT 5

LENGTH

Lets you specify how long the Cat 5e/6 cable between the port and the KVM adapter cable is. Press

[Spacebar] to cycle through the cable length settings:

S: Short - up to 82 ft. (25 m)

M: Medium - between 65 and 115 ft. (20 and 35 m)

L: Long - above 115 ft. (35 m)

An S, M, or L appears next to the port to indicate the choice.

7. Administration

Setting Function

SET KEYBOARD

LANGUAGE

Sets the keyboard language layout for the computers attached to each port. Press [Spacebar] to

cycle through the choices: The default is English (US).

FIRMWARE

UPGRADE

In order to upgrade the B064C-16-1-IP and adapter cable rmware, you must rst enable Firmware

Upgrade mode with this setting.

When you access this menu, the current rmware version of the KVM switch and the iCard will be

displayed. Select Y to enable Firmware Upgrade mode, or N to leave this menu without enabling it.

ADAPTER

UPGRADE

This function allows the administrator to check the rmware version of the KVM adapter cable.

When you access this menu, the current rmware version levels display.

SET CONSOLE

MODE

This setting selects which console(s) (internal/external) are enabled:

0: Both Consoles enabled

1: LCD Console only

2: External console only

Use the spacebar to cycle through the choices. The default is 0. Changes will not be saved until you

logout.

SET VIDEO HV

MODE

This setting selects the video mode (separate or composite video sync signals) the port(s) (internal/

external) is using. Press [Spacebar] to enter this setting and see a list of ports.

Use the [Spacebar] to cycle through the choices. The choices are:

S: Separate (default)

C: Composite

Changes will not be saved until you exit to the main menu.

Note: If your dongle does not support video HV mode, the unit will emit a beeping sound whenever you cycle

through the choices.

F5: SKP

This function enables you to skip backward or forward easily, switching the console focus from the currently active KVM

Port to the previous or next available one.

• The selection of computers to be available for Skip mode switching is made with the ScanISkip mode setting under

the F3 SET function.

• When in Skip mode, press:

← To skip to the previous port in the list.

→ To skip to the next port in the list.

↑ To skip to the last port of the previous station in the list.

↓ To skip to the first port of the next station in the list.

Note: When you skip, you may only skip to the previous or next available computer that is in the ScanISkip mode selection.

• If a port has been selected for ScanISkip mode, the focus switches to that port a left/right triangle symbol appears

before its port ID display.

• While Skip mode is in effect, the console will not function normally. You must exit Skip mode to regain control of the

console.

• To exit Skip mode, press the [Spacebar] or [Esc].

7. Administration

F6: BRC

F6 is an administrator-only function. When this function is in effect, commands sent from the console are broadcast to

all available computers on the installation.

This function is particularly useful for operations that need to be performed on multiple computers, such as performing

a system wide shutdown, installing or upgrading software, etc.

• While BRC mode is in effect, a speaker symbol appears before the port ID display of the port that currently has the

console focus.

• While BRC mode is in effect, the mouse will not function normally. You must exit BRC mode to regain control of the

mouse.

• To exit BRC mode, invoke the OSD (with the OSD Hotkey), then click the F6 field or press [F6] to turn BRC mode off.

F7: SCAN

This function automatically switches among the available computers at regular intervals so you can monitor their activity

without switching manually.

• The selection of computers to be included for Auto Scanning is made with the ScanISkip mode setting under the F3

SET function.

• The amount of time that each port displays for is set with the Scan Duration setting under the F3 SET function.

• As each computer is accessed, an

appears in front of the port ID display to indicate it is being accessed under

Auto Scan mode.

• While you are in Auto Scan mode, you can pause scanning and keep the focus on a particular computer by pressing P

or with a left-click of the mouse. To resume scanning, press any key or left-click again (see 7.3.4 Auto Scan Mode

Switching for details).

• While Auto Scan mode is in effect, the console will not function normally. You must exit Auto Scan mode to regain

control of the console.

• To exit Auto Scan mode, press the [Spacebar] or [Esc].

F8: LOUT

Clicking the F8 field or pressing [F8] logs you out of the OSD and blanks the console screen. This is different from

simply deactivating the OSD when you are at the Main Screen by pressing [Esc].

With this function, you must log in all over again to regain access to the OSD, whereas with [Esc], simply press the OSD

Hotkey to reenter the OSD.

Notes:

• When you reenter the OSD after logging out, the screen stays blank except for the login dialog box. You must input your username and

password before you can continue.

• If you reenter the OSD after logging out and immediately use [Esc] to deactivate the OSD without having selected a port from the OSD

menu, a Null Port message displays on the screen. The OSD hotkey will access the OSD Main Screen.

7. Administration

7.3 Hotkey Operation

7.3.1 Hotkey Port Control

Hotkey port control allows you to provide KVM focus to a particular computer directly from the keyboard. B064C-16-1-

IP provides the following Hotkey port control features:

• Selecting the Active Port

• Auto Scan Mode Switching

• Skip Mode Switching

• Computer Keyboard / Mouse Reset

The following settings can also be controlled in Hotkey mode:

• Setting the Beeper

• Setting the Quick Hotkey

• Setting the OSD Hotkey

• Setting the Port Operating System

• Restoring the OSD Default Values

7.3.2 Invoking Hotkey Mode

All Hotkey operations begin by invoking Hotkey mode. To invoke Hotkey mode, you may use two possible keystroke

sequences shown below. Only one of the two key-sequences below can be operational (see Setting the Hotkey key

combination for details):

Number Lock and Minus Keys

1. Hold down the [Num Lock] key

2. Press and release the [Minus] key

3. Release the [Num Lock] key [Num Lock] + [-]

Control and F12 Keys

1. Hold down the [Ctrl] key

2. Press and release the [F12] key

3. Release the [Ctrl] key [Ctrl] + [F12]

Hotkey Mode Environment

When Hotkey mode is active:

• A command line appears on the monitor screen. The command line prompt is the word Hotkey: in white text on a

blue background, and displays the subsequent Hotkey information that you key in.

• Ordinary keyboard and mouse functions are suspended - only Hotkey-compliant keystrokes (described in the sections

that follow), can be input.

Exiting Hotkey Mode

Pressing [Esc] exits Hotkey mode.

7. Administration

7.3.3 Selecting the Active Port

Each computer port is assigned a port ID (see 6.6 Port ID Numbering). You can directly access any computer with a

Hotkey combination that specifies the port ID that the computer is connected to. The steps are:

1. Enter the Hotkey mode with the:

[Num Lock] + [-] or [Ctrl] + [F12] combination.

2. Key in the port ID.

The port ID numbers display on the command line as you key them in. If you make a mistake, use [Backspace] to

erase it.

3. Press [Enter].

After you press [Enter], the KVM focus switches to the designated computer and will automatically exit Hotkey mode.

Note: In Hotkey mode, the KVM focus will not switch to a port if an invalid switch or port number is entered. The Hotkey command line

will continue to display on the screen until you enter a valid switch and port number combination or exit Hotkey mode.

7.3.4 Auto Scan Mode Switching

Auto Scan automatically switches among all the active computer ports that are accessible to the current logged-on user

at regular intervals. This allows their activity to be monitored automatically (See SCAN/SKIP MODE of the OSD F3 SET

function).

Setting the Scan Interval

The amount of time Auto Scan keeps the focus on each port is set with the SCAN DURATlON setting of the OSD F3 SET

function. You can change the scan interval before you activate Hotkey Auto Scanning by entering the following Hotkey

combination:

1. Enter the Hotkey mode:

[Num Lock] + [-] or [Ctrl] + [F12] combination.

2. Key in [A][n]

Where [A] is the letter A, and [n] is a number from 1-255 that represents the length of the focus time in seconds.

The letter A and the numbers display on the command line as you key them in. Use [Backspace] to erase any

wrong entry.

3. Press [Enter]

After you press [Enter], exit Hotkey mode and start Auto Scanning.

Entering Auto Scan

To enter the Auto Scanning mode, key in the following Hotkey combination:

1. Enter the Hotkey mode:

[Num Lock] + [-] or [Ctrl] + [F12] combination.

2. Press [A] + [Enter].

• While you are in Auto Scan mode, you can pause the scanning to keep the focus on a particular computer by

pressing [P]. When Auto Scanning is paused, the Command Line displays: Auto Scan: Paused.

When you want to keep the focus on a particular computer, Pausing is more convenient than exiting Auto Scan mode.

When you resume scanning it starts at the computer where you paused. If you exited and then restarted Auto

Scanning, it starts, at the beginning, from the first computer on the installation.

To resume Auto Scanning, press any key. Scanning continues from the computer you paused at.

• While the Auto Scan mode is operating, ordinary keyboard and mouse functions are suspended - only Auto Scan

mode compliant keystrokes can be input. You must exit Auto Scan mode to regain normal control of the console.

Exiting Auto Scan

1. To exit Auto Scan mode, press [Esc] or [Spacebar]. Auto Scanning stops when you exit Auto Scan mode.

7. Administration

7.3.5 Skip Mode Switching

This feature allows you to switch between computers to monitor them manually. You can focus on a particular port for

as long as you like (as opposed to auto-scanning, which automatically switches the port focus after a fixed interval).

Entering Skip Mode

To enter Skip mode, key in the following Hotkey combination:

1. Enter the Hotkey mode by pressing the:

[Num Lock] + [-] or [Ctrl] + [F12] combination.

2. Press one of the [Arrow] keys.

After you press one of the keyboard arrows, you automatically exit Hotkey mode and enter Skip mode where you can

switch ports as follows:

←

Skips to the rst accessible port.

→

Skips to the next accessible port.

↑

Skips to the last accessible port of the previous station.

↓

Skips to the rst accessible port of the next station.

Once you are in Skip mode, you can continue skipping by pressing the arrow keys. You do not have to use the [Num

Lock] + [-] combination again.

While Skip mode is in effect, ordinary keyboard and mouse functions are suspended - only Skip mode compliant

keystrokes can be input. You must exit Skip mode to regain normal control of the console.

Exiting Skip Mode

1. To exit Skip mode, press [Esc] or [Spacebar].

7.3.6 Computer Keyboard / Mouse Reset

If either the keyboard or mouse stop functioning on the computer connected to the currently selected port, you can

perform a keyboard / mouse reset on the computer by performing the following steps:

1. Enter the Hotkey mode with the:

[Num Lock] + [-] or [Ctrl] + [F12] combination.

2. Press [F5].

After you press [F5] you automatically exit Hotkey mode and regain keyboard and mouse control on the computer

connected to the KVM port. If you fail to regain keyboard / mouse control on the computer after pressing [F5],

perform a system reset.

This function is essentially the same as unplugging and replugging the keyboard and mouse on the target computer.

7.3.7 Setting the Hotkey Beeper ON / OFF

The beeper can be turned on and off with Hotkeys performing by the following steps:

1. Enter the Hotkey mode with the:

[Num Lock] + [-] or [Ctrl] + [F12] combination.

2. Press [B].

After you press [B], the beeper turns on or off. The command line displays Beeper On or Beeper Off for one second,

then the message will disappear and you will automatically exit Hotkey mode.

7. Administration

7.3.8 Setting the Hotkey Key-Combination

The keys used to enter Hotkey mode can be switched between:

[Num Lock] + [-], and [Ctrl] + [F12] by the following steps:

1. Enter the Hotkey mode with the:

[Num Lock] + [-] or [Ctrl] + [F12] combination.

2. Press [H].

After you press [H], the command line displays HOTKEY HAS BEEN CHANGED for one second, then the message will

disappear and you will automatically exit Hotkey mode.

7.3.9 Setting the OSD Hotkey Combination

The Hotkeys used to access the OSD (see 7.3.9 Setting the OSD Hotkey Combination) can be switched between

[Scroll Lock], [Scroll Lock], [Ctrl], [Ctrl] and [Alt], [Alt] by the following steps:

1. Enter the Hotkey mode with the:

[Num Lock] + [-] or [Ctrl] + [F12] combination.

2. Press [T].

After you press [T], the command line displays HOTKEY HAS BEEN CHANGED for one second, then the message will

disappear and you will automatically exit Hotkey mode.

7.3.10 Setting the Port Operating System

A port’s operating system configuration can be matched to that of the computer attached to the port by performing the

following steps:

1. Enter the Hotkey mode with the:

[Num Lock] + [-] or [Ctrl] + [F12] combination.

2. Press a [Function] key, where [Function] refers to one of the function keys in the following table:

Key Description

F1 Sets the Port OS to Windows

F2 Sets the Port OS to Mac

F3 Sets the Port OS to Sun

After pressing a function key, you automatically exit Hotkey mode.

7.3.11 Restore the Default Values

This administrator-only Hotkey restores the default values by performing the following steps:

1. Enter the Hotkey mode with the:

[Num Lock] + [-] or [Ctrl] + [F12] combination.

2. Press [R].

3. Press [Enter].

After you press [Enter], the command line displays RESET TO DEFAULT SETTING for three seconds, then the message

will disappear and you will automatically exit Hotkey mode.

7. Administration

7.3.12 Hotkey Summary Table

[Num Lock] + [-]

[Ctrl] + [F12]

[A] [Enter]

Invokes Auto Scan mode.

When Auto Scan mode is in eect, [P] or left-click pauses auto-scanning.

When auto-scanning is paused, pressing any key or another left-click resumes

auto-scanning.

[B] Toggles the Beeper On or O.

[Esc] or

[Spacebar]

Exits Hotkey mode.

[F1] Sets Operating System to Windows.

[F2] Sets Operating System to Mac.

[F3] Sets Operating System to Sun.

[H] Toggles the Hotkey invocation keys.

[Port ID] [Enter] Switches access to the computer that corresponds to that Port ID.

[R] [Enter] Administrator-only hotkey. It returns the switch's settings to their default values.

[T] Toggles the OSD Hotkey between [Ctrl] [Ctrl] and [Scroll Lock] [Scroll Lock].

[←]

Invokes Skip mode and skips from the current port to the rst accessible port

previous to it.

[→] Invokes Skip mode and skips from the current port to the next accessible port.

[↑]

Invokes Skip mode and skips from the current port to the last accessible port of

the previous station.

[↓]

Invokes Skip mode and skips from the current port to the rst accessible port of

the next station.

7. Administration

7.4 Keyboard Emulation

7.4.1 Mac Keyboard

The PC compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings

are listed in the table below:

PC Keyboard Mac Keyboard

[Shift] Shift

[Ctrl] Ctrl

[Ctrl] [1]

[Ctrl] [2]

[Ctrl] [3]

[Ctrl] [4]

[Alt] Alt

[Print Screen] F13

[Scroll Lock] F14

[Enter] Return

[Backspace] Delete

[Insert] Help

[Ctrl] F15

Note: When using key combinations, press and release the first key (Ctrl), then press and release the activation key.

7. Administration

7.4.2 Sun Keyboard

The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl]

is used in conjunction with other keys. The corresponding functions are shown in the table below:

PC Keyboard Sun Keyboard

[Ctrl] [T] Stop

[Ctrl] [F2] Again

[Ctrl] [F3] Props

[Ctrl] [F4] Undo

[Ctrl] [F5] Front

[Ctrl] [F6] Copy

[Ctrl] [F7] Open

[Ctrl] [F8] Paste

[Ctrl] [F9] Find

[Ctrl] [F10] Cut

[Ctrl] [1]

[Ctrl] [2]

[Ctrl] [3]

[Ctrl] [4]

[Ctrl] [H] Help

Compose

฀

Note: When using key combinations, press and release the first key (Ctrl), then press and release the activation key.

7. Administration

7.5 Logging In

The B064C-16-1-IP can be accessed via its Graphical User Interface (GUI) locally and remotely from an Internet browser,

a Windows application (AP) program and a Java application (AP) program.

No matter which access method you choose, the B064C-16-1-IP’s authentication procedure requires you to submit a

valid username and password. If you supply invalid login information, the authentication routine will return an lnvalid

Username or Password, or Login Failed message. If you see this message, log in again with a correct username and

password.

Note: If the number of invalid login attempts exceeds a specified amount, a timeout period is invoked. You must wait until the timeout

period expires before you can attempt to log in again.

7.5.1 Local Login

For instructions on logging in locally to your B064C-16-1-IP, refer to 7.2 OSD Operation.

7.5.2 Browser Login

The B064C-16-1-IP can be accessed via Internet browser running on any platform. To access the switch, do the

following:

1. Open the browser and specify the IP address of the switch you want to access in the browser’s location bar.

Notes:

• For security purposes, a login string may have been set by the administrator. If so, you must include a forward slash and the login string

along with the IP address when you log in. For example:

192.168.0.100/B064C161IP

• If you do not know the IP address and login string, ask your Administrator. The default IP address is: 192.168.0.60

2. When a Security Alert dialog box appears, accept the certificate (see 7.1.2 Trusted Certificates for details.) If a

second certificate appears, accept it as well.

Once you accept the certificate(s), the login page appears:

3. Provide your username and password (set by the administrator), then click Login to access the Web Main Page.

Note: If you are the administrator and logging in for the first time, use the default username: administrator and default password:

password. For security purposes, the system will prompt you to change the login password. The password must be different from your

7. Administration

7.5.3 Windows Client AP Login

The Windows AP Client allows direct remote access to Windows systems users without having to go through a browser

(although you initially download the Windows AP Client program from the browser page, see 7.12 Download for more

information). To connect to the B064C-16-1-IP, go to the location on your hard disk that you downloaded the Windows

AP Client program and double-click its icon (WinClient.exe).

To connect to the B064C-16-1-IP, click the WinClient.exe program icon (on your desktop) to access the Windows Client

Connection screen:

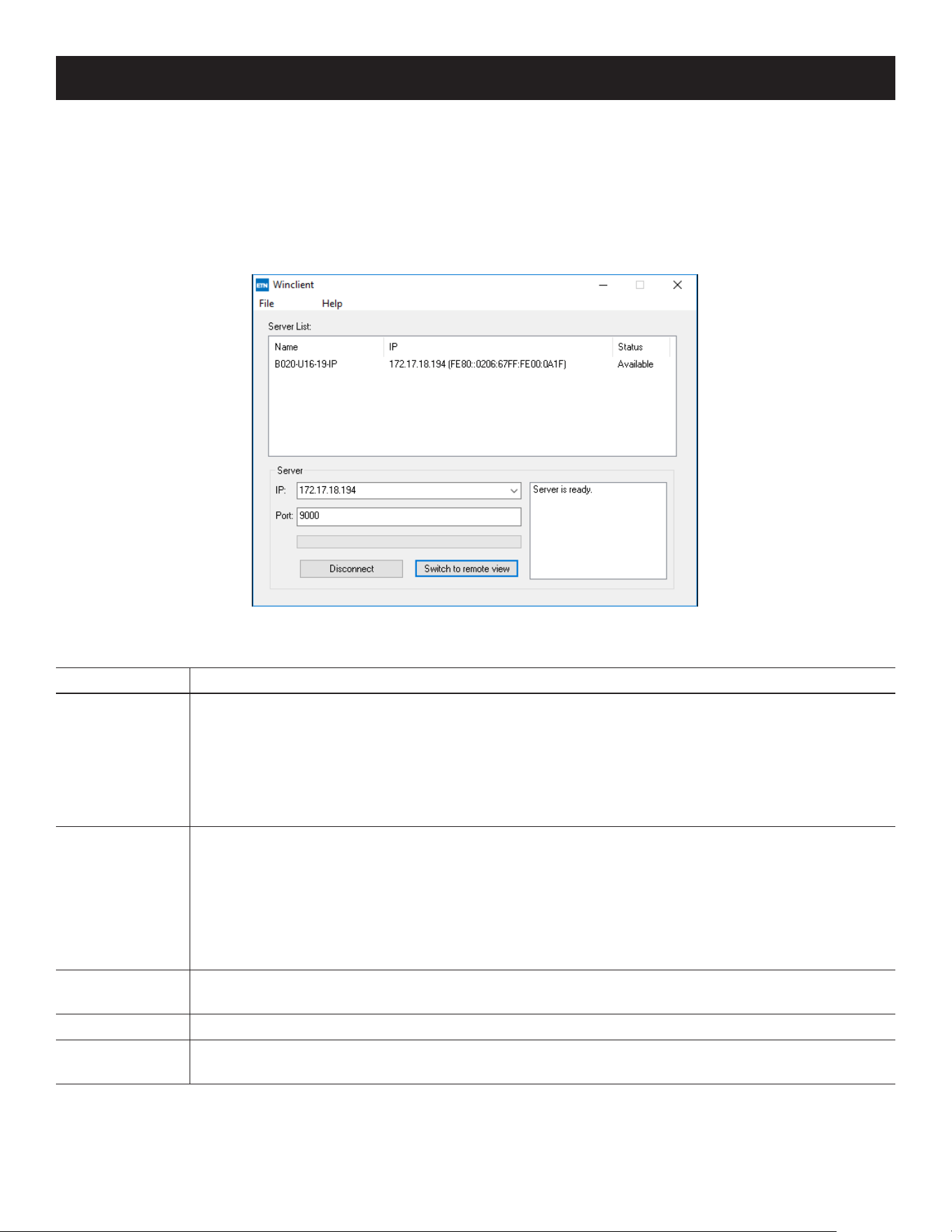

The Windows Client AP Connection Screen

Item Description

Server List

Each time the WinClient.exe le is run, it searches the user’s local LAN segment for the

B064C-16-1-IP and lists whichever ones it nds in this box. If you want to connect to one of these

units, double-click it.

Notes:

• The switch will not appear in the list unless its Enable Device List conguration parameter has been enabled.

• Only units whose Access Port settings for Program match the number specied for Port in the Server area of this

dialog box appear in the Server List window.

Server

This area is used when you want to connect to at a remote location. You can drop down the IP list

box and select an address from the list. If the address you want is not listed, you can key in the

target IP address in the IP eld and its port number in the Port eld. (If you do not know the port

number, contact your Administrator.)

• Once the IP address and Port number have been specied, click Connect.

• Once you have nished with your session and return to this dialog box, click Disconnect to end

the connection.

Message List

Located just to the right of the Server panel, the Message List panel lists status messages regarding

the connection to the B064C-16-1-IP.

Connect Click Connect after selecting a device in the Server list to login with a secure connection.

Switch to Remote

View

Once you have been authenticated, this button becomes active. Click it to switch to the GUI Main

Page.

7. Administration

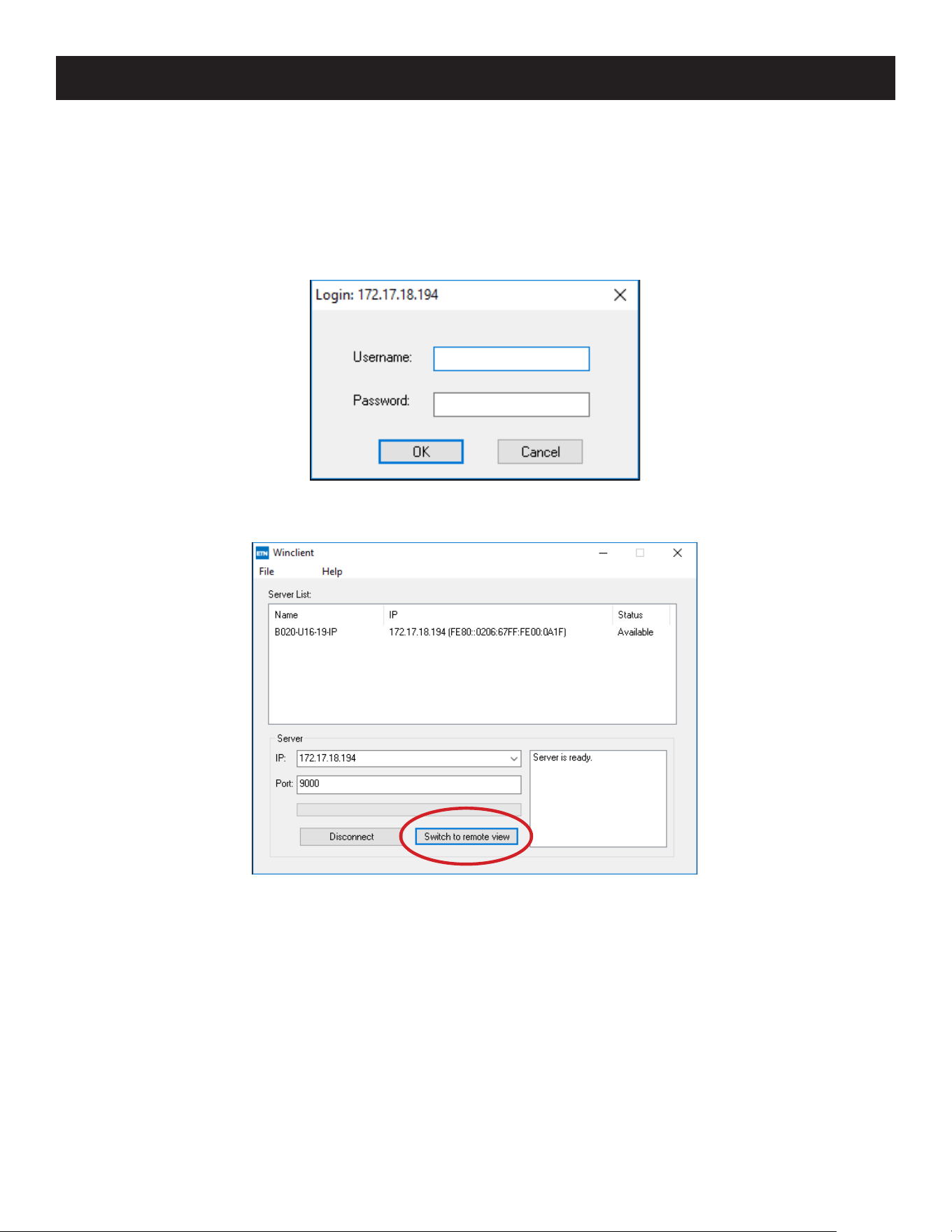

Connecting - Windows Client AP

1. From the Server List box, double-click the device that you wish to connect to.

- Or -

Specify its IP address and port number in the Server IP and Port input boxes.

2. Click Connect.

The Login dialog box will appear:

3. Key in a valid Username and Password, then click OK.

4. Once you have been authenticated, the Remote View button becomes active:

5. Click it to connect to the switch and access its GUI Main Page.

7. Administration

7.5.4 Java Client AP Login

The Java AP Client provides direct remote access to non-Windows systems users (although you initially download the

Java AP Client program from the browser page, see 7.12 Download for more information). To connect to the B064C-

16-1-IP, go to the location on your hard disk that you downloaded the Java AP Client program to and double-click its

icon (JavaClient.jar).

To connect to the B064C-16-1-IP, click the JavaClient.jar program icon (on your desktop) to access the Windows Client

Connection screen:

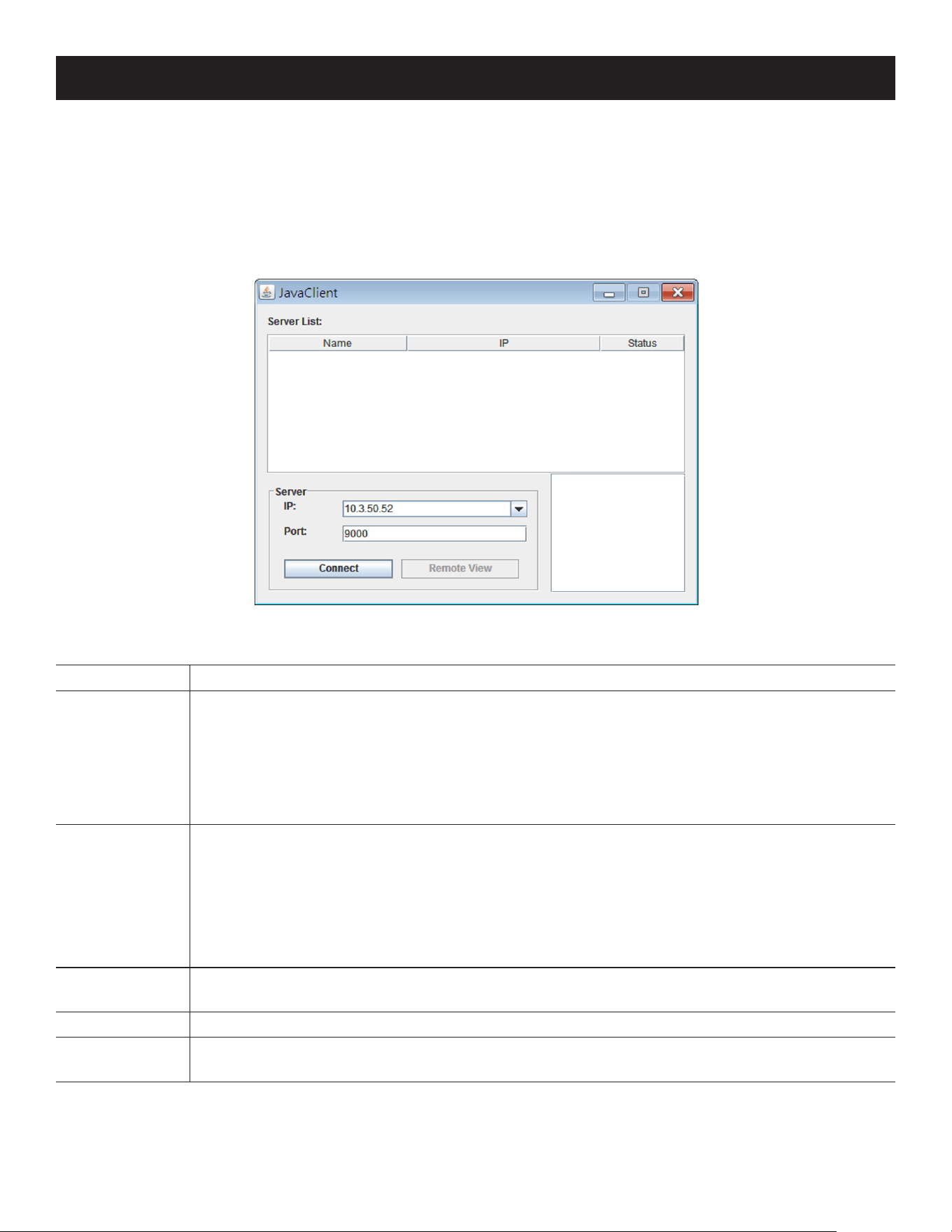

The Java Client AP Connection Screen

Item Description

Server List

Each time the JavaClient.jar le is run, it searches the User’s local LAN segment for B064C-16-1-IP

and lists whichever ones it nds in this box. If you want to connect to one of these units, double-

click it.

Notes:

• The switch will not appear in the list unless its Enable Device List conguration parameter has been enabled.

• Only units whose Access Port settings for Program match the number specied for Port in the Server area of this

dialog box appear in the Server List window.

Server

This area is used when you want to connect to a B064C-16-1-IP at a remote location. You can drop

down the IP list box and select an address from the list. If the address you want is not listed, you

can key in the target IP address in the IP eld and its port number in the Port eld. (If you do not

know the port number, contact your Administrator.)

• When the IP address and Port number have been specied, click Connect.

• When you have nished with your session and return to this dialog box, click Disconnect to end

the connection.

Message Panel

Located just to the right of the Server panel, the Message panel lists status messages regarding

connection to the B064C-16-1-IP.

Connect Click Connect after selecting a device in the Server list to login with a secure connection.

Switch to Remote

View

Once you have been authenticated, this button becomes active. Click it to switch to the GUI Main

Page.

7. Administration

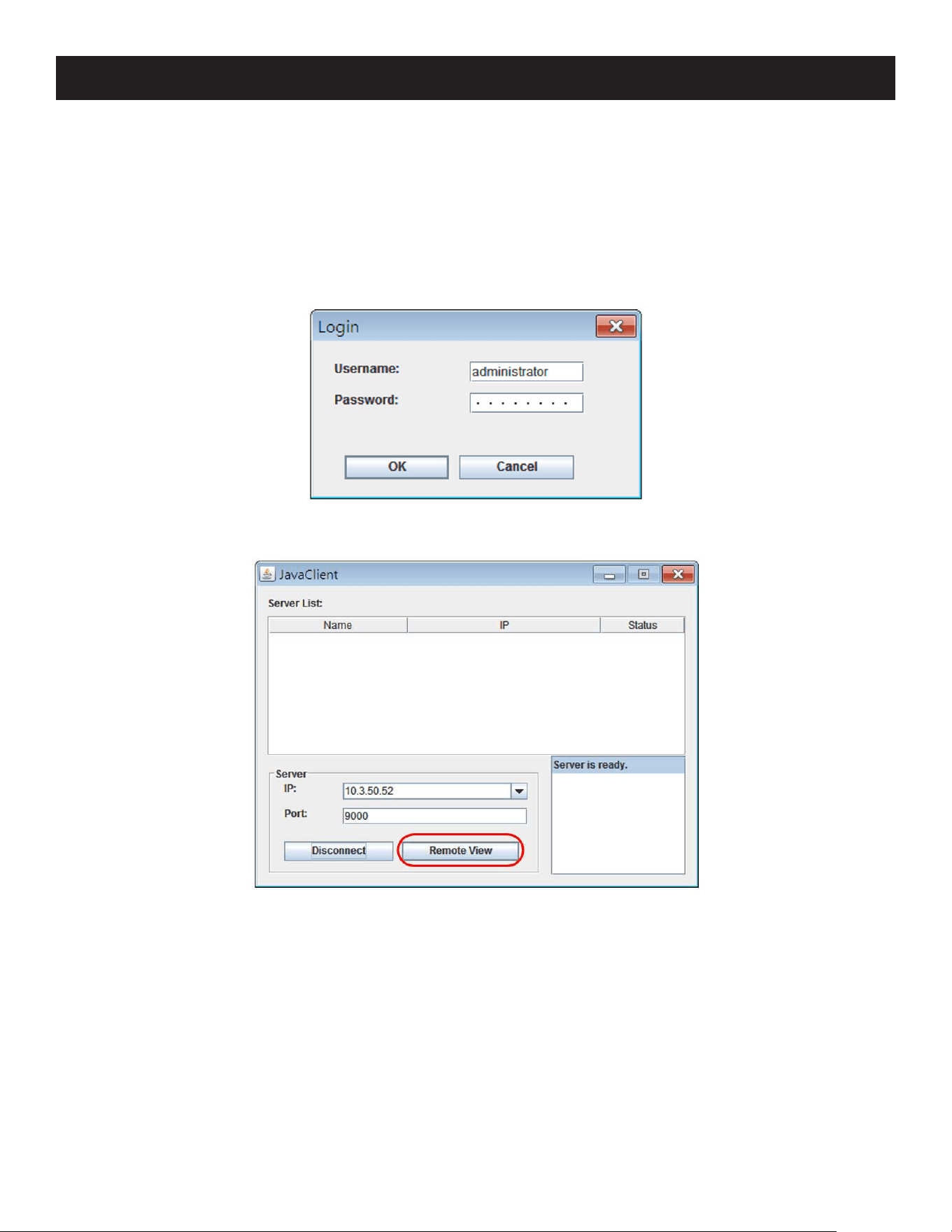

Connecting - Java Client AP

To connect to a KVM switch, do the following:

1. From the Server List box, double-click the device that you wish to connect to.

- Or -

Specify its IP address and port number in the Server IP and Port input boxes.

2. Click Login

The Login dialog box appears:

3. Key in a valid Username and Password, then click OK.

4. Once you have been authenticated, the Remote View button becomes active:

5. Click it to connect to the switch and access its GUI Main Page.

7. Administration

7.6 User Interface

Once you have successfully logged in, the B064C-16-1-IP user interface Main Page will appear. The appearance of the

page may vary slightly, depending on which method was used to log in.

7.6.1 Web Browser Main Page

To ensure multi-platform operability, access to the B064C-16-1-IP can be accomplished with most standard web

browsers. Once users log in and are authenticated, the Web Browser Main Page will appear with the Port Access page

displayed:

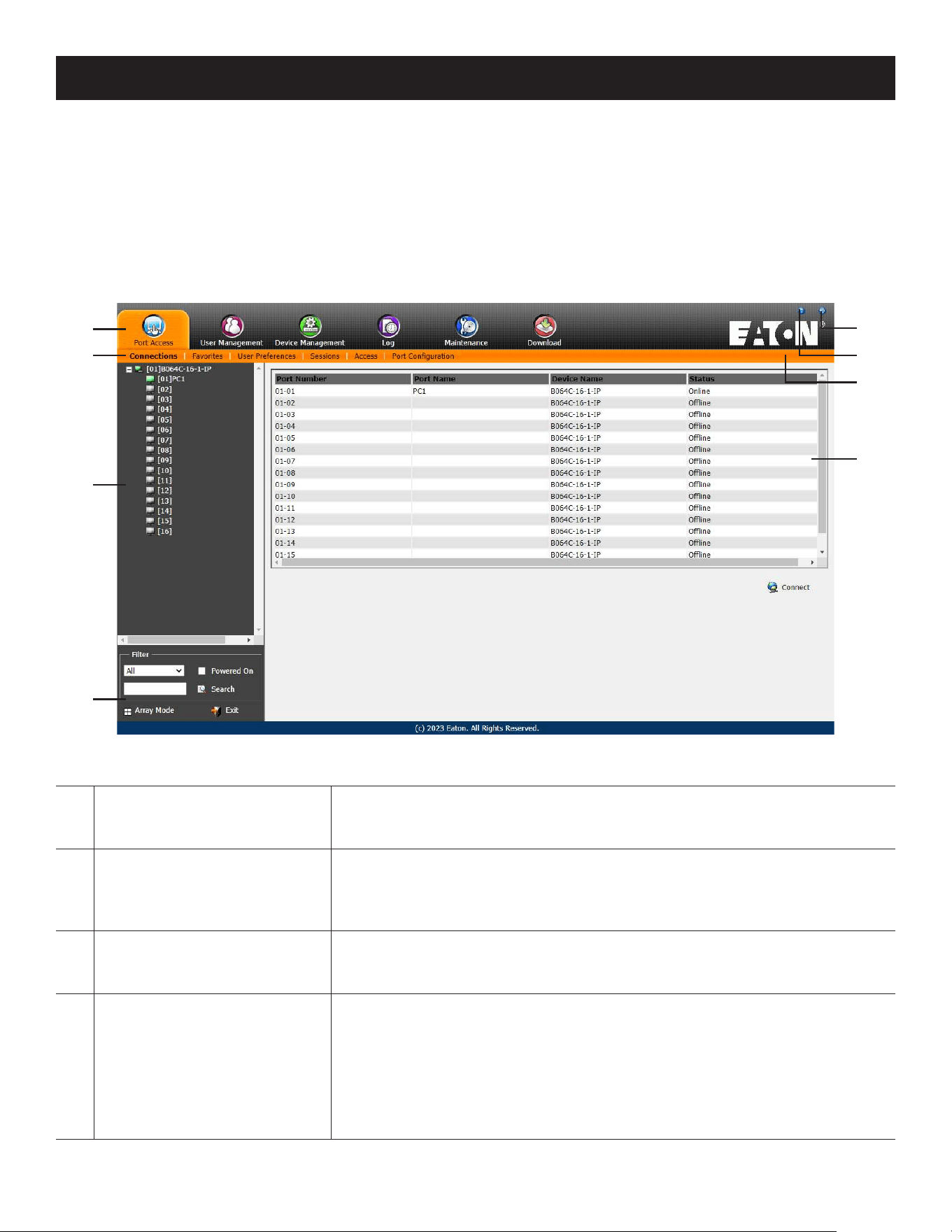

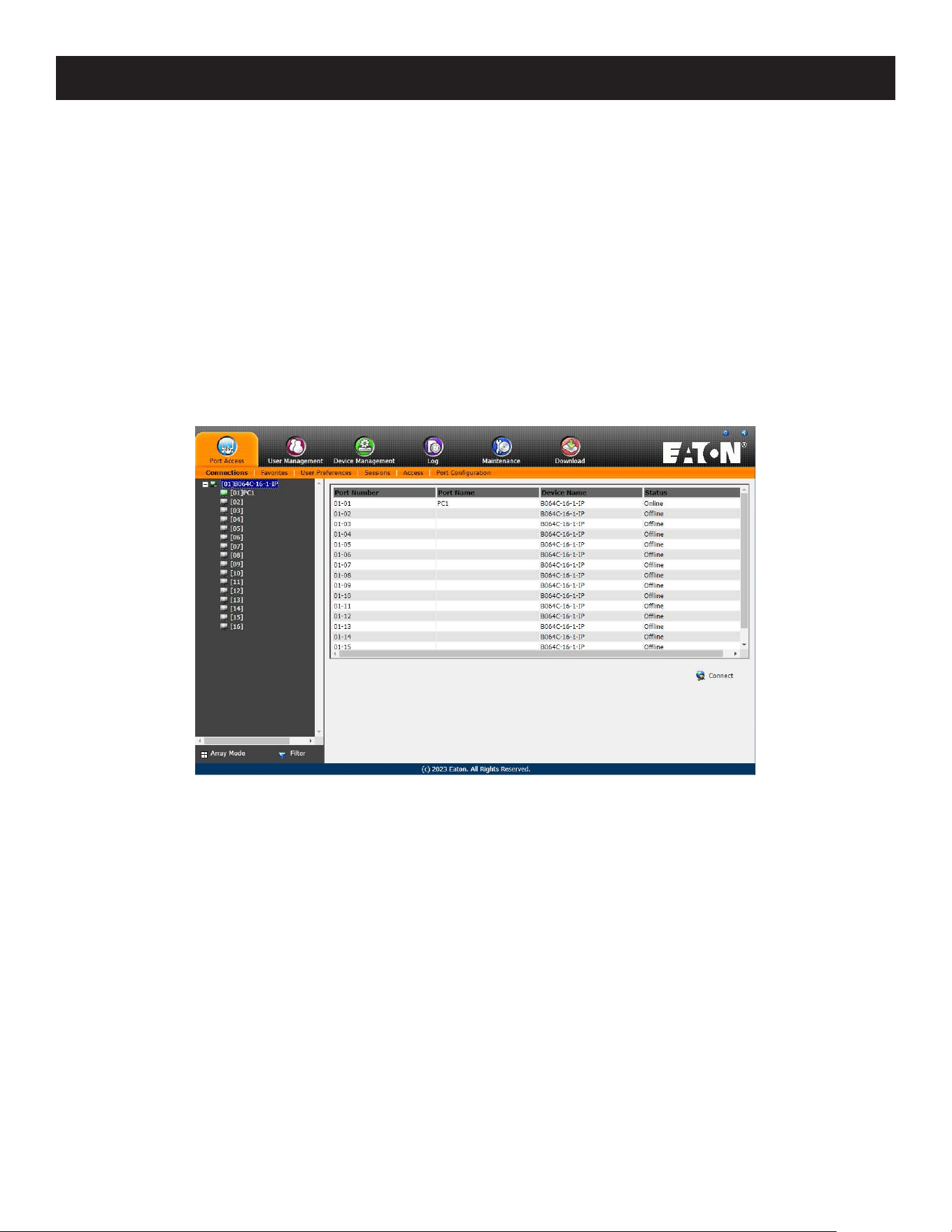

Note: The above screen shows an Administrator’s page. Depending on a user’s type and permissions, not all of these elements may

appear.

Tab Bar

The tab bar contains the B064C-16-1-IP main operation categories. The items

that appear in the tab bar are determined by the user's type and the authoriza-

tion options that were selected when the user's account was created.

Menu Bar

The menu bar contains operational sub-categories that pertain to the item

selected in the tab bar. The items that appear in the menu bar are determined

by the user's type and the authorization options that were selected when the

user's account was created.

Sidebar

The Sidebar provides a tree view listing of ports that relate to the various tab

bar and menu bar selections. Clicking a node in the Sidebar will open a page

with the details that are relevant to it.

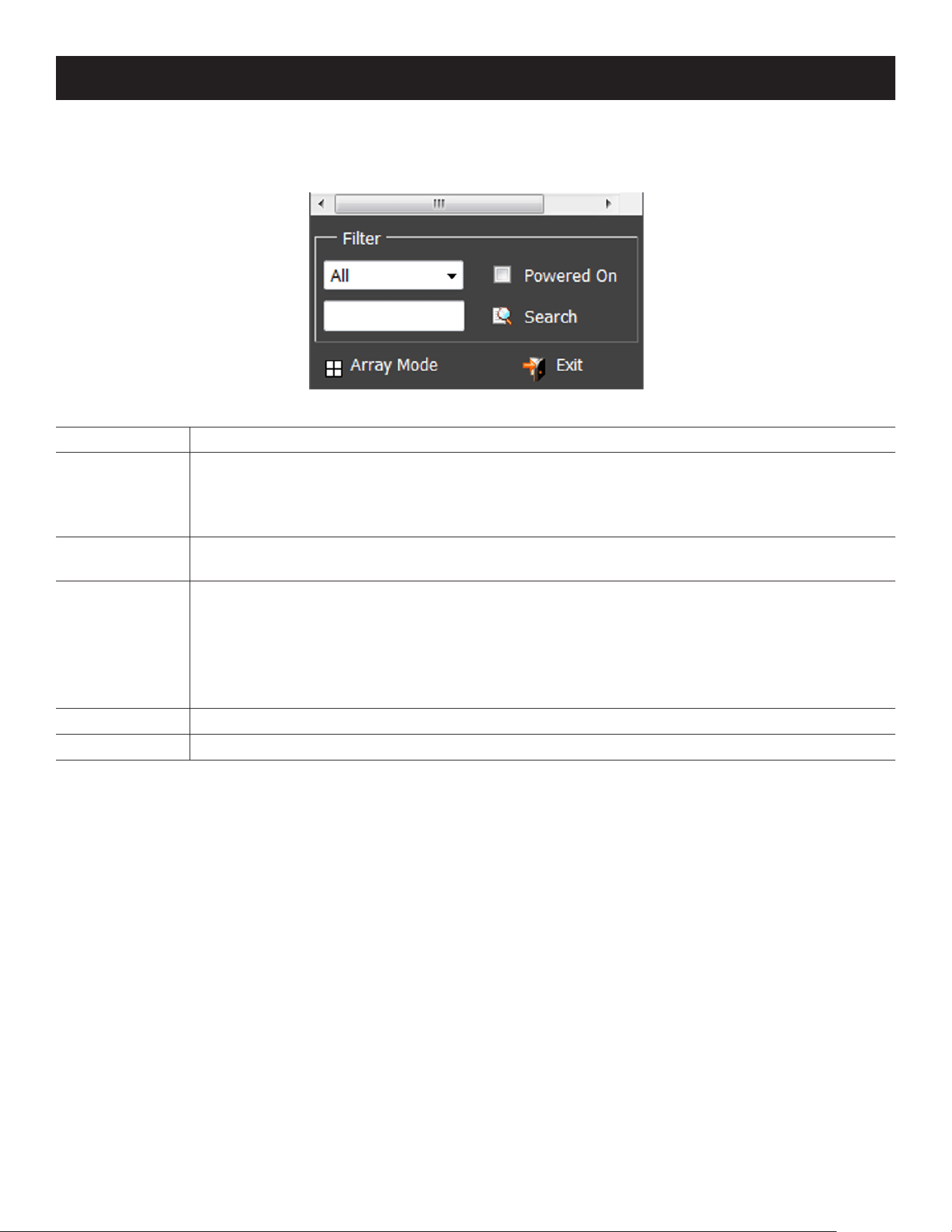

Filter

The lter section at the bottom of the Sidebar lets you expand or narrow the

scope of the ports that appear in the Sidebar tree:

• All - Lists all the ports on the installation.

• Power On - Lists only the ports that have their attached devices powered

on.

• Search - Lists only the ports that relate to the text typed in the search box.

Enter text, then click Search.

11 66

22 55

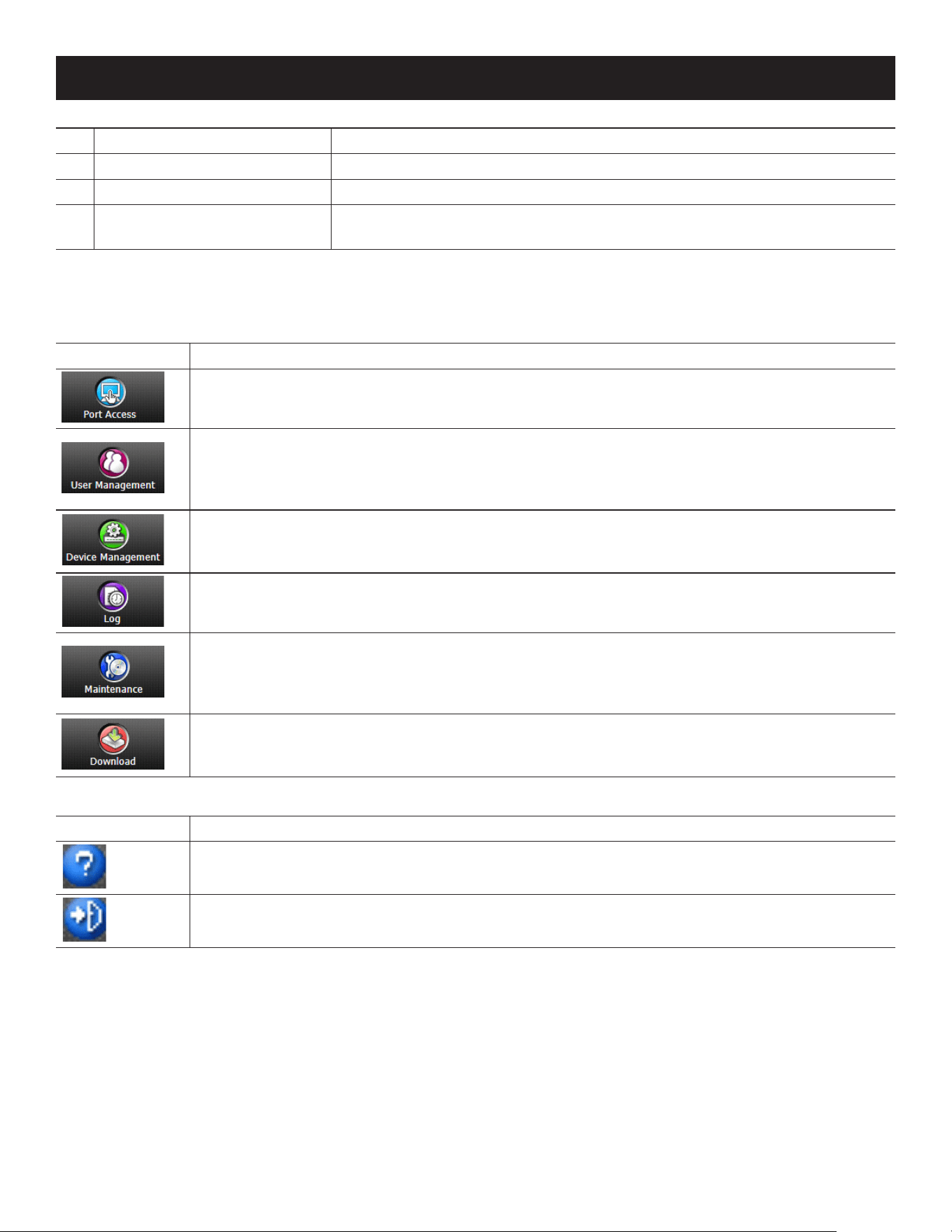

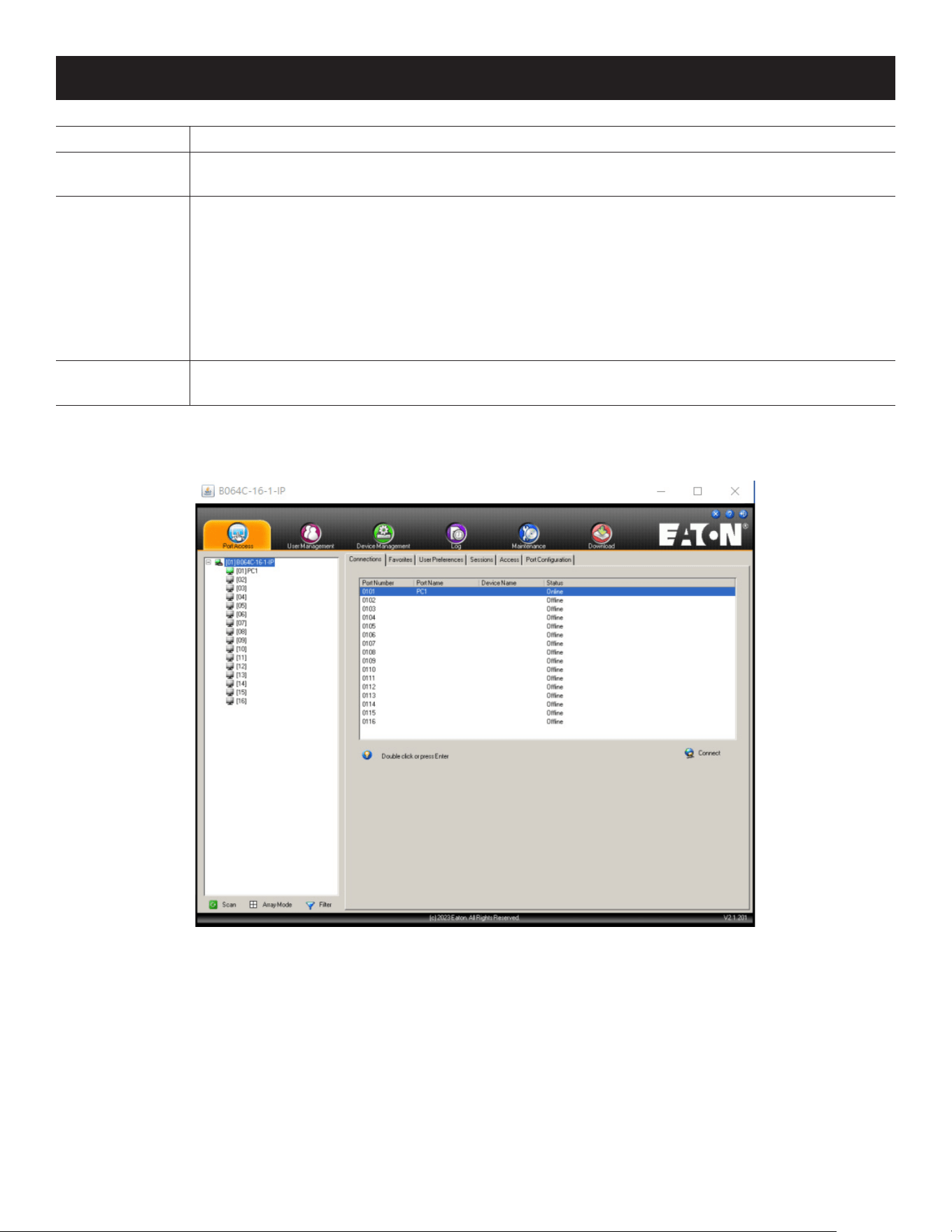

7. Administration

Help Provides information regarding the switch's current rmware version.

Logout Click this button to log out of your session.

Welcome Message If this function is enabled, a welcome message displays here.

Interactive Display Panel

This is your main work area. The screens that appear reect your menu choices

and Sidebar node selection.

The Tab Bar

The number and type of icons that appear on the Tab Bar at the top of the page are determined by the user’s type

(Administrator or User) and the permissions assigned when the user’s account was created.

Icon Function

Port Access: The Port Access page is used to access and control the devices on the B064C-16-1-IP

installation. This page is available to all users.

User Management: The User Management page is used to create and manage Users and

Groups. It can also be used to assign devices to them. User Management is discussed in 7.8 User

Management. This tab is available to the Administrator, as well as users who have been given User

Management permission. The tab does not appear for other users.

Device Management: The Device Management page is used to congure and control the overall

operation of the B064C-16-1-IP. This page is available to the Administrator, as well as users who

have been given Device Management permission. The tab does not appear for other users.

Log: The Log page displays the contents of the log le.

Maintenance: The Maintenance page is used to install new rmware; backup and restore

conguration and account information; ping network devices; and restore default values. This page

is available to the Administrator and Users with Maintenance permission. The icon does not display

on the page of regular users.

Download: Users can click this icon to download AP versions of the Windows Client, the Java Client

and the Log Server. This page is available to all users. The programs that can be downloaded

depend on the user's permissions.

There are two small icons at the extreme right of the page.

Icon Function

Click this icon to access a panel with information about the KVM switch rmware version.

Click this icon to log out and end your KVM switch session.

7. Administration

7.6.2 AP GUI Main Page

With WinClient AP and Java Client AP access, once users log in (see 7.5 Logging ln), the GUI Main Page will open:

The GUI Main Page is similar to the Web Browser. The differences between them are as follows:

1. The AP GUI version does not have a menu bar below the tab bar; it instead has a series of tabs like a notebook. Like

the Web Browser interface, the makeup of the tabbed notebook changes depend on the items selected on the main

Tab Bar and in the Sidebar.

2. There is a hidden Control Panel at the upper or lower center of the screen that becomes visible when you hover

your cursor over it (the default is at the upper center of the screen).

7. Administration

7.6.3 Control Panel

WinClient Control Panel

Since the WinClient Control Panel contains the most complete functionality, this section describes the WinClient Control

Panel. Although the Java Control Panel does not enable all the features as the WinClient Control Panel, the functions

they do share are the same and you can refer to the information described here when using it.

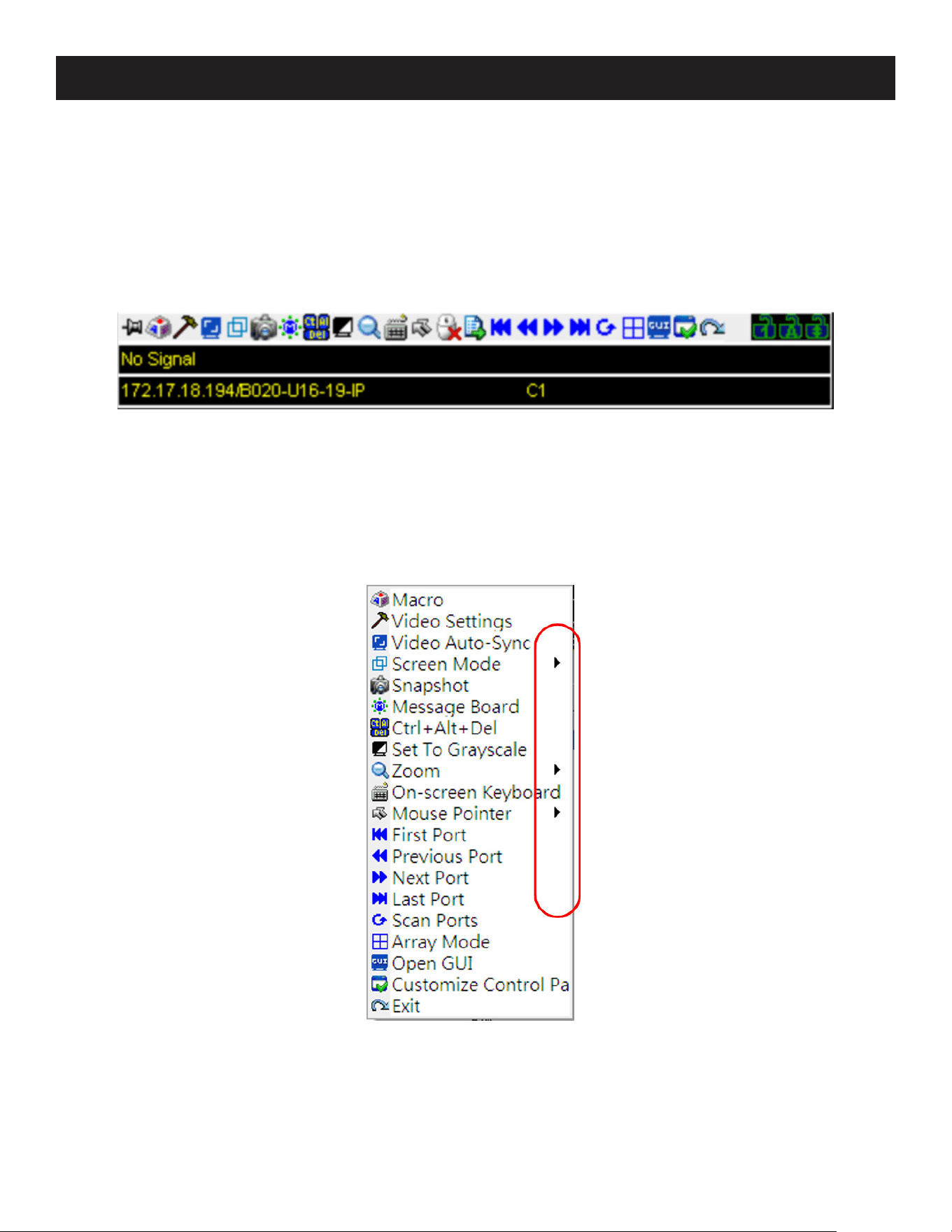

The Control Panel is hidden at the upper or lower center of the screen (the default is at the lower center) and will

become visible when you mouse over it. The panel consists of three rows: an icon row at the top, and two text rows

below it:

Note: The above image shows the complete Control Panel. The icons that appear can be user selected.

• By default, the upper text row shows the video resolution of the remote display. As the mouse pointer moves over

the icons in the icon bar, information in the upper text row changes to describe the icon’s function. In addition, if a

message from another user is entered in the message board and you have not opened the message board in your

session, the message will appear in the upper row.

• The lower row shows the IP address of the device you are accessing at the left of the row.

• Right-clicking in the text row area opens a menu-style version of the toolbar. In addition, it allows you to select

options for the Screen Mode, Zoom, Mouse Pointer type and Mouse Pointer.

• To move the Control Panel to a different location on the screen, place the mouse pointer over the text row area, then

click and drag.

7. Administration

WinClient Control Panel Functions

Icon Function

This is a toggle. Click to make the Control Panel persistent (e.g., always display on top of other

screen elements). Click again to display normally.

Click to access the Macros dialog box.

Click to access the Video Options dialog box. Right-click to perform a quick Auto Sync.

Click to perform a video and mouse autosync operation. It is the same as clicking the AutoSync

button in the Video Options dialog box.

Toggles the display between Full Screen Mode and Windowed Mode.

Click to take a snapshot (screen capture) of the remote display. See Snapshot for details on

conguring the Snapshot parameters.

Click to access the Message Board.

Click to send a Ctrl+Alt+Del command to the remote system.

Click to toggle the remote display between color and grayscale views.

Click to zoom the remote display window.

Note: This feature is only available in windowed mode (Full Screen Mode is o).

Click to access the on-screen keyboard.

Click to select the mouse pointer type.

Note: This icon changes depending on which mouse pointer type is selected.

Click to toggle Automatic or Manual mouse sync.

• When the selection is Automatic, a green √ appears on the icon.

• When the selection is Manual, a red X appears on the icon.

See Mouse DynaSync Mode for a complete explanation of this feature.

Click to display a dropdown list of User macros to access and run macros more conveniently than

using the Macros dialog box.

Under an accessed port, click to skip to the rst port accessible to the user on the entire installation

without having to recall the Port Access page.

Under an accessed port, click to skip to the rst port accessible to the user that is previous to the

current one without having to recall the Port Access page.

Under an accessed port, click to skip to the rst port accessible to the user that is after the current

one without having to recall the Port Access page.

Under an accessed port, click to skip to the last port accessible to the user on the entire installation

without having to recall the Port Access page.

Under an accessed port, click to begin Auto Scan Mode. The KVM over IP switch automatically

switches among the ports that were selected for Auto Scanning with the Filter. This allows you to

monitor their activity without having to switch among them manually.

Under an accessed port, click to invoke Panel Array Mode (see 7.13.3 Panel Array Mode).

7. Administration

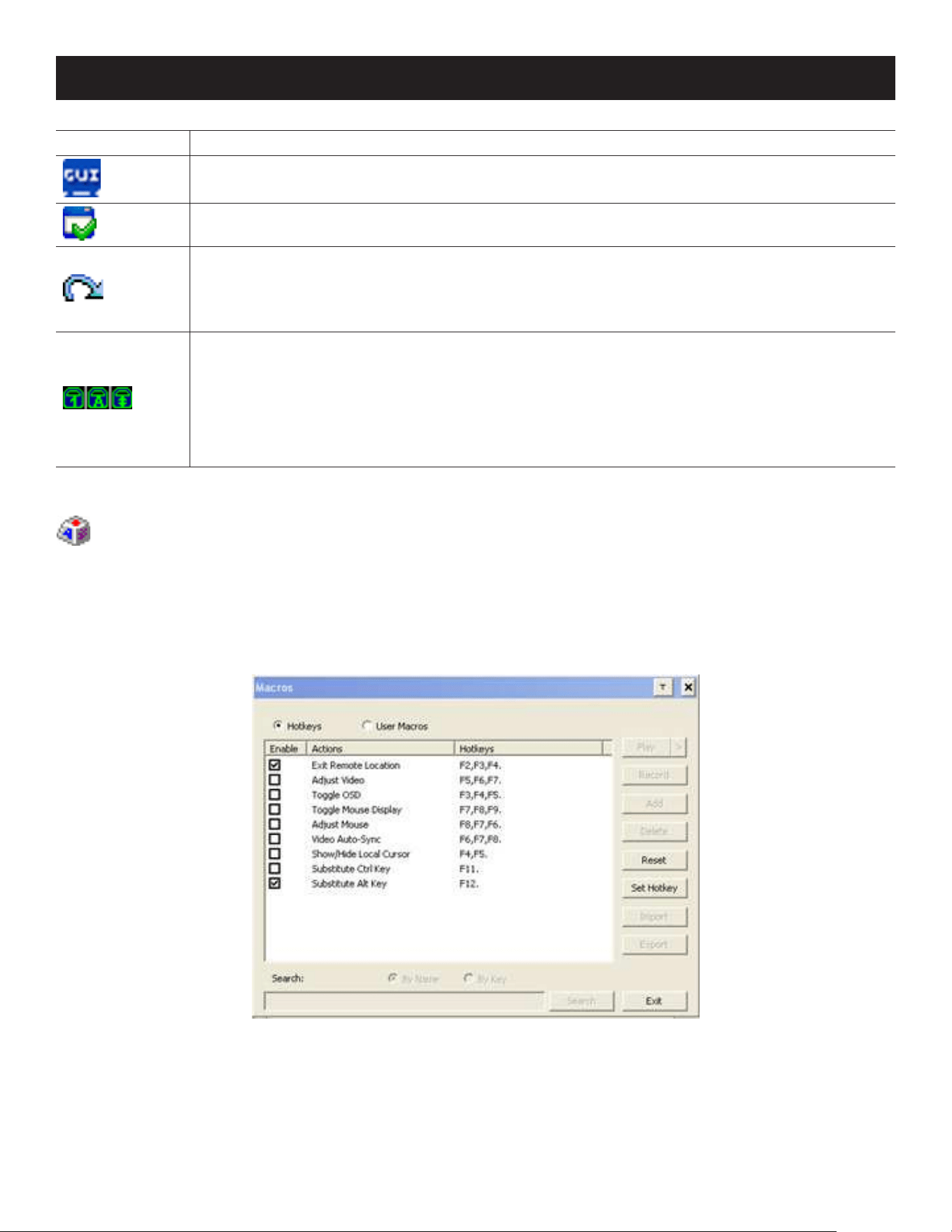

Icon Function

Under an accessed port, click to recall the GUI.

Click to access the Control Panel Conguration dialog box.

Click to exit the viewer.

• Exiting from a Browser Viewer session brings you back to the web browser Main Page.

• Exiting from a WinClient AP session brings you back to the login dialog box.

• Exiting from a Java Client AP session brings you back to the login dialog box.

These icons show the Num Lock, Caps Lock and Scroll Lock status of the remote computer.

• When the lock state is On, the LED is bright green and the lock hasp is closed.

• When the lock state is O, the LED is dull green and the lock hasp is open.

Click on the icon to toggle the status.

Note: These icons and your local keyboard icons are in sync. Clicking an icon causes the corresponding LED on

your keyboard to change accordingly. Pressing a Lock key on your keyboard will cause the icon’s color to change

accordingly.

Macros

The Macros icon provides access to three functions found in the Macros dialog box: Hotkeys, User Macros and

System Macros.

Hotkeys

Various actions related to manipulating the remote server can be accomplished with hotkeys. The Hotkey Setup utility

(accessed by clicking the icon) lets you configure which hotkeys perform the actions.

The hotkeys that invoke an action are shown to the right of its name. Use the checkbox to the left of an action’s name

to enable or disable its hotkey.

7. Administration

To change the hotkey for an action, do the following:

1. Highlight the Action, then click Set Hotkey.

2. Press your selected Function keys (one at a time). The key names appear in the Hotkeys field as you press them.

• You can use the same function keys for more than one action, so long as the key sequence is not the same.

• To cancel setting a hotkey value, click Cancel; to clear an action’s Hotkeys field, click Clear.

3. Once you have finished keying in your sequence, click Save.

To reset all the hotkeys to their default values, click Reset.

An explanation of the Hotkey actions is provided in the table below:

Action Explanation

Exit Remote

Location

Breaks the connection to the B064C-16-1-IP and returns you to local client computer operation.

This is equivalent to clicking the Exit icon on the Control Panel. The default keys are F2, F3, F4.

Adjust Video

Opens the Video Settings dialog box. This is equivalent to clicking the Video Settings icon on the

Control Panel. The default keys are F5, F6, F7.

Toggle OSD Toggles the OSD Control Panel O and On. The default keys are F3, F4, F5.

Toggle Mouse

Display

If you nd the display of the two mouse pointers (local and remote) to be confusing or troublesome,

you can use this function to shrink the non-functioning pointer down to a barely noticeable tiny

circle which can be ignored. Since this function is a toggle, use the hotkeys again to bring the

mouse display back to its original conguration. This is equivalent to selecting the Single pointer

type from the Mouse Pointer icon on the Control Panel. The default keys are F7, F8, F9.

Note: The Java Control Panel does not have this feature.

Adjust Mouse This synchronizes the local and remote mouse movements. The default keys are F6, F7, F8.

Video Autosync

This combination performs an auto-sync operation. It is equivalent to clicking the Video Autosync

icon on the Control Panel. The default keys are F8, F7, F6.

Show/Hide Local

Cursor

Toggles the display of your local mouse pointer o and on. This is equivalent to selecting the Null

Pointer type from the Mouse Pointer icon on the Control Panel. The default keys are F4, F5.

Substitute Ctrl

key

If your local client computer captures Ctrl key combinations and prevents them from being sent to

the remote server, you can implement their eects on the remote server by specifying a function

key to substitute for the Ctrl key. If you substitute the F11 key, for example, pressing [F11 + 5]

would appear to the remote server as [Ctrl + 5]. The default key is F11.

Substitute Alt key

Although all other keyboard input is captured and sent to the B064C-16-1-IP switch, [Alt + Tab]

and [Ctrl + Alt + Del] work on your local client computer. To implement their eects on the remote

server, another key may be substituted for the Alt key. If you substitute the F12 key, for example,

you would use [F12 + Tab] and [Ctrl + F12 + Del]. The default key is F12.

7. Administration

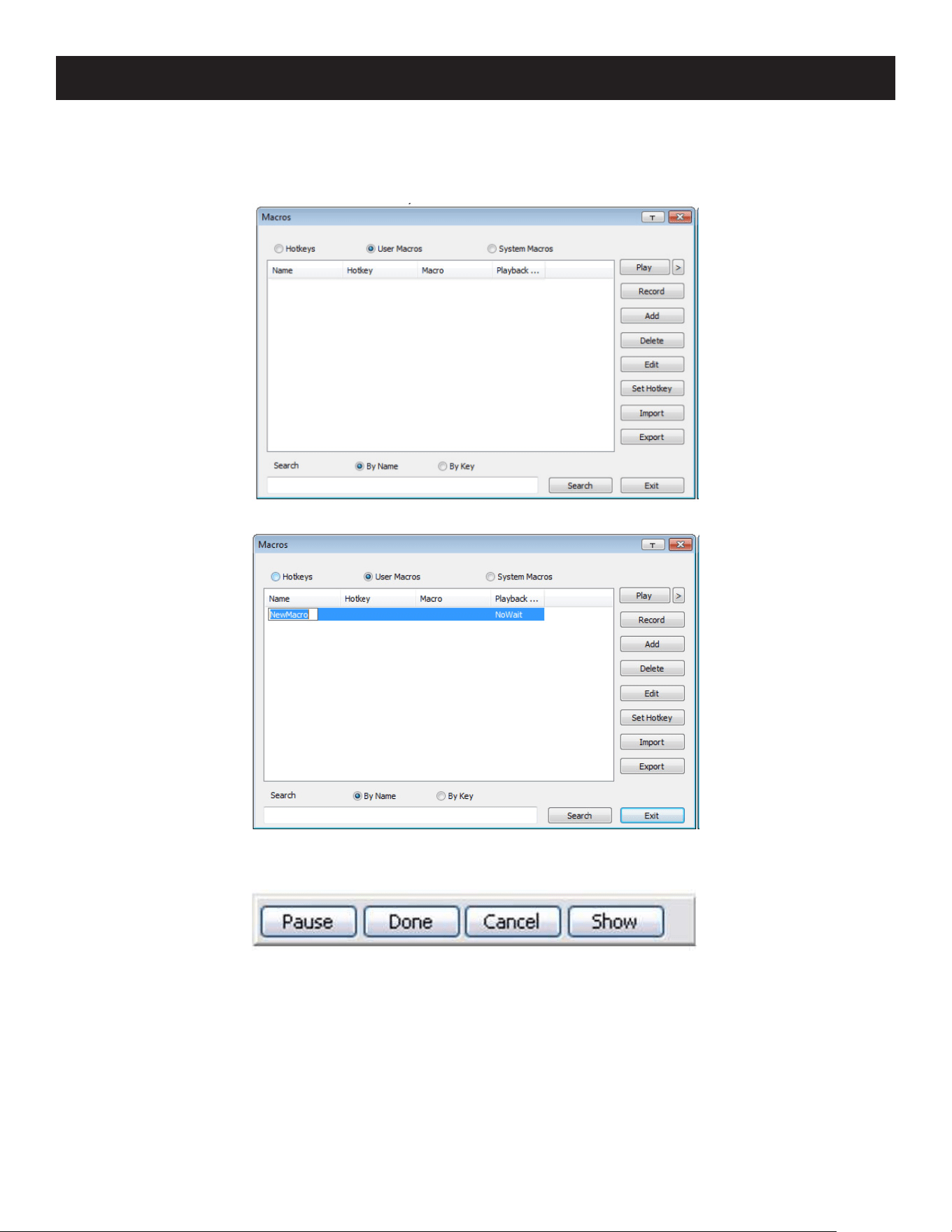

User Macros

User Macros are created to perform specific actions on the remote server. To create the macro, do the following:

1. Select User Macros, then click Add.

2. In the dialog box that opens, replace the “New Macro” text with a name of your choice for the macro:

3. Click Record.

The dialog box disappears and a small panel appears at the top left of the screen:

7. Administration

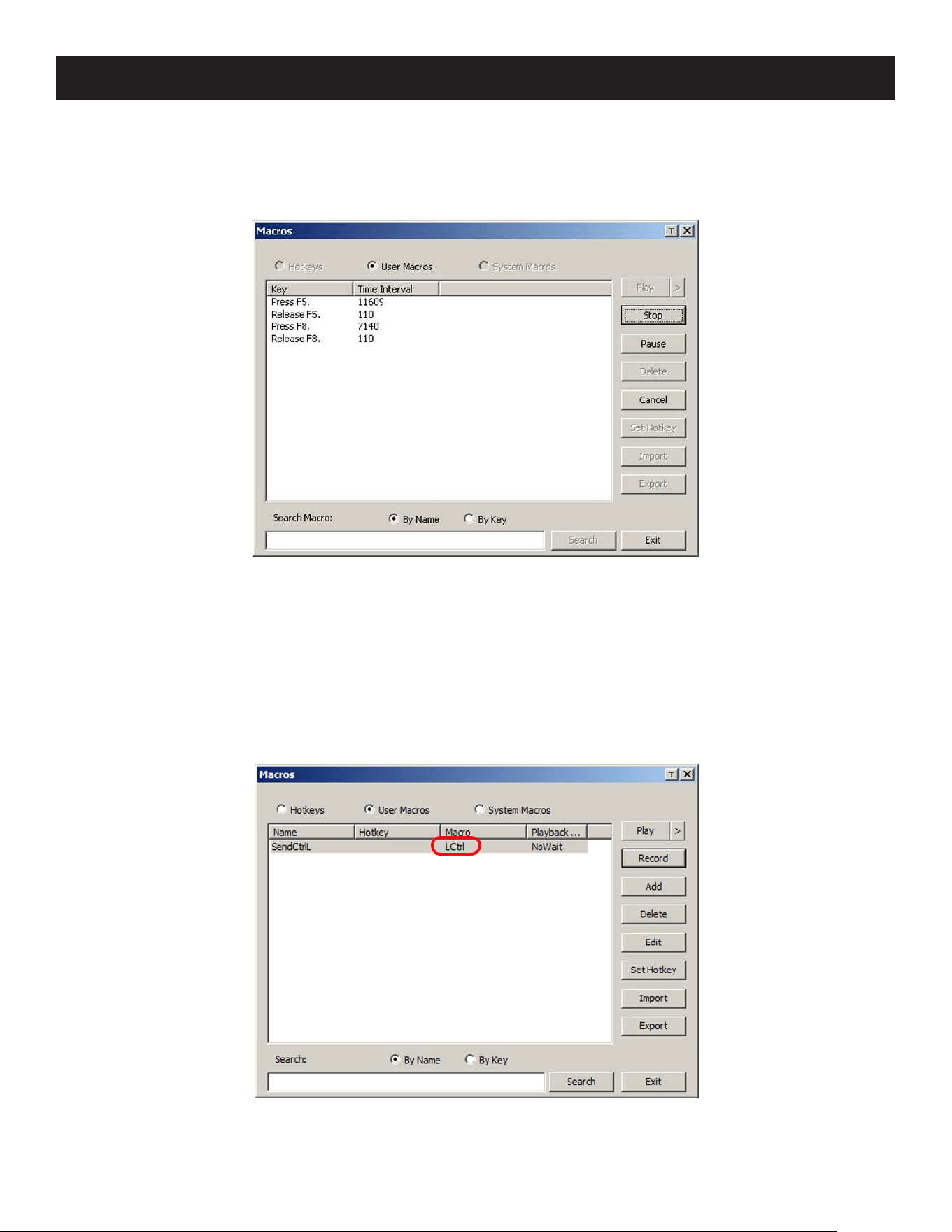

4. Press the keys for the macro.

• To pause macro recording, click Pause. To resume, click Pause again.

• Clicking Show opens a dialog box that lists each keystroke you make, together with the amount of time each one

takes:

Clicking Cancel cancels all keystrokes.

Once you have finished, click Stop (this is the equivalent of clicking Done in Step 5).

Notes:

• Case is not considered - typing A or a has the same effect.

• When recording the macro, the focus must be on the remote screen. It cannot be in the macro dialog box.

• Only the default keyboard characters may be used. Alternate characters cannot be used. For example, if the keyboard is Traditional

Chinese and default character is A, the alternate Chinese character obtained via keyboard switching is not recorded.

5. If you have not opened the Show dialog, click Done when you have finished recording your macro. You return to the

Macros dialog box with your macro key presses displayed in the Macro column:

7. Administration

6. If you want to change any of the keystrokes, select the macro and click Edit. This will open a dialog box similar to the

one for Show. You can change the content of your keystrokes, change their order, etc.

7. Repeat the procedure for any other macros you wish to create.

After creating your macros, you can run them in any of three ways:

1. Using the hotkey (if one was assigned).

2. Opening the Macro List on the Control Panel and clicking the one you want.

3. Opening this (Macros) dialog box and clicking Play.

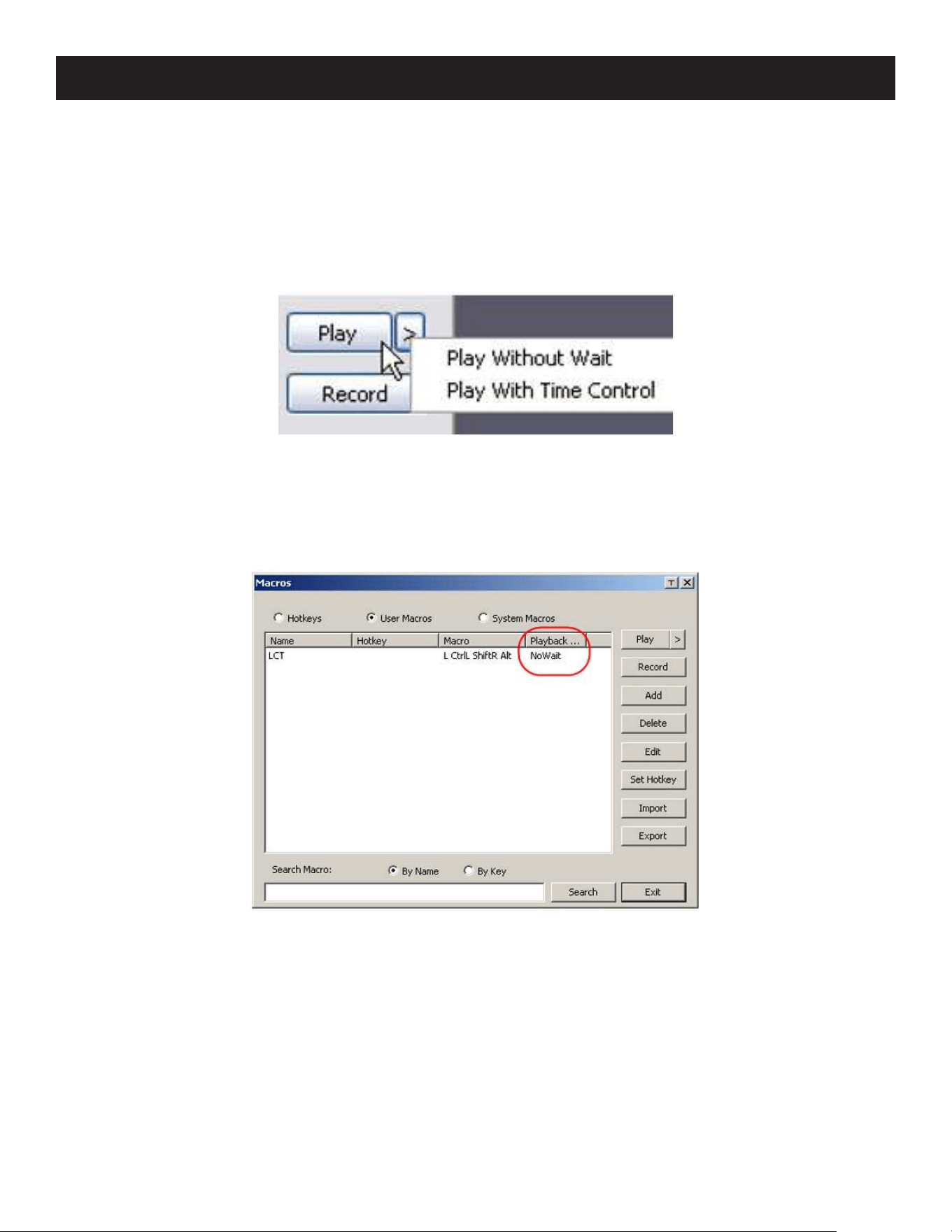

If you run the macro from this dialog box, you have the option of specifying how the macro runs.

• If you choose Play Without Wait, the macro runs the key presses one after another with no time delay between them.

• If you choose Play with Time Control, the macro waits for the amount of time between key presses that you took

when you created it. Click on the arrow next to Play to make your choice.

• If you click Play without opening the list, the macro runs with the default choice (NoWait or TimeCtrl), which is shown

in the Playback column.

Note: User Macros are stored on the Local Client computer of each user. Therefore, there is no limitation on the of number of macros,

size of the macro names or makeup of the hotkey combinations that invoke them.

Located at the bottom of the dialog box, the Search button lets you filter the list of macros that appear in the large

upper panel for you to play or edit. Click a radio button to choose whether you want to search by name or by key, key

in a string for the search, then click Search. All instances that match your search string will appear in the upper panel.

7. Administration

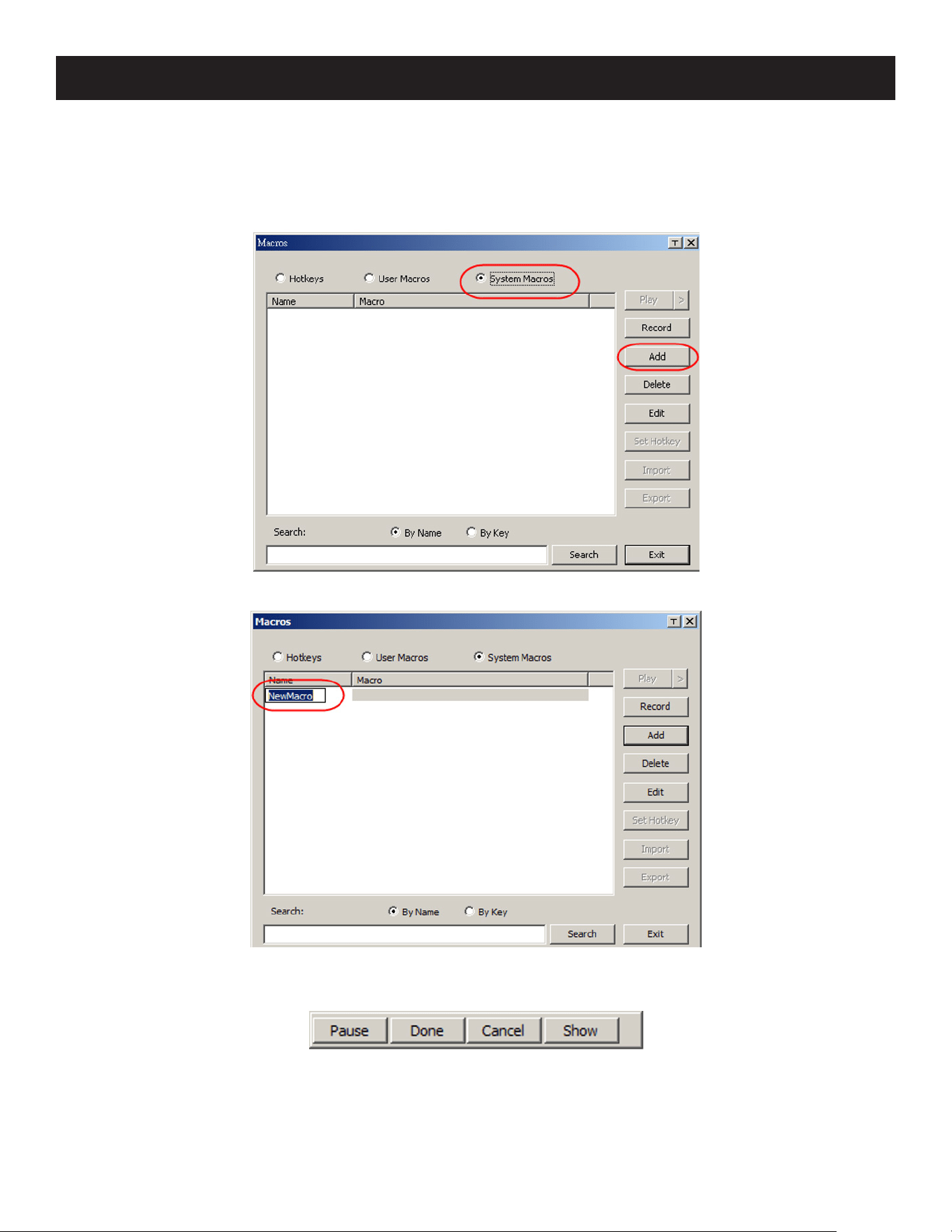

System Macros

System Macros are used to create exit macros for when you close a session. For example, as an added measure of

security, you can create a macro that sends the Winkey-L combination which would cause the remote server’s log in

page to open the next time the device was accessed. To create the macro:

1. Select System Macros, then click Add.

2. In the dialog box that opens, replace the “New Macro” text with a name of your choice for the macro.

3. Click Record.

The dialog box will disappear and a small panel will appear at the top left of the screen.

7. Administration

4. Press the keys for the macro.

• To pause macro recording, click Pause. To resume, click Pause again.

• Clicking Show opens a dialog box that lists each keystroke that you make, together with the amount of time each

one takes.

Notes:

• Case is not considered - typing A or a has the same effect.

• When recording the macro, the focus must be on the remote screen. It cannot be in the macro dialog box.

• Only the default keyboard characters may be used. Alternate characters cannot be used. For example, if the keyboard is Traditional

Chinese and default character is A the alternate Chinese character obtained via keyboard switching is not recorded.

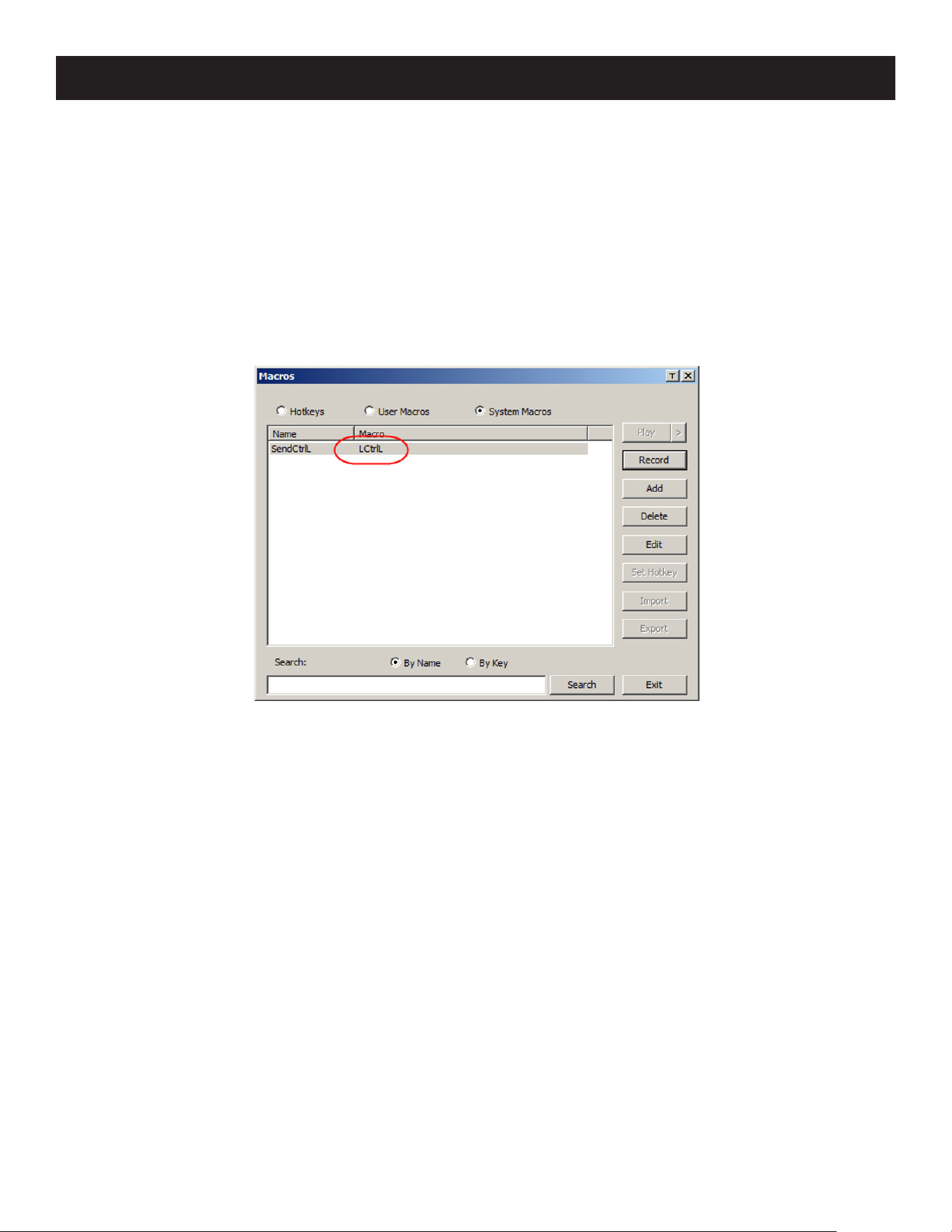

5. If you have not opened the Show dialog, click Done when you have finished recording your macro. You will return to

the Macros dialog box with your system macro key presses displayed in the Macro column:

6. If you want to change any of the keystrokes, select the macro and click Edit. This will open a dialog box similar to the

one for Show. You can change the content of your keystrokes, change their order, etc.

7. Repeat the procedure for any other macros you wish to create.

Once the system macros have been created, they are available for use on a port-by-port basis. They get selected on a

port’s Port Configuration  Port Properties page.

Notes:

• You can choose only one system macro per port.

• Systems macros are stored on the switch. Therefore, macro names may not exceed 64 Bytes and hotkey combinations may not exceed

256 Bytes (each key usually takes 3-5 Bytes).

7. Administration

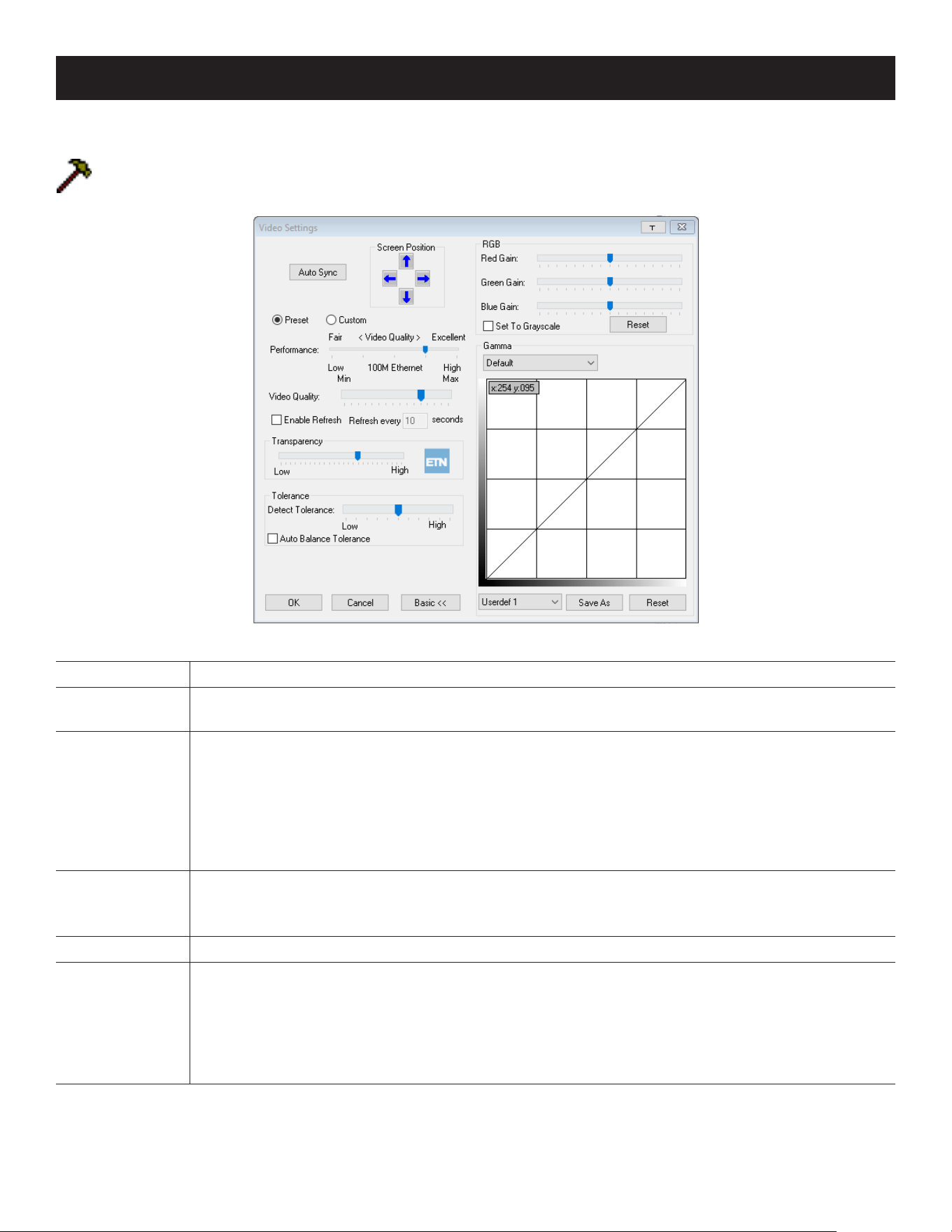

Video Settings

Clicking the Hammer icon on the Control Panel opens the Video Settings dialog box. Click Advanced to view all

settings. The options in this dialog box allow you to adjust the placement and picture quality of the remote

screen on your monitor:

The meanings of the video adjustment options are provided in the table below:

Options Usage

Screen Position

Adjust the horizontal and vertical position of the remote server window by clicking the arrow

buttons.

Auto-Sync

Click Auto-Sync to have the vertical and horizontal oset values of the remote screen detected and

automatically synchronized with the local screen.

Notes:

• If the local and remote mouse pointers are out of sync, in most cases, performing this function will bring them

back into sync.

• This function works best with a bright screen.

• If you are not satised with the results, use the Screen Position arrows to position the remote display manually.

RGB

Drag the slider bars to adjust the RGB (Red, Green, Blue) values. When an RGB value is increased,

the RGB component of the image is increased accordingly.

If you enable Set to Grayscale, the remote video display is changed to grayscale.

Gamma This section allows you to adjust the video display’s gamma level.

Performance

Drag the slide bar to adjust the bandwidth connection that the local client computer uses. The

switch will use that selection to automatically adjust the Video Quality and Detect Tolerance settings

to optimize the quality of the video display.

Since network conditions vary, if none of the preset choices seem to work well, you can select

Customize and use the Video Quality and Detect Tolerance slider bars to adjust the settings to suit

your conditions.

7. Administration

Options Usage

Video Quality

Drag the slider bar to adjust the overall video quality. The larger the value, the clearer the picture

and the more video data goes through the network. Depending on the network bandwidth, a high

value may adversely eect response time.

Enable Refresh

The B064C-16-1-IP can redraw the screen every 1 to 99 seconds, eliminating unwanted artifacts

from the screen. Select Enable Refresh and enter a number from 1 through 99. The B064C-16-1-

IP will redraw the screen at the interval you specify. This feature is disabled by default. Click to put a

check mark in the box next to Enable Refresh to enable this feature.

Notes:

• The switch starts counting the time interval when the mouse movement stops.

• Enabling this feature increases the volume of video data transmitted over the network. The lower the number

specied, the more often the video data is transmitted. Setting too low a value may adversely aect overall

operating responsiveness.

Transparency

Adjusts the transparency of the toolbar that appears when the OSD hotkey ([Scroll Lock][Scroll

Lock], for example) is invoked. Slide the bar until the display in the example window is to your liking.

Color Depth

Control

This setting determines the richness of the video display by adjusting the amount of color

information.

Detect Tolerance

This setting also relates to video quality. It governs detecting or ignoring pixel changes. A high

setting can result in a lower quality display due to less data transfer. A lower setting will result in

better video quality, but setting the threshold too low may allow too much data to be transferred,

negatively impacting network performance.

Auto Balance

Tolerance

Check this box to allow the system to automatically adjust the tolerance settings.

7. Administration

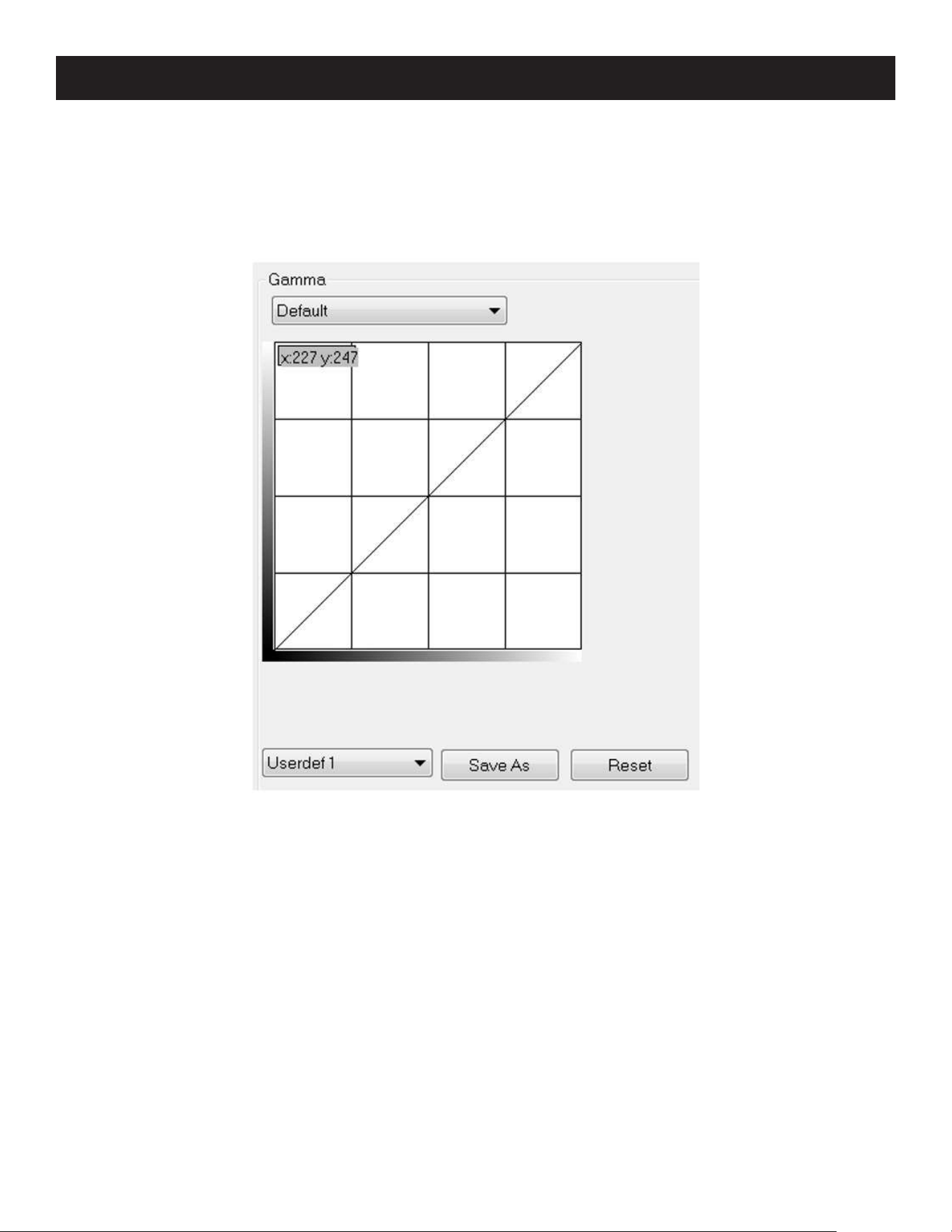

Gamma Adjustment

If it is necessary to correct the gamma level for the remote video display, use the Gamma function of the Video

Adjustment dialog box.

• Under Basic configuration, there are ten preset and four user-defined levels to choose from. Drop down the list box

and choose the most suitable one.

• For greater control, clicking the Advanced button opens the following dialog box:

• Click and drag the diagonal line at as many points as you wish to achieve the display output you desire.

• Click Save As to save up to four user-defined configurations derived from this method. Saved configurations can be

recalled from the list box at a future time.

• Click Reset to abandon any changes and return the gamma line to its original diagonal position.

• Click OK to save your changes and close the dialog box.

• Click Cancel to abandon your changes and close the dialog box.

Note: For optimal results, change the gamma setting while viewing a remote server.

Network Bandwidth Information for KVM Sessions

For network bandwidth management, a KVM session of a full-screen video display at 1920 x 1080 @ 60 Hz will take up

approximately 64 Mbps.

However, since the network environment of each station/session varies, the aforementioned information proposes

what is ideal but does not warrant the smoothness/quality for each session.

7. Administration

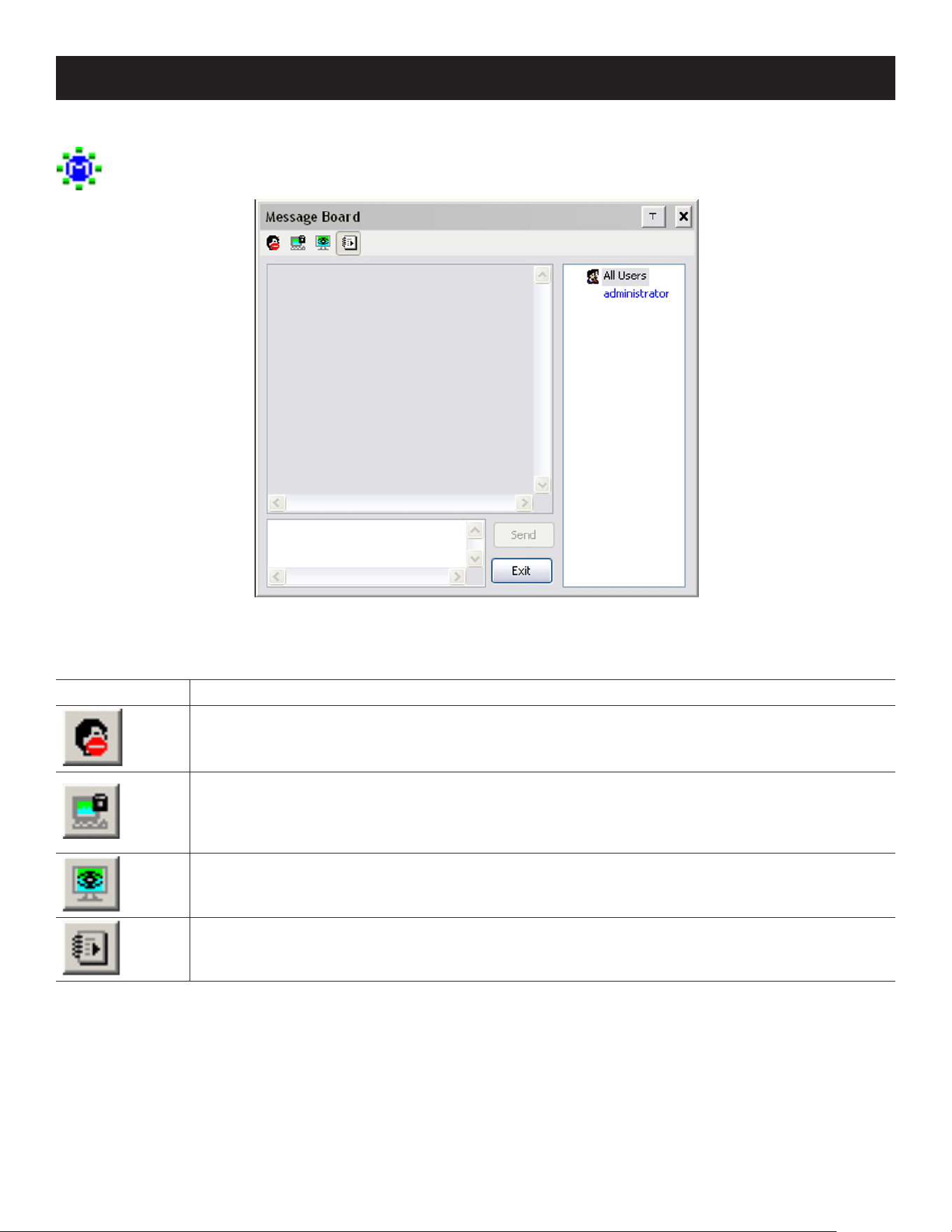

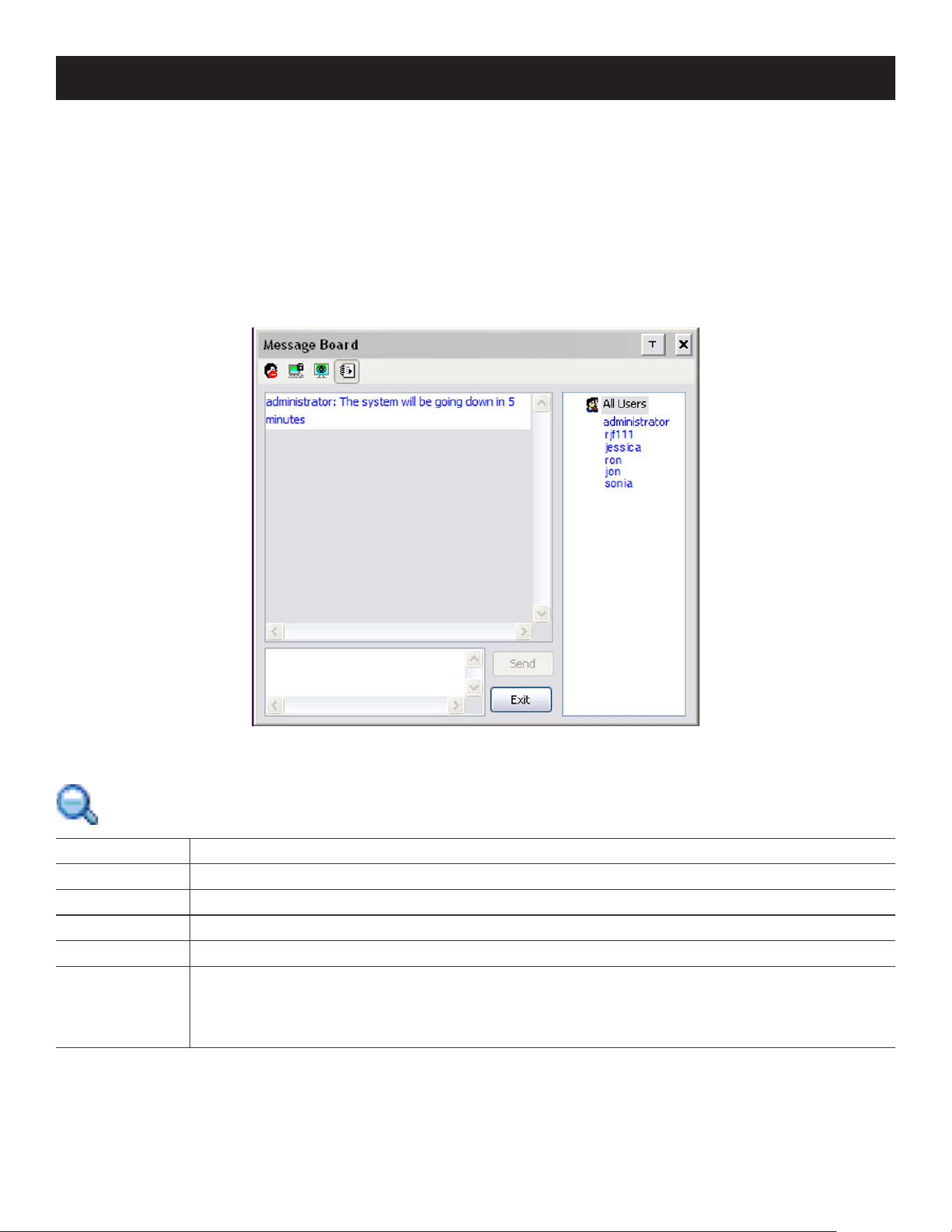

The Message Board

The B064C-16-1-IP supports multiple user logins, which may cause access conflicts. To alleviate the problem, a

message board is provided to allow users to communicate with one other:

Button Bar

The buttons on the Button Bar are toggles.

Button Action

Enable/Disable Chat: When disabled, messages posted to the board are not displayed. The

button is shadowed when Chat is disabled. The icon displays next to the user's name in the User

List panel when the user has disabled Chat.

Occupy/Release Keyboard/Video/Mouse: When you Occupy the KVM, other users cannot see

the video, nor input keyboard or mouse data. The button is shadowed when the KVM is occupied.

The icon displays next to the user's name in the User List panel when the user has occupied the

KVM.

Occupy/Release Keyboard/Mouse: When you Occupy the KM, other users can see the video, but

cannot input keyboard or mouse data. The button is shadowed when the KM is occupied. The icon

displays next to the user’s name in the User List panel when the user has occupied the KM.

Show/Hide User List: When you hide the User List, the User List panel closes. The button is

shadowed when the User List is open.

Message Display Panel

Messages that users post to the board (as well as system messages) display in this panel. If you disable Chat, messages

that get posted to the board will not appear.

Compose Panel

Key in the messages that you want to post to the board in this panel. Click Send, or press [Enter] to post the message

to the board.

7. Administration

User List Panel

The names of all the logged in users are listed in this panel.

• Your name appears in blue and other users’ names appear in black.

• By default, messages are posted to all users. To post a message to an individual user, select the user’s name before

sending your message.

• If a user’s name is selected and you want to post a message to all users, select All Users before sending your

message.

• If a user has disabled Chat, its icon displays before the user’s name to indicate so.

• If a user has occupied the KVM or the KM, its icon displays before the user’s name to indicate as such.

Zoom

The Zoom icon controls the zoom factor for the remote view window.

Setting Description

100% Sizes and displays the remote view window at 100%.

75% Sizes and displays the remote view window at 75%.

50% Sizes and displays the remote view window at 50%.

25% Sizes and displays the remote view window at 25%.

1:1

Sizes and displays the remote view window at 100%. The dierence between this setting and the

100% setting is that when the remote view window is resized its contents do not resize - they

remain at the size they were. To see any objects that are outside of the viewing area, move the

mouse to the window edge to have the screen scroll.

7. Administration

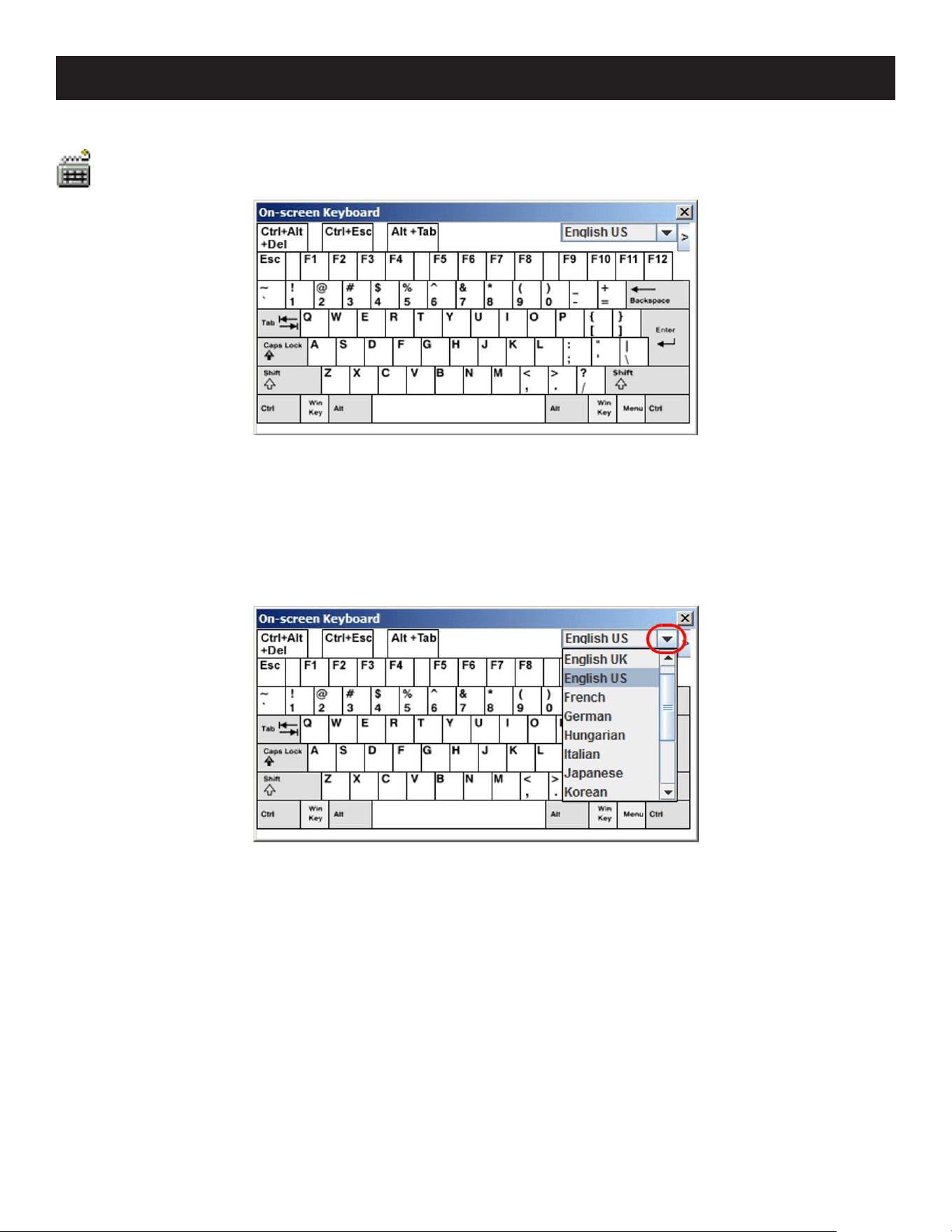

On-Screen Keyboard

The KVM switch supports an on-screen keyboard available in multiple languages and with all the standard keys

for each supported language. Click this icon to pop up the on-screen keyboard:

One of the major advantages of the on-screen keyboard is that if the keyboard languages of the remote and local

systems are not the same, you do not need to change the configuration settings for either system. Simply access the

on-screen keyboard, select the language used by the server you are accessing and use the on-screen keyboard to

communicate with it.

Note: You must use your mouse to click on the keys. You cannot use your actual keyboard.

Changing Languages

1. Click the down arrow next to the currently selected language to view a drop-down selection of the language list.

2. Select the new language from the list.

7. Administration

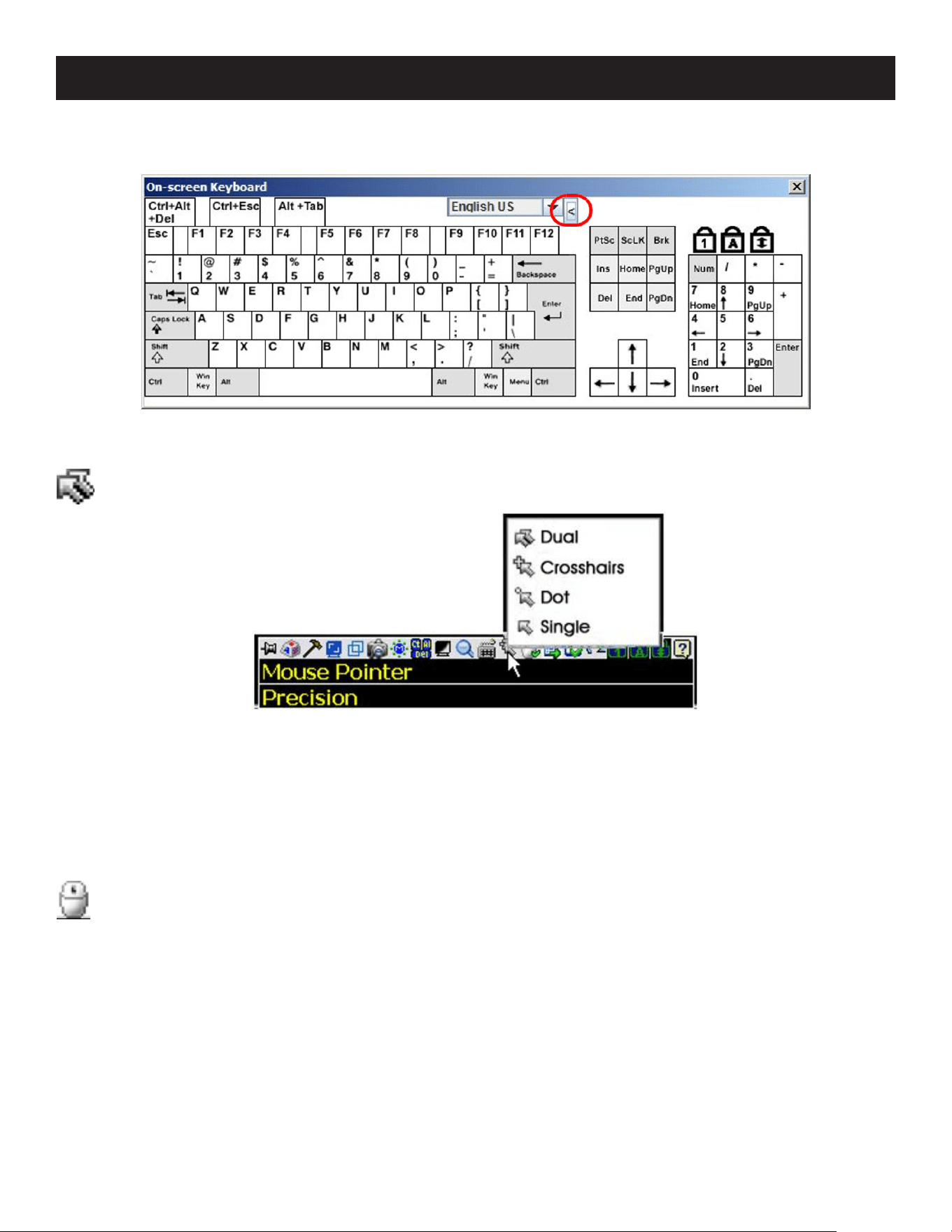

Expanded Keyboard

To display/hide the expanded keyboard keys, click the arrow to the right of the language list arrow.

Mouse Pointer Type

KVM switches offer several mouse pointer options when working in the remote display. Click this icon to select

from the available choices:

Notes:

• Before accessing a port, only Dual and Crosshairs are available for Windows Viewers. Once the port is accessed, all four pointers are

available.

• The Dot pointer is not available with the Java Applet Viewer or the Java Client AP.

• Selecting the Dot pointer has the same effect as the Toggle mouse display hotkey function.

• The icon on the Control Panel changes to match your choice.

Mouse DynaSync Mode

Synchronization of the local and remote mouse pointers is accomplished automatically or manually.

Automatic Mouse Synchronization (DynaSync)

Mouse DynaSync provides automatic locked-in synching of the remote and local mouse pointers, eliminating the need to

constantly resync the two movements.

Notes:

• This feature is only available for Windows and Mac systems (G4 or later) whose adapter attribute OS setting is configured for Win or Mac.

• All other configurations must use manual mouse synchronization.

7. Administration

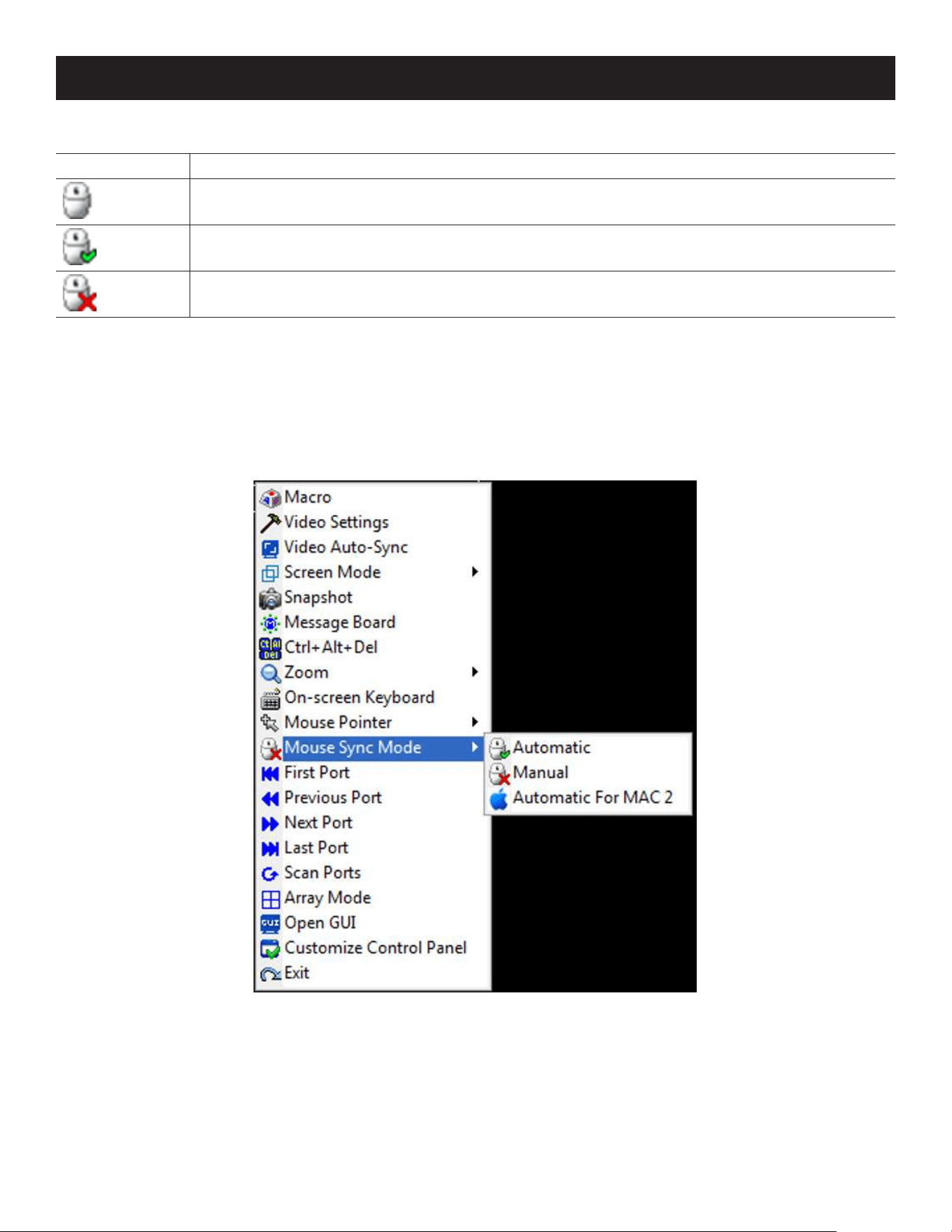

The icon on the Control Panel indicates the synchronization mode status as follows:

Icon Function

This icon displays in gray to indicate that Mouse DynaSync is not available and you must use

manual synching procedures. This is the default setting for all KVM Adapters.

The green check mark on this icon indicates Mouse DynaSync is available and enabled. This is the

default setting when Mouse DynaSync is available.

The red X on this icon indicates Mouse DynaSync is available but is not enabled.

When Mouse DynaSync is available, clicking the icon toggles its status between enabled and disabled. If you choose to

disable Mouse DynaSync mode, you must use the manual synching procedures described in the Manual Mouse

Synchronization section.

Mac Considerations

For Mac OS versions 10.4.11 or later, there is a second DynaSync setting to choose from. If the default Mouse

DynaSync result is not satisfactory, try the Mac 2 setting. To select Mac 2, right-click in the text area of the Control Panel

and select Mouse Sync Mode  Automatic for Mac 2:

7. Administration

Manual Mouse Synchronization

If the local mouse pointer becomes out of sync with the remote system’s mouse pointer, there are several methods to

return them to sync:

1. Perform a video and mouse auto sync by clicking the Video Settings icon on the Control Panel.

2. Perform an Auto Sync with the Video Adjustment function.

3. Invoke the Adjust Mouse function with the Adjust Mouse hotkeys.

4. Move the pointer into all four corners of the screen (in any order).

5. Drag the Control Panel to a different position on the screen.

6. Set the mouse speed and acceleration for each problematic server attached to the switch. See 8.9 Additional

Mouse Synchronization Procedures for details.

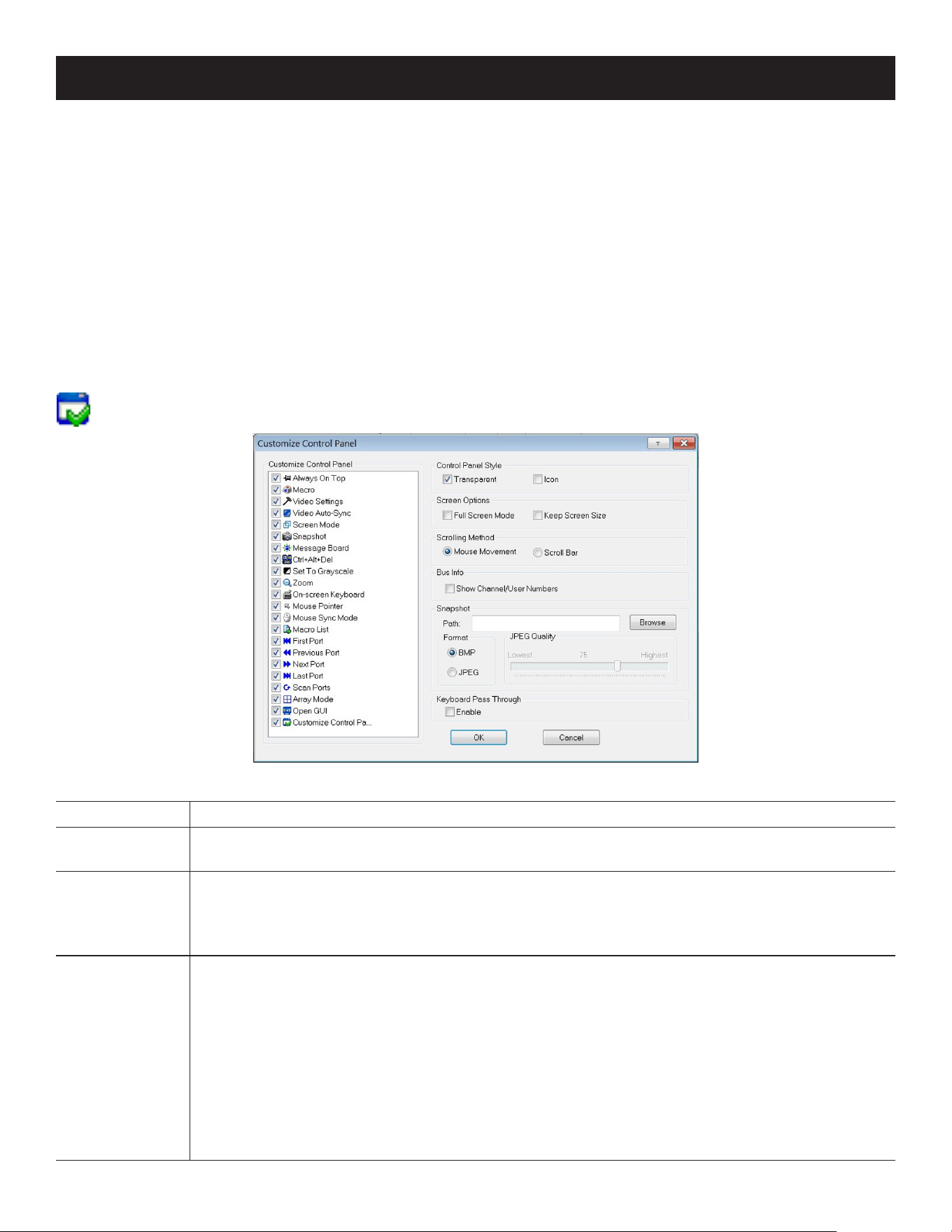

Control Panel Configuration

Clicking the Control Panel icon opens a dialog box that allows you to configure the items that appear on the

Control Panel, as well as its graphical settings:

The organization of the dialog box is described in the table below:

Item Description

Customize

Control Panel

Allows you to select which icons display in the Control Panel. Check the ones you want to view and

uncheck the ones you do not want to view.

Control Panel

Style

• Enabling Transparent makes the Control Panel semi-transparent so you can see through to the

display underneath.

• Enabling Icon causes the Control Panel to display as an icon until you mouse over it when the full

panel, then opens.

Screen Options

• If Full Screen Mode is enabled, the remote display will ll the entire screen.

• If Full Screen Mode is not enabled, the remote display will appear as a window on the local

desktop. If the remote screen is larger than what is able to t in the window, move the mouse

pointer to the screen border that is closest to the area you want to view and the screen will scroll.

o If Keep Screen Size is enabled, the remote screen is not resized. If the remote resolution is

smaller than that of the local monitor, its display appears like a window centered on the screen.

o If the remote resolution is larger than that of the local monitor, its display is centered on the

screen. To access the areas that are o screen, move the mouse to the corner of the screen

that is closest to the area you want to view and the screen will scroll.

• If Keep Screen Size is not enabled, the remote screen is resized to t the local monitor’s resolution.

7. Administration

Item Description

User Info

If User Info is enabled, the total number of users displays on the bottom row center of the Control

Panel.

Snapshot

These settings let the user congure the B064C-16-1-IP’s screen capture parameters:

• Path lets you select a directory that the captured screens automatically get saved to. Click

Browse, navigate to the directory of your choice, then click OK. If you do not specify a directory

here, the snapshot is saved to your desktop.

• Click a radio button to choose whether you want the captured screen to be saved as a BMP or a

JPEG (JPG) le.

• If you choose JPEG, you can select the quality of the captured le with the slider bar. The higher

the quality, the better looking the image, but the larger the le size.

Keyboard Pass

Through

When this is enabled, the Alt-Tab key press is passed to the remote server and aects that server. If

it is not enabled, Alt-Tab acts on your local client computer.

The Java Control Panel

The Java Client AP Control Panel is similar to the one used by the WinClient:

7. Administration

The major differences between them are:

• In the Macros dialog box, Toggle Mouse Display is not available.

• The Dot mouse pointer type is not available.

• In the Message Board, there is no Show/Hide button to show or hide the user list. This function is achieved by clicking

the arrows at the top of the bar that separates the User List panel from the Main panel.

• The Control Panel Lock LED icons are not in sync with your keyboard.

o When you first connect, the LED display may not be accurate. To be sure, click on the LED icons to set them.

• In Control Panel Configuration, the BMP Snapshot format has been replaced by PNG.

7.7 Port Access

When you log in to the switch, the Port Access page opens with the B064C-16-1-IP’s KVM Connections page displayed.

Browser GUI

7. Administration

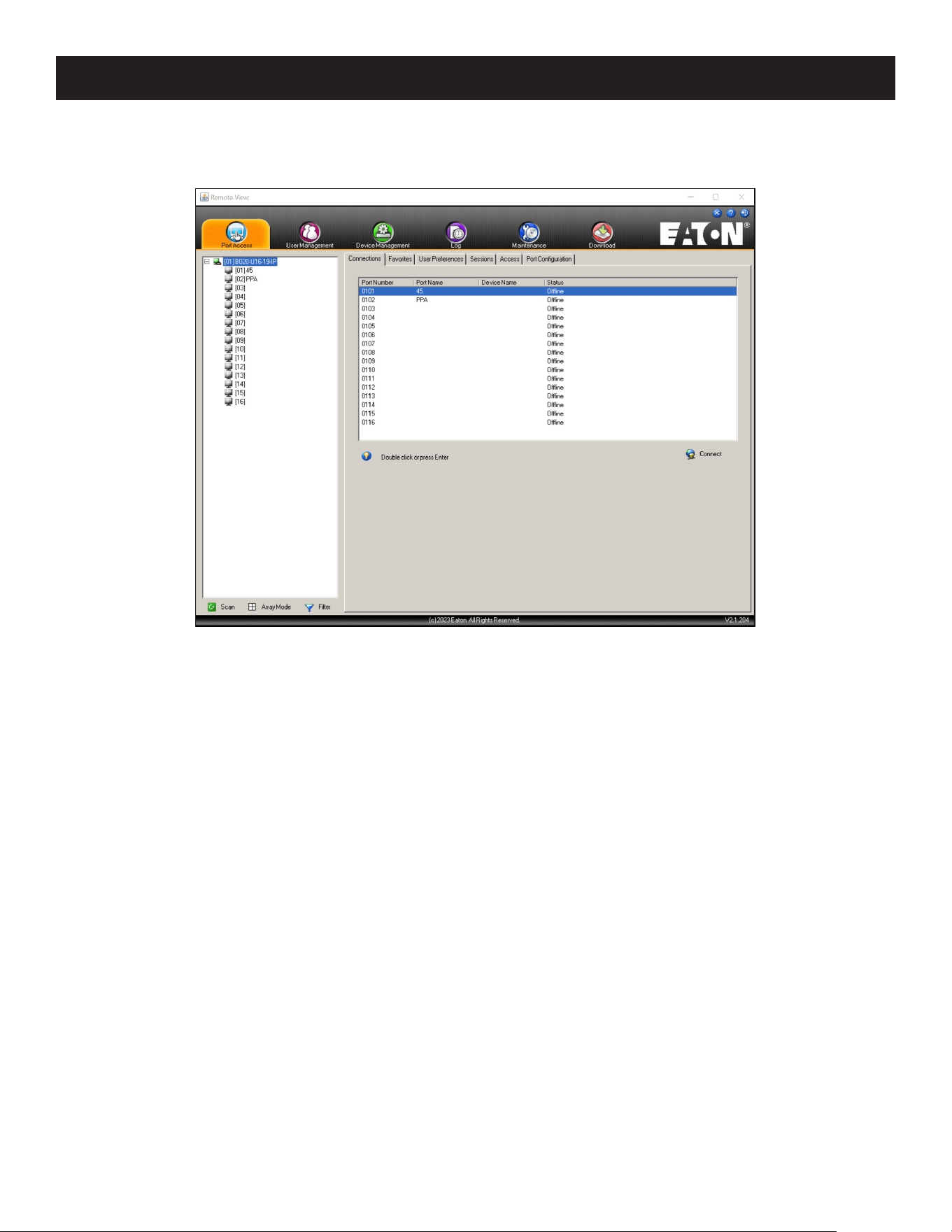

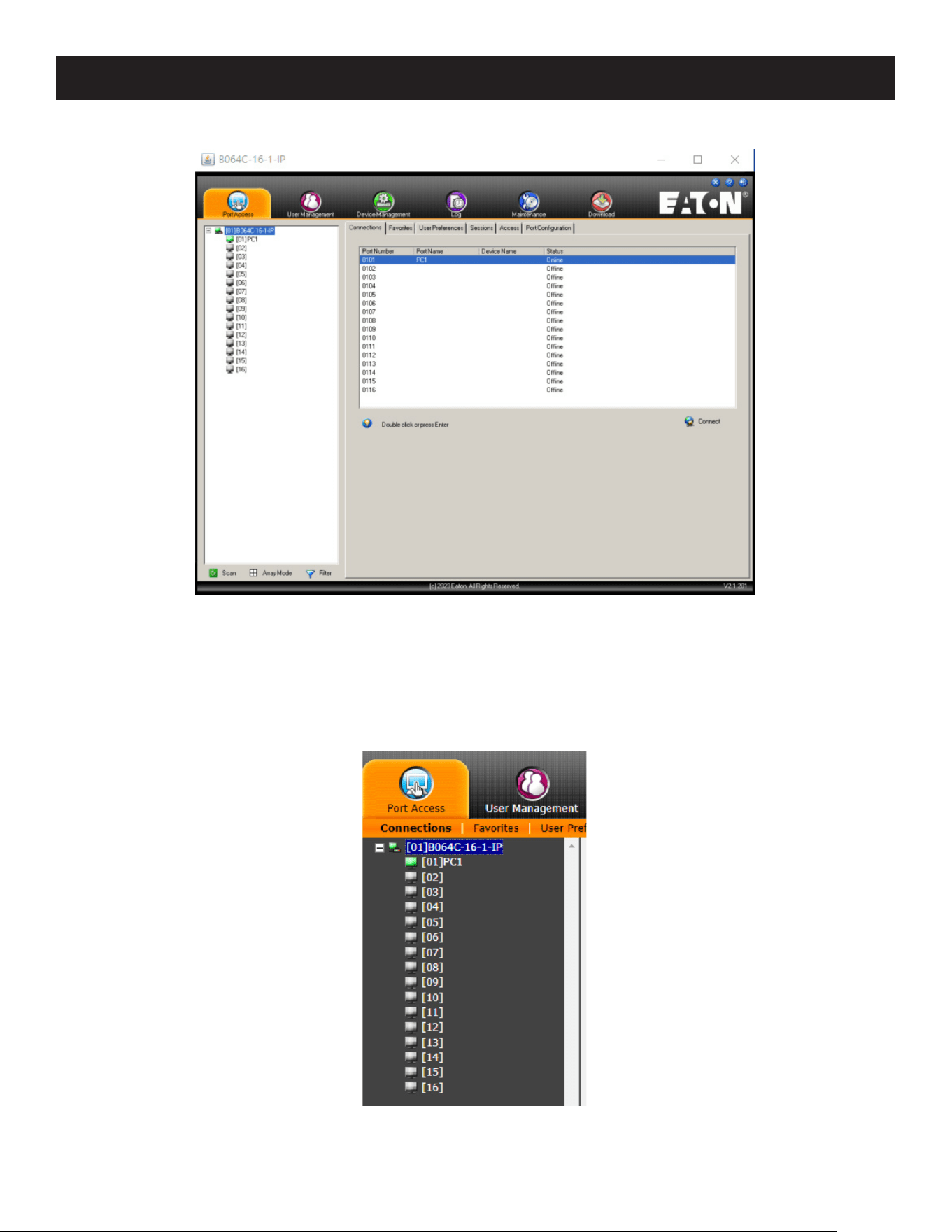

AP GUI

The Connections page is organized into several main areas. All devices and ports that a user is permitted to access are

listed in the Sidebar at the left of the page. After selecting a device or port in the Sidebar, clicking entries on the menu

bar (Browser GUI) or tab bar (AP GUI) opens information and configuration pages related to the item selected in the

Sidebar.

7.7.1 Sidebar

All KVM switches are listed in a tree structure in the Sidebar at the left of the screen:

7. Administration

Sidebar Tree Structure

• Users are only allowed to see the devices and ports they have access permission for.

• Ports and chained station devices can be nested under their first station devices.

Click the + in front of a device to expand the tree and see the ports/outlets nested underneath it. Click the - to

collapse the tree and hide the nested ports/outlets.

• A port’s ID number is displayed in brackets next to its icon.

• Online switches and ports will have their monitor screen icons in Green; Gray monitor screens are for devices and

ports that are offline.

• Outlets that are On will have their icons in Amber; the Gray icons are for outlets that are Off.

• To access and operate a port, double click its icon. Port operation details are discussed in 7.13 Port Operation.

Scan

Scan is found at the bottom of the AP GUI Sidebar. It automatically switches among all the ports that are visible

in the Sidebar at regular intervals so that their activity can be monitored automatically.

Note: This item does not appear at the bottom of the Sidebar in the Browser version. In that version, you must invoke it from the port’s

Toolbar.

Array

Array is found at the bottom of the Browser and AP GUI Sidebar. It represents another way of monitoring port

activity. Under this function, your screen is divided into a grid of panels with each panel showing the video

display of a particular port. Only ports that are visible in the Sidebar and that are online are displayed - all other

ports are blank.

Note: This item does not appear at the bottom of the Sidebar in the Browser version. In that version, you must invoke it from the port’s

Toolbar.

7. Administration

7.7.2 Filter

At the bottom of the sidebar are the filter options that allow you to control the number and type of ports that display in

the Sidebar:

The meanings of the choices are explained in the following table:

Choices Explanation

All

This is the default view. With no other lter options selected, all the ports that are accessible to the

user are listed in the Sidebar.

If any Favorites have been specied, you can drop down the list box and select Favorites instead of

All. If you select Favorites, only the items you have selected as Favorites display in the tree.

Powered On

If you enable Powered On (by putting a check in the checkbox), only the ports that have their

attached devices powered on display in the tree.

If you key in a search string and click Search, only port names that match the search string display

in the tree. Wildcards (? for single characters; * for multiple characters) and the keyword “or” are

supported, so that more than one port can show up in the list.

For example:

1. If you key in Web*, both Web Server 1 and Web Server 2 show up in the list.

2. If you key in W*1 or M*2, both Web Server 1 and Mail Server 2 show up in the list.

Array Mode See Array for details.

Exit Clicking Exit closes the lter dialog.

7. Administration

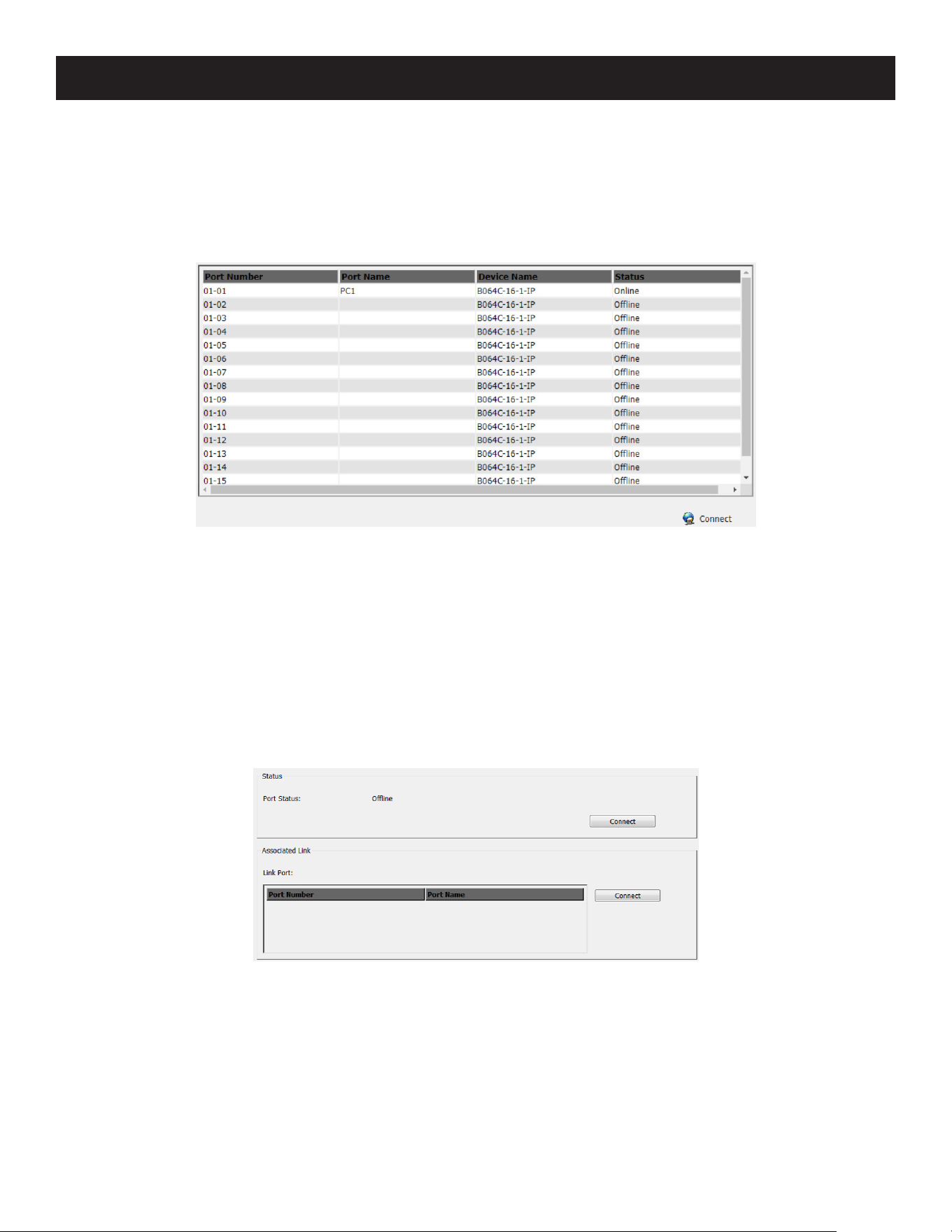

7.7.3 Connections

The Connections page displays port status information at the device level, and port connection configuration options at

the port level.

Device Level

When a B064C-16-1-IP is selected in the Sidebar, the Connections page displays a list of ports for the device that the

user is authorized to access or view.

The following attributes are listed for each device:

• Port Number - the port’s number on the switch.

• Port Name - if a name has been assigned to a port it displays here.

• Device Name - if a name has been assigned to the switch it displays here.

• Status - the current status of the port - online or offline.

• Connect - You can access any port from the main panel by selecting it and clicking Connect.

Note: The sort order of the information displayed can be changed by clicking the column headings.

Port Level

When a port is selected in the Sidebar, the Connections page displays port connection configuration properties:

Status

The Status Panel displays the port’s current status information, including whether the port is online or offline and if the

port is mountable. See 7.7.8 Port Configuration for full details about the properties and how to configure then.

Click the Connect button to view the port display via the B064C-16-1-IP’s built-in Win Viewer (when using Windows

Internet Explorer) or Java Viewer (when using other web browsers).

Associated Link

The Associated Links panel displays ports that have been associated with the currently selected port. Associations are

configured on the Port Access  Port Configuration  Associated Links page.

7. Administration

7.7.4 Favorites

The Favorites page is similar to a bookmarks feature. Ports that you frequently access can be saved in a list here. Simply

open this page and select the port - rather than hunting for it in the Sidebar. This feature is especially handy on large,

crowded installations:

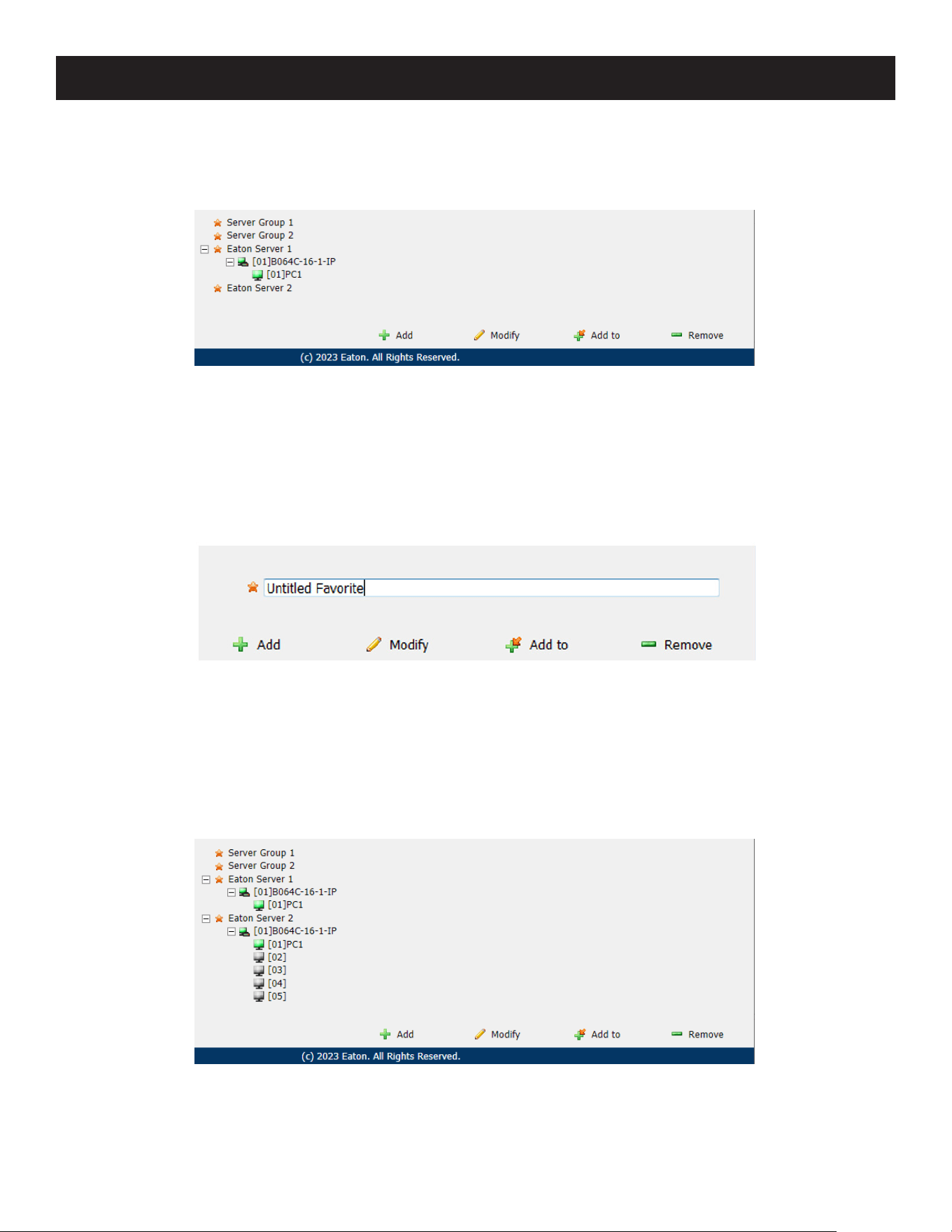

Adding a Favorite

To add a port to the favorites:

1. Right click in the main panel; click Add Favorite.

- or -

Click Add at the bottom left of the main panel.

An Untitled Favorite entry appears at the bottom right corner:

2. This will be a container to hold your port entries. Click inside the text entry box to erase Untitled Favorite and key in

an appropriate name, then click on any empty space in the main panel.

3. To add a port, select the container in the main panel, select the port in the Sidebar, then click Add to at the bottom

of the main panel. The switch the port belongs to is added to the container and the selected port is appended

under the switch.

Note: To add multiple ports at the same time, hold the Shift or Ctrl key down while you make your Sidebar selections then drag or copy

the entire group to the Favorites panel.

4. Repeat step 3 for any other Favorite categories you wish to create.

Note: Favorites can be selected for filtering in the Sidebar.

7. Administration

Modifying a Favorite

• To modify a Favorite or one of the items contained in it, right-click on it, then select a choice from the popup menu

that appears.

• To edit a Favorite’s name:

Click on it once, wait a second, then click again. You can edit the name after the display changes to provide a text

input box.

- or -

Select the Favorite in the main panel, then click Modify at the bottom of the main panel.

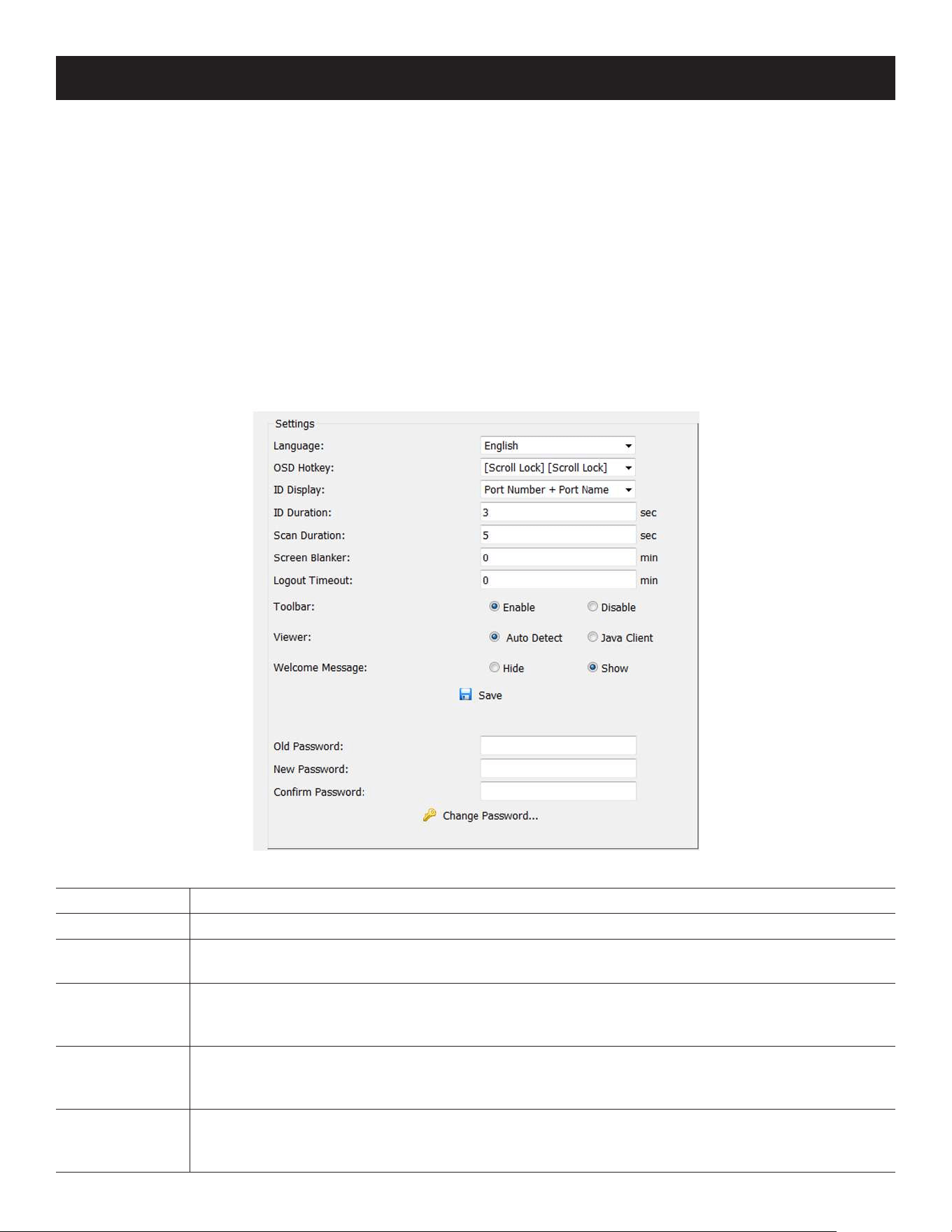

7.7.5 User Preferences

The User Preferences page allows users to set up their own individual working environments. The switch stores a

separate configuration record for each user profile and sets up the working configuration according to the Username

that was keyed into the Login dialog box:

The page settings are explained in the following table:

Setting Function

Language Selects the language that the interface displays in.

OSD Hotkey

Selects which Hotkey controls the OSD function: [Scroll Lock] [Scroll Lock] is the default. To select a

dierent combination, click the arrow at the right of the box to drop down the list of choices.

ID Display

Selects how the Port ID is displayed: the Port Number alone (PORT NUMBER), the Port Name alone

(PORT NAME) or the Port Number plus the Port Name (PORT NUMBER + PORT NAME). The default

is PORT NUMBER + PORT NAME.

ID Duration

Determines how long a Port ID displays on the monitor after a port change has taken place. You

can choose an amount from 1-255 seconds. The default is 3 Seconds. A setting of 0 (zero) means

the Port ID is always on.

Scan Duration

Determines how long the focus dwells on each port as it cycles through the selected ports in Auto

Scan Mode. Key in a value from 1-255 seconds. The default is 5 seconds; a setting of 0 disables the

Scan function.

7. Administration

Setting Function

Screen Blanker

If there is no input from the console for the amount of time set with this function, the screen is

blanked. Key in a value from 1-30 minutes. A setting of 0 disables this function. The default is 0

(disabled).

Note: Although this function can be set from either the local console or a remote login, it only aects the local

console monitor.

Logout Timeout

If there is no user input for the amount of time set with this function; the user is automatically

logged out. A login is necessary before the B064C-16-1-IP can be accessed again.

Toolbar

Selects whether the Port Toolbar is enabled when a port is accessed Since the Toolbar functions

are also available from the GUI Control Panel, you may prefer to disable it here.

Viewer*

You can choose which viewer is used when accessing a server:

• Auto Detect will select the appropriate viewer based on the web browser used; WinClient for

Windows Internet Explorer, Java Client for other web browsers (ex. Firefox).

• Java Client will open the Java-based viewer regardless of the web browser being used.

Welcome

Message*

You can choose to hide or show the welcome message displayed in the submenu bar. The default

is disabled.

Changing a

Password

• To change a user’s password in the Browser GUI, key in the old password and new password

into their input boxes, key the new password into the Conrm input box, then click Change

Password to apply the change.

• In the AP GUI version, click Change Password, key in the old password and new password into

their input boxes, key the new password into the Conrm input box, then click Save.

Save Click Save to save any changes made to the User Preferences settings.

* This item is only available with the Browser version.

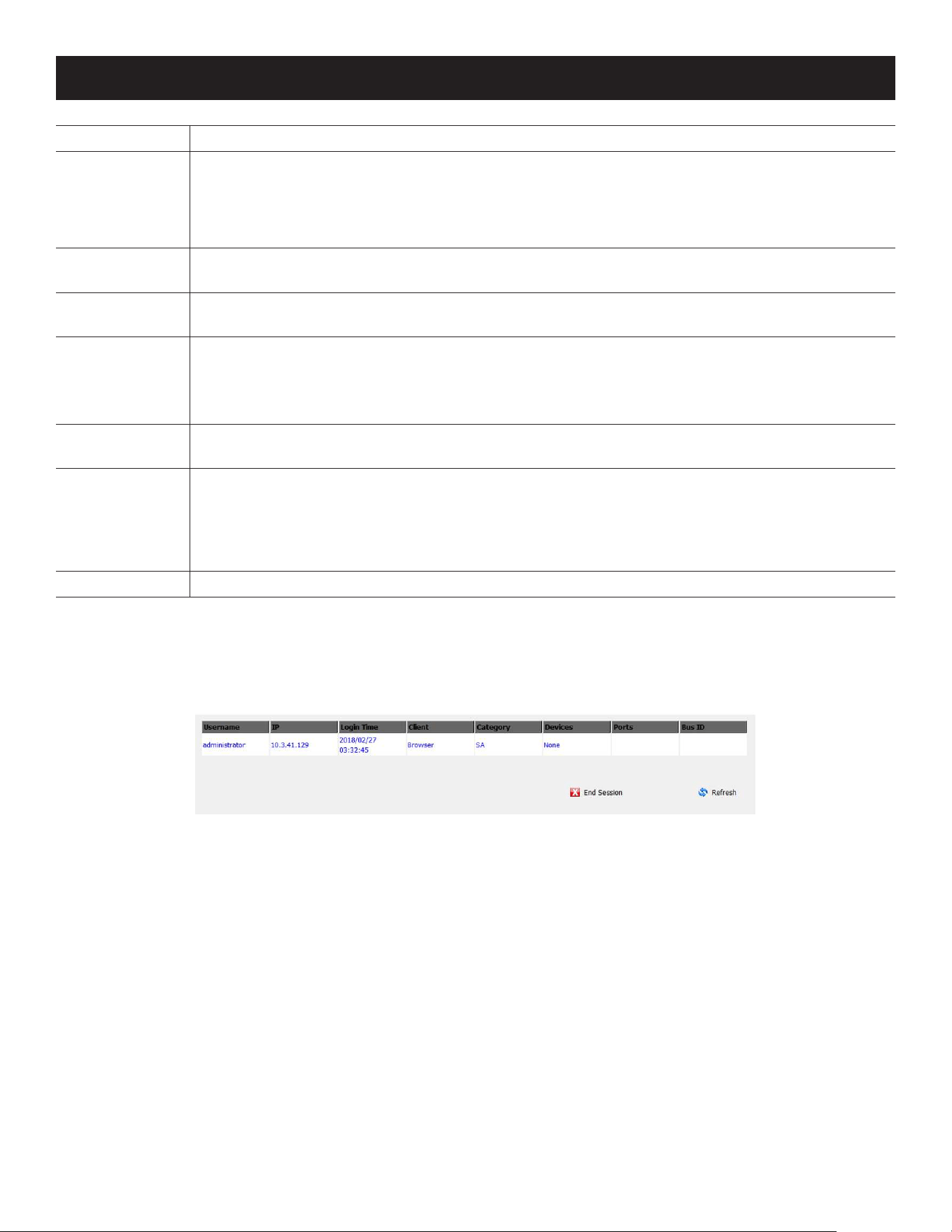

7.7.6 Sessions

The Session page lets the administrator and users with User Management permissions see at a glance which users are

currently logged into the B064C-16-1-IP and provides information about each of their sessions.

Notes:

• The Session page is not available for ordinary users.

• Users with User Management permissions can only see the sessions of ordinary users.

• The sort order of the information displayed can be changed by clicking the column headings.

The meanings of the headings at the top of the page are straightforward. The lP heading refers to the IP address that

the user has logged in from, the Login Time and Client tell you when and how the user logged in and the Category

heading lists the type of user who has logged in: Admin (Administrator); Normal user (User).

This page also gives the administrator the option of forcing a user logout by selecting the user and clicking End Session

at the bottom of the main panel.

7.7.7 Access

Administrators use the Access page to set user access and configuration rights for ports.

Note: The Access page only appears for users with User Management permissions. It is not available for other users.

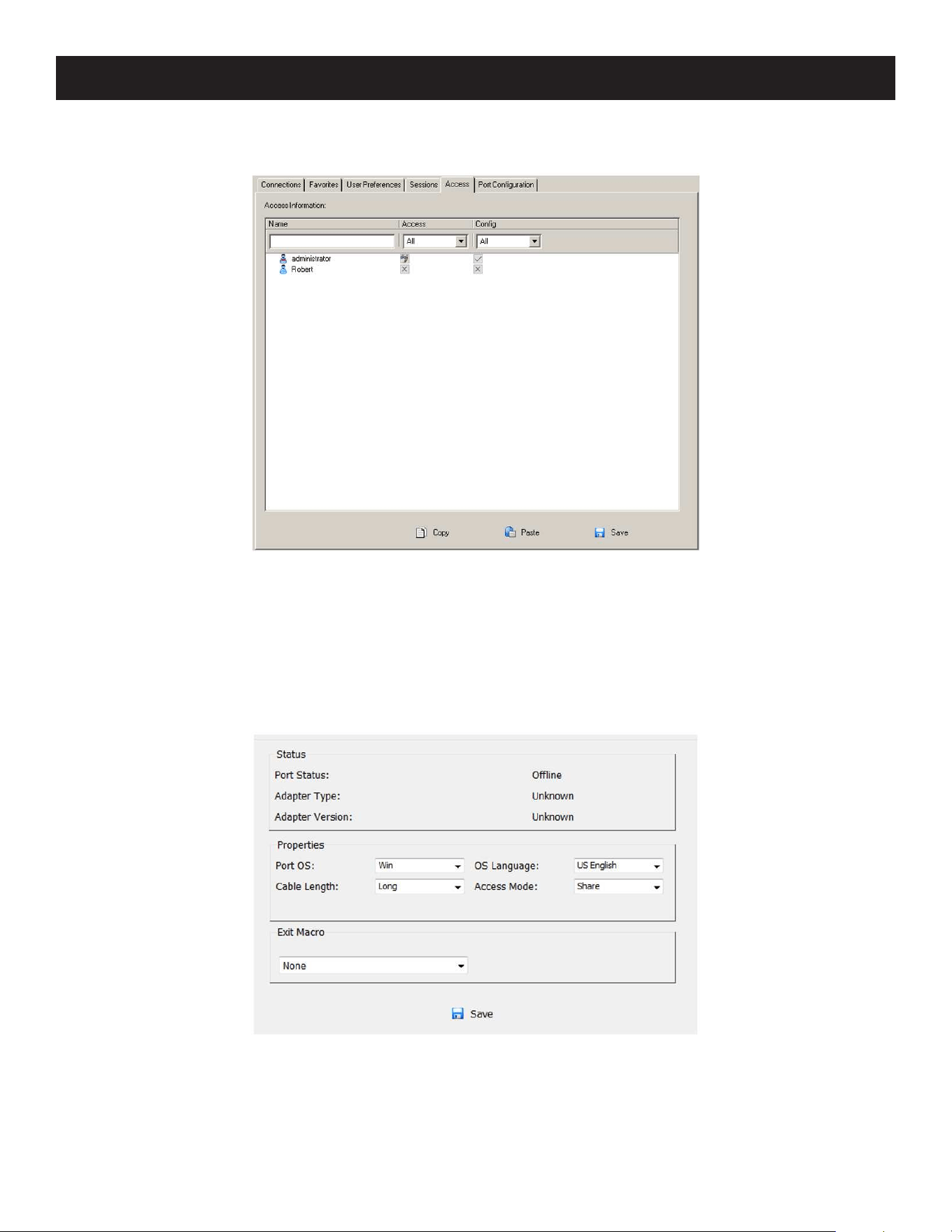

Browser GUI Interface

If a port is chosen in the Sidebar, the Main panel will appear similar to the one shown below:

The main panel consists of two columns: Name, and Access Rights:

• Name lists all the users that have been created.

• Access Rights indicates the users who have access rights privileges. A check mark (

) indicates that the user has

permission to make changes to the switch configuration settings (see 11. Device Management); an X means that

the user is denied permission to make configuration changes. Click the icon to toggle permission between Full Access,

View Only, and No Access.

• Config indicates the users who have Configuration privileges. A check mark (

) indicates that the user has

permission to make changes to the switch configuration settings (see 11. Device Management); an X means that

the user is denied permission to make configuration changes. Click the icon to toggle permission for Administrators

and Users (Super Administrators always have configuration privileges).

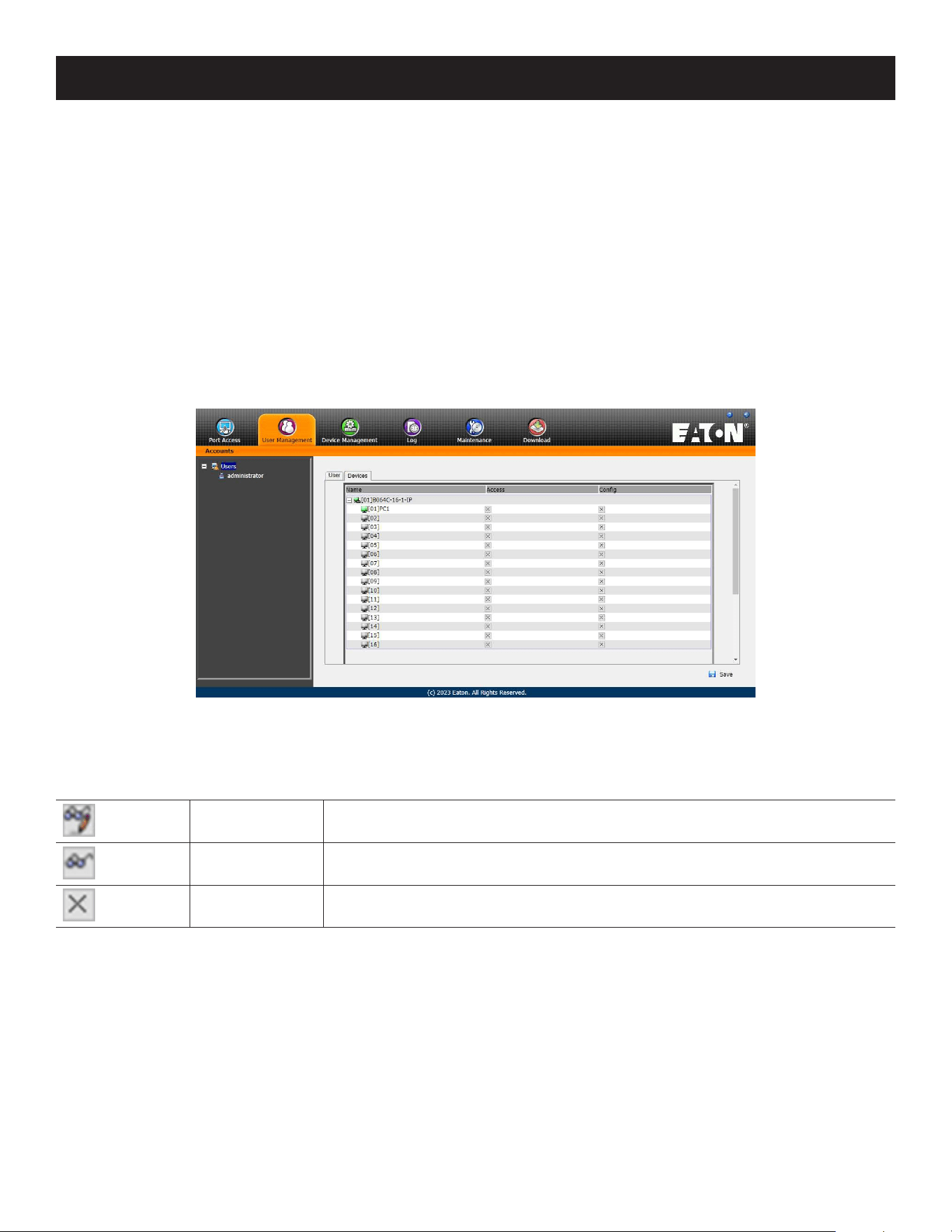

• The Copy and Paste buttons at the bottom of the main panel provide a shortcut method of assigning the permissions

settings of one port to any of the other ports. To do so:

1. Select the port whose permissions you want the other port(s) to follow.

2. Click Copy.

3. Select the port you want to receive the permissions.

4. Click Paste.

5. When you have finished making your configuration changes, click Save.

7. Administration

AP GUI Interface

The AP GUI Access page is similar to the Browser GUI version.

For information on using this page, see 7.7.7 Access.

Saving Changes

Click the Save button at the lower right corner of the page to save any changes made on the Access page.

7.7.8 Port Configuration

The Port Configuration page displays status information and allows you to set the properties of a port that has been

selected in the Sidebar.

• The Status panel provides information as to whether port is online or offline, the Adapter cable used to connect the

server (or other device) to the port and the Adapter’s firmware level.

• The Properties panel allows you to make configuration settings for the selected port.

• The Exit Macro panel contains a drop-down list of user created System macros. You can select a macro from the list

that will execute when exiting the remote server.

7. Administration

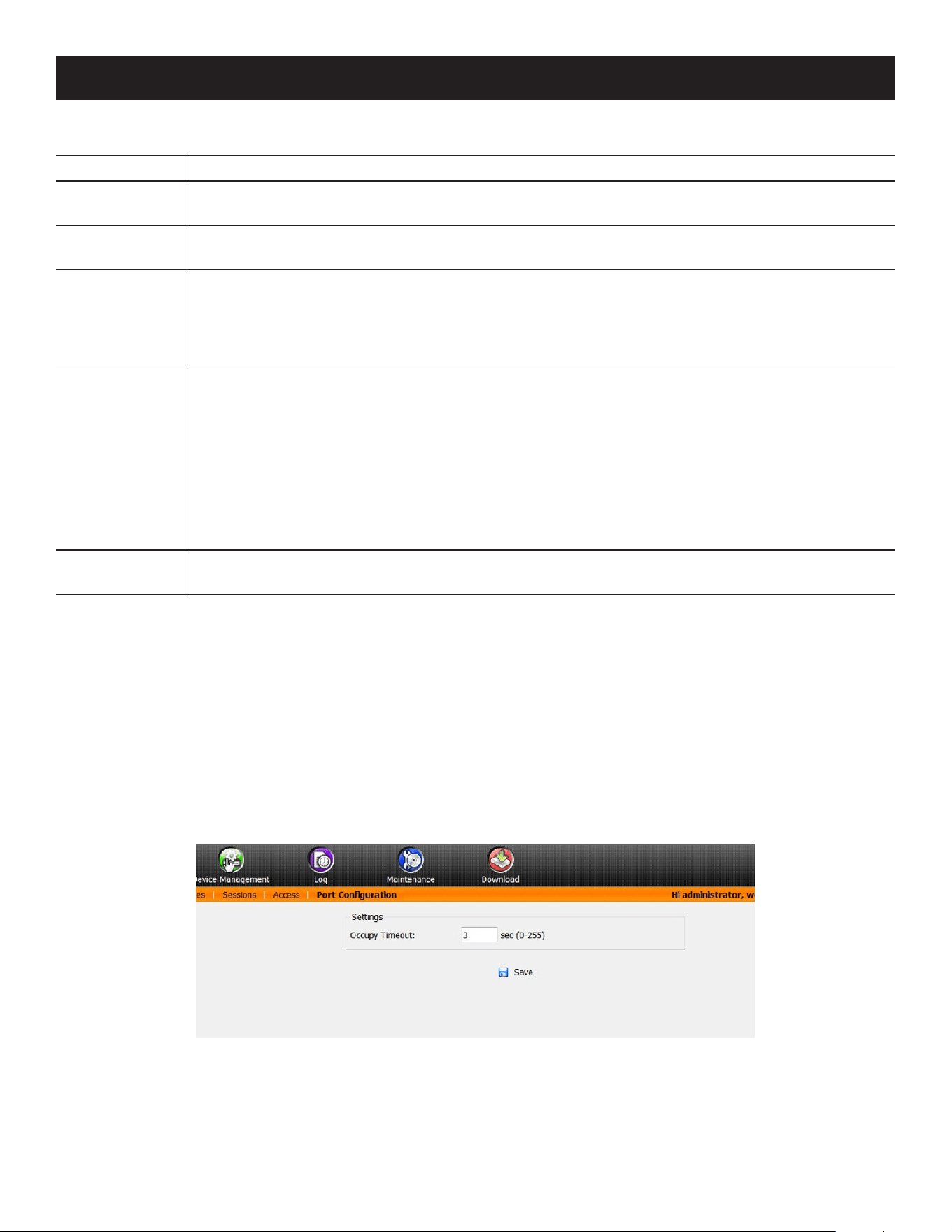

An explanation of the configuration fields is provided in the table below:

Field Explanation

Port OS

Species the operating system that the server on the connected port is using. Choices are Win,

Mac, Sun, and Other. The default is Win.

OS Language

Species the OS language being used by the server on the connected port. Use the drop down to

see the available choices. The default is English US.

Cable Length

Species the length of the Cat5e/6 cable that is used to connect the server to the port. Choices are

Short (less than 33 ft./10 m), Medium (33-82 ft./10-25 m), and Long (greater than 82 ft./25 m). The

default is Short.

Note: Cable length can aect video quality. Shorter cables oer better quality. This setting is designed to compensate

for longer or shorter cable lengths. You can experiment to nd the setting that best suits your connection.

Access Mode

Denes how the port is to be accessed when multiple users have logged on:

Exclusive: The rst user to switch to the port has exclusive control over the port. No other users

can view the port. The Timeout function does not apply to ports which have this setting.

Occupy: The rst user to switch to the port has control over the port. However, additional users

may view the port’s video display. If the user who controls the port is inactive for longer than the

time set in the Timeout box, port control is transferred to the rst user to move the mouse or strike

the keyboard.

Share: Users simultaneously share control over the port. Input from the users is placed in a queue

and executed chronologically.

Exit Macro

The Exit Macro panel contains a drop-down list box of user created System macros. You can select

a macro from the list that will execute when exiting the remote server.

7.7.9 Associated Link

The Associated Links page provides a method of associating other ports on the same switch to the selected port. This

function is primarily intended to be used when connecting both KVM and serial ports from a single server to the switch.

• To associate a port with the currently selected one, click Add. In the dialog box that appears, key in the port’s

number, then click OK. The port’s number and name appear in the main panel.

• To remove an unwanted associated port, select it in the main panel, then click Remove.

7.7.10 Occupy Timeout

When a switch is selected in the sidebar, the Occupy Timeout setting appear when Port Configuration is selected on the

menu bar:

Use Occupy Timeout Mode to set a time threshold for users on ports whose Operation Mode has been set to Occupy

(see 7.7.8 Port Configuration). If there is no activity from the user occupying the port for the amount of time set here,

the user is timed out and keyboard and mouse control on the port is released, after which the first user to send

keyboard or mouse input will occupy the port. However, the user originally connected to the port will still see the port’s

video output.

Input a value from 0 to 255 seconds. The default is 3 seconds. A setting of 0 causes the port to be released the instant

there is no input.

7. Administration

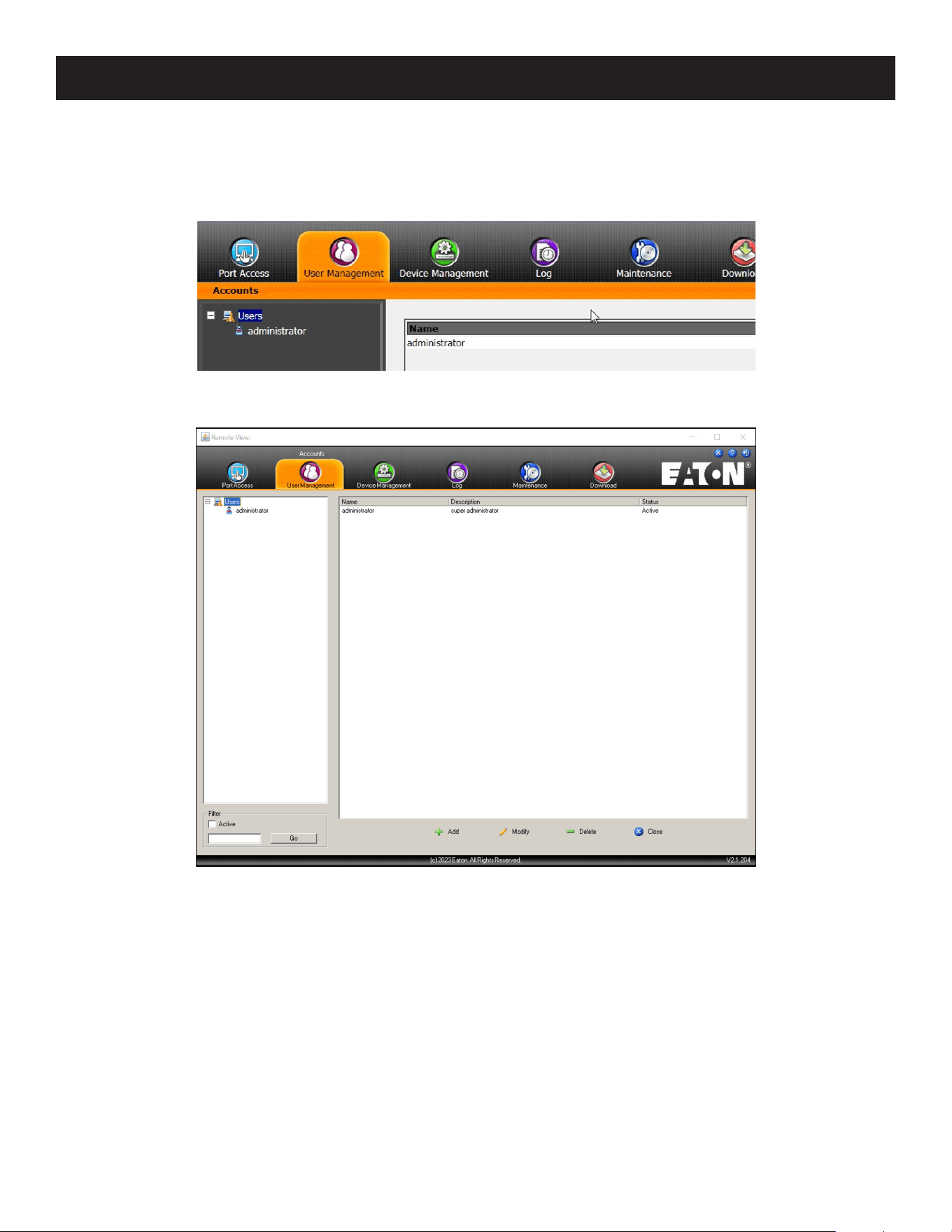

7.8 User Management

When you select the User Management tab the screen opens with the Users page displayed:

Browser GUI

AP GUI

• Users appear in the panel on the left of the page. The large panel at the right provides more detailed information.

• The buttons below the main panel are used to manage users.

7. Administration

7.8.1 Users

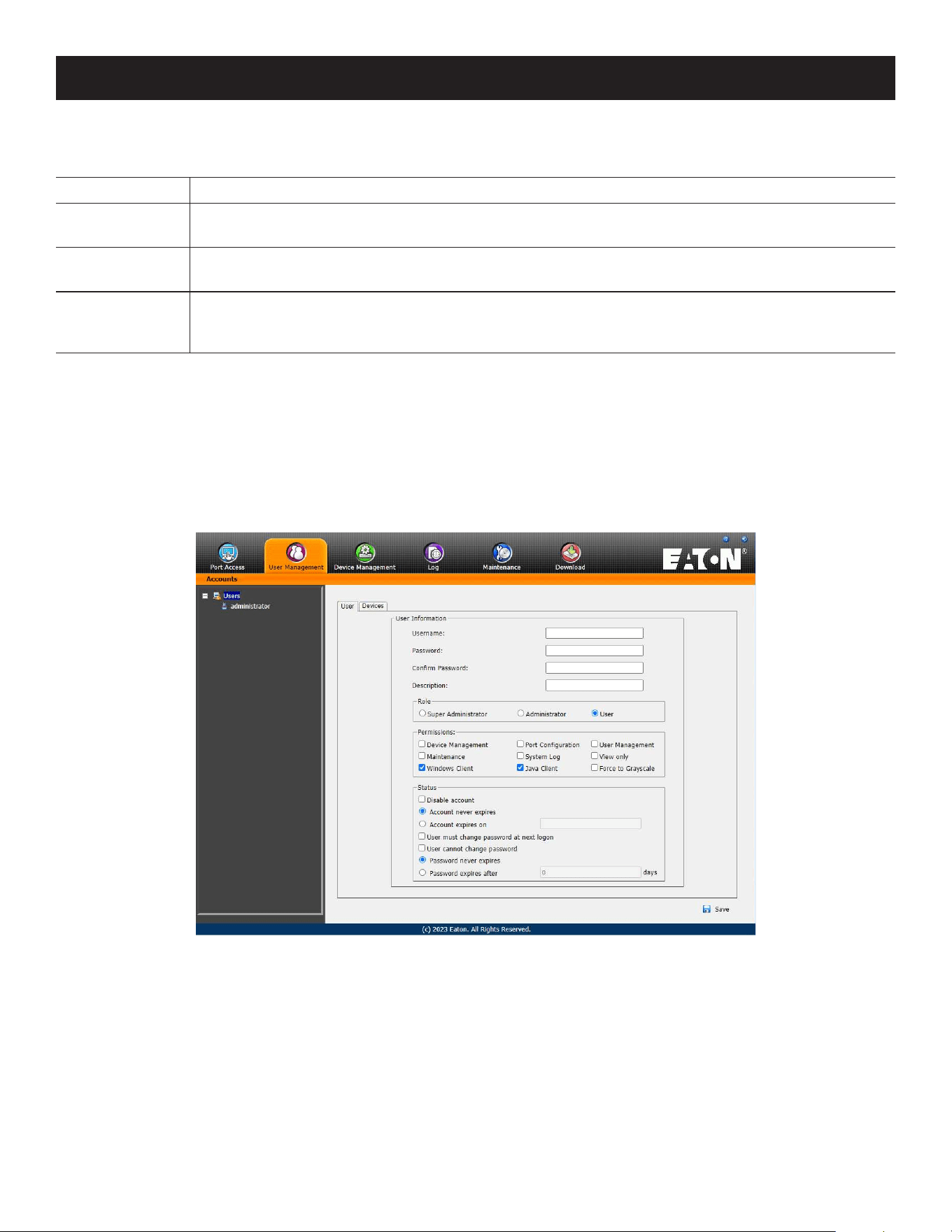

The B064C-16-1-IP supports three types of user accounts:

User Type Role

Super

Administrator

Access and manage ports and devices. Manage Users. Congure the overall installation. Congure

personal working environment.

Administrator

Access and manage authorized ports and devices. Manage Users. Congure personal working

environment.

User

Access authorized ports and devices. Manage authorized ports and devices. Congure personal

working environment.

Note: Users who have been given permission to do so may also manage other users.

Adding Users

To add a user and assign user permissions:

1. Select Users in the Sidebar (Browser GUI)

- or -

Select Users in the Sidebar (AP GUI).

2. To add a user, click Add at the bottom of the main panel. The User notebook opens, with the User tab selected:

7. Administration

3. Enter the required information in the appropriate fields. A description of each of the fields is given in the table

below:

Field Description

Username Enter a username with a minimum of 6 and maximum of 16 characters.

Password Enter a password with a minimum of 6 and maximum of 16 characters.

Conrm

Password

To ensure there is no mistake in the password, you will be asked to enter it again. The two entries

must match.

Description Additional information about the user that you may wish to include.

Role

There are three categories: Super Administrator, Administrator and User. There is no limitation on

the number of accounts that can be created in each category.

• The Super Administrator is responsible for the overall installation conguration and maintenance,

user management and device and port assignments. The Super Administrator’s permissions are

automatically assigned by the system and cannot be altered.

• The default permissions for Administrators include everything except Force to Grayscale, but

the permissions can be altered for each Administrator by checking or unchecking any of the

permissions checkboxes.

• The default permissions for Users include the Win, Java, and SSH clients, but the permissions can

be altered for each User by checking or unchecking any of the permissions checkboxes.

Note: Users who have been given User Management privileges cannot access or congure Groups.

Permissions

Note: For ordinary

users, in addition

to enabling Device

Management, Port

Conguration,

and Maintenance

permissions, the

user must also be

given those rights

for each device and

port that he will be

allowed to manage.

See 7.8.2 Device

Assignment for

details.

• Enabling Device Management allows a user to congure and control the settings for overall

operations (see 7.9 Device Management).

• Enabling Maintenance allows a user to perform all the Maintenance operations available under

the Maintenance tab (see 7.11 Maintenance).

• Enabling Windows Client allows a user to download the Windows Client AP software, and access

the B064C-16-1-IP with it, in addition to (or instead of) the browser access method.

• Enabling Port Conguration allows a user to congure and control the settings for individual ports

(see 7.7.8 Port Conguration).

• Enabling System Log allows a user to access the system log (see 7.10 Log).

• Enabling Java Client allows a user to download the Java Client AP software and access the B064C-

16-1-IP with it, in addition to (or instead of) the browser access method.

• Enabling User Management allows a user to create, modify and delete user and group accounts.

• Enabling View Only limits users to only being able to view the display of connected devices. They

cannot control port access, nor can they input any keyboard or mouse signals to the devices they

view.

• Force to Grayscale forces the user’s view of the remote display to be in grayscale. This can speed

up I/O transfer in low bandwidth situations.

7. Administration

Field Description

Status

Status allows you to control the user’s account and access the installation.

• Disable Account lets you suspend a user’s account without actually deleting it, so that it can be

easily reinstated in the future.

• If you do not want to limit the time scope of the account, select Account never expires; if you do

want to limit the amount of time that the account remains in eect, select Account expires on and

key in the expiration date.

• To require a user to change his password at the next logon, select User must change password at

next logon. This can be used by the administrator to give the user a temporary password to log in

for the rst time, then let the user set the password of their choice for future logins.

• To make a password permanent so the user cannot change it to something else, select User

cannot change password.

• For security purposes, administrators may want users to change their passwords periodically.

o If not, select Password never expires. This allows users to keep their current passwords for as

long as they like.

o If so, select Password expires after, and key in the number of days allowed before the password

expires. Once the time is up, a new password must be set.

4. When your selections have been made click Save.

5. When the Operation Succeeded message appears, click OK.

6. Click Users in the Sidebar to return to the main screen. The new user will in the Sidebar list and in the main panel.

o The Sidebar Users list can expand and collapse. If the list is expanded, click the minus symbol ( - ) next to the

Users icon to collapse it; if it is collapsed there is a plus symbol ( + ) next to the icon. Click the plus symbol to

expand it.

o The icon for administrators has one red band.

o The large main panel shows the user’s name; the description that was given when the account was created and

whether the account is currently active or has been disabled.

Modifying User Accounts

To modify a user account:

1. In the Sidebar User list, click the user’s name

- or -

In the main panel, select the user’s name

2. Click Modify.

3. In the User page that opens, make your changes, then click Save.

Deleting User Accounts

To delete a user account:

1. In the main panel, select the user’s name.

2. Click Delete.

3. Click OK.

7. Administration

7.8.2 Device Assignment

When a user logs in to the B064C-16-1-IP, the interface opens with the Port Access page displayed. All the ports the

user is permitted to access are listed in the Sidebar on the left of the page. Access permissions for those ports and the

devices connected to them are assigned on a port-by-port basis from the User list on the Sidebar of the User

Management page.

Note: When a Super Administrator account is selected, you will not be able to select the Devices tab since these accounts have full

permissions and they cannot be change.

Assigning Device Permissions from the User’s Notebook

1. In the Sidebar User list, click the user’s name

- or -

In the main panel, select the user’s name.

2. Click Modify.

3. In the User notebook that opens, select the Devices tab. A screen, similar to the one below, appears:

4. Make your permission settings for each port according to the information provided below:

Name: Each port accessible to the user is listed under the Names column.

Access: The Access column is where device access rights are set. Click the icon in the row that corresponds to the

port you want to configure to cycle through the choices. The meanings of the icons are described in the table below:

Full Access

The user can view the remote screen and perform operations on the remote

server from his keyboard and monitor.

View Only

The user can only view the remote screen and cannot perform any operations

on it.

No Access No access rights - the Port will not appear on the User's list on the Main Screen.

5. Once you have finished making your choices, click Save.

6. In the confirmation popup that appears, click OK.

Note: In any of the columns, you can use Shift-Click or Ctrl-Click to select a group of ports to configure. Clicking to cycle through the

choices on any one of the selected ports will all to cycle in unison.

7.9 Device Management

7.9.1 KVM Devices

Device Information

The Device Management page opens with the top level B064C-16-1-IP selected in the Sidebar and the Device

Configuration item selected on the menu bar:

Browser GUI

AP GUI

7. Administration

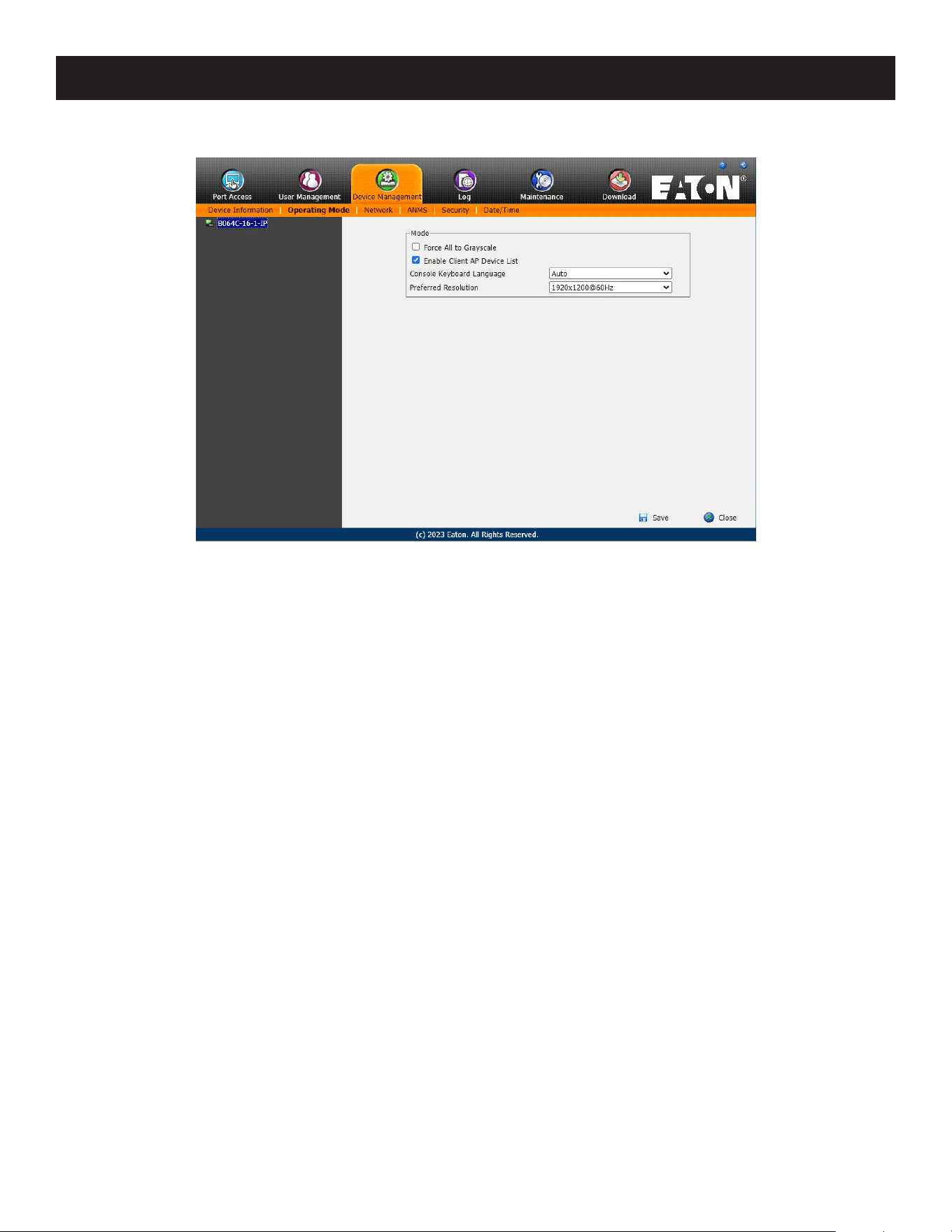

7.9.2 Operating Mode

The Operating Mode page is used to set working parameters.

• If Force all to grayscale is enabled, the remote displays of all devices connected to the B064C-16-1-IP are changed to

grayscale. This can speed up I/O transfer in low bandwidth situations.

• If Enable Client AP Device List is enabled, the switch appears in the Server List when using the WinClient or Java Client

AP (see 7.5.3 Windows Client AP Login and 7.5.4 Java Client AP Login). If this option is not enabled, the switch

can still be connected but its name will not appear in the Server List.

• The Console Keyboard Language setting lets you specify which keyboard mapping is being used by the Local Console

keyboard. Use the drop down list to make your choice.

• Preferred Resolution allows you to set a resolution that the switch sends to the KVM adapter cables. The adapter

cables provide the connected computer’s video card information about the monitor connected to the switch. This

affects the video quality of the console monitor.

o Monitor Default Setting: Sends the EDID information provided by the display connected to the console port to the

KVM adapter cable.

7. Administration

7.9.3 Network

The Network page is used to specify the network environment.

7. Administration

IP Installer

The IP Installer is an external Windows-based utility for assigning IP addresses to the B064C-16-1-IP.

Click one of the radio buttons to select Enable, View Only or Disable for the IP Installer utility.

Notes:

• If you select View Only, you will be able to see the B064C-16-1-IP in the IP Installer’s Device List, but you will not be able to change the IP

address.

• For security, we strongly recommend you set this to View Only or Disable after each use.

Service Ports

As a security measure, if a firewall is being used the Administrator can specify the port numbers that the firewall will

allow. If a port other than the default is used, users must specify the port number as part of the IP address when they

log in. If an invalid port number (or no port number) is specified, the B064C-16-1-IP will not be found. An explanation of

the fields is provided in the table below:

Field Explanation

Program

This is the port number for connecting with the WinClient ActiveX Viewer, WinClient AP, Java Applet

Viewer or Java Client AP. The default is 9000.

HTTP The port number for a browser login. The default is 80.

HTTPS The port number for a secure browser login. The default is 443.

Notes:

• Valid entries for all the Service Ports are from 1-65535.

• Service ports cannot have the same value. You must set a different value for each one.

• If there is no firewall (on an Intranet, for example), it does not matter what these numbers are set to, as they have no effect.

Network Configuration

• IPv4 Settings

o IP Address:

IPv4 is the traditional method of specifying IP addresses. The KVM switch can have its IP address assigned

dynamically (DHCP) or it can be given a fixed IP address.

o For dynamic IP address assignment, select the Obtain lP address automatically radio button (this is the default

setting).

o To specify a fixed IP address, select the Set lP address manually radio button and fill in the fields with values

appropriate for your network.

Note: If the switch is on a network that uses DHCP to assign network addresses, and you need to ascertain its IP address, see 7.1 lP

Address Determination for details.

• DNS Server

o For automatic DNS Server address assignment, select the Obtain DNS Server address automatically radio button.

o To specify the DNS Server address manually, select the Set DNS server address manually radio button and fill in the

addresses for the Preferred and Alternate DNS servers with values appropriate for your network.

Note: Specifying the Alternate DNS Server address is optional.

• IPv6 Settings

o IP Address:

IPv6 is the new (128-bit) format for specifying IP addresses. The KVM switch can either have its IPv6 address

assigned dynamically (DHCP), or it can be given a fixed IP address.

o For dynamic IP address assignment, select the Obtain lP address automatically radio button. (This is the default

setting.)

o To specify a fixed IP address, select the Set lP address manually radio button and fill in the fields with values

appropriate for your network.

• DNS Server

o For automatic DNS Server address assignment, select the Obtain DNS Server address automatically radio button.

o To specify the DNS Server address manually, select the Set DNS server address manually radio button, and fill in the

addresses for the Preferred and Alternate DNS servers with values appropriate for your network.

Note: Specifying the Alternate DNS Server address is optional.

Network Transfer Rate

This setting allows you to tailor the size of the data transfer stream to match network traffic conditions by setting the

rate at which the KVM over IP switch transfers data between itself and the client computers. The range is from 4- 99999

Kilobytes per second (KBps).

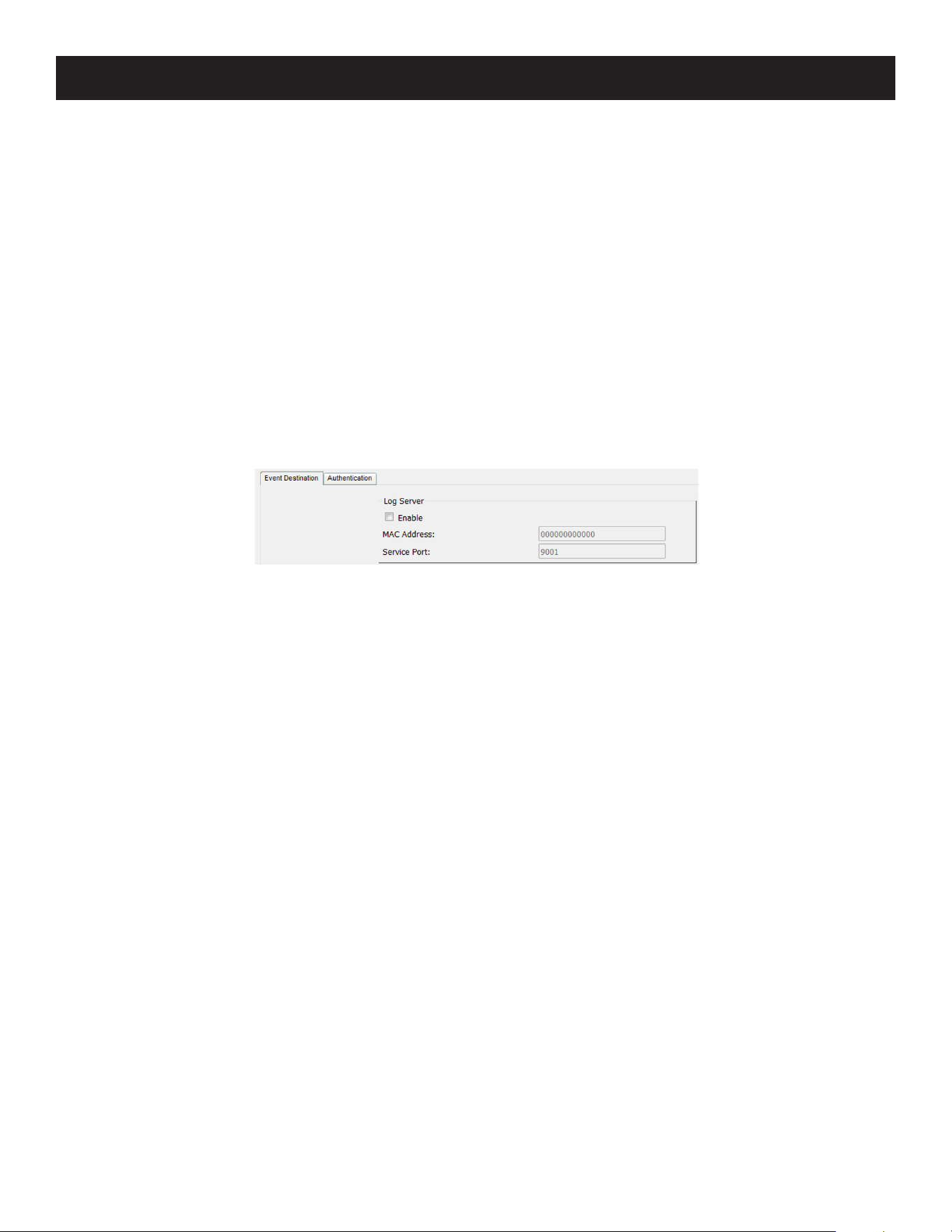

7.9.4 ANMS

The ANMS (Advanced Network Management Settings) page is used to set up login authentication and authorization

management from external sources.

Event Destination

• Log Server

When Enable Log Server is checked, important transactions that occur on the B064C-16-1-IP, such as logins and

internal status messages, are kept in an automatically generated log file.

o Specify the MAC address of the computer that the Log Server runs on in the MAC address field.

o Specify the service port used by the computer that the Log Server runs on to listen for log details in the Port field.

The valid port range is 1- 65535. The default port number is 9001.

Notes:

• The port number must different than the one used for the Program port.

• See 7.14 The Log Server for details on setting up the log server.

7. Administration

Authentication and Authorization

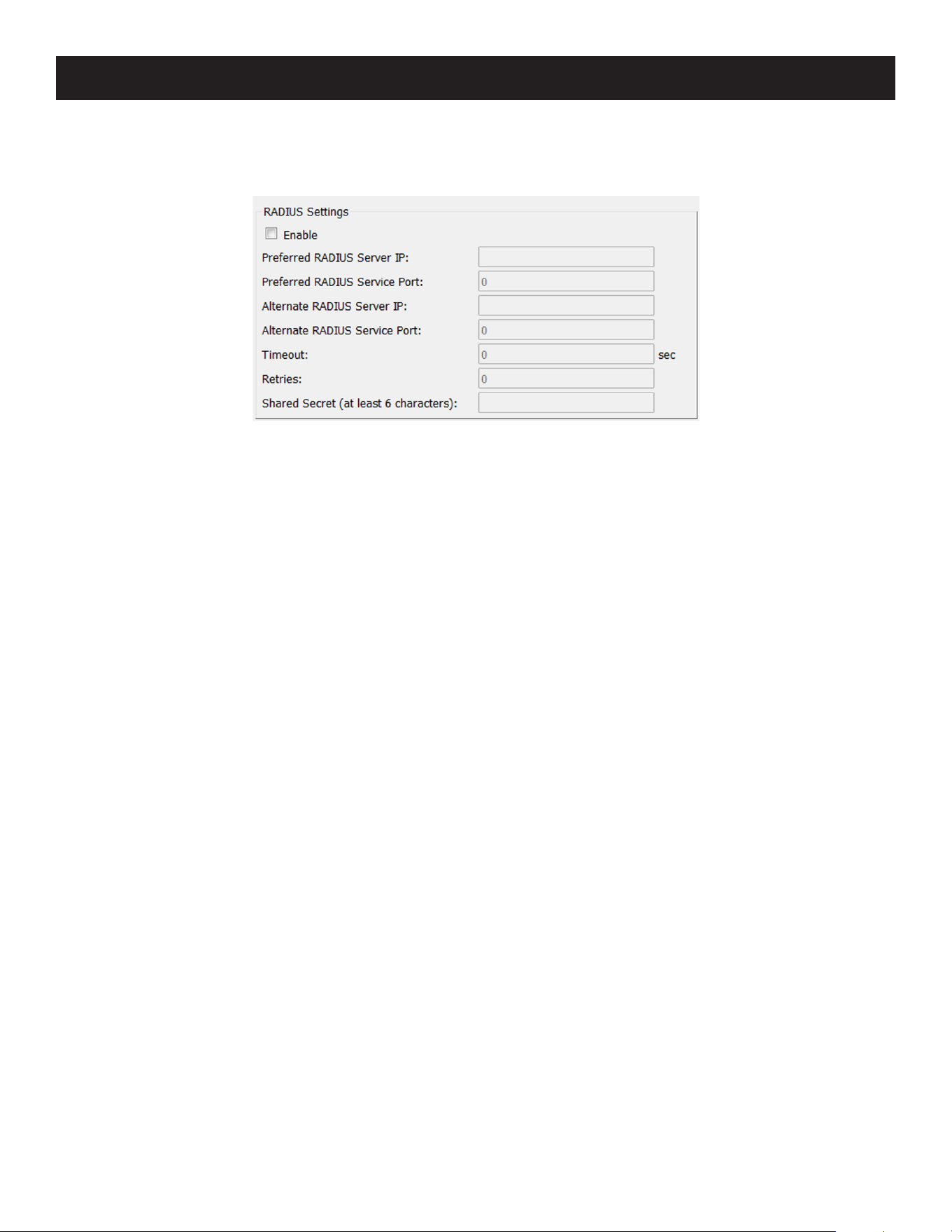

RADIUS Settings

To allow authentication and authorization for the B064C-16-1-IP through a RADIUS server, do the following:

1. Check Enable.

2. Fill in the IP addresses and service port numbers for the Preferred and Alternate RADIUS servers. You can use the

IPv4 address, the IPv6 address or the domain name in the IP fields.

3. In the Timeout field, set the time in seconds that the B064C-16-1-IP waits for a RADIUS server reply before it times

out.

4. In the Retries field, set the number of allowed RADIUS retries.

5. In the Shared Secret field, key in the character string that you want to use for authentication between the B064C-16-

1-IP and the RADIUS Server. A minimum of 6 characters is required.

6. On the RADIUS server, Users can be authenticated with any of the following methods:

o Set the entry for the user as su/xxxx

o Where xxxx represents the Username given to the user when the account was created on the B064C-16-1-IP.

o Use the same Username on both the RADIUS server and the B064C-16-1-IP.

7. Administration

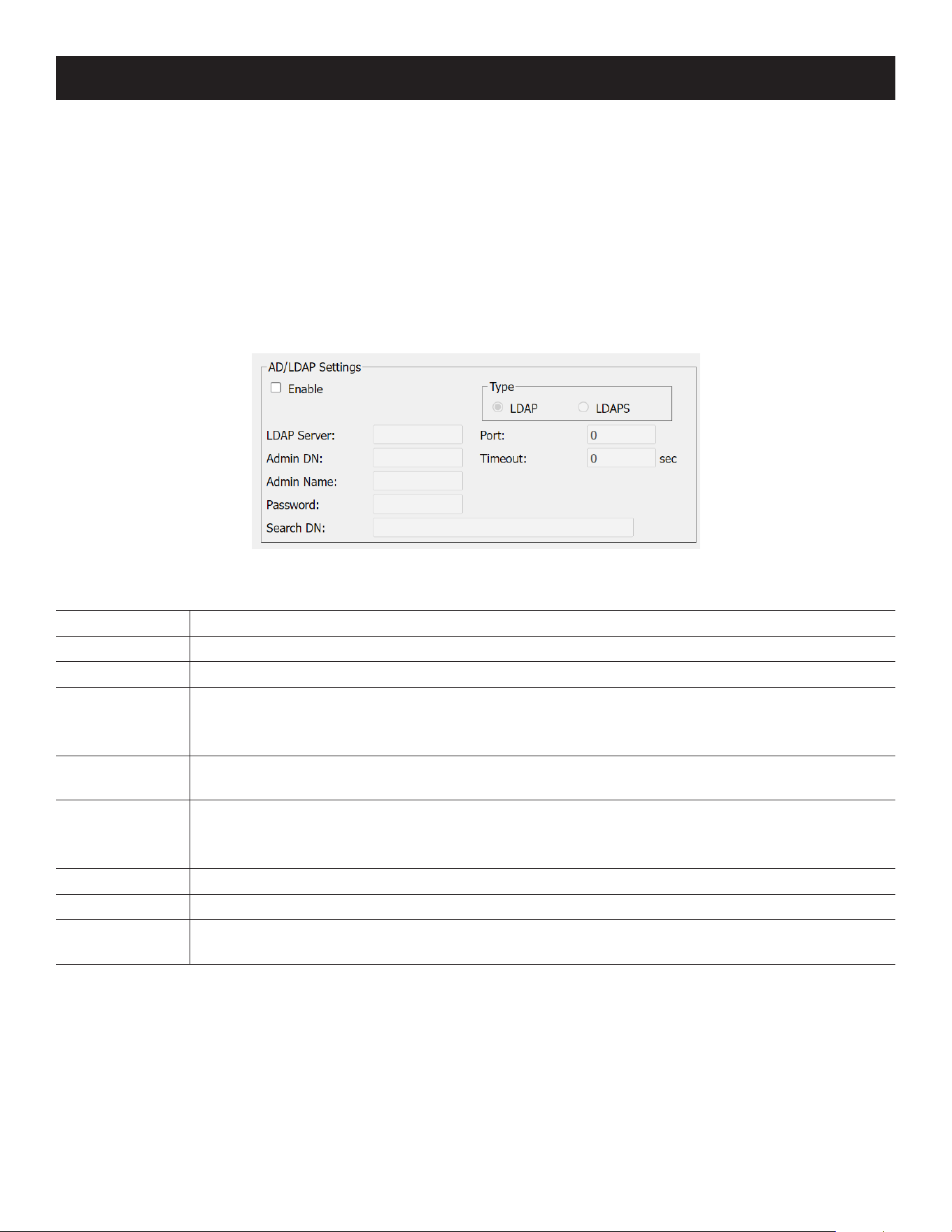

LDAP / LDAPS Authentication and Authorization Settings

To allow authentication and authorization via LDAP or LDAPS, the Active Directory’s LDAP Schema must be extended so

that an extended attribute name for the B064C-16-1-IP - iKVM36-userProfile is added as an optional attribute to the

person class.

To manually determine the attribute name of the B064C-16-1-IP - iKVM36-userProfile, go to Ping Host under Maintenance

and execute a tc get command (see 7.11.5 Ping Host for details).

To configure the LDAP server, you will need to complete the following:

1. Install the Windows Server Support Tools.

2. Install the Active Directory Schema Snap-in.

3. Extend and Update the Active Directory Schema.

To allow authentication and authorization for the B064C-16-1-IP via LDAP / LDAPS, refer to the information in the table

below:

Item Action

Enable Put a check in the Enable checkbox to allow LDAP / LDAPS authentication and authorization.

Type Click a radio button to specify whether to use LDAP or LDAPS.

LDAP Server IP

and Port

Fill in the IP address and port number for the LDAP or LDAPS server.

• You can use the IPv4 address, the IPv6 address or the domain name in the LDAP Server eld.

• For LDAP, the default port number is 389; for LDAPS, the default port number is 636.

Timeout

Set the time in seconds that the B064C-16-1-IP waits for an LDAP or LDAPS server reply before it

times out.

Admin DN

Consult the LDAP / LDAPS administrator to ascertain the appropriate entry for this eld. For

example, the entry might look like this:

ou=B064C161IP,dc=eaton,dc=com

Admin Name Key in the LDAP administrator's username.

Password Key in the LDAP administrator's password.

Search DN

Set the distinguished name of the search base. This is the domain name where the search starts for

user names.

On the LDAP / LDAPS server, Users can be authenticated with an MS Active Directory schema.

7. Administration

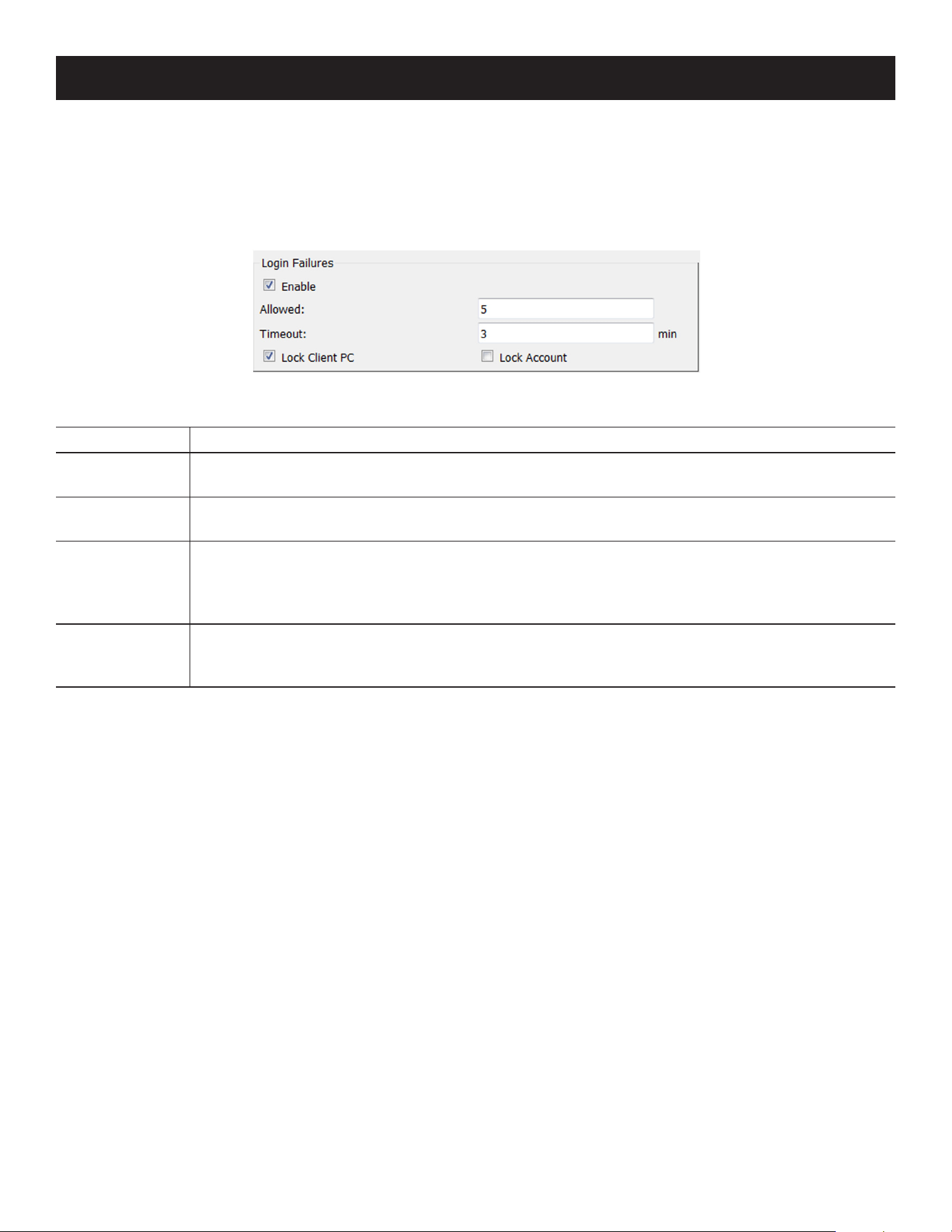

7.9.5 Security

The Security page is divided into six main panels.

For increased security, the Login Failures section allows administrators to set policies governing what happens when a

user fails to log in successfully.

To set the Login Failures policy, check the Enable checkbox (the default is for Login Failures to be enabled). The entries

are explained in the table below:

Entry Explanation

Allowed

Sets the number of consecutive failed login attempts that are permitted from a remote computer.

The default is 5 times.

Timeout

Sets the amount of time a remote computer must wait before attempting to login again after it has

exceeded the number of allowed failures. The default is 3 minutes.

Lock Client PC

If this is enabled, after the allowed number of failures have been exceeded the computer

attempting to log in from that IP is automatically locked out. No logins from that computer will be

accepted. The default is enabled.

Note: If the IP is changed, the computer will no longer be locked out.

Lock Account

If this is enabled, after the allowed number of failures have been exceeded, the user attempting to

be accepted. The default is enabled.

Note: If Login Failures is not enabled, users can attempt to log in an unlimited number of times with no restrictions. For security purposes,

we recommend you enable this function and enable the lockout policies.

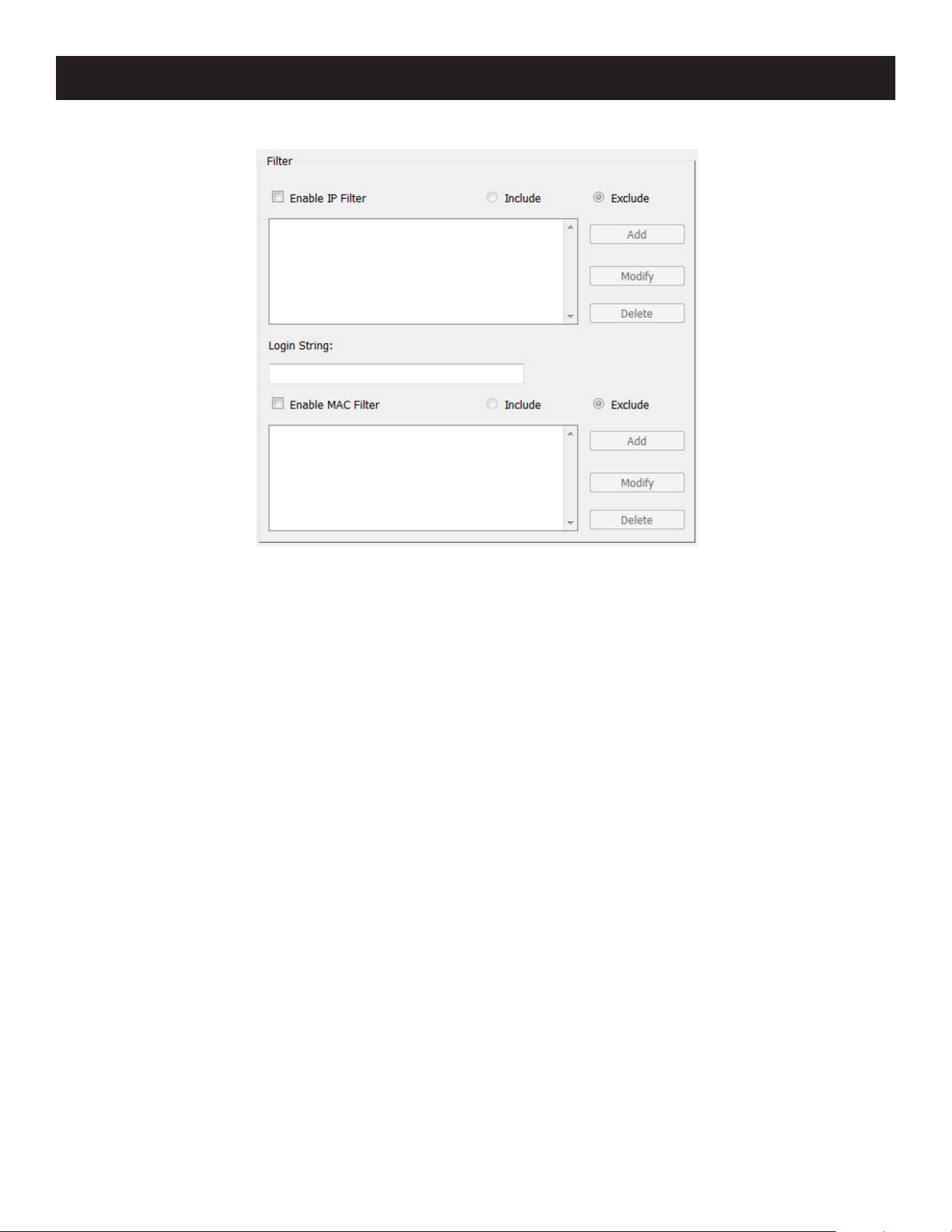

Filter

• IP and MAC Filtering

IP and MAC Filters control access to the B064C-16-1-IP based on the IP and/or MAC addresses of the client

computers attempting to connect. A maximum of 100 IP filters and 100 MAC filters are allowed. If any filters have

been configured, they appear in the IP Filter and/or MAC Filter list boxes.

To enable IP and/or MAC filtering, Click to put a check mark in the lP Filter Enable and/or MAC Filter Enable checkbox.

• If the include button is checked, all the addresses within the filter range are allowed access; all other addresses are

denied access.

• If the exclude button is checked, all the addresses within the filter range are denied access; all other addresses are

allowed access.

• Adding Filters

To add an IP filter:

1. Click Add. A script prompt dialog box appears.

2. Specify whether you are filtering an IPv4 or IPv6 address.

3. Key the address you want to filter in the From: field.

o To filter a single IP address, click to put a check in the Single lP checkbox.

o To filter a continuous range of addresses, key in the end number of the range in the To: field.

Note: This description is for the AP GUI. The Browser GUI differs as follows:

• It does not offer an IPv4 or IPv6 choice. It only has From and To fields for IPv4 filtering.

• It does not have a checkbox to specify a single IP address. To filter a single IPv4 address, key the same address in both the From

and To fields.

4. After filling in the address, click OK.

5. Repeat these steps for any additional IP addresses you want to filter.

7. Administration

100

7. Administration

To add a MAC filter:

1. Click Add. A script prompt dialog box.

2. Specify the MAC address in the dialog box, then click OK.

3. Repeat these steps for any additional MAC addresses you want to filter.

• IP Filter / MAC Filter Conflict

If there is a conflict between an IP filter and a MAC filter (e.g., if a computer’s address is allowed by one filter but

blocked by the other), then the blocking filter takes precedence (the computer’s access is blocked).

• Modifying Filters

To modify a filter, select it in the IP Filter or MAC Filter list boxes and click Modify. The Modify dialog box is similar to

the Add dialog box. When it opens, simply delete the old address(es) and replace with the new one(s).

• Deleting Filters

To delete a filter, select it in the IP Filter or MAC Filter list box and click Delete.

The Login String entry field lets the super administrator specify a login string (in addition to the IP address) that users

must add to the IP address when they access the B064C-16-1-IP with a browser.

For example, if 192.168.0.126 were the IP address, and abcdefg were the login string, then the user would key in:

192.168.0.126/abcdefg

Notes:

• Users must place a forward slash between the IP address and the string.

• If no login string is specified here, anyone will be able to access the B064C-16-1-IP login page using the IP address alone. This makes your

installation less secure.

The following characters are allowed in the string: 0-9 a-z A-Z ~ ! @ $ & * ( ) _ - = + [ ] , . I

The following characters are not allowed:

% /\ “ : / ? # \ ‘ { } ; ‘ < > [Space]

Compound characters (E < fi ... etc.)

The following examples are not allowed:

192.168.0.126/.

192.168.0.126/..

192.168.0.126/...

For security purposes, we recommend you change this string occasionally.

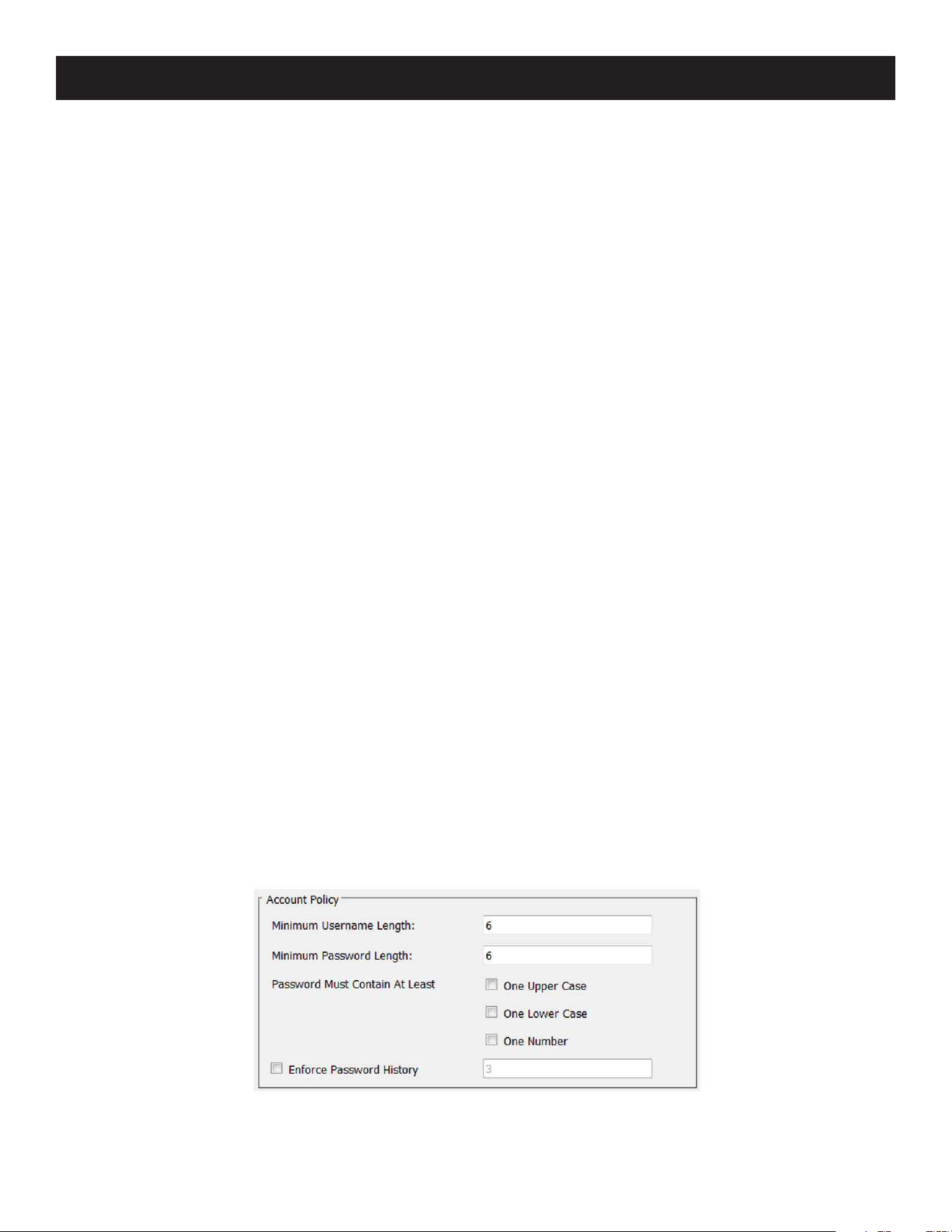

Account Policy

In the Account Policy section, administrators can set policies governing usernames and passwords.

101

7. Administration

The meanings of the Account Policy entries are explained in the table below:

Entry Explanation

Minimum

Username

Length

Sets the minimum number of characters required for a username. Acceptable values are from

1-16. The default is 6.

Minimum

Password Length

Sets the minimum number of characters required for a password. Acceptable values are from

0-16. A setting of 0 means that no password is required. Users can login with only a Username. The

default is 6.

Password Must

Contain At Least

Checking any of these items requires users to include at least one uppercase letter, one lowercase

letter or one number in their password.

Note: This policy only aects user accounts created after this policy has been enabled and password changes

to existing user accounts. Users accounts created before this policy was enabled and there is no change to the

existing passwords are not aected.

Enforce

Password History

Checking this box will require users to create a unique password that does not match the last x

passwords they’ve used prior. X equals the number entered in the dialog box.

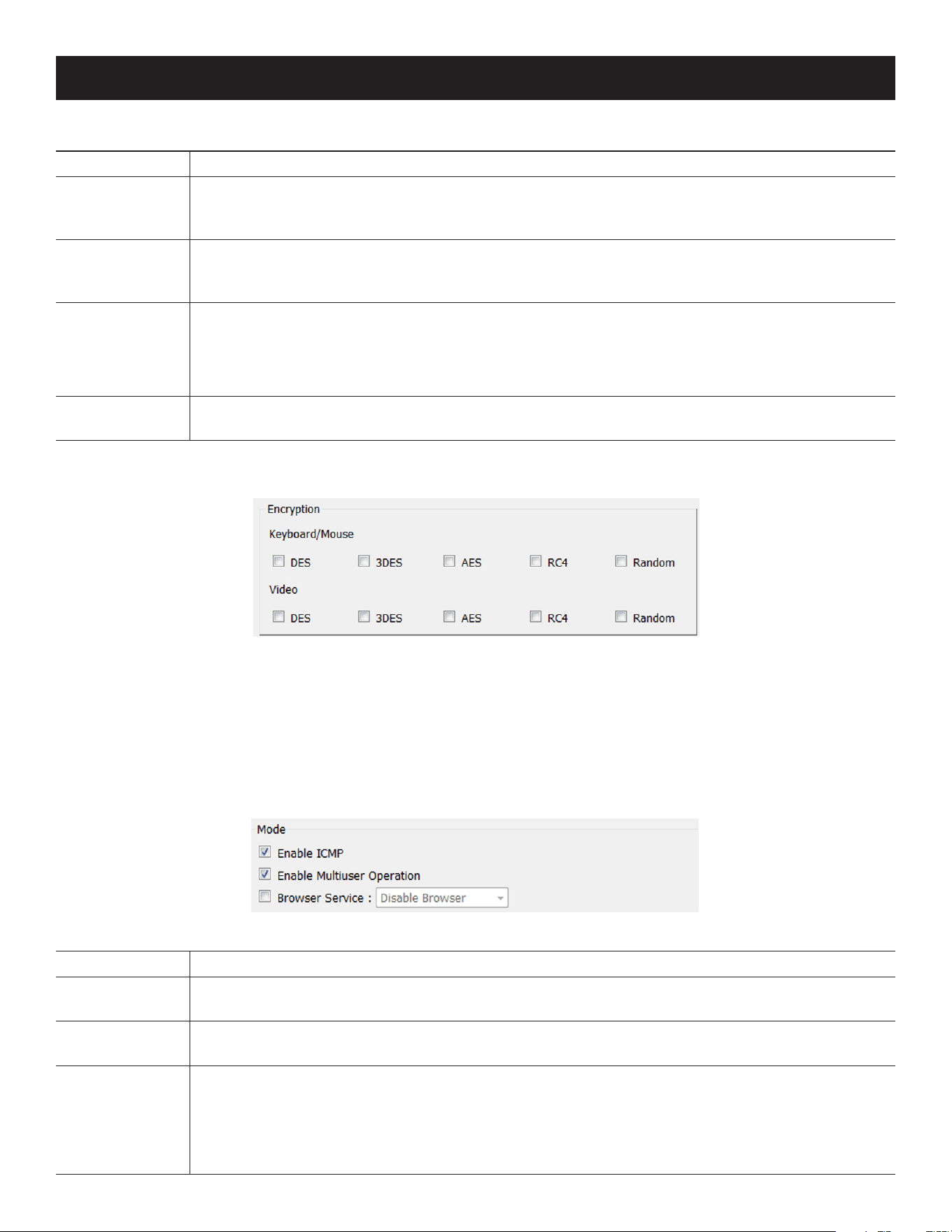

Encryption

These flexible encryption alternatives for keyboard/mouse and video let you choose any combination of DES; 3DES;

AES; RC4; or a Random cycle of any or all of them.

Enabling encryption affects system performance and no encryption offers the best performance. The greater the

encryption, the greater the adverse effect. If you enable encryption, the performance considerations are as follows:

• RC4 offers the least impact on performance; DES is next; followed by 3DES or AES.

• The RC4 + DES combination offers the least impact of any combination.

Mode

An explanation of the Mode items is provided in the table, below:

Item Explanation

Enable ICMP

If ICMP is enabled, the B064C-16-1-IP can be pinged. If it is not enabled, the device cannot be

pinged. The default is Enabled.

Enable Multiuser

Operation

Enabling Multiuser operation permits up to 32 users to log in at the same time to share the remote

bus. If not enabled, only one user can log in at a time. The default is Enabled.

Enable Browser

Enabling Browser Service allows the administrator to restrict browser access to the KVM over IP

switch. After checking Browser Service, use the drop down list to select the degree of restriction:

Disable Browser: No browser access is permitted.

Disable HTTP: Browser access is permitted, but users must access the switch with an HTTPS URL.

Disable HTTPS: Browser access is permitted, but users must access the switch with an HTTP URL.

102

7. Administration

Private Certificate

When logging in over a secure (SSL) connection, a signed certificate is used to verify that the user is logging in to the

intended site. For enhanced security, the Private Certificate section allows you to use your own private encryption key

and signed certificate, rather than the default certificate.

There are two methods for establishing your private certificate: generating a self-signed certificate and importing a

third-party certificate authority (CA) signed certificate.

• Generating a Self-Signed Certificate

If you wish to create your own self-signed certificate, a free utility - openssl.exe - is available for download over the

web. See 7.1.3 Self-Signed Private Certificates for details about using OpenSSL to generate your own private key

and SSL certificate.

• Obtaining a CA Signed SSL Server Certificate

For the greatest security, we recommend using a third-party certificate authority (CA) signed certificate. To obtain a

third-party signed certificate, go to a CA (Certificate Authority) website to apply for an SSL certificate. After the CA

sends you the certificate and private encryption key, save them to a convenient location on your computer.

• Importing the Private Certificate

1. Click Browse to the right of Private Key, then browse to where your private encryption key file is located and select

it.

2. Click Browse to the right of Certificate, then browse to where your certificate file is located and select it.

3. Click Upload to complete the procedure.

Notes:

Clicking Restore Default returns the device to using the default certificate.

Both the private encryption key and the signed certificate must be imported at the same time.

Certificate Signing Request

The Certificate Signing Request (CSR) section provides an automated way of obtaining and installing a CA signed SSL

server certificate.

103

7. Administration

To perform this operation:

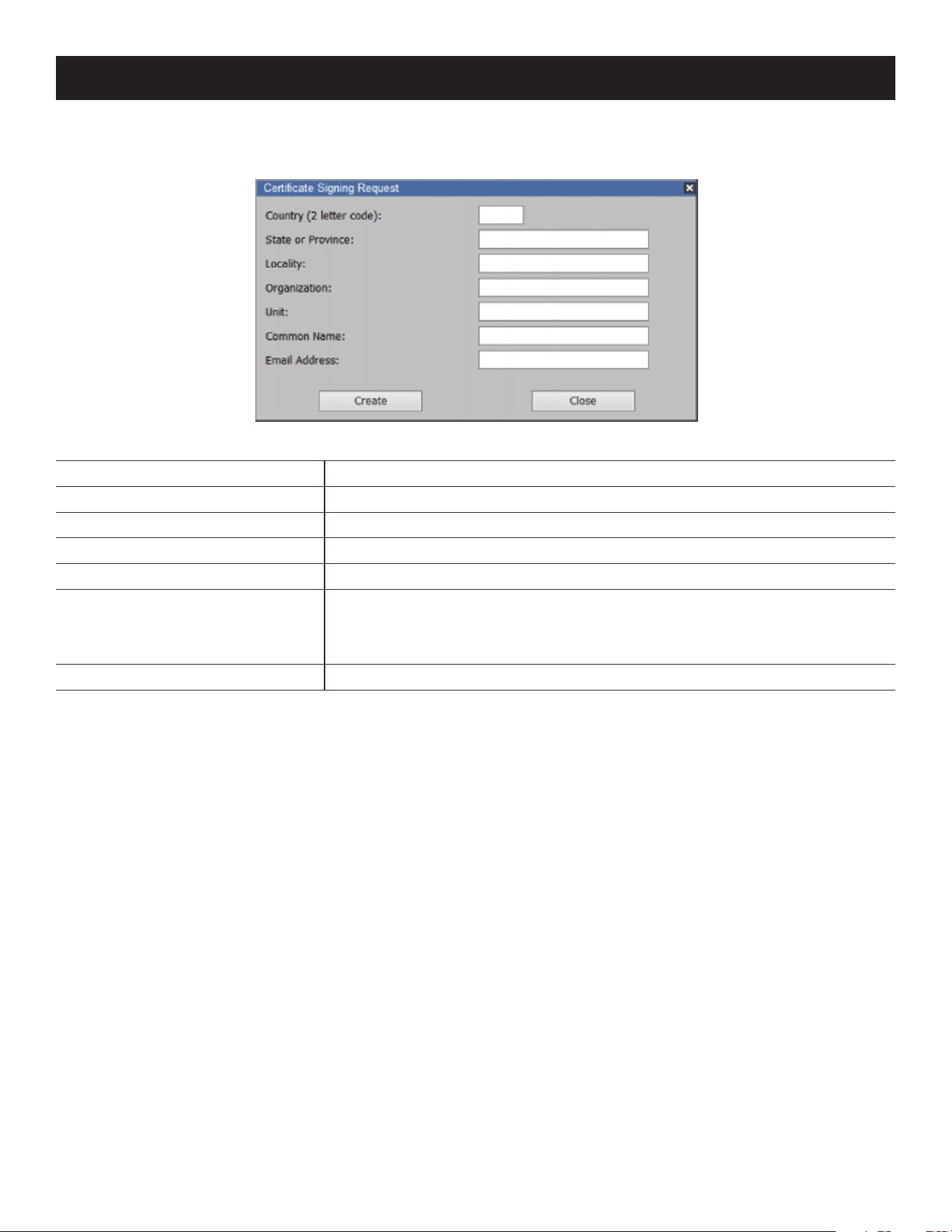

1. Click Create CSR. The following dialog box appears:

2. Fill in the form with entries that are valid for your site.

Information Example

Country (2 letter code) US

State or Providence USA Eaton State (i.e. IL)

Locality USA

Organization Your Company, Ltd.

Common Name

mycompany.com

Note: This must be the exact domain name of the site that you want the certicate to

be valid for. If the site’s domain name is www.mycompany.com, and you only specify

mycompany.com, the certicate will not be valid.

E-mail Address [email protected]

3. After filling in the form (all fields are required), click Create.

A self-signed certificate based on the information you just provided is now stored on the KVM over IP switch.

4. Click Get CSR and save the certificate file (csr.cer) to a convenient location on your computer.

This is the file that you give to the third-party CA to apply for their signed SSL certificate.

5. After the CA sends you the certificate, save it to a convenient location on your computer. Click Browse to locate the

file, then click Upload to store it on the KVM over IP switch.

Note: When you upload the file, the KVM over IP switch checks the file to make sure the specified information still matches. If it does,

the file is accepted; if not, it is rejected.

If you want to remove the certificate (to replace it with a new one because of a domain name change, for example),

simply click Remove CSR.

104

7. Administration

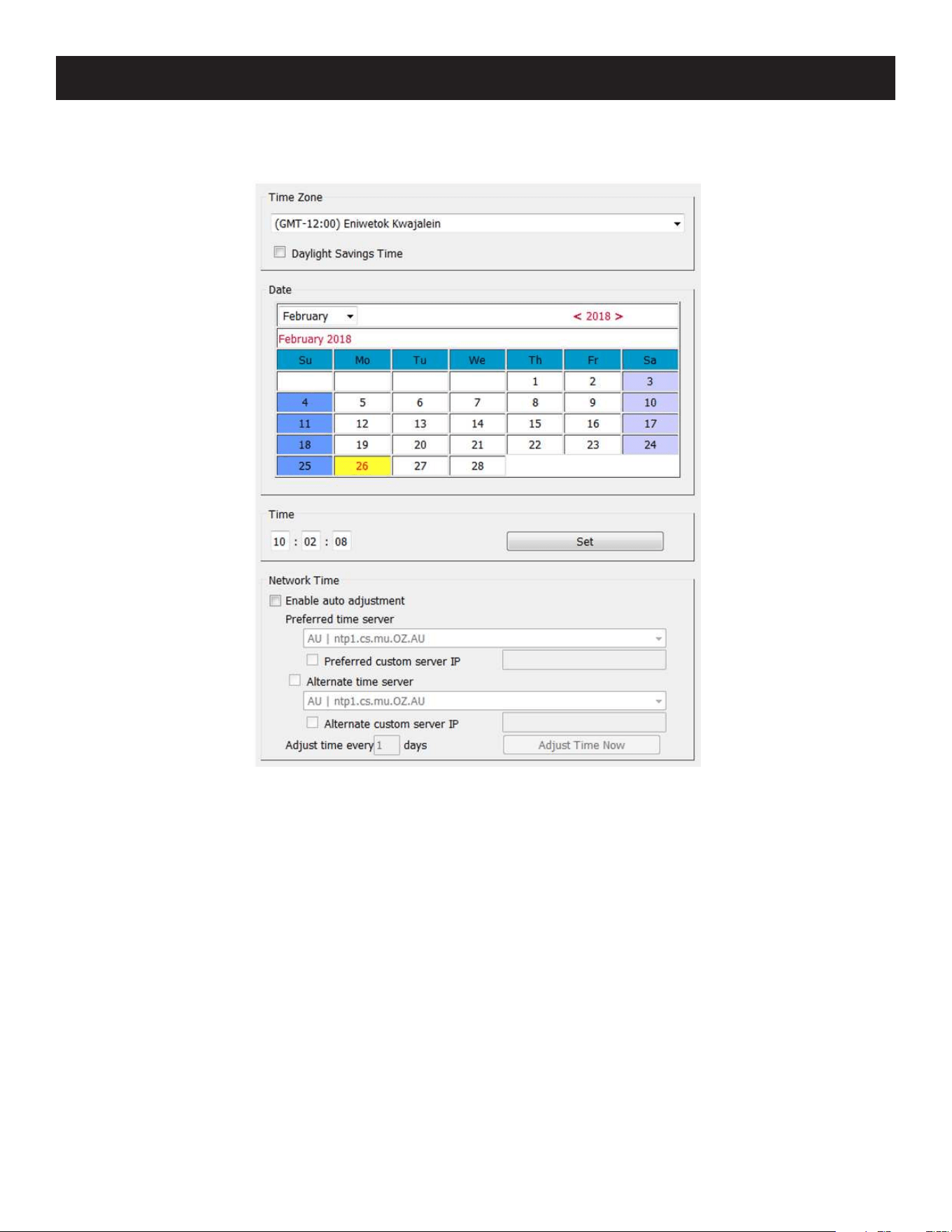

7.9.6 Date/Time

The Date/Time dialog page sets the B064C-16-1-IP time parameters.

Time Zone

• To establish the time zone that the B064C-16-1-IP is located in, drop down the Time Zone list and choose the city that

most closely corresponds to where it is at.

• If Daylight Savings Time (summer time) is currently in effect, check the corresponding checkbox. After the period of

Daylight Savings Time ends (winter time), the checkbox should be unchecked.

Date

• Select the month from the dropdown list.

• Click < or > to move backward or forward by one year increments.

• In the calendar, click on the day.

• To set the time, use the 24 hour HH:MM:SS format.

• Click Set to save your settings.

105

7. Administration

Time

To manually set the time, enter the values in the boxes and click Set.

Network Time

To have the time automatically synchronized to a network time server:

1. Check the Enable auto adjustment checkbox.

2. Drop down the time server list to select your preferred time server.

- or -

Check the Preferred custom server IP checkbox and key in the IPv4 address, IPv6 address or domain name of the

time server of your choice.

3. If you want to configure an alternate time server, check the Alternate time server checkbox and repeat step 2 for the

alternate time server entries.

4. Key in your choice for the number of days between synchronization procedures.

5. If you want to synchronize immediately, click Adjust Time Now.

7.10 Log

The B064C-16-1-IP logs all the events that take place on it. To view the contents of the log, click the Log tab.

Browser GUI

106

7. Administration

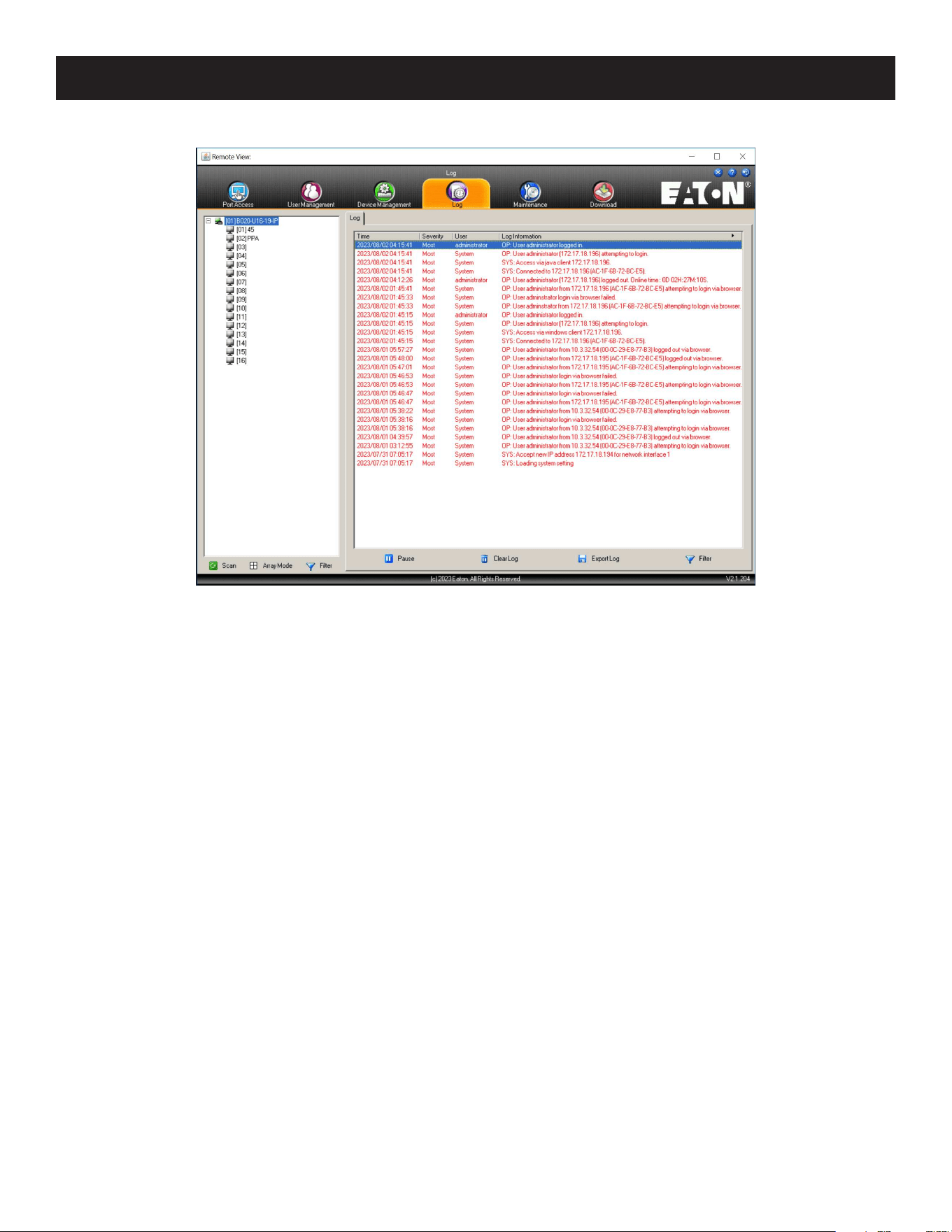

AP GUI

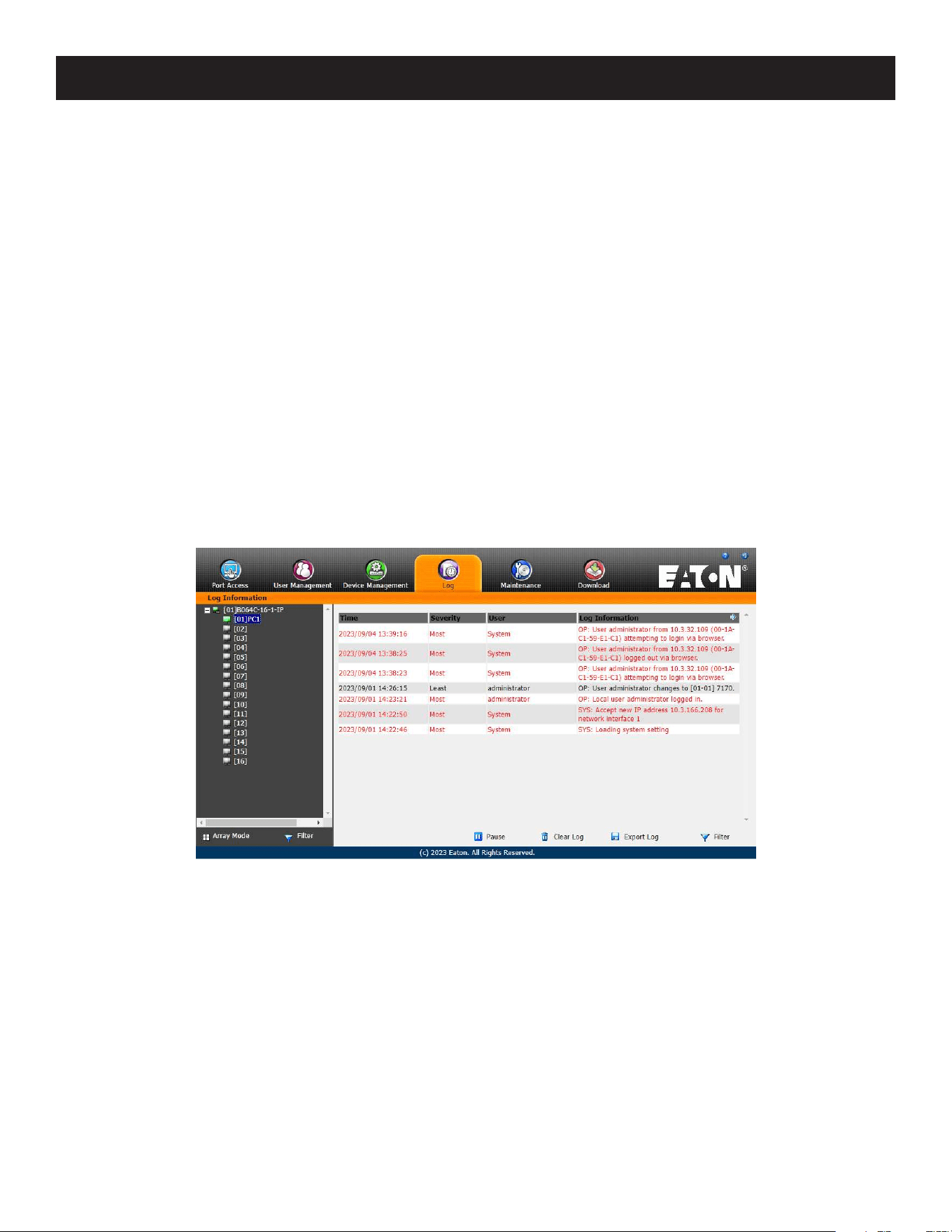

7.10.1 Log Information

The Log page displays events that take place on the B064C-16-1-IP, and provides a breakdown of the time, user and a

description of each. You can change the sort order of the display by clicking on the column headings.

The log file tracks a maximum of 512 events. When the limit is reached, the oldest events get discarded as new events

come in.

107

7. Administration

7.11 Maintenance

The Maintenance function is used to upgrade firmware, backup and restore configuration and account information, and

restore default values.

Browser GUI

AP GUI

108

7. Administration

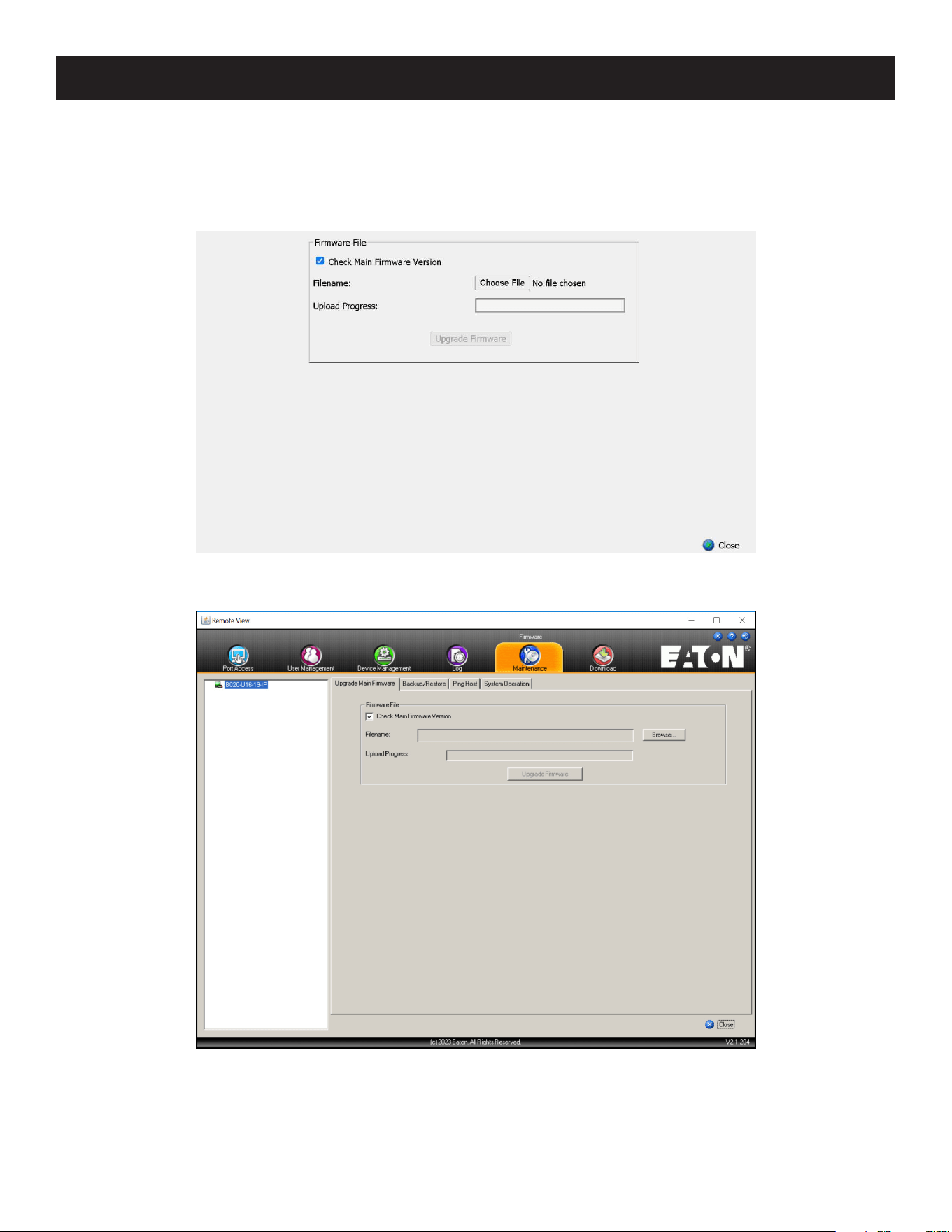

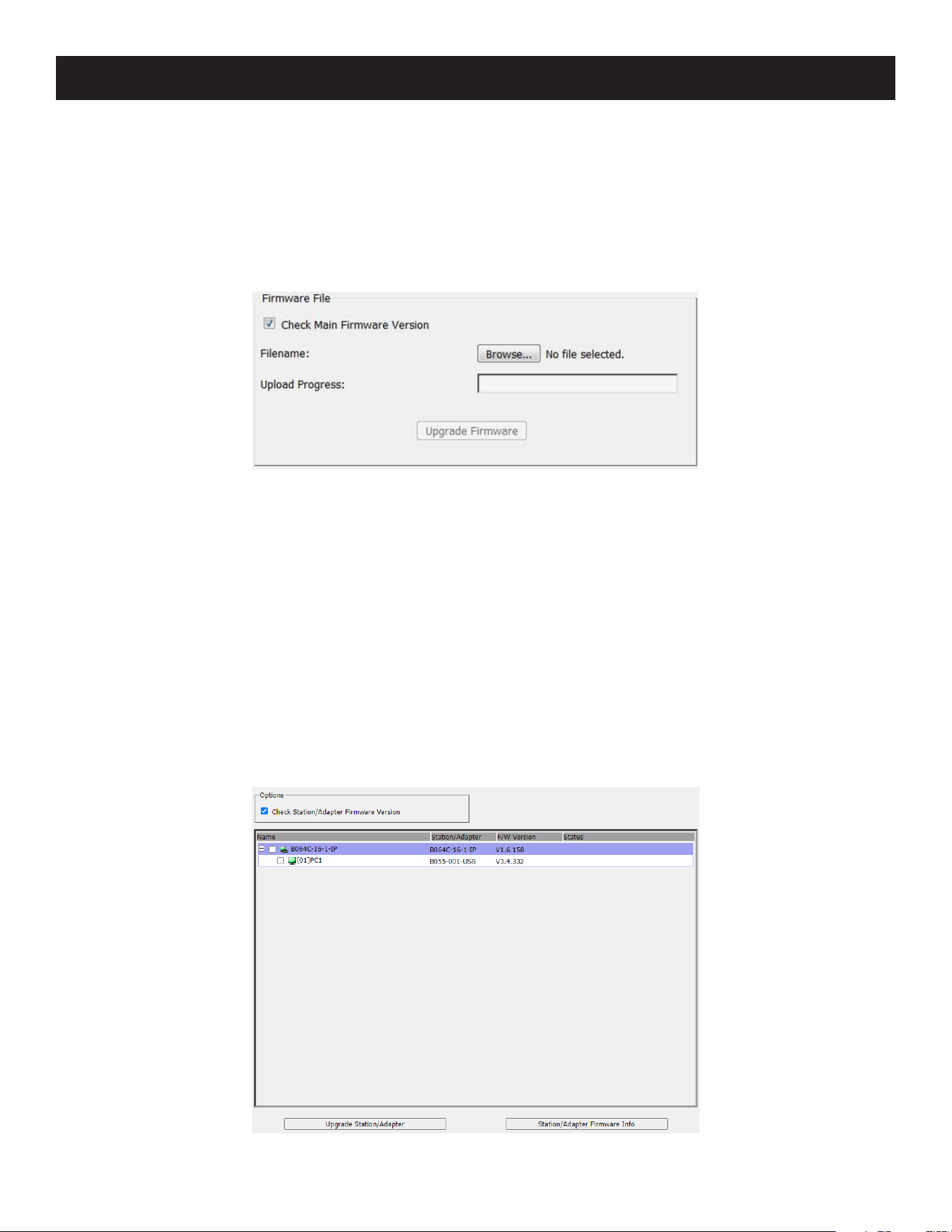

7.11.1 Device IP Card Firmware Upgrade

As new versions of the firmware become available, they can be downloaded from our website:

TrippLite.Eaton.com/products/management-firmware-matrix. Check the website regularly to find the latest information

and packages.

To upgrade the device firmware:

1. Download the latest IP card firmware to your computer.

2. Log in to the B064C-16-1-IP and click the Maintenance tab. The Maintenance tab opens to the Firmware File page:

3. Click Browse. Navigate to the directory that the new IP card firmware file is in and select the file.

4. Click Upgrade Firmware to start the upgrade procedure.

• If you enabled Check Main Firmware Version, the current firmware version is compared with that of the upgrade

file. If the current version is equal to or higher than the upgrade version, a popup message appears and stops the

upgrade procedure.

• If you did not enable Check Main Firmware Version, the upgrade file is installed without checking what version it is.

• As the upgrade proceeds, progress information is shown in the Progress bar.

• Once the upgrade completes successfully, the switch will reset.

5. Log in again and check the firmware version to be sure it is the new one.

Note: To recover from a “failed upgrade” situation, see 7.11.3 Recovering from Failed Firmware Upgrade.

7.11.2 Mainboard and KVM Adapter Cable Firmware Upgrade

The Upgrade Adapters page is used to upgrade the firmware of the Stations / KVM adapter cables. Station in this section

refers to the mainboard firmware of a KVM switch.

109

Mainboard Firmware Upgrade

1. Log in to the B064C-16-1-IP and click the Maintenance tab, then select the Upgrade Adapter menu item.

Note: The mainboard firmware package contains software for device mainboards as well as KVM adapter cables.

2. The Adapter Firmware info button will now display a list of the mainboard firmware and adapter version that are

stored in current device IP card.

3. Compare the mainboard firmware version stored in the firmware package with the version listed in the Current FIW

Version column of the Main Panel. If the version stored in the new firmware package is newer than the one on the

mainboard, perform the upgrade.

4. In the Name column of the Main Panel, check the port whose device you want to upgrade. Here you can select

whether to upgrade the firmware for just the mainboard (top checkbox), just the KVM adapter cables (bottom

checkbox) or both.

5. Click Upgrade to start the upgrade procedure.

When the procedure completes, the new adapter firmware version is displayed.

KVM Adapter Cable Firmware Upgrade

1. Log in to the B064C-16-1-IP, click the Maintenance tab, then select the Upgrade Adapter menu item.

Note: The mainboard firmware package contains software for device mainboards as well as KVM adapter cables.

2. The Adapter Firmware info button will display a list of the mainboard firmware and adapter versions that are stored

in the current device IP card.

3. Compare the adapter firmware version stored in the main firmware with the version listed in the Current FIW Version

column of the Main Panel. If the version stored in the new firmware package are newer than the one on the adapter,

perform the adapter upgrade.

4. In the Name column of the Main Panel, check the port whose device you want to upgrade. Here you can select

whether to upgrade the firmware for just the mainboard (top checkbox), just the KVM adapter cables (bottom

checkbox), or both.

5. Click Upgrade to start the upgrade procedure.

When the procedure completes, the new adapter firmware version is displayed.

Notes:

• The switch may work with older adapter firmware versions, but for optimum compatibility we recommend upgrading your KVM adapter

cable firmware to that stored in the switch’s latest mainboard firmware package.

• You can perform the upgrade procedure any time you add an KVM adapter cable to the installation to make sure it is working with the

latest firmware version.

• To recover from a “failed upgrade” situation, see 7.11.3 Recovering from Failed Firmware Upgrade.

7. Administration

110

7. Administration

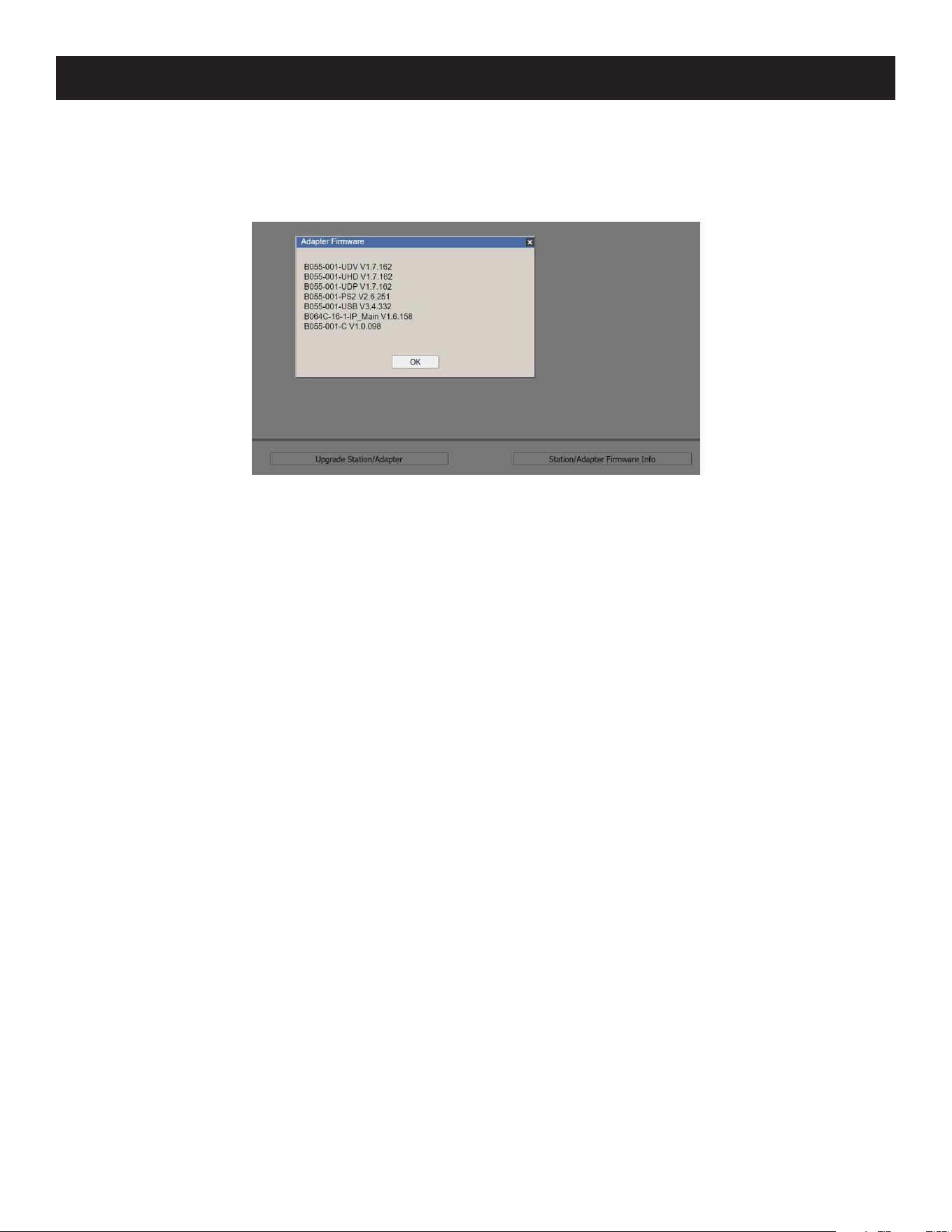

Station/Adapter Firmware Info

The Station / Adapter Firmware lnfo button provides a list of the adapter cable firmware stored on the switch’s main

firmware. You can use this information to compare it to the FIW Version listed for the connected adapter cables. For

optimum compatibility, we recommend upgrading your adapter cable’s firmware to match that stored with the switch’s

main firmware.

7.11.3 Recovering from Failed Firmware Upgrade

Station (Mainboard) and Adapter Firmware

Should the adapter firmware upgrade procedure fail for one of the KVM adapter cables and the adapter becomes

unusable, follow the steps below to resolve the problem:

1. Unplug the adapter from the server it is connected to.

2. Slide its firmware upgrade switch (located next to the Cat5e connector) to the RECOVER position.

3. Plug the adapter back into the server.

4. Repeat the adapter upgrade procedure.

5. After the adapter has been successfully upgraded, unplug the adapter from the server it is connected to, slide the

firmware upgrade switch back to the NORMAL position and plug the adapter back in.

111

7. Administration

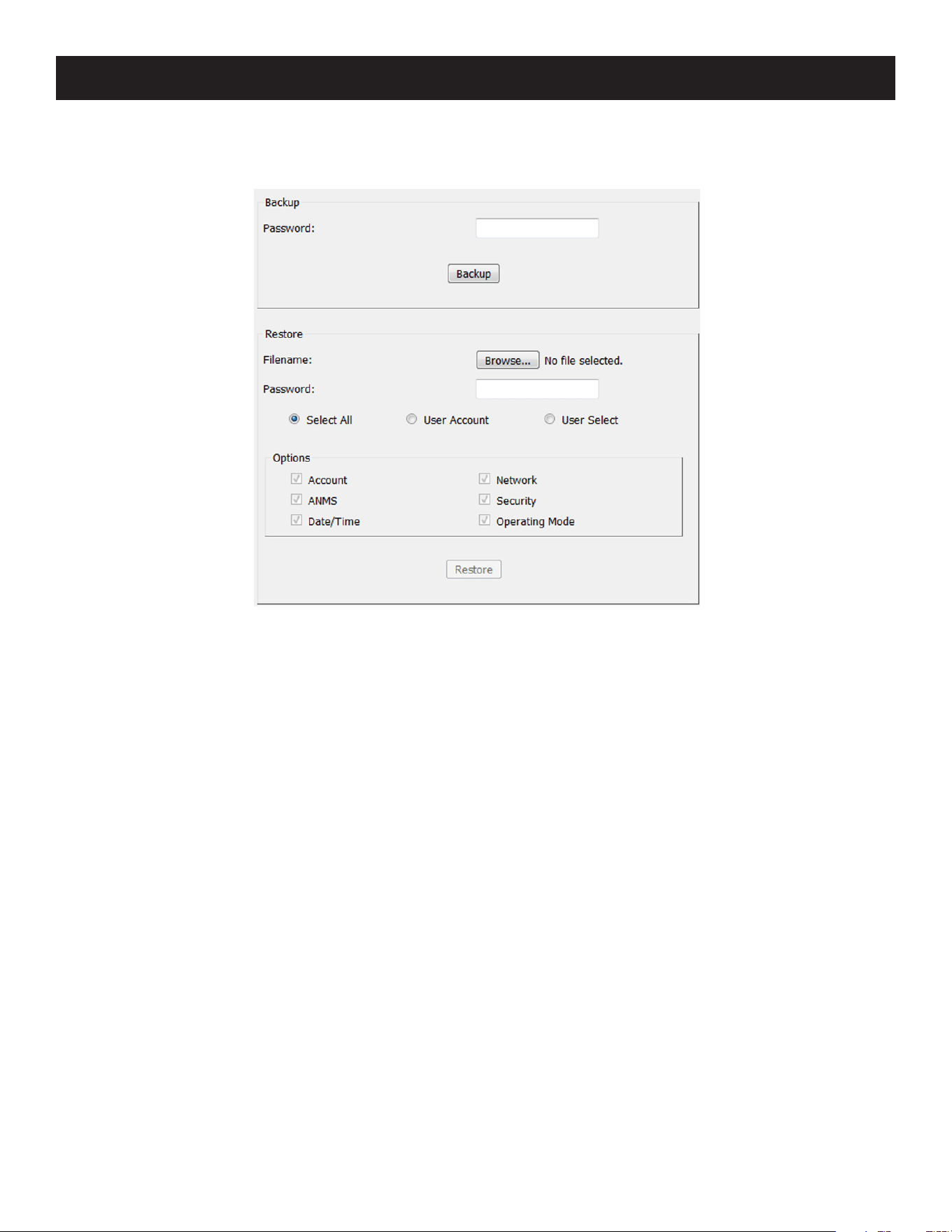

7.11.4 Backup/Restore

Selecting the Backup / Restore menu item gives you the ability to back up the switch’s configuration and user profile

information:

Backup

To backup the device’s settings:

1. In the Password field, key in a password for the file.

Notes:

• Setting a password is optional. If you do not set a password, the file can be restored without specifying a password.

• If you do set a password, make a note of it to be able to restore the file.

2. Click Backup.

3. When the browser asks what you want to do with the file, select Save to disk, then save it in a convenient location.

Restore

To restore a previous backup, do the following:

1. Click Browse, navigate to the file and select it.

Note: If you renamed the file, you can leave the new name. Returning it to its original name is unnecessary.

2. If you set a password when you created the file, key it in the Password field.

3. Select as many of the options that are presented as you wish to restore.

4. Click Restore.

Once the file is restored, a message will appear to inform you the procedure was successful.

112

7. Administration

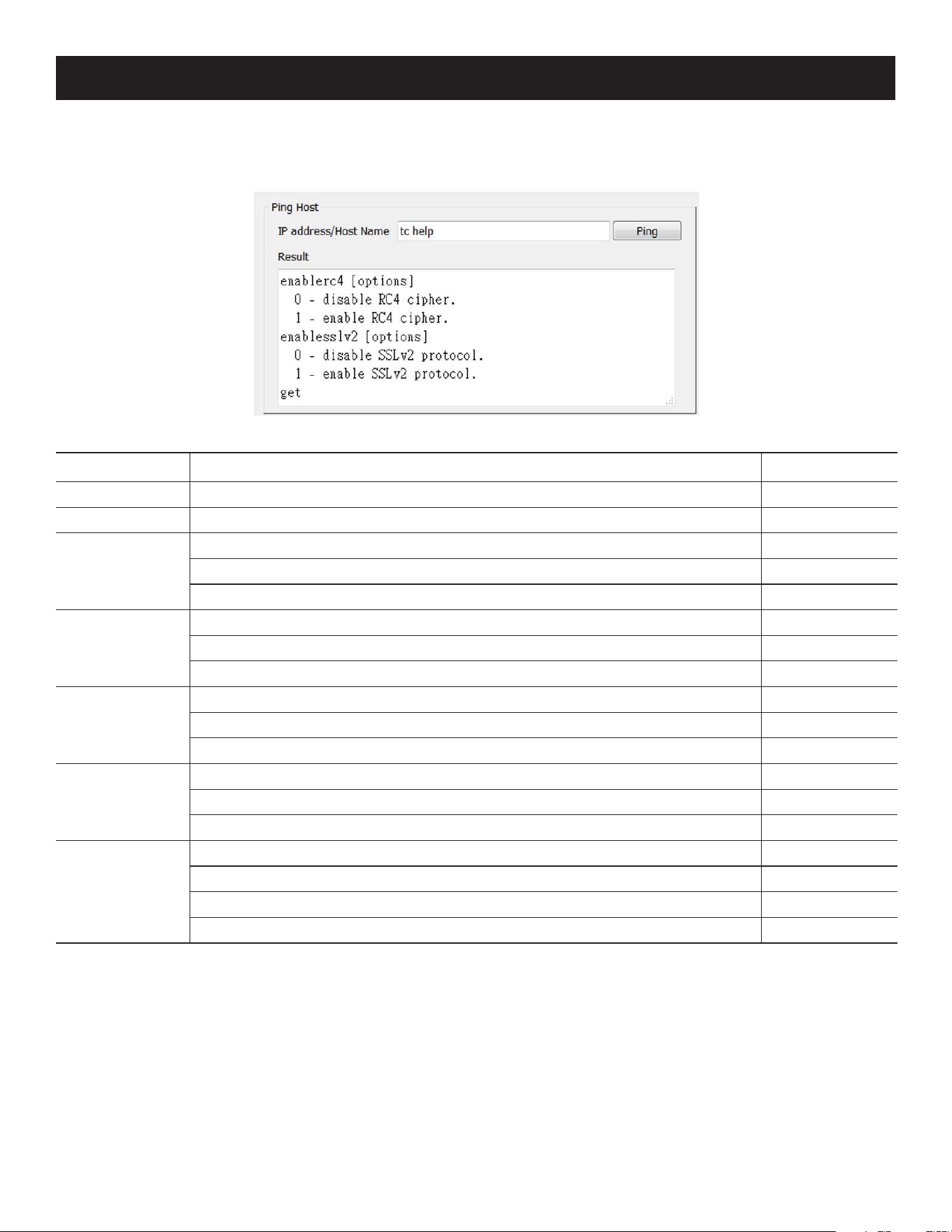

7.11.5 Ping Host

The Ping Host page allows you to ping a device’s IP address by entering the hostname or IP address and view or

configure options. After entering commands, the window will display the results.

Use the table below to enter Commands in the box and click Ping to run the command.

Type

Function

Command

Help Lists the available commands tc help

Get Status Lists the current conguration for all options tc get

SSLv2

Show current SSLV2 conguration tc enablesslv2

Disable SSLv2 tc enablesslv2 0

Enable SSLv2 tc enablesslv2 1

TLSv1

Show current TLSv1.0 conguration tc enabletlsv1.0

Disable TLSv1.0 tc enabletlsv1.0 0

Enable TLSv1.0 tc enabletlsv1.0 1

TLSv1.1

Show current TLSv1.1 conguration tc enabletlsv1.1

Disable TLSv1.1 tc enabletlsv1.0 0

Enable TLSv1.1 tc enabletlsv1.1 1

RC4 Cipher

Show current RC4 cipher conguration tc enablerc4

Disable RC4 cipher tc enablerc4 0

Enable RC4 cipher tc enablerc4 1

SSL Cipher

Show current SSL Cipher conguration tc setsslcipher

Use LOW, MEDIUM and HIGH ciphers tc setsslcipher 0

Use MEDIUM and HIGH ciphers tc setsslcipher 1

Use HIGH ciphers only tc setsslcipher 2

113

7. Administration

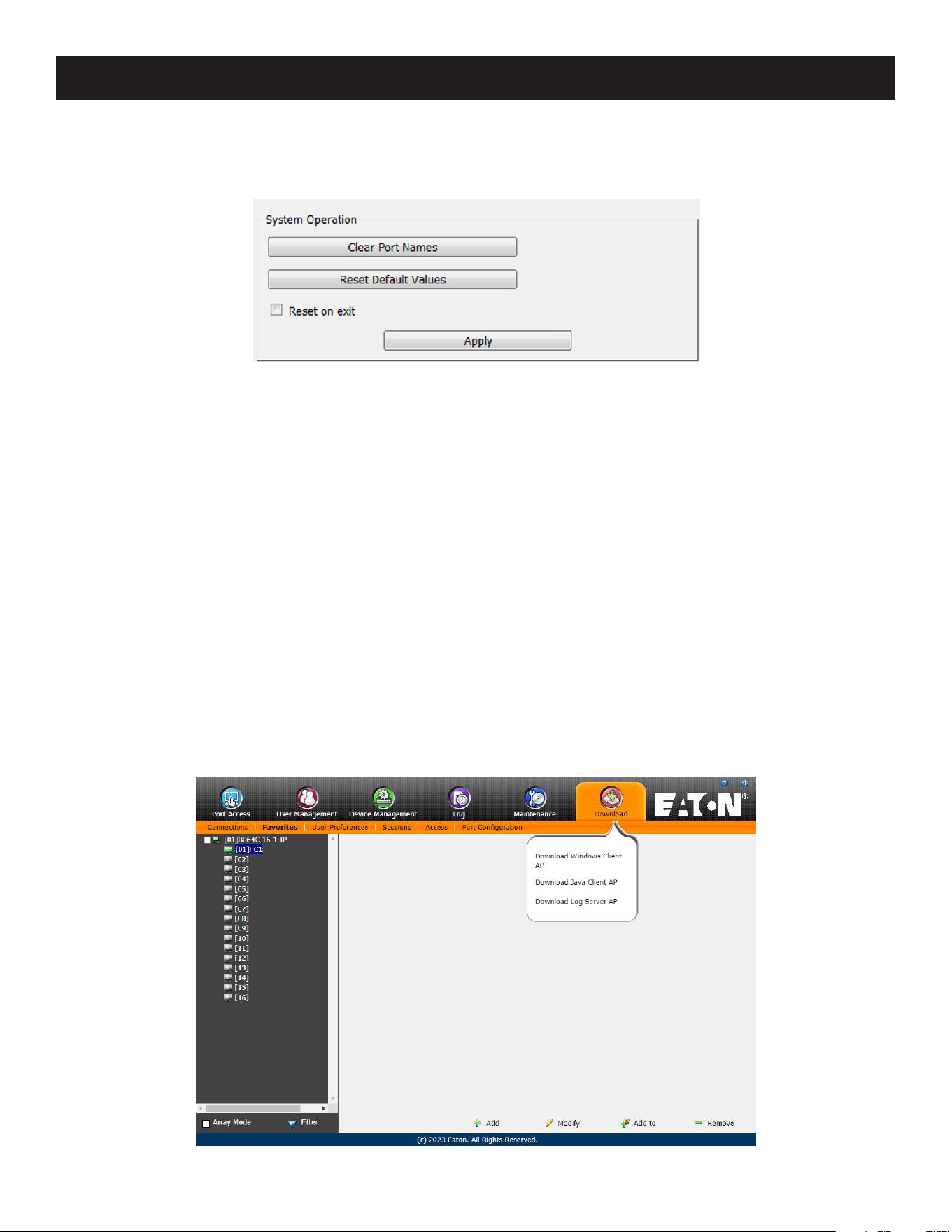

7.11.6 System Operation

The System Operation page lets you restore certain configuration changes that were made to the B064C-16-1-IP to their

original factory default values.

The functions performed on this page are as follows:

Clear Port Names

Clicking this button removes names that have been assigned to the ports.

Reset Default Values

Clicking this button undoes all Customization page changes that have been made to the B064C-16-1-IP (except for the

Port Names), as well as the Network Transfer Rate (on the Network page) and returns the parameters to the original

factory default settings.

Apply

Clicking this button resets the B064C-16-1-IP and implements all new settings when you log out. Following the reset,

wait approximately 30 to 60 seconds before logging back in.

Note: Even though the changed IP settings are ignored, they still remain in the network settings fields. The next time you open this page,

the Reset on exit checkbox will automatically be enabled and when the switch resets the new IP settings presumed discarded will become

the ones used by the switch. To avoid this problem, go back to the network settings page and be sure that the IP settings appearing in the

fields are those you want to use.

7.12 Download

Download is used to download stand-alone AP versions of the Windows Client, Java Client and Log Server.

114

7. Administration

Click the Download tab to select the program you want to download, save it to a convenient location on your hard disk

and run it.

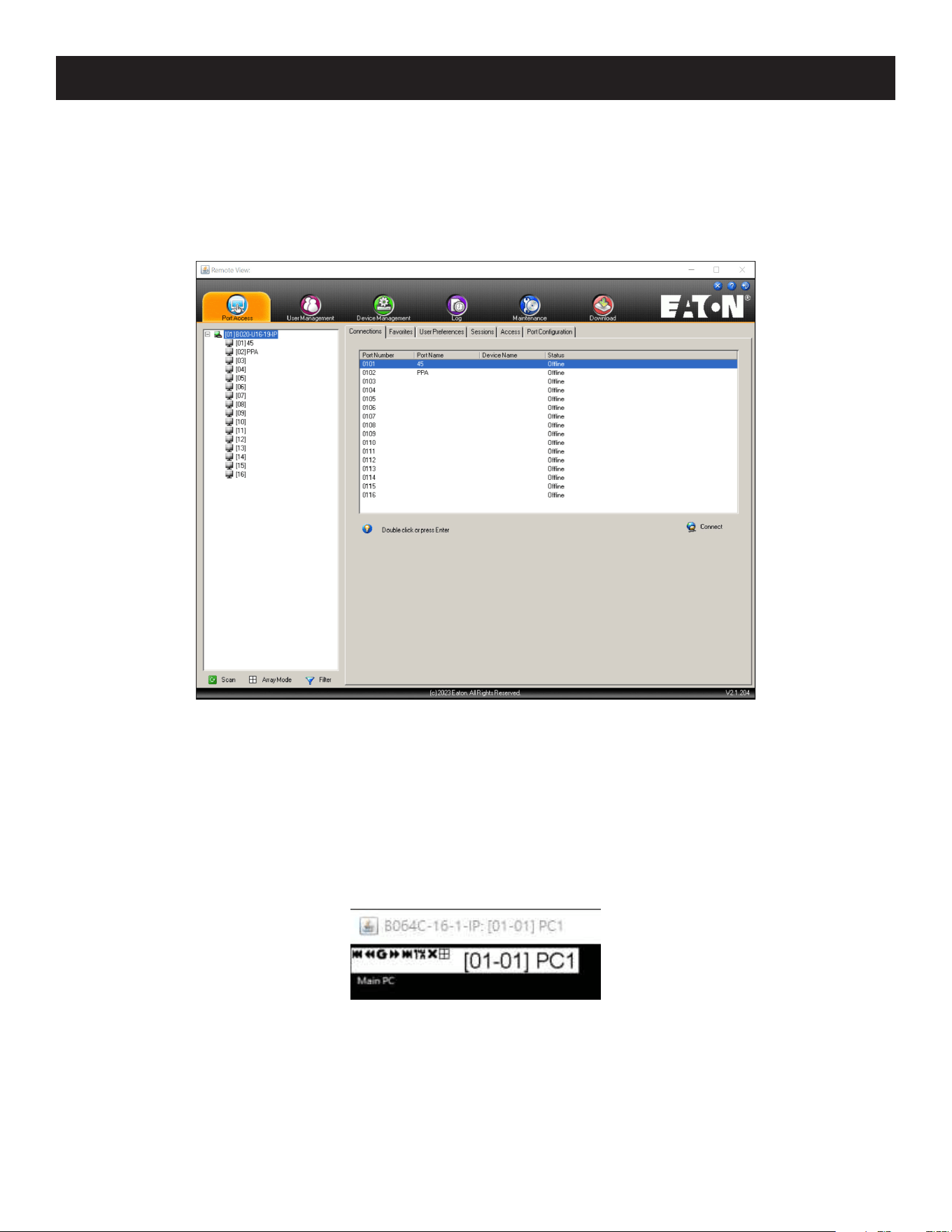

7.13 Port Operation

Once you have successfully logged in (see 7.5 Logging ln), the B064C-16-1-IP opens to the Port Access tab’s Connections

page, with the first B064C-16-1-IP selected in the sidebar:

7.13.1 Connecting to a Port

All the devices, ports and outlets that a user is permitted to access are listed in the Sidebar on the left of the page.

• To connect to a port when a device is selected in the Sidebar, double click its icon in the Sidebar, double click

anywhere on its line entry in the main central panel or select it in the main panel and click Connect at the bottom

right of the page.

• To connect to a port when the port is selected in the Sidebar, click Connect at the right of the Status panel.

Once you switch to a port, its screen will display on your monitor and your keyboard and mouse input will work with the

remote server:

115

7. Administration

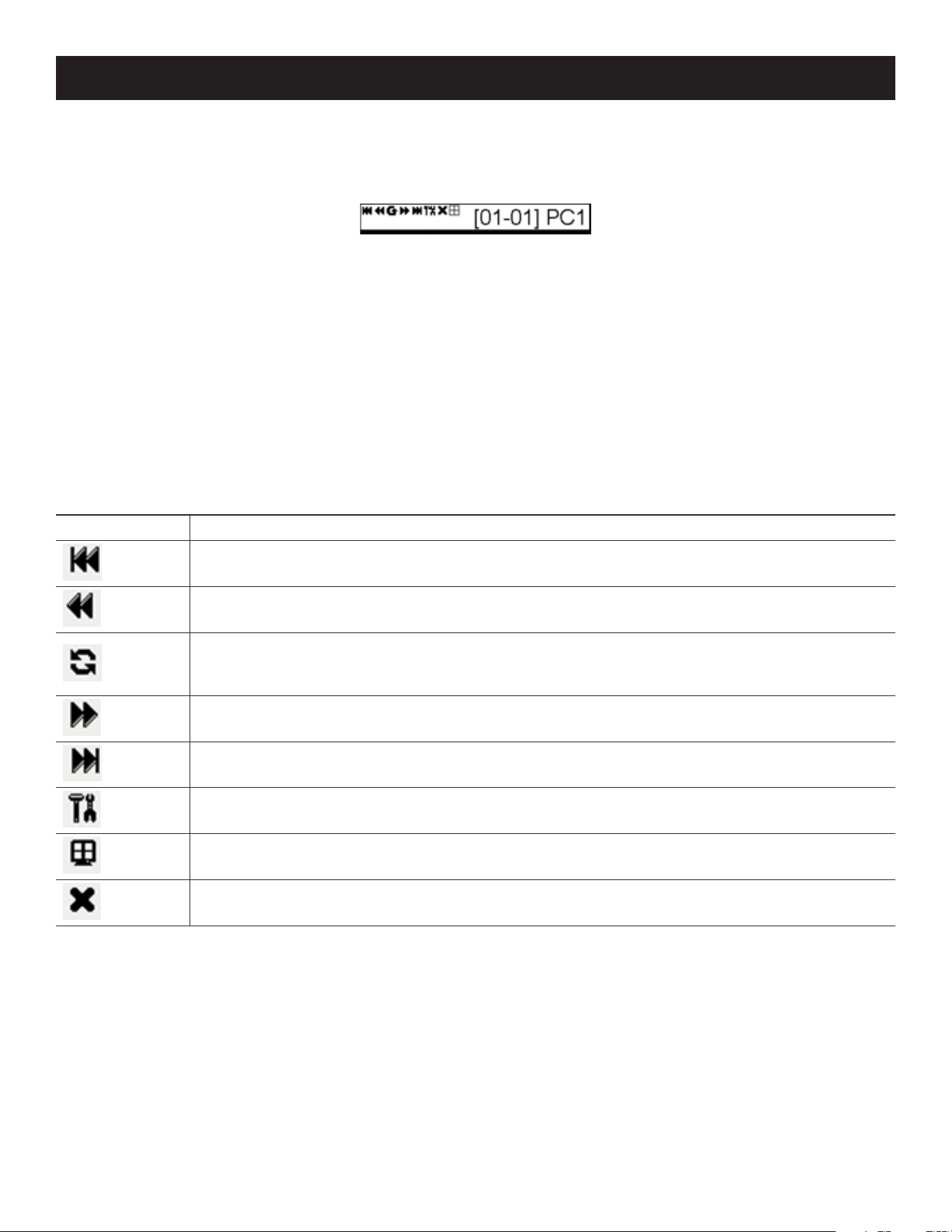

7.13.2 Port Toolbar

The B064C-16-1-IP interface provides a toolbar to assit with port switching operations from within the captured port. To

access the toolbar, tap the OSD Hotkey (Scroll Lock or Ctrl), twice. The toolbar appears at the upper left corner of the

screen:

Depending on the settings that were selected for ID Display, the Port Number and/or the Port Name display at the right

of the toolbar.

When the toolbar displays, mouse input is confined to the toolbar area and keyboard input has no effect on the server

connected to the port. To carry out operations on the server, close the toolbar by clicking its X icon.

To return to the Port Access Connections page, click the appropriate icon or tap the OSD hotkey again.

Notes:

• You can adjust the toolbar transparency.

• The toolbar functions and icons are also incorporated in the Control Panel. If you choose to enable them in the Control Panel, you can

disable the Toolbar (see 7.7.5 User Preferences). To recall the Port Access Connections page when there is no Toolbar, simply tap the

OSD hotkey twice.

Toolbar Icons

The meanings of the toolbar icons are explained in the table below:

Icon Purpose

Click to skip to the rst accessible port on the entire installation without having to recall the Port

Access page.

Click to skip to the rst accessible port previous to the current one without having to recall the Port

Access page.

Click to begin Auto Scan Mode. The B064C-16-1-IP automatically switches among the ports that

were selected for Auto Scanning. This allows you to monitor their activity without having to switch

among them manually.

Click to skip from the current port to the next accessible one without having to recall the Port

Access page.

Click to skip from the current port to the last accessible port on the entire installation without

having to recall the Port Access page.

Click to recall the Port Access page.

Click to invoke Panel Array Mode (see 7.13.3 Panel Array Mode).

Click to close the toolbar.

116

7. Administration

Toolbar Hotkey Port Switching

When the toolbar displays, you can use hotkeys to provide KVM focus to a port directly from the keyboard. The B064C-

16-1-IP provides the following hotkey features:

• Going directly to a port by keying in its port number and clicking Enter.

• Auto Scanning

• Skip Mode Switching

The hotkeys are: A and P for Auto Scanning and the Arrow Keys for Skip Mode.

Notes:

• For hotkey operations to take place, the toolbar must be visible (see 7.13.2 Port Toolbar).

• To use the keys designated as hotkeys (i.e. A, P, etc.) for normal, non-hotkey purposes, you must first close the toolbar.

• For issues affecting multiple user operation in Auto Scan Mode, see 7.13.4 Multiuser Operation.

Auto Scanning

The Scan function automatically switches among all the ports that are accessible to the currently logged on user at

regular intervals so the user can monitor their activity automatically.

• Setting the Scan Interval

The amount of time Auto Scan dwells on each port is set with the Scan Duration setting.

• Invoking Auto Scan

To start Auto Scanning with the toolbar showing tap the A key. The Auto Scan function cycles through the ports in

order starting from the first port on the installation. An

appears in front of the Port ID Display to indicate the port is

being accessed in Auto Scan Mode.

• Pausing Auto Scan

While you are in Auto Scan Mode, you can pause scanning to better maintain focus on a particular server by pressing

P. During the time that Auto Scanning is paused, the S in front of the Port ID will blink.

Pausing when you want to maintain focus on a particular server can be more convenient than exiting Auto Scan Mode

because when you Resume scanning, you start from where you left off. If on the other hand, you were to exit and

then restart Auto Scan Mode, the scanning would start over from the very first server on the installation.

To Resume Auto Scanning after a pause, press any key except [Esc] or the [Spacebar]. Scanning continues from where

it left off.

• Exiting Auto Scan

While Auto Scan Mode is in effect, ordinary keyboard functions are suspended. You must exit Auto Scan Mode to

regain normal control of the keyboard. To exit Auto Scan Mode, press [Esc] or [Spacebar]. Auto Scanning stops

when you exit Auto Scan Mode.

Skip Mode

Skip Mode allows you to switch ports to monitor the servers manually. You can focus on a particular port for as long or

as little as you like (as opposed to Auto Scanning, which automatically switches after a fixed interval). The Skip Mode

hotkeys are the four Arrow keys.

Arrow Action

Skips from the current port to the rst accessible port previous to it.

Skips from the current port to the rst accessible port that comes after it.

Skips from the current port to the rst accessible port on the installation.

Skips from the current port to the last accessible port on the installation.

117

7. Administration

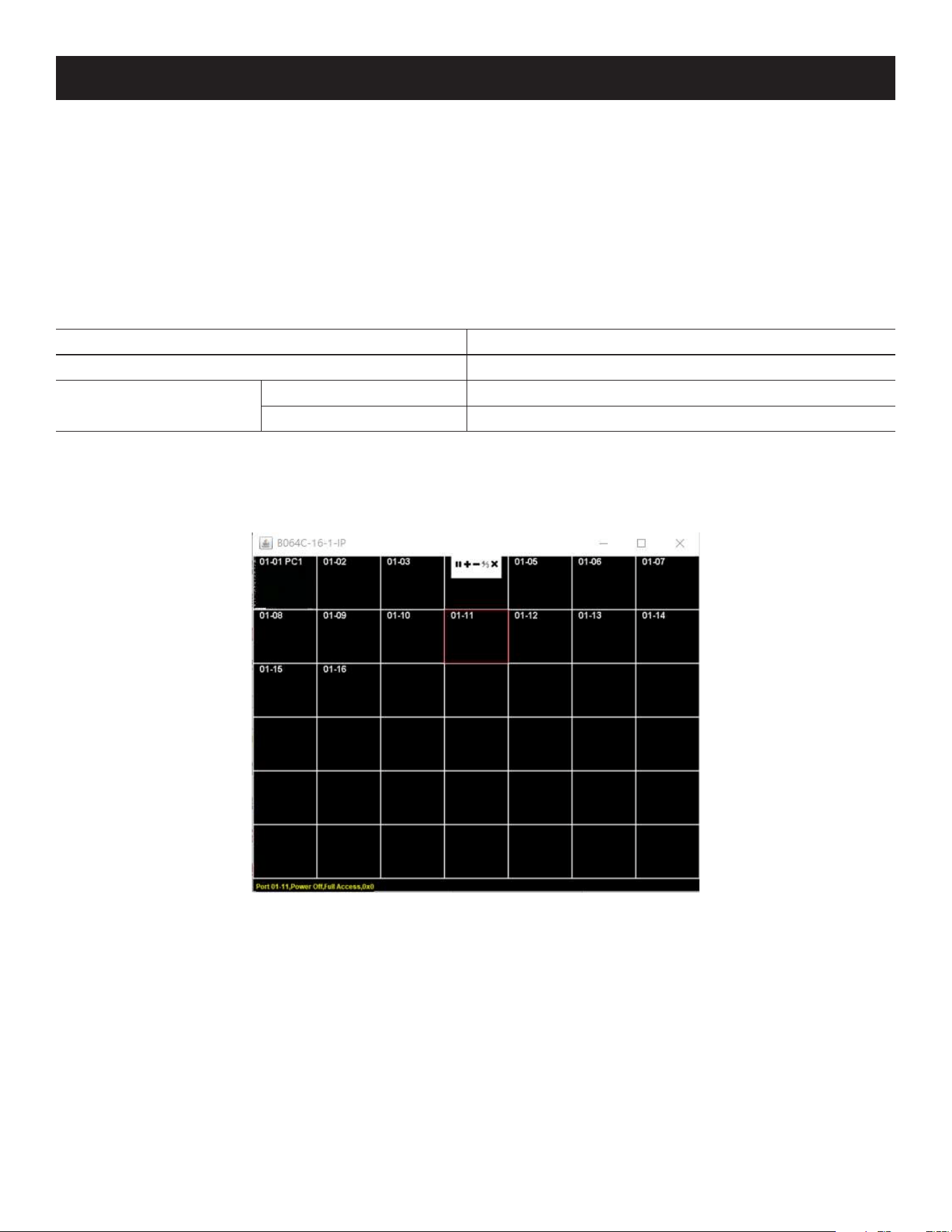

Recalling the Port Access Page

To dismiss the toolbar and return to the Port Access page, do one of the following:

• Tap the OSD Hotkey once.

• From the toolbar, click the icon that recalls the Port Access page.

The toolbar will close and the Port Access Page will appear.

OSD Hotkey Summary Table

The following table presents a summary of the OSDHotkey actions after you have accessed a port. See 7.7.5 User

Preferences to set the OSD Hotkey.

To... Do This...

Open the Toolbar Click the OSD Hotkey twice

Open the Port Access Page

The Toolbar is open Click the OSD Hotkey once

The Toolbar is not open Click the OSD Hotkey three times

7.13.3 Panel Array Mode

Clicking the toolbar’s Panel icon invokes Panel Array Mode. Under this mode, the screen divides into a grid of up to 42

panels:

• Each panel represents one of the switch’s ports beginning with Port 1 at the upper left, and going from left to right,

top to bottom.

• The number of panels in the array can be selected by clicking the Show More Ports and Show Fewer Ports symbols on

the panel array toolbar.

• Only ports that are accessible to the user are displayed. For ports that are not accessible, the panel will be blank.

• If the server connected to a port is online, its screen displays in its panel; otherwise the panel will be blank.

• Hovering a mouse over a panel displays information about the port (port name, online status, port access status and

resolution).

• You can access a server connected to a port by moving the mouse pointer over its panel and clicking. You can switch

to the server exactly as if you had selected it from the Port Access page.

118

7. Administration

Panel Array Toolbar

The panel array toolbar provides shortcut navigation and control of the panel array. The toolbar can be dragged

anywhere on the screen. Mousing over an icon opens a “tooltip” that provides a short description of the icon’s function.

Icon Purpose

Click and drag to move the toolbar.

Note: This icon is only available with the Windows Clients. To move the Java Client toolbars, click on any empty

space and drag.

Pause panel scanning, leaving the focus on the panel that currently has it.

Show More Ports: Increase the number of panels in the array.

Show Fewer Ports: Decrease the number of panels in the array.

Toggle 4/3 aspect ratio.

Exit Panel Array mode.

7.13.4 Multiuser Operation

The B064C-16-1-IP supports multiuser operation. When multiple users simultaneously access the switch from client

computers, the rules of precedence that apply are shown in the following table:

Operation Rule

General

The switches utilize a single shared bus implementation. Although they support local and remote

remote user has already opened a session, the local user sees the same screen that the remote

user is working on

Auto Scan Mode

If a user has invoked Auto Scan Mode and another user logs on, at rst the new user will see the

GUI Main Page. However, as soon as they access any port, they will automatically enter Auto Scan

Mode.

Any user can halt Auto Scan Mode by recalling the GUI Main Page. When this occurs, Auto Scan

Mode stops and all the other users on the bus are switched to the port that was being accessed

when Auto Scan Mode stopped.

Panel Array

Mode

• If a user has invoked Panel Array Mode and another user logs on, the new user will enter the GUI

Main Page. However as soon as they access any port, they will automatically enter Panel Array

Mode.

• Panel Array Mode continues until the original user stops it (Administrators can override Panel

Array Mode, however).

• Only the user who starts Panel Array Mode can use the Skip Mode function.

• Only the user who starts Panel Array Mode can switch ports. Other users automatically switch to

the ports that the original user selects. However, if one of the other users does not have access

rights to the port that the original user switches to, that user will not be able to view the port.

• Individual users can increase or decrease the number of panels they wish to view in Panel Array

Mode. However, the picture quality may decrease as the number of panels increases.

119

7. Administration

7.14 Log Server

The Windows-based Log Server is an administrative utility that records all events that take place on selected

B064C-16-1-IP units and writes them to a searchable database.

7.14.1 Log Server Installation

1. Log into the B064C-16-1-IP.

2. Click the Download tab and download the Log Server AP program.

3. Go to the location on your hard disk that you downloaded the Log Server program to and double click its icon

(LogSetup.exe) to access the Windows Client Connection Screen.

Note: If the browser cannot run the file, save it to disk and run the file from your disk.

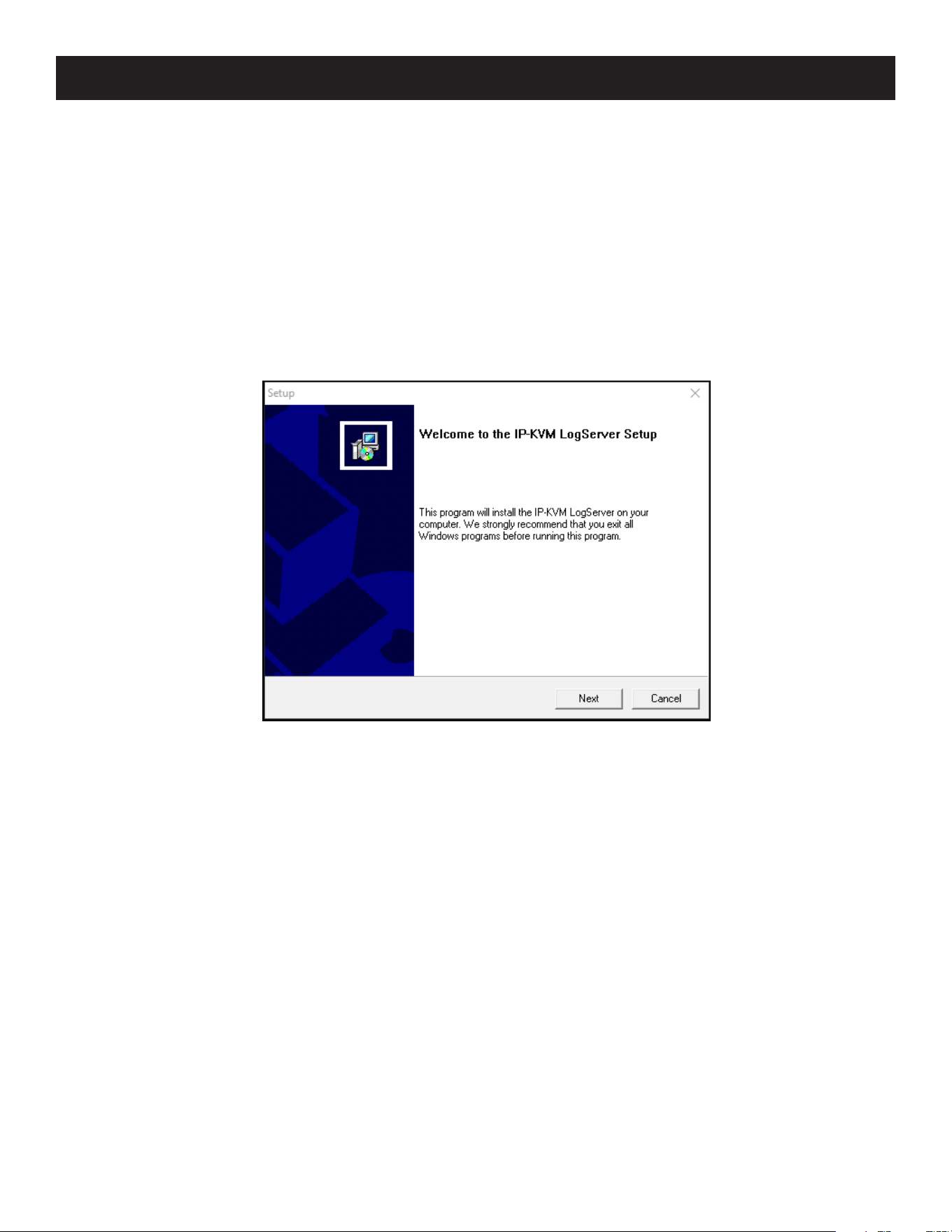

The Log Server installation screen will appear:

4. Click Next, then follow the on-screen instructions to complete the installation and have the Log Server program icon

placed on your desktop.

120

7. Administration

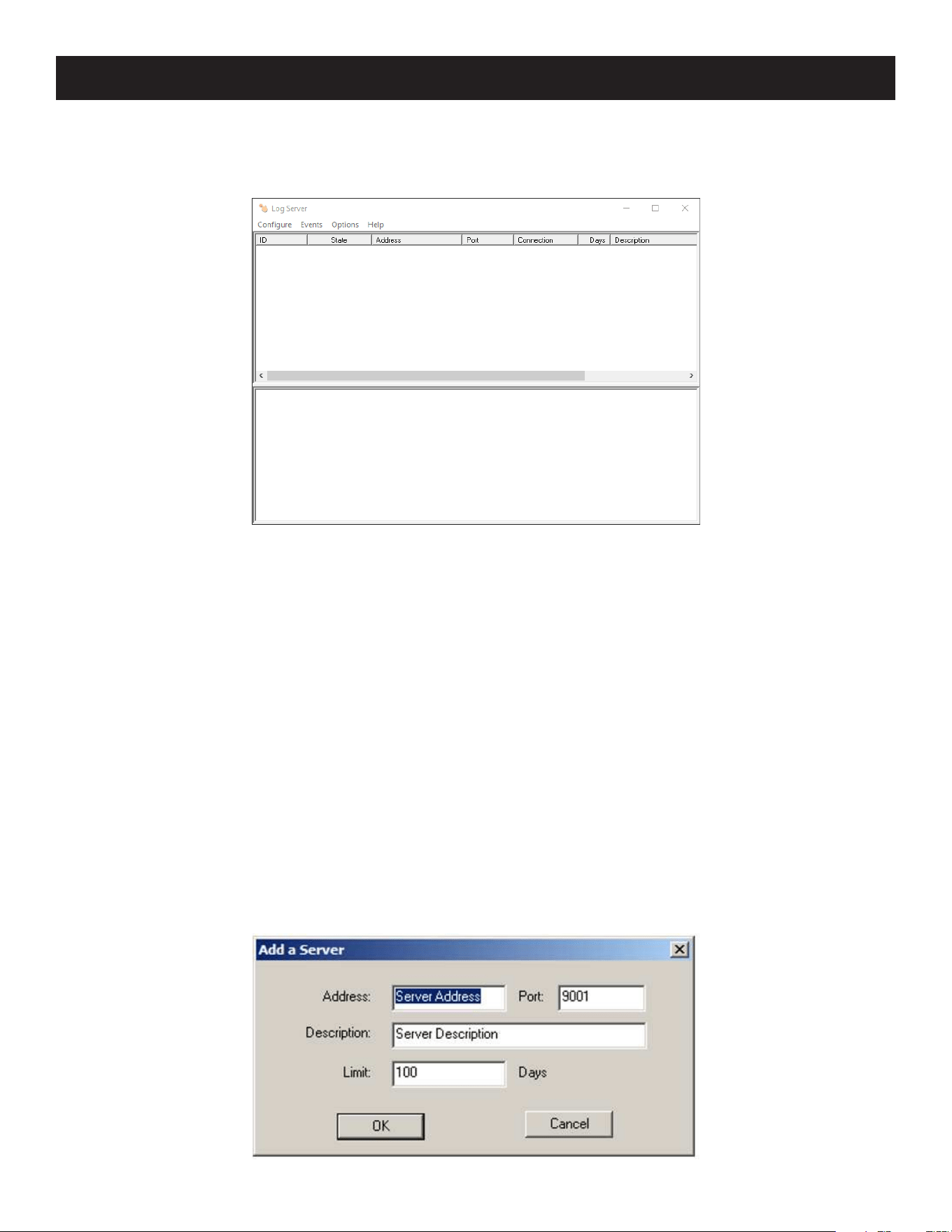

7.14.2 Log Server Start Up

To start the Log Server, double click the program icon or key in the full path to the program on the command line. The

first time you run it, a screen similar to the one below will appear:

Notes:

• The MAC address of the Log Server computer must be specified in the<Emphasis>ANMS settings.

• The Log Server requires the Microsoft Jet OLEDB 4.0 driver.

The Menu Bar

The Menu Bar consists of four items:

• Configure

• Events

• Options

• Help

Note: If the Menu Bar appears to be disabled, click in the List window to enable it.

Configure

The Configure menu contains three items: Add, Edit and Delete. They are used to add new units to the List, edit the

information for units already on the list or delete units from the list.

• To add a unit to the list, click Add.

• To edit or delete a listed unit, first select the target in the List window, then open this menu and click Edit or Delete.

When you choose Add or Edit, a dialog box similar to the one below will appear:

121

7. Administration

A description of the fields is provided in the table below:

Field Explanation

Address This can either be the IP address of the computer the Log Server is running on, or its DNS name.

Port

The port number that was assigned to the Log Server under Device Management (see 7.14 Log

Server).

Description This eld is provided so that you can put in a descriptive reference for the unit to help identify it.

Limit

This species the number of days an event should be kept in the Log Server's database. Events that

exceed the amount of time specied here can be removed with the Maintenance function (see 7.11

Maintenance).

Fill in or modify the fields, then click OK to finish.

Events

The Events Menu has two items: Search and Maintenance.

Search allows you to search for events containing specific words or strings. When you access this function, a screen

similar to the one below will appear:

122

7. Administration

A description of the items is provided in the table below:

Item Description

New Search

This is one of three radio buttons that dene the scope of the search. If it is selected, the search is

performed on all the events in the database for the selected unit.

Search Last

Results

This is a secondary search performed on the events that resulted from the previous search.

Search Excluding

Last Results

This is a secondary search performed on all the events in the database for the selected unit

excluding the events that resulted from the previous search.

Server List

B064C-16-1-IP units are listed according to their IP address. Select the unit that you want to

perform the search on from this list. You can select more than one unit for the search. If no units

are selected, the search is performed on all.

Priority

Sets the level for how detailed the search results display should be. Least is the most general and

Most is the most specic. Least results appear in black and Less results appear in blue; most results

appear in red.

Start Date

Select the date that you want the search to start from. The format follows the YYYY/MM/DD

convention, as follows:

2024/11/04

Start Time

Select the time that you want the search to start from. The format follows the HH:MM:SS

convention.

End Date Select the date that you want the search to end at.

End Time Select the time that you want the search to end at.

Pattern

Key in the pattern that you are searching for here. The multiple character wildcard (%) is supported.

(e.g., h%ds would match hands and hoods).

Results Lists the events that contained matches for the search.

Search Click this button to start the search.

Print Click this button to print the search results.

Export Click this button to save the search results to le.

Exit Click this button to exit the Log Server.

Maintenance

This function allows the administrator to perform manual maintenance of the database, such as erasing specified

records before their expiration time is up.

123

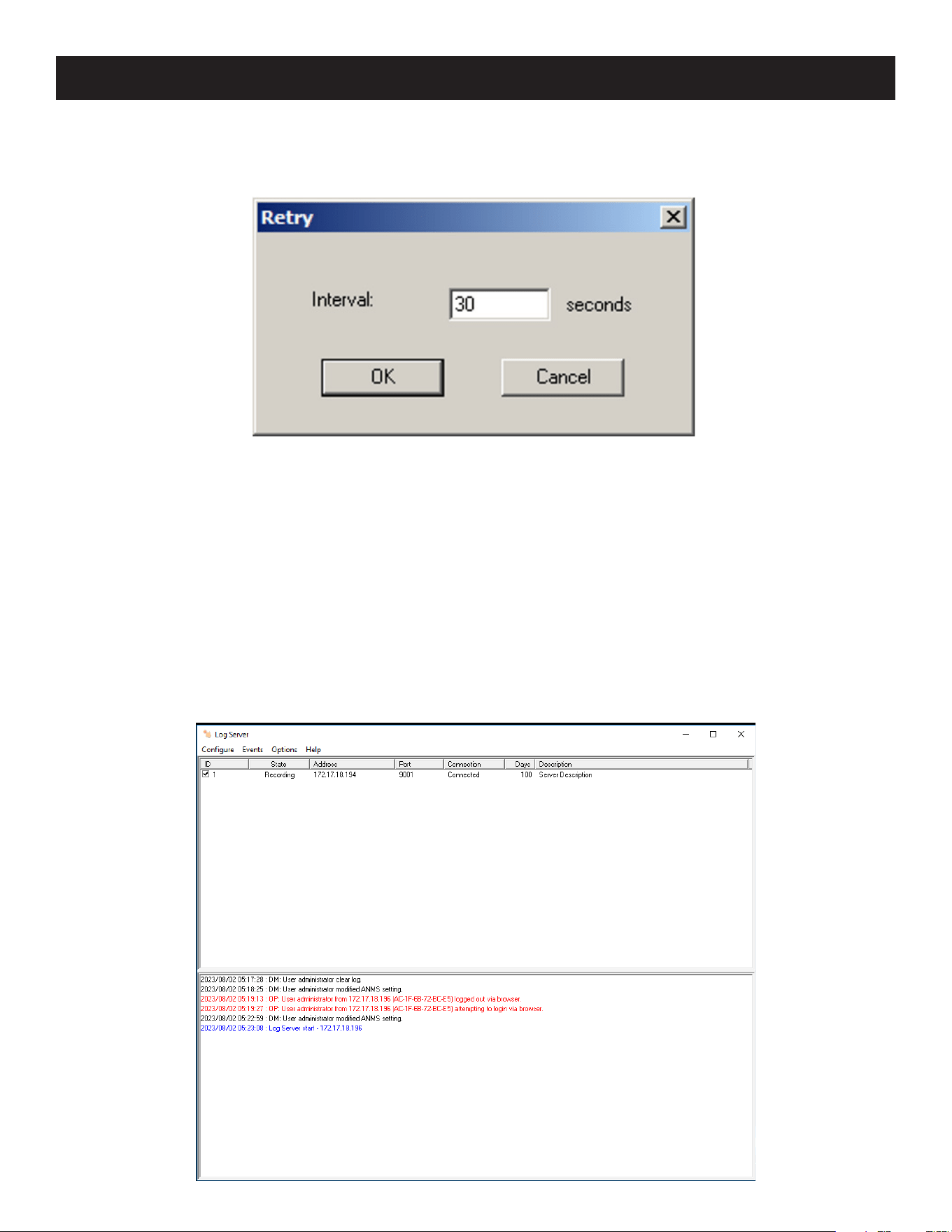

Options

Network Retry allows you to set the number of seconds that the Log Server should wait before attempting to connect if

its previous attempt to connect failed. When you click this item, a dialog box similar to the one below will appear:

Key in the number of seconds, then click OK to finish.

Help

From the Help menu, click Contents to access the online Windows Help file. The help file contains instructions on how

to set up, operate and troubleshoot the Log Server.

7.14.3 The Log Server Main Screen

The Log Server Main Screen is divided into two main panels.

• The upper (List) panel lists all units that have been selected for the Log Server to track.

• The lower (Event) panel displays the tick information for the currently selected unit (if there are more than one unit,

the selected unit is the one that is highlighted).

• To select a unit in the list, simply click on it.

7. Administration

124

7. Administration

The List Panel

The List panel contains six fields:

Field Explanation

Recording

Determines whether or not the Log Server records the ticks for this unit. If the Recording checkbox

is checked, the eld displays Recording and the ticks are recorded. If the Recording checkbox is not

checked, the eld displays Paused and the ticks are not recorded.

Note: Even though a unit is not the currently selected one, if its Recording checkbox is checked, the Log Server will

still record its ticks.

Address This is the IP Address or DNS name that was given to the unit when it was added to the Log Server.

Port This is the Access Port number assigned to the unit.

Connection

• If the Log Server is connected to the unit, this eld will display as Connected.

• If the Log Server is not connected, this eld will display as Waiting. This means that the Log

Server’s MAC address has not been set properly and needs to be set on the Date/Time.

Days

This eld displays the number of days that the unit's log events are to be kept in the Log Server's

database before expiration.

Description

This eld displays the descriptive information given for the unit when it was added to the Log

Server.

The Event Panel

The lower panel displays log events for the currently selected unit. Note that if there is more than one unit, even

though they are not currently selected if their Recording checkbox is checked, the Log Server will record their log events

and keep them in its database.

125

8. Troubleshooting

8.1 Administration

Problem Resolution

After upgrading rmware, the B064C-16-1-IP still appears

to be using the old rmware version.

Your Internet browser is displaying cached web pages, not

new ones. Clear your browser cache, delete all temporary

Internet les and cookies, close the Internet browser, and

then open a new instance of the browser.

The default network setting for the B064C-16-1-IP is

DHCP, but the network uses xed IP addresses and

does not have a DHCP server.

Use the local console OSD’s F4 function to give the B064C-

16-1-IP a xed IP address.

8.2 General Operation

Problem Resolution

Erratic Operation

Press and hold the Reset Switch for longer than three

seconds.

Mouse and/or keyboard not responding due to improper

mouse and/or keyboard reset.

Unplug the cable(s) from the console port(s), then plug it

back in again.

Sudden loss of network connection due to local reset of

B064C-16-1-IP.

Close your B064C-16-1-IP connection. Wait approximately

30 seconds and log in again.

Mouse Pointer Confusion

If you nd the display of two mouse pointers (local and

remote) to be confusing or annoying, you can use the

Toggle Mouse Display function to shrink the non-functioning

pointer.

Some characters that are keyed in do not display on the

remote system

This is likely due to the local OS keyboard language and the

remote OS keyboard language being dierent. Make sure

that the keyboard language for both systems are the same.

Keyboard and/or mouse do not work after computer

boots up.

For computers with PS/2 connectors, if you are using

2L-520xP cables, make sure all connectors (keyboard,

video, and mouse) are plugged into their ports on the

computer before starting the computer. Plugging the

cables in after the computer has booted will not resolve the

problem.

When I emulate the Sun keyboard, I cannot go into OK

Mode ([Stop] [A]).

To go into OK Mode, use the following key sequence:

1. Press and release [Ctrl].

2. Press and hold [T].

3. Press and hold [A].

4. Release [T] and [A] together.

There are ghost images on the external monitor.

The distance between the external console and the

B064C-16-1-IP is too great. The maximum VGA cable

distance should not exceed 65 ft. (20 m) and in some cases,

may need to be shorter. Replace the VGA cable with one of

an appropriately short length.

I cannot set the computers’ screen resolutions higher

than 1280 x 1024, even though the B064C-16-1-IP

supports 1920 x 1200 for remote computers.

The maximum screen resolution of the B064C-16-1-IP’s

integrated LCD monitor is 1280 x 1024. To protect it from

being damaged by resolutions that are beyond its display

capability, we recommend the screen resolutions of the

connected computers be set to 1280 x 1024 or lower.

If you wish to set the screen resolutions of the connected

computers to something higher than 1280 x 1024, see 8.8

Screen Resolutions Higher than 1280 x 1024.

126

8. Troubleshooting

Problem Resolution

When I switch to one of the computers on my

installation, the LCD monitor screen goes blank. All I see

is a black screen.

The maximum screen resolution of the B064C-16-1-IP’s

integrated LCD monitor is 1280 x 1024. The screen

resolution of the problem computer is set to something

that is too high for the B064C-16-1-IP’s LCD monitor to

display.

To resolve the problem, connect an external KVM console

(with a monitor capable of displaying the problem

computer’s screen resolution) to the B064C-16-1-IP’s

external console ports. Use the external console to access

the problem computer and reduce its resolution to 1280 x

1024.

Note: Although the LCD monitor only supports video resolutions

of up to 1280 x 1024, the B064C-16-1-IP, itself can support video

resolutions up to 1920 x 1200 @ 60 Hz. If you wish to set the screen

resolutions of the connected computers to something higher than

1280 x 1024, see 8.8 Screen Resolutions Higher than 1280 x 1024

for details.

My B064C-16-1-IP unit is not listed in the Device List of

the IP Installer.

• Make sure the Broadcast function is enabled from your

switch or router for the auto-discover to work properly.

• Make sure to turn o your rewall and/or antivirus

software temporarily for the auto-discover to work

properly.

• Make sure the unit and the PC are under the same

network segment.

8.3 Windows Client

Problem Resolution

A “Login Failed” error appears and Windows Client Viewer

cannot be run.

1. Make sure your KVM over IP Switch is updated to the

latest rmware version.

2. Make sure the required service ports, such as 80, 443,

and 9000, are allowed by your rewall.

3. Close the viewer and try again.

Will not connect to the B064C-16-1-IP. DirectX 8.0 or higher must be installed on your computer.

Remote mouse pointer is out of sync.

1. Use the AutoSync feature to sync the local and remote

monitors.

2. If that does not resolve the problem, use the Adjust

Mouse feature to bring them back in sync.

3. If the two methods described above fail to resolve the

problem, use the Toggle Mouse Display function.

Part of remote window is o my monitor.

Use the AutoSync feature to synchronize the local and

remote monitors.

My antivirus program reports that there is a trojan after

I access the B064C-16-1-IP with my browser and then

open the Windows Client Viewer.

The Windows Client Viewer uses an ActiveX plug- in

(windows.ocx) that some antivirus programs mistakenly

see as a virus or trojan. We have tested our rmware

extensively and found no evidence of a virus or trojan. You

can add the plug-in to your antivirus program's White List

and use the Viewer safely. If you are reluctant to use the

Windows Client Viewer, however, you can simply use the

Java Client Viewer, instead.

127

8.4 Java Client

Problem Resolution

Java Client will not connect to the B064C-16-1-IP.

1. Java JRE 6 update 3 or higher must be installed on your

computer.

2. Make sure to include the correct name of the web page

when you specify the B064C-16-1-IP’s IP address.

3. Close the Java Client, reopen it and try again.

A "Login Failed" error appears and Java Client Viewer

cannot be run.

1. Make sure your KVM over IP Switch is updated to the

latest rmware version.

2. Make sure the required service ports, such as 80, 443,

and 9000, are allowed by your rewall.

3. Close the viewer and try again.

Pressing the Windows Menu key has no eect. Java does not support the Windows Menu key.

Java Client performance deteriorates. Exit the program and start again.

National language characters do not appear.

When entering national language characters, if your local

keyboard is set to a non-English national language layout,

you must set the remote computer's keyboard layout to

English.

8.5 Log Server

Problem Resolution

The Log Server program does not run.

The Log Server requires the Microsoft Jet OLEDB 4.0 driver

to access the database.

This driver is automatically installed with Windows ME,

2000, and XP.

For Windows 98 and NT you will have to go to the Microsoft

download site:

http://www.microsoft.com/data/download.htm to retrieve

the driver le:

MDAC 2.7 RTM Refresh (2.70.9001.0)

Since this driver is used in Windows Oce Suite, an

alternate method of obtaining it is to install Windows Oce

Suite. Once the driver le or Suite has been installed, the

Log Server will run.

8.6 Panel Array Mode

Problem Resolution

Low resolution video in Panel Array Mode. Increase the number of panels that are displayed.

Some users only receive a partial image when multiple

remote users are logged in concurrently.

The rst user to invoke Panel Array Mode should set it to

display a minimum of four panels.

8. Troubleshooting

128

8. Troubleshooting

8.7 Sun Systems

Problem Resolution

Video display problems with HDB-15 interface systems

(e.g., Sun Blade 1000 servers).

The display resolution should be set to 1024 x 768.

Under Text Mode:

1. Go to OK mode and issue the following commands:

setenv output-device screen:r1024x768x60

reset-all

Under XWindow:

1. Open a console and issue the following command:

m64config -res 1024x768x60

2. Log out.

3. Log in.

Video display problems with 13W3 interface systems (e.g.

Sun Ultra servers)*

The display resolution should be set to 1024 x 768.

Under Text Mode:

1. Go to OK mode and issue the following commands:

setenv output-device screen:r1024x768x60

reset-all

Under XWindow:

1. Open a console and issue the following command:

ffbconfig -res 1024x768x60

2. Log out.

3. Log in.

*These solutions work for most common Sun VGA cards. If using them fails to resolve the problem, consult the Sun VGA card’s

manual.

8.8 Screen Resolutions Higher than 1280 x 1024

The maximum screen resolution of the B064C-16-1-IP’s integrated LCD monitor is 1280 x 1024. To protect it from being

damaged by resolutions that are beyond its display capability, we recommend the screen resolutions of the connected

computers be set to 1280 x 1024 or lower.

If you wish to display screen resolutions higher than 1280 x 1024, follow the procedure described below.

Notes:

• We strongly recommend you close the B064C-16-1-IP LCD console before continuing (see 6.1.2 Closing the Console). Using the LCD

monitor to view computers that are set to resolutions that exceed its maximum capability can damage it and shorten its life span.

• To access computers from the external local console when the integrated console is closed, simply connect an external KVM console with

a monitor that supports 1920 x 1200 @ 60 Hz to the B064C-16-1-IP’s external console ports.

1. From a remote computer, log in to the B064C-16-1-IP and access the computer whose screen resolution you wish to

change.

2. Open the computer’s Control Panel and double-click Display. The Display Properties dialog box will appear.

3. Click the Settings tab, then click Advanced.

4. In the dialog box that appears, click the Monitor tab.

5. Under Monitor settings, click to clear the Hide modes that this monitor cannot display check box.

6. Click Apply.

7. Click the Adapter tab, then click List All Modes. The List All Modes dialog box appears.

8. Under List of valid modes, select the display mode that you want the computer to use.

Note: The maximum screen resolution and refresh rate that the supported for the external local console and remote computers is

1920 x 1200 @60 Hz.

129

9. Click OK, and then click Apply. The display mode will change to the one you selected.

10. If the Monitor Settings dialog box appears requesting you to confirm the settings change, click Yes.

11. After the Monitor Settings dialog box closes, click OK.

12. In the Display Properties dialog box, click OK.

Repeat these steps for any other computer whose screen resolution you wish to change.

8.9 Additional Mouse Synchronization Procedures

If the mouse synchronization procedures mentioned in the manual fail to resolve mouse pointer problems for

particular computers, try the following:

Notes:

• These procedures are to be performed on the computers attached to the B064C-16-1-IP’s ports, not on the computer you are using to

access the B064C-16-1-IP.

• For the local and remote mice to synchronize, you must use the generic mouse driver supplied with the Windows operating system. If you

have a third party driver installed (such as one supplied by the mouse manufacturer), you must remove it.

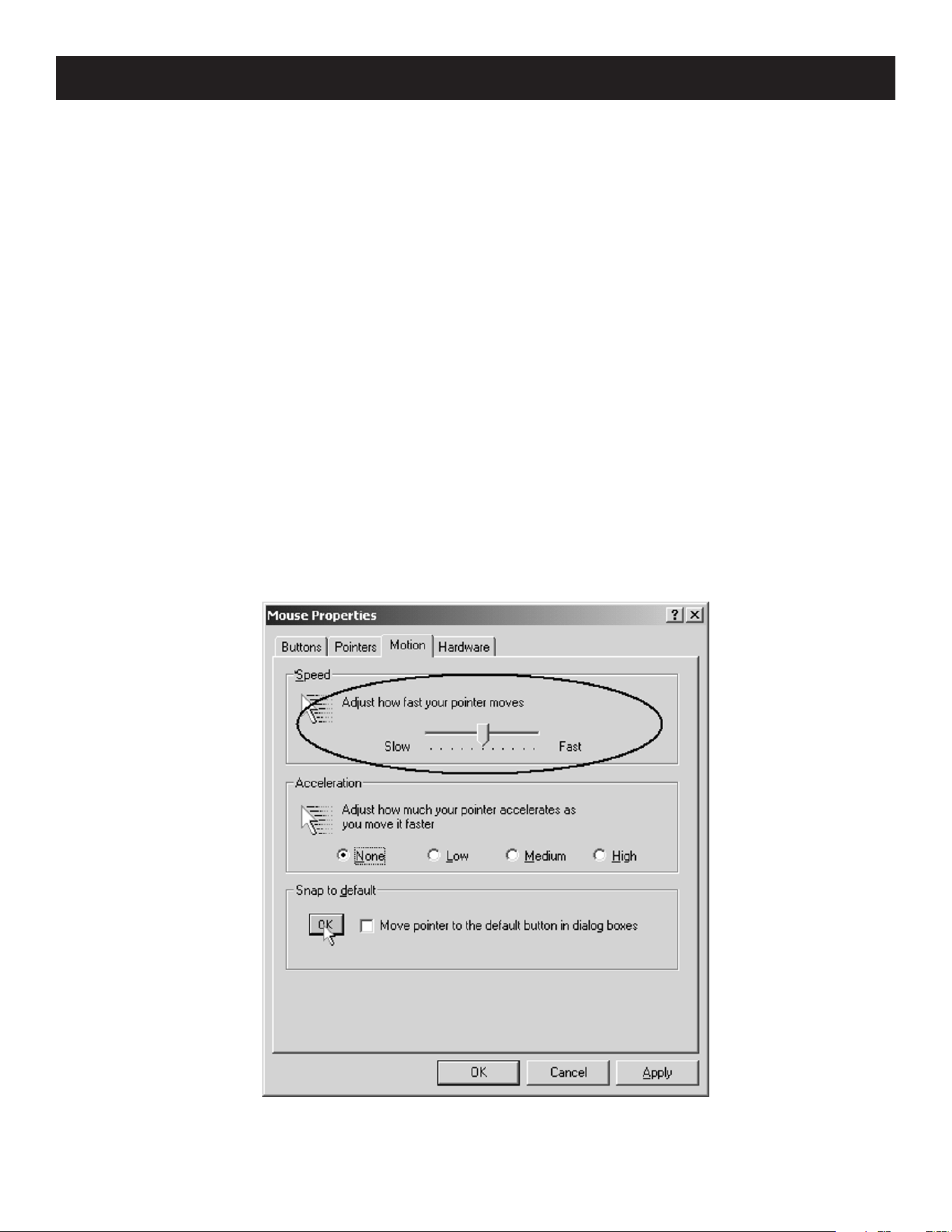

8.9.1 Windows

1. Windows 2000:

a) Open the Mouse Properties dialog box (Control Panel  Mouse  Mouse Properties)

b) Click the Motion tab.

c) Set the mouse speed to the middle position (6 units in from the left).

d) Set the mouse acceleration to None.

8. Troubleshooting

130

8. Troubleshooting

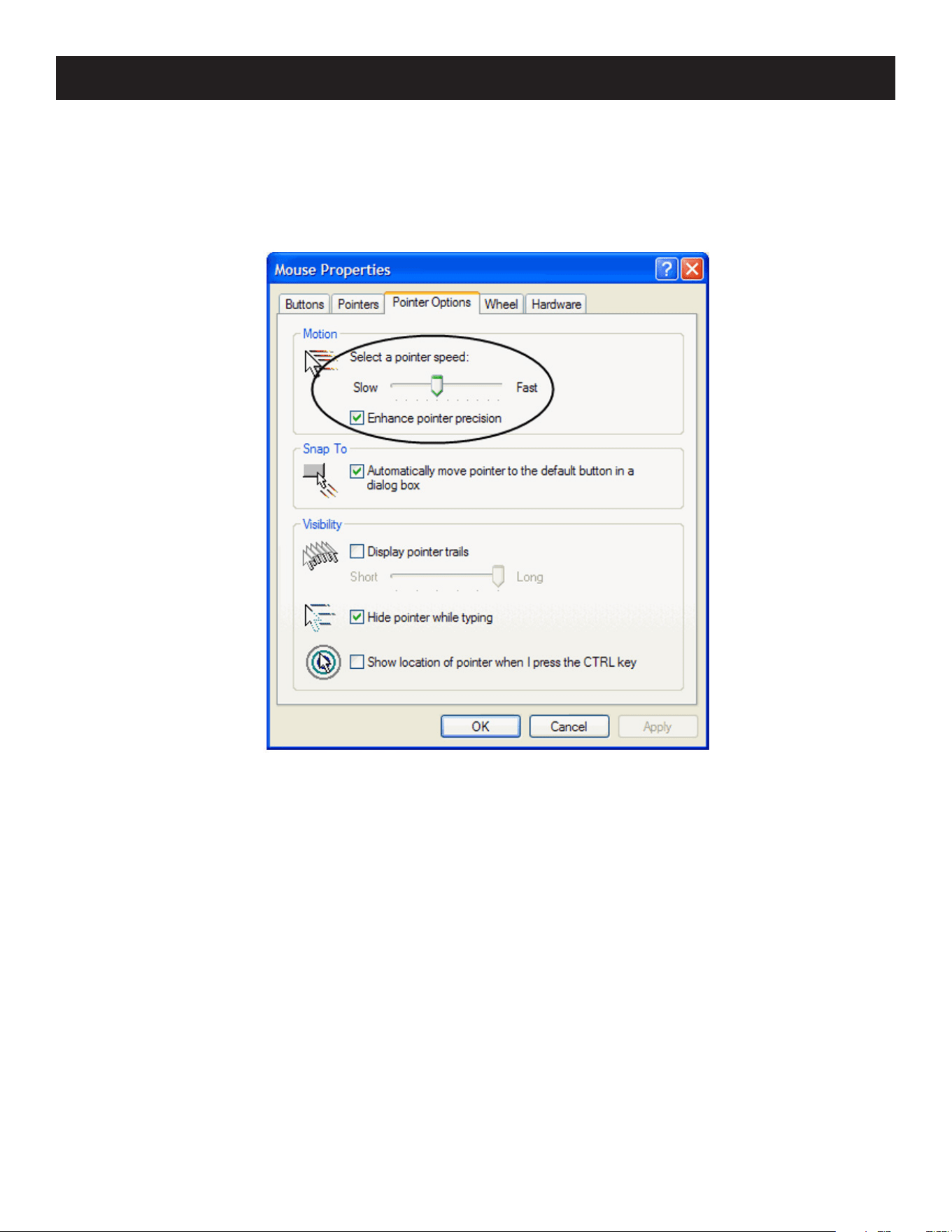

2. Windows XP / Windows Server 2003:

a) Open the Mouse Properties dialog box (Control Panel  Mouse)

b) Click the Pointer Options tab.

c) Set the mouse speed to the middle position (6 units in from the left).

d) Disable Enhance Pointer Precision.

3. Windows ME:

Set the mouse speed to the middle position and disable mouse acceleration (click Advanced to get the dialog box).

4. Windows NT / Windows 98 / Windows 95: Set the mouse speed to the slowest position.

8.9.2 Sun / Linux

Open a terminal session and issue the following command:

Sun: xset m 1

Linux: xset m 0

131

8.10 Clear Login Information

If you are unable to log in as an Administrator (for example, corrupted or forgotten Username and Password), you can

clear the login information with the following procedure.

Note: Performing this procedure also returns all settings to their defaults.

1. Power off the B064C-16-1-IP and remove its housing.

2. Short the jumper labeled J15.

3. Power on the switch.

The onscreen display will show a message informing you that the password information has been cleared.

4. Power off the switch.

5. Remove the jumper cap from J15.

6. Close the housing and restart the B064C-16-1-IP.

After restarting the unit, you can use the default Username and Password to log in (see 7.2.1 OSD Overview).

8. Troubleshooting

132

8. Troubleshooting

8.11 OSD Factory Default Settings

Setting Default

OSD Hotkey [Scroll Lock] [Scroll Lock]

Port ID Display Position Upper Left Corner

Port ID Display Duration 3 Seconds

Port ID Display Mode The Port Number plus the Port Name

Scan Duration 5 Seconds

Scan/Skip Mode All

Screen Blanker OFF

Hotkey Command Mode ON

Hotkey [Num Lock] + [-]

Logout Timeout OFF

Beeper ON

OSD Language English

133

9. Specifications

Console Connections

Local 1 (Share Remote Bus)

Remote 1

Computer Connections

Direct 16

Maximum 136 (via Daisy-chain with B022-U08)

Port Selection OSD, Hotkey, Pushbutton

Connectors

Console Ports

2 x USB-A Female (White)

1 x 6-pin Mini-DIN Female (Purple)

1 x 6-pin Mini-DIN Female (Green)

1 x HDB-15 Female (Blue)

External Mouse Port 1 x USB-A Female

KVM Ports 16 x RJ45 Female

Daisy-Chain Ports 1 x DB-25 Male

Firmware Upgrade 1 x RJ11 Female

LAN Ports 1 x RJ45 Female

Power 1 x IEC 60320/C14

Switches

Port Selection 16 x Pushbutton

Station Selection 2 x Pushbutton

Reset 1 x Semi-recessed Pushbutton

Firmware Upgrade 1 x Slide Switch

Power 1 x Rocker Switch

LCD Power 1 x Pushbutton

LCD Adjustment 4 x Pushbutton

LEDs

Online 16 (Green)

Selected 16 (Orange)

Station Selection 2 x 7 Segments (Orange)

Link 1 (Green)

10/100/1000 Mbps FHD: 100/1000 Mbps (Orange / Green)

Power 1 (Blue)

LCD Power 1 (Orange)

Lock

1 x Num Lock (Green)

1 x Caps Lock (Green)

1 x Scroll Lock (Green)

Video

Local / Remote FHD: 1920 x 1200 @ 60 Hz

134

9. Specifications

Panel Spec

LCD Module 19" TFT-LCD

Resolution 1280 x 1024 @ 75 Hz

Pixel Pitch 0.294 mm x 0.294 mm

Response Time 5 ms

Viewing Angle 170° (H), 160° (V)

Support Color 16.7M colors

Contrast Ratio 1000:01

Luminance 250 cd/m2

Emulation

Keyboard / Mouse PS/2; USB

Scan Interval 1-255 sec.

Maximum Input Power Rating 100-240V AC, 50-60 Hz, 1A

Power Consumption

AC 110V: 24.4W: 125 BTU

AC 220V: 25.4W: 130 BTU

Environmental

Operating Temperature 32 ~104°F (0 ~ 40°C)

Storage Temperature -4 ~140°F (-20 ~ 60°C)

Humidity 0-80% RH, Non-condensing

Physical Properties

Housing Metal

Weight 33.92 lb. (15.4 kg)

Dimensions 18.9 x 27.61 x 1.73 in. (48.00 x 70.12 x 4.40 cm)

135

10. Warranty

1-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of one (1) year from the

date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any

such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for

repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication

or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of

implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL EATON BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of

use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your product has been assigned a unique

series number. The series number can be found on the product nameplate label, along with all required approval

markings and information. When requesting compliance information for this product, always refer to the series

number. The series number should not be confused with the marking name or model number of the product.

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when

customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

• Send the new equipment back for recycling when this ultimately becomes waste

Warning

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause

the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice. Photos and

illustrations may differ slightly from actual products.

136

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

Publication No. 24-03-197 / 93-4806_RevB

April 2024

Eaton is a registered trademark.

All trademarks are property

of their respective owners.

934806

Tripp Lite B064C-16-1-IP 16-Port Cat5 KVM over IP Switch

Product's Documents

Owner's Manual

Specifications

Tripp Lite B064C-16-1-IP Questions and Answers
