29PC AIR OPERATED BRAKE WIND- BACK
TOOL KIT
MODEL NO: VS0286
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure all Health and Safety, local authority, and general workshop practice regulations are strictly adhered to when using
tools.
8 DO NOT use tools if damaged or worn.
9 Maintain the tools in good and clean condition for best and safest performance.
9 Ensure all threads are clean and well lubricated.
9 Ensure vehicle is adequately supported with axle stands, ramps, etc. as appropriate.
9 Wear suitable clothing to avoid snagging. Do not wear jewellery. Tie back long hair.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Account for all tools and parts being used and do not leave them in or on the vehicle.
IMPORTANT: Always refer to the vehicle manufacturer’s service instructions, or proprietary manual, to establish the correct procedure
and data. These instructions for use are provided as a guide only.
WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions
and situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this
product, but must be applied by the operator.
2. INTRODUCTION
Air operated wind-back tool suitable for left or right-hand wind-back operations. Fast, lightweight and easy-to-use. Master set of adaptors suit
a wide range of vehicle applications. Suitable for push-back and wind-back brake pistons. Left-handed thrust required for Citroen, Ford and
Renault applications. Interchangeable adaptor plates with thrust bolt assembly and reaction plate. Includes 3/8”Sq drive adaptor and 2-pin
magnetic adaptor for added exibility. Kit helps prevent damage to pistons and seals. Supplied in storage case.
3. SPECIFICATION
Model no ................................................................... VS0286
Operating pressure ....................................................... 90psi
Applications:
Alfa Romeo, Audi, BMW, Citroen, Fiat, Ford, Honda, Jaguar, Lancia, Lincoln, Mazda, Mini, Mitsubishi, Nissan, Peugeot, Proton, Renault,
Rover, Saab, Seat, Subaru, Toyota, Vauxhall/Opel, VW, Volvo
4. PREPARATION
4.1. SET UP
4.1.1. Remove the wind back tool from the carry case and t the 3/8” adaptor.
4.1.2. Select the appropriate adaptor, attach this to the 3/8” adaptor.
4.1.3. Select the correct calliper plate and attach this to the wind back tool. (g.2)
4.1.4. Connect an air supply to the air inlet on the bottom of the tool using the recommended set up (g.1).
4.1.5. Set the regulator on the compressor to 90PSI.

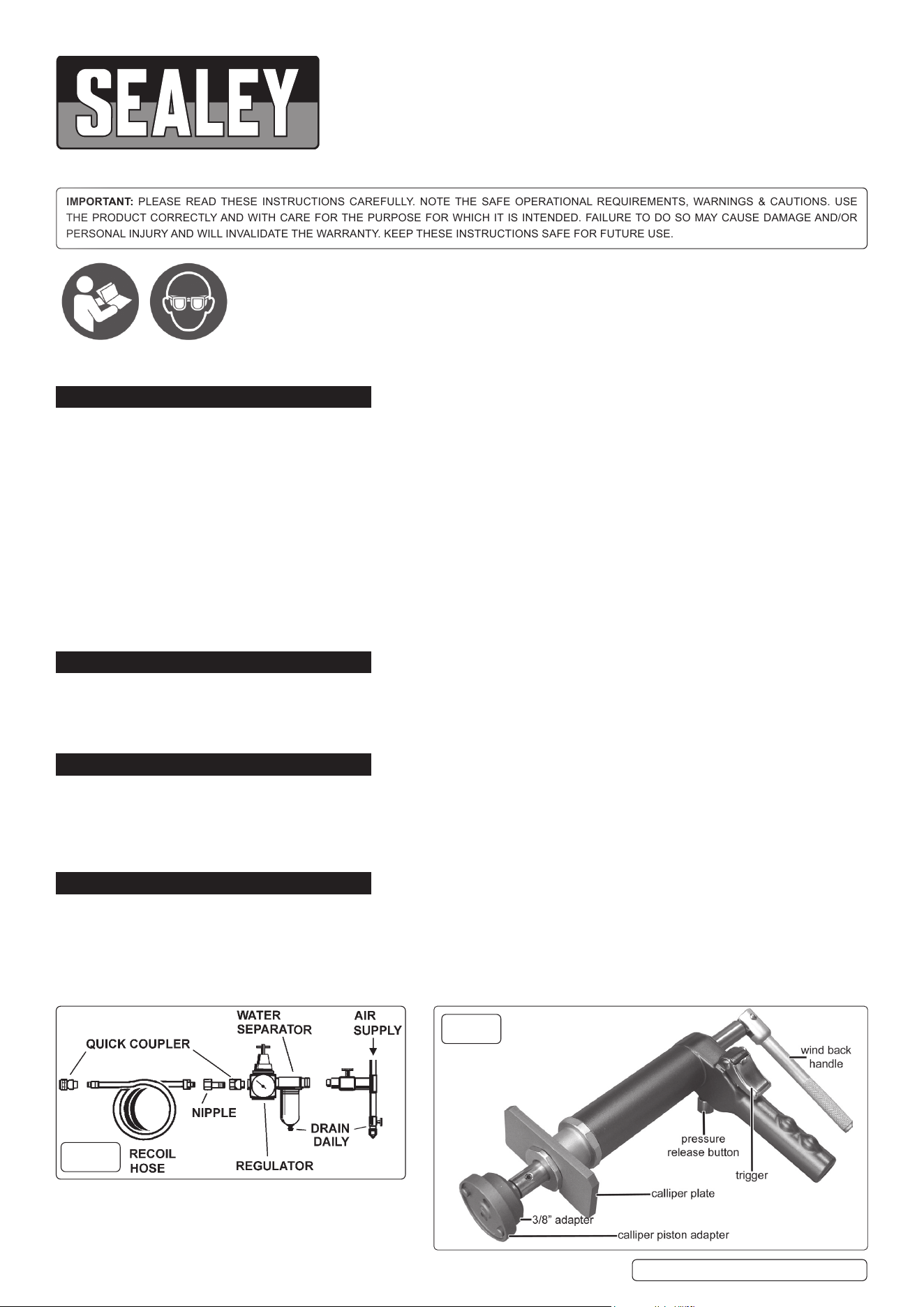

fig.
1
fig.
2
Refer to
instruction
manual
Wear eye
protection
VS0286 Issue:3 (H,F) 16/11/20
Original Language Version
© Jack Sealey Limited
5. OPERATION
Refer to g.2
5.1. Squeeze trigger to apply pressure on the calliper piston.
5.2. When applying pressure on the piston turn the wind back handle to rotate and compress the piston; the handle can be turned
either way depending on the design of the calliper.
5.3. Push the pressure release button to retract the tool.
6. MAINTENANCE
6.1. Lubricate the tool daily with a few drops of Sealey air tool oil dripped into the air inlet. Lightly oiling the wind back shaft will prolong the
life of the tool.
6.2. After use clean the tool with a damp cloth and mild detergent to remove any dirt and grime.
6.3. When you are nished with the tool store it in a dry, safe, childproof location.
.
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
