Operating and Installation
Instructions
Fridge-freezer Combination
It is essential to read the operating and installation instructions be-
fore
setup, installation, and commissioning.
This prevents both personal injury and damage to the appliance.
en - US, CA
M.-Nr. 12 186 580
IMPORTANT SAFETY INSTRUCTIONS................................5
Contents
Caring for the environment........................................16
Installation......................................................17
Location ........ ............ ............. .......... .........17
Climate class .... ............ ............. ............ ...... 18
Installation niche ..................................................18
Niche floor ...... ............. ............ ............. .........18
Adjacent furniture/units .............................................18
Door hinge .......................................................18
Proper ventilation ..................................................19
Opening angle of the door .......................................... 22
Plumbing . ......................................................24
Inset installation ...................................................25
Frameless installation ..............................................26
Installing the Appliance............................................27
Installing the anti-tip brackets ........................................27
Fastening the covers ...............................................29
Pushing the appliance into the niche ..................................30
Aligning the appliance..............................................30
Securing the appliance in the niche ...................................31
Aligning the appliance door .........................................31
Aligning the drawer front ............................................32
Install the base cover with the ventilation slits............................32
Removing the mounting rails .........................................34
Installing the
mounting rails on
the door panel .
.
.
.
.
......................35
Installing the door panel on the appliance door ..........................35
Aligning the door panel ..........................................36
Installing the door panels on the freezer drawers .........................39
Water connection.................................................40
Electrical connection..............................................44
Guide to the Appliance ............................................46
How
to
save
Energy...............................................
48
Turning the Appliance On / Off......................................51
The Right Temperature ............................................53
...in the refrigerator ..............................................53
Automatic cold air circulation (DynaCool) ............................53
Additional Settings ...............................................60
Sabbath mode S ..................................................60
Safety lock c......................................................61
Temperature unit (Fahrenheit or Celsius) § ..............................62
Brightness of the display ^ ..........................................63
Lower hinge heating control H........................................64
Using the Refrigerator Efficiently....................................65
Different storage zones .............................................65
Arranging the Interior - Refrigerator Section ..........................67
Temperature display ...............................................53
Setting the temperature for the refrigerator and freezer ....................53
Using SuperCool in the refrigerator section ...........................56
Using SuperCool in the freezer section...............................57
Temperature and DoorAlarm .... ...................................58
...in the freezer ..................................................53
Contents
Freezing and Storing Food .........................................69
Maximum freezing capacity. .........................................69
Freezing fresh food ................................................69
Placing food in the freezer ........................................69
Thawing frozen foods ........ ............. ............ ...........70
Cooling drinks quickly ..............................................70
Making
Ice Cubes.................................................71
Turning the ice cube maker On .......................................71
Setting the water quantity for the ice cube tray E .........................72
Arranging the Interior - Freezer Section ..............................74
Freezer drawers...................................................74
Adjusting the separators. .........................................74
Removing the freezer drawer containers ..... ........................75
Defrosting .
.
.
....................................................76
Cleaning and Care ................................................77
Cleaning agents. ..................................................77
Before cleaning ...................................................78
Cleaning the interior and accessories ..................................78
Door seal ........................................................78
Ventilation slits ....................................................78
Cleaning the air filter [ .............................................79
Resetting the air filter indicator [ n....................................80
Frequently asked questions ........................................81
Noises .
.........................................................89
After sales service ................................................90
Warranty ......................................................90
Contents
IMPORTANT SAFETY INSTRUCTIONS
5
This refrigeration appliance complies with current safety require-
ments. Inappropriate use can, however, lead to personal injury and
material damage.
Please read the operating and installation instructions carefully be-
fore using the refrigeration appliance for the first time. They con-
tain important information on safety, installation, use, and mainte-
nance. This is to protect yourself from injury, and from damaging
your refrigeration appliance.
Miele expressly and strongly advises that you read and follow the
instructions in the chapter on installing the refrigeration appliance
as well as in the “IMPORTANT SAFETY INSTRUCTIONS”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Risk of injury and damage due to tipping refrigeration appli-
ance.
This refrigeration appliance is very heavy and can tip forwards
when the doors are open.
Keep the appliance doors shut until the refrigeration appliance has
been built in and secured in its housing in accordance with the Op-
erating and Installation Instructions.
IMPORTANT SAFETY INSTRUCTIONS
6
Appropriate use
This appliance is intended for use in domestic households and
similar residential environments such as
– staff kitchen aeas in shops, offices and other working environ-
ments
– farm houses and by clients in hoels, motels and other residential
type environments
– bed and beakfast type environments
– caering and similar non-retail applications.
This appliance is not intended for use outdoors, in damp environ-
ments or in places exposed to rain.
This appliance is intended for domestic use only for cooling and
storing food and drink as well as for storing deep frozen food, freez-
ing fresh food and for making ice. Any other usage is not supported
by the manufacturer and could be dangerous.
This refrigeration appliance is not suitable for storing and keeping
cool medicines, blood plasma, laboratory preparations, or other simi-
lar substances or products that are subject to the Medical Device Di-
rective. Incorrect use of the refrigeration appliance for such purposes
may cause deterioration of the items stored. The refrigeration appli-
ance is also not suitable for use in areas where there is a risk of ex-
plosion.
Miele cannot be held liable for damage resulting from incorrect or
improper use or operation.
This refrigeration appliance may only be used by people (including
children) with reduced physical, sensory, or mental capabilities or
lack of experience and knowledge if they are supervised while using
it.
The refrigeration appliance may only be used by these people with-
out supervision if they have been shown how to use it in a safe way
and recognize and understand the consequences of incorrect opera-
tion.
IMPORTANT SAFETY INSTRUCTIONS
7
Safety with children
Children should be supervised in the vicinity of the appliance.
Children ages eight and up may only use the appliance even with-
out supervision if they have been shown how to use it in a safe man-
ner, and if they are able to recognize and understand the potential
risks of improper use.
Children must not clean or service the appliance unless they are
under supervision.
To reduce the risk of injury, do not allow children to play in, on or
near the appliance.
The door hinges can cause injury. Keep children well away at all
times.
Ensure that any packing material is disposed of safely and kept
out of the reach of children. DANGER of suffocation!
IMPORTANT SAFETY INSTRUCTIONS
8
Technical safety
The coolant circuit has been checked for leaks. The refrigeration
appliance complies with statutory and regulatory requirements.
The symbol is located on the compressor and indicates the dan-
ger of inflammable materials. Do not remove the label.
WARNING! This refrigeration appliance contains the refrigerant
Isobutane (R600a), a natural gas which is environmentally friendly,
but flammable. Although it is combustible, it does not damage the
ozone layer and does not contribute to the greenhouse effect.
The use of this refrigerant has, however, led to a slight increase in
the noise level of the appliance. In addition to the noise of the com-
pressor, you might be able to hear the refrigerant flowing around the
cooling circuit. Unfortunately, this cannot be avoided, but it does not
affect the performance of the refrigeration appliance.
WARNING! When transporting and installing the refrigeration appli-
ance, ensure that no parts of the cooling circuit are damaged.
Splashes of refrigerant can damage the eyes.
In the event of damage:
-Avoid open flames or anything which creates a spark.
-Disconnect the refrigeration appliance from the power supply.
-Ventilate the room where the refrigeration appliance is located for
several minutes.
-Contact Miele Customer Service.
IMPORTANT SAFETY INSTRUCTIONS
9
The more refrigerant there is in a refrigeration appliance, the larger
the room it should be installed in. In the event of a leakage, if the ap-
pliance is in a small room, there is the danger of a combustible gas/
air mixture building up. For every 8g of refrigerant, at least 3'
3" (1m)
3
of room space is required. The amount of refrigerant in the
refrigeration appliance is stated on the data plate inside the appli-
ance.
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult
a qualified electrician if in any doubt.
The electrical safety of the appliance can only be guaranteed
when correctly grounded. It is essential that this standard safety re-
quirement is met. If in any doubt please have the electrical installa-
tion tested by a qualified electrician.
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronized with
the grid power supply (e.g., island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply sys-
tem complies with national and local codes.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronized with the grid power supply, or these measures must be
replaced by equivalent measures in the installation.
If the power cord is damaged, it must be replaced by a Miele au-
thorized technician in order to protect the user from harm.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
IMPORTANT SAFETY INSTRUCTIONS
10
If moisture gets into electrical components or into the power cord,
it could cause a short circuit. Therefore, do not operate the machine
in areas where there may be moisture or splashing water (e.g.,
garages, laundry rooms).
This appliance must not be installed and operated in mobile in-
stallations (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check
the appliance for visible signs of damage.
For safety reasons, this appliance may only be used after it has
been built in.
The machine must be disconnected from the power supply during
installation, maintenance, and repair work, and installation work on
the fresh water connection. The machine is only completely isolated
from the power supply when:
-the fuses have been switched off, or
-the circuit breaker has been removed completely, or
-the power cord has been unplugged. Pull on the plug and not on
the power cord when disconnecting it from the power supply.
Unauthorized installation, maintenance, and repairs, or a faulty
fresh water connection can cause considerable danger for the user.
Installation, maintenance, and repairs, installation work on the fresh
water connection, and all repairs on the ice/water outlet must only
ever be carried out by a Miele authorized technician.
Any manufacturer's warranty may be void if the appliance is not
repaired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele re-
placement parts. Miele can only guarantee the safety standards of
the appliance when Miele replacement parts are used.
Miele cannot be held liable for damage caused by a faulty con-
nection to the fresh water supply.
IMPORTANT SAFETY INSTRUCTIONS
11
The ice cube maker must only be connected to a cold water line.
Proper installation
Four people are required to install the refrigeration appliance.
Only install the refrigeration appliance in a solid, rectangular, and
level housing unit, positioned on an even and level floor.
Correct use
This refrigeration appliance is designed for use within specific am-
bient temperatures (climate range). Do not use in ambient tempera-
tures for which it is not designed. The climate range is stated on the
data plate in the interior cabinet of the refrigeration appliance. A
lower ambient temperature will cause the compressor to switch off
for longer periods, meaning that the refrigeration appliance is unable
to maintain the required temperature.
WARNING! DANGER of overheating! Do not cover or block the air
vents. This can impair the efficiency of the appliance, increase the
power consumption and cause damage to the appliance.
If storing food which contains a lot of fat or oil in the appliance,
make sure that it does not come into contact with plastic compo-
nents as this could cause stress cracks or break the plastic.
Risk of fire and explosion. Do not store any explosive materials or
products containing flammable propellants (e.g., spray cans) in the
appliance. Electrical components can cause flammable mixes of
gases to ignite.
WARNING! Risk of explosion. Do not operate any electrical equip-
ment (e.g., an electric ice-cream maker) inside the refrigeration appli-
ance. Risk of sparking and explosion.
Risk of injury and damage. Do not store cans or bottles containing
carbonated drinks or liquids which could freeze in the freezer sec-
tion. Otherwise they could burst.
IMPORTANT SAFETY INSTRUCTIONS
12
Risk of injury and damage. When chilling drinks in the freezer sec-
tion, make sure that bottles are not left in for more than one hour.
Otherwise they could burst.
Risk of injury. Never handle frozen food or the metal parts of the
appliance with wet hands. Your hands may freeze to the frozen food
or to the metal.
Risk of injury. Do not take ice cubes out with your bare hands and
never place ice cubes or ice pops in your mouth straight from the
freezer section. The very low temperature of the frozen food can
cause frost burn to the lips and tongue.
Do not refreeze partially or fully defrosted food. Consume de-
frosted food as soon as possible, as it will lose its nutritional value
and spoil if left for too long. Defrosted food may only be refrozen af-
ter it has been cooked.
When eating stored food, there is a danger of food poisoning.
Storage times will depend on several factors, including the freshness
and quality of the food, as well as the temperature at which it is
stored. Observe the manufacturer's “use-by” dates and storage in-
structions.
Do not lean on the freezer drawers when they are pulled out. This
could damage the refrigeration appliance.
Accessories and parts
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become invalid.
Miele will guarantee to supply functional spare parts for a mini-
mum of 10years and up to 15years following the discontinuation of
your refrigeration appliance.
IMPORTANT SAFETY INSTRUCTIONS
13
Cleaning and maintenance
Do not use any oil or grease on the door seals.
They can cause the seals to deteriorate over time.
WARNING! DANGER of injury and damage! Do not use any me-
chanical tools or other types of aid which are not recommended by
the manufacturer to accelerate the defrosting process.
Never use a steam cleaner to clean the appliance.
The steam can reach the electrical components and cause a short
circuit.
Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the appliance. Do not use sharp edged or
pointed objects to
-remove frost or ice,
-separate frozen foods or remove ice trays.
Never place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers, as they could contain
substances which could damage the plastic parts or which might
cause the build-up of gases and pose a danger to health.
IMPORTANT SAFETY INSTRUCTIONS
14
Transport
To avoid damage to the appliance, always transport it upright and
in its packaging.
Risk of injury and damage. The refrigeration appliance is very
heavy and must be transported by two people.
Disposal of your old appliance
DANGER! Risk of child entrapment! Children could become
trapped in the refrigeration appliance and could suffocate.
-Remove the appliance door(s).
-Remove the drawers.
-Leave the adjustable shelves in the refrigeration appliance so chil-
dren cannot climb inside.
-If your old refrigeration appliance has a door lock, destroy it. This
will prevent the risk of children playing accidentally locking them-
selves in and endangering their lives.
Risk of electric shock!
-Cut the electrical plug off the power cord.
-Cut the power cord off the old appliance.
Dispose of them separately from the appliance.
Ensure that the appliance is not stored in the vicinity of gasoline or
inflammable gases and liquids during and after disposal.
Risk of fire due to escaping oil or refrigerant!
The refrigerant and oil inside the appliance are flammable. In high
enough concentrations, escaping refrigerant or oil may ignite if they
come into contact with an external heat source.
During disposal, make sure that the cooling circuit is not damaged in
order to prevent refrigerant and oil escaping in an uncontrolled man-
ner (see the data plate for details of the refrigerant).
IMPORTANT SAFETY INSTRUCTIONS
15
If your old refrigeration appliance has a door lock, destroy it. This
will prevent the risk of children playing accidentally locking them-
selves in and endangering their lives.
Splashes of coolant can cause damage to the eyes. Be careful not
to damage any part of the pipework while awaiting disposal, e.g. by
-puncturing the coolant channels in the evaporator,
-kinking any pipework,
-scratching the surface coating.
Symbol on the compressor (depending on model)
This information is only relevant for recycling. There is no risk during normal oper-
ation.
The oil in the compressor can be fatal if swallowed or if it pene-
trates the airways.
Symbol on the rear of the appliance (depending on model)
This label or a similar one is only relevant for recycling. Do not remove the lable.
This information refers to the foamed-in panels in the door and/or
the housing.
Caring for the environment
16
Disposal of packaging material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Return
the packaging to your dealer.
Disposing of your old appli-
ance
Electronic and electrical appliances
contain many valuable materials. They
also contain certain materials, com-
pounds, and components which were
essential for their correct functioning
and safety. These could be hazardous
to your health and to the environment if
disposed of with general waste or if
handled incorrectly. Please do not,
therefore, dispose of your old appliance
with general waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle electri-
cal and electronic appliances. By law,
you are solely responsible for deleting
any personal data from the appliance
prior to disposal.
Take care not to damage your refrigera-
tion appliance’s pipework before or dur-
ing transportation to an authorized col-
lection depot.
This is to ensure that coolant in the
cooling circuit and oil in the compressor
is contained, and will not leak into the
environment.
Please ensure that your old appliance
poses no risk to children while being
stored for disposal. For additional infor-
mation, see “IMPORTANT SAFETY IN-
STRUCTIONS” in these operating and
installation instructions.
Safe operation of the appliance is
only assured if it has been installed
and connected in accordance with
these Operating and Installation
Instructions.
WARNING!
Danger of tipping! To avoid a
hazard secure the appliance in
accordance with these instructions.
WARNING!
This appliance is very heavy and
can tip forwards when the door /
freezer drawers are open. Keep the
appliance door shut until the
appliance has been installed and
secured in the cabinetry in
accordance with these Operating
and Installation Instructions.
The appliance should be installed
with the assistance of another
person.
This fridge/freezer combination
should not be installed side-by-side
with another fridge/freezer
combination.
The appliance does not have heated
side walls, a side-by-side
arrangement can lead to a build-up
of condensation water.
Location
The appliance should not be installed
directly next to a heat source (such as
a range or a heater) or under a window
in direct sunlight. The higher room
temperature, the more energy the
appliance requires to operate. Most
suitable is a dry, well-ventilated room.
The following should also be taken into
consideration:
– The plug must be easily accessible
and not concealed behind the
appliance so that the appliance can
be quickly disconnected from the
electrical supply in an emergency. In
addition, no other appliances should
be plugged into a socket located
directly behind this appliance.
– The power cord must not come into
contact with the back of the
appliance, it could be damaged by
vibrations from the appliance
resulting in a short circuit.
Important! When there is high
humidity there can be a build-up of
condensation on the outer surfaces
of the appliance. This can cause the
surfaces to corrode.
To prevent this, install the appliance
in a dry and/or an air-conditioned
room with sufficient ventilation.
Please ensure that doors are closing
and sealing properly after installation
and that the appliance is installed in
accordance with these installation
instructions and with the required
ventilation openings.
Installation
17
Climate class
The appliance is designed for use
within a certain climate range (room
temperature range) and should not be
used outside this range. The climate
range is specified on the data plate
inside the appliance.
Climate class Room temperature
SN
N
ST
T
50 °F to 90 °F
(+10 °C to +32 °C)
61 °F to 90 °F (+16 °C to
+32 °C)
61 °F to 100 °F
(+16 °C to +38 °C)
61 °F to 109 °F
(+16 °C to +43 °C)
If the room is too cold, it will cause the
cooling system in the appliance to
remain off for too long. This can cause
the temperature in the appliance to rise,
resulting in damage.
Installation niche
Before installing the appliance, the
cabinet must be carefully aligned using
a level. The cabinet corners must be at
a 90° angle to one another, otherwise
the cabinet door will not be flush with all
4 corners of the cabinet. The sidewalls
of the installation niche must be even.
Niche floor
To ensure that the appliance is installed
safely and to assure all the functions,
the floor of the niche where the
appliance is to be installed must be
even and horizontal.
It must be made from strong, rigid
material.
The appliance is extremely heavy when
fully loaded, and for this reason it is
imperative that the floor it stands on is
able to bear its weight. If in doubt,
contact Miele.
When fully loaded, the approx. weight
of the appliance is 1200 lbs (544 kg).
Adjacent furniture/units
The new appliance will be mounted
securely to adjacent furniture/fixtures.
For this reason, it is essential that all
furniture/fixtures be connected securely
to the ground and/or wall.
Door hinge
The appliance is supplied with fixed
hinges. If the door needs to be
hinged on the opposite side, contact
Miele.
Do NOT change the door hinging
yourself!
Installation
18
Proper ventilation
This appliance does not require
ventilation openings in the surrounding
cabinetry. Proper ventilation is ensured
though the ventilation slits at the base
of the appliance.
WARNING! Danger of damage from
overheating. May restrict operation.
Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
Use only the matching base cover
with the ventilation slits!
If there is insufficient ventilation, the
compressor will run more often and
over a longer period of time. This
results in higher energy
consumption and a higher
compressor temperature which can
damage the compressor.
Installation
19
Before installation, ensure the building-in niche is the correct size. The specified
ventilation cross-sections must be adhered to in order to ensure the correct
functioning of the appliance.
AB C D E F
KFN 9859 iDE
3"
(76 mm)
79 13/16"
(2,027 mm)
29 13/16"
(757 mm)
24"
(610 mm)
55 5/8"
(1,413 mm)
37 1/2"
(952 mm)
Installation
20
a This dimension line indicates the
height measured from the floor.
Installation
21
Opening angle of the door
Ensure that there is sufficient space at
the installation location for the door to
open wide enough.
These measurements do not take
the cabinet front and the door
handle into account; they must be
added on accordingly.
Installation
22
A
Cabinet Width
B
Inset cabinet
Depth
B
Frameless/Face
frame cabinet
Depth
C
Cabinet Height
30"
(762 mm)
24" (610 mm)
+ panel
thickness
24" (610 mm) 80"
(2,032 mm)
If you wish for the appliance panel to be flush with adjacent cabinetry, the
adjacent cabinetry depth must equal appliance depth 24" (610 mm) plus panel
thickness 5/8" – 3/4" (16 mm - 19 mm).
The location of the electrical outlet
can be within a radius of 80" from the
appliance top center. Do not install
the electrical outlet behind the
appliance!
Installation
23
24
Water line feed-in (D) from left or right
above the anti-tipping bracket.
Do not install the shut-off valve
behind the appliance!
The water line lead-through for the
water supply line (E) is at the bottom
right of the appliance:
Plumbing
Installation
Inset installation
Appliance and panels sit fully within the
opening and are flush with what could
be its own box, between two pantry
cabinets or decorative columns, etc.
This is the most common installation
scenario.
a Cabinet frame
b Door panel
Stainless steel front panels are
available through Miele.
Please take into account the
following information concerning the
door panel:
– The panels should be at least 5/8"
(16 mm) thick to allow the connecting
rails to be fastened to them.
– The maximum panel thickness is 3/4"
(19 mm).
– The door panel weight must not
exceed 60 lb (27 kg).
Cabinet opening A Refrigerator door
panel B
80"
(2,032 mm)
45 1/4"
(1,150 mm)
Installation
25
Frameless installation
With this installation style, wider
appliance panels partially overlay the
shared side gables of adjacent
cabinetry so as to mimic the look of a
frameless style cabinet.
a Cabinet frame
b Door panel
Please take into account the
following information concerning the
door panel:
– The panels should be at least 5/8"
(16 mm) thick to allow the connecting
rails to be fastened to them.
– The maximum panel thickness is 3/4"
(19 mm).
– The door panel weight must not
exceed 60 lb (27 kg).
Cabinet opening C Refrigerator door
panel D
80"
(2,032 mm)
45 3/4"
(1,162 mm)
Installation
26
Installing the Appliance
,
Warning!
This appliance is very heavy and
can tip forwards when the door is
open.
^ Before installation, take any
accessories out of the appliance
and/or off the back of the appliance.
^ Remove any cable clips from the
back of the appliance.
^ Check that all the parts on the back
of the appliance can move freely.
Carefully bend any attached
components out of the way.
To protect the floor from damage when
installing the appliance,
^ fasten a left-over piece of flooring
(e.g. linoleum) to the floor in front of
the installation area.
Installing the anti-tip brackets
The anti-tip brackets keep the
appliance safely secured in the
installation niche and prevent tipping.
Make sure that there is no plumbing
or electrical in the installation area
that could be damaged by screws.
,
Important!
The anti tip bracket must be
installed at the same height as the
toe kick area. If you set the
appliance to a higher level by laying
spacers underneath, the anti tip
bracket must be fitted accordingly.
^ Mark the center line of the appliance
on the back wall of the installation
niche. The center of the anti-tip
bracket must be aligned with this
line.
Installation
27
^ Depending on the floor and walls of
the room, select the installation
method for the bracket from the
following options: A, B, C or D.
A
– Securing to a drywall base
(screws: 1/4'' x 2 1/2'') (6 x 63 mm)
– Securing to a concrete wall using
screw anchors (screws: 1/4'' x 2
1/2'') (6 x 63 mm)
B
– Securing with angular positioning of
the screws (1/4'' x 2 1/2'') (6 x 63
mm)
C
– Securing to a wooden floor
(screws: 1/4'' x 2 1/2'') (6 x 63 mm)
D
– Securing to a concrete floor using
the supplied concrete anchors.
Installation
28
Installation of the anti-tip bracket in a
cabinet with a depth greater than 25"
(635 mm)
The anti-tip bracket assures proper
functioning up to a cabinet depth of 24"
- 25" (610-635 mm). If the cabinet is
deeper than 25" (635 mm), a wooden
spacer is required between the back
wall of the niche and the appliance.
The spacer must be secured to the
floor.
Position of the spacer in a normal
cabinet
Position of the spacer in a frameless
cabinet
The anti-tip bracket must be level
after installation even if the floor is
not level. Install the wooden spacer
in an appropriate position.
Fastening the covers
Install the adhesive covers above,
between and under the mounting plates
on the sides of the appliance.
^ Cut the covers to the required length
(see illustration).
^ Fasten the covers keeping a 1/4"
(6 mm) clearance from the mounting
plates.
Installation
29
Pushing the appliance into the
niche
Prepare the water and electrical
connections.
^ Gently push the appliance into the
niche until the back of the appliance
slides into the anti-tip bracket.
Take care not to damage the power
cord and plumbing.
Aligning the appliance
^ Use the supplied wrench to adjust
the front feet so that the appliance is
level a.
^ Using a screw driver or the supplied
Allen key, turn the adjustment rods to
adjust the back of the appliance until
it is level b.
All feet must rest firmly on the floor
so that the appliance cannot tip
forwards!
Installation
30
Securing the appliance in the
niche
^ Push the hinged side of the
appliance to the cabinet wall.
^ Connect the appliance to the
cabinetry by screwing the
particle-board screws 1/4" x 3/4" (4 x
16 mm) through the pre-mounted
brackets.
^ Now attach the covers to the
mounting plates.
Aligning the appliance door
The appliance comes with the door
properly aligned.
Realignment may be necessary if
the door is heavily loaded.
^ Loosen the screws a.
^ Align the door by turning the
headless screws b with the supplied
Allen wrench.
^ Then tighten the screws a.
Installation
31
Aligning the drawer front
You can adjust the fronts of the freezer
drawers if necessary.
Side view of the freezer drawer open
^ On both sides, remove the screws
and put them in the long holes below.
^ Align the drawer front.
^ Then tighten the screws.
Install the base cover with the
ventilation slits
^ Remove the lower freezer drawer.
^ Remove the blue protective film from
the supplied air filter.
^ Insert the air filter into the opening in
the base. Push the latch down and
engage it.
^ Remove the locking pins from the
supplied retainers.
Installation
32
^ Insert the base cover retainers on
both sides into the appliance
housing.
^ The face end of the angles on the
retainers must be flush with the front
of the toe-kick cover. If this is not the
case, adjust the retainers according
to the depth.
^ Insert the locking pins on both sides
to secure the retainers in the
appliance housing.
^ Now install the base cover with the
ventilation slits. There are two
fastening bolts on each side of the
base cover (see illustration detail).
These fastening bolts must be
inserted into the retainer holes.
Installation
33
^ To adjust the toe-kick height, first
loosen the headless screws at the
cover front and adjust the cover
height.
^ Then tighten the headless screws.
Removing the mounting rails
^ Remove the cover strip a and the
upper b and lower mounting rails of
the refrigerator door.
^ You will need these nuts for fastening
the custom door panel to the
refrigerator door.
Both mounting rails will later be
fastened to the door panel of the
refrigerator door.
^ Remove the cap covers and loosen
the screws on both sides.
^ Remove the mounting rails on the
sides of both freezer drawers.
These mounting rails will later be
installed on the door panel of the
freezer drawers.
^ You will need the nuts for fastening
the door panel to the freezer drawers.
Installation
34

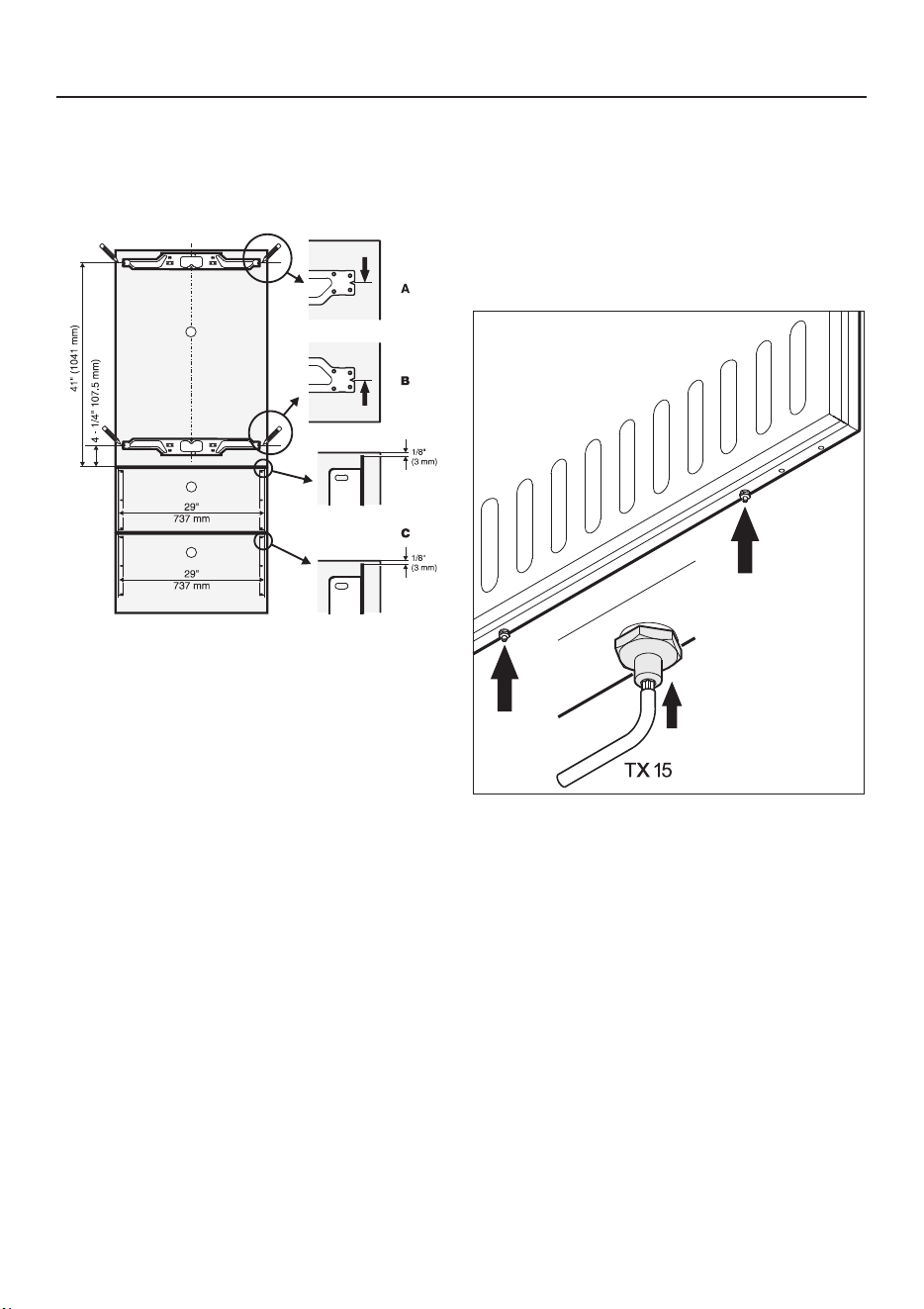

Installing the mounting rails on
the door panel
^ Using a pencil, draw two thin,
horizontal lines on the inside of the
door panel for the refrigerator door.
The distance from the lower edge of
the cabinetry front to the upper line is
41" (1041 mm) and to the lower line it
is 4 1/4" (107.5 mm).
^ Put both mounting rails on the inside
of the door panel a. Center the
mounting rails and align them with
the drawn lines (see illustration
details A and B).
^ Fasten the mounting rails to the door
panel with at least 6 screws (1/4" x
5/8'') (4 x 16 mm).
^ Put the mounting rails on the inside of
the furniture covers for the freezer
drawers b. Align the mounting rails
according to the dimensions in
illustration detail C.
^ Fasten the mounting rails to the door
panels with at least 3 screws (1/4'' x
5/8'') (4 x 16 mm).

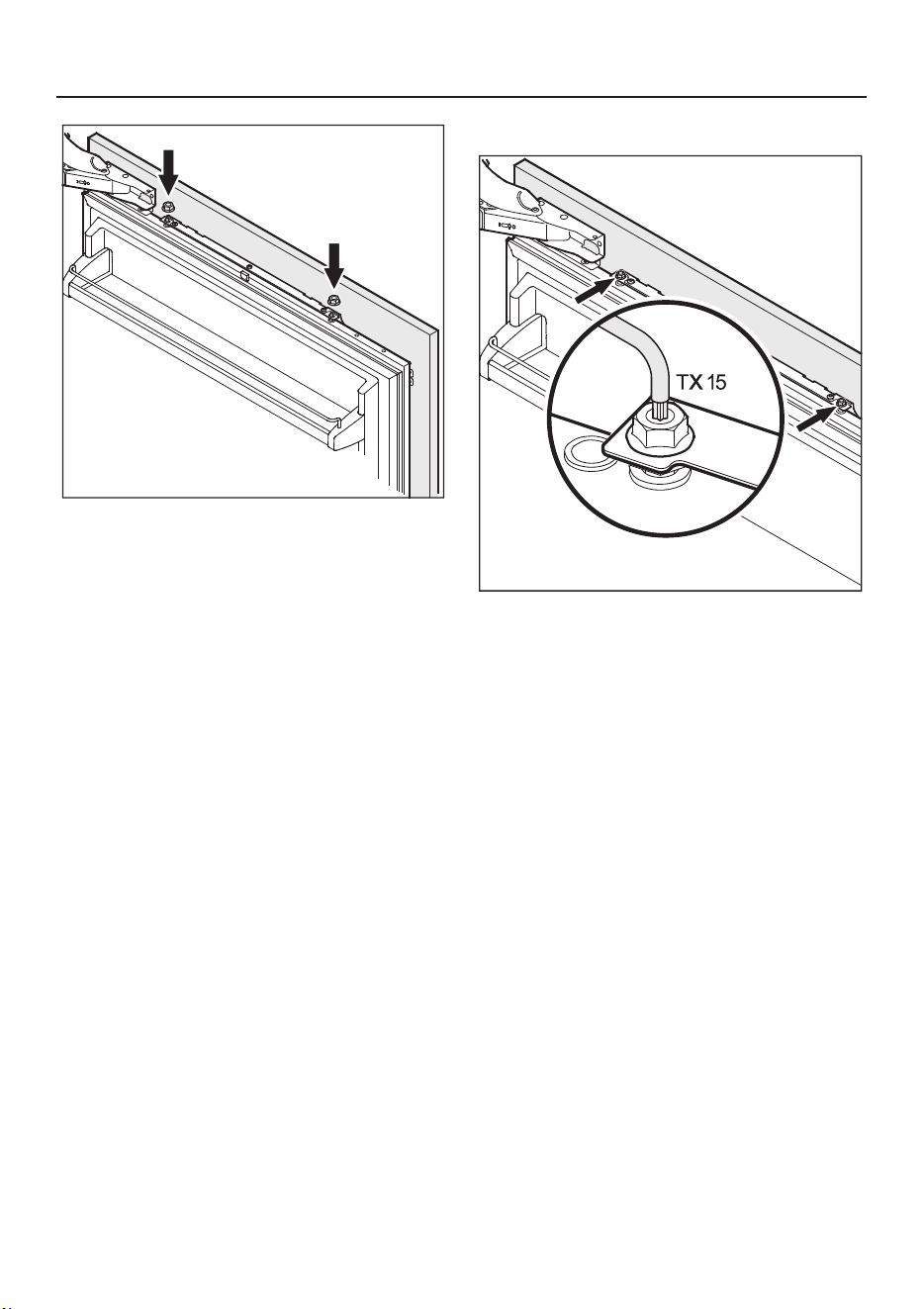

Installing the door panel on the
appliance door
^ Screw the adjustment bolts on the
lower side of the appliance door as
far as possible into the door.
Installation
35
^ Open the refrigerator door and hang
the door panel from above onto the
adjustment bolts.
^ Loosely screw the nuts onto the
adjustment bolts.
^ Close the appliance door and check
the distances to the adjacent door
panels.

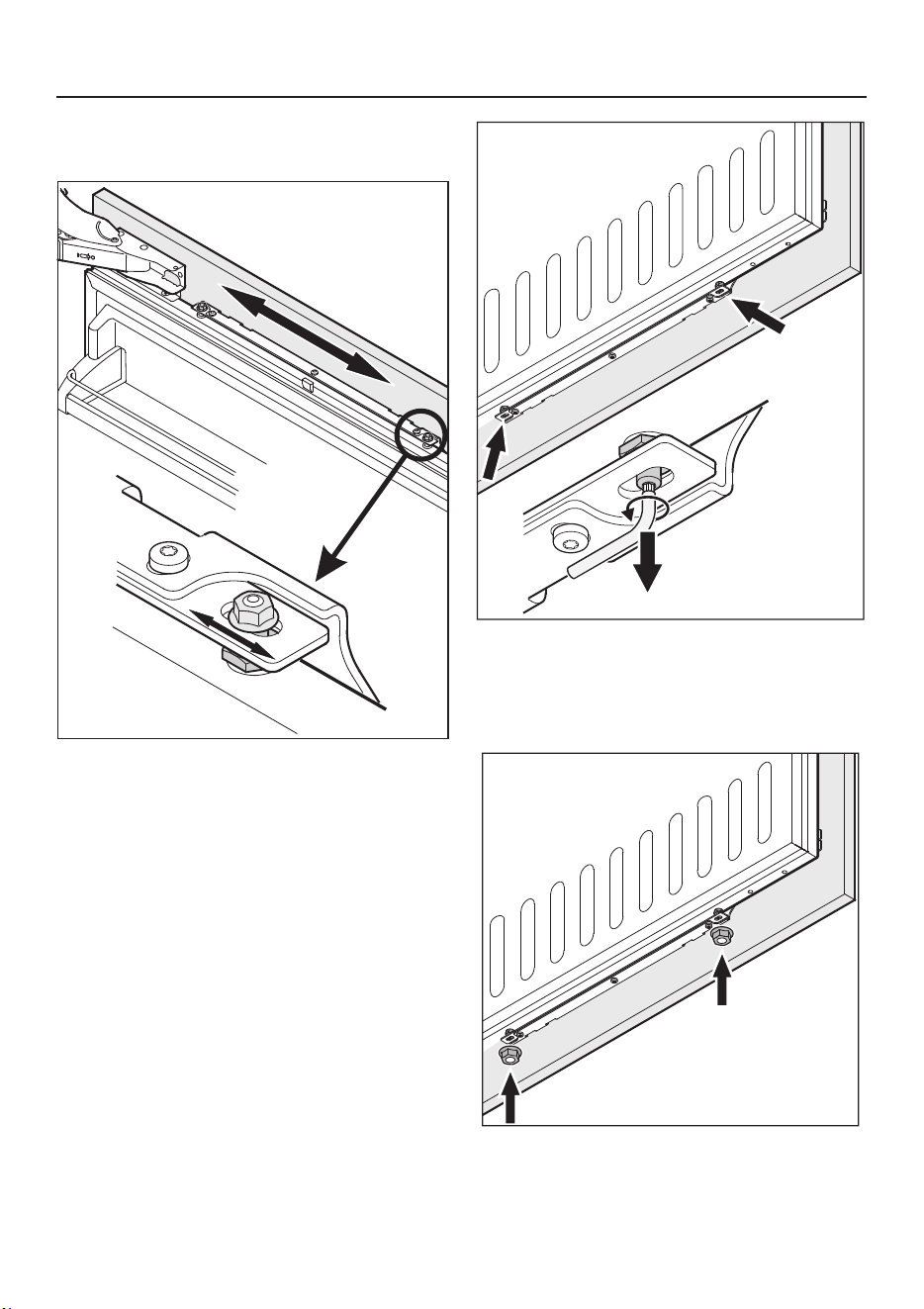

Aligning the door panel
To vertically align the door panel with
the adjacent cabinet doors,
^ loosen the nuts again and adjust the
respective adjustment bolts.
Installation
36
To horizontally align the door panel with
the adjacent cabinet doors,
^ slide the door panel to the respective
side (via the long holes in the
mounting rails).
^ Tighten the nuts.
^ Tighten the adjustment bolts on the
lower side of the appliance door until
the mounting rail sits tight on the
appliance door.
^ Screw the nuts onto the adjustment
bolts and tighten them.
Installation
37

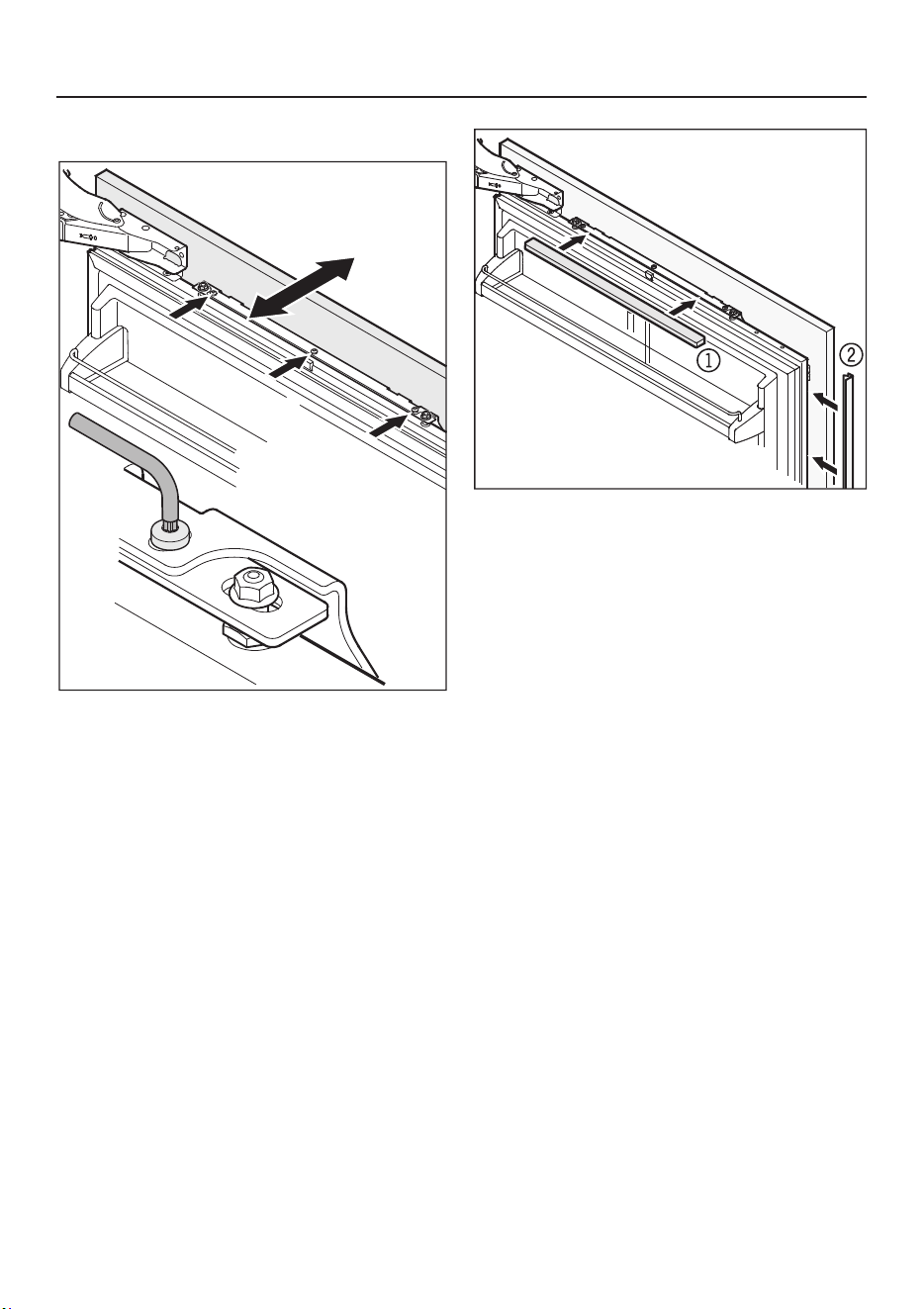

To adjust the depth of the door panel,
^ loosen the three screws located on
the upper side of the upper mounting
rail. Now you can adjust the depth of
the door panel.
^ Then tighten the screws.
^ If necessary, do the same on the
lower mounting rail.
^ Attach the upper cover piece a.
^ Attach the supplied seals b between
appliance door and door panel.
Installation
38
Installing the door panels on
the freezer drawers
^ Pull the upper freezer drawer out and
affix both sides of the door panel with
the screws 1/8'' x 1/16''
(3.5 x 13 mm).
^ Close the freezer drawer and check
the distance from the surrounding
door panels.
To vertically align the door panel with
the adjacent cabinetry doors,
^ loosen the screws on both sides and
adjust the position of the door panel.
^ Then tighten the screws.
Be careful not to over-tighten the
screws. Do not use a electric
screwdriver.
^ Now do the same on the lower
freezer drawer.
^ When finished, close the gap
between the freezer drawer and the
door panel with the supplied
adhesive seal.
^ Remove the protective foil from the
adhesive side of the seal and stick
the seal onto the upper edge of the
freezer drawer. Make sure that the
seal is properly positioned in the gap.
Installation
39
Installation
Water connection
Information on the plumbed-water
connection
Risk of injury and appliance
damage if appliance is not con-
nected properly.
Failing to connect the appliance
properly can result in personal injury
and/or material damage.
The appliance may only be con-
nected to the plumbed-water con-
nection by qualified specialists.
Disconnect the refrigeration ap-
pliance from the power supply before
connecting it to the water supply.
Close the shut-off valve before con-
necting the refrigeration appliance to
the water supply.
WARNING! Risk to health and
risk of damage due to contaminated
water!
The quality of the incoming water
must conform to the requirements for
drinking water in the country where
the refrigeration appliance is being
used.
Connect the refrigeration appliance
to the drinking-water supply.
This appliance meets the requirements
of IEC61770 and EN61770.
Connection to the water supply must
comply with the applicable regula-
tions in the country where the appli-
ance is being installed. All appliances
and systems used to supply water to
the refrigeration appliance must also
comply with the applicable regula-
tions in the respective country.
The appliance is only suitable for
connection to a cold water supply,
which
-is directly connected to the water
supply in order to ensure a circulation
of the water in the cold water line.
Avoid using a water line in which the
water is allowed to pool. This can af-
fect the taste of water and ice cubes.
-withstands the operating pressure.
-fulfills the hygiene regulations.
Water pressure on-site:
-Minimum: 21.76psi (1.5bar)
-Maximum: 87.02psi (6bar)
A shut-off valve must be provided be-
tween the water line and the water sup-
ply of the building to ensure that the
water supply can be cut off if neces-
sary.
Make sure that the shut-off valve is
still accessible after the appliance
has been installed.
40
^ Lay the water line to the appropriate
location at the back of the appliance.
^ At the same time feed the electrical
cord from the back of the appliance
out of the installation niche.
,Do not plug the cord into the
outlet until the water connection is
completed.
^ Gently push the appliance into the
niche until the back of the appliance
slides into the anti-tip bracket (see
"Installing the appliance".)
Risk of damage!
If the water supply is cut off while the
ice cube maker is still in use the wa-
ter intake pipe can freeze up.
Turn the ice cube maker off if the wa-
ter supply is interrupted (e.g. while
on vacation).
The water connection can be found at
the front of the appliance:
^ Gently push the appliance into the
desired location. Leave enough
space behind the appliance for
connecting the water supply.
Connecting the water supply line
Before establishing the plumbed wa-
ter connection, ensure that the appli-
ance is disconnected from the power
supply.
Before the cold water line is used for
the first time, it must be vented by a
suitably qualified plumber.
Installation
41
The solenoid valve b can be found at
the front of the appliance. It has a 3/4"
connection thread (the position of the
solenoid valve as shown in the picture
may differ from your appliance).
The connection parts included with the
appliance permit the connection of
various water lines (a water line is not
included in delivery).
^ Remove the cap a from the solenoid
valve b.
^ Insert the adapter c into the union
nut d.
,
In the following, please note:
inserting the water filter incorrectly
can cause damage!
^ Place the water filter e on top of the
adapter c as shown in the picture.
,
Do not over-tighten the union
nut, damage can result!
^ Connect the union nut d to the
solenoid valve b and tighten it.
^ If you want to divert the water line by
90°, screw on the elbow f.
^ Vent the air from the water line by
opening the water supply
temporarily.
In case of a water line with a 1/4"
thread:
^ Connect the water line g (e.g.,
copper) using the clamping ring h
and the nut i on the adapter c or
elbow f.
In case of a water line with a 7/16"
24-UNS thread:
^ Connect the water line g directly to
the adapter c or elbow f (a
clamping ring h and nut i are not
required).
^ Slowly open the water shut-off valve
and check for leaks.
Installation
42
^ The appliance can now be
connected to the power supply (see
"Electrical connection").
^ Slide the appliance into the desired
position.
When doing so, make sure that the
water line does not get kinked or
damaged.
Installation
43
Installation
Electrical connection
Danger of electric shock!
The appliance must only be switched
on when it has been installed in ac-
cordance with the installation in-
structions.
Ground the appliance.
The appliance must not be grounded
via a gas pipe.
If in doubt, have a suitably qualified
and experienced electrician check
that the installation complies with rel-
evant regulations.
Do not install a fuse into neutral cur-
rent or grounding electrical circuit.
Do not use extension cords or un-
grounded (two prong) adapters.
Do not use a frayed or damaged
power cord.
Danger of electric shock!
For protection against electric shock
this appliance is equipped with a
pole-free plug which is protected
against reverse polarity. The plug
must be grounded in the usual way.
Do not remove the round grounding
connector pin from the plug.
Use only a grounded plug adapter.
Wait for 1hour after installation before
plugging the appliance into the power
supply. This allows coolant and refriger-
ator oil to settle in accordance with reg-
ulations.
Ensure that the voltage of the main
power supply corresponds with the
connection voltage of the appliance. A
power supply of 110 - 120 V, 60 Hz and
15 Amp (20 Amp for side-by-side instal-
lation) with a NEMA 5-15 molded plug,
which is protected by a main switch or
a fuse, is required to operate the appli-
ance.
The manufacturer recommends operat-
ing the appliance on a separate circuit
to avoid overloading the electrical cir-
cuit.
All relevant legal electrical, fire and
building regulations must be observed
when installing the socket and/or the
appliance.
In certain countries appliances are re-
quired to be connected to the electrical
supply via a wall-mounted ON/OFF
switch.
To avoid the risk of fire, electric shock
or other injuries installation and connec-
tion of the appliance must be carried
out by a suitably qualified electrician in
accordance with all relevant local and
national regulations and standards, in-
cluding fire prevention.
44
The outlet must be easily accessible in
an emergency so that the appliance can
be quickly disconnected from the elec-
trical supply in case of an emergency.
The socket must be located so that the
upper edge is a maximum
82" (2100mm) distance from the upper
edge of the base of the kitchen cabinet.
If the outlet is no longer accessible
once the appliance has been installed,
an all-pole disconnect device with a
contact opening of at least 1/8" (3mm)
must be present on site. The discon-
nect device may be circuit breaker, a
fuse, or a contactor (compliant with lo-
cal regulations).
The plug and power cord must not
come into contact with the back of the
appliance as vibrations can cause dam-
age to these components. This, in turn,
could result in a short circuit.
Do not plug in other devices behind this
appliance.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not syn-
chronized with the grid power supply
(e.g., island networks, back-up sys-
tems) is possible. A prerequisite for op-
eration is that the power supply system
complies with the specifications of
EN50160 or an equivalent standard.
The function and operation of the pro-
tective measures provided in the do-
mestic electrical installation and in this
Miele product must also be maintained
in isolated operation or in operation that
is not synchronized with the grid power
supply, or these measures must be re-
placed by equivalent measures in the
installation. As described, for example,
in the current version of VDE-AR-E
2510-2.
If the power cord needs to be replaced,
this must be done by a qualified techni-
cian.
Installation
45
Control panel
Refrigerator section
a Alarm-off button for silencing the
door alarm, or the temperature alarm
of the freezer section
b Button for turning SuperCool On /
Off ª
c Button for turning the refrigerator
section On / Off
d Button for setting a higher or lower
temperature in the refrigerator
section
e Indicator lights:
t Power failure
[ Air filter dirty
ª SuperCool is on
0 Safety lock is On
f Temperature display (top for
refrigerator section, bottom for
freezer section) and symbol display
(only visible in the settings mode
MENU; "More settings")
Freezer section
g Indicator lights:
; Temperature alarm for
the freezer section
® Ice cube maker is On
ª SuperCool is On
h Button for setting a higher or lower
temperature in the freezer section
i Button for turning the freezer section
On / Off
j Button for turning SuperCool On /
Off ª
k Button for switching the ice cube
maker On / Off ®
Guide to the Appliance
46
Guide to the Appliance
This drawing is for illustration purposes only.
a
Control panel
b
Refrigerator section interior lighting
c
Fan (DynaCool)
d
Egg tray / door shelf
e
Shelf
f
Bottle rack
g
Bottle shelf with bottle holder
h
Fruit and vegetable drawers
i
Automatic icemaker with ice cube
container behind drawer
j
Freezer section interior lighting
k
Freezer drawers
l Ventilation grille with air filter
m
Water line
4747
Optional accessories
Flexible bottle rack
(see "Included accessories" for more
information)
Optional accessories are available
from Miele, your Miele dealer or
online.
Guide to the Appliance
Accessories supplied
Flexible bottle rack
Air filter
The air filter behind the ventilation grille
protects the cooling system from dust.
Ice cube scoop
48
Normal
energy consumption
Increased
energy consumption
Installation /
maintenance
In a well ventilated room. In an enclosed,
poorly ventilated room.
Protected from direct
sunlight.
In direct sunlight.
Away from heat sources
(radiator, stove/oven).
Near a heat source (radiator,
stove/oven).
Where the room temperature
is ideal, i.e. around 20°C.
Where the room temperature
is higher.
Do not block the ventilation
openings, and keep them
clean.
Where the ventilation
openings are blocked and
full of dust.
Temperature
setting
39 - 41°F (4 - 5°C) in the
refrigerator section
The lower the temperature
setting, the higher the
energy consumption.
0°F (-18°C) in the freezer
section
How to save Energy
49
Normal
energy consumption
Increased
energy consumption
Use The drawers and shelves are
in the original arrangement.
Only open the doors when
necessary and for as short a
time as possible.
Store food in an organized
way.
Frequent opening of the door
or for long periods will allow
the cold to escape and warm
air to enter. The appliance
tries to keep the temperature
low and the compressor runs
longer.
When shopping, use a cooler
box or bag and place the food
in the appliance as soon as
possible.
Replace items removed from
the appliance as soon as
possible before they warm up.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food warms up the
appliance.
The appliance then tries to
keep the temperature low and
the compressor runs longer.
Store food covered or
wrapped.
The evaporation or
condensation of liquids in the
refrigerator section lower the
cooling performance.
Place frozen food in the
refrigerator to thaw.
Do not overfill the appliance in
order to allow the air to
circulate.
How to save Energy
50
Before the first use
It is very important to let the
appliance stand for 30 to 60 minutes
after transport before you plug it in
for the first time. Failure to do so can
prevent the appliance from
functioning properly!
Packaging material
^ Remove all packaging material from
the inside of the appliance.
Protective film
The stainless steel trim and covers are
covered with a film to protect them
during transportation.
^ Pull the protective film off the
stainless steel surfaces.
Cleaning and care
^ Clean the inside of the appliance and
the accessories (see "Cleaning and
care").
Operating the appliance
A light touch of the finger on the sensor
buttons is all that is required to operate
this appliance.
After transporting the appliance, let
it stand for approx. 1/2 to 1 hour
before plugging it in. This is
necessary to ensure that the
appliance functions correctly!
Turning the appliance on
The refrigerator and freezer sections
can be turned on and off separately so
that you can use one section only.This
is useful when you only need to have
the freezer section running (when on
vacation, for example.)
^ Touch the button for turning the
refrigerator and/or the freezer section
On / Off so that the respective
temperature is displayed.
The appliance starts to cool.
The top temperature display shows the
temperature in the refrigerator section,
the bottom temperature is that in the
freezer section.
If the temperature in the freezer section
is above 32°F (0°C), only dashes are
displayed.
Turning the Appliance On / Off
51
The alarm symbol ; on the control
panel flashes until the selected
temperature is reached.
The interior lighting will come on when
the refrigerator door or a freezer drawer
is opened.
Allow the appliance to run for a few
hours before placing food in it. Do
not place food in the freezer section
until the temperature is cold enough
(at least 0°F / -18°C).
Turning the appliance off
^ Touch the button for turning the
refrigerator and/or the freezer section
on On / Off until the respective
temperature display goes out.
This is not possible when the safety
lock is on, which is indicated by the
0 symbol on the control panel.
The interior lighting goes out and the
cooling is turned off.
Vacation Tips
Short vacations (if you will be away
for less than four weeks)
^ Shut off the water supply to the ice
cube maker.
When the ice cube maker LED ®
starts blinking, the remaining water in
the supply line is in the ice cube
maker.
Leave the Ice Maker on and working
for one day so that the remaining ice
cubes are ejected.
^ Turn off the ice cube maker.
^ Transfer all ice cubes to the right part
of the upper drawer or to the bottom
drawer.
^ Use all perishables.
^ Freeze other items.
Long vacations (if you will be away
for more than four weeks)
^ Shut off the water supply to the ice
cube maker.
When the ice cube maker LED ®
starts blinking, the remaining water in
the supply line is in the ice cube
maker.
Leave the ice cube maker on and
working for one day so that the
remaining ice cubes are ejected.
^ Turn off the Ice maker.
^ Remove all ice cubes from the
drawer and dispose of them.
^ Remove all food from the appliance.
^ Turn the appliance off.
^ Unplug the power cord from the
electrical outlet or trip the circuit
breaker.
^ Clean the appliance.
^ Leave the doors ajar to prevent any
odor build-up in the appliance.
If, during a long absence, the
appliance is turned off but not
cleaned and the doors are left
closed, bacteria may build up in the
appliance.
Turning the Appliance On / Off
52
The right temperature is very important
for storing food. If food is not stored at
the right temperature, bacteria can
multiply rapidly, causing the food to
spoil. This can be prevented or delayed
by selecting the right temperature.
Temperature affects the rate at which
bacteria multiply. Reducing the
temperature slows down this process.
The temperature in the appliance will
rise for the following reasons:
– if you open the door frequently or
keep it open too long,
– if you put too much food in it,
– if you put food in it that is too warm,
– if the room temperature is too high.
The appliance is designed for use
within a certain climate range (room
temperature range) and should not
be used outside this range.
...intherefrigerator
We recommend a temperature of 39°F
(3°C) in the refrigerator section.
Automatic cold air circulation
(DynaCool)
Whenever the refrigerator section turns
on for cooling, the fan is automatically
turned on as well. This ensures that
cold air is evenly distributed throughout
the refrigerator, so that all the food
stored inside will be chilled to
approximately the same temperature.
...inthefreezer
For freezing fresh food and storing
frozen food for longer periods of time,
the temperature needs to be 0°F
(-18°C). At this temperature, most
bacteria stop multiplying. However,
when the temperature rises above 14°F
(-10°C) the bacteria become active,
causing the food to start deteriorating
and reducing the storage life. This is
why any partially or completely thawed
food must never be refrozen until it has
been cooked. High cooking
temperatures will kill most bacteria.
The Right Temperature
53
Temperature display
In normal operation the display
shows the current average
refrigerator temperature and the
temperature in the warmest part of
the freezer.
Dashes are displayed if the
temperature in the freezer section is not
within the displayable range.
Depending on the room temperature, it
can take several hours (3 to 8) until the
selected temperature is reached and
displayed steadily.
If the temperature was above 0°F
(-18°C) for a longer period of time
you will need to check to make sure
that no frozen food started to thaw.
Any food that started to thaw must
be used as soon as possible!
The temperature display flashes when
– a new temperature is being set,
– the temperature in the appliance has
risen by several degrees, indicating
that it is warming up too much, or
– a fault is displayed "F1" to "F5" (see
"Frequently asked questions").
This short-term loss of cooling is no
cause for concern in the following
cases:
– when the door has been left open for
a while, for example to take out or
put in a large amount of food,
– when fresh food is being frozen.
Setting the temperature for the
refrigerator and freezer
The temperatures for the refrigerator
and the freezer are set separately using
the buttons for the respective section.
^ Set the desired temperatures using
each of the buttons.
Tap
– Up to increase the temperature
– Down to decrease the temperature.
The temperature display flashes while
you set the new temperature.
The Right Temperature
54
When you tap the buttons, you will see
the following changes in the display:
– When first tapped: The last
temperature selected flashes.
– Every new tap:
The temperature value changes in
increments of 1 degree.
– Holding down the button will change
the temperature value continuously.
Approximately 5 seconds after you
release the button, the actual
temperature in the appliance will be
displayed.
If you have changed the temperature
and the appliance is not very full, wait
approx. 6 hours,ifitisfull, approx.
24 hours before checking the
temperature display again. It will take
that long to reach the selected
temperature.
If, after this amount of time, the
temperature is too high or too low, you
will need to adjust it again.
Temperature ranges
The temperature can be selected within
the following ranges:
– In the refrigerator section, 36°F to
44°F (2°C to 6°C).
– In the freezer section, 7°F to -15°F
(-14°C to -27°C).
The Right Temperature
55
The SuperCool function can be used to
rapidly reduce the temperature in the
refrigerator section to its lowest setting
(depending on the room temperature).
Turning on SuperCool
SuperCool is particularly recommended
for quickly cooling large amounts of
fresh food or drinks.
^ Touch the button for turning
SuperCool on and off so that the ª
symbol to the left of the display will
come on.
The temperature in the refrigerator
now begins to fall, with maximum
cooling performance.
Turning off SuperCool
SuperCool automatically turns off after
approx. 6 hours. The appliance
continues running with normal cooling
performance.
To save energy, you can turn off
SuperCool yourself once the food or
drinks are sufficiently chilled.
^ Touch the button for turning
SuperCool On / Off so that the ª
symbol to the left of the display will
go out.
The appliance now continues
running with normal cooling
performance.
Using SuperCool in the refrigerator section
56
For best results, turn on SuperCool
before putting fresh food into the
freezer.
Fresh food will be frozen quickly, so
that the nutritional value, vitamin
content, appearance and taste are
maintained.
Exceptions:
– if you are loading frozen food into the
freezer.
– if you are not loading more than
4.5 lbs (2 kg) fresh food into the
freezer per day.
Turning SuperCool on
SuperCool should be turned on 6
hours before you place fresh food in
the freezer. However, if you want
maximum freezing performance,
SuperCool should be turned on 24
hours beforehand!
^ Touch the button for turning
SuperCool On / Off so that the ª
symbol to the right of the display
comes on.
The temperature in the freezer section
now begins to fall, with maximum
cooling performance.
Turning off SuperCool
SuperCool turns off automatically after
approx. 30 - 65 hours. The length of
time required until it turns off depends
on the amount of fresh food added. ª
goes out, and the appliance continues
running with normal cooling
performance.
To save energy, you can turn off
SuperCool once the freezer reaches a
constant temperature of at least 0°F
(-18°C). Therefore you should check
the temperature in the freezer section.
^ Touch On / Off button for SuperCool
so that the ª symbol to the right of
the display goes out.
The appliance now continues running
with normal cooling performance.
Using SuperCool in the freezer section
57
The appliance is equipped with a
warning system to ensure that the
temperature in the freezer section does
not rise unnoticed and to avoid energy
being wasted if doors or drawers are
left open.
Temperature alarm
An alarm will sound if the temperature
in the freezer section becomes too-
warm. The alarm ; indicator flashes
on the control panel as well as the
bottom temperature indicator (for the
freezer section) in the display.
When the alarm is triggered depends
on the selected temperature.
The audio and visual signal is
triggered:
– when you turn on the appliance if the
temperature in the freezer section
differs too much from the selected
temperature,
– when too much warm air flows into
the appliance, for example when
food is being re-arranged or taken
out,
– when freezing large amounts of food
at once,
– when the appliance is
malfunctioning.
Once the alarm condition has ended,
the audio alarm stops and the alarm ;
indicator goes out. The temperature
indicator for the freezer section stops
flashing.
If the temperature was above 0°F
(-18°C) for a longer period of time,
you will need to check to make sure
that no frozen food started to thaw.
Any food that started to thaw must
be used as soon as possible or
cooked before refreezing!
Turning off the audio alarm
If the alarm signal bothers you, it can
be silenced.
^ Touch the alarm button.
The alarm sound will stop.
The alarm ; indicator and the bottom
temperature indicator in the display
keep flashing until the temperature has
returned to normal.
Temperature and Door Alarm
58
Door alarm
An alarm will sound if the appliance
door or a freezer drawer is left open for
more than 3 minutes.
The alarm will stop as soon as the door
or the freezer drawer is closed.
Turning off the audio alarm
If the alarm signal bothers you, it can
be silenced.
^ Touch the alarm button.
The alarm sound will turn off.
Temperature and Door Alarm
59
Certain appliance settings can only be
selected in the settings mode.
Options
5 Sabbath mode
c Safety lock
Ice cube maker function test
(for Service use only)
E Setting the water quantity for the
ice cube tray (see "Making ice
cubes")
§ Temperature unit
(Fahrenheit or Celsius)
^ Brightness of the display
H Lower hinge heating control
n Resetting the air filter display
(see "Cleaning and care")
Some setting options are not covered
below but rather in their respective
chapters.
Sabbath mode S
Sabbath mode can be selected to
facilitate religious customs.
In Sabbath mode, many functions are
deactivated and cannot be selected.
– The interior lighting does not come
on when the door or a freezer drawer
is opened.
– The fan stays in its last setting.
– The door alarm is deactivated.
– The temperature alarm is
deactivated.
The cooling performance of the
appliance is not affected.
Sabbath mode is automatically
deselected after approx. 120 hours.
You can deactivate Sabbath mode
yourself
When in Sabbath mode, the
appliance cannot be turned off.
Either deselect Sabbath mode or pull
the plug.
A power failure would not be
indicated in Sabbath mode. After a
power failure the appliance goes
back to Sabbath mode.
Additional Settings
60
Turning Sabbath mode On / Off
^ Press and hold the SuperCool button
for the freezer section On / Off button
for 5 seconds.
The SuperCool indicator ª to the right
of the display is on during this time, and
after 5 seconds S flashes in the lower
temperature display (freezer section).
The display shows MENU. You are now
in settings mode.
^ Touch the Super button again.
The following will appear in the display:
– 51(Sabbath mode is activated), or
– 50(Sabbath mode is deactivated).
^ Touch the Super button again to
confirm your selection.
The display shows "S" when the
appliance is in Sabbath mode. The
interior lighting goes out and the
display and the symbols on the control
panel go out.
^ To leave the settings mode, touch the
button for turning the freezer section
on and off.
If not manually deactivated, Sabbath
mode is automatically deselected after
approx. 120 hours.
Safety lock c
The safety lock can be activated to
prevent the appliance being turned off
inadvertently.
Turning the safety lock On / Off
^ Press and hold the SuperCool for the
freezer section On / Off button for 5
seconds.
The SuperCool indicator ª to the right
of the display is on during this time, and
after 5 seconds S flashes in the lower
temperature display (freezer section).
The display shows MENU. You are now
in the settings mode.
^ Tap the button for setting the
temperature in the freezer section
until a flashing
c appears in the
lower temperature display.
^ Touch the Super button again.
The following will appear in the display:
– c1(Safety lock is activated), or
– c0(Safety lock is deactivated).
Additional Settings
61
^ Touch the Super button again to
confirm your selection.
0 appears in the control panel when
the safety lock is activated.
^ To leave the settings mode, touch the
button for turning the freezer section
on and off.
Temperature unit (Fahrenheit
or Celsius) §
The temperature can be displayed in
Fahrenheit (°F) or Celsius (°C).
The factory default is Fahrenheit.
Selecting the temperature unit
^ Press and hold the SuperCool button
for the freezer secion On / Off button
for 5 seconds.
The SuperCool indicator ª to the right
of the display is on during this time, and
after 5 seconds S flashes in the lower
temperature display (freezer section).
The display shows MENU. You are now
in the settings mode.
^ Tap the button for setting the
temperature in the freezer section
until a flashing § appears in the lower
temperature display.
^ Touch the Super button again.
The following will appear in the display:
– §C(Temperature display in Celsius),
or
– §F(Temperature display in
Fahrenheit).
^ Touch the Super button again to
confirm your selection.
The temperature is now displayed in
the selected unit.
^ To leave the settings mode, touch the
button for turning the freezer section
on and off.
Additional Settings
62
Brightness of the display ^
You can adjust the brightness of the
display to suit the light conditions in the
room.
There are five different brightness
settings. The factory default setting is 5
(maximum brightness).
Changing the brightness of the
display
^ Press and hold the SuperCool button
for the freezer section On / Off button
for 5 seconds.
The SuperCool indicator ª to the right
of the display is on during this time, and
after 5 seconds S flashes in the lower
temperature display (freezer section).
The display shows MENU. You are now
in the settings mode.
^ Press and hold the buttons for setting
the temperature in the freezer section
until a flashing
^ appears in the
lower temperature display.
^ Touch the Super button again.
The display shows ^0to ^5:
– ^0: lowest brightness level
– ^5: highest brightness level.
^ You can change the brightness within
levels 0 to 5 by tapping the button for
setting the temperature in the freezer
section.
^ Touch the Super button again to
confirm your selection.
^ To leave the settings mode, touch the
button for turning the freezer section
on and off.
Additional Settings
63
Lower hinge heating control H
If condensed water appears in the
lower hinge area or on the base plate
between the refrigerator and freezer
compartments, increase the output of
the heating located behind the base
plate.
Factory default is HA.
Condensation does not occur at
normal room temperature and
humidity. The heating prevents
condensation at high humidity and
low room temperature.
Changing the heat setting
^ Press and hold the SuperCool button
for the freezer section On / Off button
for 5 seconds.
The SuperCool indicator ª to the right
of the display is on during this time, and
after 5 seconds S flashes in the lower
temperature display (freezer section).
The display shows MENU. You are now
in the settings mode.
^ Tap the button for setting the
temperature in the freezer section
until a flashing H appears in the lower
temperature display.
^ Touch the Super button again.
The following will appear in the display:
– HA: select this if there is only little
condensation,
– H1: select this if there is a lot of
condensation,
– H0: select this if there is no
condensation (heating off).
^ Change the heat setting by tapping
the button for setting the temperature
in the freezer section.
^ Touch the Super button again to
confirm your selection.
^ To leave the settings mode, touch the
button for turning the freezer section
on and off.
Additional Settings
64
Different storage zones
Due to the natural circulation of the air
in the appliance, there are different
temperature zones in the refrigerator.
Cold, heavy air sinks to the lowest
section of the appliance. Make use of
the different zones when placing food
in the appliance.
This appliance has dynamic cooling,
which helps to keep an even
temperature when the fan is running.
For this reason, the difference
between the various zones is less
pronounced.
Warmest area
The warmest areas in the refrigerator
are in the top section towards the front
and in the top of the door. Use this for
storing butter and cheese.
Coldest area
The coldest areas in a refrigerator are
directly above the vegetable containers
and next to the back wall.
Use this for all delicate and highly
perishable food, such as:
– fish, meat, poultry,
– cold cuts, ready-made meals,
– dishes or baked goods containing
eggs or cream,
– fresh doughs and cake batters,
– dairy products,
– pre-packed vegetables and other
fresh food whose best-before date
requires storage at a temperature of
at least 39°F (4°C).
Using the Refrigerator Efficiently
65
WARNING!
Danger of fire
Do not use small electric appliances
inside the food storage
compartments of the appliance,
unless recommended by the
manufacturer.
Do not store explosive materials in
the appliance or any flammable
products (e.g. spray cans).
Danger of explosion!
If you store food containing oil or fat
in the appliance or in the refrigerator
door, make sure that fat or oil does
not drip on the plastic components
of the appliance.
Traces of oil can cause stress
cracks and breaking or cracking of
the plastic components.
Do not allow food to touch the back
wall of the appliance, as it may
freeze to the back wall.
To allow air to circulate efficiently,
do not pack food too closely
together.
Do not cover the fan in the rear wall
- this is important for cooling
performance!
Using the Refrigerator Efficiently
66
Adjusting the shelves
The shelves can be adjusted according
to the height of the food.
^ Lift the shelf at the front, pull it
forwards slightly, lift the recess over
the support ribs and move the shelf
up or down.
The edge of shelf's rear stop must face
upwards so that food does not touch
the rear wall and freeze to it.
Stops prevent the shelves from being
pulled out accidentally.
Shelf above the fruit and
vegetable drawers
The shelf above the fruit and vegetable
drawers can be removed for cleaning.
^ Lift the shelf at the front, pull it
forwards slightly to lift the stops, and
slowly pull the shelf out.
^ Lift the shelf at the front, pull it
forwards slightly to lift the stops, and
slowly pull the shelf out.
Fruit and vegetable drawers
The fruit and vegetable drawers can be
removed for loading and unloading or
for cleaning.
^ Pull the drawer forward, then lift it up
and out of the appliance.
Then push the rails back into the
appliance to avoid any damage.
To insert the drawer,
^ place the drawer on the completely
extended rails. The rails must be in
contact with the front of the drawer!
^ Push the drawer in.
Arranging the Interior - Refrigerator Section
67
Adjusting the door shelf /
bottle shelf
^ Lift the hanging container up and out
of the stainless steel support frame.
^ Push the stainless steel support
frame up and remove it by pulling it
forward.
^ Replace the stainless steel support
frame at the desired location. Make
sure that it is securely pushed back
into position.
^ Place the hanging container into the
stainless steel frame.
The hanging containers can be
removed for loading and unloading and
then replaced.
The hanging containers with the food
can be placed directly on the table for
serving.
Adjusting the bottle divider
The bottle divider can be moved to the
left or right. This holds the bottles more
securely in position when the door is
opened and closed.
The bottle divider can be removed
completely (e.g. for cleaning):
^ Slide the front edge of the bottle
divider up and lift the bottle divider
out.
Arranging the Interior - Refrigerator Section
68
WARNING!
Danger of fire
Do not use small electric appliances
inside the food storage
compartments of the appliance,
unless recommended by the
manufacturer.
Maximum freezing capacity
To ensure that fresh food placed in the
freezer freezes through to the core as
quickly as possible, the maximum
freezing capacity must not be
exceeded. The maximum freezing
capacity within a 24-hour period is
listed on the data plate as "Freezing
capacity ...lbs/24 hrs".
Freezing fresh food
Fresh food should be frozen as quickly
as possible so that the nutritional value
of the food, its vitamin content,
appearance and flavor are maintained.
^ Place frozen food in the freezer im-
mediately upon returning home.
Never re-freeze partially or
completely thawed food. However,
once thawed food has been
thoroughly cooked you may freeze it
again.
24 h before freezing
^ When freezing more than 4 lbs (2 kg)
of fresh food, turn on SuperCool ª
24 h before (see "Using SuperCool
for the freezer section").This will
protect the food that is already in the
freezer with an added boost of cold.
Placing food in the freezer
When freezing, ensure that already
frozen food does not come into
contact with fresh food being frozen
so that the frozen food does not start
to thaw.
^ When placing items in the freezer,
ensure that the packaging and
containers are dry to prevent them
from sticking together when frozen.
Freezing and Storing Food
69
Thawing frozen foods
Frozen food can be thawed in various
ways:
– in the microwave,
– in a regular oven, using the "fan" or
"defrost" setting,
– at room temperature,
– in the refrigerator (as it thaws, the
frozen food will help cool the other
food in the refrigerator),
– in the refrigerator (as it thaws, the
frozen food will help cool the other
food in the refrigerator),
Flat pieces of partially thawed meat or
fish can be placed directly into a hot
skillet.
Pieces of meat and fish (e.g. ground
meat, chicken, fish fillet) should not
come into contact with other food while
thawing. Collect the thawed water and
dispose of it carefully.
Fruit can be thawed at room
temperature, either in the packaging or
in a covered bowl.
Most vegetables can be cooked while
still frozen. You can place them directly
in simmering water or hot oil. Because
of changes in the cell structure, the
cooking time is slightly shorter than for
fresh vegetables.
Never re-freeze partially or
completely thawed food. However,
once thawed food has been
thoroughly cooked you may freeze it
again.
Cooling drinks quickly
Bottles that are put in the freezer for
quick cooling must be removed within
one hour. Otherwise, they could burst.
Freezing and Storing Food
70
For the automatic ice cube maker to
operate it must be connected to the
household water supply.
Turning the ice cube maker On
^ If not done yet open the water supply
to the ice cube maker.
^ Turn the freezer section On.
^ Touch the button for turning the ice
cube maker on and off so that the
indicator light of the ice cube maker
® comes on.
Ice cubes can only be produced if
both freezer drawers are completely
closed.
After the ice cube maker is turned on
for the first time it can take up to 24
hours for the first ice cubes to drop out
of the ice cube maker into the drawer.
Do not consume or use the first
three batches of ice. This applies
both to using the appliance for the
first time and also using it after it has
not been used for a long period of
time.
The ice cube maker can make up to
120 ice cubes in 24 hours (if the
temperature in the freezer section is 0°F
(-18°C).
When the ice reaches a certain level in
the drawer, the appliance stops
producing ice automatically.
If the indicator light of the ice cube
maker ® flashes, the ice maker is
not being supplied with water. Check
if the shut off valve of the water
supply is opened.
Making larger quantities of ice cubes
The amount of ice cubes that the
appliance makes in 24 hours depends
on the temperature in the freezer
section. Select SuperCool ª if you want
to increase the production rate (up to
150 cubes in 24 hours). However, this
will also increase the energy
consumption of the appliance.
The ice cube maker starts producing
again as soon as the drawer is closed.
Making Ice Cubes
71
Turning the ice cube maker Off
The ice cube maker can be turned off
independently of the freezer section if
you do not want to make any ice cubes.
^ Touch the button for switching the ice
cube maker on and off so that the
indicator light of the ice cube maker
®goes out.
When the ice cube maker will be
turned off for a long period of time:
^ Shut off the water supply to the ice
cube maker.
When the ice cube maker LED ®
starts blinking, the remaining water in
the supply line is in the ice cube
maker.
Leave the ice cube maker on and
working for one day so that the
remaining ice cubes are ejected.
^ Turn off the Ice maker.
^ Remove all ice cubes from the
drawer and dispose of them.
Setting the water quantity for
the ice cube tray E
The size of the ice cubes that are
produced depends on the quantity of
inflowing water.
The quantity of inflowing water can be
adjusted to make larger ice cubes.
^ Press and hold the SuperCool button
for the freezer section On / Off button
for 5 seconds.
The SuperCool indicator ª to the right
of the display is on during this time, and
after 5 seconds S flashes in the lower
temperature display (freezer section).
The display shows MENU. You are now
in the settings mode.
^ Press and hold the button for setting
a higher or lower temperature in the
freezer section until a flashing E
appears in the lower temperature
display.
^ Touch the Super button again.
E3 appears in the temperature display
(factory default).
The water quantity can be set between
E1 (lowest water quantity) and E8
(highest water quantity).
Making Ice Cubes
72
^ You can change the water quantity
within levels 1 to 8 by tapping the
button for setting the temperature in
the freezer section.
^ We recommend increasing the water
quantity by one level only (first to E4)
and then check whether the ice
cubes are big enough.
Do not increase by more than one
step. If the adjusted size is too big,
the ice cube tray of the ice maker
could overflow.
^ Touch the Super button again to
confirm your selection.
^ Touch the button for turning the
freezer section on and off to leave the
settings mode.
Check the ice cube size in the following
days. If the ice cubes are still smaller
than desired, follow the above steps
again.
Making Ice Cubes
73
Adjusting the separators
Arranging the Interior - Freezer Section
Freezer drawers
Both freezer drawers can be used for
freezing and storing food.
The ice cube maker is located above
the upper drawer on the right side.
The ice cube container can be easily
removed if required.
If you wish to use the whole of the top
freezer drawer for storing food, re-
move the ice cube cube container
and turn off the ice cube maker.
Pull the lower freezer drawer out.
Lift the dividing grill upwards and off
and move it to the right or left, de-
pending on your requirements.
The lower freezer drawer is used for
freezing fresh food and storing frozen
food. The drawer can also be used to
store ice cubes.
The dividing grille in the lower freezer
drawer can be repositioned according
to your wishes:
74
Removing the freezer drawer
containers
You can remove the freezer drawer
containers for better cleaning.
^ Lift the container at the front left and
right (1) and push it slightly
backwards (2).
^ Lift the container out.
^ Replace the container by reversing
the removal procedure.
Arranging the Interior - Freezer Section
75
WARNING! Risk of injury and
damage.
Do not use other means to
accelerate the defrosting process,
other than those recommended by
the manufacturer.
Refrigerator section
The refrigerator defrosts automatically.
During normal operation, condensate
and frost can form on the back wall of
the refrigerator section. You do not
need to remove this, as it will defrost
and evaporate automatically with the
warmth generated by the compressor.
The condensate is drained away
through a channel and drain hole, then
fed into an evaporation system at the
back of the appliance.
Freezer section
The appliance is equipped with a
"NoFrost" system for automatic
defrosting as needed.
The moisture generated in the
appliance collects on the condenser,
and is automatically defrosted and
evaporates periodically.
^ This automatic defrosting system
keeps the freezer section
permanently ice-free, while ensuring
that the food stored in the freezer
section does not thaw.
Defrosting
76
WARNING!
Danger of electric shock.
Unplug refrigerator or disconnect
power.
Danger of fire.
Do not damage the coolant circuit.
Do not let water get into the
electronic unit or the lighting, or on
the metal contacts in the left-hand
shelf support.
Cleaning water must not get into the
drain hole.
Do not use a steam cleaning
apparatus to clean the appliance.
Steam could reach the electrical
components and cause a short
circuit.
The data plate located inside the
appliance must not be removed. It
contains important information that is
required in the event of a service call.
Cleaning agents
To better maintain your appliance
avoid the following:
– cleaning agents containing soda,
ammonia, acid or chloride,
– cleaning agents containing soda,
ammonia, acid or chloride,
– abrasive cleaning agents e.g.
scouring powder or scouring cream
cleansers, pumice stone,
– abrasive cleaning agents e.g.
scouring powder or scouring cream
cleansers, pumice stone,
– stainless steel cleaners,
– dishwasher cleaner,
– oven sprays,
– glass cleaners,
– abrasive hard sponges and brushes
such as pan scrubbers,
– magic erasers,
– sharp metal scrapers.
Glass cleaners may be used to clean
the exterior. However do not allow
them to sit or "puddle", this can cause
damage to the surface. Remove the
cleaner promptly.
Use a mild solution of warm water and
liquid dish soap.
The following pages contain
important information on cleaning.
Cleaning and Care
77
Before cleaning
^ Turn the appliance off.
The display goes dark and the
cooling is turned off.
If this is not the case, the safety lock
is on (see "Additional settings -
Turning the safety lock on and off).
^ Unplug the power cord from the
outlet or trip the circuit breaker.
^ Take any food out of the appliance
and store it in a cool place.
^ Take all removable parts out for
cleaning.
Cleaning the interior and
accessories
Clean the appliance at least once a
month.
Remove any soiling immediately so
that it does not dry up.
^ Clean the interior and the
accessories using a mild solution of
warm water and liquid dish soap.
After cleaning, wipe everything with
clean water, then dry with a soft
cloth.
^ Leave the appliance doors and
drawers open for a short time.
The accessories are not dishwasher
safe.
Door seal
Do not use any grease or oil on the
door seal as this will cause the seal
to deteriorate over time.
^ The door seal should be cleaned
regularly with clean water and then
wiped thoroughly dry with a soft
cloth.
Ventilation slits
^ The ventilation slits should be
cleaned on a regular basis with a
brush or vacuum cleaner. A build-up
of dust will increase the amount of
energy the appliance consumes.
Cleaning and Care
78
Cleaning the air filter [
^ The air filter should be cleaned when
the air filter symbol [ on the control
panel comes on.
^ Remove the cover with the ventilation
slits. No tools are required.
^ Push the latch of the air filter
downwards and take it out.
^ Clean the air filter in the dishwasher
or by hand with
warm water and
liquid dish soap.
^ Replace the air filter by reversing the
removal procedure.
^ Replace the cover with the ventilation
slits.
^ Reset the air filter indicator [ as
follows:
Cleaning and Care
The reminder to change the air filter will
be displayed at the latest every 6
months.
If the indicator light for the air filter
lights up in the control panel, the air fil-
ter needs to be cleaned.
79
Resetting the air filter indicator
[ n
The air filter indicator [ must be reset
after each filter cleaning.
^ Press and hold the SuperCool button
for the freezer section On / Off button
for 5 seconds.
The SuperCool indicator ª to the right
of the display is on during this time, and
after 5 seconds 5 flashes in the lower
temperature display (freezer section).
The display shows MENU. You are now
in the settings mode.
^ Tap the button for setting the
temperature in the freezer section
until a flashing n appears in the lower
temperature display.
^ Touch the Super button again.
n0appears in the temperature display
and [ lights up on the control panel.
^ Touch the Super button again to
confirm your selection.
n appears in the temperature display
and the [ indicator on the control
panel goes out. The air filter indicator is
now reset.
^ Touch the button for turning the
freezer section on and off to leave the
settings mode.
After cleaning
^ Replace all shelves and accessories
in the appliance.
^ Plug in the power cord and turn the
appliance On.
^ Turn on SuperCool ª to cool down
the freezer section quickly.
^ Turn on SuperCool ª for a while to
cool down the refrigerator section
quickly.
^ Place food back in the refrigerator
section, close the appliance door.
^ Once the temperature in the freezer
section is cold enough, you can
place the food in the freezer drawers
and return the drawers to the freezer.
^ Turn off SuperCool ª as soon as the
freezer section has reached a
constant temperature of at least 0°F
(-18°C).
Cleaning and Care
80
You can easily resolve many of the minor problems you may encounter during
everyday use. With the aid of the following guide, the cause of a problem can be
found and eliminated.
If necessary, contact Miele Technical Service for assistance.
To prevent cold from escaping, open the appliance doors as little as possible until
the fault has been corrected.
Repairs should only be carried out by a qualified and trained person in strict
accordance with local and national safety regulations. Unauthorized repairs
could cause personal injury or machine damage and may void the warranty.
Problem Possible cause Solution
The appliance does
not get cold, the
interior lightning
does not come on
when the door
opens, and the
display is dark.
The appliance is not turned
on.
^ Turn the appliance On.
The plug is not properly
plugged into the electrical
outlet.
^ Insert the plug into the
electrical outlet.
The circuit breaker has
tripped. The fridge/freezer,
the power supply or
another appliance could be
defective.
^ Contact a qualified
electrician or Miele
Technical Service for
assistance.
Frequently asked questions
81
The compressor runs more and more often and for longer periods of time,
the temperature in the appliance drops.
Problem Possible cause Solution
The temperature in
the appliance is too
low.
The temperature in the
appliance is too low.
^ Correct the temperature
setting.
The freezer drawers are not
closed all the way.
^ Check that the drawers
are closing properly.
A large amount of food is
being frozen at once.
^ A large amount of food is
being frozen at once.
SuperCool is still on in the
refrigerator section.
SuperCool automatically
shuts off after approx. 6
hours.
To save energy, you can
turn SuperCool off yourself.
SuperCool is still on in the
freezer section. SuperCool
automatically shuts off after
approx. 30 - 65 hours.
To save energy, you can
turn SuperCool off yourself.
Frequently asked questions
82
Problem Possible cause Solution
The ventilation slits in the
base of the appliance are
blocked or dusty.
^ Do not block the
ventilation slits.
^ Clean the ventilation slits
on a regular basis.
The door or the drawers
were opened frequently, or
a large amount of fresh food
was put in all at once for
freezing.
^ Only open the doors or
the drawers when
necessary and for as
short a time as possible.
After a while the
temperature will return to
normal on its own.
The appliance door or
freezer drawers are not
closed all the way.
A thick layer of ice may
have developed in the
freezer section.
^ Close the appliance door
or the freezer drawers.
After a while the
temperature will return to
normal on its own.
If a thick layer of ice has
formed, it will decrease the
cooling performance and
increase the energy
consumption.
^ Defrost the the freezer
section and clean it.
The room is too warm.
The higher the room
temperature, the longer the
compressor has to run.
^ See "Installation -
Location".
The appliance was not
properly installed in the
niche.
^ See "Installing the
appliance".
Frequently asked questions
83
The compressor comes on less and less often and for shorter periods of
time, the temperature in the appliance rises.
Problem Possible cause Solution
The temperature in
the appliance is too
high.
This is not a fault.
^ Correct the temperature
setting.
^ Check the temperature
again after 24 hours.
The food begins to
thaw.
The room temperature is
too low for this appliance.
The compressor runs less
often if the room
temperature is too low.
Therefore it may become
too warm in the freezer
section.
^ See "Installation -
Location".
^ Increase the room
temperature.
Indication in the display
Problem Possible cause Solution
The temperature
display for the
freezer section
shows two dashes.
The temperature is only
displayed if it is below 32°F
(0°C).
^ Check the temperature
display approx. 6 hours
after the appliance is
turned on.
The temperature in the
appliance rose to above
32°F (0°C) in the past days
or hours because of a
power outage.
^ Solution on the next page.
Frequently asked questions
84
Indication in the display
Problem Possible cause Solution
The power outage t
indicator is on and
the temperature
indicator for the
freezer section
flashes.
The temperature in the
appliance rose too much in
the past days or hours
because of a power
outage.
The appliance will go back
to the last temperature
setting when the power is
back on.
^ Touch the Alarm button.
Now the highest
temperature that occurred
in the freezer section during
the power outage is
displayed.
The highest temperature will
appear in the display for
approx. 1 minute. Then the
display will revert to the
actual current temperature
in the freezer section.
^ Depending on the
temperature, check to
see whether the food in
the freezer thawed
partially or completely.
Food that thawed
(whether partially or
completely) must not be
re-frozen until it has been
thoroughly cooked.
^ Touch the Alarm button
again.
The power outage t
indicator goes out.
The display shows
"F1" to "F5".
The appliance has a fault.
^ Contact Miele Technical
Service.
Frequently asked questions
85
Interior lighting
Problem Possible cause Solution
The interior lighting
is not working.
The interior lighting
automatically switches off if
the door has been open for
approx. 15 minutes.
If that is not the reason, then
there is a problem.
^ Contact Miele Technical
Service.
The LED lighting may only
be repaired by Miele. There
are current-carrying parts
behind the light cover. Risk
of injury or damage to the
appliance!
The light cover must not
be removed! If the cover
is damaged or absent
due to damage –
Caution! Do not examine
the light (class 1M laser
radiation) with optical
instruments (magnifying
glass, etc.)!
Frequently asked questions
86
Additional problems
Problem Possible cause Solution
Food has frozen
together or to the
wall.
The food packaging was
not dry when loaded in the
freezer.
^ Use a blunt instrument
(such as a spoon handle)
to carefully pry them
apart.
The appliance
cannot be turned
off.
The safety lock is activated.
The 0 indicator on the
control panel is on.
^ Turn the safety lock off
(see "Settings - Turning
the safety lock on and
off").
Frequently asked questions
87
Problems with the ice cube maker
Problem Possible cause Solution
The ice cube maker
will not turn on.
The appliance is not
connected to the power
supply or is not turned on.
^ Plug in the power cord
and turn the appliance
On.
The ice cube maker
does not produce
any ice cubes.
The appliance or the ice
cube maker is not turned
on.
^ Turn the appliance and
the ice cube maker on.
The water supply line is not
open.
^ Open the water supply.
The freezer drawers are not
closed properly.
^ Close both freezer
drawers properly.
The temperature in the
freezer section is too high.
^ Select a lower
temperature.
If the indicator light
of the Ice cube
maker ® flashes.
The ice cube maker is not
being supplied with water.
^ Check if the shut off valve
of the water supply is
opened.
The ice cubes have
an unpleasant odor
or flavor
The ice cube maker is not
used very often. Ice cubes
that are stored for a long
period can absorb the taste
and smell of other items.
^ Remove all ice cubes from
the drawer.
There are unsealed
packages in the freezer
section.
Ice can absorb the taste
and smell of unsealed food.
^ Store only sealed food in
the freezer section.
The ice cube drawer is dirty
^ Clean the ice cube
drawer.
Frequently asked questions
88
Normal noises What causes them
Brrrrr... This noise may get louder for brief periods when the motor
kicks on.
Blub, blub.... A gurgling noise can be heard when the refrigerant circulates
through the pipes.
Click.... Clicking sounds occur whenever the thermostat turns the
motor on or off.
Sssrrrrr.... In multi-section and frost-free appliances, the movement of
air circulating through the appliance can sometimes just
barely be heard.
In appliances with a water tank, a humming noise can be
heard when the water pump is running.
Crack... A cracking noise can be heard when the appliance materials
expand.
Keep in mind that a certain amount of noise is unavoidable (from the compressor
and the refrigerant circulating through the system).
Noises that you
can easily
eliminate
Possible cause Solution
Rattling, clinking The appliance is not level. Realign the appliance using a
level, by raising or lowering
the screw feet underneath the
appliance.
The appliance is touching
another appliance or piece of
furniture.
Move it away.
Drawers, baskets or shelves
are jiggling or are stuck.
Check all removable items
and refit them correctly.
Bottles or containers are
touching.
Separate them.
The transport cord clips are
still hanging on the back of the
appliance.
Remove the cord clips.
Noises
89
After sales service
Technical service
In the event of a fault which you cannot
easily correct yourself, please contact:
-your Miele dealer or
-Miele Technical Service.
Contact details can be found in the
back of these operating and installa-
tion instructions.
Please quote the model and serial num-
ber of your appliance when contacting
Miele.
This information is given on the data
plate inside your appliance.
Warranty
For additional information, please refer
to your warranty booklet.
See the end of these operating and in-
stallation instructions for this tele-
phone number.
90
91
92
93
94
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
1-800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 12 186 580 / 02
KFN 9859 iDE
en - US, CA
