Orbit WaterMaster
Brass Impact Sprinkler 1/2" Series.

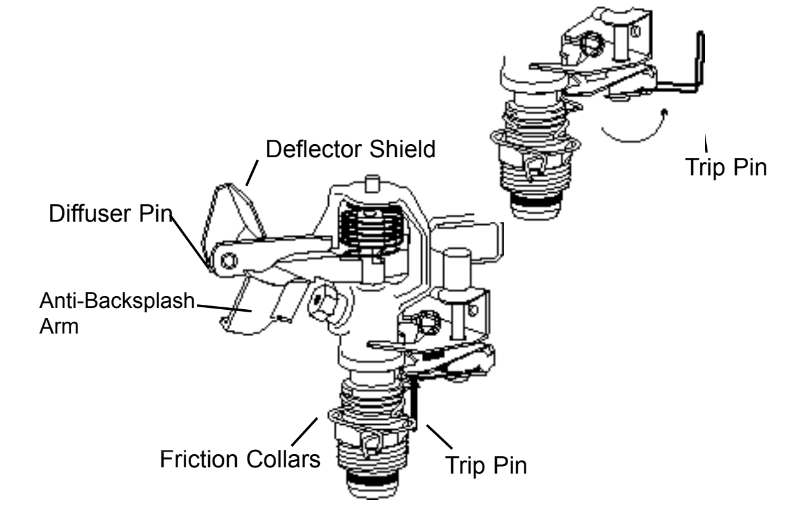

Adjusting the Distance of Spray.
The distance of spray can be adjusted with the following methods:
1. Diffuser Pin Assembly.
Screw deffuser pin into stream to reduce coverage.
2. Deflector Shield Assembly.
Push deflector shield into stream to reduce coverage.
Anti-Backsplash Arm.
The Anti-Back Splash Arm is designed to prevent water from spraying outside of the desired pattern area.
Adjusting the Pattern of Spray.
The spray pattern can be adjusted with the following methods:

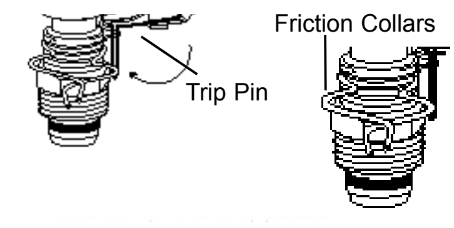

1. Partial Circle Coverage.
Push the trip pin to the down position. Slide the fric- tion collars to adjust any portion of a 360 degree circle.

2. Full Circle Coverage
Move the Trip Pin to the up position.

CAUTION:
For outdoor use with cold water only
Do not spray near electrical connections
Orbit: Irrigation Products
North Salt Lake, UT 84054
Made in Taiwan
