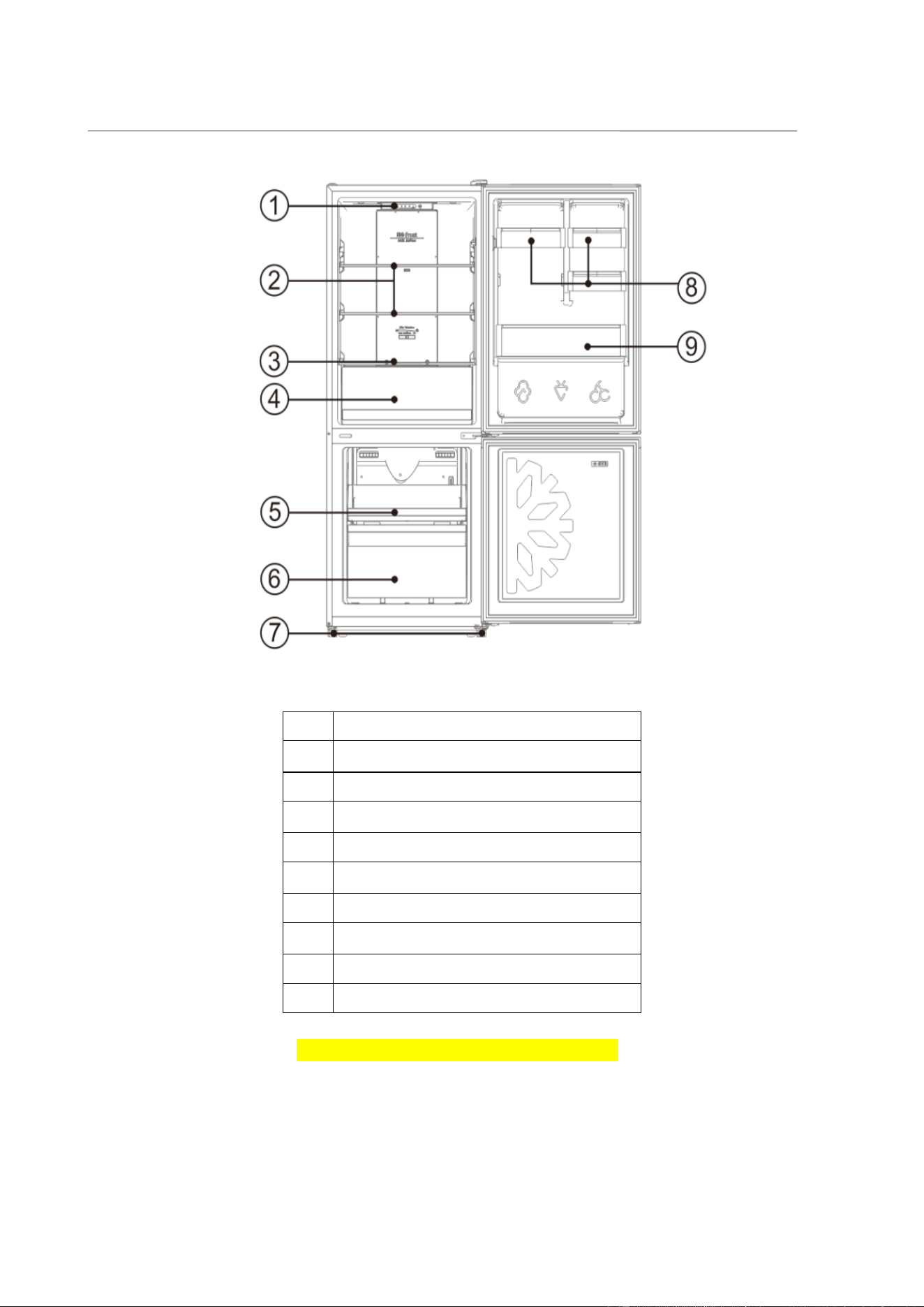

PART NAMES AND LOCATIONS
IN ACCESSORY BAG: USER MANUAL, WARRANTY CARD
As the manufacturer holds the authority to redesign or modify its products without
notice: Any modifications or upgrades of our products will result in this refrigerator
varying slightly from this manual, but the functionality will remain the same to
that as set out within this manual.
No
Description
1
Control Panel
2
Refrigerator Glass Shelves
3
Glass Crisper Cover
4
Crisper
5
Freezer Tray
6
Bottom Freezer Drawer
7
Adjust Feet
8
Refrigerator Door Shelves
9
Bottle Shelf
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Follow these basic precautions to reduce the risk
of fire, electrical shock hazards or injury when
operating the refrigerator:
• This product has been designed for using in a normal domestic
environment. It is not intended for commercial use which will avoid
warranty, such as supermarket, food shop, pharmacy, commercial
kitchen & etc.
• Persons with lack of experience and knowledge, reduced physical or mental
capabilities, need to be given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
• It is critical use this appliance safely. Read all instructions before operating the
refrigerator and do not attempt to repair or modify this unit in any way as it
can cause harm or void the warranty.
• Please ensure all persons using this appliance are also informed and comply
with the details set out within this manual and the product Terms and
Conditions.
• When unpacking the appliance for the first time, keep all cardboard and plastic
packaging out of reach from children.
• Report any notable defects with the appliance to Chiq or retailer as soon as it is
noted. Failure to do so can result in a non-warranty claim. Keep all packaging
materials in a safe location until the unit has been installed properly.
• If the supplied power cord of this unit is damaged, it must be replaced by
qualify service agent or similarly qualified persons in order to avoid any risk of
injury. It is recommended the power cord is situated in a safe location when
operating or transporting the appliance to prevent any damage that may cause
electrical shock or fire hazards.
• DANGER or WARNING:
This unit is not designed for outdoor installation.
3
Service of this unit
The installation or any service of the appliance is recommended by a qualified
technician or service company.
Ventilation Hazards
Never clean the refrigerator or refrigerator parts with flammable fluids, or store
gasoline or any other flammable vapors and liquids in the vicinity of this or any
other refrigerator as the gas and/or vapour can cause a fire hazard, explosion
or inhalation.
Electrical Connection
Make certain, when installing or moving the unit that the power outlet has
been connected to, has been fitted by a qualified electrician and the ground
wire has been connected properly to meet the Australian Electrical Standards.
R600a WARNINGS
NOTE: This model uses R600a flammable refrigerant in its sealed system.
The following must be observed for your safety:
R600a Refrigerant Warning
• This appliance contains 0.052kg R600a refrigerant which is
environmentally friendly, but flammable. It does not damage the ozone
layer, nor does it increase the greenhouse effect.
• During transportation and installation, ensure that the tubing of the
refrigerant circuit is not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fires and
any device which creates a spark. Disconnect the appliance from the
mains power.
• Thoroughly ventilate the room in which the appliance is located for
several minutes.
• Notify Customer Service for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per
8 grams of refrigerant. The refrigerant quantity contained in this
appliance is listed above in grams; it is also noted on the Rating Plate of
the appliance.
* Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Warning: Risk of fire/ Flammable materials
4
It is hazardous for anyone other than an Authorised Service Person to carry out servicing
or repairs to this appliance. In Queensland the authorized person must hold a Gas Work
Authorisation for hydrocarbon refrigerants, before carrying out servicing or repairs which
involve the removal of covers.
1. Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
2. Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
3. Do not damage the refrigerant circuit.
4. Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
5. Do not store explosive substances such as aerosol cans with flammable propellant in
the appliance.
6. WARNING: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
7. WARNING: Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance
Disposal
The environment and personal safety must be considered when disposing of this
appliance. Please ensure the appliance is taken to a recycle center for safe recycling. DO
NOT dispose of the appliance in land fill as the insulation and refrigerant gas contained
in these appliances are flammable.
5

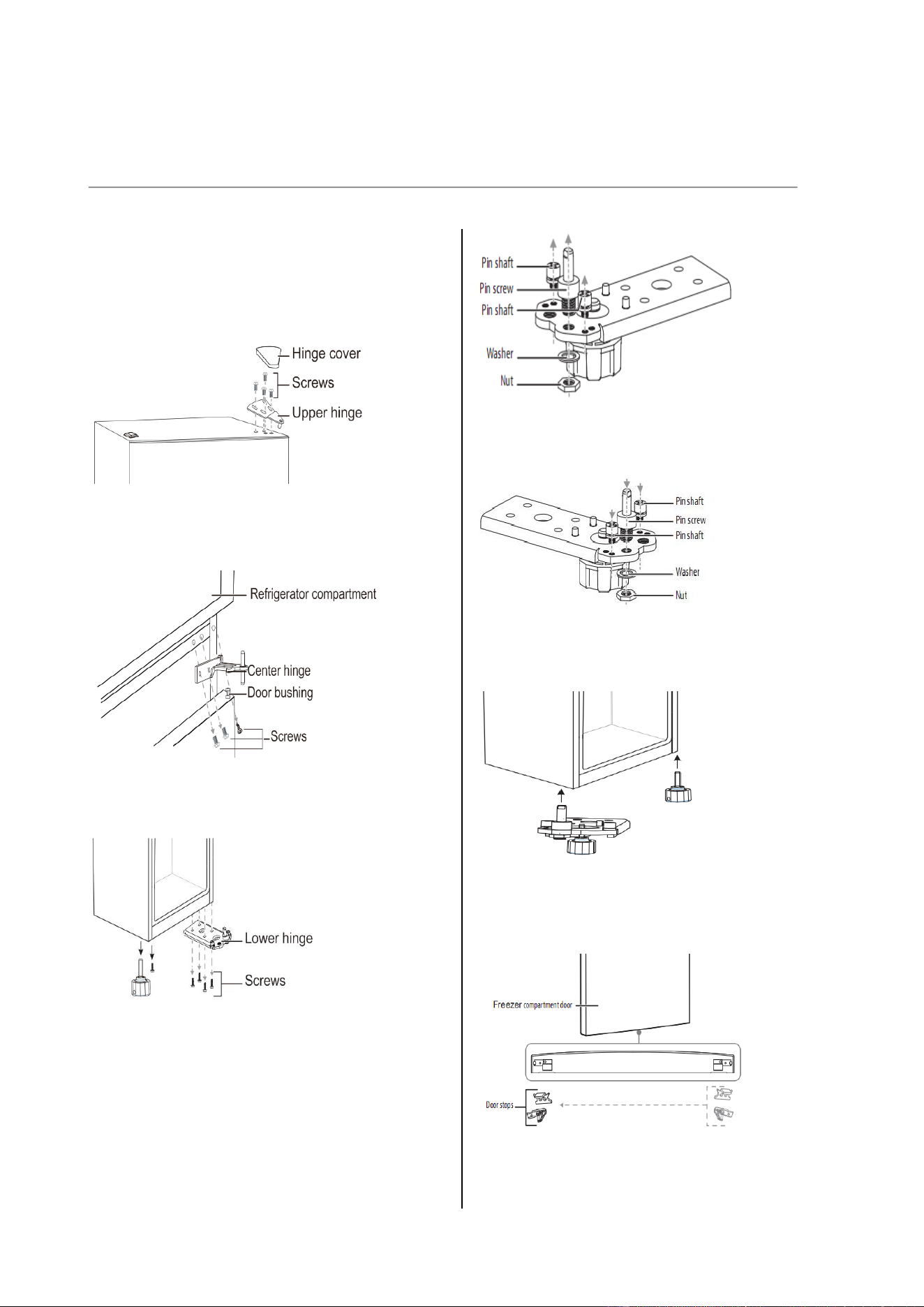

DOOR REVERSAL INSTRUCTION
1. Make sure that your refrigerator is
unplugged.
2. Pry the hinge cover up and off, remove the
screws that secure the upper hinge to the door,
then remove the hinge.
3. Remove the refrigerator compartment door
from the cabinet.
4. Remove the screws that secure the center
hinge.
5.Remove the refrigerator compartment door.
6. Remove the screws that secure the lower
hinge to the right side of the cabinet, then
remove the hinge.
7. Remove the washer and nut that secure the
pin screw to the right hole on the lower hinge,
then remove the pin screw and two pin shafts
from the low hinge.
8. Install the pin screw into the left hole and
insert the pin shafts into the adjacent holes,
then secure the pin screw with the washer and
nut.
9. Install the lower hinge on the left side of the
cabinet and install the adjust foot on the right
side of cabinet.
10. Remove the screw that secures the door
stops from the bottom right of the freezer
compartment door, then
remove the door stops and install them on the
bottom left side.
11. Install the freezer compartment door.

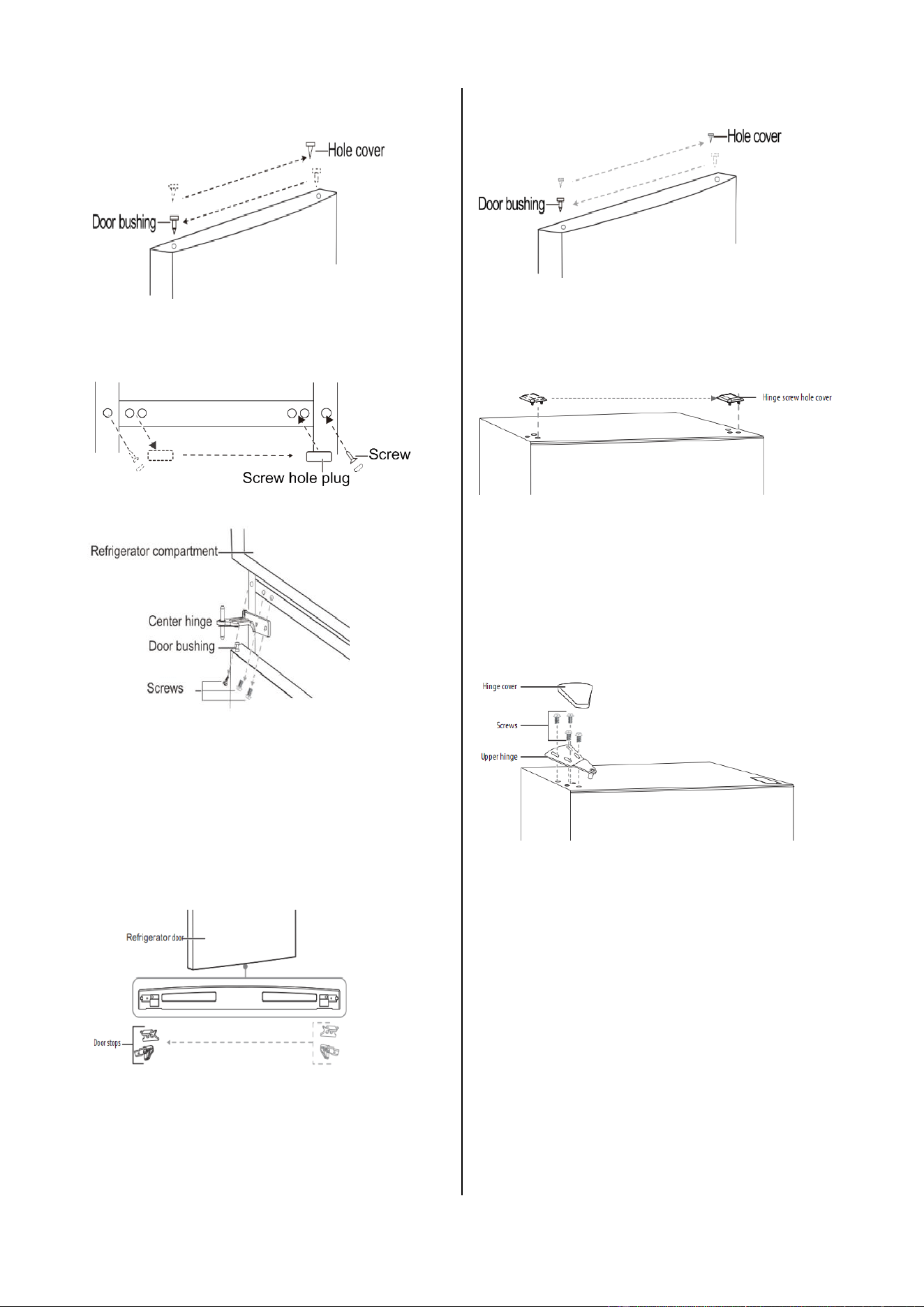

12. Remove the door bushing hole cover on the
top left side of the freezer door, then move the
door bushing from the top right of the door to
6
the top left of the door. Install the hole cover in
the bushing hole on the top right of the door.
13. Remove the center hinge screw hole plugs
on the left side of the cabinet, then install the
plugs in the screw holes on the right side of the
cabinet.
14. Install the center hinge to the left side with
the screws you removed previously.
15. Remove the screw that secures the door stops
from the bottom right of the refrigerator
compartment door, then remove the door stops and
install to the bottom left side.
15. Remove the screw that secures the door stops
from the bottom right of the refrigerator
compartment door, then remove the door stops and
install to the bottom left side.
16. Install the refrigerator compartment door.
17. Remove the door bushing hole cover on the top
left side of the refrigerator compartment door, then
move the door bushing from the top right of the door
to the top left of the door. Install the hole cover in
the bushing hole on the top right of the door.
18. Remove the hinge screw hole cover from the top
left side of the cabinet, then install it on the top right
side of the cabinet.
19. Secure the upper hinge to the top left side of the
cabinet with the screws you removed previously.
Before you tighten the upper hinge screws, make
sure that the top of the door is level with the cabinet
and that the rubber gasket makes a good seal.
20. Install the hinge cover over the hinge on the top
left side of the cabinet.
INSTALLATION INSTRUCTIONS
Before Using the Refrigerator
• Remove the exterior and interior packing.
• Before connecting the refrigerator to a power source, let the unit stand upright for
approximately 4 hours to mitigate the possibility of a malfunction in the cooling
system from improper handling during transportation.
• Clean the interior surface with warm water using a soft cloth.

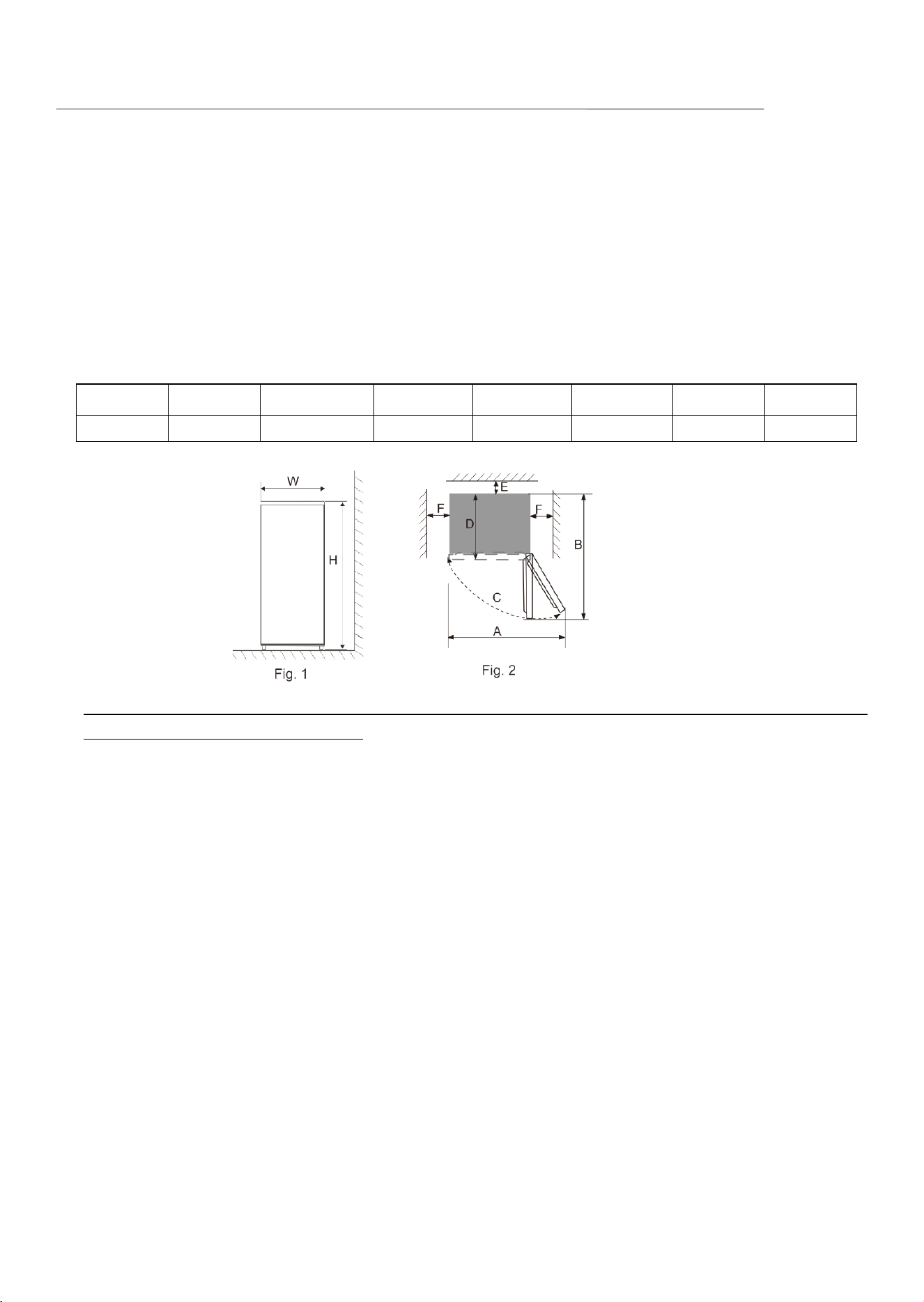

Installing the Refrigerator
• This appliance is designed to be free standing only, and should not be recessed or
built-in.
W
D
H
A
B
C(°)
E
F
475
565
1155
766
997
130
50
100
• Allow at least 5cm of space between the back and sides of the refrigerator to
allow proper air ventilation. Insufficient space will result in cooling and working life
issue and voiding warranty.
• Place the refrigerator on a leveled/even floor surface that is strong enough to
support the weight of the refrigerator when it is fully loaded to prevent vibrations.
• Place the refrigerator on a concrete, tile floor or waterproof floor is
recommended. The fridge will produce defrost water or condensation moisture,
it might cause water damage in some extreme circumstances.
• The front feet can be adjusted to level the appliance properly. Adjust the two
front feet to keep the refrigerator leveled or elevated.
• Situate the refrigerator away from direct sunlight and sources of direct heat (stove,
heater, radiator, etc.). Direct sunlight may also affect the acrylic coating and heat
sources may cause an increase power consumption.
• This unit is not designed for outside installation.
• Avoid situating the refrigerator in moist OR pest infestation areas.
• Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) prong from the power cord.
Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorized service center.
• After plugging the appliance into a wall outlet, turn the unit on and allow the unit to
cool down for 4-6 hours before placing food in the refrigerator.
1
• Do not place heavy items on the top of this appliance.
ENERGY SAVING TIPS
Allow hot foods to cool to room temperature before placing in the refrigerator.
Overloading the refrigerator forces the compressor to work harder. Foods that
freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the
refrigerator. This cuts down on frost build-up inside the refrigerator.
• Organize and label food to reduce door openings and extended searches. Remove as
many items as needed at one time and close the door as soon as possible.
OPERATING INSTRUCTIONS
START
When the refrigerator has power on for the first time, the indicator lights of display area
fully illuminated for 2 seconds.
Temperature adjustment setting
There is a control panel on the top of the fridge compartment.
Temperature can be adjusted by pressing the SET key.
The temperature adjustment cycles in the following mode: 3→2→1→FAST COOL
→5→4→3.
Temp setting on No.5 will be coldest and number 1 will be warmest.
Please note the number doesn’t mean the exact temperature in the fridge. It is just a
temperature setting range.
Adjust the temp setting will change freezer and refrigerator temperature together.
Number 3 setting is recommended for normal use condition.
FAST COOL
The refrigerator can be set on fast cool mode, as to ensure keeping food nutrition and
freshness.
The Fast Cool function can keep working for a maximum period of 30 hours. After that,
it will automatically quit the model and set to previous temp setting.
2
Freezer temperature adjustment
1. When the temperature mode keeps unchanged, adjust the air regulating rod from left
to right, the fridge temperature gets increased while the freezer temperature
decreased.
2. When the temperature mode keeps unchanged, adjust the air regulating rod from
right to left, the fridge temperature gets decreased while the freezer temperature
increased.
3. It is recommended to adjust the air regulating rod in the middle position. When the
user needs a lower freezer temperature, adjust the air regulating rod to the right
properly, then the freezer temperature decreases while the fridge temperature rises.
When the temperature meets the requirement, adjust the air regulating rod back to
the middle position again in a timely manner.
Door open alarm
If the fridge door is open for more than 3 minutes, buzzer alarms will be continuously
issued, which can be stopped when the set key is pressed, but will be restored after 3
minutes if the door keeps open. The alarms will not be lifted until the door is closed.
Power cut memory
In case of power failure, the refrigerator will maintain the operating state before power
failure when power supply is restored.
Power-on delay
In order to protect the refrigerator compressor from being damaged in the case of
short-time power failure (i.e., less than 5 minutes), the compressor will not be started
immediately after it is powered on.
Fault alarm
When the indicator light of Mode 5 or Mode3 or Mode 1 keeps flashing, it indicates
fault with the refrigerator. Please contact the aftersales person for visiting service in
3
such case
Please note different sections of refrigerator compartment may be warmer
or cooler than others – typically the back wall and bottom lowest shelf
will be the coolest, the top door rack will be the warmest. To avoid frost
bite, please don’t put raw vegetables too close to the coolest area.
GENERAL CARE AND MAINTENANCE
Cleaning the Refrigerator
• Upon installation of your new appliance, it is recommended that it be cleaned
thoroughly and properly maintained thereafter.
• Turn off the refrigerator and then unplug the unit from the wall outlet.
• Remove all food content before washing the inside with a damp cloth soaked in
lukewarm water and dishwasher liquid. Don’t use any chemical detergent which
might damage the fridge.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently as
improper cleaning can cause the seal to dislodge and tear.
• Dry the interior and exterior with a soft cloth.
Vacation Time
• Turn off the refrigerator first and then unplug the unit from the power point.
• Remove all food.
• Clean the refrigerator.
• Leave the lid open slightly to avoid possible formation of condensation, mold, or
odors.
• Use extreme caution in the case of children. The unit should not be accessible to
child’s play.
• Short vacations: Leave the refrigerator operating during vacations of less than three
weeks.
• Long vacations: If the appliance will not be used for several months, remove all food
and unplug the power cord. Clean and dry the interior thoroughly. To prevent odour
and mold growth, leave the door open slightly: blocking it open if necessary.
Repositioning and Relocating the Refrigerator
• Unplug the power cord from the wall outlet.
• Remove all the food and drinks.
• Securely tape down all loose items inside your refrigerator.
• Tape the doors to be closed securely.
• It is recommended that the refrigerator stays in the upright position during
transportation. But if it is laid down for transport purpose, please lift it up
immediately after the job is done. Please wait for at least 24 hours before putting the
power.
4
TROUBLESHOOTING GUIDE
Problem
Solution
The fridge has no power
➢ Power cord isn’t plugged in properly.
➢ The circuit breaker tripped or a blown fuse.
➢ Try a different power point.
The light is not working.
➢ There is no light in freezer compartment, only fridge
compartment has light.
➢ Make sure the power is connected to the unit.
Compressor runs all the
time
➢ The room temperature is hotter than normal.
➢ A large amount of food has been added to the
refrigerator.
➢ The door is opened too often.
➢ The door is not closed completely.
➢ The temperature control is not set correctly.
➢ The door gasket does not seal properly.
➢ The refrigerator does not have the correct clearances.
➢ The refrigerator has recently been disconnected for a
period of time. 6+ hours are required for the refrigerator
to cool down completely pending on operating
conditions.
Freezer is too cold and
refrigerator is too warm
➢ Change freezer air flow setting to min position
➢ The fridge might need a manual defrost due to too
much moisture went into the freezer part and
blocked the air channel.
To do so,
Keep food in a container with ice bag or another
fridge if it is available.
Keep both doors opening and unplug the power
cord for 24 hours.
Then turn on the unit and it will work properly
again.
Temperature inside the
refrigerator is too warm.
➢ Temperature control is set incorrectly. Turn the control
to a cooler setting and allow several hours for the
temperature to stabilize.
➢ Change freezer air flow setting to min position.
➢ Door is kept open too long or is opened too frequently.
Warm air enters the refrigerator every time the door is
opened). Open the door less often.
➢ The door is not closed completely.
➢ The door gasket does not seal properly.
Temperature inside the
refrigerator is too cold.
➢ Freezer control incorrectly set. Set back to mid position.
➢ Temperature control is set too cold. Turn the control to a
5
warmer setting and allow several hours for the
temperature to stabilize.
Temperature of external
refrigerator side walls are
warm.
➢ The exterior refrigerator walls can be as much as 15-20
degrees warmer than room temperature.
This is normal while the compressor works to transfer
heat from inside the refrigerator cabinet to the condenser
behind the refrigerator side walls.
Popping or cracking sound
when compressor comes on.
➢ Metal parts undergo expansion and contraction, as in
hot water pipes. This is normal. Sound will level off or
disappear as refrigerator continues to run.
Bubbling or gurgling sound,
like water boiling.
➢ Refrigerant (used to cool refrigerator) is circulating
throughout the system. This is normal operation.
Vibrations.
➢ Check the refrigerator is on a level/even surface.
➢ Refrigerator rocks on the floor when it is moved slightly.
Be sure floor can adequately support refrigerator.
➢ Level the refrigerator by putting wood or metal shims
under part of the refrigerator.
➢ The refrigerator is touching the wall. Re-level the
refrigerator and move it from the wall. See “Installation
Instructions”.
Moisture forms on inside
refrigerator walls.
➢ Weather is hot and humid, which increases internal rate
of frost build-up. This is normal.
➢ Door is slightly open.
➢ Door is kept open too long, or is opened too frequently.
Open the door less often.
➢ The door is not sealed properly.
Moisture forms on outside
of refrigerator.
➢ Door is slightly open, causing cold air from inside the
refrigerator to meet warm moist air from the outside.
The doors will not close
properly.
➢ The refrigerator is not on a level surface.
➢ The gasket/s may be dirty or not properly maintained.
Clean the seals and make sure they are dry before
closing the door/s.
➢ The storage basket and/or shelves are out of position.
For any enquiries, please call the CHiQ Cusotmer care on: 1300 796 688
