PART NAMES AND LOCATIONS
IN ACCESSORY BAG: USER MANUAL, WARRANTY, Door reversal parts(upper
hinge and hinge cover)
As the manufacturer holds the authority to redesign or modify its products without
notice:
Any modifications or upgrades of our products will result in this refrigerator
varying slightly from this manual but the functionality will remain the same to
that as set out within this manual.
No

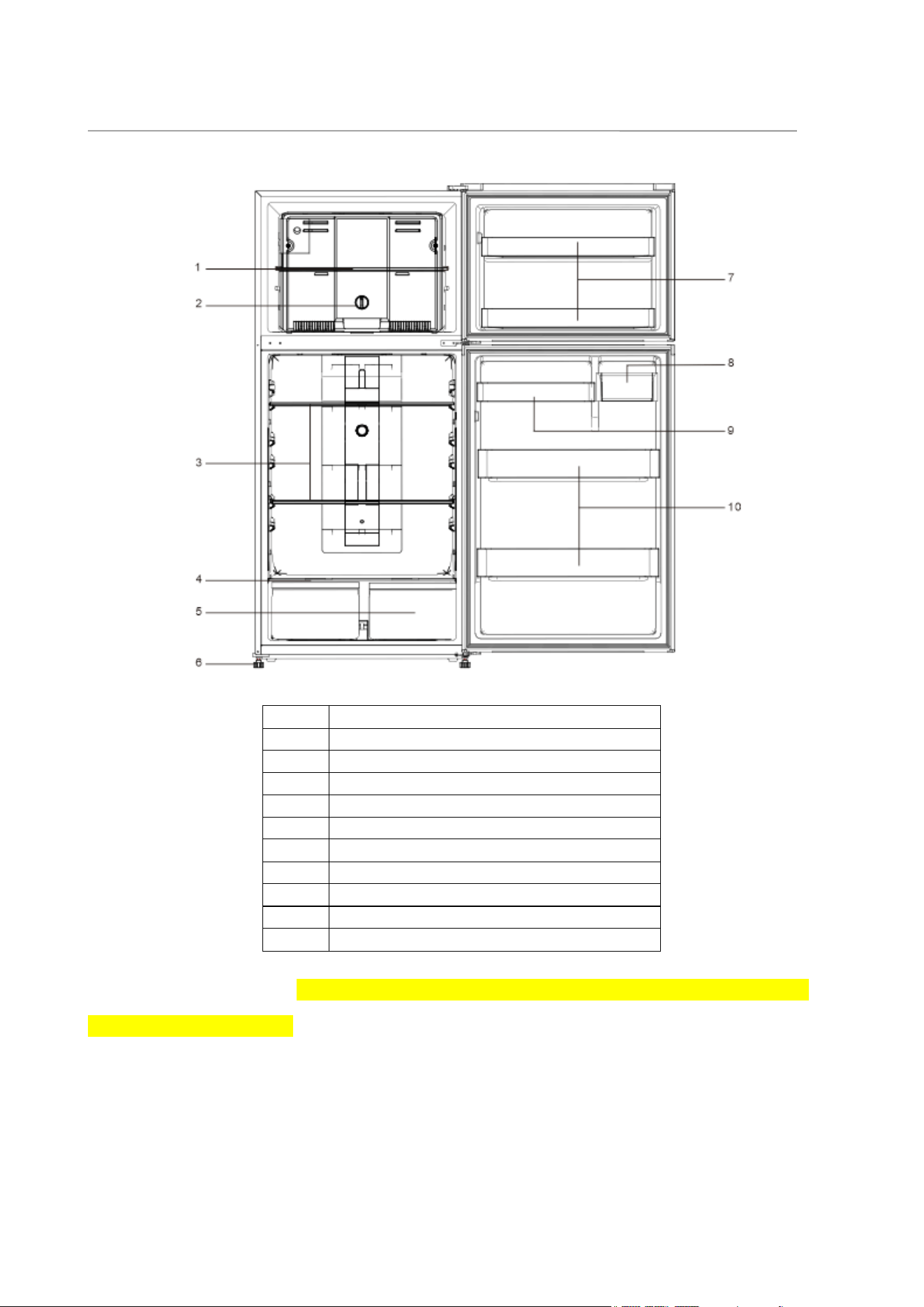

Description
1 Freezer Glass Shelf
2 Air Control Knob
3
Fridge Glass Shelf
4 Crisper Cover
5 Crisper
6 Adjustable Feet
7 Bottle Shelves
8 Butter Box
9
Little Fridge Door Shelf
10 Bottom Bottle Shelf
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Follow these basic precautions to reduce the risk
of fire, electrical shock hazards or injury when
operating the refrigerator:
• This product has been designed for using in a normal domestic environment.
It is not intended for commercial use which will avoid warranty, such as
supermarket, food shop, pharmacy, commercial kitchen & etc.
• Persons with lack of experience and knowledge, reduced physical or mental
capabilities, need to be given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
• It is critical use this appliance safely. Read all instructions before operating the
refrigerator and do not attempt to repair or modify this unit in any way as it
can cause harm or void the warranty.
• Please ensure all persons using this appliance are also informed and comply
with the details set out within this manual and the product Terms and
Conditions.
• When unpacking the appliance for the first time, keep all cardboard and plastic
packaging out of reach from children.
• Report any notable defects with the appliance to Chiq or retailer as soon as it is
noted. Failure to do so can result in a non-warranty claim. Keep all packaging
materials in a safe location until the unit has been installed properly.
• If the supplied power cord of this unit is damaged, it must be replaced by
qualify service agent or similarly qualified persons in order to avoid any risk of
injury. It is recommended the power cord is situated in a safe location when
operating or transporting the appliance to prevent any damage that may cause
electrical shock or fire hazards.
• DANGER or WARNING:
This unit is not designed for outdoor installation.
Service of this unit
3
The installation or any service of the appliance is recommended by a qualified
technician or service company.
Ventilation Hazards
Never clean the refrigerator or refrigerator parts with flammable fluids, or store
gasoline or any other flammable vapors and liquids in the vicinity of this or any
other refrigerator as the gas and/or vapour can cause a fire hazard, explosion
or inhalation.
Electrical Connection
Make certain, when installing or moving the unit that the power outlet has
been connected to, has been fitted by a qualified electrician and the ground
wire has been connected properly to meet the Australian Electrical Standards.
R600a WARNINGS
NOTE: This model uses R600a flammable refrigerant in its sealed system.
The following must be observed for your safety:
R600a Refrigerant Warning
• This appliance contains 0.052kg R600a refrigerant which is
environmentally friendly, but flammable. It does not damage the ozone
layer, nor does it increase the greenhouse effect.
• During transportation and installation, ensure that the tubing of the
refrigerant circuit is not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fires and
any device which creates a spark. Disconnect the appliance from the
mains power.
• Thoroughly ventilate the room in which the appliance is located for
several minutes.
• Notify Customer Service for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per
8 grams of refrigerant. The refrigerant quantity contained in this
appliance is listed above in grams; it is also noted on the Rating Plate of
the appliance.
* Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
It is hazardous for anyone other than an Authorised Service Person to carry
out servicing or repairs to this appliance. In Queensland the authorized
4
person must hold a Gas Work Authorisation for hydrocarbon refrigerants,
before carrying out servicing or repairs which involve the removal of covers.
1. Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
2. Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
3. Do not damage the refrigerant circuit.
4. Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
5. Do not store explosive substances such as aerosol cans with a flammable propellant
in the appliance.
Warning: Risk of fire/flammable materials
6. WARNING: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
7. WARNING: Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance.
Disposal
The environment and personal safety must be considered when disposing of this
appliance. Please ensure the appliance is taken to a recycle center for safe recycling. DO
NOT dispose of the appliance in land fill as the insulation and refrigerant gas contained
in these appliances are flammable.
5

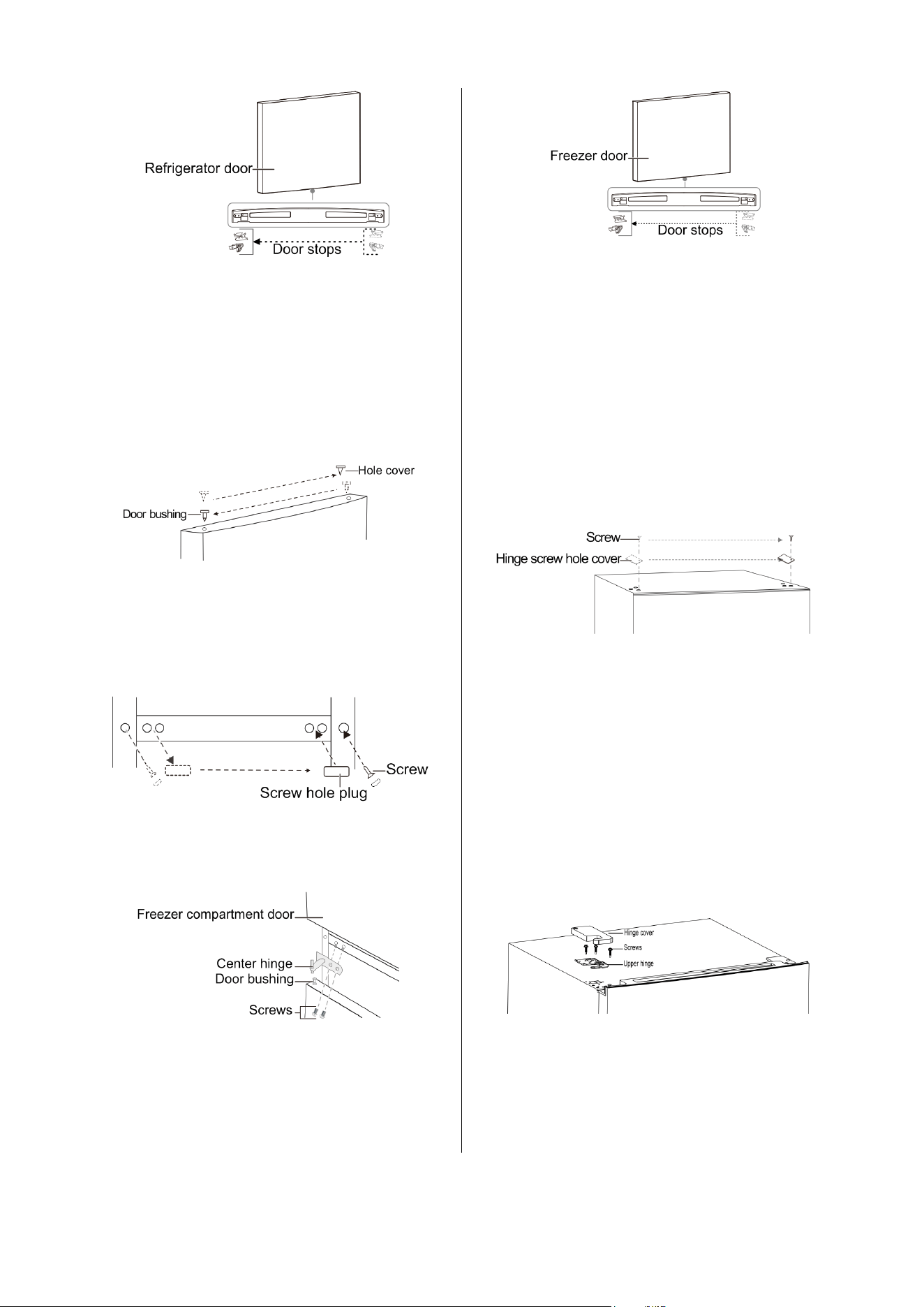

DOOR REVERSAL INSTRUCTIONS
Door reversal job requests some spare parts which are in the accessory bag,
top hinge and hinge cover.
The following tool is required, flat
screwdriver, phillips screwdriver,
adjustable spanner, socket wrench and
8mm socket.
1. Make sure that your refrigerator is
unplugged.

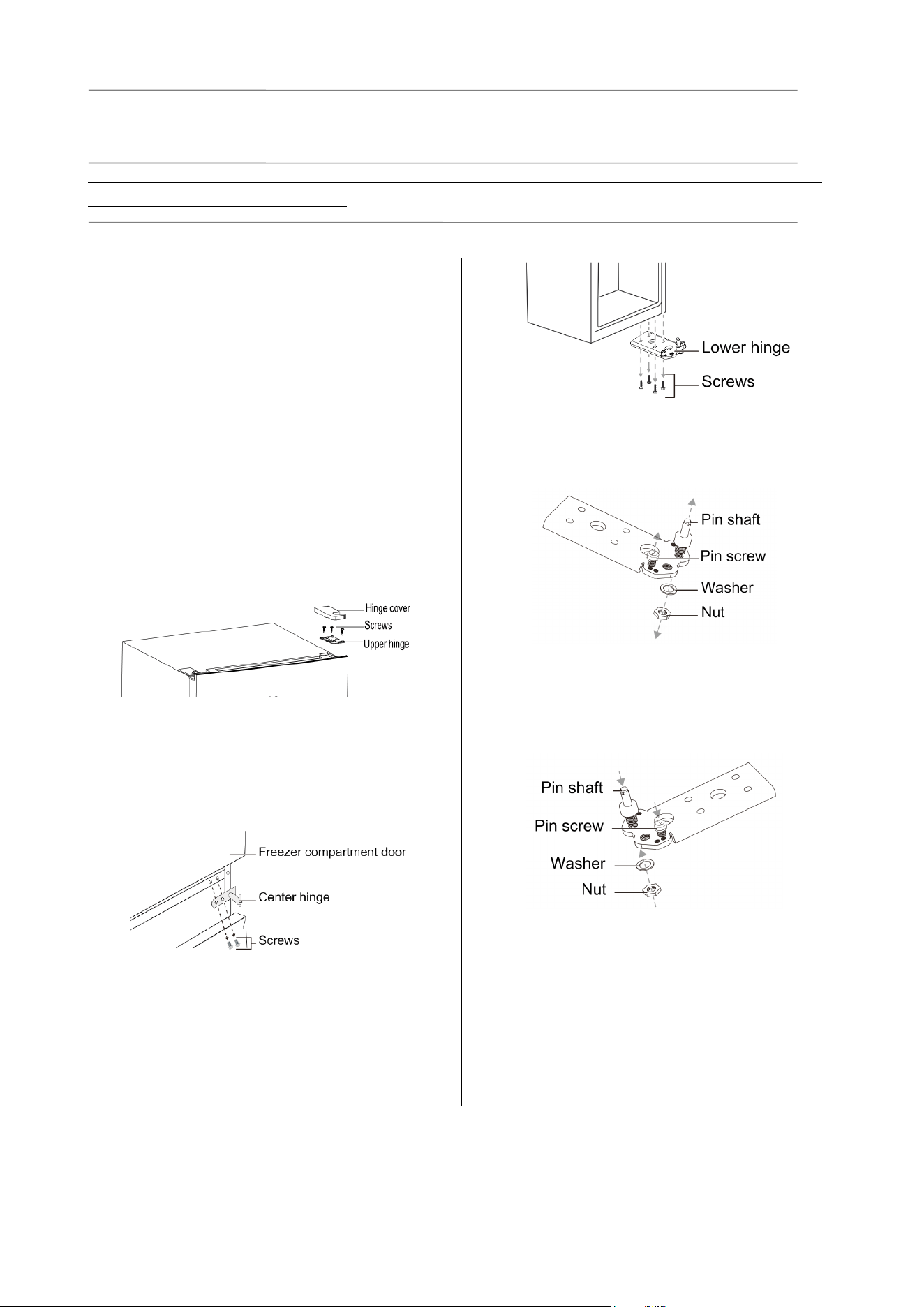

2. Remove one screw in the hinge cover,
remove hinge cover and three screws,
then remove the upper hinge.
3. Remove the freezer compartment
door from the cabinet.
4. Remove the two screws that secure
the center hinge.
5.Remove the refrigerator compartment
door.
6. Remove the four screws that secure
the lower hinge to the right side of the
cabinet, then remove the hinge.
7. Remove the washer and nut that
secure the pin shaft to the right hole
on the lower hinge, then remove the
shaft and pin screw
8. Insert the pin screw into the right
hole and insert the pin shaft into the
left hole on the lower hinge,, then
secure the shaft with the washer and
nut.
9. Install the lower hinge on the left
side of the cabinet.
10. Remove the screw that secures the
door stops from the bottom right of the
refrigerator compartment door, then
remove the door stops and install to
the bottom left side.
6
11. Install the refrigerator
compartment door.
12. Move the door bushing from the top
right side of the refrigerator door to the
top left side of the door. And move the
left hole cover to the right side.
13. Remove screws and the center
hinge screw hole plug on the left side of
the cabinet, then install in the screw
holes on the right side of the cabinet.
14. Install the center hinge to the left
side with the two screws you removed
previously.
15. Remove the screw that secures the
door stops from the bottom right of the
freezer compartment door, then remove
the door stops and install to the bottom
left side.
16. Install the freezer compartment
door.
17. Move the door bushing from the top
right side of the freezer door to the top
left side of the door. And move the left
hole cover to the right side. 18.
Remove the screw that secures the
hinge screw hole cover from the top left
side of the cabinet, remove the cover
and secures the cover on the top right
side of the cabinet.
19. Secure the upper hinge to the top
left side of the cabinet with the three
screws you removed previously. Before
you tighten the upper hinge screws,
make sure that the top of the door is
level with the cabinet and that the
rubber gasket makes a good seal.
20. Install the hinge cover over the
hinge on the top left side of the cabinet.
INSTALLATION INSTRUCTIONS
Before Using the Refrigerator
• Remove the exterior and interior packing.
• Before connecting the refrigerator to a power source, let the unit stand upright for
approximately 4 hours to mitigate the possibility of a malfunction in the cooling system from
improper handling during transportation.
• Clean the interior surface with warm water using a soft cloth.
Installing the Refrigerator
• This appliance is designed to be free standing only, and should not be recessed or built-in.
W
D
H
A
B
C(
°
)
E
F
750
785
1680
1280
1490
130
±
5
50
100

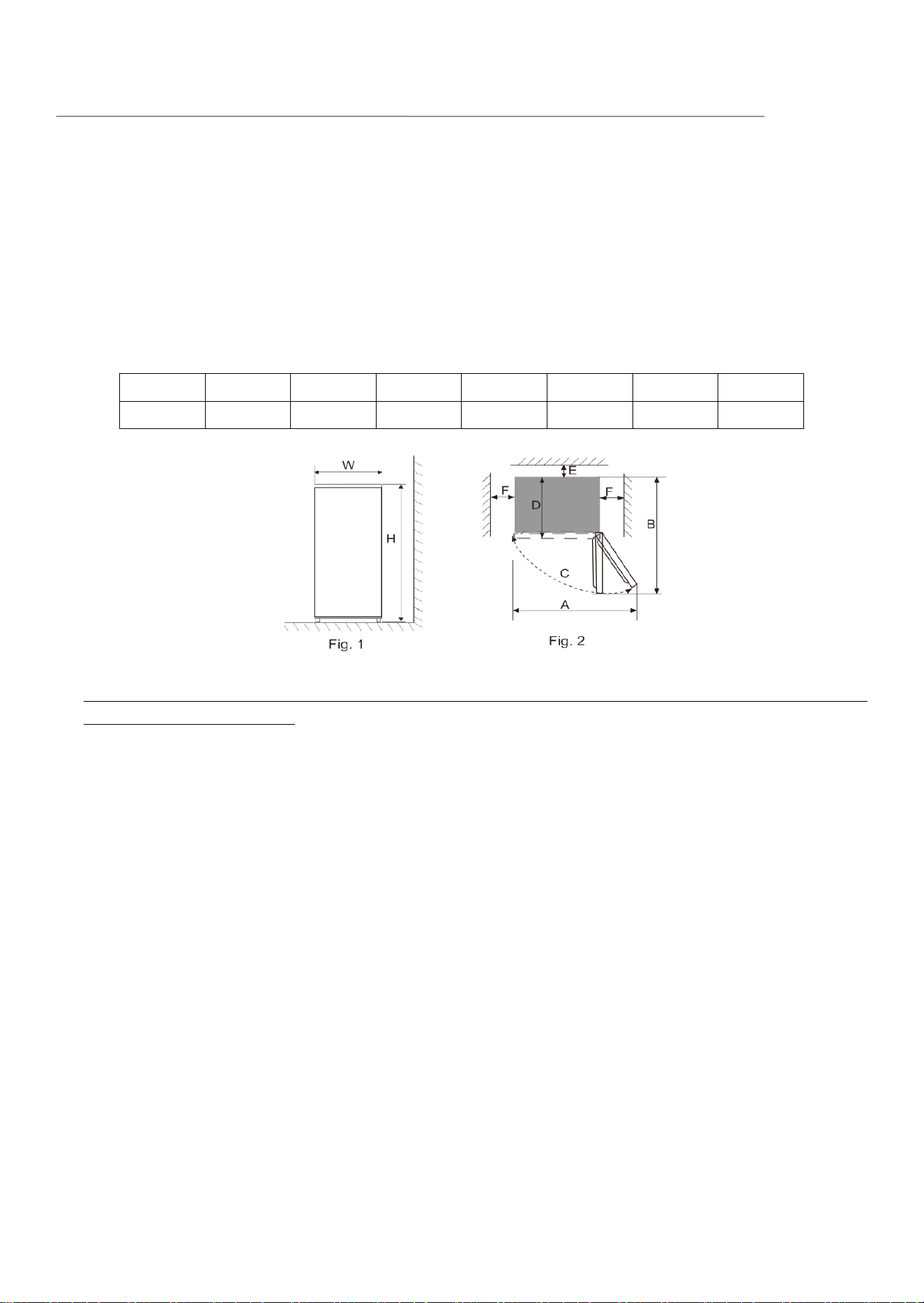

• Allow at least 5cm of space between the back and sides of the refrigerator to allow
proper air ventilation. Insufficient space will result in cooling and working life issue and
voiding warranty.
• Place the refrigerator on a leveled/even floor surface that is strong enough to support the
weight of the refrigerator when it is fully loaded to prevent vibrations.
• Place the refrigerator on a concrete, tile floor or waterproof floor is recommended. The
fridge will produce defrost water or condensation moisture, it might cause water
damage in some extreme circumstances.
• The front feet can be adjusted to level the appliance properly. Adjust the two front feet to
keep the refrigerator leveled or elevated.
• Situate the refrigerator away from direct sunlight and sources of direct heat (stove, heater,
radiator, etc.). Direct sunlight may also affect the acrylic coating and heat sources may cause
an increase power consumption.
• This unit is not designed for outside installation.
• Avoid situating the refrigerator in moist OR pest infestation areas.
• Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized service center.
• After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool
down for 4-6 hours before placing food in the refrigerator.
• Do not place heavy items on the top of this appliance.
1
ENERGY SAVING TIPS
• Allow hot foods to cool to room temperature before placing in the refrigerator. Overloading the
refrigerator forces the compressor to work harder. Foods that freeze too slowly may lose
quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the
refrigerator. This cuts down on frost build-up inside the refrigerator.
• Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.
OPERATING INSTRUCTIONS
START
The temperature inside the refrigerator is controlled by the potentiometer installed in the
refrigerator. The temperature inside the refrigerator varies depending
on the opening and closing doors of the refrigerator, the ambient
temperature.
Functions
Temperature setting
Press the Temp button to adjust the temperature. After the
temperature is adjusted to the expected gear, the setting will take
effect if no more key operation is performed within 5 seconds, and the
corresponding gear will be operated immediately. Temperature gear
setting cycle sequence: "5-4-2-8-6-5"
Fast cooling
As the fridge chamber cools quickly, so does the temperature of the
freezer to ensure that the food is well preserved with nutrition and
good taste. Quick cooling function can be maintained for up to 30
hours. After that, it will automatically exit and the temperature gear
will return to the setting before the quick-cooling feature was enabled.
Enter the fast-cooling function
Press the Mode button till the fast-cooling icon blinks. Within 5
seconds, if no more key operation is performed, the fast-cooling icon
remains steady on to complete the setting.
Exit the fast-cooling function
After 30 hours of operation, the fast-cooling function will automatically
exit.
Under the fast-cooling function, press the Mode button until the
Intelligence icon flashes. Within 5 seconds, if no more key operation is
performed, it will enter the intelligence function and exit the fast-
cooling function.
Under the fast-cooling function, press the Temp key to adjust the
temperature to the expected gear. Within 5 seconds, if no more key
operation is performed, it will enter the corresponding temperature
gear control operation and exit the fast-cooling function;
Intelligence
2
The fridge chamber enters the intelligent mode, and the products will adjust the temperature in
the chamber automatically according to the real-time monitoring of the temperature in the fridge
and the ambient temperature, so as to ensure the fresh and long-term storage of the ingredients
in the fridge.
Enter the intelligence function
Press the Mode button until the intelligence icon blinks. Within 5 seconds, if no more button
operation is performed, the intelligence icon remains steady on to complete the setting.
Exit the intelligence function
Under the intelligence function, press the Mode button till the icon of fast cooling flashes. Within
5 seconds, if no more key operation is performed, it will enter the fast-cooling function and exit
the intelligence function;
Under the intelligence function, press the Temp key to adjust the temperature to the expected
gear. Within 5 seconds, if no more key operation is performed, it will enter the corresponding
temperature gear control operation, and exit the intelligent function.
Child Lock
When the Child Lock function is enabled, the temperature and function are subjected to no
change to prevent maloperation.
In case of no key operation within 3 minutes, the Child Lock function will be enabled
automatically.
Exiting the Child Lock function manually
Press and hold down the TEMP（3s to Unlock）for 3s, then the Child Lock function can be
disabled.
Door open alarm
If the refrigerator door is open for more than 3 minutes, buzzer alarms will be continuously
issued, which can be stopped when any key is pressed, but will be restored after 3 minutes if the
door keeps open. The alarms will not be lifted until the refrigerator door is closed.
Power cut memory
In the case of power failure, the refrigerator will maintain the running state that is set before the
power outage when the power supply is restored.
Power-on delay
In order to protect the refrigerator compressor from being damaged in the case of short-time
power failure (i.e., less than 5 minutes), the compressor will not be started immediately after it is
powered on.
Fault alarm
When the indicator light of temperature mode 2, temperature mode 5 or temperature mode 8
keeps flashing, the refrigerator is faulty, please contact the after-sales staff for home service as
soon as possible.
3
Temperature settings are recommended as following, but settings need
to be adjusted according to the working environment.
Temperat
ure
adjustme
nt
Use
environment
Higher than 35℃ 16℃-35℃ Lower than 16℃)
Recommended
mode setting
on the display
panel
Recommended
air control
knob position
Notes
1) It is recommended to set at the middle mode.
2) The temperature modes can be adjusted as
recommended in the left table in case of change to the
ambient temperature around the refrigerator.
Please note different sections of refrigerator compartment may be warmer or
cooler than others – typically the back wall and bottom lowest shelf will be the
coolest, the top door rack will be the warmest. To avoid frost bite, please don’t
put raw vegetables too close to the coolest area.
4
GENERAL CARE AND MAINTENANCE
Cleaning the Refrigerator
• Upon installation of your new appliance, it is recommended that it be cleaned
thoroughly and properly maintained thereafter.
• Turn off the refrigerator and then unplug the unit from the wall outlet.
• Remove all food content before washing the inside with a damp cloth soaked in
lukewarm water and dishwasher liquid. Don’t use any chemical detergent which
might damage the fridge.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently as
improper cleaning can cause the seal to dislodge and tear.
• Dry the interior and exterior with a soft cloth.
Vacation Time
• Turn off the refrigerator first and then unplug the unit from the power point.
• Remove all food.
• Clean the refrigerator.
• Leave the lid open slightly to avoid possible formation of condensation, mold, or odors.
• Use extreme caution in the case of children. The unit should not be accessible to
child’s play.
• Short vacations: Leave the refrigerator operating during vacations of less than three
weeks.
• Long vacations: If the appliance will not be used for several months, remove all food
and unplug the power cord. Clean and dry the interior thoroughly. To prevent odour
and mold growth, leave the door open slightly: blocking it open if necessary.
Repositioning and Relocating the Refrigerator
• Unplug the power cord from the wall outlet.
• Remove all the food and drinks.
• Securely tape down all loose items inside your refrigerator.
• Tape the doors to be closed securely.
• It is recommended that the refrigerator stays in the upright position during
transportation. But if it is laid down for transport purpose, please lift it up
immediately after the job is done. Please wait for at least 24 hours before putting the
power.
5
TROUBLESHOOTING GUIDE
Problem
Solution
The fridge has no power
Power cord isn’t plugged in properly.
The circuit breaker tripped or a blown fuse.
Try a different power point.
The light is not working.
There is no light in freezer compartment, only fridge
compartment has light.
Make sure the power is connected to the unit.
Compressor runs all the
time
The room temperature is hotter than normal.
A large amount of food has been added to the
refrigerator.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The refrigerator does not have the correct clearances.
The refrigerator has recently been disconnected for a
period of time. 6+ hours are required for the refrigerator
to cool down completely pending on operating
conditions.
Freezer is too cold and
refrigerator is too warm
Change freezer air flow setting to min position
The fridge might need a manual defrost due to too
much moisture went into the freezer part and
blocked the air channel.
To do so,
Keep food in a container with ice bag or another
fridge if it is available.
Keep both doors opening and unplug the power
cord for 24 hours.
Then turn on the unit and it will work properly
again.
Temperature inside the
refrigerator is too warm.
Temperature control is set incorrectly. Turn the control
to a cooler setting and allow several hours for the
temperature to stabilize.
Change freezer air flow setting to min position.
Door is kept open too long or is opened too frequently.
Warm air enters the refrigerator every time the door is
opened). Open the door less often.
The door is not closed completely.
The door gasket does not seal properly.
6
Temperature inside the
refrigerator is too cold.
Freezer control incorrectly set. Set back to mid position.
Temperature control is set too cold. Turn the control to a
warmer setting and allow several hours for the
temperature to stabilize.
Temperature of external
refrigerator side walls are
warm.
The exterior refrigerator walls can be as much as 15-20
degrees warmer than room temperature.
This is normal while the compressor works to transfer
heat from inside the refrigerator cabinet to the condenser
behind the refrigerator side walls.
Popping or cracking sound
when compressor comes on.
Metal parts undergo expansion and contraction, as in
hot water pipes. This is normal. Sound will level off or
disappear as refrigerator continues to run.
Bubbling or gurgling sound,
like water boiling.
Refrigerant (used to cool refrigerator) is circulating
throughout the system. This is normal operation.
Vibrations.
Check the refrigerator is on a level/even surface.
Refrigerator rocks on the floor when it is moved slightly.
Be sure floor can adequately support refrigerator.
Level the refrigerator by putting wood or metal shims
under part of the refrigerator.
The refrigerator is touching the wall. Re-level the
refrigerator and move it from the wall. See “Installation
Instructions”.
Moisture forms on inside
refrigerator walls.
Weather is hot and humid, which increases internal rate
of frost build-up. This is normal.
Door is slightly open.
Door is kept open too long, or is opened too frequently.
Open the door less often.
The door is not sealed properly.
Moisture forms on outside
of refrigerator.
Door is slightly open, causing cold air from inside the
refrigerator to meet warm moist air from the outside.
The doors will not close
properly.
The refrigerator is not on a level surface.
The gasket/s may be dirty or not properly maintained.
Clean the seals and make sure they are dry before
closing the door/s.
The storage basket and/or shelves are out of position.
For any enquiries, please call the CHiQ Cusotmer care on: 1300 796 688
