1.2M WORKBENCH WITH DRAWER
MODEL NO: AP12160
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.0 GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this bench.
9 Locate bench in a suitable work area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
WARNING! Use bench on level and solid ground, preferably concrete.
9 Keep the bench clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the work area.
8 DO NOT use the bench for any purpose other than that for which it is designed.
8 DO NOT undertake work on the bench without the workpiece being adequately secured. Use clamps or a vice (not included) to secure
the workpiece - available from your Sealey stockist.
8 DO NOT use the bench outdoors .
8 DO NOT get the bench wet or use in damp or wet locations or areas where there is condensation.
8 DO NOT exceed the maximum load for the work surfaces, worktop - 100kg, bottom shelf and drawer - 20kg. Avoid heavy impacts when
placing objects onto the surfaces.
8 DO NOT clean the bench with any solvents which may damage the surface or the protective coating on the worktop.

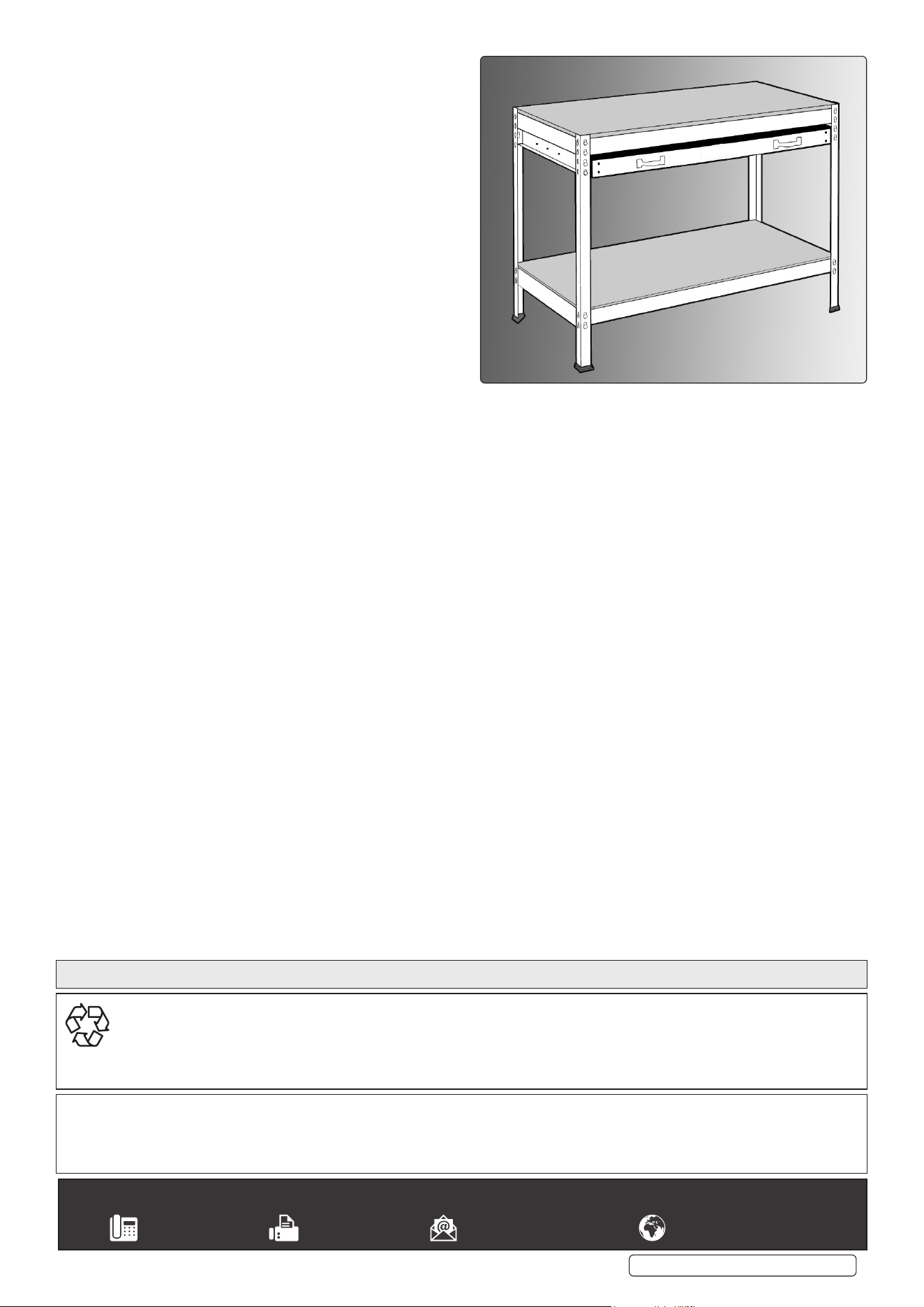

2. INTRODUCTION
Boltlessdesignmakestheuniteasytoassemble,withminimaltoolsbeingrequired.Onelargedrawerwithballbearingslides,tted
with two handles. MDF Worktop measures 1210 x 605mm (W x D), and has a comfortable work height of 900mm. Fitted with anti-slip
foot protectors.
3. SPECIFICATION
Model No.:.............................................................. AP12160
Size (W x D x H ): .................................1210 x 605 x 900mm
Worktop: .......................................................1210 x 605mm.
Max Worktop Capacity : .................100kg evenly distributed.
Max Capacity of drawer: ..................20kg evenly distributed.
Max Capacity of lower shelf: ............ 50kg evenly distributed.
4. CONTENTS
4.1. METHOD OF CONSTRUCTION
4.2. MAINTENANCE
AP12160 Issue 2 (H,F) 11/08/20
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing

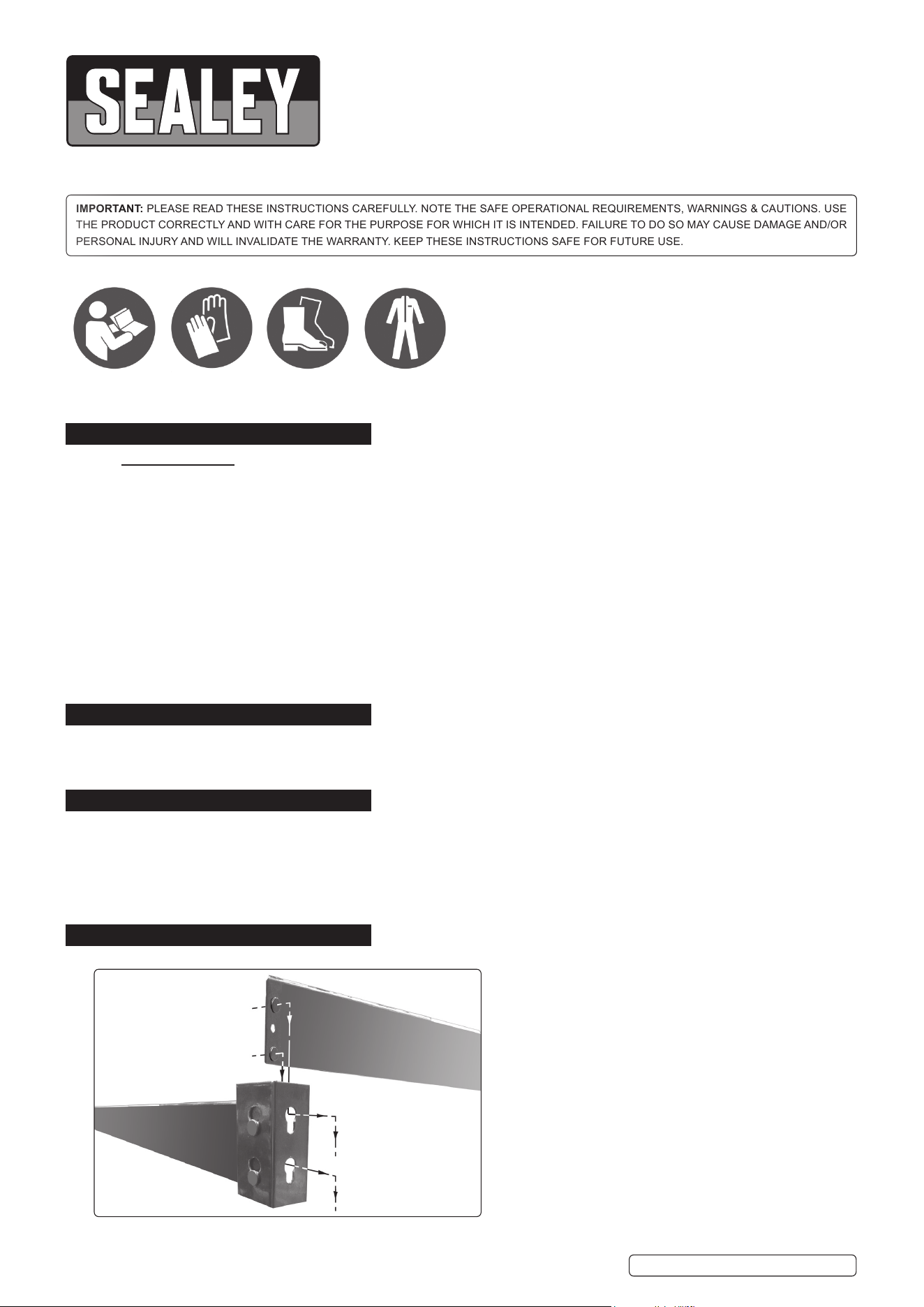

Structural members have
flat headed, waisted
rivets attached which
pass through keyholes in
the uprights and are
pushed down to secure
them.

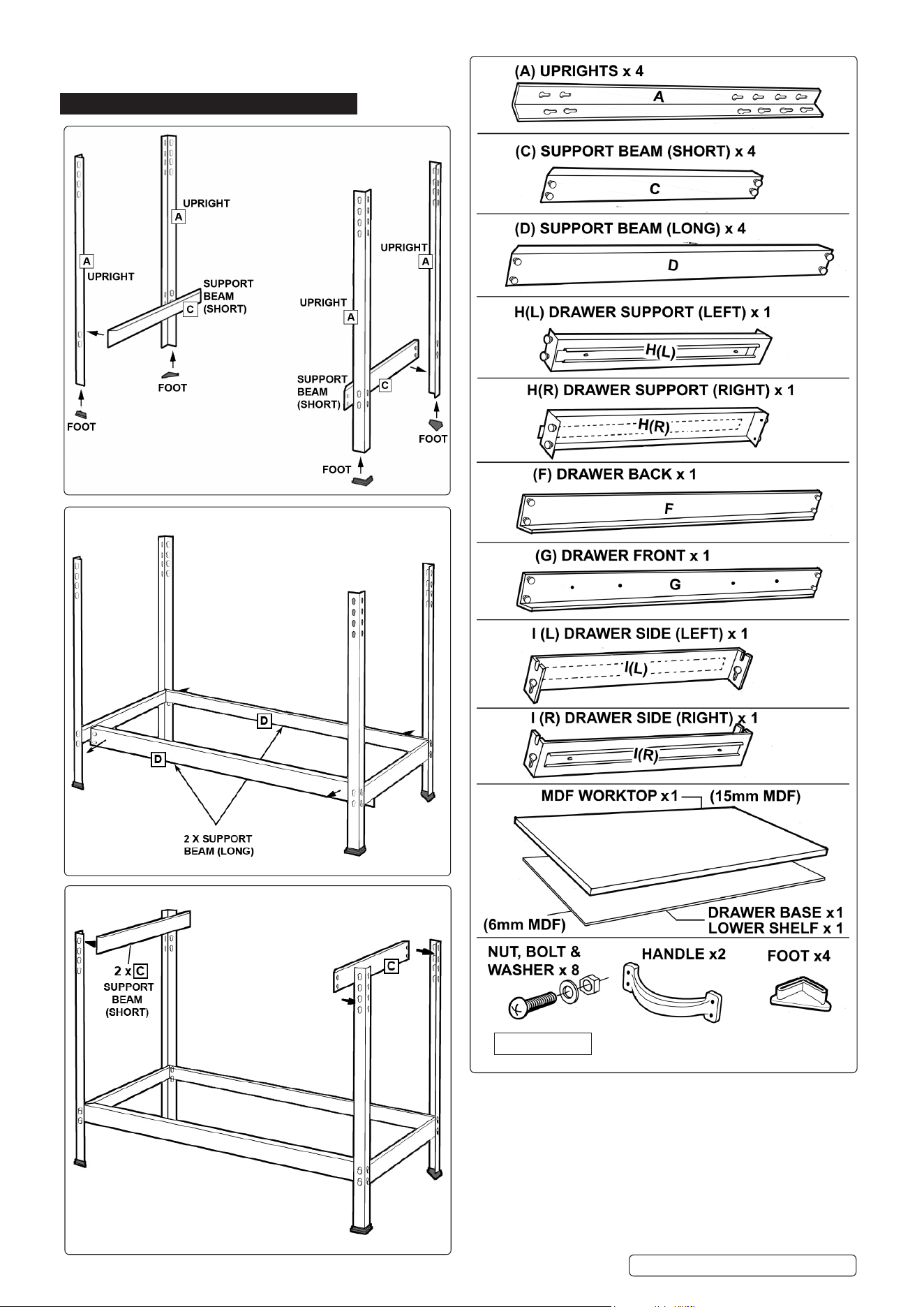

4.3. CONTENTS
5. ASSEMBLY
Original Language Version
© Jack Sealey Limited
AP12160 Issue 2 (H,F) 11/08/20
1
2
3
4.3 CONTENTS
Original Language Version
© Jack Sealey Limited
AP12160 Issue 2 (H,F) 11/08/20
4
5
6
7
8
9
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Parts support is available for this product. Please email sales@sealey.co.uk or telephone 01284 757500
10
5.1 Study each diagram and identify the components required with
reference to the parts list/drawing on page 1.
5.2 Build up the basic frame as shown in diagrams 1,2,3 & 4.

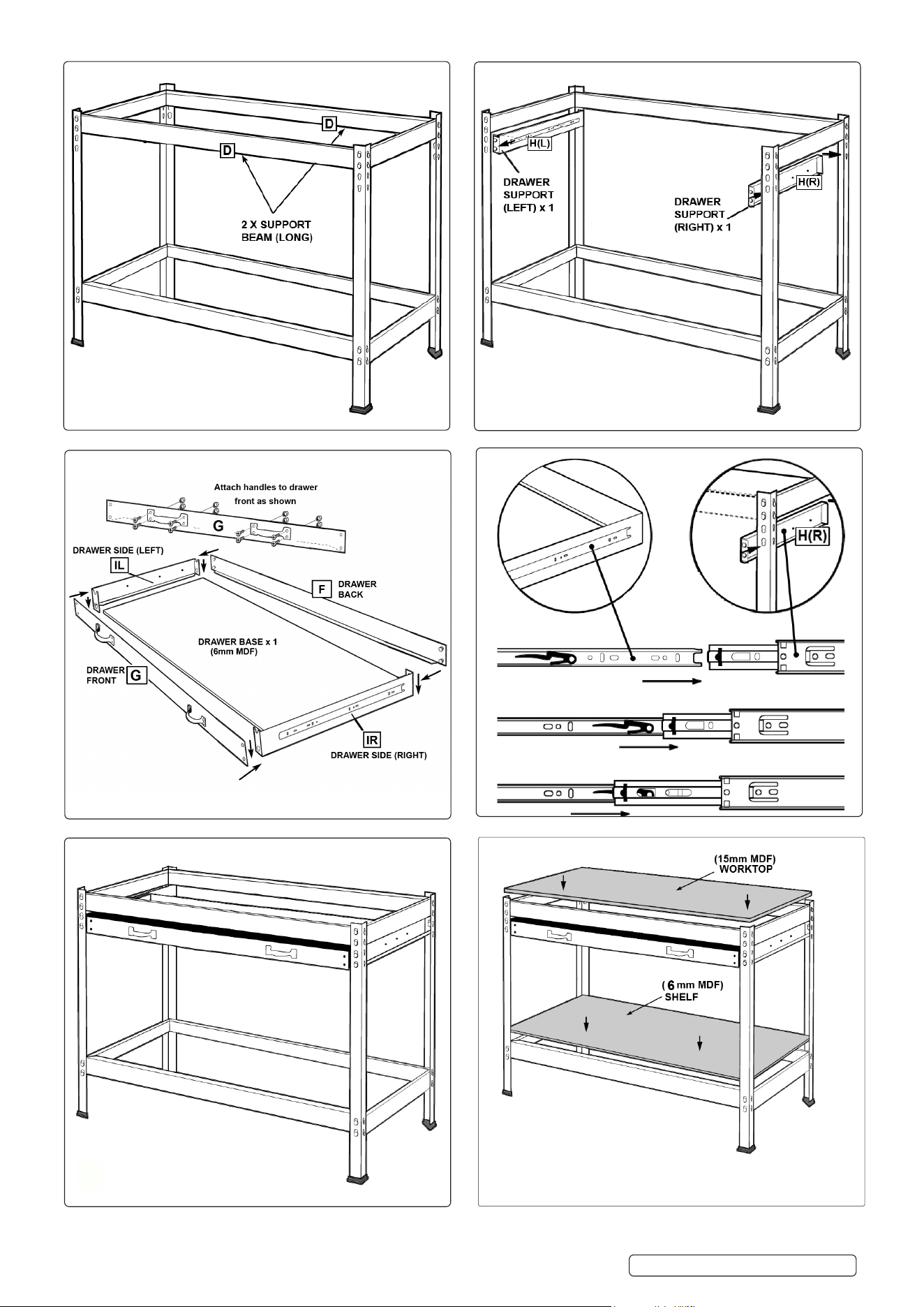

5.3 Attach the drawer supports to the basic frame as shown in
diagram 5.
5.4 Assemble the drawer with reference to diagram 6. Place the
6mm MDF drawer base into the bottom of the drawer frame.
Insert the drawer into the drawer runners as shown in diagrams
7 and 8.
5.5 Place the 15mm MDF board onto the top of the frame as
shown in diagram 9 to form the worktop. Insert the other 6mm
MDF board into the lower part of the frame and move it into
position on the lower support beams to form the lower shelf.
See diagrams 9 & 10.
