PRECAUTIONS - 2391477B096/B
e
PRECAUTIONS 23
General safety instructions 23
Installation 26
Appliance purpose 27
This user manual 27
Manufacturer’s liability 27
Identification plate 27
Disposal 28
To save energy 28
How to read the user manual 28
DESCRIPTION 29
General description 29
Control panel 29
USE 30
Basic functions 30
Preliminary operations 30
Using the hob 31
Safety features 34
User menu 35
Error notifications 36
CLEANING AND MAINTENANCE 37
Cleaning the glass ceramic hob 37
What to do if... 37
INSTALLATION 38
Electrical connection 38
Section cut from the countertop 38
Mounting 39
Ventilation 40
Fixing to the built-in cabinet 40
Instructions for the installer 40
We advise you to read this manual carefully, which contains all the instructions for maintaining the
appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com
PRECAUTIONS
General safety instructions
Risk of personal injury
• During use the appliance and
its accessible parts become
very hot. Keep children well
away from the appliance.
• Protect hands with heat resistant
gloves during use.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
• This appliance may only be
used by children aged 8 years
and over, and by people of
reduced physical, sensory or
mental capacity, or lacking in
experience in the use of
electrical appliances, provided
that they are supervised or
have been given instructions on
the safe use of the appliance
and of the hazards associated
with it.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of
8 away from the appliance
when it is in use.
• Cleaning and maintenance
must not be carried out by
unsupervised children.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Activate the controls lock when
you have children or pets which
24 - PRECAUTIONS 91477B096/B
could reach the hob.
• Do not touch or clean the hob
surface during operation or
when the residual heat
indicator lights are still on.
• After use, switch off the plates.
Never rely solely on the
cookware detector.
• Supervise children carefully as
they cannot readily see the
residual heat indication. After
use the cooking zones remain
hot for a certain period of time
even if they have been turned
off. Keep children away from
the cooking zones.
• The cooking process must
always kept under control. A
short cooking process must be
continuously monitored.
• WARNING: Cooking foods
containing fat and/or oil
without monitoring them can be
dangerous and can cause a
fire.
• Fats and oils can catch fire if
they overheat. Do not leave the
appliance unattended while
preparing foods containing oils
or fats. If fats or oils catch fire,
never put water on them. Place
the lid on the pan and turn off
the relevant cooking zone.
• Do not use the Booster and/or
the Double Booster functions (if
present) to heat fats or oils. Fire
hazard.
• Do not place metal objects,
such as dishes or cutlery, on the
surface of the hob during
cooking as they may overheat.
• Do not cook foods in closed
tins or containers or plastic
containers.
• Do not use magnetic tins.
• Do not use trivets or other items
between the bottom of the pan
and the glass ceramic surface.
Danger of burns.
• Do not insert pointed metal
objects (cutlery or utensils) into
the slots in the appliance.
• Do not use or store flammable
materials near the appliance or
directly underneath the hob.
• Switch off the appliance
immediately after use.
• Do not pull the cable to unplug
the appliance (if present).
•DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Always wear personal
protective equipment (PPE)
before carrying out any work
on the appliance (installation,
maintenance, positioning or
moving).
• Do not clean the appliance if it
is still hot or in operation.
• After use the cooking zones
remain hot for a certain period
of time after they have been
turned off. Do not touch the hob
surfaces.
PRECAUTIONS - 2591477B096/B
e
• Before performing any work on
the appliance, switch off the
power supply.
• Do not try to repair the
appliance yourself or without
the assistance of a qualified
technician.
• If the power cable becomes
damaged, contact technical
support immediately to arrange
for it to be replaced in order to
avoid possible hazards.
• If cracks or fissures form, or if
the glass ceramic cooking
surface breaks, turn off the
appliance immediately.
Disconnect the power supply
and call Technical Support.
• People who have pacemakers
or other similar devices fitted
must make sure that the
operation of these devices is
not affected by the induction
field, the frequency range of
which is between 20 and 50
kHz.
• In conformity with the provisions
regarding electromagnetic
compatibility, the
electromagnetic induction
cooking hob comes under
group 2 and class B (EN
55011).
Risk of damaging the appliance
• Do not use abrasive or
corrosive detergents (e.g.
scouring powders, stain
removers and metallic
sponges) on glass parts.
• Use wooden or plastic utensils.
• Do not sit on the appliance.
• Do not use the glass ceramic
cooking surface as a support
surface.
• Do not use the appliance as a
support surface.
• Do not obstruct ventilation
openings and heat dispersal
slots.
• Do not use the hob if the
pyrolytic cycle is taking place
inside any oven installed
below.
• Do not use steam jets to clean
the appliance.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these
could then heat up and catch
fire. Be very careful.
• Fire hazard: Never leave
objects on the cooking
surfaces.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
• Cooking vessels or griddle
plates should be placed inside
the perimeter of the hob.
• All pans must have smooth, flat
bottoms.
• If any liquid does boil over or
spill, remove the excess from
the hob.
• Take care not to spill acid
substances such as lemon juice
26 - PRECAUTIONS 91477B096/B
or vinegar on the hob.
• Do not spill sugar or sweet
mixtures on the hob during
cooking.
• Do not place materials or
substances that could melt or
catch fire (paper, plastic or
aluminium foil) on the
appliance while it is in use.
• Place the cookware directly on
the glass ceramic surface.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use rough or abrasive
materials or sharp metal
scrapers.
• The glass ceramic surface is
highly resistant to impact.
However, prevent hard, solid
objects from falling on the
cooking surface as they may
cause it to break.
• Do not use cleaning products
containing chlorine, ammonia
or bleach on parts made of
steel or that have metallic
surface finishes (e.g. anodizing,
nickel- or chromium-plating).
• This appliance is not intended
to be operated by means of
external timer or separate
remote control system.
Installation
• THIS APPLIANCE MUST NOT
BE INSTALLED IN BOATS OR
CARAVANS.
• This appliance must not be
installed on a dishwasher.
• Position the appliance into the
cabinet cut-out with the help of
a second person.
• Check that the carcase has the
required openings.
• Check that the carcase material
is heat resistant.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be
connected to earth in
compliance with electrical
system safety standards.
• Use cables that can withstand
temperatures of at least 90°C.
• Run the power cable in the rear
part of the unit. Make sure that
it does not come into contact
with the lower part of the hob
or a built-in oven below it.
• Be careful when connecting
additional electrical
appliances. Connection cables
must not come into contact with
hot cooking zones.
• The tightening torque of the
screws of the terminal supply
wires must be 1.2 - 1.5 Nm.
• Do not attach the appliance
too tightly to the unit as this
could cause damage during
use or partially obstruct the heat
dispersal slots.
• The power cable must only be
PRECAUTIONS - 2791477B096/B
e
installed or replaced by a
qualified technician.
• If the power cable becomes
damaged, contact technical
support immediately to arrange
for it to be replaced in order to
avoid possible hazards.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Allow the appliance to be
disconnected after installation,
via an accessible plug or a
switch in the case of a fixed
connection.
• Fit the power line with an all-
pole circuit breaker with a
contact separation distance
sufficient to provide complete
disconnection in category III
overvoltage conditions,
pursuant to installation
regulations.
• If the electrical supply is
restricted, means of all-pole
disconnection must be
accessible and incorporated in
the fixed wiring in accordance
with the wiring rules.
• This appliance can be used up
to a maximum altitude of 2,000
metres above sea level.
Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate. It
cannot be used:
• in employee kitchens, shops,
offices and other working
environments.
• in farms/farmhouses.
• by guests in hotels, motels and
residential environments.
• In bed and breakfast
accommodation.
This user manual
• This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user's reach for the
whole working life of the appliance.
• Read this user manual carefully before using
the appliance.
• The explanations in this manual include
images, which describe all that regularly
appears on the display. However, it should
be kept in mind that the appliance may be
equipped with an updated version of the
system, and as such, all that appears on the
display may differ from those in the manual.
Manufacturer’s liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than that
specified;
• failure to comply with the instructions in the
user manual;
• tampering with any part of the appliance;
• use of non-original spare parts.
Identification plate
The identification plate bears the technical data,
serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
28 - PRECAUTIONS 91477B096/B
Disposal
This appliance conforms to the WEEE
European directive (2012/19/EU) and
must be disposed of separately from
other waste at the end of its service life.
The appliance does not contain substances in
quantities sufficient to be considered hazardous
to health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate
recycling centre for electrical and electronic
equipment waste, or return it to the retailer
when purchasing an equivalent product, on
a one for one basis.
Our appliances are packaged in non-polluting
and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
To save energy
• The diameter of the base of the pan must not
extend beyond the lines printed on the glass
ceramic surface.
• Pans must not be placed outside the
perimeter of the hob or on the display.
• When buying a pan, check whether the
diameter indicated is that of the base or the
top of the pan, as the top is almost always
larger than the base.
• When preparing dishes with long cooking
times, you can save time and energy by
using a pressure cooker, which also helps to
retain vitamins contained in the food.
• Make sure that the pressure cooker contains
enough liquid as, if there is not enough and
it overheats, this may cause damage to both
the pressure cooker and the cooking zone.
• If possible, always cover pans with a
suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
saucepan leads to a waste of energy.
How to read the user manual
This user manual uses the following reading
conventions:
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part of it
unattended.
• Do not let children play with the plastic
bags.
Under certain circumstances, if the hob
and the oven are used at the same time,
the maximum power limit of the
electrical system might be exceeded.
Warning/Caution
Information/Advice
DESCRIPTION - 2991477B096/B
e
DESCRIPTION
General description
*Power levels are approximate and may vary according to the pan used or the settings made.
Control panel
Cooking zones area
1. Hob zone buttons
2. Set timer button
3. Grill function button
4. ON/OFF button
5. Control lock function button
6. Timer function buttons
Advantages of induction cooking
• Energy saving thanks to the direct
transmission of energy to the pan (suitable
magnetisable cookware is required)
compared to traditional electric cooking.
• Improved safety as the energy is only
Zone
Dimensions H x L
(mm)
Max. power draw
(W)*
Power draw in booster
function (W) *
Power draw in Double
Booster function
(W)*
1 220 x 180 2100 2500 3000
2 220 x 180 2100 2500 3000
3 220 x 195 2100 2500 3000
4 220 x 195 2100 2500 3000
5 280 x 280 2800 3600 -
1 + 2
(Multizone)
220 x 360 3000 3700 -
3 + 4
(Multizone)
220 x 390 3000 3700 -
The appliance is equipped with an
induction generator for each cooking
zone. Each generator located under the
glass ceramic cooking surface creates
an electromagnetic field which induces
a thermal current in the base of the pan.
This means the heat is no longer
transmitted from the hob to the pan but
created directly inside the pan by the
inductive current.
30 - USE 91477B096/B
transmitted to the pan placed on the hob.
• High level of energy transmitted from the
induction cooking zone to the base of the
pan.
• Rapid heating speed.
• Reduced danger of burns as the cooking
surface is only heated under the base of the
pan; foods which overflow do not stick.
USE
Basic functions
First power connection
When connected to the power supply for the
first time, or after power has been switched
back on after a power failure, an automatic
check is carried out that control turns on the
indicator lights and the displays for a few
seconds. Afterwards, the appliance can be
used normally.
Preliminary operations
• Remove any protective film from the outside
or inside of the appliance, including any
accessories (if present).
• Remove any labels (apart from the technical
data plate).
Usable cookware diameters
*If you use pans with a diameter less than the one
indicated in the column above, the appliance might
not detect them.
Bear in mind the following:
• Do not exceed the limits of the zones printed
on the hob.
• Do not cover the control panel.
• Do not place the pans next to the edges of
the glass.
• If you wish to use a griddle or a long pan in
zones 1 and 2 in Multizone mode, it is
recommended that you use one with a
maximum size of 22 x 36 cm and a
minimum size of 19 x 19 cm.
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with magnetic
properties and a sufficiently large base.
Suitable cookware:
• Enamelled steel cookware with thick bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel, ferritic
stainless steel and aluminium with a special
base.
Unsuitable cookware:
• Copper, stainless steel, aluminium, fireproof
glass, wood, ceramic and terracotta
cookware.
Advice on energy-saving
To see whether the pan is suitable, bring a
magnet close to the bottom: if it is attracted, the
pan is suitable for induction cooking. If you do
not have a magnet, you can put a small amount
of water in the pan, place it on a cooking zone
and start the hot plate. If the symbol appears
on the display, it means the pan is not suitable.
Advice on energy-saving
The diameter of the base of the pan must
correspond to the diameter of the cooking zone.
• When buying a pot, check whether the
See General safety instructions.
Burner
minimum Ø
(cm)
Ø recommended
(cm)
Zone 1 - 2 - 3 - 4
(single)
9 - 11* 18
Zone 1 - 2
(Multizone)
19 22
Zone 5 11 28
Zone 3 - 4
(Multizone)
19 22
USE - 3191477B096/B
e
diameter indicated is that of the base or the
top,
as the top is almost always larger than the base.
• The base of the cookware must be thick and
completely flat. In addition, the hob should
be clean and dry as well.
• When preparing dishes with long cooking
times, you can save time and energy by
using a pressure cooker, which also makes it
possible to preserve the vitamins in the food.
• Make sure that the pressure cooker contains
enough liquid as, if there is not enough and
it overheats, this may cause damage to both
the pressure cooker and the cooking zone.
• If possible, always cover the pans with a
suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
saucepan leads to a waste of energy.
• Do not use cast-iron cookware or cookware
with a rough base.
Power level table
The power in the cooking zones can be
adjusted to various levels. In the table below
you will find instructions for the different types of
cooking.
Switching on and off
To switch on the hob, hold down the ON/OFF
key for 1 second.
If no cooking zone is activated within 25
seconds of switching on, the hob switches off
automatically.
Using the hob
Adjusting cooking zones
After switching on the display:
1. Position a pan (suitable for induction
cooking and not empty) on the cooking
zone you wish to use.
2. The display corresponding to the zone on
which the container has been placed turns
on automatically and displays .
Adjusting cooking zones
After having placed a pan on the cooking zone
and made sure that the zone has been
activated:
1. Place a finger on the left-hand side of the
scroll bar of the cooking zone to be used.
The power level is now .
2. Move your finger to the left or right to select
the power level from 1 to 9 or enable the
Booster or Double Booster function (see
specific section).
The display of the zone being used will indicate
the selected power level.
Intermediate power levels can be set:
1. Press and hold a power level.
2. A dot appears next to the power level on
the display of the zone selected.
If hob and oven are being used at the
same time, under certain conditions the
maximum power limit that can be used
by your electrical system might be
exceeded.
Power level Suitable for:
0 OFF setting
from 1 to 2
Cooking small amounts of food
(minimum power)
from 3 to 4 Cooking
from 5 to 6
Cooking large quantities of food,
roasting larger portions
from 7 to 8 Roasting, slow frying with flour
9 Roasting
P/
Roasting / browning (maximum
power, see Booster and Double
Booster)
The appliance is fitted with an automatic
pan sensing system.
The power level can also be selected
by pressing the scroll bar at the point
corresponding to the required power
level.
32 - USE 91477B096/B
Switching off the cooking zones
1. Move your finger to the far left of the scroll
bar of the cooking zone you wish to turn off.
2. The display of the zone selected indicates
.
Or:
1. Press and hold the zone button for 2
seconds.
Booster function
After switching on the hob and having selected
a cooking zone:
1. Place a finger on the left-hand side of the
scroll bar.
The display of the cooking zone used will turn
on: the power level indicated is “1”.
2. Slide your finger to the far right on the scroll
bar to select power level 9.
3. Press the segment at the far right of the scroll
bar.
The display of the cooking zone used will show
“P”. Select any other power level to deactivate
the Booster function.
The Booster function can be activated quickly:
• Simply press the end of the scroll bar.
To deactivate the function:
• Select any power level on the scroll bar.
• Switching off the appliance.
Double Booster Function
After switching on the hob and having selected
a cooking zone, press the last segment at the far
right of the scroll bar twice.
The “P” symbol appears on the display of the
zone alternating with the and symbols.
To deactivate the function:
• Select any power level on the scroll bar.
• Switching off the appliance.
Multizone function
This function allows you to operate two cooking
zones (front and rear) at the same time when
using pans such as fish kettles or long pans.
To activate the Multizone function:
1. Press the buttons of the left or right cooking
zones at the same time.
2. The symbol appears in the rear zone
while the power level appears in the front
zone.
3. Slide your finger along the scroll bar to
modify the power level.
If a large, oval or oblong pan is being used,
make sure that it is placed in the centre of the
cooking zone.
To switch off more than one cooking
zone at the same time, simply switch off
the appliance using the button.
• The Booster function remains active
for a maximum of 5 minutes, after
which the power is reduced
automatically to level 9.
This function automatically divides the
power equally between both zones that
are in use.
Set this function before selecting a
power level
It is not possible to activate the Booster
function for the cooking zones on which
the Multizone function is active.
USE - 3391477B096/B
e
Controls lock
This is useful when cleaning the appliance and
to prevent functions being modified by mistake.
To activate the controls Lock:
1. Press the button for at least one
second.
2. The LED on the display lights up to indicate
that the function has been activated.
To disable the Controls lock, press the
button for at least one second.
Warming function
To activate the Warming function, first turn on the
hob, then:
1. Select a cooking zone.
2. Press the far left of the scroll bar,
approximately between level 0 and level 1,
to activate the function; the symbol
appears on the display of the selected
cooking zone.
Select any power level to deactivate the
Warming function. Or press the button.
Recall Function
If the appliance is switched off unintentionally,
carry out the following procedure within 6
seconds:
1. Switch on the appliance.
• The button starts to flash.
2. Press the pause button immediately to
restore the functions that were previously
active.
Pause function
To activate the Pause function:
1. Press and hold the timer button for 2
seconds.
2. The symbols appear.
To deactivate the Pause function:
1. Press and hold the timer button for 2
seconds.
Grill Function
To activate the Grill function:
1. Place a griddle or a long pan on the left
zones.
2. Press the button, which starts to flash.
The symbol appears on the front zone
display and the symbol appears on the rear
zone display. The scroll bar will be set
automatically to level 9. (preheating stage).
After three minutes of operation, the power will
be reduced to level 7.
The button remains lit steadily.
Press the button and use the scroll bar to
modify the power level at any time.
Press the button to deactivate the Grill
function.
This feature is designed to lock all the
hob controls.
It is always active when the hob is
switched on.
It locks all buttons apart from this one
and the ON/OFF button.
When the function is active, pressing
any
button will cause the controls lock
button to flash to indicate that the
controls
lock function is active.
This function allows you to keep cooked
food warm or to keep water on the boil.
The warming function deactivates
automatically after 2 hours of operation
and switches off the cooking zone used.
This is used to restore some functions
that have already been started after the
appliance has been switched off
unintentionally.
This function restores the cooking zones,
timer; no other functions will be restored.
This function pauses the operation of all
the cooking zones.
The cooking time limitation, the residual
heat indicators and the control lock
function remain enabled during the
Pause function.
This function is used to automatically
activate the Multizone function for the
left zones only. It is used when cooking
with a griddle or long pans.
34 - USE 91477B096/B
Minute minder timer
After having switched on the hob, without
selecting a zone:
1. Touch the inside of the timer setting area.
2. The display shows “0-”.
3. The scroll bar can now be used to increase
or decrease the value of the right digit.
Once set, it flashes for 2 seconds.
4. When it stops flashing (“-5”), you can use
the scroll bar to set the left digit (e.g. “15”).
Once set, it flashes for 2 seconds and then
the function starts.
To deactivate the timer, use the scroll bar to set
“00”.
To deactivate the function quickly, after having
selected the zone, press and hold the timer
button for 2 s.
Timed cooking
The timed cooking function can be activated
when at least one cooking zone is switched on:
1. Select a cooking zone.
2. Press the timer setting area.
3. The “0-” symbol appears and the zone LED
flashes.
4. The scroll bar can now be used to increase
or decrease the value of the right digit.
Once set, it flashes for 2 seconds.
5. When it stops flashing (“-5”), you can use
the scroll bar to set the left digit (e.g. “15”).
Once set, it flashes for 2 seconds. The zone
LED stops flashing and the function starts.
Modifying or deactivating timed cooking
To modify or deactivate timed cooking, simply
press the timer button of the area selected and
follow the same procedure you used for setting
it to modify the minutes or to reset it completely
by moving the scroll bar to .
To deactivate the function quickly, after having
selected the zone, press and hold the timer
button for 2 s.
Residual heat indicator
After the cooking zone has been switched off, a
symbol appears on each display to indicate
whether the zone is still hot and indicates the
approximate temperature:
1. if the temperature is between 60 °C
and 79 °C.
2. if the temperature is between 80 °C and
99 °C.
3. if the temperature is 100 °C or higher.
Safety features
Limiting the cooking duration
The appliance has an automatic device that
limits the duration of use.
If the cooking settings for a pan are not
changed, the maximum operation time for each
zone depends on the power level selected.
When the device for limiting the duration of use
is activated, pan heating is deactivated and
the symbol appears on the display.
This function is used to set a timer that
will emit a sound at the end of the pre-
set time.
A maximum time of 99 minutes can be
set.
A maximum of 99 minutes can be set.
This function is used to program the
automatic switch-off of each cooking
zone at the end of a period of time.
This function can be activated on
multiple cooking zones at the same time
with different time settings.
Supervise children carefully as they
cannot easily see the residual heat
indicator. The cooking zones remain hot
for a certain period of time even after
they have been turned off. Make sure
that children never touch the hob.
See General safety instructions.
Power level
Maximum cooking dura-
tion in hours
1/1. 6
2/2. 6
3/3. 5
4/4. 5
5/5. 4
6/6. - 7/7. -
8/8. - 9/9.
1.5
USE - 3591477B096/B
e
User menu
The user menu allows you to modify some
operating characteristics of the appliance. There
are 7 options are available. Each option is
marked with the letter “U” together with a
progressive number on the timer display.
Accessing the user menu
1. If the hob is off, switch it on using the
button.
2. Press again to switch it off; the
button starts to flash.
3. Press and hold .
4. The following symbols appear on the
cooking zone displays:
Press all the buttons of the cooking zones in
sequence in a clockwise direction starting from
the front left:
Press all the buttons of the cooking zones in
sequence in a clockwise direction starting from
the front left (1). A beep will sound to confirm
every effective press of a button.
5. Release the button.
The user menu has been accessed and the
symbol alternating with the number (option
U0 - Power limitation) appears on the display of
the rear left zone.
The total power of the appliance can be
modified in steps of 0.1 kW (function Eco-Logic
Advance). The timer display indicates the
default power setting (in kW): .
Press the timer display to enable changes to be
made to the power settings. Then press the left
half of the scroll bar to decrease the power and
the right half to increase it. Press and hold the
button to reach the required setting more
quickly.
• Press the segments of the scroll bar to select
an option.
• After selecting an option, press the front left
display to modify it.
User options
Option U2 modifies the volume of the button
sounds; 4 sound levels can be selected using
the scroll bar.
• 1: minimum volume.
•2: medium volume.
• 3: maximum volume. (default value)
Option U3 modifies the volume of the sound
signals when the timer has ended. 4 levels can
be selected.
• 1: minimum volume.
•2: medium volume
• 3: maximum level. (default value)
Option U4 modifies the brightness of the
display. 10 levels can be selected.
• 0: maximum brightness. (default value)
• 9: minimum brightness.
Option U5 allows you to modify the type of
animation of the seconds countdown of the
independent timer and timed cooking, from 59
Option Description
U0
Maximum total power (kW) - To
be modified by the installer only
U1 Option disabled
U2 Button volume
U3 Timer alarm volume
U4 Display brightness
U5 Timer animation
U6 Automatic pan detection
U7 Timer alarm duration
If the buttons are pressed in the
incorrect order, the procedure for
accessing the menu will have to be
repeated.
• The first segment on the left (option
U0) is reserved for the power
limitation procedure (installer only).
• For technical reasons, the second
segment from the left (option U1) is
disabled. Selecting this option will
have no effect.
According to the adjustment range of
each option, the scroll bar will show
only those segments that correspond to
the adjustments available for each
option.
36 - USE 91477B096/B
to 0 seconds.
• 0: animation off.
• 1: animation on. (default value)
Option U6 allows you to activate or deactivate
the automatic pan detection function. (see
“Automatic cooking zone activation”).
• 0: automatic detection off.
• 1: automatic detection on. (default value)
Option U7 specifies the length of the alarm
when the timer has finished. 3 levels can be
selected:
• 0: alarm duration 120 seconds. (default
value)
• 1: alarm duration 10 seconds.
• 2: alarm disabled.
Exiting the user menu
There are two ways to exit from the user menu:
1 Press the button. Any modifications will
be discarded and the hob will be switched
off.
Or
2 Press the button for at least two
seconds. The modifications will be saved
and the hob will be switched off.
Setting the power level of the appliance
1. Press and hold the button, press the
button again. The button starts to
flash.
2. Press and hold the button and press the
zone buttons in sequence, as shown in the
figure below (for the three-zone model,
leave out the front right zone from the
sequence).
• The symbol appears alternating with the
symbol.
• The set power level is shown in the timer
setting area.
3. Press the set Timer button, located above the
scroll bar, to modify the value.
4. Press the right of the scroll bar to increase
the power level and the left to decrease it.
5. Press the button to save the new setting;
or press and hold the button.
• Press the button to exit without saving
the setting.
Error notifications
If the appliance malfunctions or operates
incorrectly, the associated error code appears
on the display.
The error codes always begin with the letter “E”
or “Er” followed by a series of digits (e.g. “Er47-
30”).
Errors coded as:
•“E02”
•“E2”
• “Er21”
Indicate that the appliance or part of it is
overheating. If this occurs, you should switch off
the appliance immediately, remove all pans and
let it cool down.
If these errors persist or if other errors appear,
make a note of the code and contact Technical
Support.
The seconds count is displayed when
the timer is set to 1 minute.
• This function allows you to set the
maximum power limit for your
appliance.
• The induction hob is configured to
operate at 7.4 kW, but it can be
limited to operate at up to 2.4 kW.
CLEANING AND MAINTENANCE - 3791477B096/B
e
CLEANING AND MAINTENANCE
Cleaning the glass ceramic hob
Cleaning the surfaces
To keep the surfaces in good condition, they
should be cleaned regularly after use. Let them
cool first.
Ordinary daily cleaning
Always and only use specific products that do
not contain abrasives or chlorine-based acids.
Pour the product onto a damp cloth and wipe
the surface, rinse thoroughly and dry with a soft
cloth or a microfibre cloth.
Weekly cleaning
Clean and maintain the hob once a week using
an ordinary glass ceramic cleaning product.
Always follow the manufacturer’s instructions.
The silicon in these products creates a
protective, water-repellent membrane which
also resists dirt. All marks stay on the membrane
and can therefore be removed easily. After
cleaning, dry the surface with a clean cloth.
Make sure that there is no detergent left on the
cooking surface as it might undergo an
aggressive reaction when heated up and could
modify the structure of the cooking surface.
Food stains or residues
Light coloured marks from pans with aluminium
bases can be easily cleaned off with a cloth
moistened in vinegar. Remove any burnt-on
residues after cooking; then rinse with water and
dry thoroughly with a clean cloth. Dirt, which
may have fallen on the hob while cleaning
lettuce or potatoes, can scratch the hob when
moving pans. Consequently, remove any dirt
from the cooking surface immediately. Changes
in colour do not affect the operation and
stability of the glass. These are not alterations to
the material of the hob but just residues which
have not been removed and have then
carbonised. Shiny surfaces can form due to the
bases of pans, especially aluminium ones,
rubbing on the surface, and due to the use of
unsuitable detergents. They are difficult to
remove using conventional cleaning products. It
may be necessary to repeat the cleaning
process several times. Use of corrosive
detergents or rubbing of pan bases can wear
away the decoration on the hob over time and
contribute to the formation of stains.
What to do if...
The hob does not work:
• Make sure that the hob is connected and
that the main switch is turned on.
• Make sure that there is no power failure.
• Make sure that the fuse has not blown. In
this case replace the fuse.
• Make sure that the circuit breaker of the
residential electrical system has not tripped.
In this case, reset the circuit breaker.
The cooking results are unsatisfactory:
• Make sure that the cooking temperature is
not too high or too low.
• Make sure that the hob is properly
ventilated and that the air inlets are
unobstructed.
• Use cookware that is certified and tested for
induction cooking.
The hob smokes:
• Let the hob cool down and clean it once
cooking is complete.
• Make sure that the food has not spilled out
of the pan and use a larger cooking vessel,
if needed.
The fuses blow or the circuit breaker of the
residential electrical system trips repeatedly.
• Call Technical Support or an electrician.
There are cracks or fissures in the hob:
• Turn off the appliance immediately,
disconnect the power supply and contact
Technical Support.
See General safety instructions.
In case of stubborn dirt, clean when
cold using a damp kitchen sponge and
neutral detergent; then dry with a
microfibre cloth.
We recommend the use of cleaning
products distributed by the
manufacturer.
After cleaning, dry the appliance
thoroughly to prevent any water or
detergent from interfering with its
operation or creating unsightly marks.
38 - INSTALLATION 91477B096/B
INSTALLATION
Electrical connection
General information
Check the mains characteristics against the data
indicated on the plate.
The identification plate bearing the technical
data, serial number and brand name is visibly
positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to ground
using a wire that is at least 20 mm longer than
the other wires.

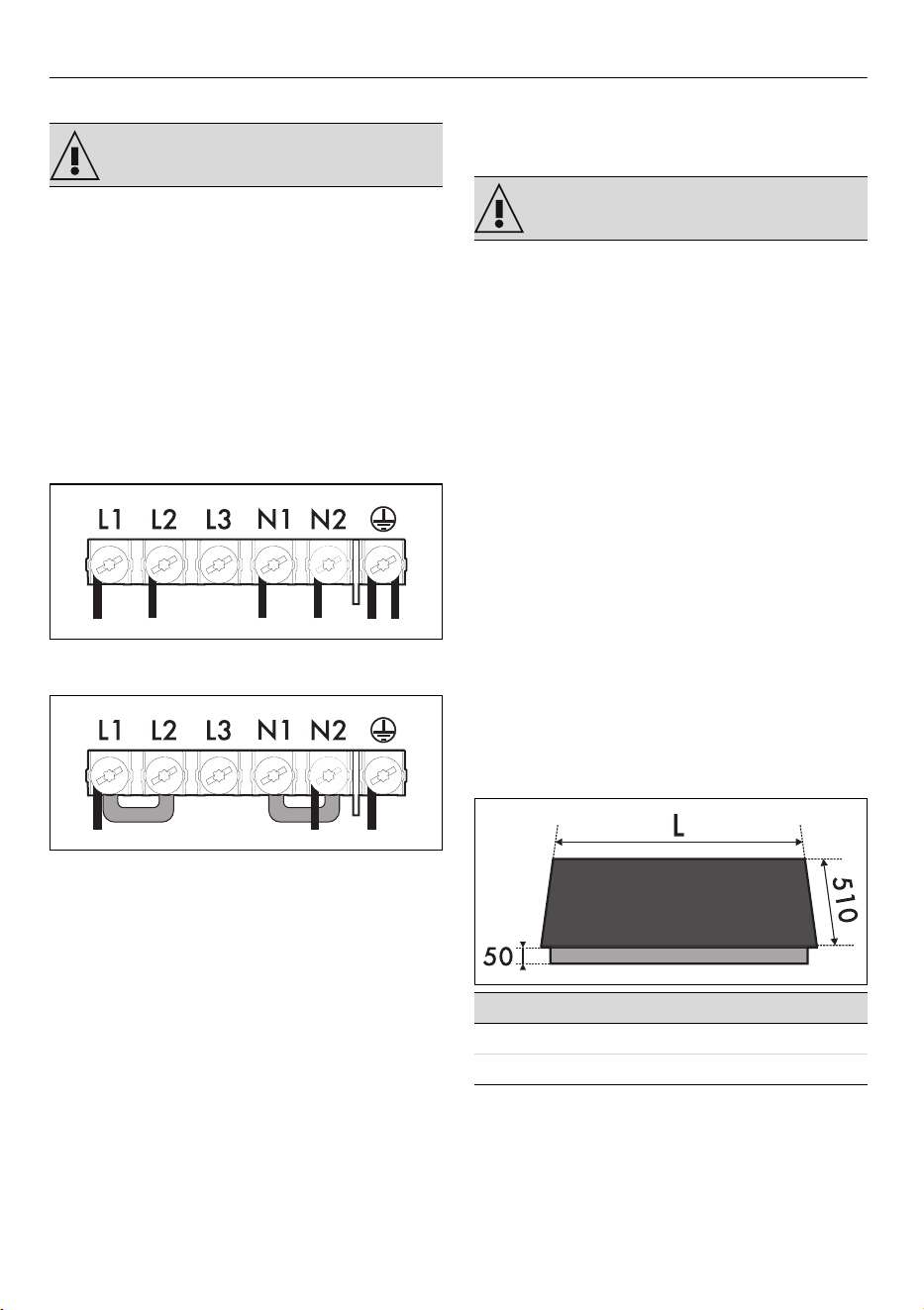

The appliance can be connected as follows:
• 220-240 / 380-415 V 2N
~
Six-core cable 6 x 1.5 mm².
• 220-240V 1N
Three-core cable 3 x 6 mm
².
Fixed connection
Fit the power line with an all-pole circuit breaker
with a contact separation distance sufficient to
provide complete disconnection in category III
overvoltage conditions, pursuant to installation
regulations.
For the Australian/New Zealand market:
The circuit breaker incorporated in the fixed
connection must comply with AS/NZS 3000.
Section cut from the countertop
Safety instructions for positioning and
installation
• Installation can be carried out on various
materials such as masonry, metal, solid
wood or plastic laminated wood as long as
they are heat resistant (>90°C).
• Veneers, adhesives or plastic coatings on
adjacent furniture should be temperature-
resistant (>90°C), otherwise they might
warp over time.
• If the piece of furniture does not have the
required recess opening, either it will have
to be cut or masonry work carried out by a
competent technician.
• The minimum clearance between exhaust
hoods and the cooking surface must be at
least the distance indicated in the exhaust
hood installation instructions.
• The minimum clearances must also be
respected for the edges of the hob on the
back as indicated in the assembly
instructions.
• If the appliance is to be installed above an
oven, the oven must be fitted with a cooling
fan.

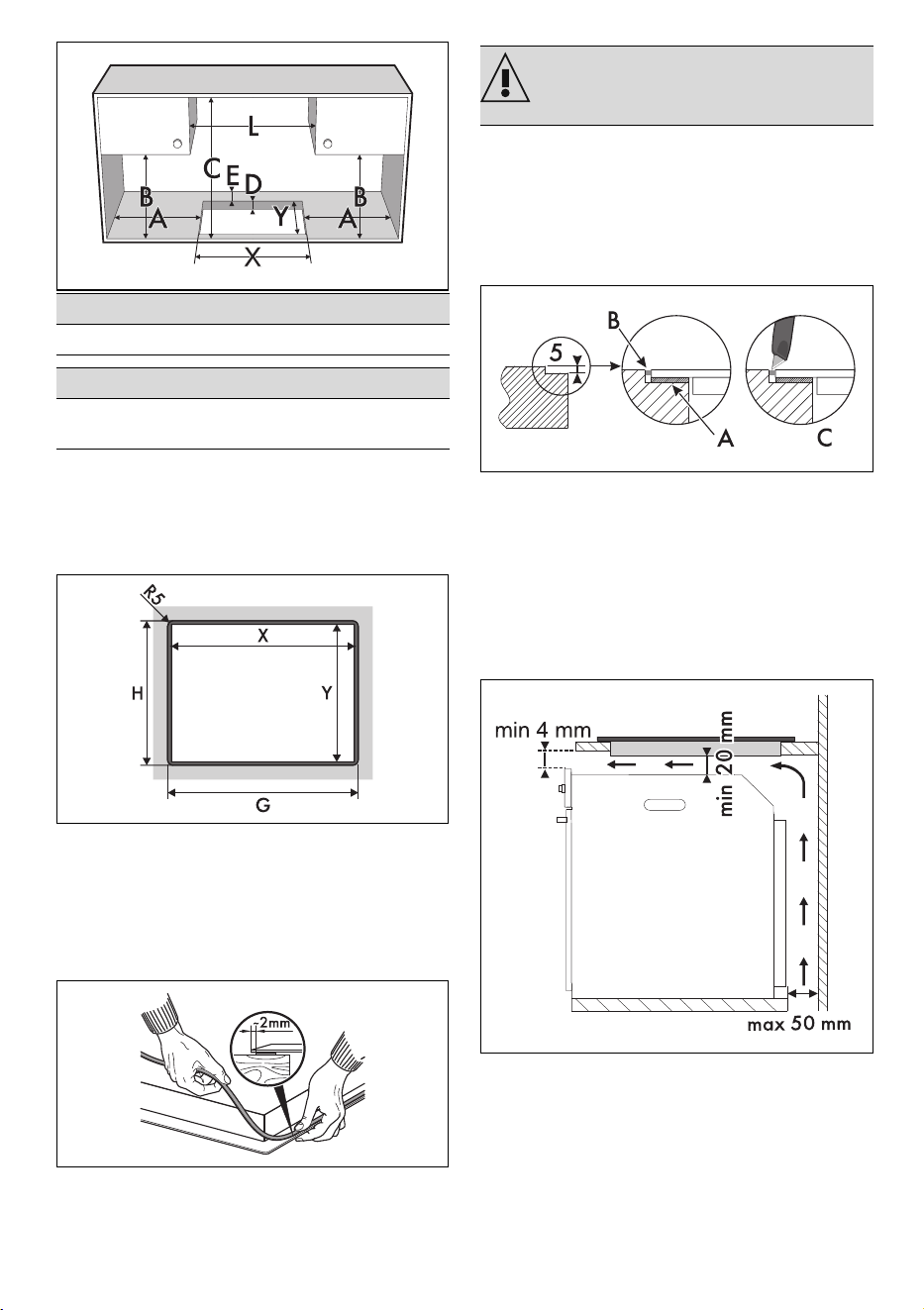

Appliance overall dimensions (mm)
Standard and flush mounting (mm)
See General safety instructions.
See General safety instructions.
MODELS (cm) L
60 600
70 750
INSTALLATION - 3991477B096/B
e
Flush mounting
For this type of mounting, you have to make an
additional cut at the edges of the recess in the
furniture if you wish to install the hob flush with
the countertop.
*Refer to the measurements in the table above.
Hob seal
To prevent leakage of liquid between the frame
of the hob and the countertop, place the
adhesive seal provided along the entire outer
edge of the hob before assembly.
In the case of flush mounting, after placing the
adhesive seal (A) on the glass surface and after
positioning and securing the hob, fill the edges
with insulating silicone (B) and wipe off any
excess. If for any reason the hob needs to be
removed, cut the silicone using a cutter before
attempting to remove it (C).
Mounting
On top of oven built-in unit
The clearance between the hob and the kitchen
furniture or other installed appliances must be
enough to ensure sufficient ventilation and air
discharge. If installed above an oven, a space
must be left between the bottom of the hob and
the top of the appliance installed below.
On top of empty kitchen unit or drawers
If there are other pieces of furniture (lateral
walls,
drawers, etc.), dishwashers or fridges under the
hob, a double-layer wooden base must be
installed at least 20 mm from the bottom of the
hob to avoid any accidental contact. It must
A B C D E
min 150 min 460 min 750 20 - 60 min 50
L X Y G H
600-750 560
490/
478÷482
604 514
Do not use silicone to secure the hob.
This would make it impossible to remove
the hob without damaging it.
40 - INSTALLATION 91477B096/B
only be possible to remove the double-layer
base using suitable equipment.
opens on bottom:
opens on rear:

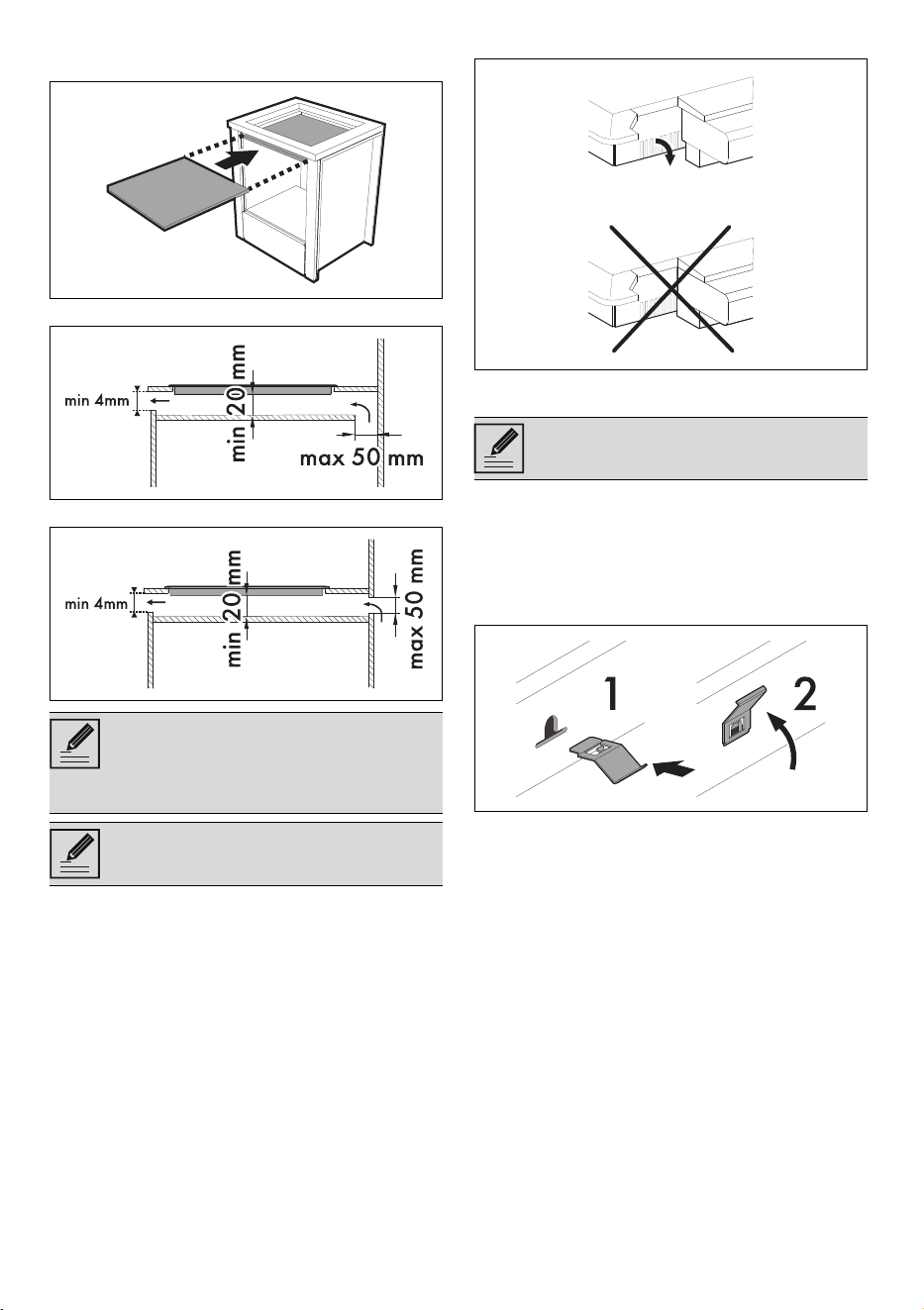

Ventilation
The illustrations below show two examples of
installation suitable for proper ventilation and
one example of incorrect installation to be
avoided.
Fixing to the built-in cabinet
To ensure the hob is fixed and centred as
accurately as possible, the clips provided must
be positioned as described below:
1. Fit the clips by gently pressing them
horizontally into the appropriate space.
2. Then turn them upwards to fix them in place.
Instructions for the installer
• If you use a plug (if present) to connect to
the power supply, the plug must be
accessible after installation.
• Do not bend or trap the power cable.
• The appliance must be installed according
to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with sharp
or hot parts.
If installed on top of an oven, the latter
must be equipped with a cooling fan.
The clips should not be installed at the
front of the appliance.
