Digital Projector
User Manual
LH820ST
V1.00
2 Warranty and Copyright information
Warranty and Copyright information
Limited warranty
BenQ warrants this product against any defects in material and workmanship, under normal usage and
storage.
Proof of purchase date will be required with any warranty claim. In the event this product is found to be
defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be
replacement of any defective parts (labor included). To obtain warranty service, immediately notify the
dealer from which you purchased the product of any defects.
Important: The above warranty shall be void if the customer fails to operate the product in accordance
with BenQ's written instructions, especially the ambient humidity must be in-between 10% and 90%,
temperature in-between 0°C and 35°C, altitude lower than 4920 feet, and avoiding to operate the
projector in a dusty environment. This warranty gives you specific legal rights, and you may have other
rights which vary from country to country.
For other information, please visit
www.BenQ.com.
Copyright
Copyright © 2022 by BenQ Corporation. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of BenQ Corporation.
Disclaimer
BenQ Corporation makes no representations or warranties, either expressed or implied, with respect
to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation to notify any person of such
revision or changes.
*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are
copyrights of their respective companies or organizations.
Patents
Please go to http://patmarking.benq.com/ for the details on BenQ projector patent coverage.
3 Table of Contents
Table of Contents
Warranty and Copyright information ................................................................................ 2
Important safety instructions .............................................................................................. 4
Notice ........................................................................................................................................................... 7
Introduction .......................................................................................................................... 8
Shipping contents ....................................................................................................................................... 8
Projector exterior view ............................................................................................................................ 9
Controls and functions............................................................................................................................ 10
Positioning your projector ................................................................................................. 12
Choosing a location .................................................................................................................................12
Obtaining a preferred projected image size....................................................................................... 13
Mounting the projector........................................................................................................................... 14

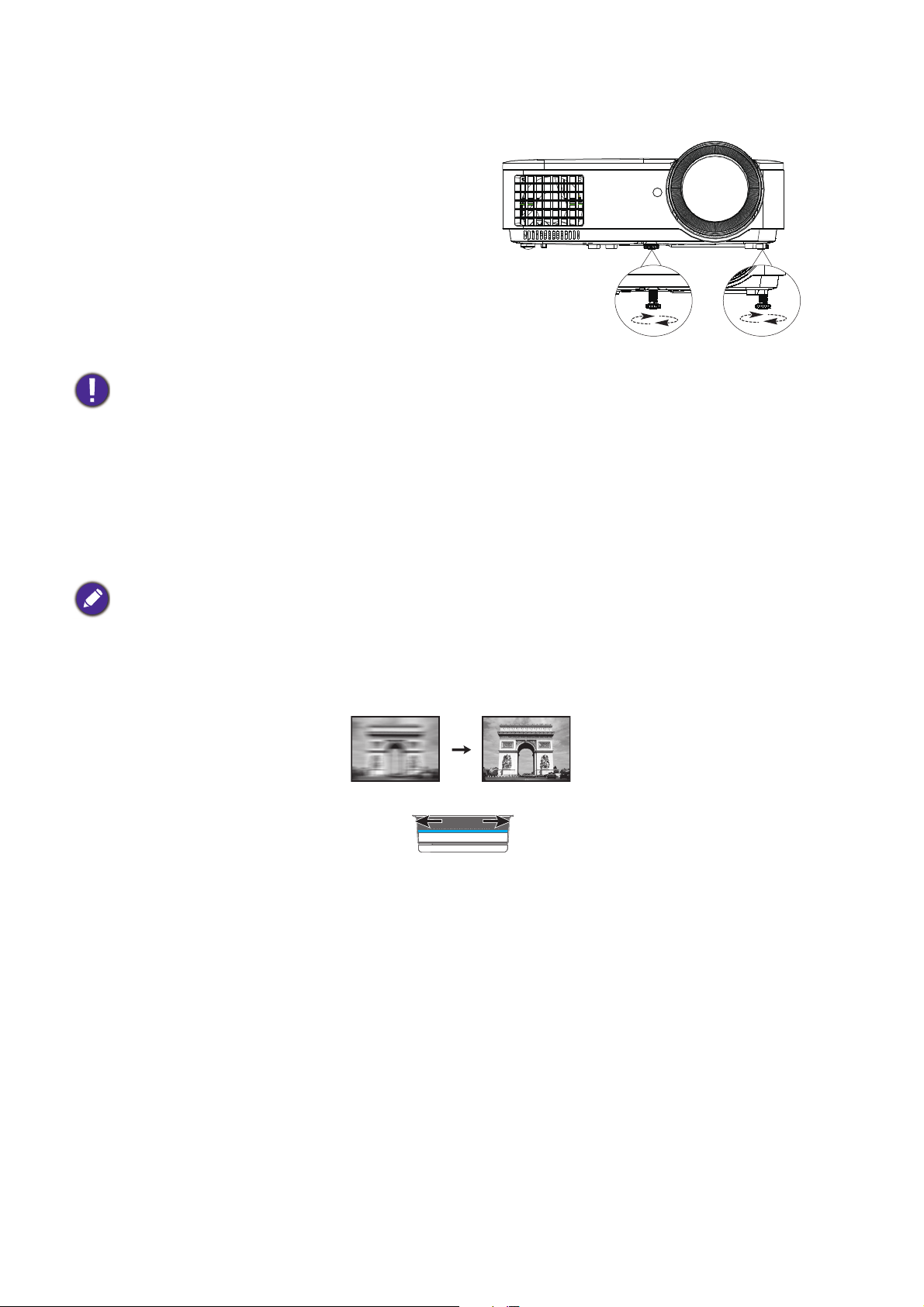

Adjusting the projected image ..............................................................................................................15
Connection .......................................................................................................................... 17
Operation ............................................................................................................................ 19
Starting up the projector ........................................................................................................................19

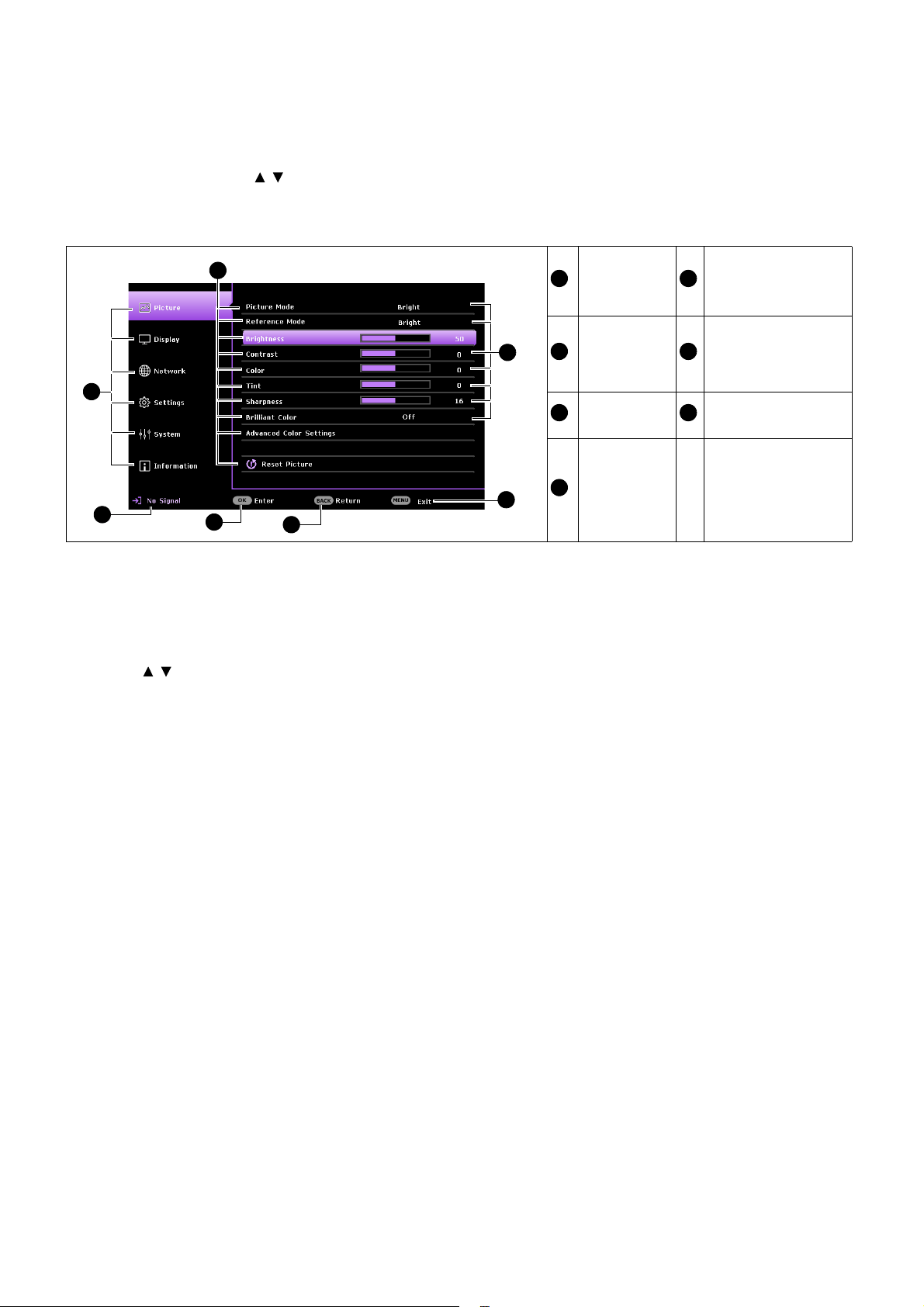

Using the menus ....................................................................................................................................... 20
Securing the projector ............................................................................................................................ 22
Switching input signal ...............................................................................................................................23
Controlling the projector via LAN ...................................................................................................... 24
Upgrading firmware via LAN................................................................................................................. 25
Shutting down the projector .................................................................................................................25
Direct power off ......................................................................................................................................25
Menu operation ................................................................................................................... 26
Basic menu ...............................................................................................................................................26
Advanced menu ..................................................................................................................................... 28
Maintenance ........................................................................................................................ 36
Care of the projector ..............................................................................................................................36
Light information ......................................................................................................................................37
Troubleshooting ................................................................................................................. 39
Specifications ...................................................................................................................... 40
Projector specifications ..........................................................................................................................40
Dimensions ................................................................................................................................................41
Timing chart............................................................................................................................................... 42
4 Important safety instructions
Important safety instructions
Your projector is designed and tested to meet the latest standards for safety of information technology
equipment. However, to ensure safe use of this product, it is important that you follow the instructions
mentioned in this manual and marked on the product.
1. Please read this manual before you
operate your projector. Save it for future
reference.
2. Do not look straight at the projector
lens during operation. The intense light
beam may damage your eyes.
3. Refer servicing to qualified service
personnel.
4. Always open the lens shutter (if any) or
remove the lens cap (if any) when the
projector light source is on.
5. The light source becomes extremely hot
during operation. Allow the projector to cool
for approximately 45 minutes prior to
removing the light source assembly for
replacement.
6. In some countries, the line voltage is NOT
stable. This projector is designed to operate
safely within a mains voltage between 100 to
240 volts AC, but could fail if power cuts or
surges of ±10 volts occur. In areas where
the mains voltage may fluctuate or cut
out, it is recommended that you
connect your projector through a power
stabilizer, surge protector or
uninterruptible power supply (UPS).
7. Do not block the projection lens with any
objects when the projector is under
operation as this could cause the objects to
become heated and deformed or even cause a
fire. To temporarily turn off the light source,
use the blank function.
8. Do not operate light source beyond the rated
light source life. Excessive operation of light
source beyond the rated life could cause them
to break on rare occasions.
5 Important safety instructions

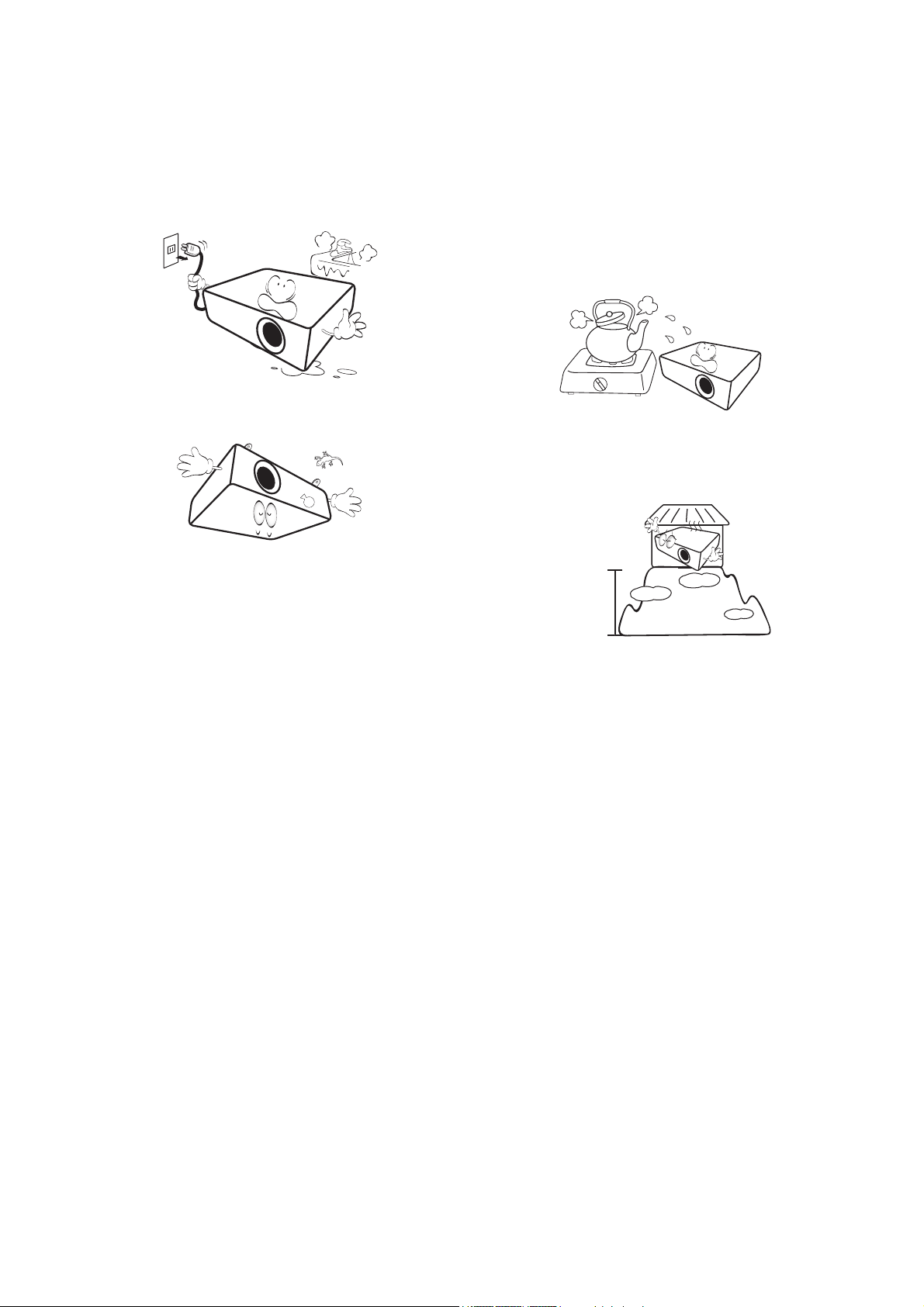

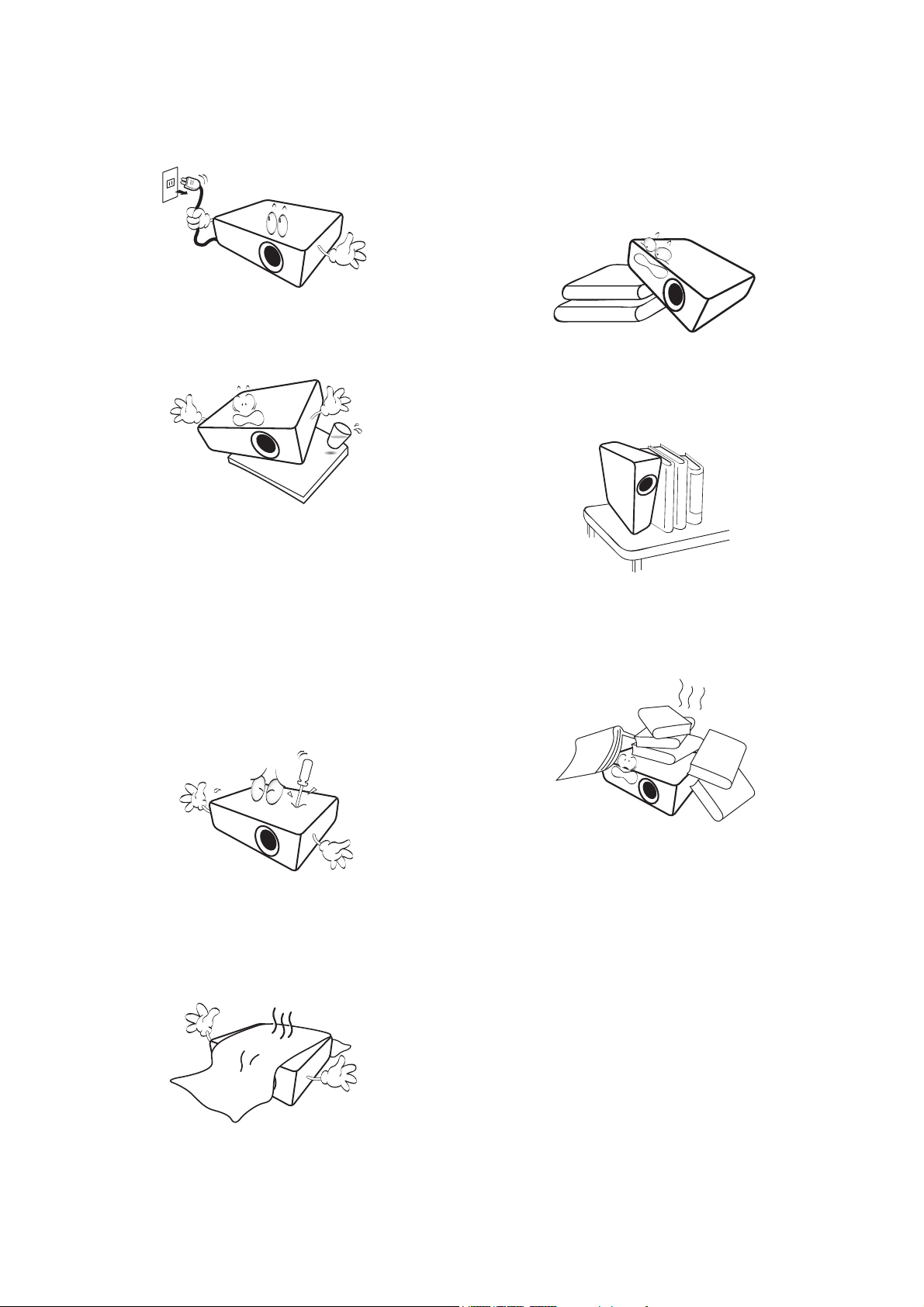

9. Never replace the light source assembly or
any electronic components unless the
projector is unplugged.
10. Do not place this product on an unstable cart,
stand, or table. The product may fall,
sustaining serious damage.
11. Do not attempt to disassemble this projector.
There are dangerous high voltages inside
which may cause death if you should come
into contact with live parts. The only user
serviceable part is the light source which has
its own removable cover.
Under no circumstances should you ever
undo or remove any other covers. Refer
servicing only to suitably qualified professional
service personnel.
12. Do not block the ventilation holes.
- Do not place this projector on a blanket, bedding or
any other soft surface.
- Do not cover this projector with a cloth or any other
item.
- Do not place inflammables near the projector.
If the ventilation holes are seriously
obstructed, overheating inside the projector
may result in a fire.
13. Always place the projector on a level,
horizontal surface during operation.
- Do not use if tilted at an angle of more than 10
degrees left to right, nor at angle of more than 15
degrees front to back. Using the projector when it is
not fully horizontal may cause a malfunction of, or
damage to, the light source.
14. Do not stand the projector on end vertically.
Doing so may cause the projector to fall over,
causing injury or resulting in damage to the
projector.
15. Do not step on the projector or place any
objects upon it. Besides probable physical
damage to the projector, doing so may result
in accidents and possible injury.
16. When the projector is under operation, you
may sense some heated air and odor from its
ventilation grill. It is a normal phenomenon
and not a product defect.
6 Important safety instructions
17. Do not place liquids near or on the projector.
Liquids spilled into the projector may cause it
to fail. If the projector does become wet,
disconnect it from the power supply's power
outlet and call BenQ to have the projector
serviced.
18. This product is capable of displaying inverted
images for ceiling/wall mount installation.
19. This apparatus must be earthed.
20. Do not place this projector in any of the
following environments.
- Space that is poorly ventilated or confined. Allow at
least 50 cm clearance from walls and free flow of air
around the projector.
- Locations where temperatures may become
excessively high, such as the inside of a car with all
windows rolled up.
- Locations where excessive humidity, dust, or cigarette
smoke may contaminate optical components, shorten
the projector's life span and darken the image.
- Locations near fire alarms
- Locations with an ambient temperature above 40°C /
104°F
- Locations where the altitudes are higher than 3000 m
(10000 feet).
3000 m
(10000 feet)
0 m
(0 feet)
7 Important safety instructions
Notice
To ensure safe use of this product, Please read the user manual for details before you operate your
projector.
Caution - Use of control or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
• Notice is given to supervise children and to never allow them to state into the projector beam at any
distance from the projector.
• Notice is given to use caution when using the remote control for starting the projector while in front
of the projection lens.
• Notice is given to the user to avoid the use of optional aids such as binoculars or telescopes inside the
beam.
Risk Group 2
1. According to the classification of
photobiological safety of light sources and
light source systems, this product is Risk
Group 2, IEC 62471-5:2015.
2. Possibly hazardous optical radiation emitted
from this product.
3. Do not stare at operating light source. May
be harmful to the eyes.
4. As with any bright source, do not stare into
the direct beam.
The projector's light source unit uses a laser.
Laser Caution
This product belongs to CLASS 1 consumer laser
product and complies with IEC 60825-1:2014, EN
60825-1:2014/A11:2021 and EN 50689:2021.
Above laser caution is located on the bottom of
this apparatus
8 Introduction
Introduction

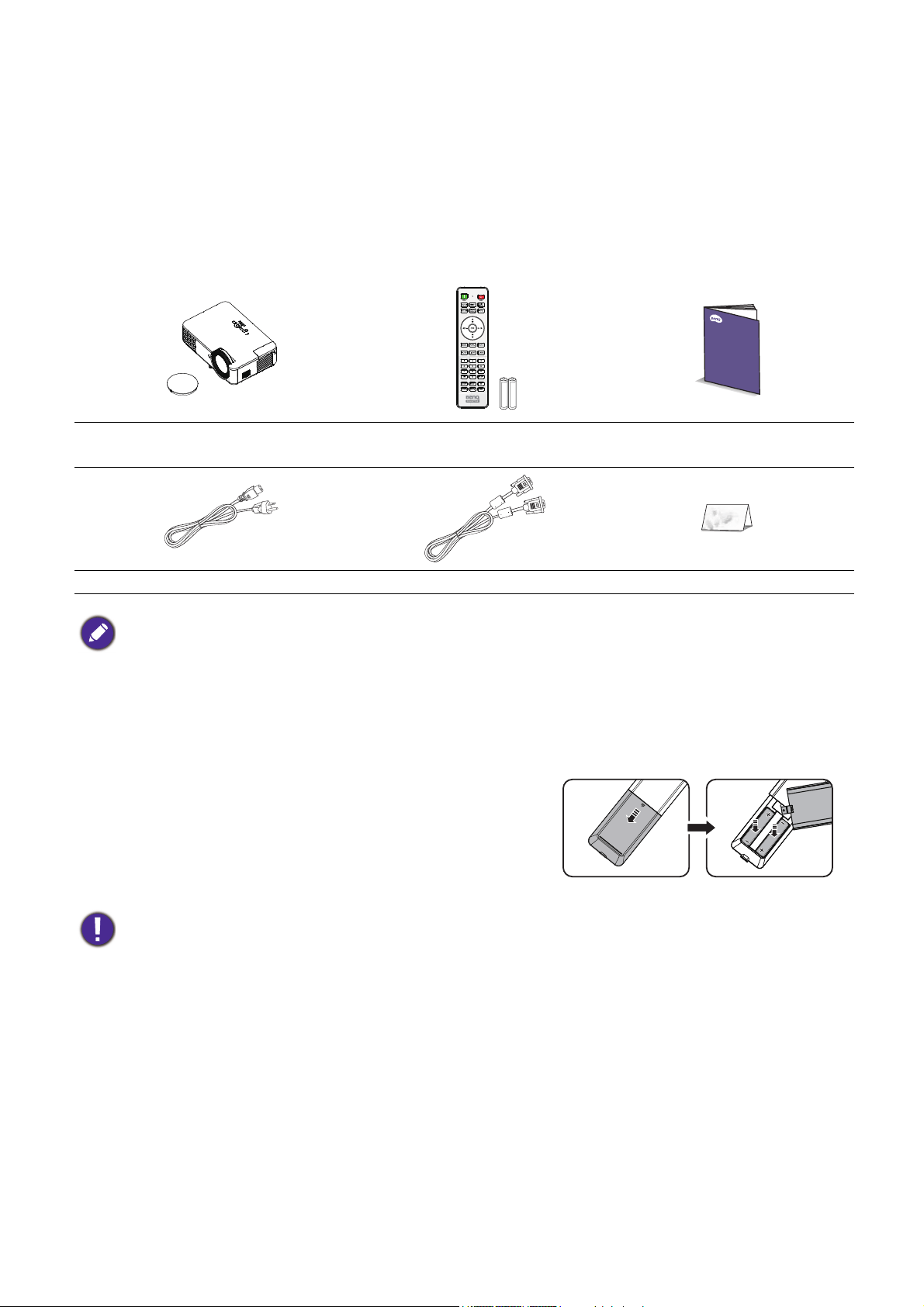

Shipping contents
Carefully unpack and verify that you have all of the items shown below. If any of these items are missing,
please contact your place of purchase.
Standard accessories
Optional accessories
Replacing the remote control batteries
1. Press and open the battery cover, as illustrated.
2. Remove the old batteries (if applicable) and install two
AAA batteries. Make sure that the positive and negative
ends are positioned correctly, as illustrated.
3. Replace the battery cover until it clicks into place.
Projector
Remote control with
batteries
Quick Start Guide
Power cord VGA cable Warranty card*
• The supplied accessories will be suitable for your region, and may differ from those illustrated.
• *The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.
1. 3D glasses 2. Dust filter
• Avoid leaving the remote control and batteries in an excessive heat or humid environment like the kitchen,
bathroom, sauna, sunroom or in a closed car.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
• Dispose of the used batteries according to the manufacturer's instructions and local environment regulations for
your region.
• Never throw the batteries into a fire. There may be danger of an explosion.
• If the batteries are dead or if you will not be using the remote control for an extended period of time, remove the
batteries to avoid damage to the remote control from possible battery leakage.
9 Introduction

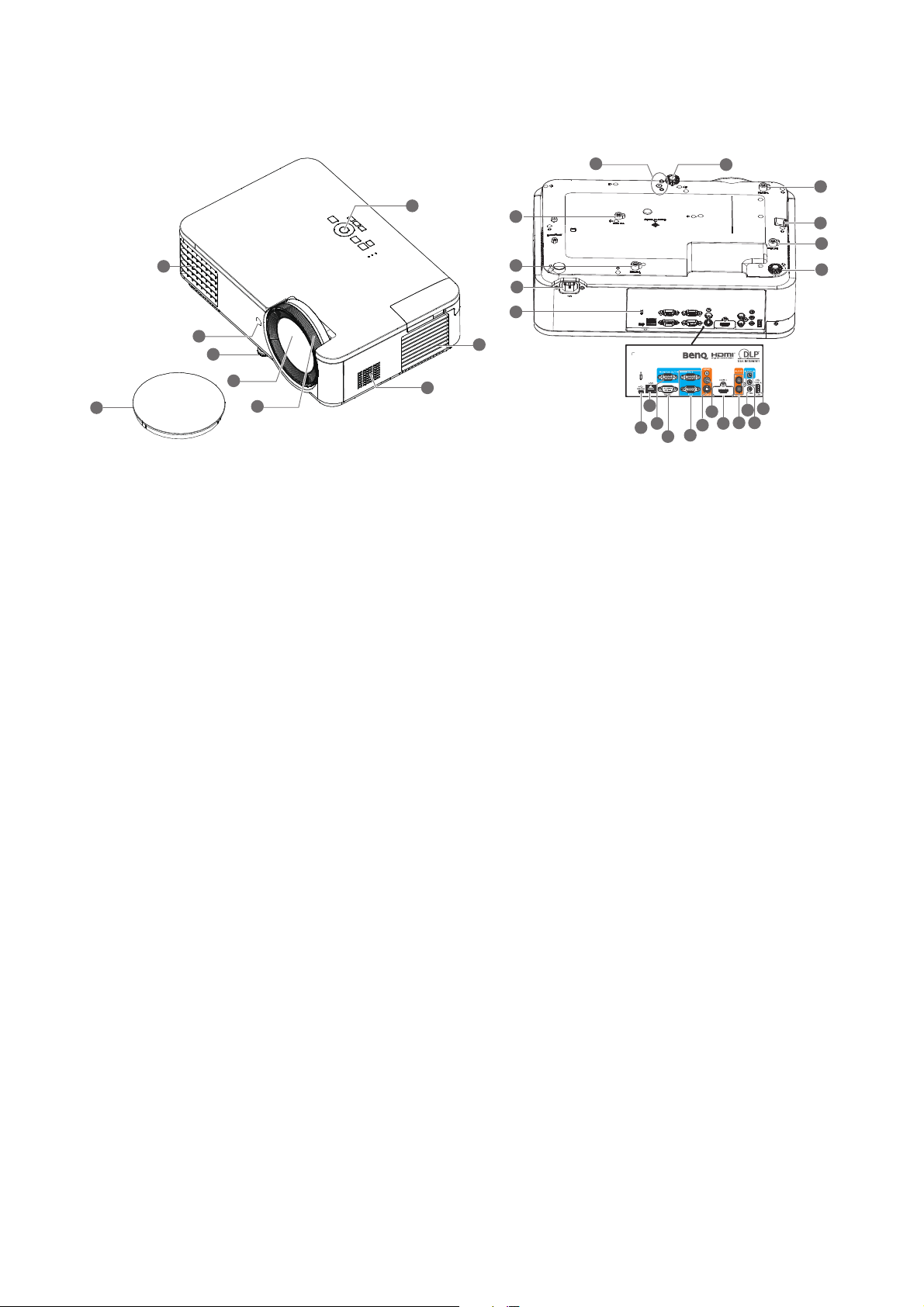

Projector exterior view
1. Lens cover
2. Vent (air exhaust)
3. IR remote sensor
4. Adjuster feet
5. Projection lens
6. Focus ring
7. External control panel
(See
Controls and functions on page 10.)
8. Vent (air inlet)
9. Speaker
10. Wall mount holes
11. Security bar
12. AC power jack
13. Kensington anti-theft lock slot
14. USB Type A port
15. Audio input jack
Audio output jack
16. Microphone
17. Audio (L/R) input jack
18. HDMI 1 input port
19. Video input jack
20. S-Video input jack
21. RGB (PC) signal input jack
22. RS-232 control port
23. RGB (PC) signal output jack
24. RJ-45 LAN input jack
25. USB Mini-B port
26. PointWrite module holes
2
3
4
5
1
6
4
10
11
10
10
10
12
13
14
15
16
17
18
19
20
21
22
23
24
25
4
8
7
26
9
10 Introduction

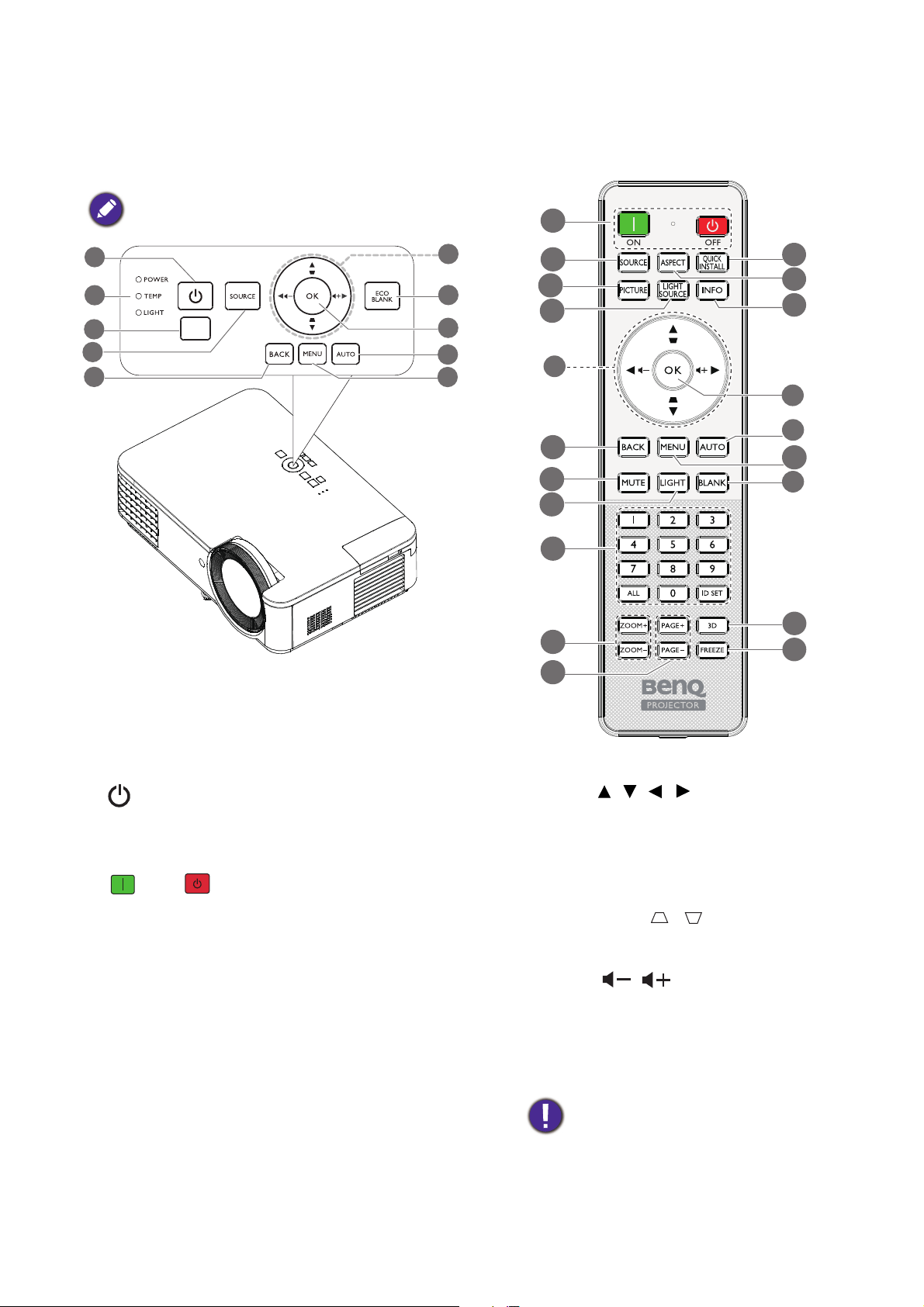

Controls and functions
Projector & Remote control
1. POWER
Toggles the projector between standby mode
and on.
ON/ Off
Toggles the projector between standby mode
and on.
2. POWER indicator light/TEMPerature
warning light/LIGHT indicator light
(See
Indicators on page 38.)
3. IR remote sensor
4. SOURCE
Displays the source selection bar.
5. BACK
Goes back to previous OSD menu, exits and
saves menu settings.
6. Arrow keys ( , , , )
When the On-Screen Display (OSD) menu is
activated, these keys are used as directional
arrows to select the desired menu items and
to make adjustments.
2D Keystone keys ( , )
Displays the 2D keystone correction page.
Volume keys /
Decreases or increase the projector volume.
7. ECO BLANK
Used to hide the screen picture.
Do not block the projection lens from
projecting as this could cause the blocking
object to become heated and deformed or
even cause a fire.
5
4
6
8
7
9
10
3
2
1
All the key presses described in this document
are available on the remote control or projector.
1
5
10
9
8
11
13
14
15
16
17
18
212
22
4
7
19
20
6
12
11 Introduction

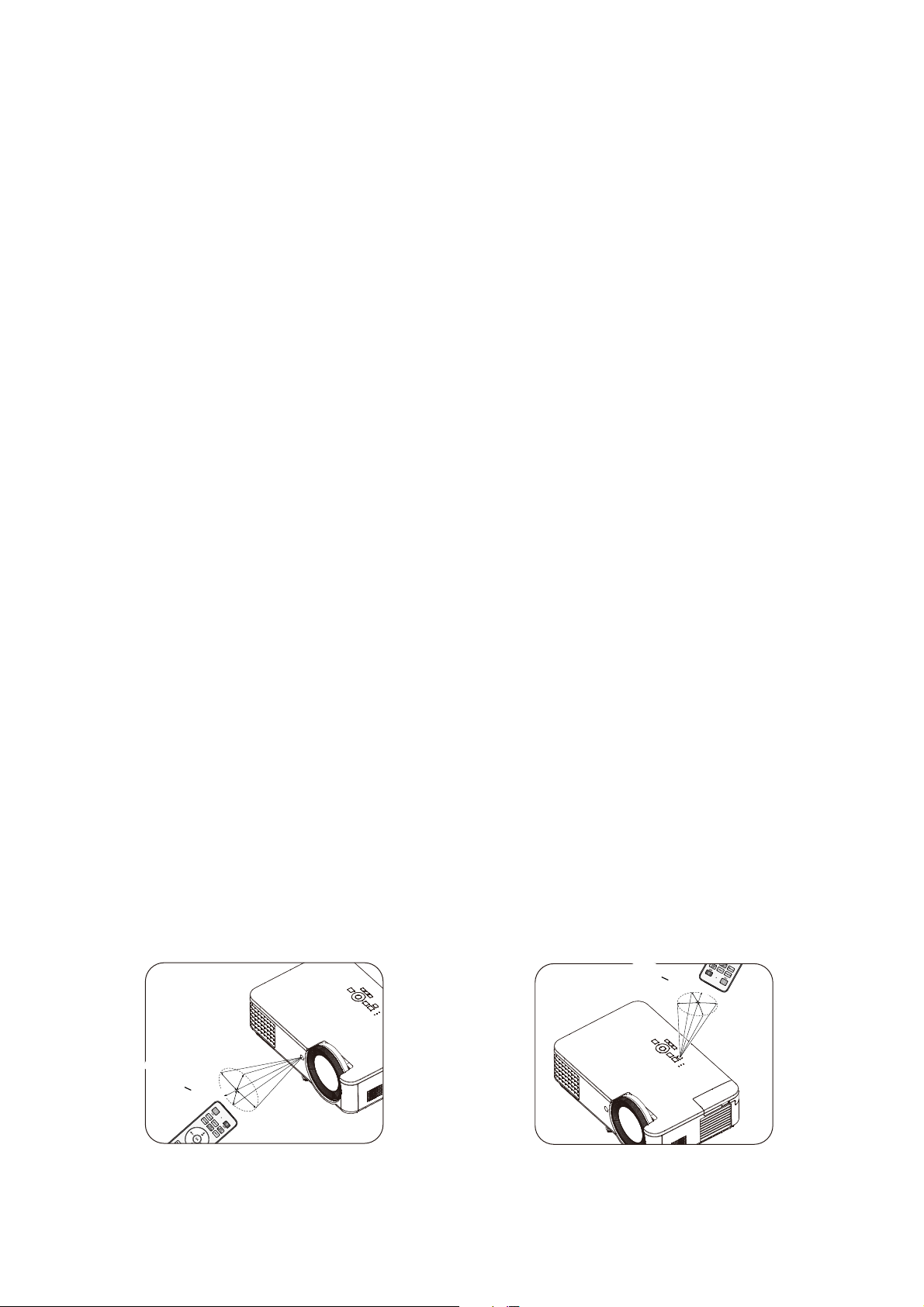

Remote control effective range
The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR
remote control sensor(s) to function correctly. The distance between the remote control and the
sensor(s) should not exceed 8 meters (~ 26 feet).
Make sure that there are no obstacles between the remote control and the IR sensor(s) on the
projector that might obstruct the infra-red beam.
8. OK
Confirms the selected On-Screen Display
(OSD) menu item.
9. AUTO
Automatically determines the best picture
timings for the displayed image when PC signal
(analog RGB) is selected.
10. MENU
Turns on the On-Screen Display (OSD) menu.
11. PICTURE
Selects the picture mode.
12. LIGHT SOURCE
Displays the LIGHT SOURCE menu for
selecting a suitable light operating mode.
13. MUTE
Toggles projector audio between on and off.
14. LIGHT
Turns on the remote control backlight for a
few seconds. To keep the backlight on, press
any other key while the backlight is on. Press
the key again to turn the backlight off.
15. Projector ID code keys
Used to set projector ID code.
16. ZOOM+/ZOOM-
Magnifies or reduces the projected picture
size.
17. PAGE+/PAGE-
Operate your display software program (on a
connected PC) which responds to page
up/down commands (like Microsoft
PowerPoint).
18. QUICK INSTALL
Quickly selects several functions to adjust the
projected image and displays the test pattern.
19. ASPECT
Selects the display aspect ratio.
20. INFO
Displays the projector information.
21. 3D
Displays the 3D menu.
22. FREEZE
Freezes the projected image.
• Operating the projector from the front • Operating the projector from the top
A
p
p
r
o
x
.
+
3
0
º
A
p
p
r
o
x
.
+
3
0
º
12 Positioning your projector
Positioning your projector
Choosing a location
Before choosing an installation location for your projector, take the following factors into consideration:
• Size and position of your screen
• Electrical outlet location
• Location and distance between the projector and the rest of your equipment
You can install your projector in the following ways.
After turning on the projector, go to Advanced Menu - Settings > Projector Installation >
Projector Installation and press / to select a setting.
You can also use QUICK INSTALL on the remote control to access this menu.
1. Front Table
Select this location with the projector placed on
the table in front of the screen. This is the most
common way to position the projector for quick
setup and portability.
2. Rear Table
Select this location with the projector placed on
the table behind the screen. Note that a special
rear projection screen is required.
3. Front Ceiling
Select this location with the projector suspended
upside-down in front of the screen. Purchase the
BenQ Projector Ceiling/Wall Mount Kit from your
dealer to mount your projector.
4. Rear Ceiling
Select this location with the projector suspended
upside-down from behind the screen. Note that a
special rear projection screen and the BenQ
Projector Ceiling/Wall Mount Kit are required for
this installation location.
13 Positioning your projector

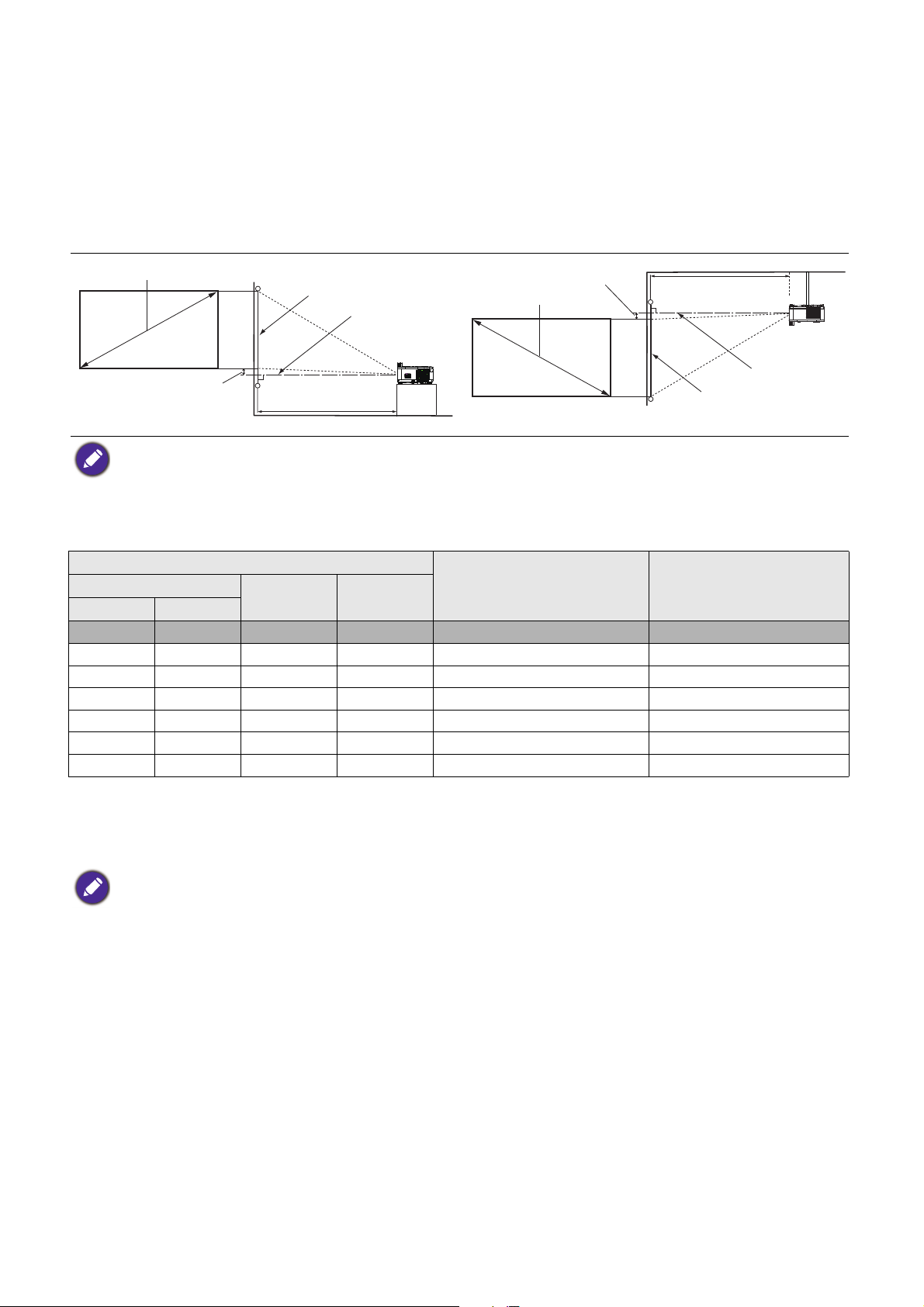

Obtaining a preferred projected image size
The distance from the projector lens to the screen, the zoom setting (if available), and the video format
each factors in the projected image size.
Projection dimensions
• The screen aspect ratio is 16:9 and the projected picture is in a 16:9 aspect ratio
For example, if you are using a 80-inch screen, the recommended projection distance is 880 mm.
• If your measured projection distance is 1000 mm, the closest match in the
"Projection distance (mm)"
column is 990 mm. Looking across this row shows that a 90'' (about 2.2 m) screen is required.
• *The vertical offset value is the vertical distance from the bottom edge of the image (when the projector is on a
table, diagram on the left), or top edge of the image (when the projector is ceiling mounted, diagram on the right)
to the centerline of lens.
• Due to the lens optical characteristics, every projector has its vertical offset ratio. The vertical offset value
normally gets larger while the projection distance increases.
Screen size
Projection distance (mm)
*Vertical offset (A)
(mm)
Diagonal
H (mm) W (mm)
Inch mm
60 1524 747 1328 660 67
70 1778 872 1550 770 78
80 2032 996 1771 880 90
90 2286 1121 1992 990 101
100 2540 1245 2214 1100 112
110 2794 1370 2435 1210 123
120 3048 1494 2657 1320 134
• All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the
projection size and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector's optical characteristics. This will help you determine the exact mounting position so
that it best suits your installation location.
• To optimize your projection quality, we suggest doing the projection by following the values in the non-gray cells.
• The values in the gray cells are for reference only.
H
W
Projection distance
Centerline of lens
Screen
16:9 Screen diagonal
Vertical Offset (A)*
Vertical Offset (A)*
Screen
Centerline of lens
Projection distance
H
W
16:9 Screen diagonal
14 Positioning your projector
Mounting the projector
If you intend to mount your projector, we strongly recommend that you use a proper fitting BenQ
projector mounting kit and that you ensure it is securely and safely installed.
If you use a non-BenQ brand projector mounting kit, there is a safety risk that the projector may fall
down due to an improper attachment through the use of the wrong gauge or length screws.
Before mounting the projector
• Purchase a BenQ projector mounting kit from the place you purchased your BenQ projector.
• BenQ recommends that you also purchase a separate Kensington lock compatible security cable and
attach it securely to both the Kensington lock slot on the projector and the base of the mounting
bracket. This will perform the secondary role of restraining the projector should its attachment to the
mounting bracket become loose.
• Ask your dealer to install the projector for you. Installing the projector on your own may cause it to
fall and result in injury.
• Take necessary procedures to prevent the projector from falling off such as during an earthquake.
• The warranty doesn’t cover any product damage caused by mounting the projector with a non-BenQ
brand projector mounting kit.
• Consider the surrounding temperature where the projector is ceiling/wall mounted. If a heater is used,
the temperature around the ceiling/wall may be higher than expected.
• Read the user manual for the mounting kit about the range of torque. Tightening with torque
exceeding the recommended range may cause damage to the projector and subsequently falling off.
• Make sure the power outlet is at an accessible height so that you can easily shut down the projector.
Ceiling/Wall mount installation diagram
Ceiling/Wall mount screw: M4
(Max L = 25 mm; Min L = 20 mm)
Unit: mm
339.5
242.0
216.8
235.7
215.5
149.5
228.0
131.5
235.7
15 Positioning your projector
Adjusting the projected image
Adjusting the projection angle
If the projector is not placed on a flat surface or the
screen and the projector are not perpendicular to
each other, the projected image becomes
trapezoidal. You can screw the adjuster feet to
fine-tune the horizontal angle.
To retract the feet, screw the adjuster feet in a
reverse direction.
Auto-adjusting the image
In some cases, you may need to optimize the picture quality. To do this, press AUTO. Within 3
seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and
Clock to provide the best picture quality.
The current source information will be displayed in the corner of the screen for 3 seconds.
Fine-tuning the image clarity
Do not look into the lens while the light source is on. The strong light from the light source may cause damage to
your eyes.
This function is only available when PC signal (analog RGB) is selected.
Sharpen the image by rotating the focus ring.
16 Positioning your projector
Correcting 2D keystone
2D Keystone function enables a wider projector installation area compared to conventional projectors
with limited positioning in front of the screen.
To correct this, you will need to manually correct it following one of these steps.
1. Do one of the following steps to display the 2D keystone
correction page.
• Press / on the projector or remote control.
• Press QUICK INSTALL on the remote control. Press to
highlight 2D Keystone and press OK.
• Go to Advanced Menu - Display > 2D Keystone and press
OK.
2. After the 2D Keystone correction page displays. Press / to adjust vertical values. Press / to
adjust horizontal values.
Adjusting Corner Fit
Manually adjust four corners of the image by setting the horizontal and vertical values.
1. Do one of the following steps to display the corner fit page.
• Press QUICK INSTALL on the remote control. Press to
highlight Corner Fit and press OK.
• Go to Advanced Menu - Display > Corner Fit and press
OK.
2. After the Corner Fit correction page displays. Press / to to
adjust vertical values. Press / to adjust horizontal values.

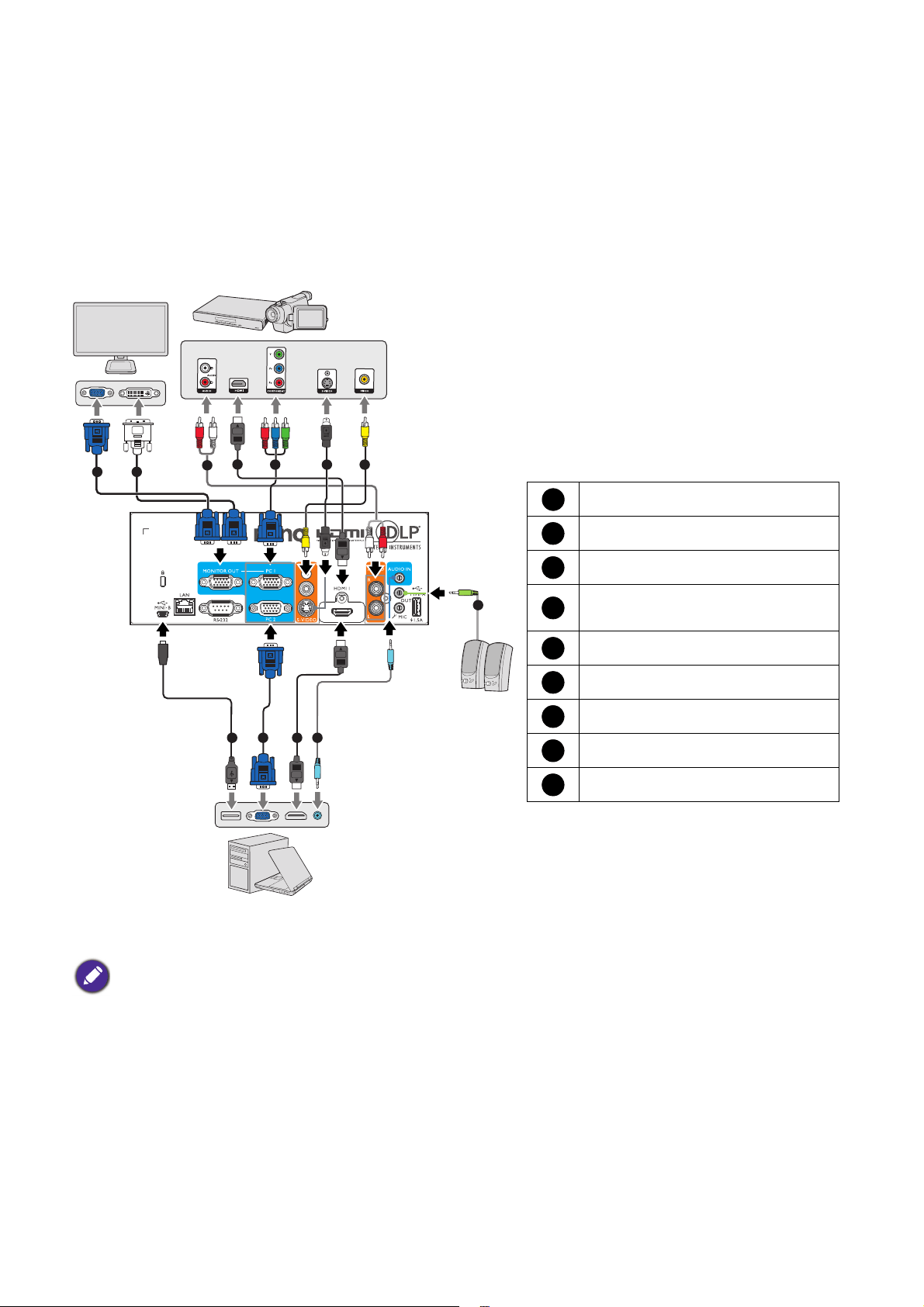

17 Connection
Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
• In the connections above, some cables may not be included with the projector (see Shipping contents on page 8).
They are commercially available from electronics stores.
• The connection illustrations are for reference only. The rear connecting jacks available on the projector vary with
each projector model.
• Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo
like FN + function key with a monitor symbol turns the external display on/off. Press FN and the labeled function
key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.
• If the selected video image is not displayed after the projector is turned on and the correct video source has been
selected, check that the video source device is turned on and operating correctly. Also check that the signal cables
have been connected correctly.
8
1
4
21
5
6
3
7
7
10
9
Notebook or
desktop computer
VGA cable
VGA to DVI-A cable
USB cable
Component Video to VGA
(D-Sub) adapter cable
S-Video cable
Video cable
Audio cable
Audio L/R cable
HDMI cable
1
2
3
4
5
6
7
8
9
Speakers
Monitor
A/V device
18 Connection
You need only connect the projector to a video source device using just one of the connecting methods,
however each provides a different level of video quality.
Connecting audio
The projector has built-in mono speaker(s) which are designed to provide basic audio functionality
accompanying data presentations for business purposes only. They are not designed for, nor intended
for stereo audio reproduction use as might be expected in home theater or home cinema applications.
Any stereo audio input (if provided), is mixed into a common mono audio output through the projector
speaker(s).
The built-in speaker(s) will be muted when the AUDIO OUT jack is connected.
Terminal Picture quality
HDMI I
Best
Component Video (through RGB
input)
Better
S-Video
Good
Video
Normal
• The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected.
• If the selected video image is not displayed after the projector is turned on and the correct video source has been
selected, check that the video source device is turned on and operating correctly. Also check that the signal cables
have been connected correctly.
19 Operation
Operation

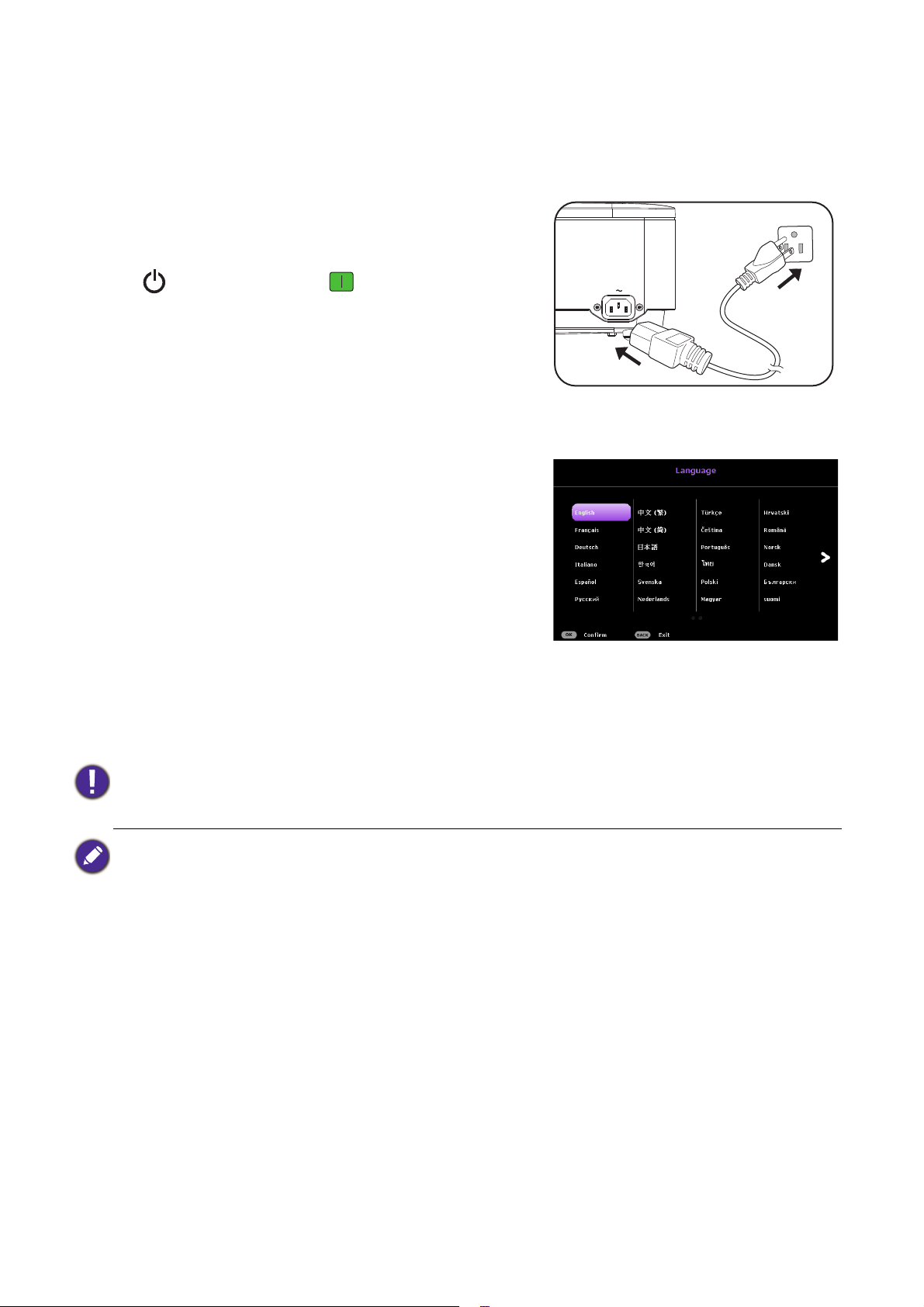

Starting up the projector
1. Plug the power cord. Turn on the power outlet switch
(where fitted). The power indicator on the projector
lights orange after power has been applied.
2. Press on the projector or on the remote
control to start the projector. The power indicator
flashes green and stays green when the projector is on.
The start up procedure takes about 30 seconds. In the
later stage of start up, a startup logo is projected.
(If necessary) Rotate the focus ring to adjust the image
clearness.
3. If the projector is activated for the first time, select your
OSD language following the on-screen instructions.
4. If you are prompted for a password, press the arrow keys
to enter a 6-digit password. See
Utilizing the password
function on page 22
.
5. Switch all of the connected equipment on.
6. The projector will search for input signals. The current
input signal being scanned appears. If the projector does
not detect a valid signal, the message “No Signal” will
continue displaying until an input signal is found.
You can also press SOURCE to select your desired input signal. See Switching input signal on page
23
.
• Please use the original accessories (e.g. power cord) to avoid possible dangers such as electric shock and fire.
• If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds before
energizing the light source.
• The Setup Wizard screenshots are for reference only and may differ from the actual design.
• If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message
“Out of Range”
displayed on the background screen. Please change to an input signal which is compatible with
the projector's resolution or set the input signal to a lower setting. See Timing chart on page 42.
• If no signal is detected for 3 minutes, the projector automatically enters saving mode.
20 Operation
Using the menus
The projector is equipped with 2 types of On-Screen Display (OSD) menus for making various
adjustments and settings.
• Basic OSD menu: provides primary menu functions. (See Basic menu on page 26)
• Advanced OSD menu: provides full menu functions. (See
Advanced menu on page 28)
To access the OSD menu, press MENU on the projector or remote control.
• Use the arrow keys ( / / / ) on the projector or remote control to move through the menu items.
• Use OK on the projector or remote control to confirm the selected menu item.
The first time you use the projector (after finishing the initial setup), Basic OSD menu displays.

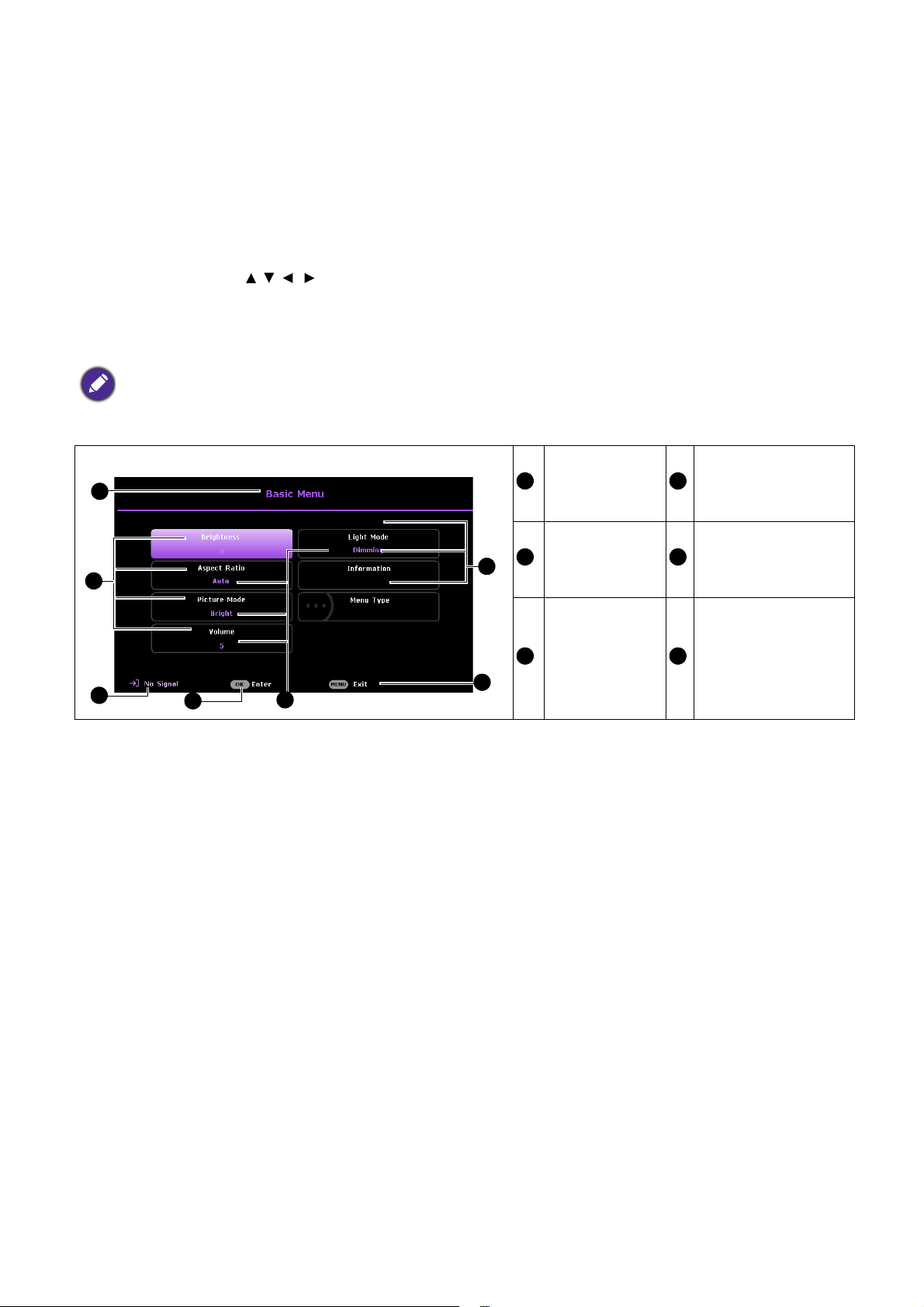

Below is the overview of the Basic OSD menu.
The OSD screenshots below are for reference only, and may differ from the actual design.
Menu Type
Press OK to enter
the menu.
Main menu Status
Current input
signal
Press MENU to go
to the previous page
or to exit.
2
1
2
6
5
3
4
1
4
2
5
3
6
21 Operation
If you intend to switch from the Basic OSD menu to the Advanced OSD menu, follow the
instructions below:
1. Go to Basic Menu > Menu Type.
2. Press OK and press / to select Advanced. Next time when you turn on the projector, you
may access the Advanced OSD menu by pressing MENU.
Below is the overview of the Advanced OSD menu.
Likewise, when you wish to switch from the Advanced OSD menu to the Basic OSD menu, follow
the instructions below:
1. Go to Advanced Menu - System > Menu Settings and press OK.
2. Select Menu Type and OK.
3. Press / to select Basic. Next time when you turn on the projector, you may access the Basic
OSD menu by pressing MENU.
Main menu
& Main
menu icon
Press BACK to go
to the previous
page.
Sub-menu
Press MENU to
go to the previous
page or to exit.
Current
input signal
Status
Press OK
to enter the
menu.
1
7
6
2
3
4
5
1
5
2
6
3
7
4
22 Operation
Securing the projector
Using a security cable lock
The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as
the Kensington lock, to secure the projector. You can locate a Kensington lock slot on the rear side of
the projector. See item 13 on
page 9.
A Kensington security cable lock is usually a combination of key(s) and the lock. Refer to the lock’s
documentation for finding out how to use it.
Utilizing the password function
Setting a password
1. Go to Advanced Menu - Settings > Security Settings. Press OK. The Security Settings
page appears.
2. Highlight Change Password and press OK.
3. The four arrow keys ( , , , ) respectively represent
4 digits (1, 2, 3, 4). According to the password you desire
to set, press the arrow keys to enter six digits for the
password.
4. Confirm the new password by re-entering the new
password.
Once the password is set, the OSD menu returns to the
Security Settings page.
5. To activate the Power On Lock function, press / to
highlight Power On Lock and press / to select On. Input the password again.
If you forget the password
If you enter the wrong password, the password error
message will appear, and the Input Current Password
message follows. If you absolutely do not remember the
password, you can use the password recall procedure. See
Entering the password recall procedure on page 22.
If you enter an incorrect password 5 times in succession, the
projector will automatically shut down in a short time.
Entering the password recall procedure
1. Press and hold AUTO for 3 seconds. The projector will
display a coded number on the screen.
2. Write down the number and turn off your projector.
3. Seek help from the local BenQ service center to decode
the number. You may be required to provide proof of
purchase documentation to verify that you are an
authorized user of the projector.
• The digits being input will display as asterisks on-screen. Make a note of your selected password and keep it in a
safe place in advance or right after the password is entered so that it is available to you should you ever forget it.
• Once a password has been set and the power on lock is activated, the projector cannot be used unless the
correct password is entered every time the projector is started.
23 Operation
Changing the password
1. Go to Advanced Menu - Settings > Security Settings > Change Password.
2. Press OK. The message “Input Current Password” appears.
3. Enter the old password.
• If the password is correct, another message “Input New Password” appears.
• If the password is incorrect, the password error message will appear, and the message “Input
Current Password” appears for your retry. You can press BACK to cancel the change or try
another password.
4. Enter a new password.
5. Confirm the new password by re-entering the new password.
Disabling the password function
To disable password protection, go to Advanced Menu - Settings > Security Settings > Power
On Lock and press / to select Off. The message “Input Current Password” appears. Enter the
current password.
• If the password is correct, the OSD menu returns to the Security Settings page. You will not
have to enter the password next time turning on the projector.
• If the password is incorrect, the password error message will appear, and the message “Input
Current Password” appears for your retry. You can press BACK to cancel the change or try
another password.
Switching input signal
The projector can be connected to multiple devices at the same time.
However, it can only display one full screen at a time. When starting
up, the projector automatically searches for the available signals.
Be sure the Advanced Menu - Settings > Auto Source Search
menu is On if you want the projector to automatically search for the
signals.
To select the source:
1. Press SOURCE. A source selection bar appears.
2. Press / until your desired signal is selected and press OK.
Once detected, the selected source information will appear at the corner of the screen for seconds.
If there is multiple equipment connected to the projector, repeat steps 1-2 to search for another
signal.
Though the password function is disabled, you need to keep the old password in hand should you ever need to
re-activate the password function by entering the old password.
• The brightness level of the projected image will change accordingly when you switch between different input
signals.
• For best display picture results, you should select and use an input signal which outputs at the projector’s native
resolution. Any other resolutions will be scaled by the projector depending upon the “aspect ratio” setting,
which may cause some image distortion or loss of picture clarity. See
Aspect Ratio on page 26.
24 Operation
Controlling the projector via LAN
Wired LAN allows you to manage the projector from a computer using a web browser when the
computer and the projector are properly connected to the same local area network.
Configuring the Wired LAN Settings
If you are in a DHCP environment:
1. Take a RJ45 cable and connect one end to the LAN input jack of the projector and the other end to
the RJ45 port.
2. Go to Advanced Menu - Network > Wired LAN. Press OK. The Wired LAN page appears.
3. Press to select DHCP and press / to select On.
4. Please wait for around 15 - 20 seconds, and then re-enter the Wired LAN page.
5. The IP Address, Subnet Mask, Default Gateway, and DNS Server settings will be displayed.
Note down the IP address displayed in the IP Address row.
6. Go back to Advanced Menu - Network > Wired LAN page.
7. Press to highlight AMX Device Discovery and press / to select On or Off. When AMX
Device Discovery is On, the projector can be detected by AMX controller.
If you are in a non-DHCP environment:
1. Go to Advanced Menu - Network > Wired LAN page.
2. Press to select DHCP and press / to select Off.
3. Contact your ITS administrator for information on the IP Address, Subnet Mask, Default
Gateway, and DNS Server settings.
4. Press to select the item you want to modify and press OK.
5. Press / to move the cursor and then press / to enter the value.
6. To save the setting, press OK. If you do not want to save the setting, press BACK.
7. Press to highlight Apply and press OK.
8. Go back to Advanced Menu - Network > Wired LAN page., press to highlight AMX
Device Discovery and press / to select On or Off.
9. Press MENU to exit the menu.
• When connecting the RJ45 cable, avoid coiling and intertwining the cable as it may cause signal noise or
interruption.
• If the IP Address still does not display, contact your ITS administrator.
25 Operation
Upgrading firmware via LAN
The BenQ Easy Firmware Updater is a software program that enables remote and centralized upgrade
the BenQ network projector on a host computer.
The key features of the BenQ Easy Firmware Updater include:
• Search for projectors in the different subnet.
• Support multiple projectors firmware upgrade at the same time (up to 255).
For more information about the tool, please contact BenQ service.

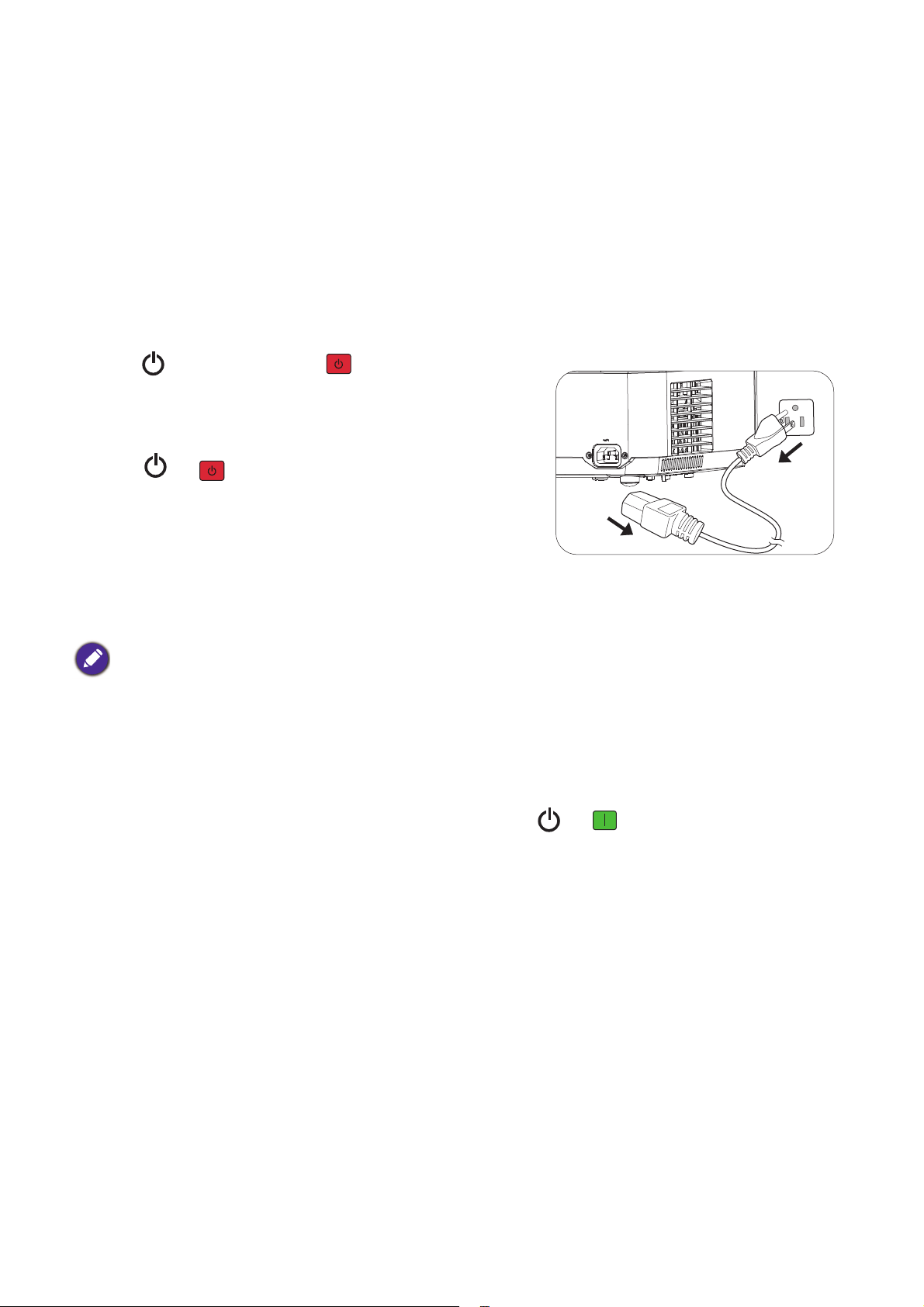

Shutting down the projector
1. Press on the projector or on the remote control
and a confirmation message will appear prompting you. If
you don't respond in a few seconds, the message will
disappear.
2. Press or a second time. The power indicator
flashes orange, the projection light source shuts down,
and the fans will continue to run for approximately 90
seconds to cool down the projector.
3. Once the cooling process finishes, the power indicator
becomes a steady orange and fans stop. Disconnect the
power cord from the power outlet.
Direct power off
The AC power cord can be pulled out right after the projector is turned off. To protect the light source,
wait about 10 minutes before re-starting the projector. If you attempt to re-start the projector, the fans
may run for a few minutes to cool down. In such cases, press or again to start the projector
after the fans stop and the power indicator turns orange.
• To protect the light source, the projector will not respond to any commands during the cooling process.
• Avoid turning on the projector immediately after turning it off as excessive heat may shorten light source life.
• Light source life results will vary depending on environmental conditions and usage.
26 Menu operation
Menu operation
Please note that the on-screen display (OSD) menus vary according to the signal type selected and the
projector model you are using.
The menu items are available when the projector detects at least one valid signal. If there is no
equipment connected to the projector or no signal detected, limited menu items are accessible.
Basic menu
Brightness
The higher the value, the brighter the image. Adjust this control so the black areas
of the image appear just as black and that detail in the dark areas is visible.

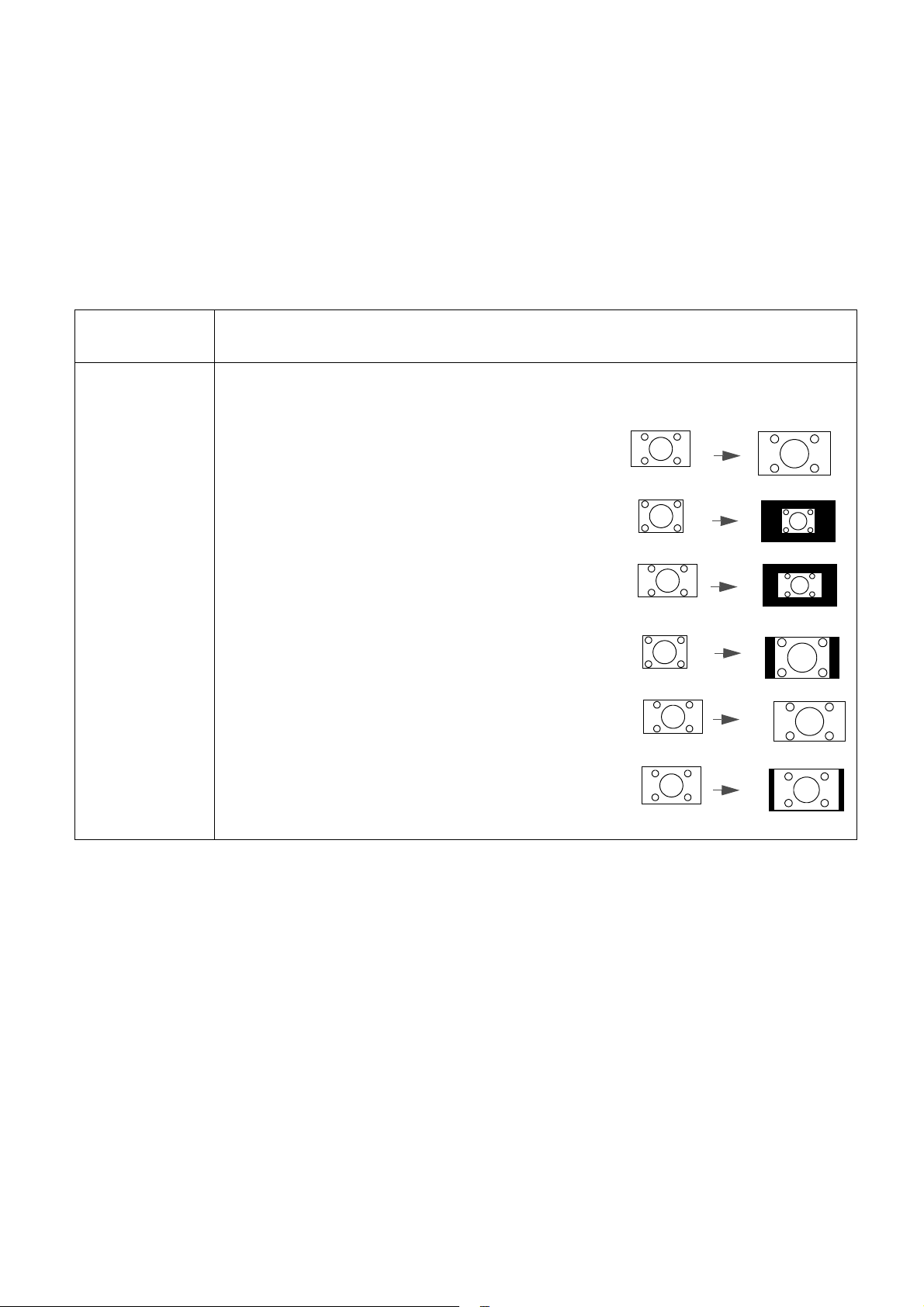

Aspect Ratio
There are several options to set the image's aspect ratio depending on your input
signal source.
• Auto: Scales an image proportionally to fit the
projector's native resolution in its horizontal or
vertical width.
• Real: Projects an image as its original resolution
and resizes it to fit within the display area. For
input signals with lower resolutions, the projected
image will be displayed in its original size.
• 4:3: Scales an image so that it is displayed in the
center of the screen with a 4:3 aspect ratio.
• 16:9: Scales an image so that it is displayed in the
center of the screen with a 16:9 aspect ratio.
• 16:10: Scales an image so that it is displayed in the
center of the screen with a 16:10 aspect ratio.
15:9 picture
4:3 picture
16:9 picture
4:3 picture
16:9 picture
16:10 picture
27 Menu operation
Picture Mode
The projector is preset with several predefined picture modes so that you can
choose one to suit your operating environment and input signal picture type.
• Bright: Maximizes the brightness of the projected image. This mode is suitable for
environments where extra-high brightness is required, such as using the projector
in well lit rooms.
• Presentation: Is designed for presentations. The brightness is emphasized in this
mode to match PC and notebook coloring.
• Golf: Is designed for golf simulators and optimizes the blue sky and the green
grass color.
• sRGB: Maximizes the purity of RGB colors to provide true-to-life images
regardless of brightness setting. It is most suitable for viewing photos taken with an
sRGB compatible and properly calibrated camera, and for viewing PC graphic and
drawing applications such as AutoCAD.
• Video: Is appropriate for playing colorful movies, video clips from digital cameras
or DVs through the PC input for best viewing in a blackened (little light)
environment.
• 3D: Is appropriate for playing 3D images and 3D video clips.
• User 1/User 2: Recalls the settings customized based on the current available
picture modes. See
Reference Mode on page 28.
Volume Adjusts the sound level.
Light Mode See Setting the Light Mode on page 37.
Information
• Native Resolution: Shows the native resolution of the projector.
• Detected Resolution: Shows the native resolution of the input signal.
• Source: Shows the current signal source.
• Picture Mode: Shows the selected mode in the Picture menu.
• Light Mode: Shows the selected mode in the Light Settings menu.
• 3D Format: Shows the current 3D mode.
• Color System: Shows input system format.
• Light Usage Time: Shows the number of hours the light source has been used.
• Firmware Version: Shows the firmware version of your projector.
Menu Type Switches to the Advanced OSD menu. See
Using the menus on page 20.
28 Menu operation
Advanced menu
Picture Mode
See Picture Mode on page 27.
Reference
Mode
There are 2 user-definable modes if the current available picture modes are not
suitable for your need. You can use one of the picture modes (except the User
1/User 2) as a starting point and customize the settings.
1. Go to Picture > Picture Mode.
2. Press / to select User 1 or User 2.
3. Press to highlight Reference Mode, and press / to select a picture
mode that is closest to your need.
4. Press to select a menu item to be changed and adjust the value. The
adjustments define the selected user mode.
Brightness
The higher the value, the brighter the image. Adjust this control so the black areas
of the image appear just as black and that detail in the dark areas is visible.
Contrast
The higher the value, the greater the contrast. Use this to set the peak white level
after you have previously adjusted the Brightness setting to suit your selected input
and viewing environment.
Color
Lower setting produces less saturated colors. If the setting is too high, colors on
the image will be overpowering, which makes the image unrealistic.
Tint
The higher the value, the more greenish the picture becomes. The lower the value,
the more reddish the picture becomes.
Sharpness The higher the value, the sharper the picture becomes.
Brilliant Color
This feature utilizes a new color-processing algorithm and system level
enhancements to enable higher brightness while providing truer, more vibrant
colors in picture. It enables a greater than 50% brightness increase in mid-tone
images, which are common in video and natural scenes, so the projector
reproduces images in realistic and true colors. If you prefer images with that quality,
select On.
When Off is selected, the Color Temperature function is not available.
29 Menu operation
Advanced
Color Settings
Color Temperature
There are several preset color temperature settings available. The available settings
may vary according to the signal type selected.
• Normal: Maintains normal colorings for white.
• Cool: Makes images appear bluish white.
• Warm: Makes images appear reddish white.
Color Temperature Tuning
You can also set a preferred color temperature by adjusting the following options.
• R Gain/G Gain/B Gain: Adjusts the contrast levels of Red, Green, and Blue.
• R Offset/G Offset/B Offset: Adjusts the brightness levels of Red, Green, and
Blue.
Color Management
This function provides six sets (RGBCMY) of colors to be adjusted. When you
select each color, you can independently adjust its range and saturation according
to your preference.
• Primary Color
Selects a color from among R (Red), G (Green), B (Blue), C (Cyan), M (Magenta),
or Y (Yellow).
• Hue: Increase in the range will include colors
consisted of more proportions of its two
adjacent colors. Please refer to the illustration
for how the colors relate to each other.
For example, if you select Red and set its range
at 0, only pure red in the projected picture will
be selected. Increasing its range will include red
close to yellow and red close to magenta.
• Saturation: Adjusts the values to your
preference. Every adjustment made will reflect to
the image immediately. For example, if you select Red and set its value at 0,
only the saturation of pure red will be affected.
Saturation is the amount of that color in a video picture. Lower settings produce less saturated
colors; a setting of “0” removes that color from the image entirely. If the saturation is too high, that
color will be overpowering and unrealistic.
• Gain: Adjusts the values to your preference. The contrast level of the
primary color you select will be affected. Every adjustment made will reflect to
the image immediately.
White Balance
Adjusts the color temperature of white.
• R Gain/G Gain/B Gain: Adjusts the contrast levels of Red, Green, and Blue.
RED
BLUE
GREEN
Yellow
Cyan
Magenta
30 Menu operation
Display
Advanced
Color Settings
Wall Color
Corrects the projected picture’s color when the projection surface such as a
painted wall which may not be white, the Wall Color feature can help correct the
projected picture’s colors to prevent possible color difference between the source
and projected pictures. There are several precalibrated colors to choose from:
Light Yellow, Pink, Light Green, Blue, and Blackboard.
Reset Picture
Returns all of the adjustments you’ve made for the Picture menu to the factory
preset values.
Aspect Ratio See Aspect Ratio on page 26.
2D Keystone See Correcting 2D keystone on page 16.
Corner Fit See Adjusting Corner Fit on page 16.
Test Pattern
Adjusts the image size and focus and check that the
projected image is free from distortion.
PC &
Component
YPbPr Tuning
• Phase: Adjusts the clock phase to reduce image
distortion. This function is only available when a PC
signal (analog RGB) or YPbPr signal is selected.
• H. Size: Adjusts the horizontal width of the image.
This function is only available when a PC signal (analog RGB) is selected.
Position
Displays the position adjustment page. To move the projected image, use the
directional arrow keys. This function is only available when a PC signal (analog RGB)
is selected.
31 Menu operation
3D
This projector features a 3D function which enables you to enjoy the 3D movies,
videos, and sporting events in a more realistic way by presenting the depth of the
images. You need to wear a pair of 3D glasses to view the 3D images.
• 3D Mode: The default setting is Off. If you want the projector to automatically
choose an appropriate 3D format when detecting 3D contents, select Auto. If the
projector cannot recognize the 3D format, press / to choose a 3D mode from
among Top Bottom, Frame Sequential, Frame Packing and Side by Side.
When 3D function is activated:
• The brightness level of the projected image will decrease.
• The following settings cannot be adjusted: Picture Mode, Reference Mode.
• The Keystone can only be adjusted within limited degrees.
• 3D Sync Invert: When you discover the inversion of the image depth, enable
this function to correct the problem.
• Apply 3D Settings: After the 3D settings are saved, you can decide if you would
like to apply them by choosing a set of 3D settings that you have saved. Once
applied, the projector will automatically play the incoming 3D contents if it
matches the 3D settings saved.
Only the set(s) of 3D settings with memorized data is available.
• Save 3D Settings: When you have successfully displayed the 3D contents after
making the appropriate adjustments, you can enable this function and choose a set
of 3D settings to memorize current 3D settings.
HDMI Format
Selects a suitable color format to optimize display quality.
• Auto: Automatically selects a suitable color space and gray level for the incoming
HDMI signal.
• RGB Limited: Utilizes the Limited range RGB 16-235.
• RGB Full: Utilizes the Full range RGB 0-255.
• YUV Limited: Utilizes the Limited range YUV 16-235.
• YUV Full: Utilizes the Full range YUV 0-255.
Resizing
Digital Zoom
Magnifies or reduces the projected image size. After the Digital Zoom page
displays, press ZOOM+/ZOOM- to reduce or magnify the image to a desired size.
Press the directional arrows ( , , , ) on the projector or remote control to
navigate the picture.
The picture can only be navigated after it is magnified. You can further magnify the picture while
searching for details.
32 Menu operation
Network
Settings
Resizing
Digital Shrink & Shift
Shrinks projected image digitally and shifts the image in available projection area.
• Digital Shrink: Press OK to activate the adjusting bar.
• Shift: Only available when shrink is applied.
Blanking
Blanks the chosen pixels from the selected sides.
Screen Fill
It provides 3 screen aspect ratios for user to choose from. The native resolution
will change according to users' selection.
• 16:9: Native resolution in Information page should show 1920x1080 accordingly.
• 4:3:
1. Native resolution in Information page should show 1400 x 1050 accordingly.
2. Projection of all aspect ratios should be limited in 1400 x 1050 range.
• 1:1:
1.Native resolution in Information page should show 1080 x 1080 accordingly.
2.Projection of all aspect ratios should be limited in 1080 x 1080 range.
Digital Lens
Shift
Adjusts the image position horizontally.
Fast Mode
Enables or disables the Fast Mode. Fast mode is a mode created for low latency.
• When Fast mode is activated, the system will automatically set Aspect Ratio/HV
Keystone/Corner Fit/Digital Zoom/Digital Shrink & Shift/Blanking/Overscan back
to default and gray out these items.
• When Fast mode is disabled, the system should recover the settings of Aspect
Ratio/HV Keystone/Corner Fit/Digital Zoom/Digital Shrink &
Shift/Blanking/Overscan to the status before Fast mode is activated.
Reset Display
Returns all of the adjustments you’ve made for the Display menu to the factory
preset values.
Wired LAN See Controlling the projector via LAN on page 24.
AMX Device
Discovery
When AMX Device Discovery is On, the projector can be detected by AMX
controller.
MAC Address
(Wired)
Displays the Mac Address for this projector.
Projector
Installation
See Choosing a location on page 12.
Remote
Receiver
Allows you to enable all the remote receivers or one specific remote receiver on
the projector.
Auto Source
Search
Allows the projector to automatically search for a signal.
33 Menu operation
Light Settings
• Light Mode: See Setting the Light Mode on page 37.
• Custom Brightness: Adjusts the light power manually.
• Light Information: Displays the number of hours the light has been used.
Operation
Settings
Blank Timer
Sets the image blank time when there is no action taken on the blank screen, once
elapsed the image will return to the screen. If the preset time spans are not suitable
for your need, select Disable. No matter Blank Timer is activated or not, you
can press most of the keys on the projector or remote control to restore the
picture.
Reminder Message
Sets the reminder messages on or off.
High Altitude Mode
We recommend you use the High Altitude Mode when your environment is
between 1500 m –3000 m above sea level, and ambient temperature is between
0°C–30°C.
Operation under "High Altitude Mode" may cause a higher decibel operating
noise level because of increased fan speed necessary to improve overall system
cooling and performance.
If you use this projector under other extreme conditions excluding the above, it
may display auto shut-down symptoms, which is designed to protect your projector
from over-heating. In cases like this, you should switch to High Altitude mode to
solve these symptoms. However, this is not to state that this projector can operate
under any and all harsh or extreme conditions.
Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and ambient
temperature is between 0°C and 35°C. The projector will be over cooled, if you turn the mode on
under such a condition.
Power On/Off Settings
• Direct Power On: Allows the projector to turn on automatically once the
power is fed through the power cord.
• Signal Power On: Sets whether to turn the projector directly on without
pressing POWER or ON when the projector is in standby mode and
detects a VGA signal or a HDMI signal with 5V power.
• Auto Power Off: Allows the projector to turn off automatically if no input signal
is detected after a set period of time to prevent unnecessary waste of light source
life.
• Power Off Timer: Sets the auto-shutdown timer.
Security
Settings
See Utilizing the password function on page 22.
Baud Rate
Selects a baud rate that is identical with your computer’s so that you can connect
the projector using a suitable RS-232 cable and update or download the projector’s
firmware. This function is intended for qualified service personnel.
34 Menu operation
System
HDMI
Equalizer
Adjusts the equalizer gain settings for an HDMI signal. The higher the setting, the
stronger the gain value. If there are more than one HDMI port on the projector,
select the HDMI port first before adjusting the value.
USB Power
Switch
Disables or enables “Type A connector” to output 5V power manually.
Reset Settings
Returns all of the adjustments you’ve made for the Settings menu to the factory
preset values.
Language Sets the language for the On-Screen Display (OSD) menus.
Standby
Settings
• Network:
• Enable Network Standby Mode: Selecting On enables the function. The
projector is able to provide the network function in standby mode. Selecting
Off disables the function. The projector does not provide the network
function in standby mode.
• Switch to Normal Standby Mode: Allows the projector to disable the
network function after a set period of time after it enters standby mode. For
instance, if 20 min is selected, the projector is able to provide the network
function for 20 minutes after it enters standby mode. When 20 minutes is up,
the projector enters normal standby mode.
This function is only available when Enable Network Standby Mode is On.
• Microphone: Enables the microphone line-out function when the projector is in
standby mode.
• Monitor Out: Allows the projector to output a VGA signal when it is in standby
mode and the PC jack and the MONITOR OUT jack are correctly connected to
devices.
• Audio Pass Through: The projector can play sound when it is in standby mode
and the corresponding jacks are correctly connected to devices. Press / to
choose the source that you wish to use. See
Connection on page 17 for how to
make the connection.
Background
Settings
• Background: Sets the background color for the projector.
• Splash Screen
: Allows you to select which logo screen will be displayed during
projector start-up.
Menu Settings
• Menu Type: Switches to the Basic OSD menu.
• Menu Display Time: Sets the length of time the OSD will remain active after
your last key press.
35 Menu operation
Information
Audio
Settings
• Mute: Temporarily turns off the sound.
• Volume: Adjusts the sound level.
• Microphone Volume: Adjusts the microphone volume of the projector.
• Power On/Off Ring Tone: Turns on or off the ring tone when the projector is
in startup and shutdown process.
The only way to change Power On/Off Ring Tone is setting On or Off here. Setting the sound
mute or changing the sound level will not affect the Power On/Off Ring Tone.
Closed
Caption
• Closed Caption Enable: Activates the function by selecting On when the
selected input signal carries closed captions.
Captions: An on-screen display of the dialogue, narration, and sound effects of TV programs and
videos that are closed captioned (usually marked as "CC" in TV listings).
• Caption Version: Selects a preferred closed captioning mode. To view captions,
select CC1, CC2, CC3, or CC4 (CC1 displays captions in the primary language
in your area).
Projector ID
Setting
Sets an ID for projector to match with corresponding remote control.
• Off: When projector ID setting is off, the projector can be controlled by remote
control whose ID is set to all.
• 01~99: When the projector is assigned an ID, the projector can be controlled by
remote control with corresponding ID or remote control whose ID is set to all.
Factory
Default
Returns all settings to the factory preset values.
The following settings will still remain: 2D Keystone, Corner Fit, Projector Installation, Light
Usage Time, Security Settings, Baud Rate, QUICK INSTALL, High Altitude Mode,
Digital Shrink & Shift, Digital Lens Shift.
Reset System
Returns all of the adjustments you’ve made for the System menu to the factory
preset values.
Information See Information on page 27.
36 Maintenance
Maintenance
Care of the projector
Cleaning the lens
Clean the lens whenever you notice dirt or dust on the surface. Please be sure to turn off the projector
and let it cool down completely before cleaning the lens.
• Use a canister of compressed air to remove dust.
• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently
wipe the lens surface.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as
alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with
rubber or vinyl materials may result in damage to the projector surface and cabinet material.
Cleaning the projector case
Before you clean the case, turn the projector off using the proper shutdown procedure as described in
Shutting down the projector on page 25 and unplug the power cord.
• To remove dirt or dust, wipe the case with a soft, lint-free cloth.
• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then
wipe the case.
Storing the projector
If you need to store the projector for an extended time, please follow the instructions below:
• Make sure the temperature and humidity of the storage area are within the recommended range for
the projector. Please refer to Specifications on page 40 or consult your dealer about the range.
• Retract the adjuster feet.
• Remove the battery from the remote control.
• Pack the projector in its original packing or equivalent.
Transporting the projector
It is recommended that you ship the projector with its original packing or equivalent.
Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.
37 Maintenance
Light information
Extending light source life
• Setting the Light Mode
Go to Advanced Menu - Settings > Light Settings > Light Mode and select a suitable light source
power from among the provided modes.
Setting the projector in Economic, Dimming or Custom mode extends light source life.
• Setting Auto Power Off
This function allows the projector to turn off automatically if no input signal is detected after a set
period of time to prevent unnecessary waste of light source life.
To set Auto Power Off, go to Advanced Menu - Settings > Operation Settings > Power
On/Off Settings > Auto Power Off and press / .
Light source mode Description
Normal Provides full light source brightness
Economic Lowers brightness to extend the light source life and decreases the fan noise
Dimming
Lowers brightness to offer a longer light source life
Dynamic Dimming
Detects the video content to adjust power between 30%-100% to enhance
contrast. (Not available under Bright mode)
Custom
Adjusts the light source power on users selection
38 Maintenance

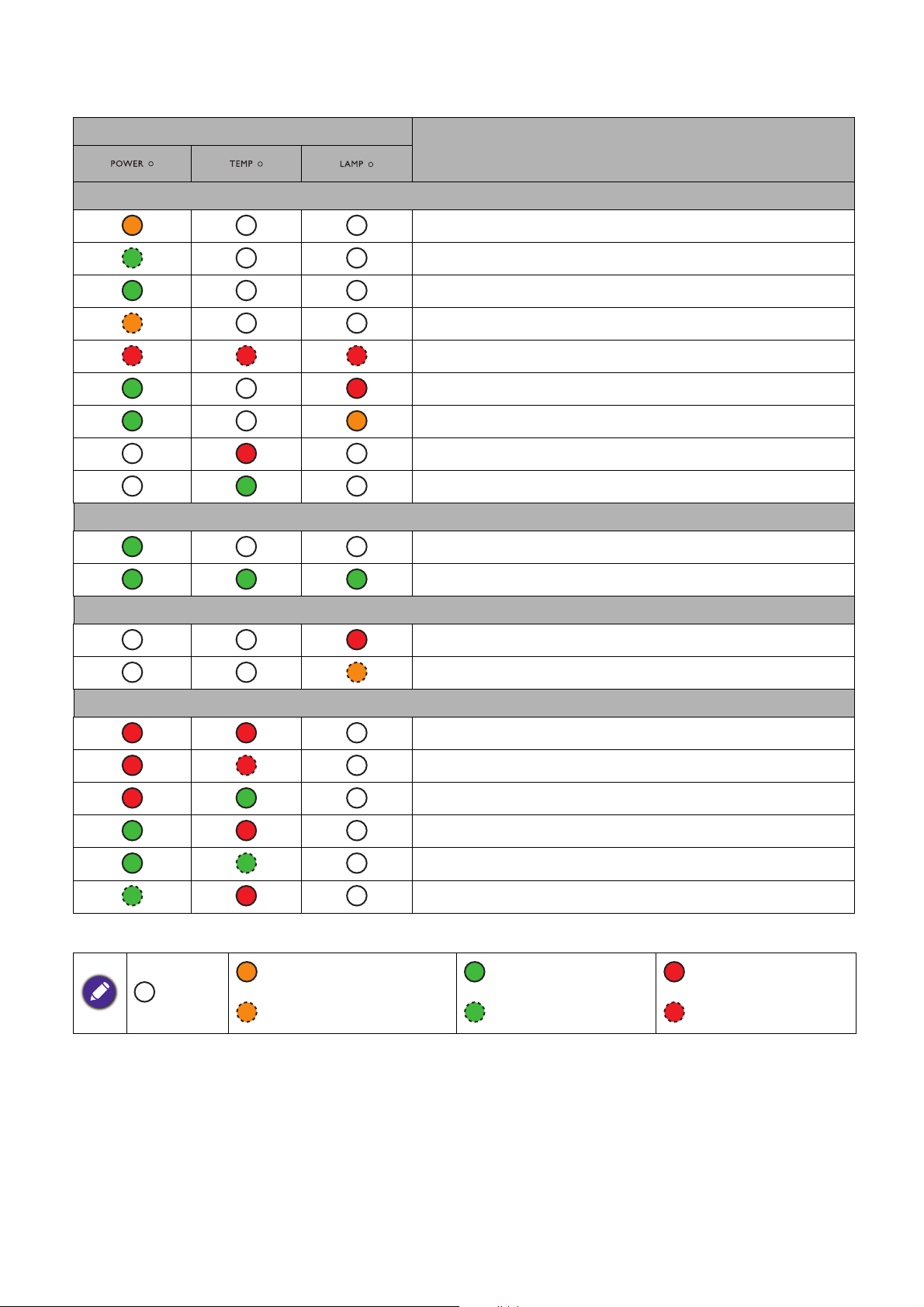

Indicators
Light
Status & Description
System Messages
Stand-by mode
Powering up
Normal operation
Normal power-down cooling
Download
CW start fail
Light life exhausted
LAN download fail
LAN download processing
Burn-In Messages
Burn-in ON
Burn-in OFF
Light Error Messages
Light error in normal operation
Light is not lit up
Thermal Error Messages
Fan 1 error (the actual fan speed is outside the desired speed)
Fan 2 error (the actual fan speed is outside the desired speed)
Fan 3 error (the actual fan speed is outside the desired speed)
Temperature 1 error (over limited temperature)
Thermal IC #1 I2C Connection error
Temperature 2 error (over limited temperature)
: Off
: Orange On : Green On : Red On
: Orange Flashing : Green Flashing : Red Flashing
39 Troubleshooting
Troubleshooting
The projector does not turn on.
Cause Remedy
There is no power from the power cord.
Plug the power cord into the AC power jack on the
projector, and plug the power cord into the power outlet. If
the power outlet has a switch, make sure that it is switched
on.
Attempting to turn the projector on again during
the cooling process.
Wait until the cooling down process has completed.
No picture
Cause Remedy
The video source is not turned on or connected
correctly.
Turn the video source on and check that the signal cable is
connected correctly.
The projector is not correctly connected to the
input signal device.
Check the connection.
The input signal has not been correctly selected. Select the correct input signal with the SOURCE key.
The lens cover is still closed. Open the lens cover.
Blurred image
Cause Remedy
The projection lens is not correctly focused. Adjust the focus of the lens using the focus ring.
The projector and the screen are not aligned
properly.
Adjust the projection angle and direction as well as the
height of the projector if necessary.
The lens cover is still closed. Open the lens cover.
Remote control does not work.
Cause Remedy
The batteries are out of power. Replace both of the batteries with new ones.
There is an obstacle between the remote control
and the projector.
Remove the obstacle.
You are too far away from the projector. Stand within 8 meters (26 feet) of the projector.
The password is incorrect.
Cause Remedy
You do not remember the password. See
Entering the password recall procedure on page 22.
40 Specifications
Specifications
Projector specifications
All specifications are subject to change without notice.
Optical
Resolution
1920 x 1080 1080p
Display system
DLP
®
Chip
Lens
F = 2.8, f = 7.46 mm
Offset
109%±3%
Zoom ratio
Fixed
Light source
Laser diode
Electrical
Power supply
AC100–240V, 3.00 A, 50/60 Hz (Automatic)
Power consumption
360 W (Max); < 0.5 W for normal standby mode;
<2W (When the Network function in the Standby
Settings in on)
Mechanical
Weight
5.6 Kg +
100 g (12.3 lbs + 0.22 lbs)
Output terminals
RGB output
D-Sub 15-pin (female) x 1
Speaker
10 watt x 1
Audio signal output
PC audio jack x 1
Control
USB
Type-A power supply 1.5 A x 1; Mini-B x 1
RS-232 serial control
9 pin x 1
IR receiver x 2
LAN control
Wired (RJ45)
Input terminals
Computer input
RGB input
D-Sub 15-pin (female) x 2
Video signal input
S-VIDEO
Mini DIN 4-pin x 1
VIDEO
RCA jack x 1
SD/HDTV signal input
Analog - Component
(through RGB input)
Digital - HDMI x 1
Audio signal input
Audio in
PC audio jack x 1
Microphone audio jack x 1
RCA audio jack (L/R) x 1
Environmental Requirements
Operating temperature
0°C–40°C at sea level
Operating relative humidity
10%–90% (without condensation)
Operating altitude
0–1499 m at 0°C–35°C
1500–3000 m at 0°C–30°C (with
High Altitude Mode on)
Storage temperature
-20°C–60°C at sea level
Storage humidity
10%–90% RH (without condensation)
Storage altitude
30°C@ 0~12,200m above sea level
Transporting
Original packing or equivalent is recommended
Repairing
Please visit below website and choose your country to
find your service contact window.
http://www.benq.com/welcome
41 Specifications
Dimensions
410 mm (W) x 157.7 mm (H) x 272 mm (D)
272
410
99.9
157.7
130.9
87.1
8
81
Unit: mm
42 Specifications
Timing chart
Supported timing for PC input
Resolution Mode
Vertical
Frequency
(Hz)
Horizontal
Frequency
(kHz)
Pixel
Frequency
(MHz)
Supported 3D format
Frame
Sequential
Top
Bottom
Side by
Side
640 x 480
VGA_60 59.940 31.469 25.175 V V V
VGA_72 72.809 37.861 31.500
VGA_75 75.000 37.500 31.500
VGA_85 85.008 43.269 36.000
720 x 400 720 x 400_70 70.087 31.469 28.3221
800 x 600
SVGA_60 60.317 37.879 40.000 V V V
SVGA_72 72.188 48.077 50.000
SVGA_75 75.000 46.875 49.500
SVGA_85 85.061 53.674 56.250
SVGA_120
(Reduce Blanking)
119.854 77.425 83.000 V
1024 x 768
XGA_60 60.004 48.363 65.000 V V V
XGA_70 70.069 56.476 75.000
XGA_75 75.029 60.023 78.750
XGA_85 84.997 68.667 94.500
XGA_120 (Reduce
Blanking)
119.989 97.551 115.5 V
1152 x 864 1152 x 864_75 75 67.5 108
1024 x 576
BenQ
Notebook_timing
60.0 35.820 46.966
1024 x 600
BenQ
Notebook_timing
64.995 41.467 51.419
1280 x 720 1280 x 720_60 60 45.000 74.250 V V V
1280 x 768 1280 x 768_60 59.87 47.776 79.5 V V V
1280 x 800
WXGA_60 59.810 49.702 83.500 V V V
WXGA_75 74.934 62.795 106.500
WXGA_85 84.880 71.554 122.500
WXGA_120
(Reduce Blanking)
119.909 101.563 146.25 V
1280 x 1024
SXGA_60 60.020 63.981 108.000 V V
SXGA_75 75.025 79.976 135.000
SXGA_85 85.024 91.146 157.500
1280 x 960
1280 x 960_60 60.000 60.000 108.000 V V
1280 x 960_85 85.002 85.938 148.500
1360 x 768 1360 x 768_60 60.015 47.712 85.5 V V
1440 x 900 WXGA+_60 59.887 55.935 106.500 V V
1400 x 1050 SXGA+_60 59.978 65.317 121.750 V V
1600 x 1200 UXGA 60.000 75.000 162.000 V V
1680 x 1050 1680 x 1050_60 59.954 65.290 146.250 V V
640 x 480@67Hz MAC13 66.667 35.000 30.240
832 x 624@75Hz MAC16 74.546 49.722 57.280
1024 x 768@75Hz MAC19 74.93 60.241 80.000
1152 x 870@75Hz MAC21 75.060 68.680 100.000
The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible
that some timings cannot be chosen.
43 Specifications
Supported timing for HDMI (HDCP) input
• PC timings
Resolution Mode
Vertical
Frequency
(Hz)
Horizontal
Frequency
(kHz)
Pixel
Frequency
(MHz)
Supported 3D format
Frame
Sequential
Top
Bottom
Side by
Side
640 x 480
VGA_60 59.940 31.469 25.175 V V V
VGA_72 72.809 37.861 31.500
VGA_75 75.000 37.500 31.500
VGA_85 85.008 43.269 36.000
720 x 400 720 x 400_70 70.087 31.469 28.3221
800 x 600
SVGA_60 60.317 37.879 40.000 V V V
SVGA_72 72.188 48.077 50.000
SVGA_75 75.000 46.875 49.500
SVGA_85 85.061 53.674 56.250
SVGA_120 (Reduce
Blanking)
119.854 77.425 83.000 V
1024 x 768
XGA_60 60.004 48.363 65.000 V V V
XGA_70 70.069 56.476 75.000
XGA_75 75.029 60.023 78.750
XGA_85 84.997 68.667 94.500
XGA_120 (Reduce
Blanking)
119.989 97.551 115.5 V
1152 x 864 1152 x 864_75 75 67.5 108
1024 x 576@60Hz
BenQ Notebook
Timing
60.00 35.820 46.996
1024 x 600@65Hz
BenQ Notebook
Timing
64.995 41.467 51.419
1280 x 720 1280 x 720_60 60 45.000 74.250 V V V
1280 x 768 1280 x 768_60 59.870 47.776 79.5 V V V
1280 x 800
WXGA_60 59.810 49.702 83.500 V V V
WXGA_75 74.934 62.795 106.500
WXGA_85 84.880 71.554 122.500
WXGA_120
(Reduce Blanking)
119.909 101.563 146.25 V
1280 x 1024
SXGA_60 60.020 63.981 108.000 V V
SXGA_75 75.025 79.976 135.000
SXGA_85 85.024 91.146 157.500
1280 x 960
1280 x 960_60 60.000 60.000 108 V V
1280 x 960_85 85.002 85.938 148.500
1360 x 768 1360 x 768_60 60.015 47.712 85.500 V V
1440 x 900 WXGA+_60 59.887 55.935 106.500 V V
1400 x 1050 SXGA+_60 59.978 65.317 121.750 V V
1600 x 1200 UXGA 60.000 75.000 162.000 V
1680 x 1050 1680 x 1050_60 59.954 65.290 146.250 V V
640 x 480@67Hz MAC13 66.667 35.000 30.240
832 x 624@75Hz MAC16 74.546 49.722 57.280
1024 x 768@75Hz MAC19 75.020 60.241 80.000
1152 x 870@75Hz MAC21 75.06 68.68 100.00
1920 x 1080@60Hz 1920 x 1080_60 60 67.5 148.5 V V V
1920 x 1200
1920 x 1200_60
(Reduce Blanking)
59.95 74.038 154 V V V
The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible
that some timings cannot be chosen.
44 Specifications
• Video timings
Supported timing for Component-YPbPr input
Supported timing for Video and S-Video inputs
Timing Resolution
Vertical
Frequency
(Hz)
Horizontal
Frequency
(kHz)
Pixel
Frequency
(MHz)
Supported 3D format
Frame
Sequential
Frame
Packing
Top
Bottom
Side by
Side
480i 720 x 480 59.94 15.73 27 V
480p 720 x 480 59.94 31.47 27 V
576i 720 x 576 50 15.63 27
576p 720 x 576 50 31.25 27
720/50p 1280 x 720 50 37.5 74.25 V V V
720/60p 1280 x 720 60 45.00 74.25 V V V V
1080/50i 1920 x 1080 50 28.13 74.25 V
1080/60i 1920 x 1080 60 33.75 74.25 V
1080/24P 1920 x 1080 24 27 74.25 V V V
1080/25P 1920 x 1080 25 28.13 74.25
1080/30P 1920 x 1080 30 33.75 74.25
1080/50P 1920 x 1080 50 56.25 148.5 V V
1080/60P 1920 x 1080 60 67.5 148.5 V V
Timing Resolution
Vertical Frequency
(Hz)
Horizontal Frequency
(kHz)
Pixel Frequency
(MHz)
Supported 3D
format
Frame
Sequential
480i 720 x 480 59.94 15.73 13.5
◎
480p 720 x 480 59.94 31.47 27
◎
576i 720 x 576 50 15.63 13.5
576p 720 x 576 50 31.25 27
720/50p 1280 x 720 50 37.5 74.25
720/60p 1280 x 720 60 45.00 74.25
◎
1080/50i 1920 x 1080 50 28.13 74.25
1080/60i 1920 x 1080 60 33.75 74.25
1080/24P 1920 x 1080 24 27 74.25
1080/25P 1920 x 1080 25 28.13 74.25
1080/30P 1920 x 1080 30 33.75 74.25
1080/50P 1920 x 1080 50 56.25 148.5
1080/60P 1920 x 1080 60 67.5 148.5
◎: Support manually set 3D format
Video mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Color sub-carrier
Frequency (MHz)
Supported 3D
format
Frame Sequential
NTSC 15.73 60 3.58
◎
PAL 15.63 50 4.43
SECAM 15.63 50 4.25 or 4.41
PAL-M 15.73 60 3.58
PAL-N 15.63 50 3.58
PAL-60 15.73 60 4.43
NTSC4.43 15.73 60 4.43
◎: Support manually set 3D format
