Use & Care Guide
Manual de Usa y Cuidado
Guide d'Ufilisafion et d'Enfrefien
English / Espa_ol / French
Models/ModeJos/Mod_les: 795°7033*
Kenmoreo
©F
II11II111I 111111
MFL63264291
Sears Brands Management Corporation
Noffman Estates, IL 60179 U.S.A.
WWW. kenrnore,corn
www, searsocom
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2C3
www.sears.ca

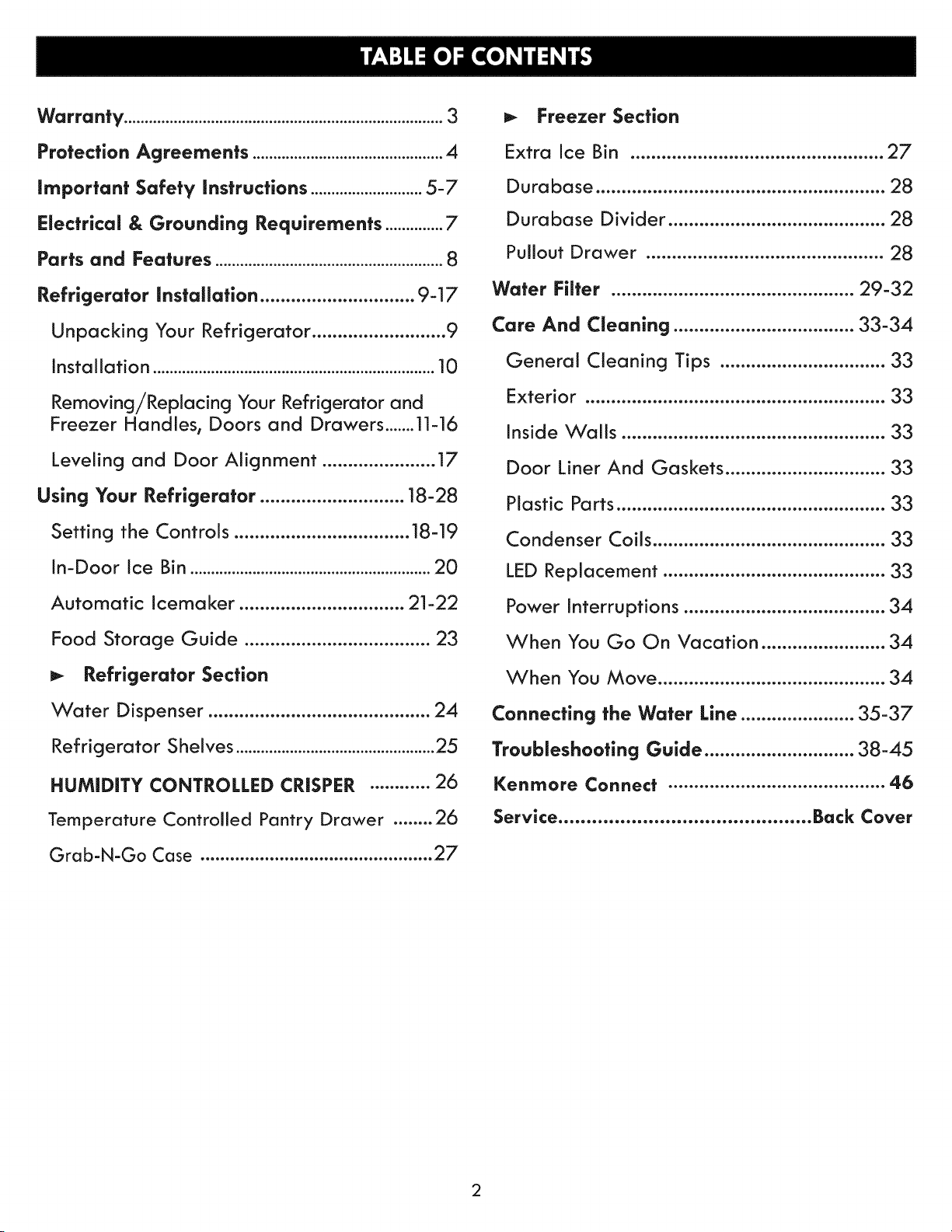

Warranty .............................................................................3
Protection Agreements ..............................................4
important Safety instructions ...........................5-7

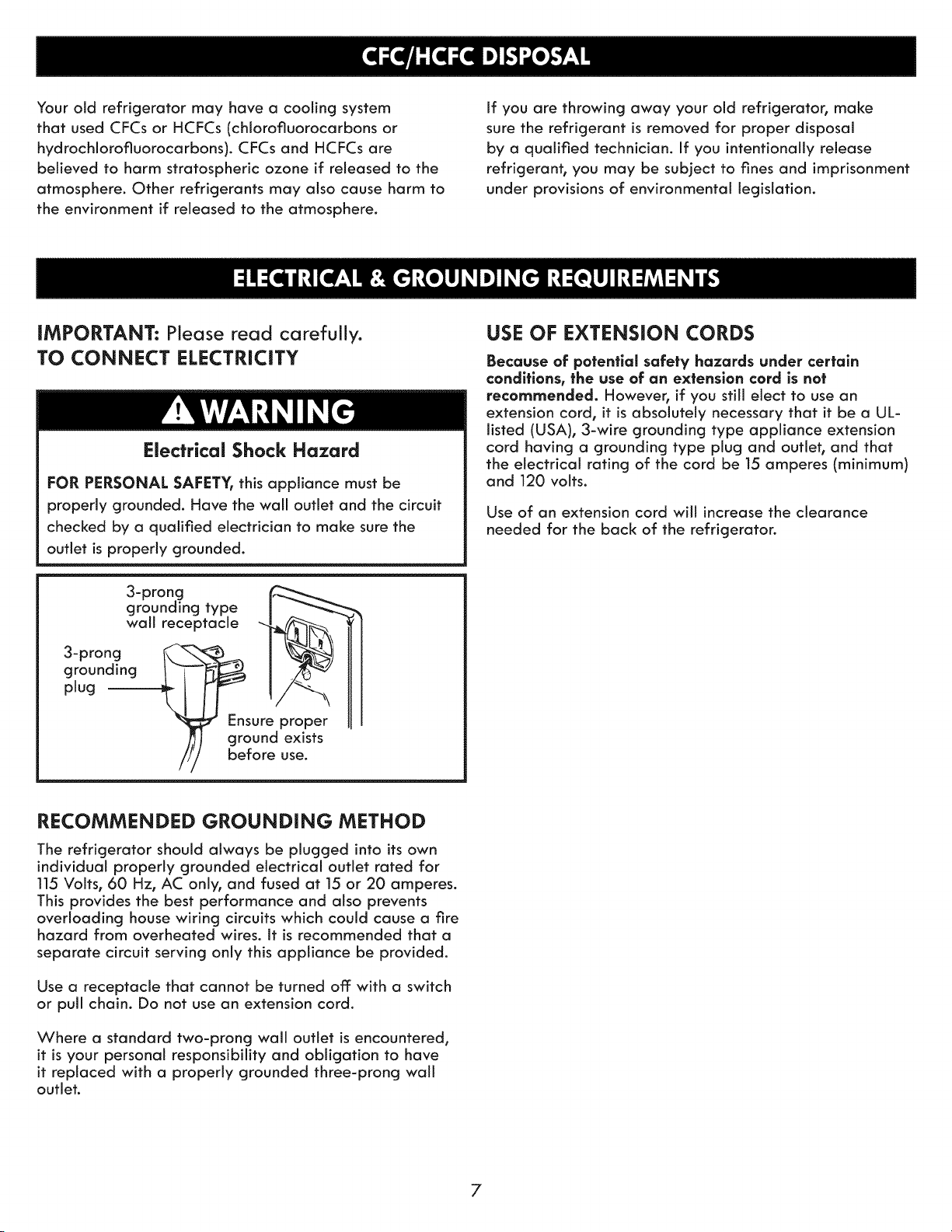

Electrical & Grounding Requirements ..............7

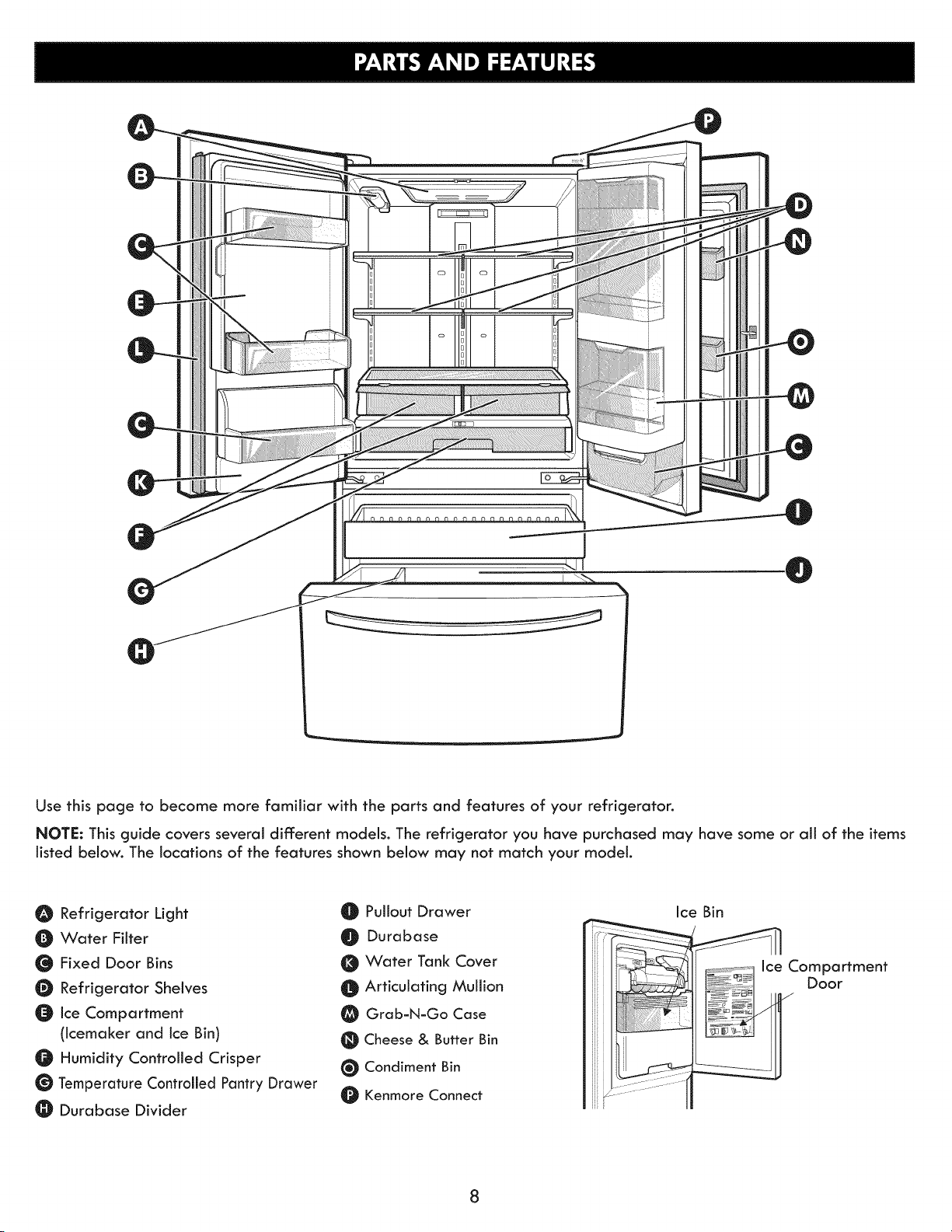

Parts and Features .......................................................8
Refrigerator Installation .............................. 9-17

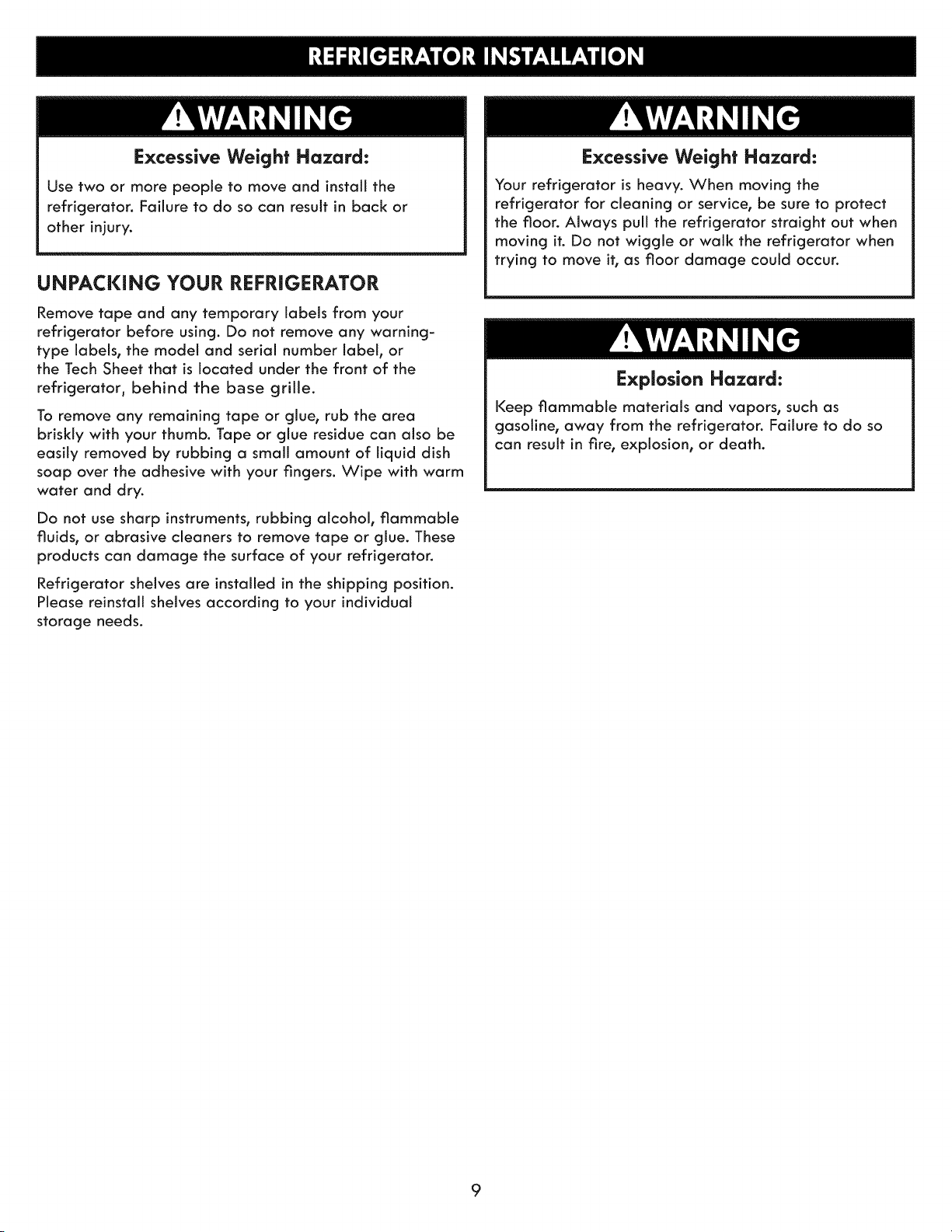

Unpacking Your Refrigerator .......................... 9

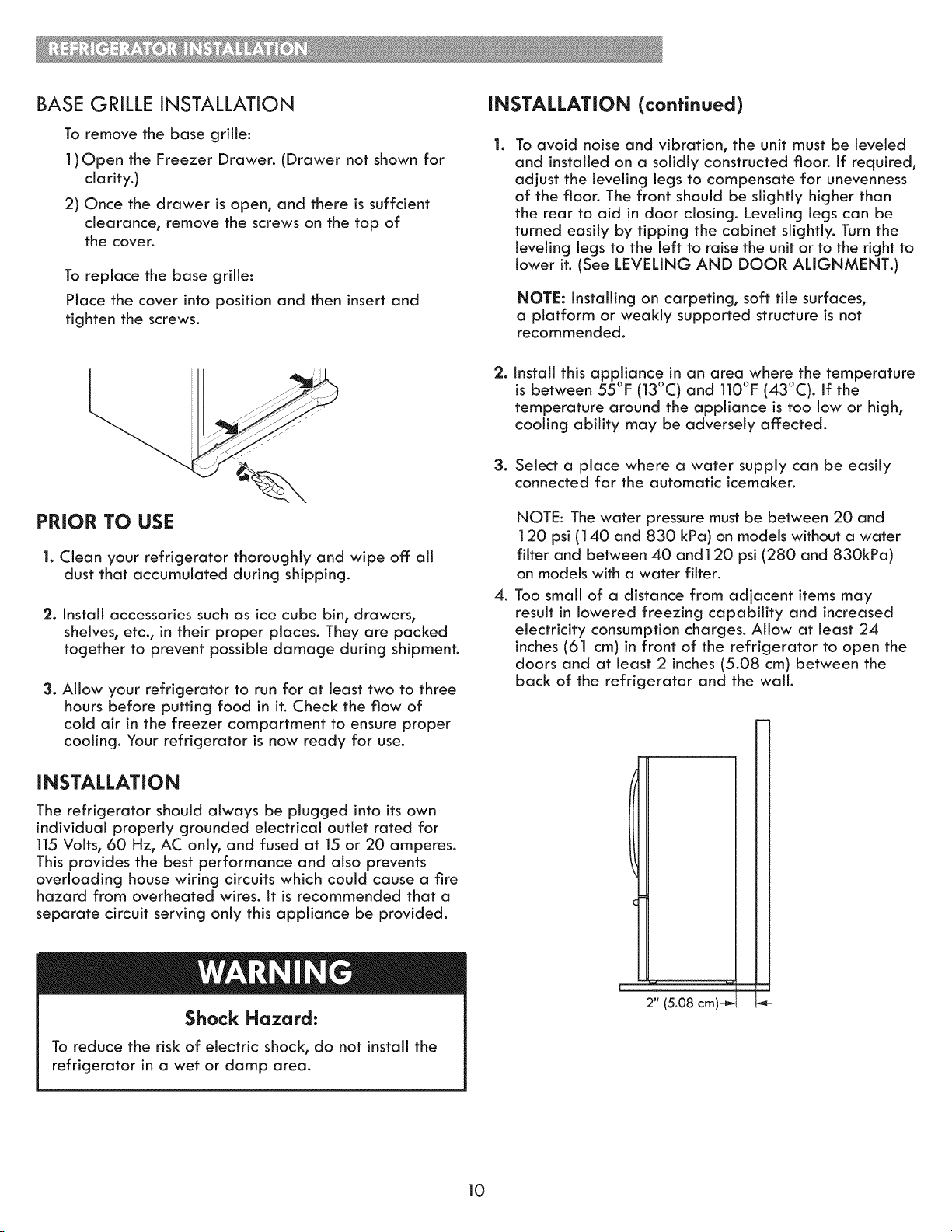

Installation ....................................................................10

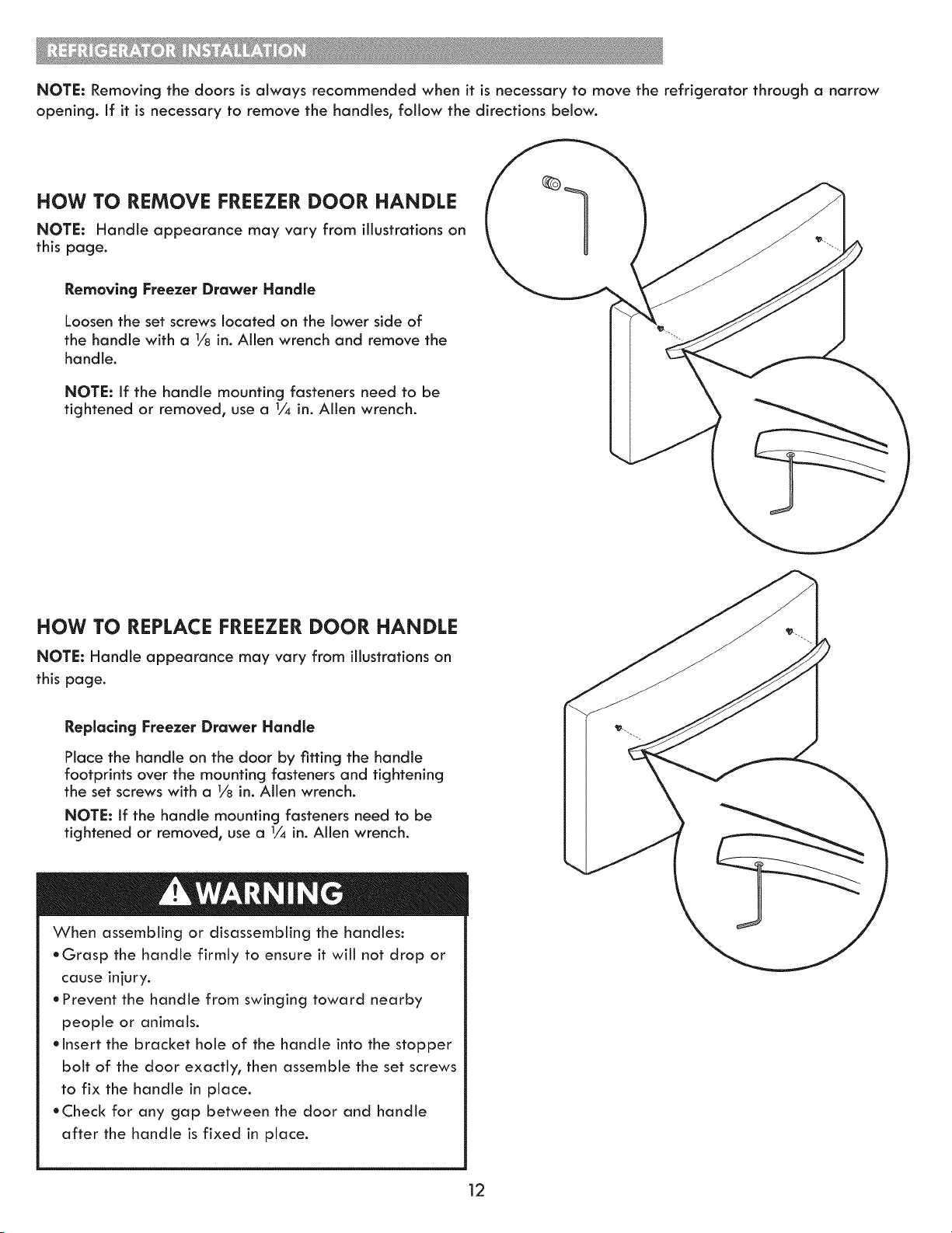

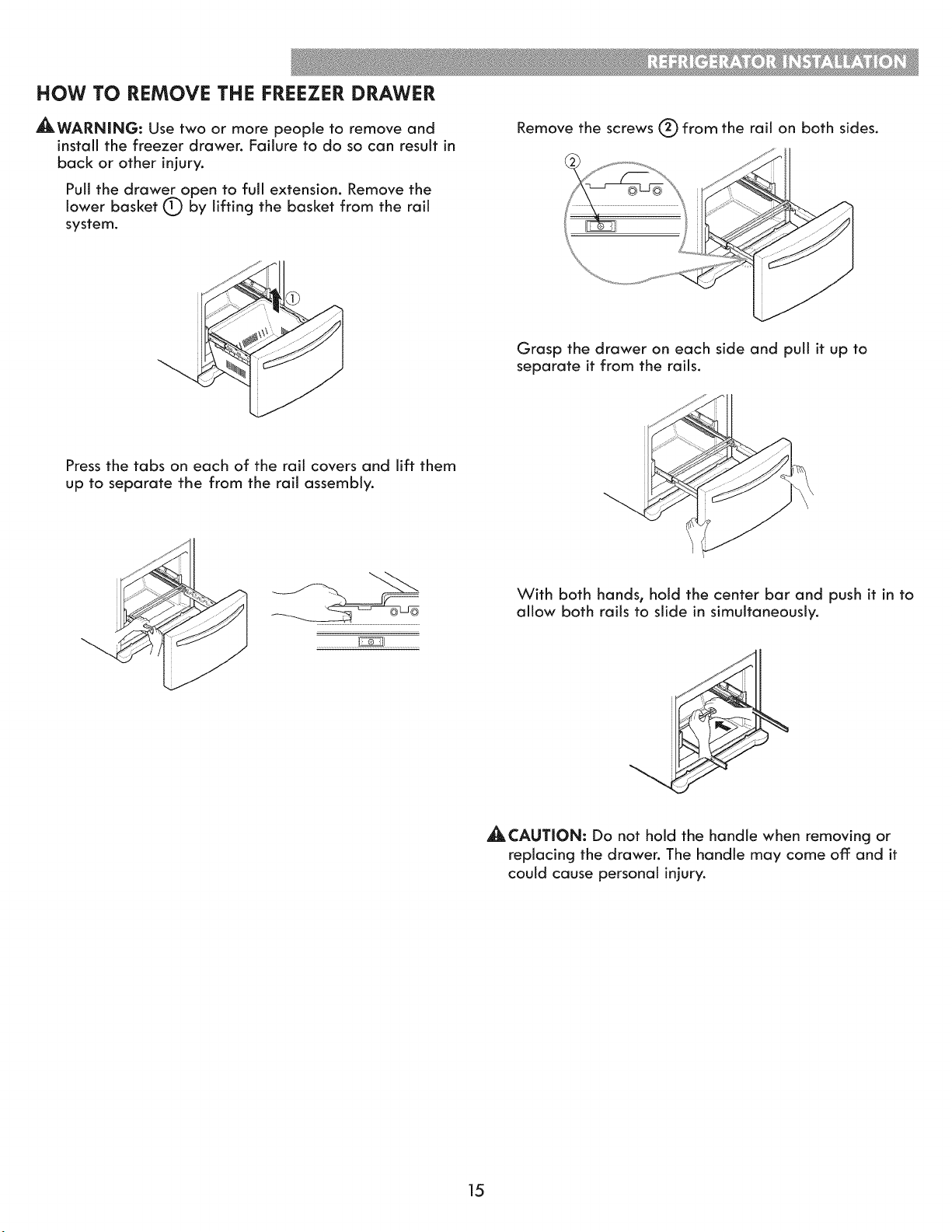

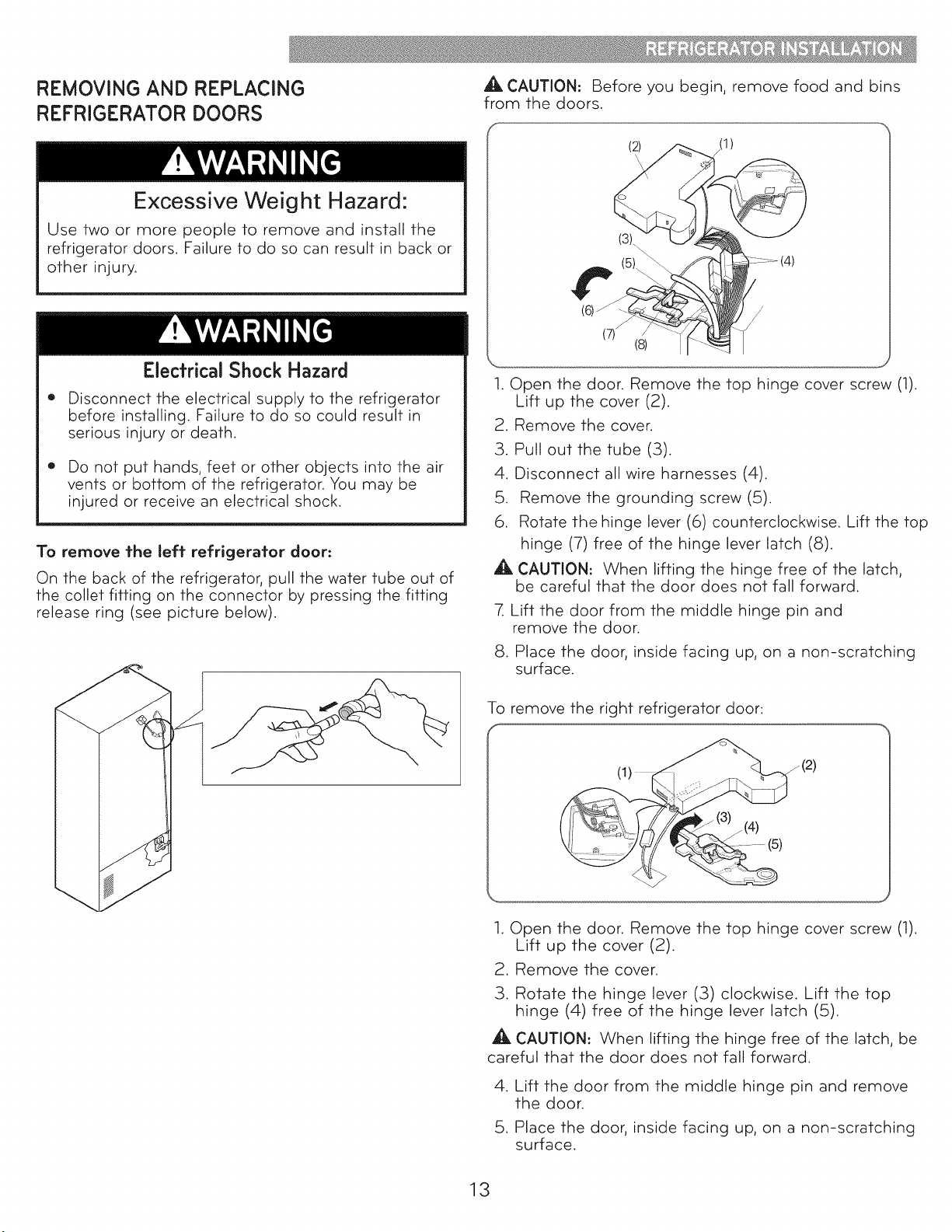

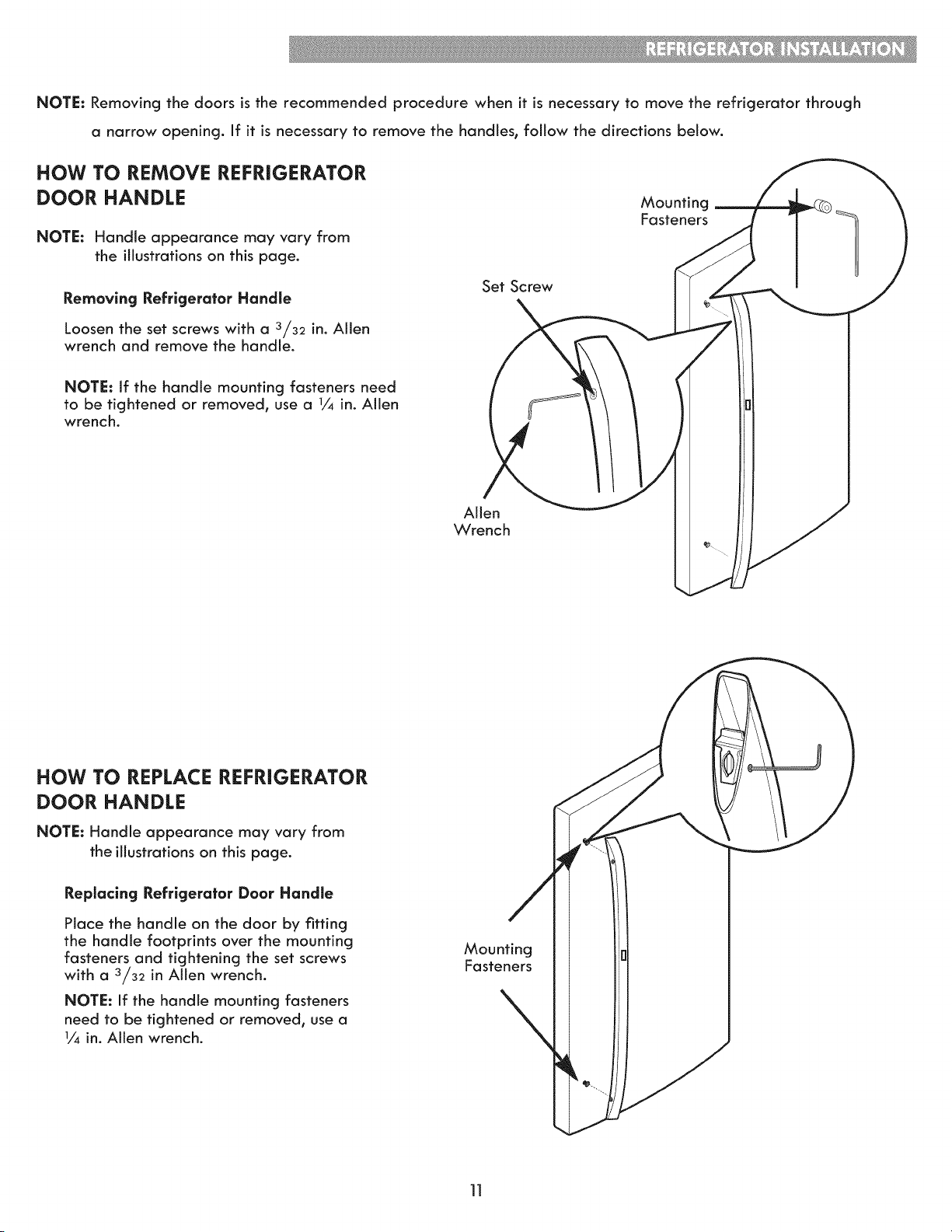

Removing/Replacing Your Refrigerator and

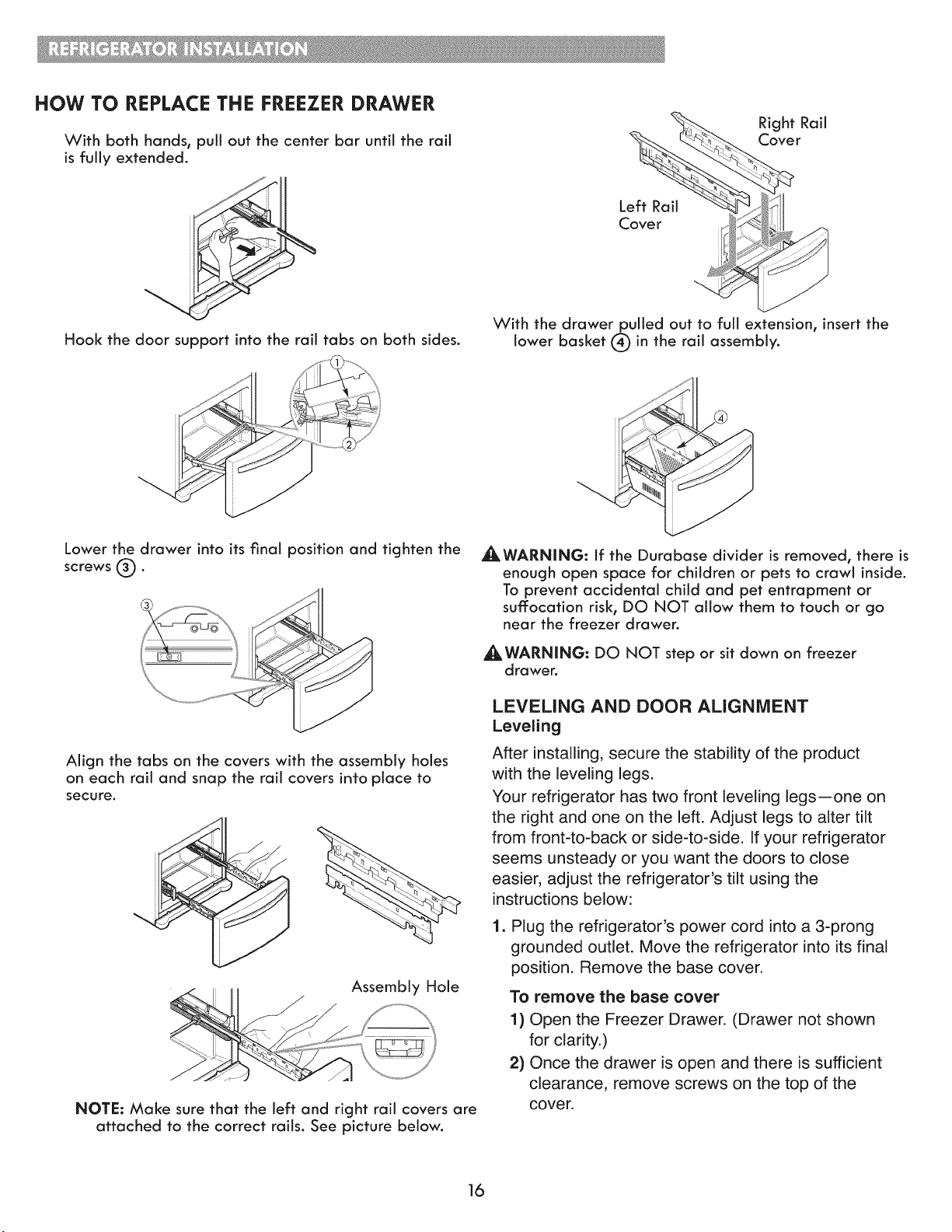

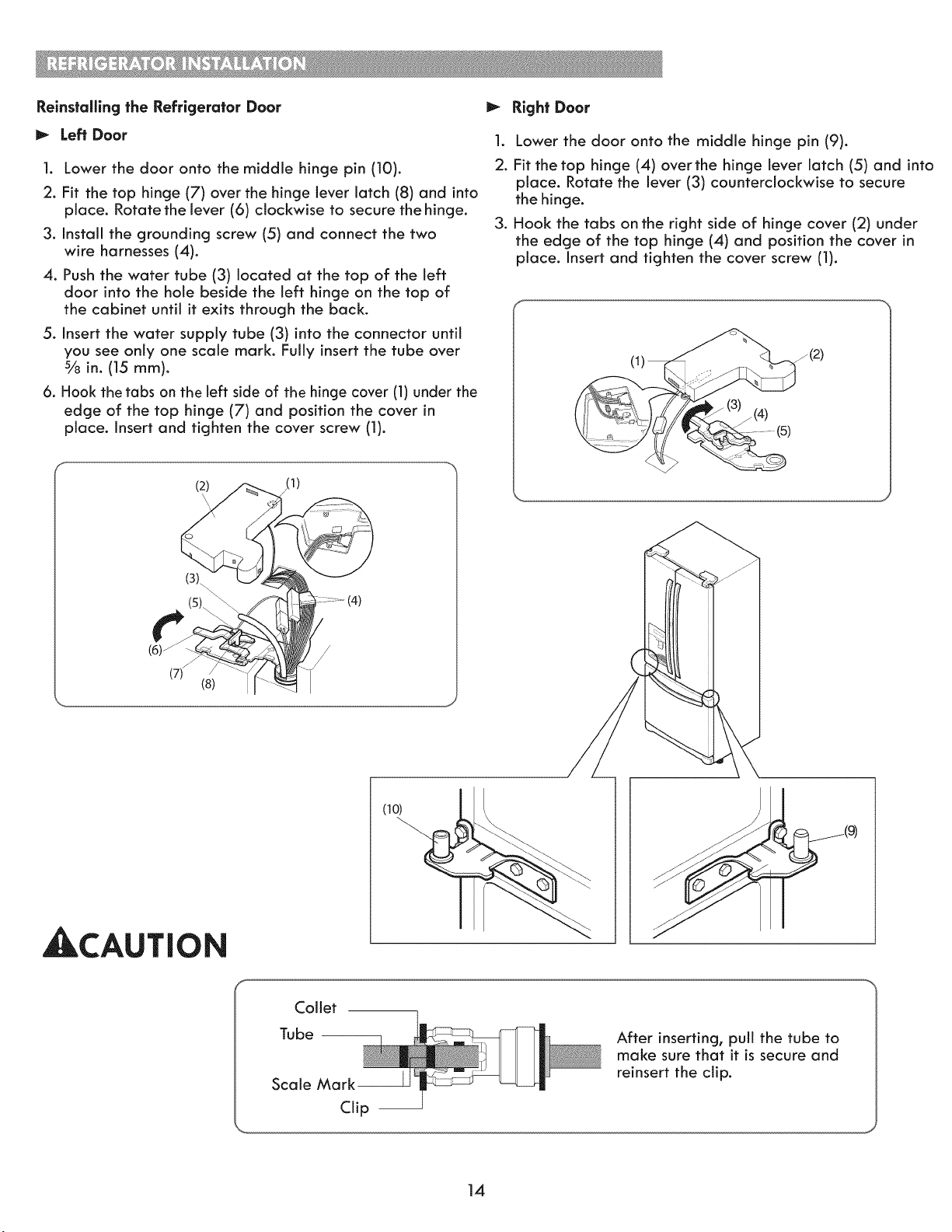

Freezer Handles, Doors and Drawers .......11-16

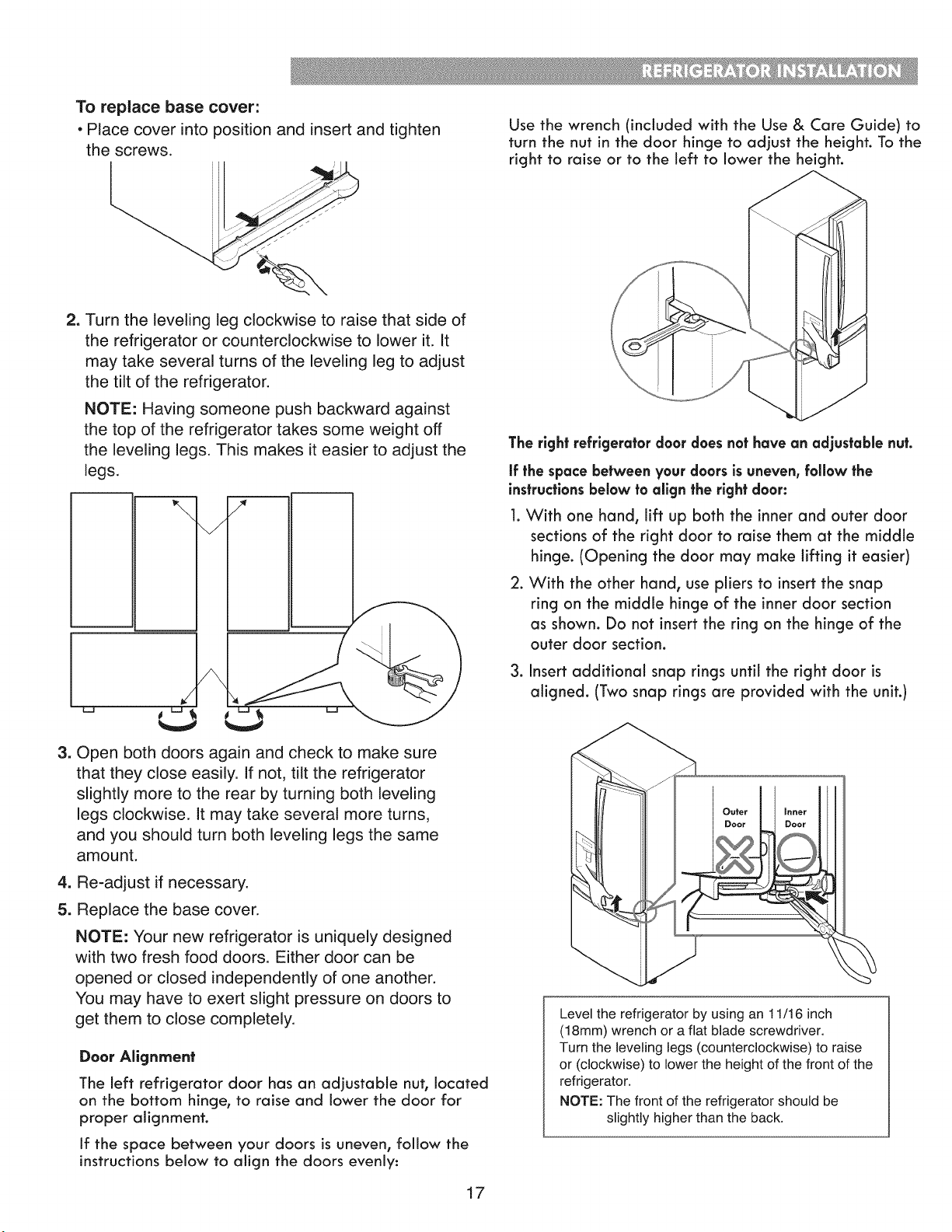

Leveling and Door Alignment ...................... 17
Using Your Refrigerator ............................ 18-28

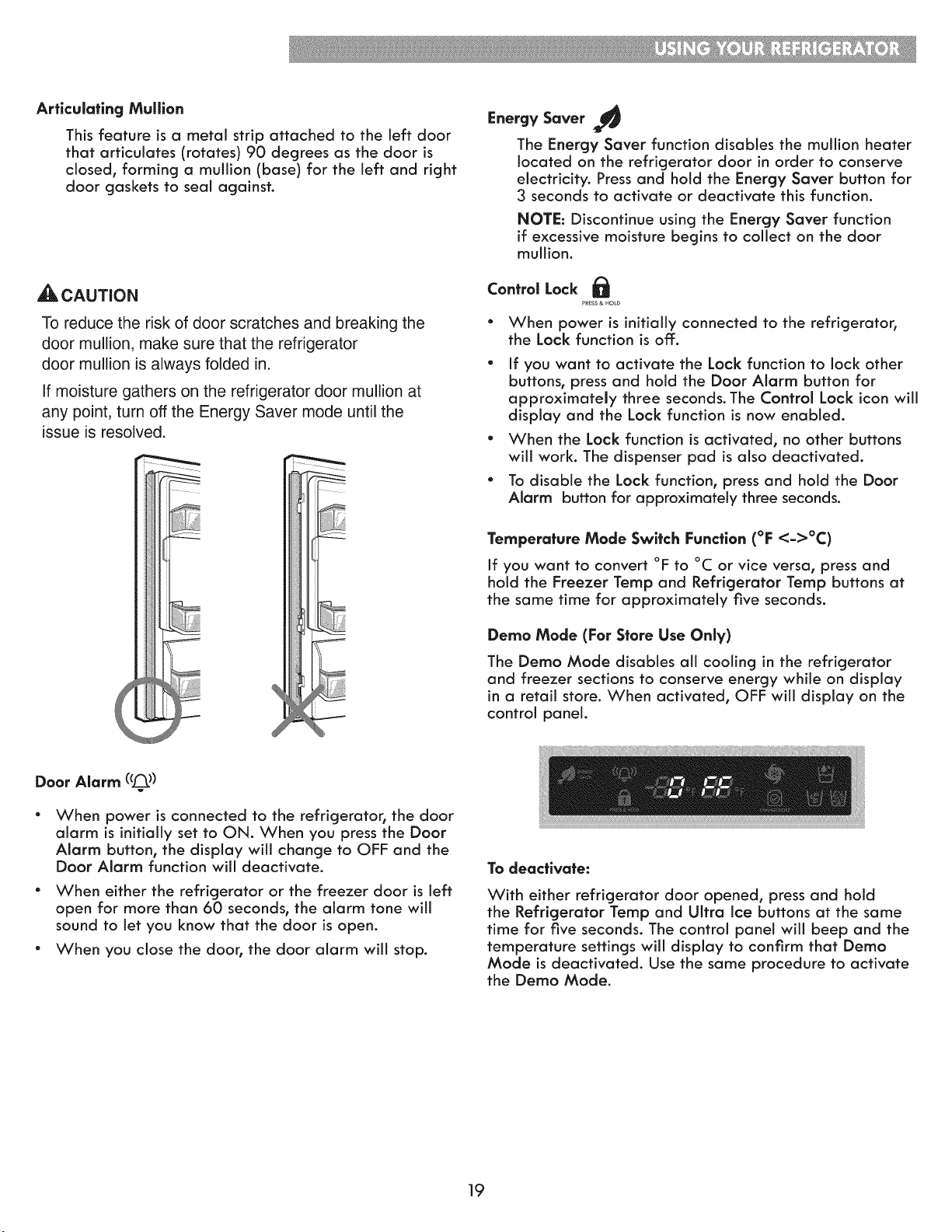

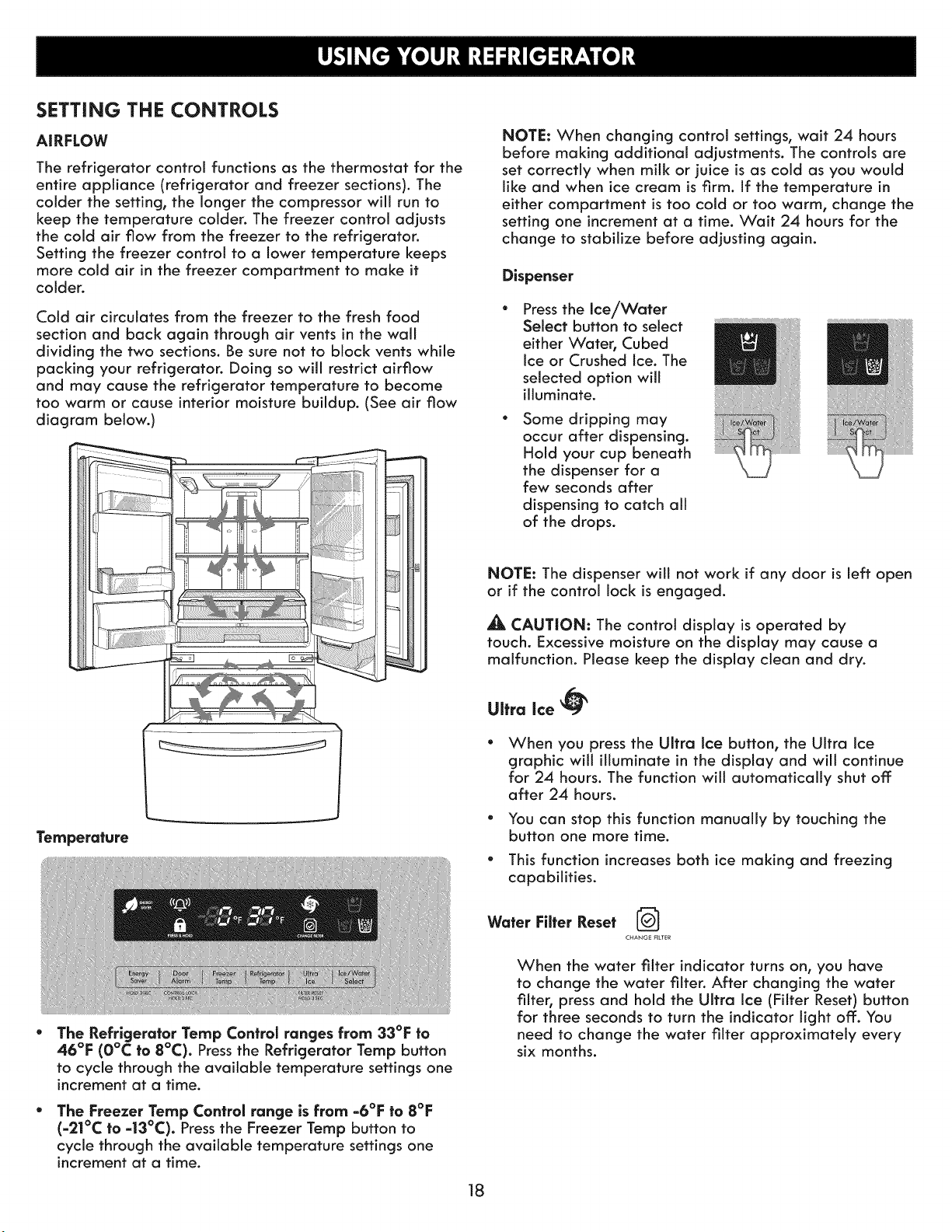

Setting the Controls .................................. 18-19

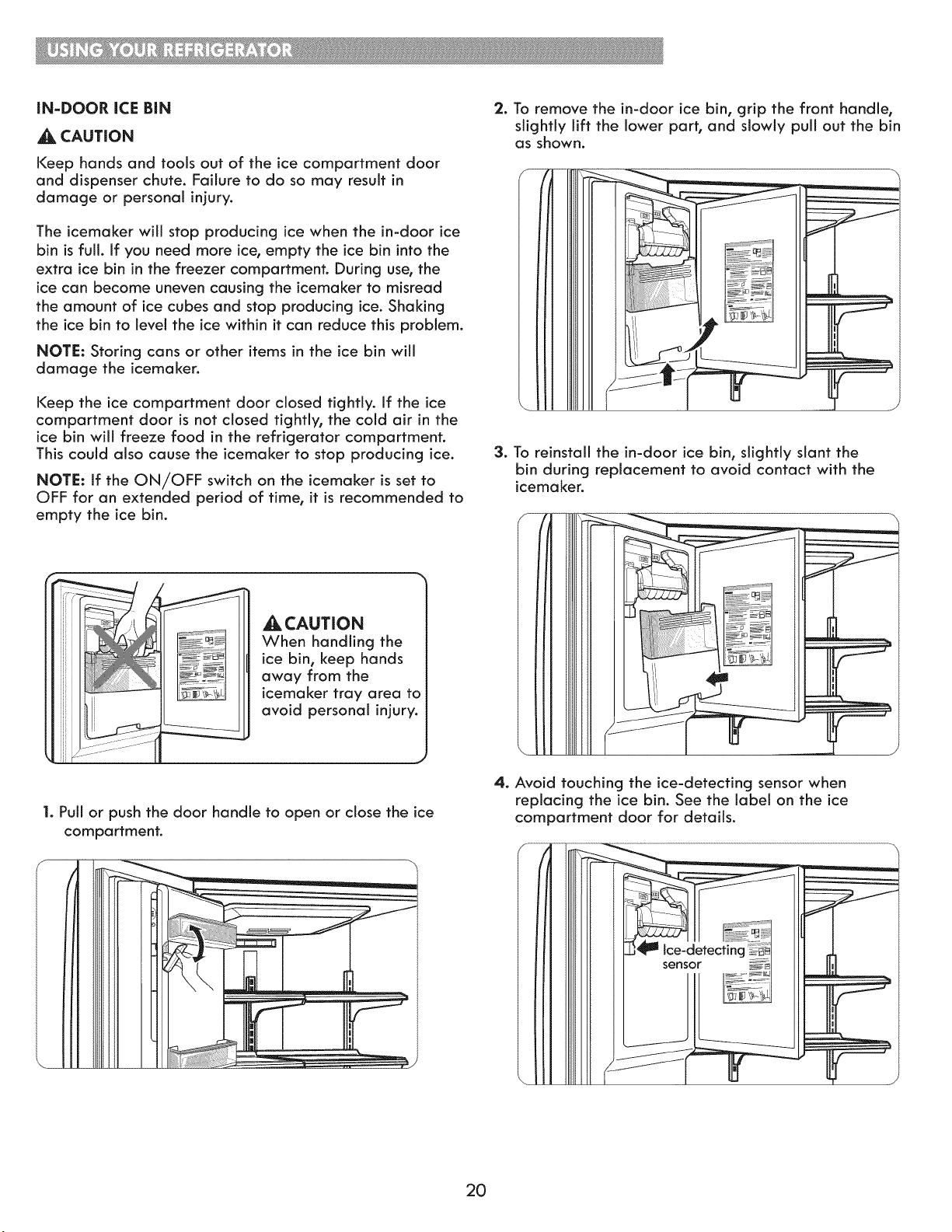

In-Door Ice Bin ..........................................................20

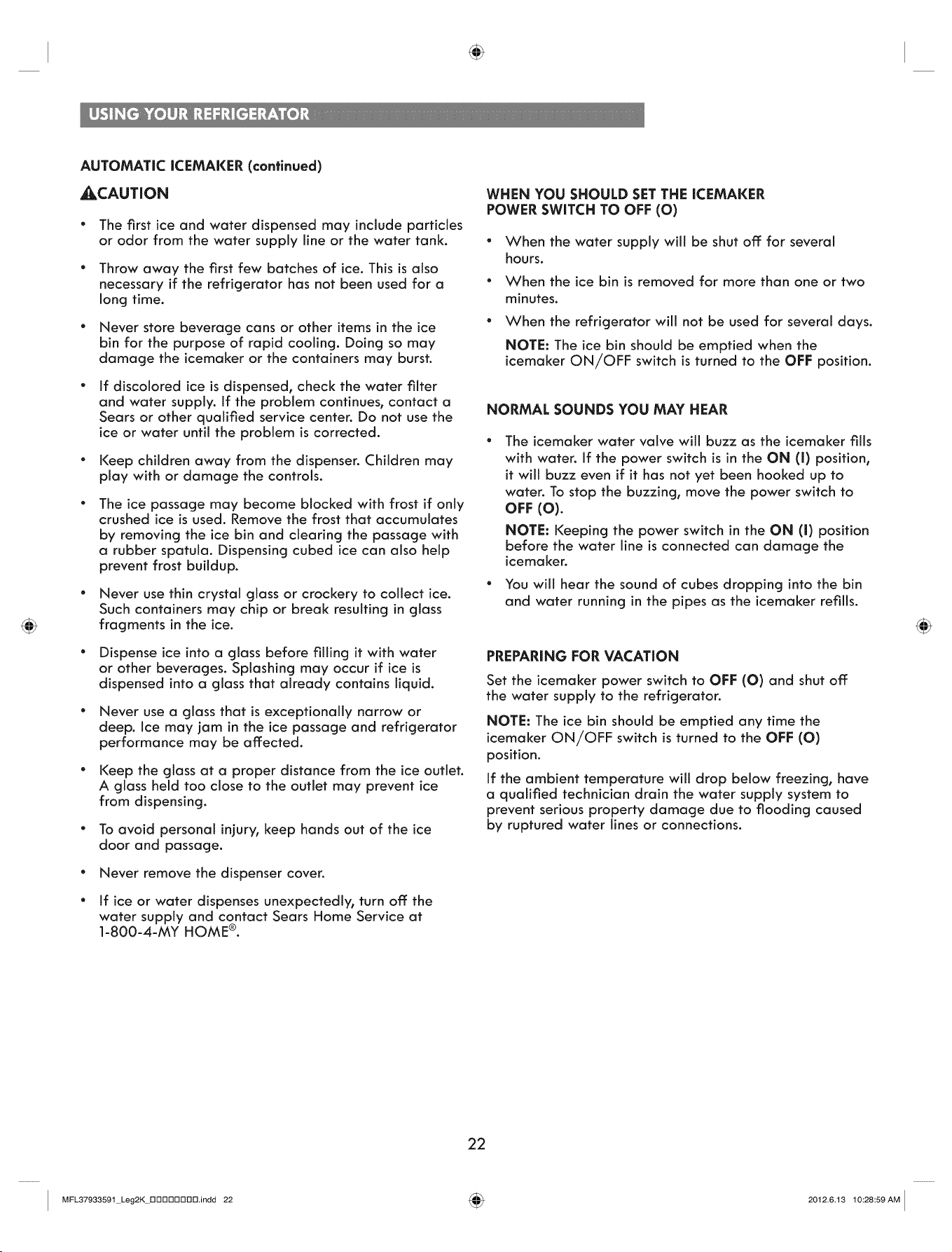

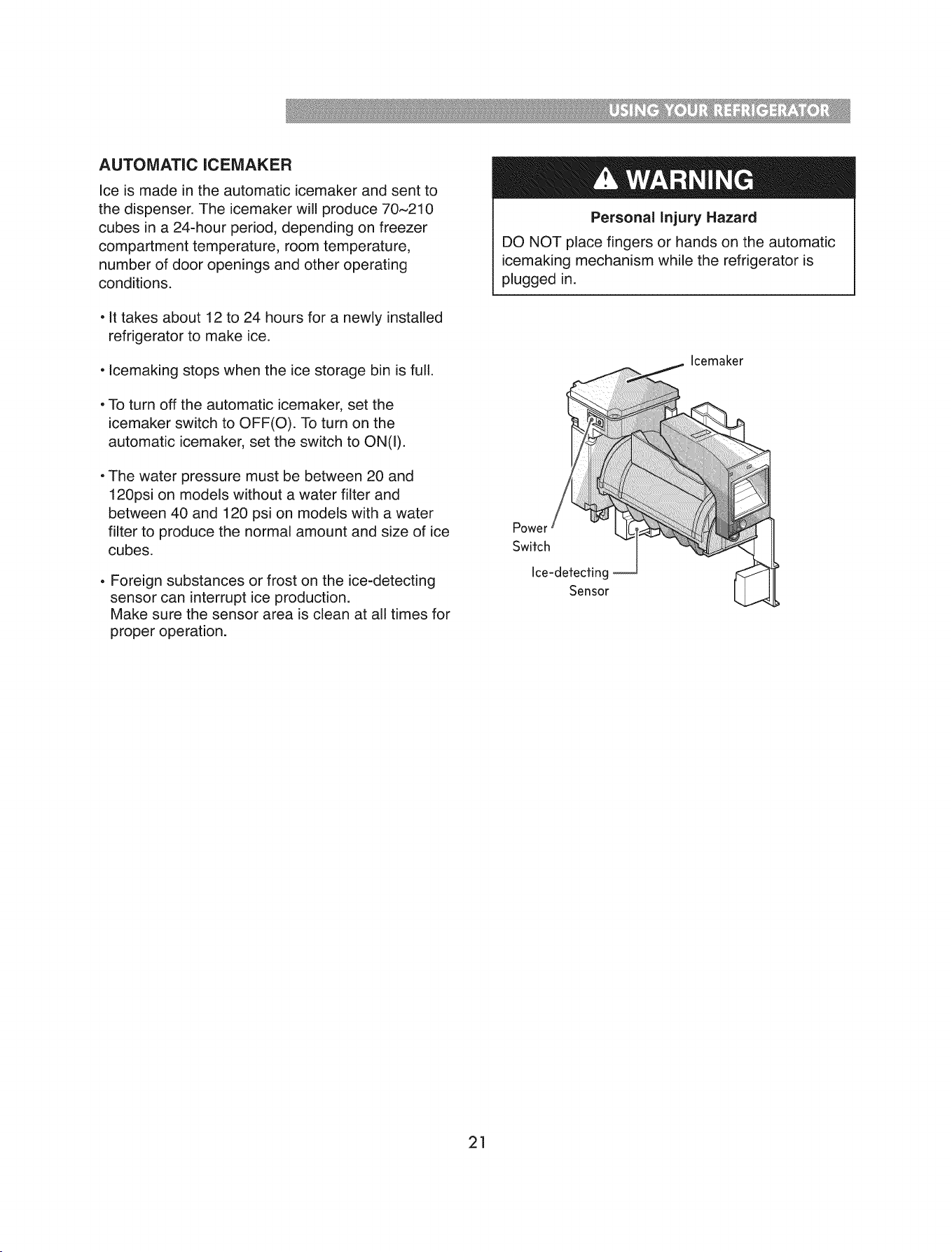

Automatic Icemaker ................................ 21-22

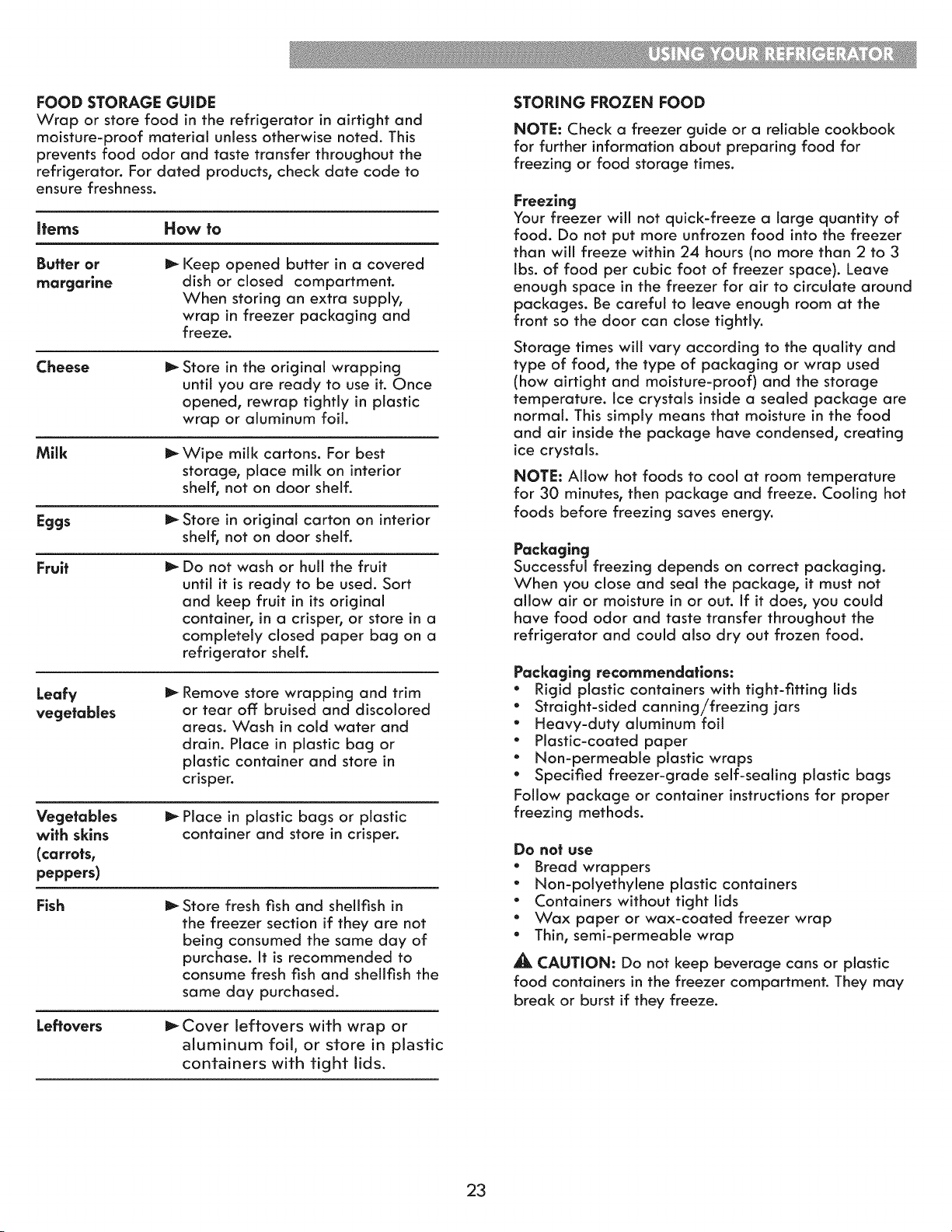

Food Storage Guide .................................... 23
Refrigerator Section

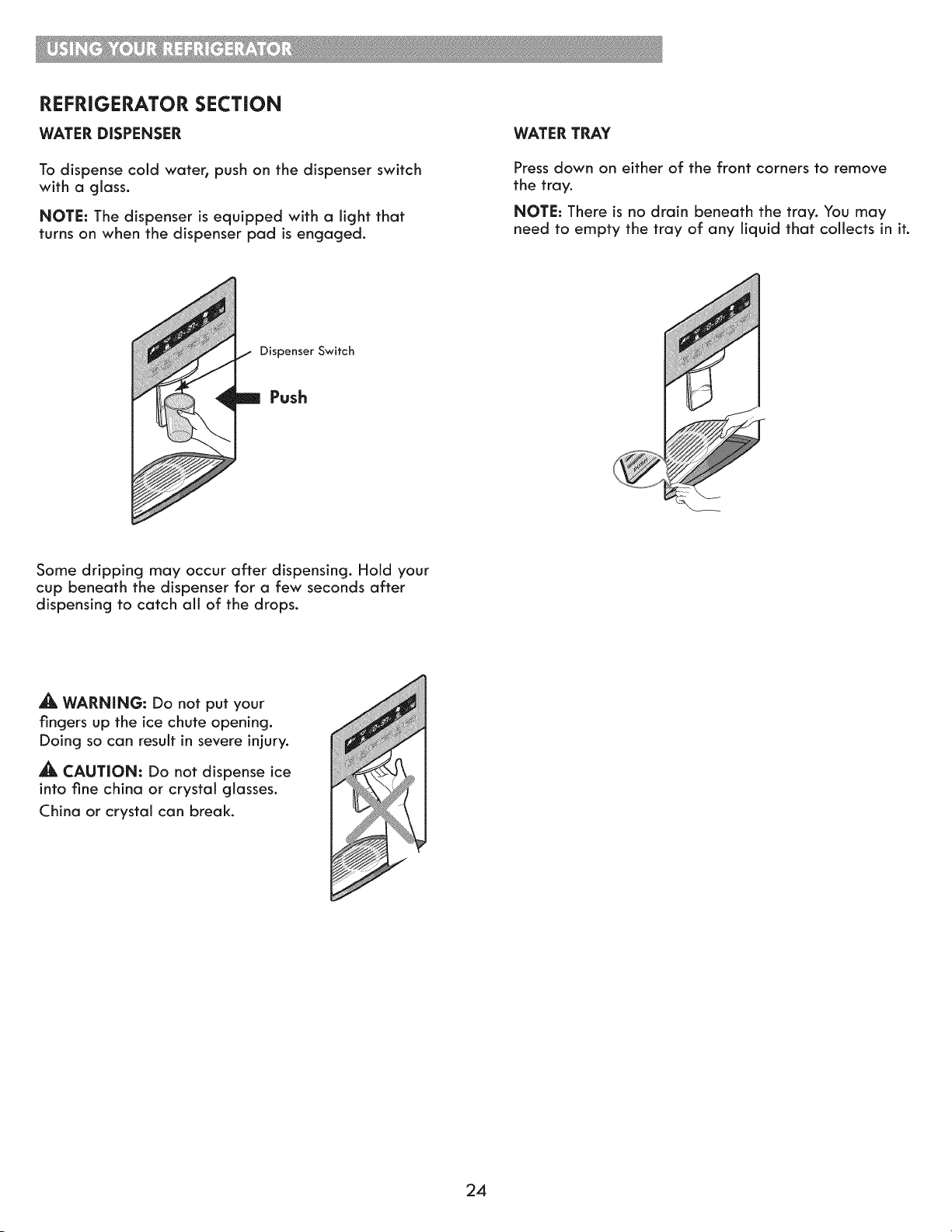

Water Dispenser ........................................... 24

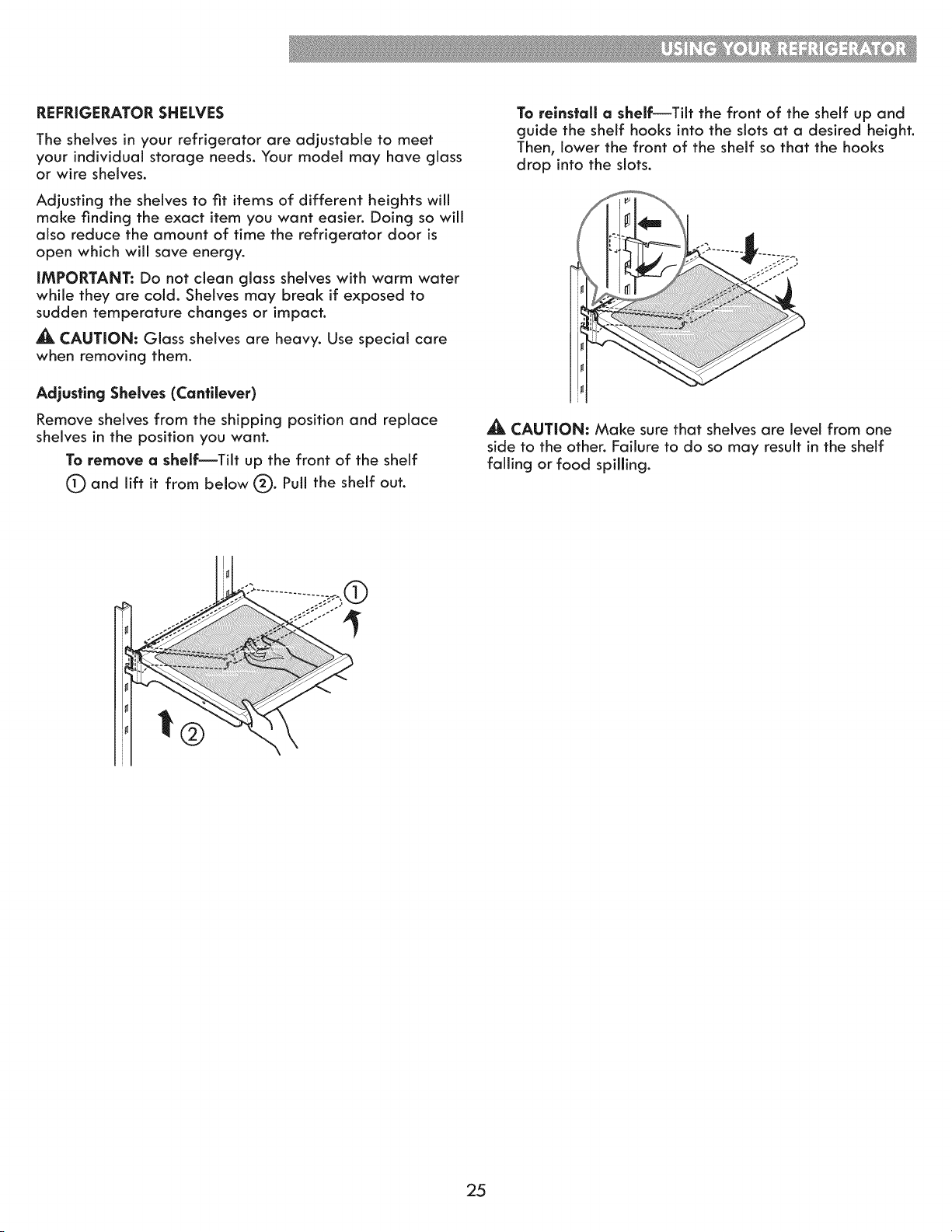

Refrigerator Shelves ................................................25

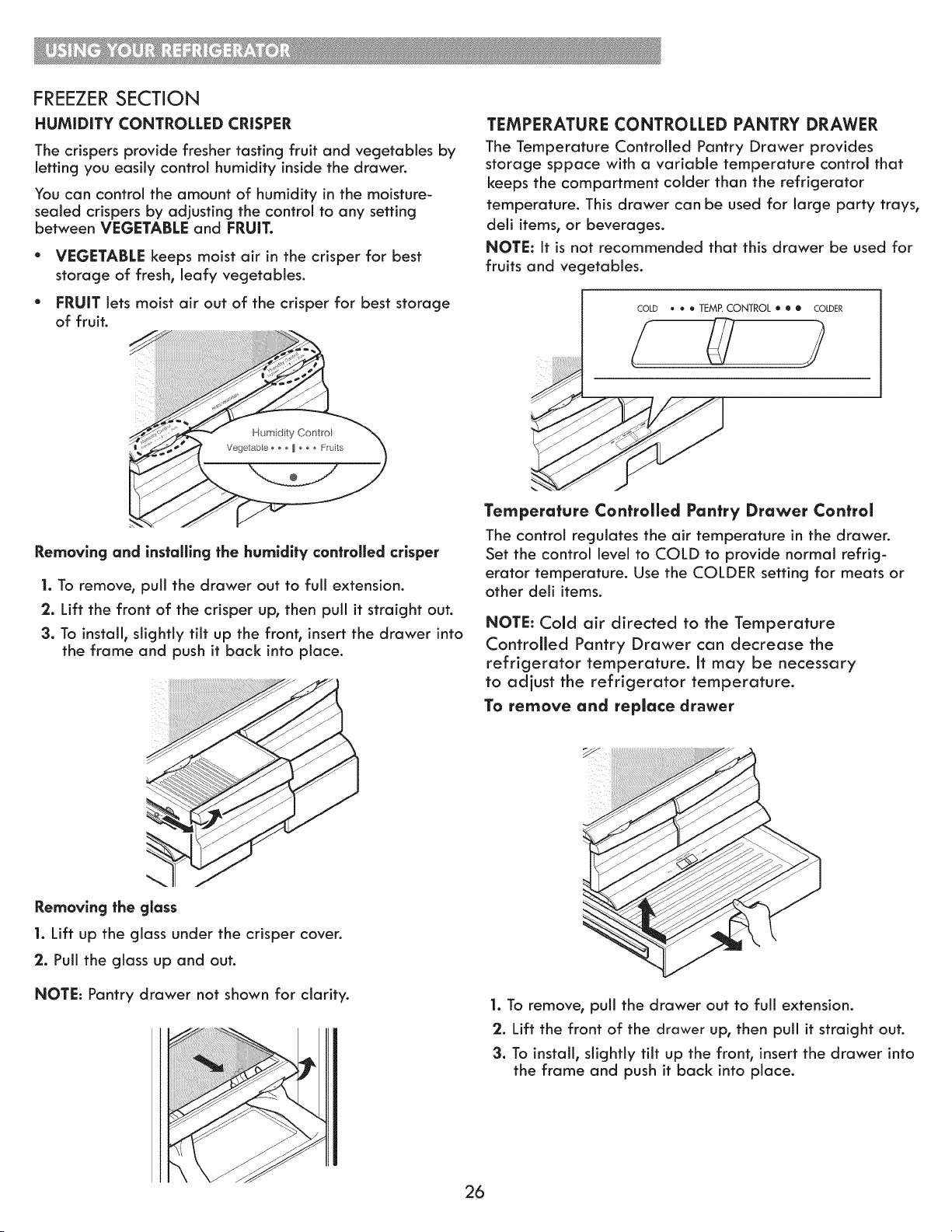

HUMiDiTY CONTROLLED CRISPER ............ 26
Temperature Controlled Pantry Drawer ........ 26

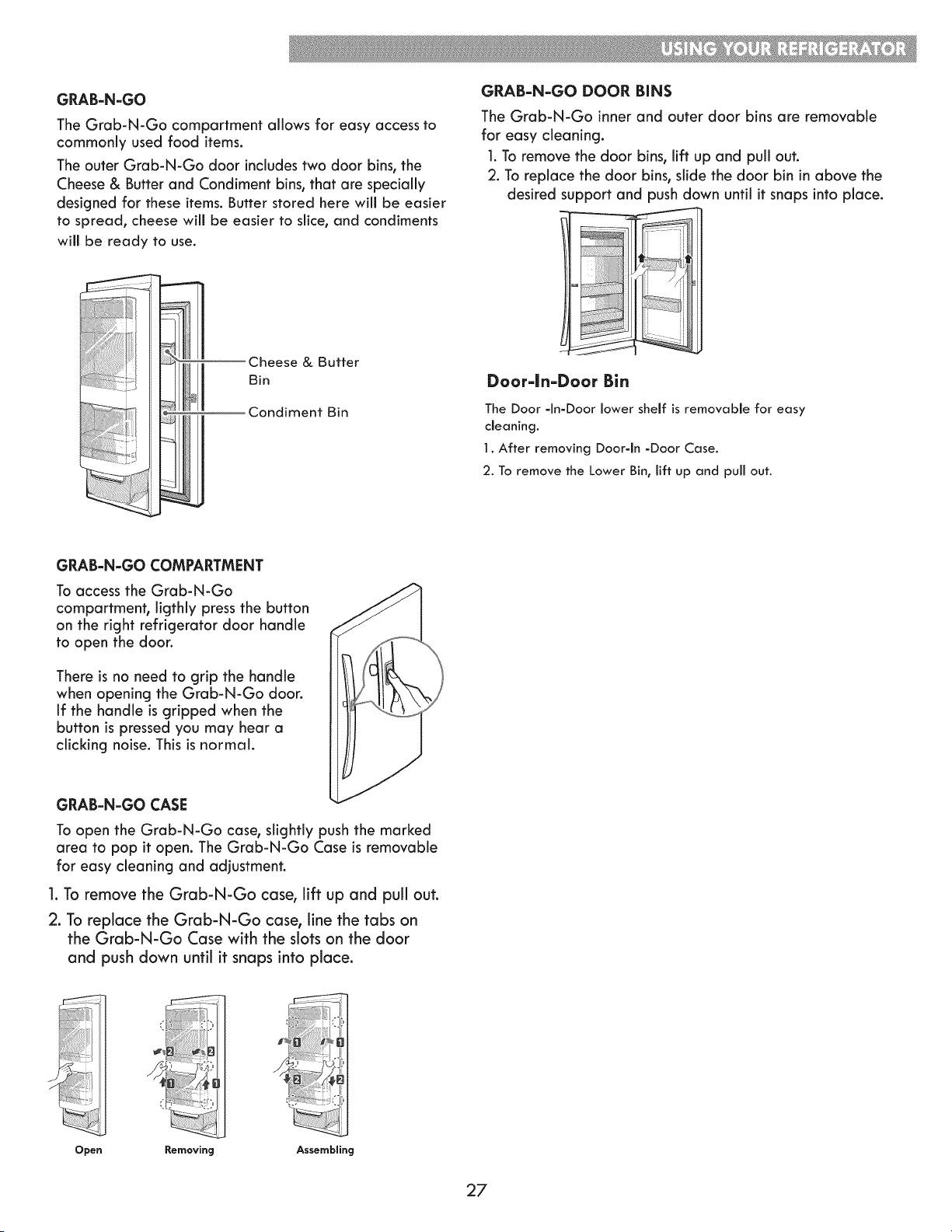

Grab-N-Go Case ............................................... 27
_,- Freezer Section
Extra Ice Bin ................................................. 27

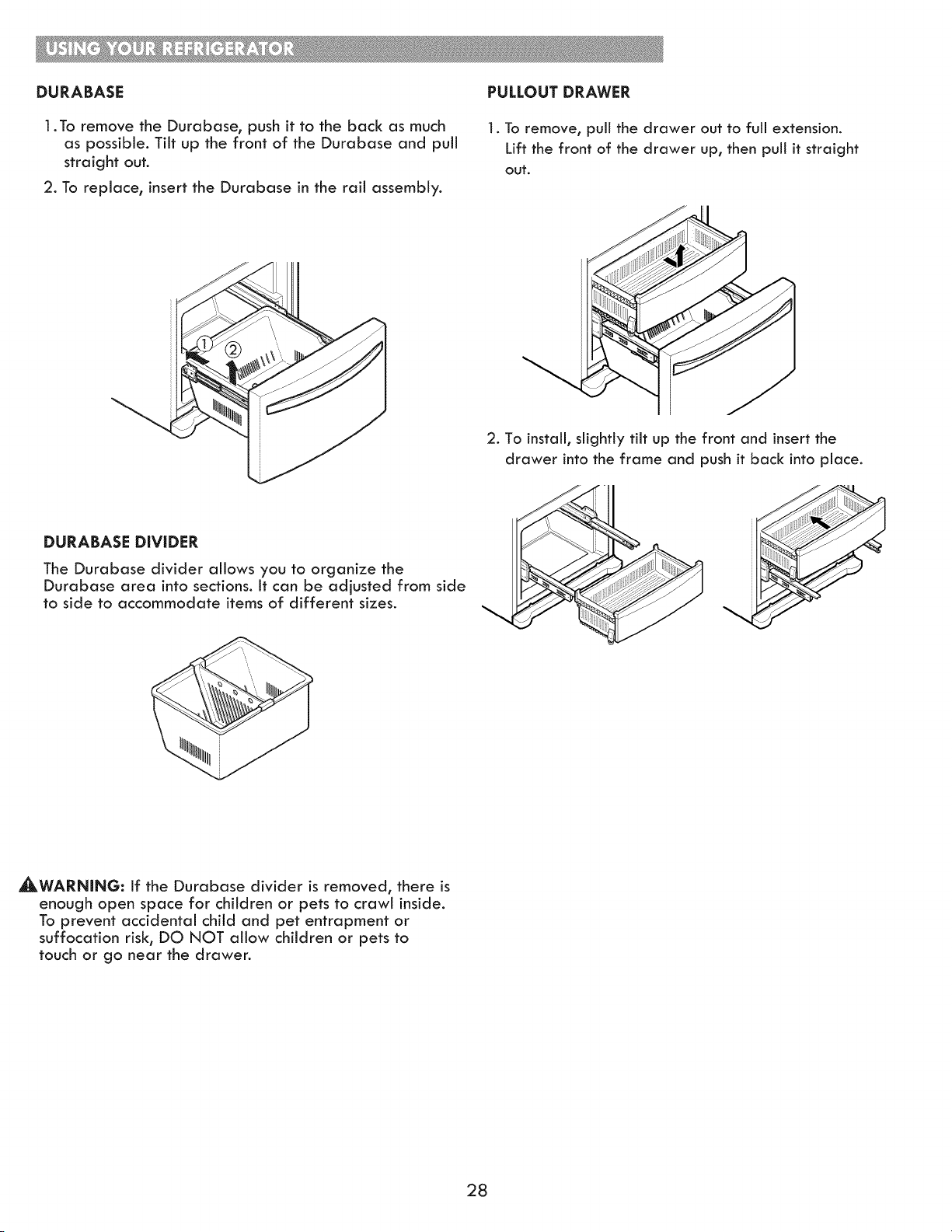

Durabase ........................................................ 28
Durabase Divider .......................................... 28
Pullout Drawer .............................................. 28

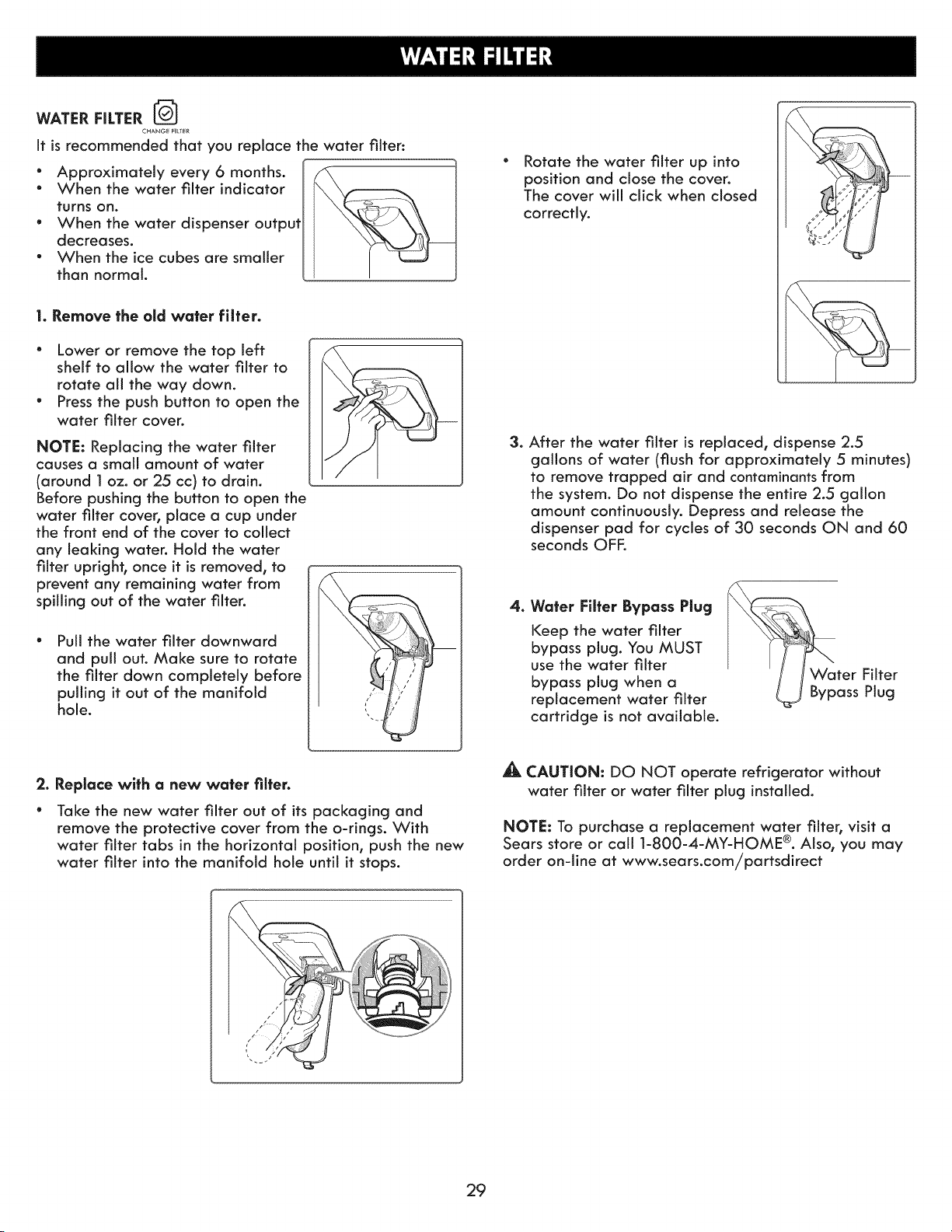

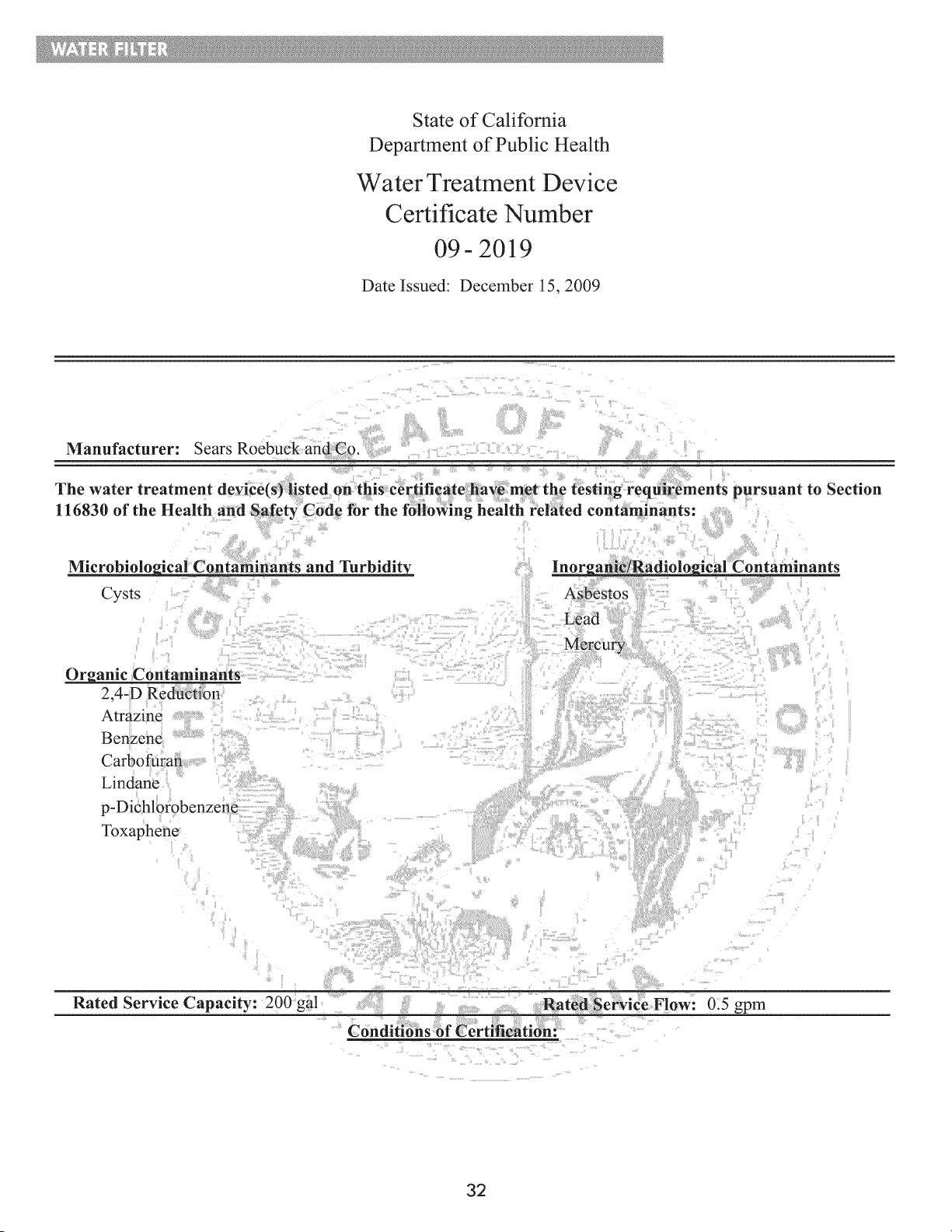

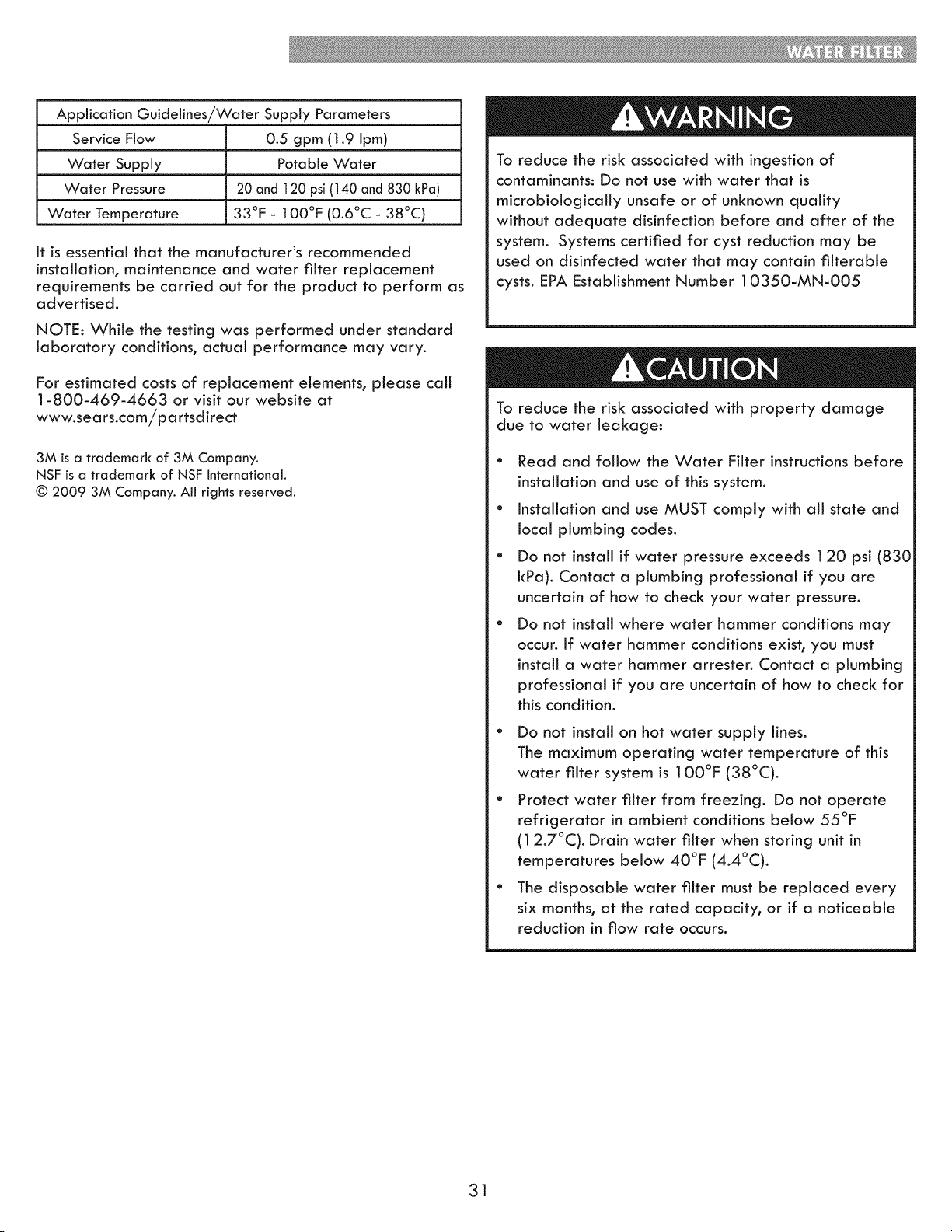

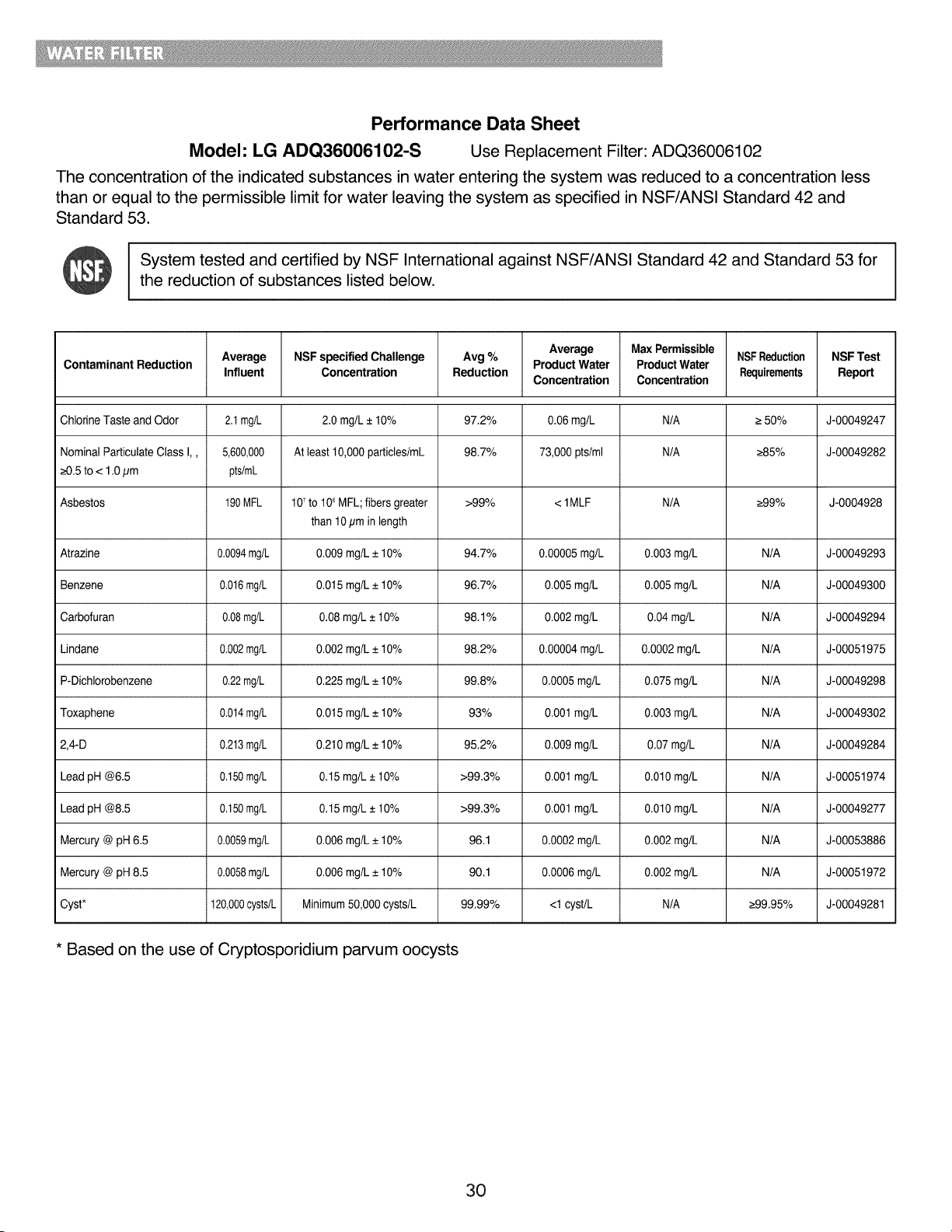

Water Fiffer ............................................... 29-32

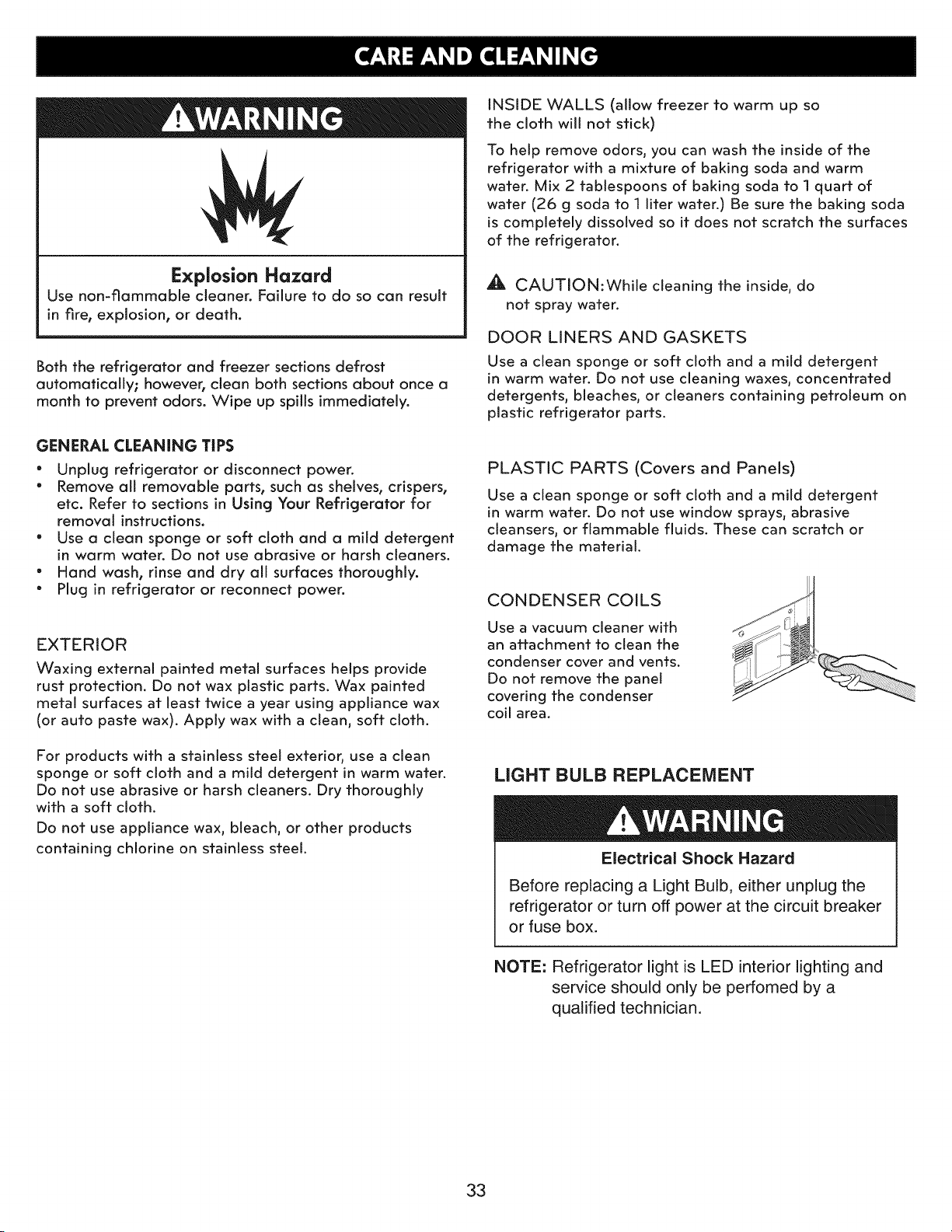

Care And Cleaning ................................... 33-34
General Cleaning Tips ................................ 33
Exterior .......................................................... 33
Inside Walls ................................................... 33
Door Liner And Gaskets ............................... 33
Plastic Parts .................................................... 33
Condenser Coils ............................................. 33

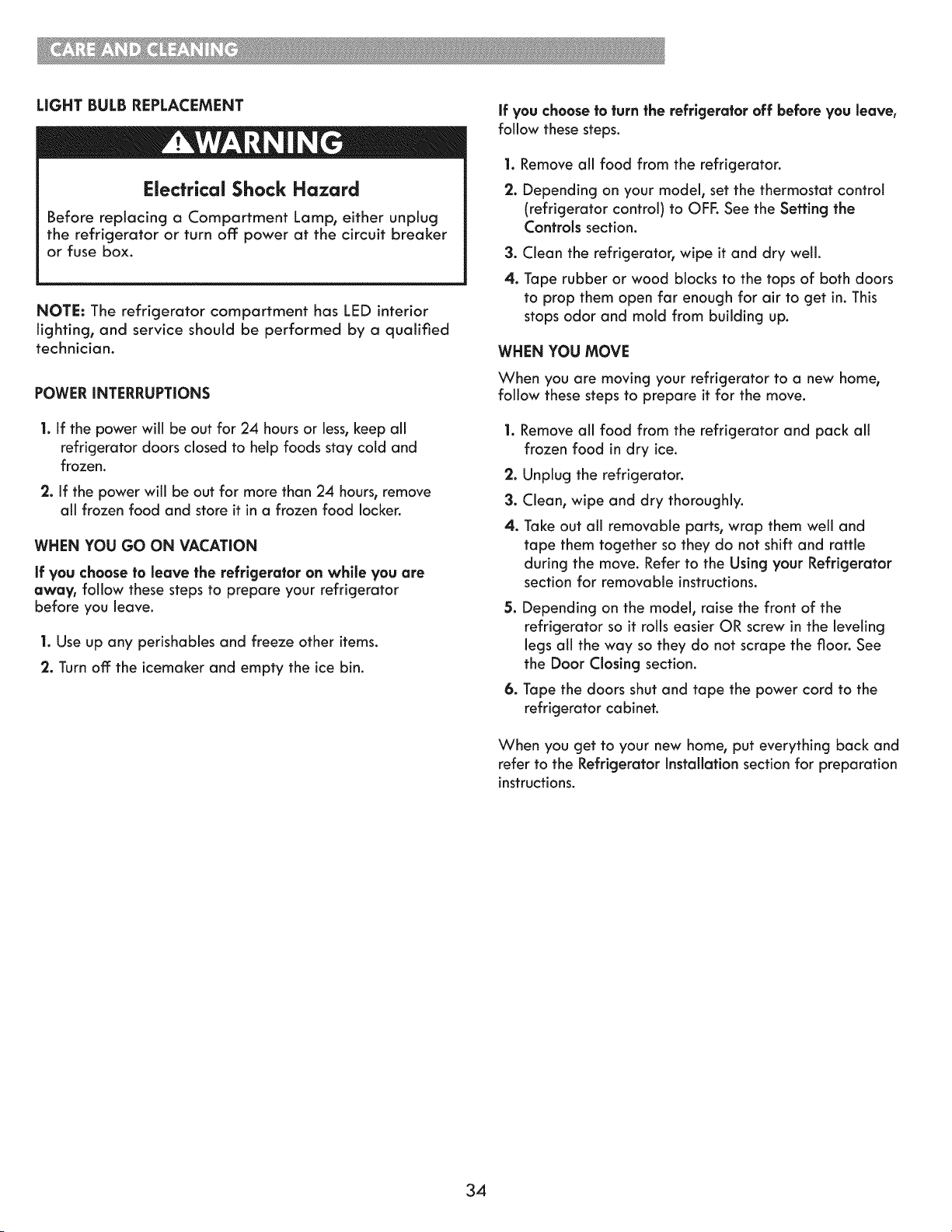

LED Replacement ........................................... 33
Power Interruptions ....................................... 34
When You Go On Vacation ........................ 34
When You Move ............................................ 34

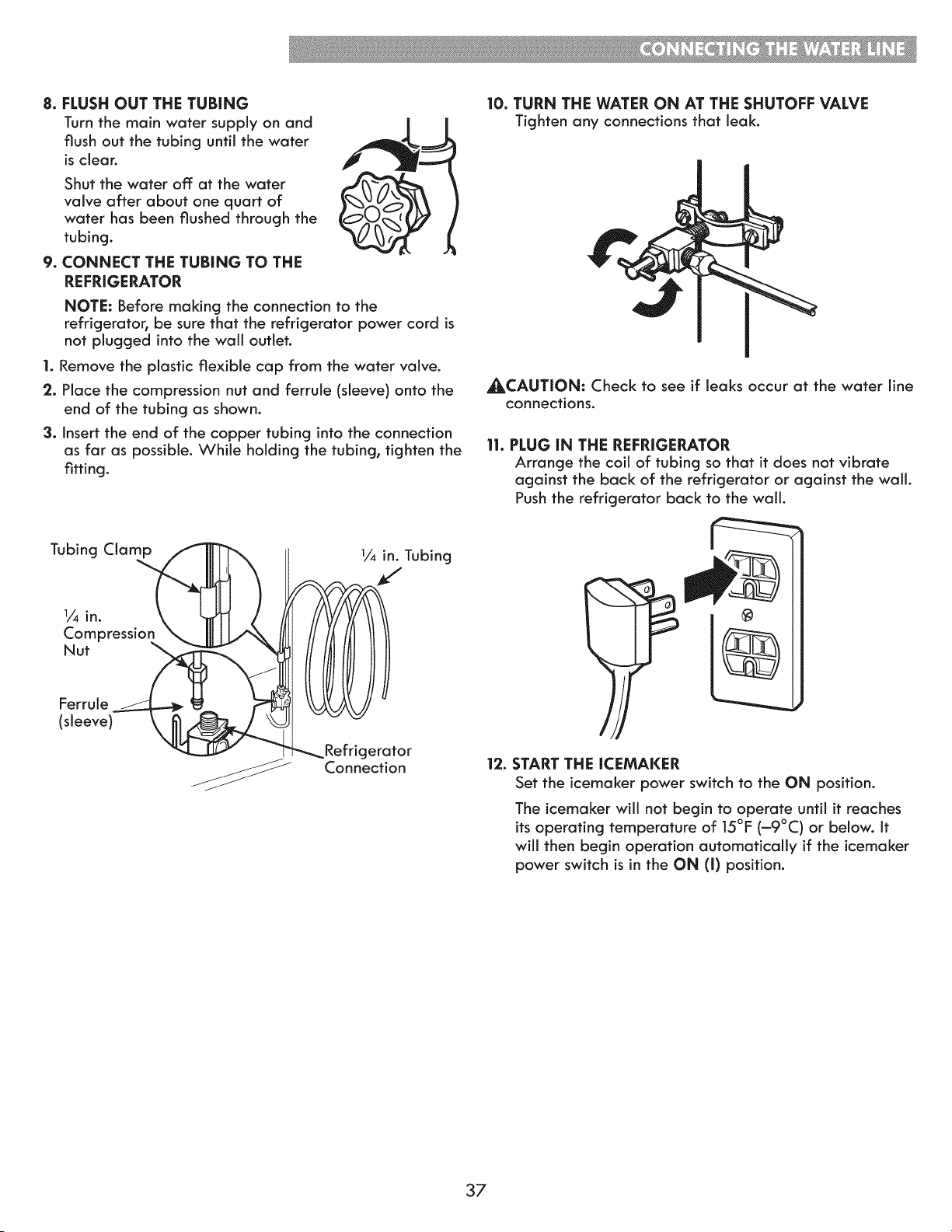

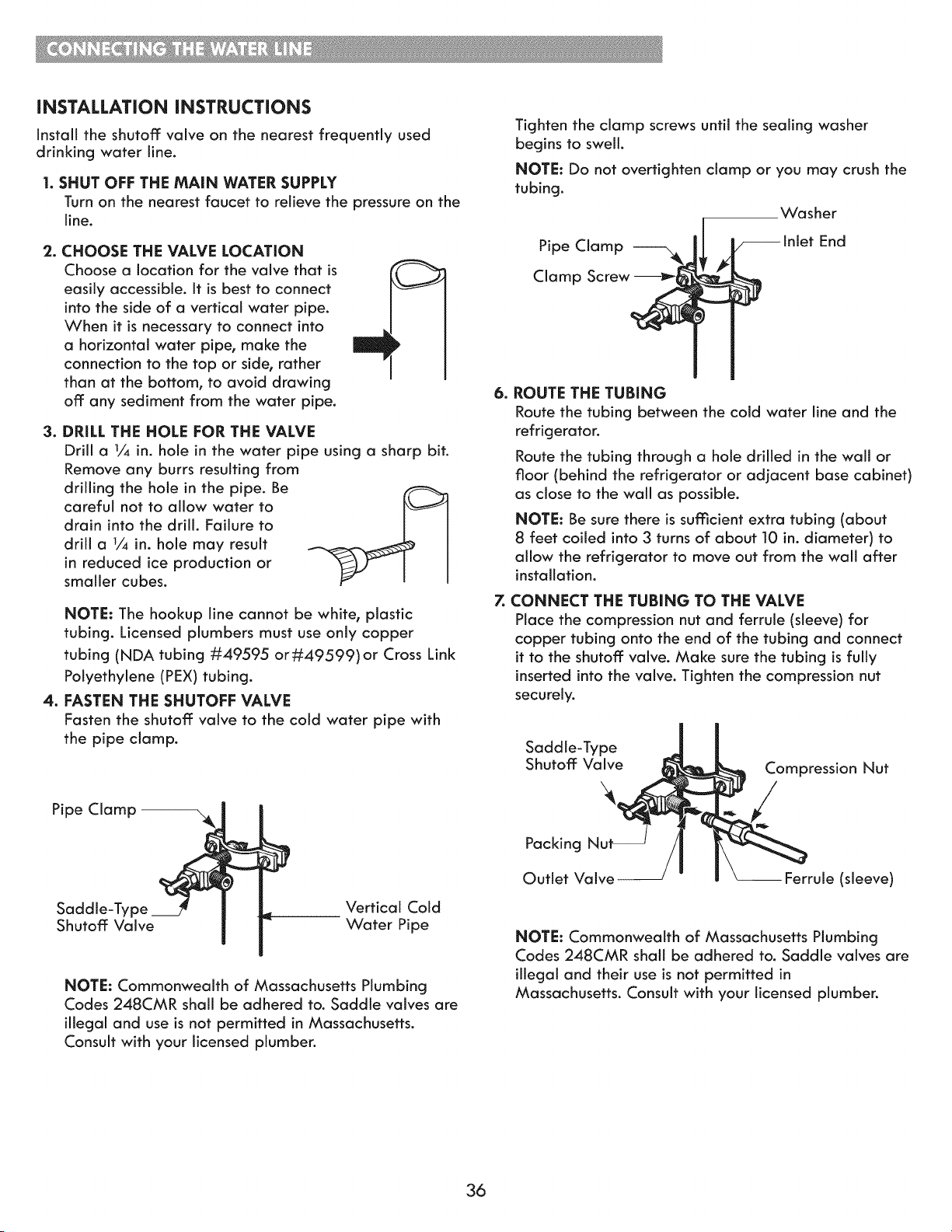

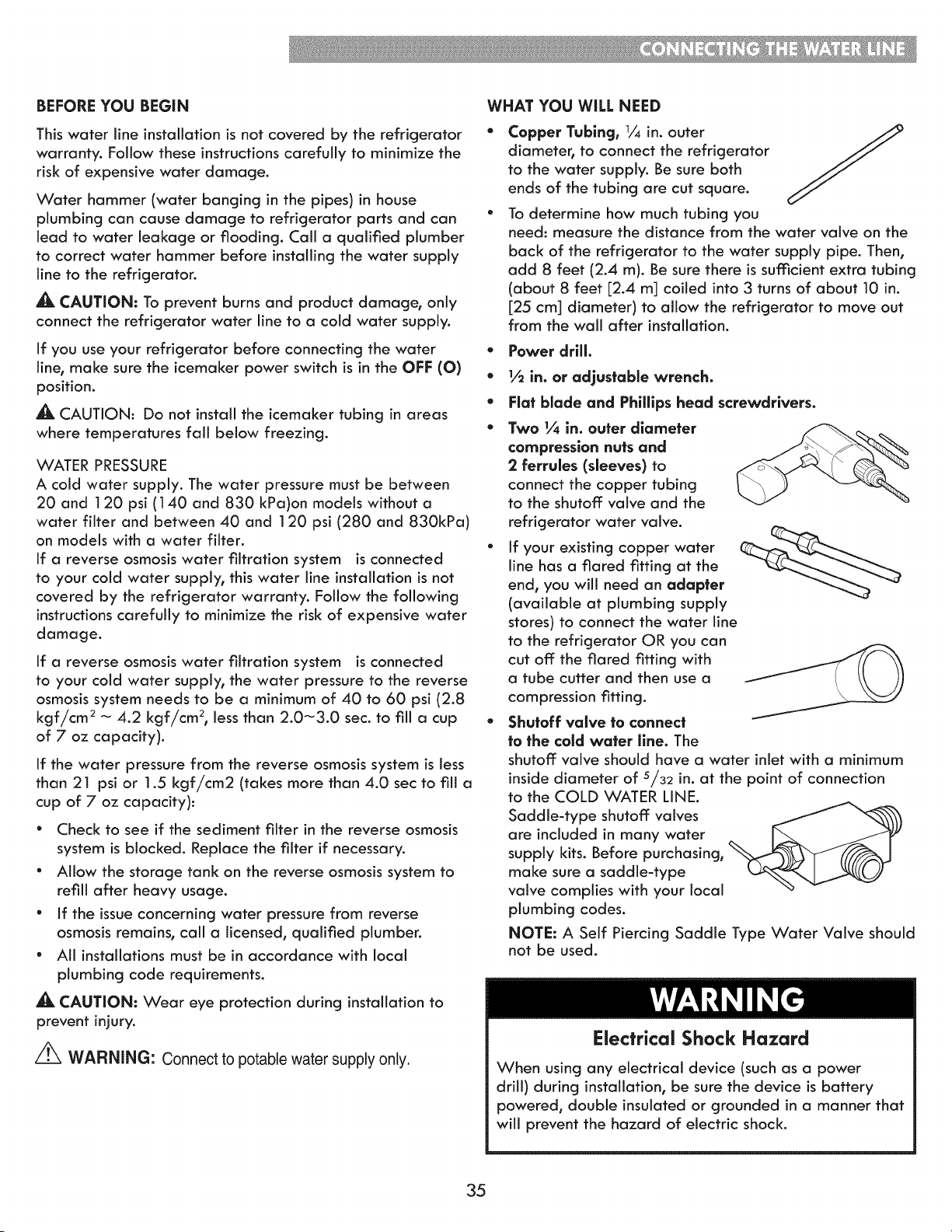

Connecting the Water Line ...................... 35-37

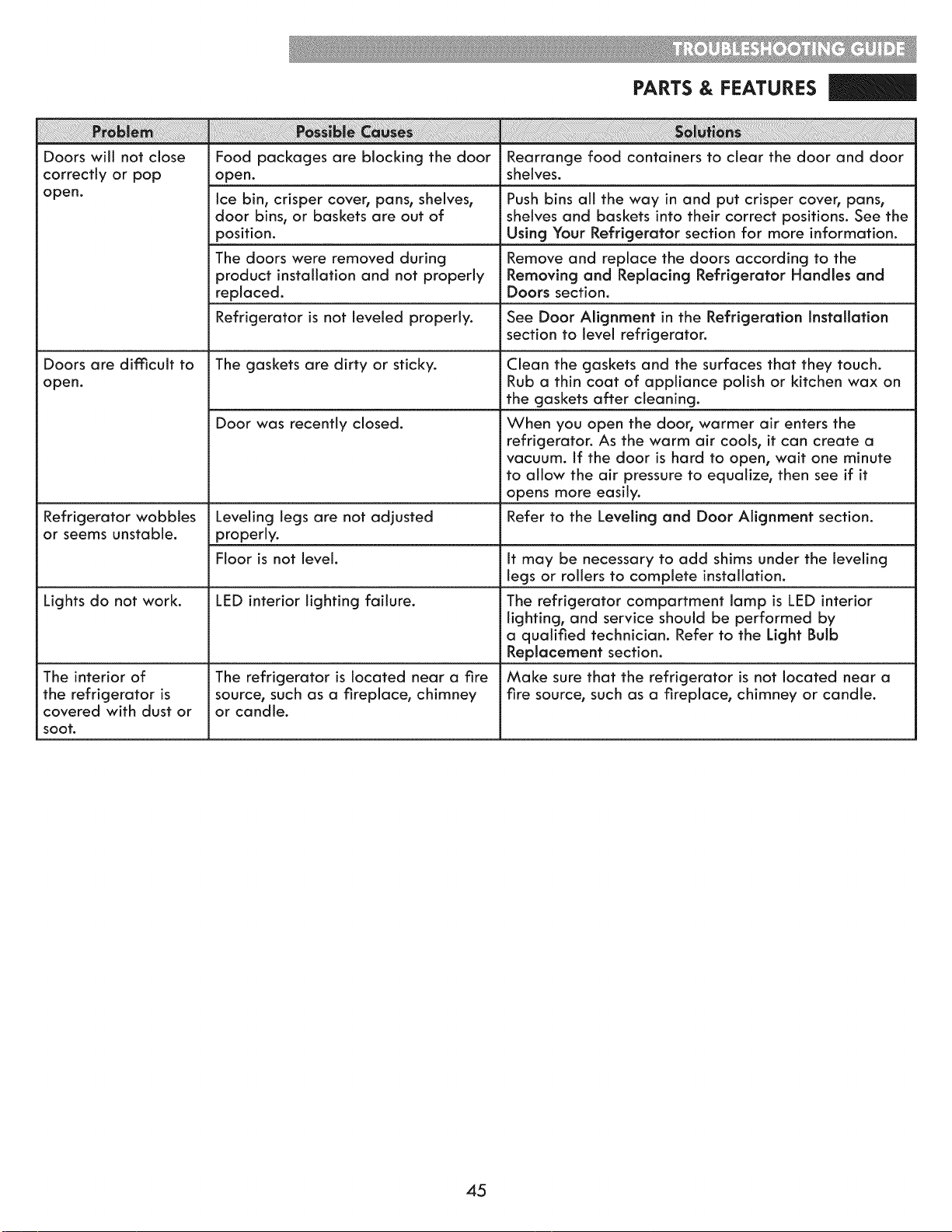

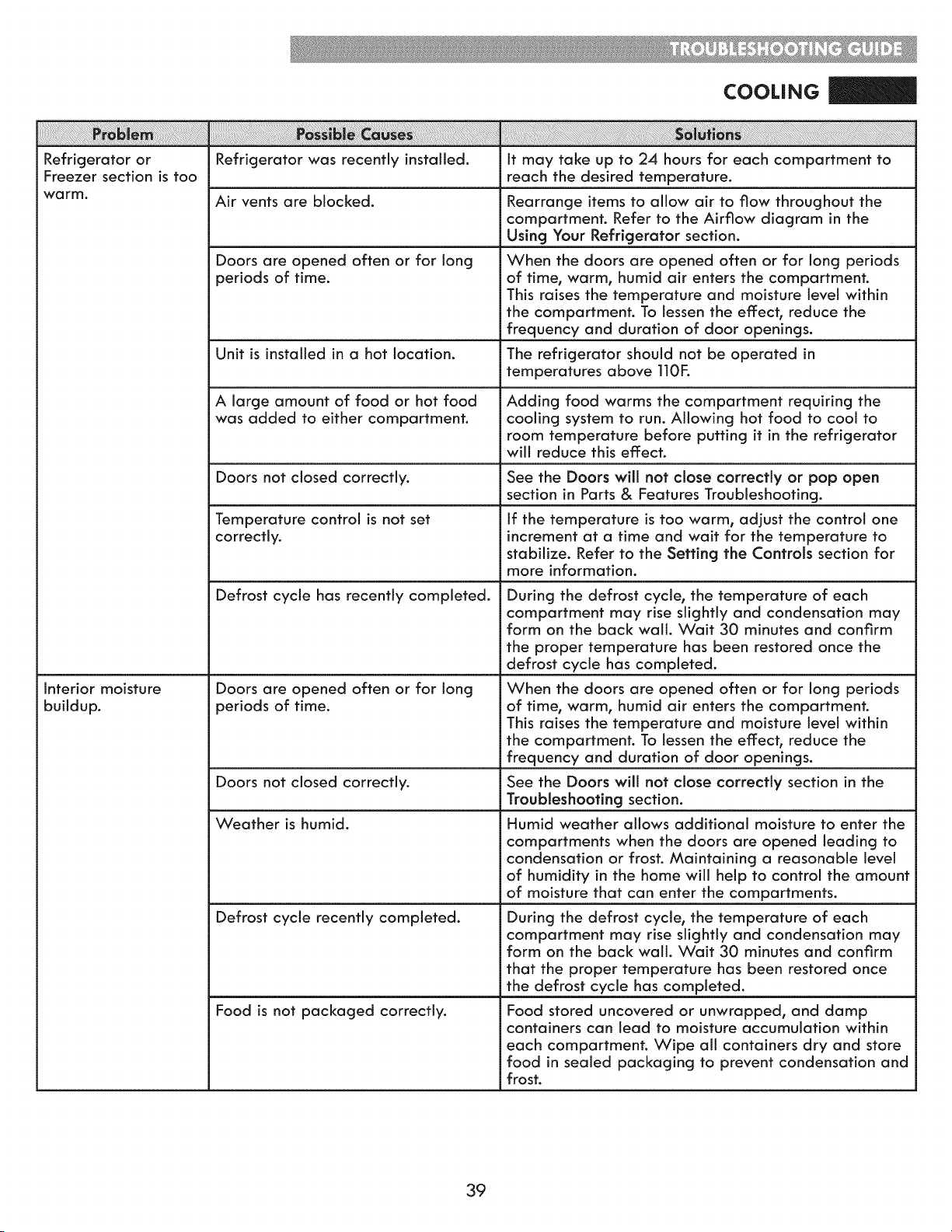

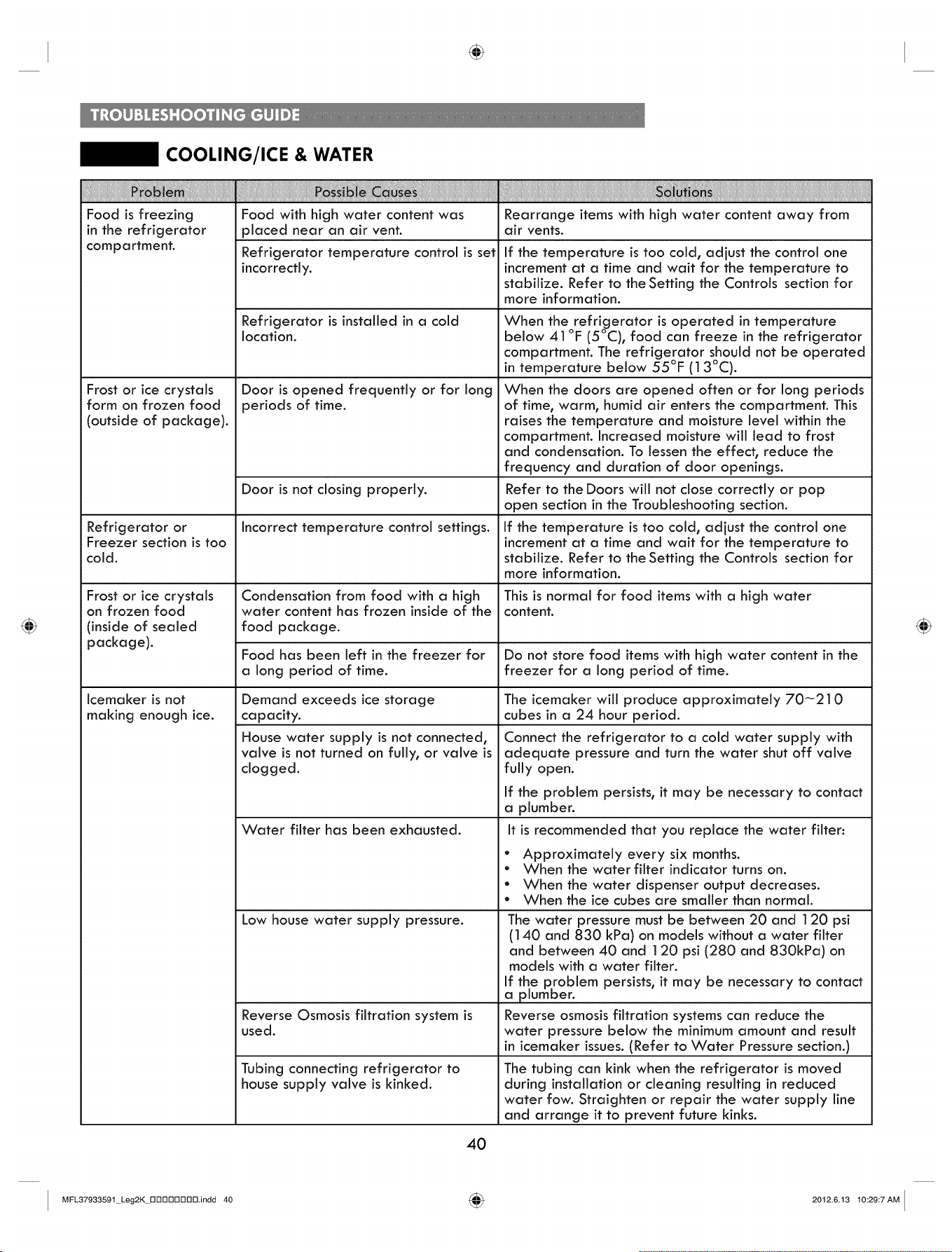

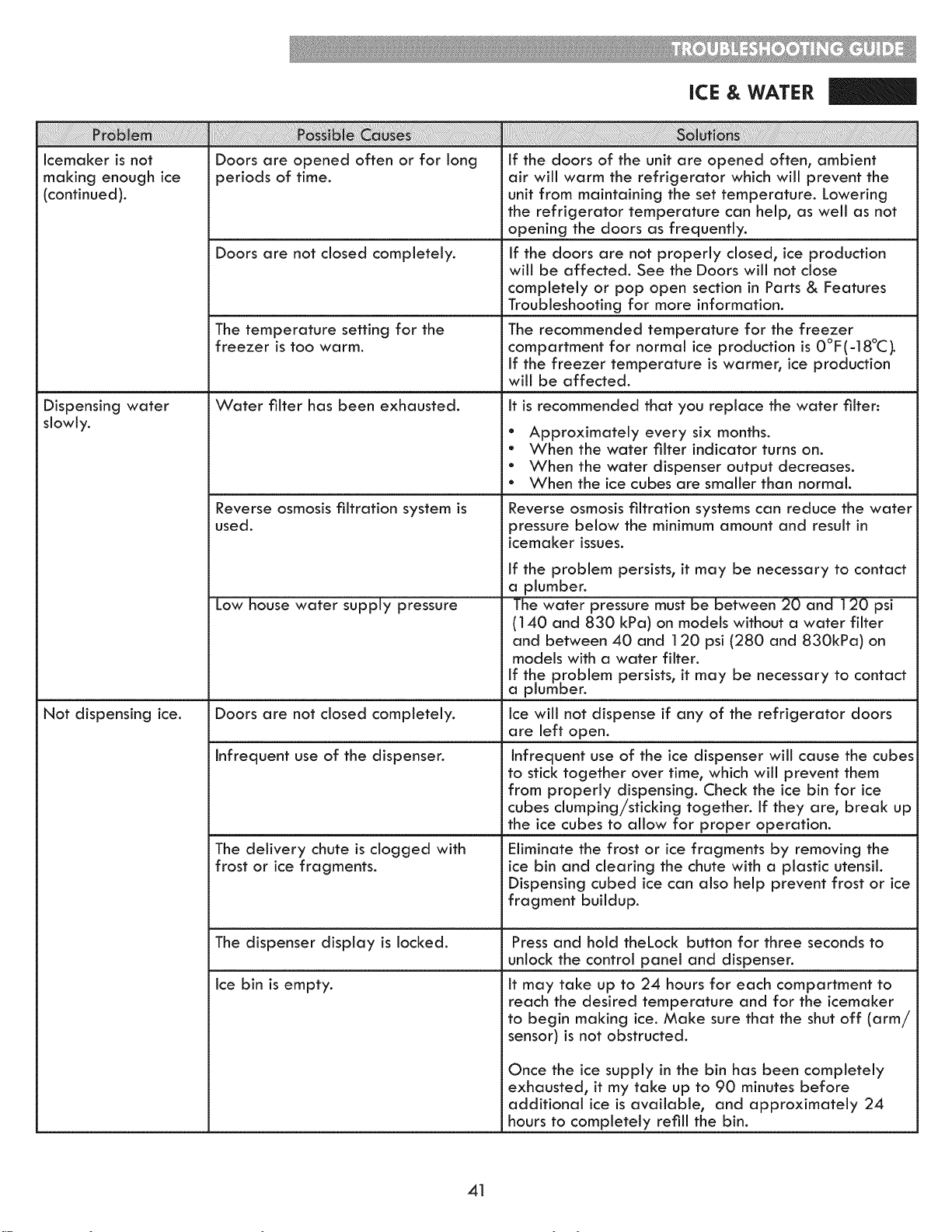

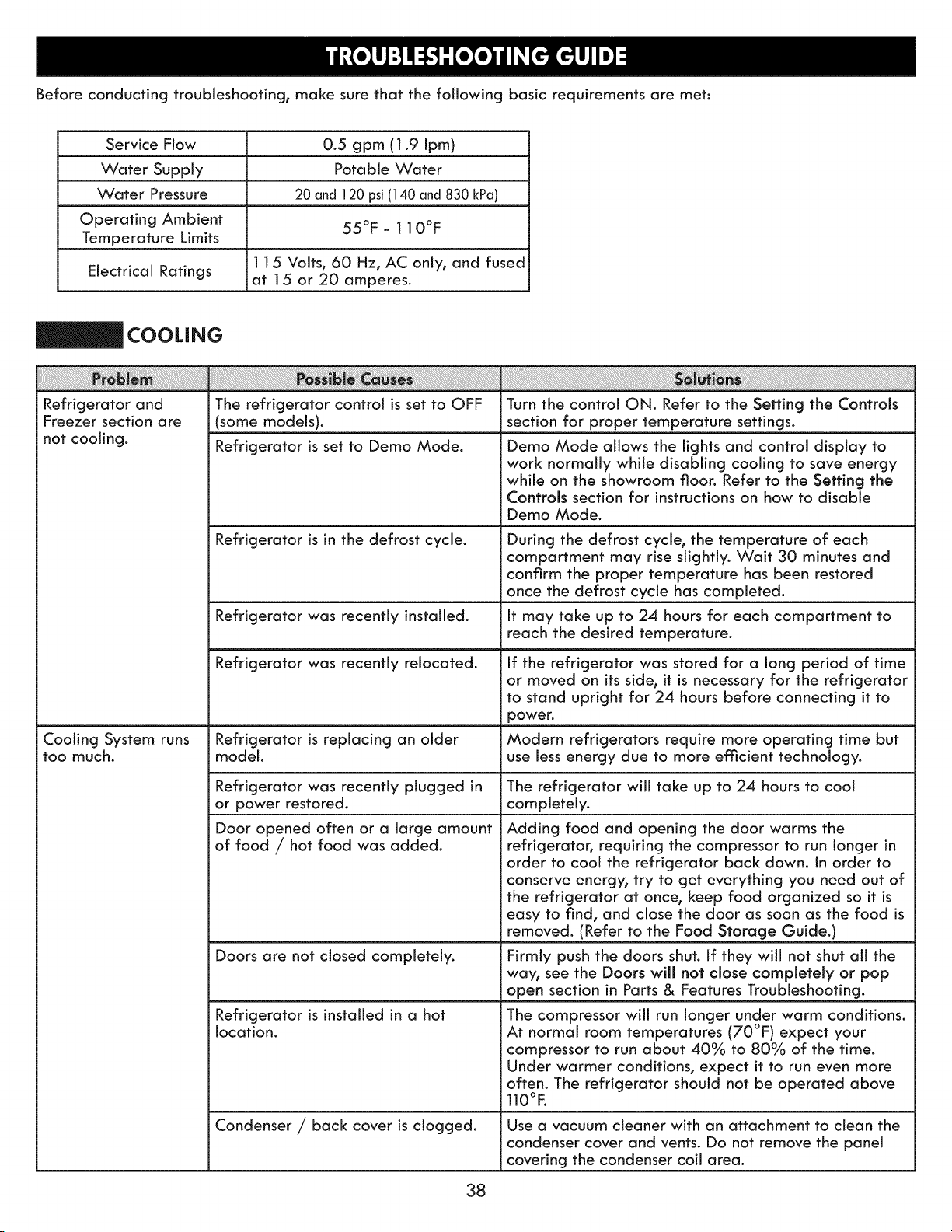

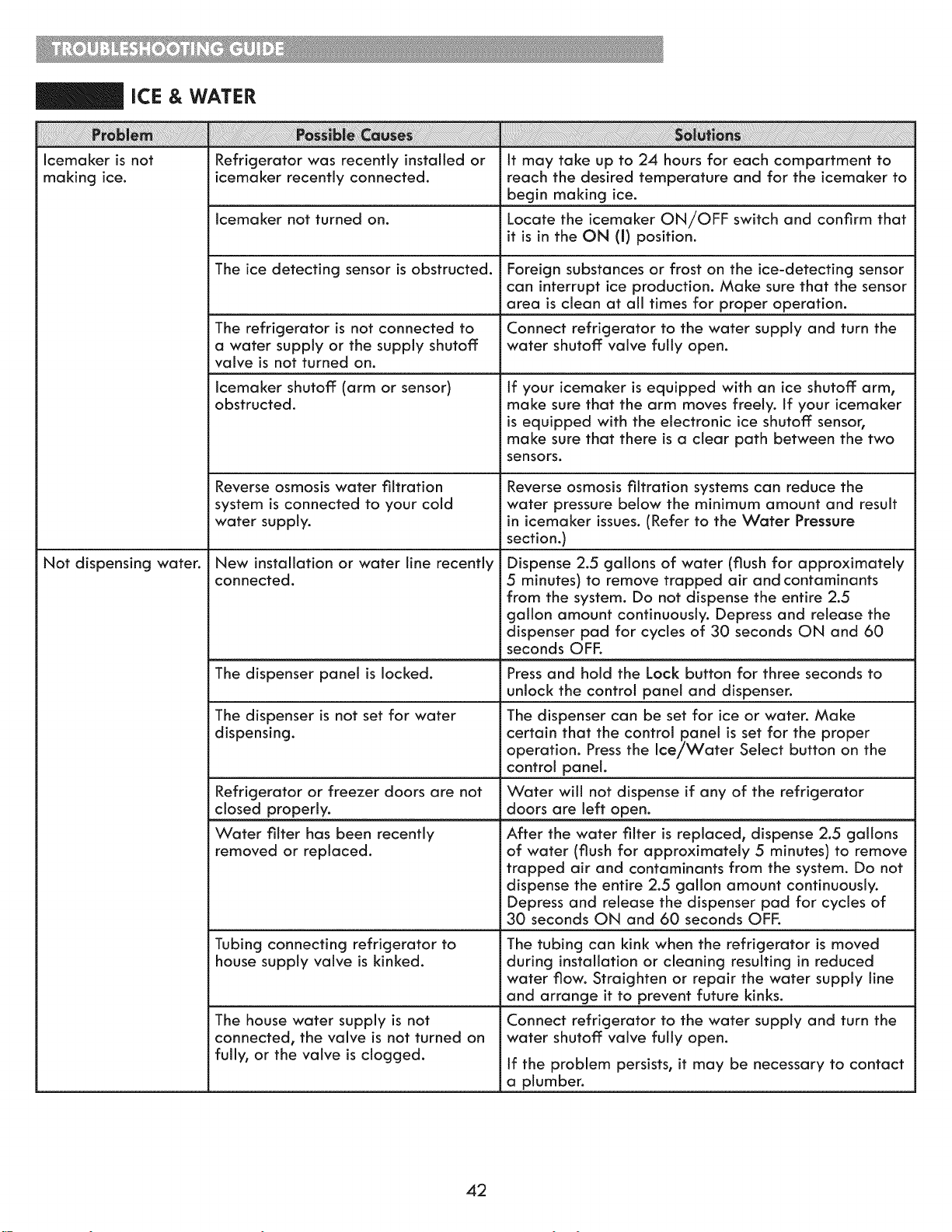

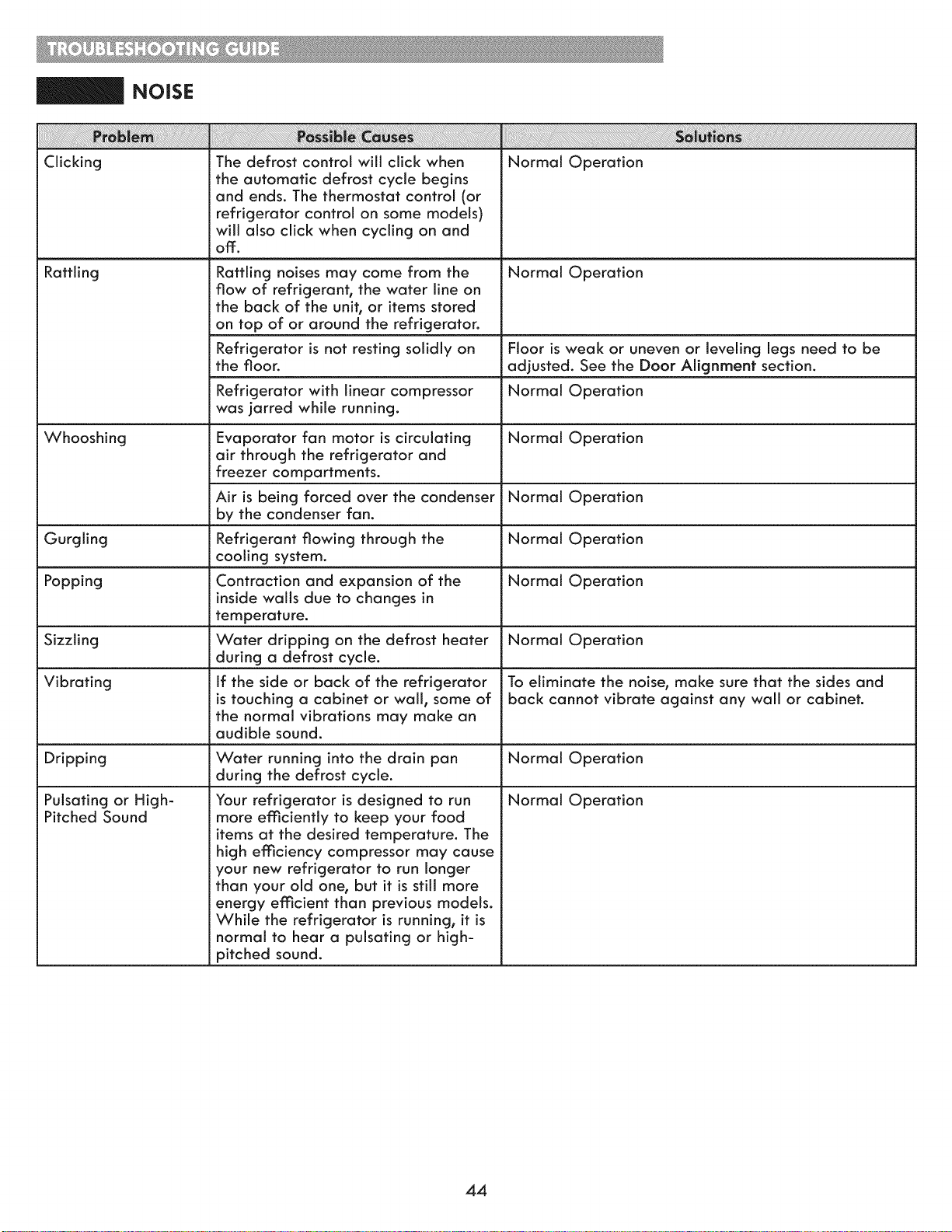

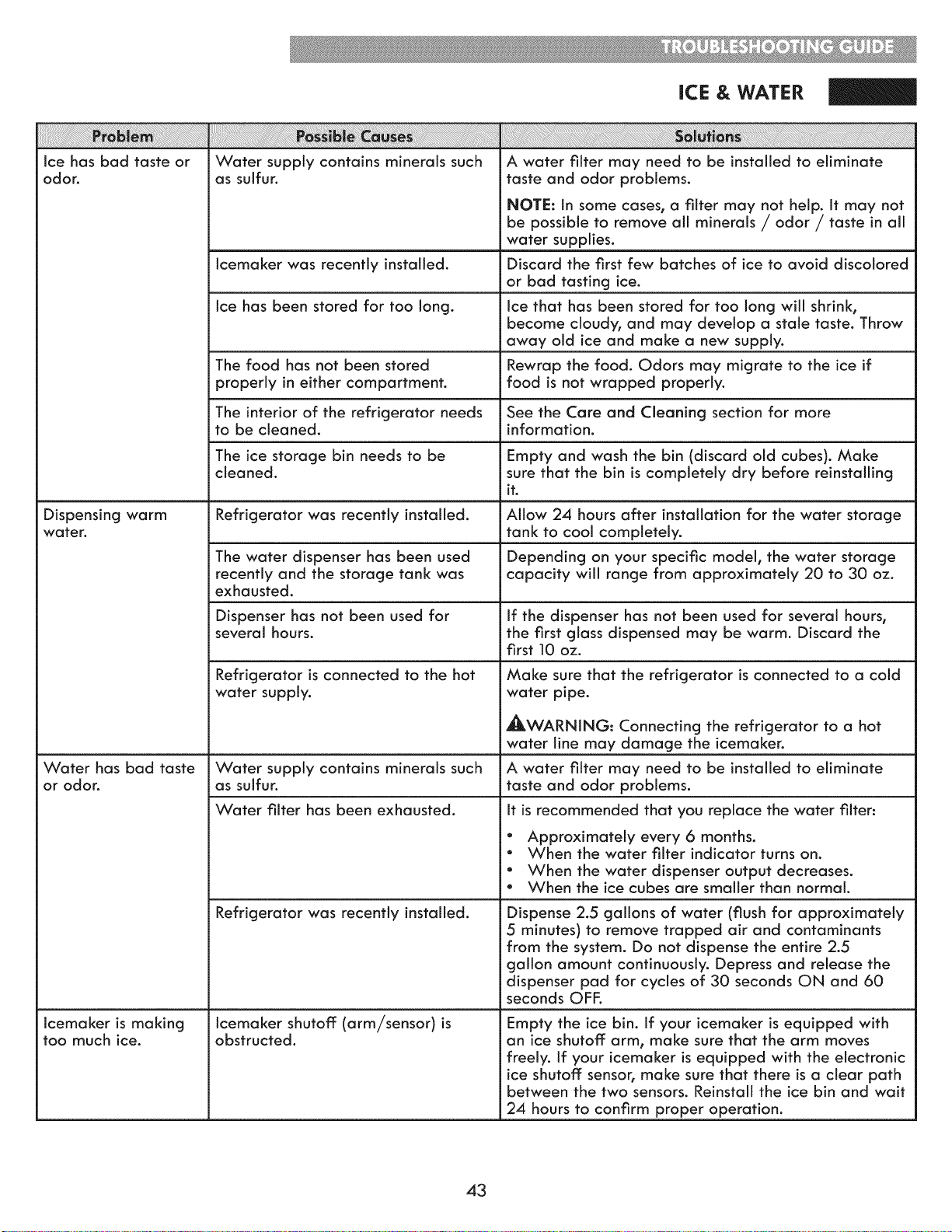

Troubleshooting Guide ............................. 38-45

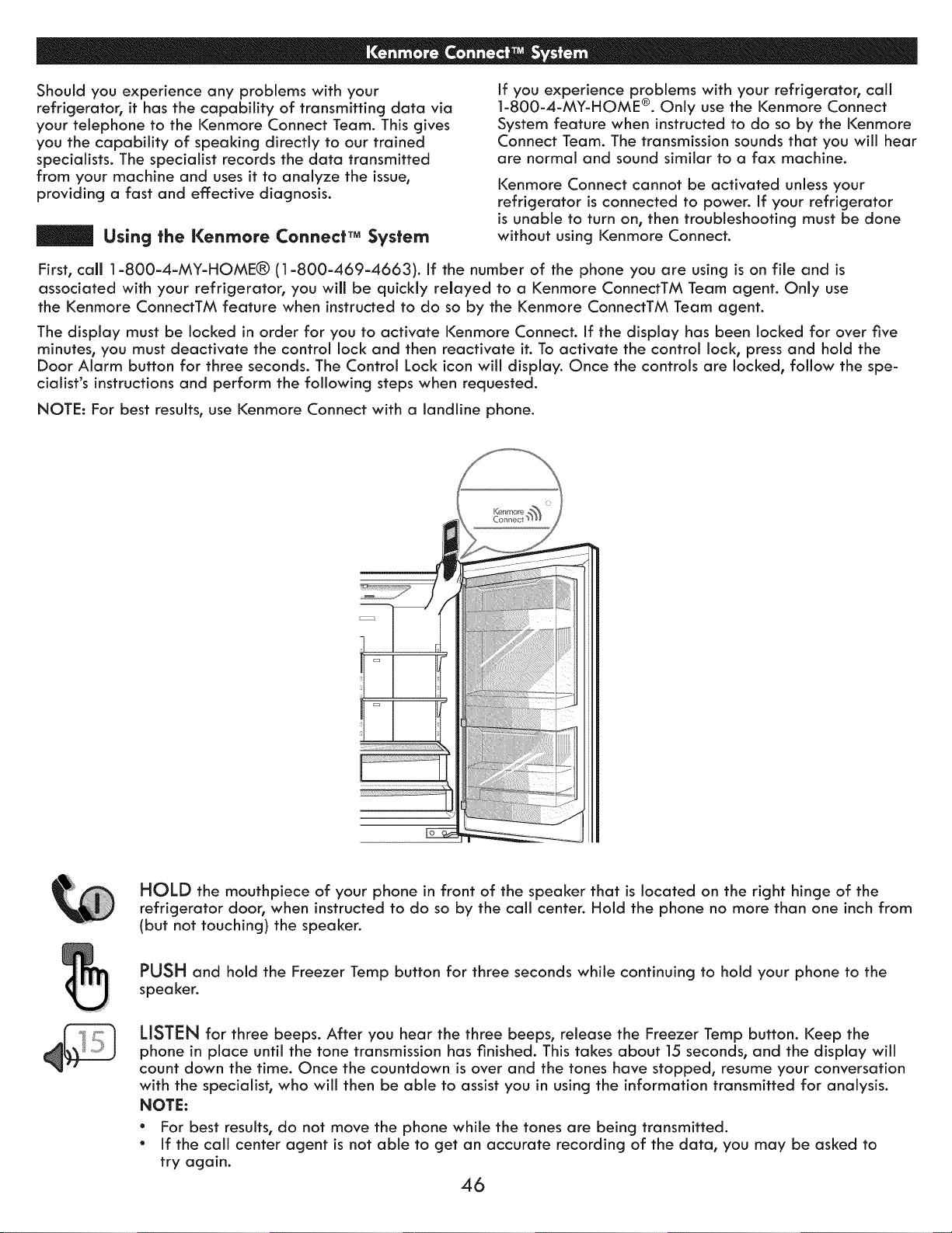

Kenmore Connect .......................................... 46
Service ............................................. Back Cover

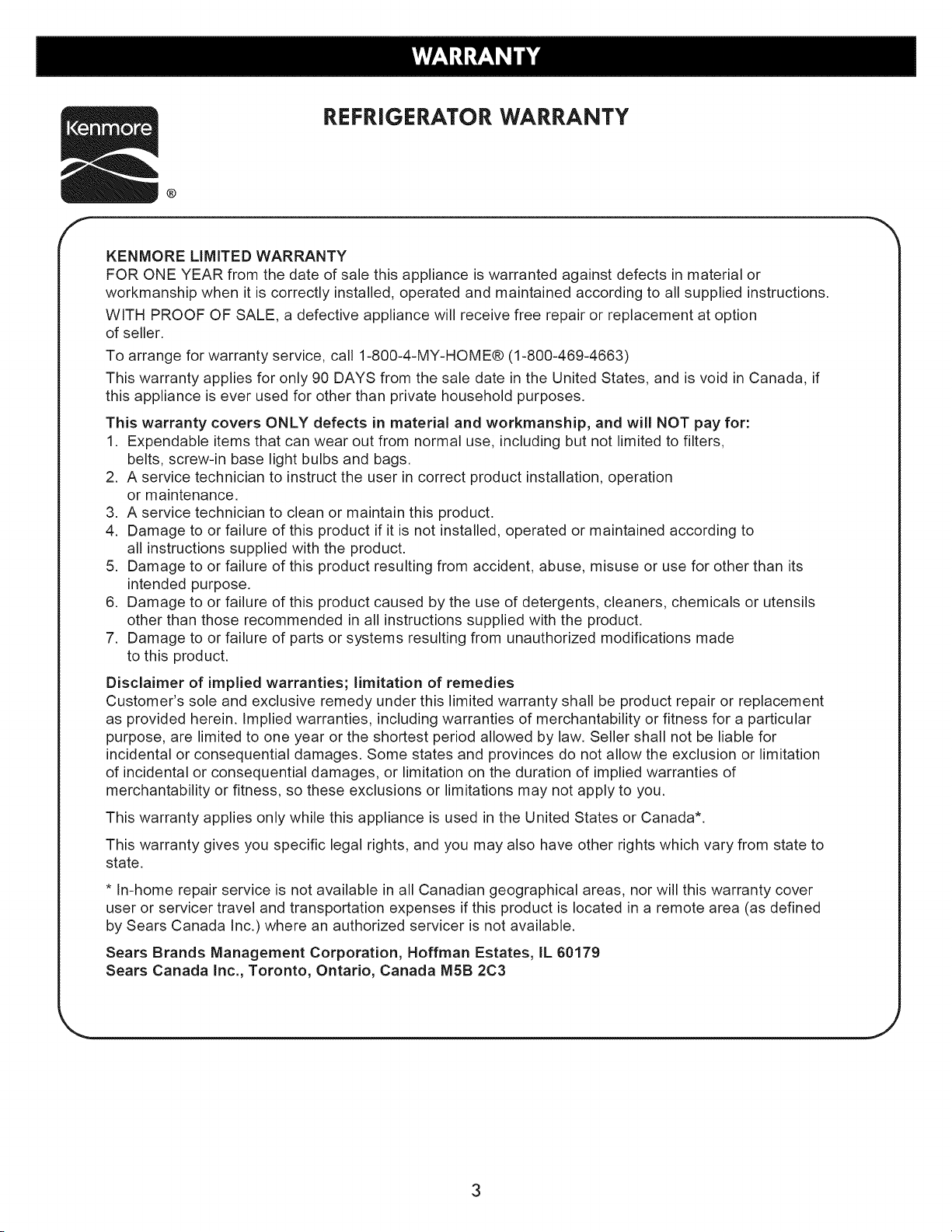

REFRIGERATOR WARRANTY
KENMORE LiMiTED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or
workmanship when it is correctly installed, operated and maintained according to all supplied instructions.
WiTH PROOF OF SALE, a defective appliance will receive free repair or replacement at option
of seller.
To arrange for warranty service, call 1-800-4-MY-HOME® (1-800-469-4663)
This warranty applies for only 90 DAYS from the sale date in the United States, and is void in Canada, if
this appliance is ever used for other than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters,
belts, screw-in base light bulbs and bags.
2. A service technician to instruct the user in correct product installation, operation
or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to
all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its
intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils
other than those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made
to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement
as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular
purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for
incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation
of incidental or consequential damages, or limitation on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada*.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
* In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover
user or servicer travel and transportation expenses if this product is located in a remote area (as defined
by Sears Canada Inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3
3

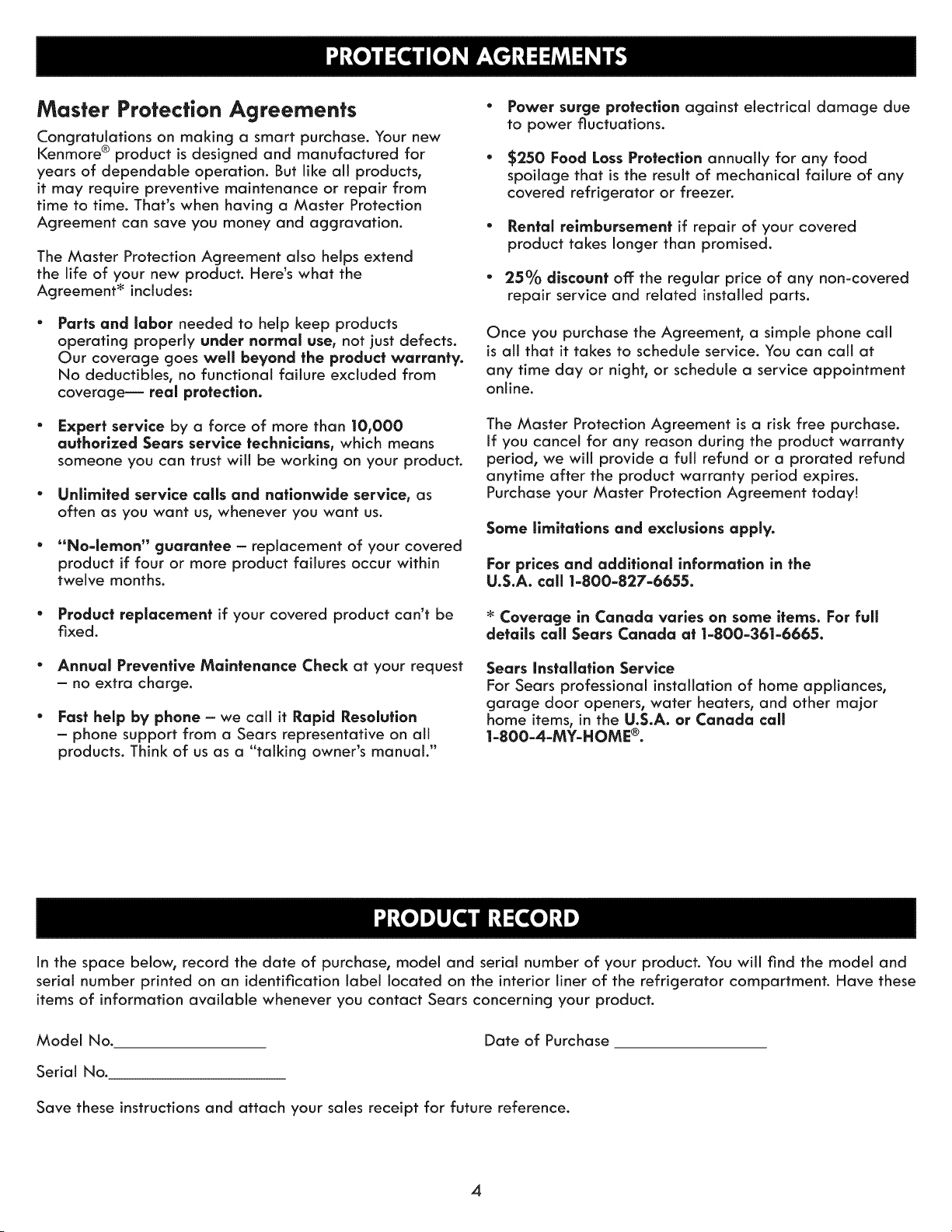

Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore ® product is designed and manufactured for
years of dependable operation. But like all products,
it may require preventive maintenance or repair from
time to time. That's when having a Master Protection
Agreement can save you money and aggravation.
The Master Protection Agreement also helps extend
the life of your new product. Here's what the
Agreement* includes:
Parts and labor needed to help keep products
operating properly under normal use, not just defects.
Our coverage goes well beyond the product warranty.
No deductibles, no functional failure excluded from
coverage-- real protection.
" Expert service by a force of more than 10,000
authorized Sears service technicians, which means
someone you can trust will be working on your product.
* Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
" "No-lemon" guarantee - replacement of your covered
product if four or more product failures occur within
twelve months.
• Product replacement if your covered product can't be
fixed.
* Annual Preventive Maintenance Check at your request
- no extra charge.
• Fast help by phone - we call it Rapid Resolution
- phone support from a Sears representative on all
products. Think of us as a "talking owner's manual."
Power surge protection against electrical damage due
to power fluctuations.
$250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
Rental reimbursement if repair of your covered
product takes longer than promised.
25% discount off: the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call
is all that it takes to schedule service. You can call at
any time day or night, or schedule a service appointment
online.
The Master Protection Agreement is a risk free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund or a prorated refund
anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply.
For prices and addltional information in the
U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full
detaffs call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada call
1-800-4-MY-HOME ®.
In the space below, record the date of purchase, model and serial number of your product. You will find the model and
serial number printed on an identification label located on the interior liner of the refrigerator compartment. Have these
items of information available whenever you contact Sears concerning your product.
Model No.
Serial No.
Date of Purchase
Save these instructions and attach your sales receipt for future reference.
4

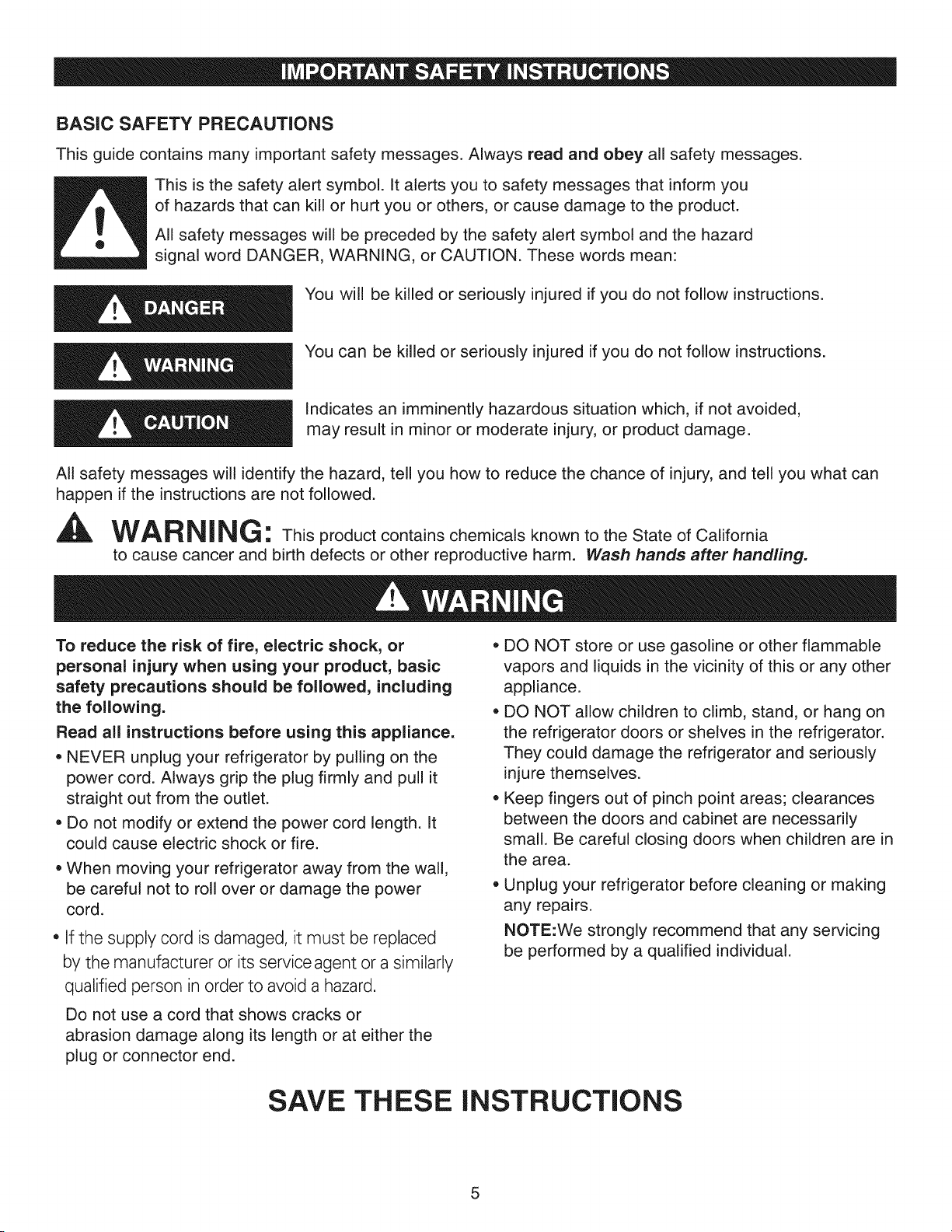

BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING, or CAUTION. These words mean:
You will be killed or seriously injured if you do not follow instructions.
You can be killed or seriously injured if you do not follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
,A WARNING: This product contains chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
To reduce the risk of fire, electric shock, or
personal injury when using your product, basic
safety precautions should be followed, including
the following.
Read all instructions before using this appliance,
- NEVER unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull it
straight out from the outlet.
o Do not modify or extend the power cord length. It
could cause electric shock or fire.
,,When moving your refrigerator away from the wall,
be careful not to roll over or damage the power
cord.
• If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
Do not use a cord that shows cracks or
abrasion damage along its length or at either the
plug or connector end.
• DO NOT store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
• DO NOT allow children to climb, stand, or hang on
the refrigerator doors or shelves in the refrigerator.
They could damage the refrigerator and seriously
injure themselves.
Keep fingers out of pinch point areas; clearances
between the doors and cabinet are necessarily
small. Be careful closing doors when children are in
the area.
Unplug your refrigerator before cleaning or making
any repairs.
NOTE:We strongly recommend that any servicing
be performed by a qualified individual.
SAVE THESE INSTRUCTIONS
5

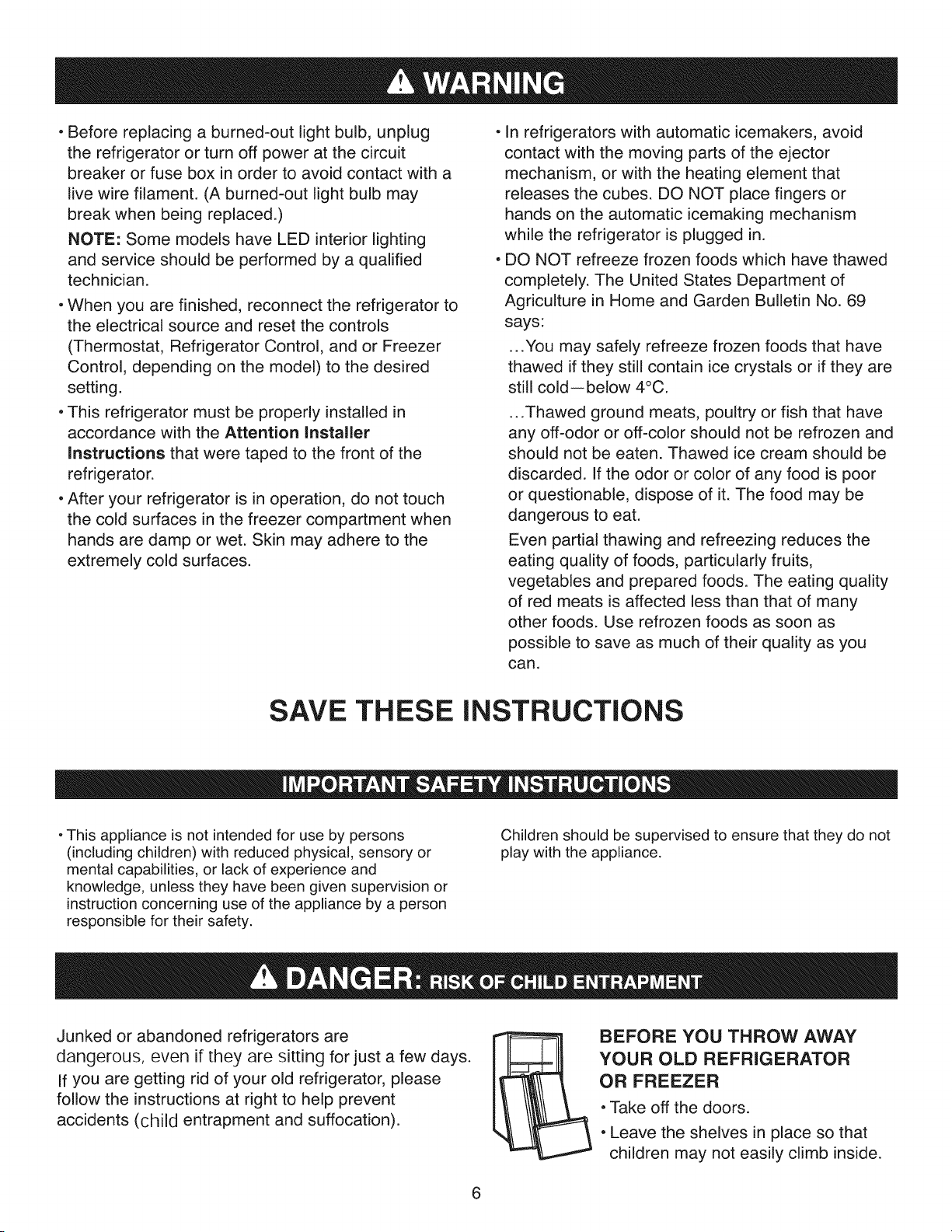

• Before replacing a burned-out light bulb, unplug
the refrigerator or turn off power at the circuit
breaker or fuse box in order to avoid contact with a
live wire filament. (A burned-out light bulb may
break when being replaced.)
NOTE: Some models have LED interior lighting
and service should be performed by a qualified
technician.
• When you are finished, reconnect the refrigerator to
the electrical source and reset the controls
(Thermostat, Refrigerator Control, and or Freezer
Control, depending on the model) to the desired
setting.
, This refrigerator must be properly installed in
accordance with the Attention installer
instructions that were taped to the front of the
refrigerator.
• After your refrigerator is in operation, do not touch
the cold surfaces in the freezer compartment when
hands are damp or wet. Skin may adhere to the
extremely cold surfaces.
In refrigerators with automatic icemakers, avoid
contact with the moving parts of the ejector
mechanism, or with the heating element that
releases the cubes. DO NOT place fingers or
hands on the automatic icemaking mechanism
while the refrigerator is plugged in.
DO NOT refreeze frozen foods which have thawed
completely. The United States Department of
Agriculture in Home and Garden Bulletin No. 69
says:
...You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are
still cold--below 4°C.
...Thawed ground meats, poultry or fish that have
any off-odor or off-color should not be refrozen and
should not be eaten. Thawed ice cream should be
discarded. If the odor or color of any food is poor
or questionable, dispose of it. The food may be
dangerous to eat.
Even partial thawing and refreezing reduces the
eating quality of foods, particularly fruits,
vegetables and prepared foods. The eating quality
of red meats is affected less than that of many
other foods. Use refrozen foods as soon as
possible to save as much of their quality as you
can.
SAVE THESE iNSTRUCTiONS
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance,
Junked or abandoned refrigerators are
dangerous, even if they are sitting for just a few days.
If you are getting rid of your old refrigerator, please
follow the instructions at right to help prevent
accidents (child entrapment and suffocation).
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
• Take off the doors.
° Leave the shelves in place so that
children may not easily climb inside.
Your old refrigerator may have a cooling system
that used CFCs or HCFCs (chlorofluorocarbons or
hydrochlorofluorocarbons). CFCs and HCFCs are
believed to harm stratospheric ozone if released to the
atmosphere. Other refrigerants may also cause harm to
the environment if released to the atmosphere.
If you are throwing away your old refrigerator, make
sure the refrigerant is removed for proper disposal
by a qualified technician. If you intentionally release
refrigerant, you may be subject to fines and imprisonment
under provisions of environmental legislation.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the circuit
checked by a qualified electrician to make sure the
outlet is properly grounded.
3-prong
grounding type I
wallreceptacle
3-prong _----x___ i \_
grounding I "_'-_ I ,_
Ensure proper
I ground exists
/// before use.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, the use of an extension cord is not
recommended. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a UL-
listed (USA), 3-wire grounding type appliance extension
cord having a grounding type plug and outlet, and that
the electrical rating of the cord be 15 amperes (minimum)
and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires, it is recommended that a
separate circuit serving only this appliance be provided.
Use a receptacle that cannot be turned off: with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded three-prong wall
outlet.
7
_.J
Use this page to become more familiar with the parts and features of your refrigerator.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items
listed below. The locations of the features shown below may not match your model.
O Refrigerator Light
Water Filter
Fixed Door Bins
Refrigerator Shelves
Ice Compartment
(Icemaker and Ice Bin)
Humidity Controlled Crisper
Temperature Controlled Pantry Drawer
Durabase Divider
Pullout Drawer
Durabase
Water Tank Cover
O Articulating Mullion
O Grab-N-Go Case
Cheese & Butter Bin
Condiment Bin
Kenmore Connect
8
Excessive Weight Hazard:
Use two or more people to move and install the
refrigerator. Failure to do so can result in back or
other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or
the Tech Sheet that is located under the front of the
refrigerator, behind the base grille.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
F:xcessive Weight Hazard:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
Explosion Hazard:
Keep flammable materials and vapors, such as
gasoline, away from the refrigerator. Failure to do so
can result in fire, explosion, or death.
9
BASE GRILLE INSTALLATION
To remove the base grille:
] )Open the Freezer Drawer. (Drawer not shown for
clarity.)
2) Once the drawer is open, and there is suffcient
clearance, remove the screws on the top of
the cover.
To replace the base grille:
Place the cover into position and then insert and
tighten the screws.
INSTALLATION (continued)
le
To avoid noise and vibration, the unit must be leveled
and installed on a solidly constructed floor. If required,
adjust the leveling legs to compensate for unevenness
of the floor. The front should be slightly higher than
the rear to aid in door closing. Leveling legs can be
turned easily by tipping the cabinet slightly. Turn the
leveling legs to the left to raise the unit or to the right to
lower it. (See LEVELING AND DOOR ALIGNMENT.)
NOTE: Installing on carpeting, soft tile surfaces,
a platform or weakly supported structure is not
recommended.
PRIOR TO USE
1. Clean your refrigerator thoroughly and wipe off all
dust that accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Allow your refrigerator to run for at least two to three
hours before putting food in it. Check the flow of
cold air in the freezer compartment to ensure proper
cooling. Your refrigerator is now ready for use.
INSTALLATION
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Shock Hazard:
To reduce the risk of electric shock, do not install the
refrigerator in a wet or damp area.
°
°
4_
Install this appliance in an area where the temperature
is between 55°F (13°C) and ]10°F (43°C). If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
Select a place where a water supply can be easily
connected for the automatic icemaker.
NOTE: The water pressure must be between 20 and
120 psi (140 and 830 kPa) on models without a water
filter and between 40 and120 psi (280 and 830kPa)
on models with a water filter.
Too small of a distance from adjacent items may
result in lowered freezing capability and increased
electricity consumption charges. Allow at least 24
inches (61 cm) in front of the refrigerator to open the
doors and at least 2 inches (5.08 cm) between the
back of the refrigerator and the wall.
10
NOTE: Removing the doors is the recommended procedure when it is necessary to move the refrigerator through
a narrow opening. If it is necessary to remove the handles, follow the directions below.
HOW TO REMOVE REFRIGERATOR
DOOR HANDLE
NOTE: Handle appearance may vary from
the illustrations on this page.
Removing Refrigerator Handle
Loosen the set screws with a 3/32 in. Allen
wrench and remove the handle.
Set Screw
Mounting
Fasteners
NOTE: If the handle mounting fasteners need
to be tightened or removed, use a 1/4 in. Allen
wrench.
Allen
Wrench
HOW TO REPLACE REFRIGERATOR
DOOR HANDLE
NOTE: Handle appearance may vary from
the illustrations on this page.
Replacing Refrigerator Door Handle
Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws
with a 3/32 in Allen wrench.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a
1/4in. Allen wrench.
Mounting
Fasteners
J
11
NOTE:Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow
opening. If it is necessary to remove the handles, follow the directions below.
HOW TO REMOVE FREEZER DOOR HANDLE
NOTE: Handle appearance may vary from illustrations on
this page.
Removing Freezer Drawer Handle
Loosen the set screws located on the lower side of
the handle with a 1/8in. Allen wrench and remove the
handle.
NOTE: If the handle mounting fasteners need to be
tightened or removed, use a 1/4 in. Allen wrench.
HOW TO REPLACE FREEZER DOOR HANDLE
NOTE: Handle appearance may vary from illustrations on
this page.
Replacing Freezer Drawer Handle
Place the handle on the door by fitting the handle
footprints over the mounting fasteners and tightening
the set screws with a 1/8in. Allen wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed, use a 1/4 in. Allen wrench.
When assembling or disassembling the handles:
*Grasp the handle firmly to ensure it wilt not drop or
cause injury.
* Prevent the handle from swinging toward nearby
people or animals.
* Insert the bracket hole of the handle into the stopper
bolt of the door exactly, then assemble the set screws
to fix the handle in place.
*Check for any gap between the door and handle
after the handle is fixed in place.
]2
REMOVING AND REPLACING
REFRIGERATOR DOORS
Excessive Weight Hazard"
Use two or more people to remove and install the
refrigerator doors. Failure to do so can result in back or
other injury.
Electrical Shock Hazard
Disconnect the electrical supply to the refrigerator
before installing. Failure to do so could result in
serious injury or death.
Do not put hands, feet or other objects into the air
vents or bottom of the refrigerator. You may be
injured or receive an electrical shock.
To remove the ie{t" re{rigerafor door:
On the back of the refrigerator, pull the water tube out of
the collet rifting on the connector by pressing the fitting
release ring (see picture below).
_IL CAUTION= Before you begin, remove food and bins
from the doors.
(2) (1)
(3).
/
(7)_ /
(8)
1. Open the door. Remove the fop hinge cover screw (1).
Lift up the cover (2).
2. Remove the cover.
3. Pull out the tube (3).
4. Disconnect all wire harnesses (4).
5. Remove the grounding screw (5).
6. Rotate the hinge lever (6) counterclockwise. Lift the top
hinge (7) free of the hinge lever latch (8).
_, CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
7.
8.
Lift the door from the middle hinge pin and
remove the door.
Place the door, inside facing up, on a non-scratching
surface.
To remove the right refrigerator door:
f
/(2)
_(4)
1. Open the door. Remove the top hinge cover screw (1).
Lift up the cover (2).
2. Remove the cover.
3. Rotate the hinge lever (3) clockwise. Lift the top
hinge (4) free of the hinge lever latch (5).
_, CAUTION: When lifting the hinge free of the latch, be
careful that the door does not fall forward.
4. Lift the door from the middle hinge pin and remove
the door.
5. Place the door, inside facing up, on a non-scratching
surface.
13
Reinstalling the Refrigerator Door
Left Door
1. Lower the door onto the middle hinge pin (10).
2. Fit the top hinge (7) over the hinge lever latch (8) and into
place. Rotate the lever (6) clockwise to secure the hinge.
3. install the grounding screw (5) and connect the two
wire harnesses (4).
4. Push the water tube (3) located at the top of the left
door into the hole beside the left hinge on the top of
the cabinet until it exits through the back.
5. Insert the water supply tube (3) into the connector until
you see only one scale mark. Fully insert the tube over
5/8 in. (15 mm).
6. Hook the tabs on the left side of the hinge cover (1) under the
edge of the top hinge (7) and position the cover in
place, insert and tighten the cover screw (1).
(2) (I)
(3).
(8)
/
/
I,_ Right Door
1. Lower the door onto the middle hinge pin (9).
2. Fit thetop hinge (4) over the hinge lever latch (5) and into
place. Rotate the lever (3) counterclockwise to secure
the hinge.
3. Hook the tabs on the right side of hinge cover (2) under
the edge of the top hinge (4) and position the cover in
place. Insert and tighten the cover screw (1).
_/(2)
(3)
(lO)
,CAUTION
Collet
Tube
Scale Mark
Clip --
After inserting, pull the tube to
make sure that it is secure and
reinsert the clip.
14
HOW TO REMOVE THE FREEZER DRAWER
_WARNING: Use two or more people to remove and
install the freezer drawer. Failure to do so can result in
back or other injury.
Pull the drawe open to full extension. Remove the
lower basket C) by lifting the basket from the rail
system.
Remove the screws C)from the rail on both sides.
Grasp the drawer on each side and pull it up to
separate it from the rails.
Press the tabs on each of the rail covers and lift them
up to separate the from the rail assembly.
With both hands, hold the center bar and push it in to
allow both rails to slide in simultaneously.
,ACAUTiON: Do not hold the handle when removing or
replacing the drawer. The handle may come off and it
could cause personal injury.
15
HOW TO REPLACE THE FREEZER DRAWER
With both hands, pull out the center bar until the rail
is fully extended.
Hook the door support into the rail tabs on both sides.
Right Rail
Cover
Left Rail
Cover
With the drawer pulled out to full extension, insert the
lower basket (_ in the rail assembly.
Lower the drawer into its final position and tighten the
screws C) "
Align the tabs on the covers with the assembly holes
on each rail and snap the rail covers into place to
secure.
Assembly Hole
NOTE: Make sure that the left and right rail covers are
attached to the correct rails. See picture below.
_WARNING: If the Durabase divider is removed, there is
enough open space for children or pets to crawl inside.
To prevent accidental child and pet entrapment or
sufl:ocation risk, DO NOT allow them to touch or go
near the freezer drawer.
,_WARNING: DO NOT step or sit down on freezer
drawer.
LEVELING AND DOOR ALIGNMENT
Leveling
After installing, secure the stability of the product
with the leveling legs.
Your refrigerator has two front leveling legs--one on
the right and one on the left. Adjust legs to alter tilt
from front-to-back or side-to-side. If your refrigerator
seems unsteady or you want the doors to close
easier, adjust the refrigerator's tilt using the
instructions below:
1. Plug the refrigerator's power cord into a 3-prong
grounded outlet. Move the refrigerator into its final
position. Remove the base cover.
To remove the base cover
1) Open the Freezer Drawer. (Drawer not shown
for clarity.)
2) Once the drawer is open and there is sufficient
clearance, remove screws on the top of the
cover.
]6
To replace base cover:
. Place cover into position and insert and tighten
the screws.
Use the wrench (included with the Use & Care Guide) to
turn the nut in the door hinge to adjust the height. To the
right to raise or to the left to lower the height.
2. Turn the leveling leg clockwise to raise that side of
the refrigerator or counterclockwise to lower it. It
may take several turns of the leveling leg to adjust
the tilt of the refrigerator.
NOTE: Having someone push backward against
the top of the refrigerator takes some weight off
the leveling legs. This makes it easier to adjust the
legs.
3. Open both doors again and check to make sure
that they close easily. If not, tilt the refrigerator
slightly more to the rear by turning both leveling
legs clockwise. It may take several more turns,
and you should turn both leveling legs the same
amount.
4. Re-adjust if necessary.
5. Replace the base cover.
NOTE: Your new refrigerator is uniquely designed
with two fresh food doors. Either door can be
opened or closed independently of one another.
You may have to exert slight pressure on doors to
get them to close completely.
Door Alignment
The left refrigerator door has an adjustable nut, located
on the bottom hinge, to raise and lower the door for
proper alignment.
If the space between your doors is uneven, follow the
instructions below to align the doors evenly:
17
The right refrigerator door does not have an adjustable nut.
if the space between your doors is uneven, follow the
instructionsbelow to allgn the right door:
]. With one hand, lift up both the inner and outer door
sections of the right door to raise them at the middle
hinge. (Opening the door may make lifting it easier)
2. With the other hand, use pliers to insert the snap
ring on the middle hinge of the inner door section
as shown. Do not insert the ring on the hinge of the
outer door section.
3. Insert additional snap rings until the right door is
aligned. (Two snap rings are provided with the unit.)
Level the refrigerator by using an 11/16 inch
(18mm) wrench or a flat blade screwdriver.
Turn the leveling legs (counterclockwise) to raise
or (clockwise) to lower the height of the front of the
refrigerator.
NOTE: The front of the refrigerator should be
slightly higher than the back.
SETTING THE CONTROLS
AIRFLOW
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections). The
colder the setting, the longer the compressor will run to
keep the temperature colder. The freezer control adjusts
the cold air flow from the freezer to the refrigerator.
Setting the freezer control to a lower temperature keeps
more cold air in the freezer compartment to make it
colder.
Cold air circulates from the freezer to the fresh food
section and back again through air vents in the wall
dividing the two sections. Be sure not to block vents while
packing your refrigerator. Doing so will restrict airflow
and may cause the refrigerator temperature to become
too warm or cause interior moisture buildup. (See air flow
diagram below.)
Temperature
0
The Refrigerator Temp Control ranges from 33 F to
O O O
46 F (0 C to 8 C). Press the Refrigerator Temp button
to cycle through the available temperature settings one
increment at a time.
The Freezer Temp Control range is from -6°F to 8°F
(=21°C to =13°C). Press the Freezer Temp button to
cycle through the available temperature settings one
increment at a time.
NOTE: When changing control settings, wait 24 hours
before making additional adjustments. The controls are
set correctly when milk or juice is as cold as you would
like and when ice cream is firm. If the temperature in
either compartment is too cold or too warm, change the
setting one increment at a time. Wait 24 hours for the
change to stabilize before adjusting again.
Dispenser
Press the Ice/Water
Select button to select
either Water, Cubed
Ice or Crushed Ice. The
selected option will
illuminate.
Some dripping may
occur after dispensing.
Hold your cup beneath
the dispenser for a
few seconds after
dispensing to catch all
of the drops.
NOTE: The dispenser will not work if any door is left open
or if the control lock is engaged.
_, CAUTION: The control display is operated by
touch. Excessive moisture on the display may cause a
malfunction. Please keep the display clean and dry.
Ultra ice
When you press the Ultra Ice button, the Ultra Ice
graphic will illuminate in the display and will continue
for 24 hours. The function will automatically shut off
after 24 hours.
You can stop this function manually by touching the
button one more time.
This function increases both ice making and freezing
capabilities.
Water FiJter Reset
CHANGE FILTER
When the water filter indicator turns on, you have
to change the water filter. After changing the water
filter, press and hold the Ultra Ice (Filter Reset) button
for three seconds to turn the indicator light off. You
need to change the water filter approximately every
six months.
18
Articulating Mullion
This feature is a metal strip attached to the left door
that articulates (rotates) 90 degrees as the door is
closed, forming a mullion (base) for the left and right
door gaskets to seal against.
,_,CAUTION
To reduce the risk of door scratches and breaking the
door mullion, make sure that the refrigerator
door mullion is always folded in.
If moisture gathers on the refrigerator door mullion at
any point, turn off the Energy Saver mode until the
issue is resolved.
Energy Saver _,_
The Energy Saver function disables the mullion heater
located on the refrigerator door in order to conserve
electricity. Press and hold the Energy Saver button for
3 seconds to activate or deactivate this function.
NOTE: Discontinue using the Energy Saver function
if excessive moisture begins to collect on the door
mullion.
Control Lock
PRess& HOLD
• When power is initially connected to the refrigerator,
the Lock function is off.
If you want to activate the Lock function to lock other
buttons, press and hold the Door Alarm button for
approximately three seconds. The Control Lock icon will
display and the Lock function is now enabled.
* When the Lock function is activated, no other buttons
will work. The dispenser pad is also deactivated.
* To disable the Lock function, press and hold the Door
Alarm button for approximately three seconds.
Temperature Mode Switch Function (°F <->°C)
If you want to convert °F to °C or vice versa, press and
hold the Freezer Temp and Refrigerator Temp buttons at
the same time for approximately five seconds.
Demo Mode (For Store Use Only)
The Demo Mode disables all cooling in the refrigerator
and freezer sections to conserve energy while on display
in a retail store. When activated, OFF will display on the
control panel.
Door Alarm ((L_))
When power is connected to the refrigerator, the door
alarm is initially set to ON. When you press the Door
Alarm button, the display will change to OFF and the
Door Alarm function will deactivate.
When either the refrigerator or the freezer door is left
open for more than 60 seconds, the alarm tone will
sound to let you know that the door is open.
When you close the door, the door alarm will stop.
To deactivate:
With either refrigerator door opened, press and hold
the Refrigerator Temp and Ultra Ice buttons at the same
time for five seconds. The control panel will beep and the
temperature settings will display to confirm that Derno
Mode is deactivated. Use the same procedure to activate
the Demo Mode.
19
IN-DOOR iCE BiN
,A CAUTION
Keep hands and tools out of the ice compartment door
and dispenser chute. Failure to do so may result in
damage or personal injury.
The icemaker will stop producing ice when the in-door ice
bin is full. If you need more ice, empty the ice bin into the
extra ice bin in the freezer compartment. During use, the
ice can become uneven causing the icemaker to misread
the amount of ice cubes and stop producing ice. Shaking
the ice bin to level the ice within it can reduce this problem.
NOTE: Storing cans or other items in the ice bin will
damage the icemaker.
Keep the ice compartment door closed tightly. If the ice
compartment door is not closed tightly, the cold air in the
ice bin will freeze food in the refrigerator compartment.
This could also cause the icemaker to stop producing ice.
NOTE: If the ON/OFF switch on the icemaker is set to
OFF for an extended period of time, it is recommended to
empty the ice bin.
A CAUTION
When handling the
ice bin, keep hands
away from the
icemaker tray area to
avoid personal injury.
I. Pull or push the door handle to open or close the ice
compartment.
2. To remove the in-door ice bin, grip the front handle,
slightly lift the lower part, and slowly pull out the bin
as shown.
3. To reinstall the in-door ice bin, slightly slant the
bin during replacement to avoid contact with the
icemaker.
\
4. Avoid touching the ice-detecting sensor when
replacing the ice bin. See the label on the ice
compartment door for details.
f .....
\
_L]_ lce-detec
2O
AUTOMATIC ICEMAKER
Ice is made in the automatic icemaker and sent to
the dispenser. The icemaker will produce 70,-,210
cubes in a 24-hour period, depending on freezer
compartment temperature, room temperature,
number of door openings and other operating
conditions.
• it takes about 12 to 24 hours for a newly installed
refrigerator to make ice.
• Icemaking stops when the ice storage bin is full.
• To turn off the automatic icemaker, set the
icemaker switch to OFF(O). To turn on the
automatic icemaker, set the switch to ON(I).
• The water pressure must be between 20 and
120psi on models without a water filter and
between 40 and 120 psi on models with a water
filter to produce the normal amount and size of ice
cubes.
. Foreign substances or frost on the ice=detecting
sensor can interrupt ice production.
Make sure the sensor area is dean at all times for
proper operation.
Personal Injury Hazard
DO NOT place fingers or hands on the automatic
icemaking mechanism while the refrigerator is
plugged in.
[cemaker
Power
Swifch
Ice-defecting
Sensor
2]
÷
÷
AUTOMATIC EEMAKER (continued)
,ACAUTION
e
e
The first ice and water dispensed may include particles
or odor from the water supply line or the water tank.
Throw away the first few batches of ice. This is also
necessary if the refrigerator has not been used for a
long time.
Never store beverage cans or other items in the ice
bin for the purpose of rapid cooling. Doing so may
damage the icemaker or the containers may burst.
tf discolored ice is dispensed, check the water filter
and water supply. If the problem continues, contact a
Sears or other qualified service center. Do not use the
ice or water until the problem is corrected.
Keep children away from the dispenser. Children may
play with or damage the controls.
The ice passage may become blocked with frost if only
crushed ice is used. Remove the frost that accumulates
by removing the ice bin and clearing the passage with
a rubber spatula. Dispensing cubed ice can also help
prevent frost buildup.
Never use thin crystal glass or crockery to collect ice.
Such containers may chip or break resulting in glass
fragments in the ice.
Dispense ice into a glass before filling it with water
or other beverages. Splashing may occur if ice is
dispensed into a glass that already contains liquid.
Never use a glass that is exceptionally narrow or
deep. Ice may jam in the ice passage and refrigerator
performance may be affected.
Keep the glass at a proper distance from the ice outlet.
A glass held too close to the outlet may prevent ice
from dispensing.
To avoid personal injury, keep hands out of the ice
door and passage.
Never remove the dispenser cover.
tf ice or water dispenses unexpectedly, turn off the
water supply and contact Sears Home Service at
]-800-4-MY HOME ®.
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO OFF (O)
* When the water supply will be shut oft: for several
hours.
, When the ice bin is removed for more than one or two
minutes.
" When the refrigerator will not be used for several days.
NOTE: The ice bin should be emptied when the
icemaker ON/OFF switch is turned to the OFF position.
NORMAL SOUNDS YOU MAY HEAR
The icemaker water valve will buzz as the icemaker fills
with water. If the power switch is in the ON (I) position,
it will buzz even if it has not yet been hooked up to
water. To stop the buzzing, move the power switch to
OFF (O).
NOTE: Keeping the power switch in the ON (I) position
before the water line is connected can damage the
icemaker.
You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
PREPARING FOR VACATION
Set the icemaker power switch to OFF (O) and shut oft:
the water supply to the refrigerator.
NOTE: The ice bin should be emptied any time the
icemaker ON/OFF switch is turned to the OFF (O)
position.
tf the ambient temperature will drop below freezing, have
a qualified technician drain the water supply system to
prevent serious property damage due to flooding caused
by ruptured water lines or connections.
÷
22
MFL37933591 Leg2K EII313131313DDJndd 22
÷
2012,6.13 10:28:59 AM
FOOD STORAGE GUIDE
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
items How to
Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Cheese
Milk
Store in the original wrapping
until you are ready to use it. Once
opened, rewrap tightly in plastic
wrap or aluminum foil.
Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
Eggs _ Store in original carton on interior
shelf, not on door shelf.
Fruit _ Do not wash or hull the fruit
until it is ready to be used. Sort
and keep fruit in its original
container, in a crisper, or store in a
completely closed paper bag on a
refrigerator shelf.
Remove store wrapping and trim
or tear off bruised and discolored
areas. Wash in cold water and
drain. Place in plastic bag or
plastic container and store in
crisper.
Vegetables
with skins
(carrots,
peppers)
Place in plastic bags or plastic
container and store in crisper.
Fish Store fresh fish and shellfish in
the freezer section if they are not
being consumed the same day of
purchase. It is recommended to
consume fresh fish and shellfish the
same day purchased.
LeFtovers
_Cover leftovers with wrap or
aluminum foil, or store in plastic
containers with tight lids.
STORING FROZEN FOOD
NOTE: Check a freezer guide or a reliable cookbook
for further information about preparing food for
freezing or food storage times.
Freezing
Your freezer will not quick-freeze a large quantity of
food. Do not put more unfrozen food into the freezer
than will freeze within 24 hours (no more than 2 to 3
Ibs. of food per cubic foot of freezer space). Leave
enough space in the freezer for air to circulate around
packages. Be careful to leave enough room at the
front so the door can close tightly.
Storage times will vary according to the quality and
type of food, the type of packaging or wrap used
(how airtight and moisture-proof) and the storage
temperature. Ice crystals inside a sealed package are
normal. This simply means that moisture in the food
and air inside the package have condensed, creating
ice crystals.
NOTE: Allow hot foods to cool at room temperature
for 30 minutes, then package and freeze. Cooling hot
foods before freezing saves energy.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not
allow air or moisture in or out. If it does, you could
have food odor and taste transfer throughout the
refrigerator and could also dry out frozen food.
Packaging recommendations:
* Rigid plastic containers with tight-fitting lids
" Straight-sided canning/freezing jars
* Heavy-duty aluminum foil
" Plastic-coated paper
" Non-permeable plastic wraps
* Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
* Bread wrappers
" Non-polyethylene plastic containers
- Containers without tight lids
" Wax paper or wax-coated freezer wrap
" Thin, semi-permeable wrap
CAUTION: Do not keep beverage cans or plastic
food containers in the freezer compartment. They may
break or burst if they freeze.
23
REFRIGERATOR SECTION
WATER DISPENSER
To dispense cold water, push on the dispenser switch
with a glass.
NOTE: The dispenser is equipped with a light that
turns on when the dispenser pad is engaged.
WATER TRAY
Press down on either of the front corners to remove
the tray.
NOTE: There is no drain beneath the tray. You may
need to empty the tray of any liquid that collects in it.
Dispenser Switch
Push
Some dripping may occur after dispensing. Hold your
cup beneath the dispenser for a few seconds after
dispensing to catch all of the drops.
_, WARNING: Do not put your
fingers up the ice chute opening.
Doing so can result in severe injury.
CAUTION: Do not dispense ice
into fine china or crystal glasses.
China or crystal can break.
24
REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet
your individual storage needs. Your model may have glass
or wire shelves.
Adjusting the shelves to fit items of different heights will
make finding the exact item you want easier. Doing so will
also reduce the amount of time the refrigerator door is
open which will save energy.
iMPORTANT: Do not clean glass shelves with warm water
while they are cold. Shelves may break if exposed to
sudden temperature changes or impact.
CAUTION: Glass shelves are heavy. Use special care
when removing them.
Adjusting Shelves (Cantilever)
Remove shelves from the shipping position and replace
shelves in the position you want.
To remove a shelf--Tilt up the front of the shelf
C) and lift it from below (_). Pull the shelf out.
To reinstall a shelf--Tilt the front of the shelf up and
guide the shelf hooks into the slots at a desired height.
Then, lower the front of the shelf so that the hooks
drop into the slots.
CAUTION: Make sure that shelves are level from one
side to the other. Failure to do so may result in the shelf
falling or food spilling.
25
FREEZER SECTION
HUMIDITY CONTROLLED CRISPER
The crispers provide fresher tasting fruit and vegetables by
letting you easily control humidity inside the drawer.
You can control the amount of humidity in the moisture-
sealed crispers by adjusting the control to any setting
between VEGETABLE and FRUIT.
VEGETABLE keeps moist air in the crisper for best
storage of fresh, leafy vegetables.
FRUIT lets moist air out of the crisper for best storage
of fruit.
Removing and installing the humidity confrofled crisper
1. To remove, pull the drawer out to full extension.
2. Lift the front of the crisper up, then pull it straight out.
3. To install, slightly tilt up the front, insert the drawer into
the frame and push it back into place.
Removing the glass
1. Lift up the glass under the crisper cover.
2. Pull the glass up and out.
NOTE: Pantry drawer not shown for clarity.
TEMPERATURE CONTROLLED PANTRY DRAWER
The Temperature Controlled Pantry Drawer provides
storage sppace with a variable temperature control that
keeps the compartment colder than the refrigerator
temperature. This drawer can be used for large party trays,
dell items, or beverages.
NOTE: It is not recommended that this drawer be used for
fruits and vegetables.
COLD o o o TEMR CONTROL ® • • COLDER
Temperature Controlled Pantry Drawer Control
The control regulates the air temperature in the drawer.
Set the control level to COLD to provide normal refrig-
erator temperature. Use the COLDER setting for meats or
other deli items.
NOTE: Cold air directed to the Temperature
Controlled Pantry Drawer can decrease the
refrigerator temperature, it may be necessary
to adjust the refrigerator temperature.
To remove and replace drawer
1. To remove, pull the drawer out to full extension.
2. Lift the front of the drawer up, then pull it straight out.
3. To install, slightly tilt up the front, insert the drawer into
the frame and push it back into place.
26
GRAB-N-GO
The Grab-N-Go compartment allows for easy access to
commonly used food items.
The outer Grab-N-Go door includes two door bins, the
Cheese & Butter and Condiment bins, that are specially
designed for these items. Butter stored here will be easier
to spread, cheese will be easier to slice, and condiments
will be ready to use.
Cheese & Butter
Bin
Condiment Bin
GRAB-N-GO DOOR BINS
The Grab-N-Go inner and outer door bins are removable
for easy cleaning.
1. To remove the door bins, lift up and pull out.
2. To replace the door bins, slide the door bin in above the
desired support and push down until it snaps into place.
Door-ln-Door Bin
The Door -In-Door lower shelf is removable for easy
cleaning.
1. After removing Door-in -Door Case.
2. To removethe Lower Bin,lift up and pull out.
GliB-N-GO COMPARTMENT
To access the Grab-N-Go
compartment, ligthly press the button
on the right refrigerator door handle
to open the door,
There is no need to grip the handle
when opening the Grab-N-Go door.
If the handle is gripped when the
button is pressed you may hear a
clicking noise. This is normal.
GRAB-N-GO CASE
To open the Grab-N-Go case, slightly push the marked
area to pop it open. The Grab-N-Go Case is removable
for easy cleaning and adjustment.
1. To remove the Grab-N-Go case, lift up and pull out.
2. To replace the Grab-N-Go case, line the tabs on
the Grab-N-Go Case with the slots on the door
and push down until it snaps into place.
Open Removing Assembling
27
DURABASE
1. To remove the Durabase, push it to the back as much
as possible. Tilt up the front of the Durabase and pull
straight out.
2. To replace, insert the Durabase in the rail assembly.
PULLOUT DRAWER
]. To remove, pull the drawer out to full extension.
Lift the front of the drawer up, then pull it straight
out.
DURABASE DIVIDER
The Durabase divider allows you to organize the
Durabase area into sections. It can be adjusted from side
to side to accommodate items of different sizes.
2. To install, slightly tilt up the front and insert the
drawer into the frame and push it back into place.
,AWARNING: If the Durabase divider is removed, there is
enough open space for children or pets to crawl inside.
To prevent accidental child and pet entrapment or
suffocation risk, DO NOT allow children or pets to
touch or go near the drawer.
28
WATER FILTER
CHANGE FILTER
It is recommended that you replace the water filter:
" Approximately every 6 months.
" When the water filter indicator
turns on.
• When the water dispenser output
decreases.
• When the ice cubes are smaller
than normal.
1. Remove the otd water filter.
" Lower or remove the top left
shelf to allow the water filter to
rotate all the way down.
* Press the push button to open the
water filter cover.
NOTE: Replacing the water filter
causes a small amount of water
(around 1 oz. or 25 cc) to drain.
Before pushing the button to open the
water filter cover, place a cup under
the front end of the cover to collect
any leaking water. Hold the water
filter upright, once it is removed, to
prevent any remaining water from
spilling out of the water filter.
Pull the water filter downward
and pull out. Make sure to rotate
the filter down completely before
pulling it out of the manifold
hole.
2. Replace with a new water filter.
Take the new water filter out of its packaging and
remove the protective cover from the o-rings. With
water filter tabs in the horizontal position, push the new
water filter into the manifold hole until it stops.
Rotate the water filter up into
position and close the cover.
The cover will click when closed
correctly.
3. After the water filter is replaced, dispense 2.5
gallons of water (flush for approximately 5 minutes)
to remove trapped air and contaminants from
the system. Do not dispense the entire 2.5 gallon
amount continuously. Depress and release the
dispenser pad for cycles of 30 seconds ON and 60
seconds OFF.
4. Water Filter Bypass Plug
Keep the water filter
bypass plug. You MUST
use the water filter
bypass plug when a
replacement water filter
cartridge is not available.
CAUTION: DO NOT operate refrigerator without
water filter or water filter plug installed.
NOTE: To purchase a replacement water filter, visit a
Sears store or call 1-800-4-MY-HOME ®. Also, you may
order on-line at www.sears.com/partsdirect
29
Performance Data Sheet
Model: LG ADQ36006102-S Use Replacement Filter: ADQ36006102
The concentration of the indicated substances in water entering the system was reduced to a concentration less
than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and
Standard 53.
I System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for l
the reduction of substances listed below.
1
Contaminant Reduction
Chlorine Taste and Odor
Nominal ParticulateClass I,,
_0.5 to < 1.0pm
Asbestos
Atrazine
Benzene
Carbofuran
Lindane
P-Dichlorobenzene
Toxaphene
2,4-D
Lead pH @6.5
Lead pH @8.5
Mercury @pH 6.5
Mercury @pH 8.5
Cyst*
Average
Influent
NSF specified Challenge
Concentration
Avg %
Reduction
Average
Product Water
Concentration
Max Permissible
ProductWater
Concentration
NSFReduction
Requirements
NSF Test
Report
2.1 mglL
5,600,000
pts/mL
190MFL
0.0094mg/L
0.016mg/L
0.08mg/L
0.002mg/L
0.22mglL
0.014mg/L
0.213mg/L
0.150mg/L
0.150mg/L
0.0059mg/L
0.0058mg/L
120,000cysts/L
2.0 mg/L __10%
At least 10,000particles/mL
107to 10_MFL; fibers greater
than 10 pm in length
0.009 mg/L + 10%
0.015 mg/L + 10%
0.08 mg/L + 10%
0.002 mg/L + 10%
0.225 mg/L + 10%
0.015 mg/L + 10%
0.210 mg/L + 10%
0.15 mg/L + 10%
0.15 mg/L + 10%
0.006 mg/L + 10%
0.006 mg/L + 10%
Minimum50,000 cysts/L
97.2% N/A > 50% J-00049247
98.7% N/A >85% J-00049282
>99%
94.7%
96.7%
98.1%
98.2%
99.8%
93%
95.2%
>99.3%
>99.3%
96.1
90.1
99.99%
0.06 mg/L
73,000pts/ml
<IMLF
0.00005 mg/L
0.005 mg/L
0.002 mg/L
0.00004 mg/L
0.0005 mg/L
0.001 mg/L
0.009 mg/L
0.001 mg/L
0.001 mg/L
0.0002 mg/L
0.0006 mg/L
<t cyst/L
N/A
0.003 mg/L
0.005 mg/L
0.04 mg/L
0.0002 mg/L
0.075 mg/L
0.003 mg/L
0.07 mg/L
0.010 mg/L
0.010 mg/L
0.002 mg/L
0.002 mg/L
N/A
>99%
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
>99.95%
J-0004928
J-00049293
J-00049300
J-00049294
J-00051975
J-00049298
J-00049302
J-00049284
J-00051974
J-00049277
J-00053886
J-00051972
J-00049281
* Based on the use of Cryptosporidium parvum oocysts
30
Application Guidelines/Water Supply Parameters
Service Flow 0.5 gpm (t .9 Ipm)
Water Supply Potable Water
Water Pressure 20 and 120 psi (140 and 830 kPa)
Water Temperature 33°F - 100°F (0.6°C - 38°C)
It is essential that the manufacturer's recommended
installation, maintenance and water filter replacement
requirements be carried out for the product to perform as
advertised.
NOTE: While the testing was performed under standard
laboratory conditions, actual performance may vary.
For estimated costs of replacement elements, please call
1-800-469-4663 or visit our website at
www.sears.com/partsdirect
3M is a trademark of 3M Company.
NSF is a trademark of NSF International.
© 2009 3M Company. All rights reserved.
To reduce the risk associated with ingestion of
contaminants: Do not use with water that is
microbiologically unsafe or of unknown quality
without adequate disinfection before and after of the
system. Systems certified for cyst reduction may be
used on disinfected water that may contain filterable
cysts. EPA Establishment Number 10350-MN-005
To reduce the risk associated with property damage
due to water leakage:
Read and follow the Water Filter instructions before
installation and use of this system.
Installation and use MUST comply with all state and
local plumbing codes.
Do not install if water pressure exceeds 120 psi (830
kPa). Contact a plumbing professional if you are
uncertain of how to check your water pressure.
Do not install where water hammer conditions may
occur. If water hammer conditions exist, you must
install a water hammer arrester. Contact a plumbing
professional if you are uncertain of how to check for
this condition.
• Do not install on hot water supply lines.
The maximum operating water temperature of this
water filter system is 100°F (38°C).
• Protect water filter from freezing. Do not operate
refrigerator in ambient conditions below 55°F
(12.7°C). Drain water filter when storing unit in
temperatures below 40°F (4.4°C).
The disposable water filter must be replaced every
six months, at the rated capacity, or if a noticeable
reduction in flow rate occurs.
31
State of California
Department of Public Health
Water Treatment Device
Certificate Number
09- 2019
Date Issued: December 15, 2009
Manufacturer: Sears Roebuck and Co.
The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section
116830 of the Health and Safety COde fur the following health related contaminants:
Microbiolo_Contaminants and Turbidity
Cysts
Organic Contaminanots
2,4-D Reduction
Atrazine
Benzene
Carbofuran
Lindane
p-Dichlorobenzene
Toxaphene
diolo_ Contaminants
Asb sto
Lead ::
Mercu_
Rated Service Capacity: 200 gal ' Rated Service Flow: 0.5 gpm
32
Explosion Hazard
Use non-flammable cleaner. Failure to do so can result
in fire, explosion, or death.
Both the refrigerator and freezer sections defrost
automatically; however, clean both sections about once a
month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TiPS
" Unplug refrigerator or disconnect power.
" Remove all removable parts, such as shelves, crispers,
etc. Refer to sections in Using Your Refrigerator for
removal instructions.
* Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use abrasive or harsh cleaners.
" Hand wash, rinse and dry all surfaces thoroughly.
" Plug in refrigerator or reconnect power.
EXTERIOR
Waxing external painted metal surfaces helps provide
rust protection. Do not wax plastic parts. Wax painted
metal surfaces at least twice a year using appliance wax
(or auto paste wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry thoroughly
with a soft cloth.
Do not use appliance wax, bleach, or other products
containing chlorine on stainless steel.
INSIDE WALLS (allow freezer to warm up so
the cloth will not stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm
water. Mix 2 tablespoons of baking soda to 1 quart of
water (26 g soda to 1 liter water.) Be sure the baking soda
is completely dissolved so if does not scratch the surfaces
of the refrigerator.
CAUTION:While cleaning the inside, do
not spray water.
DOOR LINERS AND GASKETS
Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use cleaning waxes, concentrated
detergents, bleaches, or cleaners containing petroleum on
plastic refrigerator parts.
PLASTIC PARTS (Covers and Panels)
Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use window sprays, abrasive
cleansers, or flammable fluids. These can scratch or
damage the material.
CONDENSER COILS
Use a vacuum cleaner with
an attachment to clean the
condenser cover and vents.
Do not remove the panel
covering the condenser
coil area.
LIGHT BULB REPLACEMENT
Electrical Shock Hazard
Before replacing a Light Bulb, either unplug the
refrigerator or turn off power at the circuit breaker
or fuse box.
NOTE: Refrigerator light is LED interior lighting and
service should only be perfomed by a
qualified technician.
33
LIGHT BULB REPLACEMENT
Electrical Shock Hazard
Before replacing a Compartment Lamp, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
NOTE: The refrigerator compartment has LED interior
lighting, and service should be performed by a qualified
technician.
POWER iNTERRUPTiONS
|. If the power will be out for 24 hours or less,keep all
refrigerator doors closed to help foods stay cold and
frozen.
2. If the power will be out for more than 24 hours, remove
all frozen food and store it in a frozen food locker.
WHEN YOU GO ON VACATION
if you choose to leave the refrigerator on while you are
away, follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
'2. Turn off the icemaker and empty the ice bin.
if you choose to turn the refrigerator off before you leave,
follow these steps.
1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
o
4.
Clean the refrigerator, wipe it and dry well.
Tape rubber or wood blocks to the tops of both doors
to prop them open far enough for air to get in. This
stops odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
2. Unplug the refrigerator.
3. Clean, wipe and dry thoroughly.
4. Take out all removable parts, wrap them well and
tape them together so they do not shift and rattle
during the move. Refer to the Using your Refrigerator
section for removable instructions.
5. Depending on the model, raise the front of the
refrigerator so it rolls easier OR screw in the leveling
legs all the way so they do not scrape the floor. See
the Door Closing section.
6. Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back and
refer to the Refrigerator Installation section for preparation
instructions.
34
BEFOREYOU BEGIN
This water line installation is not covered by the refrigerator
warranty. Follow these instructions carefully to minimize the
risk of expensive water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and can
lead to water leakage or flooding. Call a qualified plumber
to correct water hammer before installing the water supply
line to the refrigerator.
CAUTION: To prevent burns and product damage, only
connect the refrigerator water line to a cold water supply.
WHAT YOU WILL NEED
* Copper Tubing, 1/4 in. outer
diameter, to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
* To determine how much tubing you
need: measure the distance from the water valve on the
back of the refrigerator to the water supply pipe. Then,
add 8 feet (2.4 m). Be sure there is sufficient extra tubing
(about 8 feet [2.4 m] coiled into 3 turns of about 10 in.
[25 cm] diameter) to allow the refrigerator to move out
from the wall after installation.
If you use your refrigerator before connecting the water * Power drill.
line, make sure the icemaker power switch is in the OFF (O) .
position.
o
_, CAUTION: Do not install the icemaker tubing in areas
where temperatures fall below freezing. *
WATER PRESSURE
A cold water supply. The water pressure must be between
20 and 120 psi (140 and 830 kPa)on models without a
water filter and between 40 and 120 psi (280 and 830kPa)
on models with a water filter.
If a reverse osmosis water filtration system is connected
to your cold water supply, this water line installation is not
covered by the refrigerator warranty. Follow the following
instructionscarefully to minimize the risk of expensive water
damage.
If a reverse osmosis water filtration system is connected
to your cold water supply, the water pressure to the reverse
osmosis system needs to be a minimum of 40 to 60 psi (2.8
kgf/cm 2 - 4.2 kgf/cm 2, less than 2.0_3.0 sec. to fill a cup
of 7 oz capacity).
If the water pressure from the reverse osmosis system is less
than 21 psi or 1.5 kgf/cm2 (takes more than 4.0 sec to fill a
cup of 7 oz capacity):
* Check to see if the sediment filter in the reverse osmosis
system is blocked. Replace the filter if necessary.
* Allow the storage tank on the reverse osmosis system to
refill after heavy usage.
" If the issue concerning water pressure from reverse
osmosis remains, call a licensed, qualified plumber.
* All installations must be in accordance with local
plumbing code requirements.
A_, CAUTION: Wear eye protection during installation to
prevent injury.
,/_ WARNING: Connect to potable water supply only.
V2 in. or adjustable wrench.
Fiat blade and Phillips head screwdrivers.
Two ¼ in. outer diameter
compression nuts and
2 ferrules (sleeves) to
connect the copper tubing
to the shutoff valve and the
refrigerator water valve.
tf your existing copper water
line has a flared fitting at the
end, you will need an adapter
(available at plumbing supply
stores) to connect the water line
to the refrigerator OR you can
cut off the flared fitting with
a tube cutter and then use a
compression fitting.
Shutoff valve to connect
to the cold water line. The
shutoff: valve should have a water inlet with a minimum
inside diameter of s/32 in. at the point of connection
to the COLD WATER LINE.
Saddle-type
shutoff: valves _"_
are included in many water e. I_
supply kits. Before purchasing, __"_("('_z'_
make sure a saddle-type k._,'_x,,J_
valve complies with your local _ Y
plumbing codes.
NOTE: A Self Piercing Saddle Type Water Valve should
not be used.
Electrical Shock Hazard
When using any electrical device (such as a power
drill) during installation, be sure the device is battery
powered, double insulated or grounded in a manner that
will prevent the hazard of electric shock.
35
INSTALLATION INSTRUCTIONS
Install the shutoff valve on the nearest frequently used
drinking water line.
1. SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on the
line.
2. CHOOSE THE VALVE LOCATION
Choose a location for the valve that is
easily accessible. It is best to connect
into the side of a vertical water pipe.
When it is necessary to connect into
a horizontal water pipe, make the
connection to the top or side, rather
than at the bottom, to avoid drawing
off: any sediment from the water pipe.
m
3. DRILL THE HOLE FOR THE VALVE
Drill a 1/4 in. hole in the water pipe using a sharp bit.
Remove any burrs resulting from
drilling the hole in the pipe. Be
careful not to allow water to
drain into the drill. Failure to
drill a 1/4 in. hole may result
in reduced ice production or
smaller cubes.
NOTE: The hookup line cannot be white, plastic
tubing. Licensed plumbers must use only copper
tubing (NDA tubing #49595 or#49599) or Cross Link
Polyethylene (PEX) tubing.
4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff: valve to the cold water pipe with
the pipe clamp.
Pipe Clamp-
Saddie-TyF
Shutoff Valve
Vertical Cold
VVater Pipe
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves are
illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
6_
Z
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten clamp or you may crush the
tubing.
Washer
Pipe Clamp
Clamp Screw
_t End
ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Be sure there is suMcient extra tubing (about
8 feet coiled into 3 turns of about 10 in. diameter) to
allow the refrigerator to move out from the wall after
installation.
CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve) for
copper tubing onto the end of the tubing and connect
it to the shutoff valve. Make sure the tubing is fully
inserted into the valve. Tighten the compression nut
securely.
Saddle-Type
Shutoff Valve _
X ,
Packing Nu_
Outlet Valve--
h
Compression Nut
./
Ferrule (sleeve)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves are
illegal and their use is not permitted in
Massachusetts. Consult with your licensed plumber.
36
8. FLUSH OUT THE TUBING
Turn the main water supply on and
flush out the tubing until the water
is clear.
Shut the water oft: at the water
valve after about one quart of
water has been flushed through the
tubing.
9. CONNECT THE TUBING TO THE
REFRIGERATOR
NOTE: Before making the connection to the
refrigerator, be sure that the refrigerator power cord is
not plugged into the wall outlet.
I. Remove the plastic flexible cap from the water valve.
:2. Place the compression nut and ferrule (sleeve) onto the
end of the tubing as shown.
3. Insert the end of the copper tubing into the connection
as far as possible. While holding the tubing, tighten the
fitting.
10. TURN THE WATER ON AT THE SHUTOFF VALVE
Tighten any connections that leak.
_CAUTION: Check to see if leaks occur at the water line
connections.
11. PLUG iN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the wall.
Push the refrigerator back to the wall.
Tubing Clam_
1/4 in. \ L
Compression _._
Nut _
Ferrule
(sleeve)
I/4 in. Tubing
l
gerator
Connection
12. START THE ICEMAKER
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it reaches
its operating temperature of 15°F (-9°C) or below. It
will then begin operation automatically if the icemaker
power switch is in the ON (I) position.
37
Before conducting troubleshooting, make sure that the following basic requirements are met:
Service Flow 0.5 gpm (1.9 Ipm)
Water Supply Potable Water
Water Pressure 20 and 120 psi(140 and 830 kPa)
Operating Ambient 55°F - 1 I O°F
Temperature Limits
11 5 Volts, 60 Hz, AC only, and fused
Electrical Ratings at 15 or 20 amperes.
COOLING
Refrigerator and The refrigerator control is set to OFF
Freezer section are (some models).
not cooling. Refrigerator is set to Demo Mode.
Refrigerator is in the defrost cycle.
Refrigerator was recently installed.
Refrigerator was recently relocated. If the refrigerator was stored for a long period of time
Cooling System runs Refrigerator is replacing an older
too much. model.
Refrigerator was recently plugged in
or power restored.
Door opened often or a large amount
of food / hot food was added.
Doors are not closed completely.
Refrigerator is installed in a hot
location.
Condenser / back cover is clogged.
Turn the control ON. Refer to the Setting the Controls
section for proper temperature settings.
Demo Mode allows the lights and control display to
work normally while disabling cooling to save energy
while on the showroom floor. Refer to the Setting the
Controls section for instructions on how to disable
Demo Mode.
During the defrost cycle, the temperature of each
compartment may rise slightly. Wait 30 minutes and
confirm the proper temperature has been restored
once the defrost cycle has completed.
It may take up to 24 hours for each compartment to
reach the desired temperature.
or moved on its side, it is necessary for the refrigerator
to stand upright for 24 hours before connecting it to
power.
Modern refrigerators require more operating time but
use less energy due to more efficient technology.
The refrigerator will take up to 24 hours to cool
completely.
Adding food and opening the door warms the
refrigerator, requiring the compressor to run longer in
order to cool the refrigerator back down. In order to
conserve energy, try to get everything you need out of
the refrigerator at once, keep food organized so it is
easy to find, and close the door as soon as the food is
removed. (Refer to the Food Storage Guide.)
Firmly push the doors shut. If they will not shut all the
way, see the Doors will not close completely or pop
open section in Parts & Features Troubleshooting.
The compressor will run longer under warm conditions.
At normal room temperatures (70°F) expect your
compressor to run about 40% to 80% of the time.
Under warmer conditions, expect it to run even more
often. The refrigerator should not be operated above
110°F.
Use a vacuum cleaner with an attachment to clean the
condenser cover and vents. Do not remove the panel
covering the condenser coil area.
38
COOLING
Refrigerator or Refrigerator was recently installed.
Freezer section is too
warm. Air vents are blocked.
Interior moisture
buildup.
Doors are opened often or for long
periods of time.
Unit is installed in a hot location.
A large amount of food or hot food
was added to either compartment.
Doors not closed correctly.
Temperature control is not set
correctly.
Defrost cycle has recently completed.
Doors are opened often or for long
periods of time.
Doors not closed correctly.
Weather is humid.
Defrost cycle recently completed.
It may take up to 24 hours for each compartment to
reach the desired temperature.
Rearrange items to allow air to flow throughout the
compartment. Refer to the Airflow diagram in the
Using Your Refrigerator section.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment.
This raises the temperature and moisture level within
the compartment. To lessen the effect, reduce the
frequency and duration of door openings.
The refrigerator should not be operated in
temperatures above 1101.
Adding food warms the compartment requiring the
cooling system to run. Allowing hot food to cool to
room temperature before putting it in the refrigerator
will reduce this effect.
See the Doors will not close correctly or pop open
section in Parts 8, Features Troubleshooting.
If the temperature is too warm, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section for
more information.
During the defrost cycle, the temperature of each
compartment may rise slightly and condensation may
form on the back wall. Wait 30 minutes and confirm
the proper temperature has been restored once the
defrost cycle has completed.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment.
This raises the temperature and moisture level within
the compartment. To lessen the effect, reduce the
frequency and duration of door openings.
See the Doors will not close correctly section in the
Troubleshooting section.
Humid weather allows additional moisture to enter the
compartments when the doors are opened leading to
condensation or frost. Maintaining a reasonable level
of humidity in the home will help to control the amount
of moisture that can enter the compartments.
During the defrost cycle, the temperature of each
compartment may rise slightly and condensation may
form on the back wall. Wait 30 minutes and confirm
that the proper temperature has been restored once
the defrost cycle has completed.
Food is not packaged correctly. Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation within
each compartment. Wipe all containers dry and store
food in sealed packaging to prevent condensation and
frost.
39
÷
COOLING/ICE & WATER
÷
Food is freezing Food with high water content was Rearrange items with high water content away from
in the refrigerator placed near an air vent. air vents.
compartment. Refrigerator temperature control is set If the temperature is too cold, adjust the control one
incorrectly, increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section for
more information.
Refrigerator is installed in a cold When the refrigerator is operated in temperature
location, below 41 °F (5°C), food can freeze in the refrigerator
compartment. The refrigerator should not be operated
in temperature below 55°F (1 3°C).
Frost or ice crystals
form on frozen food
(outside of package).
Refrigerator or
Freezer section is too
cold.
Door is opened frequently or for long
periods of time.
Door is not closing properly.
Incorrect temperature control settings.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment. This
raises the temperature and moisture level within the
compartment. Increased moisture will lead to frost
and condensation. To lessen the effect, reduce the
frequency and duration of door openings.
Refer to the Doors will not close correctly or pop
open section in the Troubleshooting section.
If the temperature is too cold, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section for
more information.
Frost or ice crystals Condensation from food with a high This is normal for food items with a high water
on frozen food water content has frozen inside of the content.
(inside of sealed food package.
package).
Food has been left in the freezer for Do not store food items with high water content in the
a long period of time. freezer for a long period of time.
Icemaker is not Demand exceeds ice storage The icemaker will produce approximately 70-210
making enough ice. capacity, cubes in a 24 hour period.
House water supply is not connected,
valve is not turned on fully, or valve is
clogged.
Water filter has been exhausted.
Low house water supply pressure.
Reverse Osmosis filtration system is
used.
Tubing connecting refrigerator to
house supply valve is kinked.
Connect the refrigerator to a cold water supply with
adequate pressure and turn the water shut off valve
fully open.
If the problem persists, it may be necessary to contact
a plumber.
It is recommended that you replace the water filter:
* Approximately every six months.
* When the water filter indicator turns on.
° When the water dispenser output decreases.
* When the ice cubes are smaller than normal.
The water pressure must be between 20 and ] 20 psi
(140 and 830 kPa) on models without a water filter
and between 40 and ] 20 psi (280 and 830kPa) on
models with a water filter.
If the problem persists, it may be necessary to contact
a plumber.
Reverse osmosis filtration systems can reduce the
water pressure below the minimum amount and result
in icemaker issues. (Refer to Water Pressure section.)
The tubing can kink when the refrigerator is moved
during installation or cleaning resulting in reduced
water tow. Straighten or repair the water supply line
and arrange it to prevent future kinks.
4O
÷
MFL37933591 Leg2K Ell3131313ODD.indd 40
÷
2012.6.13 10:29:7 AM
iCE & WATER
Icemaker is not
making enough ice
(continued).
Dispensing water
slowly.
Doors are opened often or for long
periods of time.
Doors are not closed completely.
The temperature setting for the
freezer is too warm.
Water filter has been exhausted.
Reverse osmosis filtration system is
used.
Low house water supply pressure
Not dispensing ice. Doors are not closed completely.
Infrequent use of the dispenser.
If the doors of the unit are opened often, ambient
air will warm the refrigerator which will prevent the
unit from maintaining the set temperature. Lowering
the refrigerator temperature can help, as well as not
opening the doors as frequently.
If the doors are not properly closed, ice production
will be affected. See the Doors will not close
completely or pop open section in Parts & Features
Troubleshooting for more information.
The recommended temperature for the freezer
compartment for normal ice production is 0°F(-18°C_
If the freezer temperature is warmer, ice production
will be affected.
It is recommended that you replace the water filter:
" Approximately every six months.
* When the water filter indicator turns on.
" When the water dispenser output decreases.
" When the ice cubes are smaller than normal.
Reverse osmosis filtration systems can reduce the water
pressure below the minimum amount and result in
icemaker issues.
If the problem persists, it may be necessary to contact
a plumber.
The water pressure must be between 20 and ] 20 psi
(140 and 830 kPa) on models without a water filter
and between 40 and 120 psi (280 and 830kPa) on
models with a water filter.
If the problem persists, it may be necessary to contact
a plumber.
Ice will not dispense if any of the refrigerator doors
are left open.
Infrequent use of the ice dispenser will cause the cubes
to stick together over time, which will prevent them
from properly dispensing. Check the ice bin for ice
cubes clumping/sticking together. If they are, break up
• the ice cubes to allow for proper operation.
The delivery chute is clogged with Eliminate the frost or ice fragments by removing the
frost or ice fragments, ice bin and clearing the chute with a plastic utensil.
The dispenser display is locked.
Ice bin is empty.
Dispensing cubed ice can also help prevent frost or ice
fragment buildup.
Press and hold theLock button for three seconds to
unlock the control panel and dispenser.
It may take up to 24 hours for each compartment to
reach the desired temperature and for the icemaker
to begin making ice. Make sure that the shut off (arm//
sensor) is not obstructed.
Once the ice supply in the bin has been completely
exhausted, it my take up to 90 minutes before
additional ice is available, and approximately 24
hours to completely refill the bin.
41
iCE & WATER
Icemaker isnot
making ice.
Not dispensing water.
Refrigerator was recently installed or
icemaker recently connected.
Icemaker not turned on.
The ice detecting sensor is obstructed.
The refrigerator is not connected to
a water supply or the supply shutoff:
valve is not turned on.
Icemaker shutoff (arm or sensor)
obstructed.
Reverse osmosis water filtration
system is connected to your cold
water supply.
New installation or water line recently
connected.
The dispenser panel is locked.
The dispenser is not set for water
dispensing.
tt may take up to 24 hours for each compartment to
reach the desired temperature and for the icemaker to
begin making ice.
Locate the icemaker ON/OFF switch and confirm that
it is in the ON (I) position.
Foreign substances or frost on the ice-detecting sensor
can interrupt ice production. Make sure that the sensor
area is clean at all times for proper operation.
Connect refrigerator to the water supply and turn the
water shutoff valve fully open.
If your icemaker is equipped with an ice shutoff: arm,
make sure that the arm moves freely. If your icemaker
is equipped with the electronic ice shutoff: sensor,
make sure that there is a clear path between the two
sensors.
Reverse osmosis filtration systems can reduce the
water pressure below the minimum amount and result
in icemaker issues. (Refer to the Water Pressure
section.)
Dispense 2.5 gallons of water (flush for approximately
5 minutes) to remove trapped air and contaminants
from the system. Do not dispense the entire 2.5
gallon amount continuously. Depress and release the
dispenser pad for cycles of 30 seconds ON and 60
seconds OFF.
Press and hold the Lock button for three seconds to
unlock the control panel and dispenser.
The dispenser can be set for ice or water. Make
certain that the control panel is set for the proper
operation. Press the Ice/Water Select button on the
control panel.
Refrigerator or freezer doors are not Water will not dispense if any of the refrigerator
closed properly, doors are left open.
Water filter has been recently After the water filter is replaced, dispense 2.5 gallons
removed or replaced, of water (flush for approximately 5 minutes) to remove
Tubing connecting refrigerator to
house supply valve is kinked.
The house water supply is not
connected, the valve is not turned on
fully, or the valve is clogged.
trapped air and contaminants from the system. Do not
dispense the entire 2.5 gallon amount continuously.
Depress and release the dispenser pad for cycles of
30 seconds ON and 60 seconds OFF.
The tubing can kink when the refrigerator is moved
during installation or cleaning resulting in reduced
water flow. Straighten or repair the water supply line
and arrange it to prevent future kinks.
Connect refrigerator to the water supply and turn the
water shutoff: valve fully open.
tf the problem persists, it may be necessary to contact
a plumber.
42
iCE & WATER
Ice has bad taste or
odor.
Water supply contains minerals such
as sulfur.
A water filter may need to be installed to eliminate
taste and odor problems.
NOTE: In some cases, a filter may not help. It may not
be possible to remove all minerals / odor / taste in all
water supplies.
tcemaker was recently installed. Discard the first few batches of ice to avoid discolored
or bad tasting ice.
tee has been stored for too lang. Ice that has been stored for too long will shrink,
become cloudy, and may develop a stale taste. Throw
away old ice and make a new supply.
The food has not been stored Rewrap the food. Odors may migrate to the ice if
properly in either compartment, food is not wrapped properly.
The interior of the refrigerator needs See the Care and Cleaning section for more
to be cleaned, information.
The ice storage bin needs to be Empty and wash the bin (discard old cubes). Make
cleaned, sure that the bin is completely dry before reinstalling
it.
Dispensing warm Refrigerator was recently installed. Allow 24 hours after installation for the water storage
water, tank to cool completely.
The water dispenser has been used Depending on your specific model, the water storage
recently and the storage tank was capacity will range from approximately 20 to 30 oz.
exhausted.
Dispenser has not been used for If the dispenser has not been used for several hours,
several hours, the first glass dispensed may be warm. Discard the
first ]0 oz.
Refrigerator is connected to the hot
water supply.
Make sure that the refrigerator is connected to a cold
water pipe.
_WARNING: Connecting the refrigerator to a hot
water line may damage the icemaker.
Water has bad taste Water supply contains minerals such A water filter may need to be installed to eliminate
or odor. as sulfur, taste and odor problems.
Water filter has been exhausted. It is recommended that you replace the water filter:
Refrigerator was recently installed.
tcemaker shutoff: (arm/sensor) is
obstructed.
Icemaker is making
too much ice.
" Approximately every 6 months.
• When the water filter indicator turns on.
• When the water dispenser output decreases.
• When the ice cubes are smaller than normal.
Dispense 2.5 gallons of water (flush for approximately
5 minutes) to remove trapped air and contaminants
from the system. Do not dispense the entire 2.5
gallon amount continuously. Depress and release the
dispenser pad for cycles of 30 seconds ON and 60
seconds OFF.
Empty the ice bin. If your icemaker is equipped with
an ice shutoff: arm, make sure that the arm moves
freely. If your icemaker is equipped with the electronic
ice shutoff: sensor, make sure that there is a clear path
between the two sensors. Reinstall the ice bin and wait
24 hours to confirm proper operation.
43
NOISE
Clicking
The defrost control will click when
the automatic defrost cycle begins
and ends. The thermostat control (or
refrigerator control on some models)
will also click when cycling on and
off.
Normal Operation
Rattling Rattling noises may come from the Normal Operation
flow of refrigerant, the water line on
the back of the unit, or items stored
on top of or around the refrigerator.
Refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need to be
the floor, adjusted. See the Door Alignment section.
Refrigerator with linear compressor Normal Operation
was jarred while running.
Whooshing Evaporator fan motor is circulating Normal Operation
air through the refrigerator and
freezer compartments.
Air is being forced over the condenser Normal Operation
by the condenser fan.
Gurgling Refrigerant flowing through the Normal Operation
cooling system.
Popping Contraction and expansion of the Normal Operation
inside walls due to changes in
temperature.
Sizzling Water dripping on the defrost heater
during a defrost cycle.
Vibrating If the side or back of the refrigerator
is touching a cabinet or wall, some of
the normal vibrations may make an
audible sound.
Dripping Water running into the drain pan
during the defrost cycle.
Pulsating or High- Your refrigerator is designed to run
Pitched Sound more efficiently to keep your food
items at the desired temperature. The
high efficiency compressor may cause
your new refrigerator to run longer
than your old one, but it is still more
energy efficient than previous models.
While the refrigerator is running, it is
normal to hear a pulsating or high-
pitched sound.
Normal Operation
To eliminate the noise, make sure that the sides and
back cannot vibrate against any wall or cabinet.
Normal Operation
Normal Operation
44
PARTS & FEATURES
Doors will not close Food packages are blocking the door Rearrange food containers to clear the door and door
correctly or pop open. shelves.
open. ice bin, crisper cover, pans, shelves, Push bins all the way in and put crisper cover, pans,
door bins, or baskets are out of shelves and baskets into their correct positions. See the
position. Using Your Refrigerator section for more information.
The doors were removed during Remove and replace the doors according to the
product installation and not properly Removing and Replacing Refrigerator Handles and
replaced. Doors section.
Refrigerator is not leveled properly. See Door Alignment in the Refrigeration Installation
section to level refrigerator.
Doors are difficult to The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they touch.
open. Rub a thin coat of appliance polish or kitchen wax on
the gaskets after cleaning.
Door was recently closed.
Refrigerator wobbles
or seems unstable.
Lights do not work.
The interior of
the refrigerator is
covered with dust or
soot.
Leveling legs are not adjusted
properly.
Floor is not level.
LED interior lighting failure.
The refrigerator is located near a fire
source, such as a fireplace, chimney
or candle.
When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create a
vacuum. If the door is hard to open, wait one minute
to allow the air pressure to equalize, then see if it
opens more easily.
Refer to the Leveling and Door Alignment section.
It may be necessary to add shims under the leveling
legs or rollers to complete installation.
The refrigerator compartment lamp is LED interior
lighting, and service should be performed by
a qualified technician. Refer to the Light Bulb
Replacement section.
Make sure that the refrigerator is not located near a
fire source, such as a fireplace, chimney or candle.
45
Should you experience any problems with your
refrigerator, it has the capability of transmitting data via
your telephone to the Kenmore Connect Team. This gives
you the capability of speaking directly to our trained
specialists. The specialist records the data transmitted
from your machine and uses it to analyze the issue,
providing a fast and effective diagnosis.
Using the Kenmore Connect TM System
If you experience problems with your refrigerator, call
1-800-4-MY-HOME ®. Only use the I<enmore Connect
System feature when instructed to do so by the Kenmore
Connect Team. The transmission sounds that you will hear
are normal and sound similar to a fax machine.
Kenmore Connect cannot be activated unless your
refrigerator is connected to power. If your refrigerator
is unable to turn on, then troubleshooting must be done
without using Kenmore Connect°
First, call 1-800-4-MY-HOME® (1-800-469-4663). If the number of the phone you are using is on file and is
associated with your refrigerator, you will be quickly relayed to a Kenmore ConnectTM Team agent. Only use
the Kenmore ConnectTM feature when instructed to do so by the Kenmore ConnectTM Team agent.
The display must be locked in order for you to activate Kenmore Connect. If the display has been locked for over five
minutes, you must deactivate the control lock and then reactivate it. To activate the control lock, press and hold the
Door Alarm button for three seconds. The Control Lock icon will display. Once the controls are locked, follow the spe-
cialist's instructions and perform the following steps when requested.
NOTE: For best results, use Kenmore Connect with a landline phone.
HOLD the mouthpiece of your phone in front of the speaker that is located on the right hinge of the
refrigerator door, when instructed to do so by the call center. Hold the phone no more than one inch from
(but not touching} the speaker.
PUSH and hold the Freezer Temp button for three seconds while continuing to hold your phone to the
speaker.
LISTEN for three beeps. After you hear the three beeps, release the Freezer Temp button. Keep the
phone in place until the tone transmission has finished. This takes about 15 seconds, and the display will
count down the time. Once the countdown is over and the tones have stopped, resume your conversation
with the specialist, who will then be able to assist you in using the information transmitted for analysis.
NOTE:
* For best results, do not move the phone while the tones are being transmitted.
" If the call center agent is not able to get an accurate recording of the data, you may be asked to
try again.
46
