WARNING:
• For your own safety, please read and understand these
warnings and keep this user guide for future reference.
• Always make sure the cart is fully extended and locked
before use. Always make sure the cart is folded and locked
properly before lifting or transporting.
• Do not run while using this product.
• Do not use accessories other than those designed for use
with your cart.
• Keep all packing materials away from children and recycle
where possible or where required by law.
MAINTENANCE
• To clean the trolley, wipe with a soft, dry cloth.
• Car polish may be used to maintain nish.
• Lubricate moving parts every 6 months.
WARNING:
• Keep hands and ngers away from moving or sliding parts!
• Always keep control of the Pull Cart - Do not let it run down hills
without full control.

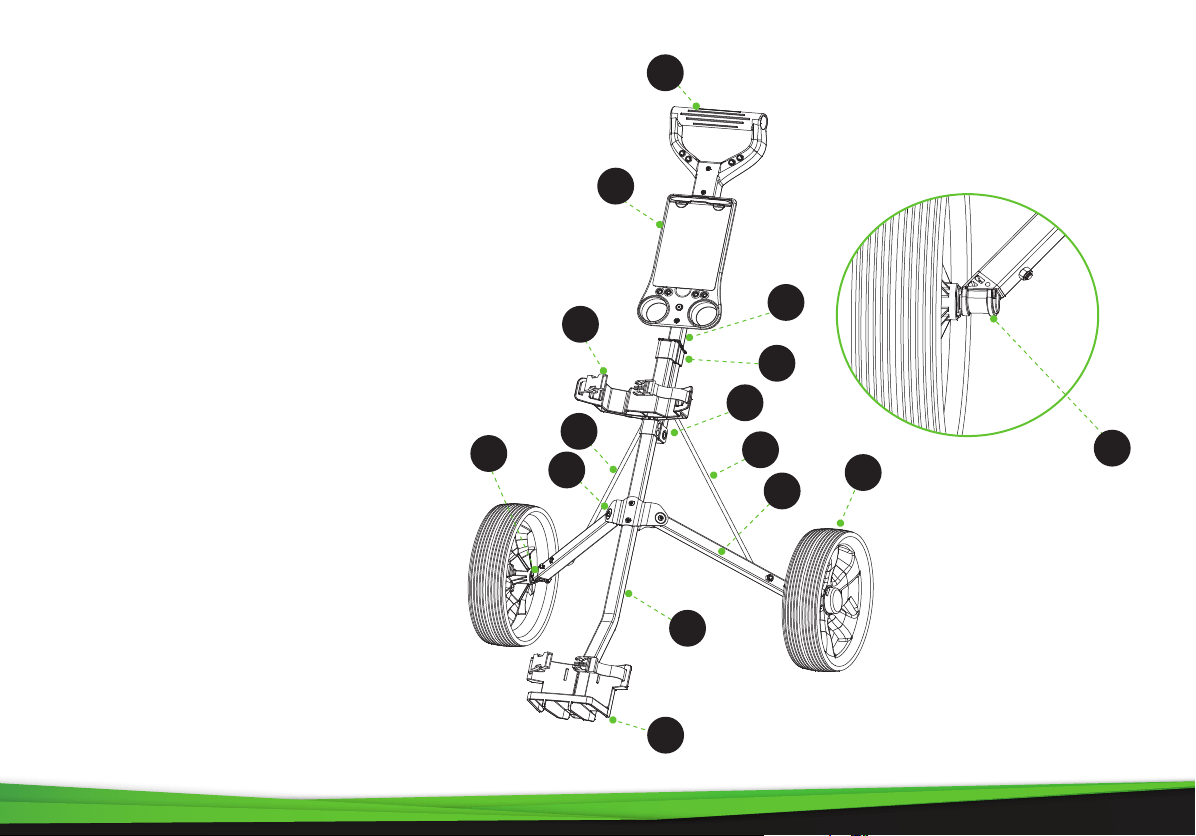

PARTS LIST
A Handle
B Upper tube
C Scorecard Holder
D Sliding Lock
E Upper Bracket
F Joint
G Left Weight Stabilizer
G1 Right Weight Stabilizer
H Rear Wheel
I 3 Holes Leg Frame
J Main Frame Tube
K Left Wheel Locking Mechanism
K1 Right Wheel Locking Mechanism
L Leg Bracket
M Lower Bracket
www.PyleUSA.com
3
A
C
B
D
F
E
G
G1
I
H
L
K
J
M
K1

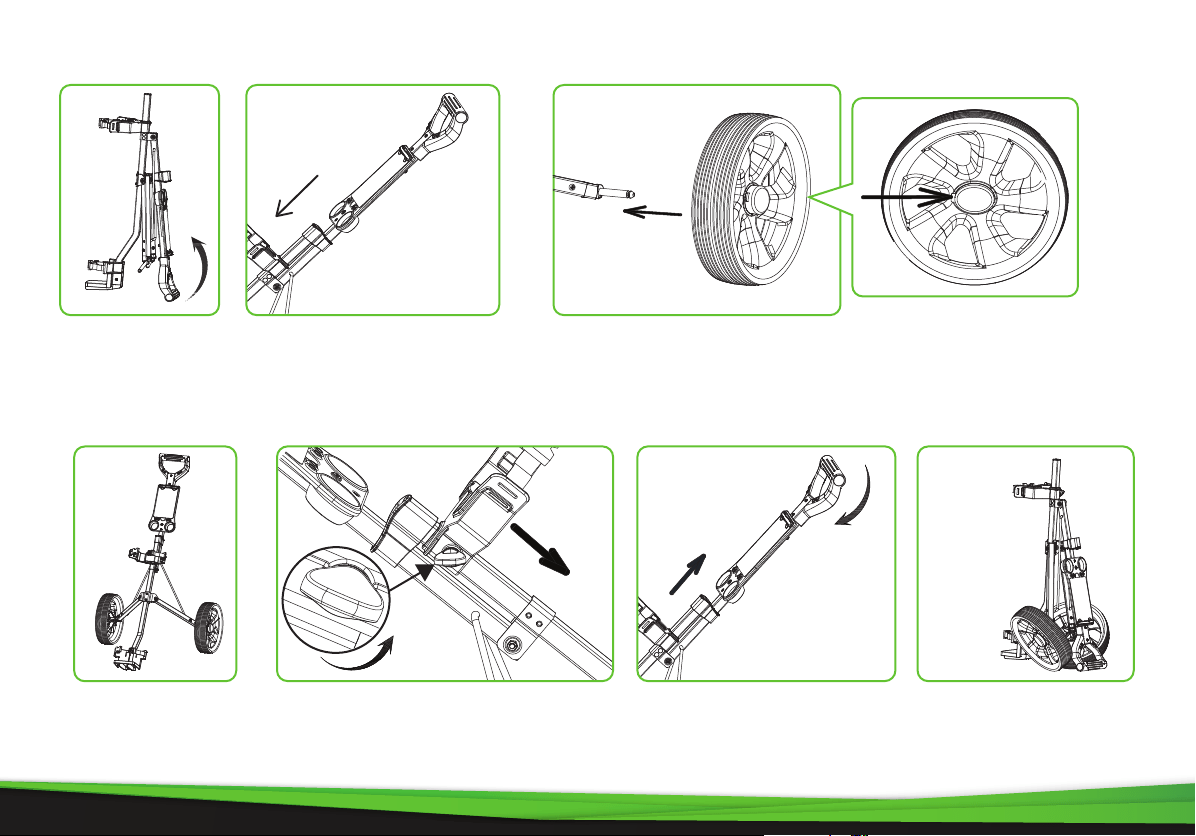

ASSEMBLY DETAILS
FOLDING STEPS
Fig. 2
Fig. 3
Fig. 4
Lift the handle to
level position as
Fig. 1
Move the slide lock downside
and lock to upper bracket as
Fig. 2
Completely unfolding
and assembly as Fig. 4.
www.PyleUSA.com
4
Fig. 1
Push the steel piece on the wheel lock mechanism to assemble
the rear wheel as Fig. 3.
Fig. 7
Fig. 6
Move the slide lock toward
upper and fold the handle
as Fig. 5.
Fig. 7 shows the folded
position.
Fig. 5
The adjustable upper bracket can be
moved up/down as Fig. 5 & suits for
stand golf bag size from 22.5" to 25".

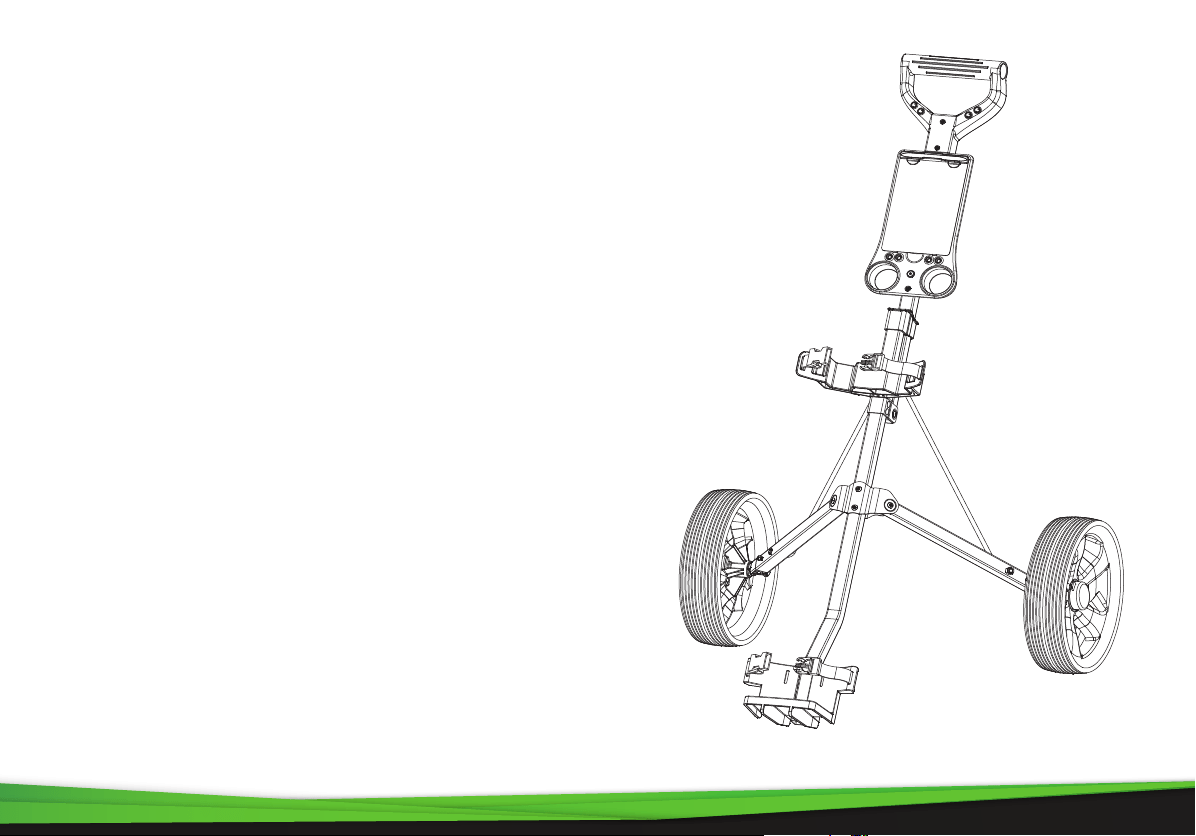

FEATURES:
• New Deluxe Scorecard Holder
• Upper and Lower Bracket with Strap
• Foam Handle Grip
• Ergonomic Padded Adjustable Handle
• Includes Scorecard Holder, and Patented Bag Holder
• Simple Quick Braking System
• Durable and Compact Size for Easy Storage and Transportation
• Easy to Fold and Unfold
• Designed for Multiple Pushing Positions
WHAT'S IN THE BOX:
• (1) 2-Wheel Junior Pull Cart
TECHNICAL SPECS:
• Construction Material: Steel Frame
• Max. Load Capacity: 28.7 lbs.
• Rear Wheels Size: 9.5'' -inches
• Folded Product Dimension (L x W x H): 11.8’’ x 14.8’’ x 28’’ -inches
• Unfolded Product Dimension (L x W x H): 29.6’’ x 22.6’’ x 35’’ -inches
