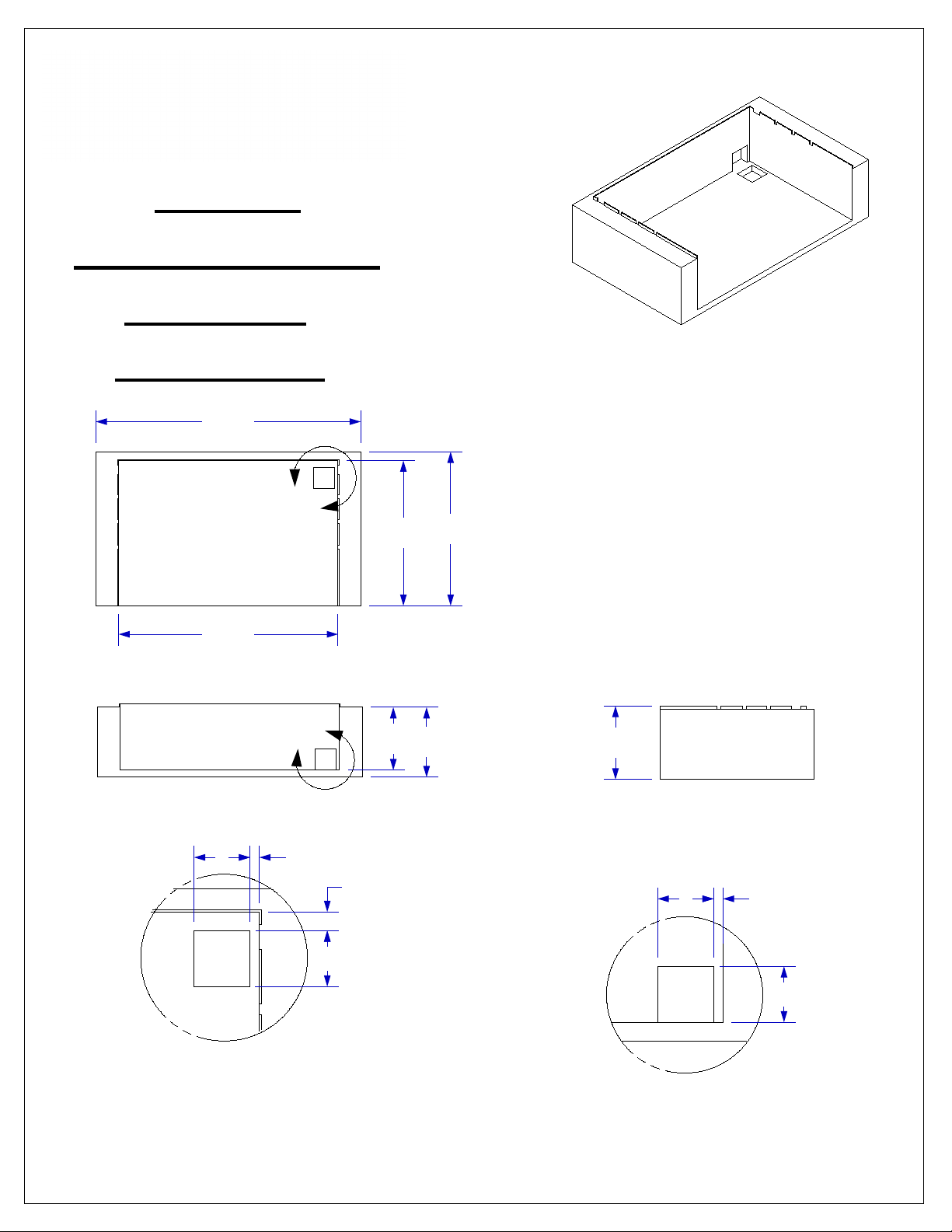

ISOMETRIC VIEW
TOP VIEW
37 7/8
22
31 3/8
20 3/4
A
FRONT VIEW
10
9
B
RIGHT SIDE VIEW
10 1/2
Detail A
SCALE 2" = 1' 0"
1
3
1/23
Detail B
SCALE 2" = 1' 0"
1/23
3
NOTES:
1. CUTOUT DIMENSIONS: 37 7/8"W X 22"D X 10"H
2. 9" CUTOUT DIMENSION HEIGHT IS FROM THE TOP OF THE TILE TO THE BOTTOM OF THE CUTOUT.
BUILDING MATERIALS MAY VARY IN THICKNESS; ADJUST CUTOUT DIMENSION ACCORDINGLY.
3. SCALE: 3/4" = 1'-0"
4. REVISION: 02/2016
30"GRILL
INSULATION JACKET
SPEC SHEET
SKU #47017 S
