NOTES:
1. CUTOUT DIMENSIONS: 45 3/8"W X 22"D X 10"H
2. 9" CUTOUT DIMENSION HEIGHT IS FROM THE TOP OF THE TILE TO THE BOTTOM OF THE CUTOUT.
BUILDING MATERIALS MAY VARY IN THICKNESS; ADJUST CUTOUT DIMENSION ACCORDINGLY.
3. SCALE: 3/4" = 1'-0"
4. REVISION: 02/2016

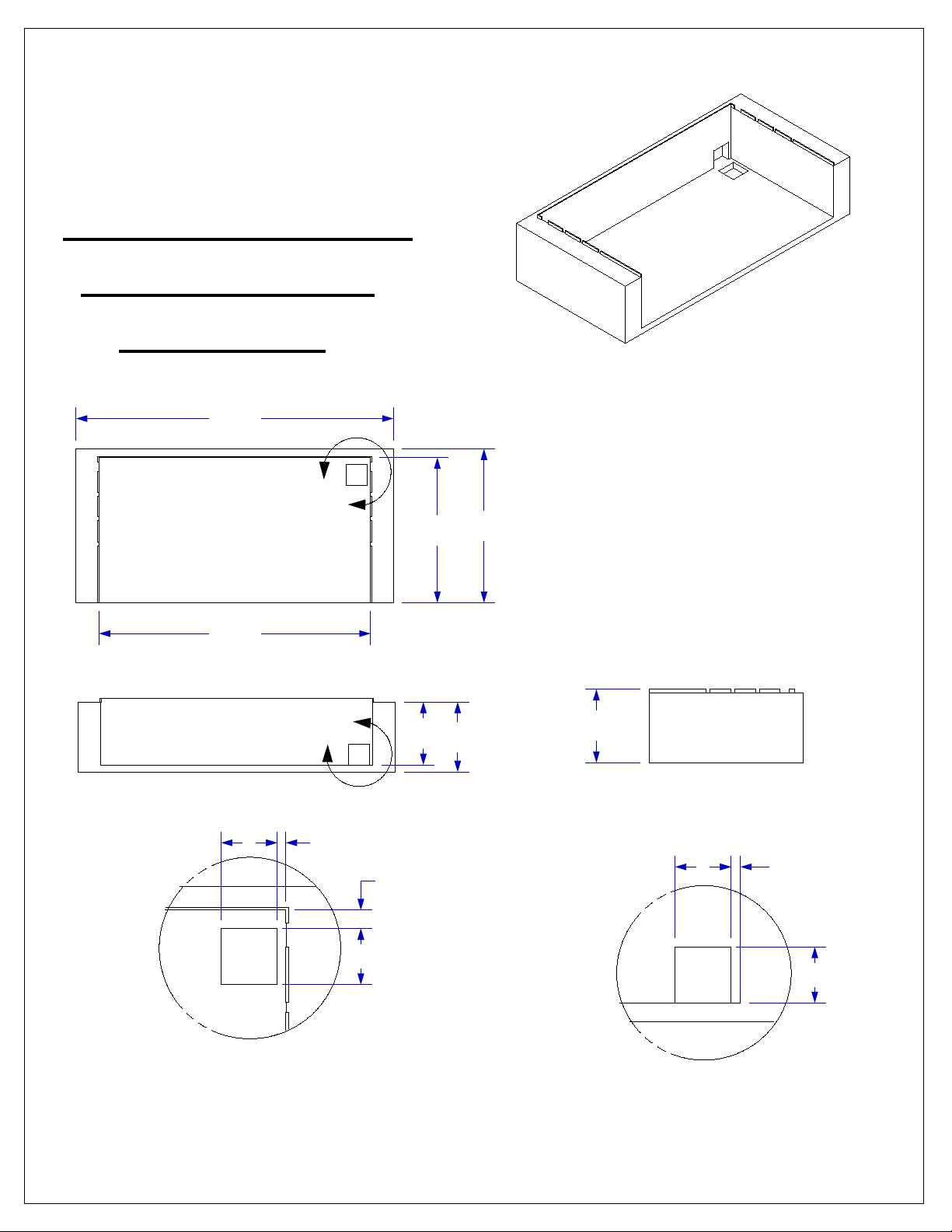

38" GRILL INSULATION
JACKET SPEC SHEET
SKU #47018 S
ISOMETRIC VIEW
TOP VIEW
45 3/8
20 3/4
22
38 7/8
A
Detail A
SCALE 2" = 1' 0"
1/23
1
3
FRONT VIEW
9
10
B
Detail B
SCALE 2" = 1' 0"
3
1/23
RIGHT SIDE VIEW
10 1/2
