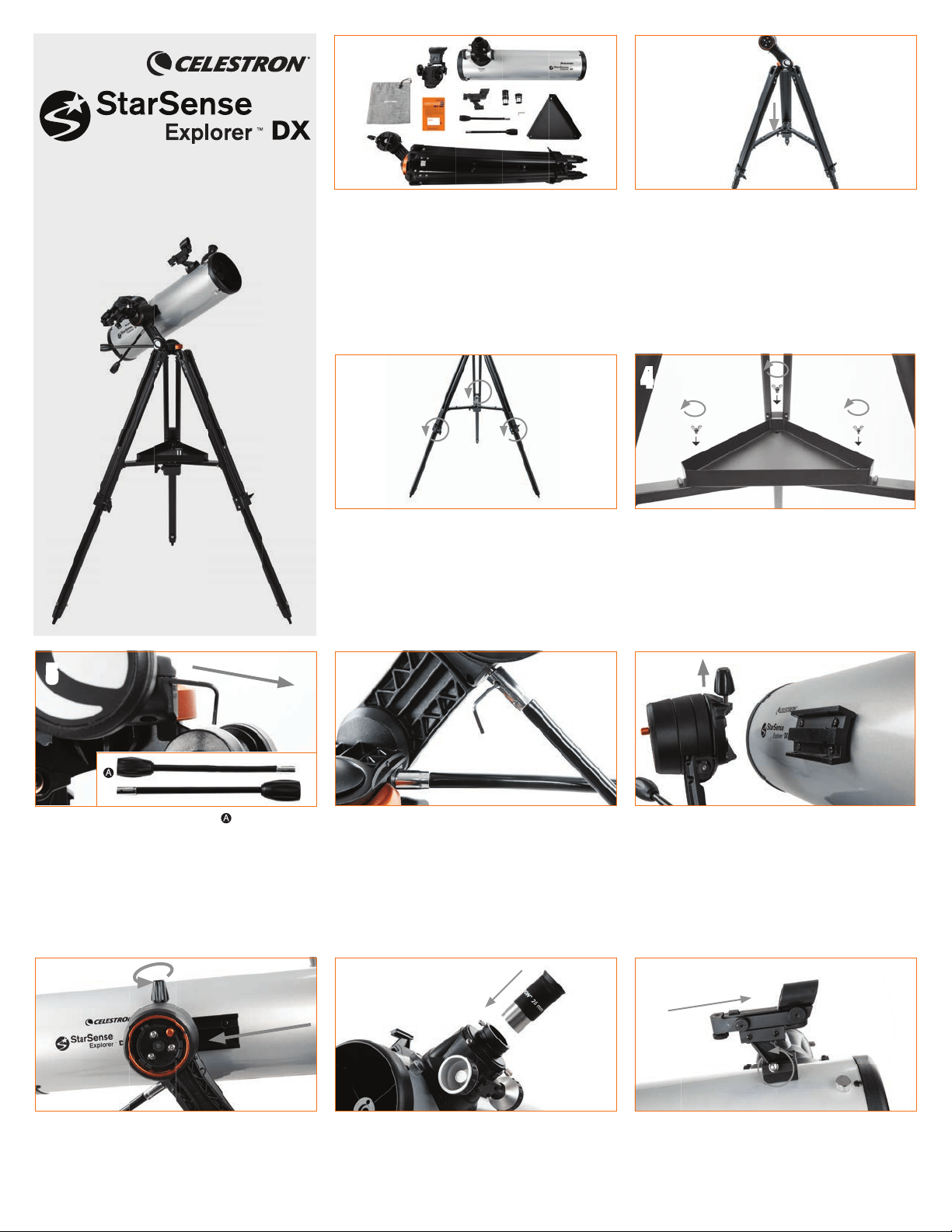

ENGLISH | 1

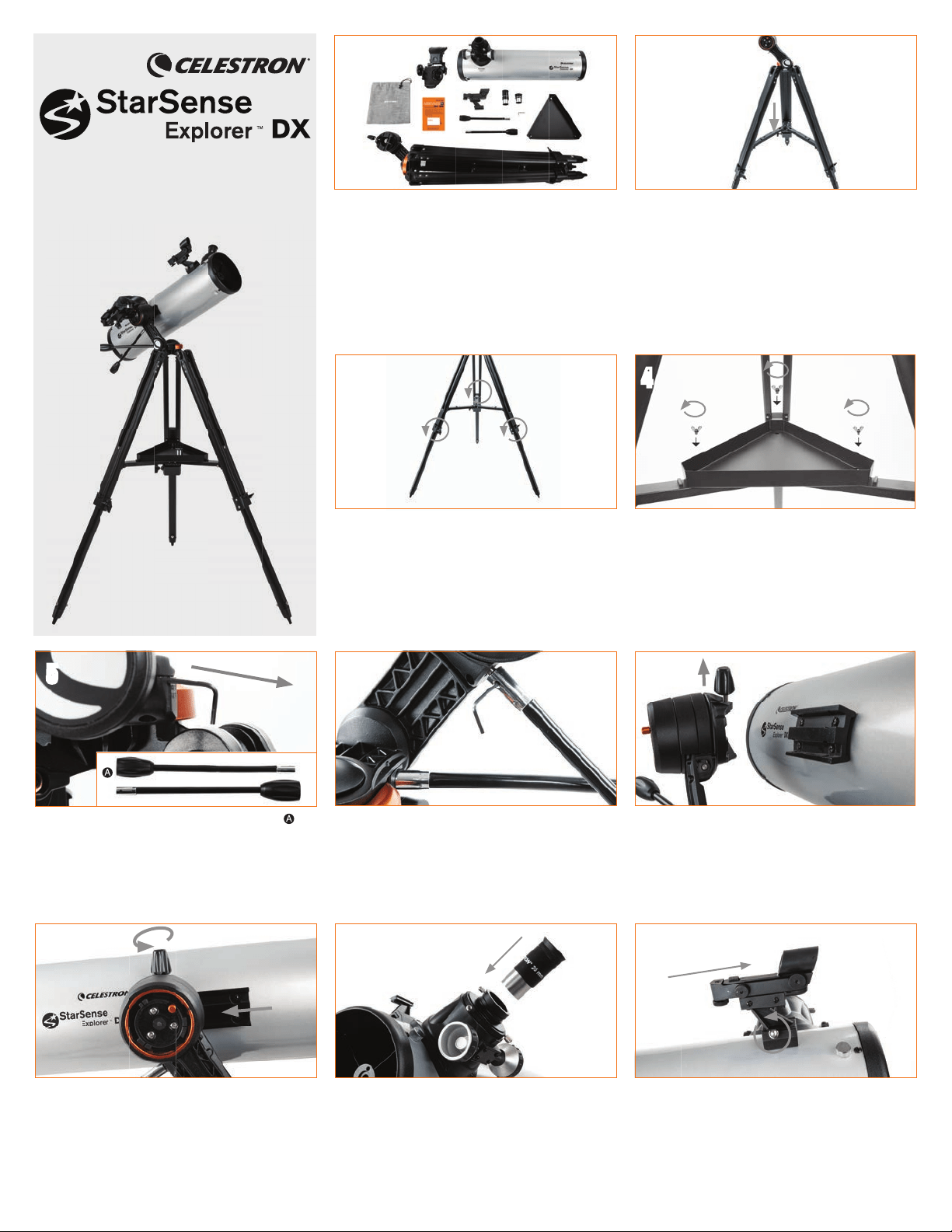

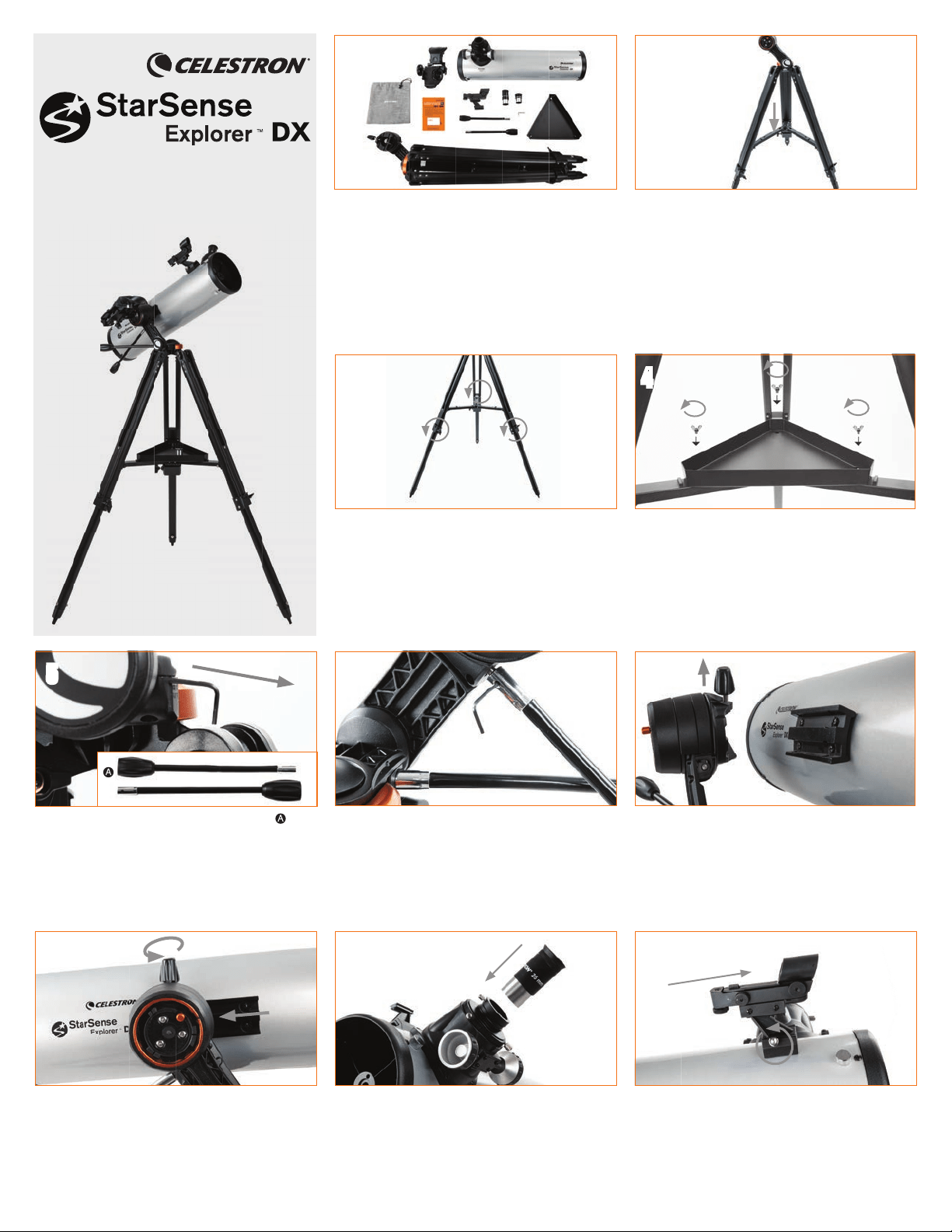

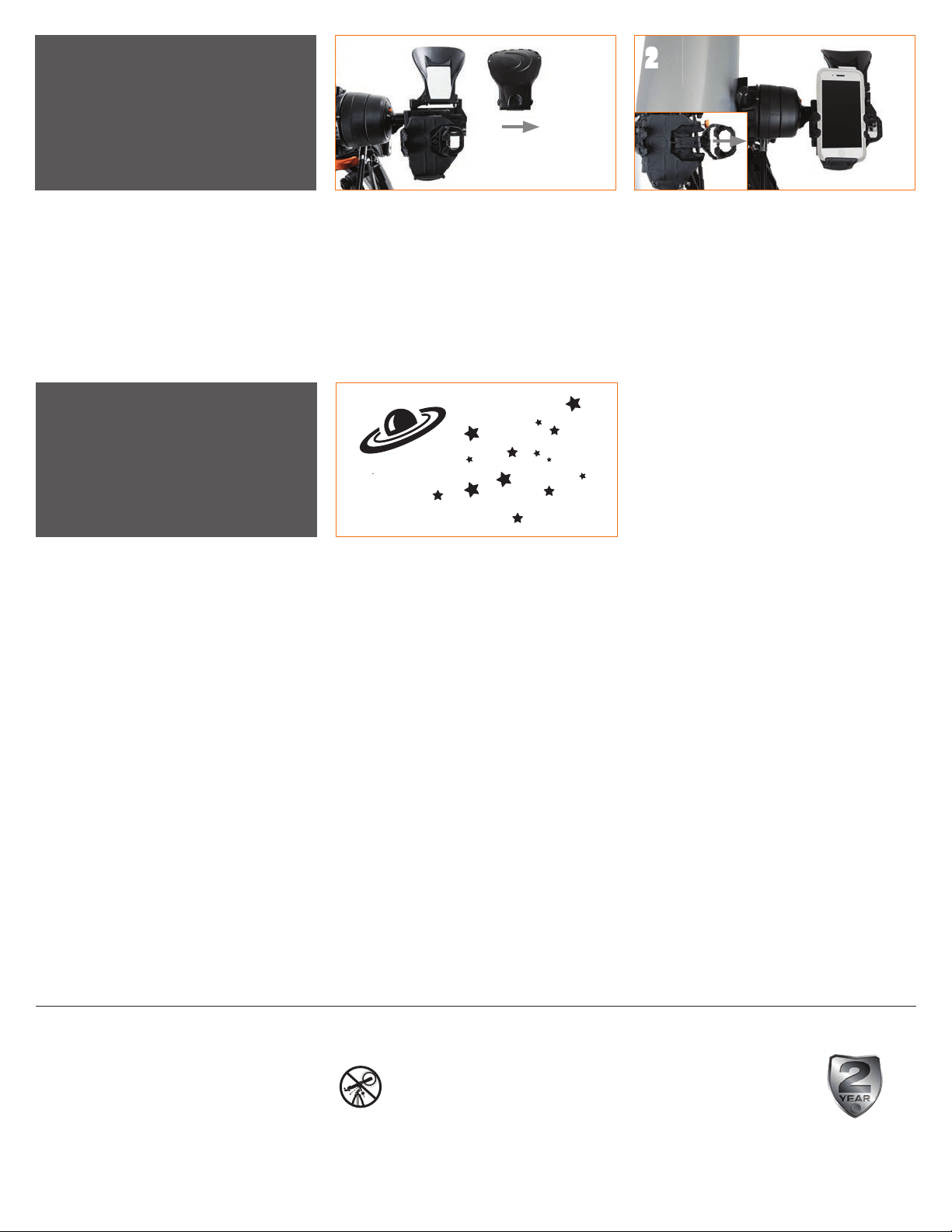

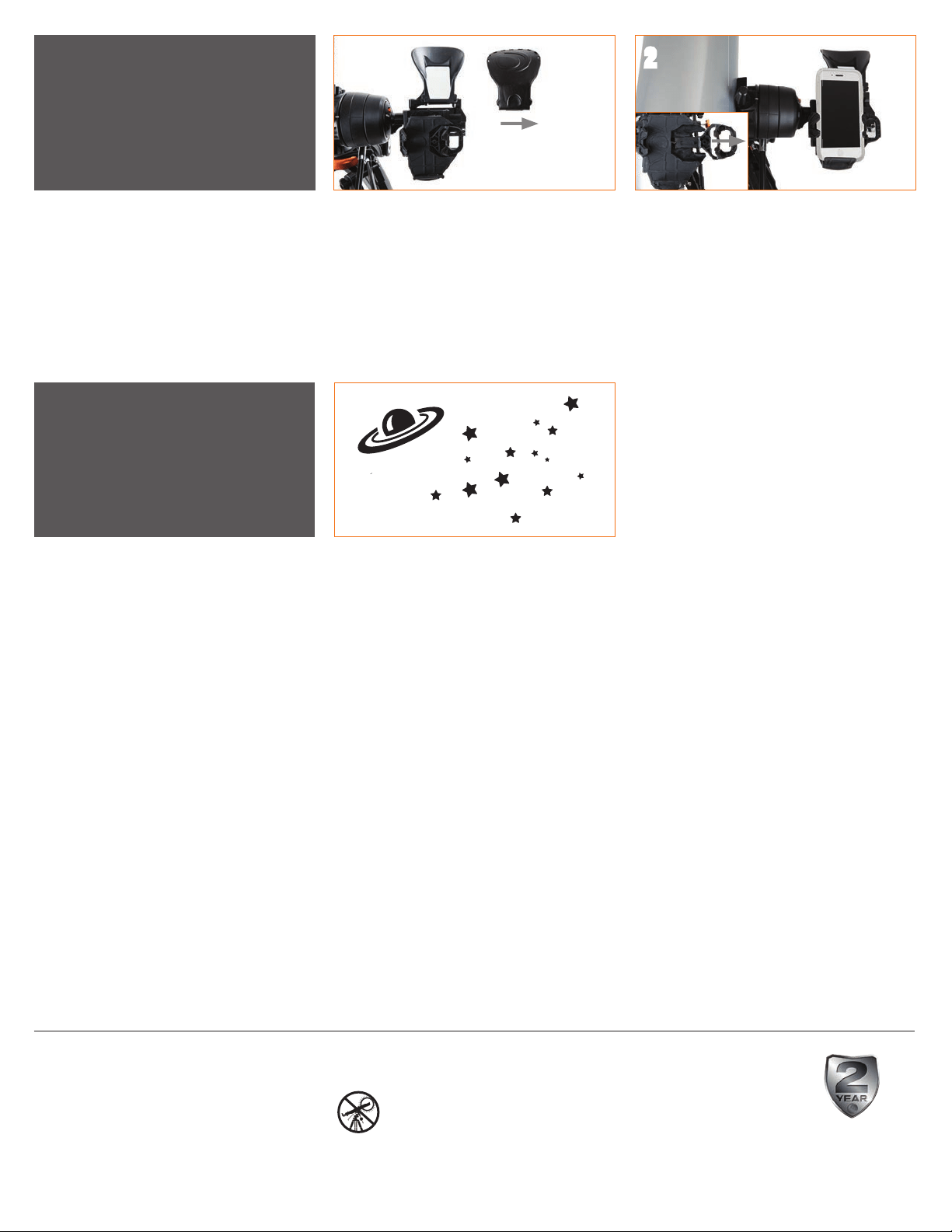

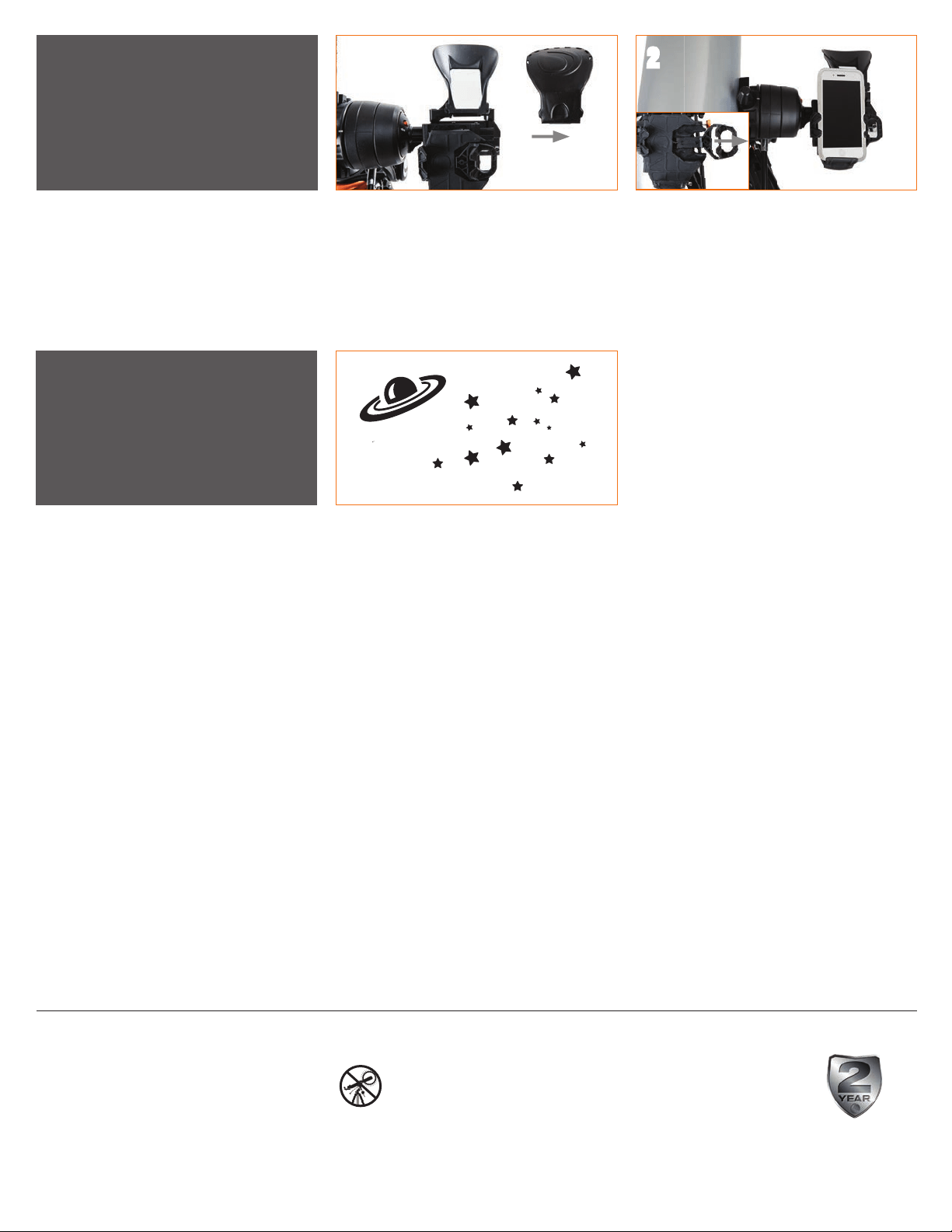

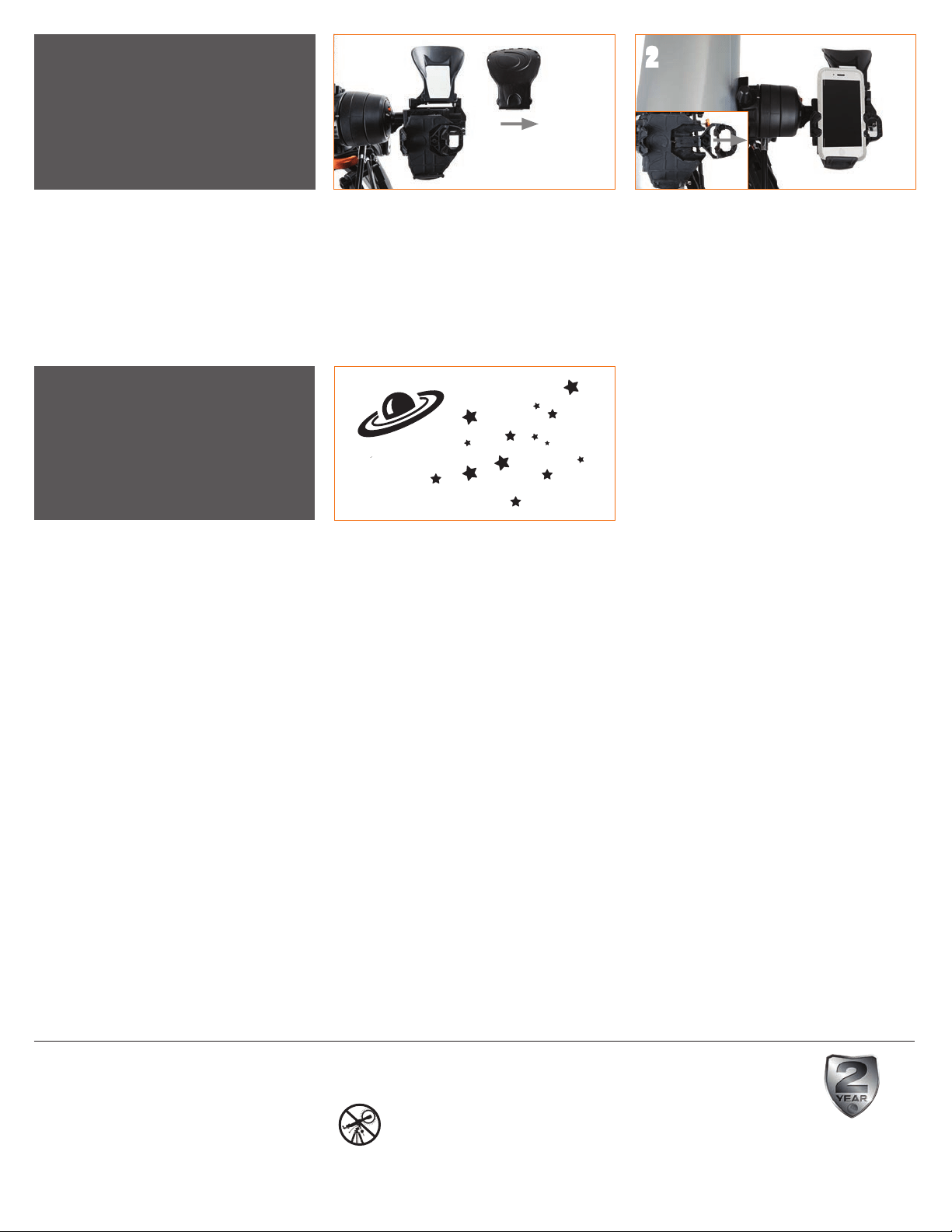

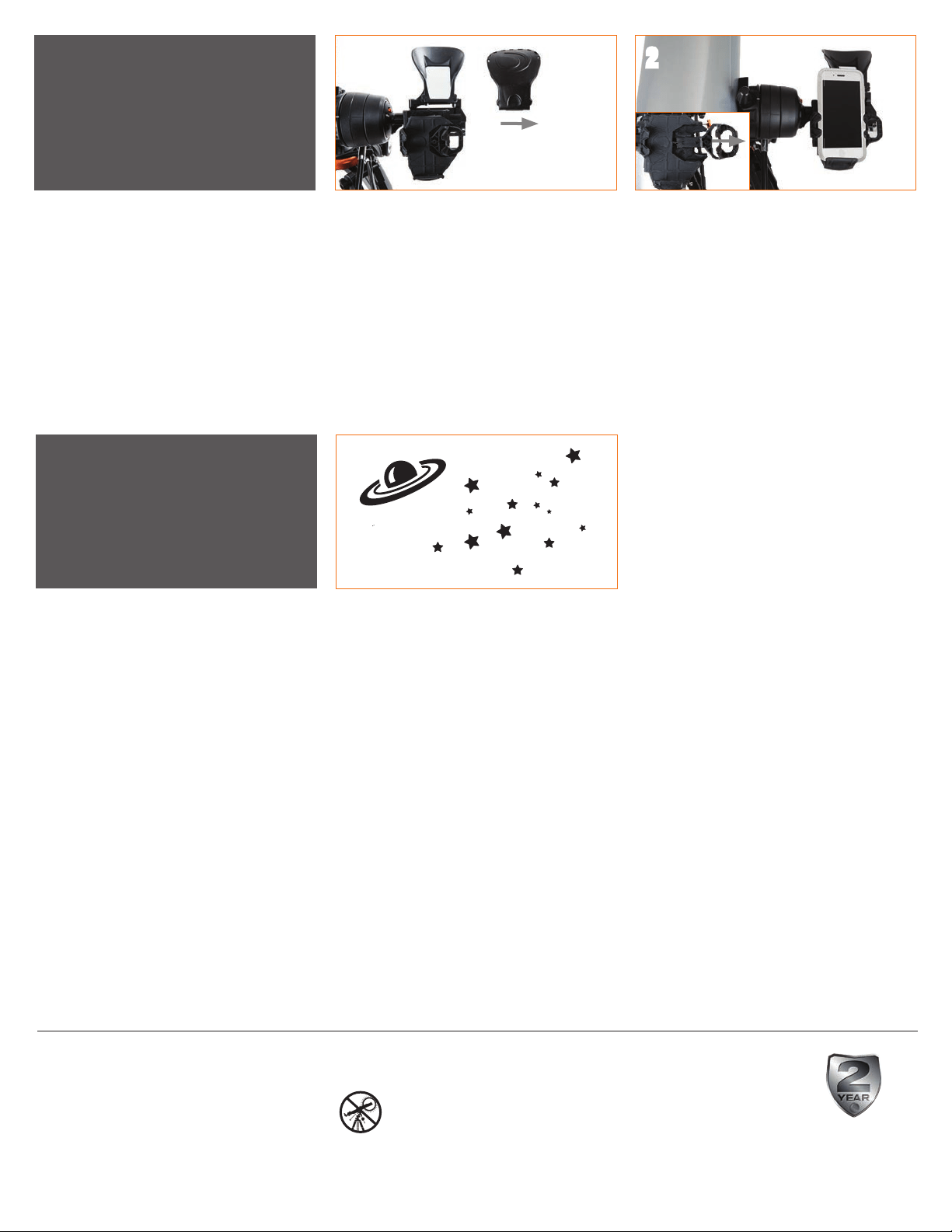

Unpack your telescope and verify that all parts are
present. Your StarSense Explorer DX includes:
a telescope tube, a tripod and mount head, an
accessory bag, slow motion controls, an accessory
tray, two eyepieces, a fi nderscope, a StarSense
phone dock, StarSense Explorer app code card,
and a hex key (hidden inside the slot in the front of
the mount head).
To set up the tripod, spread the legs outward until
they are fully extended and push down the center leg
brace.
ITEM #22461
Extend the legs of the tripod by loosening the three
hand knobs on each leg. Pull each leg section all
the way out and tighten the hand knobs to secure
them in place.
ENGLISH
130AZ
Quick Setup Guide
Place the accessory tray on top of the center brace
and line up the three holes. Insert the three thumb
screws through the top of the leg brace and thread
them into the tray.
Place the slow-motion control knob over the
D-shaped gear shaft and push inward to make sure
it is fully seated. Use the hex key to tighten the
setscrews onto the gear shaft. Return the hex key to
its storage position in the front of the mount.
Turn the clamp assembly so that the locking screw is
on top of the dovetail clamp. Hold the telescope tube
next to the mount with the dovetail bar on the tube
facing the clamp on the top of the mount arm.
Slide the dovetail bar into the clamp at the top of the
mount and tighten the hand knob on the bottom of
the clamp to secure the telescope in place.
Remove the cap from the focuser and insert the barrel
of the 25 mmeyepiece into the focuser. Tighten the
setscrew to secure the eyepiece in place.

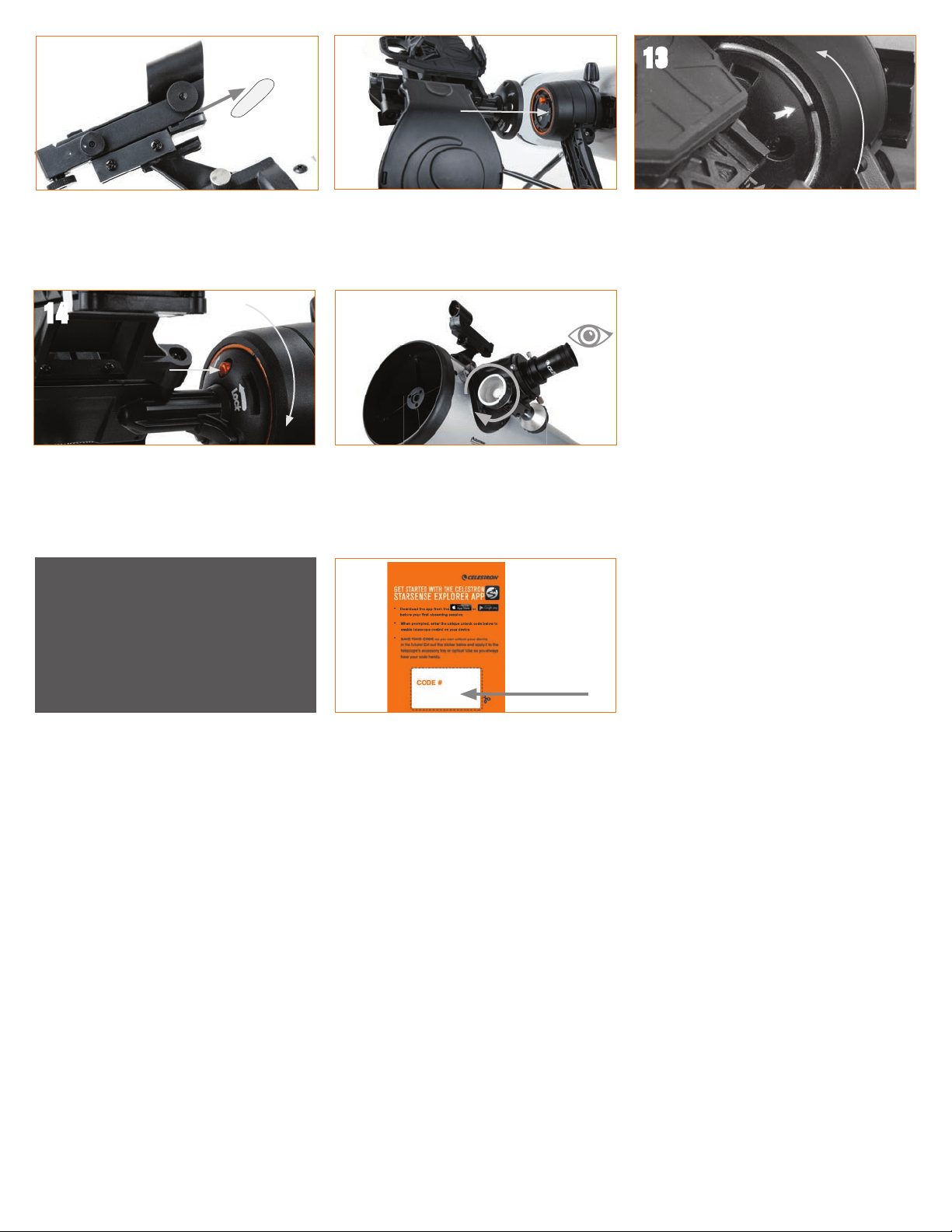

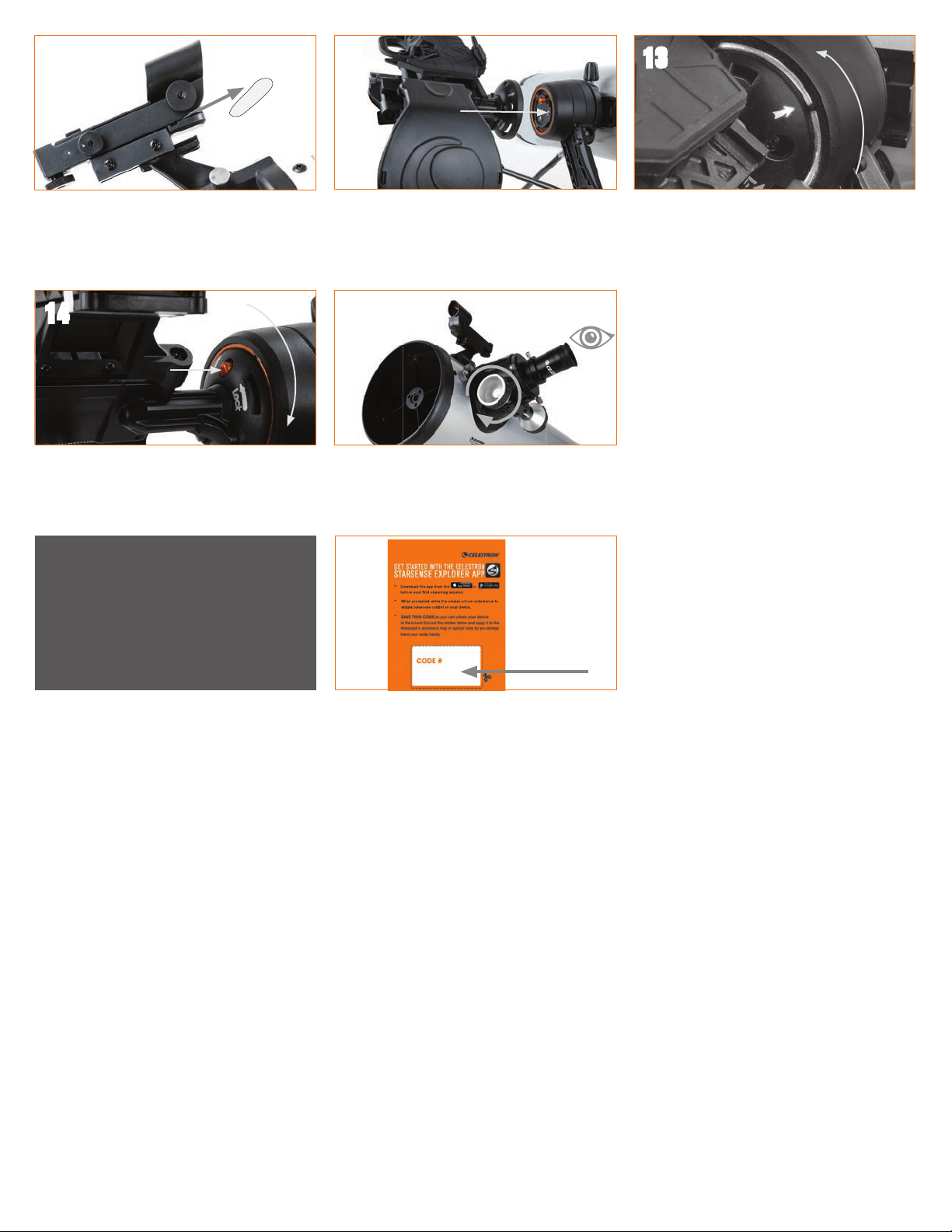

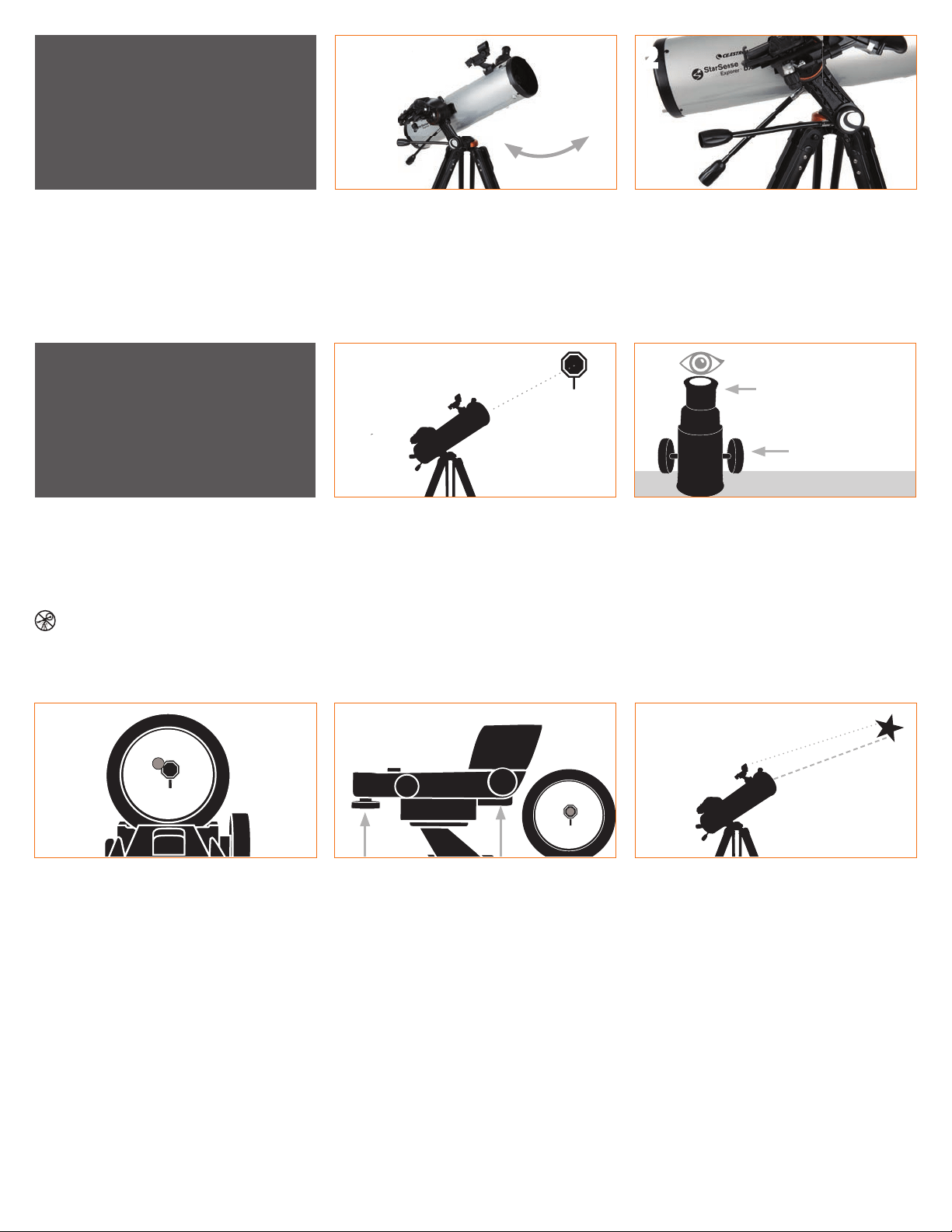

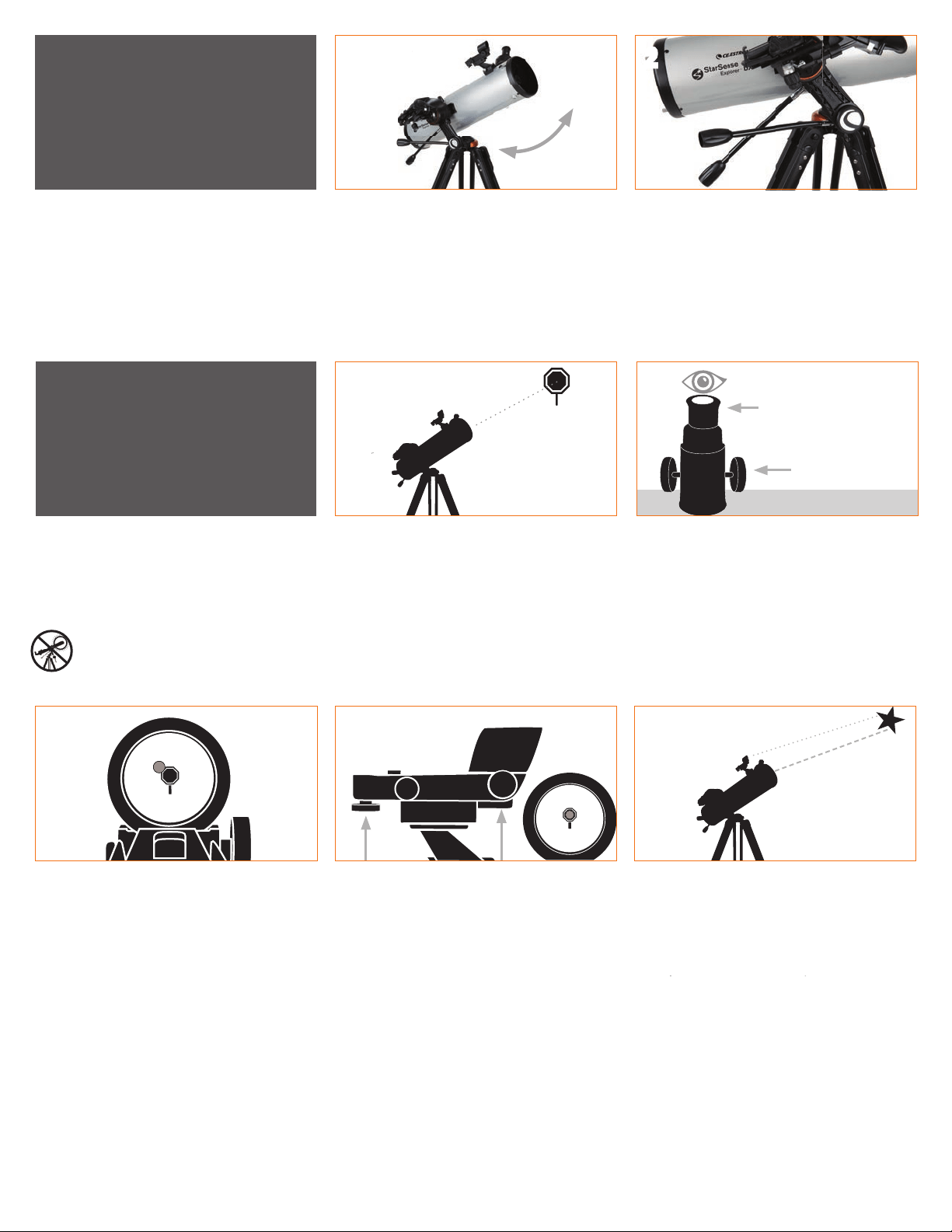

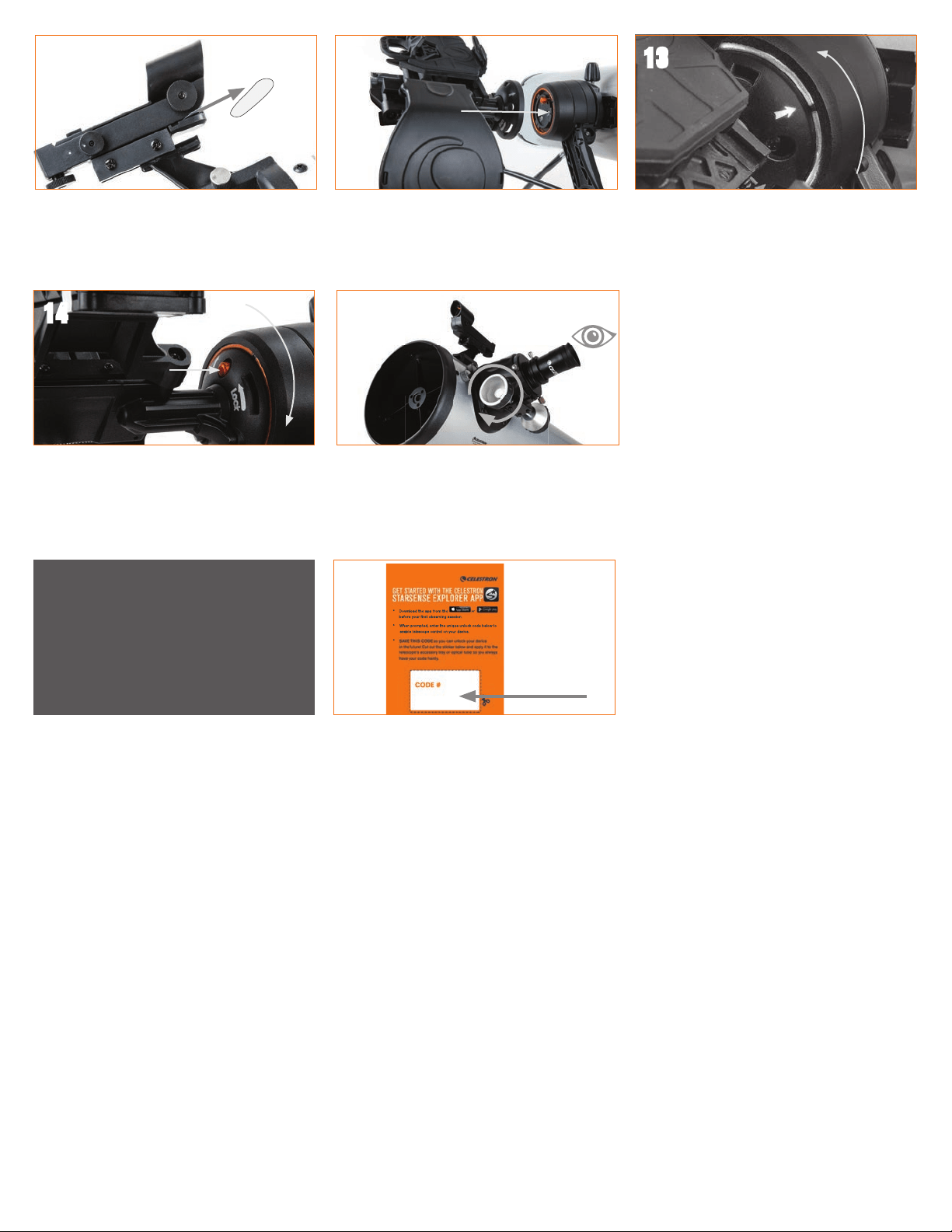

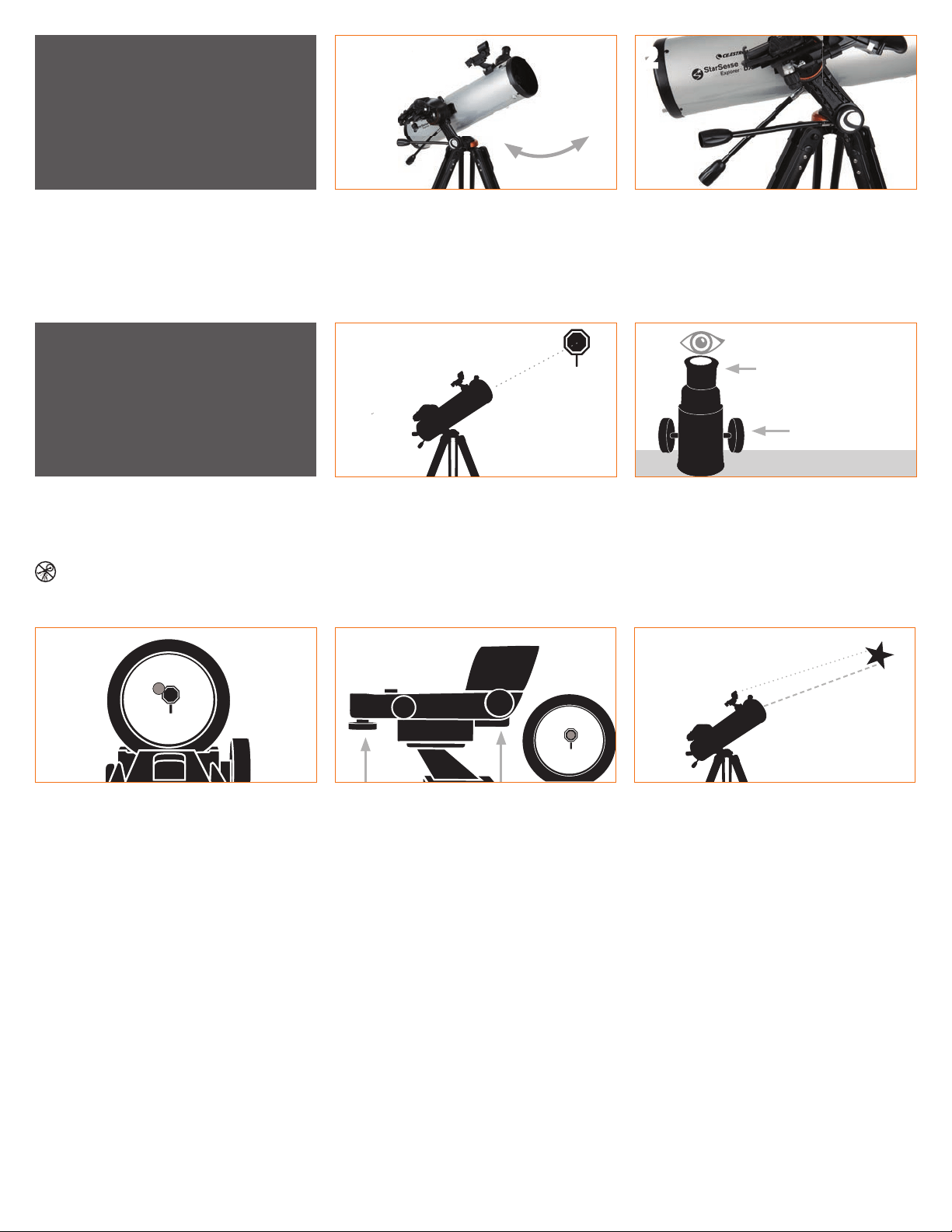

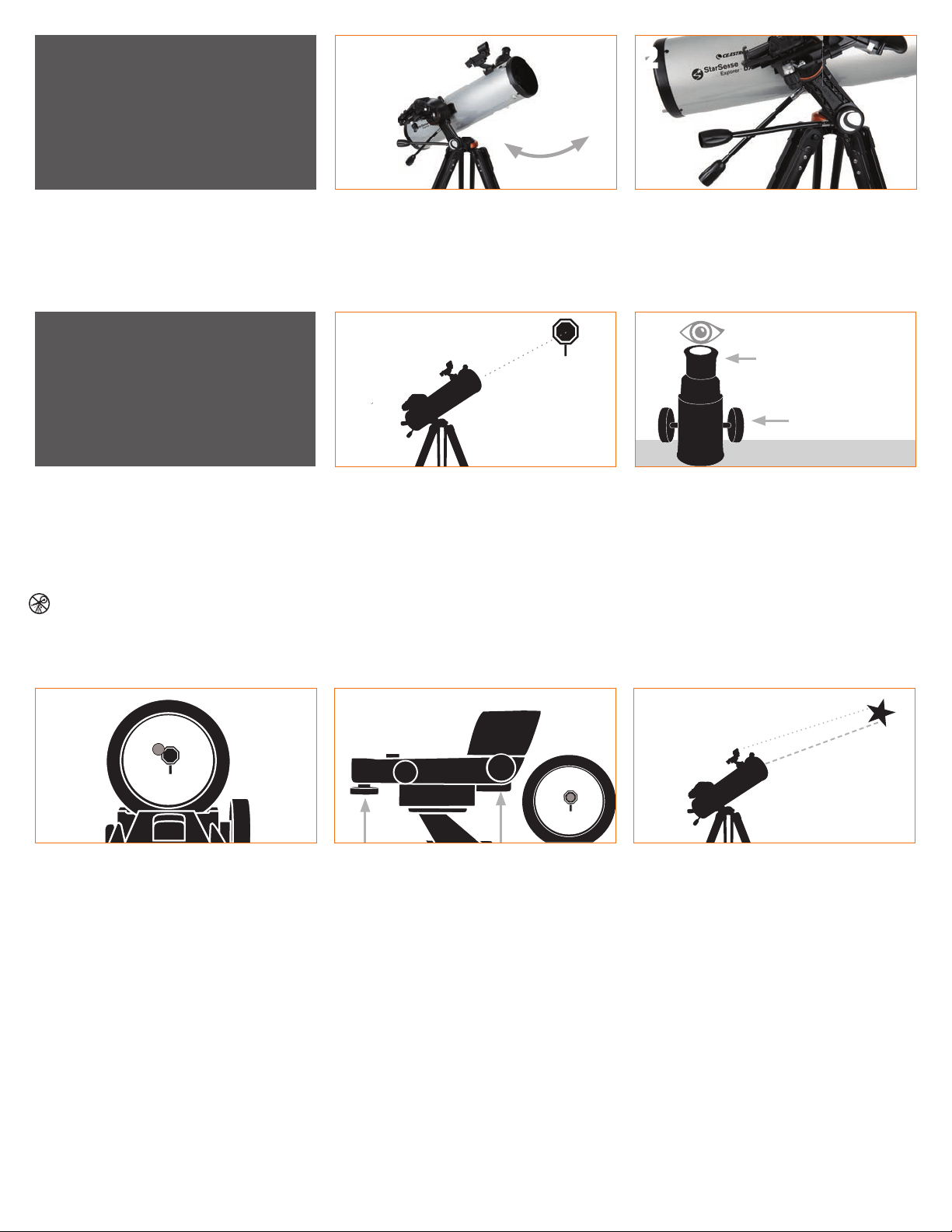

Slide the fi nderscope bracket into the dovetail slot
on the telescope tube near the focuser. The large
window on the fi nder should be facing the front of
the telescope. Secure the bracket by tightening the
setscrew on the dovetail slot.
To attach the slow-motion knobs to your mount,
fi rst locate the supplied hex key hidden inside the
slot in the front of your mount.
2
4
5
6
7
8
9
10
1
3
