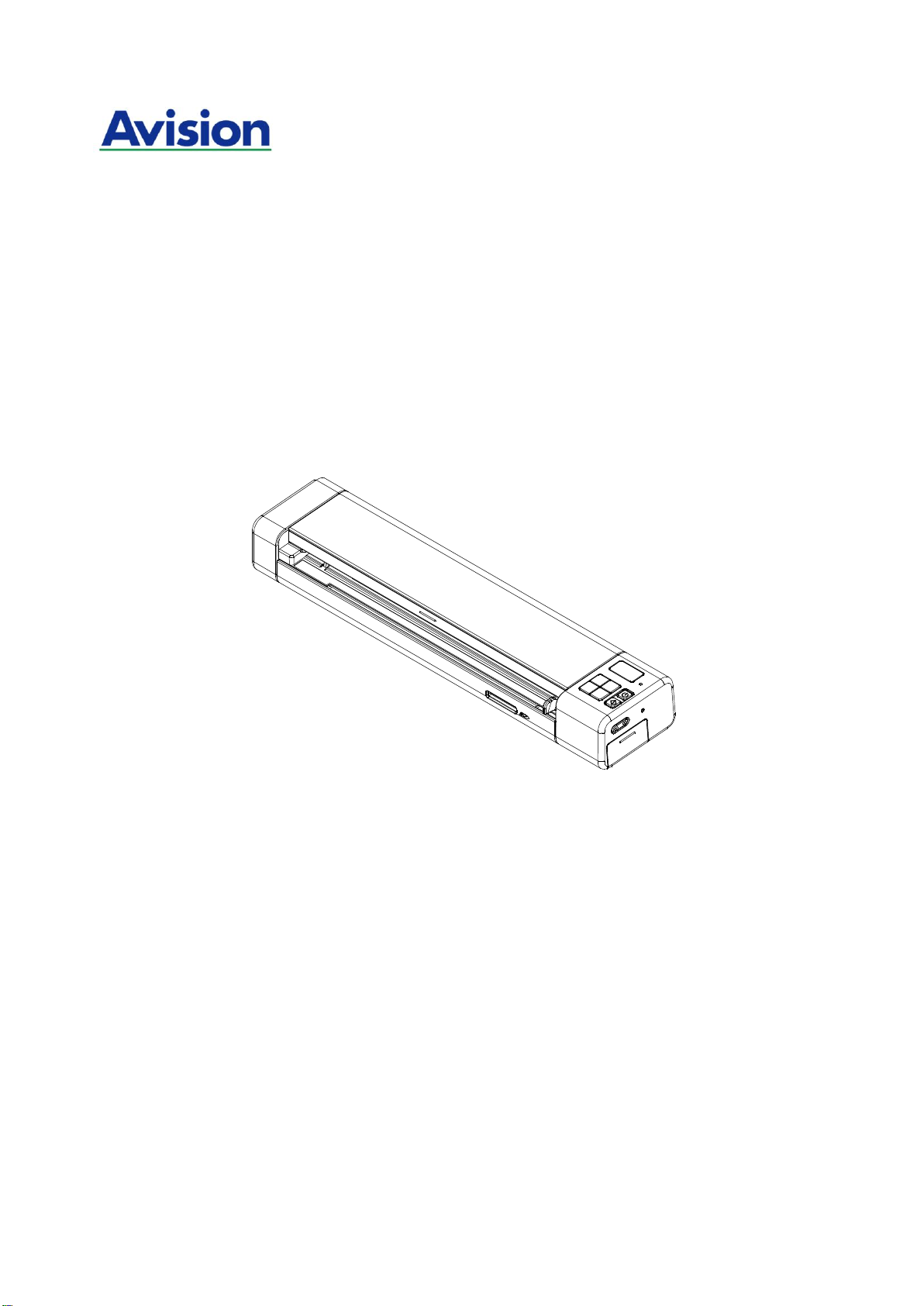

Mobile Scanner
User’s Manual
Regulatory model: FF-2201B
Avision Inc.
ii
Trademarks
Mac, and Mac OS are trademarks of Apple Computer, Inc., registered in the United States.
Microsoft is a U.S. registered trademark of Microsoft Corporation.
Windows 7, Windows 8, Windows 10 and Windows 11 are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
Other brands and product names herein are trademarks or registered trademarks of their
respective holders.
Copyright
All rights reserved. No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language or computer language, in any
form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise, without the prior written permission of AVISION Inc.
Material scanned by this product may be protected by governmental laws and other
regulations, such as copyright laws, the customer is solely responsible for complying with all
such laws and regulations.
Warranty
The information contained in this document is subject to change without notice.
AVISION makes no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of fitness for a particular purpose.
AVISION shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
Disposal of Waste Equipment by Users in Private Union
This symbol on the product or on its packaging indicates that the product can not be disposed
of with your other household waste. Instead it should be sent to appropriate facilities for
recovery and recycling in an effort to protect human health and the environment. Fore more
information about where you can drop off your waste equipment for recycling, please contact
your local city office, your household waste disposal service or the shop where you purchased
the product.
User’s Manual
iii
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users.
2) The transmitter module may not be co-located with any other transmitter or antenna.
IMPORTANT NOTICE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body. To maintain compliance with FCC RF exposure compliance
requirements, please avoid direct contact to the transmitting antenna during transmitting.
IC Notice:
Operation is subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause undesired
operation of the device.
iv
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Règlementd’ Industry Canada
Les conditions de fonctionnement sont sujettes à deux conditions:
(1) Ce périphérique ne doit pas causer d’interférence et.
(2) Ce périphérique doit accepter toute interférence, y compris les interférences pouvant
perturber le bon fonctionnement de ce périphérique.
European Union Regulatory Notice
Products bearing the CE marking comply with the following EU Directives:
Low Voltage Directive 2014/35/EC
EMC Directive 2014/30/EC
Restriction of the use of certain hazardous substances (RoHS) Directive 2011/65/EU
This product satisfies the Class B limits of EN55032, EN55035, and safety requirements of
EN62368-1.
*This machine is certified as Class 1 LED product.
As an ENERGY STAR
®
Partner, Avision Inc. has determined that this
product meets the ENERGY STAR guidelines for energy efficiency.
System Requirements
Windows
CPU:
Intel
®
Core™ 2 Duo or higher
Memory:
32 bit: 2 GB
64 bit: 4 GB
Optical
Drive:
DVD-ROM Drive
USB Port:
USB 2.0
Compatible
Operating
System:
Microsoft Windows 7, Windows 8 (32 bits/64
bits), Windows 10 (32 bits/64 bits)
User’s Manual
v
Macintosh
OS:
Mac OS X 10.12 or later
Computer:
Recommended: Intel
®
Core
TM
Duo Processor 2.4 GHz or
higher
Minimum: Intel
®
Core
TM
Duo Processor 1.83 GHz
PowerPC G5 1.6 GHz
Memory:
Recommended: 1 GB or more
Minimum: 512 MB
Warning and Precautions of the lithium-ion battery
Warning:
Danger warning to prevent the possibility of the battery from leaking, heating, explosion,
please observe the following precautions:
Don’t immerse the battery in water and seawater. Please put it in cool and dry
environment if no using.
Do not discard or leave the battery near a heat source as fire or heater
Being charged, using the battery charger specifically for that purpose
Don’t reverse the positive and negative terminals
Don’t connect the battery to an electrical outlet directly.
Don’t connect the positive and negative terminal directly with metal objects such
as wire. Short terminals of battery is strictly prohibited, it may damage battery.
Do not transport and store the battery together with metal objects such as
necklaces, hairpins.
Do not strike, throw or trample the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp
object.
Do not use lithium ion battery and others different lithium polymer battery model
in mixture.
Prohibition of use of damaged cells.
Don’t bend or fold sealing edge. Don’t open or deform folding edge. Don’t fillet the
end of the folding edge.
Don’t fall, hit, bend battery body.
Battery pack designing and packing Prohibition injury batteries.
Never disassemble the cells.
Keep the battery away from babies.
Any components contacting these two edges, they must be insulated.
vi
Caution:
Risk of explosion if battery is replaced by an incorrect type. Dispose the battery
according to local regulations.
Never place batteries or devices on or in heating devices, such as microwave ovens,
stoves, or radiators. Batteries may explode when overheated or its performance
will be degenerate and its service life will be decreased.
Do not use it in a location where is electrostatic and magnetic greatly, otherwise,
the safety devices may be damaged, causing hidden trouble of safety.
If the battery leaks, and the electrolyte get into the eyes. Do not wipe eyes,
instead, rinse the eyes with clean running water, and immediately seek medical
attention. Otherwise, eyes injury can result.
If the battery gives off an odor, generates heat, becomes discolored or deformed,
or in any way appear abnormal during use, recharging or storage, immediately
remove it from the device or battery charge and stop using it.
Avoid charging batteries for more than a week, as overcharging may shorten
battery life. Over time, unused batteries will discharge and must be recharged
before use.
Disconnect chargers from power sources when not in use.
Use batteries only for their intended purposes.
Store the battery at 0°C to 40°C.
Avoid exposing your device and batteries to very cold or very hot temperatures.
Extreme temperatures can cause the deformation of the device and reduce the
charging capacity and life of your device and batteries.
Prevent batteries from contacting metal objects, as this can create a connection
between the + and – terminals of your batteries and lead to temporary or
permanent battery damage.
In case the battery terminals are dirt, clean the terminals with a dry cloth before
use. Otherwise power failure or charge failure may occur due to the poor
connection with the instrument.
Be aware discharged batteries may cause fire. Follow all local regulations when
disposing of used batteries or devices.
Never crush or puncture the battery. Avoid exposing the battery to high external
pressure, which can lead to an internal short circuit and overheating.
User’s Manual
vii
Product Safety Guide
Please clearly read all these instructions, and follow all instructions and warnings before installing
and using the device.
The following indications are used in this document to obviate any chance of accident or damage to
you and/or the device.
WARNING
Indicates potentially hazardous situations, which if instructions are not
followed, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if instructions are not
followed, may result in minor or moderate injury or damage to property.
WARNING
Use only the USB cable that came with your device and avoid abrasions, cuts, fraying,
crimping, and kinking. Using any other USB cable could cause fire, electrical shock, or injury.
Place the device close enough to the computer so that the interface cable can easily reach
between the device and the computer.
Do not place or store the device:
Outdoors
Near excessive dirt or dust, water, or heat sources
In locations subject to shocks, vibrations, high temperature or humidity, direct sunlight,
strong light sources, or rapid changes in temperature or humidity
Do not use the device with wet hands.
Never disassemble, modify, or attempt to repair the device or device option by yourself,
except as specifically explained in the device's documentation. This could cause fire, electrical
shock, or injury.
Unplug the device and the USB cable, and refer servicing to qualified service personnel under
the following conditions:
Liquid has entered the device.
Object has entered the device.
The device has been dropped, or the case has been damaged.
The device does not operate normally (i.e. appearance of smoke, strange smell, odd
noise, etc.), or exhibits a distinct change in performance.
Unplug the device and the USB cable before cleaning.
CAUTION:
Do not locate the device on rackety or aslope tables. Do not locate the device on unstable
surface. The device may fall down and this may result in injury.
Do not place heavy objects on the unit. It may cause unbalance and the device may fall down.
This may result in injury.
Store the AC Power cord/USB cable bundled out of the reach of children to avoid the risk of
injury.
Keep plastic bags bundled out of the reach of children or throw them away to avoid the
danger of suffocation.
If you are not going to use the device for a long period, unplug the USB cable from the
electrical outlet.
viii
Table of Contents
1. Overview ............................................................................1-1
1.1 Introduction ..................................................................................... 1-1
1.2 Package Contents ............................................................................. 1-1

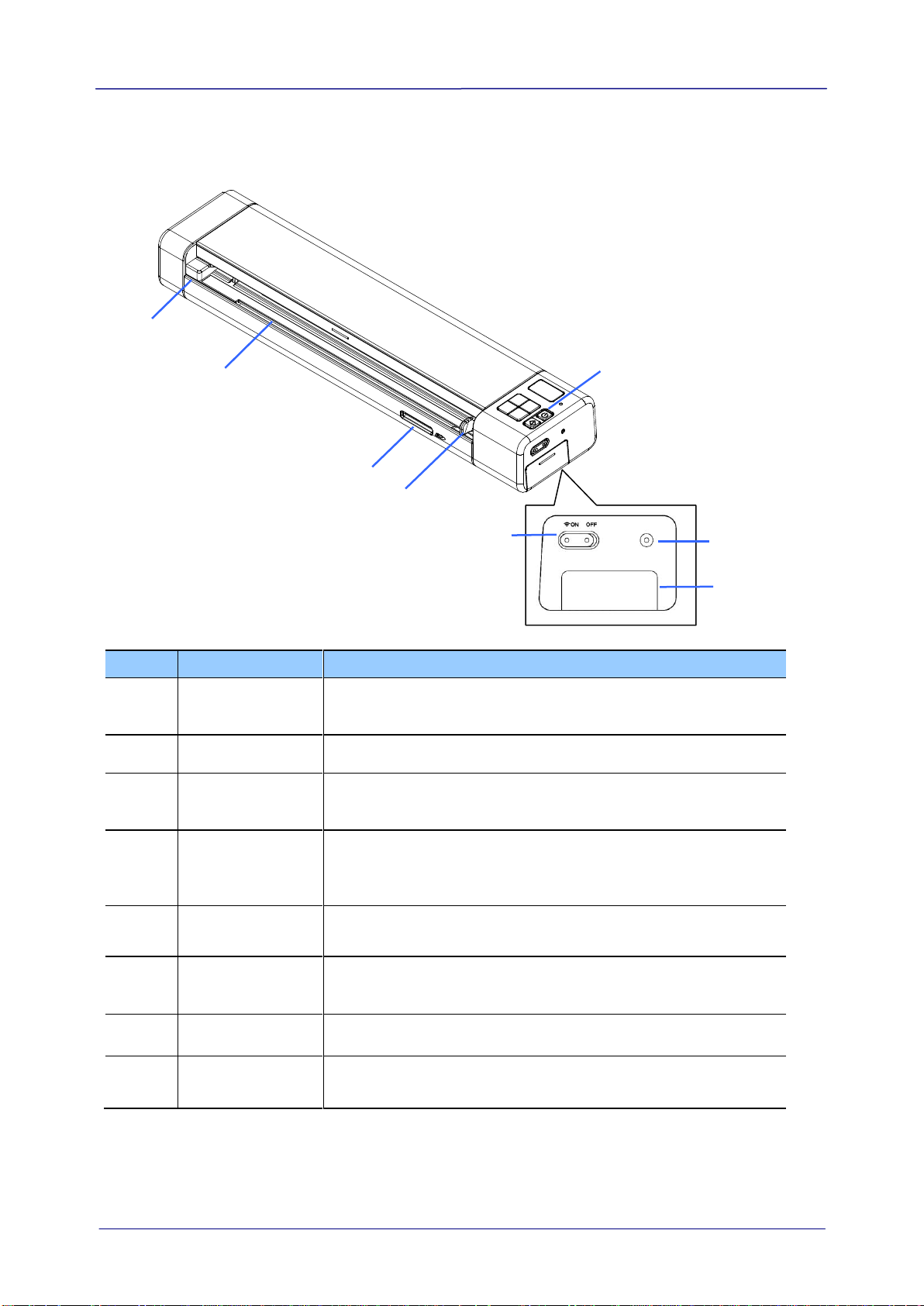

1.3 Front View ....................................................................................... 1-3
1.4 Rear View ........................................................................................ 1-4
1.5 Control Panel ................................................................................... 1-5
1.6 LCD Display ..................................................................................... 1-6
2. Installation .........................................................................2-1
2.1 Precautions ...................................................................................... 2-1
2.2 Removing the Protective Tape ............................................................ 2-1
2.3 Installing the Battery ........................................................................ 2-2
2.4 Charging the Battery ......................................................................... 2-3
2.5 Inserting a SD Card .......................................................................... 2-3
2.6 Turning on the Scanner ..................................................................... 2-4
2.7 Setting the Clock .............................................................................. 2-4
2.8 Using the Auto Power Off Function ...................................................... 2-5
2.9 Changing Your Resolution .................................................................. 2-5
2.10 Formatting Your SD Card ................................................................... 2-6
3. Scan Preparation ................................................................3-1
3.1 Suitable and Unsuitable Original Types ................................................ 3-1
3.2 Loading a Document ......................................................................... 3-2
4. Scan Using the Control Panel ..............................................4-1
4.1 Start a Scan ..................................................................................... 4-1
4.2 View or Download the Scanned Images ............................................... 4-2
4.2.1 Computer System Requirements ............................................. 4-2
4.2.2 Windows Operating System .................................................... 4-2
4.2.3 Macintosh Operating System ................................................... 4-3
4.2.4 Access Your Scanned Images .................................................. 4-3
4.2.5 Disconnect the Scanner .......................................................... 4-3
5. Scan Using Your Computer .................................................5-1
5.1 Installing the Scanner Driver .............................................................. 5-1
5.2 Connecting the Scanner to Your Computer ........................................... 5-3
5.3 Switch to the PC Mode ....................................................................... 5-4
5.4 Scan a Document ............................................................................. 5-4
6. Access the scanned images through Wi-Fi (SD Mode) .........6-1
6.1 Access the Scanned Image through Wi-Fi............................................. 6-1
6.2 Use Options under Image Thumbnails ................................................. 6-3
6.3 Reset Login Settings ......................................................................... 6-5
6.4 Exit the Wi-Fi Mode ........................................................................... 6-5
User’s Manual
ix
7. Enhancing Your Image Quality Using the Scanner Properties
Dialog Box ..........................................................................7-1
7.1 Buttons on the Scanner Properties Dialog Box ...................................... 7-2
7.2 Showing or Hiding Tabs ..................................................................... 7-4

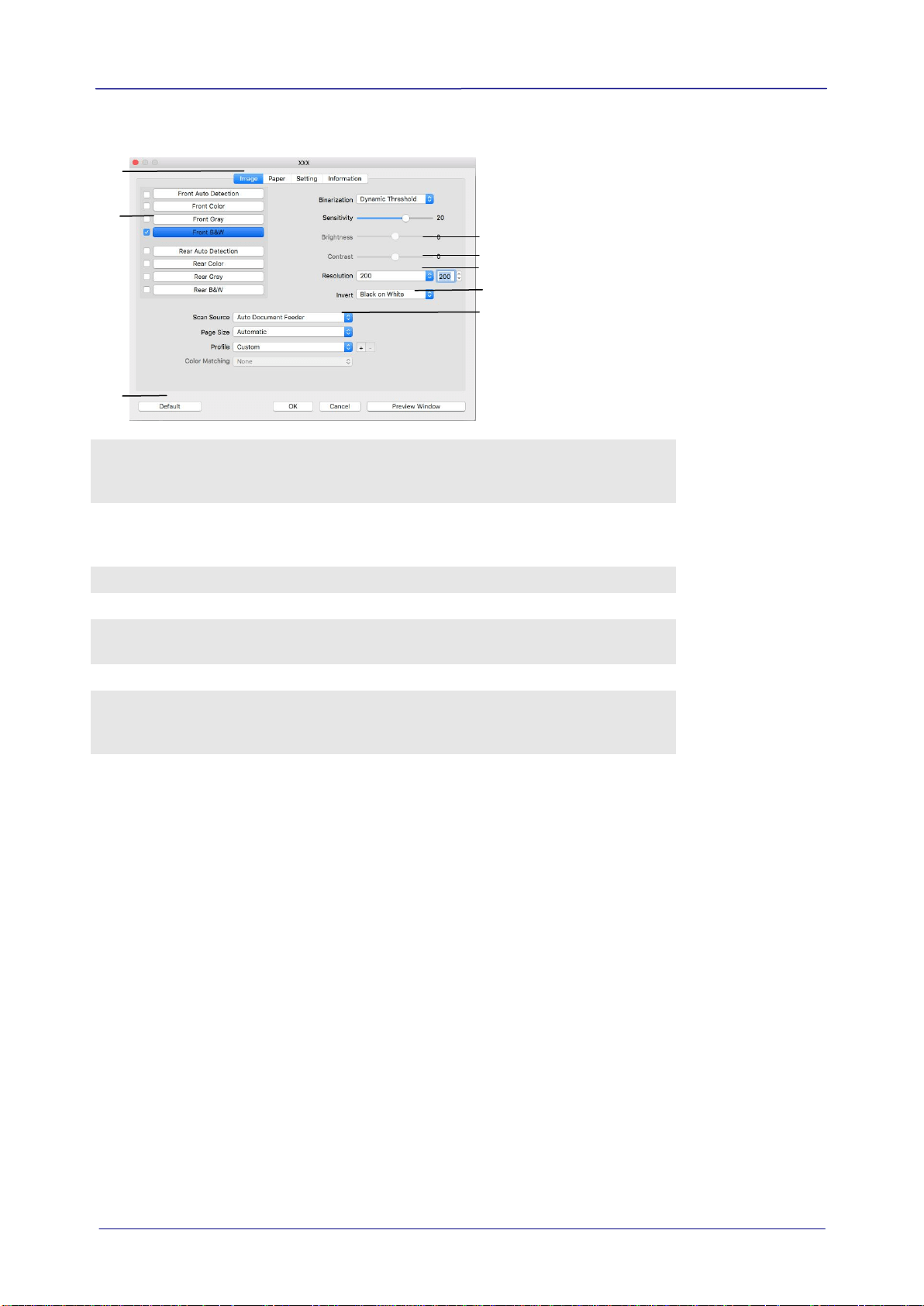

7.3 The Image Tab ................................................................................. 7-6
7.3.1 The Image Selection Box ........................................................ 7-7
7.3.2 Other Image Options............................................................. 7-10
7.3.3 Scanning color images .......................................................... 7-15
7.3.4 Scanning grayscale images .................................................... 7-15
7.3.5 Scanning B&W images .......................................................... 7-15
7.3.6 Editing Profiles ..................................................................... 7-16
7.4 The Compression Tab ....................................................................... 7-19

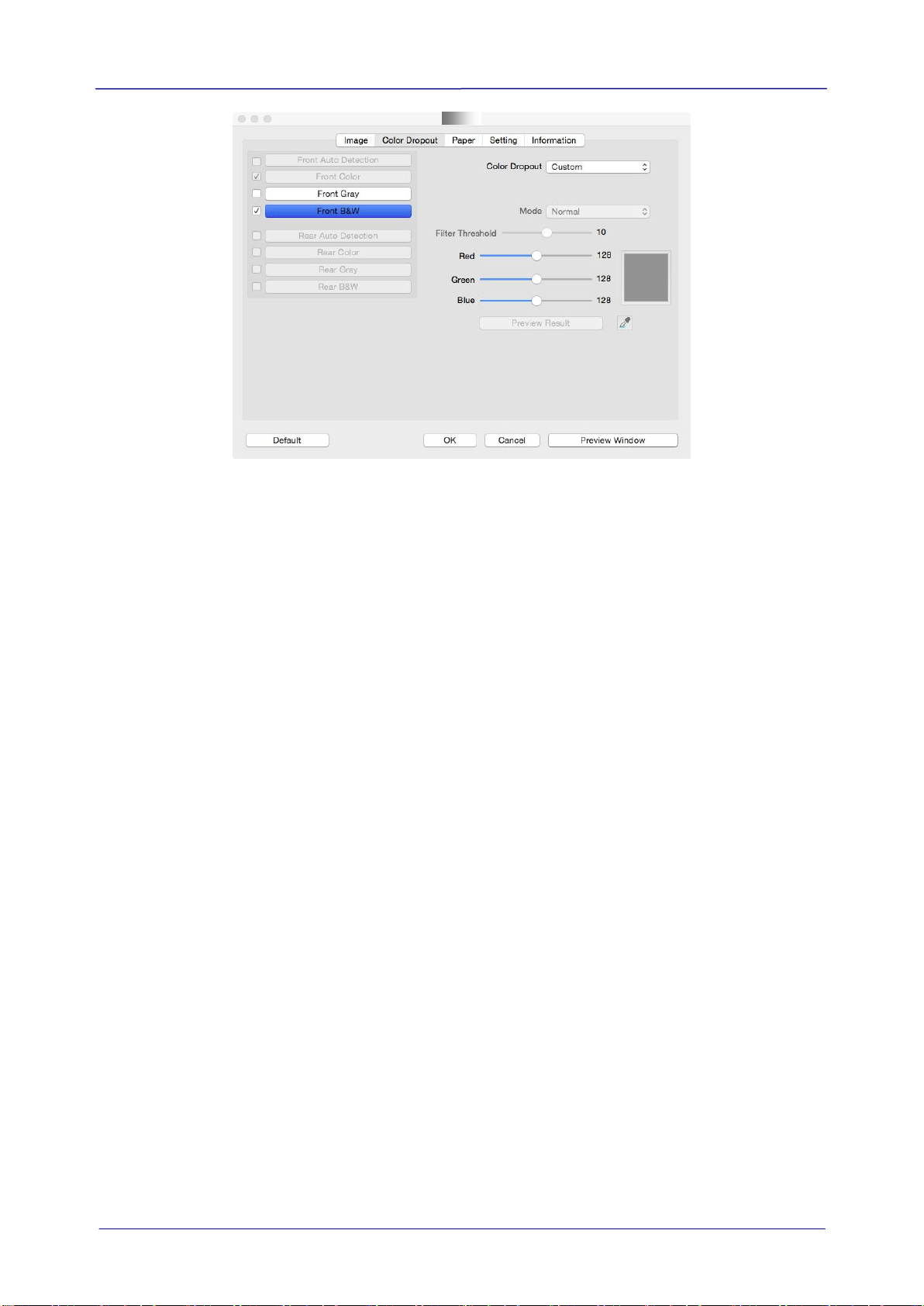

7.5 The Color Dropout Tab ..................................................................... 7-21
7.5.1 Color Dropout Selection ........................................................ 7-21
7.6 The Paper Tab ................................................................................. 7-26
7.6.1 Cropping ............................................................................ 7-27
7.6.2 Other Paper Selection .......................................................... 7-31
7.7 The Multi-Feed Detection Tab ............................................................ 7-35
7.8 The Preview Tab .............................................................................. 7-37
7.9 The Enhancement Tab ...................................................................... 7-38
7.10 The Rotation Tab ............................................................................. 7-43
7.11 The Separation Tab .......................................................................... 7-47
7.12 The Setting Tab ............................................................................... 7-51
7.13 The Imprinter Tab ............................................................................ 7-53
7.14 The Information Tab......................................................................... 7-56
8. Using the Button .................................................................8-1
8.1 Installing the Software ...................................................................... 8-1
8.2 Checking the Button Configurations before Scanning ............................. 8-1
8.3 Scanning From One Touch of the Buttons............................................. 8-4
9. Maintenance .......................................................................9-1
9.1 Cleaning the Scanner Glass, and Rollers .............................................. 9-1
9.2 Calibrating the Scanner ..................................................................... 9-2
10. Troubleshooting ................................................................ 10-1
10.1 Clearing a paper jam ........................................................................ 10-1
10.2 Error Conditions............................................................................... 10-2
10.3 Frequently asked questions and answers ............................................ 10-3
10.4 Technical Service ............................................................................. 10-7
11. Specifications ................................................................... 11-1
User’s Manual
1-1
1. Overview

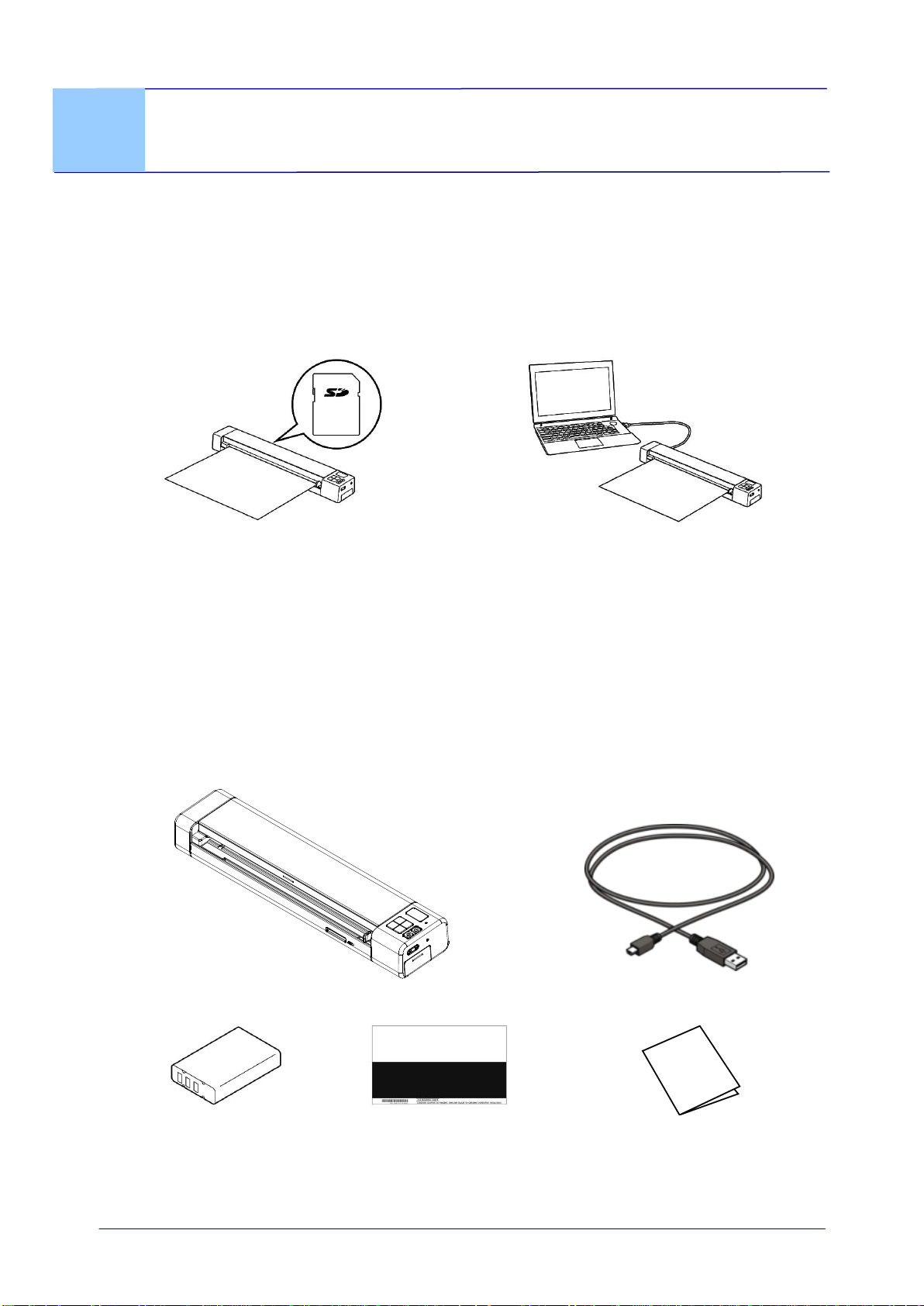

1.1 Introduction
Congratulations on your purchase of the mobile scanner. This scanner provides you flexibility
to start easy scans (SD mode) without connecting it to a computer or you may use it like a
regular scanner to start advanced scans (PC mode) by installing the scanner driver and
connecting to a computer.
SD Mode PC Mode
Before you install and operate the product, please take a few minutes to read through this
manual. It provides proper instructions for you to install, operate and maintain the product.
The following figure indicates the package contents. Please check all the items against your
checklist. If you do not receive all the items, please contact your authorized local dealer
immediately.
1.2 Package Contents
Scanner
USB Cable
Li-Ion Battery
Calibration Sheet
Quick Guide
1-2
Note:
1. Only use the Li-ion Battery AP-120 made by APACK/CB-PD(NP-120) made by City Bright
included in the product.
2. Please unpack the packing carefully, and check the contents against the checklist. If any
items are missing or damaged, please contact your dealer immediately.
3. To access more service supports, visit www.avision.com to register your Avision’s product.
User’s Manual
1-3
1.3 Front View
Item
Name
Description
1
Feeder slot
left edge
Insert original into the feed slot, printed side UP and
aligned with the left edge to begin scanning.
2
Feed slot
Feed your original to the slot.
3
Memory card
slot
Used to insert a memory card.
4
Sliding paper
guide
Slide the guide up to the right edge of the original
before inserting original into the feed slot to ensure
proper alignment when scanning.
5
Wi-Fi switch
Turn on and off the Wi-Fi connection.
6
Battery
compartment
Slide to remove the cover.
7

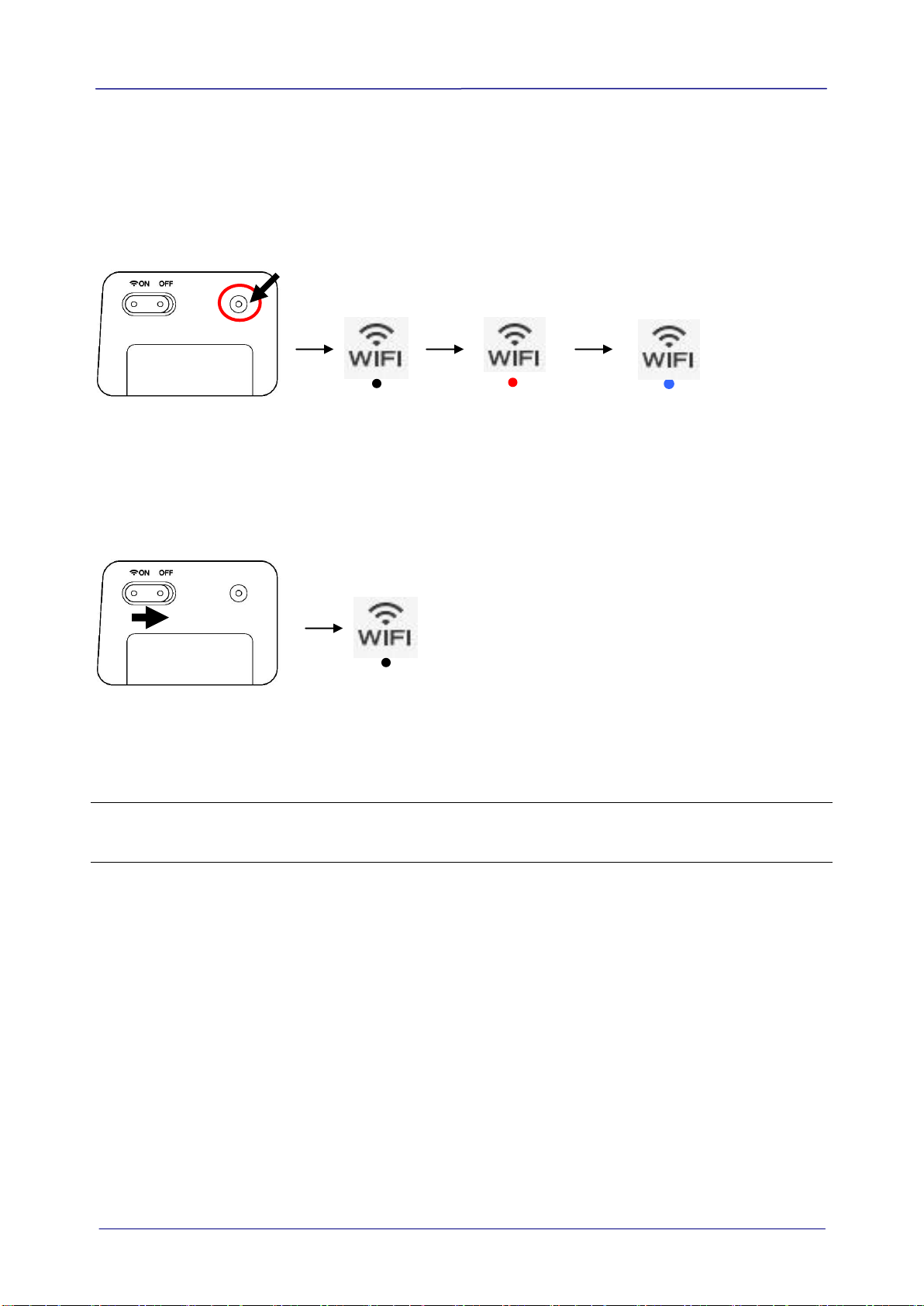

Reset button
Press to reset Wi-Fi login to factory default settings.
8
Power button
Press to turn on the power.
Long press to turn off the power.
3
1
2
8
5
4
6
7
1-4
1.4 Rear View
Item
Name
Description
1
Micro USB port
Used to plug the micro end of the USB cable
to connect to PC.
1
User’s Manual
1-5

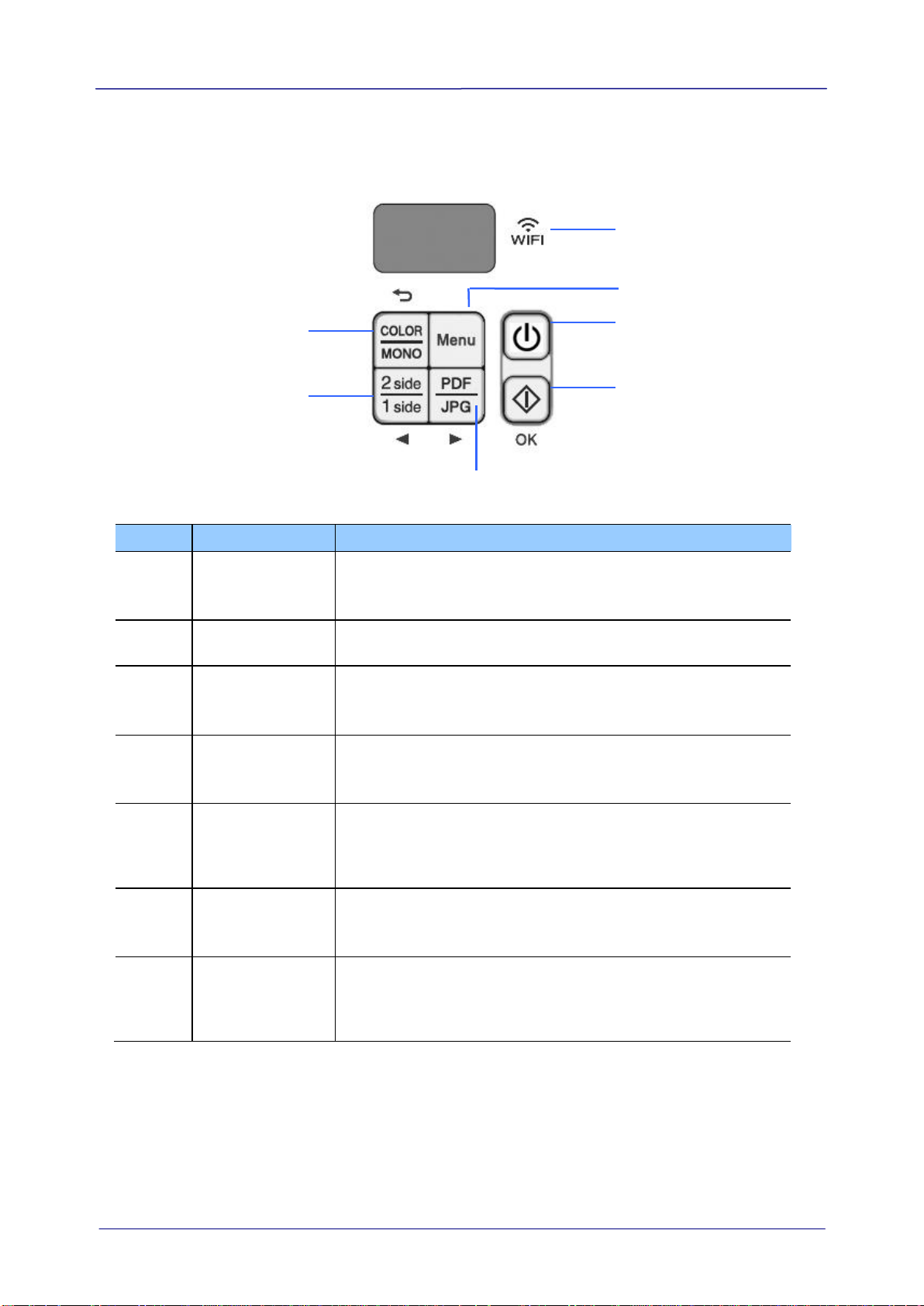

1.5 Control Panel
Item
Name
Description
1
Wi-Fi
connection
Indicate the status of the Wi-Fi connection.
2
Menu
Press to configure the menu settings.
3
Power button
Press to turn on the power.
Long press to turn off the power.
4
Start/OK
button
Press to start a scan. (PC mode via PaperAir V2)
Press to confirm a selection.
5
PDF/JPG
Press to change your file format. Choice: PDF,
JPG.
Press to scroll through the menu and option items.
6
2 Side/1 Side
Press to choose 2-Side or 1-Side scan.
Press to scroll through the menu and option items.
7
Color/Mono
Press to change your color mode. Choice: Color,
Mono.
Press to return to the previous screen.
7
6
1
2
3
4
5
1-6

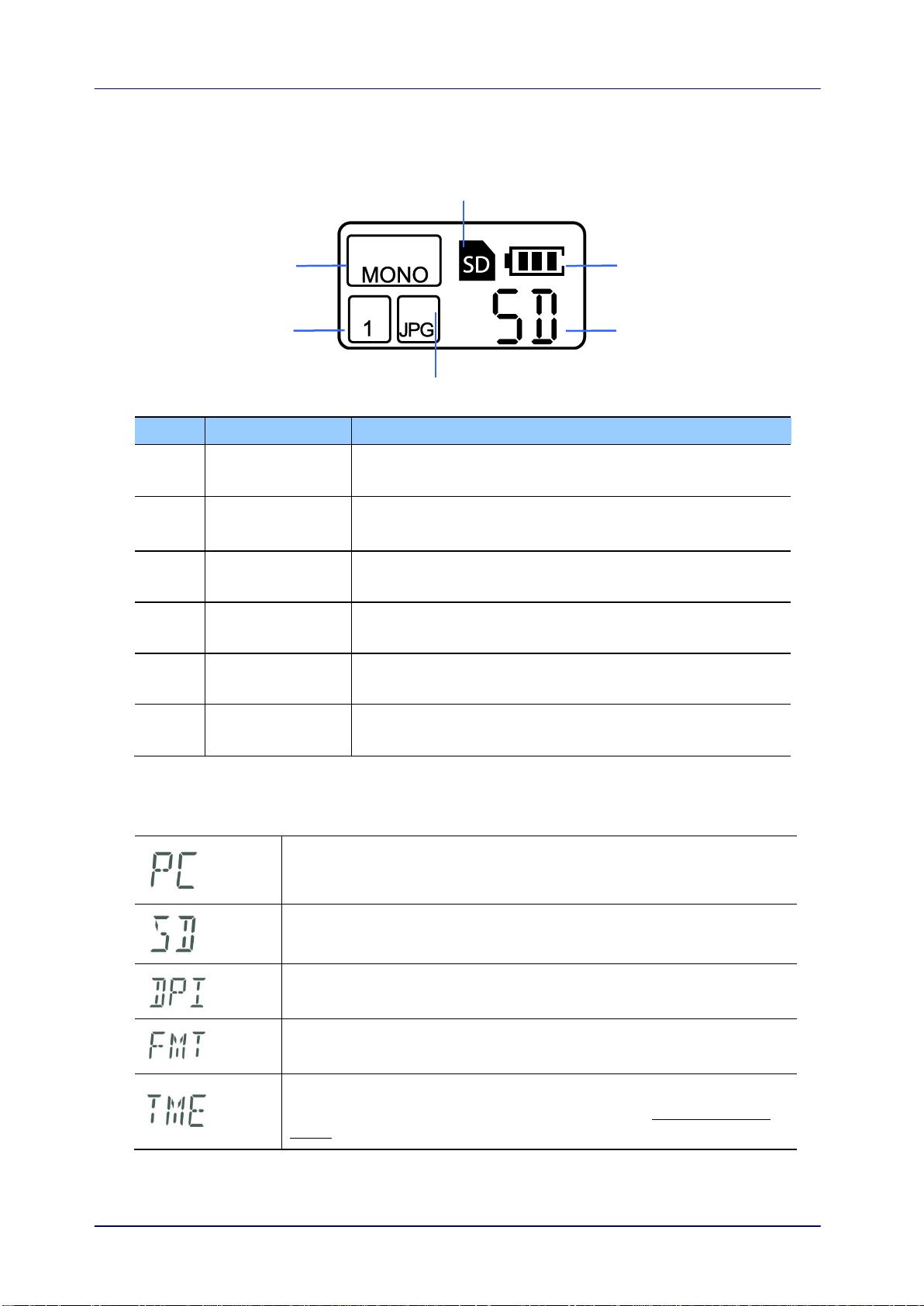

1.6 LCD Display
Item
Name
Description
1
SD
Appears when the SD card is inserted.
2
Battery status
Indicates the power status of the battery.
3
SD/PC
Displays the menu item or current status. See the
following LCD message.
4
PDF/JPG
Displays the file format.
5
1 /2
Displays the scan mode (1: single-side, 2: double-
side)
6
Color mode
Displays the color mode.
LCD Message
The scanner is connected to your computer in TWAIN mode.
The scanner is in SD mode. (Scan can be operated via the
control panel and the scanned image is stored in the SD card.)
The scanner displays the menu to change your resolution.
The scanner displays the menu to format the SD card.
The scanner displays the menu to set its clock.
For more information on how to set the clock, see Setting the
Clock on page 2-4.
6
5
2
3
4
1
User’s Manual
1-7

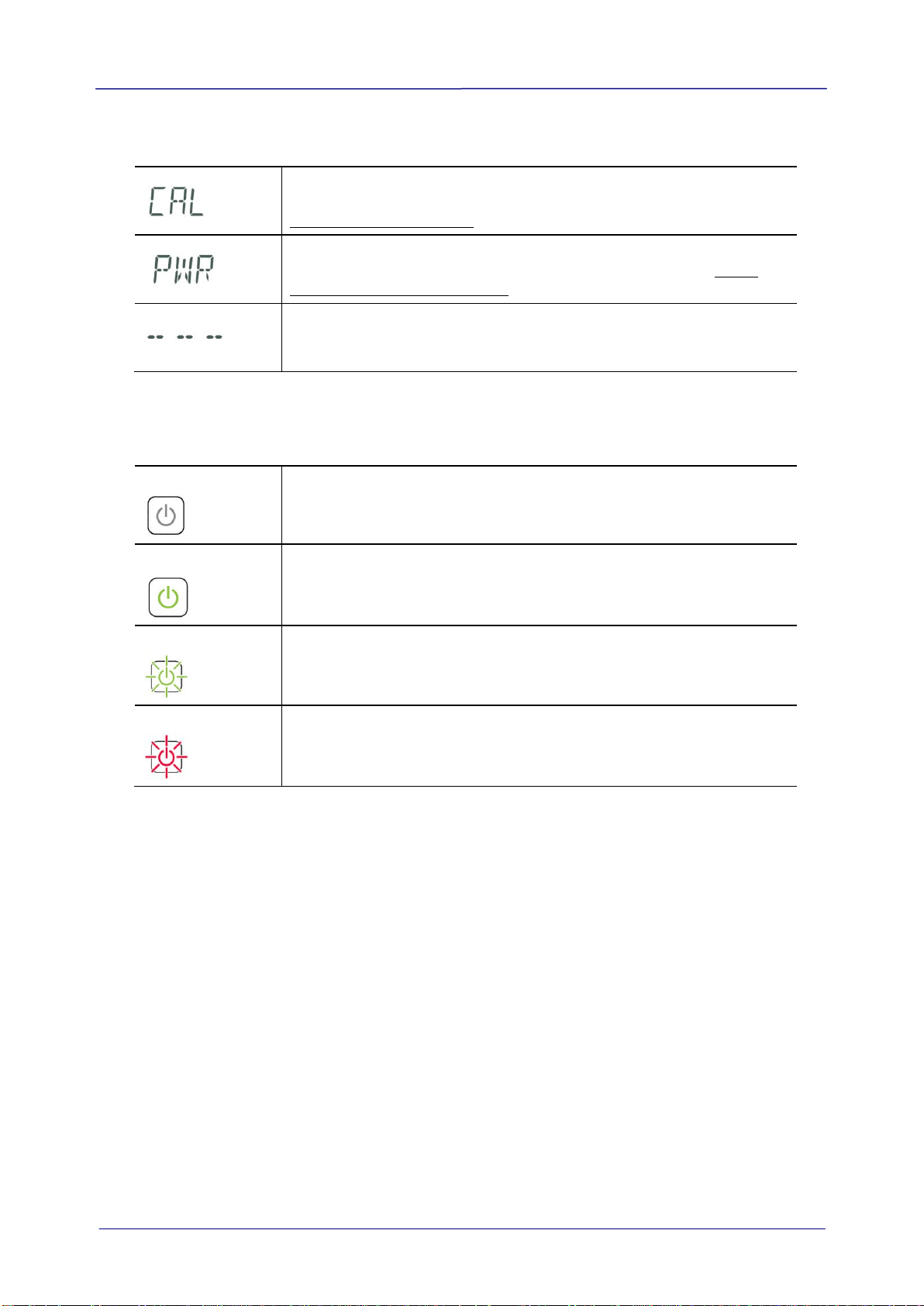

The scanner displays the menu to calibrate the scanner.
For more information on how to calibrate the scanner, see
Calibrating the Scanner on page 9-3.
The scanner displays the menu to set auto power off.
For more information on how to use this function, see Using
the Auto Power Off Function on page 2-5.
The scanner is not connected to your computer or there is no
SD card inserted.
Power Button LED Indication
No light
The scanner is not connected to the computer or the Li-ion
battery is not inserted.
Green
The scanner is ready to scan or is charging the battery.
Blinking Green
The scanner is scanning a document.
Blinking Red
An error has occurred. Top cover is opened or the document is
jammed.
User’s Manual
2-1
2. Installation
2.1 Precautions
Keep the product out of direct sunlight. Direct exposure to the sun or excessive
heat may cause damage to the unit.
Do not install the product in a humid or dusty place.
Place the product securely on an even, flat surface. Tilted or uneven surfaces may
cause mechanical or paper-feeding problems.
Retain the product box and packing materials for shipping purposes.

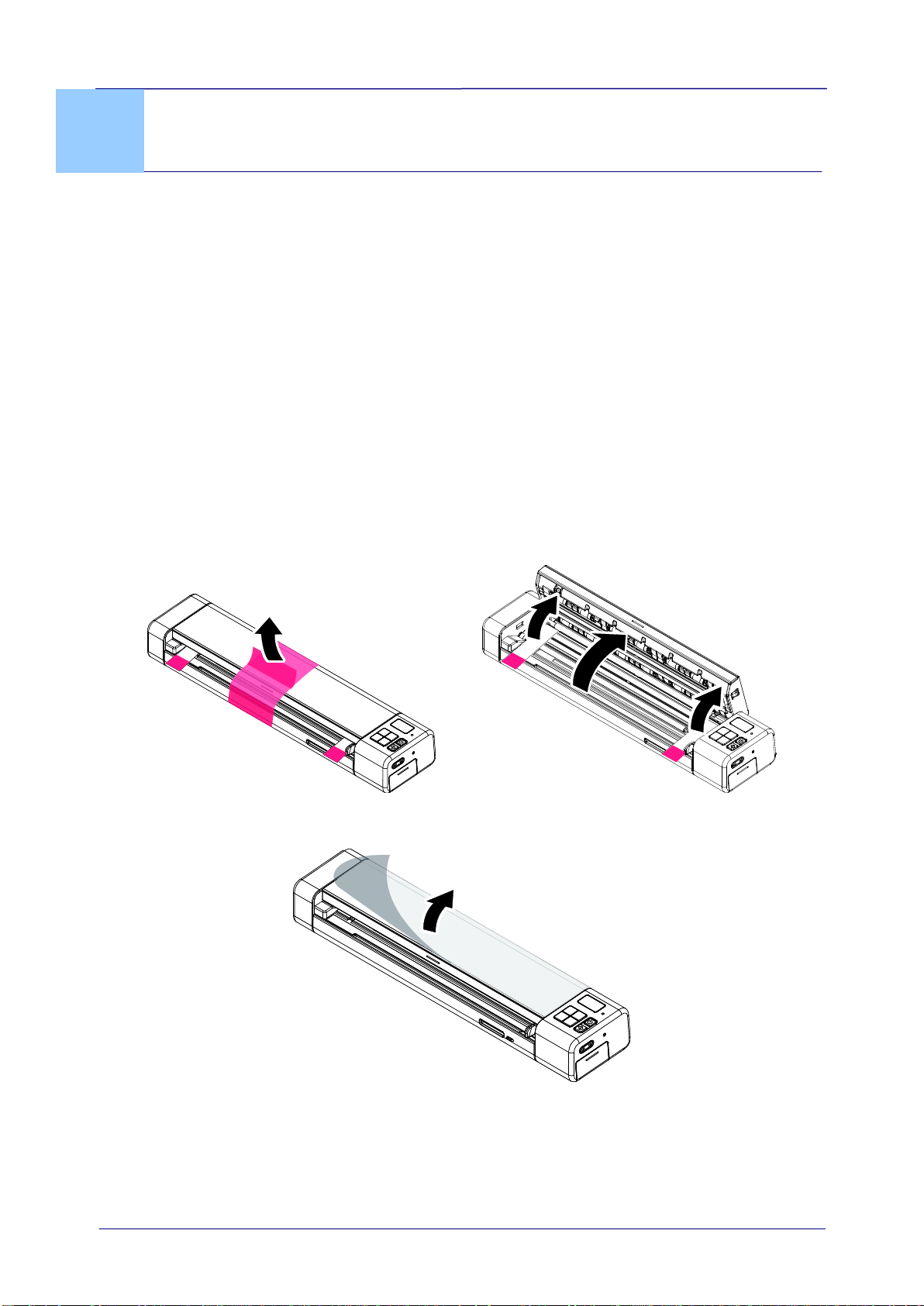

2.2 Removing the Protective Tape
Remove the protective tapes on the scanner and inside the document feeder as illustrated in
below.
2-2

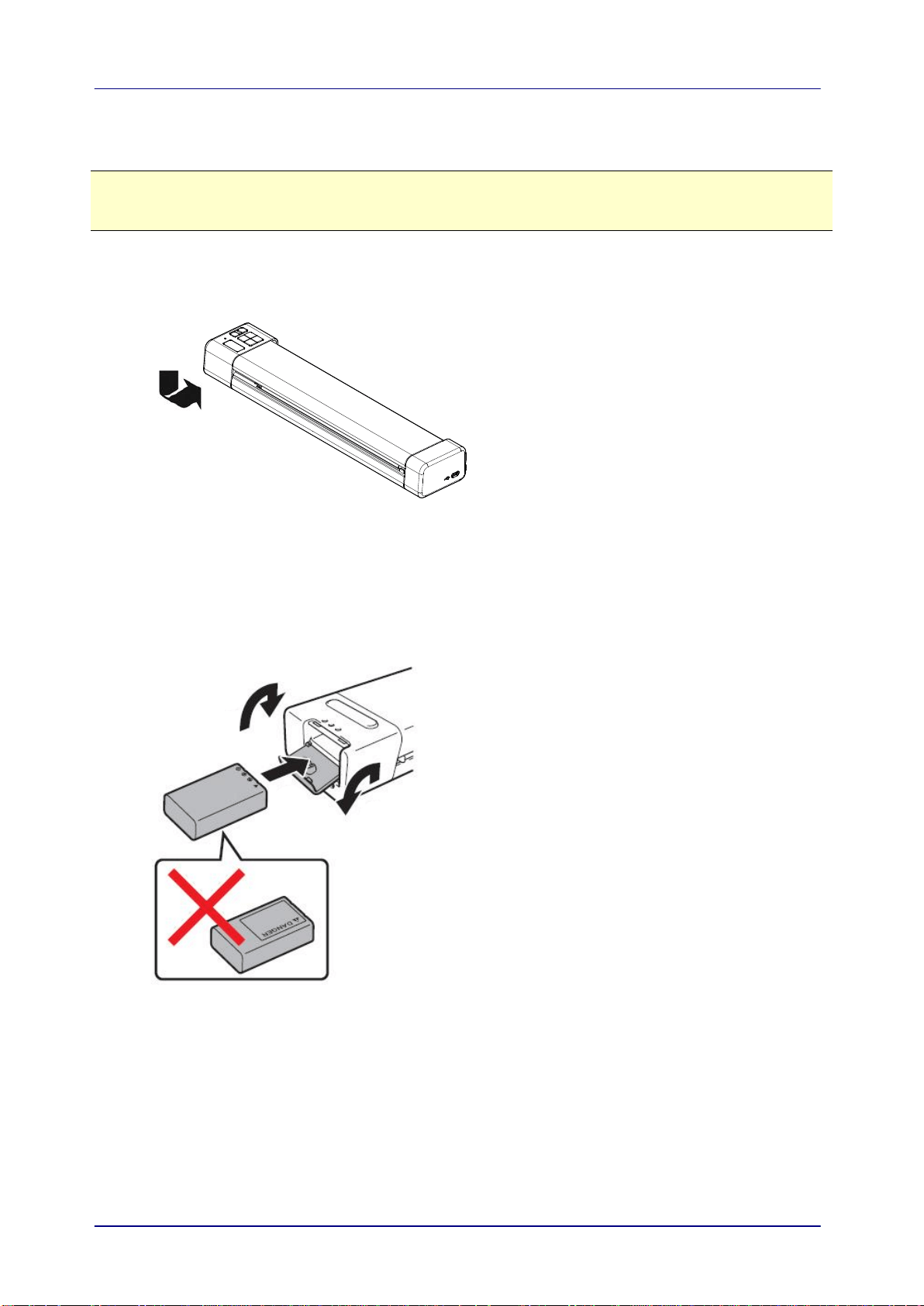

2.3 Installing the Battery
Important!
Note the scanner scans a document using the power from the battery in both the SD and PC
mode. Be sure to install the battery and charge it when the battery power is getting low.
1. Turn over the scanner.
2. Open the battery cover .
3. Load the battery into the battery container . Make sure the battery is loaded with the
correct polarity. Note the copper strips on the battery should be touching the copper
strips on the device. Note: Please use only the supplied battery.
4. Close the battery cover .
User’s Manual
2-3

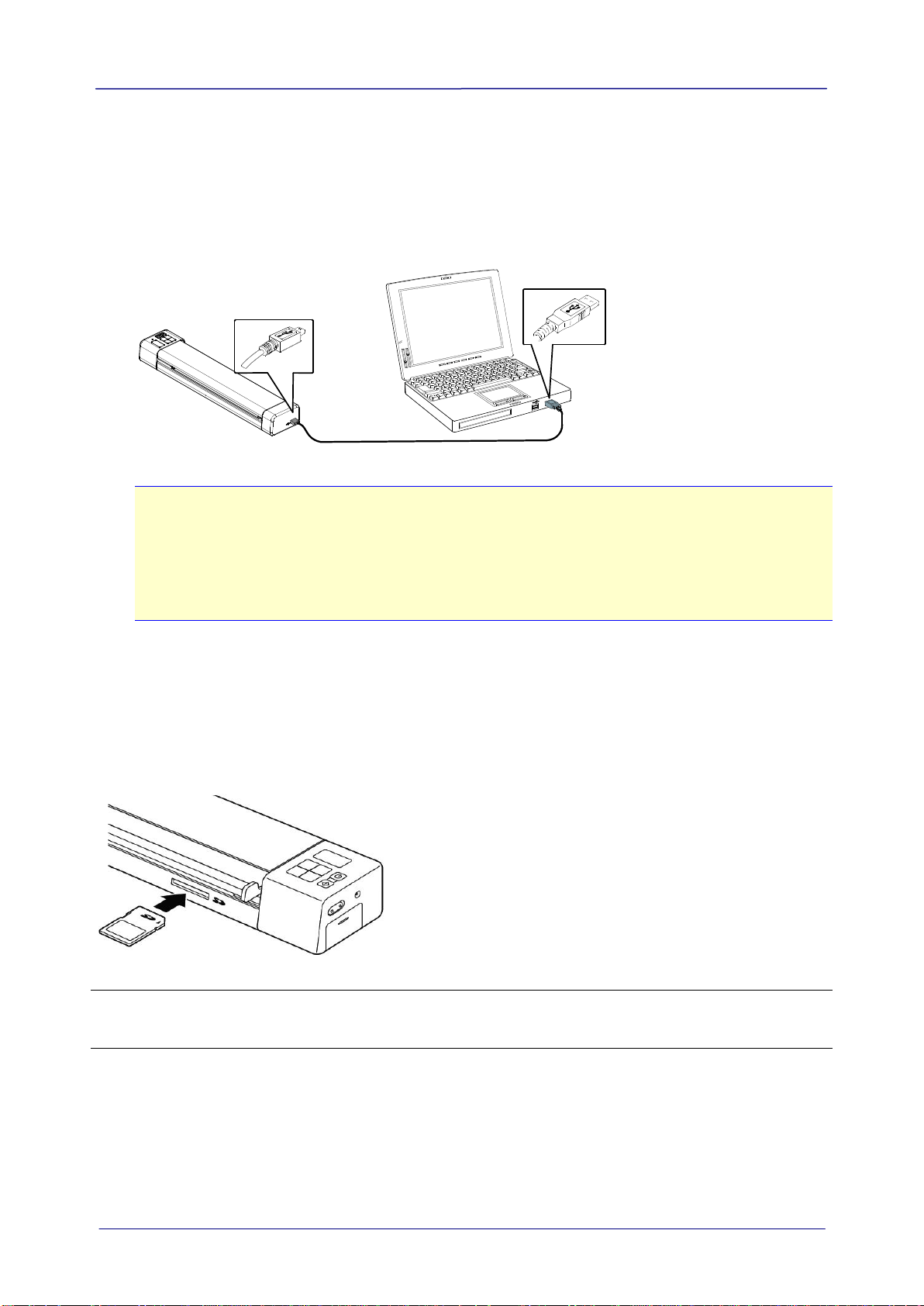

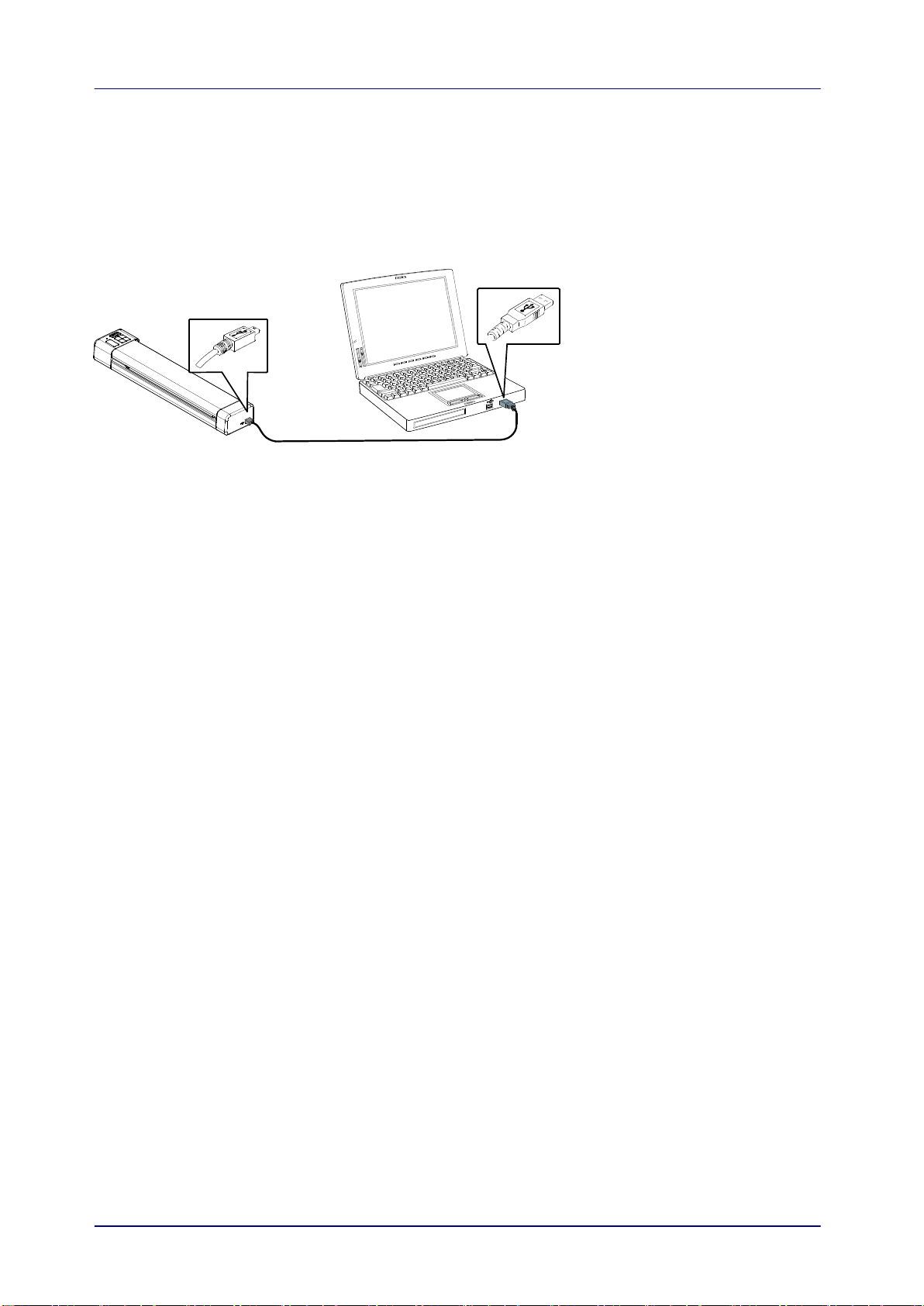

2.4 Charging the Battery
1. Turn off the scanner.
2. Connect the micro USB connector to the USB port of the scanner.
3. Connect the other USB connector to the USB port on your computer.
Important:
For first-time use, please charge the battery for at least 4 hours.
While charging the battery, the green LED light will be solidly on. After the charging
is completed, the LED light will be extinguished.
When the battery is fully charged, an A4-sized of page can be scanned for 200 times
at 300 dpi (or 150 times at 600 dpi)!
2.5 Inserting a SD Card
Install a SD card to the SD. Gently press in until the SD card is latched.
Note:
The scanner only accepts SD card in FAT16 or FAT32 format. NTFS and other file formats are
not supported.
2-4
2.6 Turning on the Scanner
Press the Power button to turn on the scanner. The Power LED will be lit up and the default
setting will be displayed in the LCD screen.
2.7 Setting the Clock
Before using the scanner, set the clock to the correct time.
1. Turn on the scanner.
2. On the scanner’s control panel, press [Menu].
3. Press or until [TME] is displayed on the LCD screen.
4. Press [Start/OK].
5. Press or to set year.
6. Press [Start/OK].
7. Repeat step 5 and step 6 to set the month, date, hour, minutes.
8. After setting the minutes, the LCD displays OK, indicating the clock is set.
User’s Manual
2-5
2.8 Using the Auto Power Off Function
1. Turn on the scanner.
2. On the scanner’s control panel, press [Menu].
3. Press or until [PWR] is displayed on the LCD screen.
4. Press [Start/OK].
5. To enable the auto power off function, press or to select YES.
Or
6. To disable the auto power off function, press or to select NO.
7. Press [Start/OK].
8. The LCD displays OK, indicating the auto power off has been set.
2.9 Changing Your Resolution
1. Turn on the scanner.
2. On the scanner’s control panel, press [Menu].
3. Press or until [DPI] is displayed on the LCD screen.
4. Press [Start/OK].
5. The default resolution is 300 dpi. To change your resolution to 600 dpi, press or
until [600] is displayed on the LCD screen.
6. Press [Start/OK].
7. The LCD displays OK, indicating the resolution has been changed.
2-6
2.10 Formatting Your SD Card
If necessary, you may format your SD card on the control panel.
1. Insert a SD card into the SD card slot.
2. Turn on the scanner.
3. On the scanner’s control panel, press [Menu].
4. Press or until [FMT] is displayed on the LCD screen.
5. Press [Start/OK].
6. To format the SD card, press or to select YES.
7. Press [Start/OK]. The Power button starts blinking.
8. The LCD displays OK, indicating formatting is completed.
User’s Manual
3-1
3. Scan Preparation
3.1 Suitable and Unsuitable Original Types
Suitable Original Types
The scanner used with the feeder dock is designed to obtain the best scanning results with
the following types of originals:
Photos and documents (3”x5”, 4”x6”, 5”x7”, 8.5”x14”) (76 x 127mm, 102 x 152 mm, 127
x 177 mm, 216 x 356 mm)
Business cards [standard 3.5” x 2” (88 x 50 mm) or larger]
Document weight: 60 ~ 107 g/m² (16 to 28 lb)
Long Page (216 x 916 mm) (available for 300 DPI only)
Unsuitable Original Types
Do not use the following types of originals for scanning in the feeder dock, otherwise the
feeder dock may malfunction or cause the original to jam in the slot.
Originals thicker than 0.08 mm
Original with either side shorter than 50 mm
Originals with lots of black or dark colors
Original with dark colors surrounding the edges
Printed media (newspapers, magazines, etc
Soft and thin materials (thin paper, cloth, etc.)
Curl or wrinkle originals
Originals with staples or paper clips.
Originals that exceed acceptable size – 8.5” (width) x 14”(length) (216 x 356 mm) (in
600 dpi) (SD Mode)
3-2
3.2 Loading a Document
Important!
Insert only one page at a time, and insert the next one only when the previous one is
done. Otherwise, the scanner may malfunction.
The paper detector is quite sensitive. Please do not push your document into the feeding
slot or the top of your image will be cut. Simply let go the photo (card) when it begins to
feed into the slot.
Document(s) should be free of staples, paper clips, paper sticky notes.

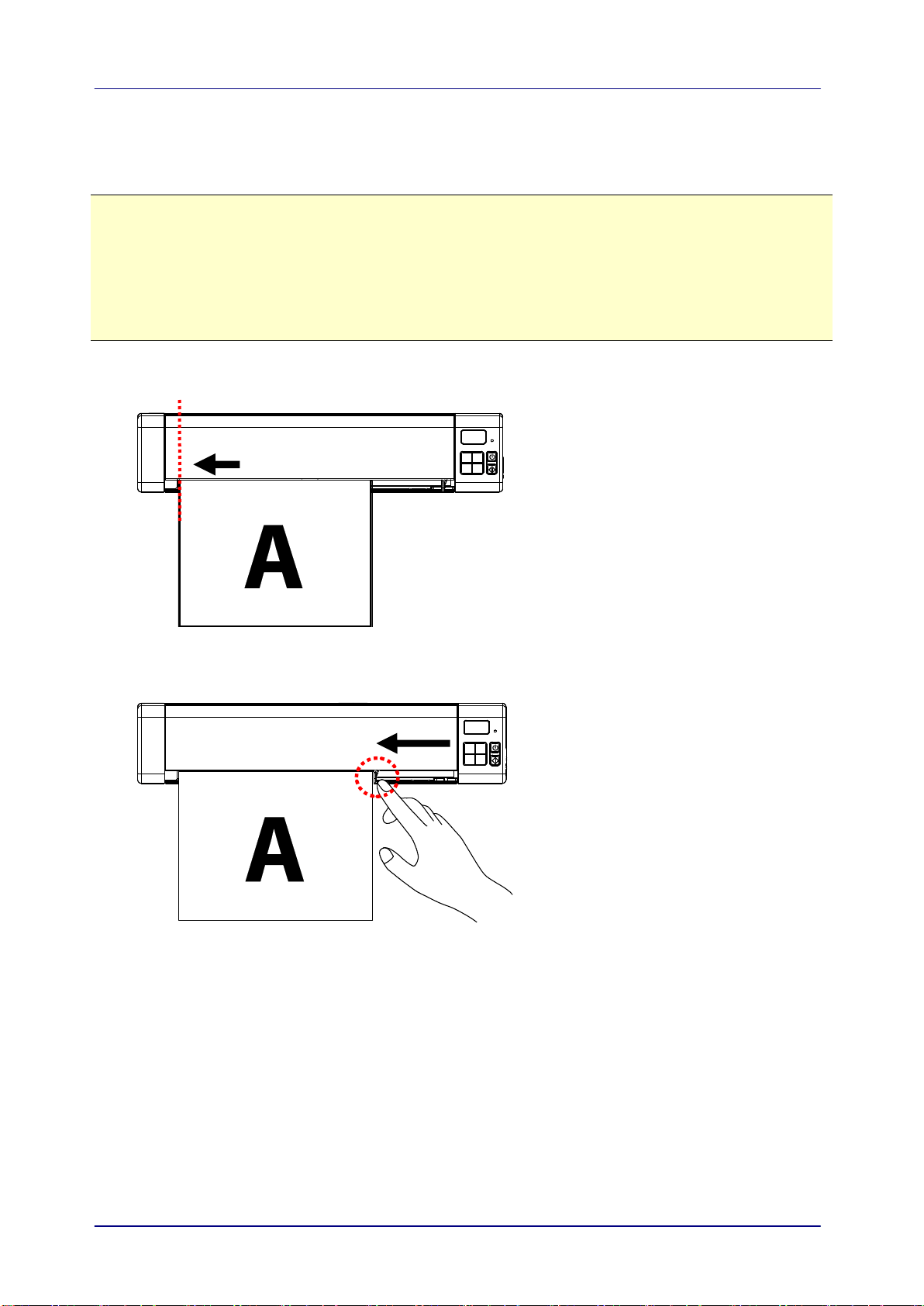

1. Insert your document FACE UP to the feeder and align it to the left edge of the feeder.
2. Slide the guide lever against the right side of the original.
User’s Manual
4-1
4. Scan Using the Control Panel

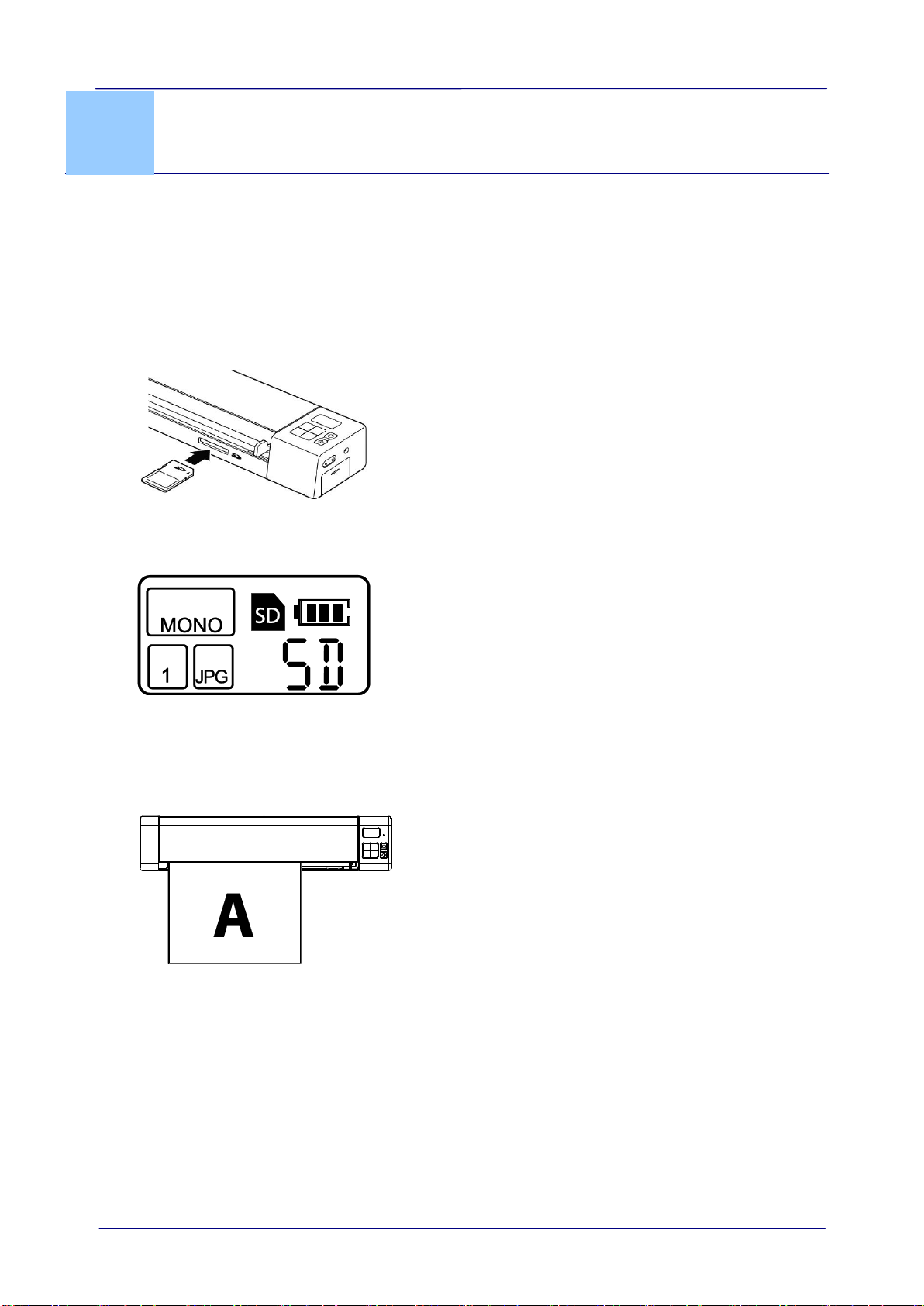

4.1 Start a Scan
1. Insert the SD card into the SD card slot.
2. Make sure your scanner is in the following SD (Scan to SD) mode. The SD mode is also
a default mode when the scanner is turned on.
3. If necessary, change the scan settings by pressing the [PDF/JPG] button,
[Color/Mono], [2 side/1 side] buttons on the control panel.
4. Inset your document.
5. The scanner starts scanning automatically.
6. The scanned image is stored into the SD card.
4-2
4.2 View or Download the Scanned Images
Connect the scanner to your computer to access the scanned images from the scanner’s built-
in disk or from the inserted memory card without using an independent card reader. While
connected, you can view your scanned image files, copy and paste files from one storage area
to the other, or delete files you don’t wish to keep.
4.2.1 Computer System Requirements
Operating System: Windows – XP, Vista, Windows 7, Windows 8
Macintosh – Mac OS 10.5, 10.6, or later
USB Port: USB 2.0
4.2.2 Windows Operating System
1. Turn on the scanner.
2. Insert the memory card containing your scanned images into the scanner’s memory
card slot.
3. Connect the included USB cable to the scanner and to your computer.
4. Your computer should recognize the card or the scanner as a Removable Disk.
5. Click the Removable Disk and you will find a folder of “DCIM” is created and all the PDF
files will be stored in the subfolder of “200DOC” and the JPEG files in the subfolder of
“100PHOTO”. File name starts from IMG_0001.pdf or IMG_0001.jpg.
User’s Manual
4-3
4.2.3 Macintosh Operating System
When the computer recognizes the scanner’ inserted memory card, the volume icon appears
on the desktop.
To view the contents of the memory card, double-click the icon to open a Finders window.
4.2.4 Access Your Scanned Images
Each scanned image is given a file name with the prefix IMG_ followed by a 4-digit
sequential number in the order the images are stored. For example, IMG_0001.jpg,
IMG_0002.jpg, IMG_0001.pdf, IMG_0002.pdf, etc.
JPG files are stored in a sub folder titled DCIM\100PHOTO. The folder stores 9999 photo
files, and then automatically creates another sub folder titled 101PHOTO, and so on to
199PHOTO.
PDF files are stored in a sub folder titled DCIM\200DOC. The folder stores 9999 document
files, and then automatically creates another sub folder titled 201DOC, and so on to
299DOC.
4.2.5 Disconnect the Scanner
CAUTION: Do not remove the memory card or disconnect the USB cable while the computer
is accessing stored files.
Disconnect the Scanner from a Windows PC
1. On the Windows System Tray, click the hardware removal icon as indicated below.
2. Click Safely remove USB mass Storage device – Drive (<Drive Letter:>)
3. When the Safe to Remove Hardware message appears, you can safely remove the
scanner’s USB cable.
Disconnect the Scanner from a Macintosh
1. Click and drag the volume icon on the desktop to Trash.
Or
Click the eject button next to the volume name in the Finder’s window.
2. Disconnect the scanner from your computer.
User’s Manual
5-1
5. Scan Using Your Computer
By switching to the “PC” mode, installing the scanner driver and connecting the scanner to a
computer, you can scan via the TWAIN user interface from your TWAIN-compliant image-
editing software application and enhance your image quality with various features.
5.1 Installing the Scanner Driver
Windows
NOTE:
1. To ensure your computer can identify the USB scanner, please install scanner driver first
before connecting the scanner to your computer.
2. The scanner driver contains TWAIN, and WIA driver. After the installation of scanner
driver is completed, this scanner allows you to scan via a TWAIN, or a WIA interface.
Start your TWAIN-compliant image editing software application to select a TWAIN or WIA
user interface. You may also launch Microsoft’s Scanner and Camera Wizard to scan via
a WIA user interface.
1. Download the scanner driver on the Avision web site at http://www.avision.com/download.
2. Unzip the file and double click [setup.exe] file.
3. Follow the instructions on the screen to complete the installation.
Mac OS:
The Avision color image scanner comes with the following scanning software applications to
help you complete your scan and enhance your scanned image.
Avision TWAIN scanner driver
Avision ICA scanner driver
Avision Capture Tool software application
Note:
After installing the Avision’s scanning software, connect the scanner to the
computer. If you connect the scanner to your computer before installing
the Avision’s scanning software, the Avision scanning software may not
run properly.
1. Download the scanner driver from the Avision web site at http://www.avision.com/download.
2. Check that the scanner is not connected to your computer.
3. Turn your computer on, and log in with an account that has admin rights.
5-2
4. Double-click [Avision Scanner.dmg] and then the [Avision Scanner] icon and follow the
on-screen instructions to complete the installation.
5. Click the [Continue] button on the Welcome window.
6. Click the [Install] button on the installation screen.
7. Log in with a password that has admin rights and click the [Install Software] button.
User’s Manual
5-3

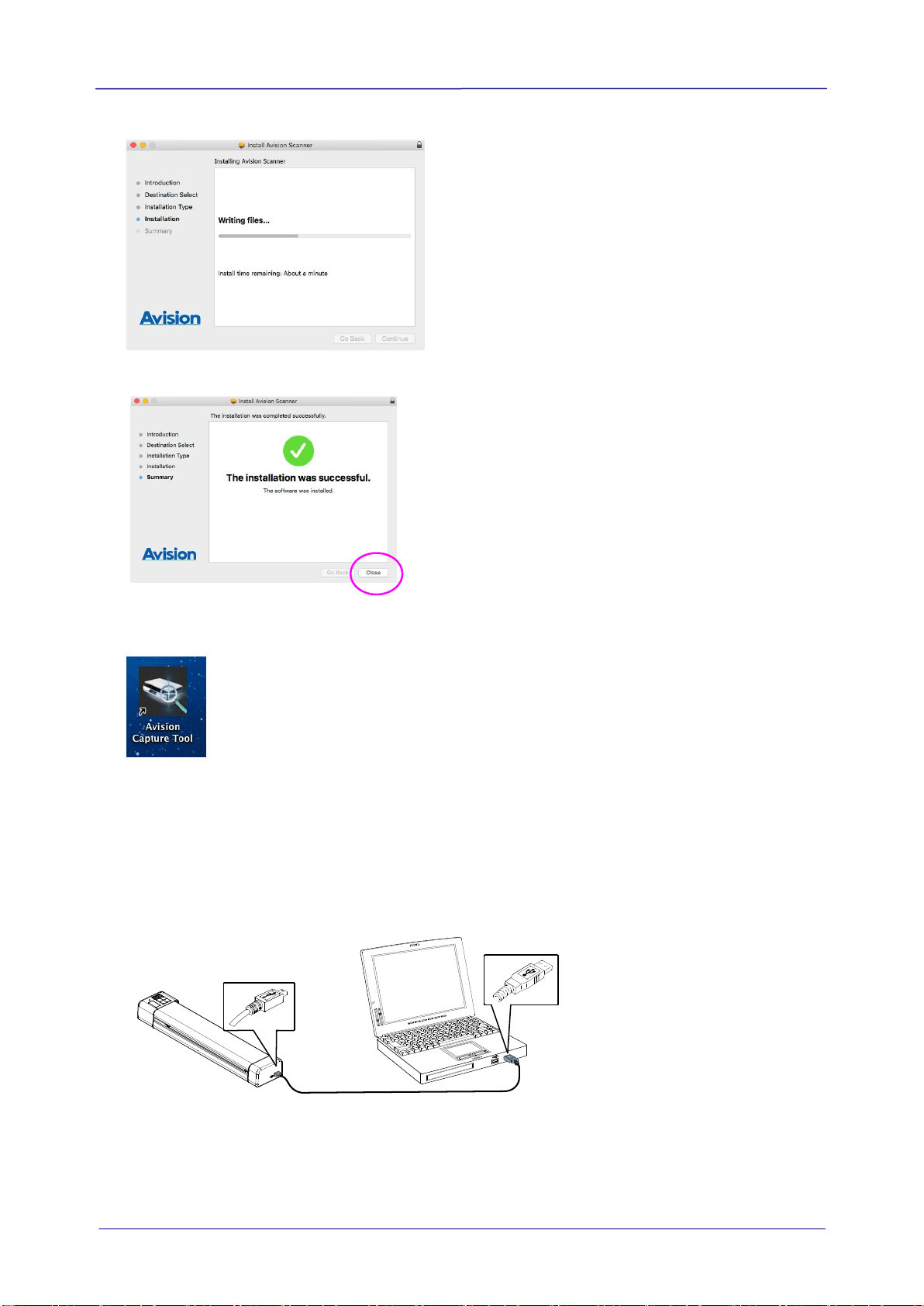

8. The computer begins installing the software.
9. Click the [Close] button when the [Installation was successful] dialog box is prompted.
10. If installation is successful, you will find the application icon display on your desktop, the

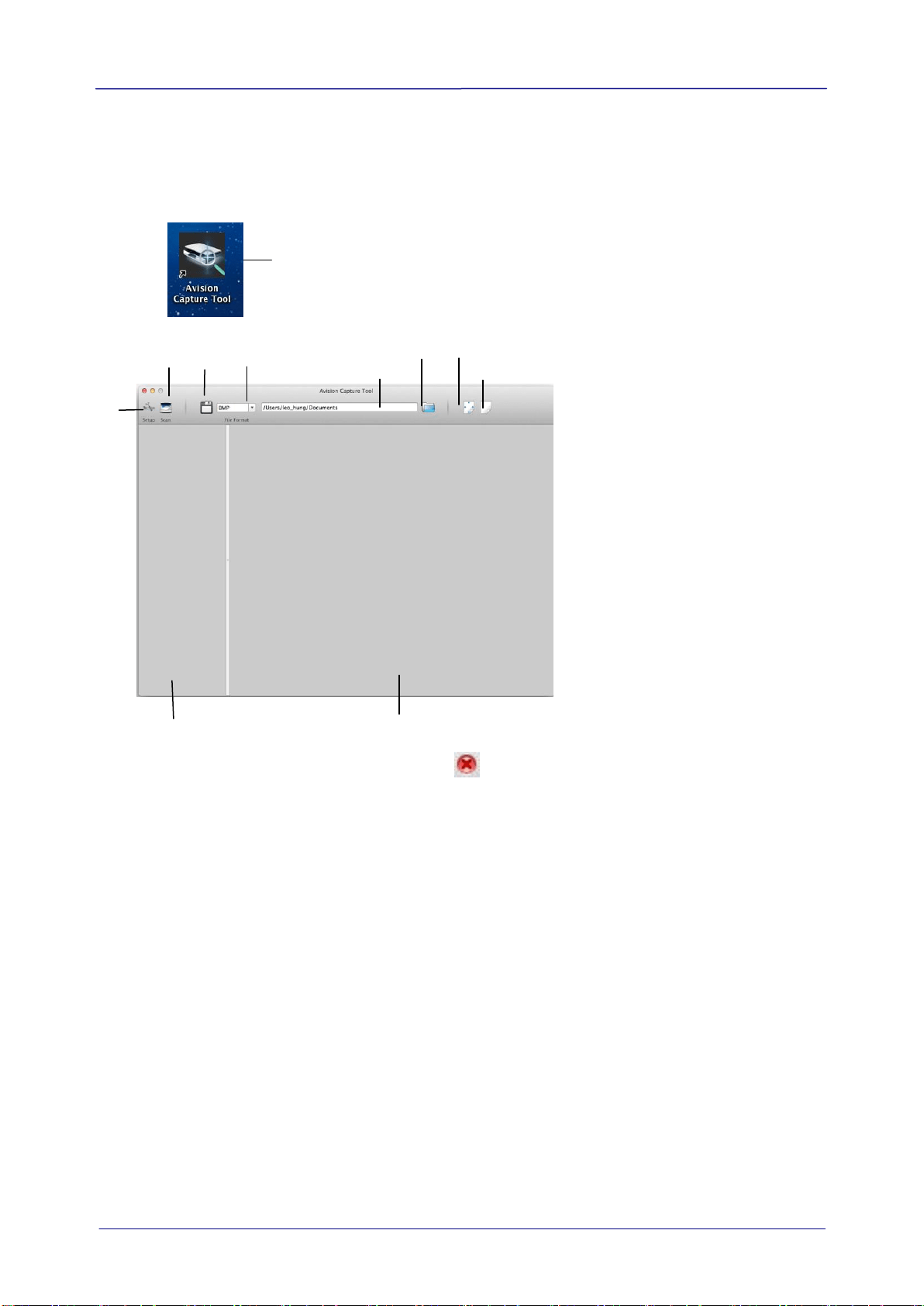

Avision Capture Tool.
5.2 Connecting the Scanner to Your Computer
1. Connect the micro USB connector to the USB port of the scanner.
2. Connect the other USB connector to the USB port on your computer.
5-4

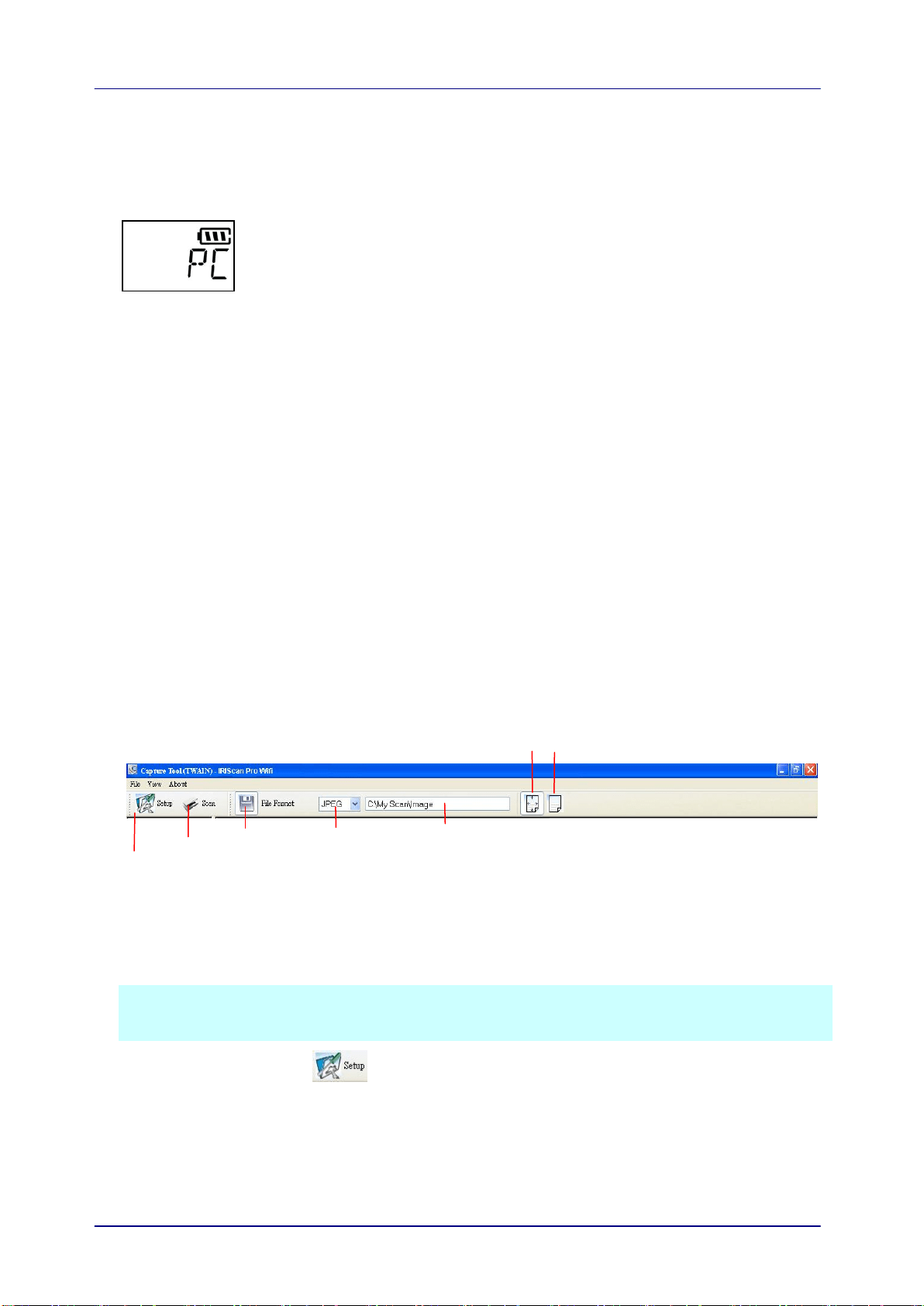

5.3 Switch to the PC Mode
Switch the scanner to the PC mode by pressing the [Start/OK] button until [PC] is displayed
in the LCD-display as shown.
5.4 Scan a Document
Windows
To scan a document, Avision provides you a useful program called Capture Tool. With this
tool, you can perform simple scans and view the captured images. In addition, it helps you
complete your scan at a rated speed.
The following procedure describes how to start a simple scan. If there is an error, please
review the preceding section to check if the cable connection and scanner driver have been
successfully installed.
Before you begin, be sure the scanner is on.
1. Select Start>Programs>Avision Meta Mobile 20>Avision Capture Tool.
The Select Scanner Model dialog box will be displayed.
2. Select your driver type and scanner model and click OK. The following Capture Tool
dialog box will be displayed.
3. Choose your desired file format from the File Format drop down list box. (Default is BMP,
other choice includes TIFF, GIF, and JPEG.)
4. Type your desired folder name and file name in the File Path box. (Default is C:\My
Scan\Image.)
Note: If you do not wish to save the scanned image, deselect the Save button since
default is Save Enable. In this case, the thumbnail view will be disabled. And therefore,
after viewing all the scanned images, only the last one will remain on the screen.
5. Click the Setup button ( ) or choose Setup from the File menu to prompt the
Scanner Properties dialog box.
Setup
Actual Size
Fit Page
Scan
Save File Format
File Path
User’s Manual
5-5

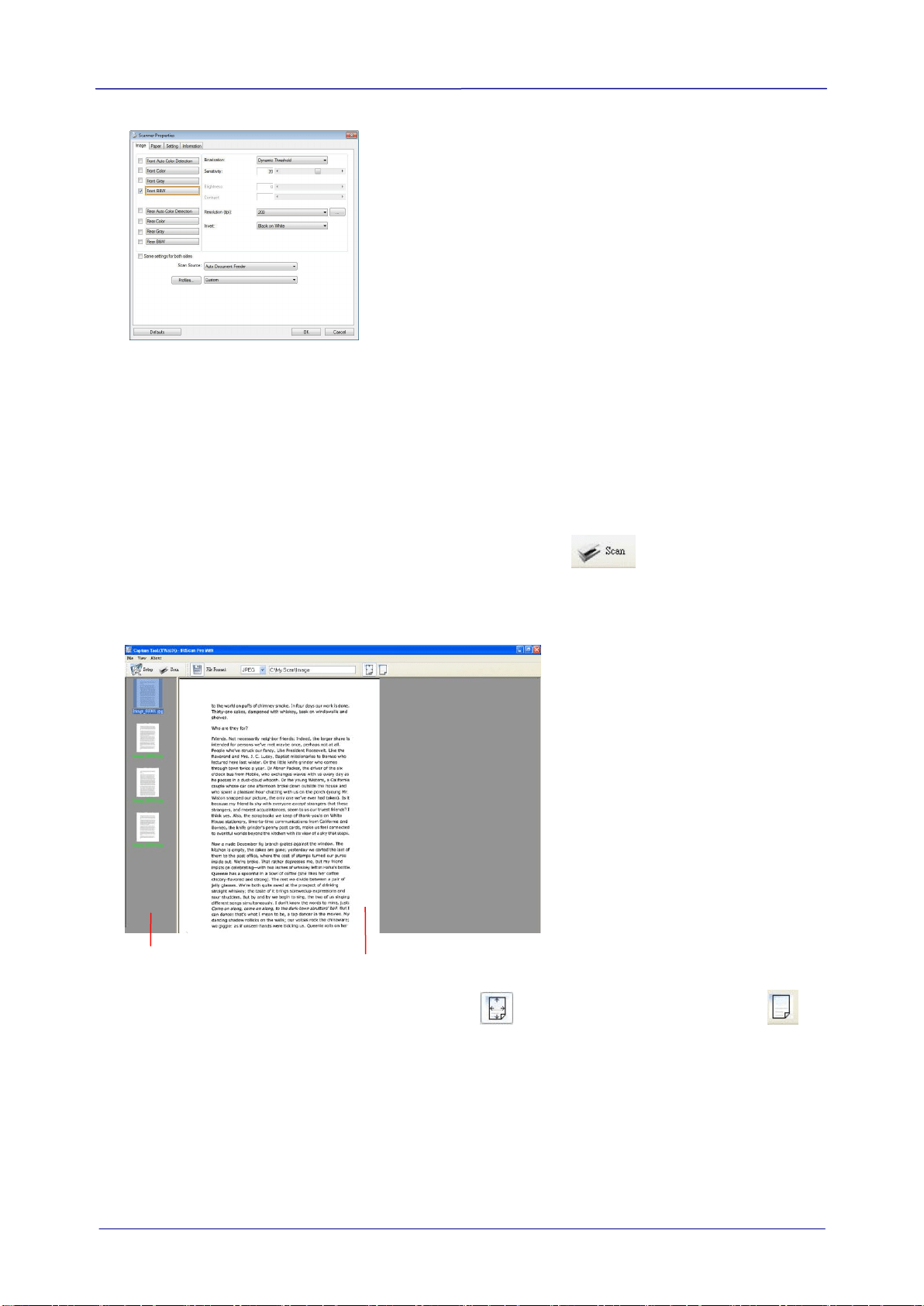

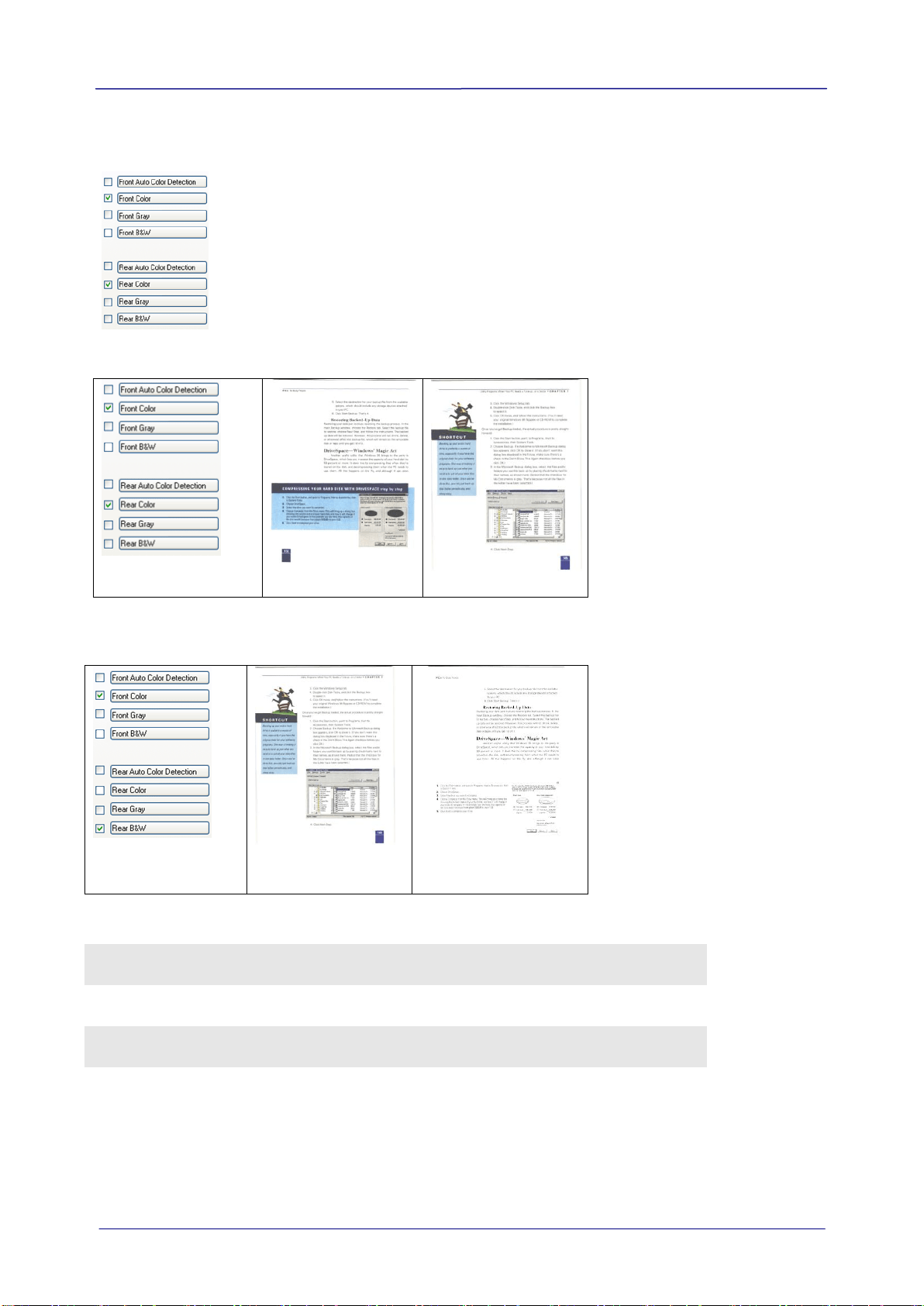

6. From the Image Selection Box, choose your desired image type for your scanned image.
(Default is Front B&W) If you have a duplex scanner, choose Front and Rear to scan both
sides of your document.
7. Click OK to quit the Scanner Properties dialog box. (To learn more details about the
Scanner Properties dialog box, please see the subsequent chapter, Using the Scanner
Properties Dialog Box.)
8. Place your document face down on the document glass or face up in the auto document
feeder.
9. In the Scan Validation dialog box, click the Scan button ( ) or choose Scan from
the File menu.
10. The document will be scanned and displayed in the Scan Validation screen. After the
scanned images have been displayed, your scanner installation verification is completed.
11. You can view the scanned image in Fit Page ( ) or Actual Size (100%) button ( )
from the Viewing toolbars at the right side.
12. Click the Close box or Quit from the File menu to exit the Scan Validation Tool.
Fit Page View
Thumbnail View
5-6

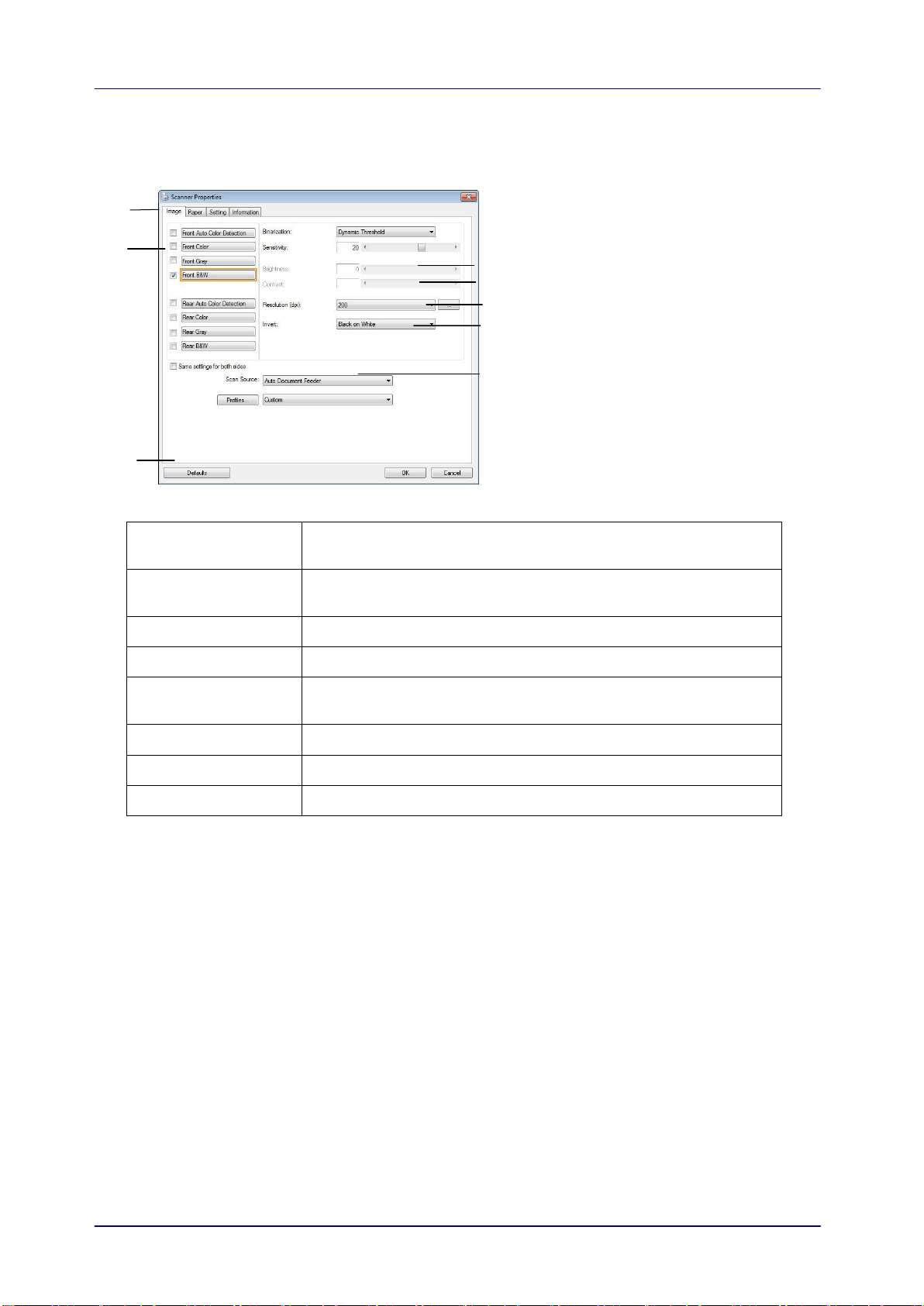

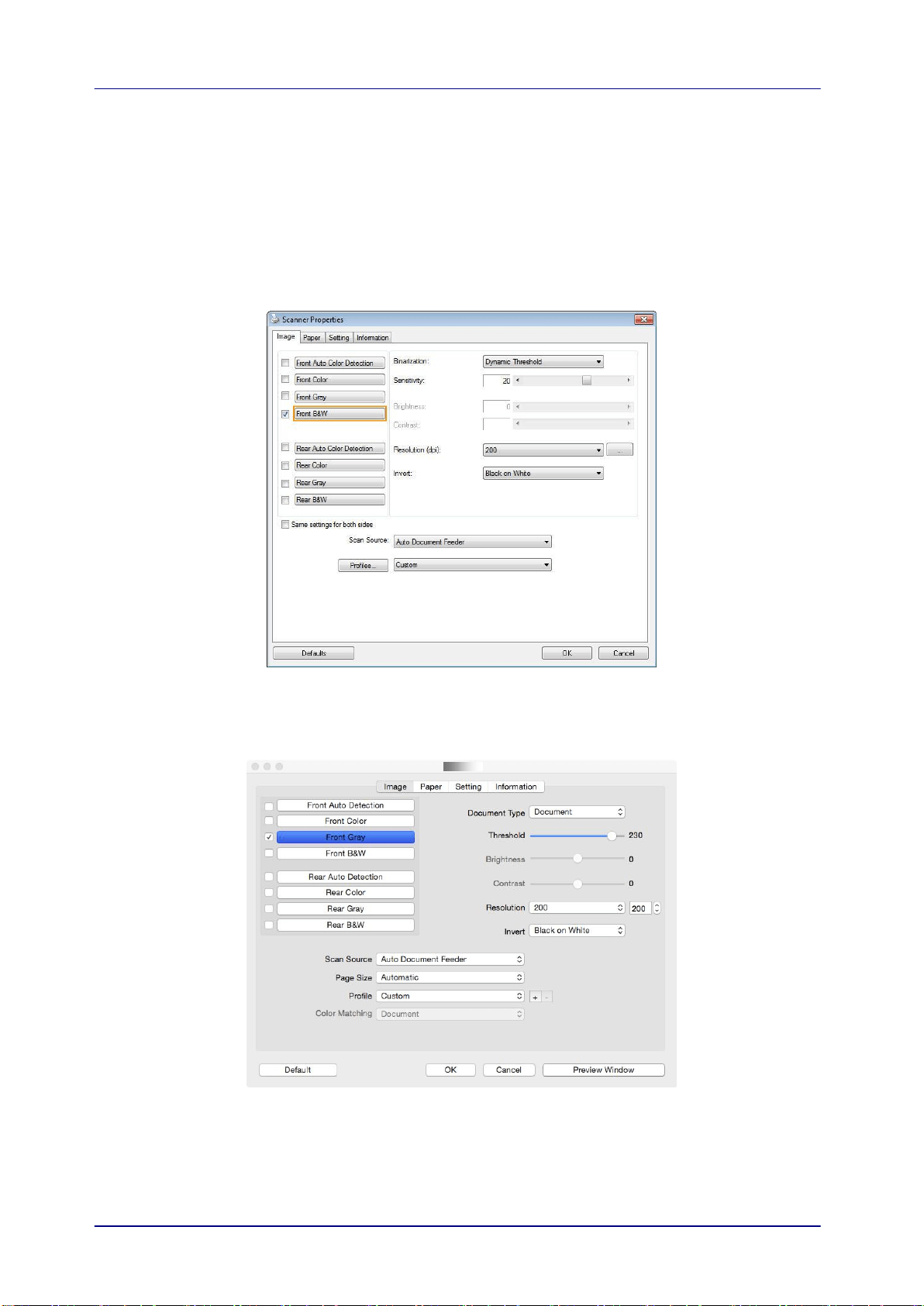

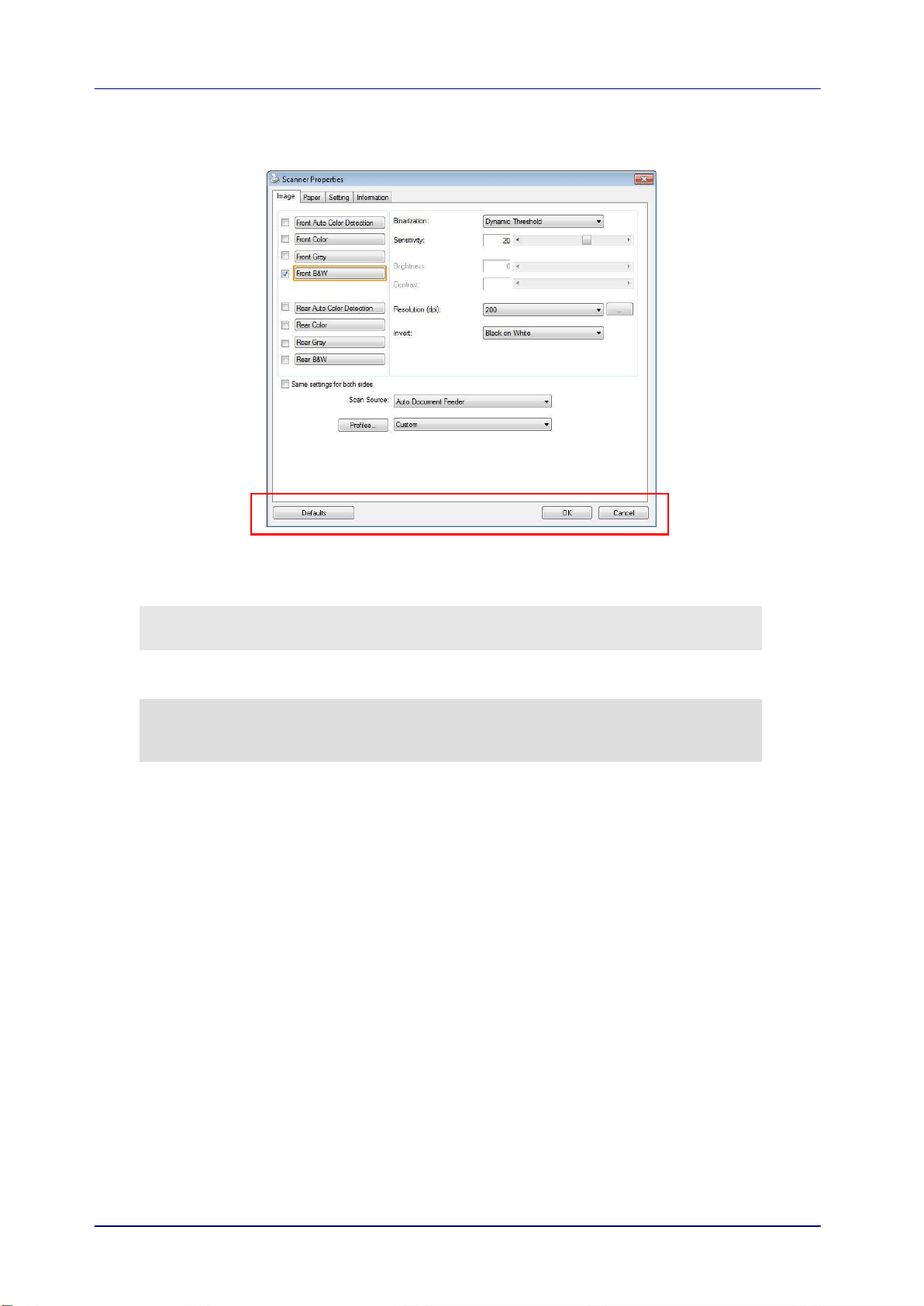

A Glance of the Scanner Properties Dialog Box
1. Tab Options
Choice: Image, Compression, Color Dropout, Paper, Preview,
Options, Settings, Information.
2. Image Selection
Box
Choose your image type and the side of document you wish to
scan. Options vary based on type of scanner.
3. Brightness
Adjust the brightness level from –100 to +100.
4. Contrast
Adjust the contrast level from –100 to +100.
5. Resolution
Determine the quality of the scanned image. The industry
standard is 200 dpi.
6. Invert
Reverse the color of your scanned image.
7. Scan Source
Choice: Auto Document Feeder.
8. Defaults
Reset all values on the tabs to the factory default settings.
3
4
5
6
7
8
1
2
User’s Manual
5-7

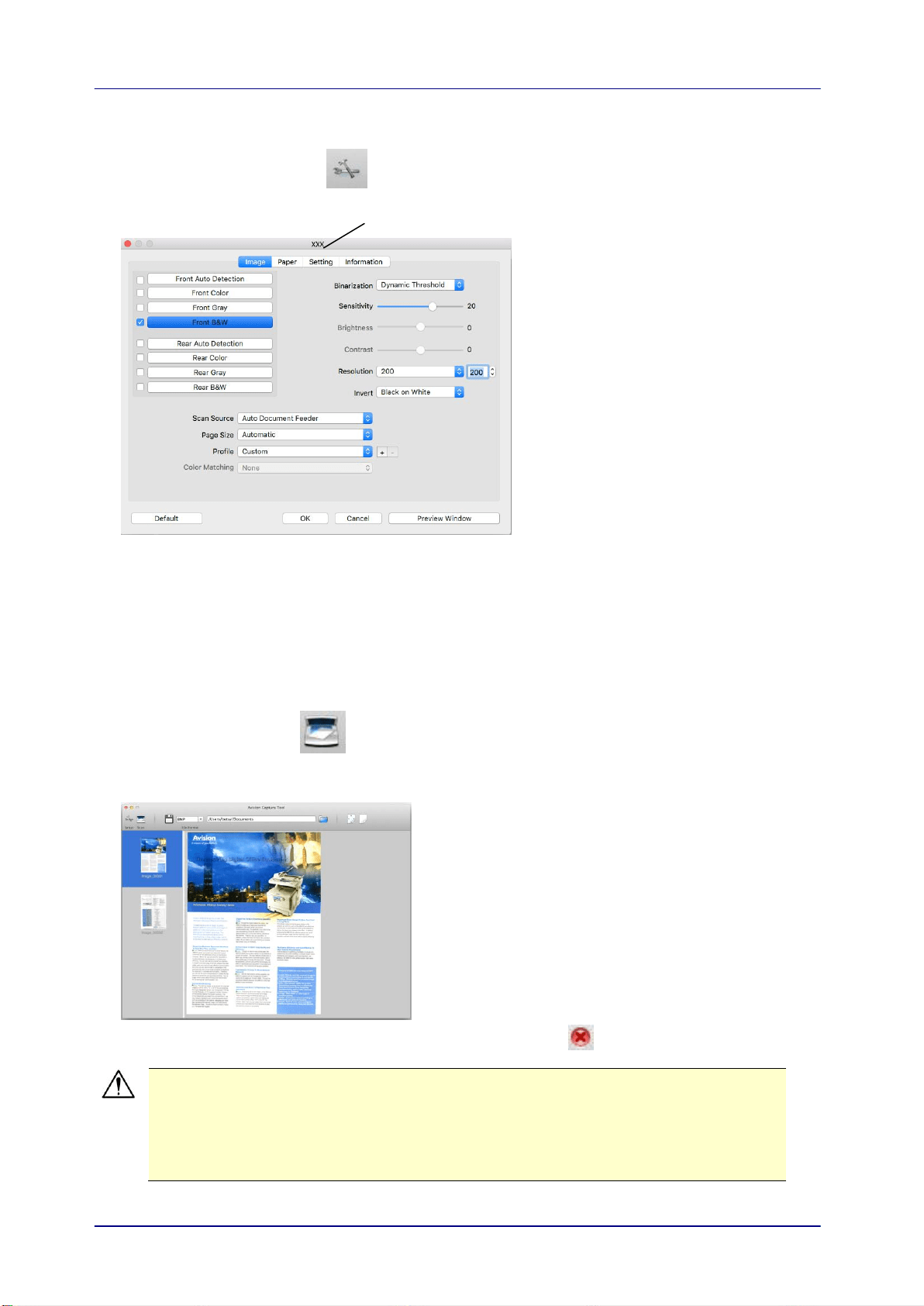

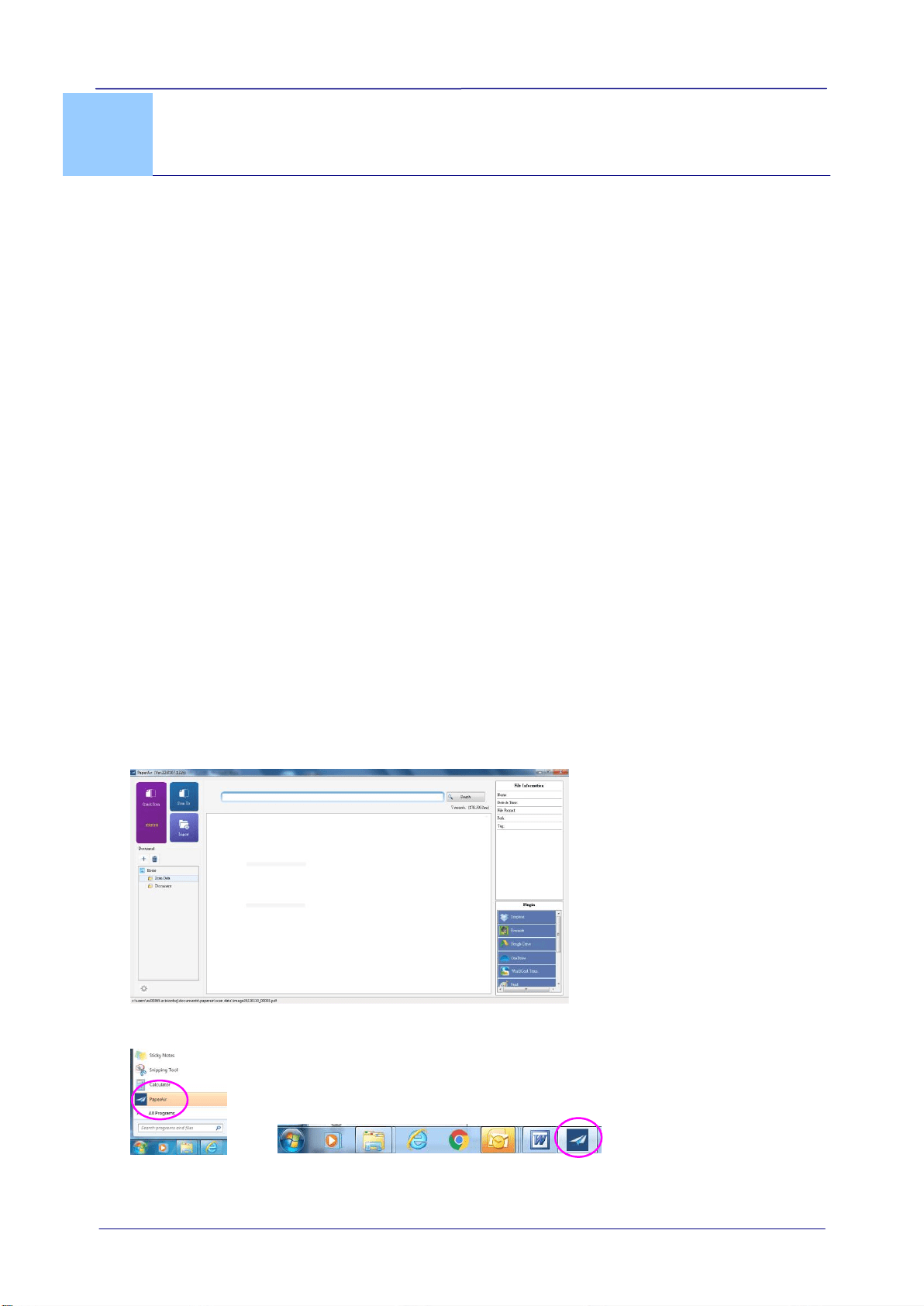

Mac OS:
1. Double-click the [Avision Capture Tool] icon on your desktop. The following [Avision
Capture Tool] main window will be displayed.
2. To leave the TWAIN user interface, click ( ) on the upper-left corner.
The [Avision Capture Tool] icon
Scan Save File Format
Setup
File Path Actual Size
Image-Display
Window
Thumbnail View
Browse Fit Page
5-8
To scan a page,
1. Click the [Setup] button ( ) to access the Avision Scanner Properties dialog box.
2. From the Image Selection Box, choose your desired image type for your scanned image.
(Default is Front B&W) If you have a duplex scanner, choose Front and Rear to scan both
sides of your document.
3. Click OK to quit the Avision Scanner Properties dialog box. (To learn more details about
using the Avision Scanner Properties dialog box, please see the subsequent chapter, Using
the Avision Properties Dialog Box.)
4. Place your document face down on the document glass or face up in the auto document
feeder.
5. Click the Scan button ( ).
6. The document will be scanned and displayed in the main window of Avision Capture Tool.
7. To leave the main window of Avision Capture Tool, click ( ) on the upper-left corner.
Important!
Please note the scanner buttons do not work if you start a scan via the
Avision Capture Tool.
To perform your first scan, we recommend you to use the default scan
settings. When you become more familiar with the software, change the
scan settings to fit your own purpose.
This indicates the scanner model
User’s Manual
5-9
A Glance of the User Interface
1. Tab Options
Choice: Image, Compression, Color Dropout, Paper,
Multi-Feed Detection, Preview, Options, Settings,
Information.
2. Image
Selection
Box
Choose your image type and the side of document you
wish to scan. Options vary based on type of scanner.
3. Brightness
Adjust the brightness level from –100 to +100.
4. Contrast
Adjust the contrast level from –100 to +100.
5. Resolution
Determine the quality of the scanned image. The
industry standard is 200 dpi.
6. Invert
Reverse the color of your scanned image.
7. Scan Source
Choice: Auto Document Feeder, Flatbed, Flatbed
(Book), Automatic (varies due to different scanner
model)
8. Defaults
Reset all values on the tabs to the factory default
settings.
1
2
8
3
4
5
6
7
User’s Manual
6-1
6. Access the scanned images
through Wi-Fi (SD Mode)
Using the scanner’s Wi-Fi connection (available only for the SD mode), you can wirelessly
connect to your private cloud to browse or download your scanned image files from the
scanner to your computer, Android or iOS devices.
Note:
The Scanner Wi-Fi access point is for browsing, downloading, or deleting scanner files
only. It cannot be used for Internet browsing.
The scanner does not allow you to scan and connect to Wi-Fi at the same time. If you
start a scan in the Wi-Fi mode, the Wi-Fi mode will be off temporarily. When the scan is
finished, the scanner automatically connects to Wi-Fi again.

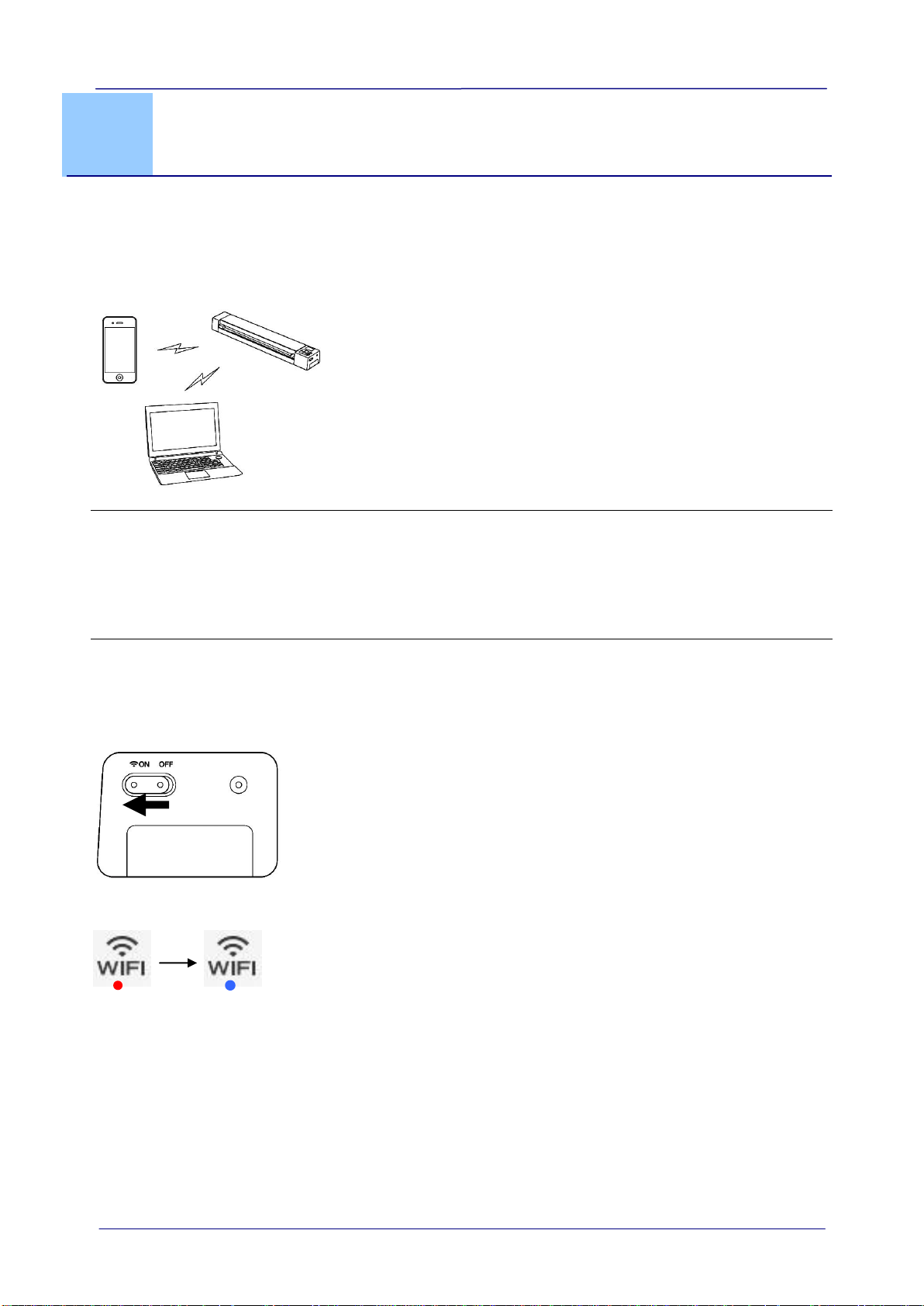

6.1 Access the Scanned Image through Wi-Fi
1. Turn Wi-Fi mode on by sliding the Wi-Fi switch to the [On] position.
2. Wait approximately 40 seconds while the data is indexed, the Wi-Fi LED turns red. When
the blue LED turned solidly on, this indicates that Wi-Fi status is ready.
3. To connect your computer, iPhone, iPad or Android device to the scanner, use the device’s
Wi-Fi settings to select the scanner’s network name (SSID) “Avsion -xxxx” [last four digits
of Access Point’s MAC address]”.
PC users: Go to the Wi-Fi Network icon and select the network name (SSID)
(Avision-XXXX). No password is required; wait for the connected status confirmation.
Mac users: Click the Wi-Fi network icon on the menu bar and select the network
name (SSID) (Avision -XXXX). No password is required; wait for the connected status
confirmation. Make sure you are connected to only one IP interface (either Wi-Fi or
Ethernet port). The Client IP would be 10.10.100.1 range.
6-2
iPhone & iPad users: Go to Settings→Wi-Fi→ select the network name (SSID)
(Avision-XXXX). No password is required; wait for the check mark to confirm the
connected status.
Android users: Go to Settings→Wi-Fi Settings→ select the network name (SSID)
(Avision-XXXX), and then tap Connect. No password is required; wait for the
connected status confirmation.
4. Open an Internet Explorer, the Avision PhotoView page will be displayed.
PC users: Click Start→Program Files→Internet Explorer to open an Internet
browser.
Mac, iPhone & iPad users: Click or tap the Safari icon to launch a browser session.
Android users: Device setups varied, but generally you can tap on an Internet
browser icon on your Home screen, or tap on the message “Login may be required”.
If you are not directed to the Avision PhotoView automatically, you must type
in your default home page URL, e.g.,http://www.google.com or type in
http://10.10.100.1. This step will redirect you to “Avision PhotoView” page.
5. The login screen is briefly displayed, and then the image files found in the built-in storage
or on a SD card are automatically displayed.
6. Click or tap on any image to view in full screen.
User’s Manual
6-3

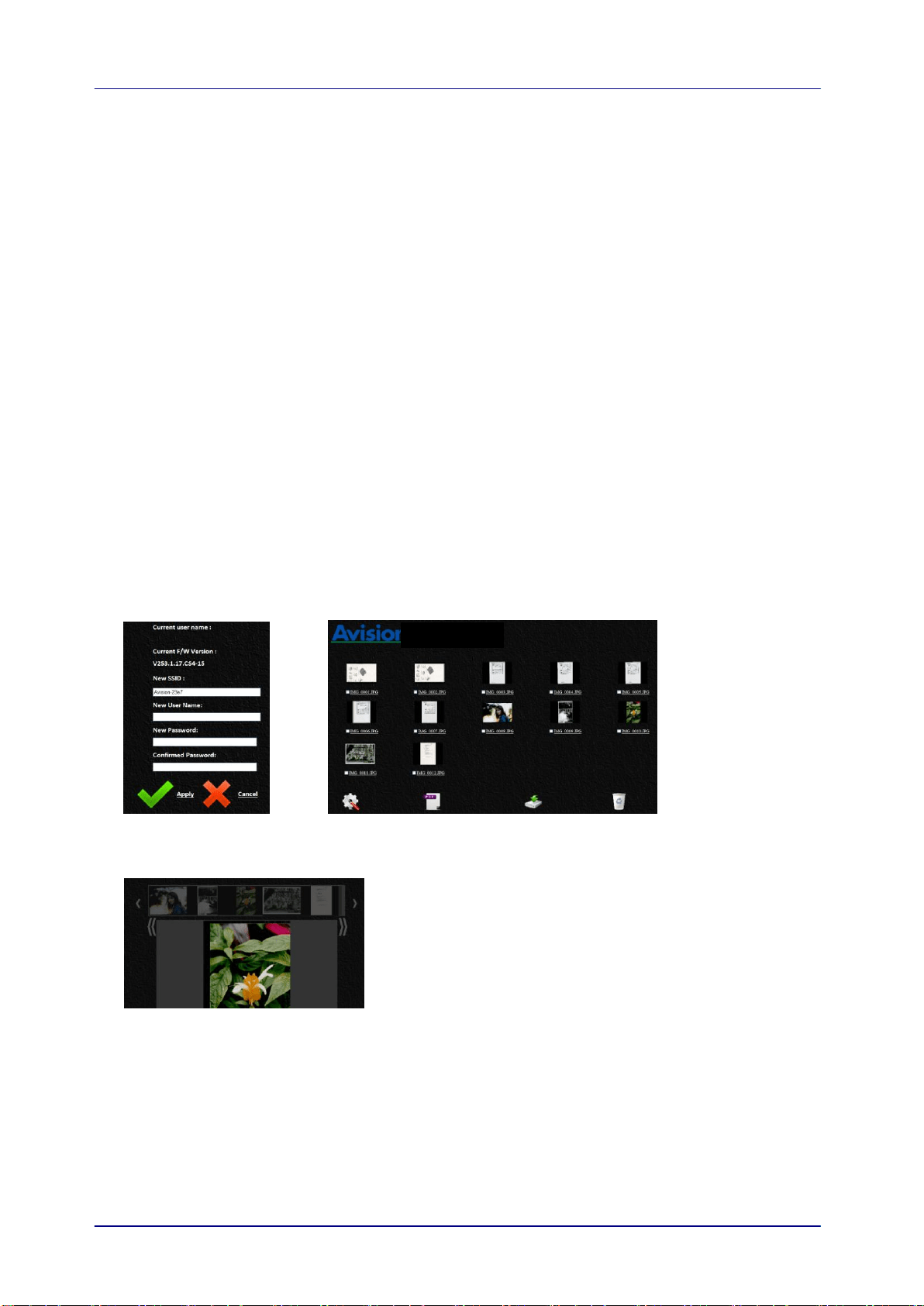

6.2 Use Options under Image Thumbnails
Click the Setup button to prompt the Setup page. Through the Setup page, you can change
the scanner’s network name (SSID) or create a user name and password to protect your data.
The display defaults to JPG mode, displaying all JPG files. To view JPG images full screen,
click or tap on an image; a slideshow automatically begins to display all images.
To access PDF files, click or tap the PDF Mode button. All PDF files are displayed, but you
must download PDF files before they can be opened.
To switch back to JPG mode, click or tap the JPG Mode button.
You can easily download the images from the scanner to your computer or device.
1. Click or tap in the select box next to the file name(s) that you want to download.
2. Click or tap Download.
Computers: You are prompted to Open or Save the files. If saving, you are also
prompted for the location on your computer to save the files.
Tablets & Phones: The files are automatically downloaded to your Photo Gallery into a
folder titled Download.
6-4
iPhone/iPad Devices:
1. Open Safari Browser, the AVISION PhotoView page will be displayed.
2. Select the photo(s) to open.
3. A new browser will appear with selected photo.
4. Press on slideshow image for 1-2 seconds, select “Save Image”
5. The photo or document will now appear in your photos.
Please note only 1 photo or JPG image can be downloaded at a time with multiple selected.
Additional PDF viewer application is required for download and view PDF files on iOS system.
Android Devices:
1. Open a Browser, the AVISION PhotoView page will be displayed.
2. Select the photo(s) or document(s).
3. Select the download icon ( ).
4. Document(s) or image(s) selected will begin downloading.
5. Document(s) or image(s) can be found in your gallery.
Please note multiple images or documents can be downloaded at a time.
Note: The file path of the downloaded photos or document may vary depending on the
manufacturer of the tablet and phones. E.g., some in SD Card/download and some ininternal
memory User/download/.
You can quickly delete image files from the scanner.
1. Click or tap in the select box next to the file name(s) that you want to delete.
2. Click or tap Delete ( ).
3. The file(s) are automatically deleted (you won’t be prompted to confirm the deletion).
User’s Manual
6-5
6.3 Reset Login Settings
Should you forget your login user name and password, you can press the Reset button for 10
seconds to resume to factory settings without login name and password. Press the Reset
button with a pin, paperclip or pointy object. When reset is completed, the Wi-Fi LED turns off
and then turns red. When the Wi-Fi connection is ready, the Wi-Fi LED turns solidly blue.
6.4 Exit the Wi-Fi Mode
To exit Wi-Fi mode, simply move the Wi-Fi switch to the [Off] position. The Wi-Fi icon in the
LCD-Display will be off.
When Wi-Fi mode is on, the scanner does not time-out and automatically turns off like it does
normally. Therefore, it is recommended that you connect the scanner to your computer or
power adapter, via the micro USB cable, whenever you have Wi-Fi mode on.
IMPORTANT: Be sure to re-connect your computer, tablet or phone to your normal Wi-Fi
network when you are finished with your scanner connection so you will be able to connect to
Internet, your email and other web related locations/programs again.
User’s Manual
7-1
7. Enhancing Your Image Quality Using
the Scanner Properties Dialog Box
By switching the device to "PC" mode, installing the scanner driver, and connecting the
scanner to the computer, the scanner allows you to scan from the TWAIN user interface
(Scanner Properties dialog box) of your imaging editing application to improve the image
quality with various image-enhancement features.
The Scanner Properties dialog box allows you to configure the scanner’s settings. It consists
of several tabbed windows each of which will be described in this chapter.
NOTE:
In this chapter, all options are available based on a duplex (double-side) scanner. If
you have purchased a simplex (single-side) scanner, all options are available for
single sided only.

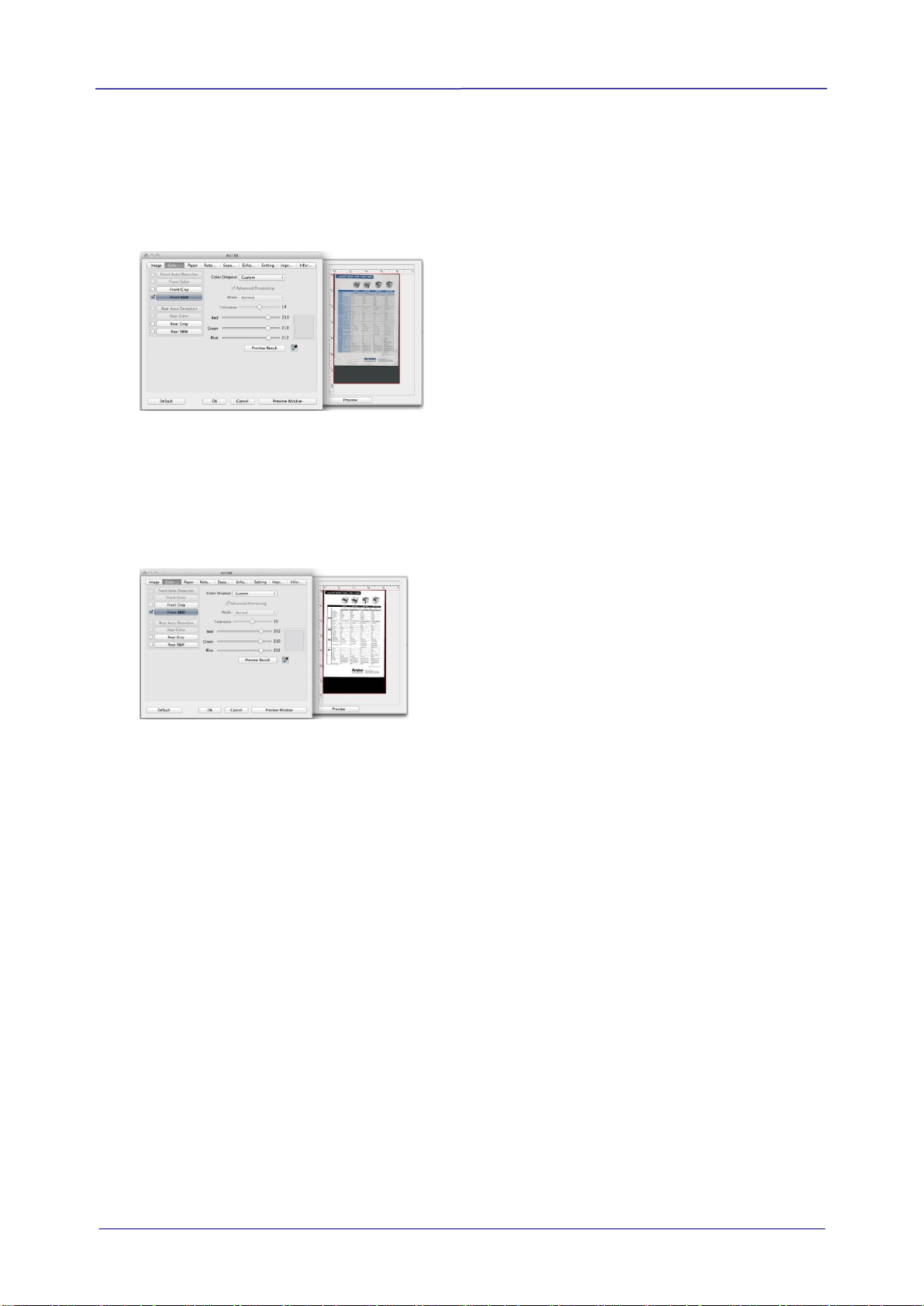

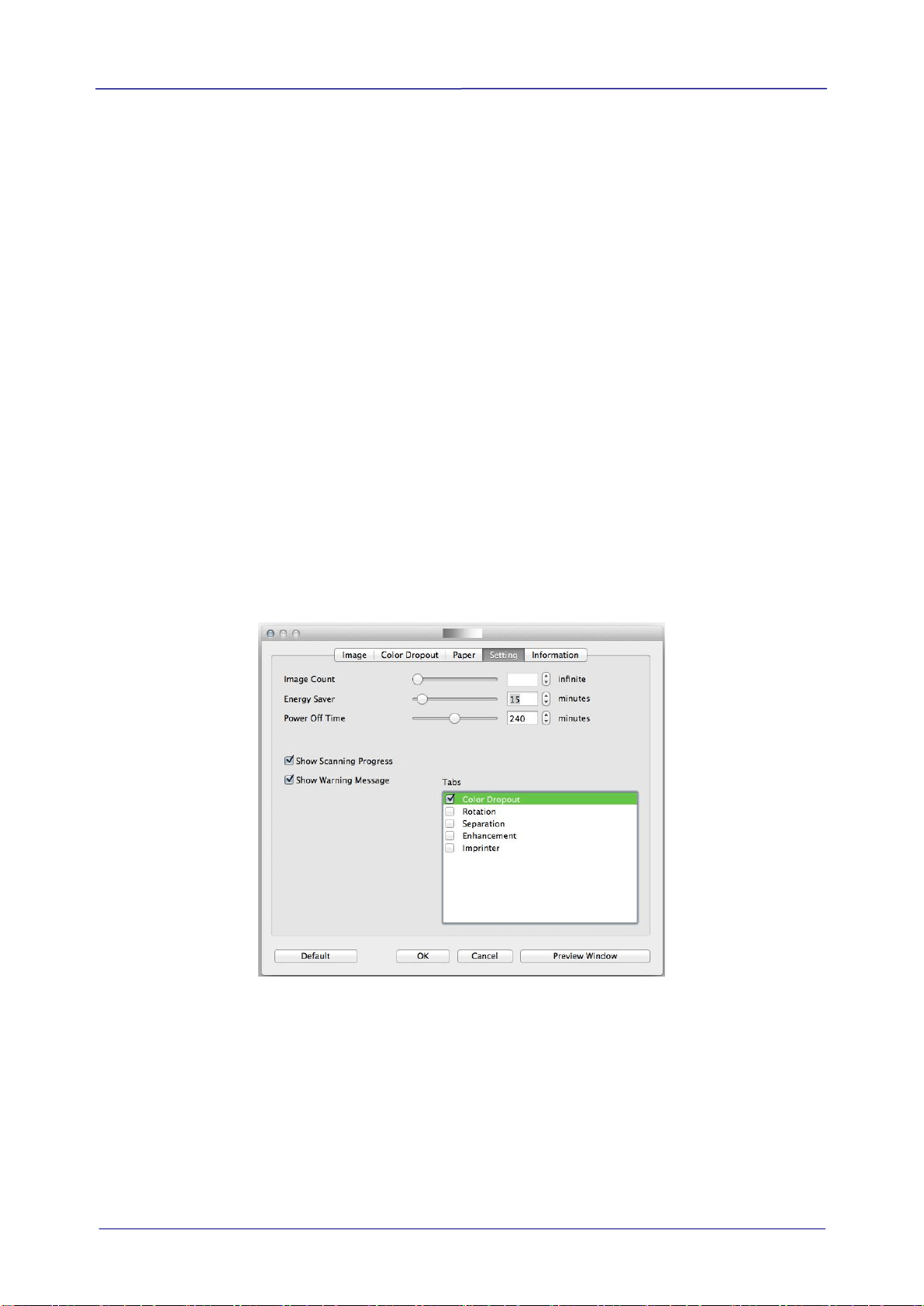

The Scanner Properties dialog box (Windows)
The Scanner Properties dialog box (Mac OS)
7-2
7.1 Buttons on the Scanner Properties Dialog Box
The buttons on the Scanner Properties dialog box
BUTTONS
DESCRIPTION
Defaults
Click the Defaults button, the factory default settings will be
shown on each tab.
Cancel
Click the Cancel button to leave the Scanner Properties
dialog box.
Preview
Window
(Mac)
Click to show a preview image in a low resolution.
User’s Manual
7-3
The following table shows the default settings：
TAB NAME
DEFAULT SETTINGS
Image：Front B&W
Binarization：Dynamic Threshold
Resolution：200 dpi
Invert：Blank on White
Scan Source：Auto Document Feeder
Threshold：None
Brightness：None
Contrast：None
Compression
None
Color Dropout
None
Paper
Cropping：Automatic
Deskew：Yes
Orientation：Portrait
OverScan：0.00
Note: The availability of this option varies due to
scanner model.
Unit：Inch
Multi-Feed
Detection
None
Preview
None
Options
Rotation Degrees：None
Blank Page Removal：None
Edge Fill：White，0 mm
Image Control Option：None
Setting
Enable Energy Saver：Enable, 15 minutes after last
scan action
Show Scanning Progress：Yes
Show Warning Message：Yes
Save Settings after Closing：Yes

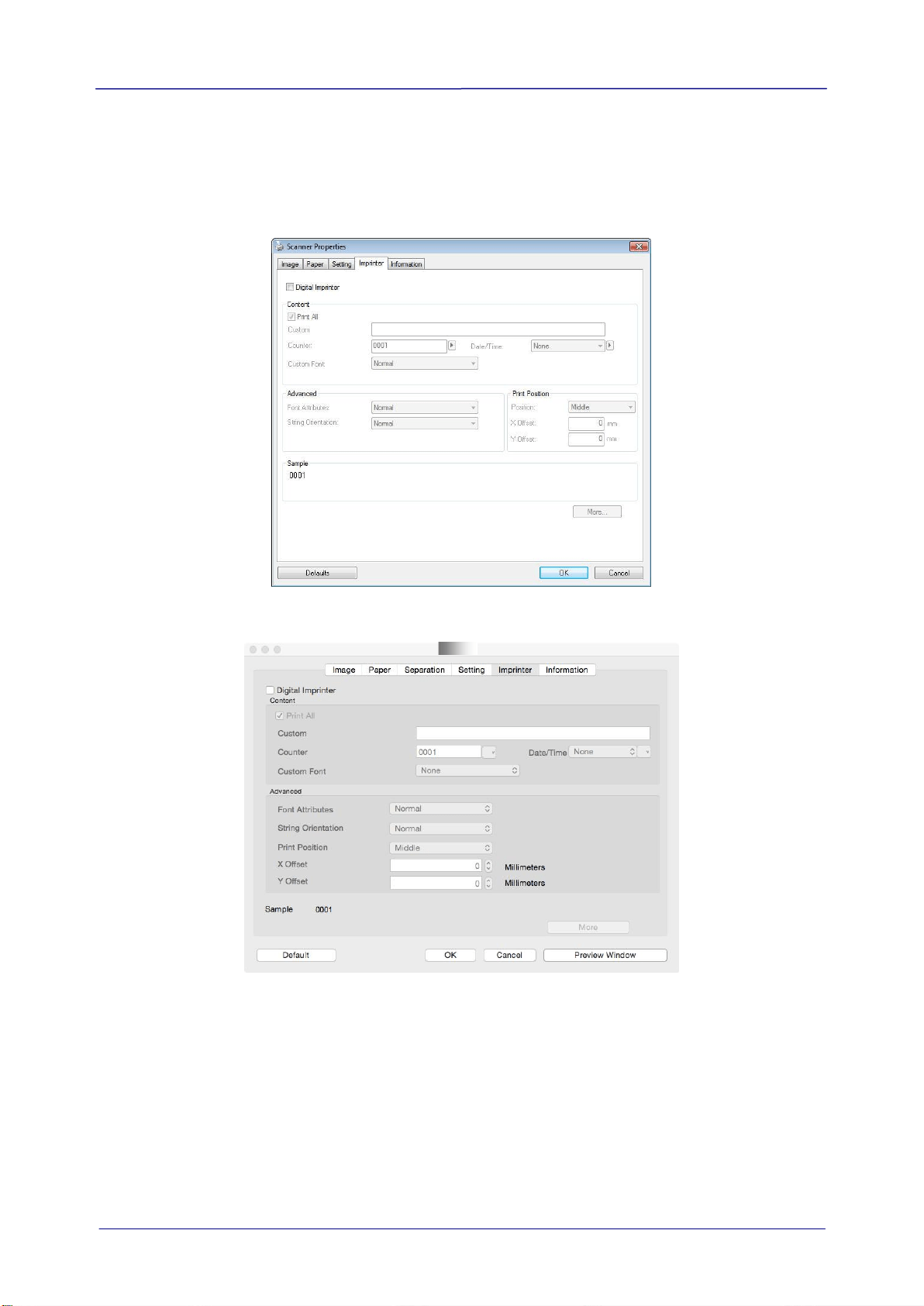

Imprinter
Digital Imprinter
7-4

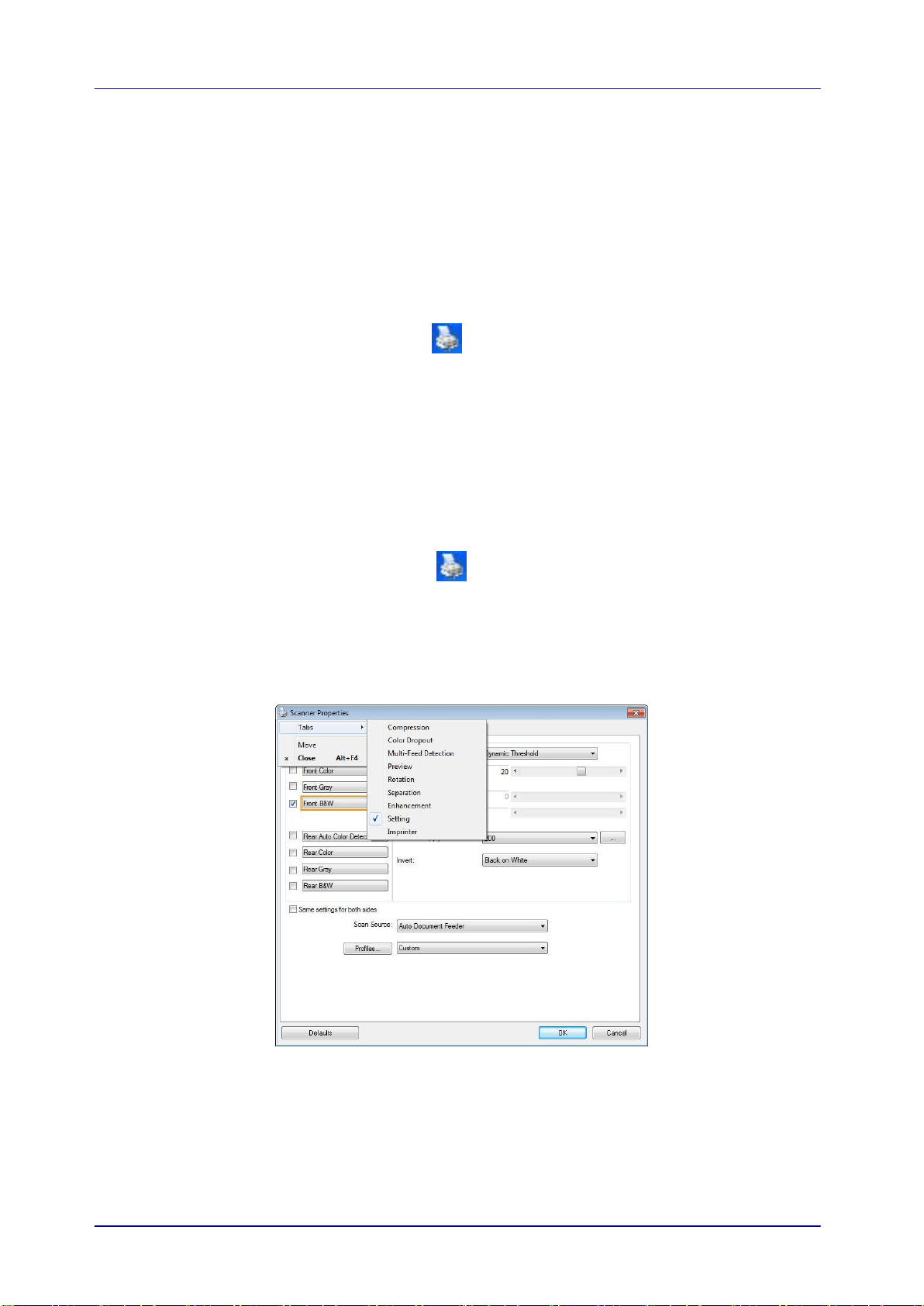

7.2 Showing or Hiding Tabs
Windows
The [Scanner Properties] dialog box is displayed in default with three basic tabs - Image,
Paper, and Information. To show more tabs, click the [Scanner Properties] icon to access
more scan settings.
To show more tabs,
1. Click the [Scanner Properties] icon ( ) on the upper left corner, and choose [Tab] to
show available tab names. The available tabs include Compression, Color Drop out,
Preview, Rotation, Separation, Multi-Feed, Options, Settings, and Imprinter. (Note: the
options vary based on scanner model.)
2. Choose the tab you want to display. The selected tab will be shown with a check mark
and then displayed in the [Scanner Properties] dialog box.
3. To access the settings, click the selected tab on the top of the [Scanner Properties]
dialog box. The page of the selected tab will be displayed.
To hide a tab window,
1. Click the [Scanner Properties] icon ( ) on the upper left corner, and choose [Tabs]
to show available tab names.
2. Choose the tab you want to hide. Then, the selected tab will be hided in the [Scanner
Properties] dialog box.
Note: The [Image], [Paper], and [Information] tab can not be hided since they
preprogrammed to be displayed by default.
(Windows)
User’s Manual
7-5
Mac OS

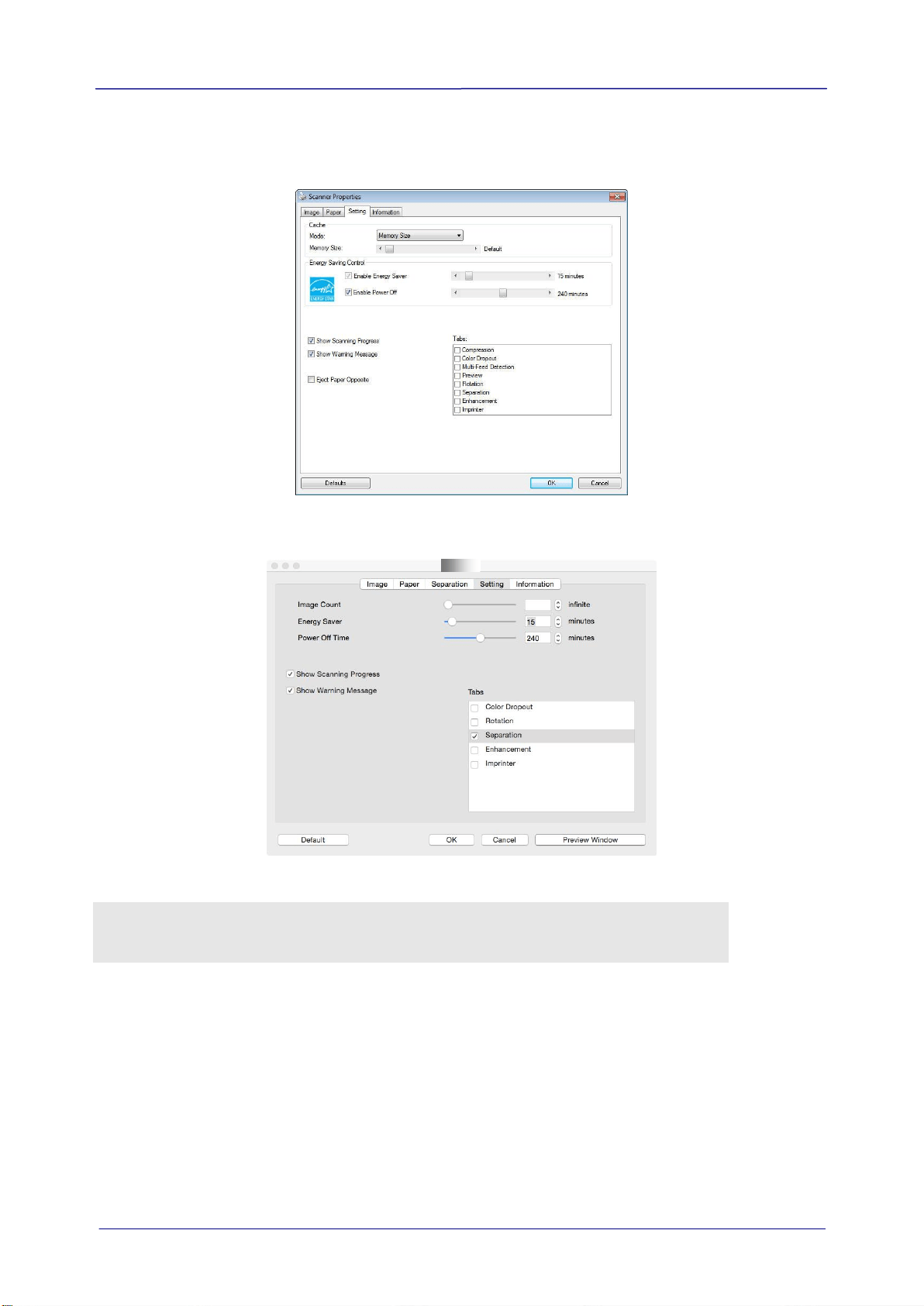

The [Scanner Properties] dialog box is displayed in default with four basic tabs - Image,
Paper, Setting, and Information. To show more tabs, click the [Setting] tab to access more
scan settings.
To show more tabs,
1. Click the [Setting] tab, the available tab names will be displayed. These tabs include
Color Drop out, Rotation, Separation, Enhancement, and Imprinter. (Note: the options
vary based on scanner model.)
2. Choose the tab you want to display. The selected tab will be shown with a check mark
and then displayed in the [Scanner Properties] dialog box.
3. To access the settings, click the selected tab on the top of the [Scanner Properties]
dialog box. The page of the selected tab will be displayed.
To hide a tab window,
1. Click the [Setting] tab to show available tab names.
2. Choose the tab you want to hide by deselecting the tabs which have been shown with a
check mark. Then, the selected tab will be hided in the [Scanner Properties] dialog box.
Note: The [Image], [Paper], [Setting], and [Information] tab can not be hided
since they preprogrammed to be displayed by default.
(Mac OS)
7-6
7.3 The Image Tab
The Image tab allows you to choose the front side and (or) the rear side of your document,
the type of image, and to set several basic scan settings. Note that except for the resolution,
you can set individual scan settings for the front side and the rear side. For example, all
settings in the Image tab, Compression tab, Color Dropout tab can be set individually for the
front and the rear side. However, the settings in the Paper tab, the Option tab, and the
Setting tab have to be set the same for the front and rear side.
The Image tab dialog box (Windows)
The Image tab dialog box (Mac)
User’s Manual
7-7
7.3.1 The Image Selection Box
The Image Selection box includes the image type and document
side option. If you wish to scan both the front side and the rear
side of your color document, you can check both Front Color and
Rear Color at the same time. Note the options vary based on type
of scanner.
Example 1：Scanning a two-sided color document, both sides in color
Side/Image
Selection
Front
Rear
Example 2：Scanning a two-sided color document, one in B&W, the other in color
Side/Image
Selection
Front
Rear
IMAGE TYPE
DESCRIPTION
Color
Choose Color if you wish to scan a color image for your
original in color.
Gray
Choose Gray image if your original contains actual shades of
gray.
B&W
Choose B&W if your original contains only text, pencil or ink
sketch.
7-8
B&W
Gray
Color
Front/Rear Auto Color Detection:
Click to automatically detect and scan the front or the rear page of your color document in
color image mode. If your document is in colors, the scanner will automatically scan the
document into a color image. If your document is non-color, you can choose the output to be
either B&W or Gray from the Non-Color Selection option. This option is useful when you have
a mixture of color and non-color document.
Note: If you choose Front Rear Auto Color Detection, you can not specify the image mode of
your rear page and vice versas.

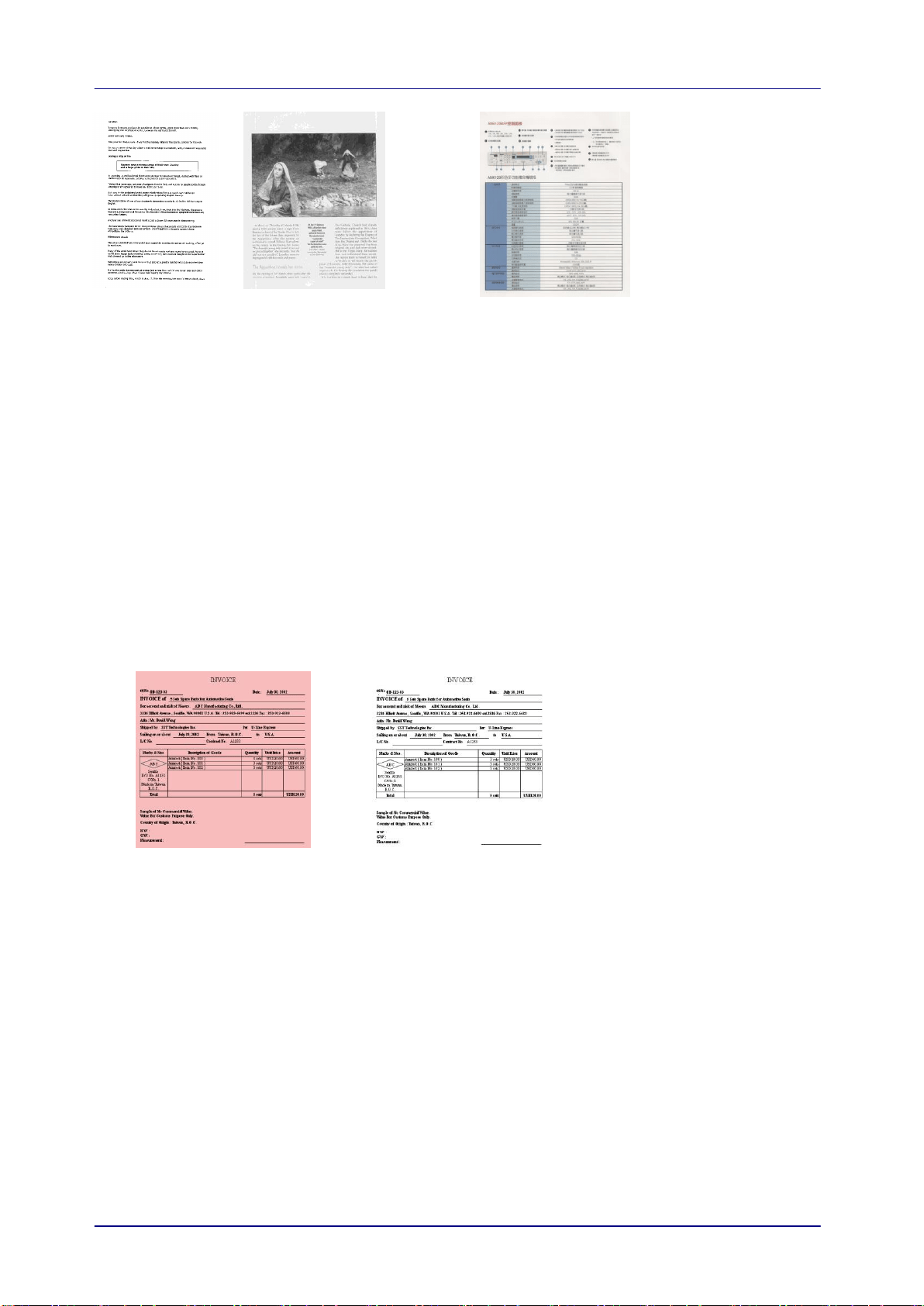

Modes of Auto Color Detection:
If [Front/Rear Auto Color Detection] is selected, its modes will be displayed. Choice
includes Normal, Ignore Paper Color. For paper with background color such as invoices,
choosing [Ignore Paper Color] will automatically remove the background color and enhance
the detection accuracy.
Normal
Ignore single
background color
User’s Manual
7-9
Sensitivity of Auto Color Detection
If your documents contain primarily B&W text and small amount of light or pale colors and
you do not wish them to be recognized as color image to save the file size, you can increase
the sensitivity value by moving the bar to the right to let these images to be detected as
B&W. The value ranges from 1 to 100. The default is 37.

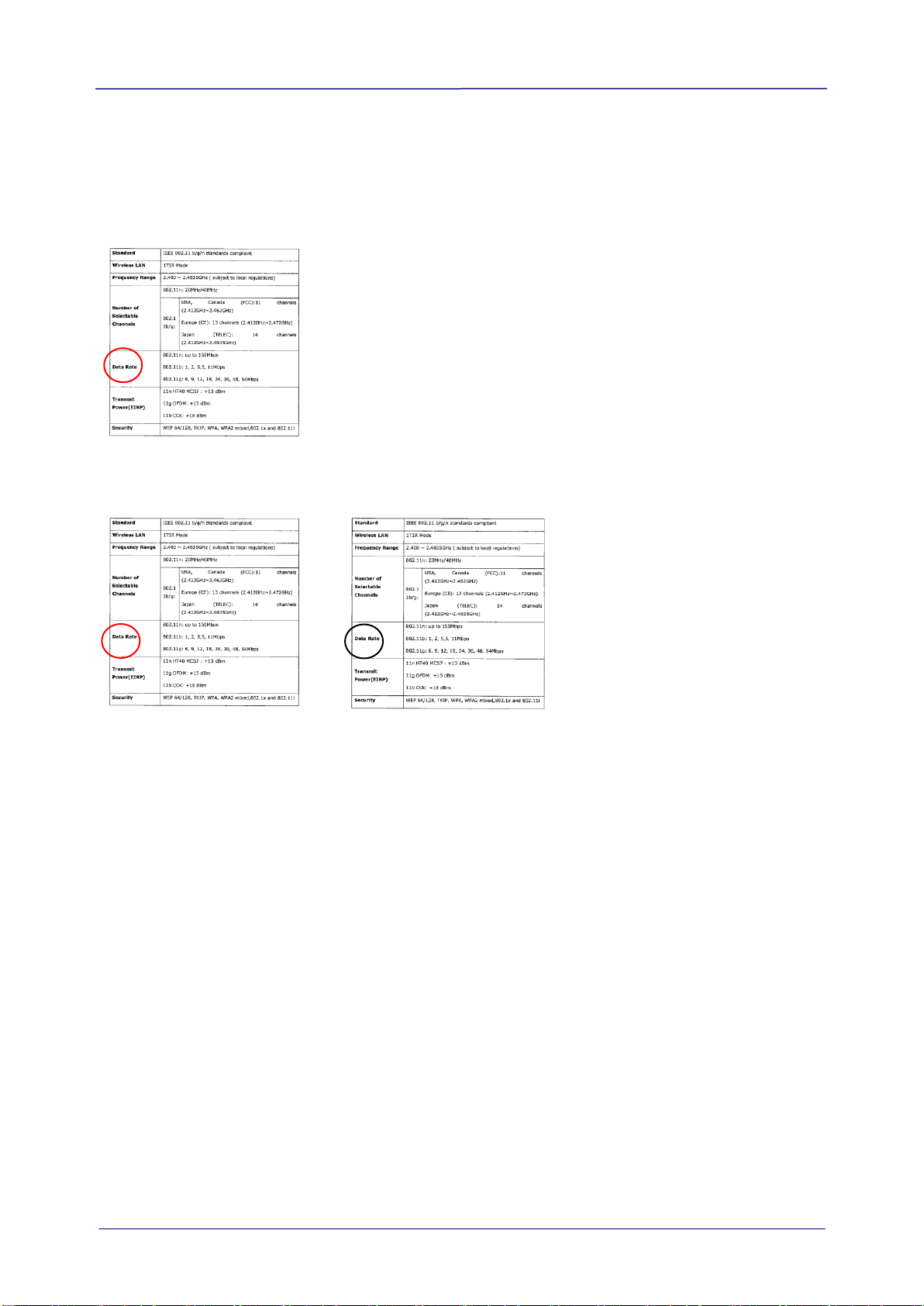

Original
Sensitivity: 1
(The image is recognized
as a color one)
Sensitivity: 100
(The image is recognized
as a black and white one)
Same settings on both sides:
Click to apply same scan settings for both sides of your documents. After checking this
option, any settings you have changed will automatically applied to both the front side and
the rear side. For example, if you choose your ideal resolution to be 300 dpi, this will be
applied both to the front side and rear side of your document.
7-10
7.3.2 Other Image Options
Binarization
This is the process of converting a grayscale or color image to a
bi-tonal image. There are several different methods of
performing this conversion. Options: Dynamic Threshold,
Dynamic Threshold (AD), Fixed Processing, Halftone 1~5,
Error Diffusion.
Dynamic Threshold: Selecting Dynamic Threshold allows
the scanner to dynamically evaluate each document to
determine the optimal threshold value to produce the highest
quality image. This is used to scan mixed document containing
faint text, shaded background, or color background with a single
setting. If Dynamic Threshold is selected, Threshold,
Brightness, and Contrast are not available.
Dynamic Threshold (AD): Selecting Dynamic Threshold
(AD) to perform the enhanced mode of the Dynamic Threshold
feature. However, using this mode may slow down your
scanning speed.
Sensitivity of Dynamic Threshold
Occasionally your scanned image may contain small dots or
speckles. To remove these spots, increase the sensitivity value
by moving the bar to the right. The value ranges from 1 to 30.
The default is 20.
Fixed Processing: Used for black-and-white and other high
contrast documents. A single level is set to determine the black-
and-white transition. The threshold is programmable over the
entire density range. Fixed Processing sets Contrast to 0. If
Fixed Processing is selected, Contrast is not available.
Halftone: In addition to the black and white display, Halftone
can present a somehow gray shade of image by using different
size of dots. Halftone image looks like the picture we have seen
in the newspaper. Options include Halftone 1, Halftone 2,
Halftone 3, Halftone 4, Halftone 5.
Error Diffusion: Error Diffusion is a type of Halftone. Error
Diffusion gives good image texture and makes text in images
more readable than Halftone.

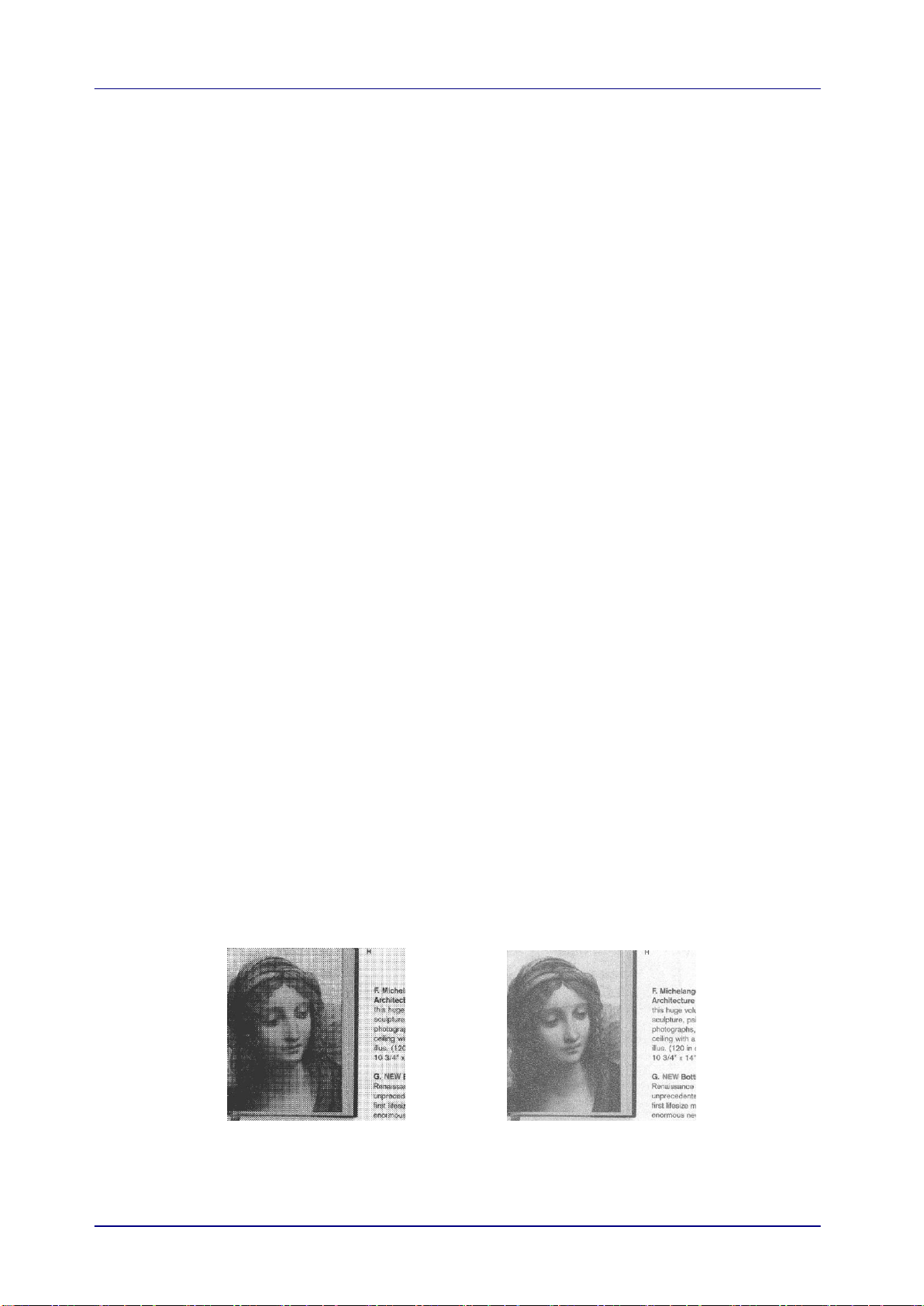

Halftone Image Error Diffusion Image
User’s Manual
7-11
Dynamic Threshold
Dynamic Threshold (AD)
Threshold
Used to convert a grayscale image to a
bi-tonal image. The value ranges from 0 to 255. A low
threshold value produces a lighter image, and can be used
to subdue backgrounds and subtle, unneeded information.
A high threshold value produces a darker image, and can
be used to help pick up faint images.
Adjust the threshold setting by dragging the Threshold
sliding bar to the left or right to achieve the desired
threshold setting.

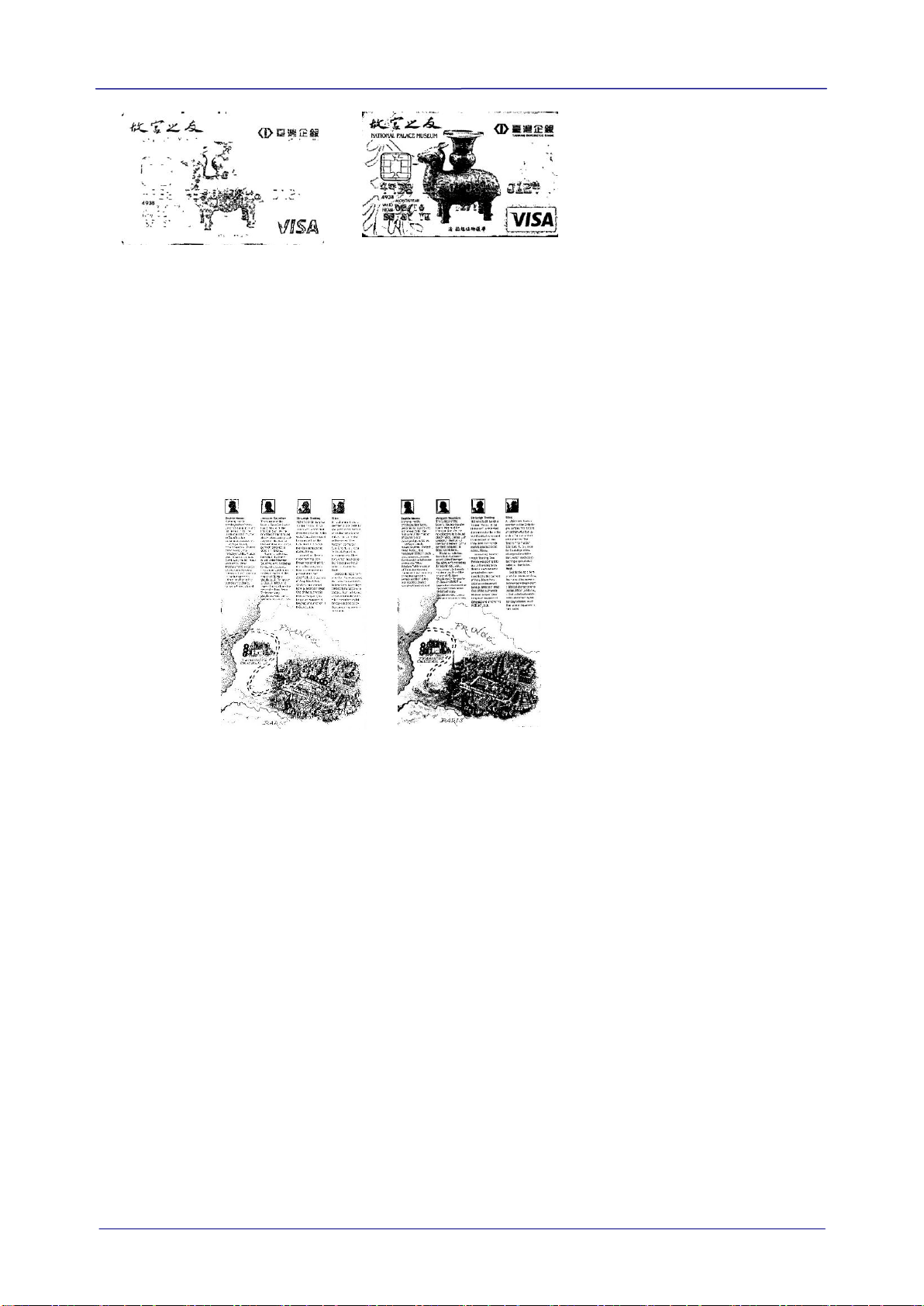

200 dpi,
Threshold:50,
Brightness: 0
200 dpi,
Threshold:100,
Brightness: 0
Gray
Document Type: Choice: Normal, Photo, Document
Three options of document type are provided when you choose Gray as the image type for
your scanned document. Choice: Normal, Photo, Document.
Document: Choose Document if your original contains pure text or a mixture of text
and graphic since it is an optimal setting for regular business document. When using
Document, only Threshold can be adjusted.
Photo: Choose Photo if your original contains photo to reproduce your photo in vivid
grayscale image. When using Photo, no Threshold and Contrast can be adjusted.
Normal: When using Normal, Threshold, Brightness, and Contrast can be adjusted.
Threshold: The value ranges from 0 to 255. The default is 230. A low threshold value
produces a lighter image, and can be used to subdue backgrounds and subtle, unneeded
information. A high threshold value produces a darker image, and can be used to help pick up
faint images. Adjust the threshold setting by dragging the Threshold sliding bar to the left or
right to achieve the desired threshold setting.
7-12
Normal
Document
(Threshold: 230)
Normal
Document
(Threshold: 230)
Brightness
Adjusts the lightness or darkness of an image. The higher
the value, the brighter the image. Drag the slider to the
right or left to increase or decrease the brightness. The
range is from –100 to +100.
Contrast
Adjusts the range between the darkest and the lightest
shades in the image. The higher the contrast, the bigger the
different grayscale. Drag the slider to the right or left to
increase or decrease the contrast. The range is from –100
to +100.

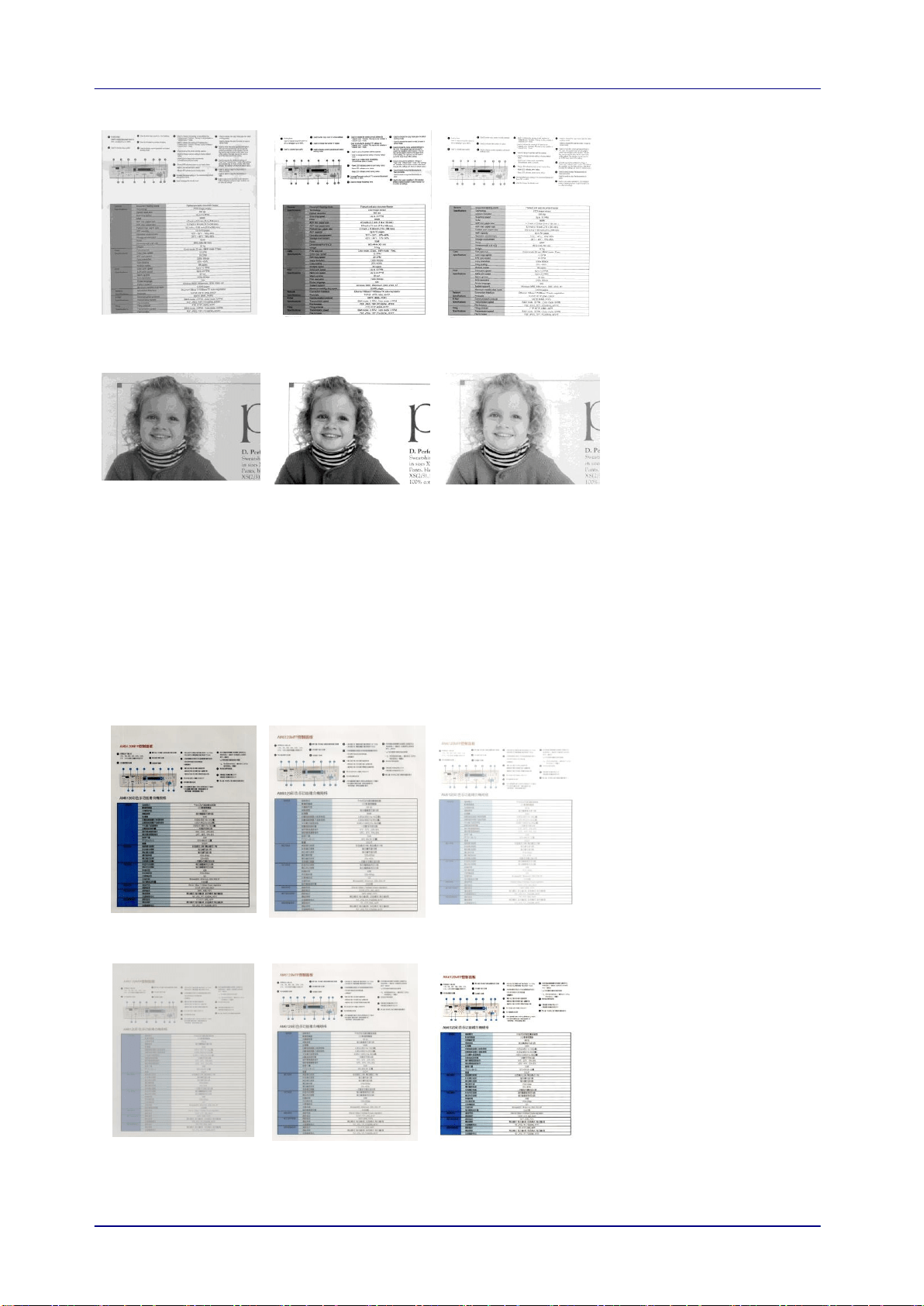

Brightness: -50
Brightness: 0
(Normal)
Brightness: +50
Contrast: -50
Contrast: 0
(Normal)
Contrast: +50
User’s Manual
7-13
Resolution
A good control of the resolution results a good detail of an
image that scans. The resolution is measured by dots per inch
(dpi). Normally, the greater the dpi number, the higher the
resolution and the image file size. Be aware that greater
resolution takes more time to scan, and more disk space for
the scanning image. For your information, an A4 size color
image scanned at 300 dpi at True Color mode consumes
approximately 25 MB of disk space. A higher resolution
(usually means over 600 dpi) is only recommended when you
need to scan a small area at True Color mode.
Choose a resolution value from the drop down list. The default
value is 200 dpi. Available resolutions are 75, 100, 150, 200,
300, 400 and 600. Or you may choose your desired value by
clicking the box in the right side of the drop down list and
press the arrow key to select your desired value and then click
the Add button to include it in the drop down list. Note: The
resolution is up to 300 dpi if an imprinter or a MICR reader is
installed or connected to the scanner.

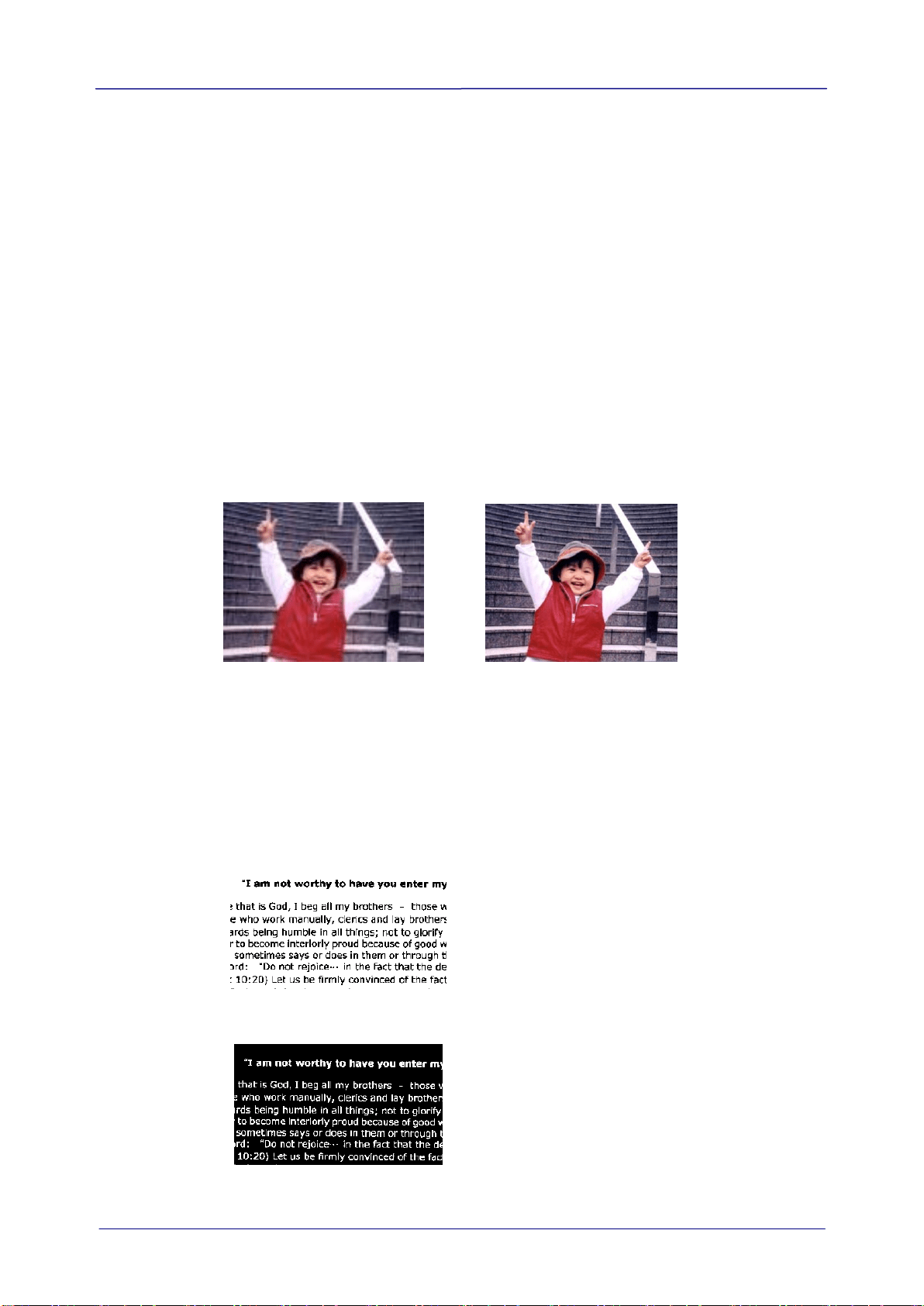

Resolution: 75 dpi Resolution: 150 dpi
Invert
Reverses the brightness and the colors in the image. The default
setting is Black on a White background. Reverse mode is White on a
Black background. For color images, each pixel will be changed into
its complementary color at the command of Invert.
Black on White
White on Black
7-14
Scan
Source
Choice:
Auto Document Feeder: Used to scan multiple pages.
Flatbed: Used to scan a single page. For example, pages from
newspaper clipping, paper with wrinkles or curls.
Flatbed (book): Used to scan several inside pages from book.
Automatic: Allow the scanner automatically set its scan source.
If Automatic is selected and there is document in both the auto
document feeder (ADF) and the flatbed, then the scan source will
be automatically set to ADF. If Automatic is selected and there
is document only in flatbed, then the scan source will be set to
flatbed.

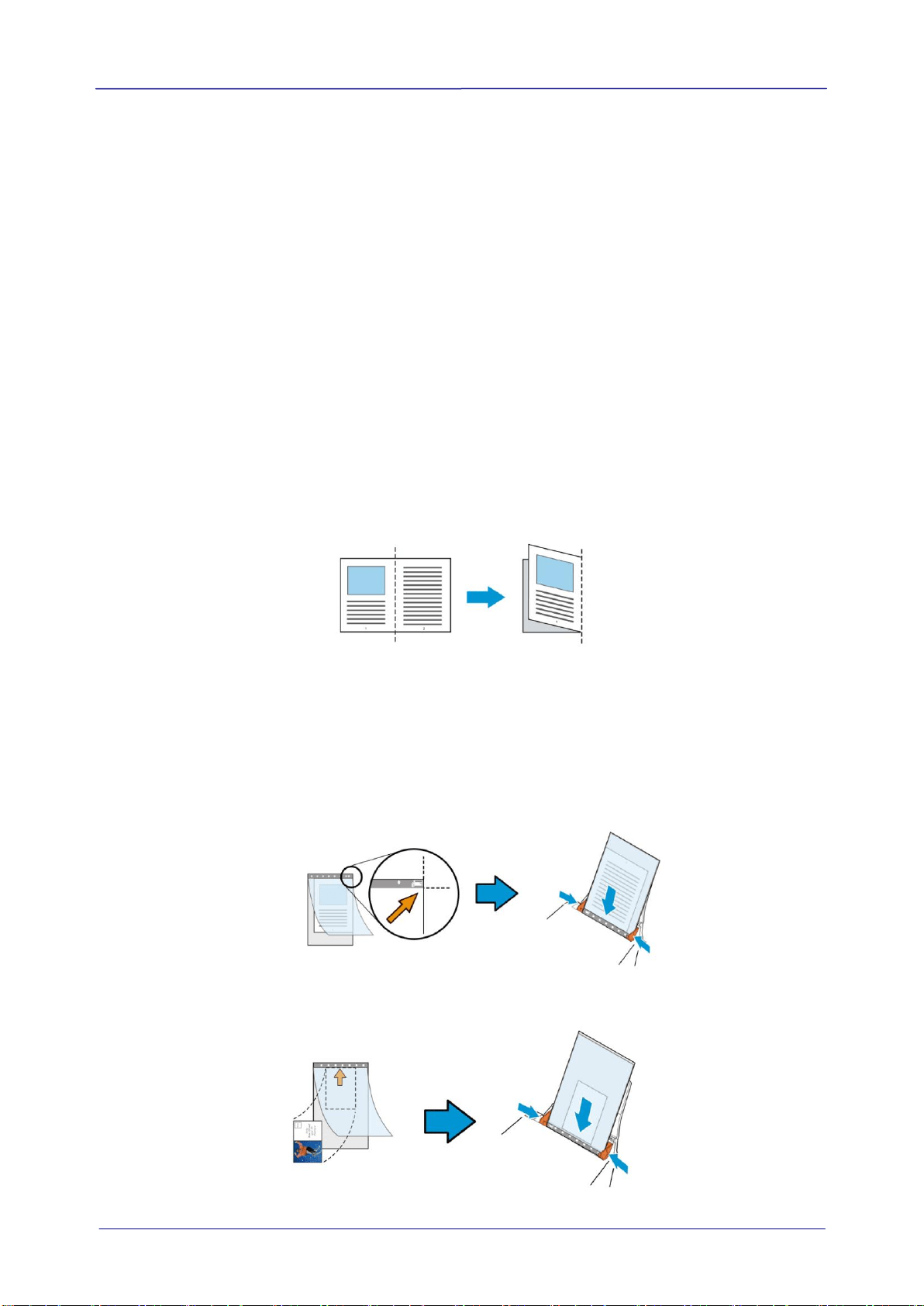

Merge Two Sides into One Image:
If you have a sheet-fed duplex scanner with front input tray, you
can scan an A3 size document with an innovative method. Thus,
fold your A3 size document into A4, and then load the paper in
the front tray. Choose Merge Two Sides from the Scan Source
option and then the scanner is able to scan both sides of your
document and merge two A4 images into one A3 image.
When you select Merge Two Sides into One Image, the Cropping
or Multi-feed function will be disabled.
Note: This feature must be used with a carrier sheet. Regarding
how to load a document with a Carrier Sheet, refer to Section
4.6.2, Other Paper Selection.
Note the options vary based on type of scanner.
NOTE:
If you have purchased a duplex sheet-fed scanner, choose
[Merge Two Sides] on the [Scan Source], then the scanner is
able to scan both sides of your document and merge them
into a single image.
If “Merge Two Sides into One Image” is selected, its choice will be available
including “Merge Horizontally”, “Merge Vertically”, “Merge Vertically (Back
Side Flip)”. If the reverse side of your document is upside down, choose
“Merge Vertically (Back Side Flip)” and the back side will be automatically
rotated 180 degrees and merged.
Note the options vary based on type of scanner.
Front
Side
Rear
Side
Merge Vertically
Front
Side
Rear
Side
Merge Horizontally
User’s Manual
7-15
Color
Matching
The purpose of Color Matching is getting the accurate color.
This option uses the default parameters (ICC profile) to adjust
the colors of the image.
Choice: None, Document, Photo
None: Choose “None” to disable this option.
Document: Choose “Document” if your original contains
pure text or a mixture of text and graphic since it is an
optimal setting for regular business document.
Photo: Choose “Photo” if your original contains photo to
reproduce your photo in vivid color image.

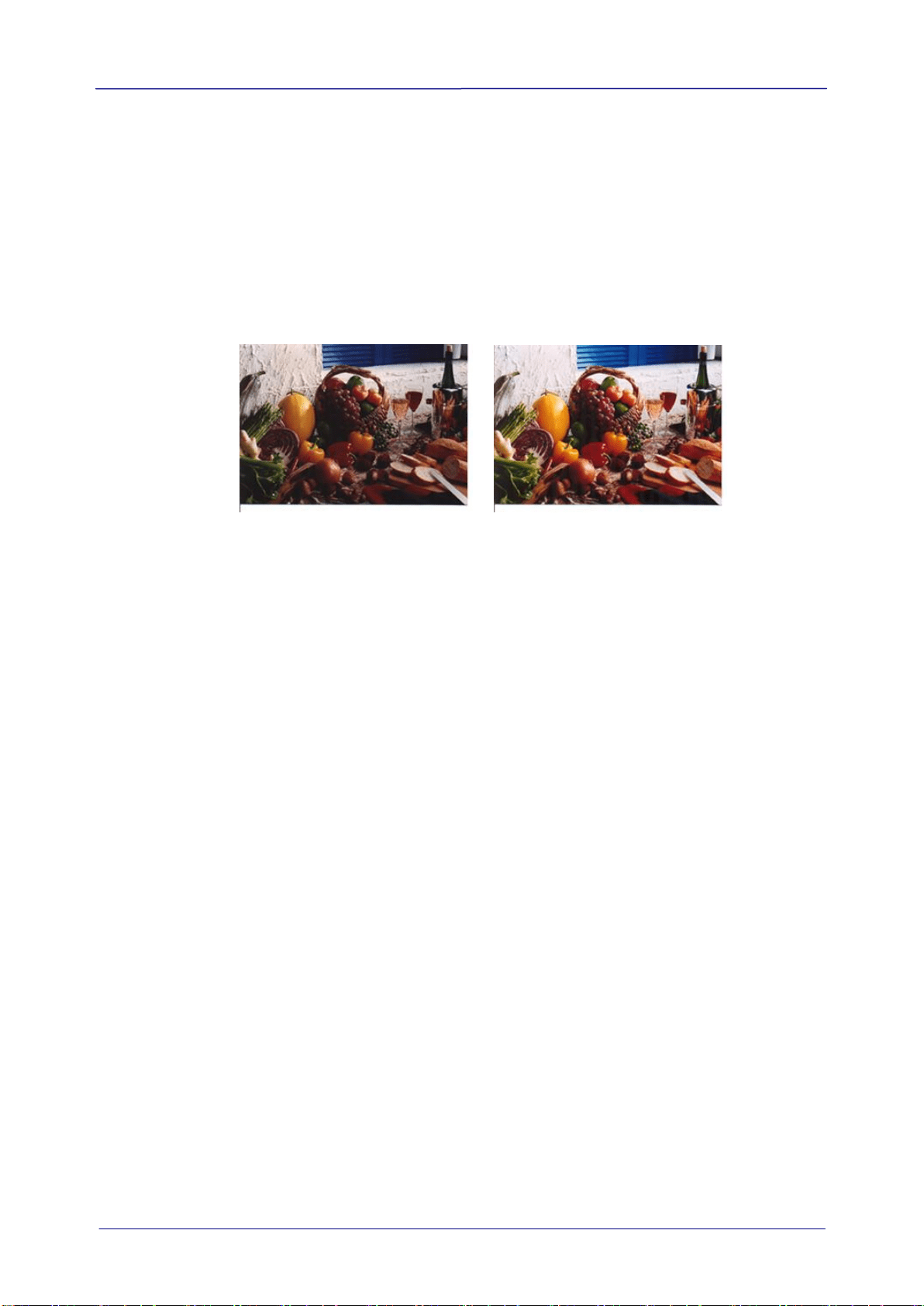

Normal After Color Matching
7.3.3 Scanning color images
The following options are available for scanning color images.
Brightness
Contrast
Resolution
Invert
7.3.4 Scanning grayscale images
The following options are available for scanning gray images.
Brightness
Contrast
Resolution
Invert
7.3.5 Scanning B&W images
The following options are available for scanning B&W images.
Binarization (Dynamic Threshold)
Resolution
Invert
Or
Binarization (Fix Processing)
Threshold
Brightness
Resolution
Invert
7-16
7.3.6 Editing Profiles
The Scanner Properties dialog box allows you to change and save your frequently used scan
settings into a profile. You can edit these profiles by renaming or deleting them.
Windows:

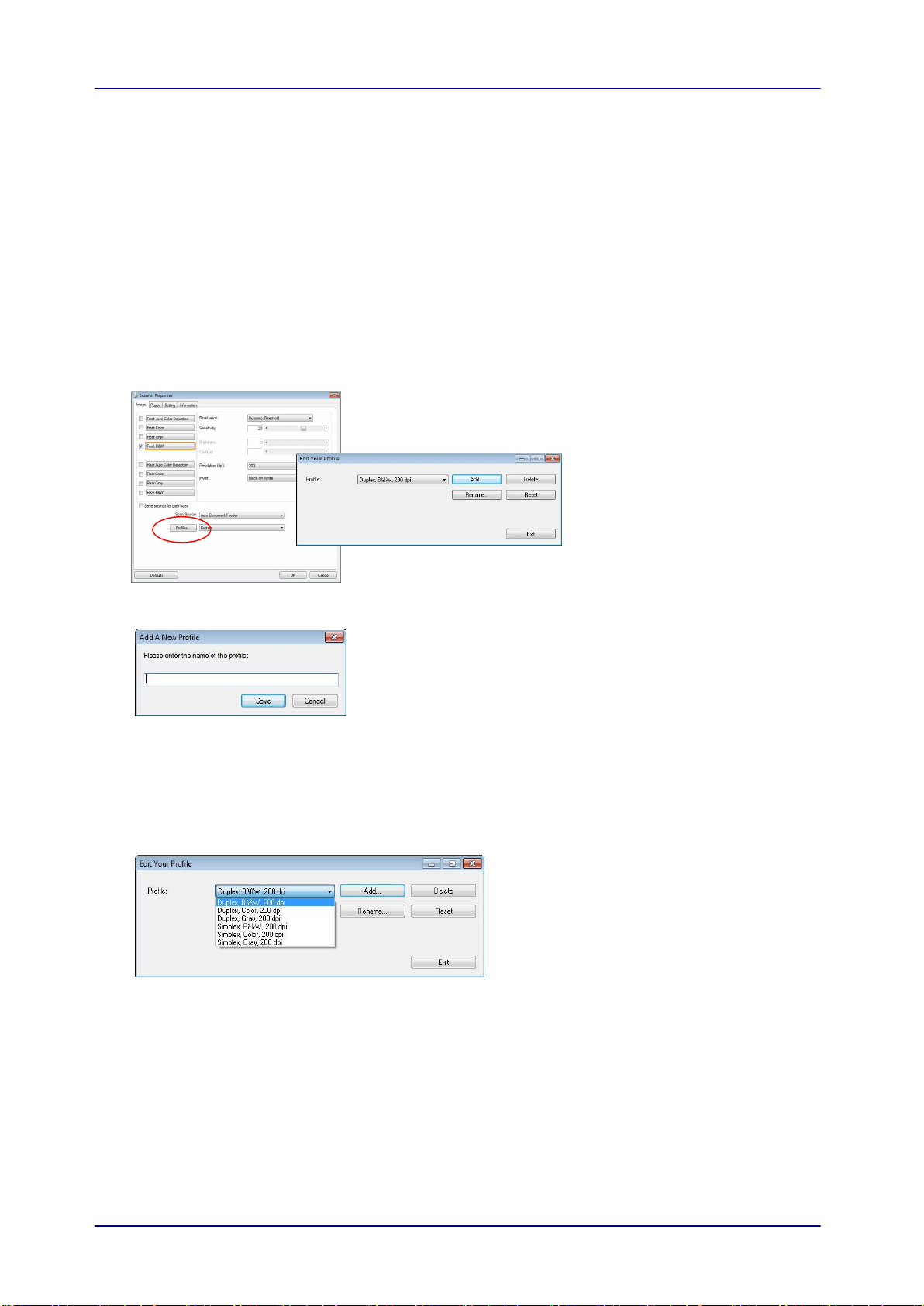

To add a new profile
1. Customize your settings. (For example, change your resolution, image type, cropping
method, scan size, or other scan settings.)
2. Click the Image tab and then choose “Profiles” to prompt the “Edit Your Profile” dialog
box.
3. Click “Add” to enter the name of the profile and then choose “Save”.
4. The new profile will be saved and shown in the “Profiles” dropdown list box.
5. From the Image tab dialog box, choose your favorable profile from the “Profiles”
dropdown list box.
6. Your favorable profile will be immediately loaded and displayed on Scanner Properties
dialog box.
User’s Manual
7-17

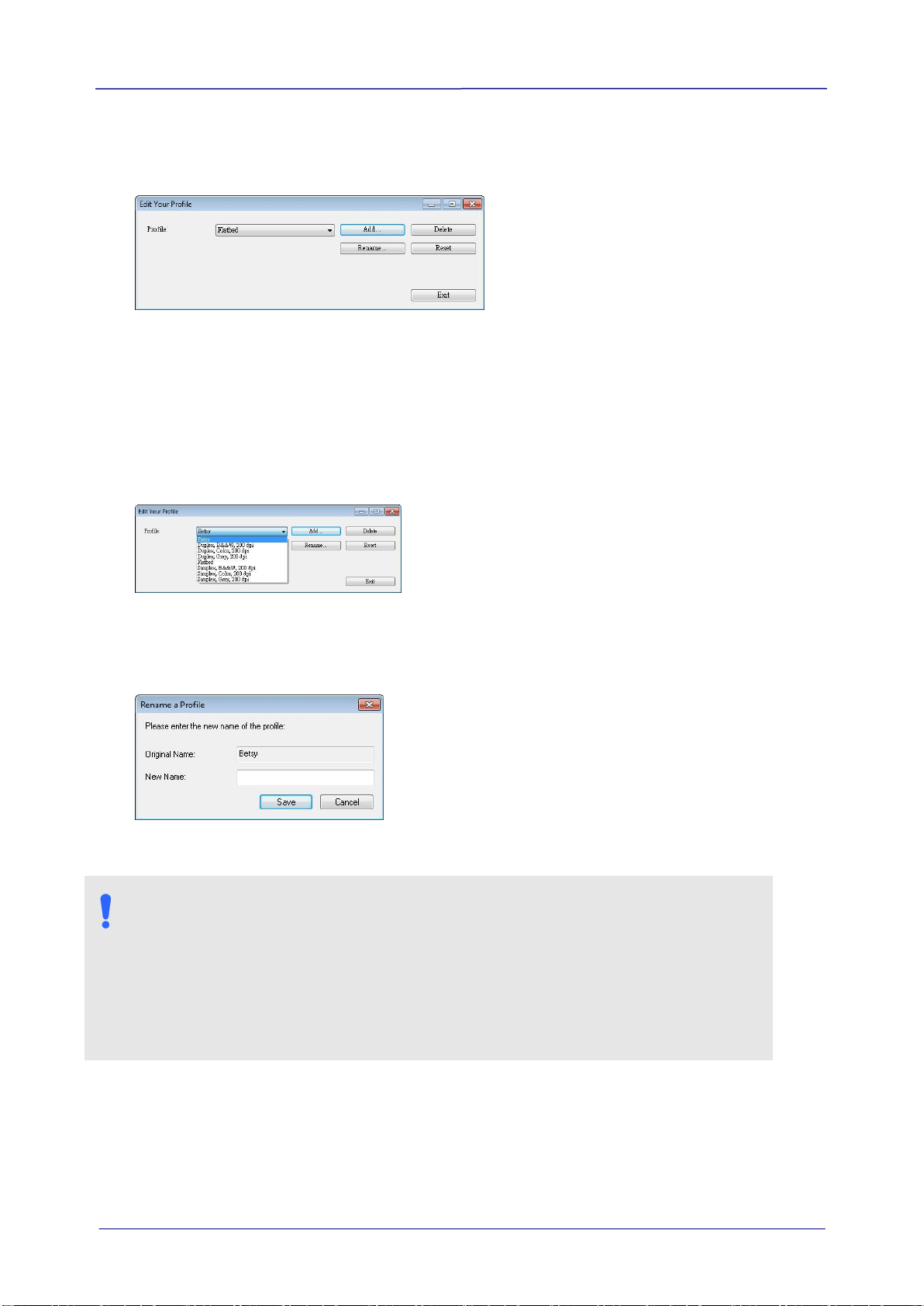

To delete a profile,
1. From the Image tab dialog box, click “Profiles” to prompt the Edit Your Profile dialog box.
2. Choose the profile you want to delete from the dropdown list box.
3. Click “Delete”. A Confirm message “Are you sure you want to delete this profile?” is
prompted.
4. Choose “Yes” to delete or “Cancel” to quit.
To rename a profile,
1. From the Image tab dialog box, click “Profiles” to prompt the Edit Your Profile dialog box.
2. Choose the profile you want to rename from the dropdown list box and then click the
Rename button.
3. Enter new name for the profile.
4. Choose “Save” to save the new profile or “Cancel” to quit.
NOTE:
1. The preset default profiles include Flatbed, Simplex-B&W, 200 dpi,
Simplex-Gray, 200 dpi, Simplex-Color, 200 dpi, Duplex-B&W, 200 dpi,
Duplex-Gray, 200 dpi, Duplex-Color, 200 dpi. If you have a simplex or a
sheetfed scanner, the duplex or the flatbed option will not be available.
2. If any setting for a current profile has been changed, a [*] sign will be
marked before the name of current profile, for example, [* Duplex, Color,
200 dpi]. If desire, click the [OK] or [Scan] button and a dialog box will
be prompted to let you save the new profile.
7-18
Mac OS
To load a profile (Mac)
1. Customize your settings. (For example, change your resolution, image type, cropping
method, scan size, or other scan settings.)

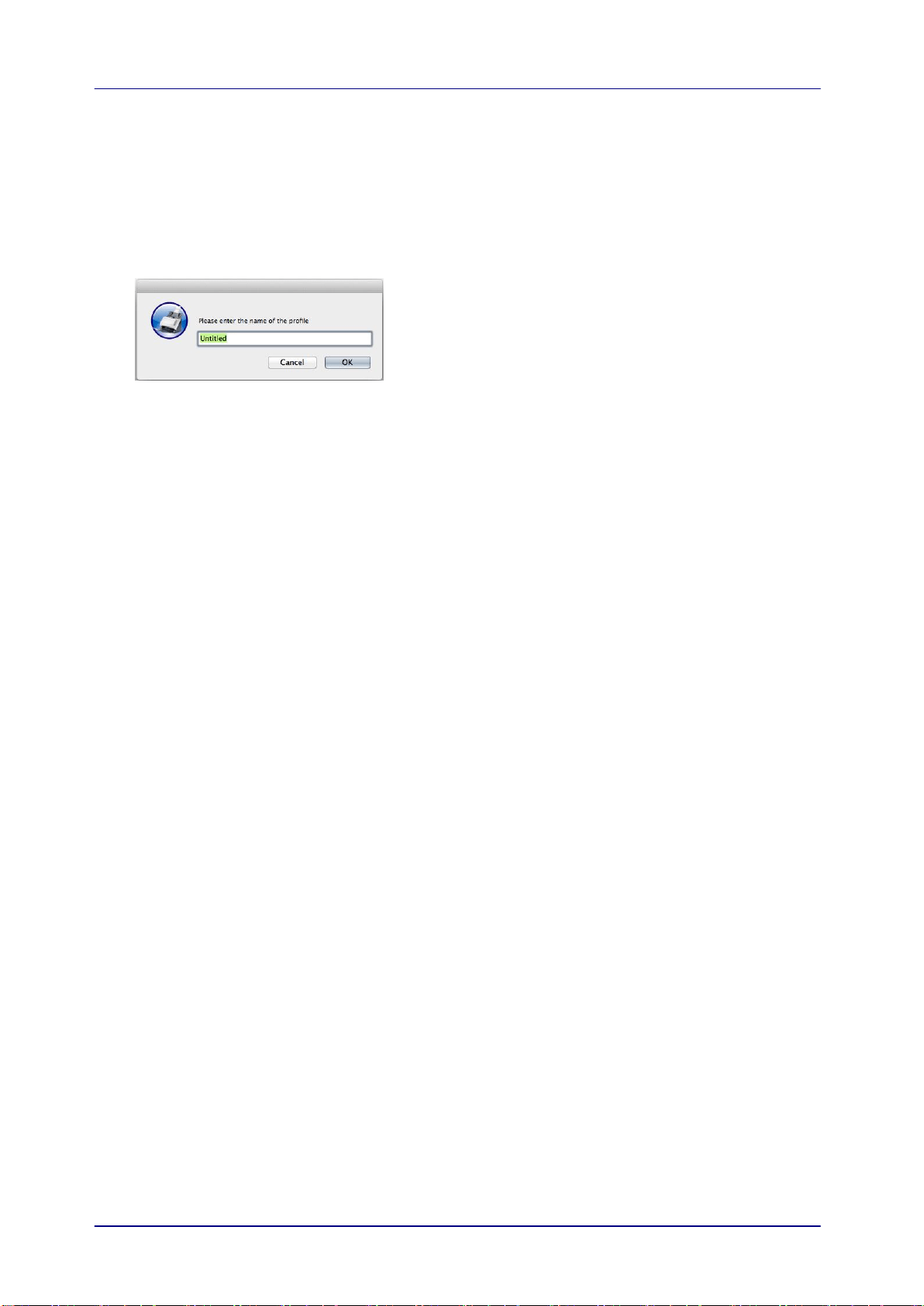

2. Click the Image tab and click “+” on the Profile to enter the name of the profile and
then choose “OK”.
3. The new profile will be saved and shown in the “Profiles” dropdown list box.
To load a profile,
1. From the Image tab dialog box, choose your favorable profile from the “Profiles”
dropdown list box.
2. Your favorable profile will be immediately loaded and displayed on Scanner Properties
dialog box.
To delete a profile,
1. Choose the profile you want to delete from the dropdown list box.
2. Click “-”. A Confirm message “Are you sure you want to delete this profile?” is prompted.
3. Choose “OK” to delete or “Cancel” to quit.
User’s Manual
7-19
7.4 The Compression Tab
* The feature is only available for Windows operating system.
The Compression tab allows you to compress your scanned image and choose the level of
compression. Bi-tonal images are normally compressed using CCITT standard called Group 4
(G4). Color and grayscale images are often compressed using JPEG technology. Move the
JPEG Quality slider to the right or left to increase or decrease the level of compression. Note
the greater the compression level, the lower image quality. Default is 50%.
Note that the compression depends on your image editing application. If your image editing
application does not support the type of compression format, then either a warning message
will appear or the image quality of the compressed file will not be acceptable.
JPEG (Joint Photographic Editor Group). This group developed and lent their name to a file
compression standard for color and grayscale images that is widely used by scanners, and
software applications. On Microsoft Windows-based systems, a file with the extension .jpg
has normally been compressed using this standard.
For scanning color or gray images, the following compressions are available:
None
JPEG
For scanning B&W images, the following compressions are available:
None
G4
Compression:
To complete your scan at a rated speed, the scanned image is compressed by default during
transmission. However, if you wish to obtain the highest image quality, you can choose to
uncompress the image data before it is outputted.
To Application:
Choose if you wish to compress the image data and transfer it from the TWAIN driver to the
application. Note Bi-tonal images are normally compressed using CCITT standard called
Group 4 (G4). Color and grayscale images are often compressed using JPEG technology.
Move the [Image Quality] slider to the right or left to increase or decrease your image
quality. Note the greater the image quality, the lower the compression level. Default is 50%.
Note that the compression depends on your image editing application. If your image editing
application does not support the type of compression format, then the image of the
compressed file will look abnormal.
From Scanner: (Note: The availability of this feature varies due to scanner model.)
Choose if you wish to compress the scanned image and transfer it from the scanner to the
TWAIN driver.
Choice: Uncompressed, *Best Image Quality (Low Compression Level), Better Image Quality
(Normal Compression Level), Normal Image Quality (High Compression Level). (*: Factory
Default)
Scanned
Scanned
Scanner
Scanner Driver
Image Editing
Application
7-20
The Compression tab dialog box
User’s Manual
7-21
7.5 The Color Dropout Tab
7.5.1 Color Dropout Selection
The [Color Dropout] tab allows you to select either green, red, blue, or a color of your
choice to remove the details of the selected color from a scanned image. This feature is used
to sharpen your text when using OCR (Optical Character Recognition) software. Note this
feature applies only to the gray or black and white image.
Choice: None, Auto, Remove Red, Remove Green, Remove Blue, Custom
- None: Does not remove any color.
- Auto: Automatically outputs the image with the details of the primary color removed.
- Remove Red/Remove Green/Remove Blue: Outputs the image with the details of the
specified color removed.
- Custom: Specify the color you wish to remove by entering its RGB (Red, Green, and Blue)
value respectively.
Advanced Options:
- Quality Mode: Range: 0~20. Default: 10
When [Quality Mode] is selected, you can determine the color to be dropped out using the
[Filter Threshold] slider. A lower value will drop more of the selected color out, while a
higher value will leave more of the selected color in.
- Normal Mode: Use an optimized setting to determine the color.

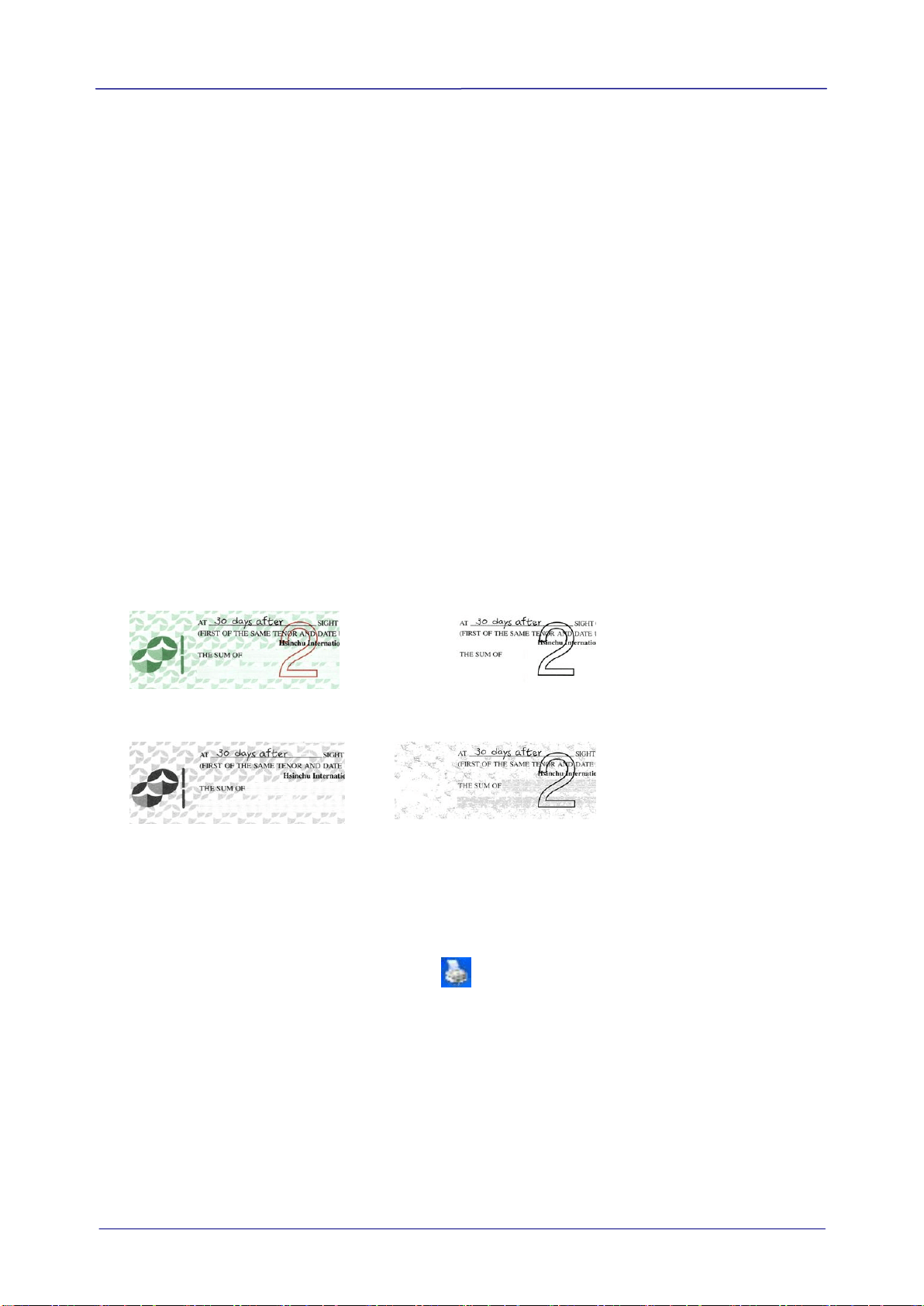

Original
Auto/Remove Green
(normal mode)
Remove Red (normal mode)
Remove Green (quality
mode: Threshold: 18)
Preview the color dropout result:
To preview the color dropout result, please follow these steps:
1. Click the [Scanner Properties] icon ( ) on the upper left corner, and choose [Tab]
to show available tab names.
2. Choose [Preview] to show the Preview tab.
3. Click the [Preview] tab to show the Preview page.
4. Load your document to the scanner and click the [Preview] button to get a preview
image.
5. On the [Image] tab, click [Gray] or [Black and White] image mode and then choose
[Custom] on the [Color Dropout] tab. A [Preview window] button will be displayed.
6. Click the [Preview window] button to prompt the [Preview] window with the
previewed image.
7-22
7. Move your cursor over the preview image. Your mouse cursor now becomes an
Eyedropper.
8. Click to select a color which you wish to remove.
9. Click and hold your mouse button to view the result after removing the specified
color. If the result is satisfactory, click [OK] to close the Preview window.
The Preview Window The Color dropout result
The Color Dropout dialog box (Windows)
User’s Manual
7-23
The Color Dropout dialog box (Mac OS)
7-24

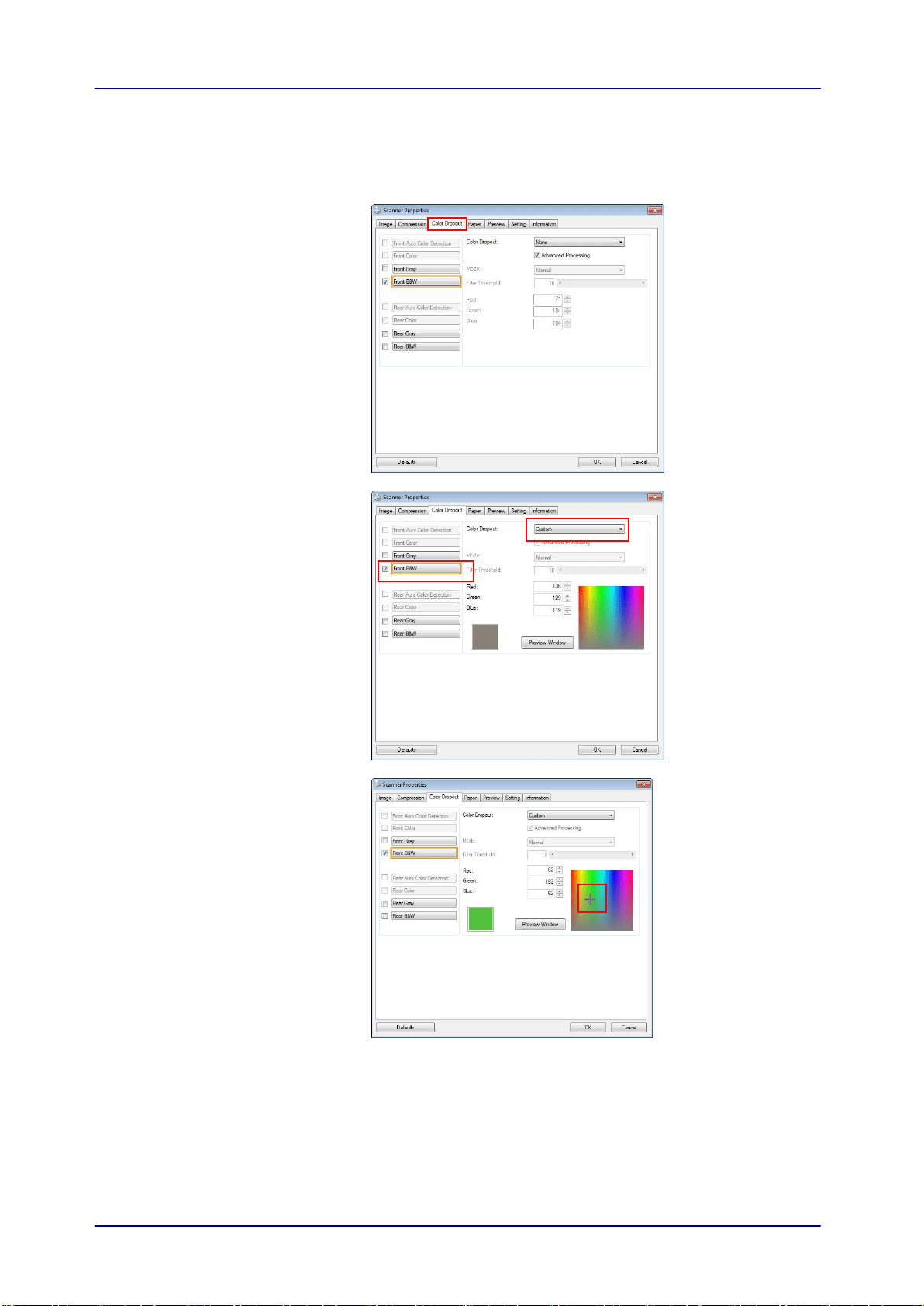

Windows:
To select a color on the Color palette,
1. Click the Color Dropout tab
from the Scanner Properties
dialog box.
2. Choose Gray or B&W from
the Image Selection box and
click “Custom” from the
Color Dropout drop-down
menu. The Color palette
appears.
3. Move your cursor over the
palette. The cursor becomes
a cross sign.
4. Click to choose a color. The RGB values are changed simultaneously.
User’s Manual
7-25
Mac OS:
To preview the color dropout result, please follow these steps:
1. Choose [Preview Window] to show the Preview tab.
2. Load your document to the scanner and click the [Preview] button to get a preview
image.
3. On the [Image] tab, click [Gray] or [Black and White] image mode and then choose
[Custom] on the [Color Dropout] tab. An [Eyedropper] button will be displayed.
4. Click the [Eyedropper] button and move your cursor over the preview image. Your
mouse cursor now becomes an Eyedropper.
5. Click to select a color which you wish to remove.
6. Click and hold your mouse button to view the result after removing the specified color.
7. If the result is satisfactory, click [OK] to close the Avision Scanner Properties dialog
box.
7-26

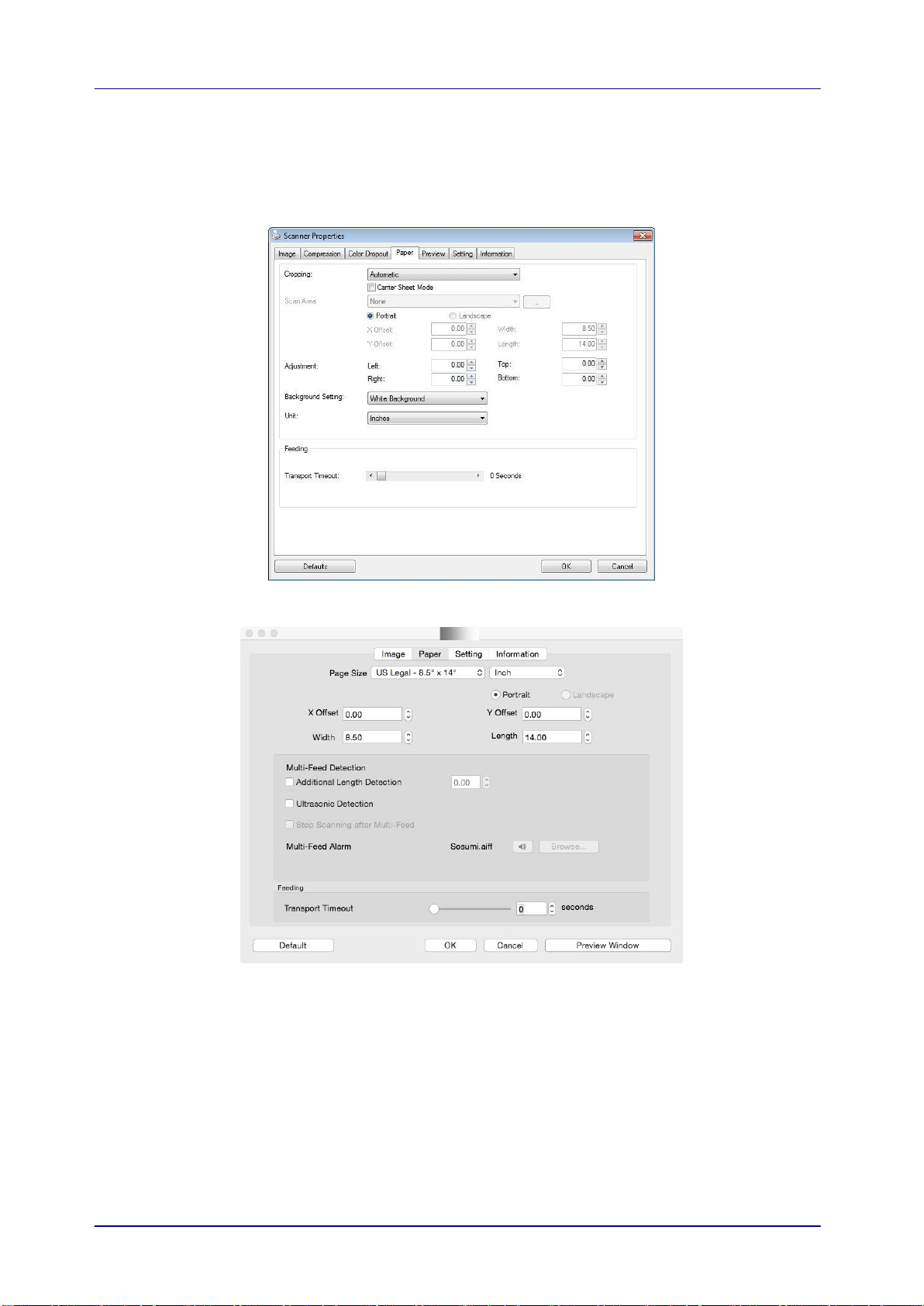

7.6 The Paper Tab
The Paper tab allows you to define values relating to image output (i.e., Auto Crop or not,
Scan Area, OverScan, Multi-Feed Detection).
The Paper tab dialog box (Windows)
The Paper tab dialog box (Mac OS)
User’s Manual
7-27
7.6.1 Cropping
Cropping allows you to capture a portion of the document being scanned. Choice:
Automatic, *Automatic (36”), Fixed to Transport, *EOP (End of Page) Detection,
*Automatic Multiple, *Relative to Documents.
* Windows only
OPTIONS
DESCRIPTION
Automatic
Automatic adjusts the cropping window according to
different document sizes and automatically straighten a
skewed document. Use this option for batches of mixed-
sized documents.
Automatic
(36”)
Automatically adjusts the cropping window according to
different document sizes smaller than 36” and automatically
straighten a skewed image. Use this option for batches of
mixed-sized document.
Note: The availability of this feature varies due to
scanner model.
Fixed to
Transport
This feature allows you to define the area or zone to be
imaged. Use for batches of same-sized documents. If you
select this option, you can use the arrow keys to define the
x and y offset values, width and length to redefine your
scanned area. The Display window will show image
placement as you change the values.
EOP (End of
Page)
Detection
This feature allows you to define the area or zone to be
imaged. Use for batches of same-width but different length
documents. If you select this option, you can use the arrow
keys to define the x and y offset values, width and length to
redefine your scanned area. The Display window will show
image placement as you change the values.
Automatic
Multiple
This option allows you to place various sized documents
such as photos, ID Cards, or business cards on the flatbed
(if available) and lets you create multiple individually
cropped images in one scan. Note: To correctly create
multiple images, please make sure there is at least 12mm
(0.5”) of space between each document.
Relative to
Document
This option allows you to crop different areas on your
documents and deliver these images in B&W, Gray, or Color
separately. For example, there are applications which
require you to store the entire document in B&W and a part
of the document in color to save storage space. This is
useful for documents where a photograph or signature
appears in a consistent area on the document such as
resumes, and so on.
The following options are only available when Fixed to Transport is selected.
X-Offset — the distance from the left end of the scanner to the left edge of the
scanning area.
Y-Offset — the position from the top end of the document to the top end of the
scanning area.
Width — the width of the scanning area.
Length — the length of the scanning area.
Center: automatically calculates the x-offset for center-fed feeding based upon
document size selected.
7-28
— relocate the scan area by click the arrow key on the cross sign while retain the
scan size. View the result from the Display window.
The Adjustment option is available when Automatic is selected.
Adjustment —adds a positive/negative margin value Top/Bottom or toward left/right of
the image. Adjustment is used when the automatic document feeder is used.
Adjustment reduces the possibility of corner clipping on skewed images. To set
Adjustment values, use the UP/Down buttons to select where you want to apply
Adjustment values: Top/Bottom or Left/Right, and then select the amount of
inches/mm/pixels applied. Select a value within the range of 0.00 to 1.00 / -1.00.
Relative to Document: (used for batches of same-sized documents)
This option allows you to crop different areas on your documents and deliver these images in
B&W, Gray, or Color separately. For example, there are applications which require you to
store the entire document in B&W and a part of the document in color to save storage space.
This is useful for documents where a photograph or signature appears in a consistent area on
the document such as resumes, and so on.
The following procedure describes how to reproduce the entire document in B&W and a
portion of document (picture) in color.
1. On the Paper tab, choose “Relative to Document” or “Fixed to Transport” from the
Cropping option.

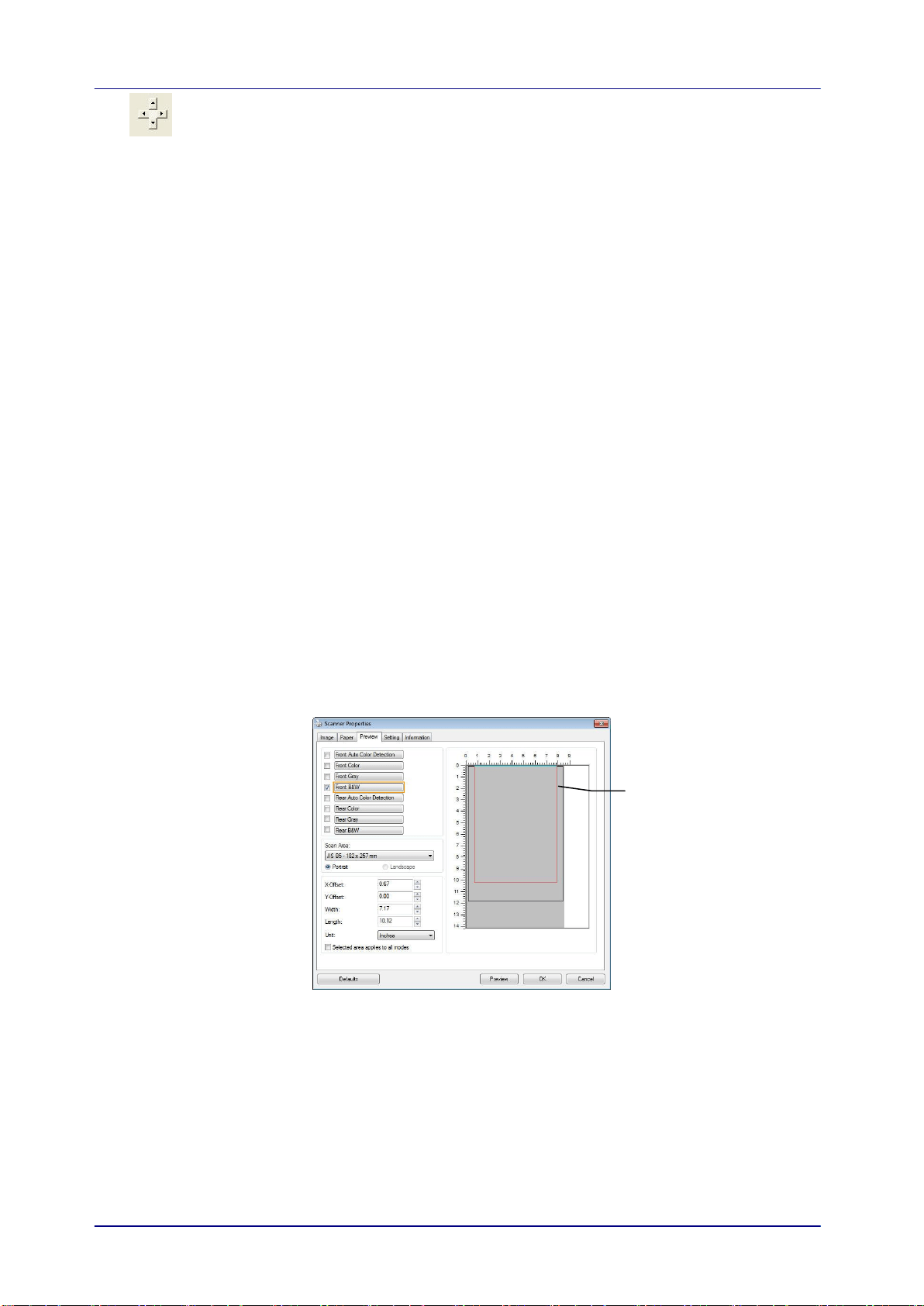

2. Choose your scan size from the Scan Area option. The selected scan size will be
displayed in a red rectangular box. This is also the scan size of your entire document.
(For example, ISO B5. If you have not chosen a scan area and leave the selection as
None, then the default area will be the scanner’s maximum.)
A red
rectangular
box
User’s Manual
7-29

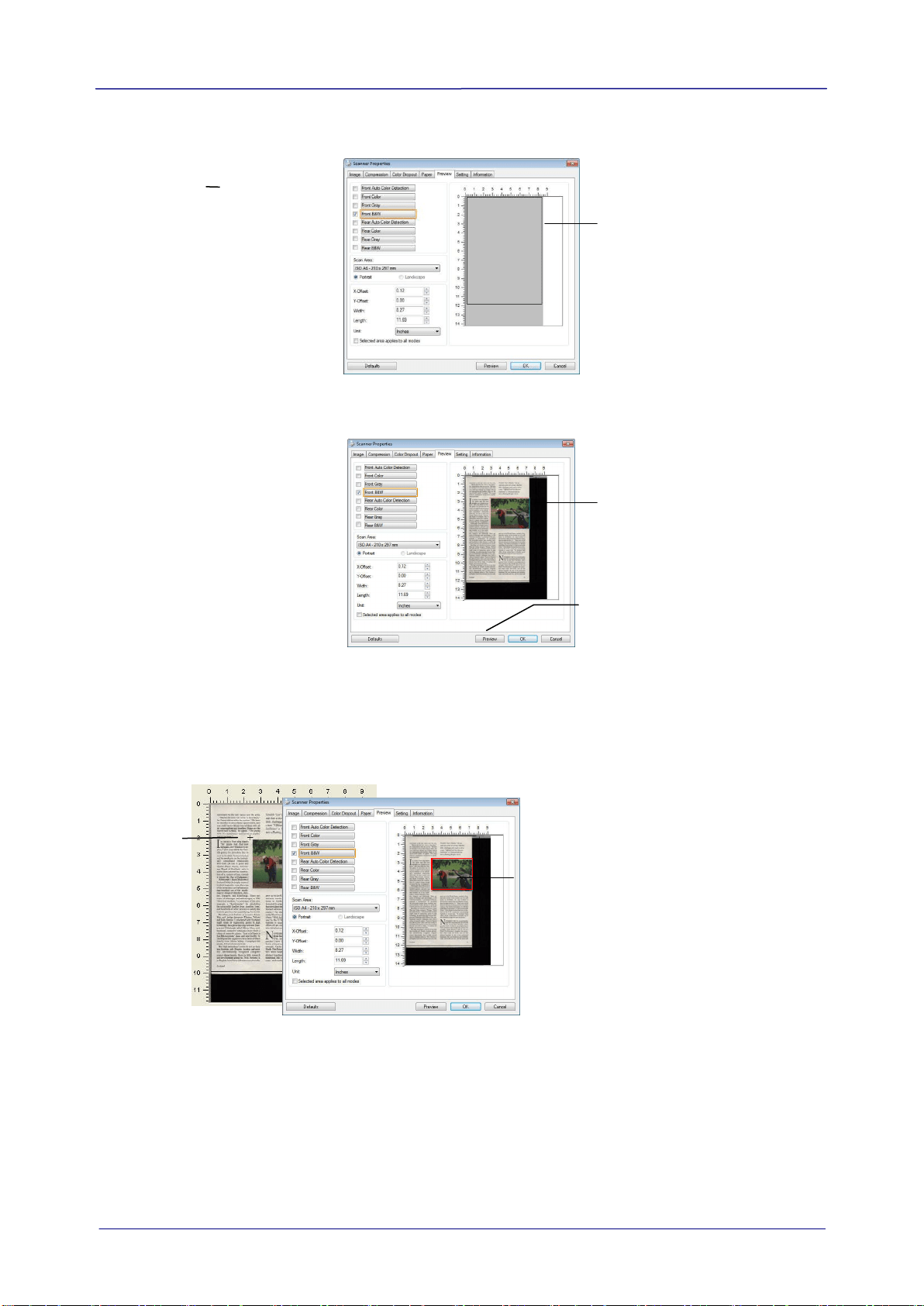

3. Click the Preview tab to display the Preview window. A black rectangular box appears to
indicate the max. scan size your have just selected.
4. Click the Preview button to view the entire image in low resolution to correctly crop your
relative scan area.
5. Select image type from the Image Selection box. The selected image will appear in
highlighted color. (For example, Front Color)
6. Place your cursor on the Preview window and click your left mouse button. A cross sign
will appear as illustrated. Create your relative scan size diagonally by dragging the left
mouse button to your preferable size. The selected area will appear in a red box as
illustrated.

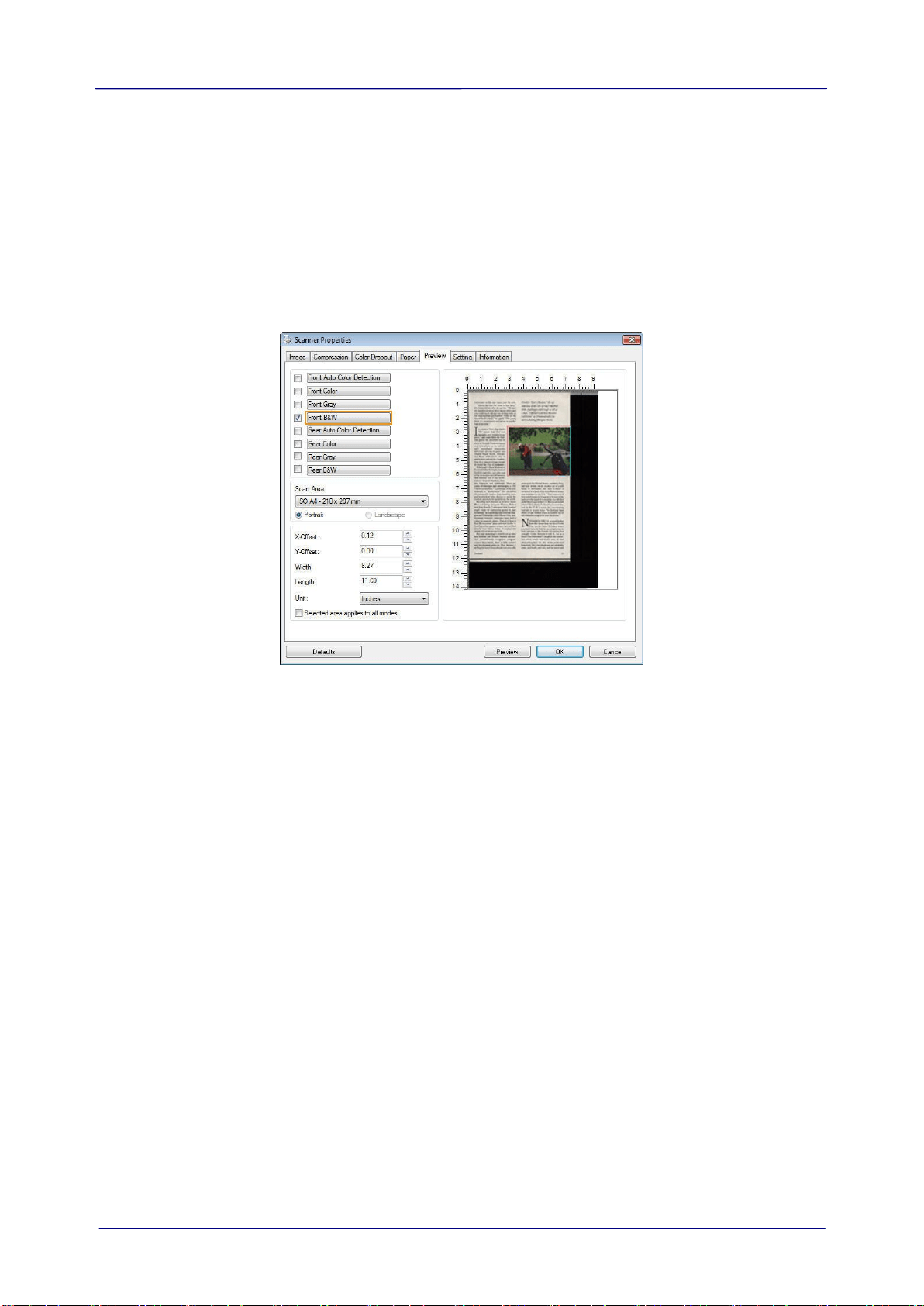

7. Check the B&W image from the Image Selection box to scan the entire document.
8. Click the Scan button to start scanning the document in two image types and sizes.
(See the result in below.)
A black
rectangular
box
The Preview
The Preview
Button
The Image
Selection
Box
The
Relative
Area
A Cross
Sign
7-30

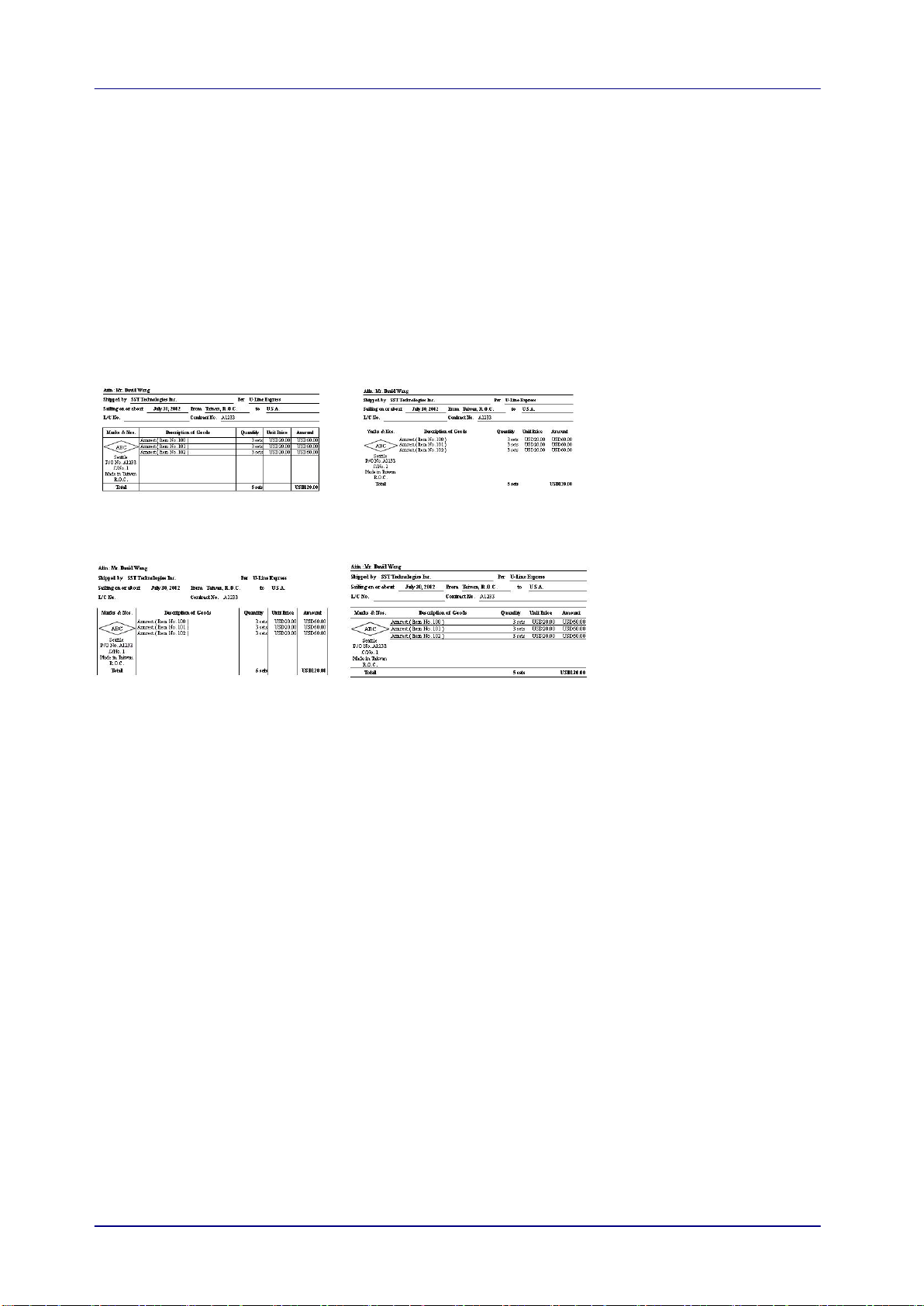

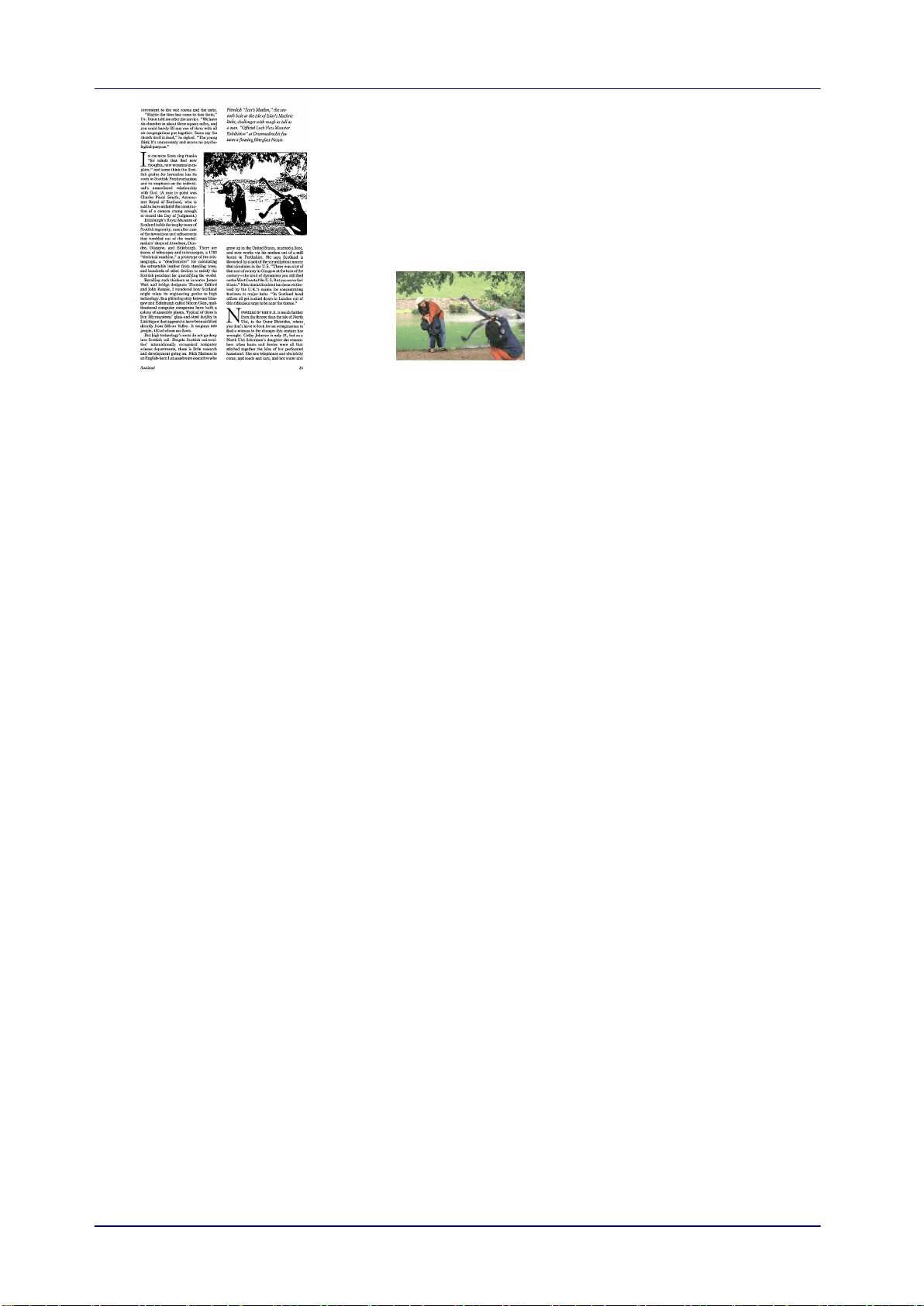

The entire document in B&W The relative area in color
User’s Manual
7-31
7.6.2 Other Paper Selection
Carrier Sheet Mode:
Check this option to automatically crop the scan window according to your document size
when scanning non-standard document (fragile, irregular-size document) with a carrier sheet
(optional). Note: The availability of this option varies due to scanner model.
Loading Documents Using a Carrier Sheet
A Carrier Sheet is a plastic sheet specifically used for loading non-standard document onto
the scanner. It allows you to scan document that can not be scanned in the regular way. Also,
documents larger than A4 size, such as A3 and B4, can be scanned by folding in half,
inserting into the Carrier Sheet, and scanning in duplex mode. You can also scan documents
that can be damaged quite easily such as photographs, or irregular size documents that are
difficult to load directly such as clippings.
To scan document using a Carrier Sheet,
For documents larger than A4/Letter size, such as A3
a. Fold the sheet to be scanned in half.
b. Fold the sheet tightly and smooth out crease. Otherwise, the sheet may be skewed during
scanning.
1. Open the Carrier Sheet and place the document inside.
Align the top of the document to the top of the Carrier Sheet (the printed area).
For documents larger than A4/letter size, such as A3
Align the top of the document to the top of the Carrier Sheet (the printed section) and
the folded portion to the right edge of the Carrier Sheet so that the document fits into
the Carrier Sheet at the upper corner.
For non-standard document
Center your document in the Carrier Sheet.
2. Load the Carrier Sheet with the gray section (printed section) facing downwards.
7-32
3. Adjust the paper guides to the width of the Carrier Sheet.
Adjust the paper guides so that there is no space between the guides and the Carrier
sheet. Space between the guides and Carrier Sheet may cause the Carrier Sheet to
become unaligned during scanning, and skew the scanned image.
4. Start the scan.
NOTICE:
[Carrier Sheet] is available for the models that support the Carrier
Sheet.
Some functions are disabled when [Carrier Sheet] is checked.
This option may not work properly on some applications.
Scan Area
Choose your desired paper size with the drop-down list box. Or you may select a custom
paper size by clicking the Scan Area box and then click Add to include in the choice.
Choices are listed below:
None
US Letter- 8.5”x 11”
US Legal – 8.5” x 14”
ISO A4 – 21 x 29.7 cm
ISO A5 – 14.8 x 21 cm
ISO A6 – 10.5 x 14.8cm
ISO A7 – 7.4 x 10/5 cm
ISO B5 – 17.6 x 25 cm
ISO B6 – 12.5 x 17.6 cm
ISO B7 – 8.8 x 12.5 cm
JIS B5 – 18.2 x 25.7 cm
JIS B6 – 12.8 x 18.2 cm
JIS B7 – 9.1 x 12.8 cm
Scanner Maximum
Long Page (<118”)
Long Page (<118”):
When you need to scan documents whose length exceeds scanner maximum, please choose
Long Page. Note if Long Page is selected, the Multi-Feed Detection will not be available.
(Note: This option and the maximum allowable document length vary due to type of
scanner.)
When Long Page (<118”) is selected, be sure to specify your document size in the Length
and Width field.
User’s Manual
7-33
Notice when scanning long page document:
1. Pull out the extension in the ADF Paper Tray.
2. Secure enough space around the Output Tray to prevent the ejected paper from falling
off the Output Tray.
3. To ensure the performance, in color mode, set the resolution to be 300 dpi or lower; in
Black and White mode, set the resolution to be 600 dpi or lower.
4. Depending on your system environments, application, or your specified paper size, there
may be insufficient memory to perform scanning.
OverScan
Overscan allows you to add a specific margin at top and bottom or right and left (Options
vary based on the type of scanner) of the edge of the image. This is used to reduce possible
corner clipping on the skewed images and often applied to a batch of skewed document to be
scanned in the auto document feeder. Select a value between 0 and +5 mm. Note the
overscan result will not be shown in the Display window and that the availability of the
function varies based on type of scanner.
Pre-Feed
Choice: Enable, Disable. If enable is selected, you can set the amount of time the scanner
starts pre-feeding your paper after your documents has been loaded into the feeder. The
default is disabled. Note: The availability of this option varies due to scanner model.
Transport Timeout
Set the amount of time the scanner will wait and then start auto scan after the first scan job
is completed. If you have many separate documents need to be scanned at the same scan
settings, this feature is especially useful. The default is 0. The value ranges from 0 to 30
seconds.
NOTE:
Within the specified timeout period, if you load your document to the
feeder, the scanner starts scanning automatically.
If your scanner has a flatbed option and you place your paper on the
flatbed, after the timeout period, you need to click the Scan button on the
TWAIN user interface to start scanning.
7-34

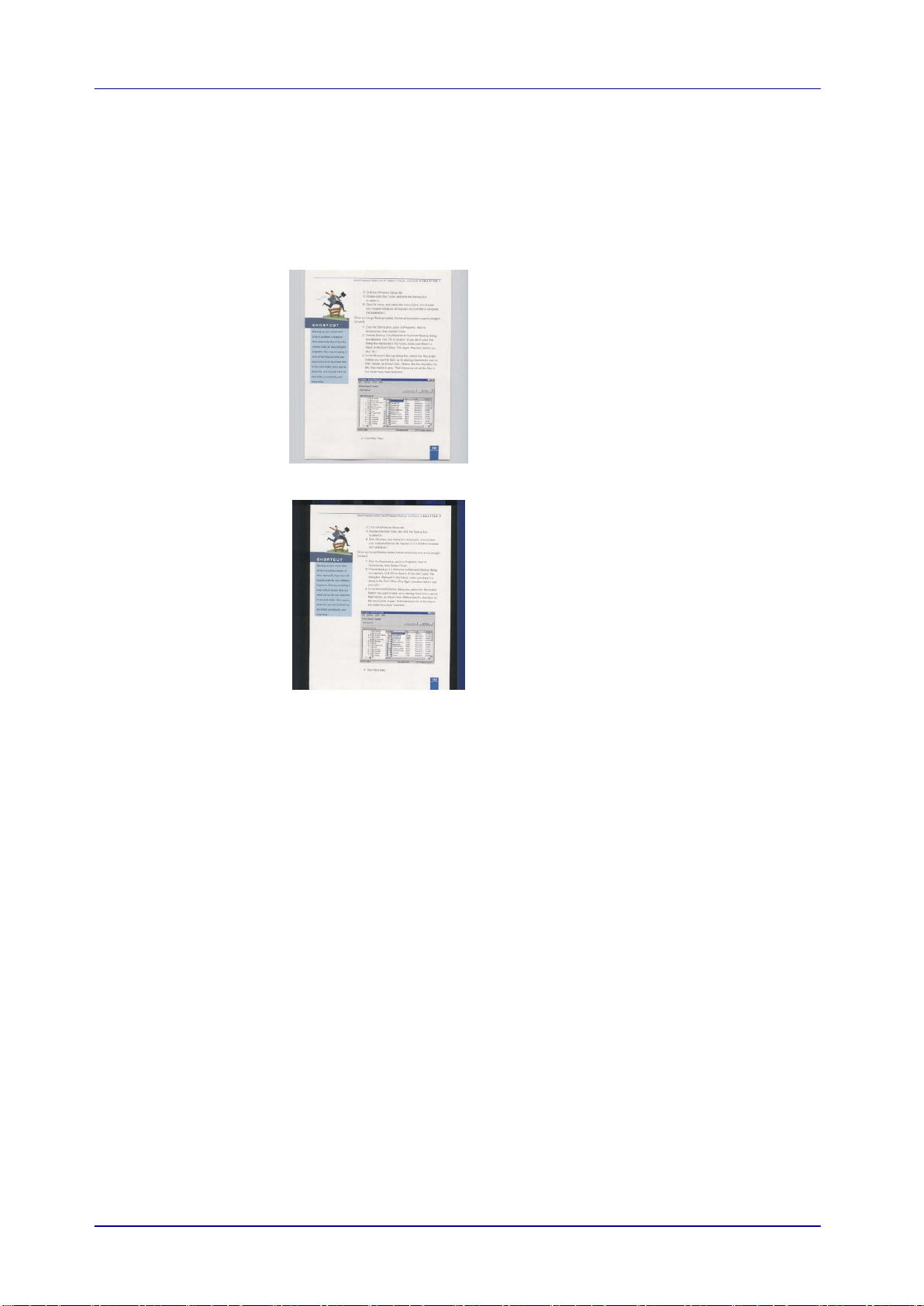

Background
Setting
This option allows you to set your scan background. Choice:
White Background, Black Background.
Note: For a sheet-fed scanner with an auto document feeder,
this option is currently available only in the “Auto crop”
mode. For a scanner with a flatbed platen, this option is
available either in the “Auto crop” or the “Fixed to Transport”
mode.
White Background
Black Background
User’s Manual
7-35

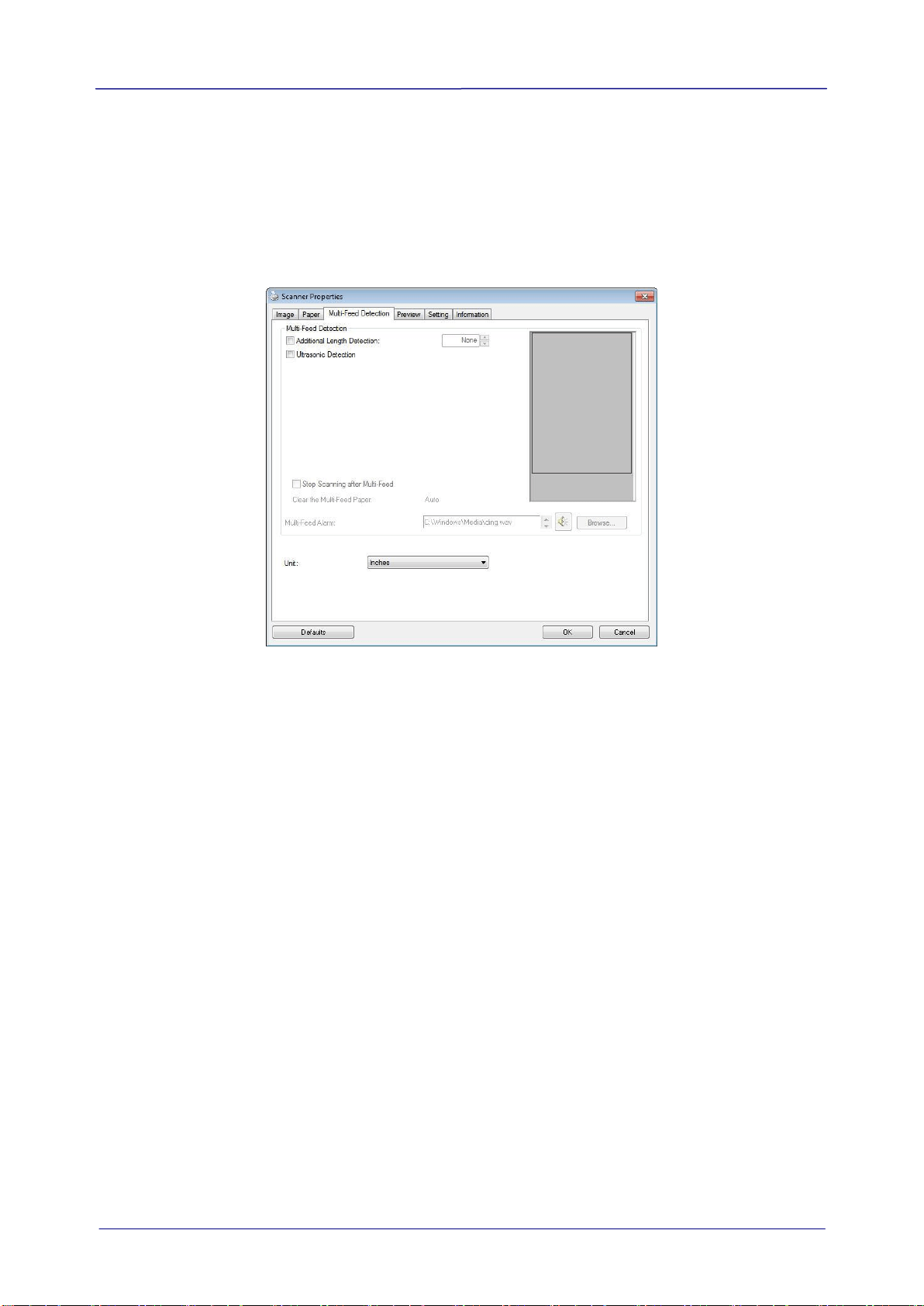

7.7 The Multi-Feed Detection Tab
Multi-Feed Detection

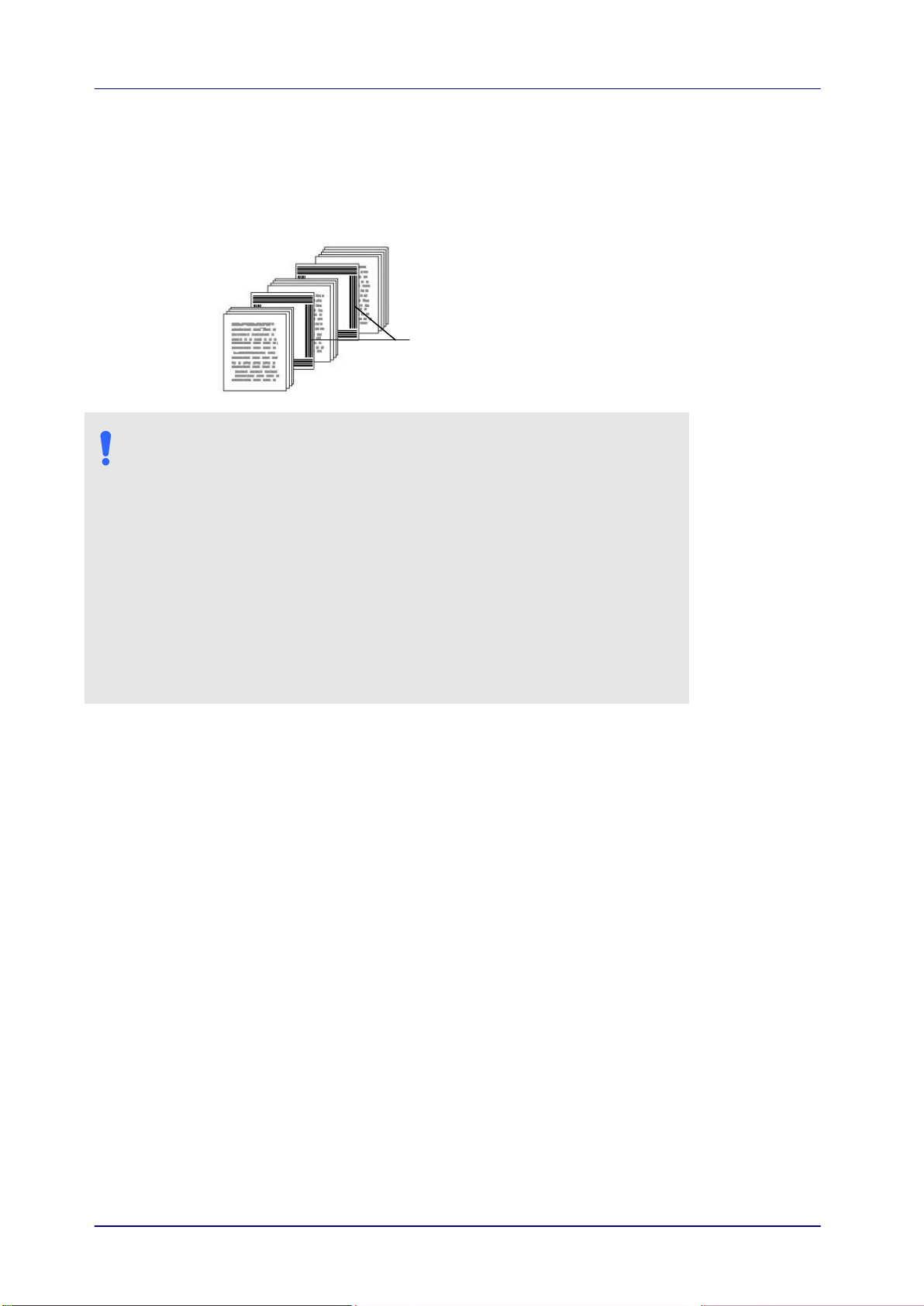

Multi-Feed Detection allows you to detect overlapped document that go through the auto
document feeder. Multi-Feed usually occurs due to stapled documents, adhesives on
documents, or electro-statically charged document. Note： The availability of the function
varies based on type of scanner.
Additional Length Detection
Additional Length Detection allows you to define the length of document being multi-fed.
This value indicates the additional length exceeding your scan area. The Display window will
show the size of the document as you change the value. A value of 0 indicates no additional
length detection. The Additional Length Detection is best used when scanning same-size
documents in the auto document feeder.
Ultrasonic Detection
Ultrasonic Detection allows you to set overlapped document by detecting paper thickness
between documents. Note： The availability of the function varies based on type of scanner.
There are two options available if Multi-Feed is detected.
Stop Scanning after Multi-Feed
If this is selected, the scanner will stop the feeder and prompt a multi-feed warning
message. In addition, the multi-feed paper will be ejected from the scanner
automatically.
Note: The availability of the [Auto Clear Multi-Feed Paper] feature varies based
on scanner type. If your scanner does not support this feature, remove the multi-
feed paper manually.
If this is not selected, the scanner will continue scanning the entire document
though multi-feed is detected. After the entire document has been scanned, a multi-
feed dialog box will be prompted to indicate the page number which has been
detected multi-feed and need to be rescanned.
7-36
Multi-Feed Alarm
If a wave file is added, the scanner will make a sound alarm if multi-feed is detected yet
no Warning dialog box will be displayed.
How to add the sound alarm：
1. Click the Browse button on the right side of the speaker icon. The Open dialog box
appears.
2. Choose your wave file.
3. Click the Open button. The wave file is added.
Units
Defines the primary measurement system. Inches, Millimeters, and Pixels are available.
User’s Manual
7-37
7.8 The Preview Tab
The Preview tab allows you to preview (a low-resolution scan) your image before final scan.
This preview image lets you allocate your scan area. You can choose your scan area by the
“Scan Area” drop down list box or placing your cursor on the Display window and dragging it
diagonally on the Display window. Then, a red rectangle box will appear to indicate the
selected area.
Note: If you choose “Automatic Cropping” on the “Paper Tab”, then to select a scan area on
the Preview tab is not allowed.
The Preview Tab (Windows)
The Display
Window
7-38
7.9 The Enhancement Tab
The Enhancement tab allows you to set following additional image processing settings.

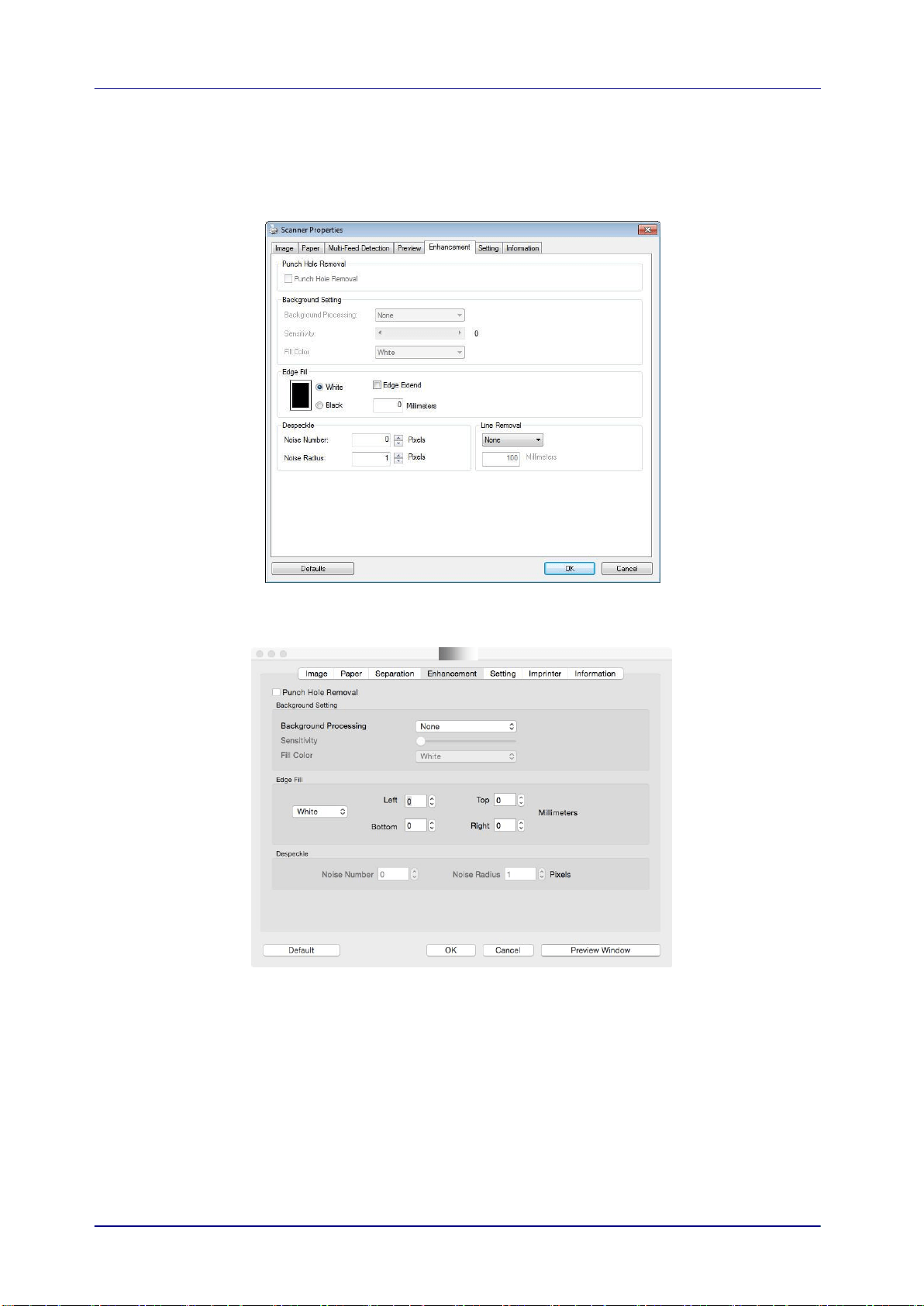

The Enhancement tab dialog box (Windows)
The Enhancement tab dialog box (Mac OS)
User’s Manual
7-39

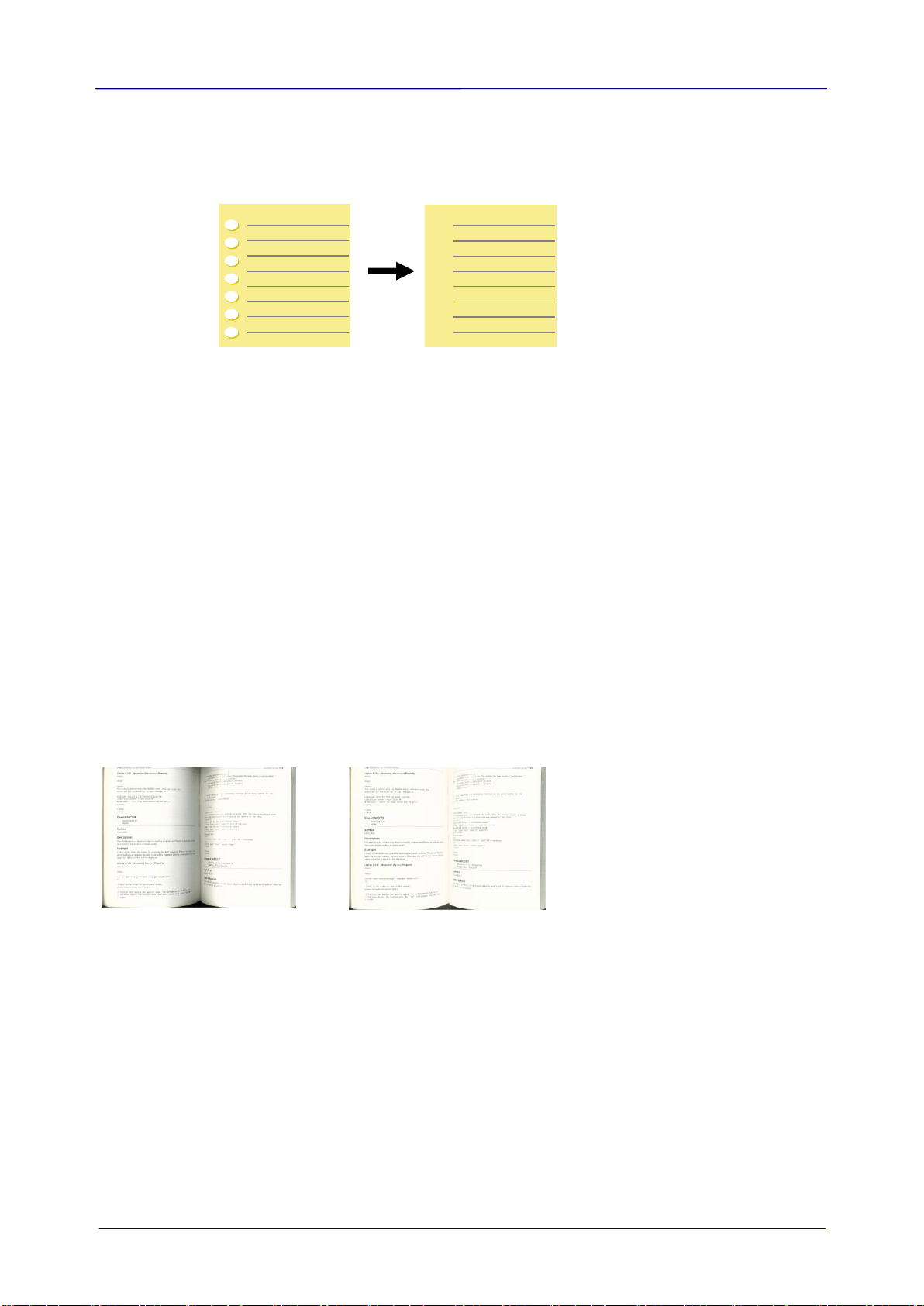

Punch
Hole
Removal
You can remove punch holes from the output scanned image when
scanning punched document. Note the availability of this feature varies
depending on your scanner model.
Punch holes can not be removed when:
Resolution is set lower than 150dpi
The hole is near the edge of the document
The holes are not aligned along the edge of the document
Punch Hole Removal is available only when “Auto Crop” is enabled. If
either “Fixed to Transport”, “EOP (End of Page) Detection”,
“Automatic Multiple”, “Relative to Documents” is selected from the
Cropping option on the Paper tab, the Punch Hole Removal option
will be disabled.
Shadow Removal
When 「Flatbed」on the 「Scan Source」 option is selected
on the 「Image」tab, the 「Shadow Removal」option will be
enabled. Click to remove the shadow on the book spine when
scanning a book.
Before Shadow Removal
After Shadow Removal
Original
Output image
7-40

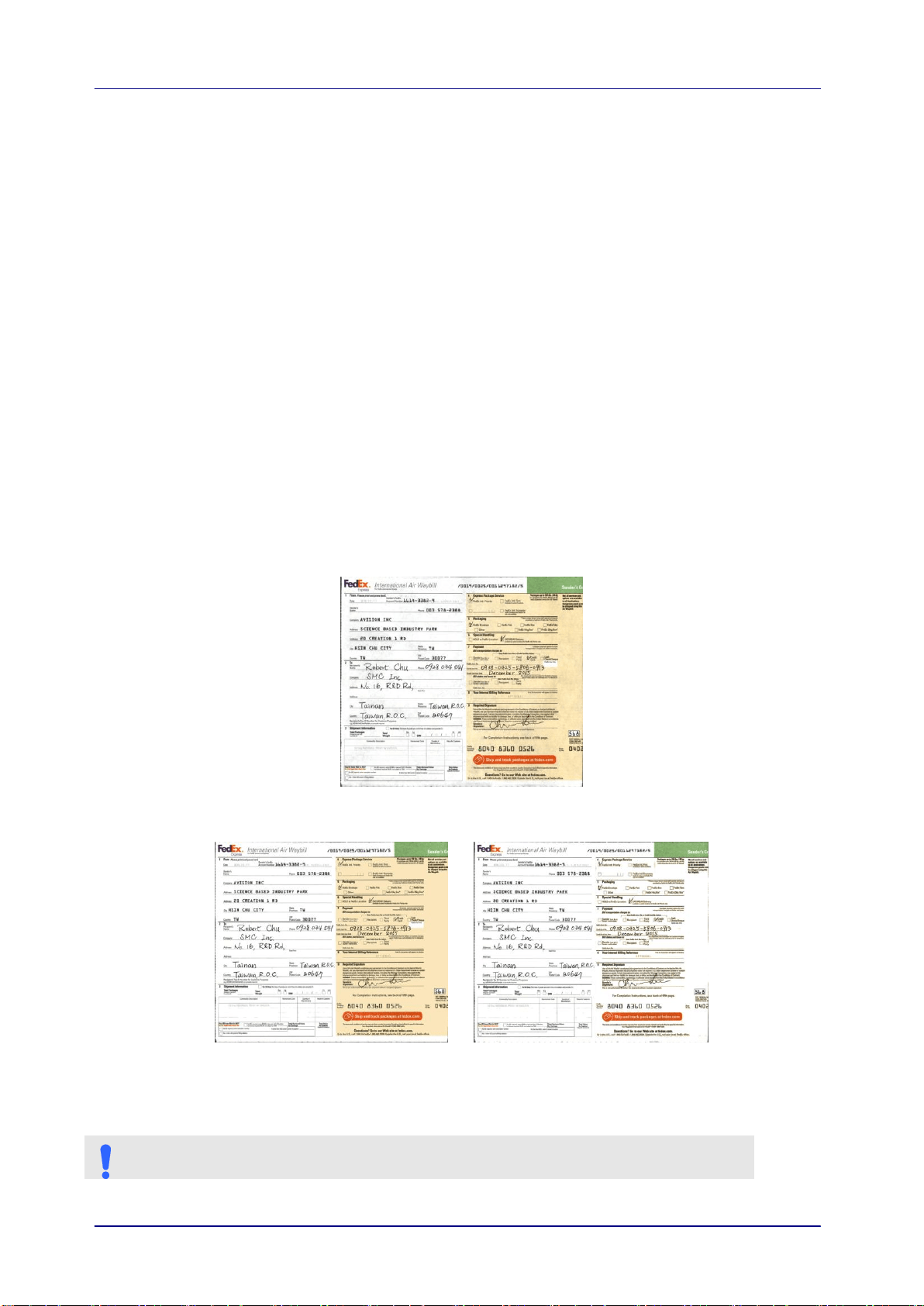

Background Processing: The [Background Processing] option allows you to smooth
background color or remove it to make image clearer. The option is especially useful for
documents with color forms such as invoices.
Choices: None (default), Smooth, Removal
- None - no background processing will be performed (default)
- Smooth - produces images with a more uniform background color. This option improves
image quality.
- Removal - identifies the background color and then removes it.
Sensitivity: Choice: 0, 1, 2, 3, 4. Default: 0
- The higher the value, the more background color will be kept.
Mode: Auto, Moiré
If [Smooth] is selected in the [Background Processing] option, then the choices for the
[Mode] option includes Auto, and Moiré.
- Auto - uses the factory preprogrammed mode to proceed background smoothing.
- Moiré – Remove the moiré patterns that appear on the background of the image when
scanning printed material.
If [Removal] is selected in the [Background Processing] option, then the [Mode] option
will be replaced with [Fill Color]. Choices: White, Auto.
- White - identifies the background color and substitutes it with white.
- Auto - identifies the background color and substitutes it with the color of the largest
background zone.
Background Processing: None
Background Processing:
Smooth
Background Processing:
Removal
Fill Color: White
NOTE:
Background color in small zone will not be processed or removed.
User’s Manual
7-41

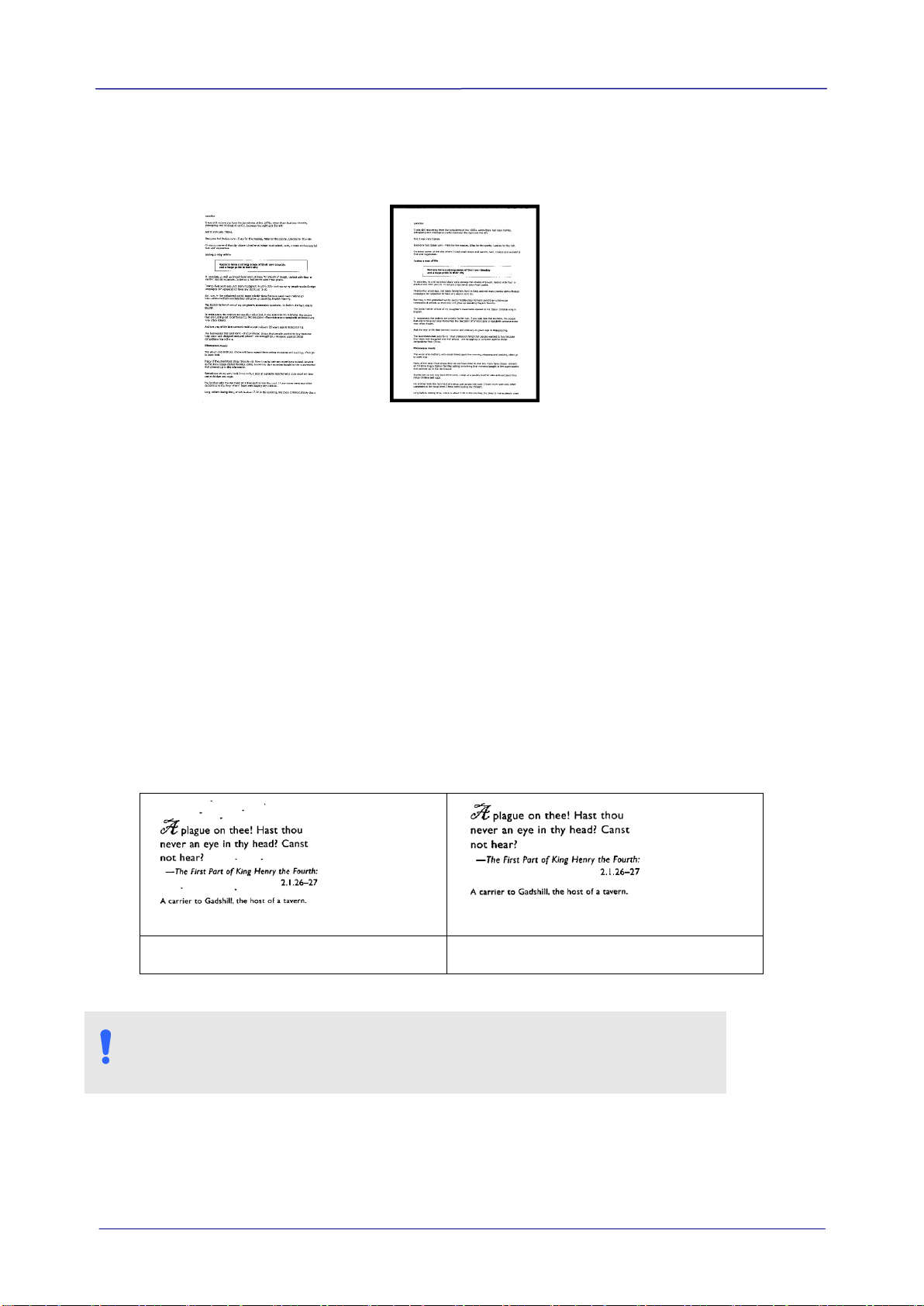

Edge
Fill
Check White or Black if you wish to add white or black edge on the
border of your scanned image. Enter the value from 0 to 5 mm.
Default value is 0.
Original
Edge Fill: 5mm (Black)
If you want to add a white or black frame on the edges of the
scanned image, check "Edge Extension".
The default value is 0. The maximum value is half of the short side
of the selected scan area.
For example, if you choose an A4 size (8.26 "X11.69"), then the
maximum value of the white or black box is 4.14" (half of "8.26").
Despeckle
Occasionally small dots or specks appear in the background of a scanned image. Remove
unwanted speckles provides a cleaner image for OCR (Optical Character Recognition)
processing, and also helps to reduce compressed file size.
Define the speckles (also known as image noise) you wish to remove by specifying its number
(size) and radius (range). The measuring unit is pixel. The higher the number, the more
speckles will be removed.
Before Despeckle
(noise number:0, noise radius:1)
After Despeckle
(noise number:22, noise radius:10)
NOTE:
The function is currently available for Black and White image only.
To scan at rated speed, it is recommended to set the noise radius up
to 10 pixels.
7-42
Line Removal: When Black and White image mode is selected on the [Image] tab, the
[Line Removal] option will be enabled. Line Removal erases lines on the image and then
reconstructs characters so the OCR (Optical Character Recognition) accuracy can be
improved.
Choices: None, Form, Horizontal, Vertical
None – the default mode which does not remove any line.
Form – remove any form in the document.
Horizontal – select [Horizontal] and then enter the length of horizontal line to remove only
the horizontal line exceeding your specified length.
Vertical – select [Vertical] and then enter the length of vertical line to remove only the
vertical line exceeding your specified length.
None
Remove Form
Remove Horizontal Line
(over 30 mm)
Remove Vertical Line
(over 70 mm)
User’s Manual
7-43

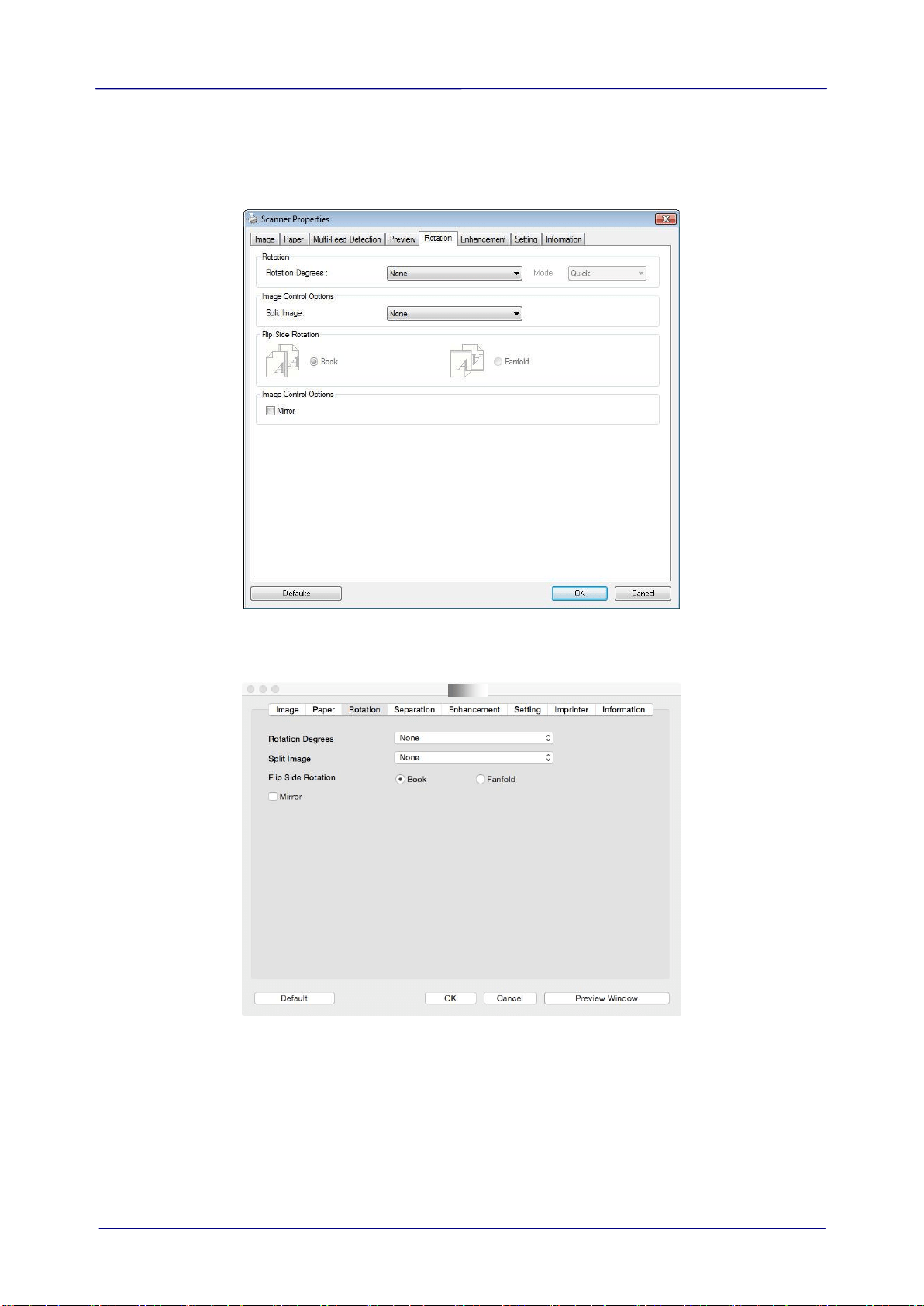

7.10 The Rotation Tab
The Rotation tab allows you to set the following image rotating options:
The Rotation Tab (Windows)
The Rotation Tab (Mac OS)
7-44

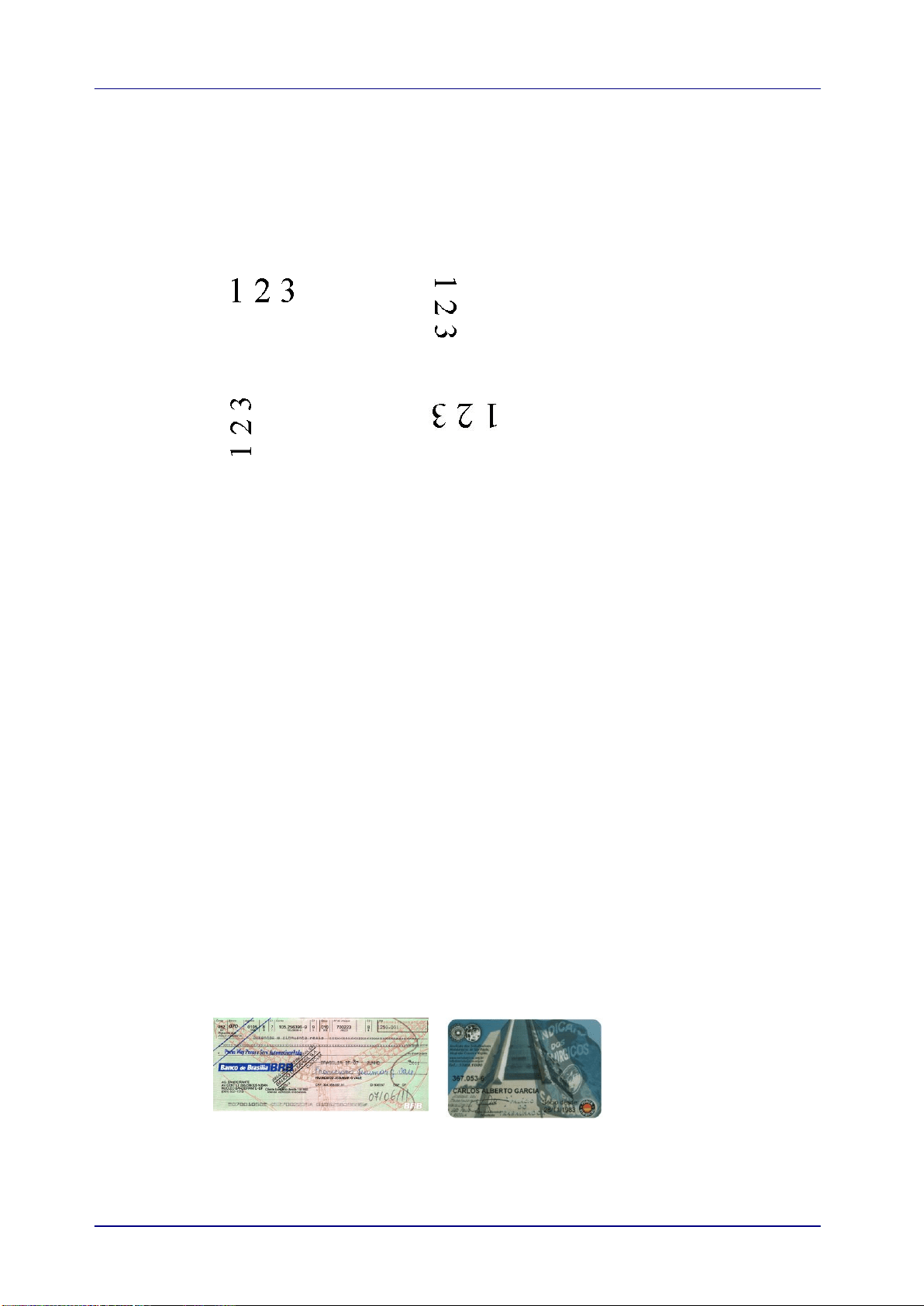

Rotate
Choose the rotation angle from the drop down list if you wish
to rotate your scanned image.
Choice: None, 90°CW(clockwise), 90°CCW(counter
clockwise), 180°, Auto based on contents. Auto rotate
every even page.

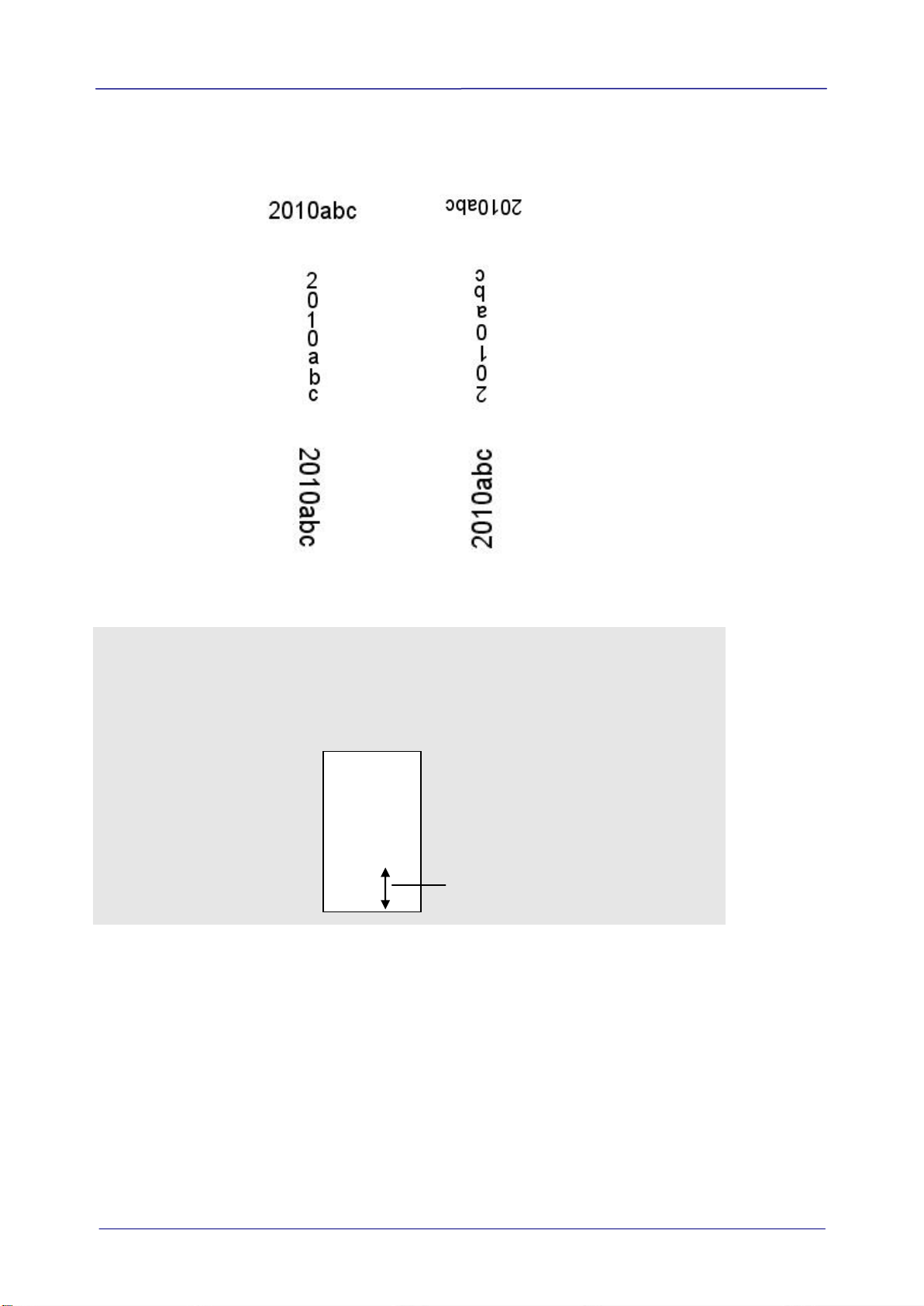

Original
Rotate 90°CW
Rotate 90°CCW
Rotate 180°
Auto based on contents: Automatically rotate images based
on the contents of document. When「Auto based on
contents」 is selected, its modes will be enabled to let you
select more options.
Mode: Quick, Full Text, Complexity
Quick – the default mode to let you rotate images at the
fastest speed.
Full Text – the enhanced mode for documents with mixed text
orientation.
Complexity – the enhanced mode yet at the slowest speed for
document with complex image or text orientation.
Auto rotate every even page:
Automatically rotate 180° on every even page. This is
especially useful when you scan the inside pages from a book.
As a result, if you choose “Flatbed (book)” from the “Scan
Source” option, “auto rotate every even page” will be selected
as default.
Note: This option varies based on type of scanner.
Document with various
text orientations
Document with dark or
complex background
Using the Scanner Properties Dialog Box
User’s Manual
7-45

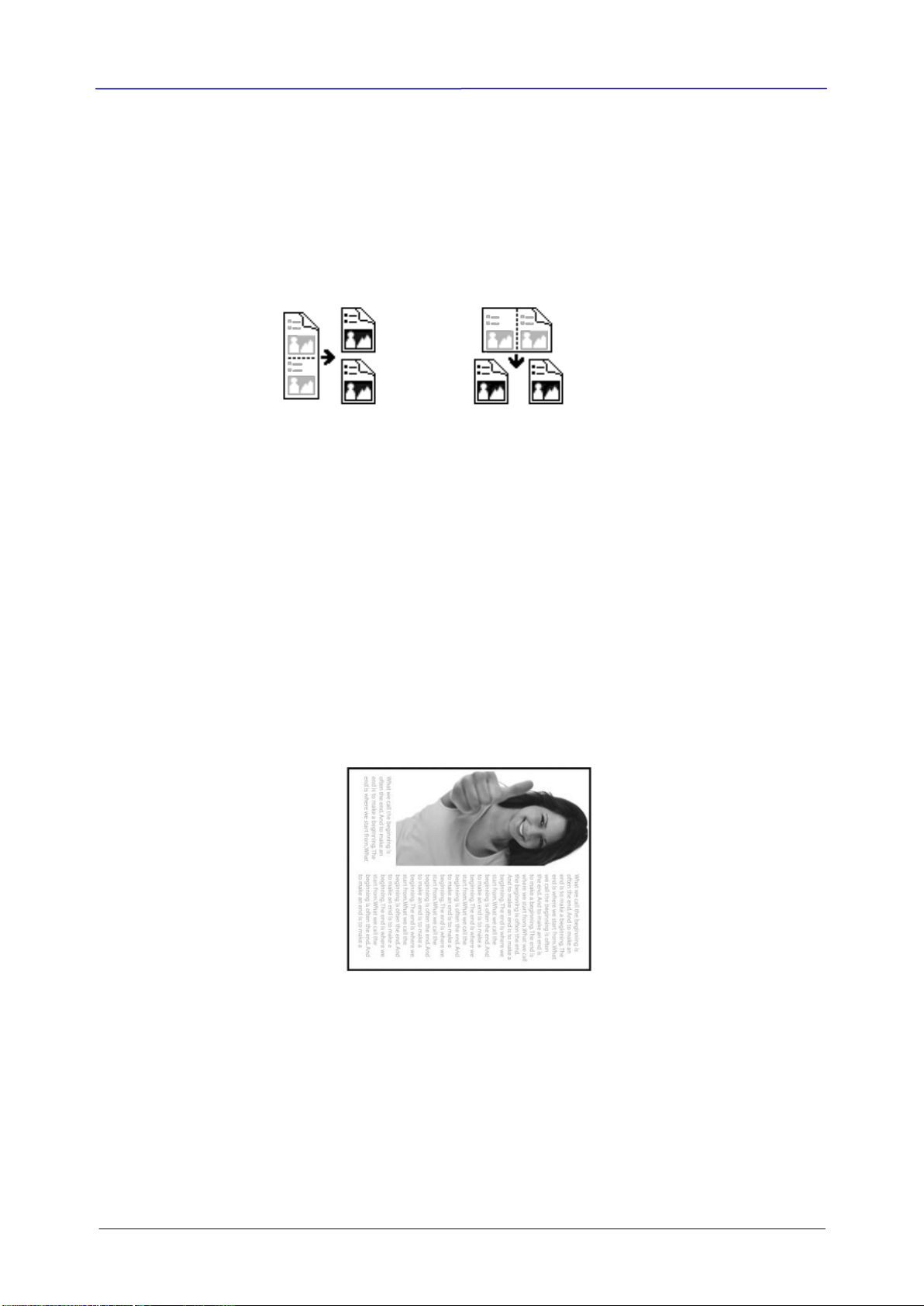

Split Image
By splitting an image, two separate images are created
horizontally or vertically. This is useful for documents containing
two pages per image when you want to save them as two images
(one page for one image). Choice: None, Horizontal, Vertical.
Default is None.
Horizontal: Divide one image into the upper half and the lower
half.
Vertical: Divide one image into the left half and the right half.
Split Horizontally
Split Vertical
Flip Side
Rotation
Select “fanfold” to rotate the image of the reverse side to 180
degrees.
This is applied to double-sided document which are viewed in
portrait are sometime fed into the scanner in landscape or vice
versa.
Choice: Book, Fanfold.
If “Book” is selected, the image of the reverse side will not be
rotated.
The following illustration shows the documents which should be viewed in portrait are fed
into the scanner in landscape
7-46

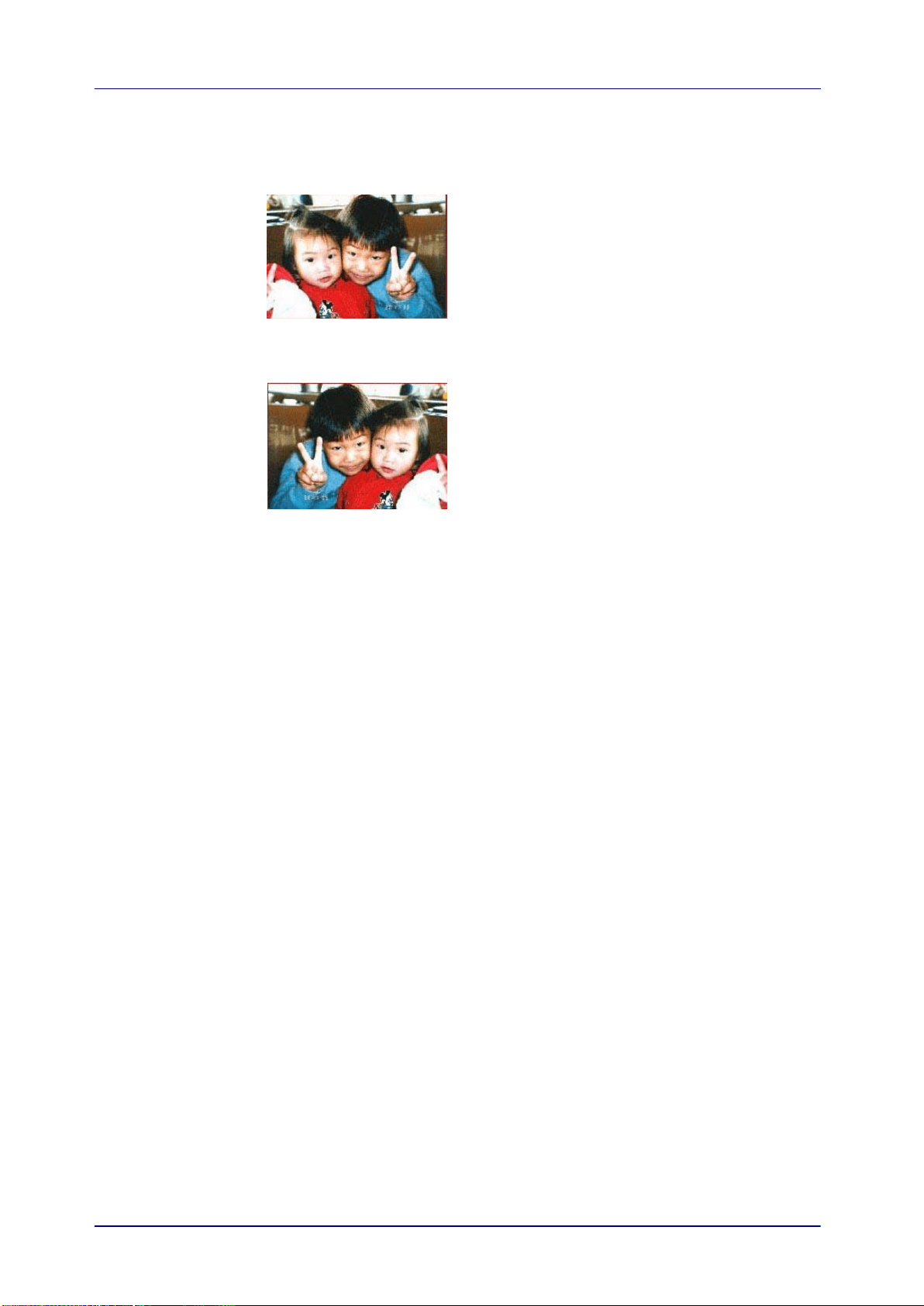

Control
Option
Check the Mirror box if you wish to reverse the right and left side of
your image.
Original
The Mirror Effect
User’s Manual
7-47

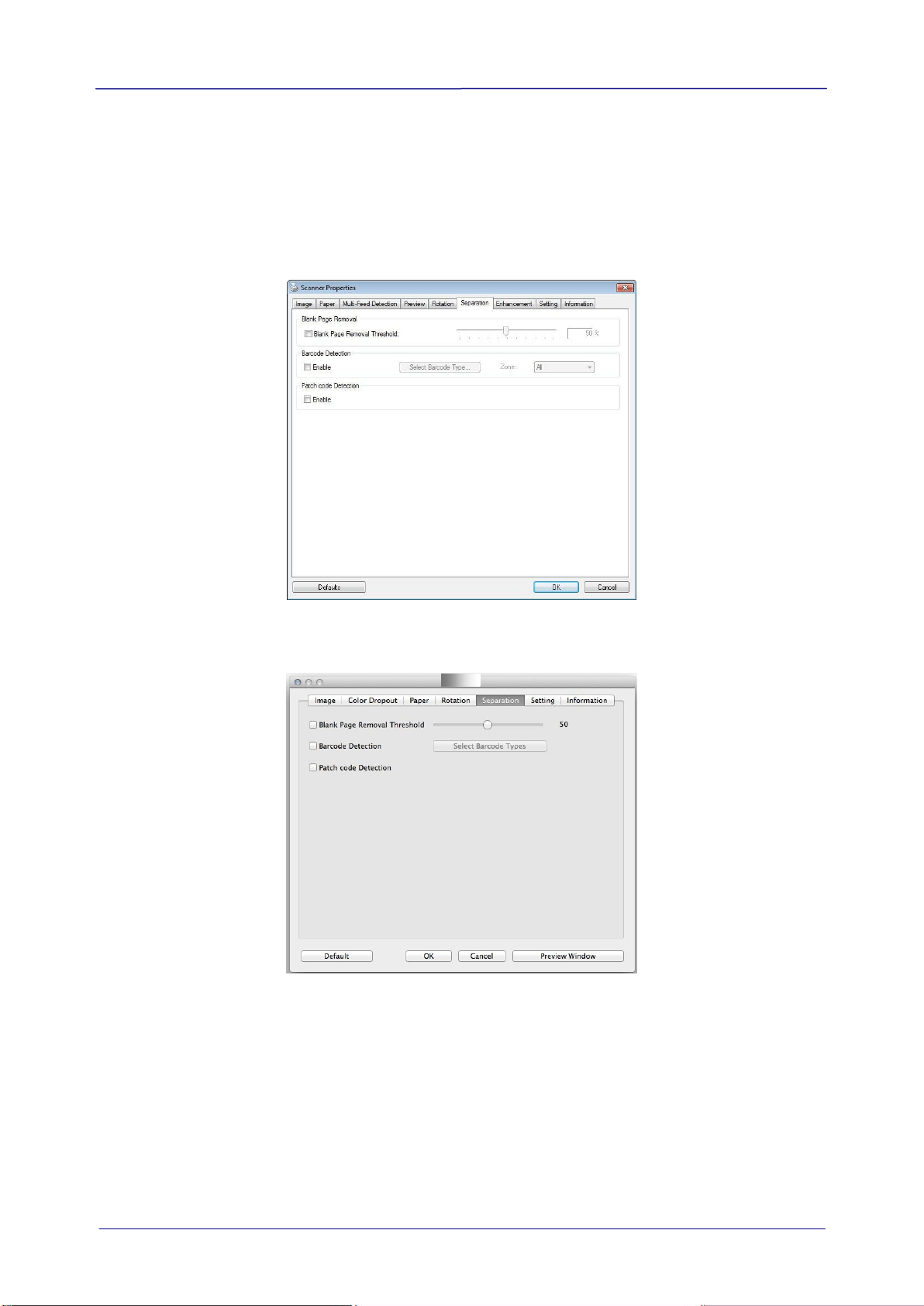

7.11 The Separation Tab
The Separation tab allows you to enable the detection engine to detect the blank page,
barcode, and patch code and then notify the software application which supports document
separation to separate your multi-page documents. Choices: Blank Page Removal, Barcode
Detection, Patch Code Detection.
The Separation Tab (Windows)
The Separation Tab (Mac OS)
Blank Page
Removal
Choices: None, Blank Page Removal Threshold, Image Size.
None – Do not remove the blank pages.
Threshold - Move the slider to the left or right to define your
threshold for the blank page.
Image Size – Range: 1~ 10000 KB. Specify your desired image
size to detect the page as a blank page. For example, if 3 KB is
selected, any page less than 3 KB will be recognized as blank
page.
7-48
When the bar code has been detected successfully，a file [avbarcode.ini] will be created and
stored in the following path (Windows):
Windows 7, Windows 8, Windows 10: C:\ProgramData\%PRODUCTNAME%
Barcode Detection:
Check [Enable] to detect barcode and notify the software application for advanced
processing. Please note the whole document will be checked and no specific detection area
needs to be designated.
Barcode Types:
The following barcode types can be detected.
Two-dimensional codes
Aztec
DataMatrix
PDF417
QR Code
One-dimensional barcodes:
Add-2
Add-5
Australian Post 4-State
BCD Matrix
Codabar
Code 128
Code 32
Code 39
Code 93
DataLogic 2 of 5
EAN 128
EAN-13
EAN-8
GS1 DataBar
Industrial 2 of 5
Intelligent Mail
Interleaved 2 of 5
Inverted 2 of 5
IATA 2 of 5
Matrix 2 of 5
PostNet
Royal Post 4-State
UPC-A
UPC-E
Barcode Zone:
Specify the barcode zone to be detected.
Select 「All」 to checks the whole document and detects barcodes. Or you may speed up the
process by specifying a detection area since only the specified area is checked.
Choice: All, Top, Bottom, Left, Right, Bottom Right, Bottom Left, Top Right, Top Left
User’s Manual
7-49
Choice for barcode zone on a page:
All
Top
Bottom
Left
Right
Bottom
Right
Bottom
Left
Top Right
Top Left
NOTE:
Recommended resolution: 200~600 dpi for regular barcode, 300~600
dpi for QR code.
Skewed barcodes may not be recognized correctly.
Using the same sheet repeatedly may decrease the recognition accuracy
due to accumulated dirt on the sheets. If the sheet is not recognized
correctly or gets smudged, replace it with a new sheet.
Patch code Detection:
Check [Enable] to detect patch codes and notify the software application for advanced
processing.
A patch code is a pattern of parallel, alternating black bars and spaces (i.e. a barcode) that is
printed on a document. Patch code sheet is most commonly used as a document separator in
a stack of document.
7-50
You can find various sizes of patch codes (PDF) by choosing
[Start] menu>[All Programs]>[Avision Scanner Series]>[Patch code] in succession.
Simply print the PDF file to produce the patch code sheet. Insert the patch code sheets to
wherever you want the file to separate.
NOTES TO PRINT THE PATCH CODES:
Use blank white paper.
Set the scaling to 100%. The sheet is not recognized correctly
when printed in a size smaller than the original.
Do not use toner saving mode. The sheet is not recognized
correctly when the print is too light.
Do not use thin paper in order to avoid bleed-through from the
back.
When you copy a patch code sheet that you printed out, make
sure to copy by the same size and brightness as the original copy.
Use the same sheet repeatedly may decrease the recognition
accuracy due to accumulated dirt on the sheets. If the sheet is
not recognized correctly or gets smudged, replace it with a new
sheet.
Patch code sheet
User’s Manual
7-51
7.12 The Setting Tab
The Setting tab allows you to set the following settings:
The Setting tab dialog box (Windows)
The Setting tab dialog box (Mac OS)
Energy Saving
Control
Check the Enable Energy Saver box and move the slider
to set the amount of time to start the energy saver after
your last action. The range is from 1 to 60 minutes.
Enable Power
Off
Check the Enable Power Off box and move the slider to
set the amount of time to automatically turn off the
scanner after your last action. The range is from 1 to 480
minutes. The default is 240 minutes (4 hours). Note the
value of “Power Off” has to be greater than or equal to the
value of “Energy Saving”.
7-52
Cache
Mode: None, Page Number, Memory Size.
This option allows you to assign a specified memory size
from the available RAM to process the image data. By
specifying a smaller memory size, you can free more
memory for other applications you are running. By
specifying a larger memory size, you can have more
memory to process the image data especially when you
have a large amount of documents needed to be
scanned.
You can also specify your memory size by the page
number. For your information, an A4 color document
scanning at 300 dpi consumes approximates 24MB.
Image Count
When the selected cache mode is “none”, the image
count option allows you to assign number of pages you
need to scan. For example, if you wish to scan the first
two pages, simply move the page slider to 2, and the
scan action will be stopped when the scanning of the
first two pages have been completed.
Show Scanning
Progress
Check and the scanning progress bar will be shown
during scanning.
Show Warning
Message
Check to show the warning messages such as “ADF pad
count exceeds 50,000 scans (the number varies based
on type of scanner). Please replace the ADF pad and
reset the pad count.”
Save Settings
after Closing
Check to save your scanner properties settings after
leaving the dialog box. Next time when you open the
Scanner Properties dialog box, the previously saved
settings will be shown.
User’s Manual
7-53
7.13 The Imprinter Tab
The Imprinter tab allows you to print alphanumeric characters, date, time, document count
and custom message on your scanned image if digital imprinter is selected or at the back of
your document if external imprinter is selected.
The Imprinter Dialog Box (Windows)
The Imprinter Dialog Box (Mac OS)
7-54
Contents
Print All
Check Print All to automatically print the text at all pages
of your documents.
Uncheck Print All to print the text for the first page of your
documents only.
Custom
Enter your custom text to be included in your print string.
Counter
Show the document count for the scan session. This value
is increased sequentially by the scanner.
Date/Time
Choose if you wish to include the date and time in your
print string.
Format: YYYYMMDDHHSS For example, 20090402170645-
check0001 indicates year, month, date, hour, seconds,
your custom text and the counter.
Custom
Font
Choose your desired font.
Choice: Normal, Fixed Width
Fixed Width (Mono spaced) fonts have a fixed character
spacing. So each character occupies the same width.
Advanced
Font
Attributes
Choose your font attributes. Choice: Normal, Underline,
Double, and Bold.
User’s Manual
7-55
String
Orientation
Choose your string orientation.
Choice: Normal, Rotated, Vertical, Vertical Inversion, 90
degrees CW, 90 degrees CCW
Normal
Rotated
Vertical
Vertical Inversion
90 degrees CW
90 degrees CCW
Print
Position
Choose the position you wish to print your string. Move the
slider to the right to increase the value or to the left to
decrease the value. Range: 0~355mm, default:0 mm
The value indicates the height from the bottom of your paper
to the last letter of your string. This option is available only if
an external imprinter is installed.
Print Position (for digital imprinter)
Choose the position of your printed string. Choice: Top, Middle, Bottom, Custom. If
Custom is selected, enter the X and Y offset value to specify the position.
More: Click the [More] button to display more font options. This option is available for digital
imprinter (stamp text on your scanned image) only. This function is not available on some
models.
Font size: Move the slider to change the font size from 1 to 10. Density: Move the slider to
change the source density from 0 to 255. The selected density will appear at the same time.
Transparency: Move the slider to choose an appropriate transparency value from 0% (not
transparent) to 100% (completely transparent) so that your text can be partially transparent
and you can see the background image.
The value of
Print Position
0001abc 2010
7-56

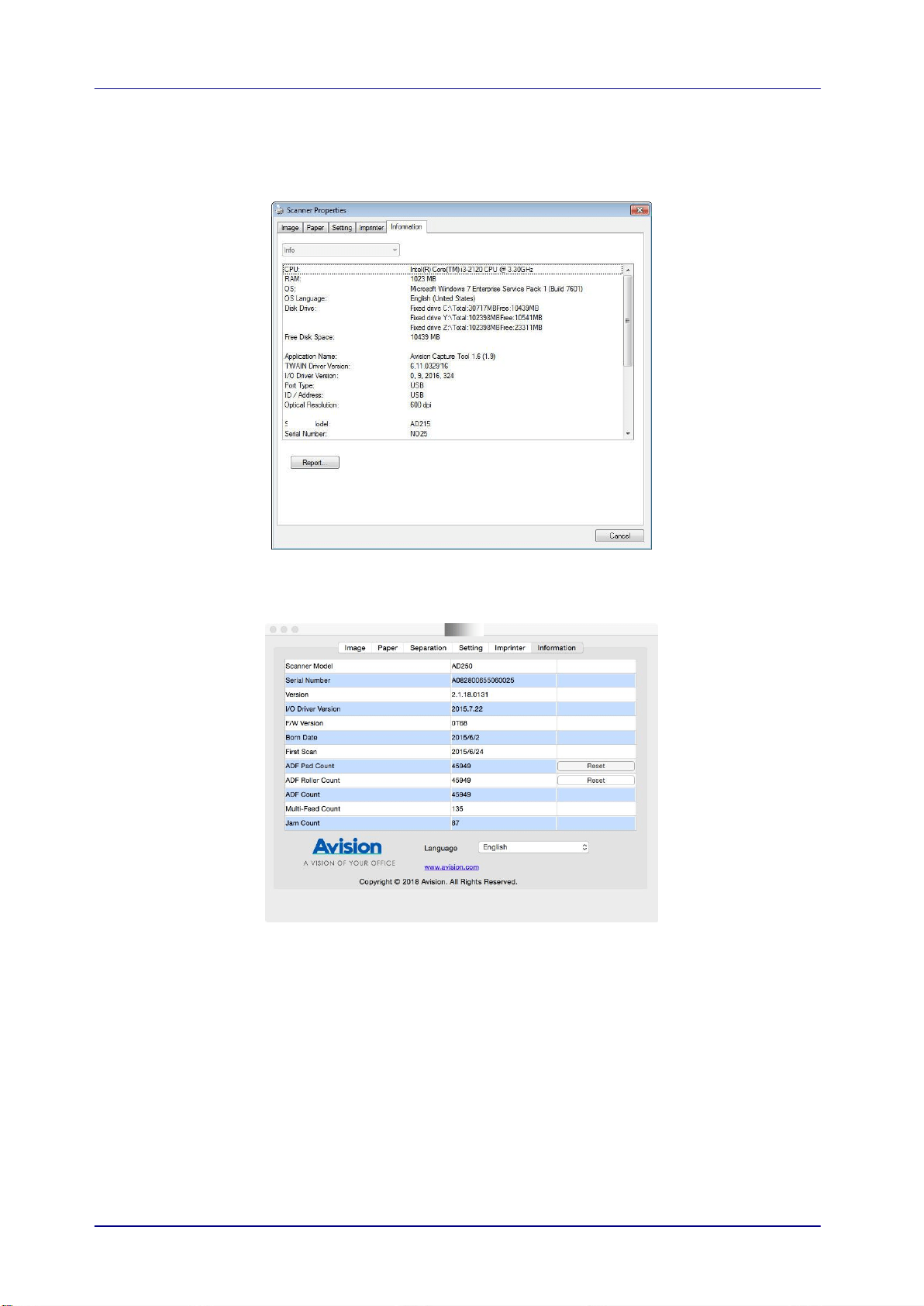

7.14 The Information Tab
The Information tab displays the following system and scanner information.
The Information tab dialog box (Windows)
The Information tab dialog box (Windows)
The “Report” button：(Windows only)
If you encounter any error message while using the scanner, click the Report button. A
report.txt file [Windows XP: C:\Documents and Settings\All Users\Application
Data\%PRODUCTNAME%; Vista, Windows 7, Windows 8, Windows 10:
C:\ProgramData\%PRODUCTNAME% (C: system drive)] will be generated. Please send this
file to the nearest service center for trouble shooting.
xxx
User’s Manual
7-57
The “Reset Roller Count” button：
After scanning over a recommended number of pages through the ADF, the ADF roller may be
worn out and you may experience problems with document feeding. In this case, it is highly
recommended to replace the ADF roller with a new one. (Note the replacement of the ADF
roller has to be performed only by authorized service center. Therefore, please return your
scanner for roller replacement.) After replacing the ADF roller, click the “Reset Roller
Count” button to reset the roller count.
NOTE:
The lifetime and the replacing procedure vary based on type of scanner.
User’s Manual
8-1
8. Using the Button
8.1 Installing the Software
Windows
Install PaperAir software application on our website at www://avision.com/download.
Mac
Install PaperAir software application on our website at www://avision.com/download.
PaperAir provides you an easy way to scan your document and then link the scanned image
to your designated software application. All this can be done by a simple touch of the button
on the scanner. Yet, before you scan, it is recommended to check the button configurations
first to ensure a proper file format and a destination application.
8.2 Checking the Button Configurations before Scanning
Windows
1. Make sure that the scanner driver has been installed on your computer, the scanner has
been connected to your computer, and the scanner has been turned on.
2. After the PaperAir software application has been properly installed, the PaperAir will be
automatically started. The main window of PaperAir will be displayed and the PaperAir
icon will be displayed both on the Start menu and the toolbar as shown in below.
The main window of PaperAir
PaperAir icon will be displayed at the Start menu and the toolbar.
8-2

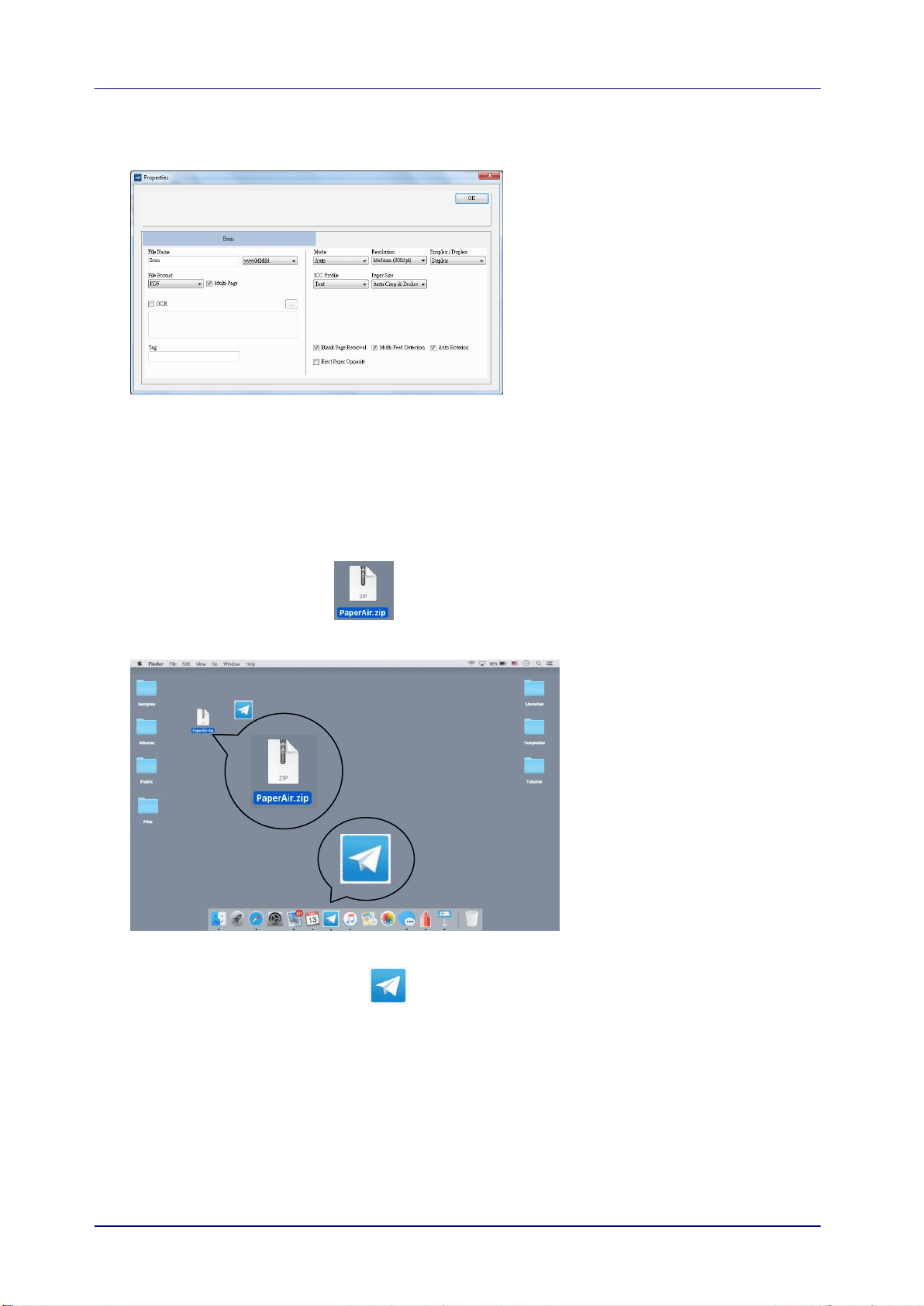

2. Right-click the [Quick Scan] button. A default [Scan Setting] dialog box will be
displayed.
If you wish to change the setting, use this window to reset the setting for the file format,
destination application, or other scan settings.
3. Click the OK button to leave the window.
Macintosh
1. Open the PaperAir zip file on your desktop. The PaperAir app icon will be
prompted and the PaperAir app shortcut will be displayed on your dock.
2. Double-click the PaperAir icon , the PaperAir main window will be displayed.
User’s Manual
8-3

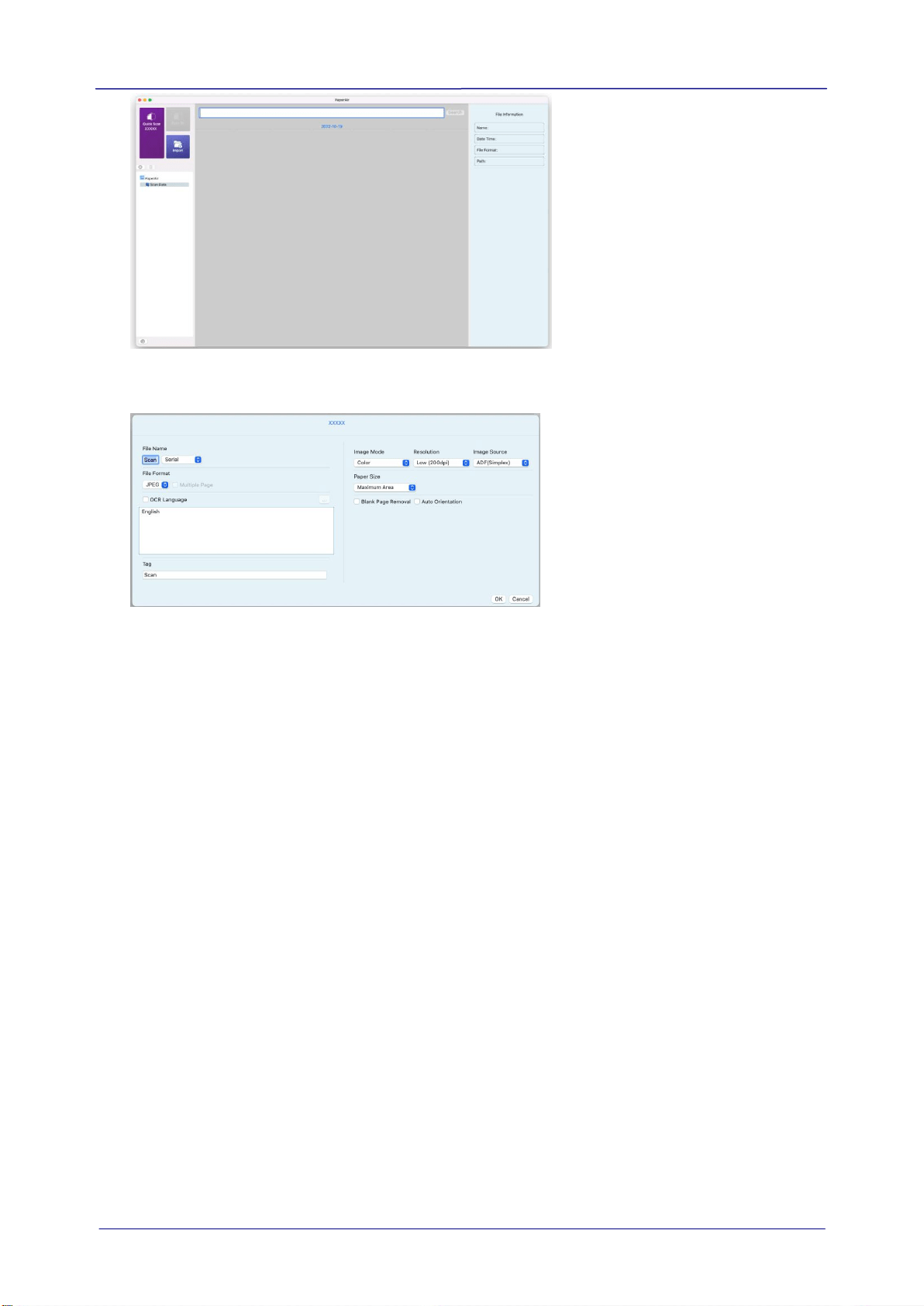

3. Right-click the [Quick Scan] button. The Scan Settings window appears.
If you wish to change the setting, use this window to reset the setting for the file format,
destination application, or other scan settings.
4. Click the OK button to leave the window.
8-4

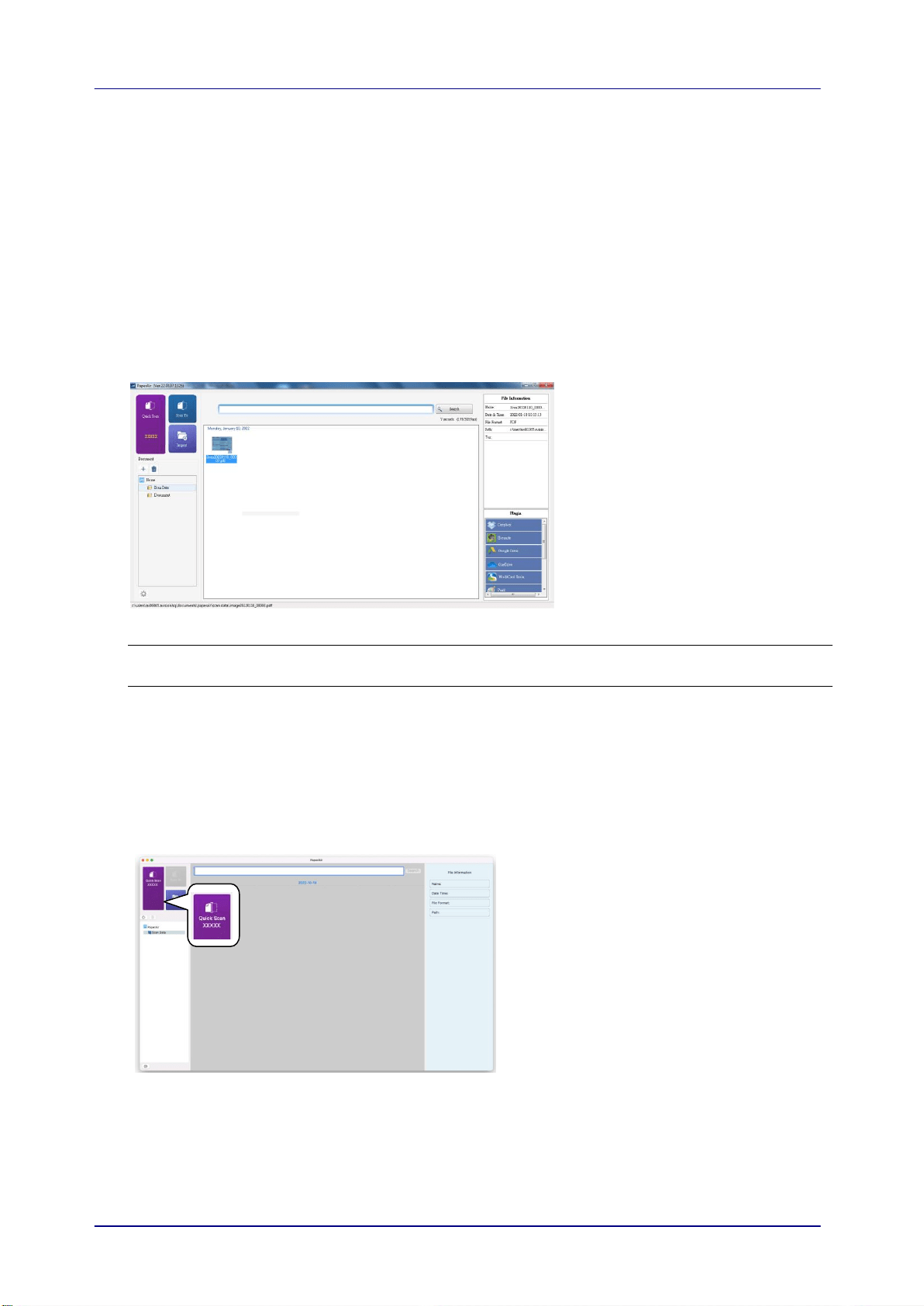

8.3 Scanning From One Touch of the Buttons
Windows
1. Click the Quick Scan button on the main window of PaperAir.
Or press the Scan button on the scanner.
2. In a second, a thumbnail image of your document will be displayed.
3. Click the thumbnail image, the file path to store the image will be displayed in the
bottom-left corner and more file information will be shown in the right pane as indicated.
Note: For more detailed information on how to use PaperAir, please refer to the user’s
manual.
Macintosh
1. Load paper into the feeder.
2. Click the Quick Scan button on the main window of PaperAir.
3. A scan will be started. In a second, a thumbnail image of your document will be
displayed.
User’s Manual
9-1
9. Maintenance

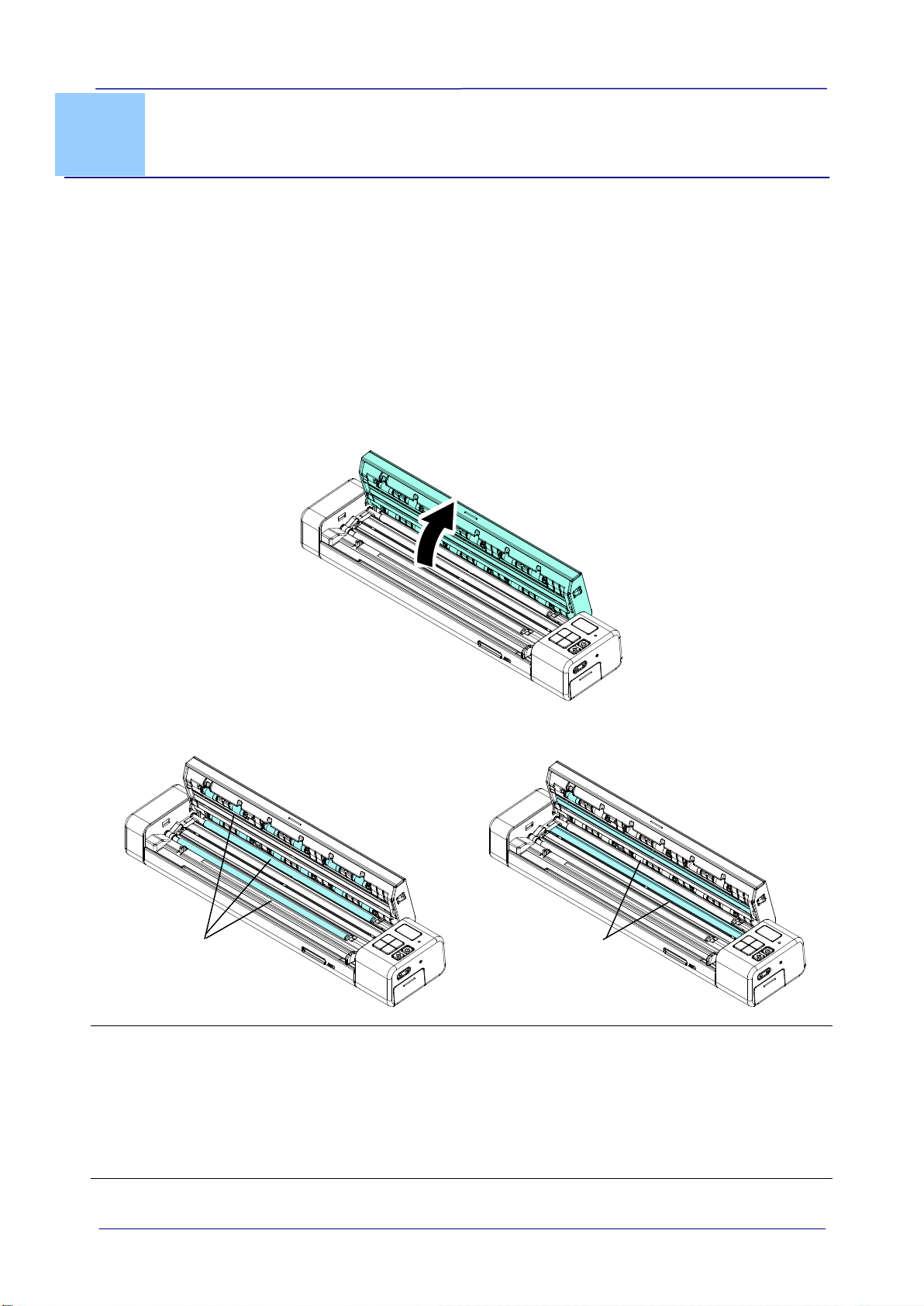

9.1 Cleaning the Scanner Glass, and Rollers
If the scanned images contain streaks or scanned documents become dirty, the scanning
glass, and roller inside the scanner are likely to be dirty. Clean them periodically.
Use only the recommended or supplied tool to clean the scanner and feeder dock.
Cleaning steps:
1. Open the feeder cover.
2. Wipe rollers and the glass with the included cleaning cloth.
Note:
Adding some isopropyl alcohol (95%) on the cleaning cloth is more efficient when
cleaning the rollers.
Do not use any solvents or corrosive liquid (i.e., alcohol, kerosene, etc.) to clean any
part of the scanner, otherwise the plastic material will be permanently damaged.
Make sure the surface of the document or photo doesn’t have any paper clips, etc. or this
could damage the scanner glass lens.
Rollers
Glass
9-2
9.2 Calibrating the Scanner
Calibrate only if the scanned image looks fuzzy, the color looks abnormal (e.g., darker than
normal), after more than 8,000 scans, or the scanner has been stored without use for a long
time. The calibration process resets the Contact Image Sensor to resume its color and
sharpness precision.
Calibrate the scanner on the control panel:
1. Turn on the scanner.
2. To enter the calibration mode, press [Menu] and / until [CAL] is displayed.
3. Hold the edges of the calibration sheet (included) and insert it with the text FACE DOWN
and the white area feeding first to the feeder at the back of the scanner as shown.
4. Press the [Start/OK] button.
5. Calibration card will be fed through. The Power LED blinks in green color.
6. After the calibration process is finished, [OK] will be displayed on the screen.
Calibrate the Scanner in PC mode:
Alternatively, you may also follow these steps to calibrate the scanner in PC mode.
1. Turn on the scanner.
2. Switch to PC mode by pressing the [Start/OK] button on the scanner until the LCD
screen shows [PC].
3. Start Capture Tool by choosing Start>All Programs>Avision Meta Mobile 20
Scanner>Avision Capture Tool.
4. Select “Avision Metal Mobile 20” as your scanner model. The main window of Capture
Tool will be displayed.
5. Choose the “Setting” tab and then the “Calibration” button.
6. Load your calibration sheet to the feeder at the back of the scanner as shown.
User’s Manual
9-3
7. The calibration card will be fed through and LCD screen shows “Cal”.
8. After the calibration process is finished, [OK] will be displayed on the screen.
Warning:
If the calibration process failed, the Red LED will be flashing and [E19] will be displayed on
the screen. Power off the scanner and then repeat the calibration step again.
Warning:
Do not interrupt the calibration sequence or try to shut off the device while it is calibrating.
If you stop the calibration before it has completed, a calibration error may occur. As a
result, you will have to power off the unit and repeat the instructions in this section.
Calibrate the scanner only when color of the scanned image looks abnormal.
Keep the calibration sheet from dust and debris. Any dirt may make the calibration chart
invalid or impact the calibration result.
Use only the included calibration sheet to calibrate the scanner.
User’s Manual
10-1
10. Troubleshooting

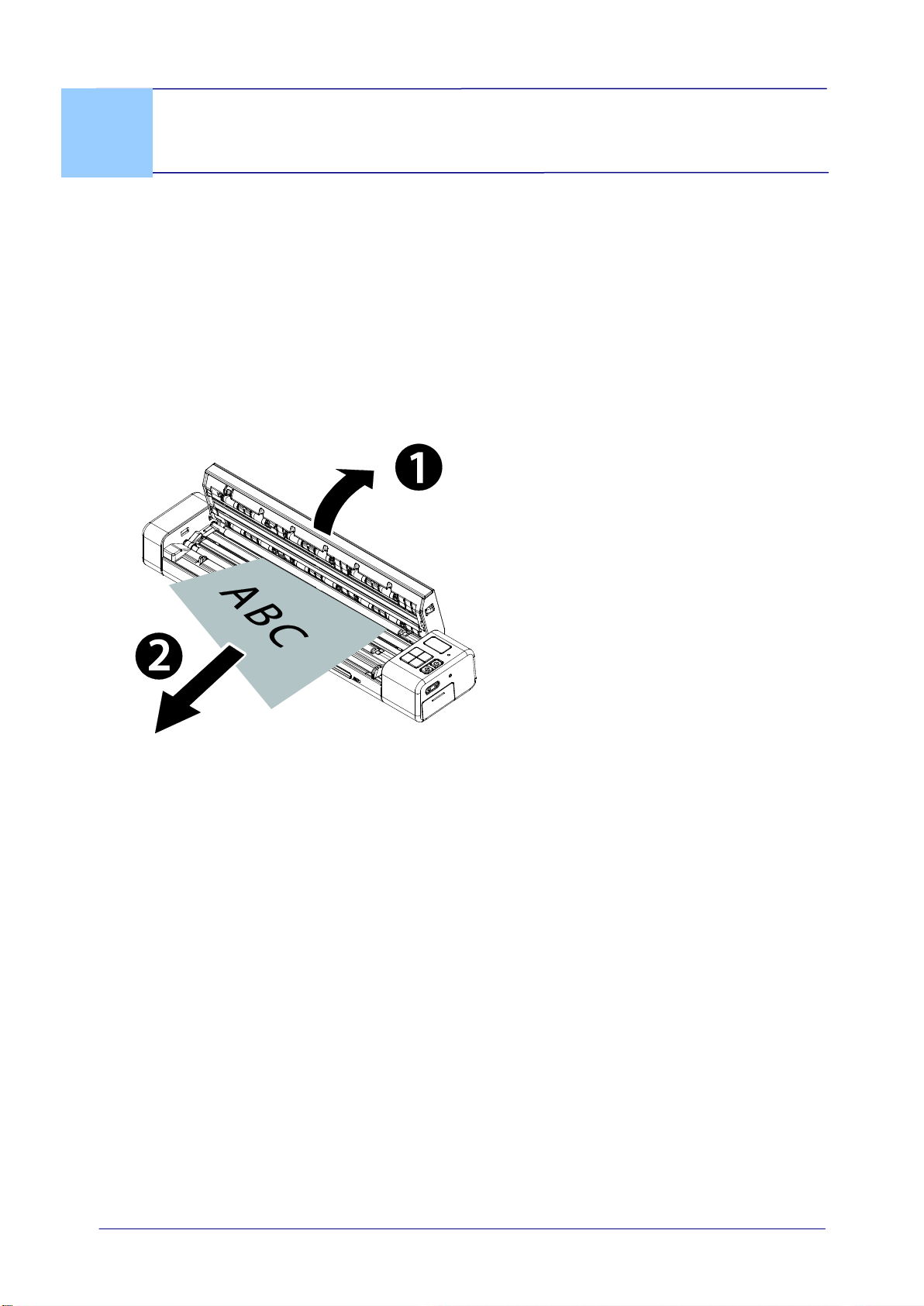

10.1 Clearing a paper jam
In the event of a paper jam, follow the procedures below to remove the paper:
1. Gently open the feeder cover.
2. Carefully pull the paper out of the feed tray.
3. Close the feeder cover. Your Scanner is now ready to use.
10-2
10.2 Error Conditions
If there is error during scanning, the LED light will be flashing in red color and error codes will
be displayed. Refer to the following table to clear the error conditions.
Error
Code/Meaning
Cause
How to restore
E03
Storage error
Storage is full; can not save
image to storage device.
Storage device not recognized.
Free more space or insert a new
SD card.
Format your storage device.
E04
Paper jam
1. Original has become stuck in
the feeder.
2. Original exceeds max. length
[300 dpi: 36” (914mm), 600
dpi: 14” (356mm)]
Open the feeder cover and pull
the original out of the feeder.
E05
No image scanned
No scan data detected.
Wait until error disappears.
E06
Cover opens
Feeder cover opens.
Close the feeder cover.
E08
Low battery
Battery power getting low.
Recharge the battery.
E19
Calibration Fails
Internal check failed and found
calibration data error
Recalibrate the scanner (see the
“Calibrate Scanner” section.
* Warning:
If "low battery" is indicated on the LCD display, it is recommended to recharge the battery to
prevent possible incomplete scanned images or other operational problems.
User’s Manual
10-3
10.3 Frequently asked questions and answers
General:
Q：
Paper becomes skewed in the scanner.
A：
1. Align the document guides to fit the documents as closely as
possibly and place the documents so that they feed in
straight.
2. Check the condition of the feeding roller. If necessary, follow
the cleaning directions in Section 9.1 and perform the
cleaning.
Q：
Why does not my scanner turn on?
A：
The batteries may not enough power or may not be inserted
correctly.
Q：
Why doesn’t my computer recognize my scanner when it’s
connected via USB cable?
A：
Make sure the cable connection is correct and secure. Restart the
computer if necessary.
Q：
Why there is a red or gray background with lines on my
scanned image?
A：
The scanner does not enough power to perform a scan. Charge
your batteries and restart the scan.
10-4
Q：
Why there are strange lines on the scanned document?
A：
Please check the following:
1. Are there scratches on the original or is the original clean？
2. Remove any stains or dust from the original before scanning.
3. Clean the rollers and glass with the included cleaning cloth.
(Refer to the section “Cleaning the Rollers and Glass))
Q：
Should the scanner feel warm to the touch?
A：
It is normal for the scanner to emit a small amount of heat after
prolonged use. However, if there are strange odors coming from
the scanner or the scanner feels a little bit hot to the touch, turn
the scanner off immediately.
SD Mode:
Q：
The image can not be saved into the memory card while
scanning?
A：
Make sure you have a SD card inserted correctly, and that it has
adequate space.
PC Mode:
Q：
Why does my scanned image always come out too dark?
A：
1. Please adjust the screen settings to sRGB.
2. Please adjust the brightness settings on the screen from
application software.
Q：
When I choose optical resolution to be 600 dpi, the "auto
crop" and "deskew" functions will be disabled.
A：
Since to perform auto crop and deskew consumes a great deal of
system memory, it is suggested if you wish to perform "auto crop"
and "deskew" functions, please choose your optical resolution to
be smaller than 600 dpi to prevent a error message.
User’s Manual
10-5
Wi-Fi Mode:
Q：
Why can’t I see the Scanner’s Wi-Fi Network name (SSID)
[SSID]?
A：
Make sure you have slid the [Wi-Fi] switch to the [On] position
and the Wi-Fi indicator light is lit on the LCD screen. If Wi-Fi
Access Point is still in countdown mode, wait until the blue Wi-Fi
indicator light turned solidly on.
Q：
Will the battery power get used up faster when Wi-Fi mode
is on?
A：
Yes. When Wi-Fi mode is on, the scanner does automatically turn
off like it does normally. Therefore, it is recommended to turn off
the Wi-Fi mode when images have been downloaded onto your
computer.
Q：
Why can’t I connect to my email or other web related
locations/programs after disconnecting from the scanner
Wi-Fi network?
A：
To resume your normal Wi-Fi connection, be sure to re-connect
your computer, tablet or phone to your usual local Wi-Fi network
when you are finished with your scanner connection.
Q：
My browser can’t access the AVISION PhotoView window
and the AVISION PhotoView slideshow window?
A：
It is probably the proxy settings has been enabled in your device’s
browser or the URL address of your default page contains “https”.
In these cases, please enter http://www.google.com or
http://10.10.100.1 on the URL address. The AVISION PhotoView
page will be displayed.
Q：
Why can’t I see my recently scanned images?
A：
Click the “Refresh” button of your browser or delete all browser
session cache.
10-6
Q：
Why are my files no longer accessible through the Wi-Fi
connection?
A：
If using a SD card, do not remove the SD card while you are
connected via Wi-Fi. If you have done so, you must restart the
scanner to reconnect with Wi-Fi.
Q：
Why can I still see scanned images deleted from Internet
Explorer?
A：
Certain Internet Explorer 7 or 8 SP2 has particular problem to
delete selected files and they reappear on SD Card. You can delete
through LCD Preview and Delete or through PC-connect to delete
physical files using Windows Explorer.
Q：
Are all browsers supported?
A：
All browsers have different configurations. The following browsers
have been tested.
Browser Name
Version
Internet Explorer
7.0, 8.0, & 9.0
Chrome
19.0 PC and Mac
slideshow may not work depending on
browser’s settings
Safari
6.0 Mac, 5.1.7 PC
iOS Safari
5.1 or later for iPhone, iPad, or iPod
Android WebKit
2.3, 3.01 or later for Android Tablets
User’s Manual
10-7
10.4 Technical Service
Before contact AVISION, please prepare the following information:

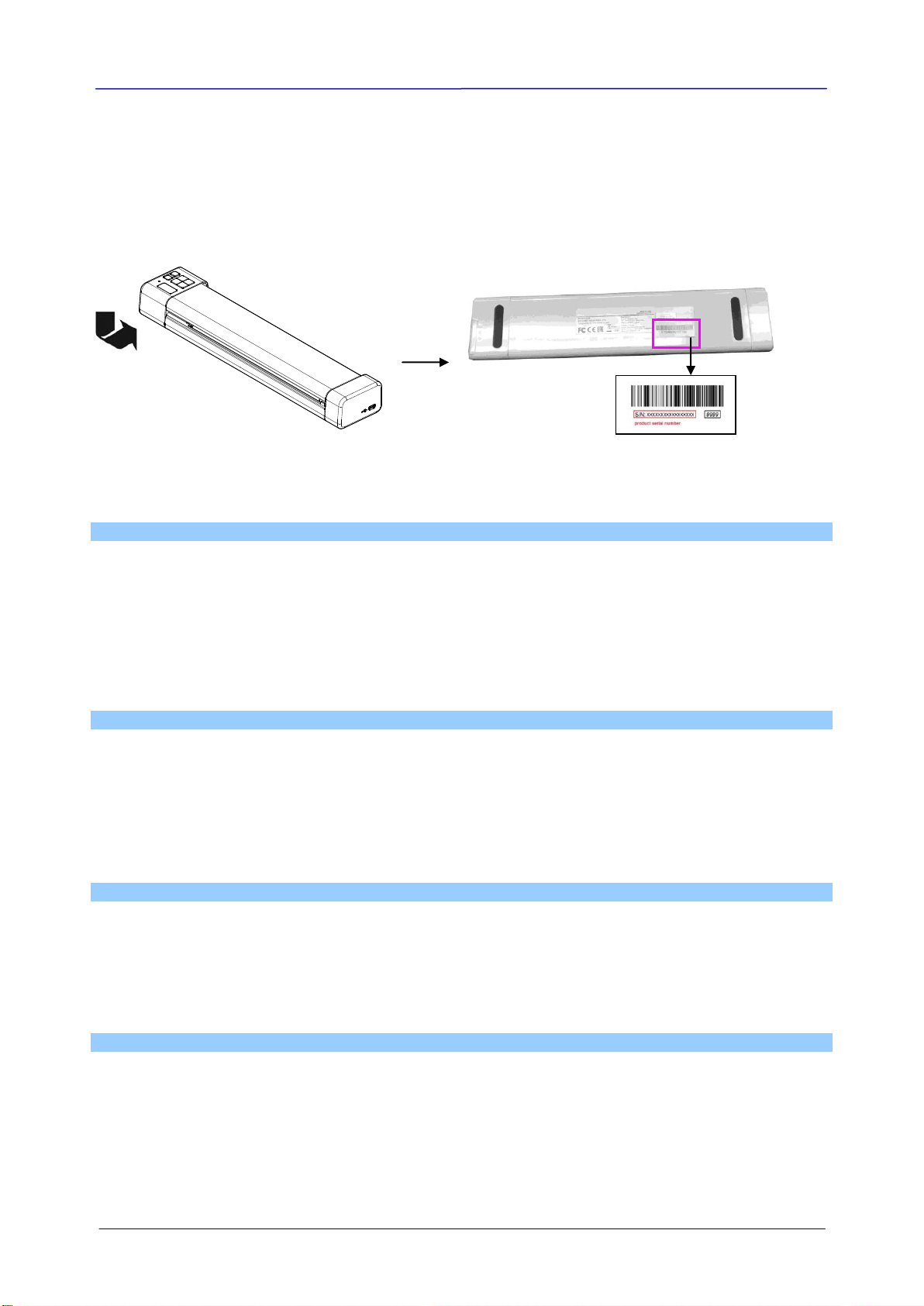

Scanner serial & revision number (located on the bottom of the scanner);
Hardware configuration (e.g., your host CPU type, RAM size, free disk space, display card,
interface card);
Headquarter
Avision Inc.
No. 20, Creation Road I, Science-Based Industrial Park,
Hsinchu 300, Taiwan, ROC
TEL: +886 (3) 578-2388
Toll Free: 0800-600-785
FAX: +886 (3) 577-7017
E-MAIL: service@avision.com.tw
Web Site: http://www.avision.com.tw
US and Canada Area
Avision Labs, Inc.
6815 Mowry Ave., Newark CA 94560, USA
TEL: +1 (510) 739-2369
Toll Free: 1-888-909-7888
FAX: +1 (510) 739-6060
E-MAIL: support@avision-labs.com
Web Site: http://www.avision.com
China Area
Technical Support Center in Shanghai
7A, No.1010, Kaixuan Road, Shanghai 200052 P.R.C.
TEL :+86-21-62816680
FAX :+86-21-62818856
E-MAIL : sales@avision.net.cn
Web Site: http://www.avision.com.cn
Europe Area
Avision Europe GmbH
Bischofstr. 101 D-47809 Krefeld Germany
TEL: +49-2151-56981-40
FAX: +49-2151-56981-42
E-MAIL: info@avision-europe.com
Web Site: http://www.avision.de
10-8
Espaço Brasil
Avision Brasil Ltda.
Avenida Jabaquara, 2958 - Cj. 75 - Mirandópolis –
CEP: 04046-500 - São Paulo, Brasil
TEL: +55-11-2925-5025
E-MAIL: [email protected]
Web Site: http://www.avision.com.br
User’s Manual
11-1
11. Specifications
Specifications are subject to change without notice.
General Specifications:
Item
Description
Regulatory model number
FF-2201B
Image Technology
Contact Image Sensor (CIS)
Scanner Display
1.2” TSN LCD
Max. Document Size
8.5” x 14” (216 x 356 mm)
Long Page Mode
36” (Available for 300 dpi only)
Min. Document Size
3.5” x 2” (88 x 50 mm)
Document Weight
60 ~ 107 g/m² ( 16 to 28 lb )
Card Weight
<0.8mm
Auto power off
5 minutes (when auto power off function is
active)
Output File Format
JPEG/PDF
Resolution
300 dpi /600 dpi
Support Operating System
Windows XP / Vista / 7 /8, Mac OS 10.5 or later
Interfaces
Memory Card
SD card
USB
Micro USB port compatible with the USB 2.0
USB Power
5Vdc, 500mA
Battery
Rechargeable Li-ion battery AP-120
(APACK)/CB-PD(NP-120) (City Bright)
3.7V, 1700mAh
Battery Life
200 pages (A4, Color, 300 dpi)
Net Weight
530 g (1.17 lb)
Dimensions（WxDxH）
12.1” x 2.6” x 1.6”
(308 x 66.9 x 41.2 mm)
Operating Environment
Temperature:10ºC ~ 35ºC (50ºF~95ºF)
Humidity: 10%~85% RH
11-2
Wi-Fi Specifications:
Standard
IEEE 802.11 b/g/n standards compliant
Wireless LAN
1T1R Mode
Frequency Range
2.400 ~ 2.4835GHz ( subject to local regulations)
Number of
Selectable
Channels
802.11n: 20MHz/40MHz
802.1
1b/g:
USA, Canada (FCC):11 channels (2.412GHz~2.462GHz)
Europe (CE): 13 channels (2.412GHz~2.472GHz)
Japan (TELEC): 14 channels (2.412GHz~2.4835GHz)
Data Rate
802.11n: up to 150Mbps
802.11b: 1, 2, 5,5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Transmit
Power(EIRP)
11n HT40 MCS7 : +13 dBm
11g OFDM: +15 dBm
11b CCK: +18 dBm
Security
WEP 64/128, TKIP, WPA, WPA2 mixed,802.1x and 802.11i
