OPERATING MANUAL
Model number:
SCV300
4483_HyLite2_Manual_aw.indd 14483_HyLite2_Manual_aw.indd 1 20/08/2020 17:0620/08/2020 17:06
2
IMPORTANT SAFEGUARDS:
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Do not use in rain or leave outdoors whilst raining.
WARNING: basic safety precautions should always be observed when
using an electrical appliance in order to reduce the risk of fire, electric shock
or injury. These include the following:
Personal safety:
• Store indoors in a dry place out of the reach
of children.
• Always use responsibly. This appliance can
only be used by the following individuals
if they have been given supervision or
instruction concerning use of the appliance
in a safe way, and understand the hazards
involved: children aged from 8 years and
above and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge.
• Don’t let children play with the appliance;
supervise children using or maintaining the
appliance.
• Only use manufacturer’s recommended
attachments as described in this manual;
misuse or use of any accessory or
attachment, other than those recommended,
may present a risk of personal injury.
• Take extra care when cleaning stairs.
• Keep the appliance and accessories away
from hot surfaces.
• Do not block the appliance openings or
hinder air flow; keep openings free of any
objects including dust, lint, clothing, fingers
(and all parts of the body).
• Keep loose clothing, fingers and other body
parts, particularly hair, away from the brush-bar,
openings and other moving parts.
Electrical safety:
• Only use batteries and chargers supplied by
Gtech.
• Never modify the charger in any way.
• The charger has been designed for a specific
voltage. Always check that the mains voltage
is the same as that stated on the rating plate.
• A charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack; never
use the charger with another appliance or
attempt to charge this product with another
charger.
• Before use, check the charger cord for
signs of damage or ageing. A damaged or
entangled charger cord increases the risk of
fire and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the charger cord to disconnect
it from a socket; grasp the plug and pull to
disconnect.
• Do not wrap the charger cord around the
charger when storing.
• Keep the charger cord away from hot
surfaces and sharp edges.
• The charger cord cannot be replaced. If
the charger cord is damaged, the charger
should be discarded and replaced.
• If charging the battery through an extension
cord, use only CE-approved 13amp extension
cords, as non-approved extension cords may
overheat. Care should be taken to arrange the
extension cord and charger cord as they can
be a trip hazard.
• Do not handle the charger or the appliance
with wet hands.
• Do not store or charge the appliance
outdoors.
• Unplug the charger from the mains socket
before removing the battery and before
cleaning and maintaining the appliance.
• Ensure the appliance is off before connecting
or disconnecting the accessories and
motorised brush-bar.
4483_HyLite2_Manual_aw.indd 24483_HyLite2_Manual_aw.indd 2 20/08/2020 17:0620/08/2020 17:06
3
Battery safety:
• This appliance includes Li-ion batteries; do
not incinerate batteries or expose to high
temperatures, as they may explode.
• Liquid ejected from the battery may cause
irritation or burns.
• In an emergency situation, seek professional
help immediately.
• Leaks from the battery cells can occur under
extreme conditions. Do not touch any liquid
that leaks from the battery. If the liquid gets
on the skin, wash immediately with soap and
water. If the liquid gets into the eyes, flush them
immediately with clean water for a minimum
of 10 minutes and seek medical attention.
Wear gloves to handle the battery and dispose
of it immediately in accordance with local
regulations.
• Shorting the battery terminals may cause
burns or fire.
• When the battery pack is not in use, keep
it away from paper clips, coins, keys, nails,
screws or other small metal objects that
could make a connection from one terminal
to another.
• When you dispose of the appliance, remove
the battery and dispose of the battery safely
and in accordance with local regulations.
Service:
• CAUTION – to reduce the risk of injury
from moving parts, remove battery before
servicing.
• Before using the appliance, and aer any
impact, check for signs of wear or damage. If
repairs are needed, go to www.gtech.co.uk/
support or call 01905 345 891
• Do not use the appliance if any part is
damaged or defective.
• Repairs should be carried out by a service
agent or a suitably qualified person in
accordance with relevant safety regulations.
Repairs by unqualified persons could be
dangerous and will render the warranty void.
• The Gtech HyLite can be used in hand-held
mode.
• Never modify the appliance in any way, as this
may increase the risk of personal injury.
• Only use replacement parts or accessories
provided or recommended by Gtech.
• If the appliance is not working as it should,
has been dropped, damaged, le outdoors
or dropped into water, contact Gtech on
01905 345891.
Intended use:
• This appliance has been designed for
domestic dry vacuum cleaning only.
• Do not attempt to vacuum up liquids or use
on wet surfaces.
• Do not pick up anything that is flammable,
burning or smoking.
• Use only as described in this manual.
• Do not use on concrete, tarmacadam
or other rough surfaces.
• The brush-bar may damage certain floor
surfaces. Before vacuuming flooring, rugs or
carpets, check the flooring manufacturer’s
recommended cleaning instructions.
• This product may damage delicate fabrics
or upholstery. Care should be taken with
loose-weave fabrics, or where there are
loose threads. If in doubt, please test on an
inconspicuous area first.
• The Gtech HyLite has a constantly rotating
brush-bar. Never leave the cleaning head in
one spot for an extended period of time as
this may damage the surface.
WARNING:
• Do not use water, solvents or polishes
to clean the outside of the appliance;
wipe clean with a dry cloth.
• Never immerse the unit in water and do
not clean in a dishwasher.
• Only use authentic Gtech bags,
batteries, charger etc.
• Do not use without a bag fitted.
• For domestic use only.
• Turn off aer brush-bar has ejected.
• Allow to cool down if battery has over-
heated (see Troubleshooting section).
4483_HyLite2_Manual_aw.indd 34483_HyLite2_Manual_aw.indd 3 20/08/2020 17:0620/08/2020 17:06
What’s in the box
2
1
1
3
4
5
7
6
8
4
5
3
2
7
8
6
Main unit (with 1 x bag fitted)
Battery (fitted)
Steering module
Handle
Duster
3 x replacement bags
Charger
Hair removal tool
Thank you for choosing Gtech
“I started Gtech to create sensible, easy to use products that do a great
job. Your opinion is important to us and we’ll use your feedback to
improve our products and services, and to let other people know what
it’s like to be part of the Gtech family.”
Nick Grey – Inventor, owner of Gtech
4
Make a note of your product serial number for future reference. You can find this on the
underside of item
_ - _ _ - _ _ _ ~
_ _ _ _ _ ~
_ _ _ _ ~
_ _ ~ _ _ _ _ _ _ _
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
1
4483_HyLite2_Manual_aw.indd 44483_HyLite2_Manual_aw.indd 4 20/08/2020 17:0620/08/2020 17:06

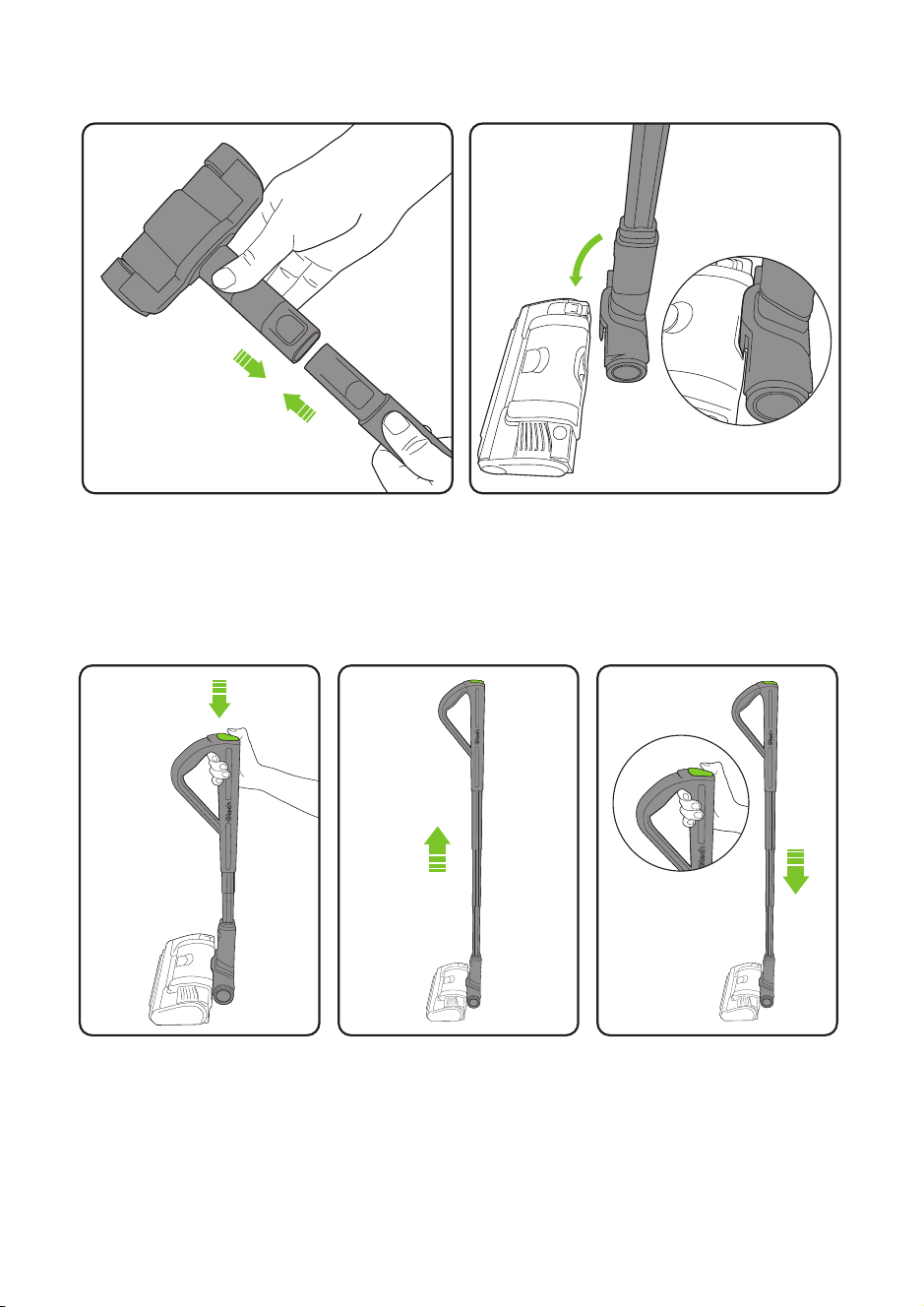

To attach the handle to the main unit there is
no need to li the vacuum from the floor. Just
push the hook on the steering module into
the latch at the back.
Assembly
To fit the steering module to the handle simply
push the end of the handle into the neck of the
steering module until it clicks into place.
5
Press the green button
and pull the handle upwards
to extend.
When the handle is
fully extended, you’ll hear
a ‘click’.
To compress the handle,
simply press and hold the
green button while pushing
downwards, releasing the
green button towards the
bottom. The handle will lock
into place.
4483_HyLite2_Manual_aw.indd 54483_HyLite2_Manual_aw.indd 5 20/08/2020 17:0620/08/2020 17:06
A forward motion will pick up larger pieces of
debris.
Pulling the vacuum back towards you activates
the AirLOC and picks up finer particles.
AirLOC
6
Operation

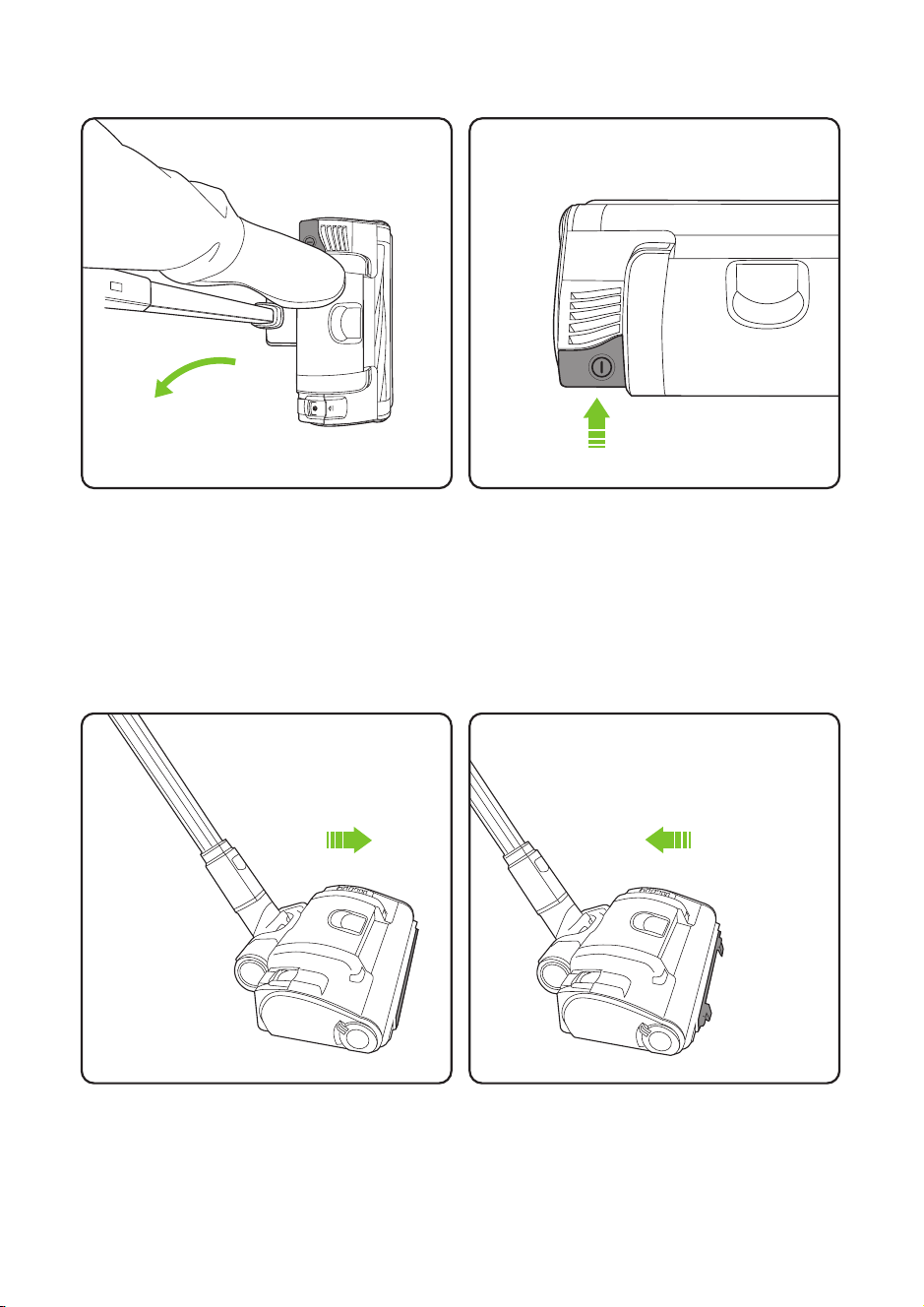

Place your foot on the le side of the unit and
recline the handle.
Press the power button to turn it on. You
can also do this with your hand when it is in
hand-held mode - be careful of the rotating
brush-bar.
4483_HyLite2_Manual_aw.indd 64483_HyLite2_Manual_aw.indd 6 20/08/2020 17:0620/08/2020 17:06
7

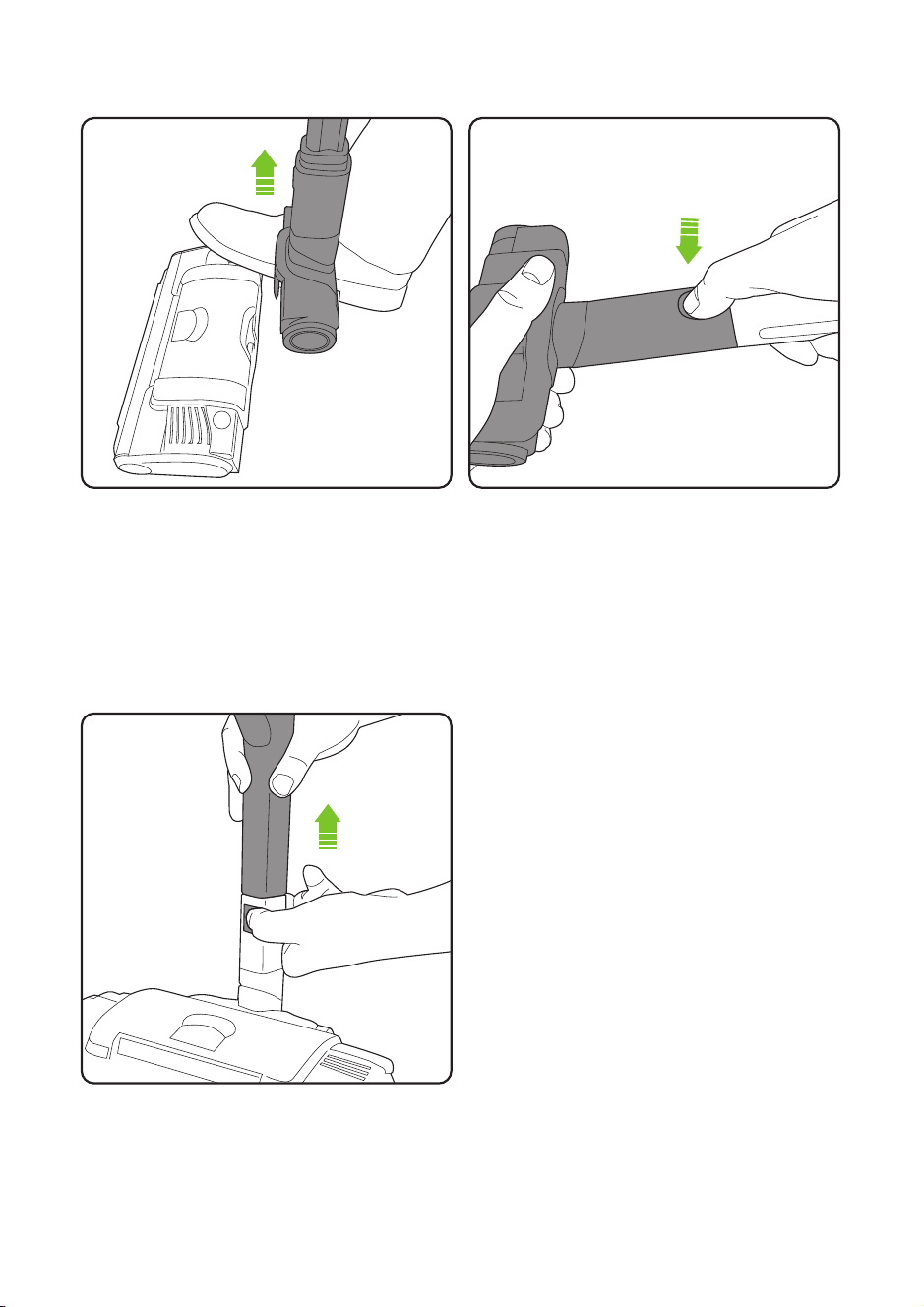

Removing the handle
To remove the handle, hold the main unit
down with your foot and pull upwards on the
handle.

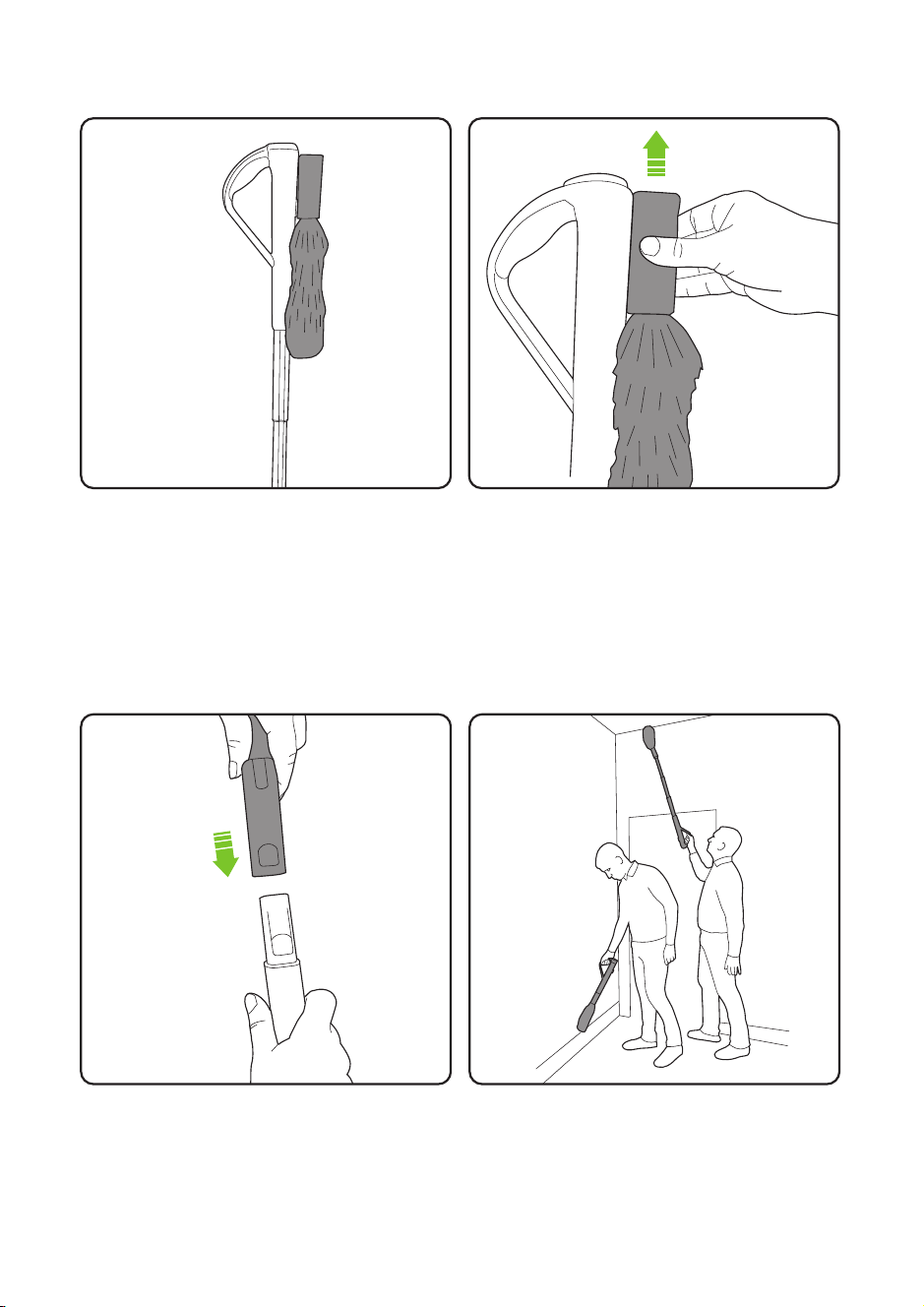

You can also remove the handle while the
steering module is still attached to the main
unit to use the handle with the duster.
To remove the steering module press the
button and pull the handle out.
4483_HyLite2_Manual_aw.indd 74483_HyLite2_Manual_aw.indd 7 20/08/2020 17:0620/08/2020 17:06
8

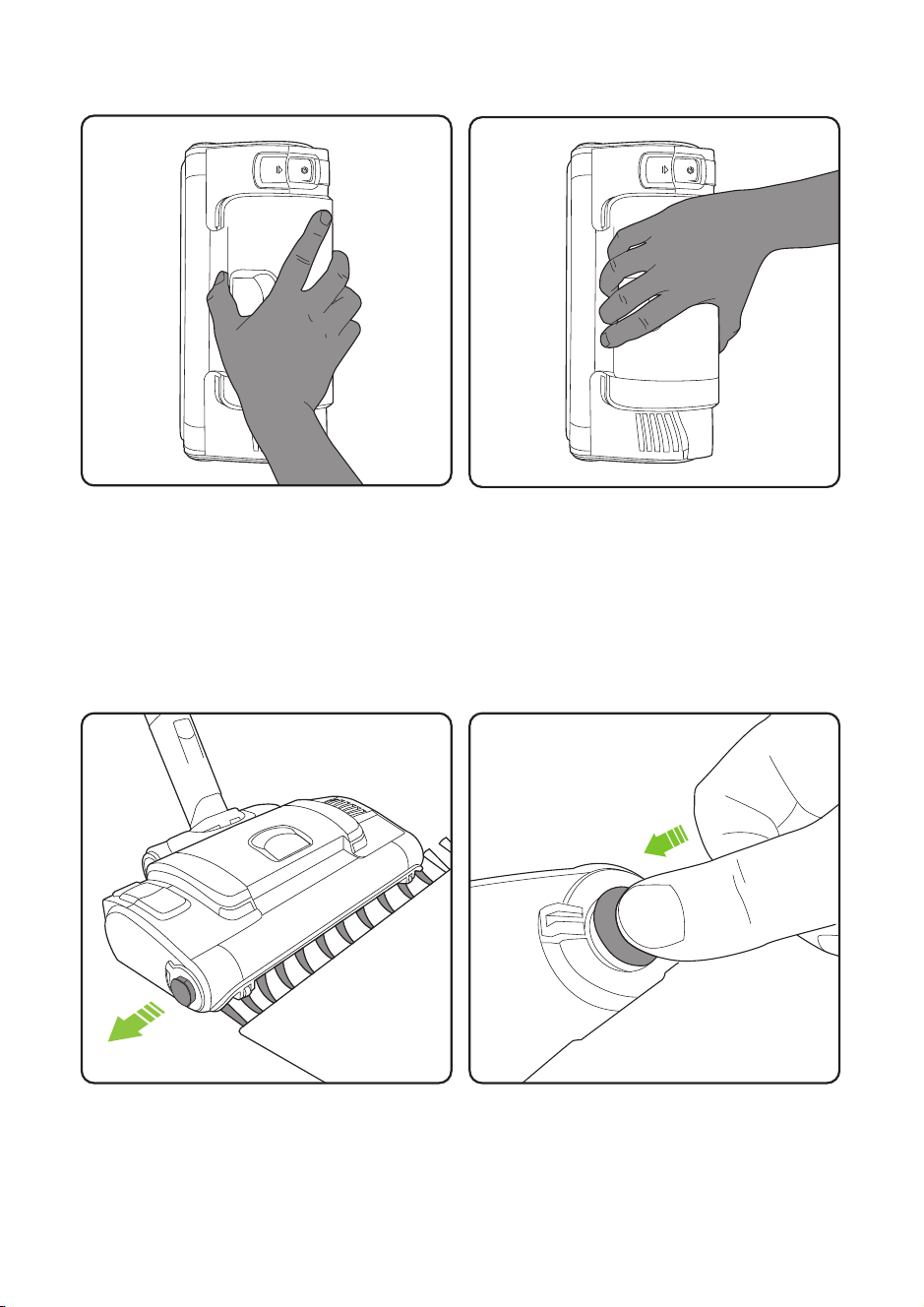

In the case of a jam, the brush-bar will
automatically eject itself to allow you to
remove any obstructions and prevent
damages. Once the brush-bar ejects, turn the
unit off.
You will then need to reset the eject system by
pushing the button back into place.
Brush-bar eject system
When cleaning surfaces such as carpets and
upholstery, hold the vacuum and slide it back
and forth. Please be aware of the constantly
rotating brush-bar while using this product in
its hand-held mode.
For use on stairs, grip and move the vacuum
over each step. Extra care should be taken
when vacuuming stairs.
Hand-held operation
4483_HyLite2_Manual_aw.indd 84483_HyLite2_Manual_aw.indd 8 20/08/2020 17:0620/08/2020 17:06
9

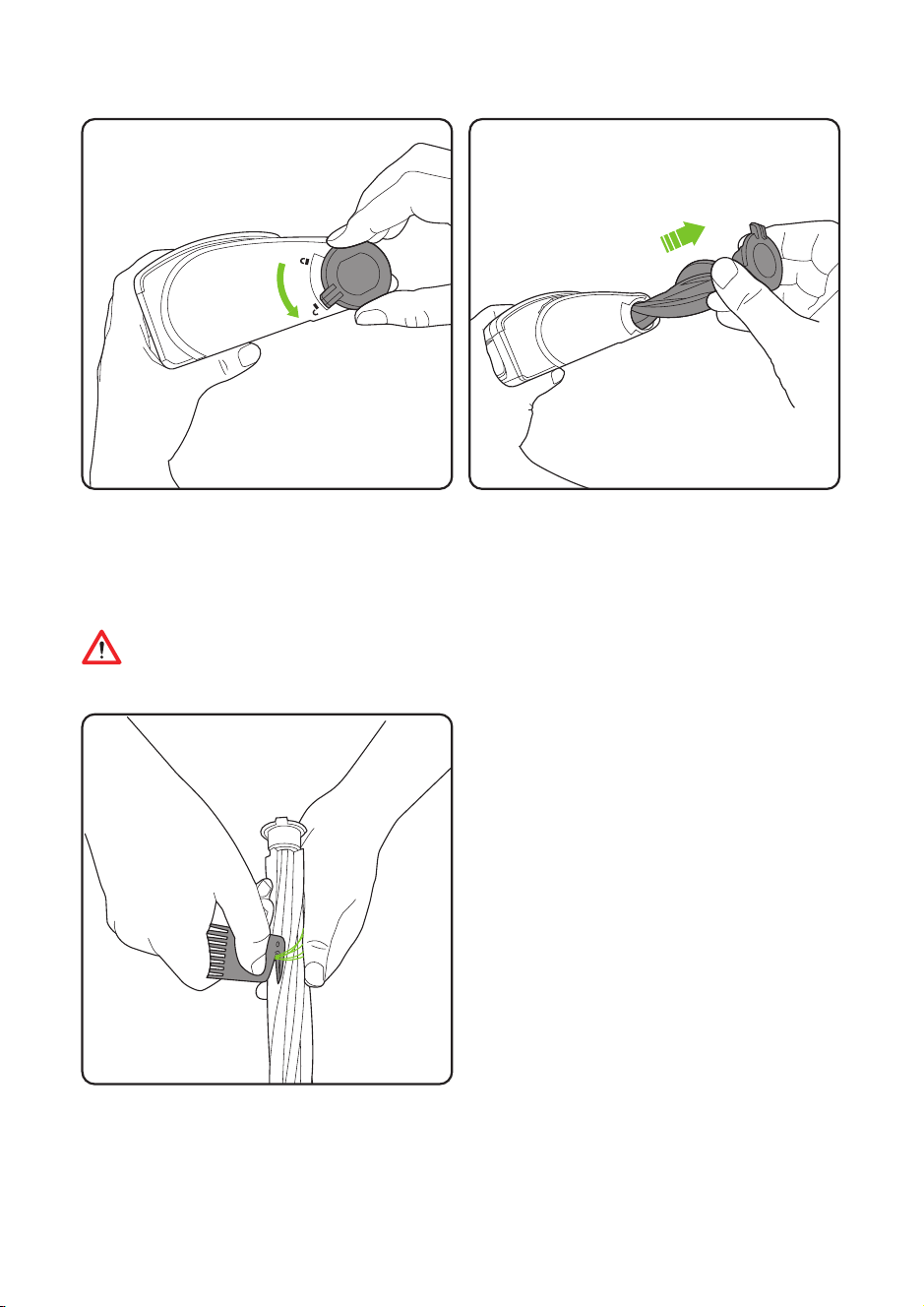

WARNING: remove battery before carrying out any form of assembly.
Remove the battery before maintaining any
part of your product. Rotate the latch from the
‘locked’ position to the ‘unlocked’ position.
Brush-bar removal
To remove hair from the brush-bar, run the
blade of the hair removal tool between the
brushes to cut the strands.
Pull the latch out to remove the brush-bar.
4483_HyLite2_Manual_aw.indd 94483_HyLite2_Manual_aw.indd 9 20/08/2020 17:0620/08/2020 17:06
10

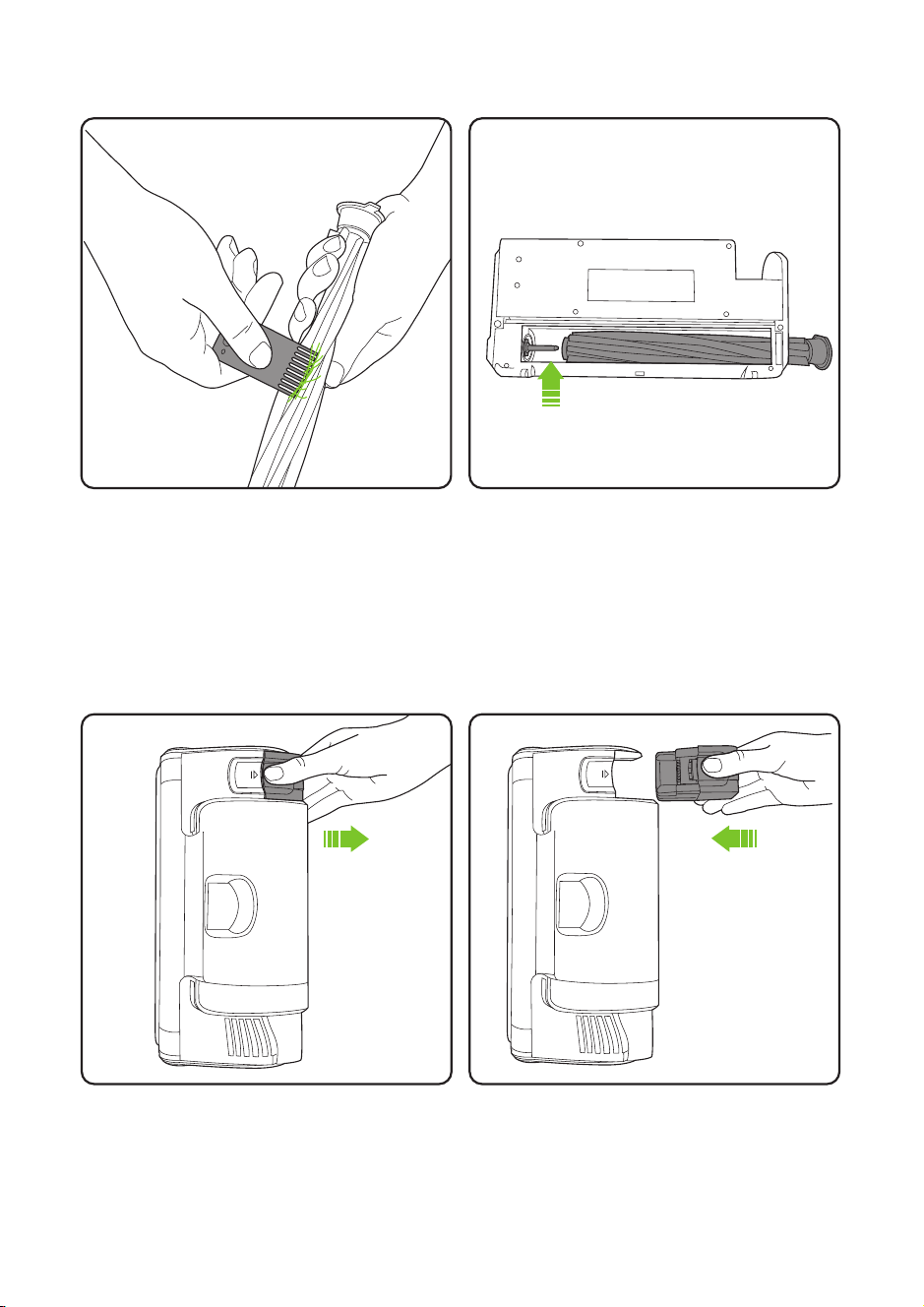

You can then use the comb end of the hair
removal tool to pull the hair from the brush-bar.
Never operate the product without the brush-
bar in place.
Brush-bar hair removal
When replacing the brush-bar, ensure that it
locates onto the steel pin at the other end of
the head, then turn the latch to the ‘locked’
position.
Battery removal
Press the latch on the top of the battery and
slide it out of the battery-housing.
To refit the battery, line it up and slide it into
the battery housing. The battery will click into
place when correctly fitted.
4483_HyLite2_Manual_aw.indd 104483_HyLite2_Manual_aw.indd 10 20/08/2020 17:0620/08/2020 17:06
11

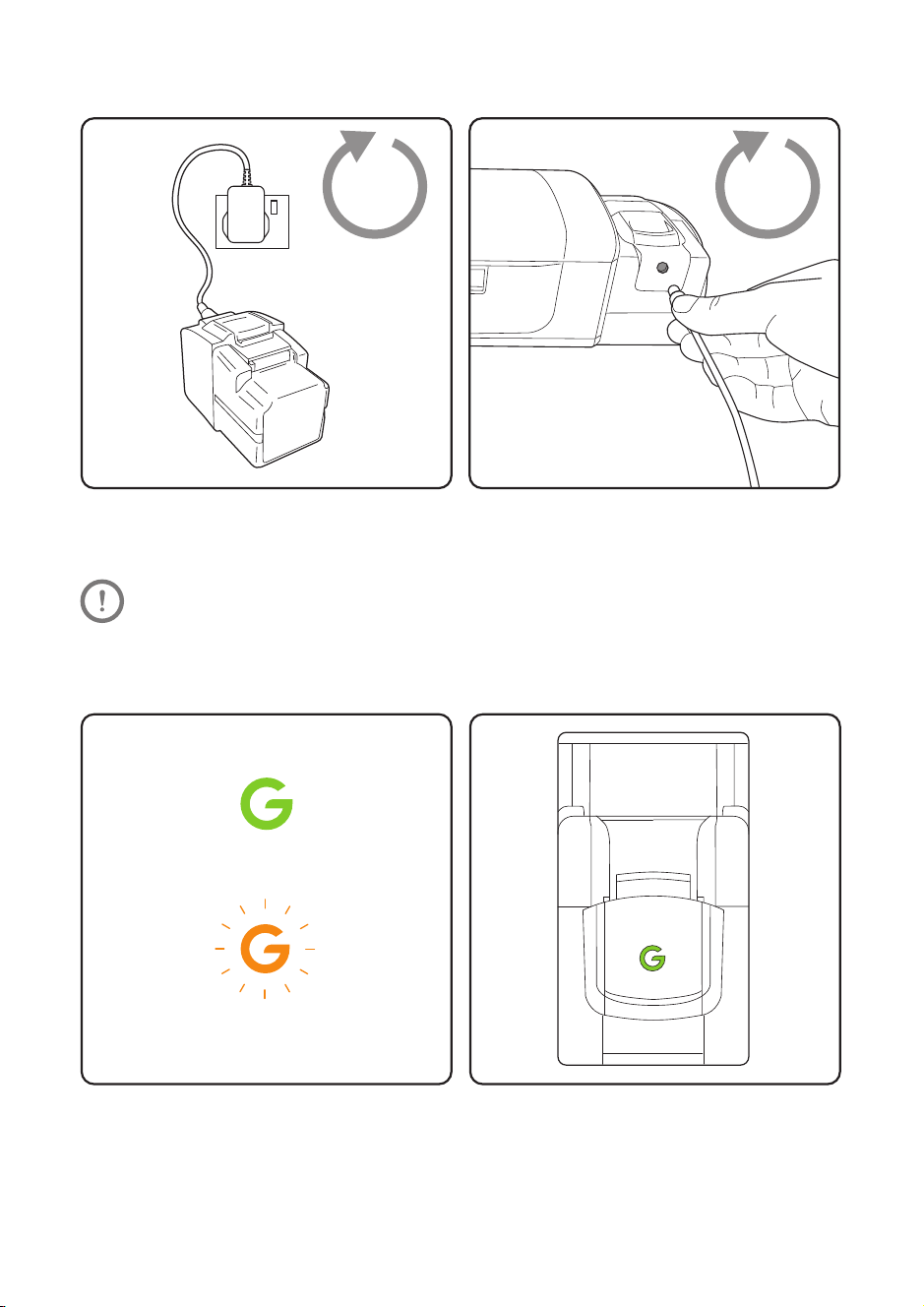

Plug the charger into the mains and connect it to
the battery. Switch the power on at the mains.
The battery can be charged on or off the main
vacuum unit.
Battery state-of-charge indicator
The battery indicator shows how much charge
remains in the battery.
Whilst charging, the ‘G’ on the battery will
pulsate green. When fully charged, it will show
a solid green colour.
15% - 1%
100% - 16%
Recharging the battery
14.4V
For optimum battery performance, we recommend turning the plug socket
off once the battery is fully charged.
2
hours
2
hours
4483_HyLite2_Manual_aw.indd 114483_HyLite2_Manual_aw.indd 11 20/08/2020 17:0620/08/2020 17:06
12
The duster can be stowed on the handle. To remove the duster simply slide it upwards
and off the handle.
Attach the duster to the end of the handle,
clicking the latch into place
This allows you to clean low, or with the handle
extended, up high.
Using the duster
4483_HyLite2_Manual_aw.indd 124483_HyLite2_Manual_aw.indd 12 20/08/2020 17:0620/08/2020 17:06
13

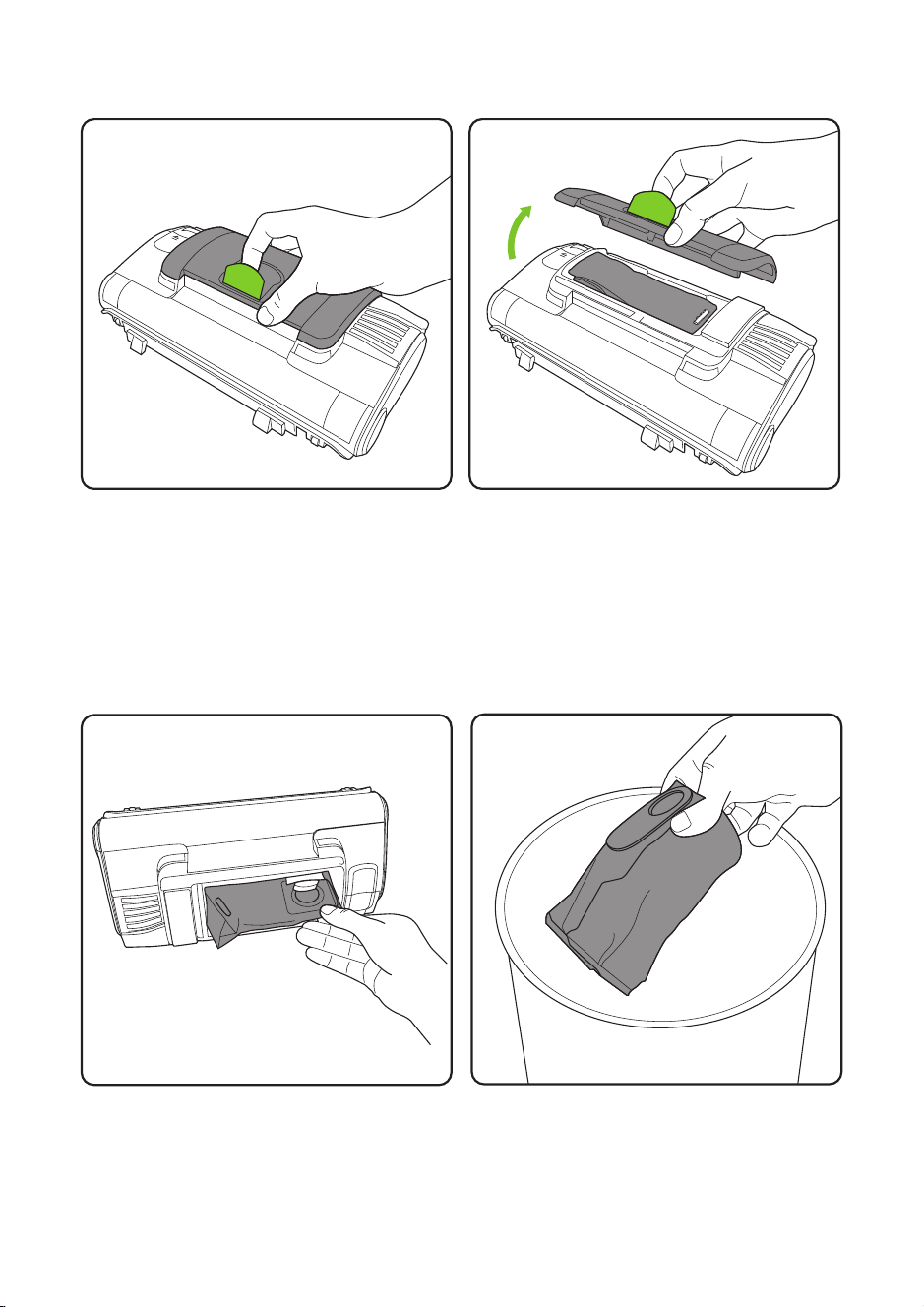

Remove the battery before removing the bag.
Open the bag-chamber by liing the latch on
top of the lid.
Li and remove the bag-chamber lid.
Turn the product onto its back, unhook the end
of the bag and disconnect the collar from the
inlet. You can then remove the bag.
Removing the bag
Dispose of the bag safely and replace with a
new one.
(You can get more bags at www.gtech.co.uk)
Do not reuse bags as this could damage
and reduce the performance of the
Product.
4483_HyLite2_Manual_aw.indd 134483_HyLite2_Manual_aw.indd 13 20/08/2020 17:0620/08/2020 17:06
14
Put the new bag in the bag-chamber, fitting the
collar over the inlet.
Replacing the bag
To expand the bag, pull the hoop at the end
of the bag over the hook at the edge of the
chamber.
Place the lid back onto the chamber and press
down. It will click into place once it is secure.
4483_HyLite2_Manual_aw.indd 144483_HyLite2_Manual_aw.indd 14 20/08/2020 17:0620/08/2020 17:06
Troubleshooting
Reduced suction 1. Check for blockages.
2. Clean the brush-bar.
3. Check if the bag is full and
needs emptying.
4. Check the lid is closed properly.
Unexpectedly short battery life 1. Check the battery is fully charged.
2. Clean the brush-bar.
3. The run-time will vary depending on the
surfaces you are cleaning.
Battery will not charge
1. Check the charger is correctly connected
to the battery and mains supply.
2. Check the wall socket is switched on.
3. Try another plug socket.
4. Check the charger cord for signs of wear
or damage.
My vacuum won’t switch on 1. Check the battery is connected.
2. Check the battery is fully charged.
Brush-bar has ejected 1. Check for blockages.
2. Clean the brush-bar.
‘G’ on battery shows amber for
5 seconds
The brush-bar is jammed:
1. Turn off the Product, remove the battery
and clear the blockage.
The unit has over-heated:
1. Leave to cool down.
‘G’ on battery shows red Contact Gtech.
Product care
Your product doesn’t need much maintenance: replace bags when full, keep the brush-bar tangle-
free and charge the battery. Wipe it with a dry cloth if it gets dirty. Before maintaining any part of the
product, remove the battery.
15
4483_HyLite2_Manual_aw.indd 154483_HyLite2_Manual_aw.indd 15 20/08/2020 17:0620/08/2020 17:06
The symbol indicates that this product is
covered by legislation for waste electrical and
electronic products (EN2002/96/EC)
When the vacuum has reached the end of its life, it and
the Li-ion battery it contains should not be disposed
of with general household waste. The battery should
be removed from the vacuum and both should be
disposed of properly at a recognised recycling facility.
Call your local council, civic amenity site, or
recycling centre for information on the disposal
and recycling of electrical products.
Alternatively, visit www.recycle-more.co.uk
for advice on recycling and to find your nearest
recycling facilities.
FOR HOUSEHOLD USE ONLY
TECHNICAL SPECIFICATION
Battery model 165A0005
Battery 14.4V 2000mAh Li-Ion
Charging period 2 hours
Battery charger output 17.3V DC 1.0A
Product weight 1.5KG
16
support@gtech.co.ukLive chat supportOnline How-to videos
Product support
If these initial tips don’t solve your problem, we have various other ways to help.
Visit: www.gtech.co.uk/support
4483_HyLite2_Manual_aw.indd 164483_HyLite2_Manual_aw.indd 16 20/08/2020 17:0620/08/2020 17:06
17
Visit www.gtech.co.uk/warrantyregistration to register your product and ensure that we have all
the information required to provide you with quick and efficient support.
You will need your product’s serial number.
If you purchased directly from Gtech, your details are already registered and your 2-year
warranty will start automatically.
If you purchased from an authorised Gtech retailer, please register your warranty within 3 months.
You will need to provide proof of purchase to support any claim(s) against your warranty.
WARRANTY – REGISTRATION
WHAT ISN’T COVERED SUMMARY
• The guarantee becomes effective at the date of
purchase (or the date of delivery if this is later).
• You must provide proof of delivery/ purchase before
any work can be carried out on the vacuum cleaner.
Without this proof, any work carried out will be
chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised
agents.
• Any parts which are replaced will become the
property of Gtech.
• The repair or replacement of your vacuum cleaner
is under guarantee and will not extend the warranty
period.
• The guarantee provides benefits which are additional
to, and do not affect, your statutory rights as a
consumer.
Gtech does not guarantee the repair or
replacement of a product as a result of:
• Normal wear and tear (e.g. bags, brush-bar).
• Accidental damage, faults caused by negligent use or
care, misuse, neglect, careless operation or handling
of the vacuum cleaner which is not in accordance with
the operating manual.
• Use of the vacuum cleaner for anything other than the
normal domestic household purposes.
• Use of parts and accessories which are not Gtech
genuine components.
• Faulty installation (except where installed by Gtech).
• Repairs or alterations carried out by parties other than
Gtech or its authorised agents.
• If you are in doubt as to what is covered by your
guarantee, please call the Gtech Customer Care
Helpline on 01905 345 891.
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
WARRANTY – TERMS AND CONDITIONS
Your product is guaranteed against material or manufacturing faults for 2 years from the date of
purchase, subject to the following terms and conditions:
4483_HyLite2_Manual_aw.indd 174483_HyLite2_Manual_aw.indd 17 20/08/2020 17:0620/08/2020 17:06
18
4483_HyLite2_Manual_aw.indd 184483_HyLite2_Manual_aw.indd 18 20/08/2020 17:0620/08/2020 17:06
19
4483_HyLite2_Manual_aw.indd 194483_HyLite2_Manual_aw.indd 19 20/08/2020 17:0620/08/2020 17:06
CPN4483
Grey Technology Limited
Brindley Road, Warndon, Worcester WR4 9FB
email: support@gtech.co.uk
telephone: 01905 345891
www.gtech.co.uk
4483_HyLite2_Manual_aw.indd 204483_HyLite2_Manual_aw.indd 20 20/08/2020 17:0620/08/2020 17:06
