Flex Shower Door & Base
SHOWER DOOR & BASE INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLine
®
reserves the right to alter, modify or redesign products at any time without prior notice.
For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer
to your model’s web page on DreamLine.com
©2017 DreamLine. All Rights Reserved
FLEX SHOWER DOOR & BASE
STEP 1: Shower Base Installation Instructions
STEP 2: Shower Door Installation Instructions
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
1
SLIMLINE SHOWER BASE
SHOWER BASE DIMENSIONS AND INSTALLATION INSTRUCTIONS
IMPORTANT!
DreamLine
®
reserves the right to alter, modify or redesign products at any time without prior
notice. For the latest up-to-date technical drawings, manuals, warranty information or additional
details please refer to your model’s web page on DreamLine.com
Please review this entire manual before beginning installation
For more information about DreamLine
®
products please visit DreamLine.com
Color options:
--- - White
-22- Biscuit
-88- Black
Double Threshold Shower Base with Corner Drain Configuration
shown as an example
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
2
Preparation
1. Prior to installation, examine all boxes and packages for shipping damage and compare the
piece count with your packing slip. After opening all boxes and packages read this introduction
carefully. Check that all of the needed parts are included in the package by checking off the
components on the “Detailed Diagram of Shower Door Components”. If the unit has been
damaged, has a finishing defect, or has missing parts, please contact our customer support
department within 3 business days of the delivery date. Please note that DreamLine
®
will not
replace any damaged products or missing parts free of charge after 3 business days or if
the product has been installed. Please contact DreamLine
®
if you have any questions and
please provide an order number, job name or other proof of purchase to help identify the
original order.
2. Install all of the required plumbing and drainage before installing the shower base. Use a
competent and licensed (if required by local code) plumber for all plumbing installation.
3. Shower bases must be installed by a licensed plumber. Please note that you should
consult your local building codes with questions on installation compliance standards.
Building and plumbing codes may vary by location and DreamLine
®
is not responsible for
code compliance standards for your project.
4. Make sure that prior to the installation the installation surface is leveled and solid and will be
able to support the total weight of the unit. Also make sure the walls are at right angles. While
some adjustment in leveling of the tray is possible, irregular installation surface level or
improper angle of side walls will result in serious problems for your installation. Please note
that some adjustments may be necessary during the installation process.
5. Center drain configurations are centered on the width only. See technical drawing tables
for drain locations.
6. Drain not included with this product. The drain
opening
is 3-3/8” in diameter and accepts a
standard 2” compression fitted drain.
IMPORTANT NOTE:
Dimensions provided are for reference only. Measure the actual shower tray
before installation. This includes overall dimensions and drain location.
Allowed tolerance for center of the drain is +/-1/2".

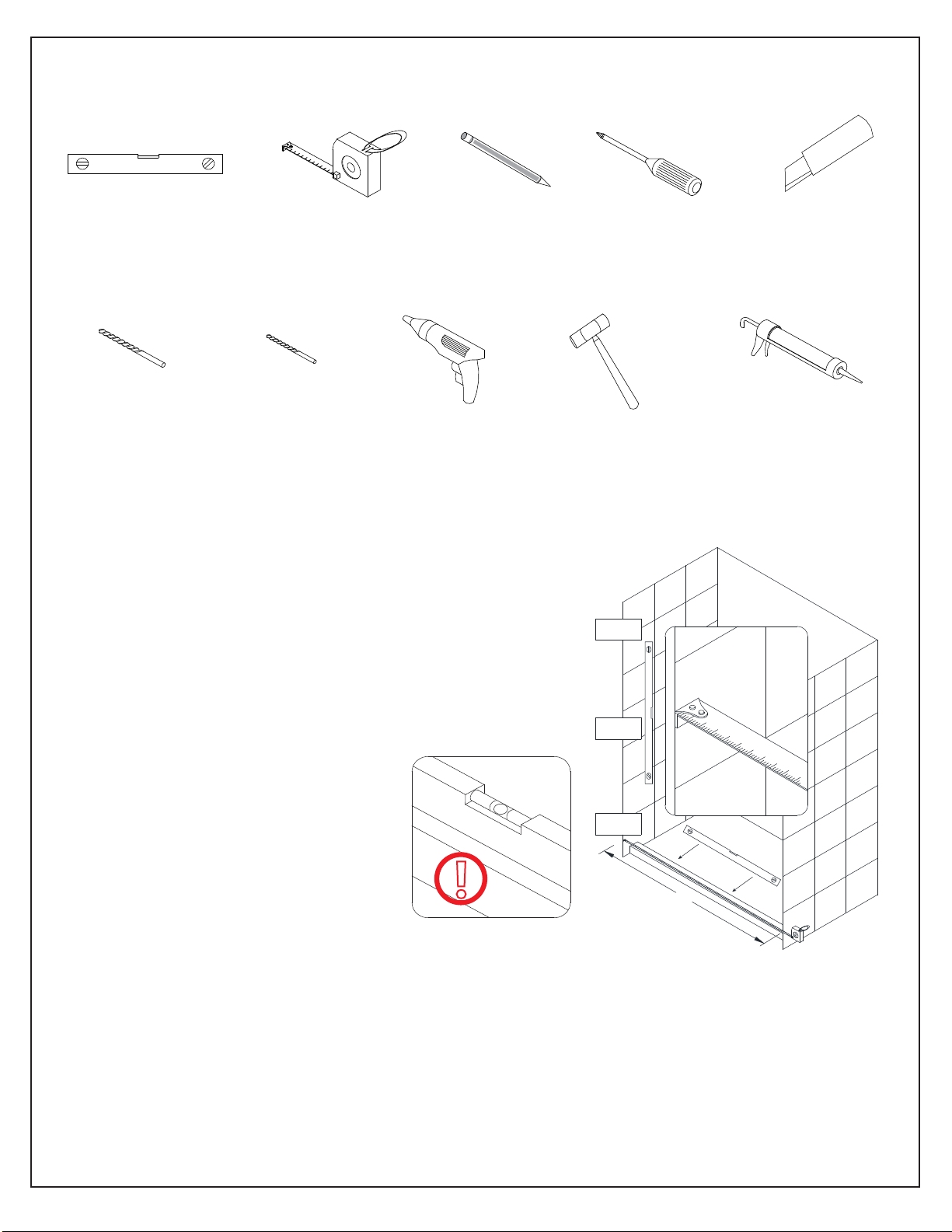

Tools Required
XXX
Tape
Measure
Pencil
Level
Mortar
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
3

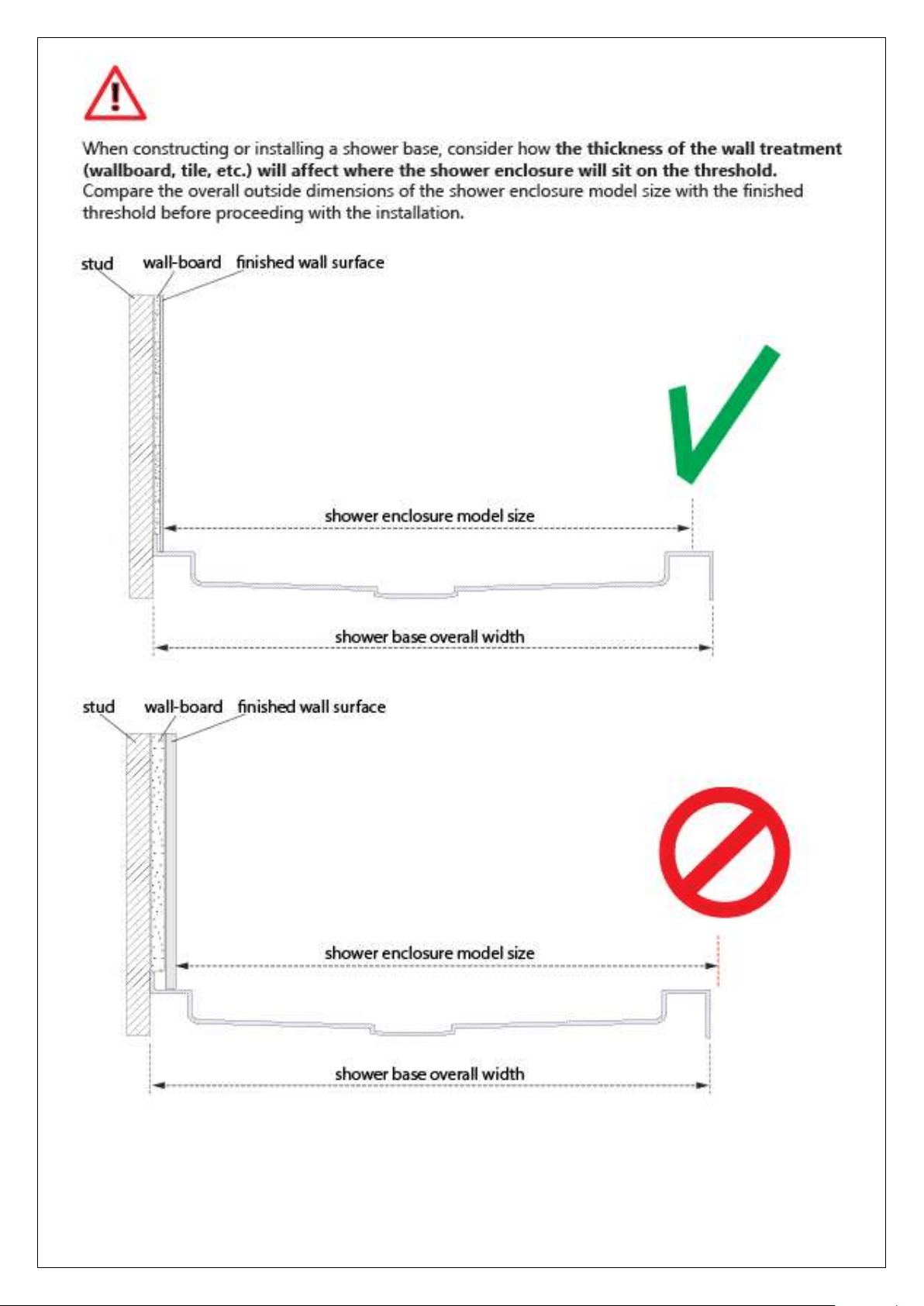

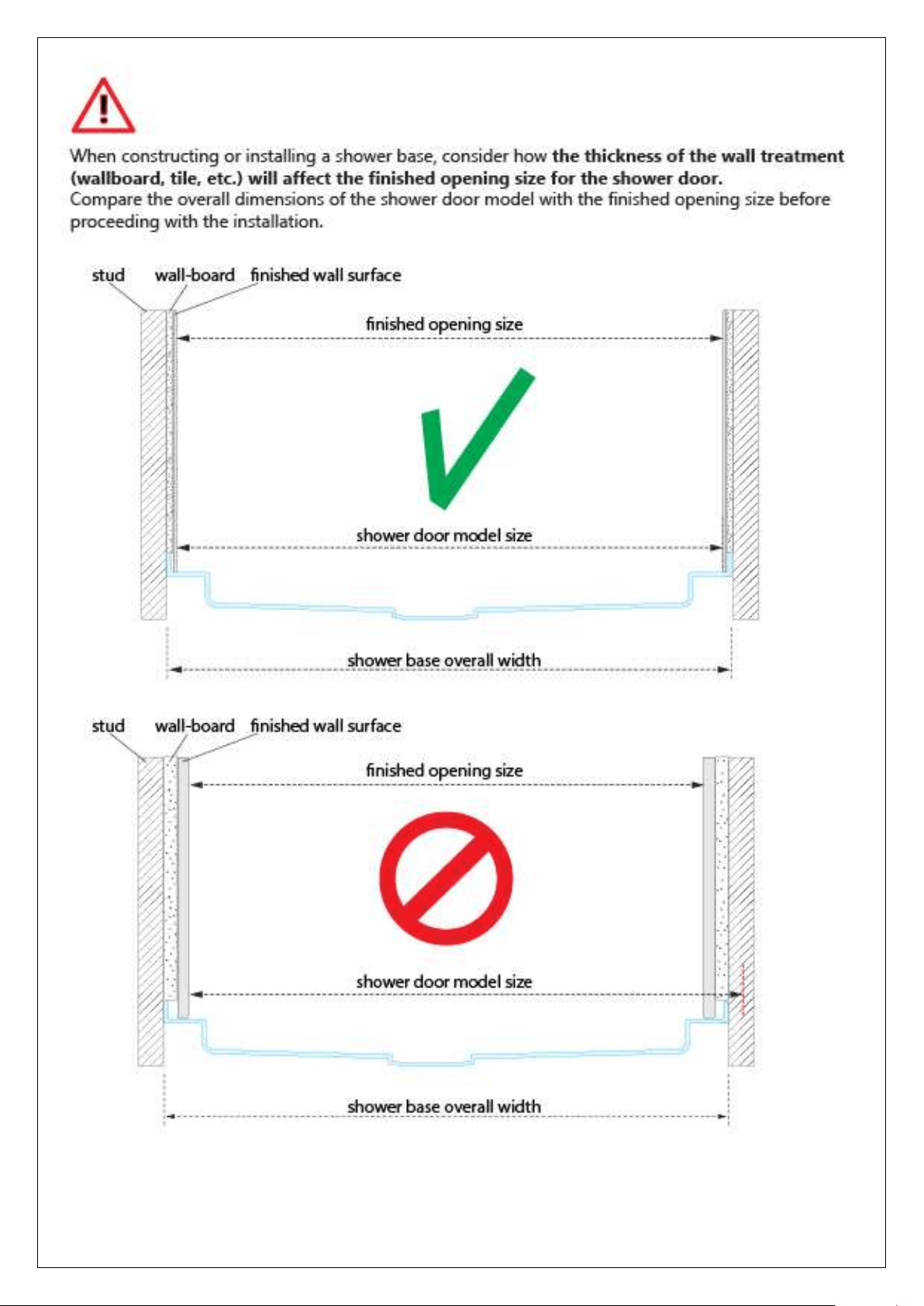

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
4
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
5

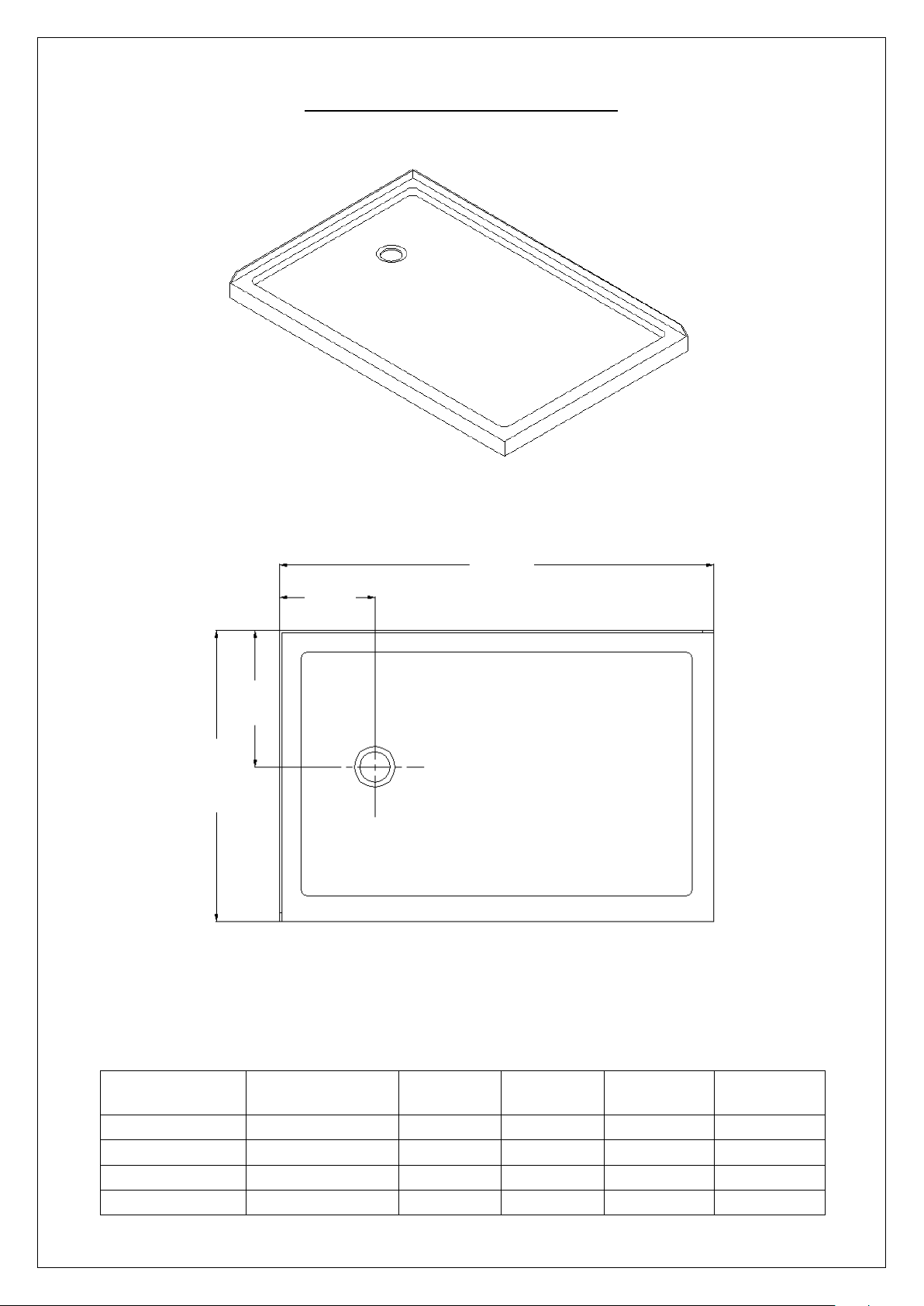

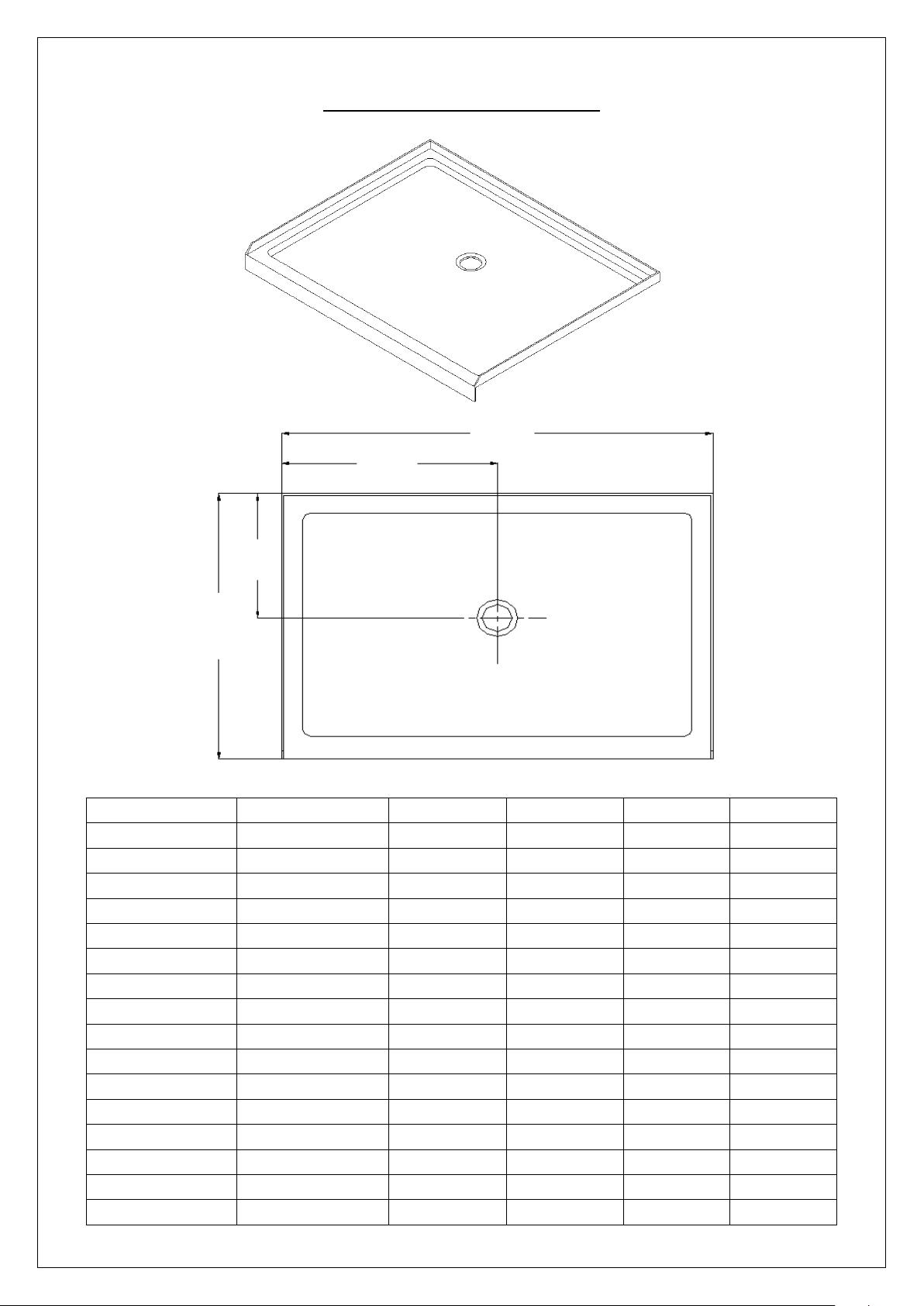

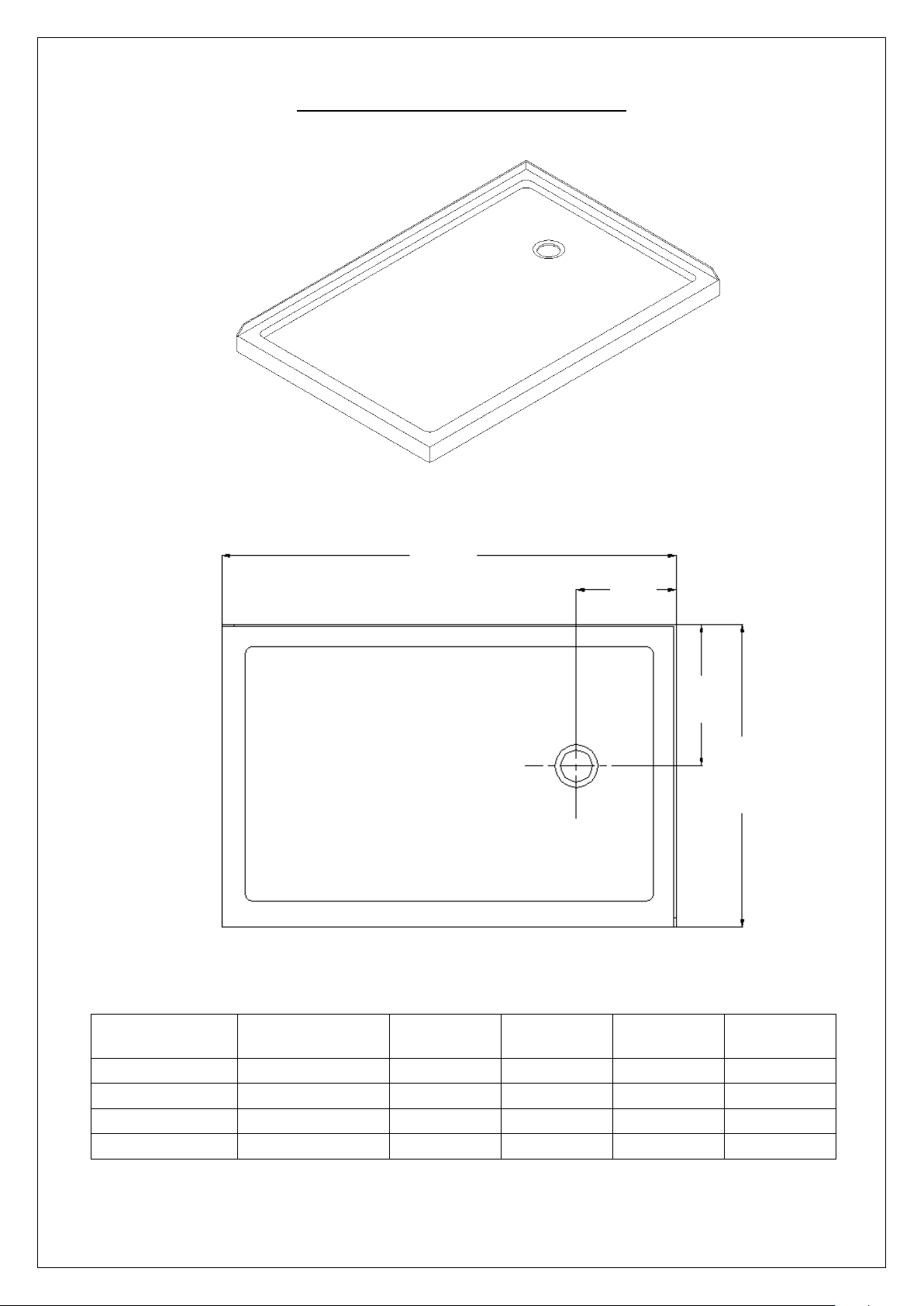

SINGLE THRESHOLD SHOWER BASE
Center Drain Configuration
MODEL
SPECIFICATION
D (in)
W (in)
D1 (in)
W1 (in)
DLT-1132320
32"× 32"
32"
32"
15"
16"
DLT-1136360
36"× 36"
36"
36"
15"
18"
DLT-1132420
32” x 42”
32”
42”
15”
21”
DLT-1134420
34” x 42”
34”
42”
15”
21”
DLT-1136420
36” x 42”
36”
42”
15”
21”
DLT-1142420
42” x 42”
42”
42”
20”
21”
DLT-1132480
32"× 48"
32”
48”
15”
24”
DLT-1134480
34” x 48”
34”
48”
15”
24”
DLT-1136480
36"× 48"
36"
48"
15"
24"
DLT-1132540
32” x 54”
32”
54”
15”
27”
DLT-1134540
34” x 54”
34”
54”
15”
27”
DLT-1136540
36” x 54”
36”
54”
15”
27”
DLT-1130600
30"× 60"
30"
60"
15"
30"
DLT-1132600
32"× 60"
32"
60"
15"
30"
DLT-1134600
34"× 60"
34"
60"
15"
30"
DLT-1136600
36"× 60"
36"
60"
15"
30"
W
D
W1
D1
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
6
SINGLE THRESHOLD SHOWER BASE
Left-Hand Drain Configuration
MODEL
SPECIFICATION
D (in)
W (in)
D1 (in)
W1 (in)
DLT-1130601
30"×60"
30"
60"
15"
12"
DLT-1132601
32"×60"
32"
60"
15"
12"
DLT-1134601
34"×60"
34"
60"
17"
12"
DLT-1136601
36"×60"
36"
60"
18"
12"
W
D
D1
W1
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
7
SINGLE THRESHOLD SHOWER BASE
Right-Hand Drain Configuration
MODEL
SPECIFICATION
D (in)
W (in)
D1 (in)
W1 (in)
DLT-1130602
30"×60"
30"
60"
15"
12"
DLT-1132602
32"×60"
32"
60"
15"
12"
DLT-1134602
34"×60"
34"
60"
17"
12"
DLT-1136602
36"×60"
36"
60"
18"
12"
W1
W
D
D1
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
8
NEO ANGLE SHOWER BASE
MODEL
SPECIFICATION
W (in)
A (in)
B (in)
C (in)
DLT-2036360
36"×36"
36"
18 5/16"
25"
12"
DLT-2038380
38"×38"
38"
20 5/16"
25"
12"
DLT-2040400
40"×40"
40"
22 5/16"
25"
14 3/8"
DLT-2042420
42"×42"
42"
24 5/16"
25"
14 3/8"
W
W
A
A
C
C
B
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
9

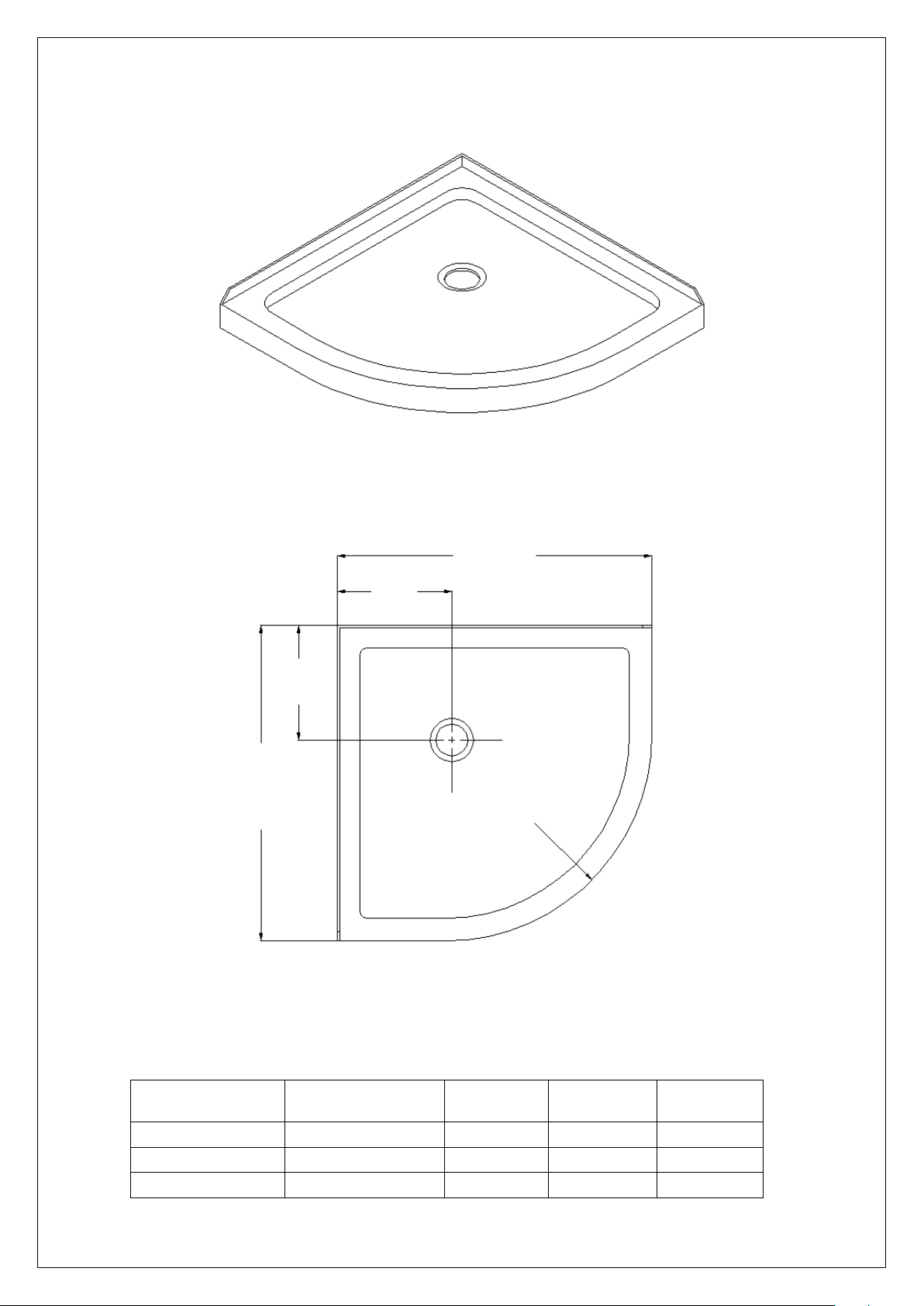

QUARTER ROUND SHOWER BASE
MODEL
SPECIFICATION
W (in)
C (in)
R (in)
DLT-7033330
33"×33"
33"
12"
21 5/8"
DLT-7036360
36"×36"
36"
12"
21 5/8"
DLT-7038380
38"×38"
38"
12"
21 5/8"
W
W
C
C
R
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
10
DOUBLE THRESHOLD SHOWER BASE
Corner Drain Configuration
MODEL
SPECIFICATION
W (in)
C (in)
DLT-1032320
32"×32"
32"
12"
DLT-1036360
36"×36"
36"
12"
W
W
C
C
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
11
DOUBLE THRESHOLD SHOWER BASE
Left-Hand Drain Configuration
MODEL
SPECIFICATION
D (in)
W (in)
D1 (in)
W1 (in)
DLT-1034481
34"×48"
34"
48"
17"
12"
DLT-1036481
36"×48"
36"
48"
18"
12"
DLT-1036541
36"×54"
36"
54"
18"
12"
DLT-1036601
36"×60"
36"
60"
18"
12"
D
W
D1
W1
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
12
DOUBLE THRESHOLD SHOWER BASE
Right-Hand Drain Configuration
MODEL
SPECIFICATION
D (in)
W (in)
D1 (in)
W1 (in)
DLT-1034482
34"×48"
34"
48"
17"
12"
DLT-1036482
36"×48"
36"
48"
18"
12"
DLT-1036542
36"×54"
36"
54"
18"
12"
DLT-1036602
36"×60"
36"
60"
18"
12"
W
D
D1
W1
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
13
Shower Base Cross Section Diagram
Finished Wall
Cement board
Shower Base
Mortar
Drain*
(2"×4") Stud
* not included
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
14

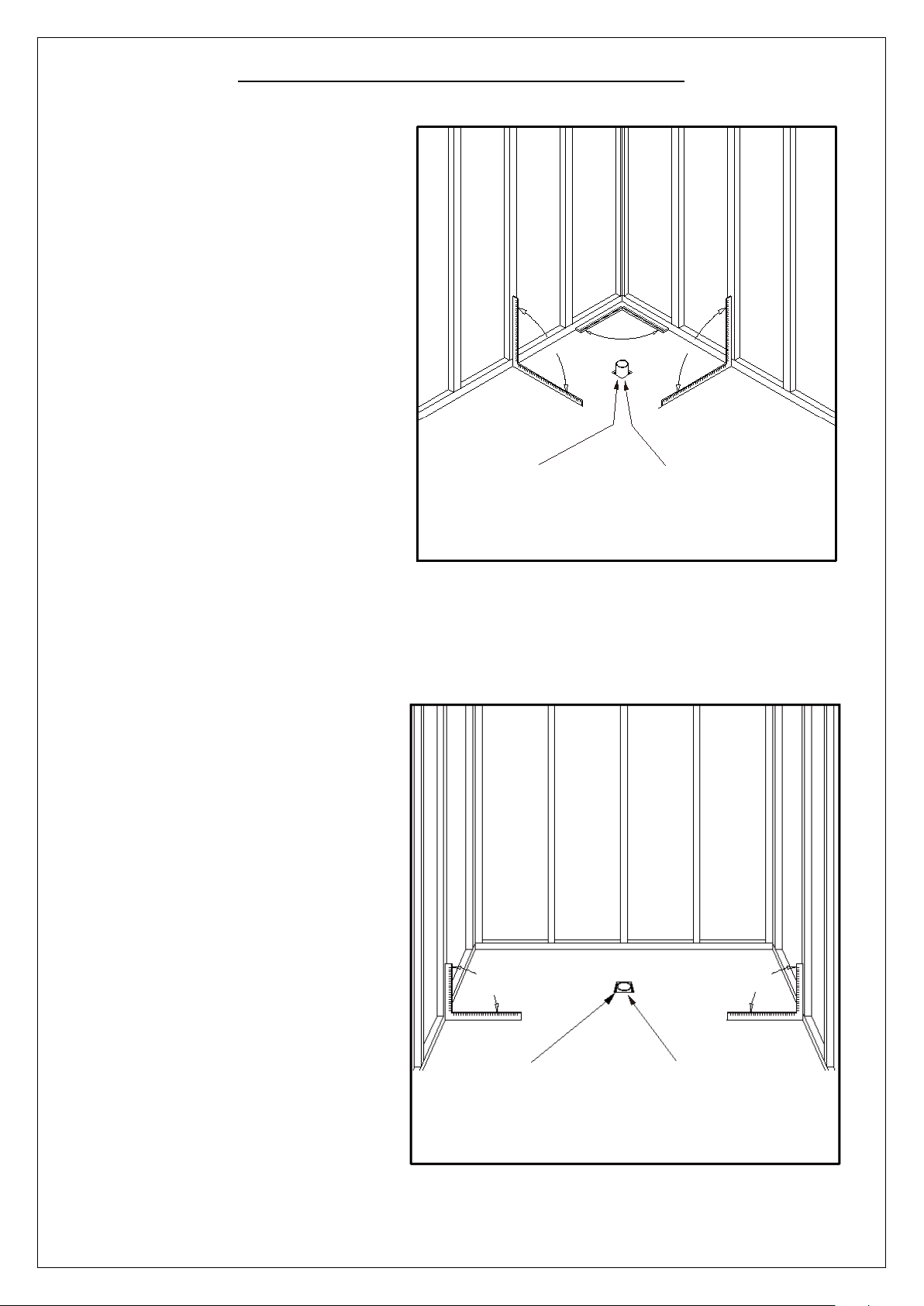

Shower Base Installation - Preparation
1. Ensure that the floor and the studs
are at right angles.
Provide a 5”×5” opening in the sub-
floor for the drain.
The 2” PVC waste pipe should
extend above the surface of the
sub-floor according to the drain
installation instructions and the
height of the Shower base.
Refer to the product drawings and
tables in this installation manual for
the drain location.
See Fig. 1 and Fig. 2 for details.
Fig. 1
Fig. 2
(See Product Chart for Drain Location)
(5"×5") Opening
2" PVC Waste Pipe
90°
90°
90°
90°
90°
2" PVC Waste Pipe
(5"×5") Opening
(See Product Chart for Drain Location)
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
15

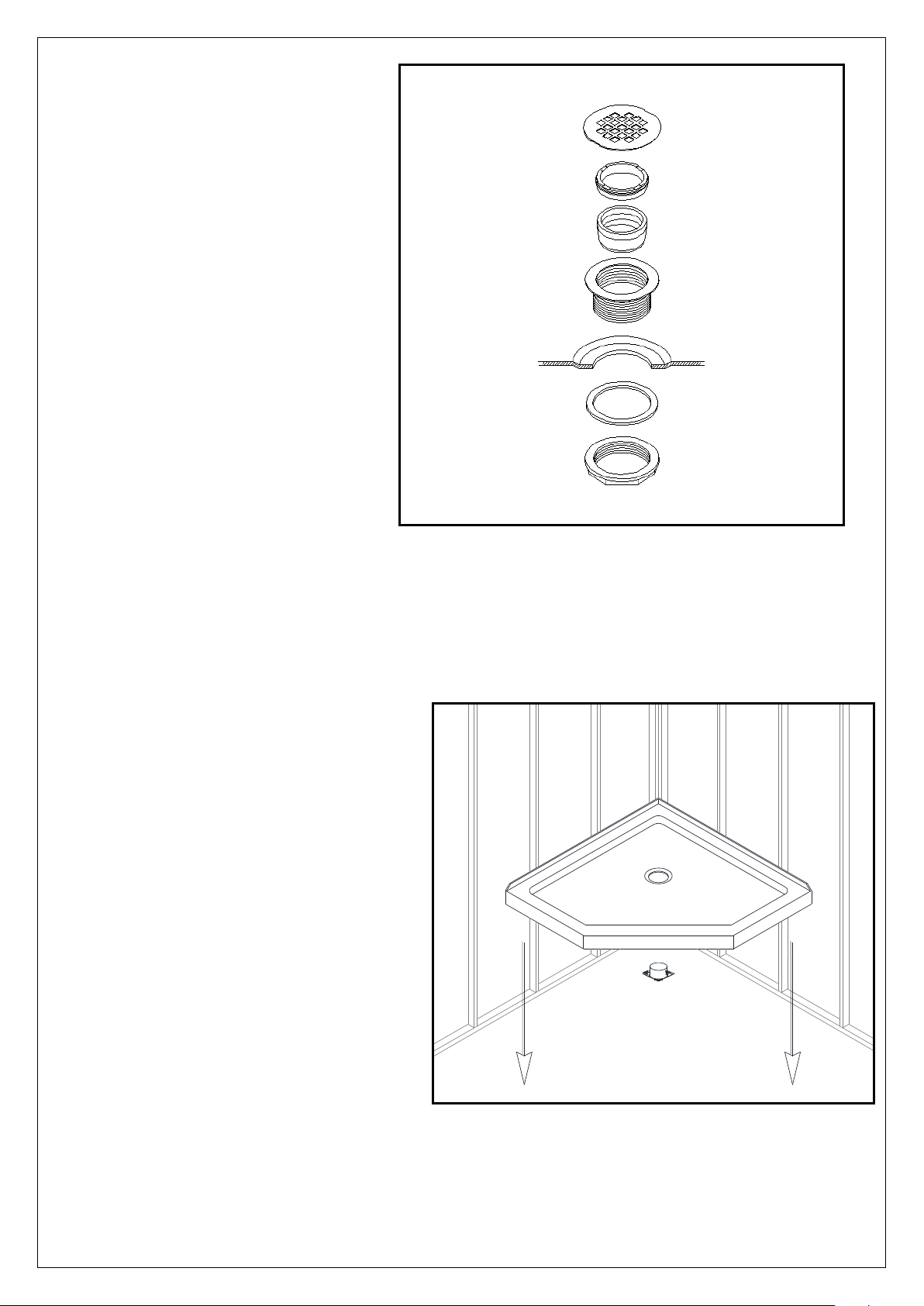

2. Install the shower drain (NOT
INCLUDED) according to the
drain installation manual
(supplied with the drain).
See Fig. 3 for example
Fig. 3
3. Place the tray into the designated
position so that the Drain cutout drops
around the Drain Pipe and butt the
Shower Base up against the studs.
See Fig. 4 for details.
Lower the base over the drain pipe
and set it into place against the studs.
Fig. 4
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
16

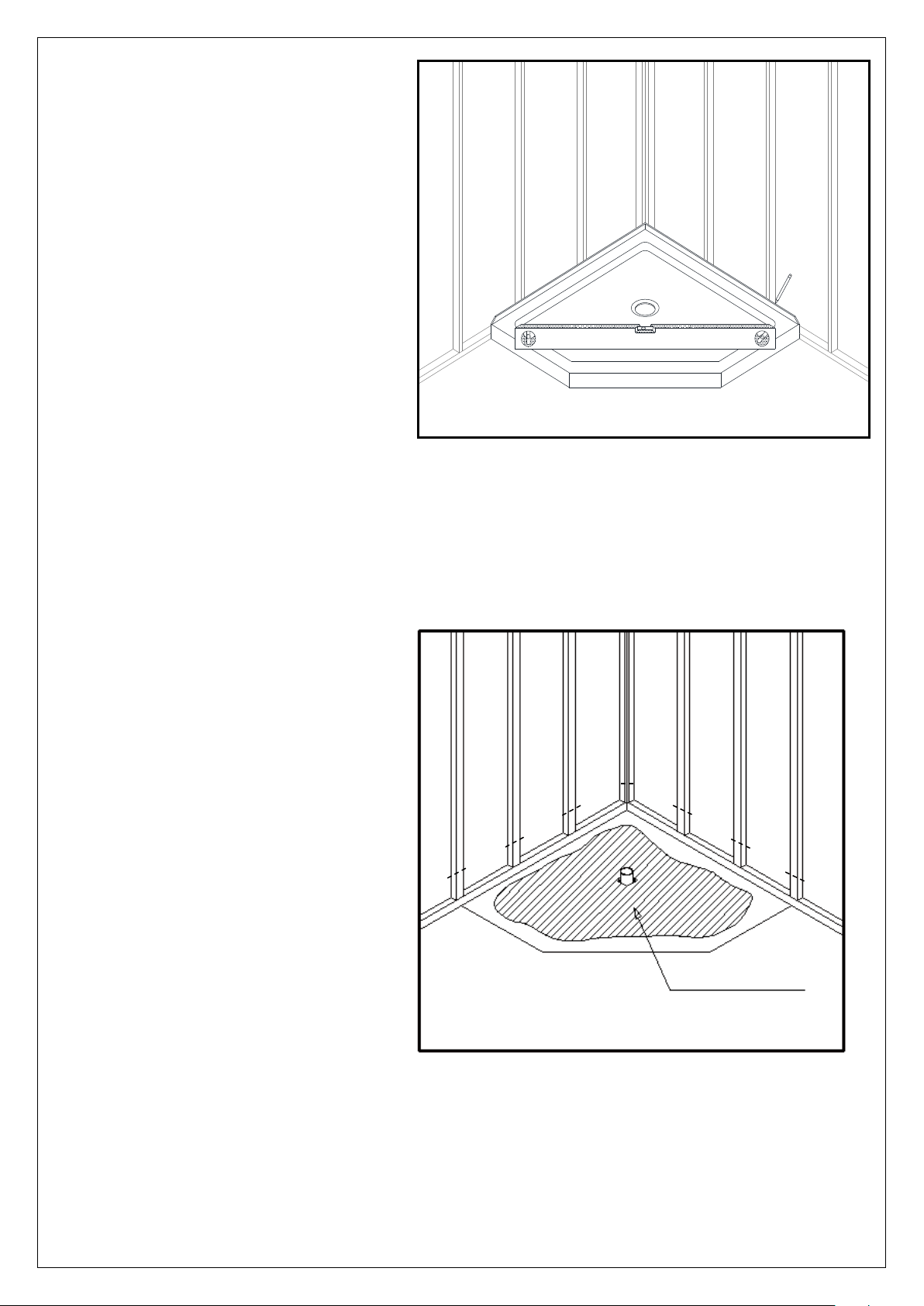

4. Level the tray and place marks on the
studs above the upper edge of the tile
flange.
See Fig. 5 for details.
5. Mix the bedding material (Mortar,
cement-sand mix, etc.) Concrete
or plaster is not recommended.
Apply enough bedding material
to support the entire bottom of
the shower base. This will add
additional stability and prevent the
base from shifting position.
See Fig. 6 for details.
Fig. 6
Level base in two directions
Mortar
Fig. 5
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
17
6. After the bedding material has been
poured and
before
it sets, place the
shower base into the position with the
drain assembly sliding over the PVC
waste pipe. It will be necessary to push
the shower base until the top of the tile
flange aligns with the marks drawn on
the studs and the front edge is
contacting the rough floor along the
entire length of the shower base. Ensure
that the base is level in all directions.
You may need to use shims to hold the
tray level until the bedding fully sets.
Remove all excess mortar.
See Fig. 7 for details.
7. Allow the bedding material to completely harden before applying weight to the bottom of the
shower base.
Install the cement board (or the wallboard) above the tile flanges and secure it to the studs.
Put the tiles (or other finishing wall material) over the cement board leaving 1/8” gap between
the bottom of the tile or wall kit and the shower base. Use caulk to fill the gap.
See Fig. 8 and Fig. 9 for details.
Fig. 7
Fig. 8
Waterproof Drywall to
the top of the tile flange
Caulk
Finished wall overlaps the
dry wall and tile flange
Stud
1
2
Waterproof
Drywall
4
3
Side View
1/8”
gap
Base
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
18

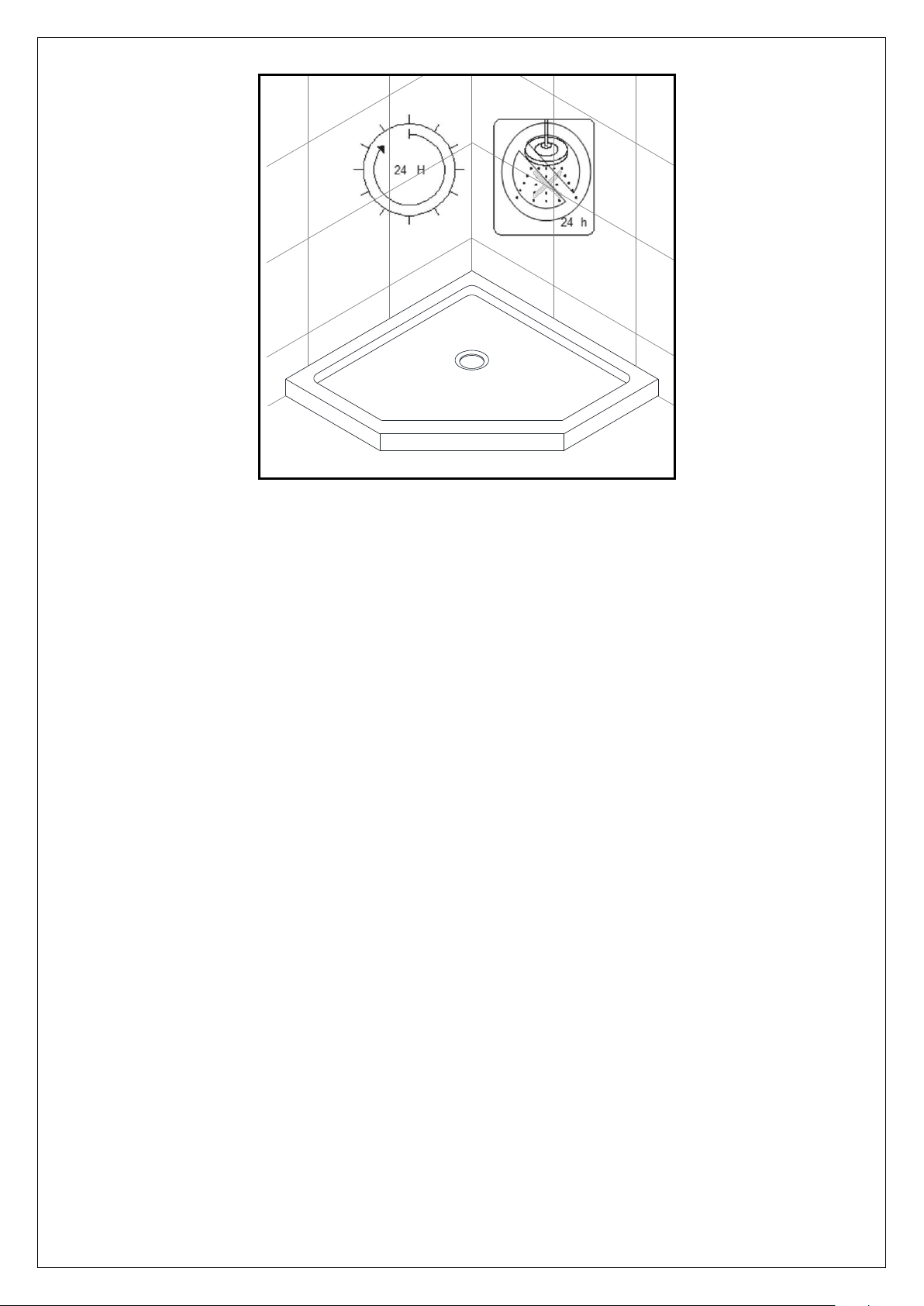

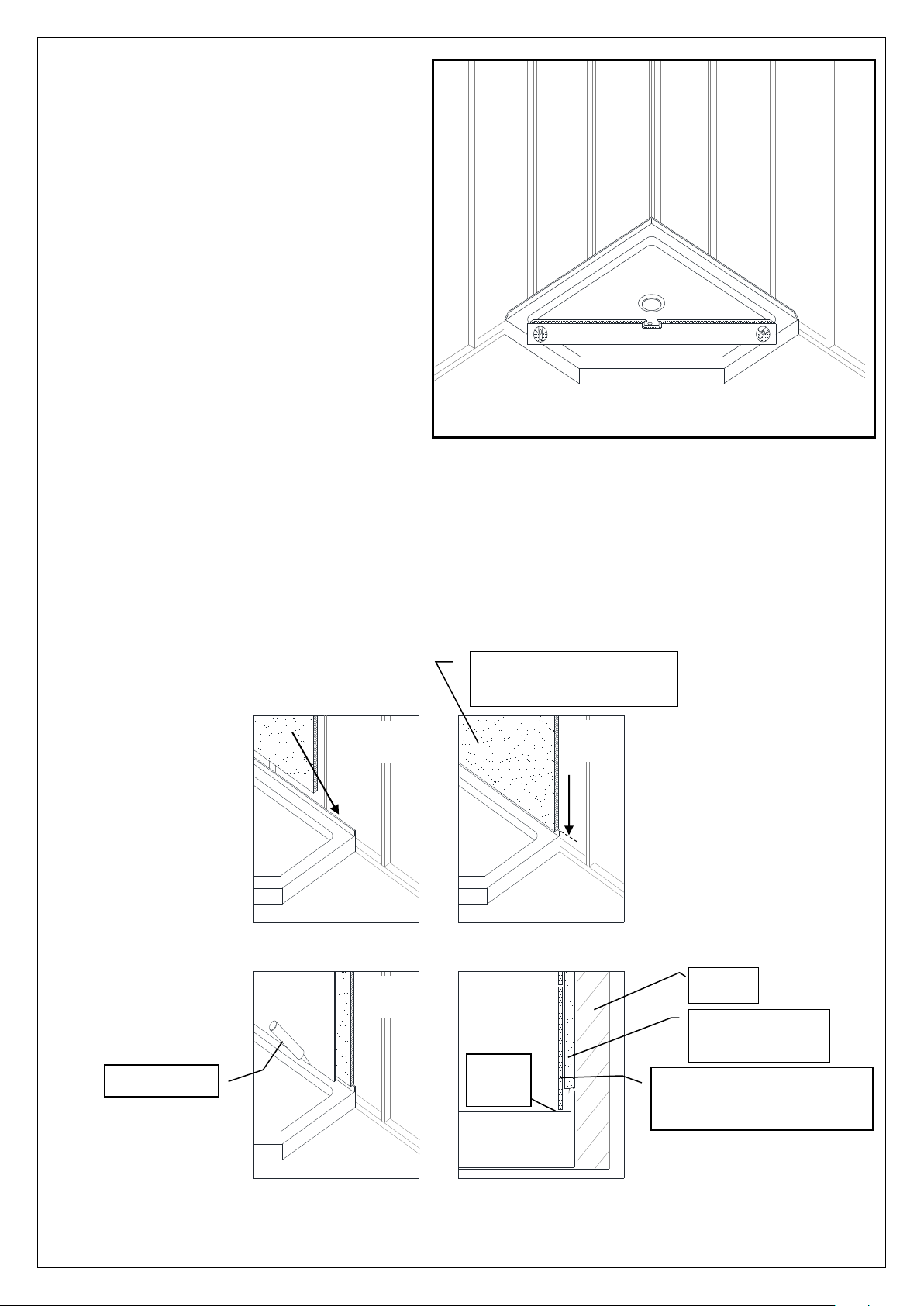

Fig. 9
©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9 03/2018
19
Product Maintenance
BASES and BACKWALLS: To ensure long lasting life for your acrylic base and/or back walls:
wipe them off after each use with a soft cloth. To clean the acrylic base or back walls use
non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners.
Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.
GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use
with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent
soap buildup and water spots (Hard water can etch the surface of the glass over time if left to
dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that
contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the
surface.
HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft
cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If
accidentally used, rinse the surface as soon as possible to prevent damage to the finish
(peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with
a soft cloth.
Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or
polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive
sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.
NOTE: To maximize the life of your door, it is important to regularly inspect the glass
and other hardware for misalignment, proper attachment, and/or damage. Contact
DreamLine with any questions or concerns.
MODEL #s
SHDR-22427200-##
SHDR-22487200-##
SHDR-22607200-##
##=finish
-01- Chrome
-04 - Brushed Nickel
FLEX 42”x 72“/ 48”x 72“/ 60”x 72”
SHOWER DOOR INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLine
®
reserves the right to alter, modify or redesign products at any time without prior notice.
For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer
to your model’s web page on DreamLine.com
For more information about DreamLine
®
Shower Doors & Tub Doors please visit DreamLine.com
Right hand door installation shown
Please review this entire manual before starting the installation
FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Parts Diagram of Shower Door Components
Model Overview
Parts List
Table of Contents
Section title
Page #
Tools
Preparation
Installation Steps
Vinyl Seals
Product Maintenance
5
4
3
2
16-17
6
7-19
20
FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Preparation
1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece
count with your packing slip. After opening all boxes and packages read this introduction carefully.
Check that all of the needed parts are included in the package by checking off the components on
the “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing
defect, or has missing parts, please contact our customer support department within 3 business
days of the delivery date. Please note that DreamLine
®
will not replace any damaged products
or missing parts free of charge after 3 business days or if the product has been installed.
Contact DreamLine
®
if you have any questions, and please provide an order number, job name or
other proof of purchase to help to identify the original order.
2. Please note that you should consult your local building codes with questions on installation
compliance standards. Building and plumbing codes may vary by location, and DreamLine
®
is
not responsible for code compliance standards for your project and will not accept any
returns.
3. If this unit is going to be installed in a new construction, please install all of the required plumbing
and drainage before installing the shower. Use a competent and licensed (if required by local code)
plumber for all plumbing installation
4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and
will be able to support the total weight of the unit. Also make sure the walls are at right angles.
Irregular installation surface level, radius corners or improper angle of side walls will result in serious
problems for your installation. Please, note that some adjustments and drilling might be necessary
during the installation process.
5. Please protect all primary surfaces of the product during installation. Never set your glass down
directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always
use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and
during installation.
6. This unit must be installed upon a finished threshold and against finished walls.
7
. This model has 4” of total width adjustment: including 1/2” of adjustment per wall profile for
out-of-plumb wall conditions plus 3” of overall width adjustment with the expanding top and
bottom rails. Be sure that you have ordered the correct model size to fit your finished opening.
8. This model requires a minimum 1-3/8” of flat threshold space for installation.
9. Professional installation recommended.
NOTE: This door is reversible for right or left-hand door installation. See step #4 for details.
The right-hand door installation is shown as an example throughout this manual.
NOTE: DO NOT install the handle onto the door glass until instructed to do so.
DO NOT attempt to lift the glass using the handle. This could result in damage to
the glass and/or serious personal injury. Always use an assistant or a professional
grade glass suction cup when handling heavy glass.
2FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
!
Tools
Tip: Measure the finished opening before
proceeding with the installation to be sure
that the correct model size has been
ordered.
Tip: Prior to installation, cover the
shower/tub drain with tape to prevent
losing screws or small parts.
Tip: Set screw gun clutch to low setting
when installing screws and bolts to
prevent stripping the heads.
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed
diagram and packing list in this manual as a reference. Before discarding the carton, check for small
hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,
please contact DreamLine
®
for replacement. The shipping boxes may contain extra parts not used in
your model configuration.
NOTE: Retain these installation instructions for future reference.
3FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Tape
Phillips
100% Silicone
(Ø=1/8")
(3mm)
Measure
Drill bit
Drill
Pencil
Level
Drill bit
Power
Screwdriver Razor Knife
(Ø=5/16")
(8mm)
Hammer
W
Top
Middle
Bottom
Threshold must be level.
!

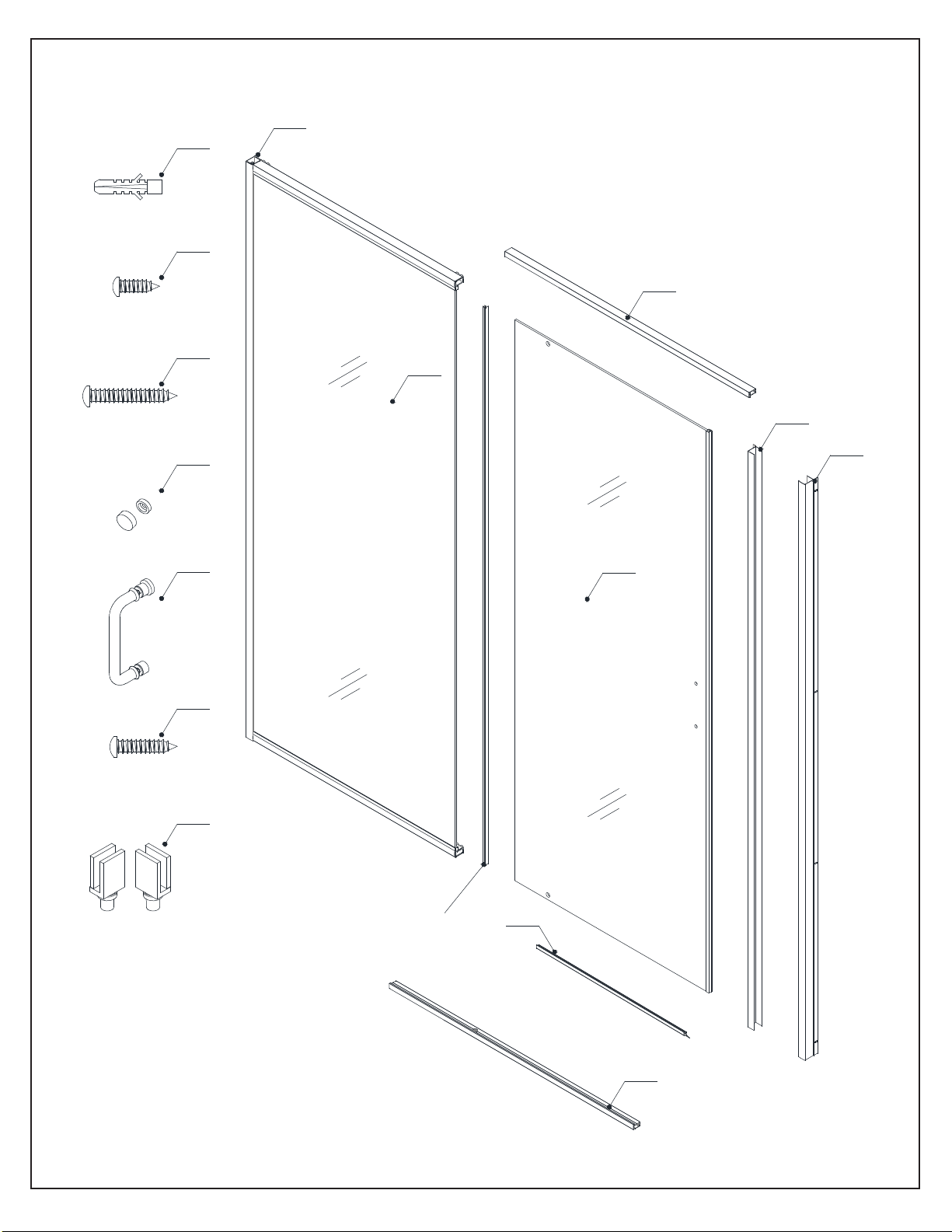

Parts Diagram
4FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
3
4
5
1
2
6
13
7
8
15
12
16
17
1
14
15
Parts List
5FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
1 Wall profile 2pcs
2 Panel Glass assembly
3 Wall anchor
4
5
6
Decorative cap and washer
7
Flanged anti-water strip
1pcs
8
Bottom anti-water strip
1pc
13
Magnetic Strike Profile
14
Handle
1pc
15
1set
16
Top & Bottom pivot Rail
17
Door Glass
1pc
4pcs
ST4.2×10 Round head screw
8pcs
ST4.2×40 Truss head screw
10pcs
8pcs
10pcs
12
1pc
ST4.2×25 Round head screw
Top & Bottom pivot Hardware
2pcs
2pcs
Part#Part#
DESCRIPTION DESCRIPTION
QTY QTY

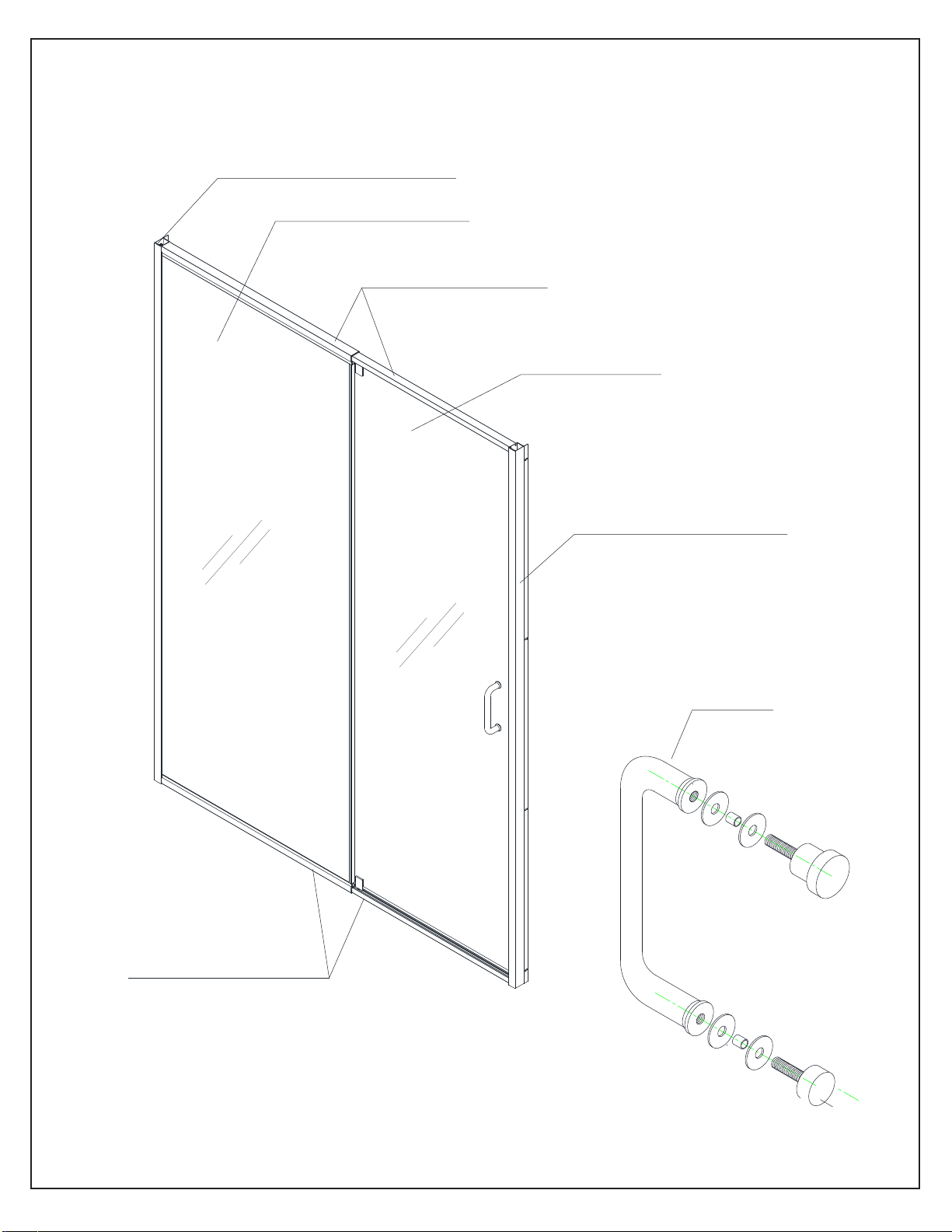

Model Overview
6FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Alluminum wall profile
Stationary panel glass assembly
Expandable rail
Door Glass
Alluminum wall profile
Expandable rail
Right hand door installation shown
Handle
panel
door
Installation steps
7FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
SHDR-22427200-01 and SHDR-22487200-01: Insert the end that is closer to the pivot hole
SHDR-22607200-01: Insert the end that is farthest from the pivot hole
!
Fig 1
top
bottom
outside inside
outside inside
pivot
hole
Right hand door installation shown
pivot
hole
insert
this end
60” model
door
pivot
hole
insert
this end
42” and 48” model
door
23-5/8”
23-5/8”
Be sure to insert the
correct end of the pivot rail
based on the model size

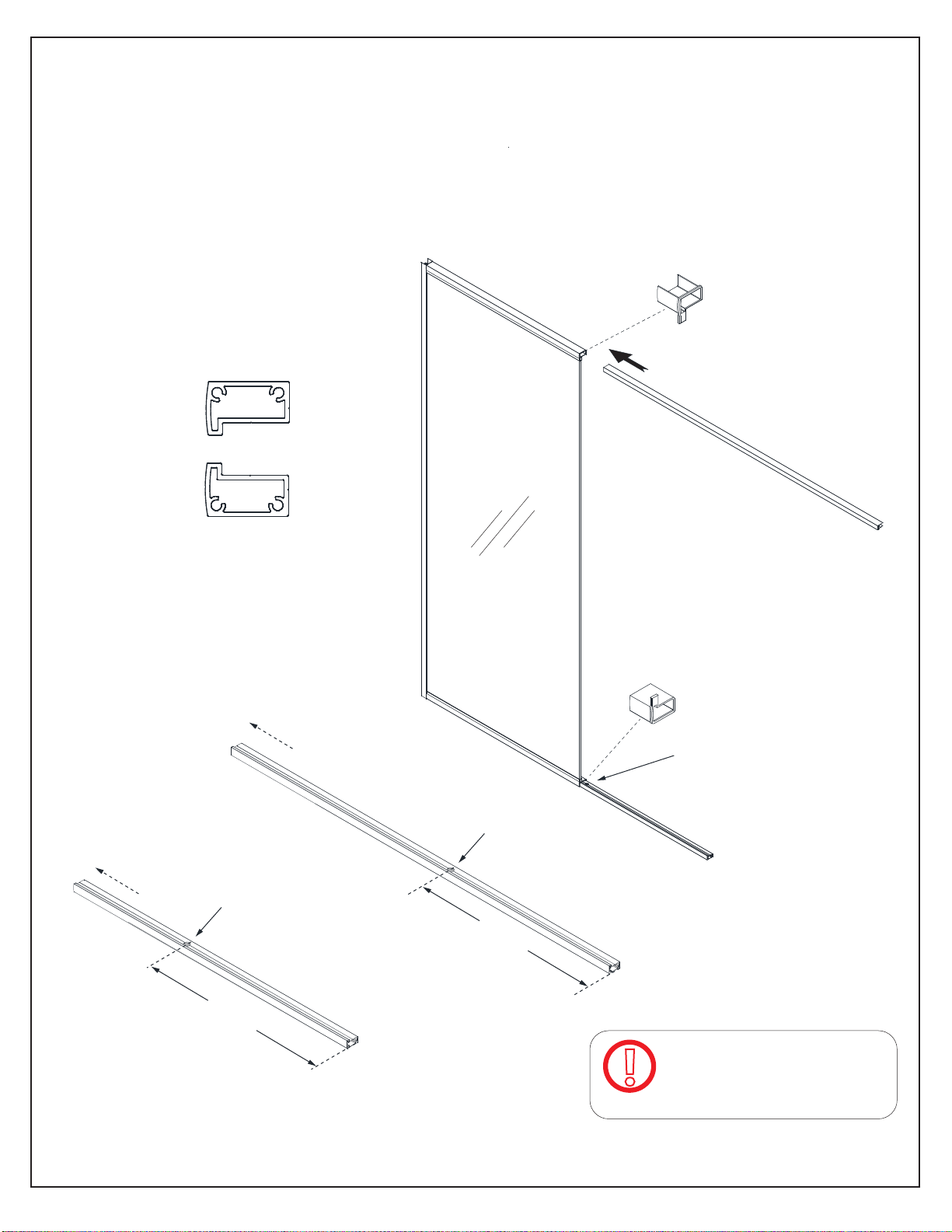

1. Insert the Top & Bottom Pivot Rails (#15) into the expandable rails of the Stationary panel
Assembly (#02). (Fig 1)
8FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Fig 2
TIP: Apply some wax or dish soap to the screws to make
assembly easier and to prevent stripping the screws.
inside
!
inside
2. Attach the Magnetic Strike Profile (#12) to
the Top & Bottom Pivot Rails (#15) using four
of the ST4.2 x 25 Round Head Screws (#14).
(Fig 2)
9FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Fig 4
Fig 3
inside
Right hand door installation
Left hand door installation
inside
panel
panel
door
area
door
area
panel
door
area
inside

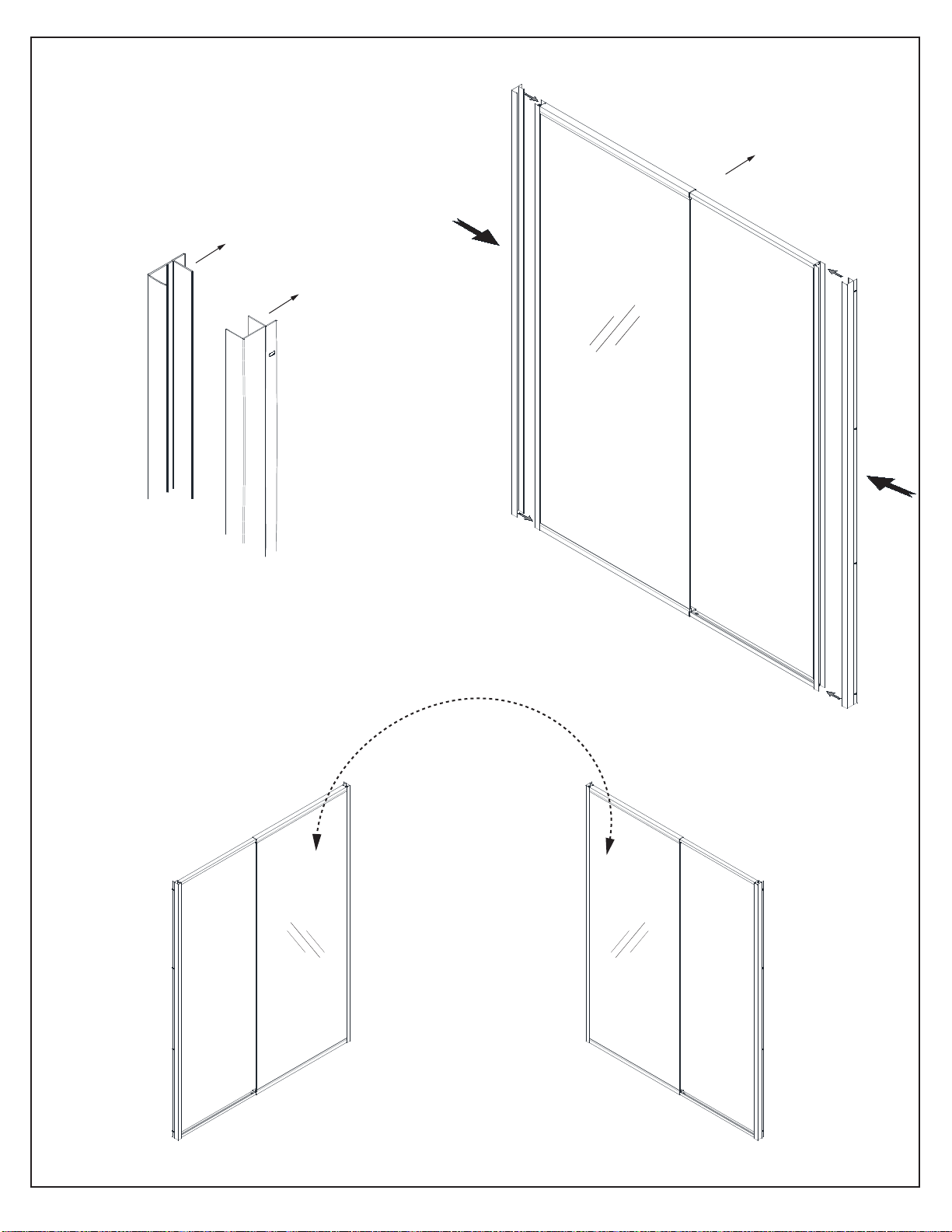

3. Slide both of the Wall Profiles (#01) over the
frame assembly. Be sure that the flanges on the
Wall Profiles (#01) face in towards the shower.
(Fig 3)
4. At this point, the entire assembly can be flipped top to
bottom for either left or right hand door installation. However,
the flanges on the wall profiles must face into the shower.
(Fig 4)
10FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved

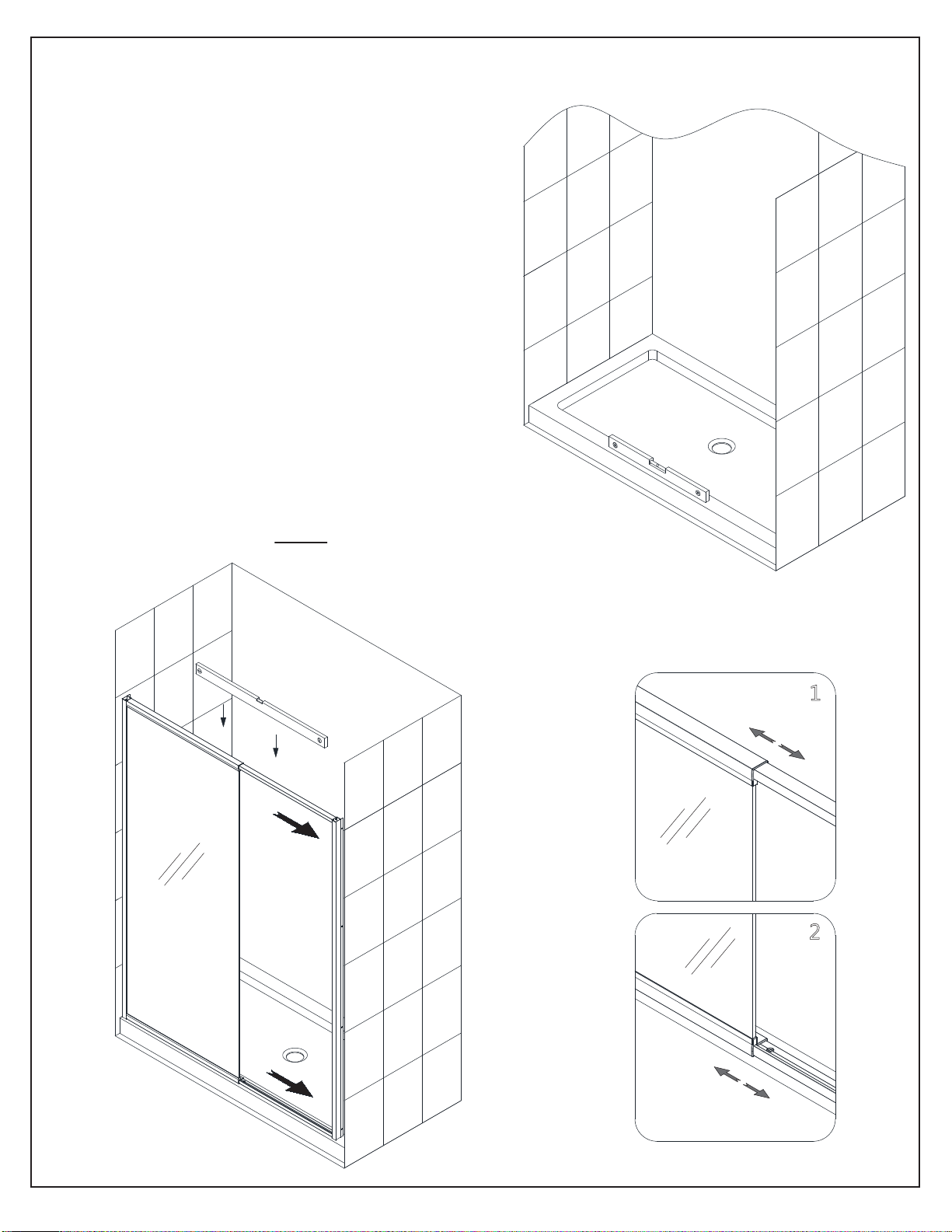

Fig 5
Fig 6
Right hand door installation shown
1
2
5. Check the threshold of the finished opening
to make sure that it is level.
(This model does not allow for out-of-level
adjustment) (Fig 5)
6. Place the assembly onto the threshold at the
desired location and extend the expandable Top &
Bottom Pivot Rails (#15) evenly. (Fig 6)
11FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Make sure that the Wall
Profiles (#01) are also tight to
the threshold and even with
the top of the frame assembly.

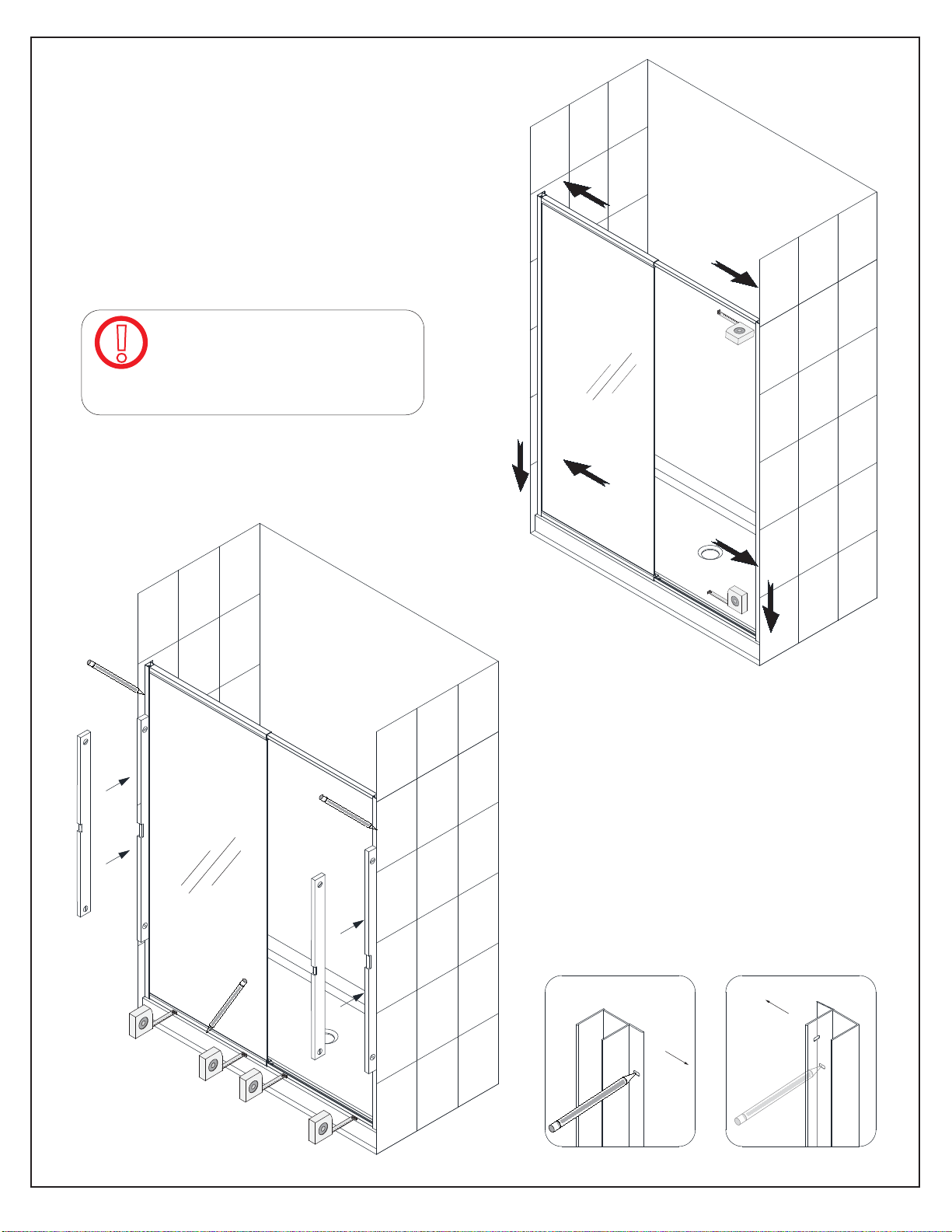

Fig 7
Fig 8
inside
inside
the door opening
must be square
!
7. The opening for the door glass must be square.
Measure the top and bottom of the door opening and
adjust the Expandable Rails as necessary.
Push the Wall Profiles (#01) tight to the walls to
compensate for up to 1/2” out-of-plumb per wall.
(Fig 7)
8. Check that the frame assembly is plumb
on the wall and even across the threshold.
Mark the position of the Wall Profiles (#01)
on the wall and mark the holes for drilling
through the pre-drilled holes in the wall
profile flanges. (Fig 8)
12FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Fig 9
Fig 10
1
2
Ø5/16”
(8mm)
3
4
Ø5/16”
(8mm)
3
1
2

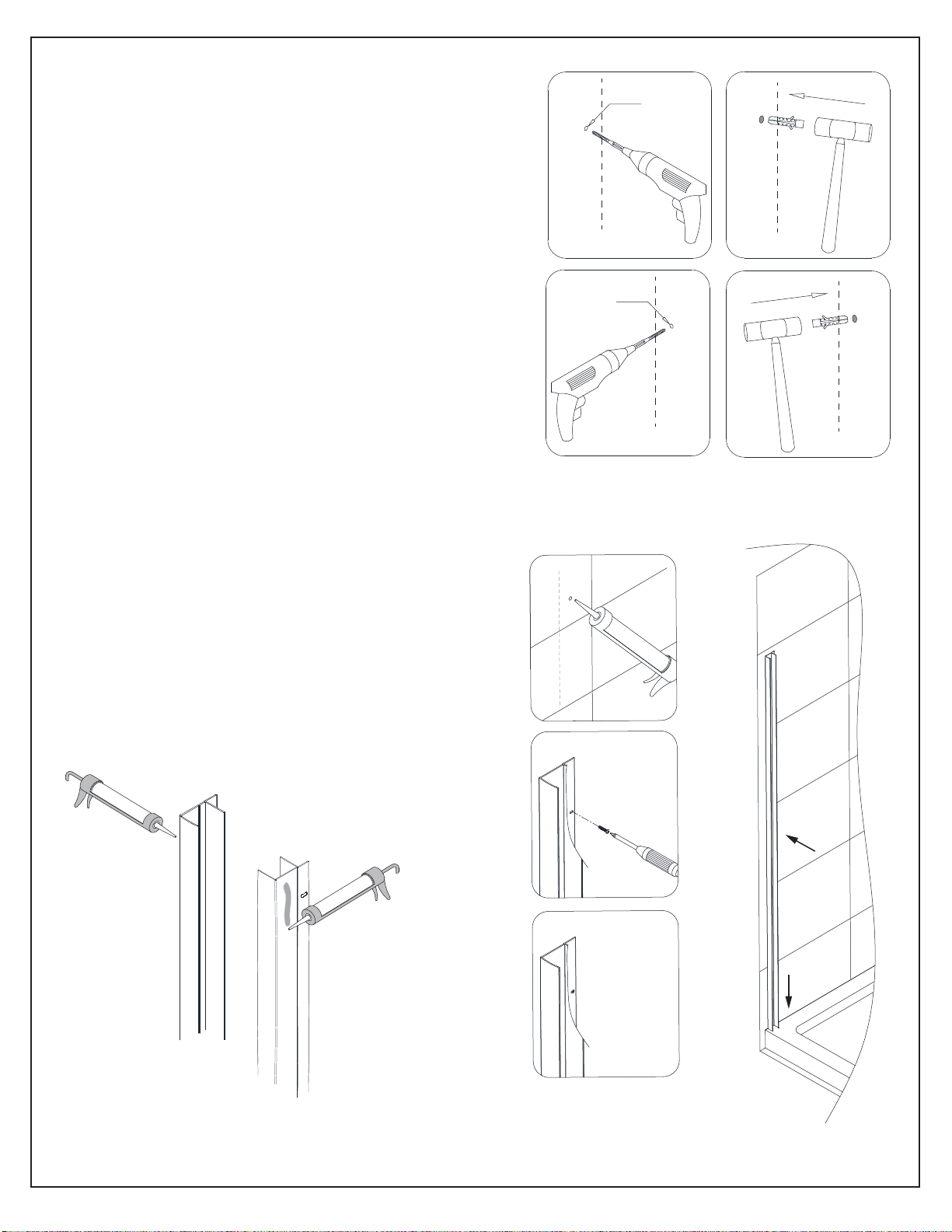

9. Move the frame assembly aside and remove the
Wall Profiles (#01).
Drill the holes into the walls using a Ø5/16” (8mm)
drill bit and insert the Wall Anchors (#03). (Fig 9)
10. Apply a bead of silicone to the back of the Wall
Profiles (#01) and the screw holes where the Wall
Profiles (#01) will be installed. Attach the Wall
Profiles (#01) to the wall using the ST4.2 x 40 Truss
Head Screws (#05). Repeat this process for the
opposite wall profile. (Fig 10)
13FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved

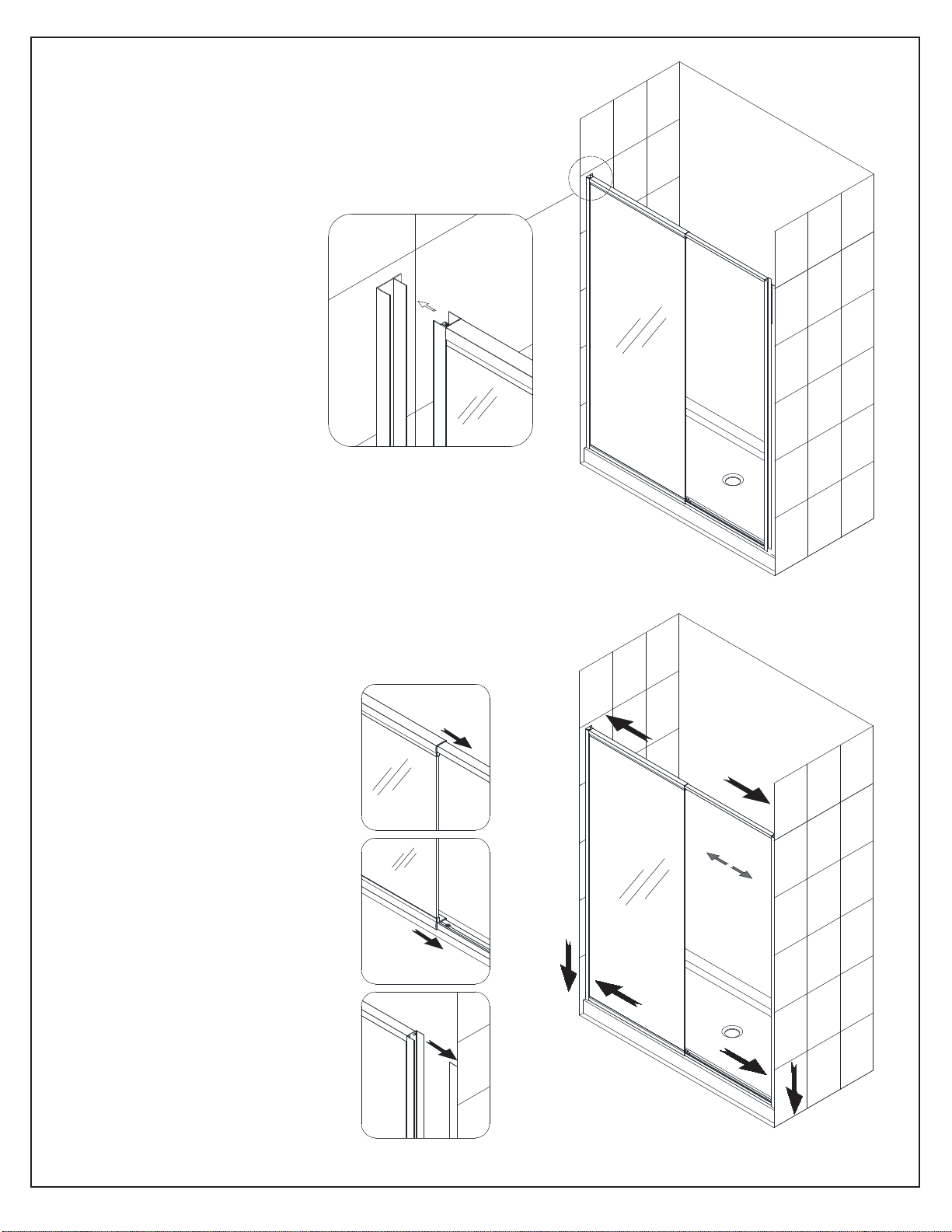

Fig 11
Fig 12
1
2
3
11. Place the assembly back onto the threshold and into
the panel-side Wall Profile (#01) first. (Fig 11)
12. Extend the Expandable Rails evenly so
that the Magnetic Strike Profile (#12) goes
into the opposite Wall Profile (#01) on the
door-side of the opening. (Fig 12)
14FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Note: The pivots are packaged as a pair.
Check the difference in the rotation direction.
of each pivot. Install the pivots so that the door
will swing out. (the bolts face inside the shower)

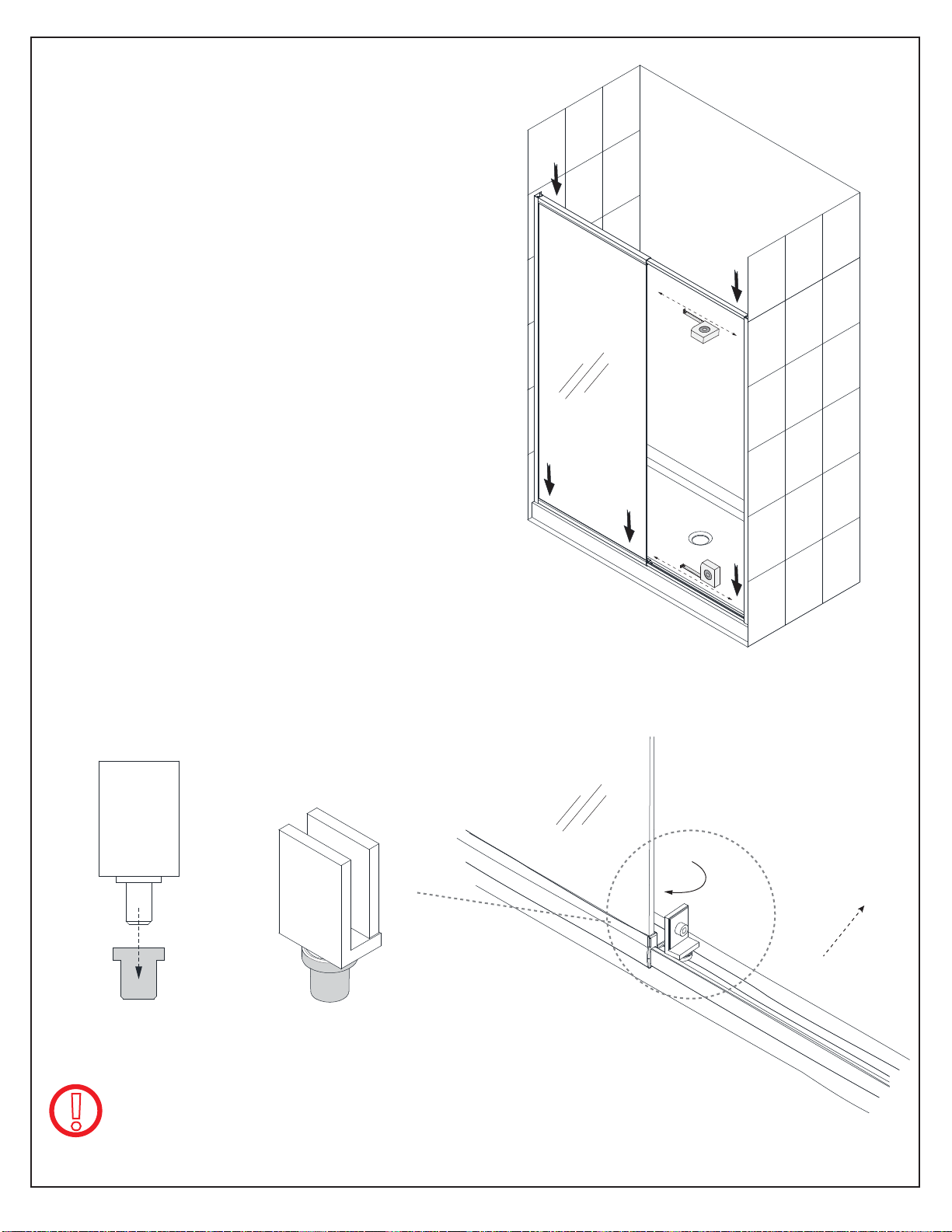

Fig 13
Fig 14
outside
pivot
pivot bushing
(pre-installed in the rails)
inside
pivot
rotation
the door opening
must be square
Right hand door installation shown
!
13. Check and adjust the door opening for
square and make certain that the entire
assembly is tight to the threshold. (Fig 13)
14. Install the Top & Bottom Pivot Hardware (#16)
into the pivot bushings in the Top & Bottom Pivot
Rails (#15). (Fig 14)
15FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
!
Note: Make sure that the magnet edge
of the door glass faces into the shower.
Fig 15
1
2
3 4
Right hand door installation shown
!

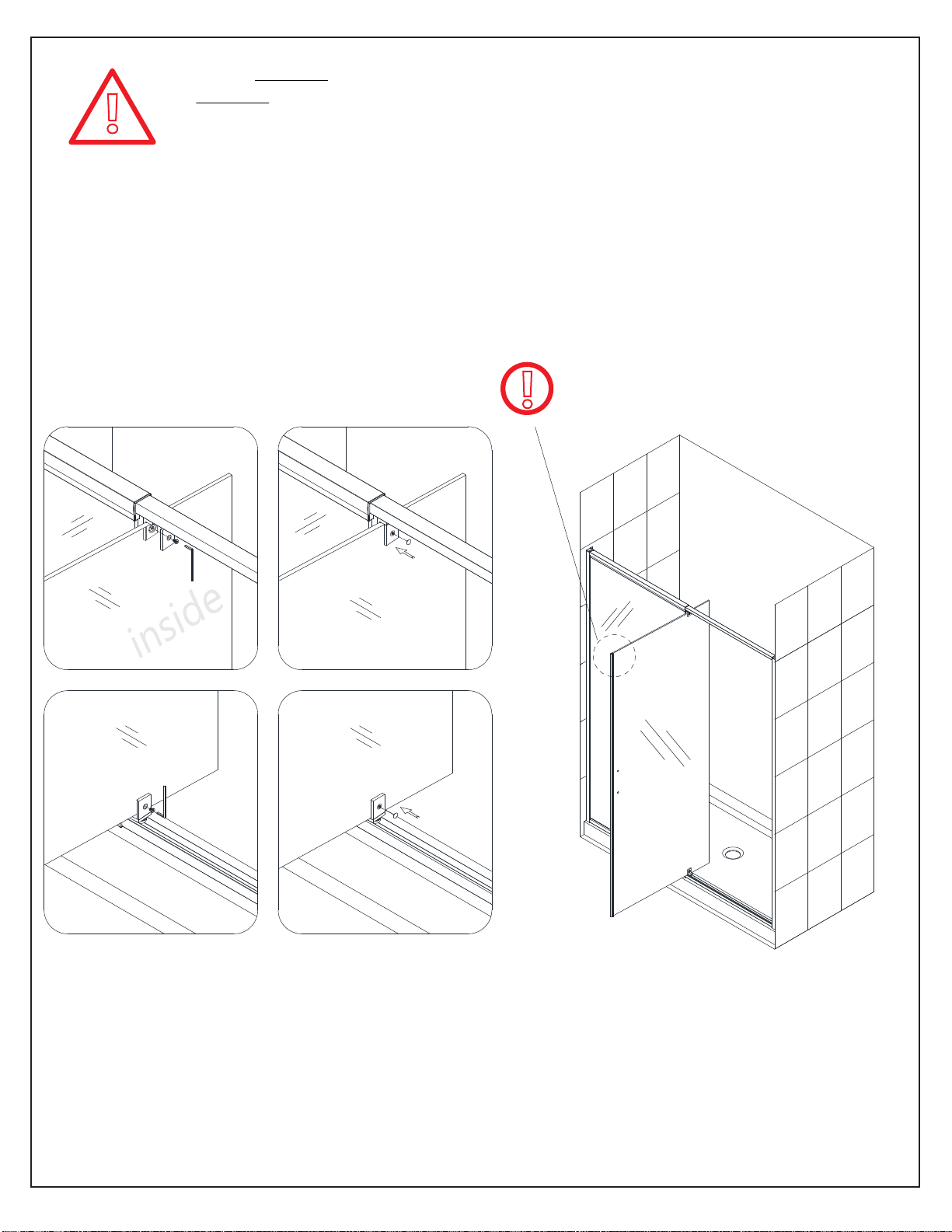

15. Carefully install the Door Glass (#17) onto the Top & Bottom Pivot Hardware (#16).
Make certain that all gaskets are in place to protect the glass. Cover the bolt with the
decorative cap. (Fig 15)
NOTE: DO NOT install the handle onto the door glass until instructed.
DO NOT attempt to lift the glass using the handle. This could result in damage to
the glass and/or serious personal injury. Always use an assistant or a professional
grade glass suction cup when handling heavy glass.
16FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Fig 16
Fig 17
Right hand door installation shown
outside
door
door

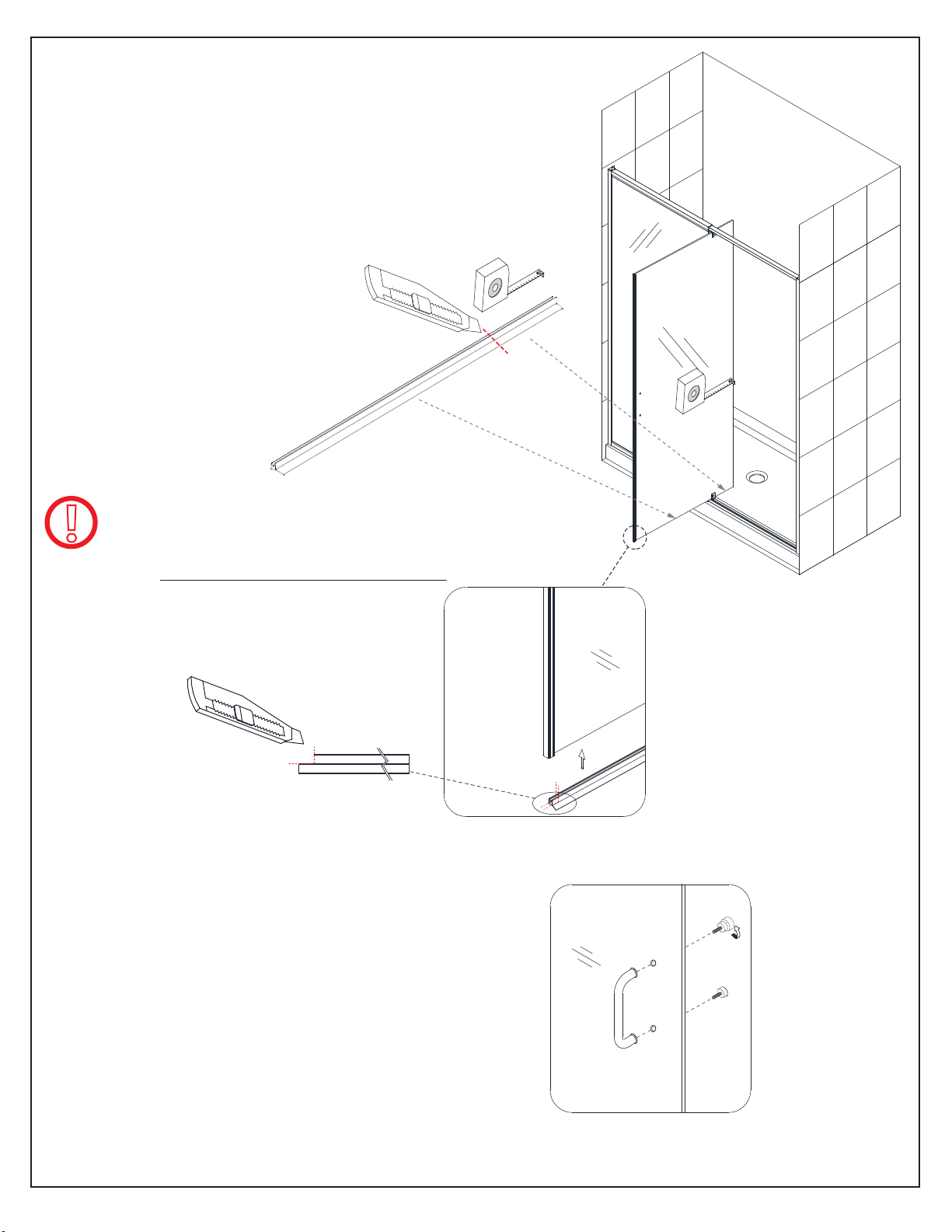

16. Trim the Bottom Anti-Water Strip (#08) to fit on both
sides of the bottom pivot and attach both pieces to the bottom
of the Door Glass (#17) (Fig 16)
17. Attach the Handle (#13) to the Door Glass (#17).
(Fig 17)
NOTE: Measure to the edge of the door and
notch the Bottom anti-water strip (#08)
with a razor knife to fit around the magnet
strip, leaving the bottom deflector intact.
!
17FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved

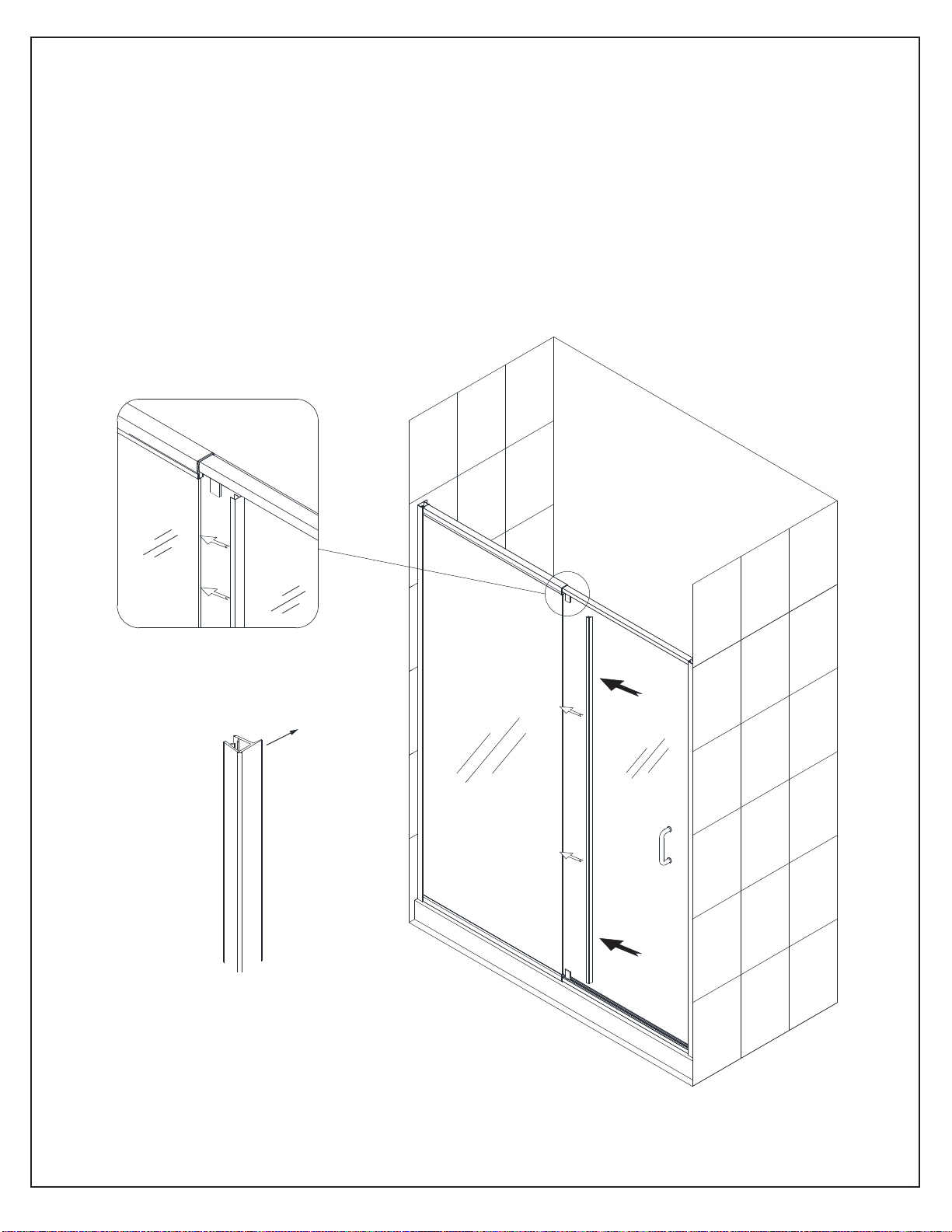

Fig 18
inside
panel
outside
Right hand door installation shown
panel
inside
18. Attach the Flanged Anti-Water Strip (#07) to the vertical edge of the Stationary Panel Glass (#02)
with the flange facing into the shower. (Fig 18)
18FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
Fig 19

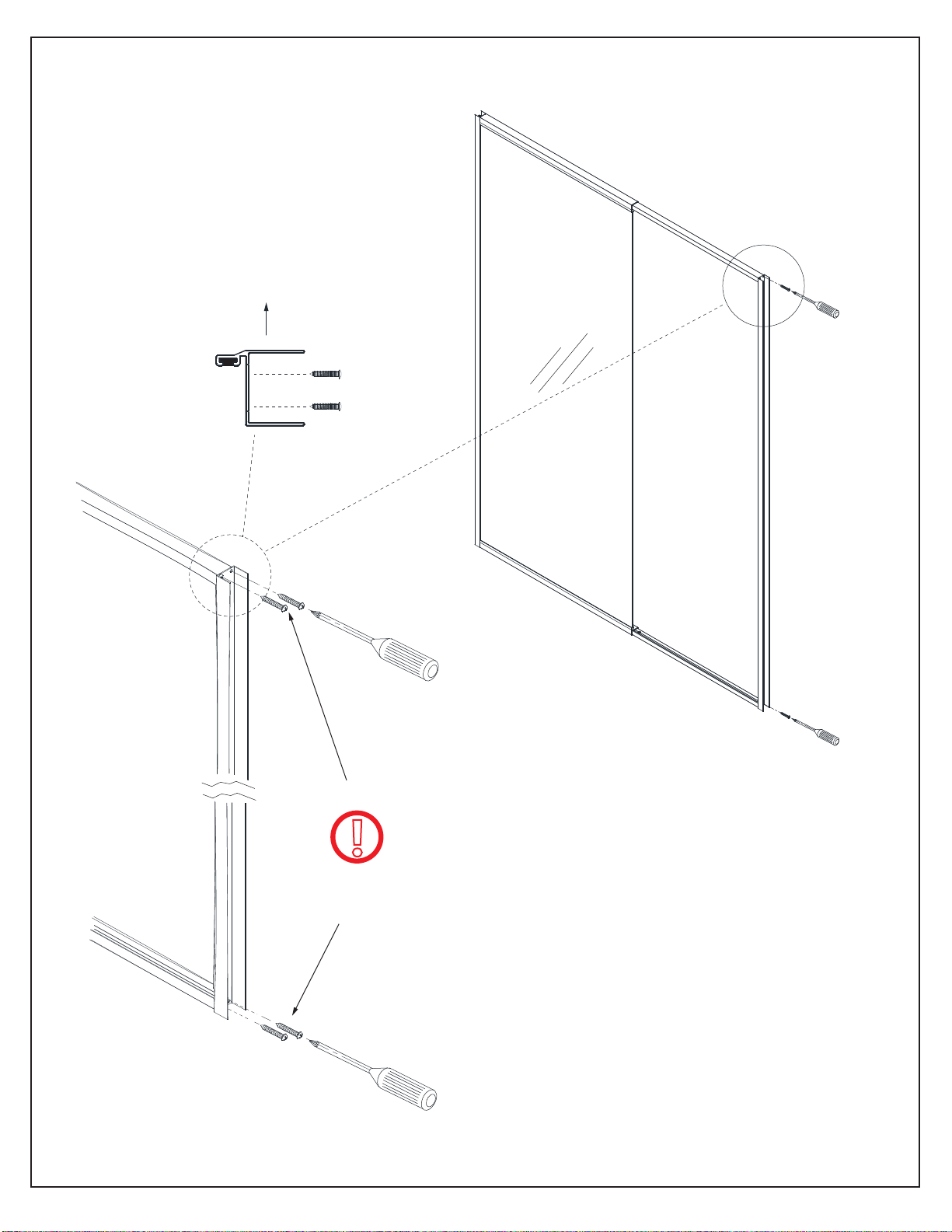

Fig 20
inside
Ø1/8”
(3mm)
Ø1/8”
(3mm)
ST4.2x10 &
washer
Decorative cap
1
2
3
4
5
6
Ø1/8”
(3mm)
Ø1/8”
(3mm)
1 2
3
4
5
6
ST4.2x10 &
washer
Decorative cap
insideinside
Right hand door installation shown
overhead view
door
panel
!
!
inside
inside
inside
inside
inside
washer
screw
decorative cap

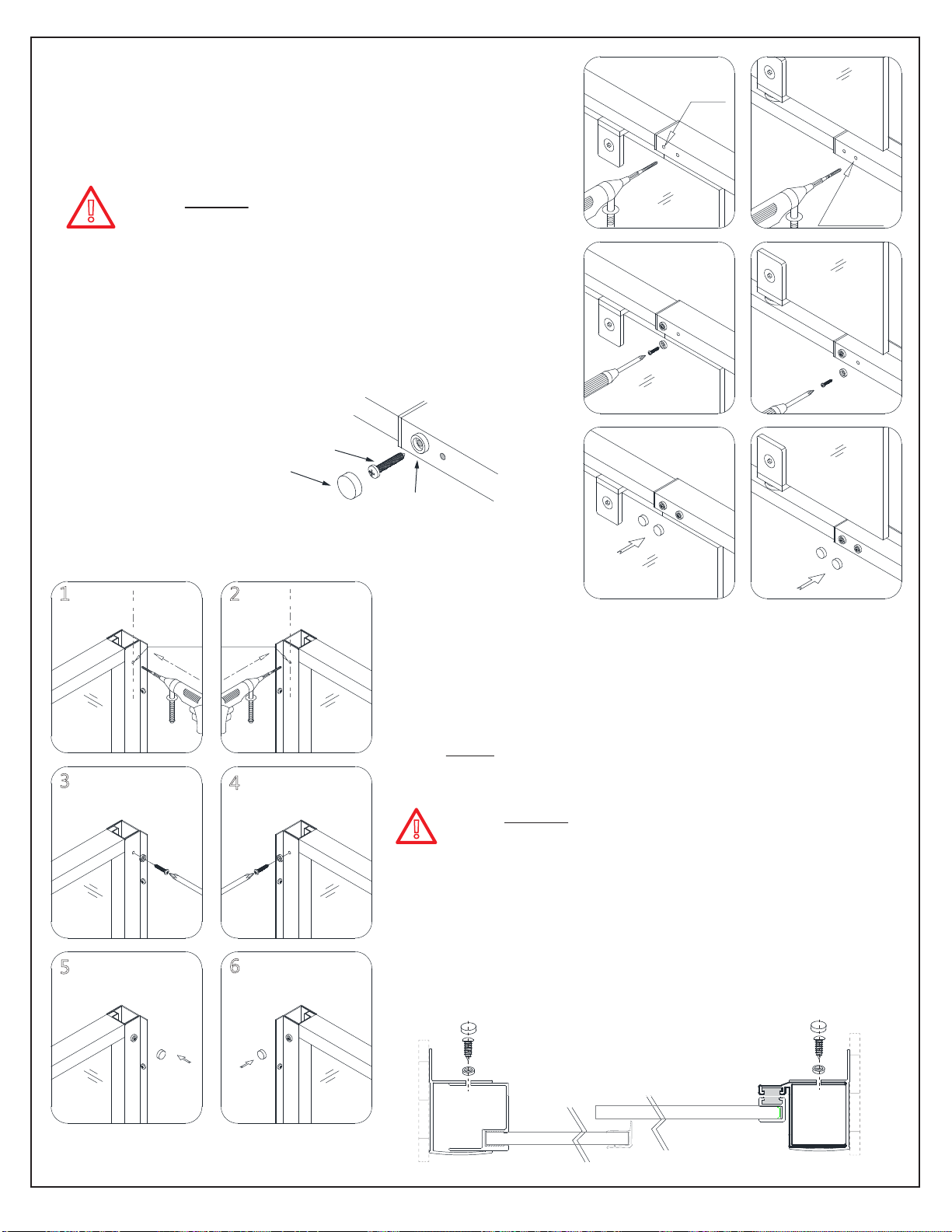

19. Once all adjustments have been made, drill pilot
holes from inside of the shower into the Top & Bottom
Pivot Rails (#15) through the predrilled holes using an
Ø1/8” drill bit.
Secure the Expanding rails using the Round Head
Screws ST4.2×10 (#04) and the raised white washers.
Cover the exposed screw heads and washers with the
Decorative Caps (#06). (Fig 19)
NOTE: Do Not drill the rails throughout,
only through the first layer.
20. Make any final adjustments to the Door assembly within
the Wall Profiles (#01). Make sure that the entire assembly
sits tight down onto the threshold.
From inside the shower, drill holes near the center of the Wall
Profiles (#01) at the top and bottom of the profile using an
Ø1/8” drill bit. (Fig 20.1 and 20.2)
NOTE: Do Not drill the profiles throughout, only
through the first layer.
Secure the Door assembly to the Wall profiles (#01) using the
Round head screws ST4.2×10 (#04) and the raised white
washers.
Cover the exposed screw heads and washers with the
Decorative Caps (#06). Repeat this step on the strike side wall
profile as well. (Fig 22)
19FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
24
Hours
Fig 21
Right hand door installation shown

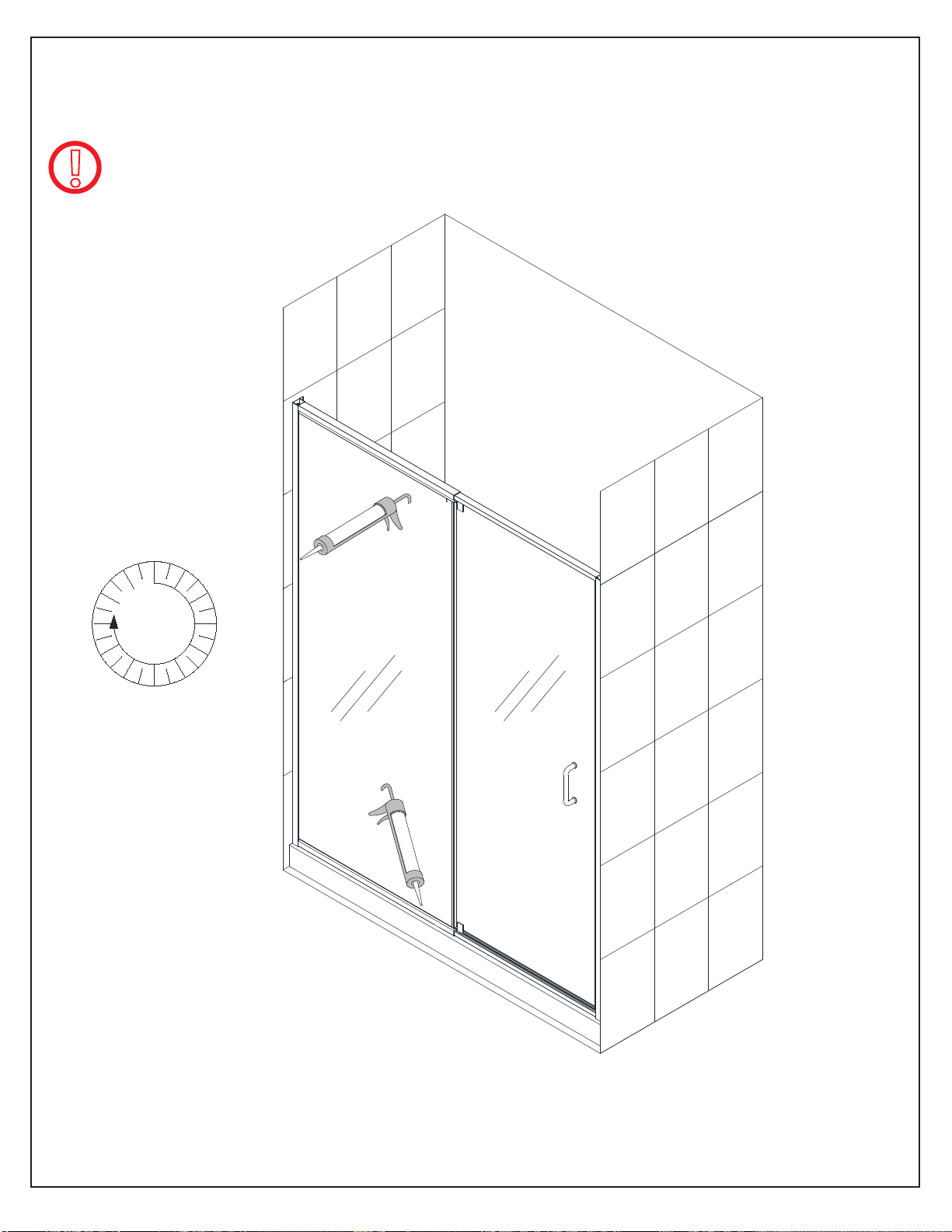

21. Apply a good quality mildew-resitant silicone around the interior perimeter along both walls
and the threshold. (Fig 21)
!
Allow 24 hours for the silicone to cure before using the shower.
Product Maintenance
BASES and BACKWALLS: To ensure long-lasting life for your acrylic back walls, wipe them off
after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream
based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal
brushes or scrapers that could scratch or dull the surface.
GLASS: To ensure long-lasting life for your glass shower products, wipe them off after each use
with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent
soap buildup and water spots (Hard water can etch the surface of the glass over time if left to
dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that
contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the
surface.
HARDWARE: To ensure a long-lasting finish, wipe off the metal parts after each use with a soft
cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If
accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling
or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth.
Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or
polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive
sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.
NOTE: To maximize the life of your door, it is important to regularly inspect
the glass and all hardware for misalignment, proper attachment, and/or
damage. Contact DreamLine
®
with any questions or concerns.
DreamLine
®
shower doors and enclosures are designed not to leak when
installed properly and the flow of water is not pointed directly at the pivots
or vinyl seals.
20FLEX 42x72 / 48x72 / 60x72 manual Ver 1 Rev 3 04/2018
©2018 DreamLine. All Rights Reserved
TEL: 866-731-2244
FAX: 866-857-3638
DREAMLINE.COM
For more information on DreamLine
®
Shower Doors and Enclosures please visit DreamLine.com
©2018 DreamLine. All Rights Reserved
