PRELIMINARY SPECIFICATION GUIDE MODULAR COOKTOPS
SERIES 11
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
Create the ultimate culinary solution with our Series 11
modular cooktops. Using the dierent induction, teppan
and ventilation modules you can customise the cooking
area, at the scale and format best suited to architectural
plan and user needs. Fusing precise induction technology
with innovative design, these modules are crafted to
seamlessly work together for perfect results.
FEATURES
1 Tailor the cooking space by pairing primary induction
cooktop modules with complementary auxiliary cooktops,
downdraft ventilation and teppan modules.
2 Control the complete modular suite from the primary
cooktop using a large intuitive touchscreen.
3 Each module is designed to fit flush or raised with the
countertop for complete design freedom.
4 Choose from a Minimal style sleek black glass or subtle
grey glass finish to suit your kitchen design.
5 SmartHQ™ app connectivity for additional cooking
functions including Sous Vide and Poaching.*
6 Easy-to-clean single surface finish with a built-in cleaning
mode.*
7 Wireless Temperature Sensor precisely monitors cooking
in real time, for complete control.*
* Selected models only.
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
1
2
1
2
1
2
1
2
PRELIMINARY SPECIFICATION GUIDE MODULAR PRODUCTS
SERIES 11
1
2
1
2
4
5
3
4
1
2
3
4
1
2
3
1 2 3
5 6 7 8
4
9
PRODUCT OVERVIEW
PRIMARY MODULAR COOKTOPS - With touchscreen
1 CI392DTTB1 (Black), CI392DTTG1 (Grey)
Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone
3 CI764DTTB1 (Black), CI764DTTG1 (Grey)
Primary Modular Induction Cooktop, 76cm, 4 Zones with SmartZone
2 CI604DTTB1 (Black), CI604DTTG1 (Grey)
Primary Modular Induction Cooktop, 60cm, 4 Zones with SmartZone
4 CI905DTTB1 (Black), CI905DTTG1 (Grey)
Primary Modular Induction Cooktop, 90cm, 5 Zones with SmartZone
AUXILIARY MODULAR COOKTOPS - No screen, must be paired with Primary Cooktop with touchscreen
5 CI302DB1 (Black), CI302DG1 (Grey)
Auxiliary Modular Induction Cooktop, 30cm, 2 Zones with SmartZone
7 CIT302DX1
Auxiliary Modular Teppanyaki Cooktop, 30cm, 2 Zones
6 CI392DB1 (Black), CI392DG1 (Grey)
Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone
8 CIT392DX1
Auxiliary Modular Teppanyaki Cooktop, 39cm, 2 Zones
AUXILIARY MODULAR VENTILATION - No screen, must be paired with Primary Cooktop with touchscreen
9 CD13DB1 (Black), CD13DG1 (Grey)
Auxiliary Modular Ventilation, 13cm, Duct Out
ACCESSORIES
TBC
Multiple Product Installation Kit
KRCD13D
Downdraft Recirculation Kit - coming soon
WTSC1
Wireless Temperature Sensor (Primary touchscreen cooktops supplied with 1x, also available to purchase separately).
AUXILIARY MODULAR VENTILATIONAUXILIARY MODULAR COOKTOPS
PRIMARY MODULAR COOKTOPS
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE COMPATIBLE CONNECTED RANGEHOODS
SERIES 7
1 2 3 4
5 6 7 8
WALL RANGEHOODS
INSERT RANGEHOODS
PRODUCT OVERVIEW
WALL RANGEHOODS
1 HC60DCXB4
Wall Rangehood, 60cm, Box Chimney
3
HC90DCEXB4
Wall Rangehood, 90cm, Box Chimney, with External Motor
2 HC90DCXB4
Wall Rangehood, 60cm, Box Chimney
4 HC120DCXB4
Wall Rangehood, 120cm, Box Chimney
INSERT RANGEHOODS
5 HP60IDCHX4
Integrated Insert Rangehood, 60cm
7 HP90IDCHX4
Integrated Insert Rangehood, 90cm
6 HP60IDCHEX4
Integrated Insert Rangehood, 60cm, with External Motor
8 HP90IDCHEX4
Integrated Insert Rangehood, 90cm, with External Motor
EXTERNAL
BLOWER
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE VENTILATION CONSIDERATIONS
• Rangehoods vertically extract air upwards into their canopy.
• Cooksurfaces directly below rangehood are efficiently vented.
• Cookzones positioned outside the width of the rangehood will not be effectively vented.
• Up to two connected rangehoods can be paired to provide a combined width to suit pairings of multiple modular cooktops.
• The downdraft Modular Ventilation unit extracts air horizontally from adjacent cooksurfaces.
• Cookzones directly adjacent to a Modular Ventilation unit are efficiently vented.
• Two Modular Ventilation units can be paired either side of a 60cm cooktop to provide effective ventilation.
RANGEHOOD VENTILATION
INSUFFICIENT VENTING SUFFICIENT VENTING
MODULAR VENTILATION
HORIZONTAL VENTILATION
INSUFFICIENT VENTING - ADJACENT COOKZONES ONLY INSUFFICIENT VENTING - CENTRALLY POSITIONED COOKZONE
SUFFICIENT VENTING
• PLEASE NOTE: Modular Ventilation units cannot not provide effective ventilation to the centrally positioned cookzone of 76cm
and 90cm cooktops.
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE MODULAR CONFIGURATIONS WITH VENTILATION
SERIES 11
2 2 IN A ROW, WITH MODULAR VENTILATION
PRIMARY CI392DTTB1 (Black), CI392DTTG1 (Grey)
Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone
AUXILIARY CI392DB1 (Black), CI392DG1 (Grey)
Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone
CIT392DX1
Auxiliary Modular Teppanyaki Cooktop, 39cm, 2 Zones
VENTILATION CD13DB1 (Black), CD13DG1 (Grey)
Auxiliary Modular Ventilation, 13cm
ACCESSORY TBC
Multiple Product Installation Kit
COMMON CONFIGURATIONS WITH MODULAR VENTILATION
3 3 IN A ROW, WITH MODULAR VENTILATION
PRIMARY CI392DTTB1 (Black), CI392DTTG1 (Grey)
Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone
CI604DTTB1 (Black), CI604DTTG1 (Grey)
Primary Modular Induction Cooktop, 60cm, 4 Zones with SmartZone
AUXILIARY CI302DB1 (Black), CI302DG1 (Grey)
Auxiliary Modular Induction Cooktop, 30cm, 2 Zones with SmartZone
CI392DB1 (Black), CI392DG1 (Grey)
Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone
CIT302DX1
Auxiliary Modular Teppanyaki Cooktop, 30cm, 2 Zones
CIT392DX1
Auxiliary Modular Teppanyaki Cooktop, 39cm, 2 Zones
VENTILATION CD13DB1 (Black), CD13DG1 (Grey)
Auxiliary Modular Ventilation, 13cm
ACCESSORY TBC
Multiple Product Installation Kit
1 SINGLE, WITH MODULAR VENTILATION
PRIMARY CI392DTTB1 (Black), CI392DTTG1 (Grey)
Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone
VENTILATION CD13DB1 (Black), CD13DG1 (Grey)
Auxiliary Modular Ventilation, 13cm
ACCESSORY TBC
Multiple Product Installation Kit
1
2
3
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE SINGLE, 9CM, MODULAR VENTILATION
SERIES 11

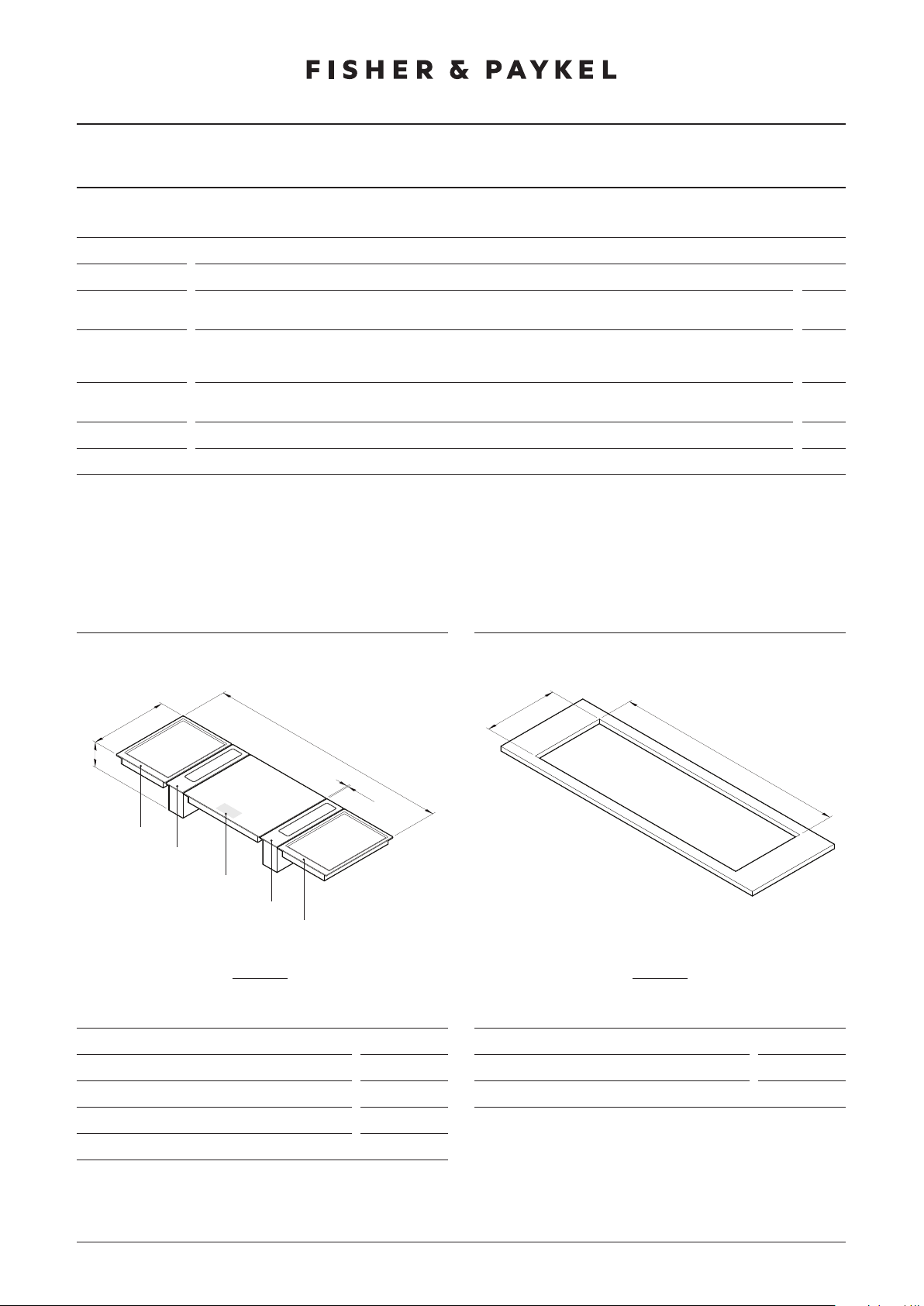

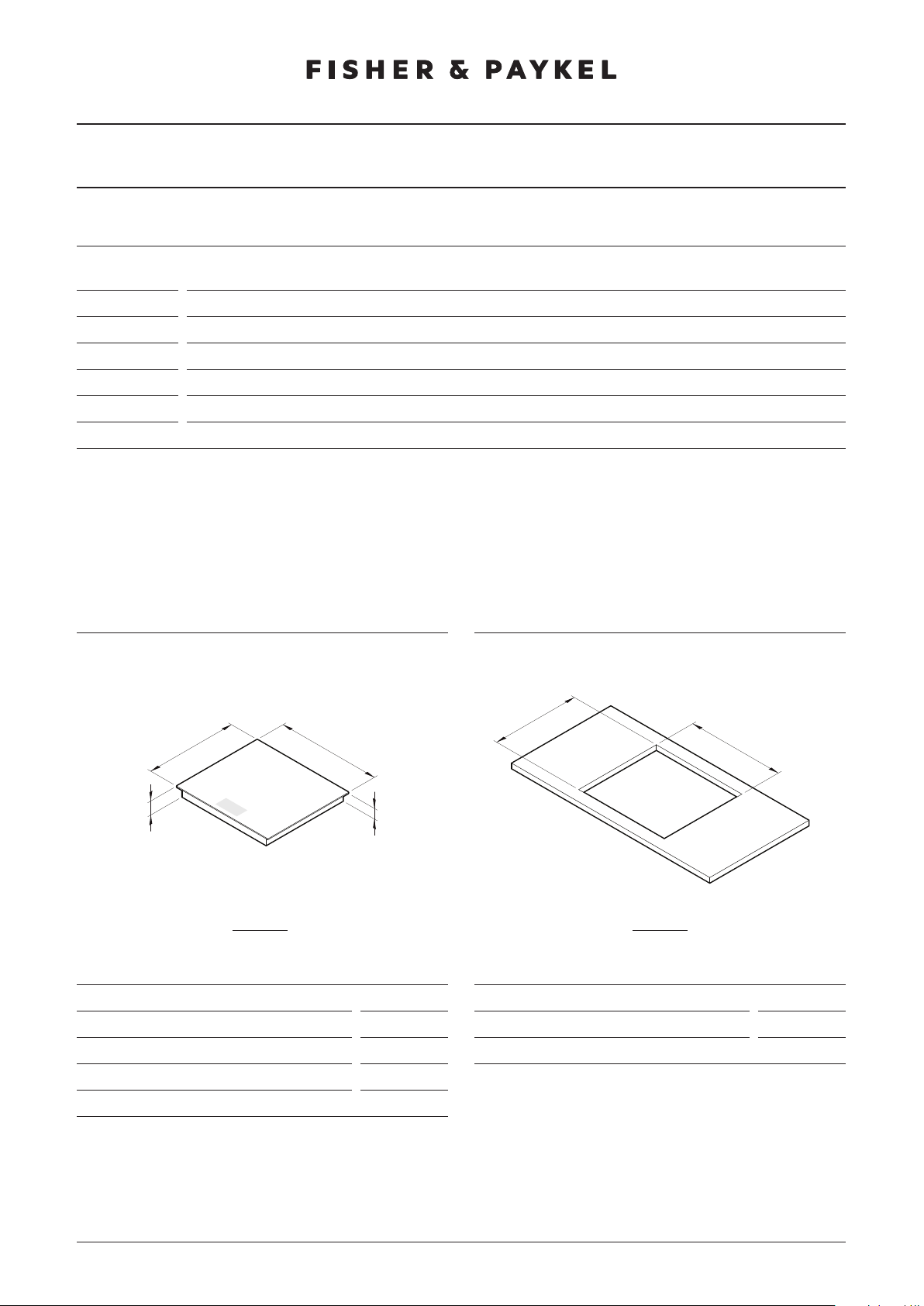

BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width 481
B Cutout depth 510
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width of products 517
B Overall depth of products 50
C Overall height of products 186
D Gap between products 2
* Includes glass
ISO VIEWISO VIEW
SPECIFICATIONS
Configuration Single, 9cm Driver with Modular Ventilation
Models
Primary
CI392DTTB1 Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Black
CI392DTTG1 Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Grey
x1
Auxiliary N/A
Ventilation *
CD1DB1 Auxiliary Modular Ventilation, 13cm, Duct Out, Black
CD1CG1 Auxiliary Modular Ventilation, 13cm, Duct Out, Grey
x1
Accessory
Multiple Product Installation Kit x1
Electrical Refer Individual product pages
* Auxiliary Modular Ventilation unit can be placed to the right or left of the cooktop
A
b
C
d
A
b
Auxiliary Ventilation
9cm Primary
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
600
600
PRELIMINARY SPECIFICATION GUIDE SINGLE, 9CM, MODULAR VENTILATION
CABINETRY OVERVIEW
Extraction type Recirculated
Downdraft outlet side Left or Right
Adapter 90 Degree
Blower position Floor
Blower outlet direction Left or Right
Cabinet width 600 + 600
Oven combination N /A
Extraction type Vented
Downdraft outlet side Left or Right
Adapter Straight
Blower position Sub Floor
Blower outlet direction 360 degrees
Cabinet width 600
Oven combination 1x 60cm Oven
Extraction type Vented
Downdraft outlet side Left or Right
Adapter 90 Degree
Blower position Floor
Blower outlet direction Left, Right or Rear
Cabinet width 600
Oven combination N /A
VENTED
RECIRCULATED
600
600
IMPORTANT NOTE: Example cabinetry based on standard unit sizes, other
configurations are possible.
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE 2 IN A ROW, 9CM + 9CM, MODULAR VENTILATION
SERIES 11
SPECIFICATIONS
Configuration 2 IN A ROW, 9cm Driver + 9cm Auxiliary, with Modular Ventilation
Models *
Primary
CI392DTTB1 Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Black
CI392DTTG1 Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Grey
x1
Auxiliary **
CI392DTTB1 Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Black
CI392DTTG1 Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Grey
CIT385DX1 Auxiliary Modular Teppanyaki Cooktop, 39cm, 2 Zones
x1
Ventilation
CD1DB1 Auxiliary Modular Ventilation, 13cm, Duct Out, Black
CD1CG1 Auxiliary Modular Ventilation, 13cm, Duct Out, Grey
x1
Accessory
Multiple Product Installation Kit x2
Electrical Refer to individual product pages
* Position of Driver and Auxiliary cooktops can be configured to suit requirements.
** Auxiliary cooktops can be interchanged to suit cook type preference.
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width 866
B Cutout depth 510
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width of products 904
B Overall depth of products 50
C Overall height of products 186
D Gap between products 2
* Includes glass
ISO VIEWISO VIEW
9cm Auxiliary
Auxiliary Ventilation
9cm Primary
A
b
C
d
A
b
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE 2 IN A ROW, 9CM + 9CM, MODULAR VENTILATION
VENTED CABINETRY
Extraction type Recirculated
Downdraft outlet side Right
Adapter 90 Degree
Blower position Floor
Blower outlet direction Right or Rear
Cabinet width 900
Oven combination N /A
Extraction type Vented
Downdraft outlet side Left or Right
Adapter Straight
Blower position Sub Floor
Blower outlet direction 360 degrees
Cabinet width 900
Oven combination 1x 90cm
Extraction type Vented
Downdraft outlet side Left
Adapter 90 Degree
Blower position Floor
Blower outlet direction Left
Cabinet width 900
Oven combination N /A
VENTED
900
900
900
IMPORTANT NOTE: Example cabinetry based on standard unit sizes, other
configurations are possible.
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE 2 IN A ROW, 9CM + 9CM, MODULAR VENTILATION
RECIRCULATED CABINETRY
Extraction type Recirculated
Downdraft outlet side Left
Adapter Straight
Blower position Floor
Blower outlet direction Right
Cabinet width 900
Oven combination N /A
Extraction type Recirculated
Downdraft outlet side Right
Adapter 90 Degree
Blower position Floor
Blower outlet direction Right
Cabinet width 900 + 600
Oven combination N /A
Extraction type Recirculated
Downdraft outlet side Left
Adapter 90 Degree
Blower position Floor
Blower outlet direction Left
Cabinet width 900 + 600
Oven combination N /A
RECIRCULATED
600
900
600
900
900
IMPORTANT NOTE: Example cabinetry based on standard unit sizes, other
configurations are possible.
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE IN A ROW, 9CM + 0CM, MODULAR VENTILATION
SERIES 11
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width
1215
B Cutout depth 510
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width of products 125
B Overall depth of products 50
C Overall height of products 186
D Gap between products 2
* Includes glass
ISO VIEWISO VIEW
0cm Auxiliary
Auxiliary Ventilation
0cm Auxiliary
Auxiliary Ventilation
9cm Primary
SPECIFICATIONS
Configuration IN A ROW, 9cm Driver + 0cm Auxiliary, with Modular Ventilation
Models *
Primary
CI392DTTB1 Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Black
CI392DTTG1 Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Grey
x1
Auxiliary **
CI302DB1 Auxiliary Modular Induction Cooktop, 30cm, 2 Zones with SmartZone, Black
CI302DG1 Auxiliary Modular Induction Cooktop, 30cm, 2 Zones with SmartZone, Grey
CIT302DX1 Auxiliary Modular Teppanyaki Cooktop, 30cm, 2 Zones
x2
Ventilation
CD1DB1 Auxiliary Modular Ventilation, 13cm, Duct Out, Black
CD1CG1 Auxiliary Modular Ventilation, 13cm, Duct Out, Grey
x2
Accessory
Multiple Product Installation Kit x4
Electrical Refer to individual product pages
* Position of Driver and Auxiliary cooktops can be configured to suit requirements.
** Auxiliary cooktops can be interchanged to suit cook type preference.
A
b
C
d
A
b
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE IN A ROW, 9CM + 9CM, MODULAR VENTILATION
SERIES 11
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width
185
B Cutout depth 510
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width of products 142
B Overall depth of products 50
C Overall height of products 186
D Gap between products 2
* Includes glass
ISO VIEWISO VIEW
SPECIFICATIONS
Configuration IN A ROW, 9cm Primary + 9cm Auxiliary, with Modular Ventilation
Models *
Primary
CI392DTTB1 Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Black
CI392DTTG1 Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Grey
x1
Auxiliary **
CI392DTTB1 Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Black
CI392DTTG1 Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Grey
CIT385DX1 Auxiliary Modular Teppanyaki Cooktop, 39cm, 2 Zones
x2
Ventilation
CD1DB1 Auxiliary Modular Ventilation, 13cm, Duct Out, Black
CD1CG1 Auxiliary Modular Ventilation, 13cm, Duct Out, Grey
x2
Accessory
Multiple Product Installation Kit x4
Electrical Refer to individual product pages
* Position of Primary and Auxiliary cooktops can be configured to suit requirements.
** Auxiliary cooktops can be interchanged to suit cook type preference.
A
b
C
d
A
b
9cm Auxiliary
Auxiliary Ventilation
9cm Auxiliary
Auxiliary Ventilation
9cm Primary
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE IN A ROW, 9CM, MODULAR VENTILATION
VENTED CABINETRY
Extraction type Vented
Downdraft outlet side
Left and right, or left and left, or right and
right
Adapter Straight
Blower position Sub Floor
Blower outlet direction 360 degrees
Cabinet width 1800 as 3x 600 or 2x 900
Oven combination 3x 60cm oven or 2x 90cm
Extraction type Vented
Downdraft outlet side Right and right, or left and left
Adapter 90 Degree
Blower position Floor
Blower outlet direction Rear
Cabinet width 1800 as 3x 600
Oven combination N /A
Extraction type Vented
Downdraft outlet side Left and right
Adapter 90 Degree
Blower position Floor
Blower outlet direction Rear
Cabinet width 1800 as 3x 600
Oven combination 1x 60cm below central cooktop
VENTED
600
600
600
600
600
600
600
600
600
IMPORTANT NOTE: Example cabinetry based on standard unit sizes, other
configurations are possible.
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE IN A ROW, 9CM, MODULAR VENTILATION
RECIRCULATED CABINETRY
Extraction type Recirculated
Downdraft outlet side Left and left, or right and right
Adapter 90 Degree
Blower position Floor
Blower outlet direction Left and right
Cabinet width 2400 as 4x 600
Oven combination N /A
Extraction type Recirculated
Oven combination N /A
Adapter 90 Degree
Blower position Floor
Blower outlet direction Right or Left (example can be mirrored)
Cabinet width 2400 as 4x 600
Oven combination 1x 60cm below central cooktop
Extraction type Recirculated
Downdraft outlet side Left and right
Adapter 90 Degree
Blower position Floor
Blower outlet direction Right and left
Cabinet width 1800 as 2x 900
Oven combination N /A
RECIRCULATED
600
600
600
600
600
600
600
600
900
900
IMPORTANT NOTE: Example cabinetry based on standard unit sizes, other
configurations are possible.
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE IN A ROW, 60CM + 0CM, MODULAR VENTILATION
SERIES 11
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width 140
B Cutout depth 510
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width of products 1468
B Overall depth of products 50
C Overall height of products 186
D Gap between products 2
* Includes glass
ISO VIEWISO VIEW
SPECIFICATIONS
Configuration IN A ROW, 60cm Primary + 0cm Auxiliary, with Modular Ventilation
Models
Primary
CI604DTTB1 Primary Modular Induction Cooktop, 60cm, 4 Zones with SmartZone, Black
CI604DTTG1 Primary Modular Induction Cooktop, 60cm, 4 Zones with SmartZone, Grey
x1
Auxiliary **
CI302DB1 Auxiliary Modular Induction Cooktop, 30cm, 2 Zones with SmartZone, Black
CI302DG1 Auxiliary Modular Induction Cooktop, 30cm, 2 Zones with SmartZone, Grey
CIT302DX1 Auxiliary Modular Teppanyaki Cooktop, 30cm, 2 Zones
x2
Ventilation
CD1DB1 Auxiliary Modular Ventilation, 13cm, Duct Out, Black
CD1CG1 Auxiliary Modular Ventilation, 13cm, Duct Out, Grey
x2
Accessory
Multiple Product Installation Kit x4
Electrical Refer to individual product pages
** Auxiliary cooktops can be interchanged to suit cook type preference.
A
b
C
d
A
b
0cm Auxiliary
Auxiliary Ventilation
0cm Auxiliary
Auxiliary Ventilation
60cm Primary
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE IN A ROW, 60CM + 9CM, MODULAR VENTILATION
SERIES 11
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width 1600
B Cutout depth 510
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width of products 168
B Overall depth of products 50
C Overall height of products 186
D Gap between products 2
* Includes glass
ISO VIEWISO VIEW
9cm Auxiliary
Auxiliary Ventilation
9cm Auxiliary
Auxiliary Ventilation
60cm Primary
SPECIFICATIONS
Configuration IN A ROW, 60cm Primary + 9cm Auxiliary, with Modular Ventilation
Models
Primary
CI604DTTB1 Primary Modular Induction Cooktop, 60cm, 4 Zones with SmartZone, Black
CI604DTTG1 Primary Modular Induction Cooktop, 60cm, 4 Zones with SmartZone, Grey
x1
Auxiliary **
CI392DTTB1 Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Black
CI392DTTG1 Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Grey
CIT385DX1 Auxiliary Modular Teppanyaki Cooktop, 39cm, 2 Zones
x2
Ventilation
CD1DB1 Auxiliary Modular Ventilation, 13cm, Duct Out, Black
CD1CG1 Auxiliary Modular Ventilation, 13cm, Duct Out, Grey
x2
Accessory
Multiple Product Installation Kit x4
Electrical Refer to individual product pages
** Auxiliary cooktops can be interchanged to suit cook type preference.
A
b
C
d
A
b
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE IN A ROW, 60CM, MODULAR VENTILATION
VENTED CABINETRY
Extraction type Vented
Downdraft outlet side
Left and right, left and left, or right and
right
Adapter Straight
Blower position Sub Floor
Blower outlet direction 360 degrees
Cabinet width 1800 as 3x 600 or 2x 900
Oven combination
3x 60cm oven
2x 90cm oven
Extraction type Vented
Downdraft outlet side Right and right, or left and left
Adapter 90 Degree
Blower position Floor
Blower outlet direction Rear
Cabinet width 1800 as 3x 600
Oven combination 1x below left cooktop (right mirrored)
Extraction type Vented
Downdraft outlet side Left and right
Adapter 90 Degree
Blower position Floor
Blower outlet direction Rear
Cabinet width 1800 as 3x 600 or 2x 900
Oven combination 1x 60cm below central cooktop
VENTED
600
600
600
600
600
600
600
600
600
IMPORTANT NOTE: Example cabinetry based on standard unit sizes, other
configurations are possible.
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE IN A ROW, 60CM + 9CM, DOWNDRAFT VENTILATION
RECIRCULATED CABINETRY
Extraction type Recirculated
Downdraft outlet side
Left and right, left and left, or right and
right
Adapter 90 Degree
Blower position Floor
Recirculation position Right and Left
Cabinet width 2400 as 4x 600
Oven combination 1x below left cooktop (right mirrored)
Extraction type Recirculated
Downdraft outlet side
Left and right, left and left, or right and
right
Adapter 90 Degree
Blower position Floor
Recirculation position Right or Left (example can be mirrored)
Cabinet width 2400 as 2x 900 + 600
Oven combination N /A
Extraction type Recirculated
Downdraft outlet side
Left and right, left and left, or right and
right
Adapter 90 Degree
Blower position Floor
Recirculation position Right or Left (example can be mirrored)
Cabinet width 2400 as 4x 600
Oven combination 1x 60cm oven below central cooktop
RECIRCULATED
600
600
600
600
900
900
600
600
600
600
600
IMPORTANT NOTE: Example cabinetry based on standard unit sizes, other
configurations are possible.
PRELIMINARY SPECIFICATION GUIDE PRIMARY MODULAR INDUCTION COOKTOP, 9CM
SERIES 11
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width 47
B Cutout depth 510
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width 85
B Overall depth 50
C Overall height * 58
D Height of chassis 52
* Includes glass
SPECIFICATION
Model No.
CI392DTTB1 Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Black
CI392DTTG1 Primary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Grey
Dimensions H 58 mm W 85mm D 50mm
Electrical
Supply 220-240VAC, 50Hz/60Hz
Service 20 Amp circuit
Outlet Mains power cable with stripped bare wires supplied.
ISO VIEWISO VIEW
A
b
C
d
A
b
PRELIMINARY SPECIFICATION GUIDE PRIMARY MODULAR INDUCTION COOKTOP, 60CM
SERIES 11
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width ** 562
B Cutout depth 510
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width 600
B Overall depth 50
C Overall height * 58
D Height of chassis 52
* Includes glass
SPECIFICATION
Model No.
CI604DTTB1 Primary Modular Induction Cooktop, 60cm, 4 Zones with SmartZone, Black
CI604DTTG1 Primary Modular Induction Cooktop, 60cm, 4 Zones with SmartZone, Grey
Dimensions H 58mm W 600mm D 50mm
Weight 12 kg
Electrical
Supply 220-240VAC, 50Hz/60Hz
Service 5 Amp circuit
Outlet Mains power connection at cooktop's junction box.
ISO VIEWISO VIEW
A
b
C
d
A
b
PRELIMINARY SPECIFICATION GUIDE PRIMARY MODULAR INDUCTION COOKTOP, 76CM
SERIES 11
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width 722
B Cutout depth 510
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width 760
B Overall depth 50
C Overall height * 58
D Height of chassis 52
* Includes glass
SPECIFICATION
Model No.
CI764DTTB1 Primary Modular Induction Cooktop, 76cm, 4 Zones with SmartZone, Black
CI764DTTG1 Primary Modular Induction Cooktop, 76cm, 4 Zones with SmartZone, Grey
Dimensions H 58mm W 760mm D 50mm
Weight 1 kg
Electrical
Supply 220-240VAC, 50Hz/60Hz
Service 5 Amp circuit
Outlet Mains power connection at cooktop's junction box.
ISO VIEWISO VIEW
A
b
C
d
A
b
PRELIMINARY SPECIFICATION GUIDE PRIMARY MODULAR INDUCTION COOKTOP, 90CM
SERIES 11
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width 862
B Cutout depth 510
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width 900
B Overall depth 50
C Overall height * 58
D Height of chassis 52
* Includes glass
SPECIFICATION
Model No.
CI905DTTB1 Primary Modular Induction Cooktop, 90cm, 5 Zones with SmartZone, Black
CI905DTTG1 Primary Modular Induction Cooktop, 90cm, 5 Zones with SmartZone, Grey
Dimensions H 58mm W 900mm D 50mm
Weight 19 kg
Electrical
Supply 220-240VAC, 50Hz/60Hz
Service 50 Amp circuit
Outlet Mains power connection at cooktop's junction box.
ISO VIEWISO VIEW
A
b
C
d
A
b
PRELIMINARY SPECIFICATION GUIDE AUXILIARY MODULAR INDUCTION COOKTOP, 0CM
SERIES 11
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width ** 262
B Cutout depth 510
** Cooktop must be installed with a Primary Modular Cooktop
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width 00
B Overall depth 50
C Overall height * 58
D Height of chassis 52
* Includes glass
SPECIFICATION
Model No.
CI302DB1 Auxiliary Modular Induction Cooktop, 30cm, 2 Zones with SmartZone, Black
CI302DG1 Auxiliary Modular Induction Cooktop, 30cm, 2 Zones with SmartZone, Grey
Dimensions H 58mm W 00mm D 50mm
Weight 8 kg
Electrical
Supply 220-240VAC, 50Hz/60Hz
Service 20 Amp circuit
Outlet Mains power cable with stripped bare wires supplied.
ISO VIEWISO VIEW
A
b
C
d
A
b
PRELIMINARY SPECIFICATION GUIDE AUXILIARY MODULAR INDUCTION COOKTOP, 9CM
SERIES 11
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width ** 47
B Cutout depth 510
** Cooktop must be installed with a Primary Modular Cooktop
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width 85
B Overall depth 50
C Overall height * 58
D Height of chassis 52
* Includes glass
SPECIFICATION
Model No.
CI392DTTB1 Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Black
CI392DTTG1 Auxiliary Modular Induction Cooktop, 39cm, 2 Zones with SmartZone, Grey
Dimensions H 58 mm W 85mm D 50mm
Electrical
Supply 220-240VAC, 50Hz/60Hz
Service 20 Amp circuit
Outlet Mains power cable with stripped bare wires supplied.
ISO VIEWISO VIEW
A
b
C
d
A
b
PRELIMINARY SPECIFICATION GUIDE AUXILIARY MODULAR TEPPANYAKI COOKTOP, 0CM
SERIES 11
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width ** 262
B Cutout depth 510
** Cooktop must be installed with a Primary Modular Cooktop
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width 00
B Overall depth 50
C Overall height 76
D Height of chassis 70
SPECIFICATION
Model No. CIT302DX1 Auxiliary Modular Teppanyaki Cooktop, 30cm, 2 Zones
Dimensions H 76mm W 00mm D 50mm
Weight 11 kg
Electrical
Supply 220-240VAC, 50Hz/60Hz
Service 20 Amp circuit
Outlet Mains power cable with stripped bare wires supplied.
ISO VIEWISO VIEW
A
b
C
d
A
b
PRELIMINARY SPECIFICATION GUIDE AUXILIARY MODULAR TEPPANYAKI COOKTOP, 9CM
SERIES 11
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
BENCHTOP CUTOUT DIMENSIONS
mm
A Cutout width ** 47
B Cutout depth 510
** Cooktop must be installed with a Primary Modular Cooktop
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
PRODUCT DIMENSIONS
mm
A Overall width 85
B Overall depth 50
C Overall height 76
D Height of chassis 70
SPECIFICATION
Model No. CIT385DX1 Auxiliary Modular Teppanyaki Cooktop, 39cm, 2 Zones
Dimensions H 76 mm W 85mm D 50mm
Electrical
Supply 220-240VAC, 50Hz/60Hz
Service 20 Amp circuit
Outlet Mains power cable with stripped bare wires supplied.
ISO VIEWISO VIEW
A
b
C
d
A
b
mm
g Minimum width of downdraft and
horizontal elbow **
475
h Minimum depth of downdraft and ducting **
600
* includes glass
** can be increased by adding extra ducting components
IMPORTANT NOTE: Products can be flush mounted, this requires a recess
in benchtop.
mm
A Overall width 10
B Overall depth 50
C Overall height * 186
D Height of chassis 180
E Depth to centre of outlet from front of glass 279
F Height to centre of outlet 61
PRELIMINARY SPECIFICATION GUIDE AUXILIARY MODULAR VENTILATION, 1CM
SERIES 11
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION
Model No.
CD1DB1 Auxiliary Modular Ventilation, 13cm, Duct
Out, Black
CD1CG1 Auxiliary Modular Ventilation, 13cm, Duct
Out, Grey
Dimensions H 186 mm W 10mm D 50mm
Electrical
Supply 220–240V, 50Hz
Outlet Plug
AUXILIARY MODULAR VENTILATION SYSTEM OVERVIEW
Ducting components to be supplied with product or available as
accessories.
CUTOUT DIMENSIONS
The Auxiliary Modular Ventilation unit is to be installed alongside
cooktop/s, refer to product combination pages for combined cutout
dimensions.
PRODUCT DIMENSIONS
c
ISO VIEW
D
Outlet can exit to the right or left.
F
Downdraft
Vertical Elbow
Horizontal Elbow
1m Straight Length
90 Degree Adapter
(or straight adapter)
Blower Box
Recirculation Box -
optional
Straight Joiner -
optional
A
b
e
g
h
90002876 Date: 16.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE MODULAR VENTILATION DUCTING COMPONENTS
SERIES 11
BLOWER BOX mm
A Width of blower box 74
B Depth of blower box 79
C Height of blower box 155
D Width to centre of inlet 158
E Depth to centre of inlet 174
F Depth to centre of outlet 214
G Height to centre of outlet 41
STRAIGHT ADAPTER mm
A Width of adapter 07
B Depth of adapter 150
C Height of adapter 250
D Outlet size diameter 150
VERTICAL ELBOW mm
A Width of elbow 07
B Depth of elbow 122
C Height of elbow 122
HORIZONTAL ELBOW mm
A Height of elbow 77
B Width of elbow 52
C Depth of elbow 52
STRAIGHT JOINER mm
A Width of joiner 07
B Depth of joiner 77
C Height of joiner 85
STRAIGHT LENGTH mm
A Width of ducting 0
B Depth of ducting 7
C Height of ducting 1000
90 DEGREE ADAPTER mm
A Width of adapter 07
B Depth of adapter 240
C Height of adapter 140
D Depth to outlet 150
E Outlet size diameter 150
RECIRCULATION BOX mm
A Width of recirculation box TBC
B Depth of recirculation box TBC
C Height of recirculation box 79
D Depth to centre of outlet TBC
Blower box can be rotated 60°.
IMPORTANT - inlet and outlet are
offset.
Overall height of Blower Box and 90
Degree Adapter assembly is 280mm.
360°
280
Outlet can be positioned
left, right or rear.
A
b
C
d
e
f
g
A
b
C
d
e
A
b
d
c
Ab
c
A
b
c
A
b
c
A
b
c
A
b
d
c
