USER GUIDE & SERVICE MANUAL
Marine Series
●
UMCR015
●
15” Crescent Ice Maker (230V)
USER GUIDE & SERVICE MANUAL
u-line.com
Table of Contents
Intro
Safety
Safety and Warning
Disposal And Recycling
Installation
Environmental Requirements
Electrical
Cutout & Product Dimensions
Water Hookup
General Installation
Grille Installation
Door Swing
Door Adjust
Maintenance
Door Latch
Cleaning
Extended Non-Use
Operating Instructions
First Use
Ice
Airflow and Product Loading
Service
Troubleshooting
Wire Diagram
Product Liability
Warranty Claims
Ordering Replacement Parts

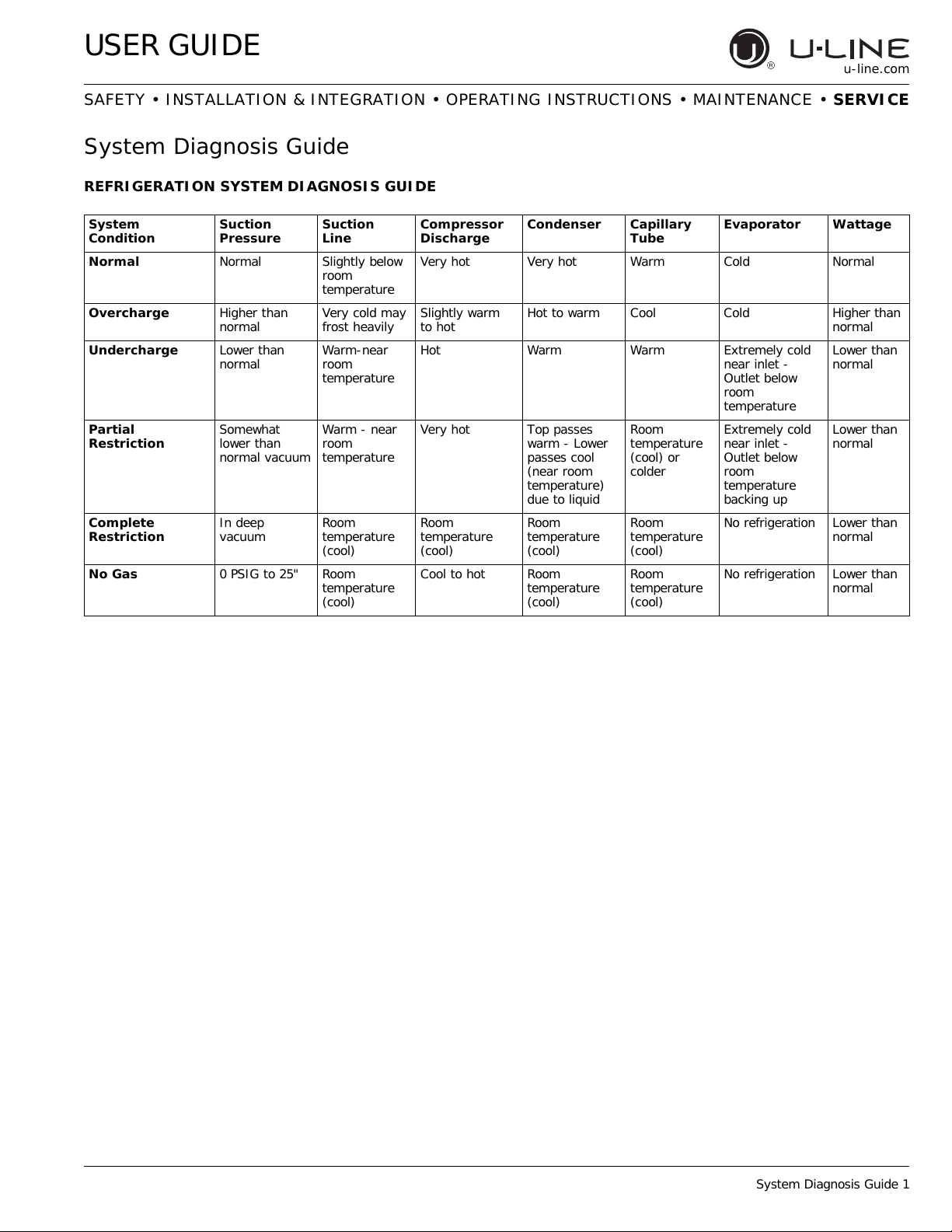

System Diagnosis Guide
Compressor Specifications
Troubleshooting Extended
Defrost
Warranty
USER GUIDE
u-line.com
Introduction
WELCOME TO U-LINE
Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice
making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired
innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height
compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,
Refrigerators, Freezers, and Dispensers.
Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out
®
clean integrated look allow you
to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby
family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products
are available worldwide.
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,
and Product Warranty information are all available for reference and download at u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been
altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Email: sales@u-line.com
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Service Email: onlineservice@u-line.com
Parts Email: onlineparts@u-line.com
Designed, engineered and assembled in WI, USA
3
USER GUIDE
u-line.com
Safety and Warning
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.
This unit contains R600a (Isobutane) which is a
ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes.
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
CAUTION
!
WARNING
!
4
USER GUIDE
u-line.com
Disposal and Recycling
Disposal and Recycling
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take o
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state, and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
DANGER
!
5
USER GUIDE

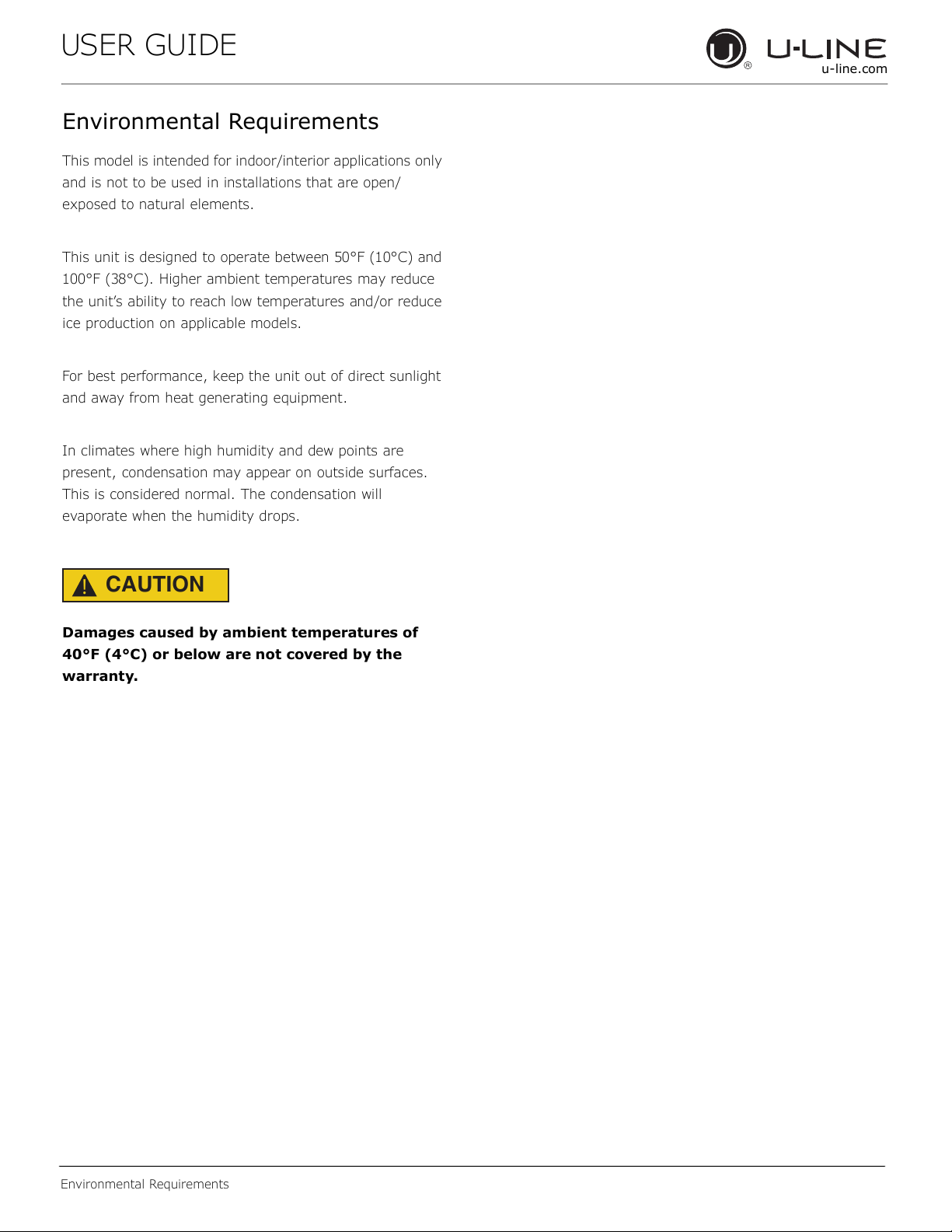

Environmental Requirements
u-line.com
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
6
USER GUIDE
Electrical 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

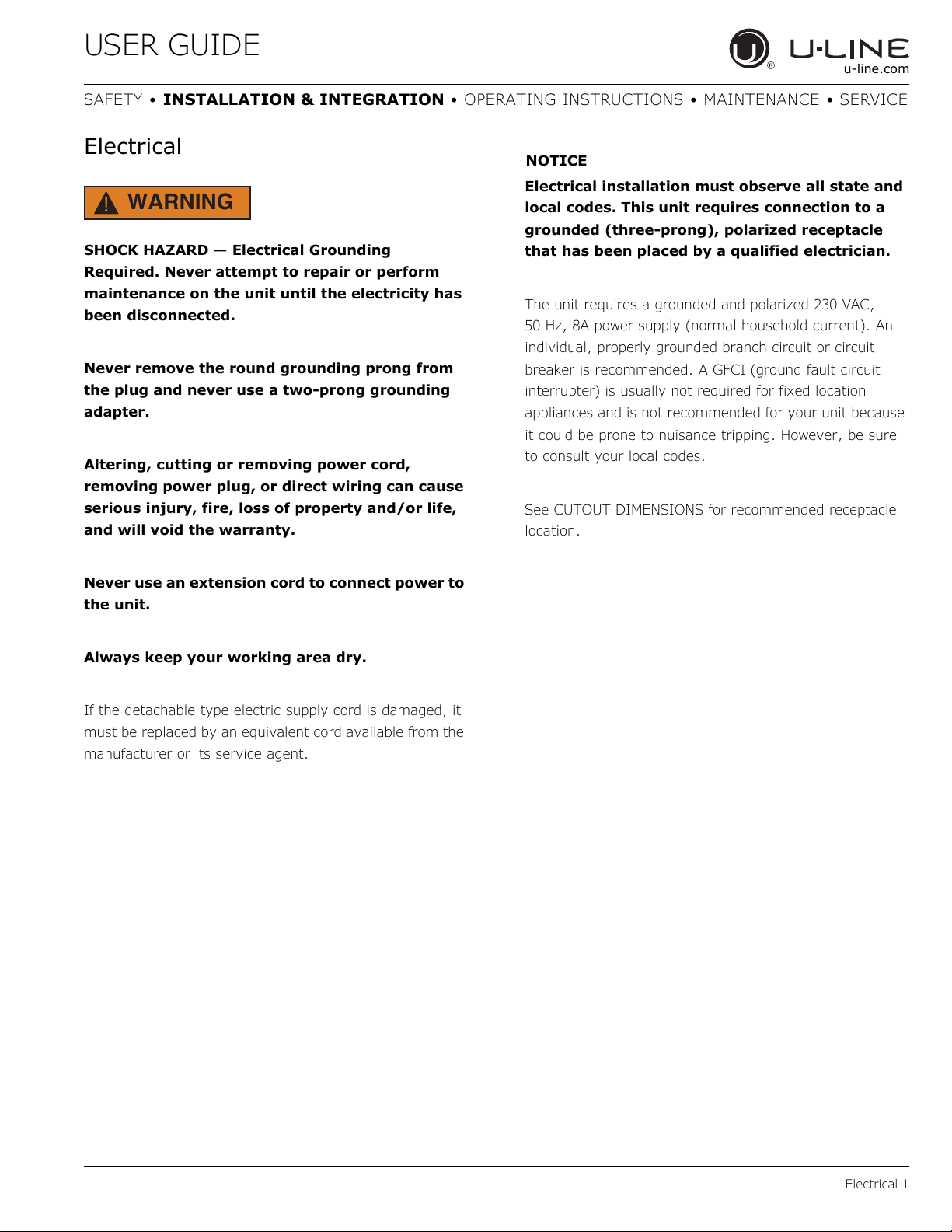

Electrical
WARNING
!
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
If the detachable type electric supply cord is damaged, it
must be replaced by an equivalent cord available from the
manufacturer or its service agent.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 230 VAC,
50 Hz, 8A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
See CUTOUT DIMENSIONS for recommended receptacle
location.
7
USER GUIDE
u-line.com
Cutout & Product Dimensions
Cutout & Product Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
CAUTION
!
Unit can NOT be installed behind a closed cabinet
door.
CUTOUT DIMENSIONS
PRODUCT DIMENSIONS
REAR
FRONT
TOP
SIDE
Typical
Counter
Height
34-"
to
35-"
Cutout
Height
27-"
"
21-
4"
7"
Preferred location
for water line and
electrical outlet is
in adjacent cabinet.
5/8"
(16 mm)
Water Line
Power Cord
1 ⁄”
(44 mm
3 ⁄”
(95 mm
2 ⁄”
(71 mm
4”
(102 mm
27 ⁄”
(699 mm
9”
(229
mm
14
⁄
”
(378 mm
4 ⁄”
(119 mm
17 ⁄”
(452 mm
16 ⁄
”
(391 mm
⁄”
(19mm
20 ⁄”
(530 mm
20
⁄”
(511 mm
2 ⁄”
(60 mm
14 ⁄”
(365 mm
8
USER GUIDE
Water Hookup
u-line.com
Water Hookup
PREPARE PLUMBING
The water valve uses a standard 1/4" (6.35 mm)
compression fitting. U-Line recommends using accessory
water hook up kit – part # ULAWATERHOOKUP. The kit
includes a 10' (3 m) braided flexible water supply line and
a brass hose fitting.
CAUTION
!
Plumbing installation must observe all state and
local codes. All water and drain connections
MUST BE made by a licensed/qualified plumbing
contractor. Failure to follow recommendations
and instructions may result in damage and/or
harm.
Water Supply Connection
When connecting the water supply, please note the
following:
• Before installing the unit and connecting to the cold
water supply, review the local plumbing codes.
• The water pressure should be between 20 and 120 psi
(138 and 827 kPa).
• The water line MUST have a shut-off valve in the
supply line.
• The water line should be looped into 2 coils. This will
allow the unit to be removed for cleaning and servicing.
Make certain that the tubing is not pinched or damaged
during installation.
WARNING
!
Connect to potable water supply only.
CAUTION
!
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
home.
Do not use tape or joint compound when
attaching a braided flexible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or harm,
flooding or void the product warranty.
Use new hose set. Do not reuse old hose set.
CAUTION
!
Turn off water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The
edges could be sharp.
1. Turn off water supply and disconnect electrical supply
to product prior to attempting installation.
2. Remove the back panel.
9
USER GUIDE
Water Hookup
u-line.com
3. Locate water valve inlet.
4. Break away filler feature
in bushing with flat
screwdriver.
5. Thread water line
through back panel hole
(with bushing).
6. Locate water valve inlet
and connect to valve.
7. Turn on water supply
and check for leaks.
8. Reinstall back panel.
9. Install retaining clip.
Remove
ZLWKɠDW
screwdriver
10
USER GUIDE
u-line.com
General Installation
General Installation
LEVELING INFORMATION
NOTICE
Because these units do not have leveling legs,
it is extremely important that they sit on a level
surface. If they are not level, the ice mold will not
ll evenly.
Use a level to conrm the
unit is level. Level should be
placed along top edge and
side edge as shown.
INSTALLATION
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not to
entangle the cord or water line.
3. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments.
4. Remove interior packing material and wipe out the
inside of the unit with a clean, water-dampened cloth.
11
USER GUIDE
u-line.com
Grille Installation
Grille Installation
REMOVING AND INSTALLING GRILLE
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille must be installed.
WARNING
!
DO NOT touch the condenser ns. The condenser
ns are SHARP and can be easily damaged.
Removing the grille
1. Disconnect power to the unit.
2. Open unit door.
3. Remove the center screw.
4. Remove grille by sliding grille up and pulling it toward
you.
Installing the grille
1. Open unit door.
2. Align grille with front of unit slide front tab on grille
behind front of base.
3. Install center screw.
4. Reconnect power to the unit.
WARNING
!
3
12
USER GUIDE
u-line.com
Door Swing
Door Swing
This unit requires zero clearance for the door to open 90
o
when installed adjacent to cabinets. If installing the unit
next to a wall, the door handle requires 2-1/8” (54mm)
clearance.
1/4" Min.
Wall
21"
Wall
21"
16-1/2" 16-1/2"
2" Min.
90°
Door Swing
90°
Door Swing
Black and White Models
2115R Models
Stainless Models
Wall Wall
21"
16-1/2"
2" Min.
90°
Door Swing
Stainless Steel
21"
16-1/2"
90°
Door Swing
Black, White and Wood Overlay
1/4" Min.
2115WC Models
Wall
Wall
90°
Door Swing
Integrated
Stainless Steel, Black and White
90°
Door Swing
2175R(F) & 2275WC Models
90°
Door Swing
Wall Wall
21"
25-1/2"
90°
Door Swing
21"
25-1/2"
Stainless Steel
Wood Overlay
2175BEV
90°
Door Swing
Wall Wall
90°
Door Swing
Stainless Steel
2175WC Models
2-1/8" Min.
(54 mm)
1/4" Min.
(6 mm)
2-1/8" Min.
(54 mm)
1/4" Min.
(6 mm)
2-1/8" Min.
(54 mm)
1/4" Min.
(6 mm)
Black, White and Integrated
13
USER GUIDE
u-line.com
Door Adjustments
Door Adjustments
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not sealing
properly. If the door is not sealed, the unit may not cool
properly, or excessive frost may form in the interior.
NOTICE
Properly aligned, the door’s gasket should be
rmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine the
door’s gasket to ensure that it is rmly in contact
with the cabinet. Also make sure the door gasket
is not pinched on the hinge side of the door.
To align and adjust the door:
1. Loosen (do not remove) top and bottom hinge screws
using a Torx T-25 screwdriver on the top and a 1/4”
socket on the bottom.
2. Align door squarely with cabinet.
3. Make sure gasket is rmly in contact with cabinet all
the way around the door (no gaps).
4. Tighten bottom hinge screws.
5. Tighten top hinge screws.
REVERSING THE DOOR
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
Remove door latch assembly
Remove door latch assembly and reinstall on opposite side
of door (see DOOR LATCH).
TO REVERSE THE DOOR
Remove top hinge and door:
1. Hold door to keep it
from falling.
2. Remove top hinge
from cabinet using a
Torx T-25 screwdriver
to remove three
screws.
3. Remove door by tilting forward and lifting door o
bottom hinge. Retain shoulder washers; they will be
reused.
4. Remove three screws from hinge holes on the opposite
side.
5. Install three screws into holes where the hinge was
removed.
Move bottom hinge:
1. Remove bottom hinge from cabinet using a 1/4”
socket.
Note: If unit is equipped with a plastic grille,
remove the top center screw and the bottom
screw on the hinge rst. Remove grille and other
hinge screw, and proceed to Step 2.
2. Remove corresponding screws on opposite side of
cabinet.
3. Install bottom hinge on opposite side.
Prepare door:
1. Take out the two screws holding the stainless handle.
Remove handle and reinstall the screws into the holes.
2. On the opposite side of the door, remove the two
handle screws and use them to install handle.
Hinge screws
Remove two
hinge screws
Center Screw
14
USER GUIDE
u-line.com
Door Adjustments
3. Remove plastic plug on top of door and save for re-
installation on opposite side.
4. Relocate plastic bushings on top and bottom of door to
opposite side. Clean out bushing hole in door bottom
with a screwdriver if necessary.
Install top hinge:
1. Remove pivot screw from top hinge, invert screw and
reinstall pivot screw in top hinge.
2. Lift the door onto the bottom hinge.
3. Align edge of the hinge with the outer edge of the
unit.
4. Tighten three screws.
5. Insert plastic plug in opposite end of door.
Install grille if applicable.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT AND
ADJUSTMENT)
Plastic
Hole Plug
Plastic
Hole Plug
Hinge
Screw
Right Side
Door Swing
Right Side
Hinge
Invert
Screw
Invert
Hinge
Left Side
Door Swing
15
USER GUIDE
u-line.com
Door Latch

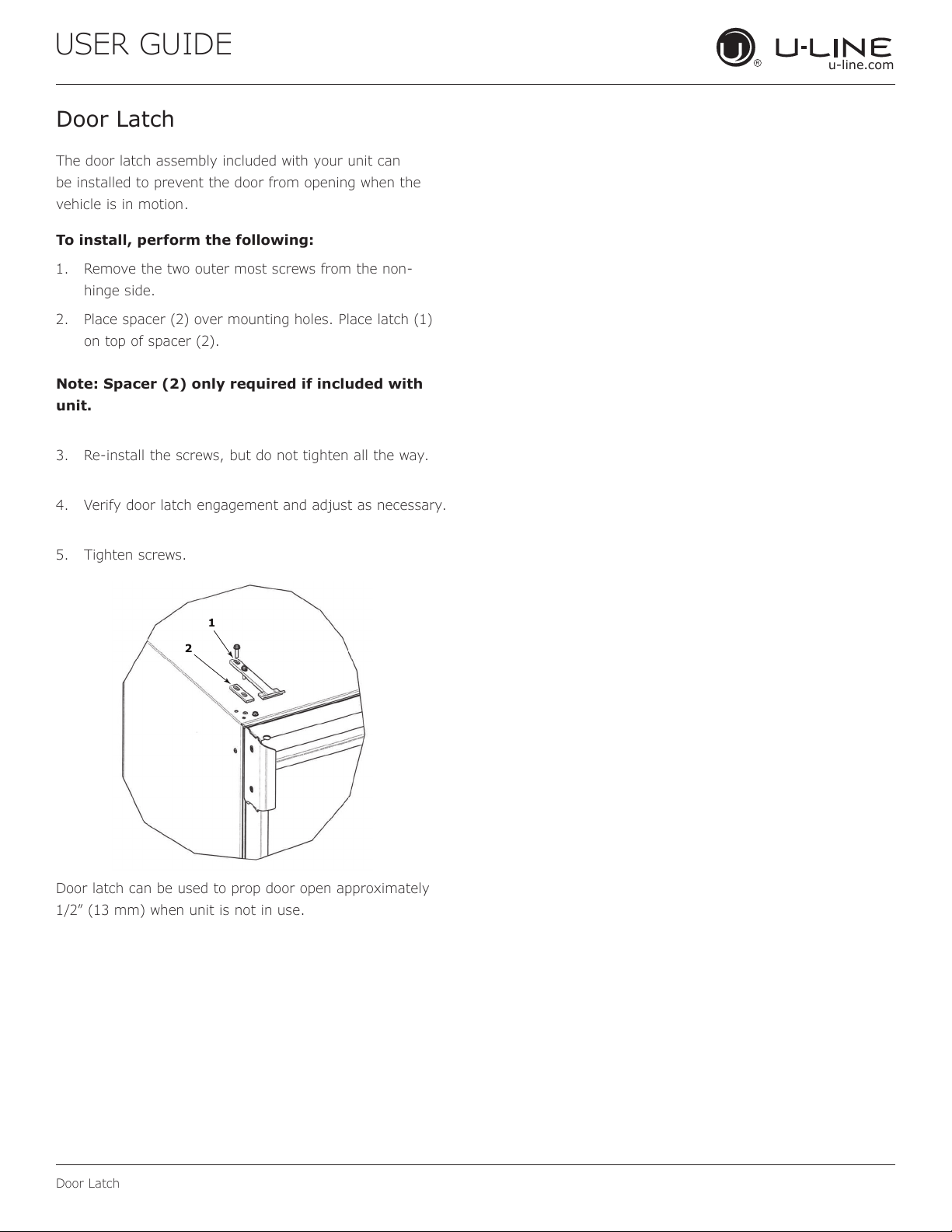

Door Latch
The door latch assembly included with your unit can
be installed to prevent the door from opening when the
vehicle is in motion.
To install, perform the following:
1. Remove the two outer most screws from the non-
hinge side.
2. Place spacer (2) over mounting holes. Place latch (1)
on top of spacer (2).
Note: Spacer (2) only required if included with
unit.
3. Re-install the screws, but do not tighten all the way.
4. Verify door latch engagement and adjust as necessary.
5. Tighten screws.
Door latch can be used to prop door open approximately
1/2” (13 mm) when unit is not in use.
2
1
16
USER GUIDE
First Use
u-line.com

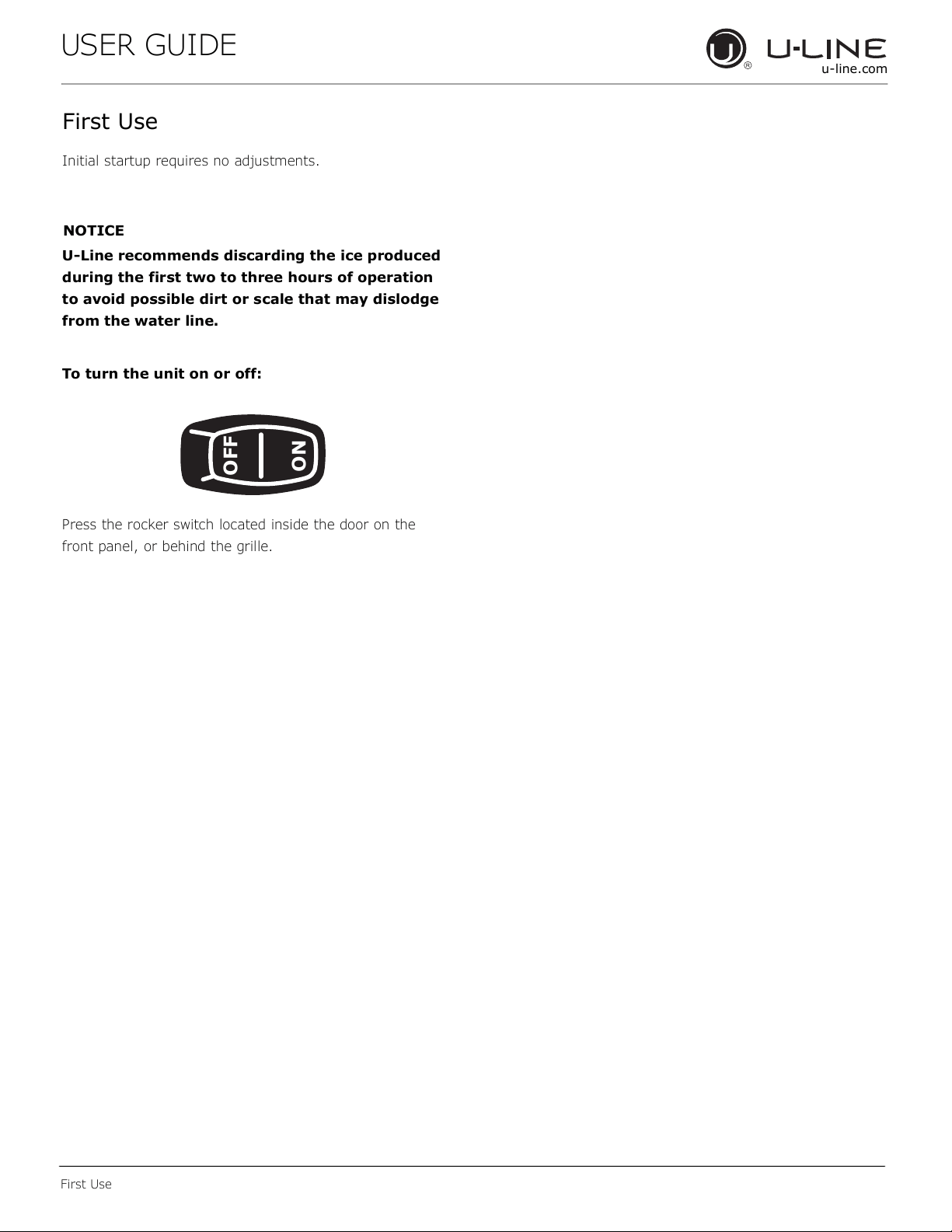

First Use
Initial startup requires no adjustments.
NOTICE
U-Line recommends discarding the ice produced
during the first two to three hours of operation
to avoid possible dirt or scale that may dislodge
from the water line.
To turn the unit on or off:
Press the rocker switch located inside the door on the
front panel, or behind the grille.
OFF
ON
17
USER GUIDE
Ice
u-line.com
Ice
ICE MAKER OPERATION
When the ice bucket is full, the ice making mechanism will
shut off. However, the refrigeration system will continue
to cool and maintain the ice supply.
NOTICE
Do not place cans or bottles in the ice
compartment because they will freeze.
To turn off ice production: Raise the bin arm into
an upright and locked position. The unit will preserve
temperature for ice storage.
NOTICE
If not intending to use the ice maker, turn the
water supply valve off. It is also important to
raise the bin arm of the ice maker (see above).
Failure to raise the bin arm may result in damage
to the water valve.
Certain sounds are normal during the unit’s operation. You
may hear the compressor or fan motor, the water valve,
or ice dropping into the ice bucket.
CAUTION
!
NEVER use an ice pick, knife or other sharp
instrument to separate cubes. Shake the ice
bucket instead.
During periods of limited use or high ambient
temperatures, it is common for cubes to fuse together.
Gently shake the bucket to break apart cubes. If not using
the ice maker regularly, empty the ice bucket periodically
to ensure fresh cubes.
It is normal for cubes to appear cloudy. The cause is air
trapped in the water because of fast freezing. It is not
caused by the health, taste or chemical make up of the
water. It is the same air that is in every glass of water you
drink.
Remove the ice bucket for emptying and cleaning. To
remove the ice bucket, raise the bin arm and remove the
bucket from the ice compartment. Use the ice bucket for
ice storage only.
OFF
ON
18
USER GUIDE
Ice
u-line.com
ICE MAKER ADJUSTMENT
Ice Cube Thickness Adjustment
Interval - As Required
On ice maker equipped models, adjust the cube size by
changing water amount injected into the ice maker
assembly as follows:
1. Remove the ice maker assembly cover (1).
2. Find the adjusting screw on the ice maker assembly
control box (2). The adjusting screw is just below the
minus (-) and plus (+) signs on the control box.
CAUTION
!
Too large of an adjustment to the screw can
cause the water to overflow the ice maker and
can cause property damage.
3. Turn the adjusting screw toward the minus (-) sign
(clockwise) for smaller cubes or toward the plus (+)
sign (counterclockwise) for larger cubes.
4. Install the ice maker assembly cover.
ADJUSTING ICE HARVEST
1. Remove the front grille (see GRILLE INSTALLATION).
2. Using a flat tip screwdriver, turn the adjusting screw
(3) a small increment clockwise for a COLDER setting
(slower ice production) or counterclockwise for a
WARMER setting (faster ice production).
3. Reinstall the front grille (two screws).
1
2
C
O
L
D
E
R
Warmer Colder
3
1
2
19
USER GUIDE
u-line.com
Airow and Product Loading
The unit requires proper airow to perform at its
highest eciency. Do not block the front grille at
any time, or the unit will not perform as expected.
Do not install the unit behind a door.
Depending on the model, your grille may not match
exactly with the below illustrations.
NOTICE
Airow and Product Loading
USER GUIDE
Airflow and Product Loading 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Airflow and Product Loading
NOTICE
The unit requires proper airflow to perform at its
highest efficiency. Do not block the front grille at
any time, or the unit will not perform as
expected. Do not install the unit behind a door.
USER GUIDE
Airflow and Product Loading 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Airflow and Product Loading
NOTICE
The unit requires proper airflow to perform at its
highest efficiency. Do not block the front grille at
any time, or the unit will not perform as
expected. Do not install the unit behind a door.
20
USER GUIDE
Cleaning
u-line.com

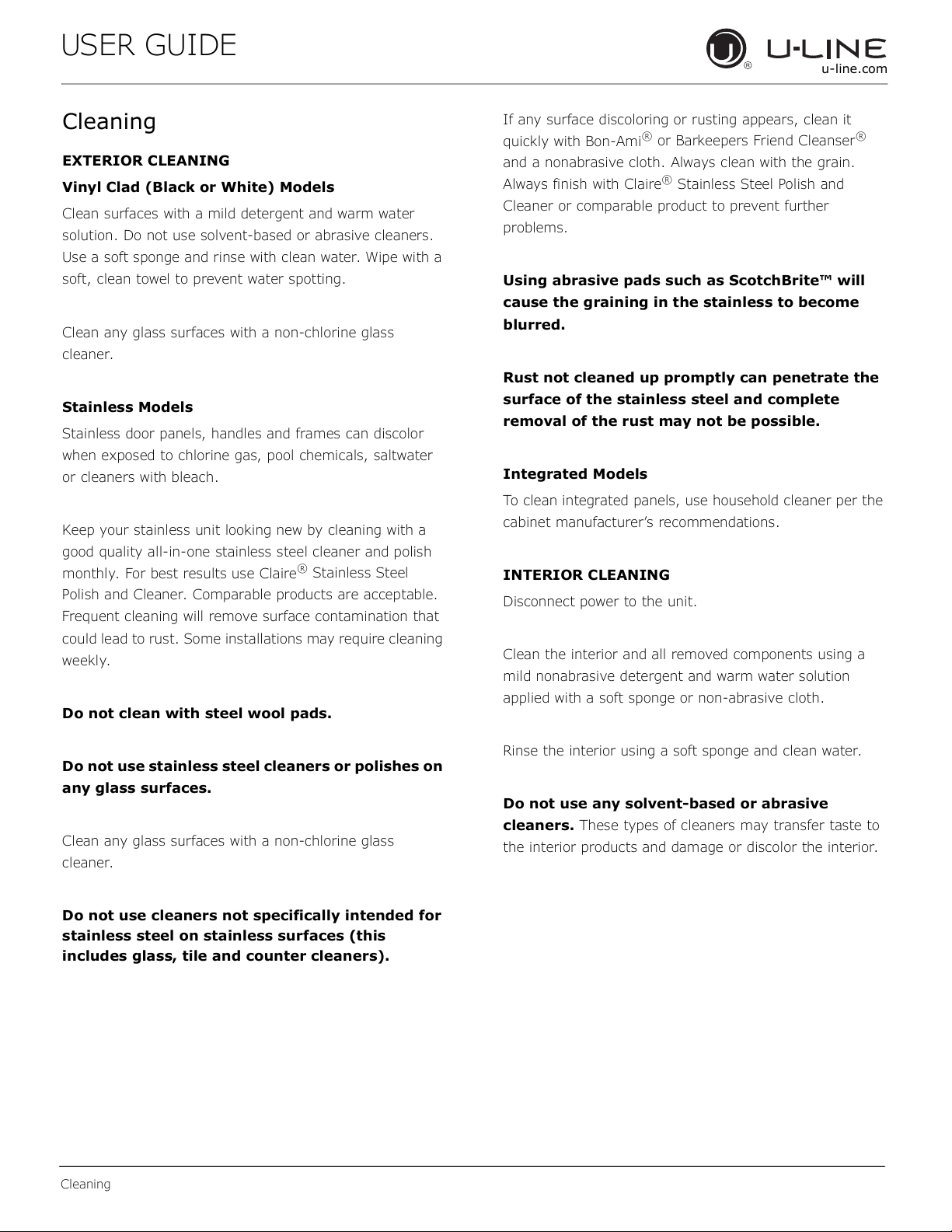

Cleaning
EXTERIOR CLEANING
Vinyl Clad (Black or White) Models
Clean surfaces with a mild detergent and warm water
solution. Do not use solvent-based or abrasive cleaners.
Use a soft sponge and rinse with clean water. Wipe with a
soft, clean towel to prevent water spotting.
Clean any glass surfaces with a non-chlorine glass
cleaner.
Stainless Models
Stainless door panels, handles and frames can discolor
when exposed to chlorine gas, pool chemicals, saltwater
or cleaners with bleach.
Keep your stainless unit looking new by cleaning with a
good quality all-in-one stainless steel cleaner and polish
monthly. For best results use Claire
®
Stainless Steel
Polish and Cleaner. Comparable products are acceptable.
Frequent cleaning will remove surface contamination that
could lead to rust. Some installations may require cleaning
weekly.
Do not clean with steel wool pads.
Do not use stainless steel cleaners or polishes on
any glass surfaces.
Clean any glass surfaces with a non-chlorine glass
cleaner.
Do not use cleaners not specifically intended for
stainless steel on stainless surfaces (this
includes glass, tile and counter cleaners).
If any surface discoloring or rusting appears, clean it
quickly with Bon-Ami
®
or Barkeepers Friend Cleanser
®
and a nonabrasive cloth. Always clean with the grain.
Always finish with Claire
®
Stainless Steel Polish and
Cleaner or comparable product to prevent further
problems.
Using abrasive pads such as ScotchBrite™ will
cause the graining in the stainless to become
blurred.
Rust not cleaned up promptly can penetrate the
surface of the stainless steel and complete
removal of the rust may not be possible.
Integrated Models
To clean integrated panels, use household cleaner per the
cabinet manufacturer’s recommendations.
INTERIOR CLEANING
Disconnect power to the unit.
Clean the interior and all removed components using a
mild nonabrasive detergent and warm water solution
applied with a soft sponge or non-abrasive cloth.
Rinse the interior using a soft sponge and clean water.
Do not use any solvent-based or abrasive
cleaners. These types of cleaners may transfer taste to
the interior products and damage or discolor the interior.
21
USER GUIDE
Cleaning
u-line.com
DEFROSTING
Manual Defrost Models
This unit is a manual defrost model and will require
occasional defrosting. When there is build-up of 1/4"
(6 mm) or more of frost, manually defrost the unit.
CAUTION
!
DO NOT use an ice pick or other sharp
instrument to help speed up defrosting. These
instruments can puncture the inner lining or
damage the cooling unit. DO NOT use any type of
heater to defrost. Using a heater to speed up
defrosting can cause personal injury and
damage to the inner lining.
To defrost:
1. Disconnect power to the unit.
2. Remove ice bucket and discard ice.
3. Place towel or other absorbent material on bottom of
ice bin.
4. Fill the ice bucket half full with warm, not hot water.
This will help the unit defrost faster.
5. Place the ice bucket back into the unit on top of the
towel or other absorbent material.
6. Prop the door in an open position (2 in. [50 mm]
minimum).
7. After about 1 hour remove the ice bin and discard
water.
8. Allow the frost to melt naturally.
9. After the frost melts completely clean the interior and
all removed components. (See INTERIOR CLEANING).
NOTICE
DO NOT clean ice bucket using a dishwasher. The
bucket is not dishwasher safe and will be
damaged.
10.When the interior is dry, reconnect power and turn unit
on.
NOTE: To safeguard against contaminates in ice, discard
first three batches of ice after defrosting.
22
USER GUIDE
u-line.com
Extended Non-Use
Extended Non-Use
VACATION/HOLIDAY, PROLONGED SHUTDOWN
The following steps are recommended for periods of
extended non-use:
1. Remove all consumable content from the unit.
2. Disconnect the power cord from its outlet/socket
and leave it disconnected until the unit is returned to
service.
3. Turn o the water supply.
4. If ice is on the evaporator, allow ice to thaw naturally.
5. Clean and dry the interior of the cabinet. Ensure all
water has been removed from the unit.
6. Disconnect the water and drain line (if applicable)
making sure all water is removed from the lines.
7. The door must remain open to prevent formation of
mold and mildew. Open door a minimum of 2” (50
mm) to provide the necessary ventilation.
WINTERIZATION
If the unit will be exposed to temperatures of 40°F (5°C)
or less, the steps above must be followed. In addition,
P60 drain pumps in clear ice machines must be drained
according to the following procedure:
1. Remove the drain pump from the ice machine.
2. Drain the water in the pump’s reservoir by turning the
pump upside down and allowing the water to drain
through the pump’s inlet and vent tube ttings.
3. After water is drained, reinstall the drain pump and
reattach all connections.
For questions regarding winterization, please call
U-Line at 414.354.0300.
CAUTION
!
Damage caused by freezing temperatures is not
covered by the warranty.
Do not put anti-freeze in your unit.
23
USER GUIDE
Troubleshooting 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

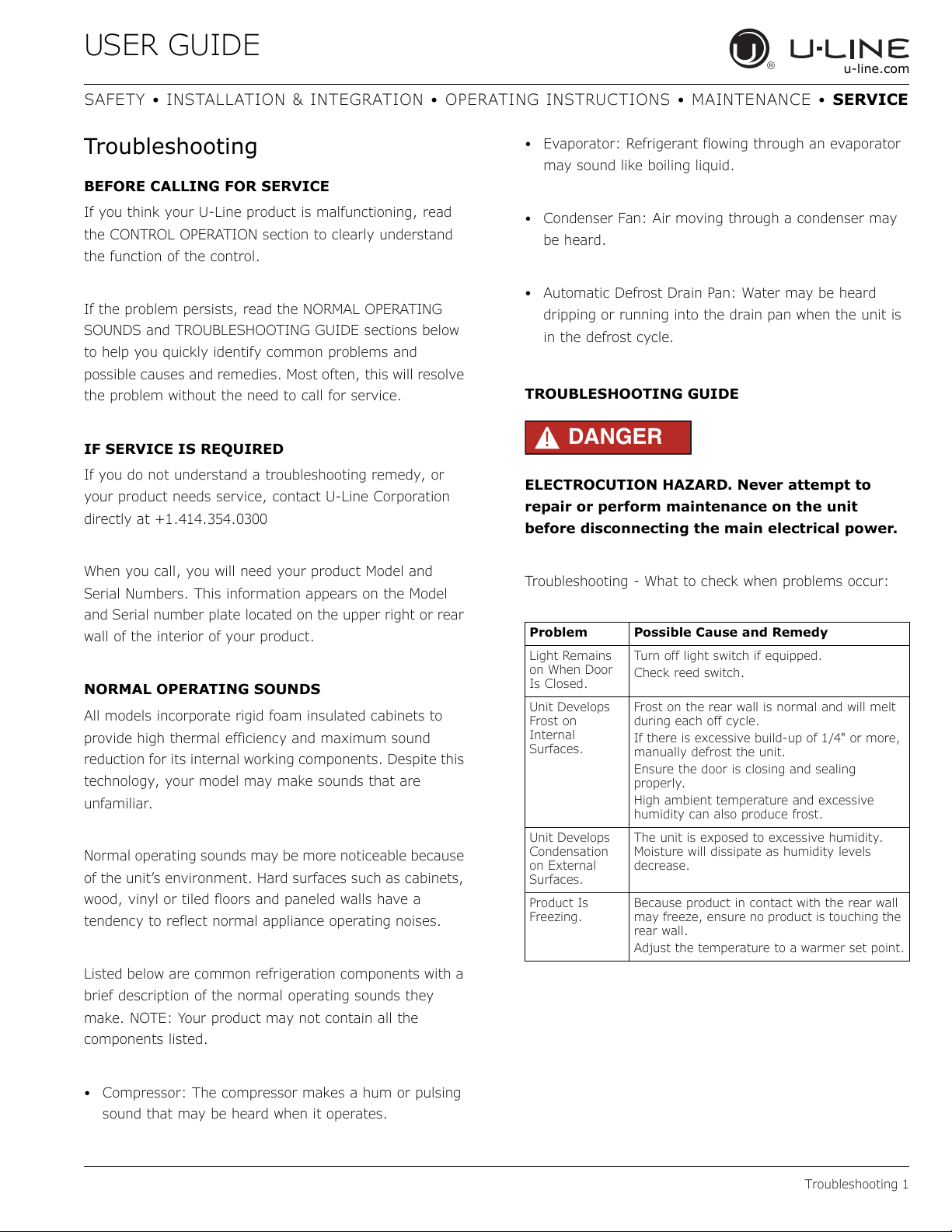

Troubleshooting
BEFORE CALLING FOR SERVICE
If you think your U-Line product is malfunctioning, read
the CONTROL OPERATION section to clearly understand
the function of the control.
If the problem persists, read the NORMAL OPERATING
SOUNDS and TROUBLESHOOTING GUIDE sections below
to help you quickly identify common problems and
possible causes and remedies. Most often, this will resolve
the problem without the need to call for service.
IF SERVICE IS REQUIRED
If you do not understand a troubleshooting remedy, or
your product needs service, contact U-Line Corporation
directly at +1.414.354.0300
When you call, you will need your product Model and
Serial Numbers. This information appears on the Model
and Serial number plate located on the upper right or rear
wall of the interior of your product.
NORMAL OPERATING SOUNDS
All models incorporate rigid foam insulated cabinets to
provide high thermal efficiency and maximum sound
reduction for its internal working components. Despite this
technology, your model may make sounds that are
unfamiliar.
Normal operating sounds may be more noticeable because
of the unit’s environment. Hard surfaces such as cabinets,
wood, vinyl or tiled floors and paneled walls have a
tendency to reflect normal appliance operating noises.
Listed below are common refrigeration components with a
brief description of the normal operating sounds they
make. NOTE: Your product may not contain all the
components listed.
• Compressor: The compressor makes a hum or pulsing
sound that may be heard when it operates.
• Evaporator: Refrigerant flowing through an evaporator
may sound like boiling liquid.
• Condenser Fan: Air moving through a condenser may
be heard.
• Automatic Defrost Drain Pan: Water may be heard
dripping or running into the drain pan when the unit is
in the defrost cycle.
TROUBLESHOOTING GUIDE
DANGER
!
ELECTROCUTION HAZARD. Never attempt to
repair or perform maintenance on the unit
before disconnecting the main electrical power.
Troubleshooting - What to check when problems occur:
Problem Possible Cause and Remedy
Light Remains
on When Door
Is Closed.
Turn off light switch if equipped.
Check reed switch.
Unit Develops
Frost on
Internal
Surfaces.
Frost on the rear wall is normal and will melt
during each off cycle.
If there is excessive build-up of 1/4" or more,
manually defrost the unit.
Ensure the door is closing and sealing
properly.
High ambient temperature and excessive
humidity can also produce frost.
Unit Develops
Condensation
on External
Surfaces.
The unit is exposed to excessive humidity.
Moisture will dissipate as humidity levels
decrease.
Product Is
Freezing.
Because product in contact with the rear wall
may freeze, ensure no product is touching the
rear wall.
Adjust the temperature to a warmer set point.
24
USER GUIDE
Troubleshooting 2
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
CHECKING PRODUCT TEMPERATURE
To check the actual product temperature in the
unit:
1. Partially fill a plastic (nonbreakable) bottle with water.
2. Insert an accurate thermometer.
3. Tighten the bottle cap securely.
4. Place the bottle in the desired area for 24 hours.
5. Avoid opening the unit during the testing period.
6. After 24 hours, check the temperature of the water. If
required, adjust the temperature control in a small
increment (see CONTROL OPERATION).
Causes which affect the internal temperatures of
the cabinet include:
• Temperature setting.
• Ambient temperature where installed.
• Installation in direct sunlight or near a heat source.
• The number of door/drawer openings and the time the
door/drawer is open.
• The time the internal light is illuminated. (This mainly
affects product on the top rack or shelf.)
• Obstruction of front grille or condenser.
Product is Not
Cold Enough.
Air temperature does not indicate product
temperature. See CHECKING PRODUCT
TEMPERATURE below.
Adjust the temperature to a cooler set point.
Ensure unit is not located in excessive
ambient temperatures or in direct sunlight.
Ensure the door is closing and sealing
properly.
Ensure the interior light has not remained on
too long.
Ensure nothing is blocking the front grille,
found at the bottom of the unit.
Ensure the condenser coil is clean and free of
any dirt or lint build-up.
Problem Possible Cause and Remedy
25
USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
u-line.com
Wire Diagram 1
42312_C WIRING DIAGRAM
NEUTRAL WHITE
(DARK BLUE)
BLACK
(BROWN)
RELAY
EMBRACO
COMPRESSOR
GREEN or
GREEN W/ YELLOW
GROUND:
OVERLOAD
CAP
EMU
ONLY
MANUAL CONTROL ICEMAKER & COMBO
ROCKER
SWITCH
COND
FAN
WATER
VALVE
SEE COMPRESSOR
DIAGRAMS
BROWN
(ORANGE)
LIGHT BLUE
BLUE
(LIGHT BLUE)
WHITE
(DARK BLUE)
BLACK (BROWN)
BLACK
(BROWN)
WHITE
(DARK BLUE)
BIN
SW
NO
NC
C
WATER
SW
NC
NO
C
HOLD
SW
NO
NC
C
CAM
3 RPM
MOTOR
LIMIT
SW
MOLD HEATER
YELLOW
BLACK
RED
WHITE
WHITE
(DARK BLUE)
BROWN
YELLOW
RED
BROWN
(ORANGE)
BLACK(BROWN)
BROWN W/YELLOW
RED
YELLOW
BROWN
BLACK
BROWN
ORANGE
OR BLUE
BLACK
OR BLUE
OR
ALL OTHER MODELS
ICEMAKER
BI1215 ONLY
CONTROL
POWER CORD ASSEMBLY
GROUND:
GREEN or GREEN W/ YELLOW
115
VOLT
PLUG
220-240 VOLT
PLUG
BLACK-HOT
(SMOOTH)
BLACK-NEUTRAL
(RIBBED)
BLACK
(BROWN)
WHITE
(DARK BLUE)
1
3
6
4
4
1
5
3
2
6
4
1
5
3
2
6
Wire Diagram
26
USER GUIDE
Product Liability 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Product Liability
Field service technicians are authorized to make an initial
assessment in the event of reported damages. If there are
any questions about the process involved, the technician
should call U-Line for further explanation.
While inspecting for defects or installation issues, photos
should be taken to document any damages or issues
found.
During the assessment, if the service technician is able to
find the source of the damage and it can be resolved by
replacement of a part, the servicer is authorized to
replace the part in question. The part that caused the
damage must be returned to U-Line in its entirety. The
part must be clearly labeled with the serial number of the
unit it was removed from, the date, and the servicer who
removed the part.
If the service technician determines the damage is the
result of installation issues (water connection/drain, etc.),
the consumer would be notified and the issues shall be
resolved at the direction of the consumer.
If damage is evident and the service technician is unable
to find the source, U-Line must be contacted at 1-800-
799-2547 for further direction
8900 N. 55th Street • Milwaukee, WI 53223
T: +1.414.354.0300 • F: +1.414.354.354.5696
Website: www.u-line.com
Right product. Right place.
Right temperature Since 1962.
27
USER GUIDE
Warranty Claims 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Warranty Claims
The following information defines the parameters for filing
a warranty claim:
• Valid serial number needed
• Valid model number needed
• Narda (or equivalent) form or submitted online at
www.u-line.com
• 60 day submittal deadline from date of completed
service
• Only one repair or unit per warranty claim
• Refrigerant should be labeled and included on the labor
submittal
• Door and water level adjustments are covered 30 days
from install date.
Serial Number Requirements:
A typical serial number is shown above. The first two
digits of the first segment, 14, represents the production
year. The number between the dashes, 12, represents the
production month. In most cases, warranty status can be
verified by the production date information within the
serial number.
• Alternatively, a Proof of Purchase (or equivalent) may
submitted with the warranty claim to document
warranty status. We also accept the following
information to verify warranty status:
• New Construction Occupancy Documents
•Closing Paperwork
• Final Billing – Remodel
Noting all of the following on the warranty claim will be
considered proof of purchase, hard copy will not be
required:
• Name of the selling Dealer
• Date of purchase/installation
• Order or Invoice number (if available)
• Description of document reviewed (i.e. store receipt,
closing paperwork, etc)
Parts and labor claims are paid separately. Indicate part
numbers and description for parts used in the warranty
repair. Include the purchase invoice and name of the parts
supplier used to procure the parts.
14 30911 12 XXXX
Year
Month
28
USER GUIDE
Ordering Replacement Parts 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Ordering Replacement Parts
If you have a purchasing account, please utilize our
service website to order parts.
Orders may also be placed by Fax or phone. See our
contact information below:
www.U-LineService.com (with service login)
FAX Number: +1.414.354.5696
Phone Number: +1.800.779.2547
NOTICE
Use only genuine U-Line replacement parts. The
use of non-U-Line parts can reduce speed of ice
production, cause water to overflow from ice
maker mold, damage the unit, and void the
warranty.
Warranty parts will be shipped at no charge after U-Line
confirms warranty status. Please provide the model, serial
number, part number and part description. Some parts
will require color or voltage information.
If U-Line requires the return of original parts, we will
inform you when the parts order is taken. This
requirement will be noted on your packing list. A prepaid
shipping label will be included with the replacement part.
Please enclose a copy of the parts packing list and any
labor claims with your return. Please be sure the model
and serial numbers are legible on the paperwork. Tag the
part with the reported defect.
When ordering a non-warranty part, you will need an open
account and tax exemption on file at U-Line. Another
option would be to visit www.u-line.com to locate an
authorized parts distributor in your area.
29
USER GUIDE
System Diagnosis Guide 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
System Diagnosis Guide
REFRIGERATION SYSTEM DIAGNOSIS GUIDE
System
Condition
Suction
Pressure
Suction
Line
Compressor
Discharge
Condenser Capillary
Tube
Evaporator Wattage
Normal Normal Slightly below
room
temperature
Very hot Very hot Warm Cold Normal
Overcharge Higher than
normal
Very cold may
frost heavily
Slightly warm
to hot
Hot to warm Cool Cold Higher than
normal
Undercharge Lower than
normal
Warm-near
room
temperature
Hot Warm Warm Extremely cold
near inlet -
Outlet below
room
temperature
Lower than
normal
Partial
Restriction
Somewhat
lower than
normal vacuum
Warm - near
room
temperature
Very hot Top passes
warm - Lower
passes cool
(near room
temperature)
due to liquid
Room
temperature
(cool) or
colder
Extremely cold
near inlet -
Outlet below
room
temperature
backing up
Lower than
normal
Complete
Restriction
In deep
vacuum
Room
temperature
(cool)
Room
temperature
(cool)
Room
temperature
(cool)
Room
temperature
(cool)
No refrigeration Lower than
normal
No Gas 0 PSIG to 25" Room
temperature
(cool)
Cool to hot Room
temperature
(cool)
Room
temperature
(cool)
No refrigeration Lower than
normal
30
USER GUIDE
Compressor Specifications 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Compressor Specifications
DANGER
!
Electrocution can cause death or serious injury.
Burns from hot or cold surfaces can cause
serious injury. Take precautions when servicing
this unit.
Disconnect the power source.
Do not stand in standing water when working
around electrical appliances.
Make sure the surfaces you touch are not hot or
frozen.
Do not touch a bare circuit board unless you are
wearing an anti-static wrist strap that is
grounded to an electrical ground or grounded
water pipe.
Handle circuit boards carefully and avoid
touching components.
To measure the start winding resistance, measure across
the C and S pins.
To measure the run winding resistance, measure across
the C and R pins.
Also check S to R and you should get the sum of the run
and start windings.
To ensure the windings are not shorted, check the S and R
to ground.
* All resistance readings are ±10%
EM150HER
Refrigerant R134a
Voltage 220 - 240 VAC
Frequency 50 Hz
Run Cap n/a
Start Winding 24.5 Ohm at 77°F (25°C)
Run Winding 17.9 Ohm at 77°F (25°C)
LRA 6 A
FLA 1.1 A
Starting Device 8EA5B3
Overload 189RHBYY-53
ULIN_0576_AW
RS
C
OVERLOAD PROTECTOR
STARTING RELAY
RELAY COVER
31
USER GUIDE
Troubleshooting - Extended 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Troubleshooting - Extended
SPECIFIC ERRORS & ISSUES
CAUTION
!
Never attempt to repair or perform maintenance
on the unit until the main electrical power has
been disconnected from the unit.
TROUBLESHOOTING GUIDE
Concern Potential Causes Suggested Remedy
Will not eject ice
(water frozen).
Control setting too cold. Adjust control warmer (counterclockwise).
Control inoperable (1-2 contacts open) Replace control.
Bin switch inoperable. Replace bin switch.
Limit switch defective (open). Replace limit switch.
Ice maker assembly motor stalled. Replace motor.
Broken wire in ice maker circuit. Repair or replace wiring.
Water soaked cabinet insulation. Replace foamed cabinet assembly.
Dirty condenser. Clean condenser.
Will not fill with
water.
Water supply valve closed. Open water supply valve.
Water switch inoperable (open). Replace water switch.
Solenoid valve inoperable. Replace solenoid valve.
Fill tube outlet frozen. Defrost fill tube.
Broken wire in water fill circuit. Repair or replace wiring.
Will not stop
making ice.
Bin switch inoperable (closed). Replace bin switch.
Bin arm binding. Lubricate bin arm pivot points or loosen bin arm lever screw.
Water will not
stop filling.
Water switch inoperable (closed). Replace water switch.
Solenoid valve inoperable. Replace solenoid valve.
Stalled ice maker motor. Replace motor.
Temperature control inoperable. Ice maker is in
continuous harvest cycle (contacts 1-2 closed).
Replace temperature control.
Ejector blades
will not stop
turning.
Control inoperable (1-2 contacts will not open). Replace control.
Hold switch inoperable. Replace hold switch.
Broken wiring. Repair or replace wiring.
Short in mold heater. Replace heater.
Low ice
production.
Control set too cold. Adjust control warmer (counterclockwise).
Fan motor stalled. Replace fan motor.
Ice cubes too large. Lower water fill adjustment.
Dirty condenser. Clean condenser.
Bypass valve stuck open (Frost Free units only). Replace bypass valve (Frost Free units only).
Not freezing
(compressor
and fan motors
operating).
Little or no frost pattern on evaporator. Check for sealed system leak or restriction.
Bypass valve stuck open (Frost Free units only). Replace bypass valve (Frost Free units only).
Not freezing
(compressor not
operating - fans
operating).
Relay inoperable. Replace relay.
Overload inoperable (open). Replace overload.
Compressor inoperable. Replace compressor.
32
USER GUIDE
Troubleshooting - Extended 2
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Not freezing
(compressor
and fans not
operating).
Power cord not plugged in. Plug in power cord.
On/Off switch in off position. Turn switch to on position.
On/Off switch inoperable (open). Replace On/Off switch.
Hold switch inoperable (open). Replace hold switch.
Control inoperable (2-3 contacts open). Replace control.
Broken wire in freeze circuit. Repair or replace wiring.
Ejector blades not in freeze position (12:00) Manually advance ejector blades to the 12:00 position (test ice
maker and limit switch).
Compressor
overheating.
Condenser air flow restricted. Remove restriction (clean condenser and grille).
Condenser fan blade obstructed. Remove blade restriction.
Condenser fan motor stalled. Replace fan motor.
Compressor inoperable. Replace compressor.
Compressor will
not stop
operating.
Control set too cold. Adjust control warmer (counterclockwise).
Control inoperable (2-3 contacts will not open). Replace control.
Control sensing bulb not sensing mold
temperature.
Fully insert bulb into ice maker tube. Rout bulb away from
compressor discharge tube.
Evaporator fan stalled (Frost Free units only). Remove obstruction or replace motor.
Water leak
(under unit).
Water supply line leaking at solenoid valve inlet. Tighten fitting or replace fitting gasket and/or fitting.
Water line leaking at solenoid valve outlet. Replace water line and fitting.
Water line leaking at fill tube. Tighten clamp or replace fill tube assembly.
Defrost drain line not in drain pan. Position drain line in drain pan.
Crack in water line. Replace water line.
Water leak
(inside unit).
Ice maker assembly fill cup obstructed. Remove obstruction.
Fill ice cup and fill tube out of alignment. Align fill tube and fill cup.
Water level too high. Adjust water level.
Defrost drain plugged (Frost Free units only). Ice in drain trough (Frost Free units only) (see below).
Excessive frost
buildup.
Door gasket not sealing properly. Adjust door hinges or replace door gasket.
Door out of alignment. Adjust door hinges.
Water soaked cabinet insulation. Replace foamed cabinet assembly.
Light stays on when door is closed. Repair or adjust light bracket.
Noisy. Copper refrigeration tube touching cabinet. Carefully adjust tubing.
Fan blade touching shroud. Adjust fan mounting or shroud.
Fan blade obstruction (wiring, foam insulation,
packaging material).
Remove obstruction.
Ice buildup in
drain trough or
drainage
problem.
Obstructed drain cup or tube. Clear obstruction.
Drain trough heater failed (Frost Free units only). Replace drain trough heater (Frost Free units only).
Kinked drain tube. Align drain trough and drain cup.
Drain trough spout and drain cup not aligned. Reroute drain tube.
Unit will not
defrost (Frost
Free units only).
Bypass coil inoperable. Replace bypass valve.
Defrost timer inoperable. Replace defrost timer.
Bypass valve inoperable. Replace bypass valve.
Fresh food
temperature too
cold.
Temperature control set too cold. Adjust control to warmer setting (counterclockwise).
Bin/Freezer door not closing. Adjust or replace door.
Ice bucket not fully inserted. Check for ice behind bucket and push ice bucket in place.
Concern Potential Causes Suggested Remedy
33
USER GUIDE
Troubleshooting - Extended 3
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
ICE MAKER DIAGNOSIS FLOW CHART
DOES THE UNIT REFRIGERATE?
Sealed System Leak
Electrical Failure
Compressor Failure
Fan Motor Failure
Defrost System Failure
Low Voltage
Voltage Drop
Wiring
Temperature Control Failure
Water Adjustment
Bin Switch Failure
NO
NO
EVERYWHERE
INTERMITTENT
AT 3:00
YES
NO
AT 12:00
DOES THE UNIT HARVEST ICE
IF THE EJECTOR BLADES ARE
MOVED BY HAND OR WITH A
WRENCH ?
WHERE DO THE
EJECTOR BLADES
STOP?
Mold Heater Failure
Solenoid Valve Failure
Ice Motor Failure
Hold Switch Failure
Limit Switch Failure
Binding Cam/Ejector
Water Switch Failure
IS THERE VOLTAGE AT THE
SOLENOID VALVE TERMINALS
DURING HARVEST?
UL183-11
YES
YES
34
USER GUIDE
Troubleshooting - Extended 4
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
ICE MAKER OPERATING CYCLES
Freeze Cycle
• Temperature control terminals 2 and 3 are closed.
• Power to the condenser.
• Power to the condenser fan.
Figure 1. Freeze Cycle
SWITCH
LIMIT
orange
black
black
black
MOTOR
MAKER
ICE
MOLD HEATER
WATER
SWITCH
FILL
C
NC
MOTOR
FAN
LOAD
OVER
black
RELAY
START
COMP.
SWITCH
OFF
ON
black
black
blue
black
CONTROL
TEMP.
NC
black
orange
3
yellow
2
orange
SWITCH
BIN
red
NO
1
C
NO
brown
black
white
C
SWITCH
HOLD
VALVE
WATER
ground
UL183-4
35
USER GUIDE
Troubleshooting - Extended 5
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Harvest-1 Cycle
• Temperature control terminals 2 and 3 are open - 2 and
1 close.
• No power to the compressor or condenser fan.
• If bin arm is down, power goes through bin arm switch
to the ice maker motor. If bin arm is up, the ice maker
will not harvest.
Figure 2. Harvest-1 Cycle (Hold Switch in Normal Position)
SWITCH
LIMIT
orange
black
black
black
MOTOR
MAKER
ICE
MOLD HEATER
WATER
SWITCH
FILL
C
NC
MOTOR
FAN
LOAD
OVER
black
RELAY
START
COMP.
SWITCH
OFF
ON
black
black
blue
black
CONTROL
TEMP.
NC
black
orange
3
yellow
2
orange
SWITCH
BIN
red
NO
1
C
NO
brown
black
white
C
SWITCH
HOLD
VALVE
WATER
ground
UL183-5
36
USER GUIDE
Troubleshooting - Extended 6
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
HARVEST-2 CYCLE
• Ice maker ejector blades reach approximately 2:00
position and cam depresses the hold switch. Power
goes through the hold switch to the ice maker motor
and mold heater.
• Ejector blades stall on ice and ice maker motor
pulsates until mold heater warms and ice releases.
Figure 3. Harvest-2 Cycle (Hold Switch in Switched Position)
SWITCH
LIMIT
orange
black
black
black
MOTOR
MAKER
ICE
MOLD HEATER
WATER
SWITCH
FILL
C
NC
MOTOR
FAN
LOAD
OVER
black
RELAY
START
COMP.
SWITCH
OFF
ON
black
black
blue
black
CONTROL
TEMP.
NC
black
orange
3
yellow
2
orange
SWITCH
BIN
red
NO
1
C
NO
brown
black
white
C
SWITCH
HOLD
VALVE
WATER
ground
UL183-6
37
USER GUIDE
Troubleshooting - Extended 7
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
WATER FILL CYCLE
• Ice maker ejector blades reach approximately 10:00
position and cam depresses the water fill switch.
• Power to the water valve. Ice maker mold fills.
Figure 4. Water Fill Cycle
EJECT CYCLE
• Ejector blades push ice into bucket and stop at 12:00
position.
• Temperature control terminals 2 and 3 have closed
during harvest cycle.
• Next freeze cycle begins with power to the compressor
and condenser fan.
SWITCH
LIMIT
orange
black
black
black
MOTOR
MAKER
ICE
MOLD HEATER
WATER
SWITCH
FILL
C
NC
MOTOR
FAN
LOAD
OVER
black
RELAY
START
COMP.
SWITCH
OFF
ON
black
black
blue
black
CONTROL
TEMP.
NC
black
orange
3
yellow
2
orange
SWITCH
BIN
red
NO
1
C
NO
brown
black
white
C
SWITCH
HOLD
VALVE
WATER
ground
UL183-7
38
USER GUIDE
Troubleshooting - Extended 8
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
TEMPERATURE CONTROL SPECIFICATIONS
Double Throw Ice Maker Thermostat Numbers
4548, AR-19-12, 2636, 2690, 2691, 2717, 2783,
2782-S, 2763-S, 2780, 80-26005-02
These temperature controls are double throw, single pole
controls. The sensing tube is inserted into the ice maker
mold and senses mold temperature. After ice is sensed in
the mold, the 2-3 contacts open (stopping the
compressor) and the 2-1 contacts are closed (starting the
ice maker motor). The 2-3 contacts close (2-1 contacts
open) before the end of the ice harvest cycle.The hold
switch prevents power going back to the compressor. This
prepares the control for the next cycle.
.
Figure 5. Temperature Controls - Manual Defrost Ice Makers
YELLOW WIRE
CONNECTION
RED WIRE
CONNECTION
BLUE/BLACK WIRE
CONNECTION
ICE MAKER CONTROL
2
1
3
183-8
22
1
3
1
3
FREEZE POSITION ICE HARVEST POSITION
CYCLE
CLOSED
CIRCUIT
OPEN
CIRCUIT
FREEZE 2 - 1 2 - 3
HARVEST 2 - 3 2 - 1
183-9
39
USER GUIDE
Troubleshooting - Extended 9
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
LIMIT SWITCH SPECIFICATIONS
• Normally closed Bi-metal switch
• Open temperature: 104°F
• Close temperature: 83°F
The function of this switch is to open in the event of an
overheating condition. This bi-metal thermostat is
normally closed and does not initiate the ice harvest
cycle. The ice harvest cycle is initiated by a double throw,
single pole temperature located remotely from the ice
maker assembly.
Figure 6. Limit Switch
28.12
3.00
183-10
40
USER GUIDE
Troubleshooting - Extended 10
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
REPLACING ICE MAKER ASSEMBLY (CO29F
ONLY)
1. Unplug the unit from the main power source.
2. Disconnect ice maker wire harness at plug (1).
3. Remove control capillary tube from sensing tube on ice
maker assembly (2).
4. Remove water inlet tube.
5. Remove front cover (3).
6. Advance the ejector blade to the 3 o’clock position by
turning the 5/16" hex head on the small brass gear
counterclockwise (4).
7. Remove three screws from wall of freezer housing (5).
8. Remove ice maker assembly.
9. Place new ice maker assembly into position and secure
with three screws (5).
10.Reconnect wire harness at plug.
11.Insert control capillary tube into ice maker sensing
tube.
12.Insert water inlet tube.
13.Apply Permagum
®
to all exit holes.
14.Install back panel.
15.Plug in unit and test.
Figure 7. Ice Maker Assembly
41
USER GUIDE
Troubleshooting - Extended 11
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
REPLACING ICE MAKER ASSEMBLY (ALL MODELS
EXCEPT CO29F)
1. Remove back panel.
2. Disconnect all wires at bell connectors (5 wires-Models
BI95, BI98 or SP18; or Plug-Models).
3. Remove capillary tube from sensing tube on ice maker
assembly (2).
4. Remove water inlet tube.
5. Remove front cover (3)
6. Advance ejector blades to the 3:00 position by turning
the 5/16" hex head on the small brass gear
counterclockwise (4).
7. Remove two screws from the side wall of evaporator
(5).
8. Remove screws from the bottom of the evaporator
plate.
9. Remove ice maker assembly from evaporator shelf.
10.Clean alumilastic from evaporator shelf.
11.Apply 1/4" layer of fresh alumilastic to heater side of
new ice maker.
12.Replace parts in reverse order of removal.
13.Reconnect all wires.
14.Insert capillary tube into ice maker sensing tube.
15.Insert water inlet tube.
16.Apply permagum to all exit holes. Mount back panel.
17.Mount the back panel.
18.Plug in unit and test.
220 Volt Conversion List
All models listed in this manual are equipped to run on
110/115 volt. This document is a conversion list for the
applicable 220 volt parts for the following models:
•SP18
•BI95
•BI98
• SS1095
110V P/N 220V P/N Description
5263-S 5195 Fan Motor
80-39015-00 628109 I.M. motor (ice makers)
402 619 Ice maker assembly -
Models SP18, BI95, BI98
and model SS1095
402-29/1175 620 Ice maker assembly -
Models SP18, BI95, BI98
and model SS1095
2552A 2555A Water valve
5402-S 5404-S Compressor (ice makers)
150 650 Faceplate assembly
5414 5418 Relay
5413 5417 Overload
42
USER GUIDE
Defrost 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Defrost
These units are manual defrost.
To defrost unit remove ice bucket. Turn unit off. Use
toweling inside to absorb water as it melts down. This will
help prevent water from getting onto customer’s floor.
The defrost duration is dependent upon usage or climate.
Typically, defrosting is needed approximately every 3 - 6
weeks and/or when 1/4" or more of frost is present -
whichever comes first.
43
Copyright © 2020 U-Line Corporation. All Rights Reserved. | Publication Number 30379 | 11/2020 Rev. O
U-Line Corporation (U-Line) Limited Warranty
One Year Limited Warranty
For one year from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Two Year Limited Warranty (5 Class Product)
For two years from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Available Second & Third Year Limited Warranty
In addition to the standard one and two year warranties outlined above, U-Line offers a one year extension of the warranties from the date
of purchase, free of charge. To take advantage of this extension, you must register your product with U-Line within 60 days from the date
of purchase at u-line.com and provide proof of purchase.
Five Year Sealed System Limited Warranty
For five years from the date of original purchase, U-Line will repair or replace the following parts, labor not included, that prove to be
defective in materials or workmanship: compressor, condenser, evaporator, drier, and all connecting tubing. All service provided by U-Line
under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service
provided during normal business hours.
Terms
These warranties apply only to products installed in any one of the fifty states of the United States, the District of Columbia, or the ten
provinces of Canada. The warranties do not cover any parts or labor to correct any defect caused by negligence, accident or improper use,
maintenance, installation, service, repair, acts of God, fire, flood or other natural disasters. The product must be installed, operated, and
maintained in accordance with your product’s User Guide.
The remedies described above for each warranty are the only ones that U-Line will provide, either under these warranties or under any
warranty arising by operation of law. U-Line will not be responsible for any consequential or incidental damages arising from the breach of
these warranties or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. These warranties give you specific legal
rights, and you may also have other rights which vary from state to state.
Any warranty that may be implied in connection with your purchase or use of the product, including any warranty of merchantability or any
warranty fit for a particular purpose is limited to the duration of these warranties, and only extends to five years in duration for the parts
described in the section related to the five year limited warranty above. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitations may not apply to you.
• The warranties only apply to the original purchaser and are non-transferable.
• The second, third, and five year warranties cover products installed and used for normal residential or designated marine use only.
• The warranties apply to units operated outside only if designed for outdoor use by model and serial number.
• U-Line Commercial products are covered by the one year and 5 year limited warranties and are not eligible for the second and
third year limited warranties.
• Replacement water filters, light bulbs, and other consumable parts are not covered by these warranties.
• The start of U-Line’s obligation is limited to four years after the shipment date from U-Line.
• In-home instruction on how to use your product is not covered by these warranties.
• Food, beverage, and medicine loss are not covered by these warranties.
• If the product is located in an area where U-Line factory authorized service is not available, you may be responsible for a trip
charge or you may be required to bring the product to a U-Line factory authorized service location at your own cost and expense.
• Units purchased after use as floor displays, and/or certified reconditioned units, are covered by the limited one year warranty only
and no coverage is provided for cosmetic defects.
• Signal issues related to Wi-Fi connectivity are not covered by these warranties.
For parts and service assistance, or to find U-Line factory authorized service near you, contact U-Line:
8900 N. 55
th
Street, Milwaukee, WI 53223 • u-line.com • onlineservice@u-line.com •
+1.414.354.0300
44
