INSTALLATION GUIDE
Isodrive 950
www.schweigen.com.au
Under our policy of continuous product development,
product specications may change without notice.
Please refer to the online version of the manual for the
latest updates and specications.
Page 2
Welcome
Thank you for purchasing your new Schweigen Isodrive system.
To get the maximum output from this unit, please read through this guide before use and installation.
This guide contains important information on the correct use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your Isodrive system.
Please always retain your proof of purchase to aid in any warranty queries.
This appliance and its packaging are produced by processes that minimise waste and respect the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently and dispose
of the packaging in a responsible manner.
Page 3
Index
1. Welcome _____________________________________________________________________________________ 2
2. Your Safety
Receiving your rangehood ______________________________________________________________________ 4
Before Installation ______________________________________________________________________________ 4
Electrical Cord __________________________________________________________________________________ 4
Motor Features ________________________________________________________________________________ 5
General Notes on Installation and Use ____________________________________________________________ 5
Recommended Installation Distance _____________________________________________________________ 5
Minimum Mounting Height ______________________________________________________________________ 6
Avoidance of Back Flow _________________________________________________________________________ 6
Safety of Children ______________________________________________________________________________ 6
Replacement of Supply Cord _____________________________________________________________________ 6
Why Schweigen SteelFlex
™
Safety Duct __________________________________________________________ 6
3. Description
Isodrive Motor _________________________________________________________________________________ 7
4. Installation
Roof Installation _______________________________________________________________________________ 8
Wall Installation ________________________________________________________________________________ 10
5. SteelFlex
™
Safety Duct
SteelFlex
™
Safety Ducting __________________________________________________________ 12

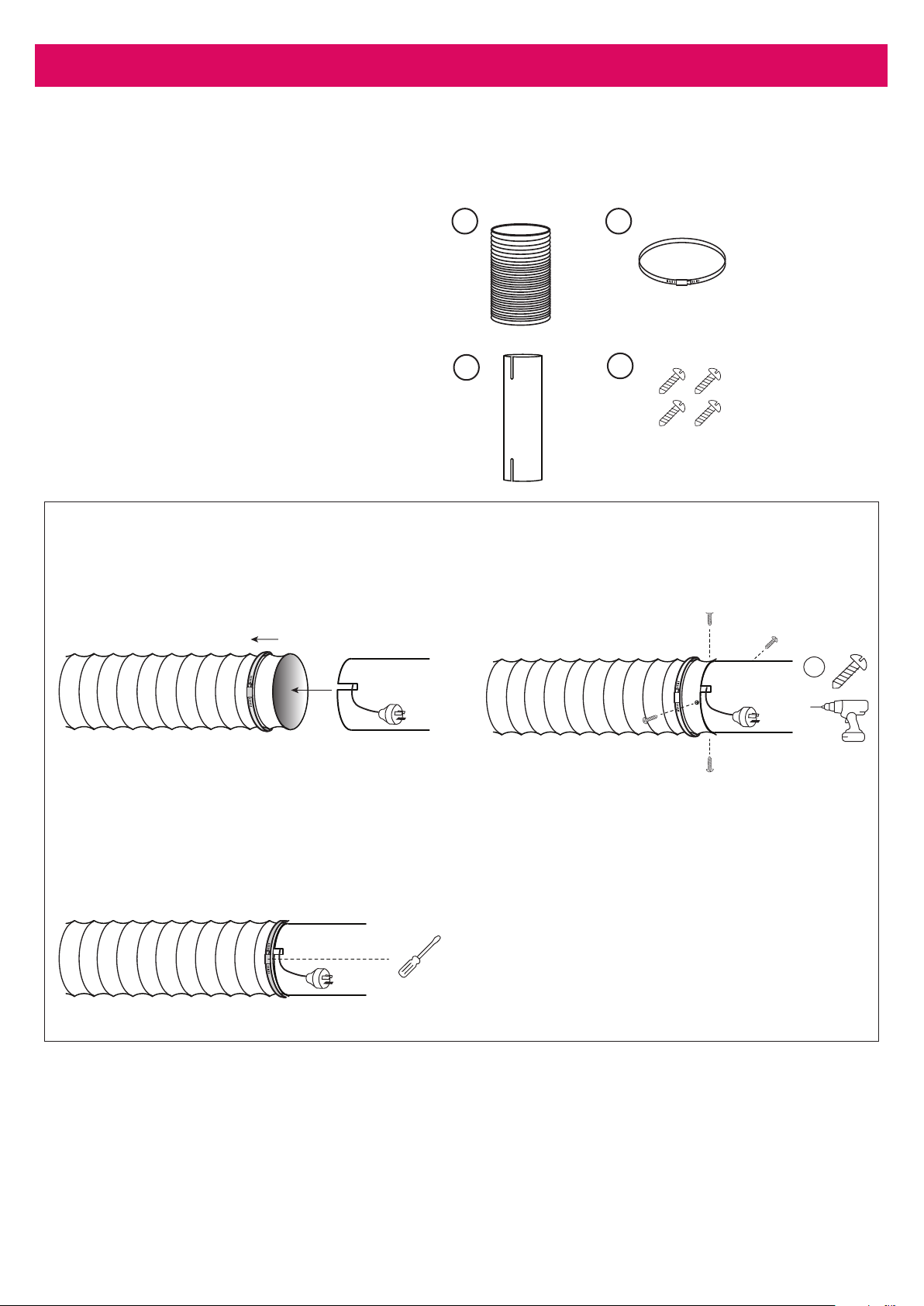

Assembling SteelFlex
™
Safety Duct ____________________________________________________ 13

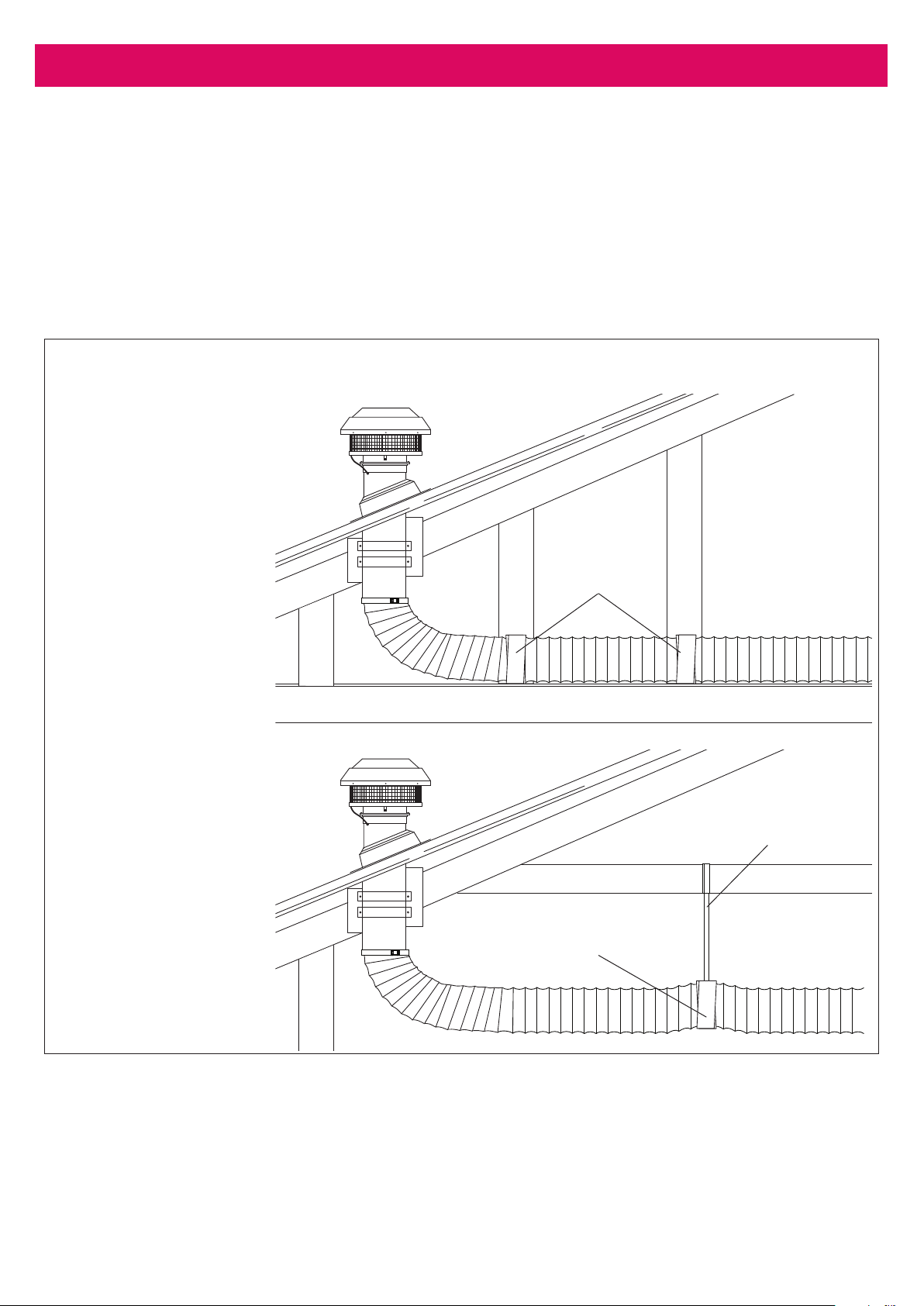

Shallow Roof Space _______________________________________________________________ 14
Important Note __________________________________________________________________ 14
Securing SteelFlex
™
Safety Duct ______________________________________________________ 15
6. Maintenance

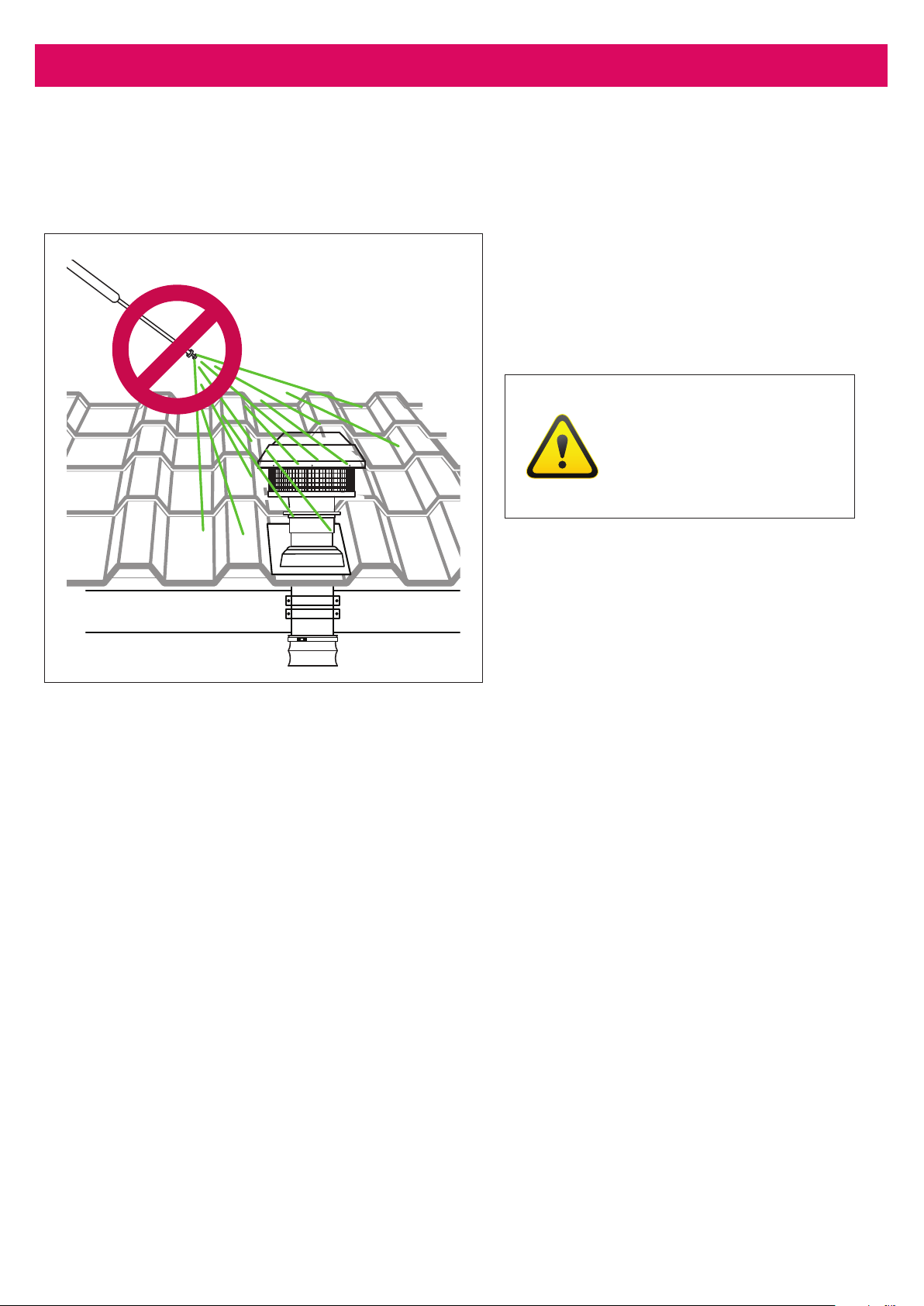

Roof Restoration or Cleaning ________________________________________________________ 16
7. Measurements

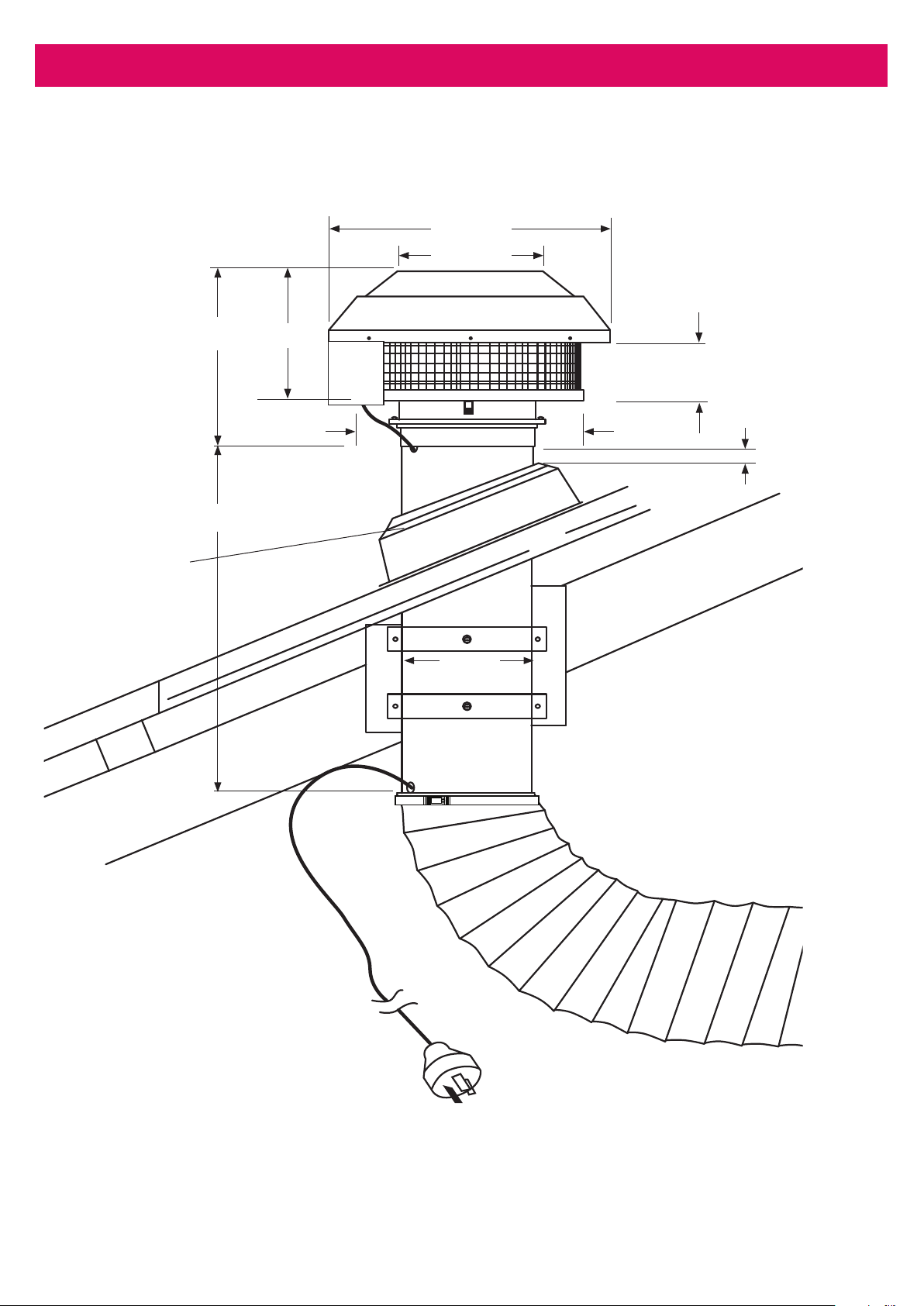

Measurements for Isodrive 950 ______________________________________________________ 17
8. Warranty/Disclaimer ________________________________________________________________________ 18
Page 4
2. Your Safety
This appliance is not intended for use by person/s (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and/or knowledge. Unless the person has been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance, it is not a toy.
Do not install Isodrive motor to a non-Schweigen and/or non-silent rangehood. If you fail to do so, your
warranty will be voided.
The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
Ensure that the location in which this appliance is installed, has good and permanent ventilation.
Please consult local laws and regulations and install in accordance.
Use an electrical connector with earth that is correct for your location.
Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
Before Installation
We recommend this appliance to be installed or repaired by an experienced Home Appliances technician.
Please see our website www.schweigen.com.au for experienced installers.
It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the warranty.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged, it must be
replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a hazard. The power
supply cord connection MUST BE installed in such a way that access is easy in case of emergency.
RECEIVING YOUR RANGEHOOD
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, the supplier, nor the retailer, will be responsible
for the costs associated with the repair, replacement, removal or re-installation of
the appliances.
Page 5
2. Your Safety
This guide is for the installation of the Isodrive motor system after the rangehood has been mounted on the
wall or roof. (Refer to rangehood installation manual on how to install the rangehood).
NOTE: All pipe and SteelFlex
™
ducting measurements are referring to inside measurements, unless otherwise
mentioned.
Isodrive® Motor Features
• Roof and wall mounting with IPX4 degree of weather protection.
• Patented anti water intrusion system.
• Super quiet, long vane, backward curved, German-made centrifugal fan.
• Airow is dependant on installation and the ducting used. The motor has the equivalent performance of
a 1100 m
3
/h internal motor rangehood when ducted out to the atmosphere. The result is based on the
German DIN and European EN IEC 61591:2020+A11 testing criteria for rangehood performance and is focus
on the removal of contaminants from the kitchen to the external atmosphere. The use of a smaller than
200mm ducting would result in a loss of airow.
• Simple installation: The motor mounts onto a 200mm metal pipe for ultimate strength and allows for
easy Dektite roof sealing.
• Industrial quality motor and fan made in Germany and rated at 40,000 hours.
• Motor is a high eciency PSC type and rated at 57W.
• WARRANTY 10 YEARS. Covers faulty manufacturing or components. It does not cover normal wear and
tear, chemical or storm damage etc. (see warranty card for more information).
General Notes on Installation and Use
This fan unit is for external use only, with only ducting from the inlet side using supplied 200mm metal pipe as
the initial connection duct to the fan module, and 200mm SteelFlex™ duct.
This fan is suitable for connection to ducting runs with a minimum inlet area of 22,000mm
2
and length up to
8 metres maximum (check with supplier if longer duct length required). SteelFlex
™
ducting must be extended
suciently to present a smooth air passage with bends of at least the radius of twice the diameter of the duct.
Excessive bends in the ducting will compromised extraction.
WARNING: The motor must not be put into a wall cavity or a ceiling space, where a build up of grease can
occur and become a potential re risk. This will void your warranty.
NOTE: Fan module and Steelex
™
duct are acoustically matched. Use of semi-rigid or rigid ducting will result
in increased noise and may void warranty. See installation instruction notes ‘Why Schweigen SteelFlex
™
Safety Duct’.
Recommended Installation Distance

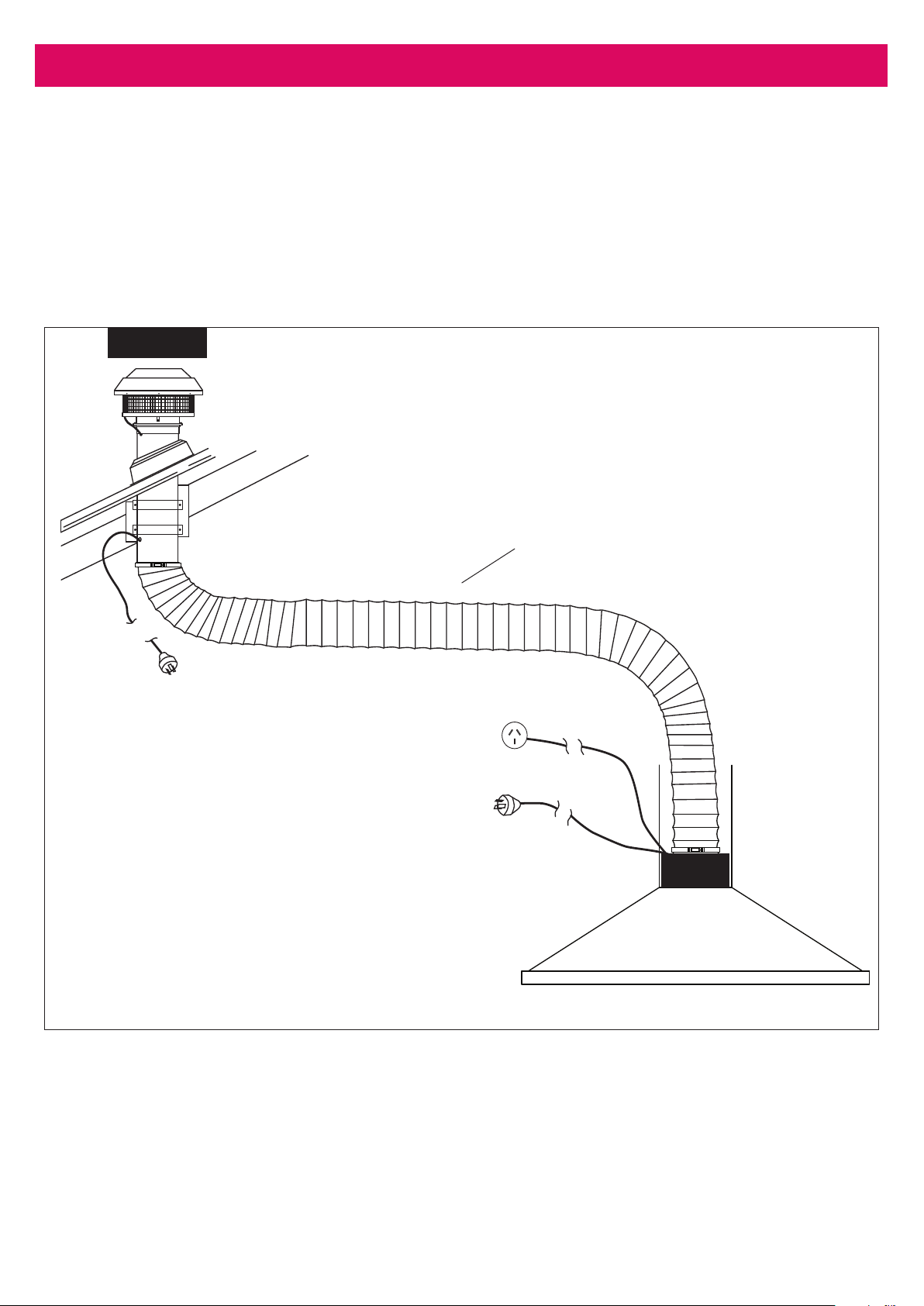

Isodrive 950 motor, recommended 4 metres of SteelFlex
™
ducting and with at least two gentle bends.
NOTE: Installation closer than this distance may result in higher noise level. Maximum duct length is 8 metres.
Check with supplier if longer duct length is required. Do not reduce the duct size at any time and avoid
sharp bends.
Page 6
Minimum Mounting Height
This fan unit is intended for mounting at a minimum height of 2.1 metres (measured to the lower part of the
fan impeller) above a oor or the ground.
Avoidance of Back Flow
Care should be taken to avoid the back ow of gases into the room from the open ue of gas or other open
re appliances. Exhaust fans may adversely aect the safe operation of appliances burning gas or other
fuels (including those in other rooms) due to back ow of combustion gases. These gases can potentially
result in carbon monoxide poisoning. After installation of an exhaust fan such as a partition fan or a duct fan
the operation of ued gas appliances should be tested by a competent person to ensure that back ow of
combustion gases does not occur.
Safety of Children
This fan is not intended for use by young children or inrm persons without supervision.
Replacement of Supply Cord
If the supply cord is damaged, it must be replaced by a service agent or suitably qualied person in order to
avoid a hazard.
Why Schweigen SteelFlex
™
Safety Duct
Schweigen SteelFlex
™
is an ultra-strong and exible high-performance safety ducting made
of Shirikon Firemesh
®
– a tri-layer tear-resistant UV-treated sleeve. Both are developed by
Schweigen – the Silent Rangehood specialists, for quiet and ecient high-volume transfers
of temperature-sensitive air. Engineered to enhance the health and safety of your home,
Schweigen SteelFlex
™
is antimicrobial treated, thermally insulated and acoustically dampened.
It is reproof, pest and crush proof with a treated surface that prevents the build-up of grease
and bacteria.
Schweigen’s unique Ecodrive system works in the opposite way to conventional rangehoods, pulling air
through the hood and acoustically matched ducting, producing almost silent high volume ow. The use of a
complete rigid or semi-rigid ducting system will allow an organ piping eect to occur; like a didgeridoo where a
noise is produced at one end of a hollow rigid pipe and the noise is amplied out the other.
The Ecodrive system places the noise outside the house.
WARNING: Installation without the use of at least the minimum recommended length of acoustically matched
SteelFlex
™
in the system will void performance expectations. Any installation problem must be reported
to Schweigen. Call outs relating to incorrect installation will result in a service fee direct to the customer.
Schweigen takes no responsibility for problems caused by faulty installation, this may void warranty.
An experienced installer list can be obtained from Schweigen website www.schweigen.com.au or by
calling 1300 881 693.
2. Your Safety
Page 7
3. Description
Isodrive Motor

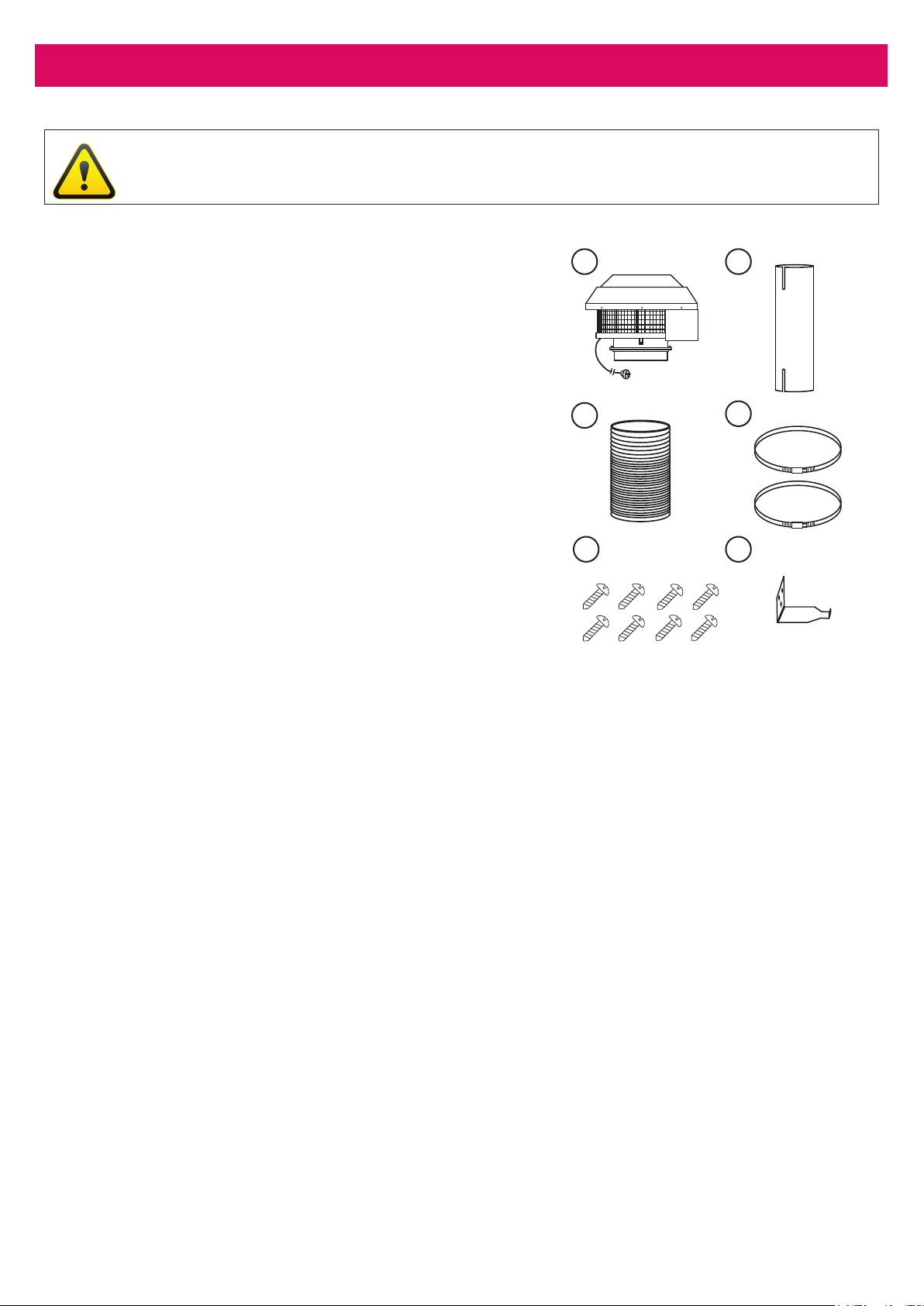

Included in the box:
1. Isodrive 950 motor (350W x 295H mm approx.)
Approx. 3 metre, 10amp cable and standard plug
(backdraft shutter and weather shield included)
2. Fire resistant 200mm metal pipe
3. SteelFlex
™
safety ducting. Approx. 4 metres,
200mm (210mm outside dimension) diameter
4. 2 x Steel ring clamps
(for attaching ducting to rangehood and motor)
5. 8 x 12mm self-drilling button head screws
(for attaching metal pipe to motor and ducting)
6. Wall hanging bracket
Not included in the box:
• Roof seal kit / Dektite
• Support clamps/straps for pipe which connects to the roof truss
• Aluminium foil tape
• Wall Cover Plate (wall mount only) – optional
1
5
2
3
4
NOTE
For more SteelFlex
™
ducting instructions, refer page 12.
6
Page 8
4. Installation
Roof Installation
Recommended duct length: 950 motor — 4 metres.
Mount 200mm metal pipe securely to beams, trusses or other appropriate structures: refer gure 1. The pipe
should be mounted vertically with the roof penetration being sealed using a Dektite or other appropriate sealing
membrane or device (not provided).
Ensure that the pipe protrudes at least 80mm past the top of the Dektite, checking that the fan assembly
clears the roof cladding at upper edge, refer gure 1 – Roof Mount Option.
Pass power cord and plug through pipe, then out the slotted pipe for connection to the socket coming from the
canopy/rangehood. Refer to gure 1.
Do not insert plug into socket outlet or switch on until installation has been completed. Fit fan module to pipe and
x in position using side locking screw.
Certain external installation congurations may cause audible levels of noise to be heard due to the air being
expelled from the motor. To minimize external noise disturbance you can use between 4 to 8 metres of SteelFlex
™
duct to place the Isodrive motor in an appropriate position.
For more information on environmental noise limit and conditions please contact your local Council.
For installation, we have a list of experienced installers available on the Schweigen website.

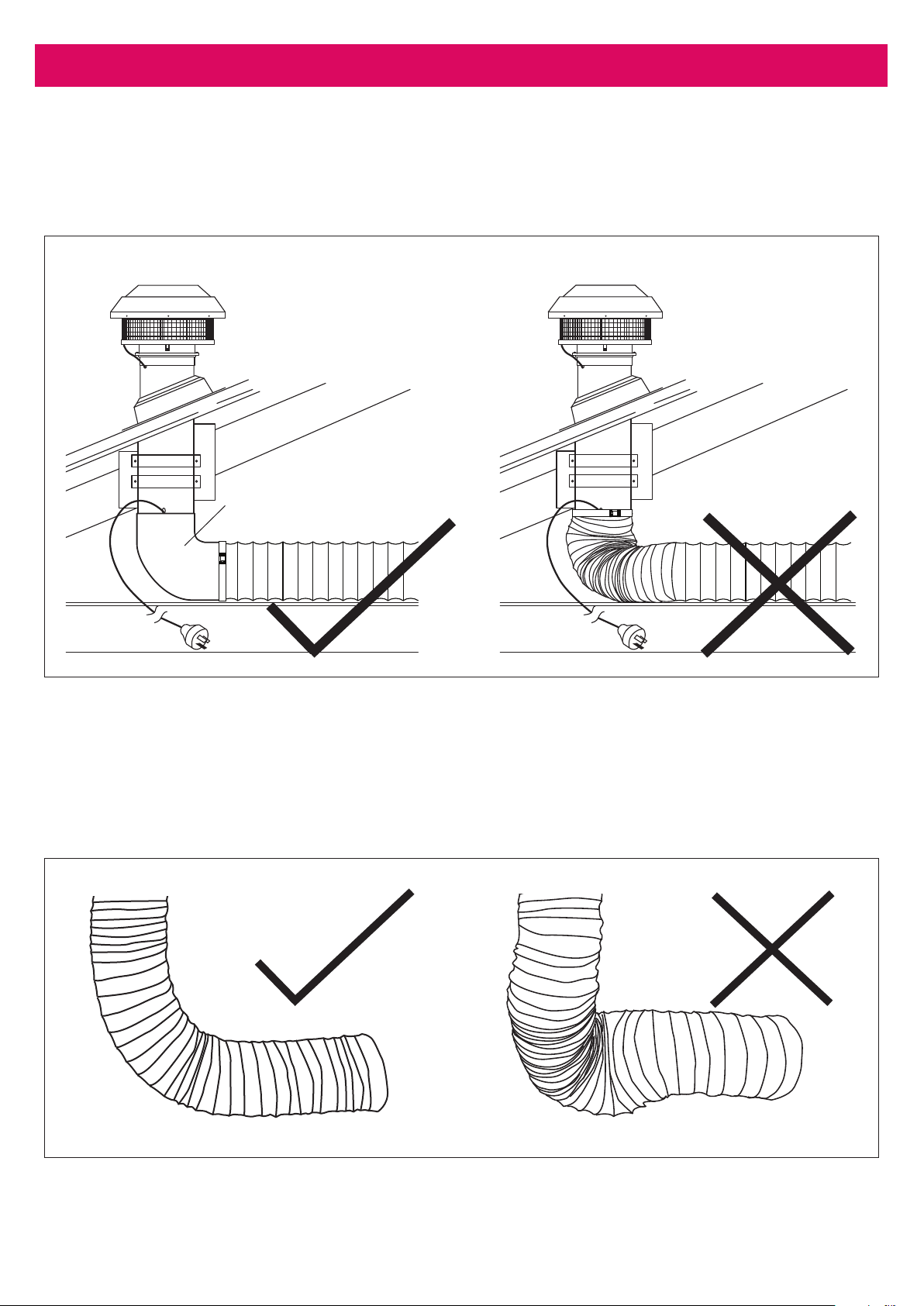

Do not install the SteelFlex
™
in a straight line and a minimum of two gentle bends in the ducts is required.
Page 9
4. Installation
950 motor

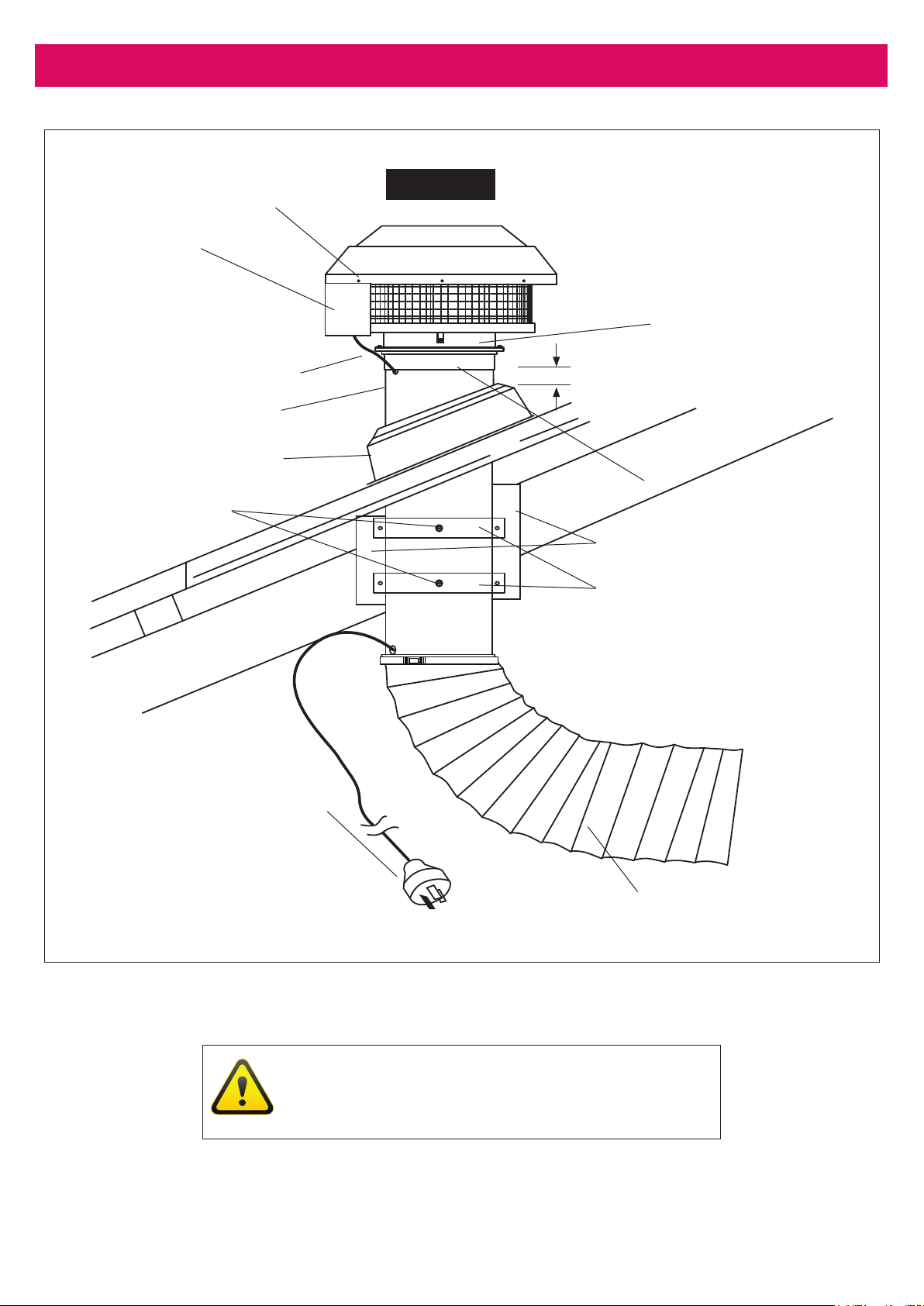

Figure 1: Roof mount option
IMPORTANT
For more SteelFlex
™
ducting instructions, refer page 12.
Fix fan module using side
locking screw
Connect to
rangehood
NOTE: Prevent any cord bunching by
pulling cord through from plug top end
NOTE: Recommended ducting
length 4 metres. Fully extend
SteelFlex
™
ducting, cut to length.
Fit side supports to locate pipe
Power Cord
200mm metal Pipe
Backdraft shutter
50mm
Connect to socket from rangehood
Dektite (not supplied)
Clamps/Straps to supports
Locking screws to
secure
Weather shield
Weather shield attachment
Page 10

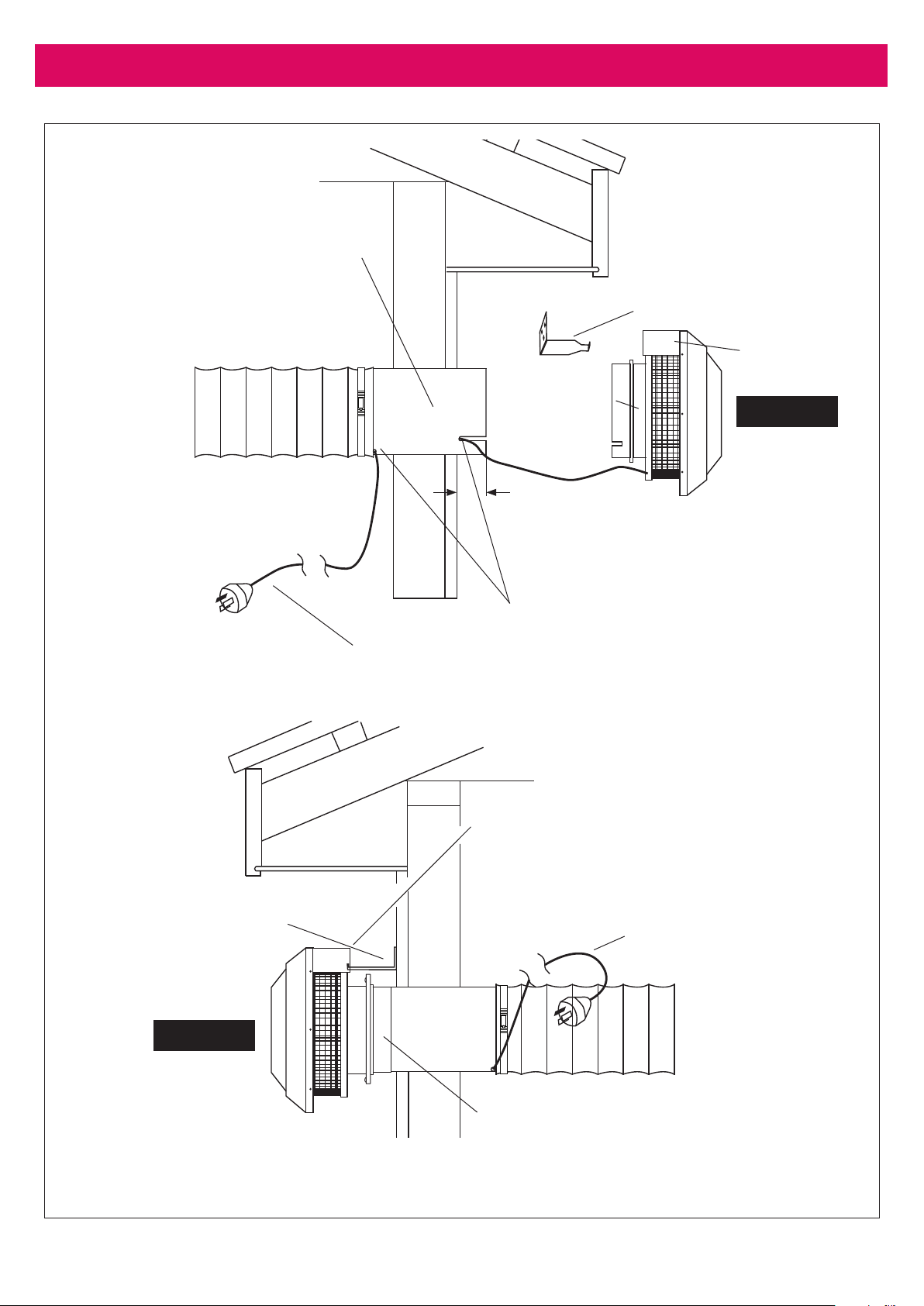

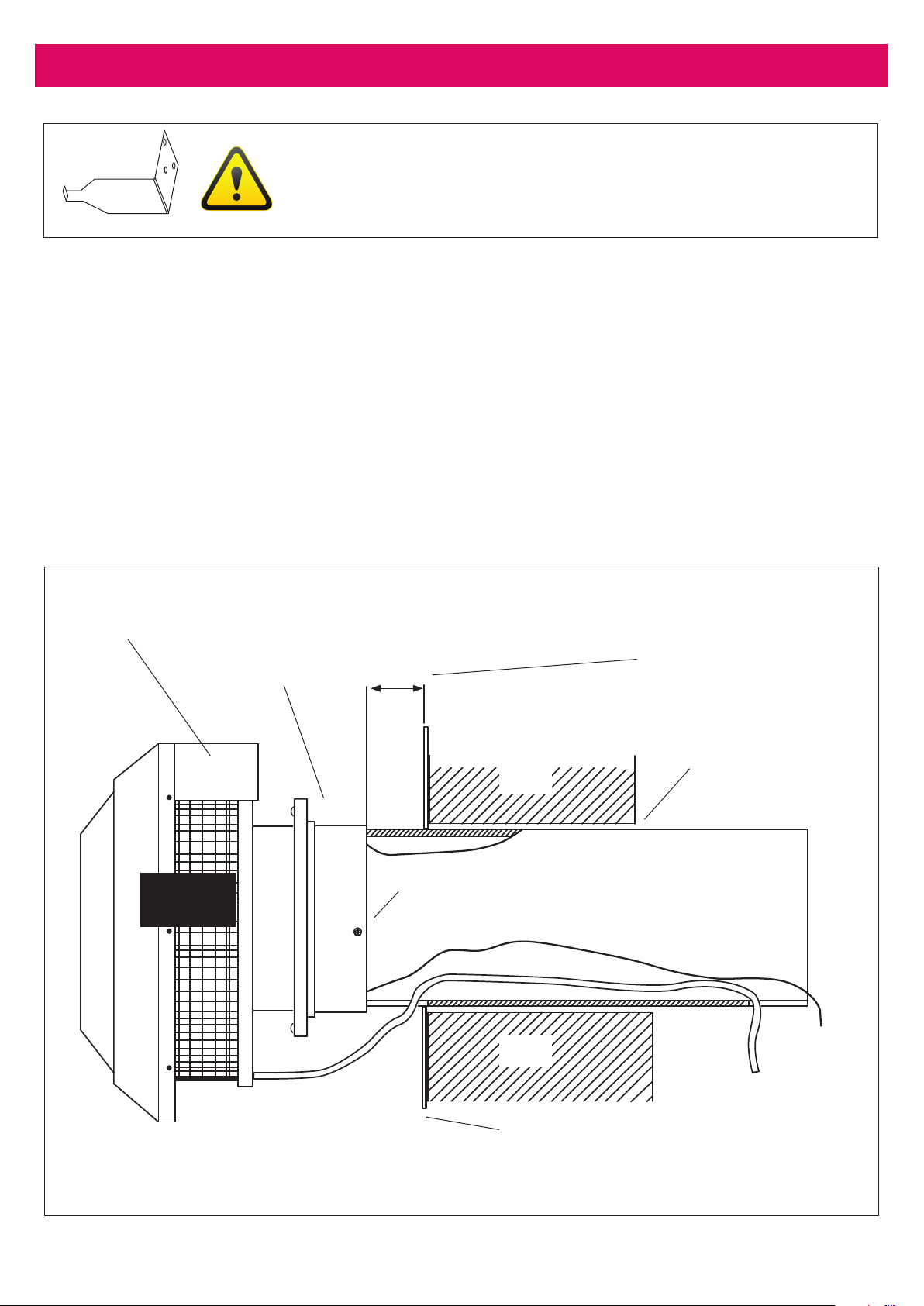

Wall Installation
This type of installation is similar to roof mounting, ensuring that the pipe extends at least 55mm past the wall
surface refer gure 3. If the pipe length is shortened, reproduce the power cord exit slot on the inside of the
wall.
IMPORTANT FOR 950 MOTOR: Weather shield must be tted to the top cover of the side ange using the 3
screws provided. Also, it is required to use the hanging bracket for wall mount installation, for more information
please refer to page 11.
NOTE: By decreasing the length of the SteelFlex
™
duct from which specied (refer to installation instructions)
there will be an increase in airow and noise levels as a result. This increase in airow can cause movement of
air to be heard through the system and inhibit the system to run silently.
Figure 2: Wall installation
4. Installation
Wall
Backdraft Shutter*
200mm Metal Pipe
From outside face of wall cover plate to end of
pipe (or wall if cover plate not used)
28
Locking screws
Power cord to
220-240V supply
Fill gap between pipe and
wall or t second wall cover
plate if required
900
Motor
Wall cover plate (optional)**
Weather shield
must be at top
* With through wall installations ap shaft will be close to vertical.
IMPORTANT
It is a requirement to use the hanging bracket for all wall mount installations.
Please refer to the illustrations for mounting.
** Optional parts are available from Schweigen, please contact 1300 881 693.
Wall
Page 11
4. Installation
200mm metal pipe
Locking Screw
Min 55mm
200mm ducting
Cord slots at bottom
(6 o’clock position)
Weather shield
upper most
Wall hanging bracket
NOTE: Ensure that power cord is fed through exit slot and is not allowed to double back restricting
motor inlet.
Attach weather shield using 3 screws provided
when wall mounting. Ensure weather shield is
upper most position (12 o’clock position) when
engaging locking screw
Fix motor module using side locking
screws
Figure 3: Wall mount option
950 Motor
NOTE: Ensure that power cord
is fed through exit slot and is
not allowed to double back
restricting motor inlet.
Wall hanging bracket
950 Motor
NOTE: Due to the weight and to create stability for the Isodrive 950 motor, it is require to use a wall
hanging bracket. Warranty will be void if a hanging bracket is not used.
Page 12
5. SteelFlex
™
Safety Duct
SteelFlex
™
Safety Ducting
SteelFlex
™
safety ducting must be fully extended and cut to the required length upon installation. Maximum
fan performance will not be achieved unless the ducting is fully extended. Failure to fully extend ducting
results in a smaller air passage and lower airows. Incorrect installation may reduce airow or increase noise
levels. Call outs relating to incorrect installation will result in a service fee directed to the customer. Schweigen
will take no responsibility for problems caused by faulty installation. A list of experienced installers can be
obtained from the Schweigen website www.schweigen.com.au.
950 motor
Figure 4: SteelFlex
™
Safety Ducting
NOTE: In shallow roof spaces extend
SteelFlex
™
ducting horizontally
Please keep the SteelFlex
™
ducting
taut, 4 metres in length with two
gentle bends.
Page 13
5. SteelFlex
™
Safety Duct
Assembling SteelFlex
™
Safety Duct
1. Slide the steel ring clamp over the end of
the duct then insert the 200mm metal
pipe into the duct end
Parts required:
1. SteelFlex
™
safety ducting
2. Steel ring clamps
3. 200mm metal pipe
4. 12mm self-drilling button head screws
1
2
3
4
NOTE: Do not use duct tape to fasten the duct – the screws and hose clamp are adequate to secure the duct
to the metal pipe.
x4
Figure 5: Duct assembling
2. Secure duct to the pipe at regular intervals
with supplied 20mm button head screws
3. Slide the steel ring clamp back up and
tighten to secure the pipe and the duct
Page 14
5. SteelFlex
™
Safety Duct
Shallow Roof Space
In shallow roof spaces, do not crush or kink SteelFlex
™
ducting, as it will reduce air ow severely. 90 degree
curve made of PVC or galvanise can be used as a substitute for the bend.
Figure 6: Shallow roof space
Figure 7: SteelFlex
™
duct recommended installation
Important Note
Please do not crush or kink SteelFlex
™
ducting, as it will reduce air ow and may cause noise to occur through
the system. Ducting needs to be kept taut at all times.
Use 90 degree curve to
prevent crushing
Page 15
5. SteelFlex
™
Safety Duct
Securing SteelFlex
™
Safety Duct
SteelFlex
™
safety duct must be installed with supports at maximum intervals of 1.5 metres. SteelFlex
™
safety
ductwork can be supported by using good quality gaer or aluminium foil tape. Provided that it does not
restrict the internal diameter of the ducting. Ducting installed looped over hanging beams should be installed
in such a manner as to ensure the changes of direction are gradual. Support of the ducting with the use of
hangers may be required, see option 2.
NOTE: Ducting should be kept taut at all times.
Figure 8: Securing SteelFlex
™
Safety Duct
Option 1
Secure the duct to the
beam
Option 2
Support duct by using
hangers.
NOTE: Care shall be
taken to minimize
sagging or snaking
of the duct between
supports.
Aluminium foil
tape
Aluminium foil tape
Hanger
Page 16
6. Maintenance
Roof Restoration or Cleaning
Before doing your roof restoration or cleaning, please completely cover the outside motor system and avoid all
chemical contact.
IMPORTANT
Any damages caused by the
use of chemical products are
not covered by warranty.
Figure 9: Avoid chemical contact to motor system
Page 17
Figure 10: Measurements for Isodrive 950
7. Measurements
Measurements for Isodrive 950
(Not to Scale)
160mm
85mm
350mm
295mm
190mm
Dektite
50mm
275mm
430mm
200mm
Page 18
8. Warranty / Disclaimer
Warranty
(See warranty for more information)
Isodrive motor has a 10-Year replacement product warranty.* The consumer is responsible for any charges
associated with removal of the faulty unit and installation of the new unit. The customer is also responsible
for any freight charges incurred in this change over process. Schweigen SteelFlex
™
comes with a Lifetime
Warranty*.
Disclaimer
Under our policy of continuous product development, product specications may change without notice.
Prospective purchasers should therefore check with the retailer to ensure this publication correctly describes
the products being oered for sale. All information supplied is to be used for general reference purposes only
and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage
of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for
illustrative purposes only.
*Terms and conditions apply.
Page 19
Notes
Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693
Email sales@schweigen.com.au Web www.schweigen.com.au
New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510
Email info.par[email protected]om Web www.parex.co.nz
Revision V2 22/06/23
