INSTRUCTION MANUAL
UNDERMOUNTED RANGEHOODS
(6.2018 / V1.0)
Installation / Operation / Maintenance
Page 2
WELCOME
Thank you for purchasing this Schweigen IN
appliance.
To achieve the optimal performance from your
appliance, and to avoid the risk of accident or
damage, it is essential to read this manual before
This guide contains important information on the
use and maintenance of the appliance, as well as
important safety notes.
Your appliance has been thoroughly checked for
safety and functionality before being packaged
and leaving the manufacturer.
Please keep this instruction manual in a safe
place so you can refer to it at any time.
IMPORTANT!
The appliance should only be
operated when you have read and
understood this manual thoroughly.
The appliance can be only used for the
purpose for which it was designed.
Any other use is deemed improper
and can be dangerous.
Installation and maintenance of
electrical appliances must only
authorised professionals familiar
with Australian Appliance Industry
regulations.
Upon collection or delivery of your
appliance, any damage or defects
must be reported within 48 hours
to your retailer or Schweigen
Customer Service, in order
to recognise any claim.
The manufacturer reserves the right
to introduce product improvements,
the appliance.
Page 3
Important safety information ................................................................................................................ 4
Description ................................................................................................................................................ 7
Installation ................................................................................................................................................8
Operation ................................................................................................................................................17
Cleaning and maintenance ...................................................................................................................
Troubleshooting ..................................................................................................................................... 23
........................................................................................................................
Disclaimer ................................................................................................................................................27
Page 4
Please read the instructions carefully.
Only then will you be able to operate your
appliance safely and correctly. Retain the
instruction manual for future use or for
subsequent owners.
Check the appliance for damage after
unpacking it. Do not connect or install
the appliance if it has been damaged in
transport.
Any damage must be reported within
48 hours.
There must be adequate ventilation in the
room when the rangehood is used at the
same time as appliances burning gas or
other fuels.
that is used for exhausting fumes from
appliances burning gas or other fuels.
Air exhaust systems must be installed in
accordance with local and federal laws.
not carried out in conjunction with the
instructions.
under the rangehood. This will damage the
rangehood and will void warranty.
rangehood.
contained at all times and cannot exceed
the width of the pan in use.
children.
This appliance is not intended for use by
physical, sensory or mental capabilities,
or lack of experience and/or knowledge.
Unless, the person is given supervision or
instruction concerning the safe usage of
the appliance by person/s responsible for
their safety. Children must be supervised
to ensure that they do not play with the
appliance, it is not a toy.
Accessible parts may become hot when
used with cooking appliances.
maintenance, disconnect the rangehood
from the mains power, using the
respective mains or sector switch, or by
unplugging it.
Do not use the rangehood without the
the recommended cleaning frequencies.
It is forbidden to use the rangehood as an
aspirator.
Page 5
BEFORE INSTALLATION
We recommend this appliance be installed
Appliances technician.
Please see our website www.
schweigen.com.au for a list of our
recommended installers.
It is dangerous to modify any part of this
immediately void the warranty.
The manufacturer declines all
responsibility in case of failure to adopt
proper safety measures.
Ensure the location in which this appliance
is installed, has good and permanent
ventilation.
Please consult local laws and regulations
and install in accordance.
Please use an earthed electrical connector
that coincides with relevant local laws and
regulations.
Check that the power voltage in your area
corresponds to the appliance voltage
indicated on the rating label.
This appliance must be connected to an
electrical supply that has a grounded
connection.
Check that the indicated instructions and
local regulations are met and carried out
that are compliant with the applicable
legislation.
Schweigen will not be responsible for any
technicians that fail to heed the applicable
legislation on electrical safety.
The electrical technical data can be found
inside the rangehood, after removing the
The power cables supplied are already
connected internally and emerge from the
rangehood near the air outlet.
Before installing the electrical
connections, you should:
Verify that the indicated electrical data
coincides with the voltage values and
frequency of the electrical circuit in the
house where the rangehood is to be
installed.
Check that the premises has electrical
protection against short circuits and
electrocution.
The power can only be turned on for
normal use, once the operation has been
completed.
Ensure the supply cord is not exposed
to heat, chemicals or sharp objects. If
the supply cord is damaged, it must be
replaced by the manufacturer, service
order to avoid a hazard.
Page 6
Rangehood smaller than
cooking zone
INADEQUATE
Rangehood same size as
cooking zone
ADEQUATE
Rangehood larger than
cooking zone
OPTIMAL

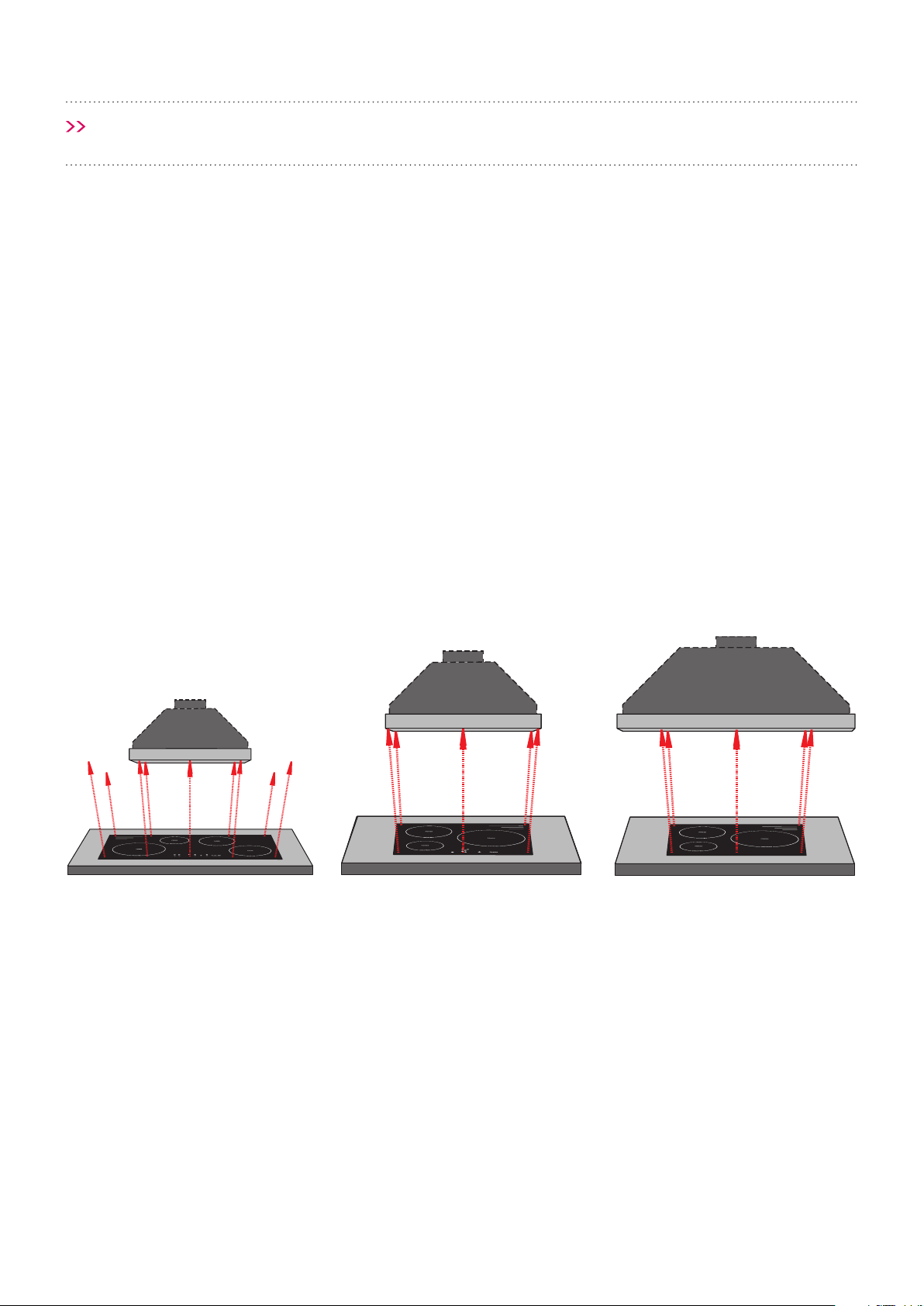

MATCH THE RANGEHOOD SIZE TO YOUR COOKTOP
It is important to make sure the rangehood is the correct size, the larger the surface area of your rangehood the
better extraction results, see diagram below.
PRODUCT USE
The Rangehood has one mode of operation:
Air extraction: The air is drawn in by the
expelled into the atmosphere. Please check the
cleaning and maintenance section for advice on
This product is designed for household use and
must not be used for commercial applications.
After use, always ensure that all controls are in the
the connection before conducting maintenance or
cleaning.
Respect the cleaning frequencies and intervals
Changes made to the steel surface will render the
warranty invalid.
In addition to the size of the rangehood, the height of the rangehood above the cooktop is important to obtain
the best performance.
Page 7

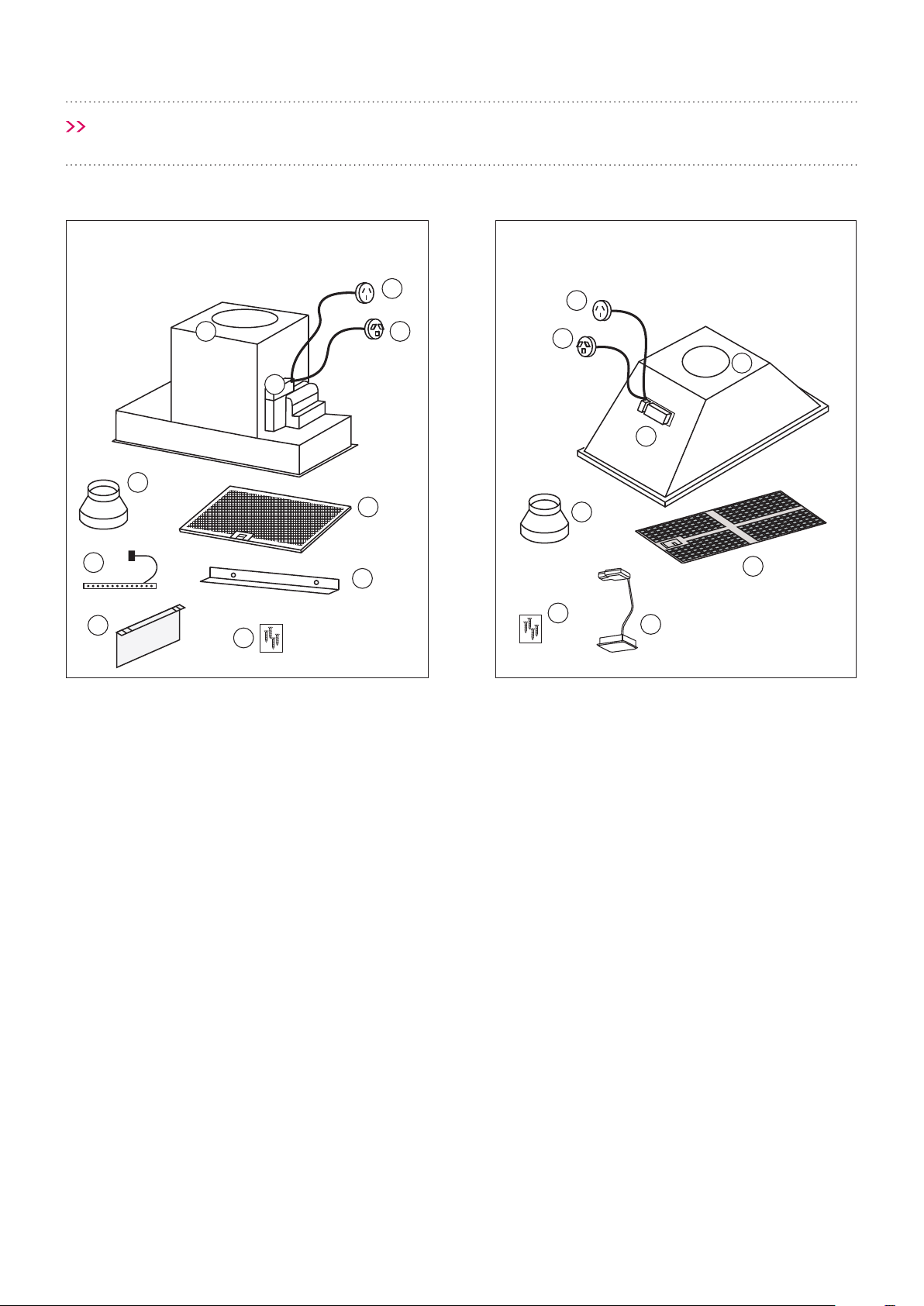

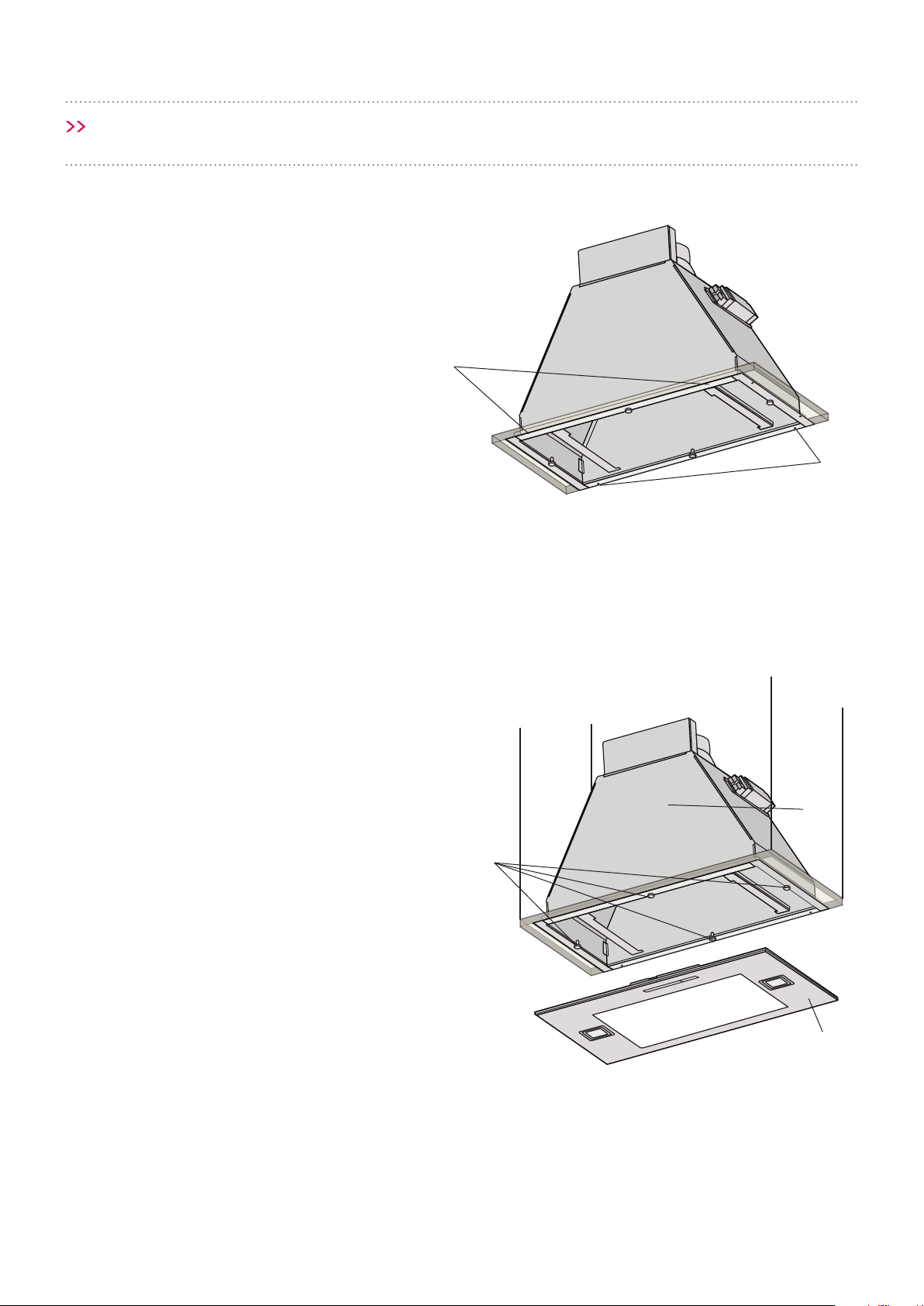

KLS-9GLASS and KLS-9GLASSBLKS
1.
system only
2.
3.
4. Computer board*
5. Reducer
7. Cabinet door protection strip
8. Light
Rangehood mounting brackets
Instruction and screws pack
*IMPORTANT: The electronics MUST be accessible
for servicing once installed, failure to do so, will
result in any charges involved with accessing the
the customer.
GA-600S and GA-900S
1.
system only
2.
3.
4. Computer board*
5. Reducer
7. Light/s
8. Instruction and screws pack
*IMPORTANT: The electronics MUST be accessible
for servicing once installed, failure to do so, will
result in any charges involved with accessing the
the customer.
DESCRIPTION
TYPE 1
TYPE 2
1
1
2
2
3
4
4
6
7
8
9
10
5
6
7
8
5
3
1
1
2
2
3
4
4
6
7
8
9
10
5
6
7
8
5
3
Page 8
INSTALLATION
DANGER
All electrical wiring from the
motor to the rangehood should
be kept inside the roof space.

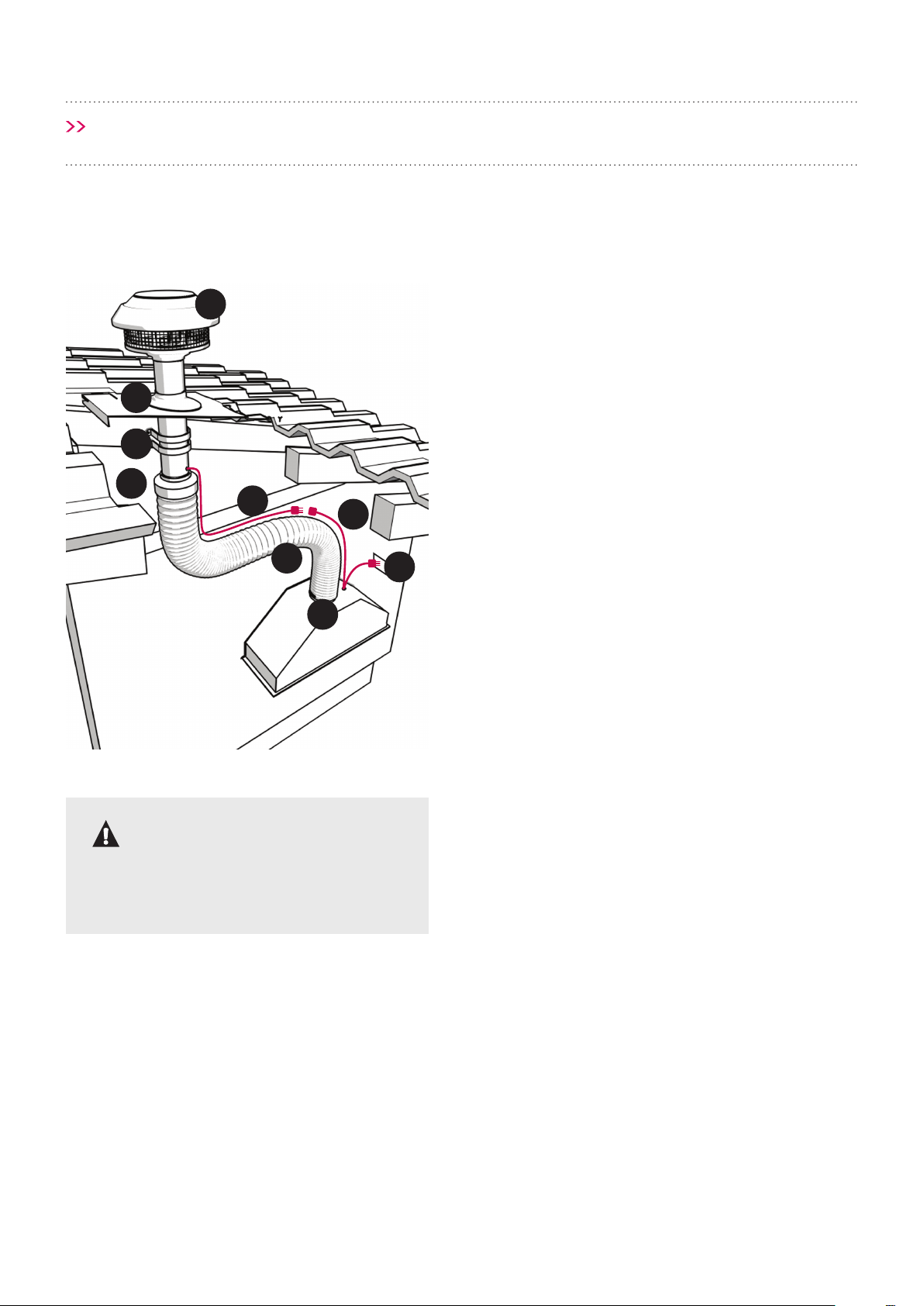

SYSTEM OVERVIEW
1. Isodrive Motor
2.
3. Support Straps*
4.
cable tie or ring clamp. Please DO NOT rip the
ducting.
5.
Rangehood to Isodrive Motor Lead
7.
8.

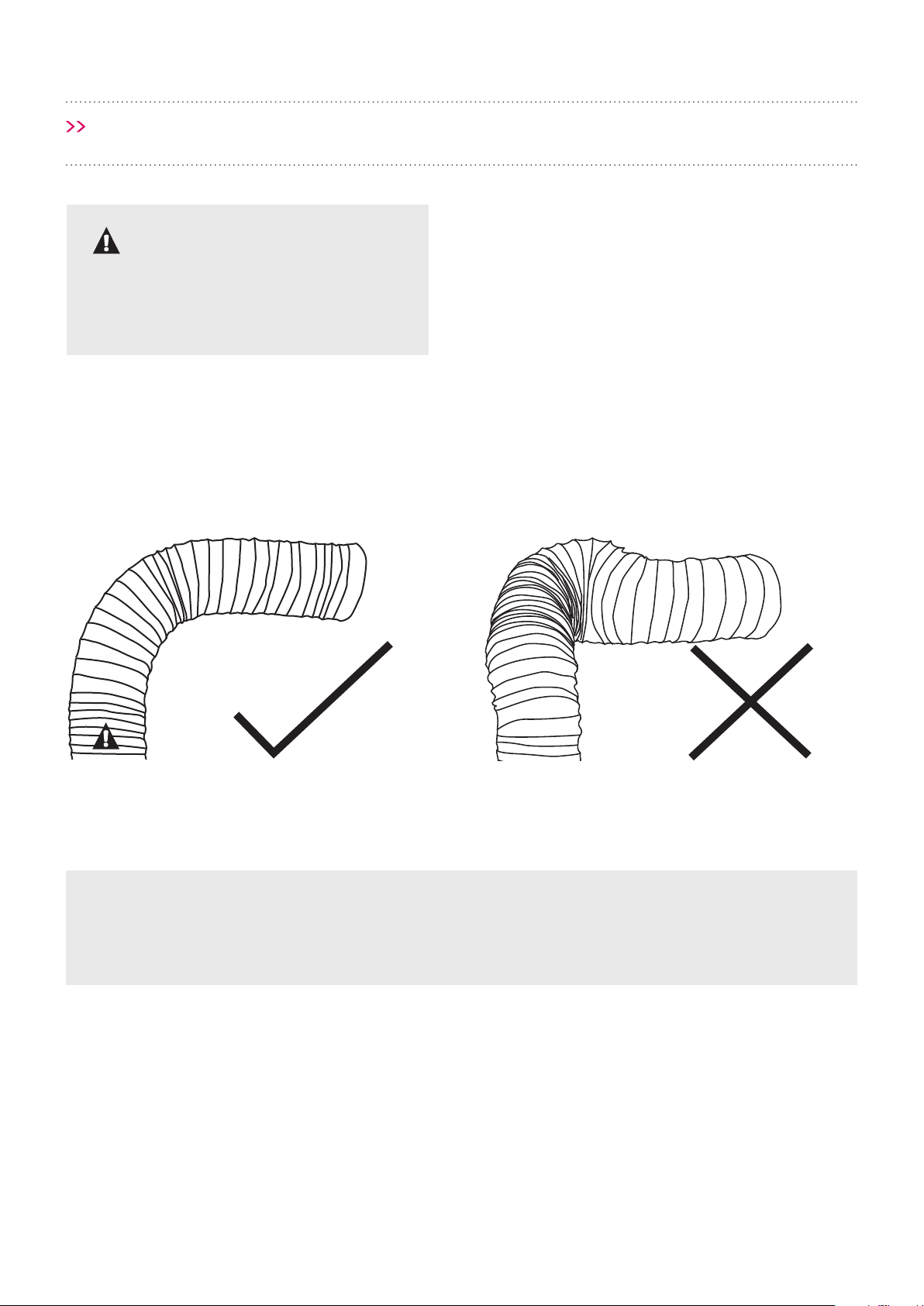

DO NOT crush or kink the ducting.
rangehood using cable tie or ring clamp.
Please DO NOT rip the ducting.
*NOTE: The Isodrive motor system does not
include the roof seal kit, cable ties, ring clamp
or support straps.
IMPORTANT: The general power outlet for the
rangehood should be located in an easy to access
area, in case of emergency.
Pictures are for illustrative purposes only, not to scale.
1
2
3
4
5
6
7
8
9
Page 9
INSTALLATION
MOUNTING LAWS AND REGULATIONS
• The location of rangehood installation must have permanent openings for ventilation.
•
• It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop, this will greatly
improve its performance.
Minimum and maximumlegally required, and recommended for optimum
rangehood performance in an indoor kitchen
Type of Cooktop Min. Height Max. Height for 900mm Max. Height for 600mm
Electric
Gas
RECOMMENDED INSTALLATION HEIGHT FOR INDUCTION COOKTOP*
Type of Cooktop Min. Height* Max. Height for 900mm Max. Height for 600mm
Induction
* Schweigen’s recommended height will help avoid condensation, particular to cooking with an Induction Cooktop. Refer to additional notes on pg 23.
DANGER
* IMPORTANT
Please check all State and
the minimum and maximum
installation height, and the
regulations concerning the
expelling of air, and install your
rangehood in accordance.
Measurements
are from the top
of the trivets to
the lowest part of
the rangehood,
including the
button controls.
Page 10
INSTALLATION

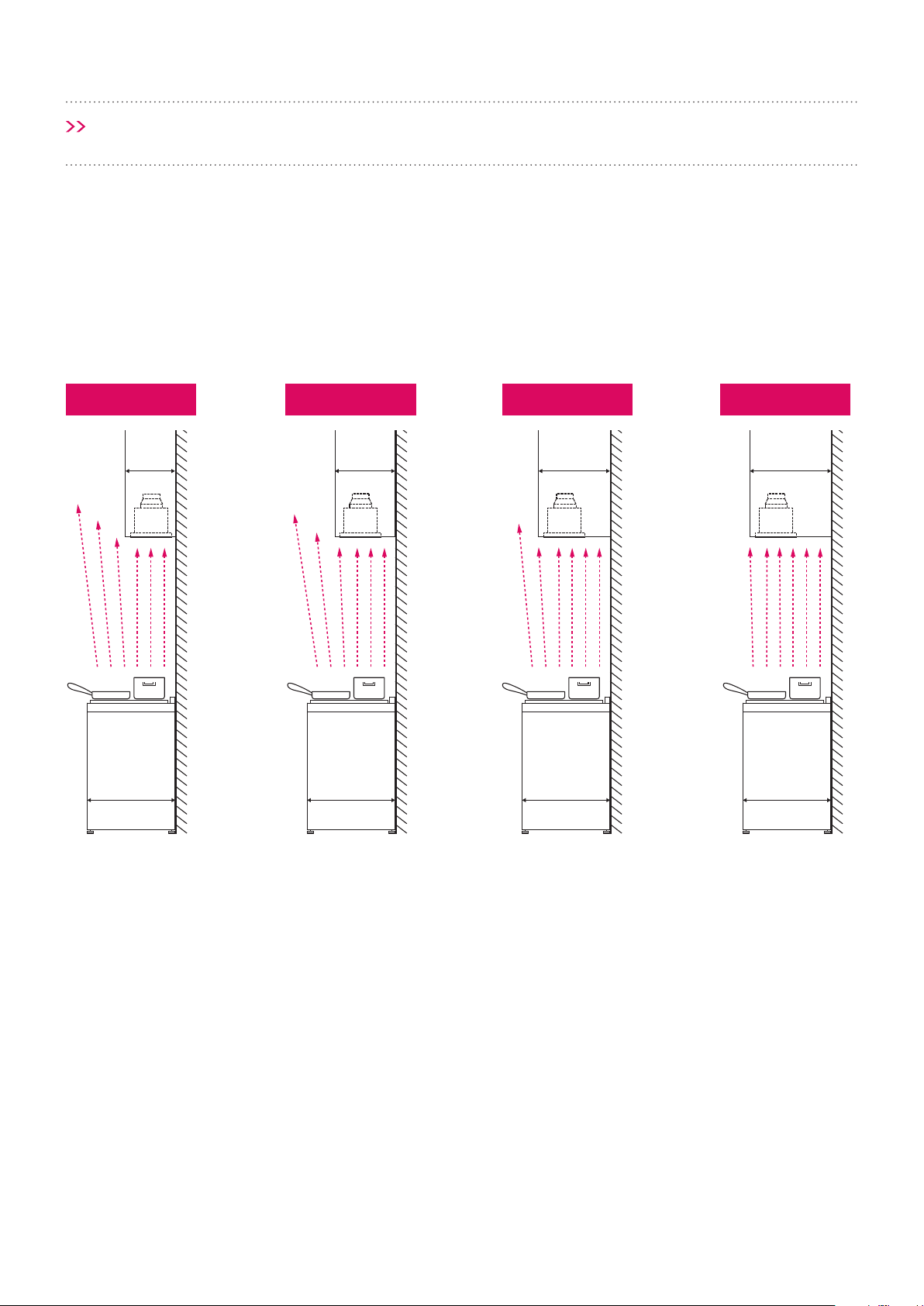

OVERHEAD CABINET RANGEHOOD INSTALLATION POSITION
It is important to consider the benchtop and overhead cabinetry depth before installing the rangehood.
The information below is to be used as a guide only, drawings are not to scale and do not account for all
circumstances.
The cooktop is centrally installed in the benchtop in the diagrams below.
STANDARD*
Side View
GOOD
Side View
BETTER
Side View
BEST
Side View
When the overhead cabinetry is constructed and installed deeper than standard, ensure the rangehood is
installed as close to the front as possible. This will increase the rangehood extraction results as there is a greater
coverage of the cooktop surface area.
* Overhead cabinets standard depth are approximately 300-310mm. This provides poor extraction for the
rangehood as the surface area of the cooktop is not covered, particularly the front burners.
Page 11
INSTALLATION
Installation for KLS-9GLASS and KLS-9GLASSBLKS
IMPORTANT
Please read the installation guide thoroughly prior to installation. These models

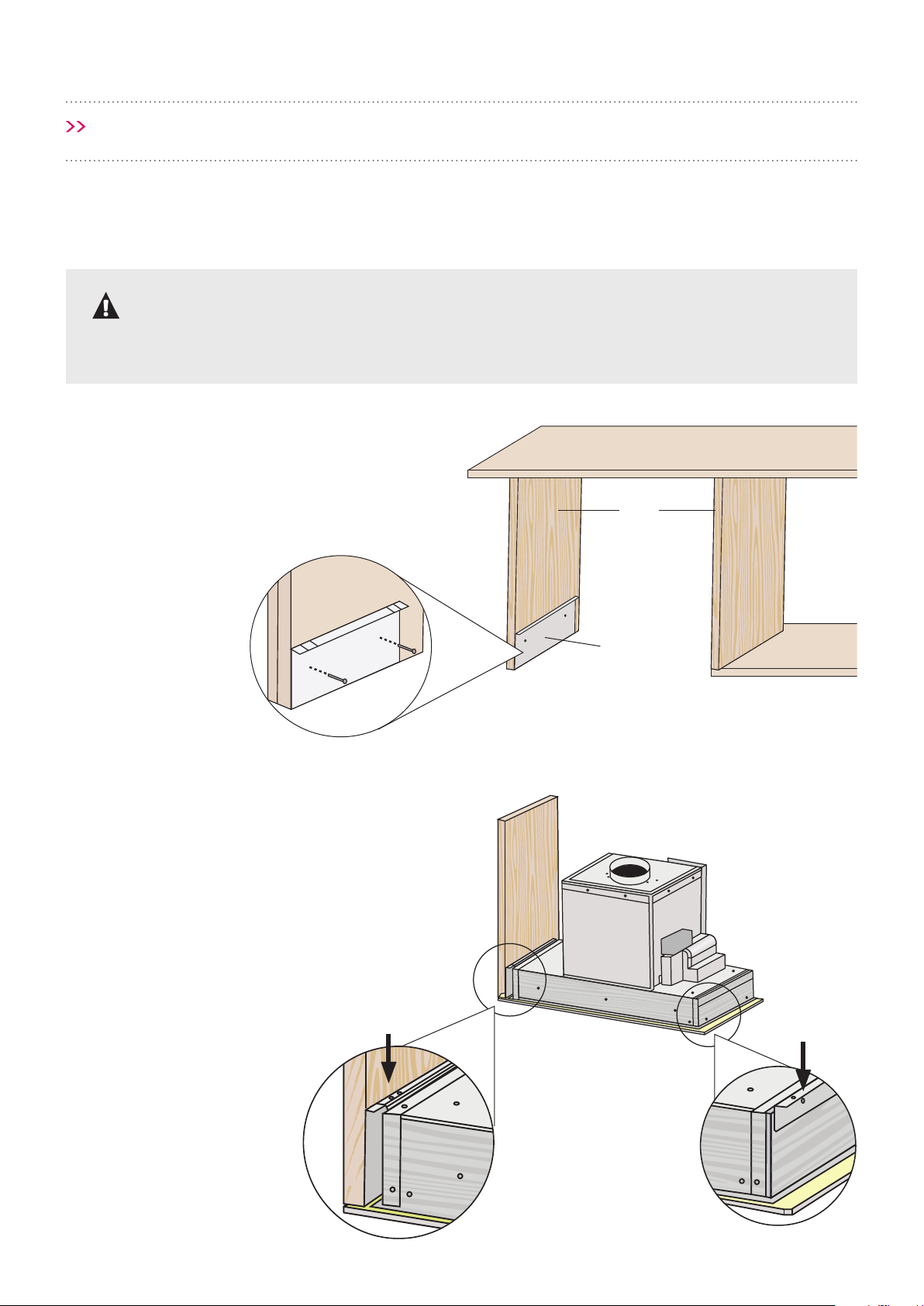

Step 1
A
B
NOTE: The brackets need to be levelled and
secured, in order to hold the entire weight of the
undermount.
Step 2
Slide the undermount in from the front of
the cabinetry, onto the rangehood mounting
A
C
A
A
A
C
A
B
Page 12
INSTALLATION

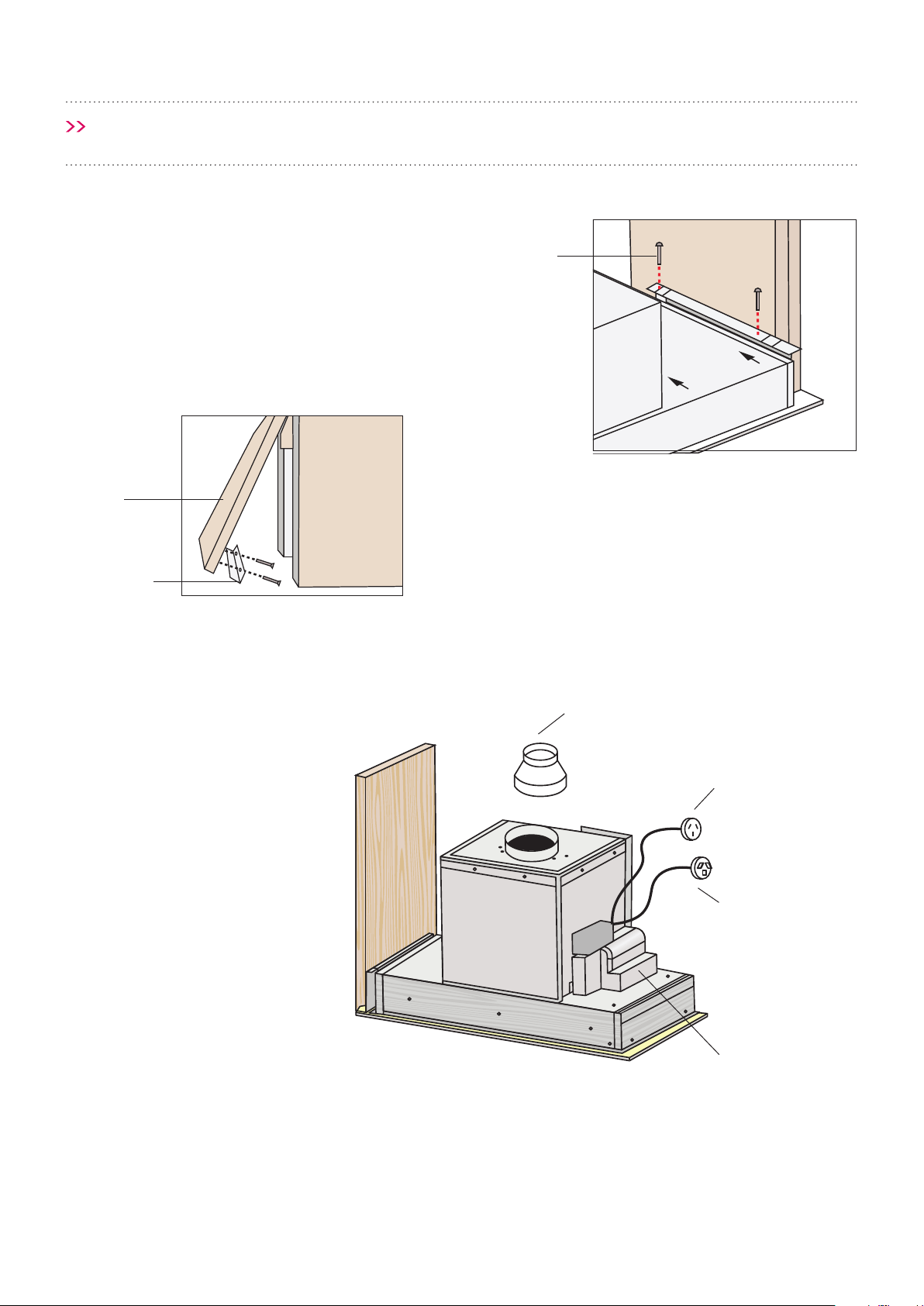

Step 3
E
Step 4
Only install the reducer if you are connecting the
DO NOT
install the reducer for any other motor system.
Step 5
connect the male and female power connections
to the corresponding connections. Male to main
will attach to the outlet on the rangehood and the
Isodrive motor.
NOTE: The electronics need to be accessible after
installation, in case a service is required.

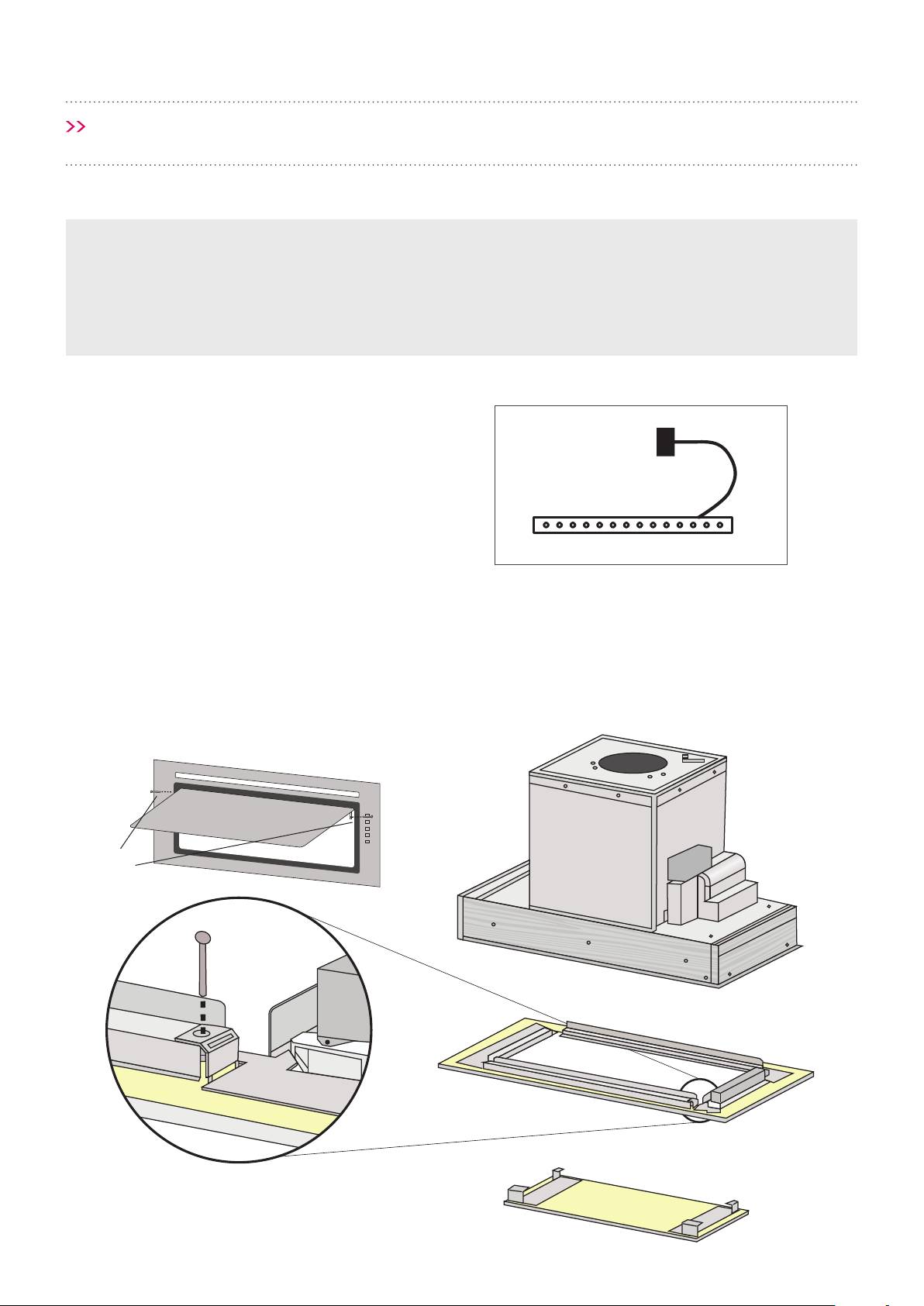

Protecting the Cabinet Door — Optional
D
D
E
Male power plug
connects to mains
Electronic control
system
connects to the
Isodrive motor
Reducer to be connected to the
Page 13
INSTALLATION

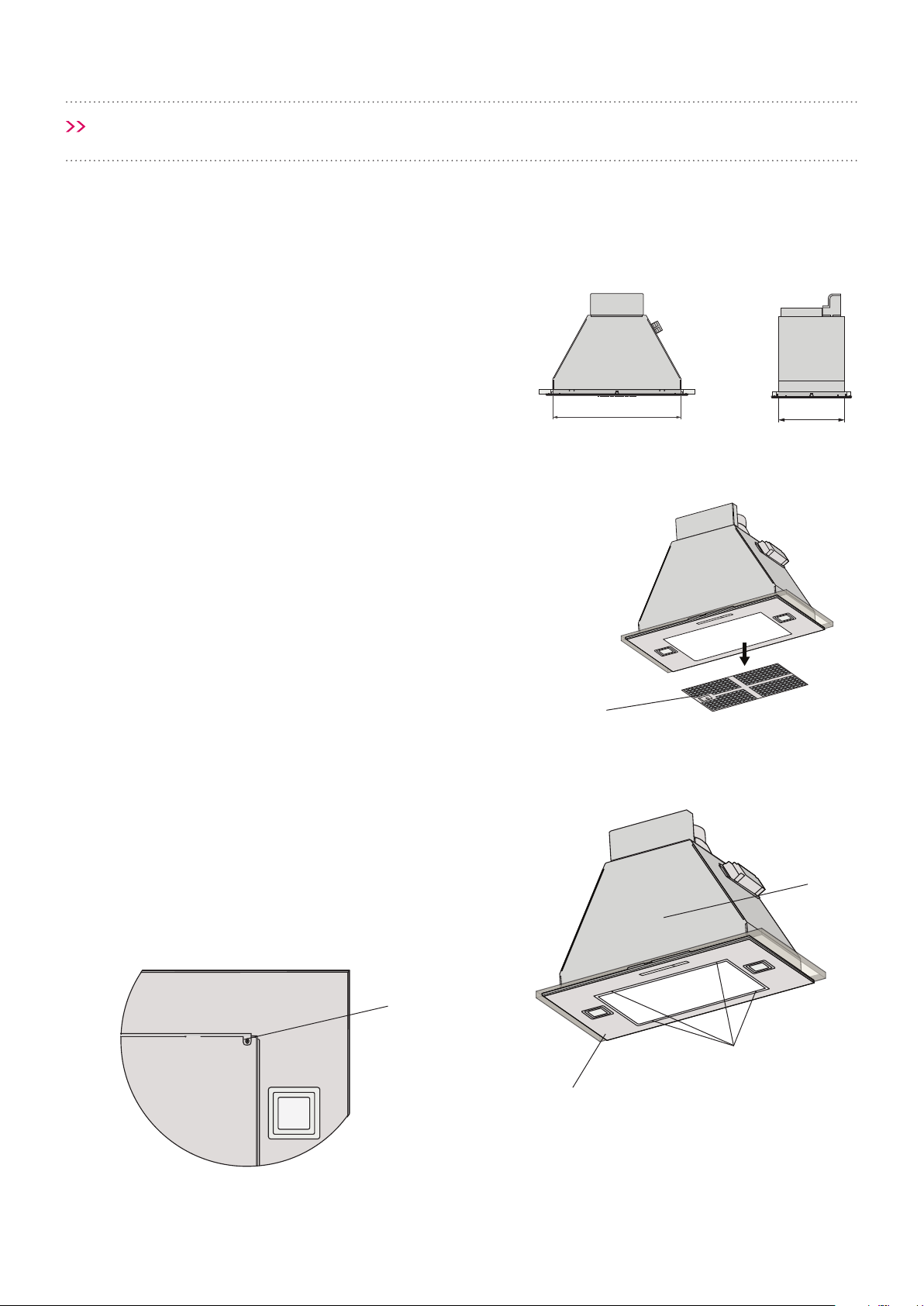

Installation for GA-600S and GA-900S
Step 2
Step 3
A
DE
E
D
A
E
Step 1
NOTE: It is always best to use the rangehood as a
cutting guide, not the cabinet cut out diagram as
this is only a guide.
Page 14
INSTALLATION
Step 5
DA
DB
fascia in place.
Step 4
appropriate screws, using the pre-drill holes in the
C
C
C
D
A
B
Page 15
INSTALLATION

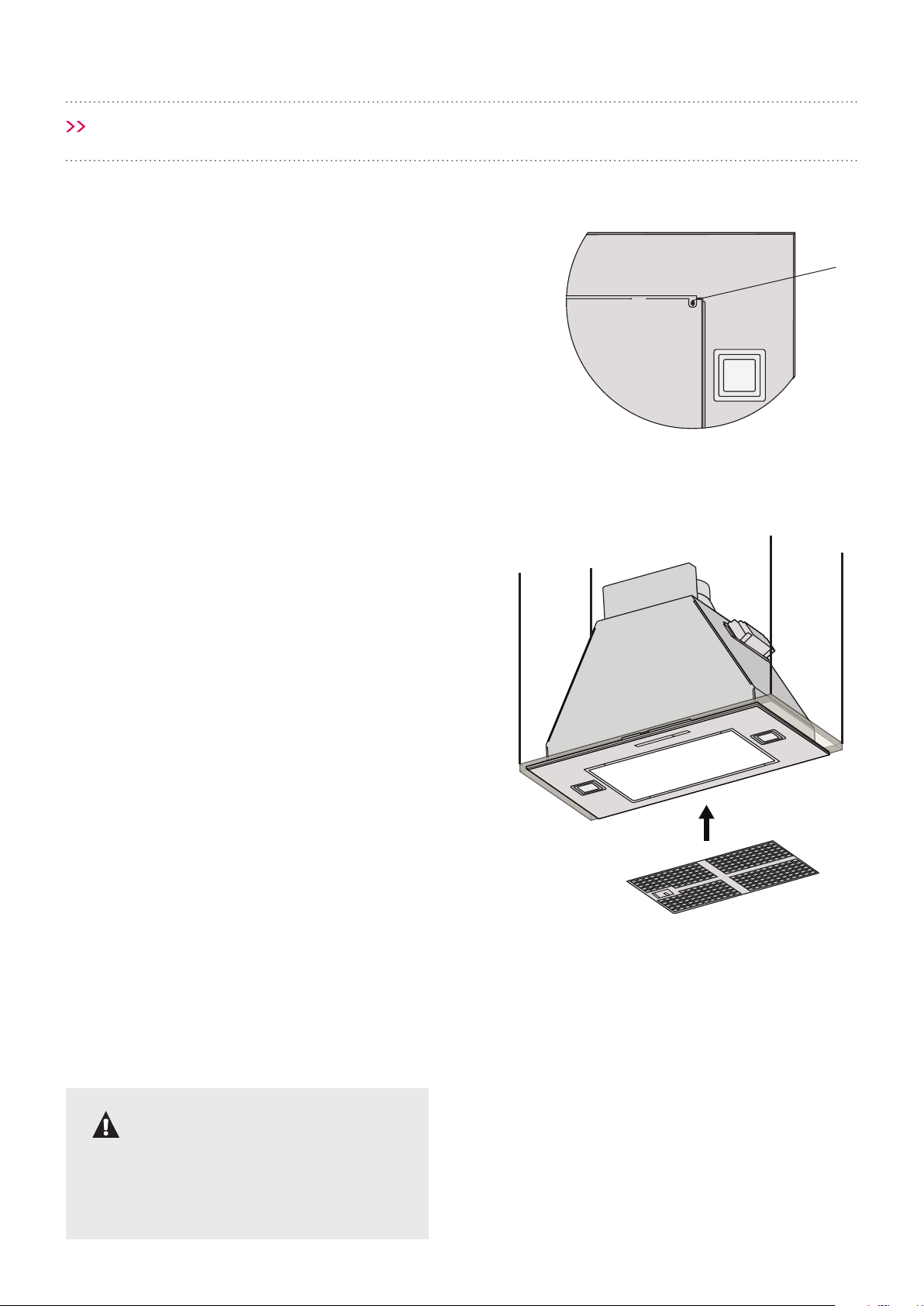

Step 6
Re-attach the fascia by securing it with 4 x locking
E
Step 7
E
IMPORTANT
Please ensure all plastic
protection on the rangehood and
INSTALLATION
Page 16
1300 829 066.
ISODRIVE MOTOR SETUP
NOTE
Please refer to the Isodrive motor installation guide for more details on
exi ducting and Isodrive motor installation.
FLEXIBLE DUCTING INSTALLATION
IMPORTANT:
throughout the system. Ducting must be kept taut at all times.
IMPORTANT
Please ensure all plastic
protection on the rangehood and
Page 17
For models KLS-9GLASS and KLS-9GLASSBLKS.
The rangehood has a 4-speed electronic keypad.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
•

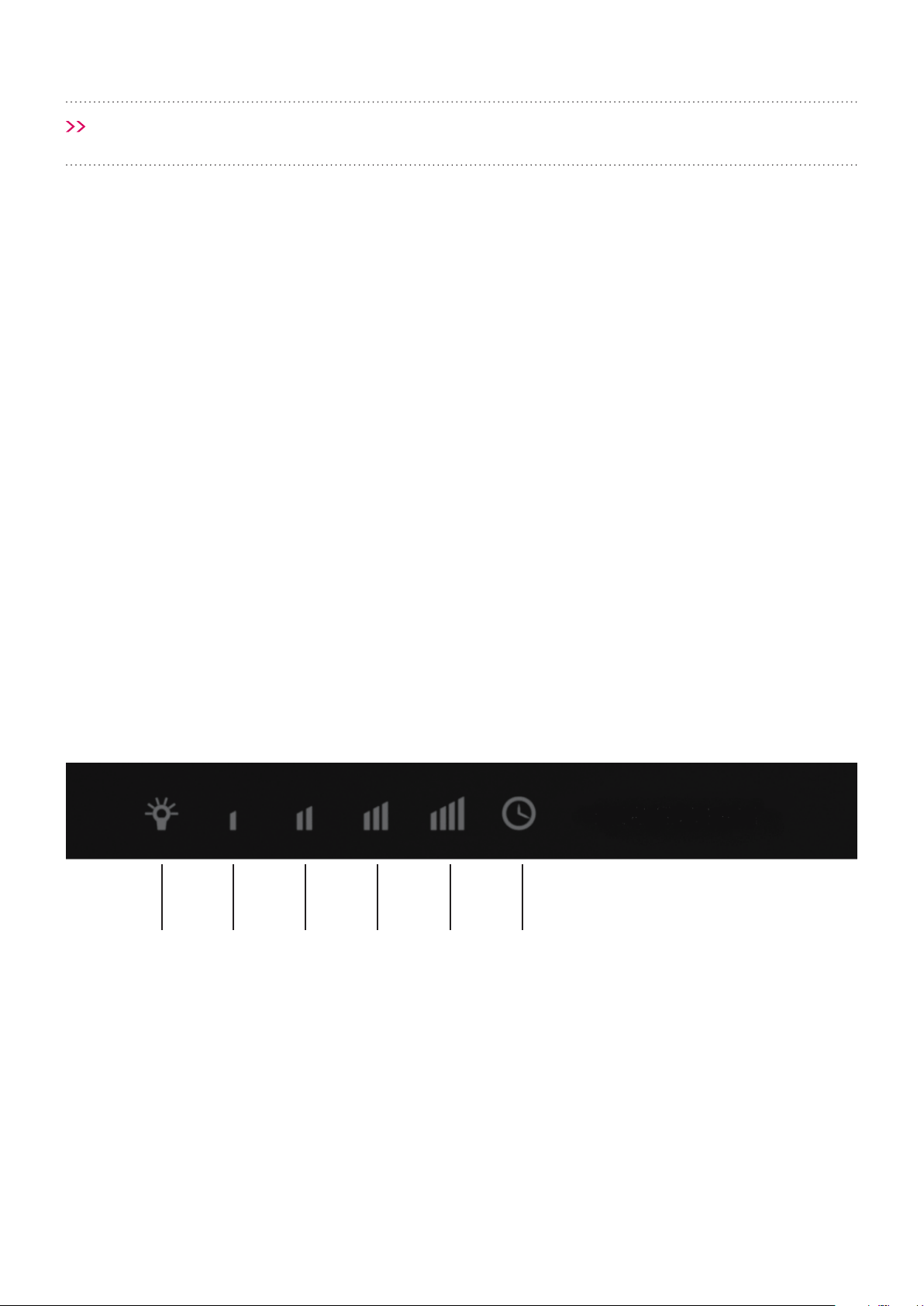

Electrical Touch Keypad
To obtain the best performance, switch the
rangehood on a few minutes prior to cooking and
The buttons have the following functions:
A.- Light switch: Press this switch to turn the
B.- ON / OFF / button – speed one: This button
starts to operate at speed one.
C. D. E.- Speeds 2, 3 and 4, respectively.
F.- Timer: When the timer mode is in operation,
the timer button light will remain on. When this
button is pressed, the rangehood will continue to
This rangehood has a device that lets you know
the timer button (F)
hold the timer button (F) down for a few seconds
to reset it and return the counter down to zero.
A C D E
OPERATION
Page 18
OPERATION

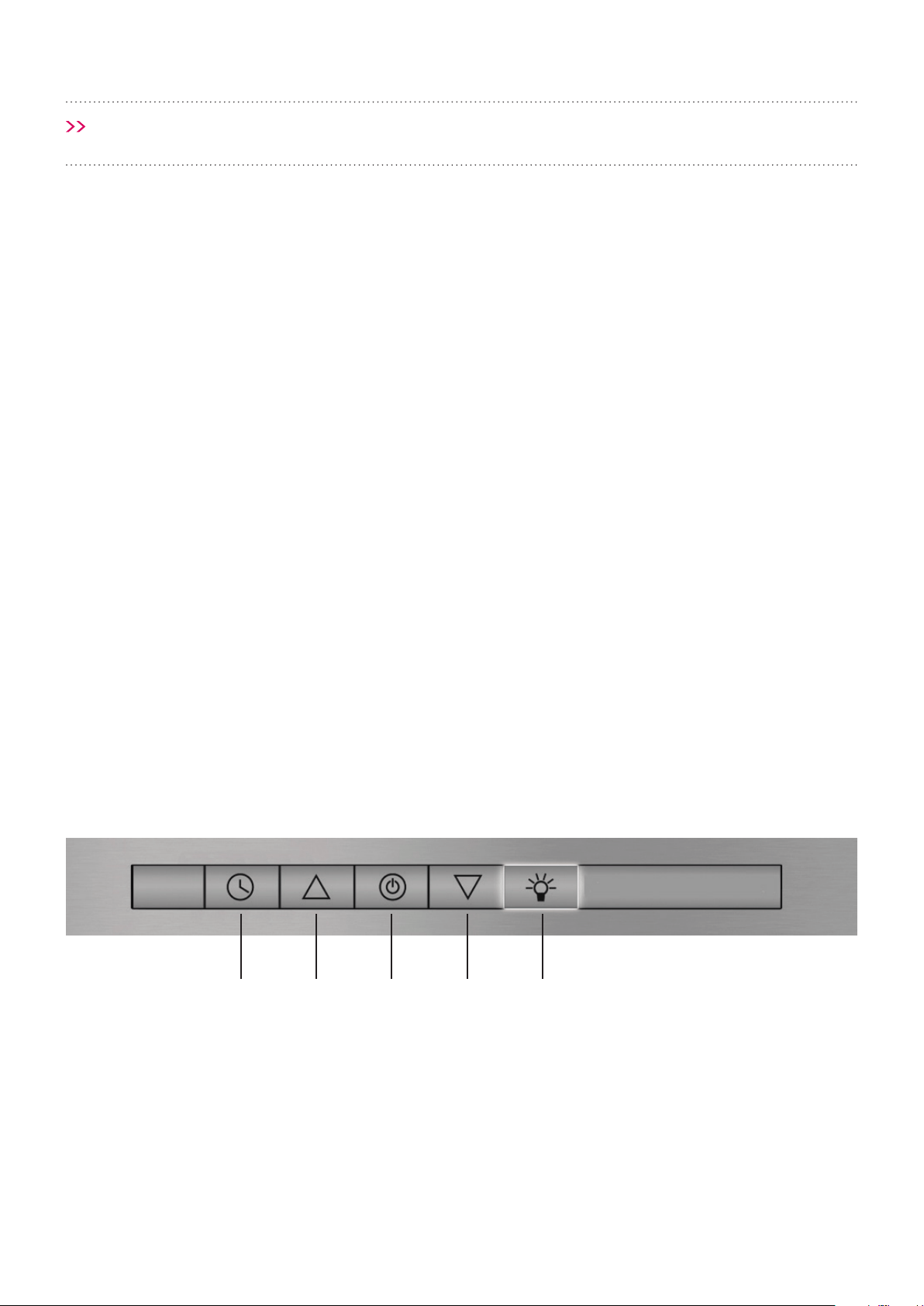

Electrical Tactile Keypad
To obtain the best performance, switch the
rangehood on a few minutes prior to cooking and
The buttons have the following functions:
A.- Timer: When this function is activated, the
at the required speed and then automatically
B.- Increase speed: This button increases the
aspiration speed. When at maximum speed, the
C.- ON / OFF: This button turns the rangehood on
D.- Reduce speed: This button reduces the
aspiration speed. When in operation, the low speed
button will be blue.
E.- Light: Press this button to turn the lights on
This rangehood has a device that lets you know
it and return the counter down to zero.
A C D E
For models GA-600S and GA-900S.
The rangehood has a 4-speed electronic keypad.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
•
Page 19
CLEANING AND MAINTENANCE
WARNING
Cleaning and user maintenance shall not be carried out by children without supervision.

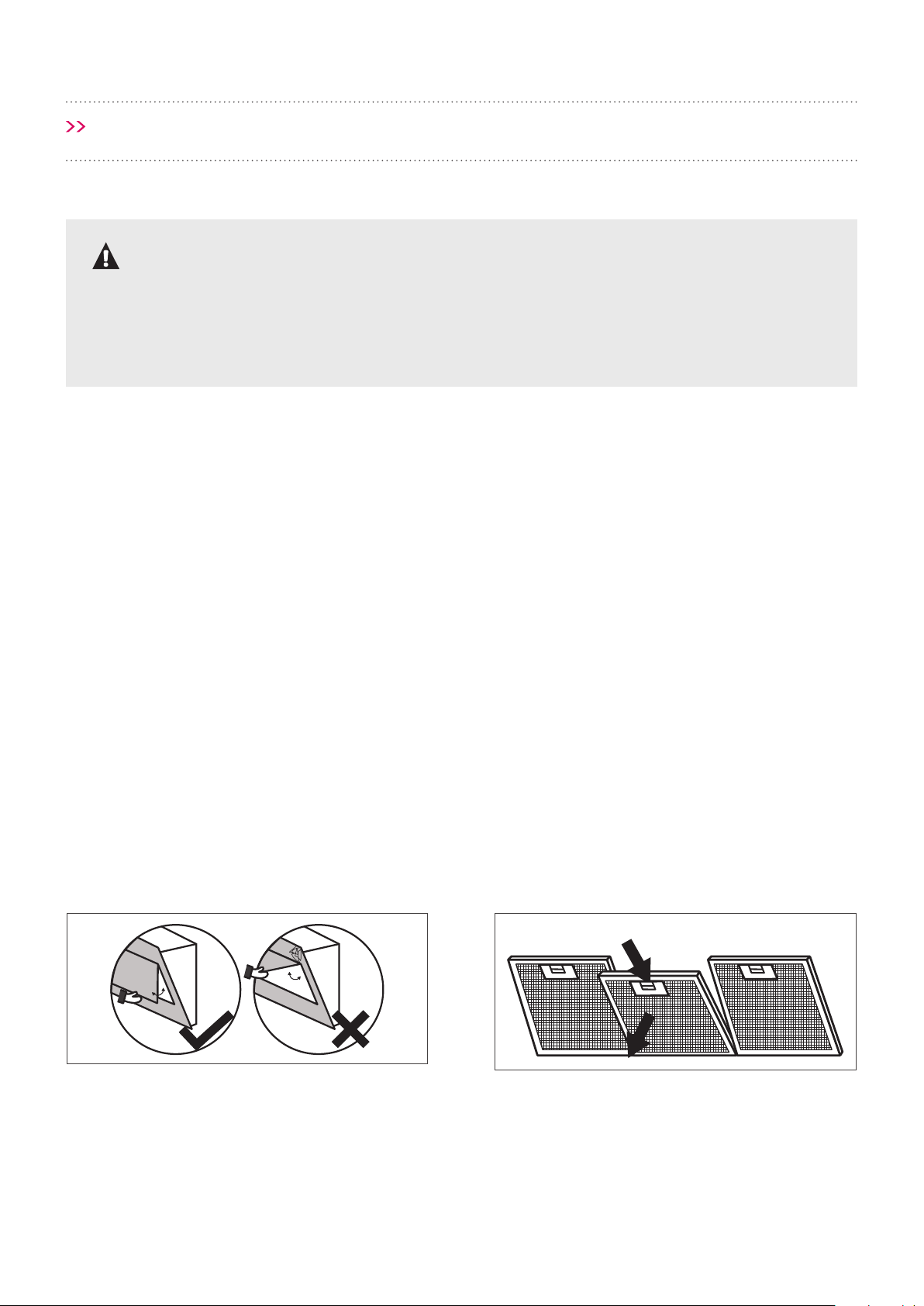

Latch A
Catch A
Figure 2Figure 1
FILTERS
•
regular maintenance is a must.
•
particles emitted during cooking.
•
•
• Disconnect the electrical connection before any
maintenance or cleaning processes are carried
out.
• In ceiling-mounted rangehoods, the doors or
glass must be opened before accessing the
•
To replace, perform the same operation but in
•
frequency of use.
•
dishwasher
Washing by hand -
water and a suitable detergent, when clean,
rinse with plenty of hot water.
Dishwasher -
and select a short program at low temperature.
NOTE:
change after several washes. This is normal and
Page 20
CLEANING AND MAINTENANCE
SURFACES
The surface of the rangehood can be cleaned with
warm soapy water and a soft sponge / cloth.
• Never use abrasive detergents, scouring pads,
steel wool or solvents on ANY part of this
appliance.
• Rinse with clean water and ensure that the
appliance is completely dry after cleaning.
•
• Always make sure the appliance is completely
dry after cleaning and never leave wet, this may
cause irreparable damage.

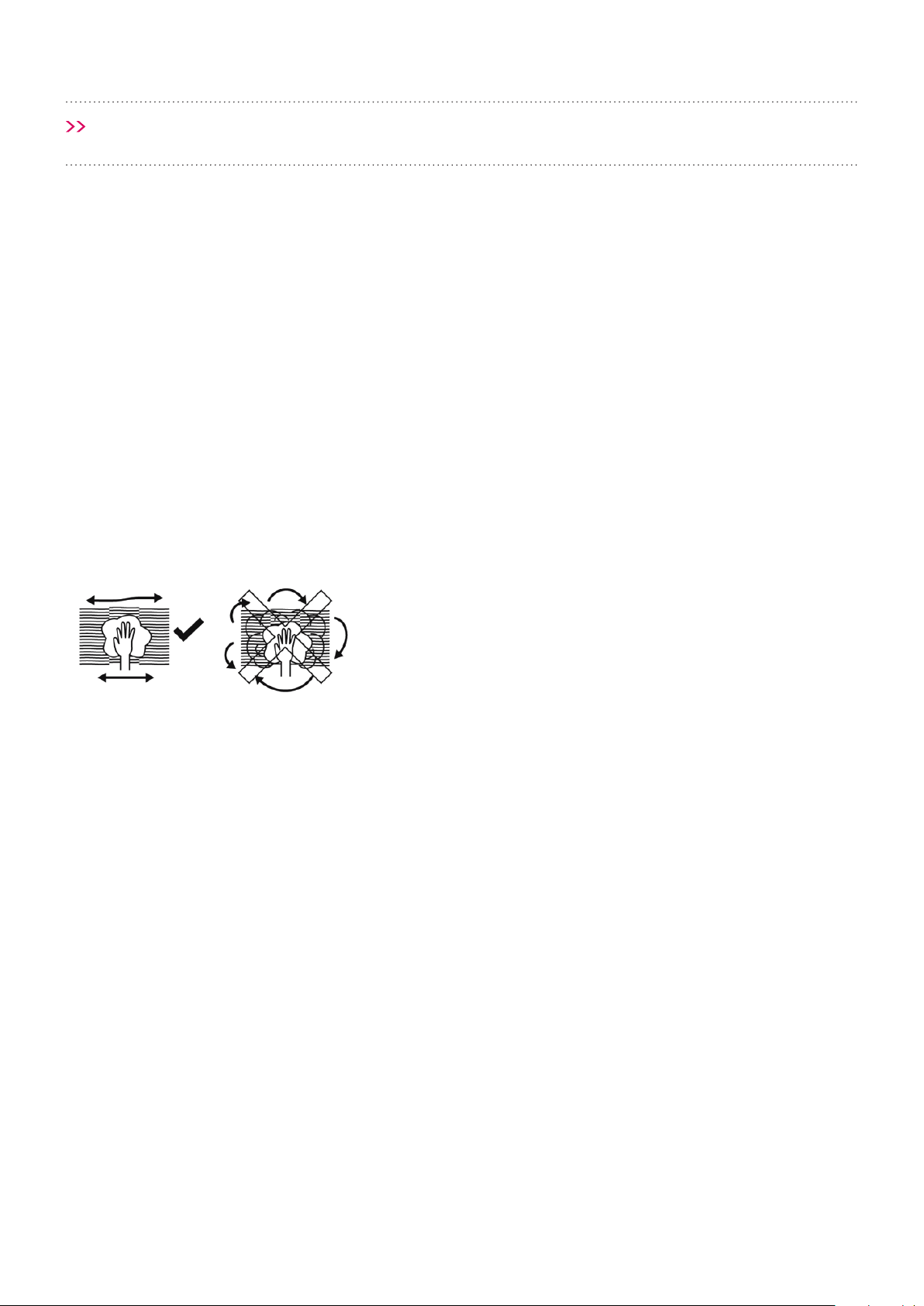

It is important to follow the direction of the surface
Do not pour any liquid directly onto the rangehood,
The cloth must have no buttons, zips or fasteners
that can scratch the surface.
It is strictly forbidden to use chemical solvents,
aggressive, grainy or abrasive products, naphtha,
alcohol or similar products that could damage the
surface of the rangehood.
The manufacturer will not be held responsible for
functional or aesthetic damage caused by using
inadequate cleaning methods.
Cleaning the Interior
Clean the interior of the rangehood with a damp
cloth and a neutral detergent or denatured alcohol.
NOTE: Do not use denatured alcohol on the
exterior of the rangehood. Do not clean the electric
parts or the motor with liquids or solvents.
Page 21
CLEANING AND MAINTENANCE
1
2
3

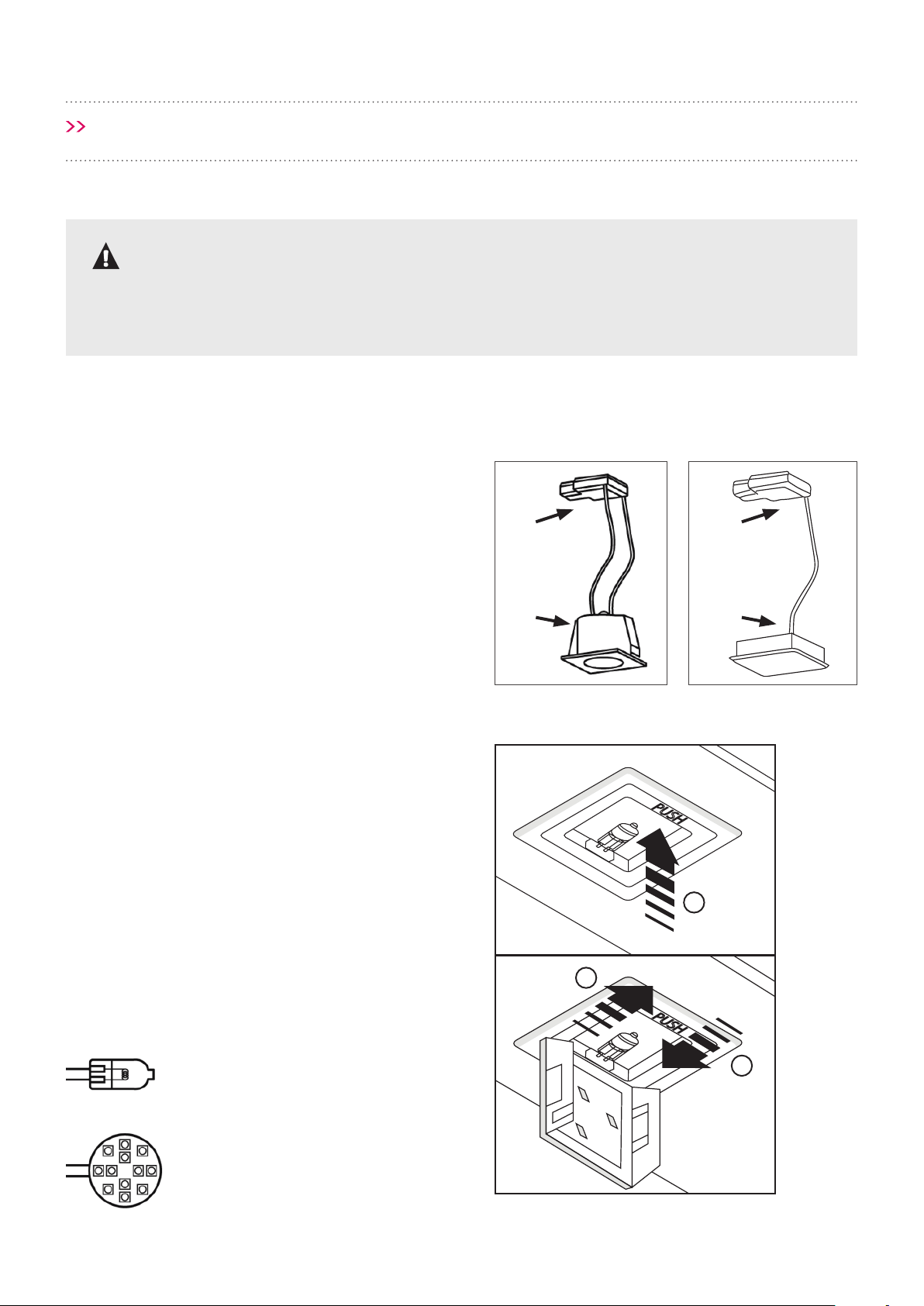

Your rangehood may have multiple light types, please refer to the pictures below for light replacement
instructions.
TYPE 3:
REPLACING THE HALOGEN OR LED
BULB MAX 20W, 12V
1.
2.
3.
4. Close the light cover by pressing the part where
NOTE: Never handle the glass of the lamp with
bare hands. Use a cloth or wear gloves when
handling the bulb to avoid contact with skin.
Type 3 — Halogen G4 HD, LED G4
TYPE 1 & 2 :
REPLACING THE LED BULB
of a halogen bulb. If the globe needs to be replaced,
proceed as follows:
1.
2.
3. Remove the LED.
4. Put in the new LED and reinstall, as above, but
in reverse order.
A A
B B
Type 1 — LED Spot Type 2 — GLED Square
WARNING
Page 22
CLEANING AND MAINTENANCE
TYPE 4:
REPLACING THE STRIP LIGHTING
1.
and gently loosen the screws.
2. Remove the glass perimeter chassis by
A
3. Disconnect the LED strip light and electronic
buttons including the connections.
4.
will drop down.
5. Replace the LED strip.
NOTE: Always replace the lighting with
replacements that have the same electrical
requirements.
Repeat operation in reverse to re-assemble.
1
1
2
2
3
4
4
6
7
8
9
10
5
6
7
8
5
3
Type 4 — LED Strip TL
A
WARNING
Page 23
COOKING WITH INDUCTION
COOKTOPS
may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction
cooktops heat food and liquid instantly, which in
have enough time to warm up, which increases the
chance of condensation forming.
There are many variables that may contribute
to condensation forming, some of which include
but are not limited to:
• Variance in climate – geographical location.
• Position of your home & kitchen – morning/
afternoon sun.
• Distance from cooktop to the rangehood.
• Speed of food & liquid heating.
•
•
• Quality of pots or cookware you are using –
high quality is recommended.
How to reduce the possibility of condensation
forming:
•
professional, carefully following the installation
guide.
•
cooking; this helps clear remaining vapours
• Start the cooking process at a low-to-medium
setting and allow time for the rangehood to
become warm.
•
•
helps optimise the rate of extraction.
•
advice.
• Install at recommended height above induction
cooktop.
with induction, please contact the induction
cooktop manufacturer.
CLEANING AND MAINTENANCE
Page 24
department, make sure that the product
is plugged in and power is supplied.
• Do not take any action that will damage
the product.
IMPORTANT
Never attempt to repair this
appliance by yourself. Always
Technician.
Check electric connection. Voltage of the electric
should be connected to grounded plug and turned on.
Check motor switch. Please ensure that there is power
to the rangehood and the rangehood is switched on.
Check lamp switch. Lamp switch should be at on
position.
Check light bulbs.
Make sure they are not broken or faulty.
Please make sure there is no obstruction in ducting or
Check the outlet, make sure it is not blocked and you
have the correct diameter ducting installed.
ducting is installed correctly, eg. Length of ducting
used, keep the ducting taut.
Check the ducting has not come unattached from
rangehood outlet or has been eaten through by
rodents.
Rangehood does
not work
X X
Light does not work X X X X
Rangehood air
exaction is weak
X X X X
Rangehood does
not direct air out
X X
Loud noise from
the rangehood
X X
CLEANING AND MAINTENANCE
Page 25
Calling the Technical Assistance Service
Hotline
In the event that the failure is not due to the
faults mentioned in Trouble Shooting, contact
the Customer Service.
In Australia,
In New Zealand,
Lodging an online Service Request
In the event that failure is not due the reason/s
in the trouble shooting section, you can lodge an
online Service Request.
To lodge a Service Request, visit our website
www.schweigen.com.au/pages/support/service-
warranty and click on the link to download the
service request form.
A service request will require the following
information:
• The purchase date
• The rangehood model and motor type
• The rangehood serial number or batch
•
FAULTY INSTALLATION
Appliances to rectify any incorrect installations.
A service call out fee will be charged for any
Schweigen technician that attends a call, whereby
it is established that the fault is due to an incorrect
installation or non-manufacturing fault. Should the
appliance be installed in such a way that the service
agent is unable to gain access to the appliance,
the person/s who own the premises where the
appliance resides — will be responsible to provide
access to the appliance at their expense.
Page 26
Max Lamp Power: 2 x GLED Square 55 x 55mm
Max Lamp Power: 2 x GLED Square 55 x 55mm
837
555
855
25
25
245
245
555
845
25
25
42
42
328
42
125
245245
348
18
Page 27
Under our policy of continuous product
without notice. Prospective purchasers should
therefore check with the retailer to ensure this
publication correctly describes the products being
used for general reference purposes only and
Appliances will not be liable for any loss, liability or
damage of whatever kind arising as a result of any
reliance upon such information. All pictures used in
the guide are for illustrative purposes only.
Although our information and marketing states
applies to various models that are sold with
model with the larger motored IsoDrive System is
operated at the higher speed/s air movement may
audible due to the large amount of air movement
*Please make sure that the rangehood and motor
have been installed as per the corresponding
instruction guides in order for optimal performance
information in good faith to all their retailers and
distributors to convey before any/all purchase/s.
Information is supplied upon the condition that the
person/s receiving the information will make their
own determination as to its suitability for their
purpose/s prior to use. In no event will Schweigen
any nature whatsoever resulting from the use of,
or reliance upon, information from their website or
the products to which the information refers.
The symbol on the product or its
packaging indicates that it cannot be
treated as normal household waste.
Take this product to your nearest
electrical and electronic equipment
disposing of this product, you will
be helping to prevent potentially
negative consequences for the
environment and public health,
which could arise if this product is
not handled in the appropriate way.
of this product please contact the
authorities of your city or town,
your local household waste service
or the store where you purchased
the product.
DISCLAIMER
www.schweigen.com.au
© Schweigen Pty Ltd. 2017.
© Schweigen Home Appliances Pty Ltd. 2016.
Australia
8/3-4 Anzed Court, Mulgrave, Victoria 3170.
Phone: 1300 881 693.
Email: sales@schweigen.com.au.
New Zealand
5 Tolich Place, Henderson, Auckland 0610.
Phone: 0800 200 510.
