PRESSURE WASHER HOSE
REEL CART
PRESSURE WASHER HOSE
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to an
accident. To reduce the risk of injury, fire, or electrocution, please
always follow the recommendation shown below.
Rules
for
Safe Operation
WARNING:
The following safety precautions are suggested. This Hose Reel Cart is
designed, engineered and tested to offer reasonably safe and effective
service,
provided that it is operated in strict accordance with these
instructions.
Failure to do so may result in personal injury. Always
observe the rules of
safe operation.Please read and retain this manual.
1. Be alert for holes in the terrain and other hazards.
2. Follow maintenance and lubrication instructions as outlined in this
manual.
3. Always wear substantial footwear.Do not wear loose fitting clothing that
may get caught in moving parts.
4. DO NOT SIT OR STAND ON THIS ITEM.
5. This product is not a toy nor. Do not allow children to play with or near
this item.
6. Use only on a flat, level, hard and smooth surface capable of safely
supporting a fully loaded Chest.
7. Use as intended only.
8. Inspect before every use; do not use if parts are loose or damaged.
ASSEMBLY PRECAUTIONS:
1.Assemble only according to these instructions. Improper assembly can
create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during
- 3 -
assembly.
3.Keep assembly area clean and well lit.
4.Keep bystanders out of the area during assembly.
5.Do not assemble when tired or when under the influence of alcohol,
drugs or medication.
6.Product capabilities apply to properly and completely assembled product
only.
7.Assemble on a flat, level, hard and smooth surface capable of safely
supporting a fully loaded Pressure Washer Hose Reel Cart.
SAVE THESE INSTRUCTIONS
Model
GT0707A
Maximum Capacity (5/8”Flexible Pipe)
250ft
Number of Wheels
4
Colour
Silver gray

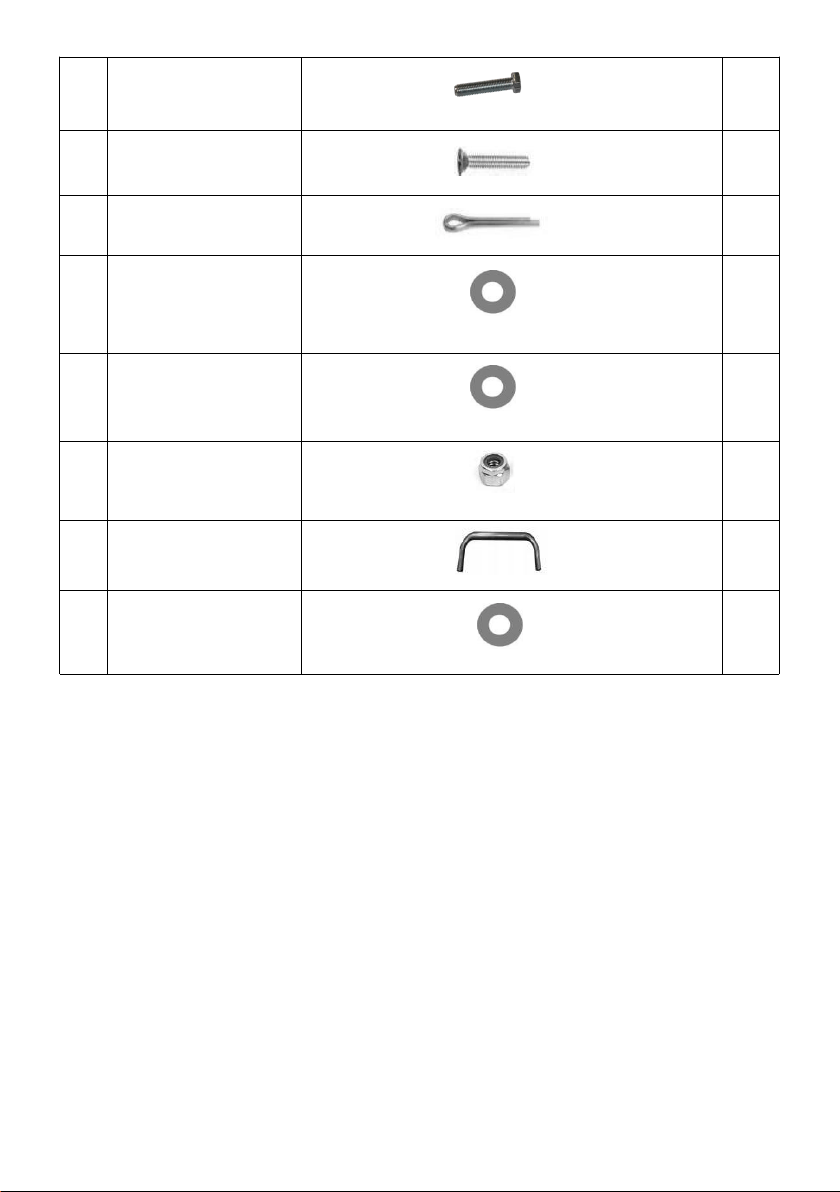

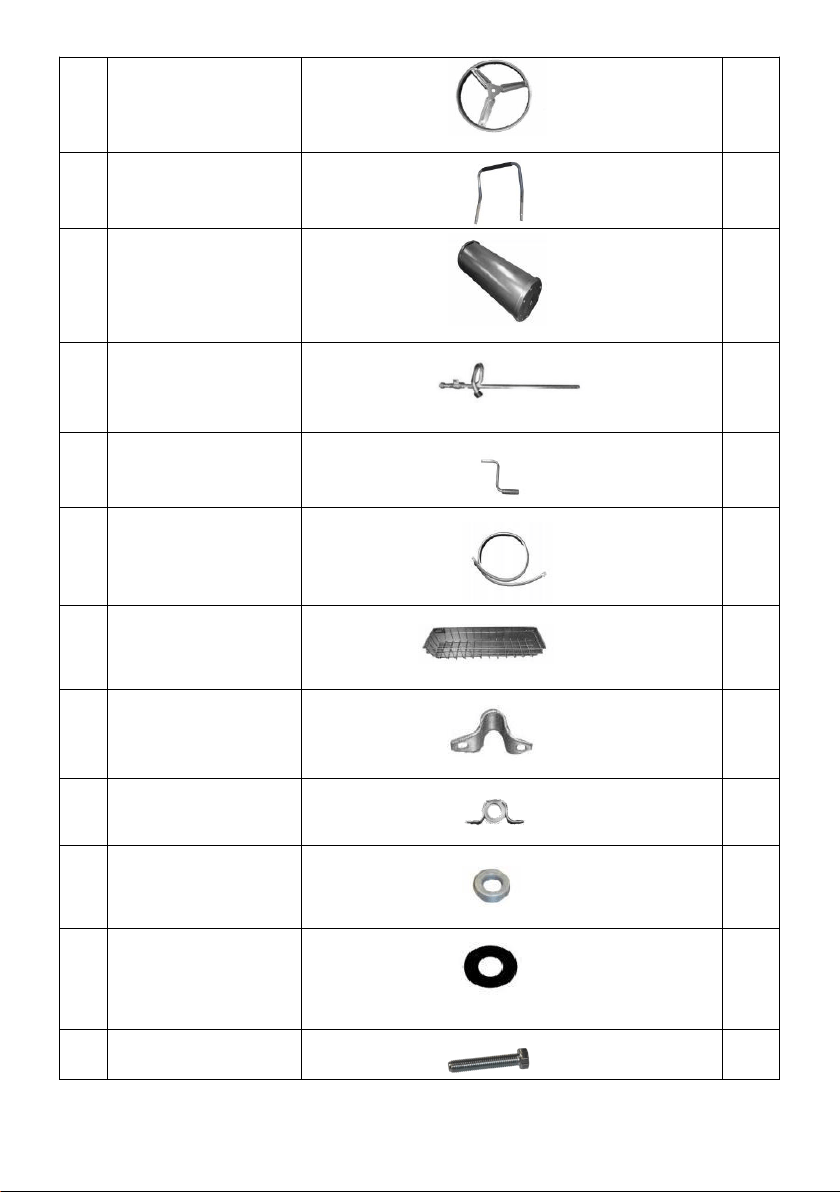

Carton Contents
Ref.
Description
QTY.
1
Side Frame
2
2
Cross Brace
1
3
Axle
2
4
Wheels
4
- 4 -
5
Hose Reel Ends
2
6
Push Handle
1
7
Hose Reel Center
Hub
1
8
Water Coupling
Tube
1
9
Crank Handle
1
10
Hose Extension
1
11
Wire Basket
1
12
Painted Water
Coupler U-Bracket
1
13
Crank U-Bracket
1
14
Crank Bracket
Bushing
1
15
Hose Washer
2
16
M6 x 35 Bolt
14
- 5 -
17
M6 x 25 Bolt
2
18
M6 x 15 Screws
13
19
Cotter Pin
4
20
12 mm Large
Washer
4
21
6mm Small Washer
16
22
M6 Nylock Nuts
16
23
Front Crank Frame
1
24
M6 Small Washer
13
Assembly Instructions
Tools Needed for Cart Assembly
(1) Screwdriver.
(2) M10 Wrench or Adjustable Wrench.

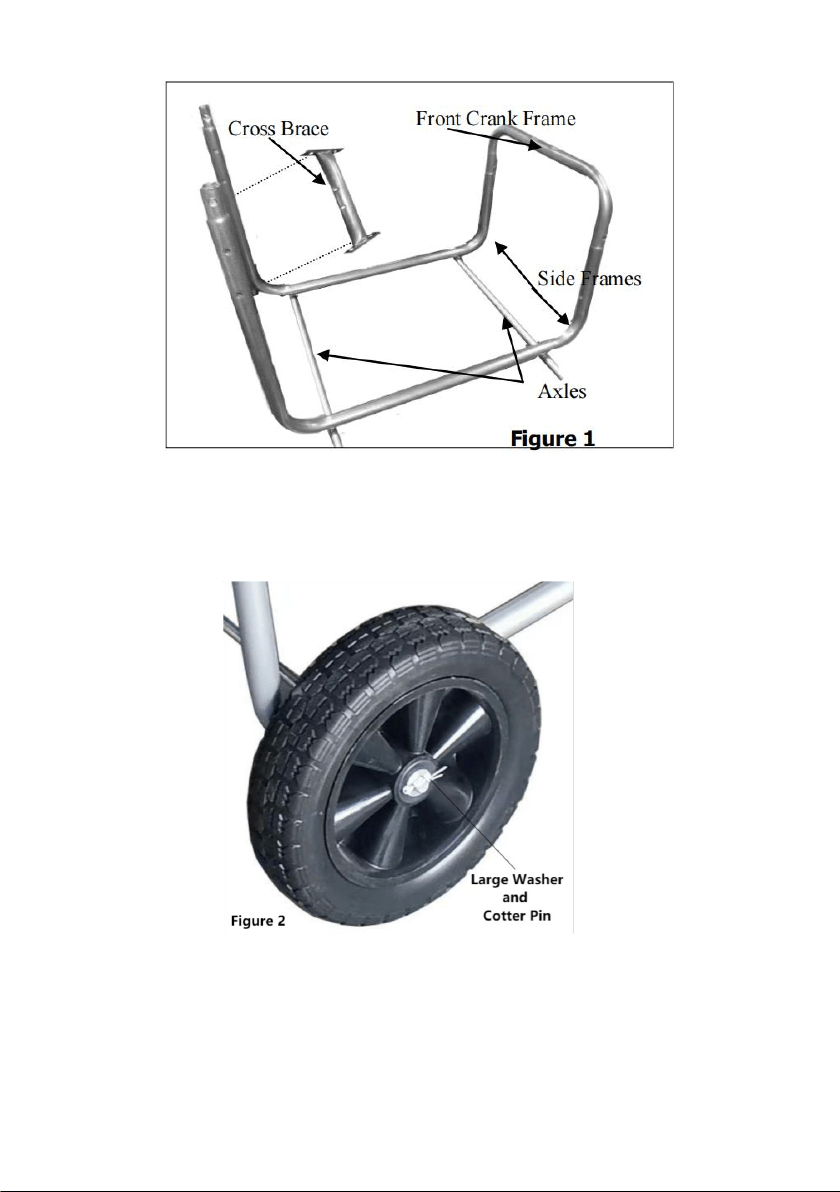

1. Install front crank frame to side frames using two M6 x 35 bolt sets.
Next add cross brace to side frame using four M6 x 35 bolt sets. Slide
axles through tabs on the bottom of side frames. See figure 1.
- 6 -
2. Install wheels using 12mm large washer and cotter pin.
See figure 2.

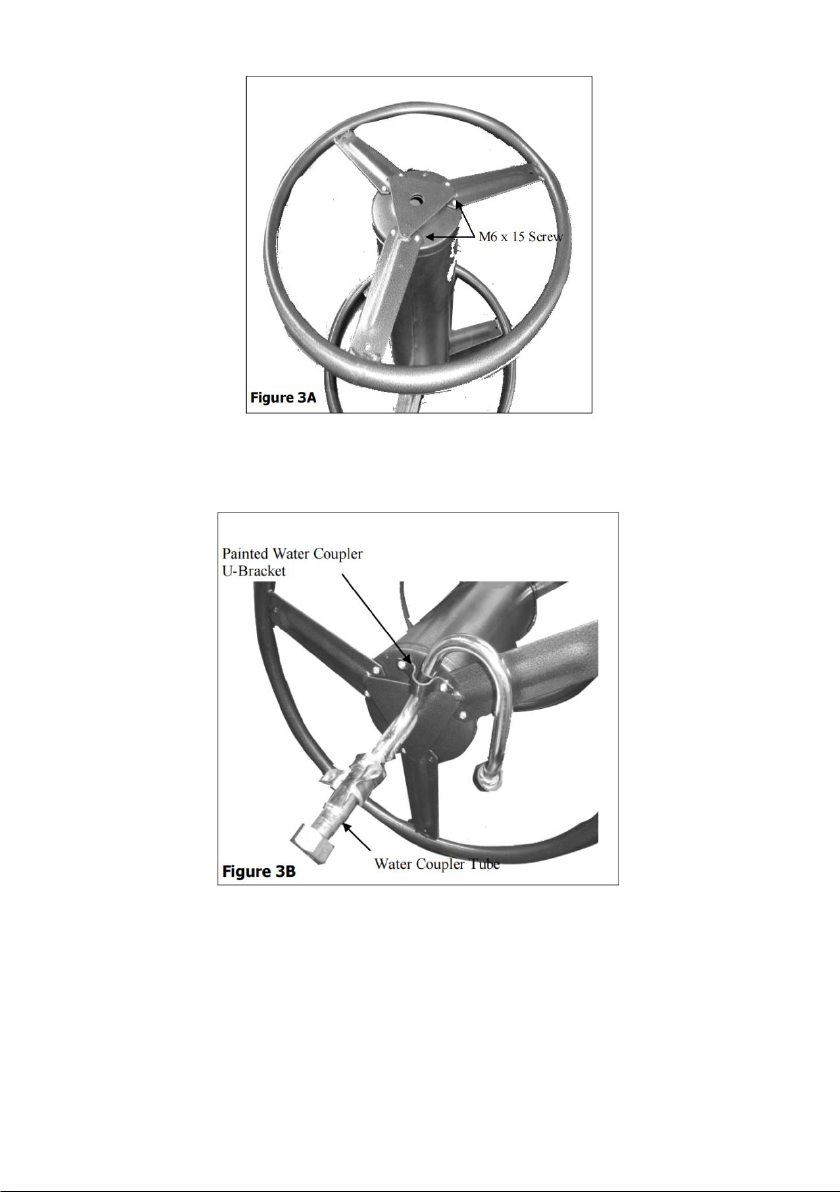

3. Attach hose reel end to the reel connecting rods using (4) M8 Nylock
Nuts & Washers. Repeat on the opposite side. See figure 3A.
- 7 -
Attach water coupler Tube to the center hub using the painted water
coupler u-bracket and (1) M8 u-bracket bolt Set. See figure 3B.

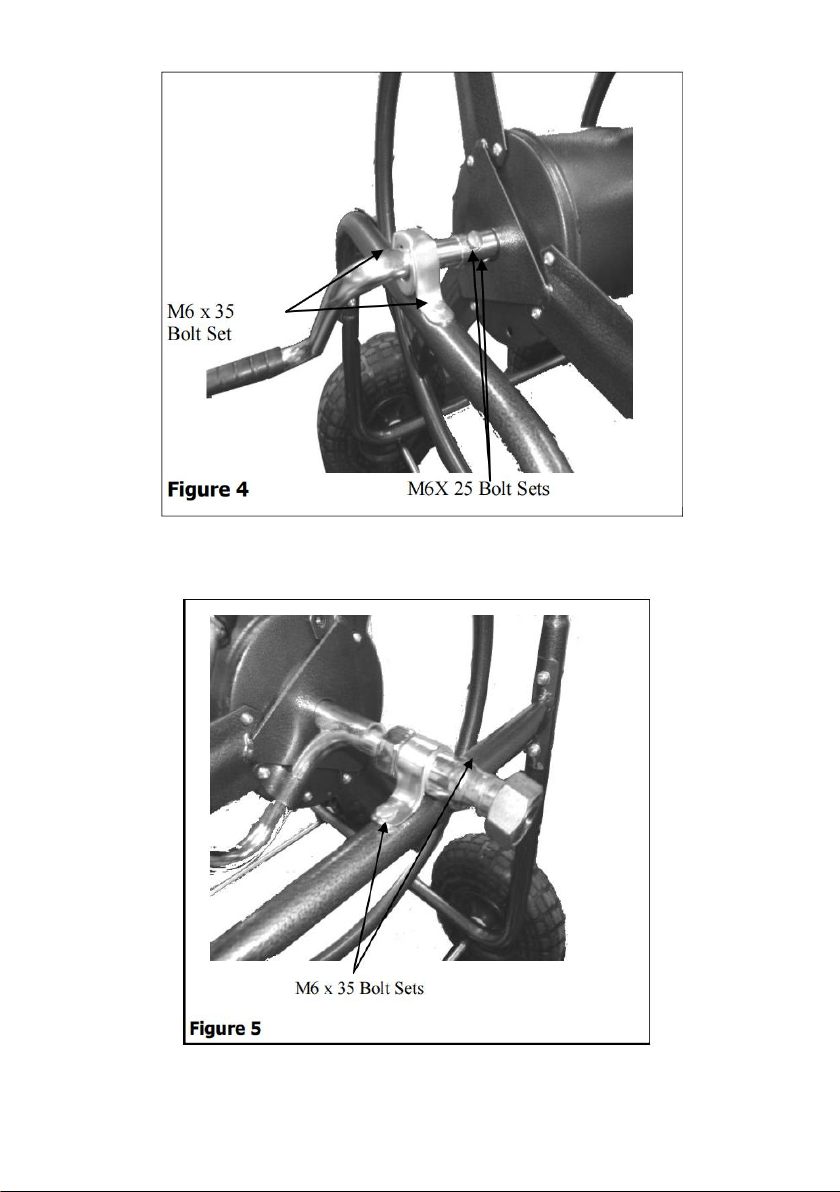

4. Insert crank bushing into crank u-bracket and attach to the front crank
frame using (2) M6 x 35 bolt sets. Insert crank handle through the rank
bushing then slide hose reel onto crank handle securing with (2) M6 x 25
bolt sets. See figure 4.
- 8 -
5.Attach opposite end of the hose reel to the cross brace using (2) M6 x 35
bolt sets.See figure 5.
- 9 -

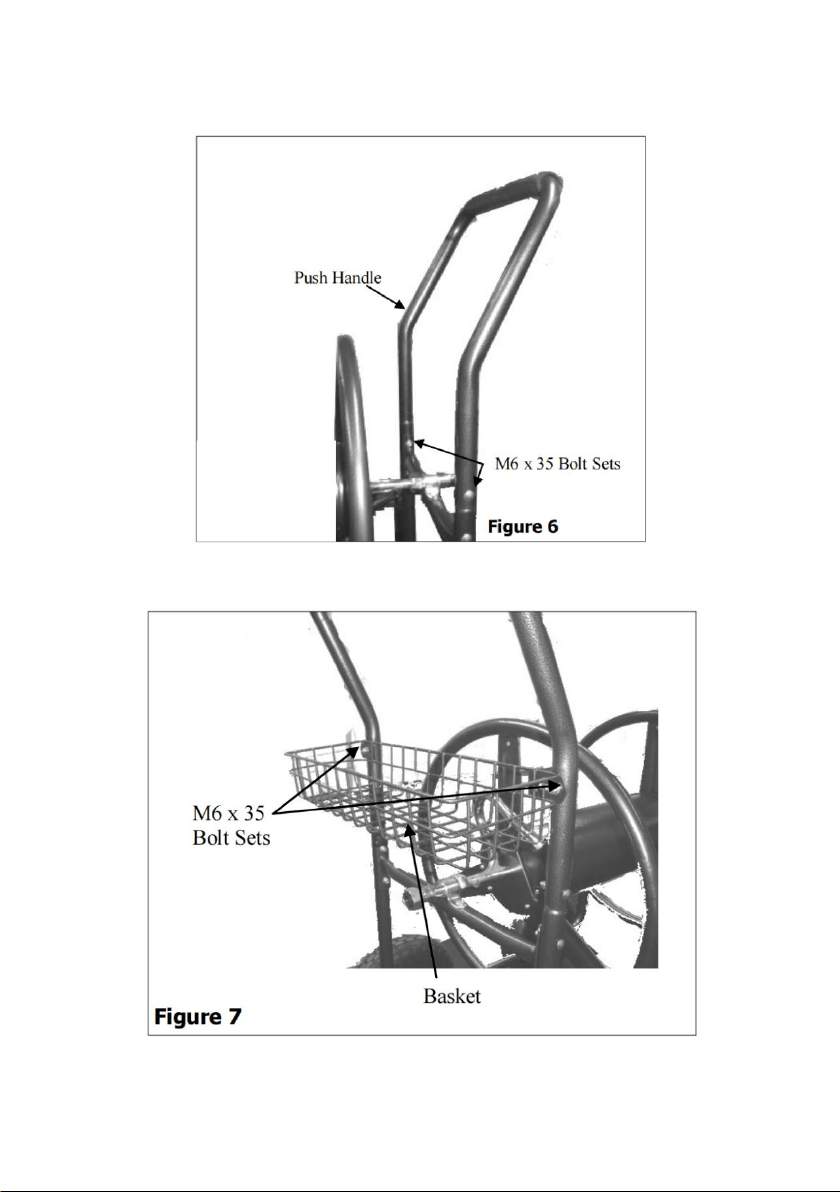

6. Assemble push handle onto cart frame using (2) M6x35 bolt sets. See
figure 6.
W
7. Attach basket to handle using (2) M6x35 bolt sets. See figure 7.
- 10 -

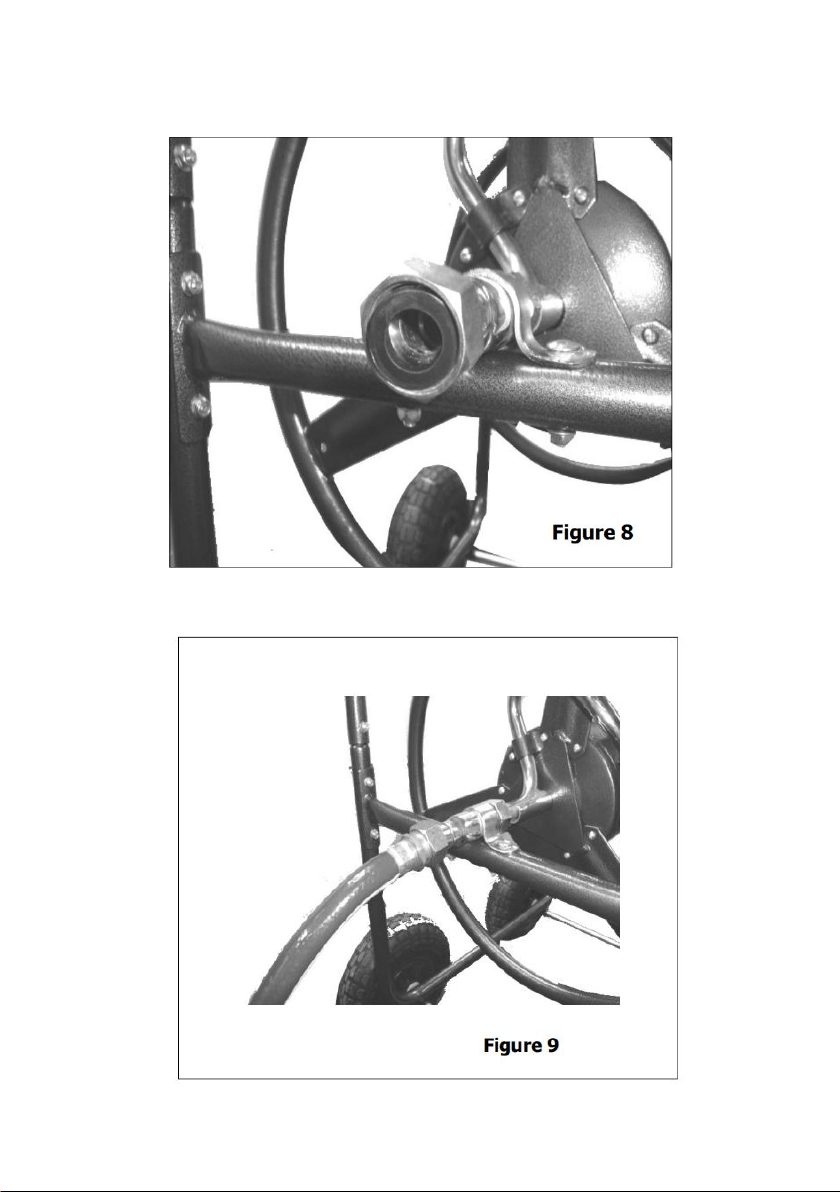

8. Insert rubber washers into hose extension and water coupler.
See figure 8.
9. Attach hose extension to water coupler. See figure 9.
- 11 -

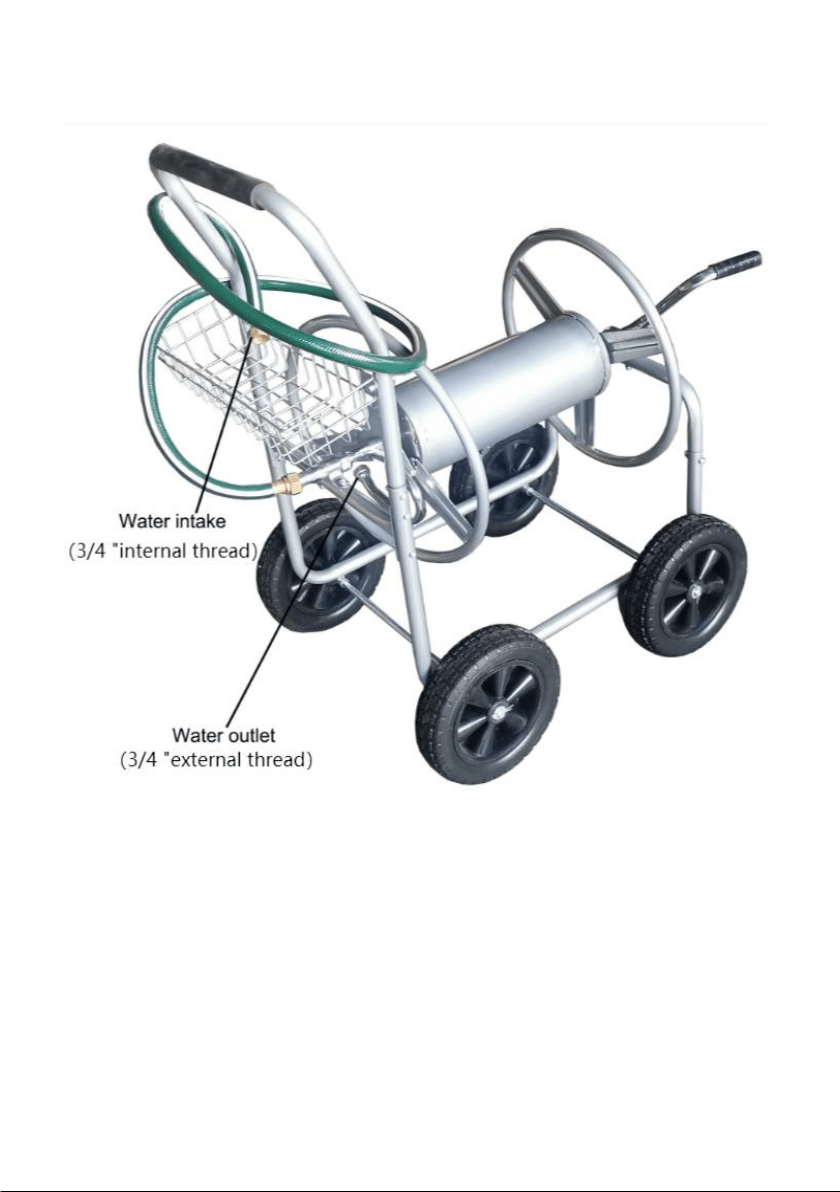

Connect the water pipe
- 12 -
