PRESSURE WASHER HOSE REEL CART
MODEL:GT0703-1
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:GT0703-1
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
PRESSURE WASHER HOSE
REEL CART
PRESSURE WASHER HOSE
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to an
accident. To reduce the risk of injury, fire, or electrocution, please
always follow the recommendation shown below.
Rules
for
Safe Operation
WARNING:
The following safety precautions are suggested. This Hose Reel Cart is
designed, engineered and tested to offer reasonably safe and effective
service,
provided that it is operated in strict accordance with these
instructions.
Failure to do so may result in personal injury. Always
observe the rules of
safe operation.Please read and retain this manual.
1. Be alert for holes in the terrain and other hazards.
2. Follow maintenance and lubrication instructions as outlined in this
manual.
3. Always wear substantial footwear.Do not wear loose fitting clothing that
may get caught in moving parts.
4. DO NOT SIT OR STAND ON THIS ITEM.
5. This product is not a toy nor. Do not allow children to play with or near
this item.
6. Use only on a flat, level, hard and smooth surface capable of safely
supporting a fully loaded Chest.
7. Use as intended only.
8. Inspect before every use; do not use if parts are loose or damaged.
ASSEMBLY PRECAUTIONS:
1.Assemble only according to these instructions. Improper assembly can
create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during
- 3 -
assembly.
3.Keep assembly area clean and well lit.
4.Keep bystanders out of the area during assembly.
5.Do not assemble when tired or when under the influence of alcohol,
drugs or medication.
6.Product capabilities apply to properly and completely assembled product
only.
7.Assemble on a flat, level, hard and smooth surface capable of safely
supporting a fully loaded Pressure Washer Hose Reel Cart.
SAVE THESE INSTRUCTIONS
Model
GT0703-1
Maximum Capacity (5/8”Flexible Pipe)
200ft
Number of Wheels
2
Colour
Silver Gray
Carton Contents
Ref.
Description
QTY.
1
Hose Reel
1
2
Support Frame 1
1
3
Handle
1
- 4 -
4
Frame 2
1
5
8”*1.75” Wheel
v
2
6
Shake Handle
1
7
Fixings
1
8
Plastic Sleeve
1
9
M6*40 Bolt &
Look Nut M6
6
10
R-pin
1
11
Cotter Pins
2
12
Washer
2
- 5 -
Assembly Instructions
Tools Needed for Cart Assembly
(1) Screwdriver.
(2) M10 Wrench or Adjustable Wrench.

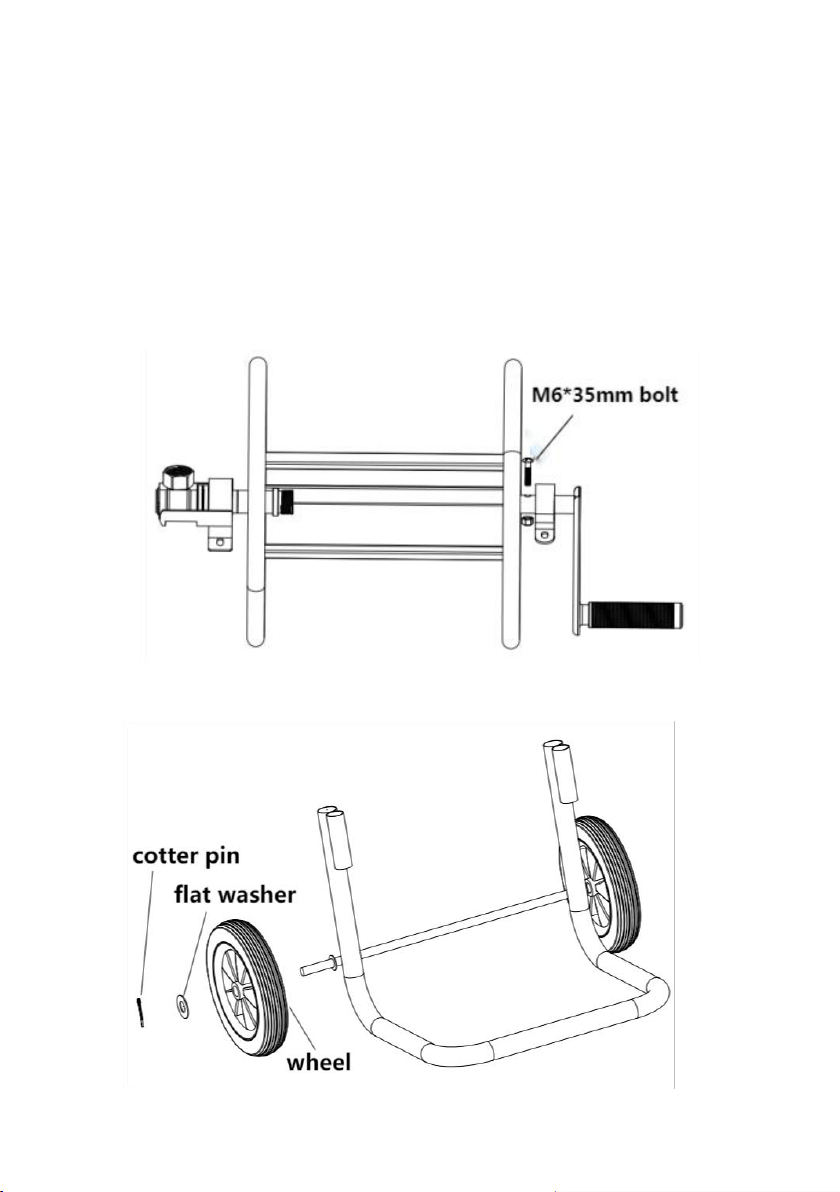

1. Install the shake handle to the hose reel ends,use M6*35mm bolt.
2. Install wheels using flat Washer and cotter pin.
- 6 -
3. Insert the handle into the frame 1.
4. Insert the frame 2 to the tube 1.
- 7 -

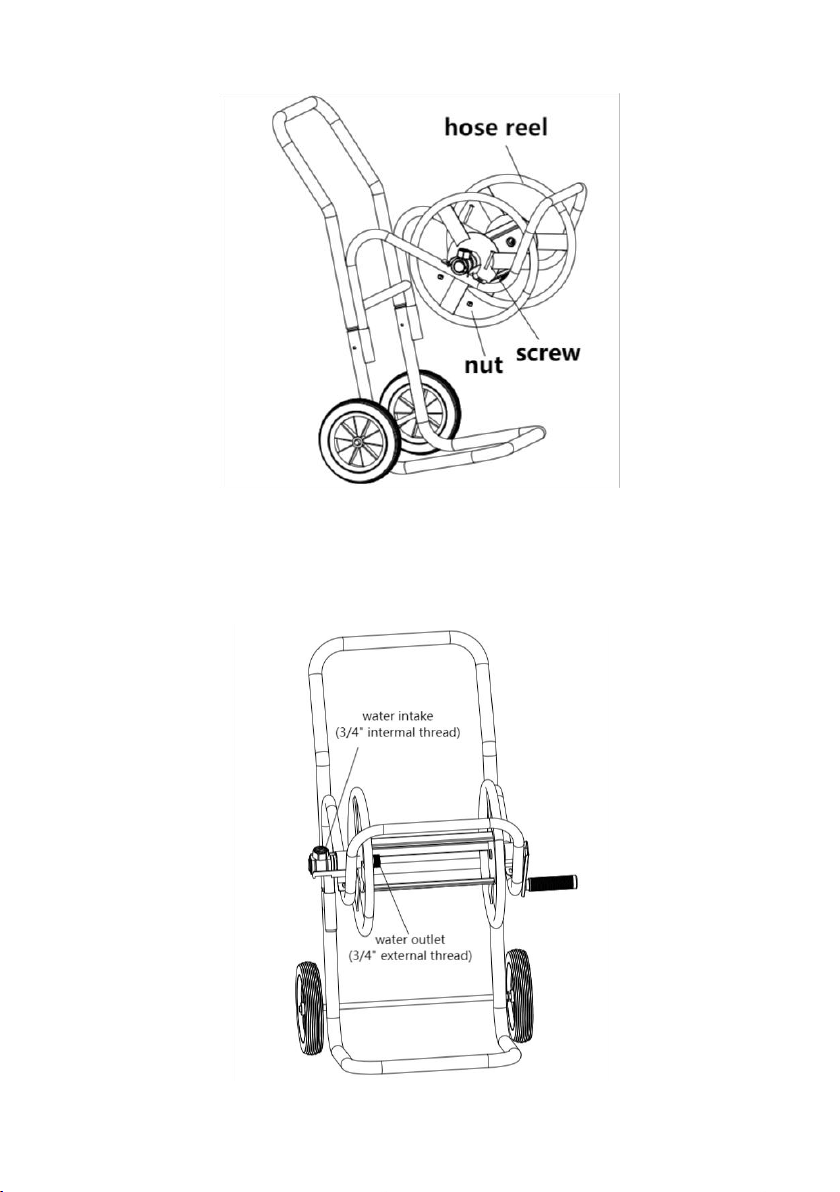

4. Fix the hose reel to frame 2 with screws and nuts.
Connect the water pipe
- 8 -
