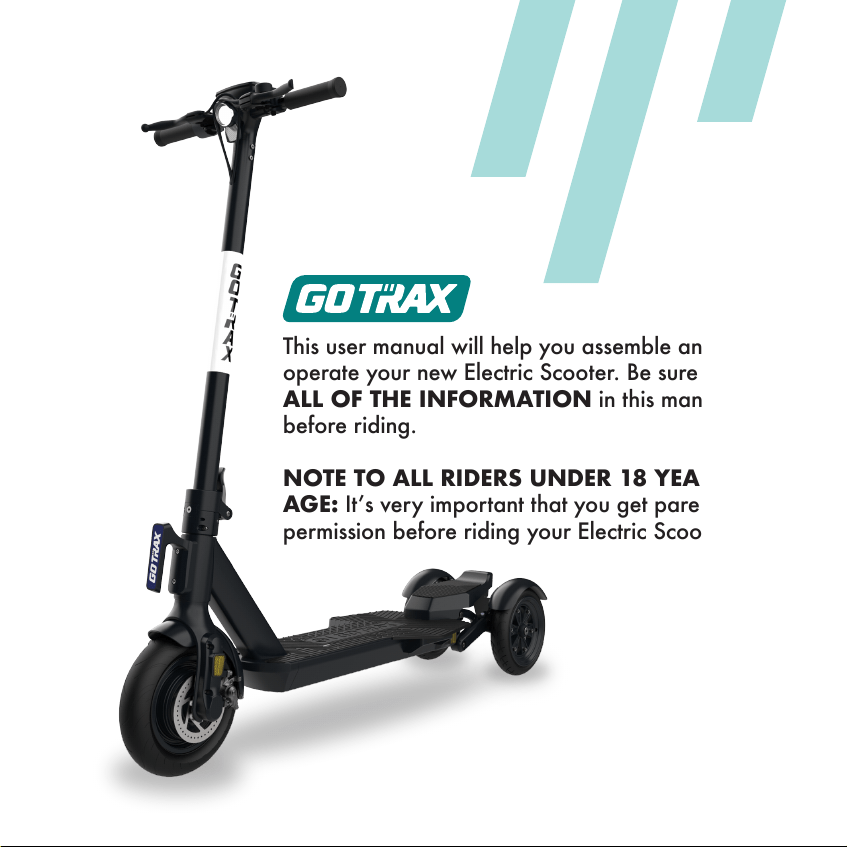

G Pro
USER MANUAL
ELECTRIC SCOOTER
Congratulations
on your purchase!
This user manual will help you assemble and
operate your new Electric Scooter. Be sure to read
ALL OF THE INFORMATION in this manual
before riding.
NOTE TO ALL RIDERS UNDER 18 YEARS OF
AGE: It’s very important that you get parental
permission before riding your Electric Scooter.
ALWAYS wear a helmet when riding your Electric Scooter.
Make sure your scooter has a full battery before taking it out to
ride.
Always be aware of local road laws, and follow them.
Do not ride the scooter under the inuence of drugs or alcohol.
Always respect pedestrians.
Do not ride under wet conditions. The scooter may slide from under
your feet causing injury. Wet conditions may damage the electronics
and void the warranty.
Don’t ride until you read this
1. Avoid water - The scooter is not waterproof. The electronics may
be damaged due to water and water damage is not covered by our
warranty. Riding in wet conditions is also very dangerous and may result
in injury.
2. Abuse - We do not cover physical damage due to negligent care and
extreme riding.
3. Whenever you ride the GOTRAX electric scooter, you risk
severe injury or even death from loss of control, collisions, and falls. Use
caution and ride at your own risk.
4. Do not modify the product from the manufacturer’s original design.
5. Keep hands and all body parts away from moving parts while
operating the scooter.
6. Before riding - be sure to check the scooter over and make sure the
scooter is operating correctly before each use.
7. Before riding - be sure to check that the braking system is functioning
properly; also be sure to check that all safety labels are in place and
you understand the safety warnings.
Warning Message
8. Before riding - be sure that any and all axle guards, chain guards, or
other covers or guards supplied by the manufacturer are in place and in
serviceable condition.
9. Before riding - be sure to check that the tires are in good condition,
inated properly, and have sufcient tread remaining.
10. Never exceed the 220 lb (100 kg) maximum load rating.
11. The electric scooter should never be used by children under the age of 16.
12. Maximum Speed - Your electric scooter goes the maximum speed of 20
mph.
Unpack
You should nd each of these items in your box:
1. Electric Scooter
2. Approved Power Adapter / Charging Unit
3. 3mm Allen Wrench
4. Tire Pump Extender
5. 4 Screws
Remove all packaging material, then inspect each item for any
accidental damage that may have occurred during shipping.
1
2
3
5
4
Get to know your scooter
The electric scooter comes partially assembled.
SPECIFICATIONS
Top Speed:
Distance per Charge:
Weight Range Up To:
Battery Type:
Battery Charger:
Charge Time:
Power Requirements:
20 mph
24 Miles
220lbs
36V 10.4AH
DC 42V 3.0A
3-4 hours
AC 100-240V
~
50/60HZ 3.0A

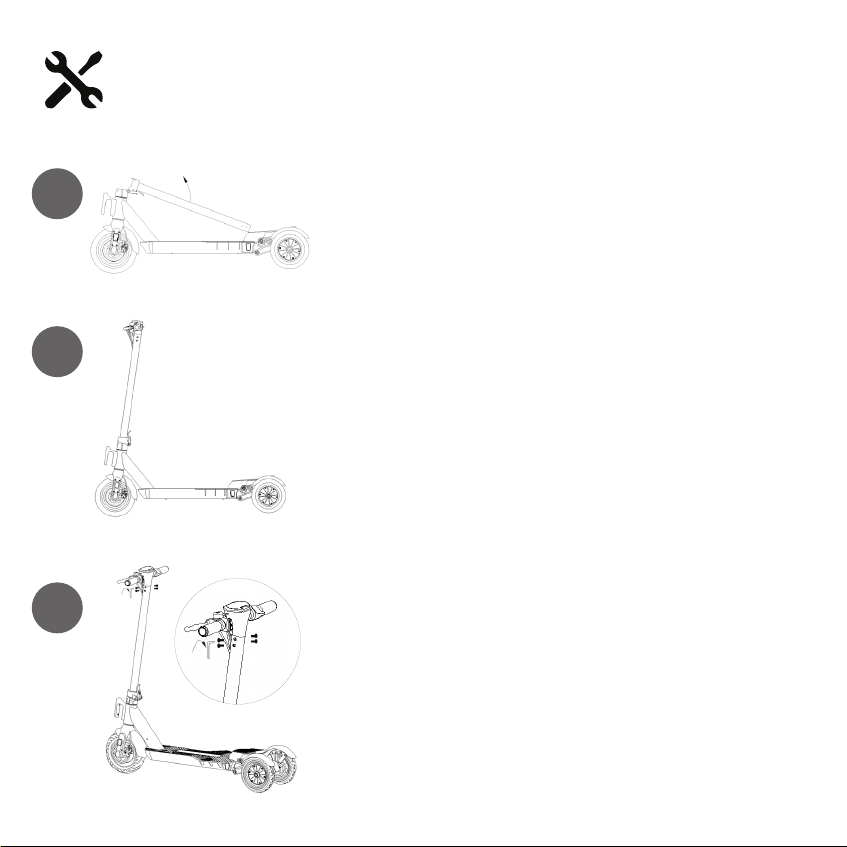

Assemble Your Scooter
Straighten the tiller and lift the tiller
upright (as shown in the gure).
Press the folding lever as the gure
shows to lock the tiller.
1
2
3
Insert the exposed cable into the
tiller and then insert the console into
the tiller. Use the tool and screws
to lock the console into place. (as
shown in the gure).

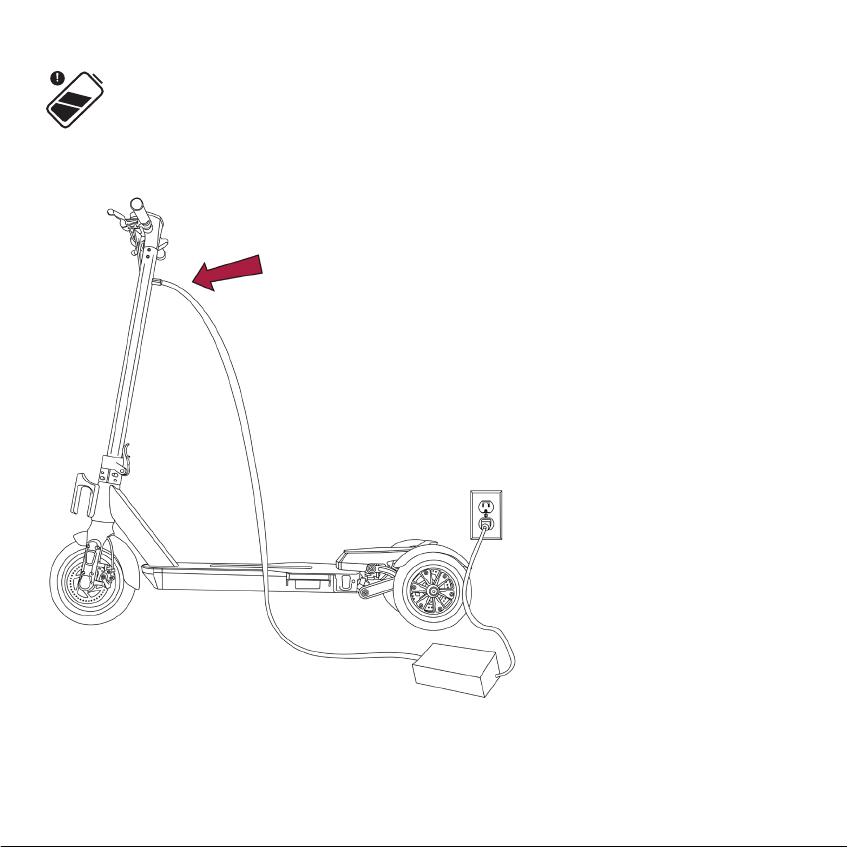

Charge Your Scooter
Before using the scooter, you must fully charge the battery.
1. Open the rubber charging port cover.
2. Insert the charging plug into the port.
3. The charger box will have a green light when
fully charged and a red light when charging.
4. When you are done charging be sure cover the
charging port to keep it clear of dust and debris.
5. Charging Time: 3-4 hours
Charging Requirement: Make sure to charge your scooter in conditions
that do not exceed 104 degrees Fahrenheit or below 32 degrees Fahrenheit.
• Long press power button to power on and o.
• Hold “+” button for 3 seconds to power the headlight and tail light
power on and o.
• To unlock the display lock the password is 000. Use the “ + “
button to input 0 and press the power button to set. Repeat the process
to enter in the full code 000. Once all three zero’s have been selected,
press the power button twice to deactivate the lock.
• To set your own code, press the “ + “ button and the power button
together for 10 seconds. Then use the “ + “ button to input the rst
number of your code and press the power button to set. Repeat the
process to set your own individual three number code. Once your three
number code is selected, press the power button twice to deactivate the
lock.
Scooter Console Functions
• Press the throttle for 8 seconds to activate Cruise Control while moving.
Press the handbrake to cancel the cruise control feature.
• Hold the “ - “ button while walking next to the scooter to activate push
assist mode. Once the push assist mode has been activated the scooter
will move at 1.8 mph to make it easier to walk next to the scooter.
• The console on the Scooter displays speed in MPH, Distance, Battery
life, and the Headlights.
1. You will want to start riding your scooter with one foot on the platform
and one foot on the ground. Use your foot on the ground to push off
and at the same time, press the throttle button to begin movement.
2. Press the brake handbrake to slow down or stop.
3. The scooters perform best when on a smooth surface e.g. carparks,
smooth roads, footpaths, & bike lanes.
4. Always clean your scooter (wheels, platform..etc.), it’s a machine and it
needs to be maintained.
5. Do not press the throttle while walking with the scooter beside you.
6. Be aware of the terrain you are riding on, watch out for curbs and
obstacles!
Riding Tips
Before folding the scooter, make sure that the scooter is powered off.
Folding: Ensure the electric scooter is powered off, press the lock buckle
as the gure shows and pulled down the lever. Fold the tiller down towards
the rear fender and lock the tiller hook to the fender hook buckle.
Unfolding: Unconnect the tiller hook from the fender hook. Once
unhooked pull the tiller upwards and lock the locking device on the bottom
of the tiller by pulling the clamp towards the tiller. Make sure to test the
tiller before riding to make sure it is locked into place.
Putting Your Scooter
Away/Folding
1
2
If you regularly clean and maintain your electric scooter, it will
extend its life.
Cleaning and storage: If the scooter is dirty, wipe it clean with a soft
damp cloth.
Brake Adjustments & Service: If you notice you need brake
adjustments or any service on your scooter, contact our customer service
team and we will adjust and repair your scooter. Do not repair your
scooter yourself, this can void your warranty and you risk damaging the
scooter.
Tires: If you notice that the tire pressure is low, please ll to the
recommended PSI on the side of the tire. Recommended PSI: 50
DO NOT use alcohol, gasoline, kerosene, or other corrosive chemical
solvents to clean the scooter. It can severely damage the appearance and
structure of the scooter. Please do not use a pressure washer as it may also
cause damage to the electronics.
Storage: When you’re not using your scooter store in a dry and cool
location. Avoid storing your scooter outdoors because sun exposure can
damage it’s appearance and may cause wear on the life of the battery and
tires.
Maintenance & Repair
Only use the approved GOTRAX power adapter to charge your scooter,
others may cause risk of re & equipment may be damaged.
Improper disposal of used batteries may seriously pollute the environment.
Please comply with local disposal regulations.
Make sure to store your scooter and power adapter in conditions that do
not exceed 122 degrees Fahrenheit or below -4 degrees Fahrenheit.
Warning - Risk of Fire - No User Serviceable Parts, The prolonged
exposure to UV Rays, Rain and the Elements may damage the enclosed
materials, store indoors when not in use.
Battery Information
We frequently update our user manuals at GOTRAX.com, and reserve the
rights to update and change manuals online.
Please contact our customer service team if you are
experiencing problems or need more detailed information.
They can be reached at GOTRAX.com
Warranty
For warranty information, please visit GOTRAX.com.
Troubleshooting
WWW.GOTRAX.COM
#RideGOTRAX
GOLABS, INC
GOTRAX.com
2201 Luna Rd.
Carrollton, TX 75006
