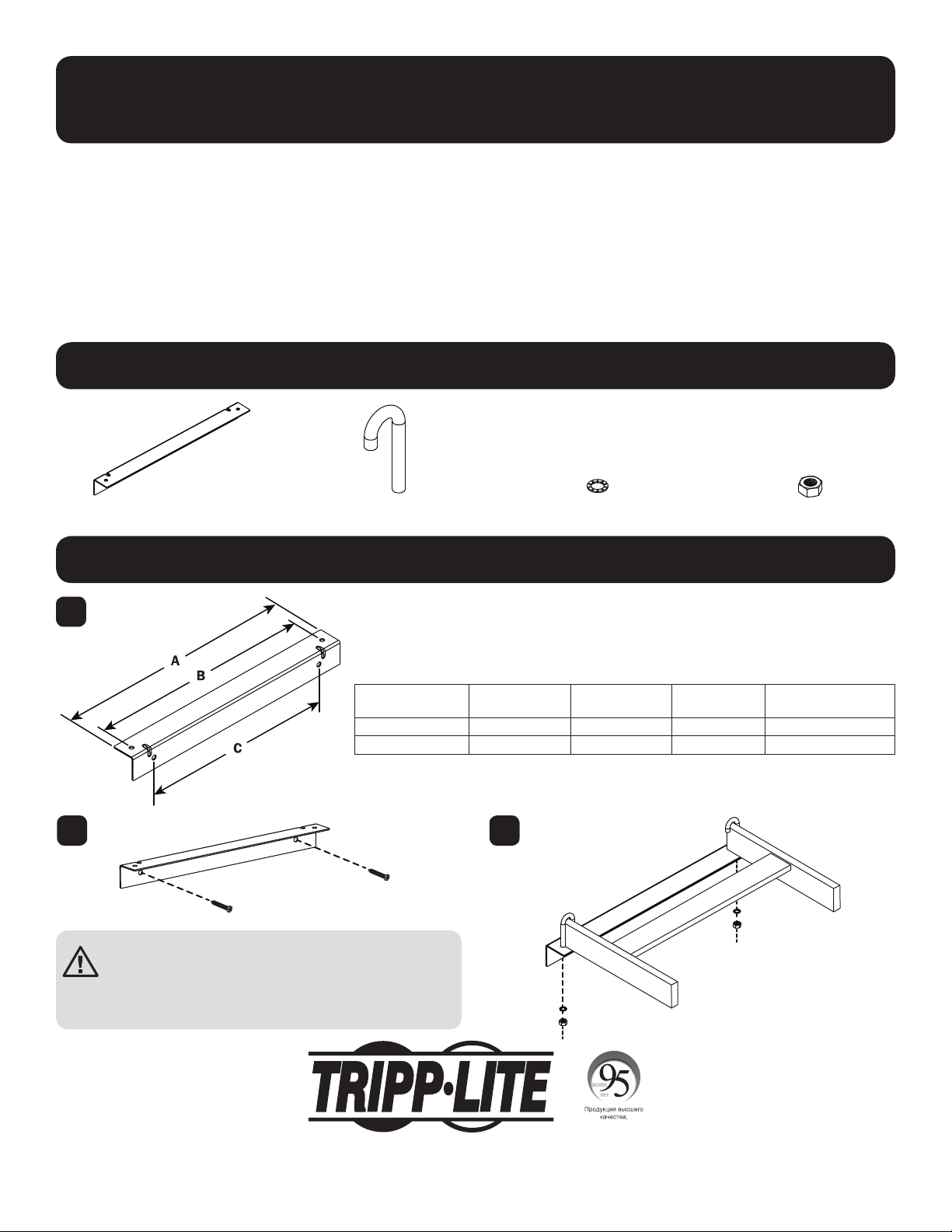

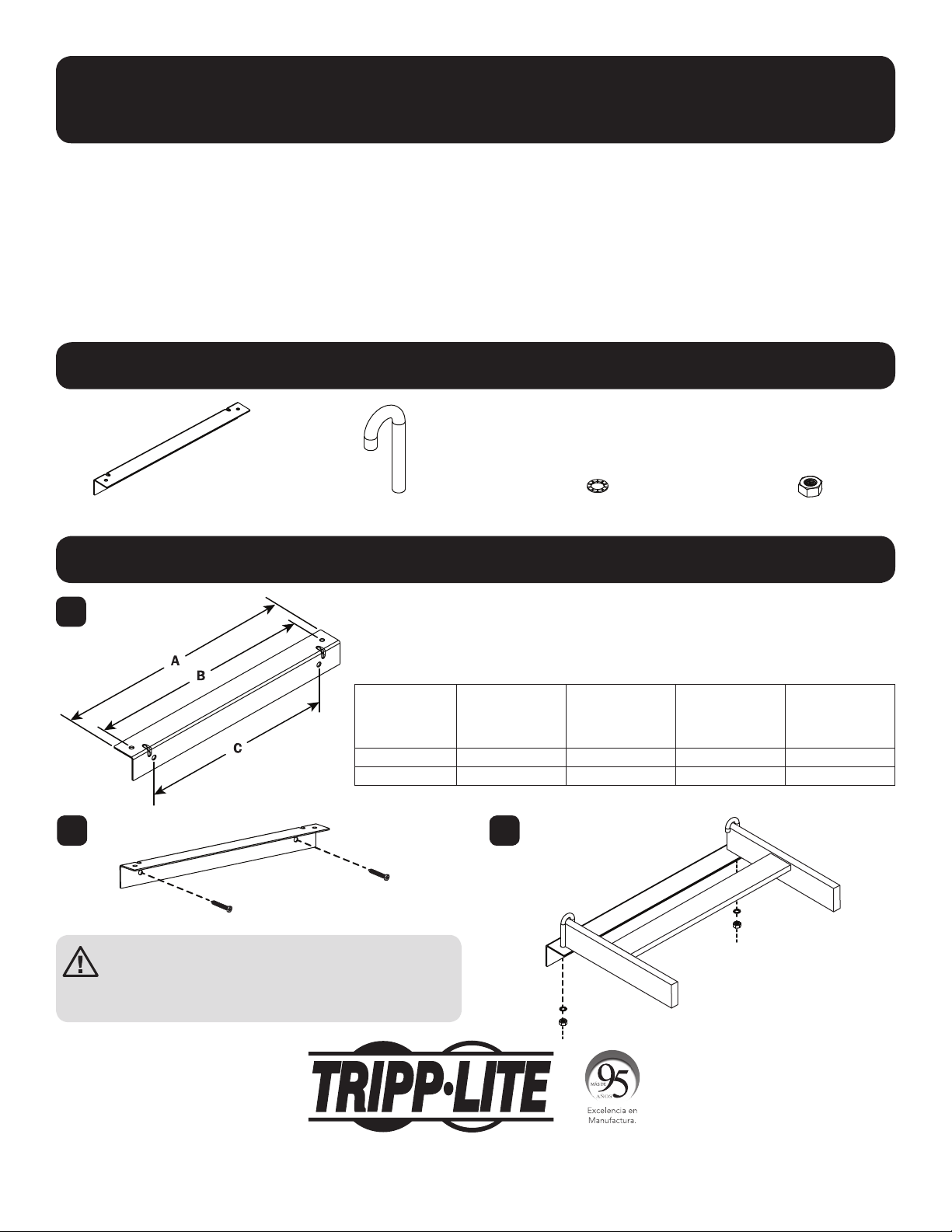

Installation Guide
Parts List
Assembly
1
2 3
90-Degree Wall Support Kit
Models: SRWALLSPPT12, SRWALLSPPT18
The SRWALLSPPT12 / SRWALLSPPT18 90-Degree Wall Support Kit mounts to a wall surface to support
12-inch or 18-inch cable runway.
Español 2 • Français 3 • Русский 4
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2018 Tripp Lite. All rights reserved.
Bracket (x1) M8 J-Bolt (x2) M8 Lock Washer (x2) M8 Hex Nut (x2)
Tripp Lite
Wall Support Kit Raceway Width Measurement A Measurement B Measurement C
SRWALLSPPT12 12” (300 mm) 14” (360 mm) 12.31” (313 mm) 10” (250 mm)
SRWALLSPPT18 18” (460 mm) 20” (510 mm) 18.31” (465 mm) 16” (410 mm)
The mounting surface must be able to safely support the
combined load of the equipment. Use appropriate fasteners
(not included) to secure the bracket to the wall. Use suitable
mounting means when installing to cinder block, concrete,
drywall or wood studs.
Cable Ladder Not Included
