Installation Guide
Parts List
Assembly
1 2 3
Triangular Support Bracket
Model: SRLTRISUPPORT
Constructed of ¼” x 2” aluminum, the SRLTRISUPPORT Triangular Support Bracket provides wall support for cable runway.
Español 2 • Français 3 • Русский 4
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2018 Tripp Lite. All rights reserved.

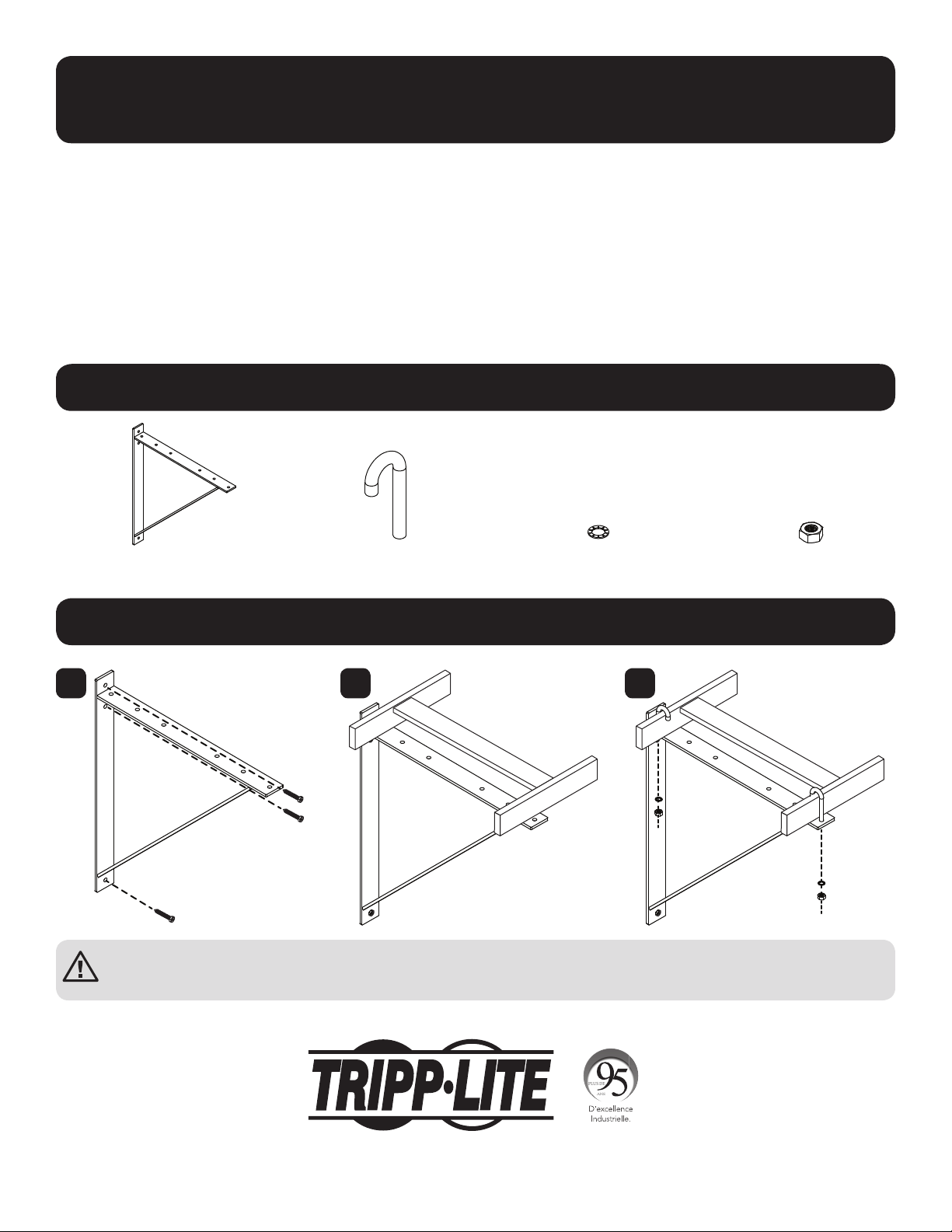

Bracket (x1) M8 J-Bolt (x2) M8 Lock Washer (x2) M8 Hex Nut (x2)
Bracket weight capacity is 100 lb. (45 kg). The mounting surface must be able to safely support the combined load of the equipment.
Use appropriate fasteners (not included) to secure the bracket to the wall. Use suitable mounting
means when installing to cinder block,
concrete, drywall or wood studs.
Cable Ladder Not Included Cable Ladder Not Included
