1 Introduction
Working with body camera, the Station can acquire the data of body cameras and charge them. The
Station can automatically recognize and connect the body camera through the USB port. Working
with the platform, the Station can authorize the body camera, auto acquire the electronic evidence
(video, audio, and snapshots). It is featured with:
●
Recharge and collect data from maximum 8 body cameras at the same time.
●
Automatically or manually upgrade body cameras.
●
Automatically archive the collected electronic data.
●
Automatically upload the evidence to FTP or the platform.
●
Automatically synchronize time.
●
You can search, edit, transcode, play back, view, delete and manage all the data in the Station.
1.1 Dimensions

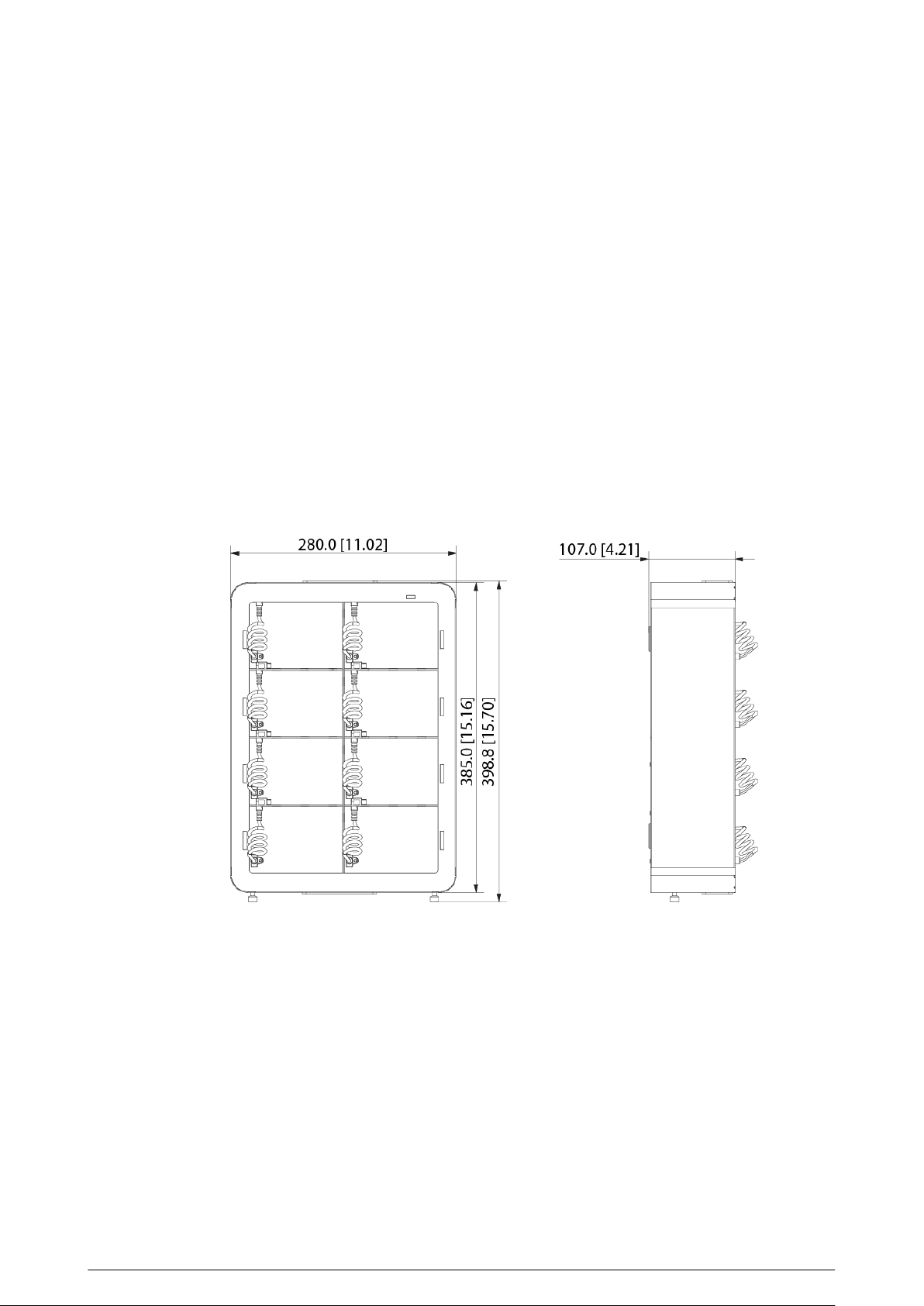

Figure 1-1 Dimensions (mm [inch])
1
1.2 Ports

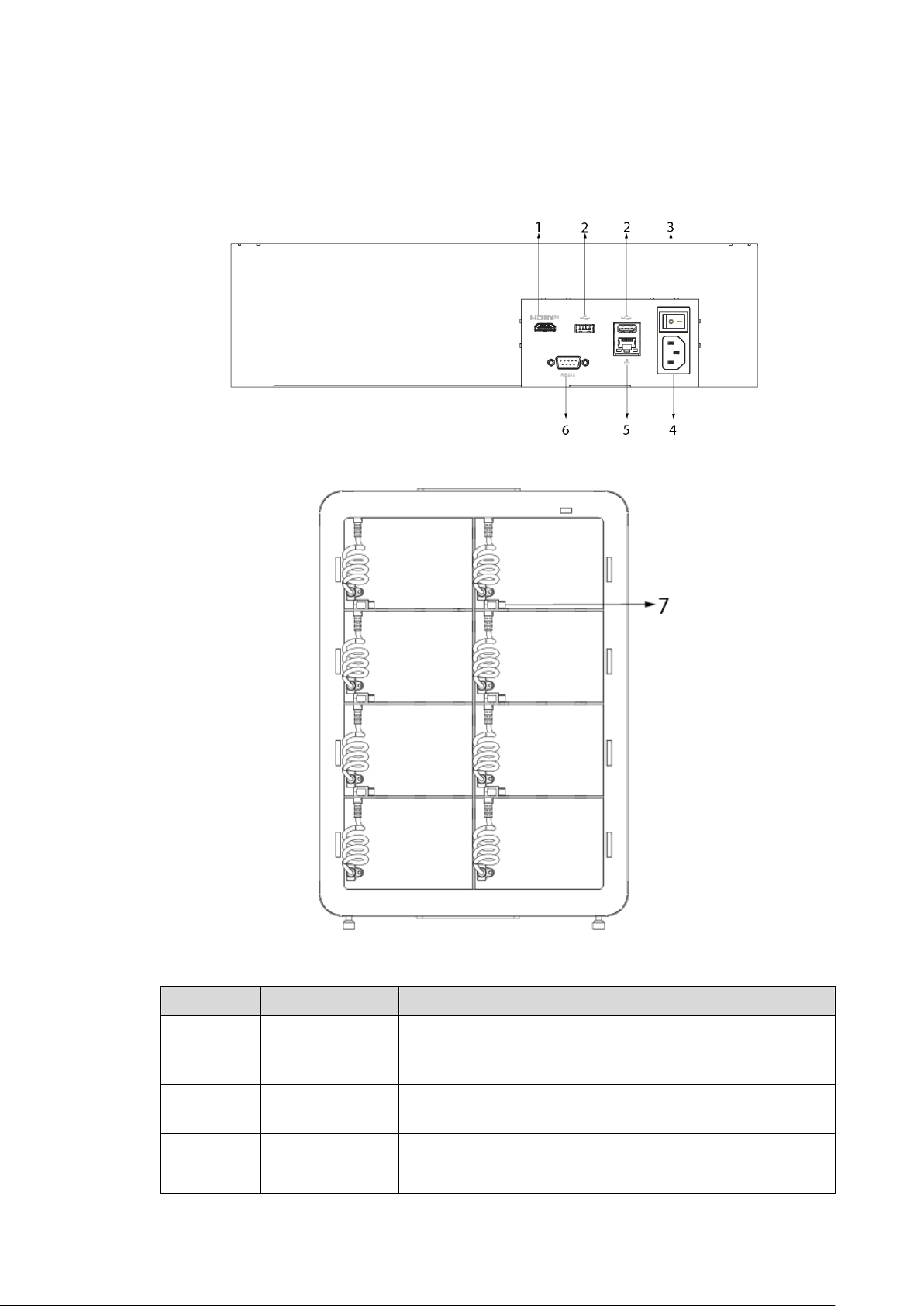

Figure 1-2 Ports (1)
Figure 1-3 Port 2
Table 1-1 Ports description
No.
Name Description
1 HDMI
Inputs uncompressed high denition (HD) video signals and
multichannel audio signals from the external HDMI sources.
Supports 1080p@60 Hz.
2 USB ports
Connect to USB storage devices (USB 2.0 and USB 3.0) and
mouse.
3 Power switch Turn on or turn o the Station.
4 Power input Inputs 100 –240 VAC power for the Station.
2
No. Name Description
5 Ethernet Gigabit network.
6 RS-232
Used for common serial debugging, IP address conguration
and data transmission of transparent serial.
7 USB ports Connects 8 body cameras.
1.3 Power on
Procedure
Step 1 Connect the power cable, network cable and HDMI.
Step 2 Press the power button.
The whole process will take a period of time. Please be patient.
3
2 HDD Installation
You can install 4 HDDs (hard disk drives).
The Station supports connecting peripherals with magnets. The peripheral must be placed
correctly. If the peripheral with magnet is placed in the air outlet of the Station, the fan will be
attracted by the magnet and stop working.
●
To avoid insucient storage space, HDDs larger than 2 TB are recommended.
●
To reduce the writing pressure of each HDD, we recommend you to install at least 2 HDDs with
the same capacity for data collection and recharging.
Procedure
Step 1 Put the bracket at on the desktop, and then install the HDD horizontally into the bracket.

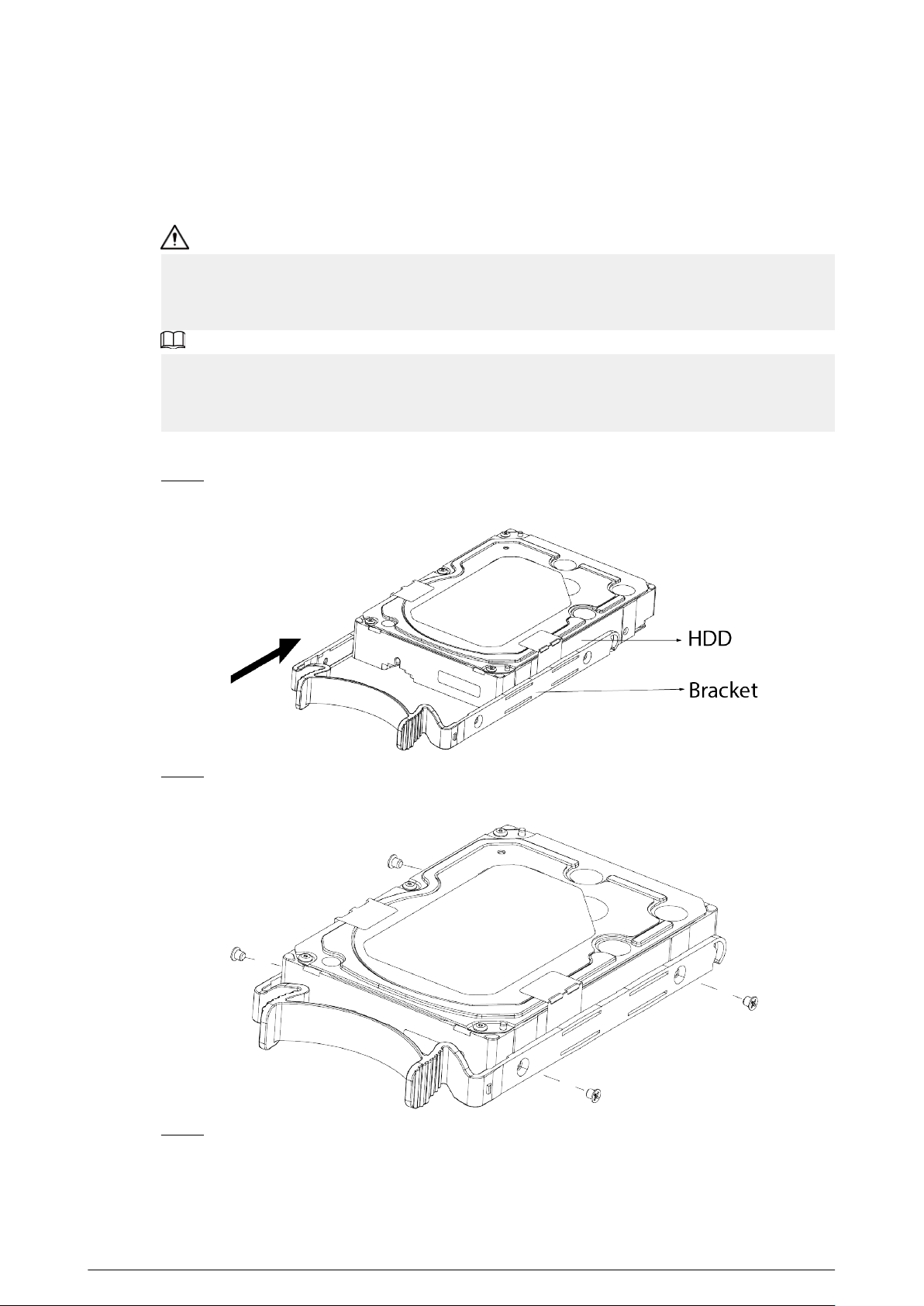

Figure 2-1 Install the HDD
Step 2 Tighten the 4 screws on the bracket.
Figure 2-2 Tighten the screws
Step 3 Loosen the following screws to the leftward, and then hold the screws and rotate them
outward to detach the cover.
4

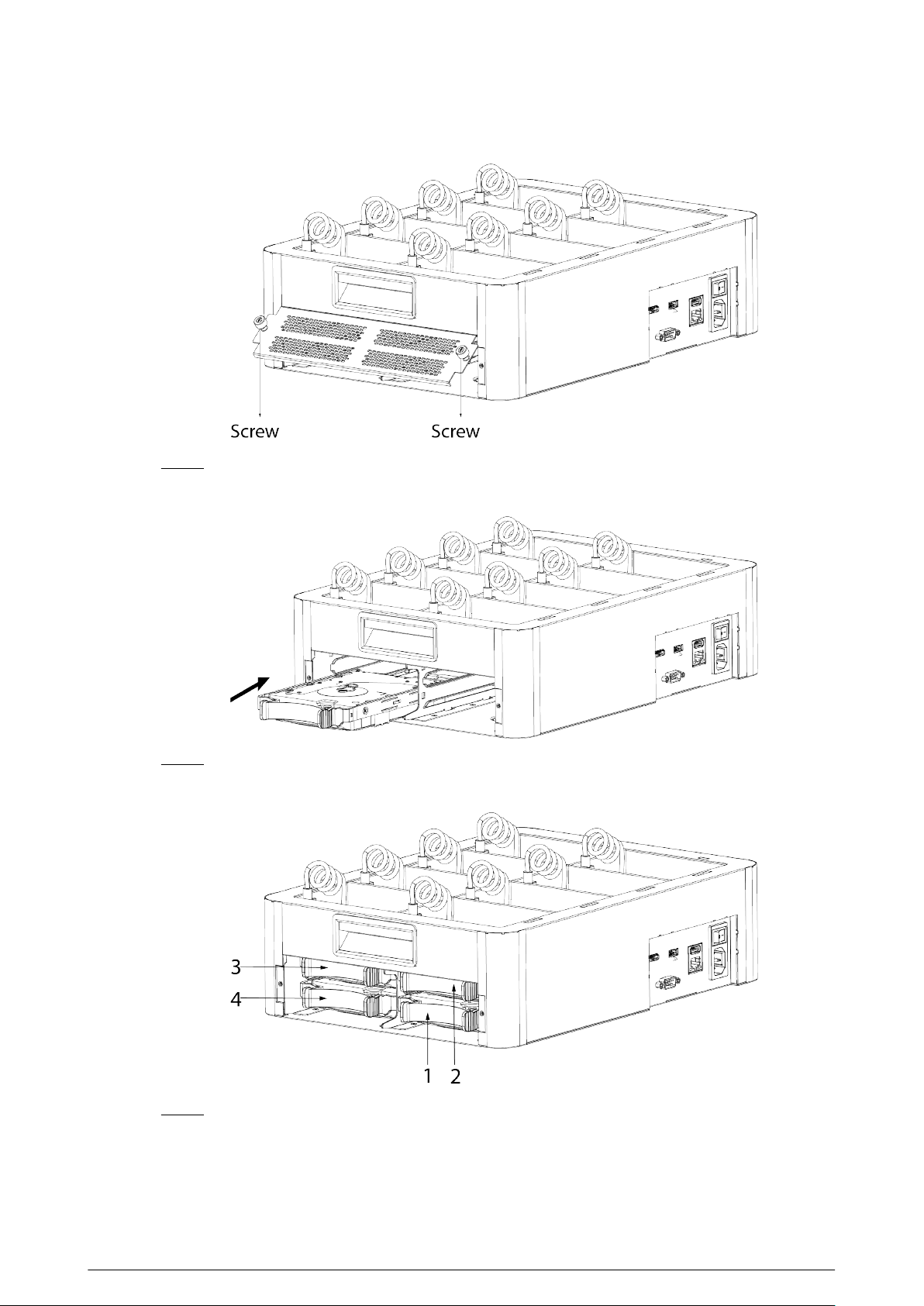

Figure 2-3 Detach the cover
Step 4 Push the HDD with bracket installed into the chassis guide rails.
Figure 2-4 Install the bracket to the chassis
Step 5 (Optional) Repeat step 1, step 2 and step 4 to add more HDDs.
Figure 2-5 4 HDDs installation
Step 6 Hold the screws and rotate them inward to insert them into the screw holes in the chassis,
and then tighten the screws to the rightward.
5

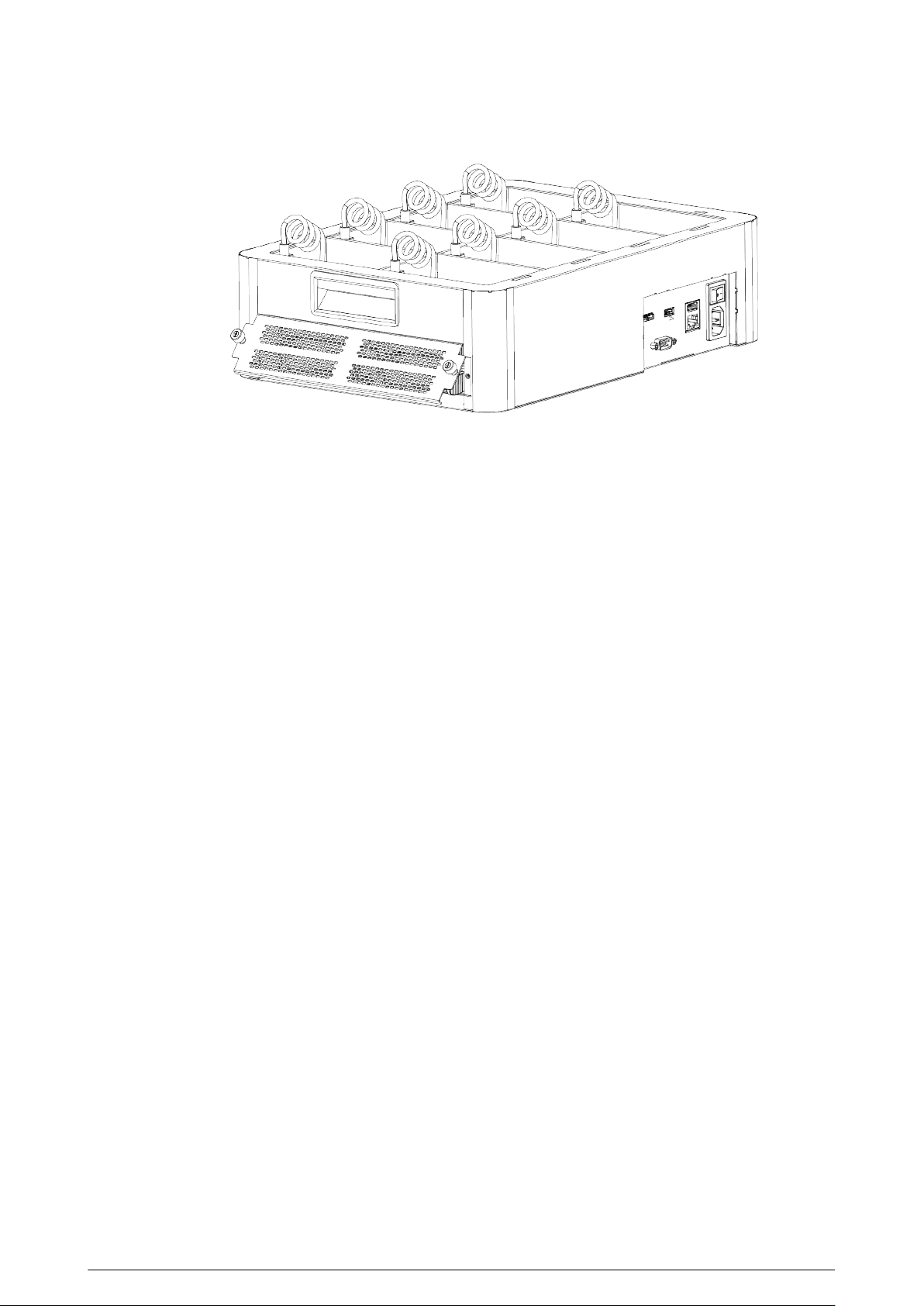

Figure 2-6 Install the cover
6
3 Conguration and Operation

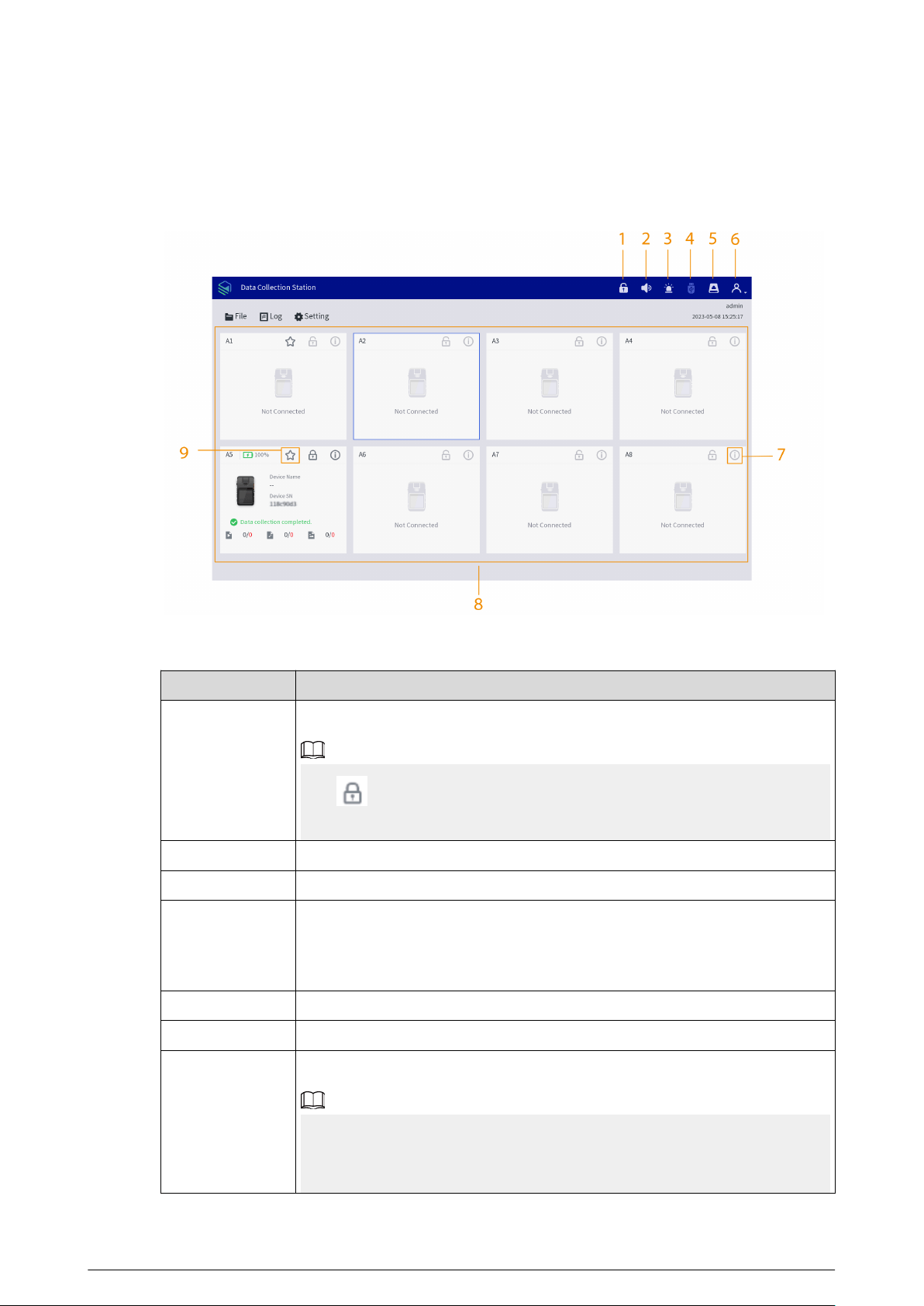

Figure 3-1 Home screen
Table 3-1 Home screen description
No.
Description
1
Unlock the Station with one tap.
Click on a dierent body camera's page to unlock the specic body
camera.
2 Alarm. Tap it, and the alarm tune is turned o.
3 Alarm information display. The red light ashes when there is alarm.
4
External USB storage device.
●
Grey means no data is being exported.
●
Green means data of selected body camera is exporting.
5 View HDD capacity.
6 Login, logout, restart, shutdown, and editing the user information.
7
View update methods of the Station and body cameras.
●
Click Bind Enforce on the Device Info page, enter the enforcer name and
enforcer No, click Search, and then select the enforcer that you want to
bind.
7
No. Description
Click to unbind the device.
●
Supports to check the update information. You can upload the update
package in Maintain > Manager > Update to update the device. For
details, see the corresponding user's manual.
8 Displays the connected devices.
9

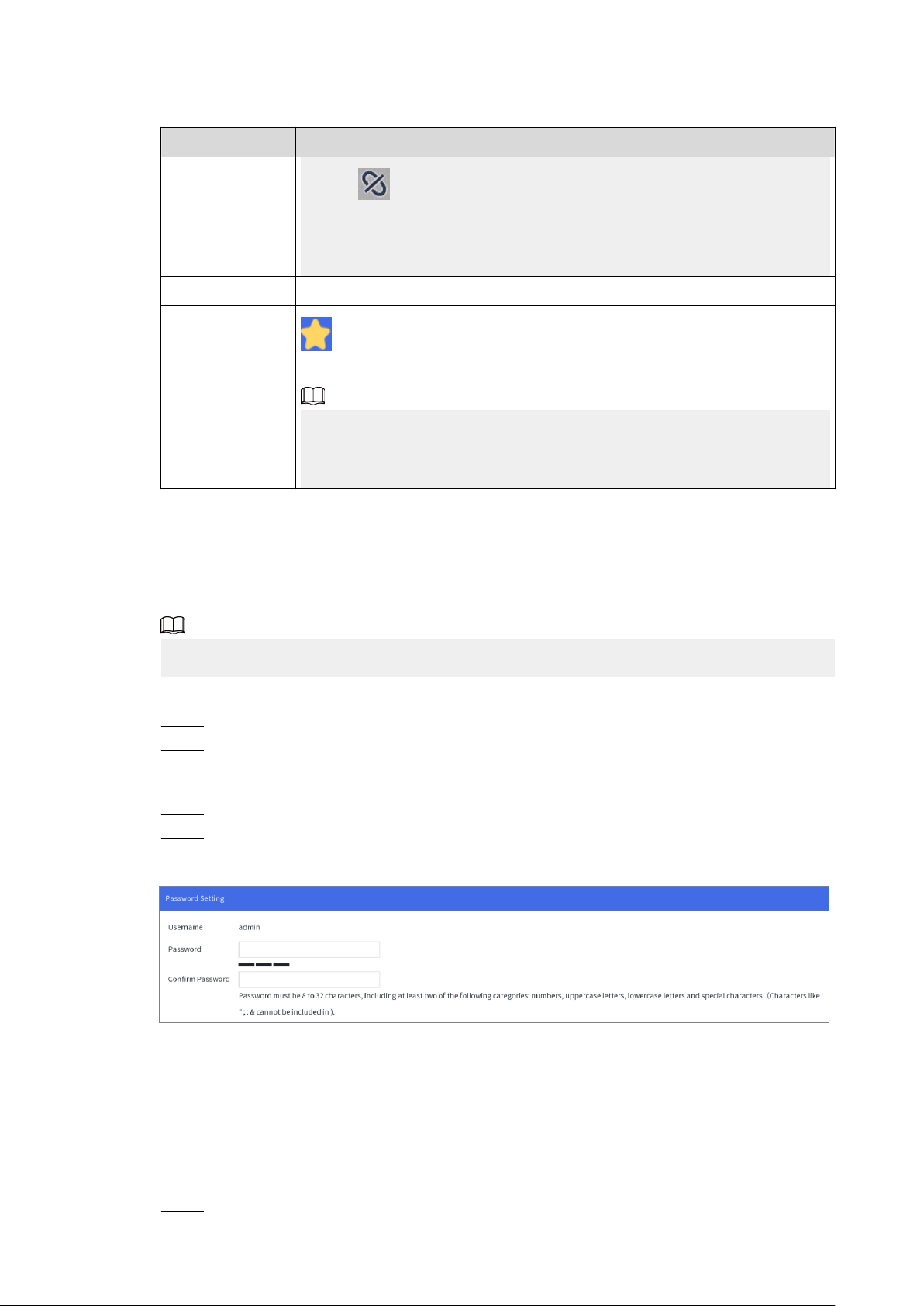

indicates collecting data in priority, which can improve the collecting
speed of the corresponding dock.
To enable this function, you need to connect at least two data collection
modules. The function is supported by the two docks of the rst row in each
data collection module.
3.1 Device Initialization
When booting up for the rst time, you need to congure the username (admin by default) and
password of the administrator.
For account security, we recommend keeping the password properly and change it regularly.
Procedure
Step 1 Power on the device.
Step 2 Read Software License Agreement and Privacy Policy , click I have read and agree to
the terms of the Software License Agreement and Privacy Policy. , and then click
Next.
Step 3 Set the time zone and system time as needed, and then click Next.
Step 4 Congure the admin password, conrm it, and then click Next.
Figure 3-2 Set password

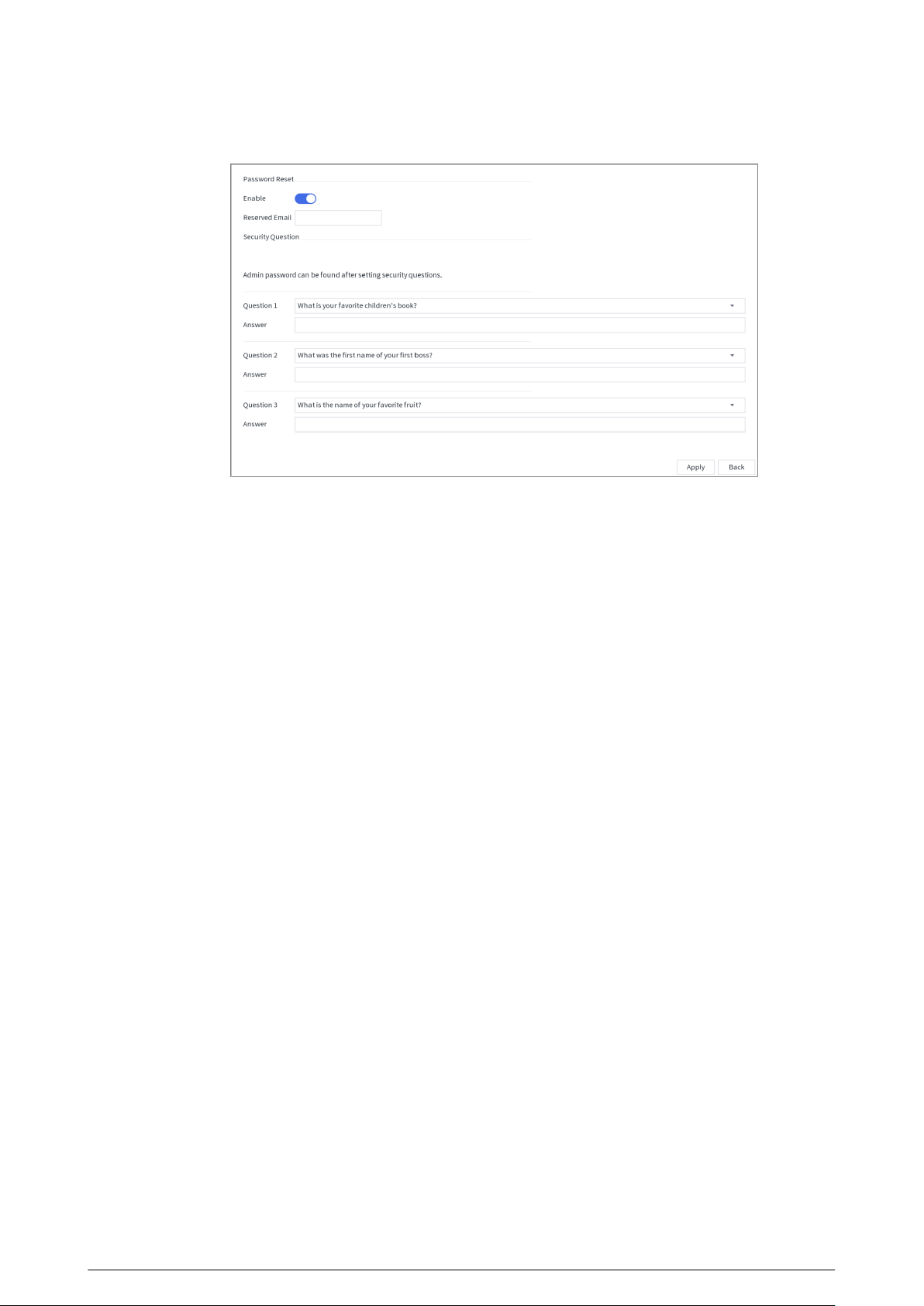

Step 5 Set security questions, and then click Next.
You can reset the admin password by reserved email or security question.
●
Reserved email: Enter an email address for password reset. If you forgot the password,
enter the security code that you will get from this linked email address to reset the
password of admin.
●
Security question: Set the security questions. Answer the security questions to reset
the password.
Step 6 Set the date and time, and then click Next.
8
Step 7 Click to modify the IP address, and then click Next.
The initialization is nished.

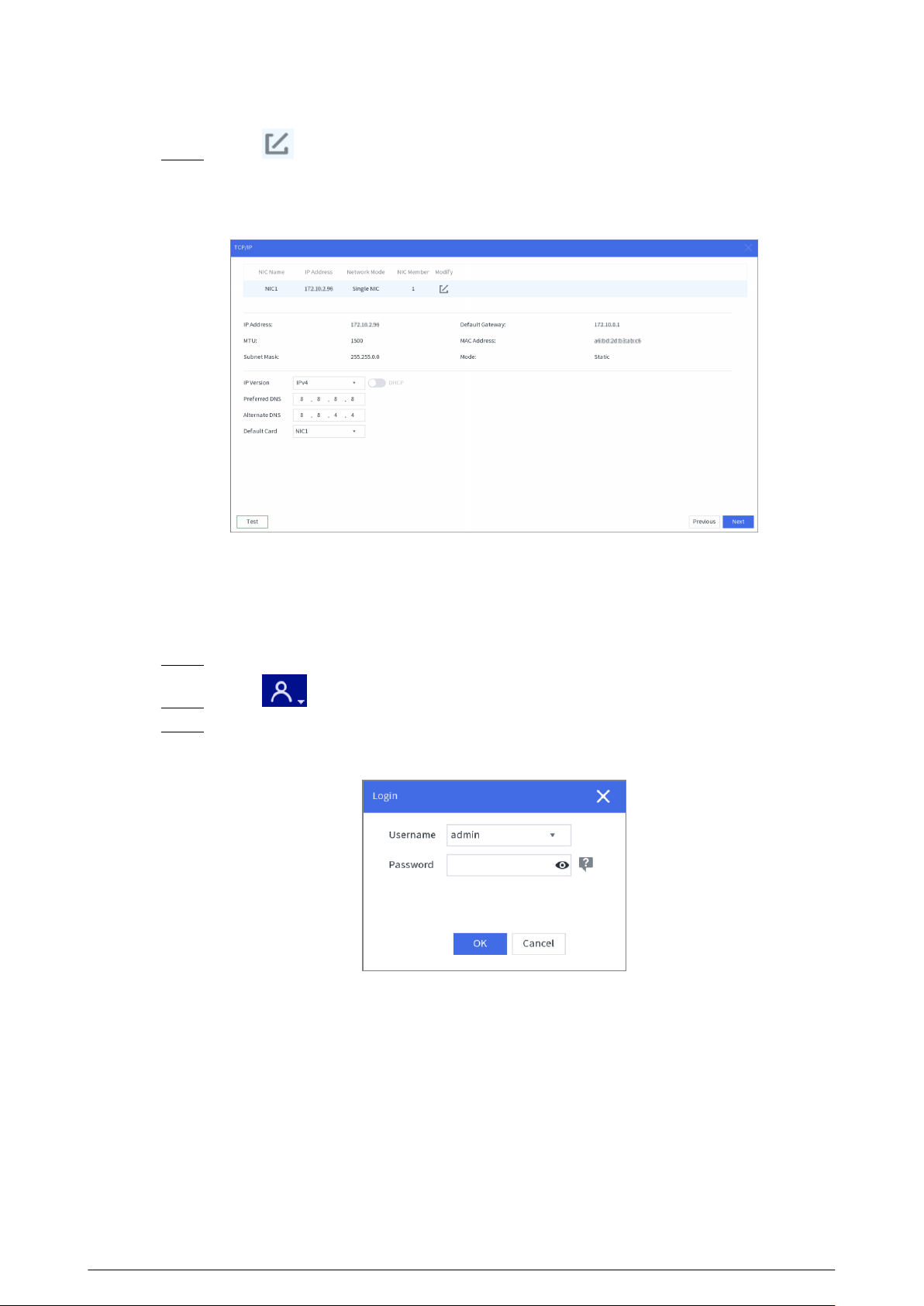

Figure 3-3 TCP/IP
3.2 Login
Procedure
Step 1 Turn on the device.
Step 2 Click on the upper-right corner.
Step 3 Enter the username and password, and then click OK to log in.
Figure 3-4 Login
3.3 File Management
3.3.1 File Collection
If the body camera is connected with the enforcer, the Station will automatically collect data les
from the connected body cameral.
1. Connect the Station with the body camera.
9
2. Login the Station.
3. Enter the username and password, and then click Login.
Figure 3-5 Login the body camera

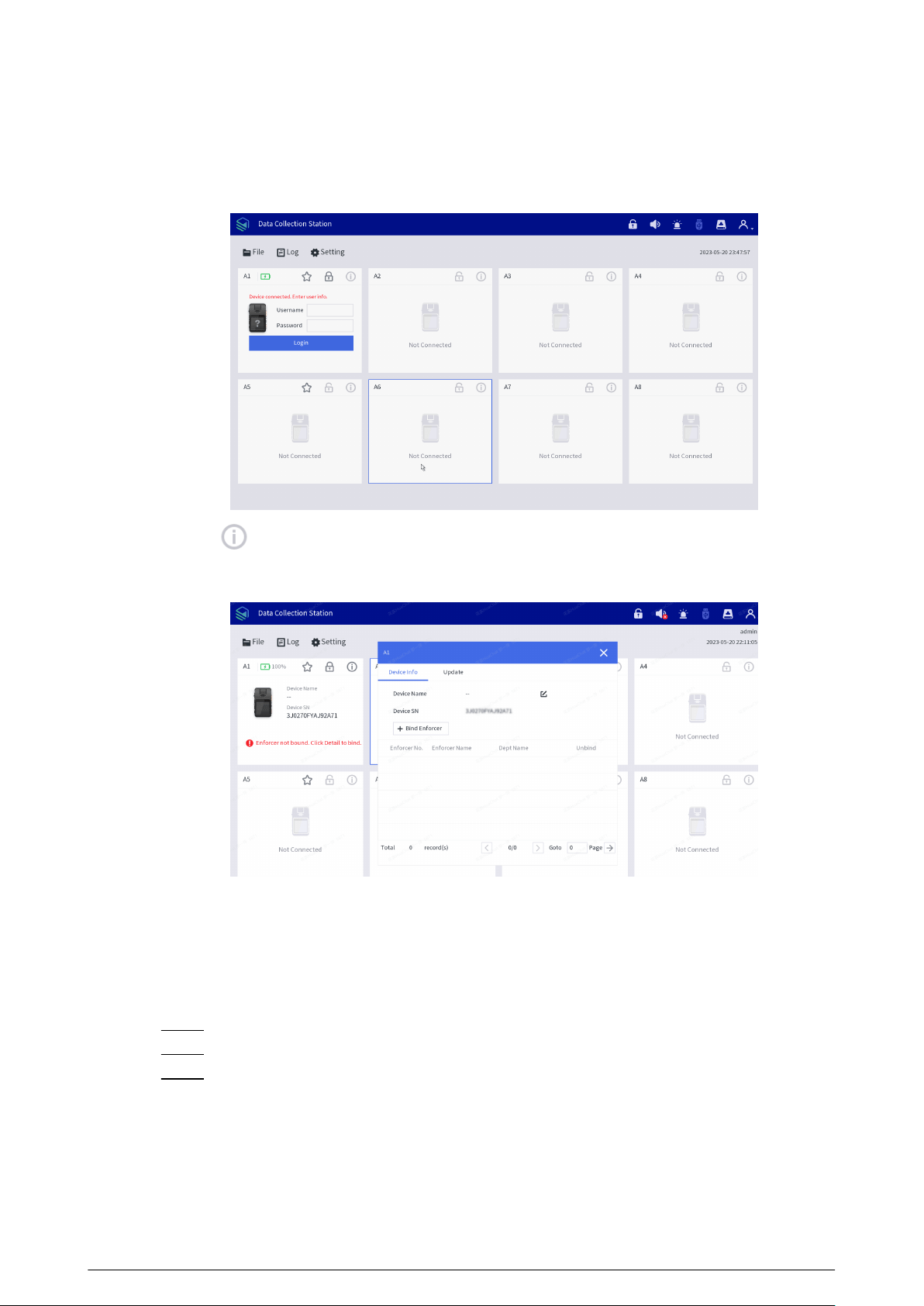

4. Click , and then click Bind Enforcer in the Device Info tab.
Figure 3-6 Bind enforcer
5. Select the enforcer, and then click OK.
3.3.2 Viewing Files
Procedure

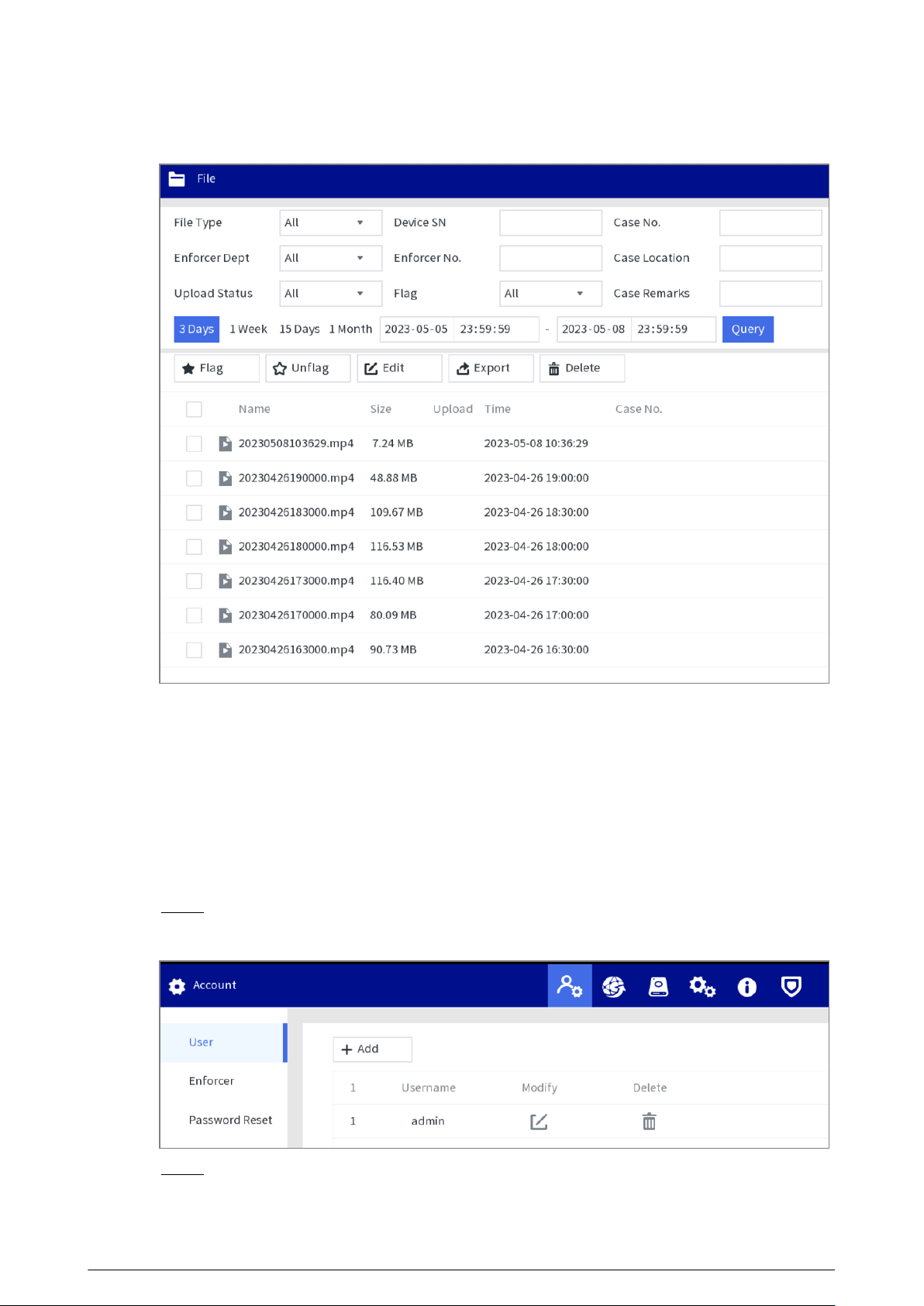

Step 1 Click File to check the information.
Step 2 Congure the search conditions, and then click Query.
Step 3 Double-click a le to view the details.
10
Figure 3-7 View les
3.4 Account Management
Administrator can add user, delete user and edit user permissions as needed.
3.4.1 Adding the User
Procedure
Step 1 Select Settings > Account > User .
Figure 3-8 User Management
Step 2 Click Add to add users.
11
Set the username and password, and then congure user permissions. All permissions are
enabled by default.

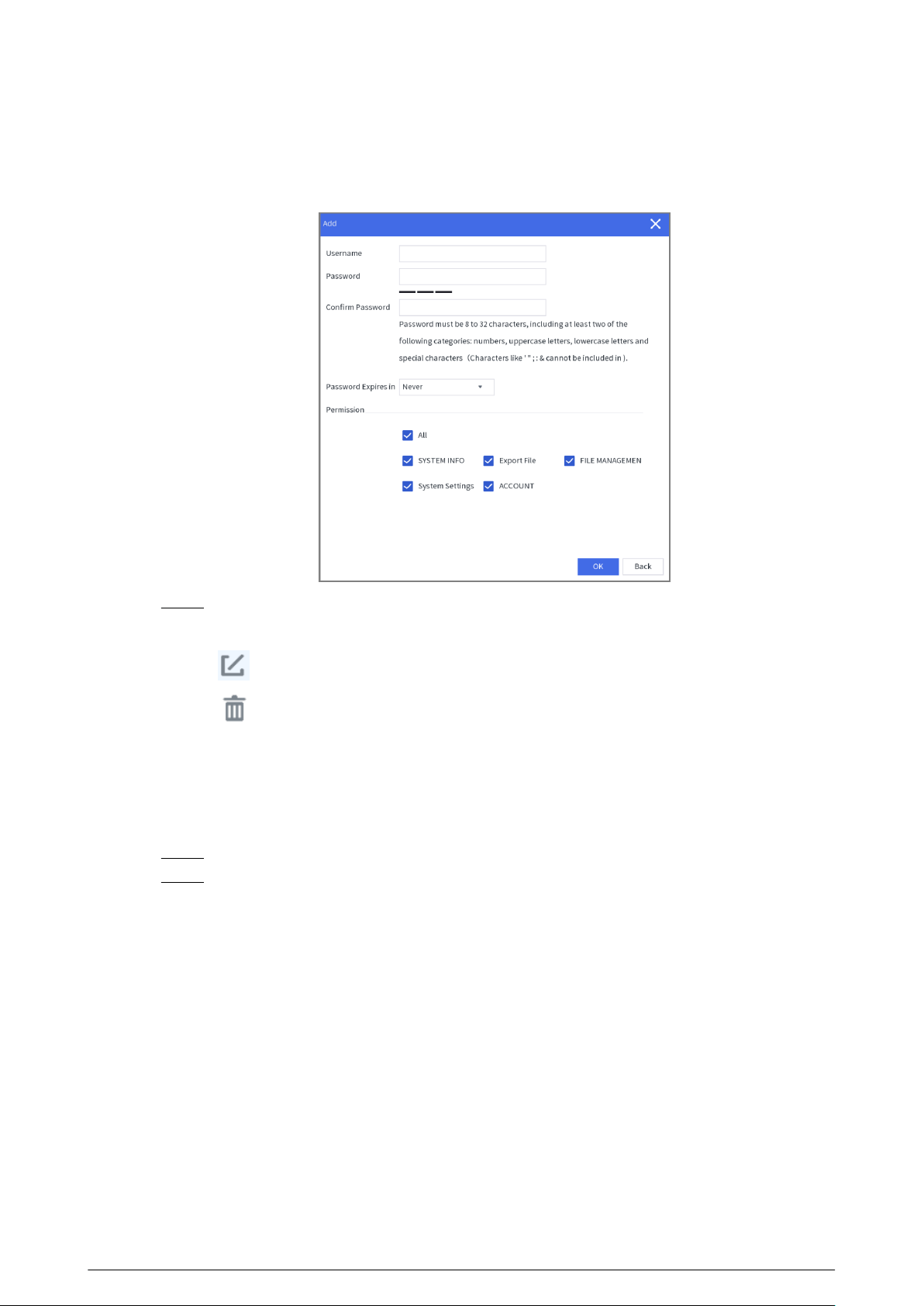

Figure 3-9 Add users
Step 3 Click OK.
Related Operations
●
Click
to modify the user information.
●
Click to delete the user.
3.4.2 Adding the Enforcer
Procedure
Step 1 Select Setting > Account > Enforcer .
Step 2 Click Add to add users.
12

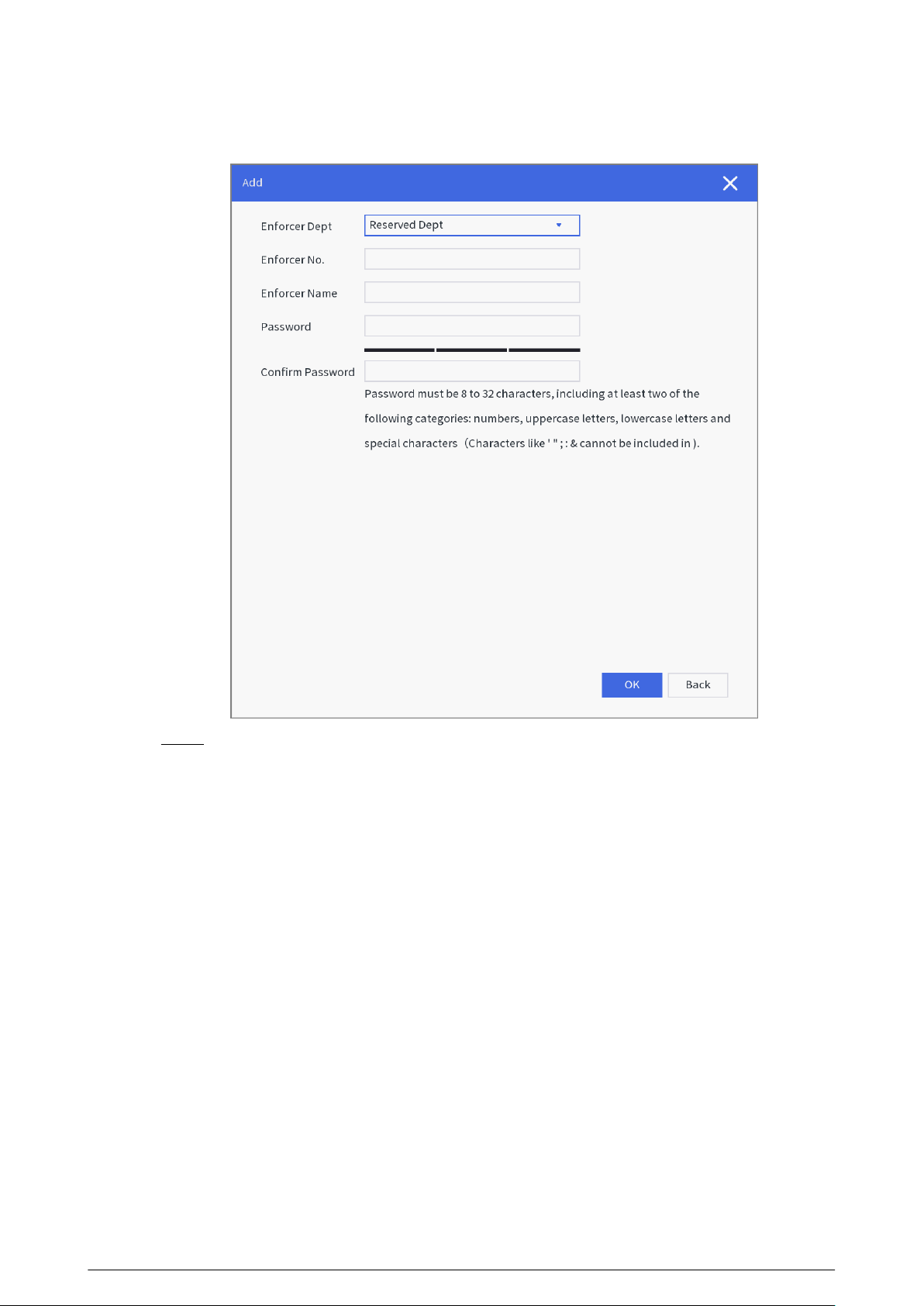

Figure 3-10 Add the enforcer
Step 3 Click OK.
3.4.3 Resetting Password
Select Setting > Account > Password Reset , enter the recovery email address and the security
questions, and then click Apply.
13
Figure 3-11 Reset password
14
Appendix 1 Cybersecurity Recommendations
Mandatory actions to be taken for basic device network security:
1. Use Strong Passwords
Please refer to the following suggestions to set passwords:
●
The length should not be less than 8 characters.
●
Include at least two types of characters; character types include upper and lower case letters,
numbers and symbols.
●
Do not contain the account name or the account name in reverse order.
●
Do not use continuous characters, such as 123, abc, etc.
●
Do not use overlapped characters, such as 111, aaa, etc.
2. Update Firmware and Client Software in Time
●
According to the standard procedure in Tech-industry, we recommend to keep your device
(such as NVR, DVR, IP camera, etc.) rmware up-to-date to ensure the system is equipped
with the latest security patches and xes. When the device is connected to the public
network, it is recommended to enable the “auto-check for updates” function to obtain timely
information of rmware updates released by the manufacturer.
●
We suggest that you download and use the latest version of client software.
"Nice to have" recommendations to improve your device network security:
1. Physical Protection
We suggest that you perform physical protection to device, especially storage devices. For
example, place the device in a special computer room and cabinet, and implement well-done
access control permission and key management to prevent unauthorized personnel from
carrying out physical contacts such as damaging hardware, unauthorized connection of
removable device (such as USB ash disk, serial port), etc.
2. Change Passwords Regularly
We suggest that you change passwords regularly to reduce the risk of being guessed or cracked.
3. Set and Update Passwords Reset Information Timely
The device supports password reset function. Please set up related information for password
reset in time, including the end user’s mailbox and password protection questions. If the
information changes, please modify it in time. When setting password protection questions, it is
suggested not to use those that can be easily guessed.
4. Enable Account Lock
The account lock feature is enabled by default, and we recommend you to keep it on to
guarantee the account security. If an attacker attempts to log in with the wrong password
several times, the corresponding account and the source IP address will be locked.
5. Change Default HTTP and Other Service Ports
We suggest you to change default HTTP and other service ports into any set of numbers
between 1024–65535, reducing the risk of outsiders being able to guess which ports you are
using.
6. Enable HTTPS
We suggest you to enable HTTPS, so that you visit Web service through a secure communication
channel.
7. MAC Address Binding
We recommend you to bind the IP and MAC address of the gateway to the device, thus reducing
the risk of ARP spoong.
8. Assign Accounts and Privileges Reasonably
15
According to business and management requirements, reasonably add users and assign a
minimum set of permissions to them.
9. Disable Unnecessary Services and Choose Secure Modes
If not needed, it is recommended to turn o some services such as SNMP, SMTP, UPnP, etc., to
reduce risks.
If necessary, it is highly recommended that you use safe modes, including but not limited to the
following services:
●
SNMP: Choose SNMP v3, and set up strong encryption passwords and authentication
passwords.
●
SMTP: Choose TLS to access mailbox server.
●
FTP: Choose SFTP, and set up strong passwords.
●
AP hotspot: Choose WPA2-PSK encryption mode, and set up strong passwords.
10.Audio and Video Encrypted Transmission
If your audio and video data contents are very important or sensitive, we recommend that you
use encrypted transmission function, to reduce the risk of audio and video data being stolen
during transmission.
Reminder: encrypted transmission will cause some loss in transmission eciency.
11.Secure Auditing
●
Check online users: we suggest that you check online users regularly to see if the device is
logged in without authorization.
●
Check device log: By viewing the logs, you can know the IP addresses that were used to log
in to your devices and their key operations.
12.Network Log
Due to the limited storage capacity of the device, the stored log is limited. If you need to save
the log for a long time, it is recommended that you enable the network log function to ensure
that the critical logs are synchronized to the network log server for tracing.
13.Construct a Safe Network Environment
In order to better ensure the safety of device and reduce potential cyber risks, we recommend:
●
Disable the port mapping function of the router to avoid direct access to the intranet devices
from external network.
●
The network should be partitioned and isolated according to the actual network needs. If
there are no communication requirements between two sub networks, it is suggested to use
VLAN, network GAP and other technologies to partition the network, so as to achieve the
network isolation eect.
●
Establish the 802.1x access authentication system to reduce the risk of unauthorized access
to private networks.
●
Enable IP/MAC address ltering function to limit the range of hosts allowed to access the
device.
16
