De’Longhi Dishwasher
USER GUIDE
Please read this user guide carefully and retain for future reference
Model
DEDW6015INFI
07.2020
© 2020 De’Longhi Australia Pty Ltd.
Australia
Elba Appliances Australia
Suite 1, 1107 Botany Road
Mascot NSW 2020
Phone 1300 186 709
www.delonghicookingappliances.com.au
Head Office
Fisher & Paykel Appliances Italy S.p.A.
Via Fabbian Matteo, 7
31030 Borso del Grappa (TV) ITALY
Contents
Page 31Page 2
Parts and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
De’Longhi Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . 04
Dishwasher Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 05
Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 07
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08
- Cabinet Preparation
- Aesthetic Fascia Panel Dimensions
- Tension Adjustment of the Door
- Positioning the Appliance
- Levelling
- Securing the Dishwasher
- Drain Hose Connection
- Cold Water Connection
- About the Safety Inlet Hose with Aqua Stop
- How to disconnect the Safety Inlet Hose with Aqua Stop
Using your Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
- Quick start guide
- Before Starting the Dishwasher
- Prior to using for the first time
- Rinse aid & detergent
- Loading the Dishwasher Baskets
- Starting a Washing Program
- Control Panel
- Turning on the Appliance
- Change the Program
- Forget to add a Dish?
- At the end of the Wash Cycle
Care and Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
- Filtering System
- Filter Assembly
- Cleaning the Filter
- Caring for the Dishwasher
- Protect against Freezing
- Cleaning the Spray Arms
- How to keep your Dishwasher in shape
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Help us Help You. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warranty Information
The De’Longhi Dishwasher is warranted against faults
resulting from manufacturing or material defects. The
warranty period for normal domestic installation and use is
two years from the date of purchase. In non-domestic use
De’Longhi limits the voluntary warranty to 6 months.
De’Longhi undertakes to repair or replace the Dishwasher
at our discretion if the product is found to be defective due
to a manufacturing fault during the warranty period.
This warranty excludes any damage caused by misuse,
neglect, shipping accident, or incorrect installation.
Normal wear and tear is also expressly excluded. The
warranty claim is void if no fault is found with the product
or if work is carried out by anyone other than an authorised
De’Longhi Service Agent.
In Australia, this warranty is additional to the conditions
and guarantees which are mandatory as implied under the
Trade Practices Act 1974 and State and Territory
legislation.
NOTE: Warranty is determined by unit serial number and
date of purchase.
How to contact us about a warranty claim
Talk to a De’Longhi representative for further warranty
or product information please call the number in your
country:
Australia
www.delonghicookingappliances.com.au
Phone : 1300 186 709
Parts and Features
Page 3Page 30
Model: DEDW6015INFI
Dimensions:
Height (H) 815mm
Width (W) 598mm
Depth (D1) 550mm (with the door closed)
Depth (D2) 1150mm (with the door opened 90°)
Voltage connected Load: see rating label
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 15 place settings

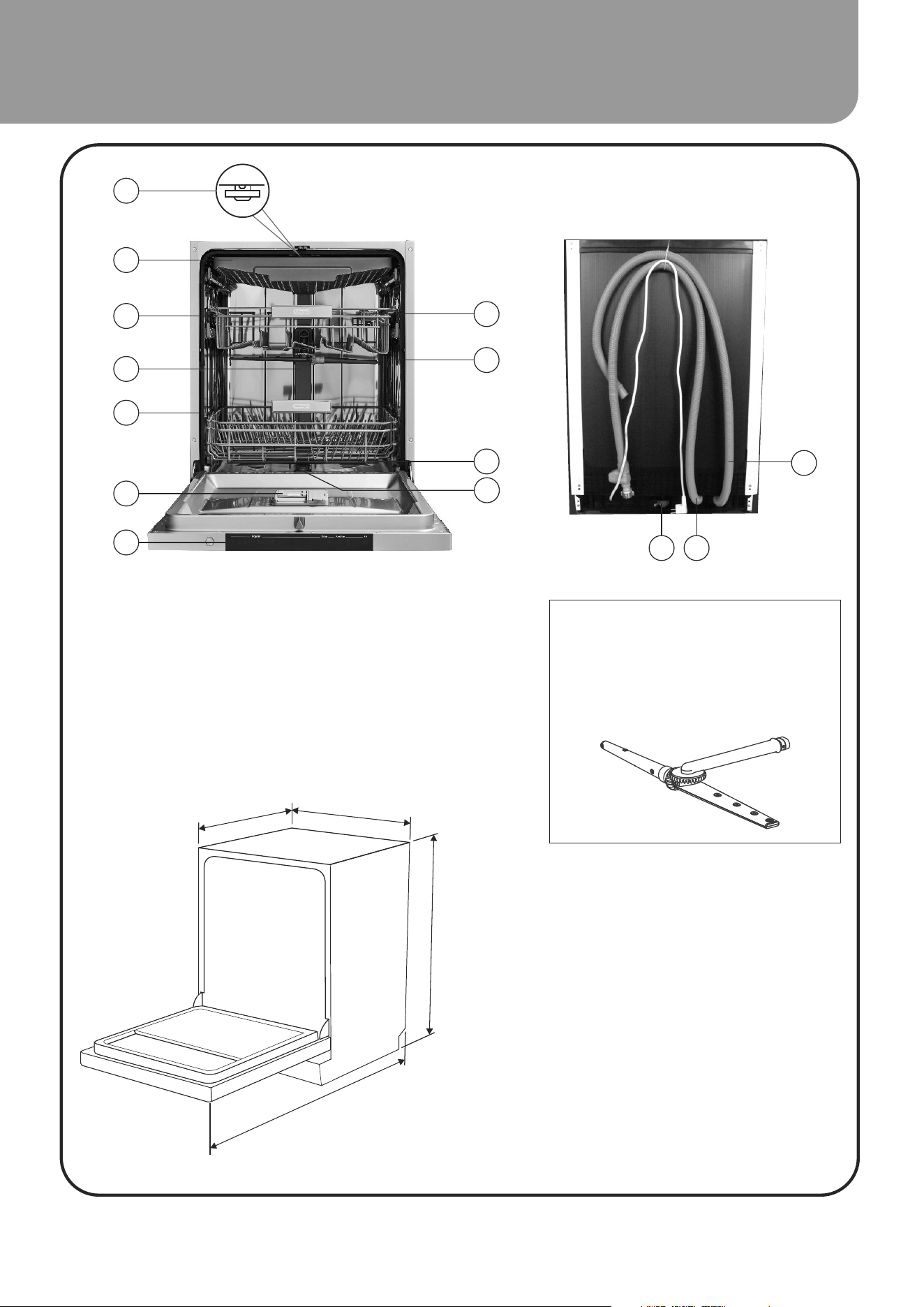

Components:
1. Top Spray Arm 8. Cup Shelf
2. Cutlery Rack 9. Upper Innowash Spray Arm
3. Upper Basket 10. Lower Spray Arm
4. Inner Pipe 11. Filter Assembly
5. Lower Basket 12. Safety Inlet Hose with Aqua Stop
6. Dispenser 13. Drain Pipe
7. Touch Control Panel 14. Adjuster
13
14 12
2
3
10
6
11
8
4
5
9
W
D1
H
D
2
7
1
Help us Help You
Read this guide carefully, it is intended to help you
operate and maintain your new Dishwasher properly.
Keep it handy to answer your questions. If you don't
understand something or you need more assistance,
please call the De’Longhi Helpline.
To help us provide prompt answers to your queries,
please record your Dishwasher model and serial
numbers. You’ll find them on a plate located on the
rear outside wall of the Dishwasher.
Dishwasher details
Before you call for service
Check the Troubleshooting Section on page 28. It lists
causes of minor operating problems that you can
correct yourself.
360° Water Spray System
The breakthrough innovative spray
arm uses two separate rotating axes
to maximise water spray to all corners
of the dishwasher, ensuring every item
receives an exceptional clean.
De’Longhi’s Safety Precautions
De’Longhi pride themselves on their innovative range
of the highest quality consumer products.
De’Longhi ensures all of its products are 100% safe
through quality design and manufacture. All products
meet or exceed stringent laboratory-tested safety
requirements.
It is necessary for anyone using an electrical appliance
to be safety conscious. The following precautions are
essential for the safe use of an electrical appliance.
Carefully read all of the instructions provided with your
appliance:
Always turn the power off at the power outlet before
Ÿ
you insert or remove a plug. Remove by grasping
the plug, do not pull on the cord.
Always use your appliance from a power outlet of
Ÿ
the voltage (A.C. only) marked on the appliance.
Do not use an appliance for any purpose other than
Ÿ
its intended use.
Do not attempt to repair an electrical appliance.
Ÿ
Return a damaged or malfunctioning appliance to a
qualified service centre for adjustment or repair if
required.
The appliance must be positioned so the AC plug is
Ÿ
accessible.
This appliance is designed exclusively for
Ÿ
household use. All other uses are strictly forbidden.
The appliance is not intended for use by persons
Ÿ
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
If the power cable is damaged, it must be replaced
Ÿ
by the manufacturer, an authorised service centre
or a qualified electrician in order to eliminate all risk.
This appliance is intended to be used in household
Ÿ
and similar applications such as:
- staff kitchen areas in shops, offices and other
working environments;
- farm houses;
- by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments.
Page 29Page 4
Troubleshooting
The dishes were not
loaded correctly.
See notes in " Loading the Dishwasher Baskets ".
Select a more intensive program.
See" Wash Cycle Table ".
Use more detergent, or change your detergent.
Rearrange the items so that the spray can rotate freely.
Clean and/or fit the filter combination correctly.
Clean the spray arm jets. See "Cleaning the Spray
Arms".
Use less detergent if you have soft water and select
a shorter cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Reload the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once the
dishes are barely warm to the touch. Empty the low
basket first. This prevents water from dropping off
dishes in the upper basket.
In a short program the washing temperature is lower.
This also lowers cleaning performance. Choose
a program with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The program was
not powerful enough.
Not enough detergent
was dispensed.
Items are blocking
the path of spray arms.
The filter combination
in the base of wash
cabinet is not clean or
is not correctly fitted.
This may cause
the spray arm jets
to get blocked.
Combination of soft
water and too much
detergent.
Aluminum utensils have
rubbed against dishes.
Dishes blocking
detergent cup.
Improper loading
Too little rinse-aid
Dishes are removed
too soon
Wrong program
has been selected
Use of cutlery with
a low-quality coating
Unsatisfactory washing result
Unsatisfactory
drying results
Problem Possible Causes Solution
The dishes
are not clean
Cloudiness
on glassware
Black or gray
marks on dishes
Detergent left in
dispenser cup
The dishes are
not drying
ERROR CODES
When some malfunctions occur, the appliance will display error codes to warn you:
Codes Meanings Possible Causes
E1 Longer inlet time. Faucets is not opened, or water intake is restricted, or water
pressure is too low.
E3 Not reaching temperature. Malfunction of the heating element.
E4 Overflow. Some element of dishwasher leaks.
E8 Failure of orientation of Open circuit or break of distributary valve.
distributary valve.
ED Communication failure Open circuit or break wiring for the communication.
between main PCB & display PCB
EC Washing control system fail PCB or motor fail
WARNING!
If overflow occurs, turn off the main water supply before calling service.
Ÿ
If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting
Ÿ
the dishwasher.
Dishwasher Safety Precautions
DANGER
WARNING
CAUTION
Your safety and the safety of others is very important.
Safety messages are displayed in this manual and on
your appliance.
Read and obey these safety messages as they will alert
you to potential hazards and tell you how to reduce the
chance of injury.
Safety Alert Symbol
This symbol alerts you to potential hazards.
Danger
Danger indicates a high level of risk to yourself and others.
Ensure that care is taken to avoid severe injury or even
death.
Warning
Warning indicates a moderate level of risk to yourself, others
and the product. Ensure that care is taken to avoid extensive
product damage or serious injury.
Caution
Caution indicates a level of risk to yourself, others and the
product. Ensure care is taken to avoid moderate product
damage or injuries.
Page 5Page 28
Troubleshooting
Before Calling for Service, review the following troubleshooting tips.
Problem Possible Causes Solution
Fuse blown, or the
circuit breaker tripped
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Spilled rinse-aid
Always wipe up rinse-aid spills immediately.
Hard water minerals
The affected items are
not corrosion resistant.
A spray arm is
knocking against
an item in a basket
Items of crockery
are loose in the
dishwasher
This may be caused
by on-site installation
or the cross-section
of the piping.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent, it may cause foaming or suds.
Interrupt the program, and rearrange the items
which are obstructing the spray arm.
Interrupt the program,
and rearrange the items of crockery.
This has no influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.
Detergent with
colourant was used
Make sure that the detergent is the one without
colourant.
Improper detergent
Make sure the dishwasher is turned on and the door is
closed securely.
Check that the water supply is connected properly and
the water is turned on.
Make sure to close the door properly and latch it.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on
Error code:E1;
Water pressure is low
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged
Kitchen sink clogged
Check drain hose.
Check and empty the filter.
(see section titled " Cleaning The Filter ")
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 3.75 litres of cold water to the bottom tub
of the dishwasher. Close and latch the dishwasher, then
select any cycle. Dishwasher will drain out the water at the
first step. Open the door after the draining has stopped
and check suds have disappeared. Repeat if necessary.
Technical problems
General problems
Noise
Dishwasher
doesn’t start
Water not pumped
from dishwasher
Suds in the tub
Stained tub interior
White film on
inside surface
There are rust
stains on cutlery
Knocking noise
in the dishwasher
Rattling noise
in the dishwasher
Knocking noise
in the water pipes
Items should be corrosion resistant.
Dishwasher Safety Precautions
Before the appliance is used, it must
be properly positioned and installed
as described in this manual, so read
the manual carefully. To reduce the
risk of fire, electrical shock or injury
when using the appliance, follow
basic precaution, including the
following:
DANGER
WARNING
Grounding Instructions
This appliance must be grounded. In the event of a
Ÿ
malfunction or breakdown, grounding will reduce
the risk of an electric shock by providing a path of
least resistance of electric current. This appliance is
equipped with a cord having an equipment-
grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with all
local codes and ordinances.
Improper connection of the equipment-grounding
Ÿ
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
Ÿ
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
When using your dishwasher, you should prevent
Ÿ
plastic items from coming into contact with the
heating element (This instruction is only applicable
to machines with a visual heating element).
Do not wash plastic items unless they are marked
Ÿ
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for
Ÿ
an automatic dishwasher.
Never use soap, laundry detergent, or hand
Ÿ
washing detergent in your dishwasher. Keep these
products out of the reach of children.
Keep children away from detergent and rinse aid,
Ÿ
keep children away from the open door of the
dishwasher, there could still be some detergent left
inside.
This appliance is not intended for use by persons
Ÿ
(including children )with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
Ÿ
do not play with the appliance.
Dishwasher detergents are strongly alkaline, they
Ÿ
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
The door should not be left open, since this could
Ÿ
increase the risk of tripping.
If the supply cord is damaged, it must be replaced
Ÿ
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Remove the door to the washing compartment
Ÿ
when removing an old dishwasher from service or
discarding it.
Please dispose of packing materials properly.
Ÿ
Use the dishwasher only for its intended function.
Ÿ
During installation, the power supply must not be
Ÿ
excessively or dangerously bent or flattened.
Do not tamper with controls.
Ÿ
The appliance is to be connected to the water
Ÿ
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
Ÿ
washed is 15.
The maximum permissible inlet water pressure is
Ÿ
1Mpa.
The minimum permissible inlet water pressure is
Ÿ
0.04Mpa.
Page 27Page 6
WARNING
Do not abuse, sit on, or stand on the door or dish
Ÿ
rack of the dishwasher.
Do not touch the heating element during or
Ÿ
immediately after use. (This instruction is only
applicable to machines with a visual heating
element.)
Do not operate your dishwasher unless all
Ÿ
enclosure panels are properly in place. Open the
door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
Ÿ
door when it is open. The appliance could tip
forward.
When loading items to be washed:
Ÿ
1. Locate sharp items so that they are not likely to
damage the door seal;
2. Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points down or placed in a horizontal position.
Check that the detergent compartment is empty
Ÿ
after completion of the wash cycle.
How to keep your Dishwasher in shape
After every wash, turn off the water supply to the
Ÿ
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
Before cleaning or performing maintenance,
Ÿ
always remove the electrical plug from the socket.
To clean the exterior and rubber parts of the
Ÿ
dishwasher, do not use solvents or abrasive
cleaning products. Only use a cloth with warm
soapy water.
To remove spots or stains from the surface of the
Ÿ
interior, use a cloth dampened with water and a
little vinegar, or a cleaning product made
specifically for dishwashers.
When not in Use for a long time
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
Seals
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent
this from occurring.
Care and Cleaning
Installation Safety Precautions
Electrical Connection
This appliance should be properly grounded for
Ÿ
your safety. The power cord of this appliance is
equipped with a three-prong plug which mates
with standard three prong wall outlets to minimise
the possibility of electrical shock.
DO NOT UNDER ANY CIRCUMSTANCES CUT
Ÿ
OR REMOVE THE EARTHING CONNECTION
FROM THE POWER CORD SUPPLIED. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
Please look at the rating label to know the rating
Ÿ
voltage and connect the dishwasher to the
appropriate power supply. Use the required fuse
10 amp, time delay fuse or circuit breaker
recommended and provide separate circuit
serving only this appliance.
Ensure the voltage and frequency of the power
Ÿ
being used corresponds to those on the rating
plate. Only insert the plug into an electrical socket
which is earthed properly. If the electrical socket to
which the appliance must be connected is not
appropriate for the plug , replace the socket, rather
than using a adaptors or the like as they could
cause overheating and burns.
The cord should be secured behind the appliance
Ÿ
and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its
Ÿ
own individual electrical outlet which has a voltage
rating that matches the rating label on the
appliance. This provides the best performance and
also prevent overloading house wiring circuits that
could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord.
Always grip the plug firmly and pull straight out
from the receptacle. Repair or replace immediately
all power cords that have become frayed or
otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length or at
either end. When moving the appliance, be careful
not to damage the power cord.
Extension Cord
WARNING: DO NOT USE AN EXTENSION CORD
Ÿ
OR AN ADAPTER PLUG WITH THIS APPLIANCE.
Grounding Instructions
This appliance must be earthed. In the event of a
Ÿ
malfunction or breakdown, earthing will reduce the
risk of electric shock by providing a path of least
resistance for the electric current. This appliance
is equipped with a cord having an equipment-
earthing conductor and an earthing plug. The plug
must be plugged into an appropriate outlet that is
installed and earthed in accordance with all local
standards and requirements.
WARNING
Improper connection of the equipment earthing
Ÿ
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
Ÿ
representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the
Ÿ
appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician install a
proper outlet.
Page 7Page 26
Care and Cleaning
Caring for the Dishwasher
The control panel can be cleaned by using a lightly
dampened cloth. After cleaning, make sure to dry it
thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh
cleaners on any part of the dishwasher.
Cleaning the Door
To clean the edge around the door, you should use
only a soft warm, damp cloth.
To avoid penetration of water into the door lock and
electrical components, do not use a spray cleaner of
any kind.

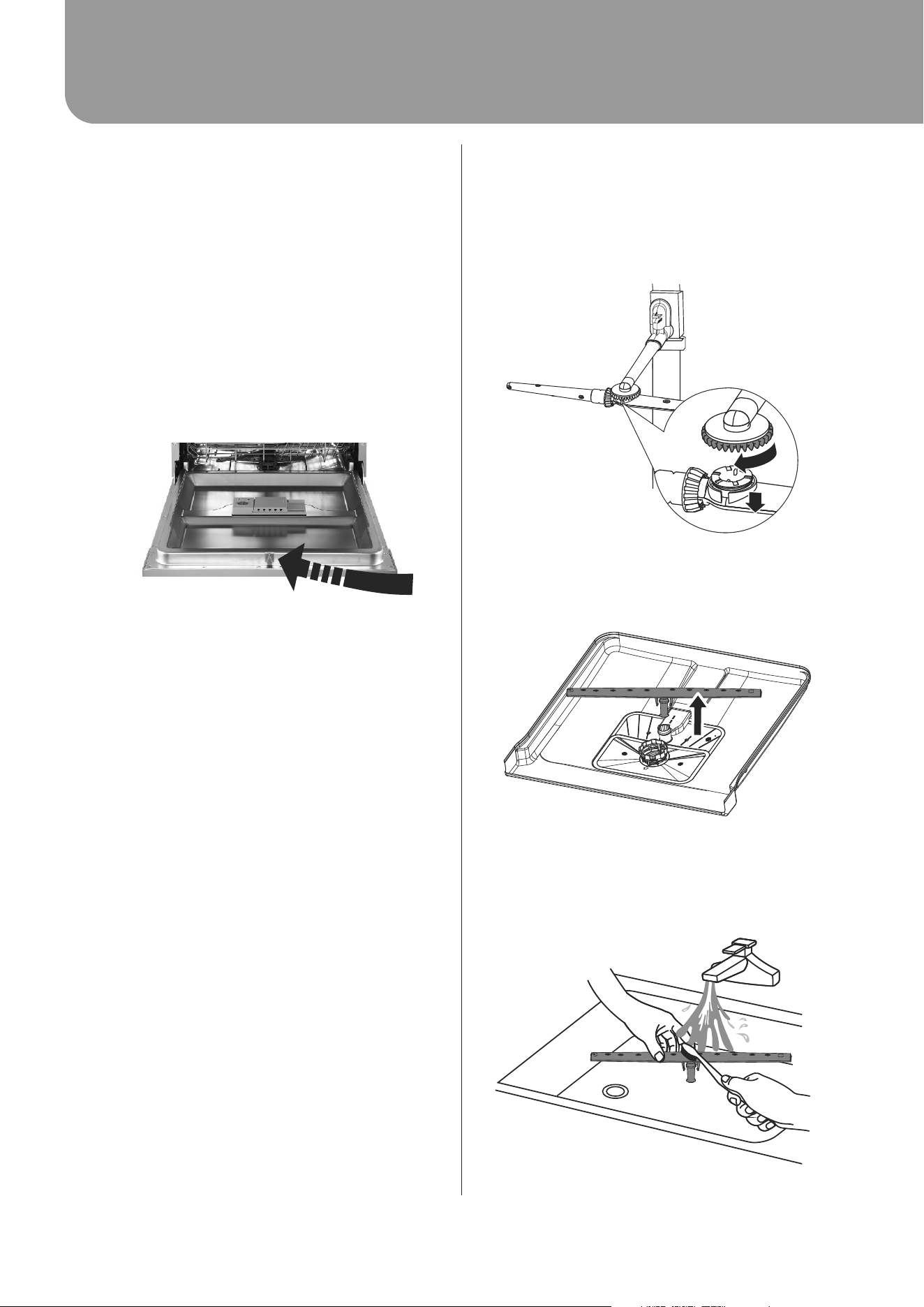

Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for
hard water chemicals will clog the spray arm jets and
bearings.
To remove the upper Innowash spray arm, hold the
nut and rotate the spray arm clockwise to remove it.
WARNING!
Never use a spray cleaner to clean the door panel
Ÿ
as it may damage the door lock and electrical
components.
Abrasive agents or some paper towels should not
Ÿ
be used because of the risk of scratching or leaving
spots on the stainless steel surface.
Protect against Freezing
Please take frost protection measures on the
dishwasher in winter. After washing cycles, please
operate as follows:
1. Turn off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water
inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve.
(Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a
sponge to soak up water in the sump.
NOTE: If your dishwasher cannot work because of
the ice, please contact an authorised service person.
Wash the arms in soapy and warm water and use a
soft brush to clean the jets. Replace them after rinsing
them thoroughly.
To remove the lower spray arm, pull out the spray arm
upward.
Installation
Page 25Page 8

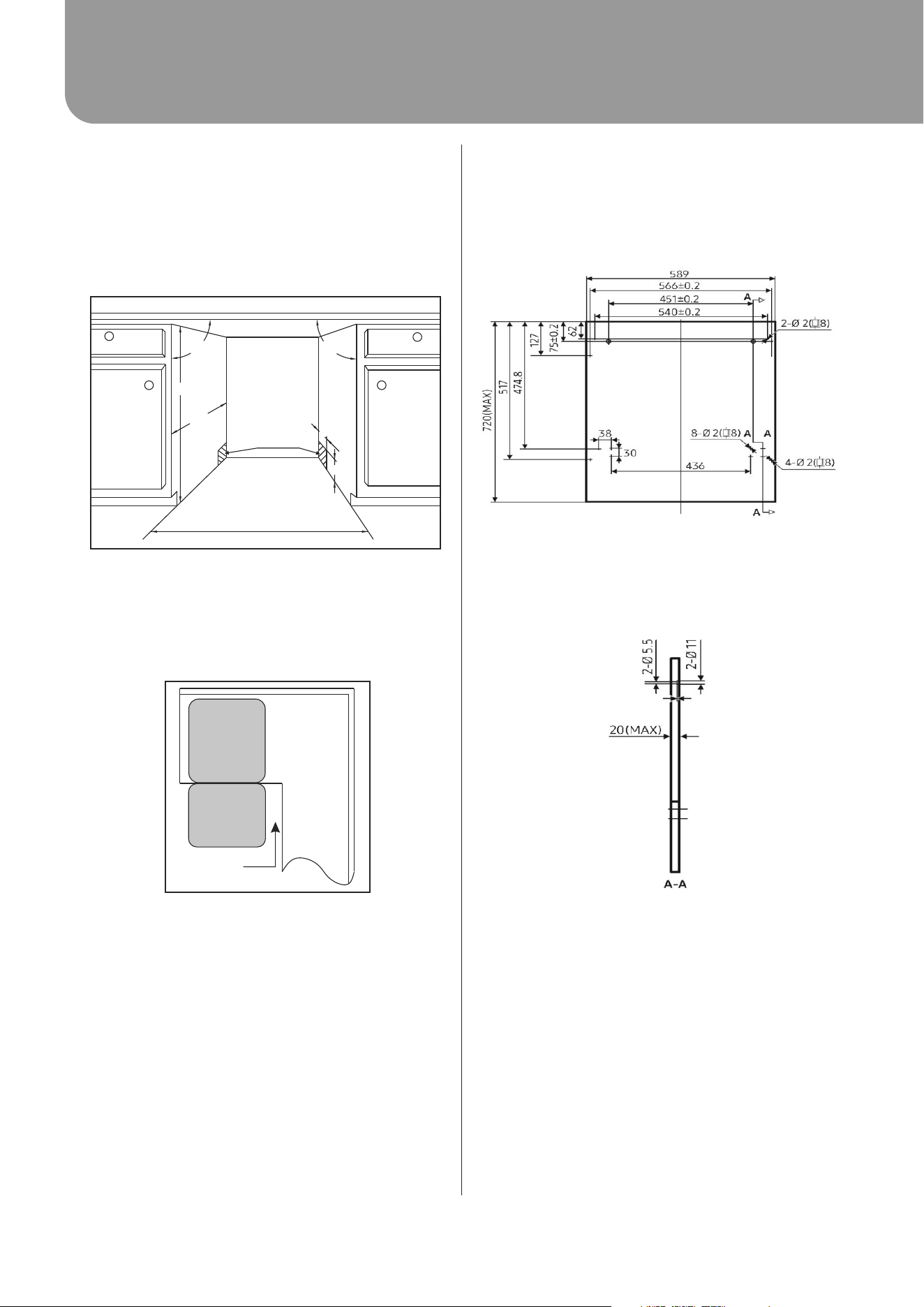

Cabinet Preparation
Choose a place near the sink to facilitate the
Ÿ
installation of inlet and drain hoses.
Cabinet dimensions less than 5mm between the
Ÿ
top of dishwasher and cabinet and the outer door
aligned to cabinet.
90° 90°
820mm
580mm
80
100
600mm
Electrical, drain
and water supply
line entrances
Space between cabinet
bottom and floor
Cabinet
Dishwasher
Dishwasher
Door
Min. space
of 50mm
Aesthetic Fascia Panel Dimensions and
installation
The aesthetic fascia panel should be processed
Ÿ
according to the diagram below.
Minimum space between the door and adjacent
Ÿ
cabinet when the door is opened is 50mm.
Side View
Front View
Open
Care and Cleaning

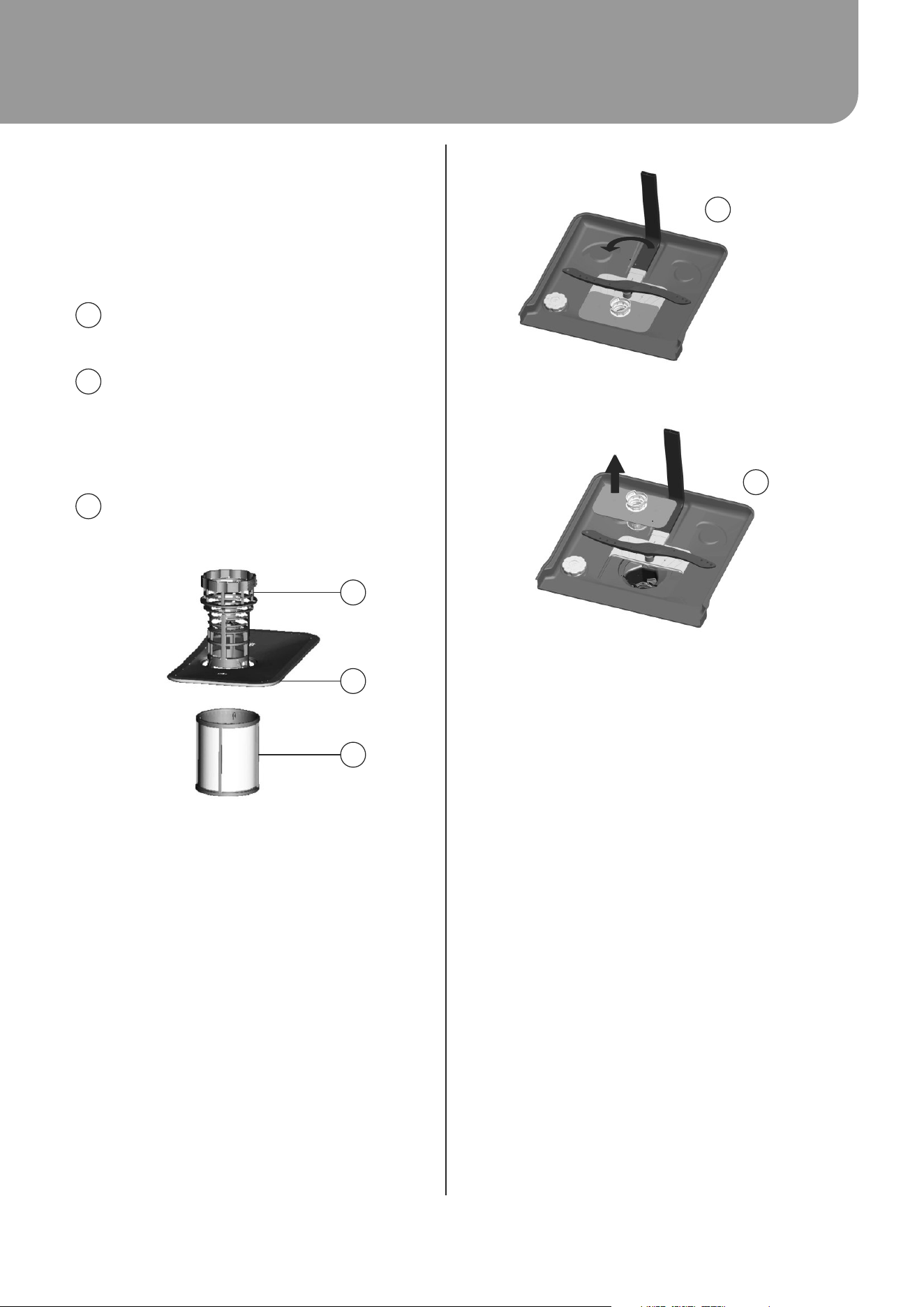

Filtering System
The filter prevents larger remnants of food or other
objects from getting inside the pump.
The residue may block the filter, in this case they must
be removed.
The filter system consists of a coarse filter, a flat (Main
filter) and a microfilter (Fine filter).
3
2
1
MAIN FILTER: Food and soil particles trapped
in this filter are pulverized by a special jet on the
lower spray arm and washed down the drain.
COARSE FILTER: Larger items, such as
pieces of bones or glass, that could clog the
drain are trapped in the coarse filter. To
remove an item caught in this filter, gently
squeeze the taps on the top of this filter and
lift it out.
FINE FILTER: This filter holds soil and food
residues in the sump area and prevents it from
being redeposit on the dishes during a cycle.
1
2
3
Filter Assembly
The filter efficiently removes food particles from the
wash water, allowing it to be recycled during the cycle.
For best performance and results, the filter must be
cleaned regularly. For this reason, it is a good idea to
remove the larger food particles trapped in the filter
after each wash cycle by rinsing the semicircular filter
and cup under running water.
To remove the filter device, pull the cup handle in the
upward direction.
WARNING!
The dishwasher must never be used without the
Ÿ
filters.
Improper replacement of the filter may reduce the
Ÿ
performance level of the appliance and damage
dishes and utensils.
1
2
STEP 1: Turn the filter in anti-clockwise direction.
STEP 2: Lift the filter assembly up.
NOTES:
When following this procedure from step 1 to step
Ÿ
2, the filter system will be removed; when following
it from Step 2 to Step 1, the filter system will be
installed.
Inspect the filters for blocking after every time the
Ÿ
dishwasher has been used.
By unscrewing the coarse filter, you can remove the
Ÿ
filter system. Remove any food remnants and clean
the filters under running water.
The entire filter assembly should be cleaned once a
Ÿ
week.
Cleaning the Filter
To clean the coarse filter and the fine filter, use a
cleaning brush. Reassemble the filter parts as shown
in the figures above and reinsert the entire assembly in
the dishwasher, positioning it in its seat and pressing
downwards.
WARNING!
When cleaning the filters, do not knock on them.
Ÿ
Otherwise, the filters could be contorted and the
performance of the dishwasher could be
decreased.
Installation
Page 9

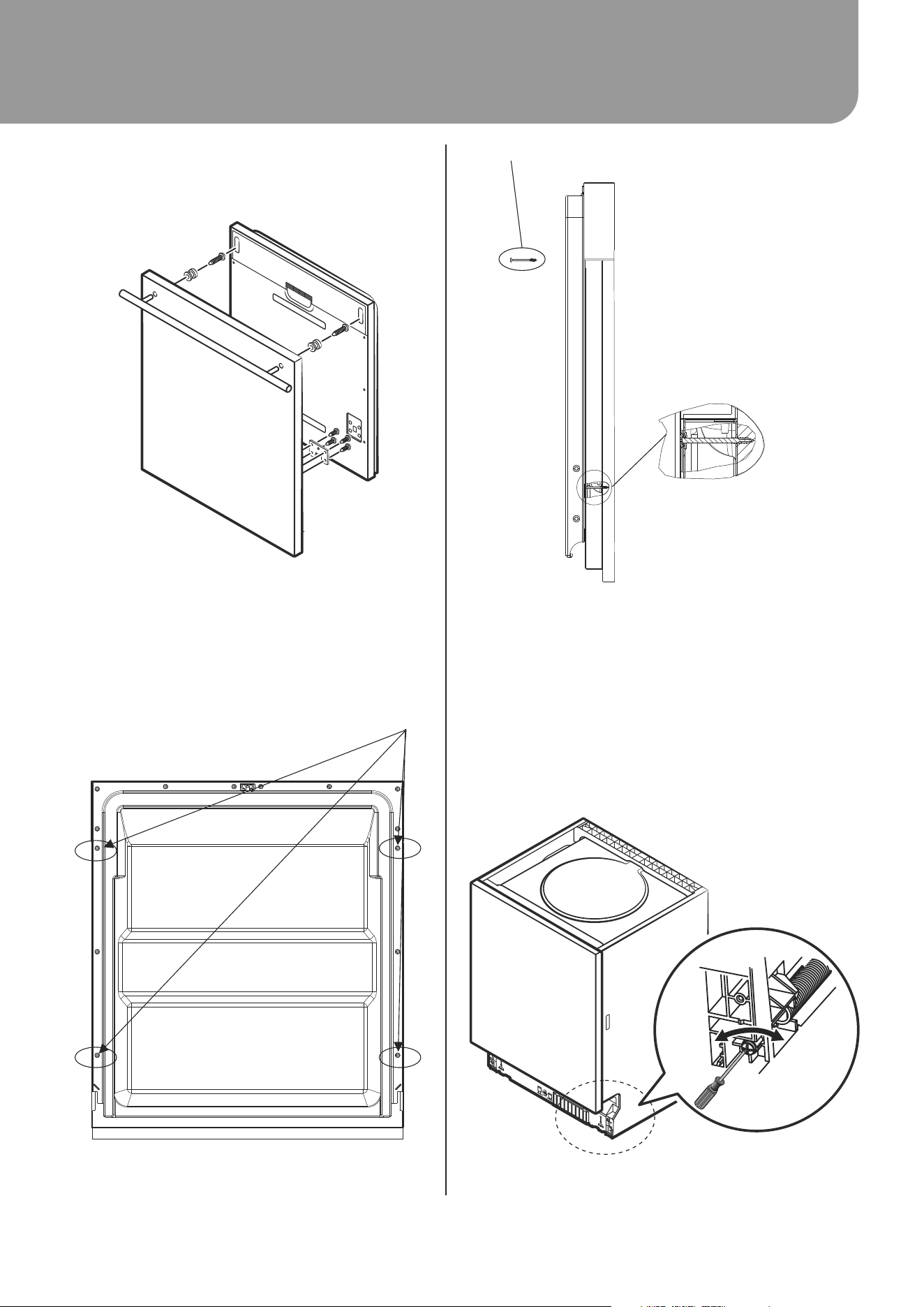

Install the hook on the aesthetic fascia panel and
Ÿ
put the hook into the slot of the outer door of
dishwasher (see below).
After positioning of the panel, fix the panel onto the
Ÿ
outer door by screws and bolts (See following
diagrams).
Remove the four short screws
Tension adjustment of the door
The door springs are set at the factory to the
Ÿ
proper tension for the outer door. If an aesthetic
fascia panel is installed, you will have to adjust the
door spring tension. Rotate the adjusting screw to
drive the adjustor to strain or relax the steel cable
(see below).
Door spring tension is correct when the door
Ÿ
remains horizontal in the fully opened position, yet
rises to a close with the slight lift of a finger.
Page 24
Using Your Dishwasher
FORGET TO ADD A DISH?
A forgotten dish can be added at any time before the
detergent dispenser opens.
1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open
the door completely.
3. Load the forgotten dishes.
4. Close the door.
5. The dishwasher will start running again after 10
seconds.
WARNING! It is dangerous to open the door
when washing, because the hot water may scald
you.
AT THE END OF THE WASH CYCLE
When the working cycle has finished, the buzzer of the
dishwasher will sound for 8 seconds, then stop. Turn
off the appliance using the Power switch button, shut
off the water supply and open the door of the
dishwasher. Wait for a few minutes before unloading
the dishwasher to avoid handling the dishes and
utensils while they are still hot and more susceptible to
breakage. They will also dry better.
Switch off the Dishwasher
The program light is on but is not blinking, only in this
case the program has ended.
1. Switch off the dishwasher by pressing Power
button.
2. Turn off the water tap!
Open the door carefully
Hot dishes are sensitive to knocks. The dishes should
be allowed to cool down around 15 minutes before
removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a
few minutes before removing the dishes. Dishes will
be cooler and the drying will be improved.
Unloading the Dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one.
This will avoid water dripping from the upper Basket
onto the dishes in the lower one.
WARNING! Items will be hot! To prevent damage,
do not take glass and cutlery out of the dishwasher for
around 15 minutes after the program has ended.
TURNING ON THE APPLIANCE
Starting a wash cycle:
1. Draw out the lower and upper basket, load the
dishes and push them back. It is recommended to
load the lower basket first, then the upper one (see
the section entitled “Loading the Dishwasher”).
2. Add the detergent or tablet .
3. Insert the plug into the socket. The power supply is
220-240 VAC / 50 HZ, the specification of the
socket is 10A 250VAC. Make sure that the water
supply is turned on to full pressure.
4. Open the door, press the power button.
5. Press the program button ‘<’ or ‘>’ to select your
desired program, when the program is selected,
the corresponding icon will light up. Then close the
door, the program will begin its cycle.
CHANGE THE PROGRAM
A cycle that is underway can only be modified if it has
only been running for a short time. Otherwise, the
detergent may have already been released, and the
appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be
refilled (see the section entitled "Adding Detergent").
1. Open the door a little to stop the dishwasher, after
the spray arm stops working, you can open the
door completely.
2. Press Program button ‘>’ for more than three
seconds, the appliance will be in stand by mode.
3. You can change the program to the desired cycle
setting.
Fit the four long screws
3 sec
Installation
Securing the Dishwasher

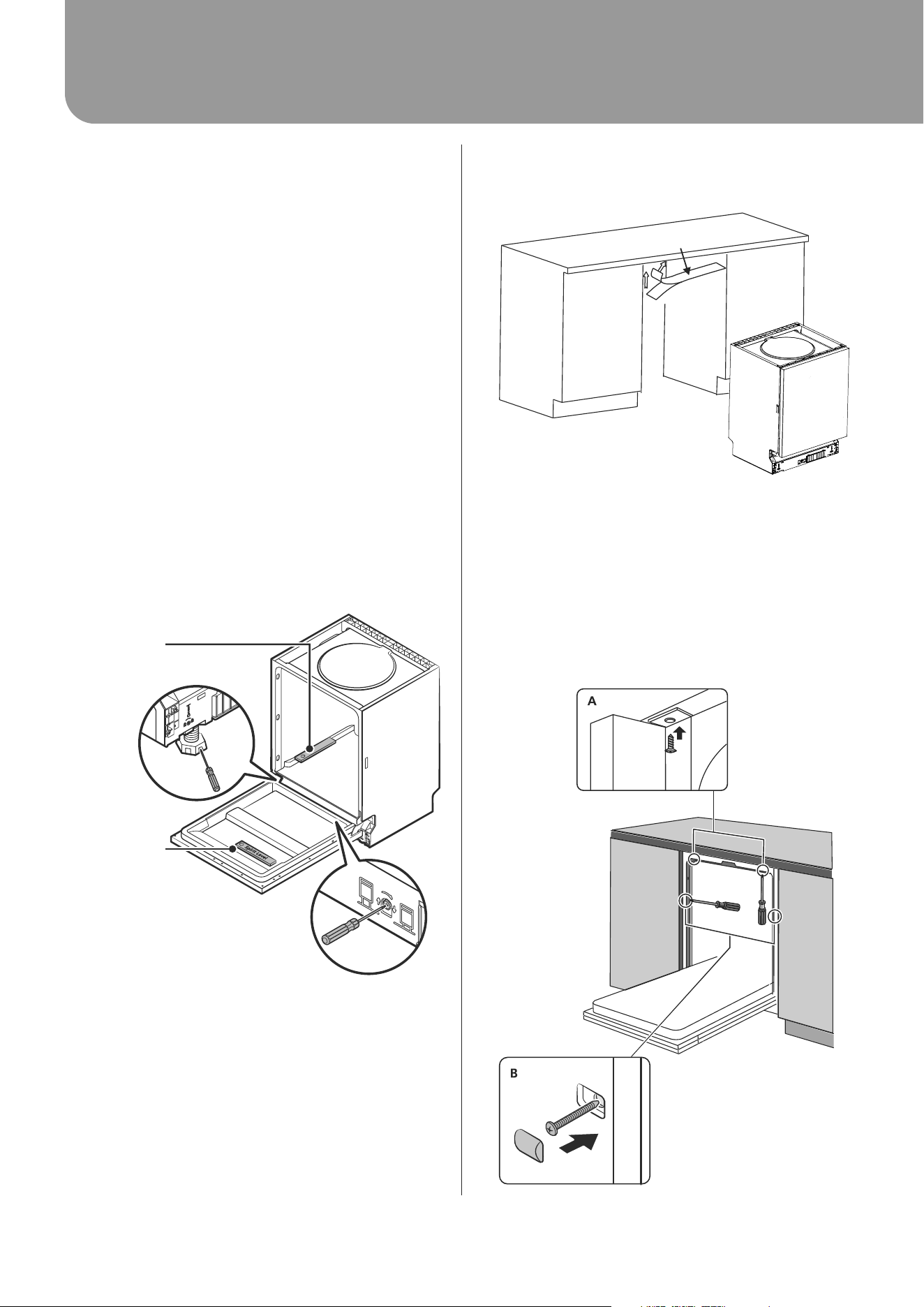

The dishwasher must be secured in place using either
of the following methods:
Normal work surface - Put the installation hook into
Ÿ
the slot of the side panel and secure it to the work
surface with the wood screws (A).
Marble or granite work top - Fix through the side
Ÿ
with the screws (B).
Positioning the Appliance
Position the appliance in the desired location. The
Ÿ
back should rest against the wall behind it, and the
sides, along the adjacent cabinets or walls. The
dishwasher is equipped with water supply and
drain hoses that can be positioned either to the
right or the left sides to facilitate proper installation.
WARNING! Where the dishwasher has ventilation
openings in the base, these openings must not be
obstructed by a carpet.
Levelling
Dishwasher must be level for proper dish rack
Ÿ
operation and wash performance.
Place a spirit level on door and rack track inside the
Ÿ
tub as shown to check that the dishwasher is level.
Level the dishwasher by adjusting the three levelling
Ÿ
legs individually.
When level the dishwasher, please pay attention
Ÿ
not to let the dishwasher tip over.
NOTE: The maximum adjustment height of the feet
Ÿ
is 50 mm.
Page 10 Page 23
Using Your Dishwasher

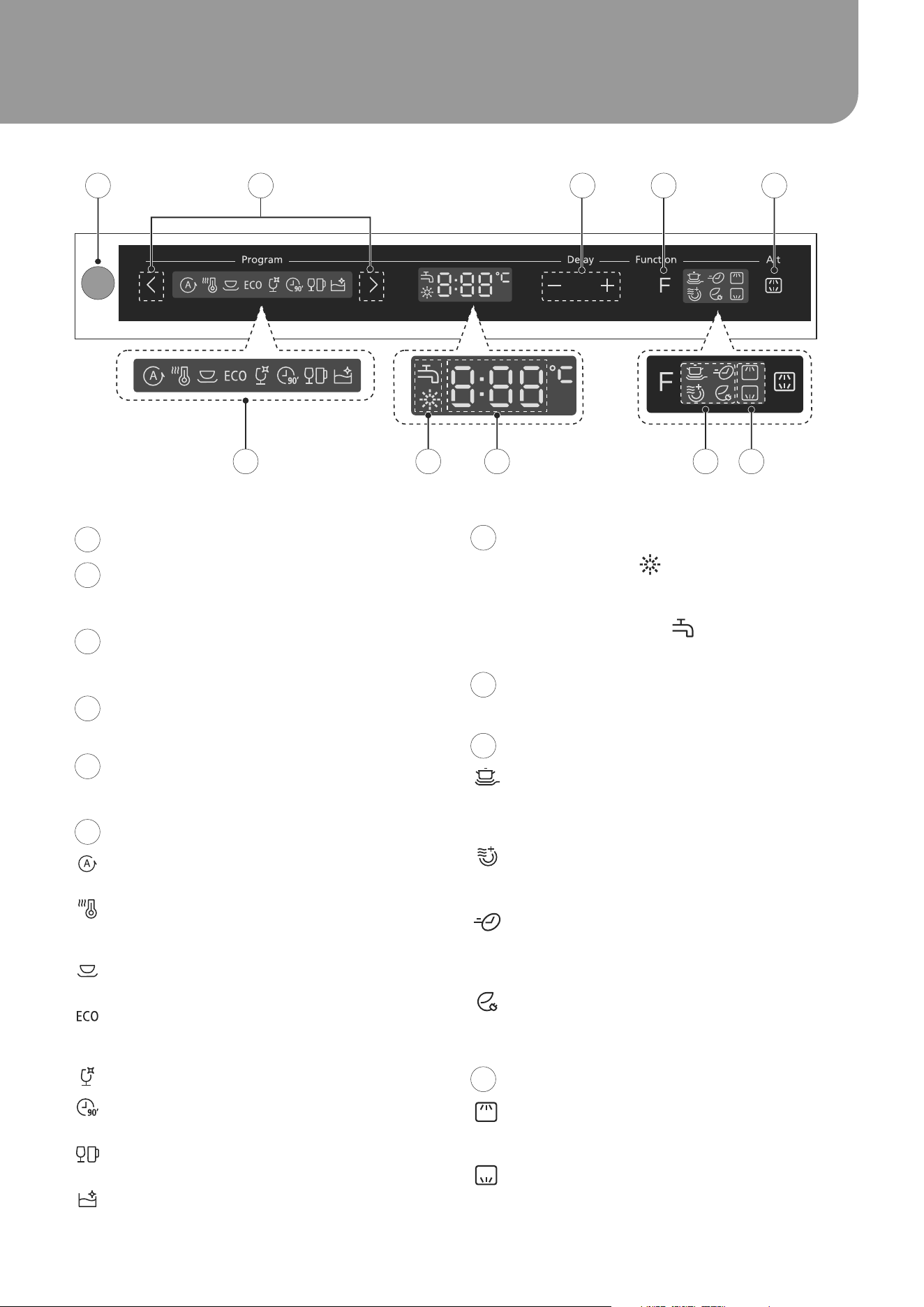

CONTROL PANEL
UP
DOWN
Check level
Front to Back.
Check level
side to side.
Fit the condensation strip under the work surface of
Ÿ
the cabinet. Ensure that the strip is flush with the
edge of the work surface.
Condensation Strip
1 2 3 4 5
6 7 8 9 10
3
1
Power button: To turn on/off the appliance.
Delay -/+ : Press the ‘+’ button to add the delay
time or press the ‘-’ button to decrease the
delay time. Maximum delay time is 24 hours.
2
Program: Press the ‘<’ or ‘>’ button to select
a program and the corresponding indicator
will be lit.
4
Function: Press the button to select a
function, corresponding indicator will be lit.
5
Alt button: Press the button to select either
upper basket or lower basket loaded and the
response indicator will be lit.
6
Program Indicator:
Auto: For lightly, normally or heavily soiled
crockery with or without dried-on food.
Hygiene: With the Sanitize option selected, the
water temperature is increased to 70 ˚C for
high temperature sanitization.
Heavy: For normally soiled loads, such as pots,
plates, glasses and lightly soiled pans.
ECO - This is standard program, it is suitable to
clean normally soiled tableware and it is the
most efficient program.
Glass - For lightly soiled crockery and glass.
90min - For normally soiled loads that need
quick wash.
Party - For lightly soiled loads, such as glasses,
crystal and fine china.
Self-Cleaning - This program provides an
effective cleaning of the dishwasher itself.
7
Warning Indicator:
Rinse Aid - If the ‘ ‘ indicator is lit, it means
the dishwasher is low on Rinse Aid and
requires a refill.
Water Faucet - If the ‘ ‘ indicator is lit, it
means the water faucet is closed.
8
Screen: Displays remaining time, delay time,
error codes etc;
9
Function Indicator:
Extra Cleaning - Hotter rinse cycle and an
additional cold rinse to wash very dirty, hard to
clean dishes. (It can only be used with Hygiene,
Normal, ECO, Glass, 90min)
Extra-Drying - Hotter rinse cycle to dry dishes
more thoroughly. (It can only be used with
Hygiene, Normal, ECO, Glass, 90min)
Express - Hotter wash cycle and reduced
washing and drying time to reduce the overall
program time by 20min. (It can only be used
with Hygiene, Normal, ECO, Glass, 90min).
Energy Save - Shorter and cooler washing
cycle to save on energy consumption. (It can
only be used with Normal, ECO, Glass, 90min).
10
Alt Indicator:
Upper - When you select Upper, only the upper
rack nozzle is activated. The lower nozzle will
not operate.
Lower - When you select Lower, only the lower
rack nozzle is activated. The upper nozzle will
not operate.
Installation
Page 11Page 22

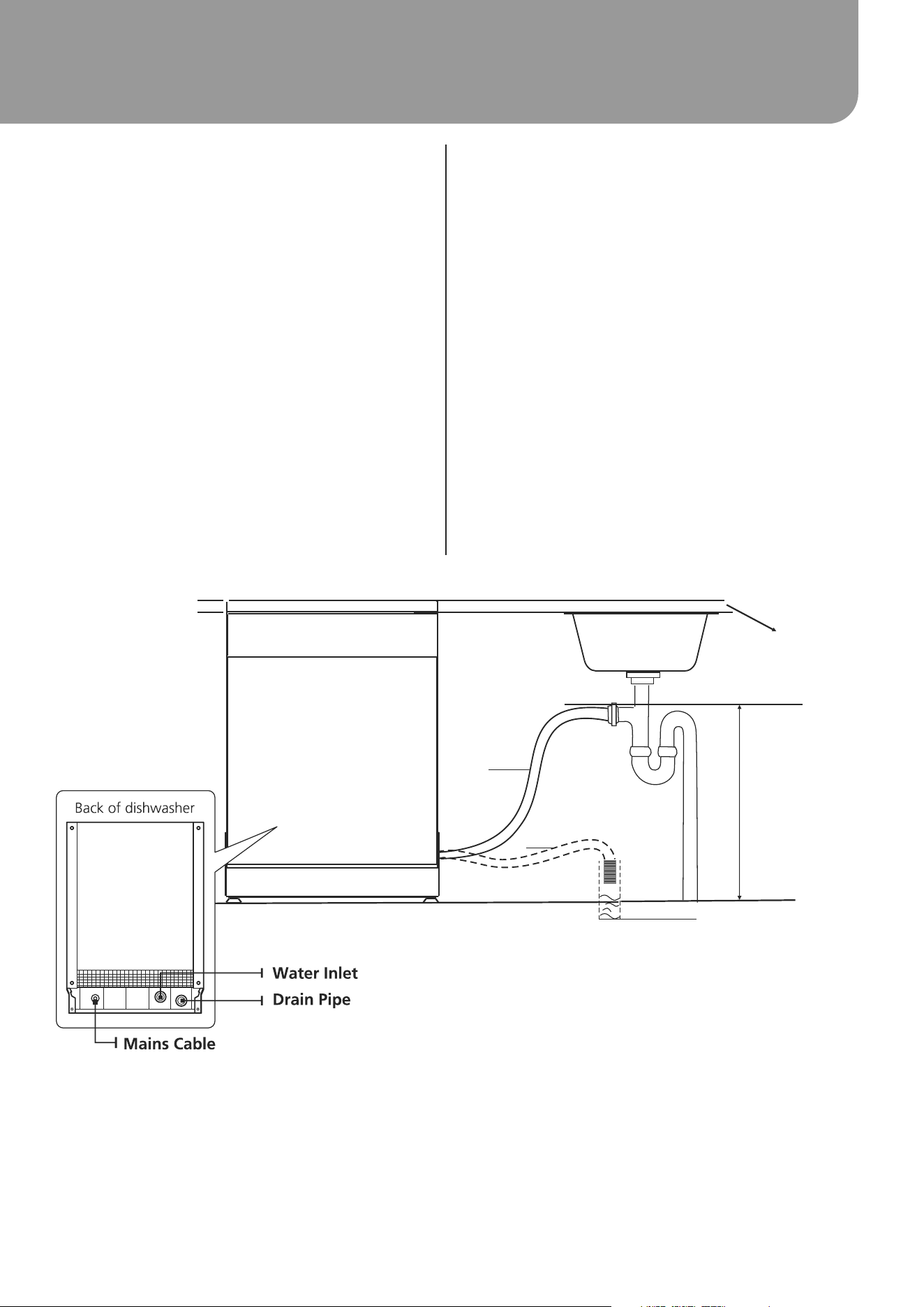

Drain Hose Connection
Insert the drain hose into a drain pipe with a
Ÿ
minimum diameter of 40mm (B), or let it run into the
sink (A), making sure to avoid bending or crimping
it. The top of the hose must be at a height less than
1000mm. The free end of the hose must not be
immersed in water to avoid back flow.
Syphon Connection
Insert the drain hose into a drain pipe with a
Ÿ
minimum diameter of 40mm, or let it run into the
sink, making sure to avoid bending or crimping it.
The top of the hose must be less than 1000mm.
How to Drain Excess Water from Hoses
If the sink is more than 1000mm higher than the
Ÿ
floor, the excess water in the hose cannot be
drained directly into the sink. It will be necessary to
drain excess water from the hose into a bowl or
suitable container that is held outside and lower
than the sink.
MAX 1000mm
A
Counter
Front
Drain hose
NOTE
The top of the hose
must be less than
1000mm.
¦40mm
B
Water Outlet
Connect the water drain hose. The drain hose must
Ÿ
be correctly fitted to avoid water leaks. Ensure that
the water drain hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, make sure to
Ÿ
use a similar drain hose.
It must be no longer than 4 metres; otherwise the
Ÿ
cleaning effect of the dishwasher could be
reduced.
Using Your Dishwasher
STARTING A WASHING PROGRAM

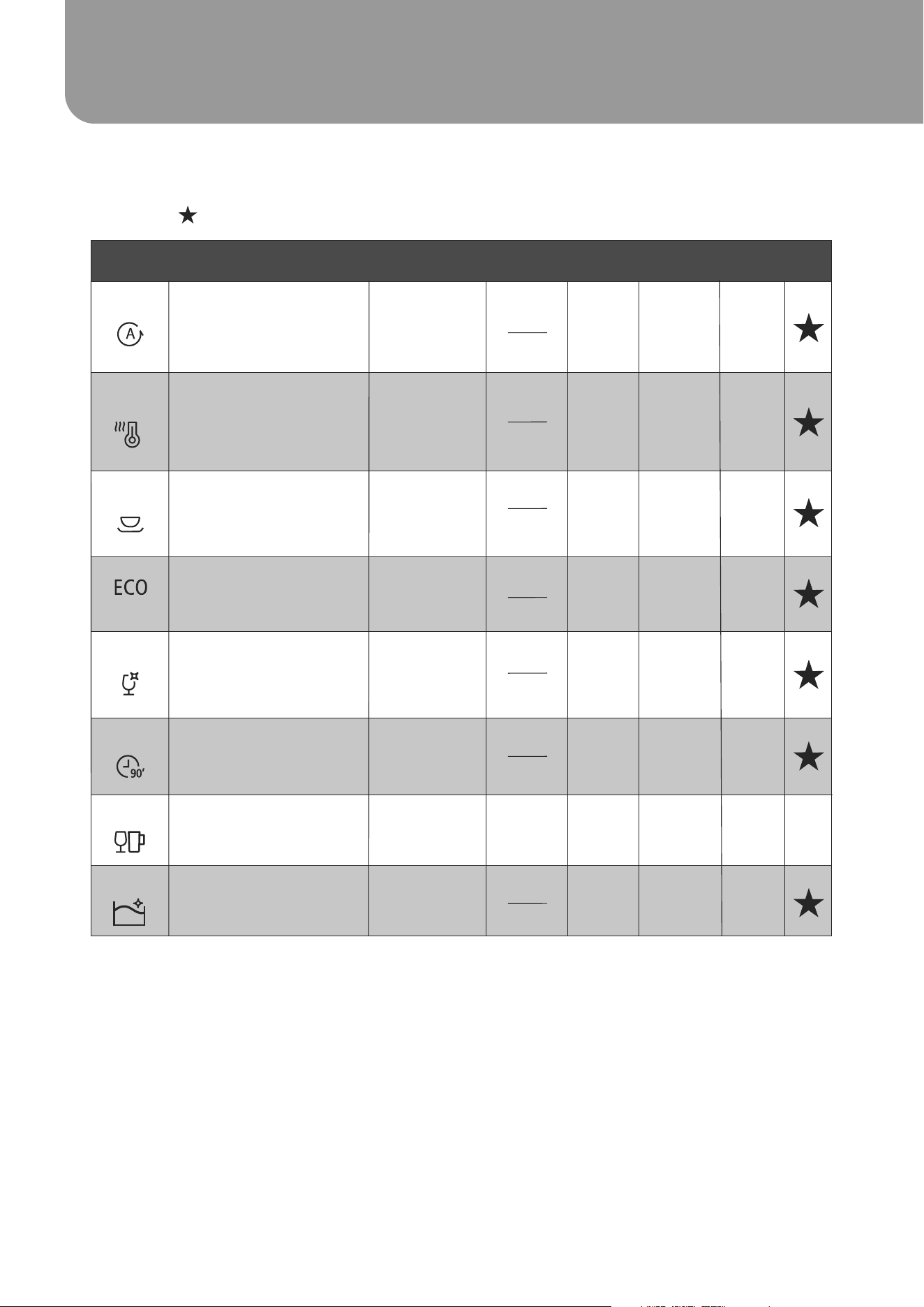

Wash Cycle Table
NOTE: Star ( ) means the need to fill rinse aid into the Rinse Aid Dispenser.
NOTE:
* AS/NZS 2007.1: This program is the test cycle.
The information for comparability test in accordance with AS/NZS 2007.1, as follows:
Capacity: 15 setting
Ÿ
Position Upper basket: Lower Position
Ÿ
Program: ECO
Ÿ
Detergent (Pre/Main): 5g / 28.75g
Ÿ
Rinse aid setting: 6
Ÿ
Open the door slightly 100mm to assist in drying of the dishes after every wash
Ÿ
Detergent
pre/main
Cycle Selection
Information
Program
Running
time(min)
Water
(L)
Energy
(Kwh)
Rinse
Aid
With the Sanitise option
selected, the water temperature
is increased to 70°C for high
temperature sanitisation.
For lightly soiled loads, such
as glasses, crystal and fine
China.
Wash (70°C)
Rinse
Rinse
Rinse(70°C)
Drying
Wash (45 )
Rinse (45°C)
°C
175
20
1.5
0.34 7.5
Description
of Cycle
Wash(65°C)
Rinse
Rinse (65°C)
Drying
90 12.51.15
For lightly soiled plates &
pans that need a quick wash
For lightly soiled crockery
and glass.
130 0.75
13
Pre-wash
Wash (40 °C)
Rinse
Rinse(60°C)
Drying
Hygiene
Glass
90 mins
Party
Heavy
For heavily soiled loads,
such as pots, plates,
glasses and lightly
soiled pans.
Pre-wash(45°C)
Wash (55°C)
Rinse
Rinse (65°C)
Drying
185
1.1 13.5
*AS/NZS 2007.1
For normally soiled loads, such
as pots, plates, glasses and
lightly soiled pans.
Standard daily cycle.
Pre-wash
Wash (45°C)
Rinse(45°C)
Drying
195
0.641
11.8
NOTE: If you notice any detergent residue on your dishes after the wash cycle is complete, reduce the amount of
detergent for the next wash.
Auto
Auto sensing wash, lightly
or heavily soiled crockery,
with or with out dried-on food.
Pre-wash(45°C)
Autowash (45-55°C)
Rinse
Rinse (65°C)
Drying
150
0.9-1.3 11~15
1 piece
5/28.75g
1 piece
33.75g
1 piece
5/28.75g
1 piece
5/28.75g
1 piece
5/28.75g
1 piece
33.75g
13.5
This program provides an
effective cleaning of the
dishwasher itself.
90 1.2 11
Self Clean
Wash (70 )
Rinse
Rinse(70°C)
°C
1 piece
30g
Installation
About the Safety Inlet Hose with Aqua Stop
The Safety Inlet Hose with Aqua Stop consists of
double walls. The hose's system guarantees its
intervention by blocking the flow of water in case of the
inlet hose breaking and when the air space between
the inlet hose itself and the outer corrugated hose is
full of water.
WARNING! In order to avoid water staying in the inlet
hose, please close the hydrant after using.
WARNING! A hose that attaches to a sink spray
can burst if it is installed on the same water line
as the dishwasher. If your sink has one, it is
recommended that the hose be disconnected
and the hole plugged.
How to disconnect the Safety Inlet Hose with
Aqua Stop
1. Turn off the water.
2. Release the water pressure by depressing the
pressure release button. This relieves water
pressure and protects you, and the room, from
severe splashing.
3. Unscrew the Safety Inlet Hose with Aqua Stop from
the faucet.
Cold Water Connection

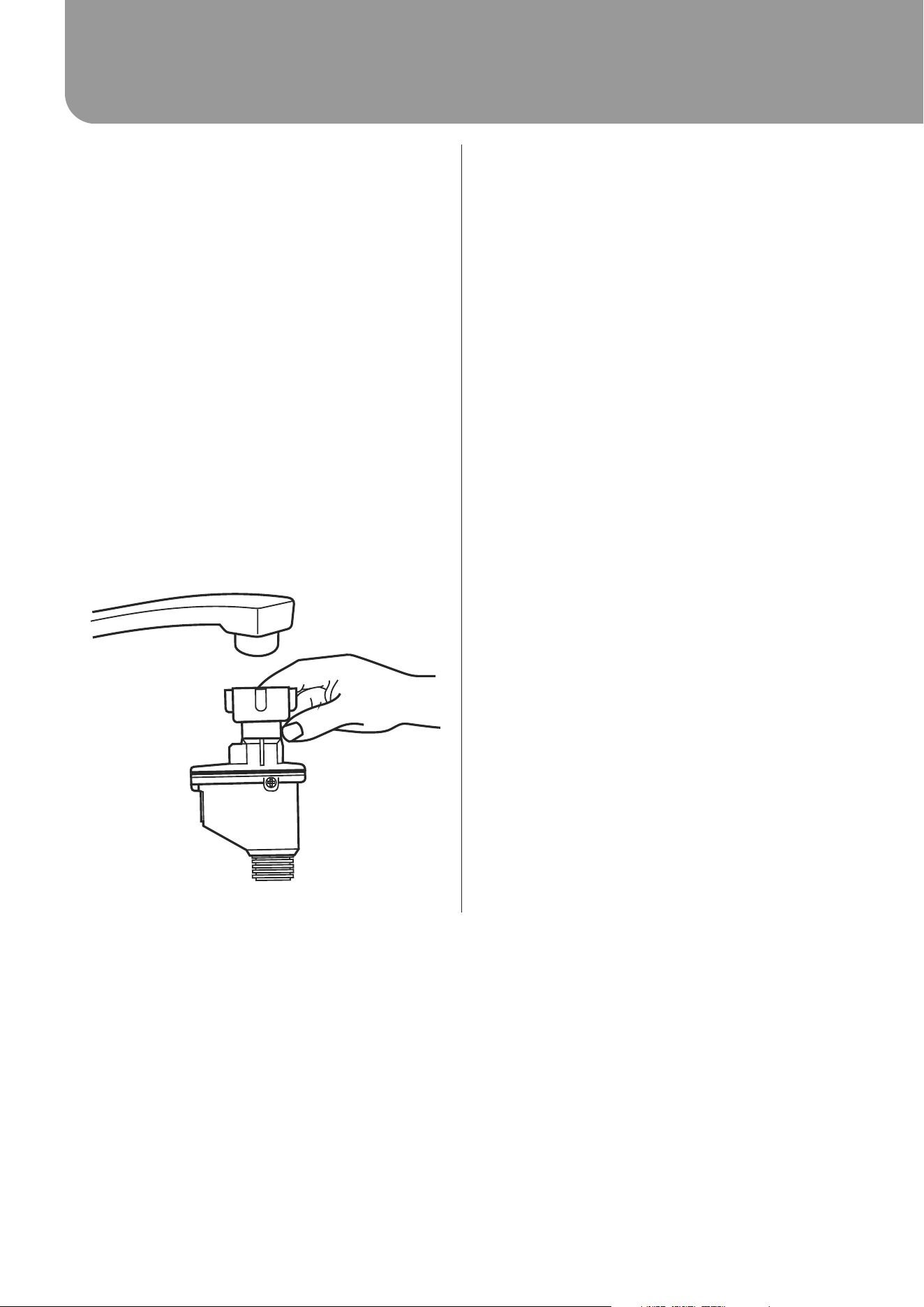

How to Connect the Safety Inlet Hose with Aqua Stop
The appliance must be connected to the water mains
using new hose-sets. The old hose-sets should not be
reused.
Water pressure must be between 0.04 MPa and
1 MPa. If the pressure is below the minimum, consult
our Service Department for advice.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure
that the water is clear. This precaution is needed to
avoid the risk of the water inlet getting blocked and
damaging the appliance.
1. Pull the Safety Inlet Hose with Aqua Stop completely
out from the storage compartment located at the
rear of dishwasher.
2. Connect the Safety Inlet Hose with Aqua Stop to a
threaded 3/4(inch) connector and make sure that it
is fastened tightly in place.
3. Turn water fully on before starting the dishwasher.
Page 12
Using Your Dishwasher
Damage to glassware and other dishes
Possible Causes
Type of glass or manufacturing process. Chemical
Ÿ
composition of detergent.
Water temperature and duration of dishwasher
Ÿ
program.
Suggested remedy:
Use glassware or porcelain dishes that have been
Ÿ
marked dishwasher-proof by the manufacturer
Use a mild detergent that is described as kind of
Ÿ
dishes If necessary, seek further information from
detergent manufacturers.
Select a program with as low a temperature.
Ÿ
To prevent damage, take glass and cutlery out of
Ÿ
the dishwasher as soon as possible after the
program has ended. as possible after the program
has ended.

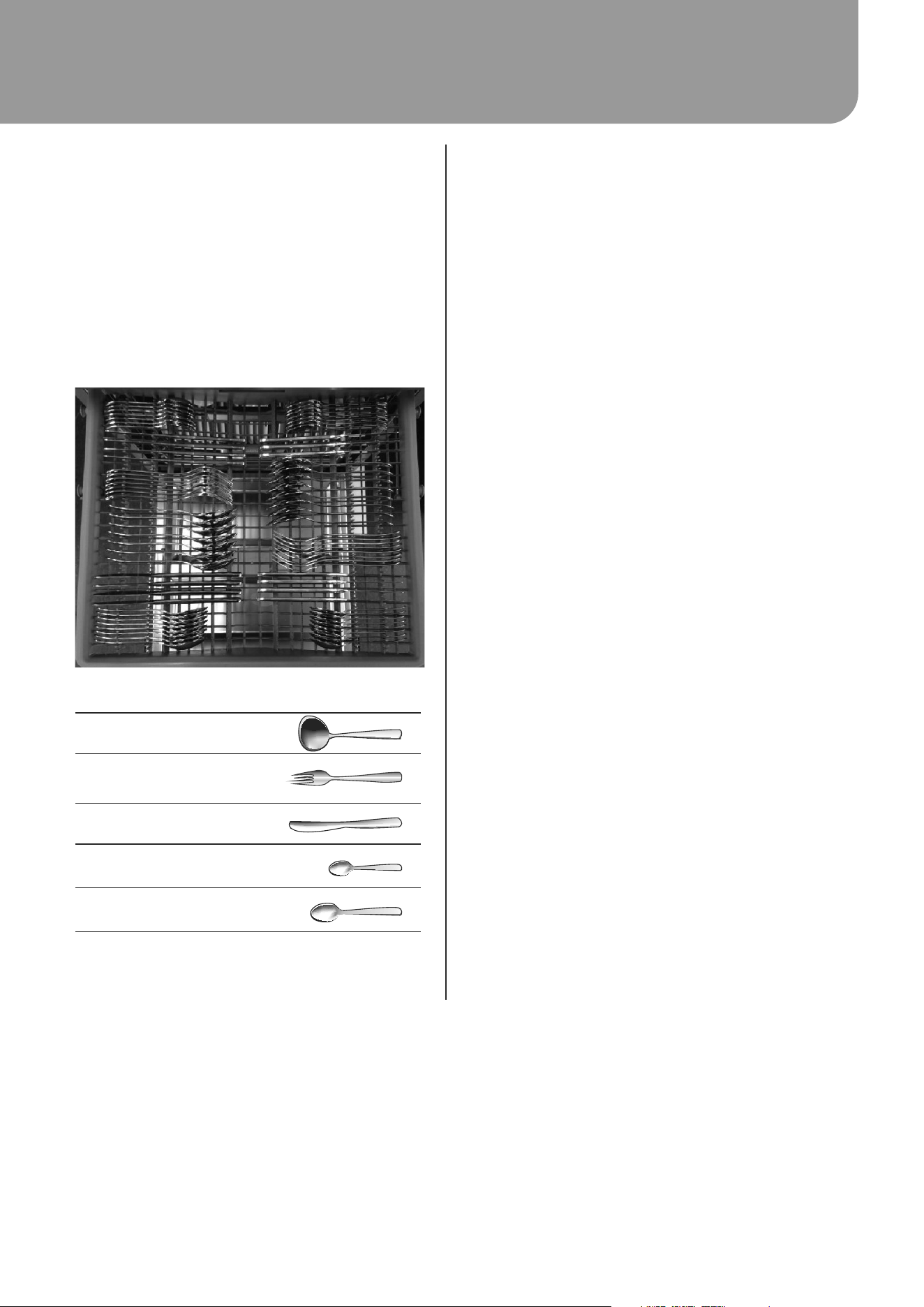

Cutlery Basket
Cutlery should be placed in the cutlery rack
separately from each other in the appropriate
positions. Make sure the utensils do not nest
together, this may cause bad performance.
For a top quality clean, place the silverware in the
basket making sure that:
They do not nest together.
Ÿ
Silverware is placed with the male face up.
Ÿ
Long utensils in the middle.
Ÿ
Teaspoons4
Soup spoons
2
Forks
1
Knives
5
3
Dessert spoons
4
1
4
4
5
3
3
3
3
2
2
1
Page 21
Using Your Dishwasher

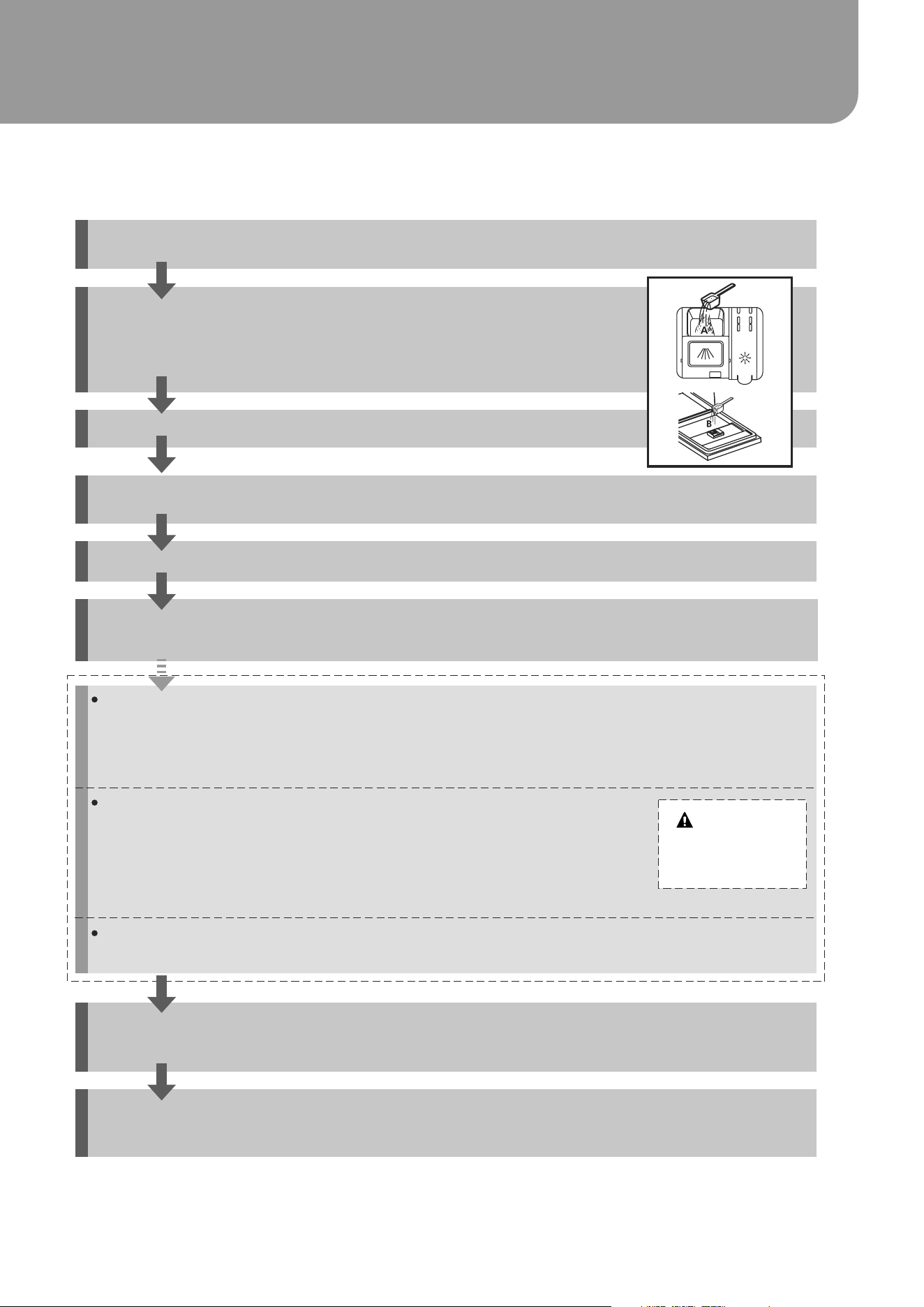

QUICK START GUIDE
For detailed operating method read the corresponding content on the instruction manual.
Compartment A:
For each wash cycle.
Compartment B:
For programmes with pre-wash only.
(Follow the !)User Manual
Mechanical indicator C.
or digital indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a program
T urn on the water tap. Close the door and the machine will start working
after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets

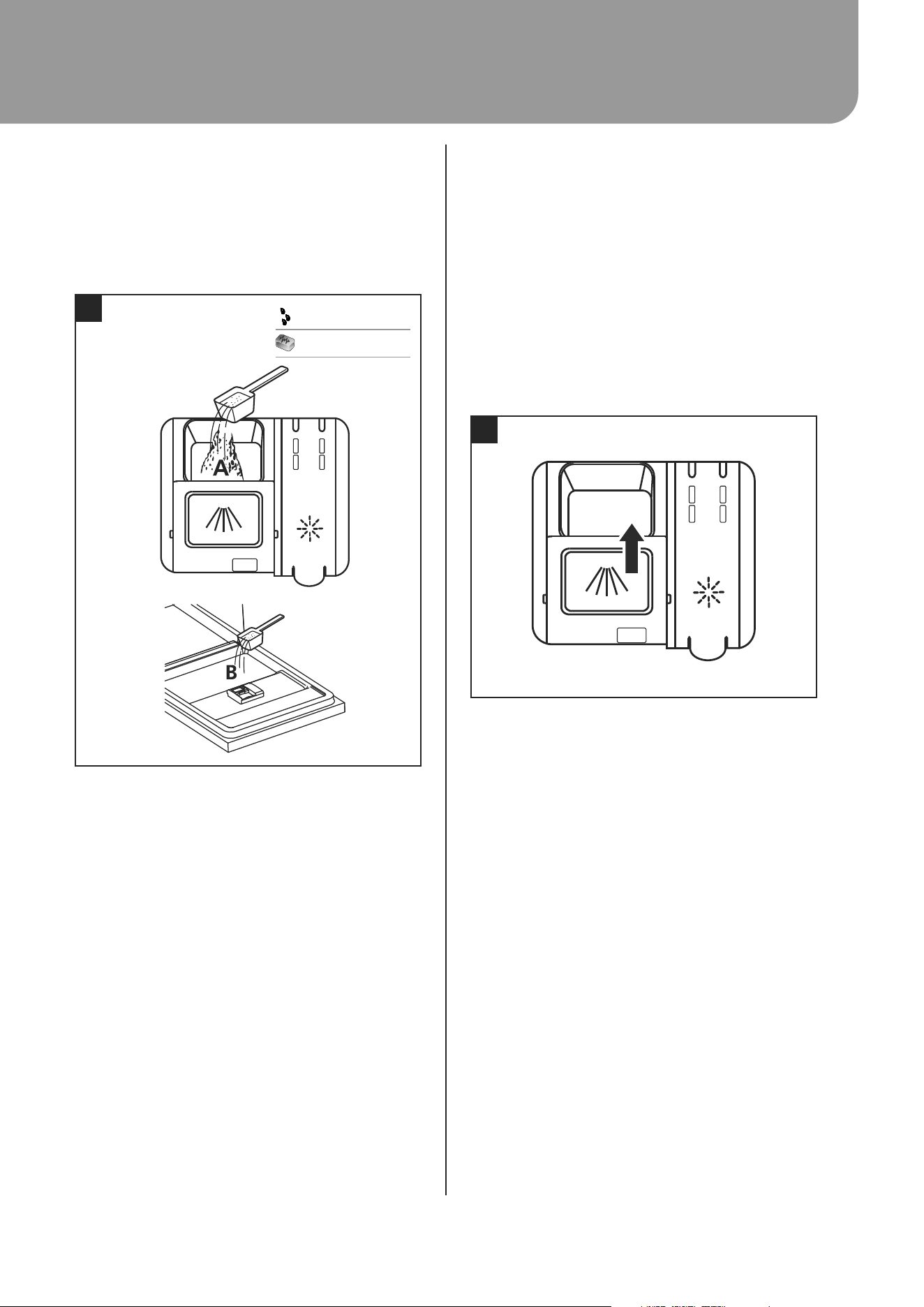

Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better. Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Program Buttons until the desire program lights up.
(See the section entitled: Starting a Washing Program)
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appliance was in standby mode, it will power off automatically after 30 minutes without any operation.
If the appliance is switched
off during a wash cycle.
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
Switch on the appliance
Open the door, press the On/Off button to switch on the appliance.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door a little and wait for the spray arms to stop moving. Press the program button ‘<’ or ‘>’
for more than three seconds to cancel the running program.
3. Select a new program
4. Close the door to restart the dishwasher
1. Open the door a little .
2. After the spray arms stop working, you can open the door
completely.
3. Add the forgotten dishes.
4. Close the door.
5. The dishwasher will run after 10 seconds.
WARNING!
Open the door carefully
Hot steam may escape
when the door is opened!
Page 13Page 20
Using Your Dishwasher

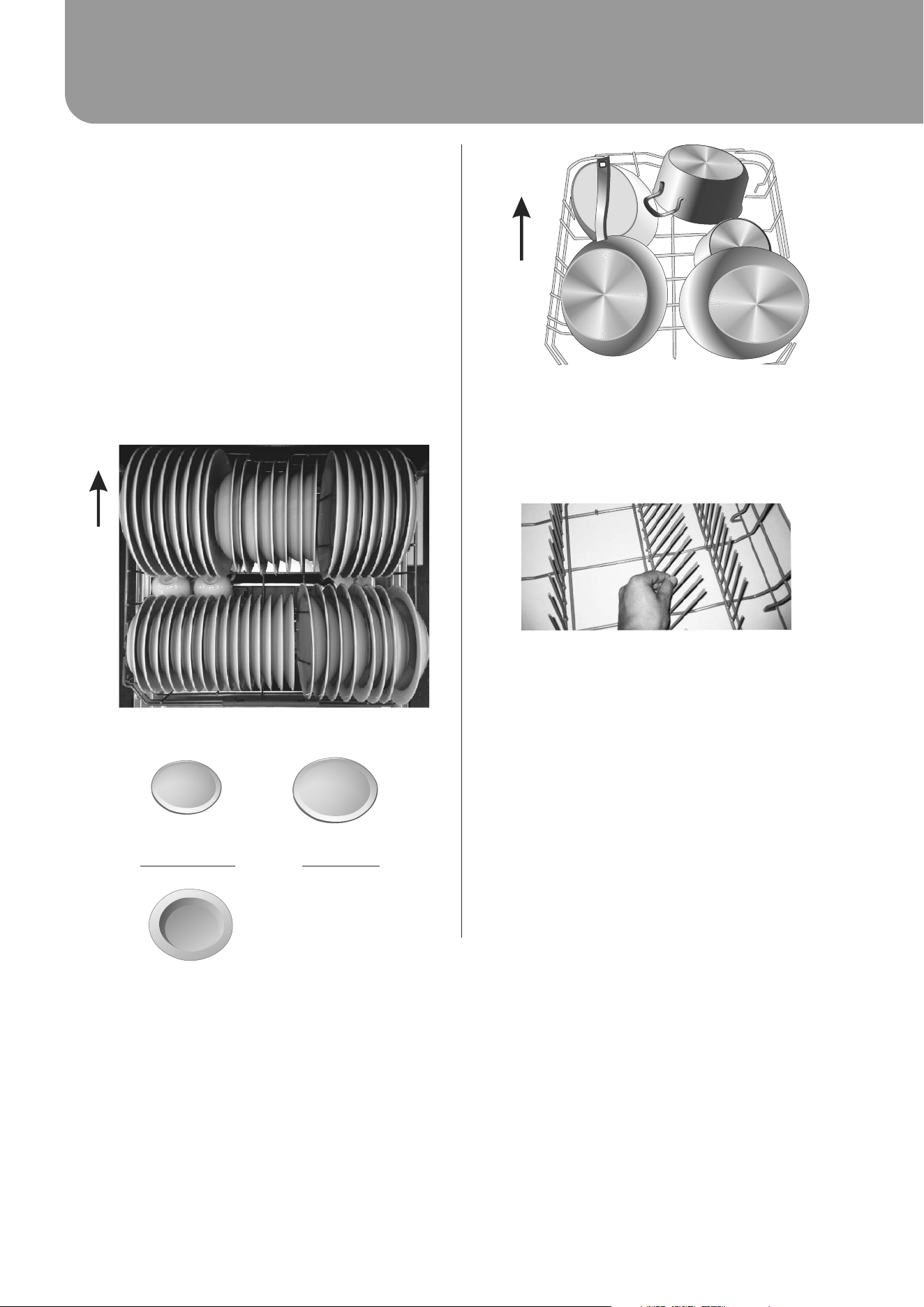

Loading the Lower Basket
We suggest that you place large items and the
most difficult to clean items are to be placed into
the lower basket: such as pots, pans, lids, serving
dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on
the side of the racks in order to avoid blocking the
rotation of the top spray arm.
The maximum diameter advised for plates in front
of the detergent dispenser is 19cm in order to not
hamper the opening of it.
IN
6
Soup plates
Dessert dishes
4
5
Dinner plates
IN
4
5
6
56
Folding the spikes in the Lower Basket
For better stacking of pots and pans, the spikes can
be folded down as shown below.
Page 14
Using Your Dishwasher
BEFORE STARTING THE DISHWASHER
The following things should be checked before
starting the dishwasher:
1. That the dishwasher is level and fixed properly.
2. That the inlet valve is open .
3. There is no leakage at the connections of the
conducts.
4. The wires are tightly connected.
5. The power is switched on.
6. The inlet and drain hoses are not knotted or kinked.
7. All packing & print materials should be taken out of
the dishwasher.
PRIOR TO USING FOR THE FIRST TIME
Before using your dishwasher for the first time:
Fill the Rinse Aid Dispenser
The rinse aid is released during the final rinse to
prevent water from forming droplets on your dishes,
which can leave spots and streaks. It also improves
drying by allowing water to roll off the dishes. Your
dishwasher is designed to use liquid rinse aids. The
rinse aid dispenser is located inside the door next to
the detergent dispenser. To fill the dispenser, open the
cap and pour the rinse aid into the dispenser until the
level indicator turns completely black. The volume of
the rinse aid container is approximately 110ml.
Function of the Rinse Aid
Rinse aid is automatically added during the last rinse,
ensuring thorough rinsing, and spot and streak free
drying.
WARNING!
Only use branded rinse aid for dishwashers. Never fill
the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated
below.
Full
3/4 Full
1/2 Full
1/4 Full (Should refill to eliminate spotting)
Empty
C (Rinse-Aid indicator)
When to refill the Rinse Aid Dispenser
If there is no rinse-aid warning light on the control
panel, you can judge the amount of rinse-aid by the
colour of the optical level indicator "C" located next
to the cap. When the rinse-aid container is full, the
whole indicator will be dark. As the rinse-aid
diminishes, the size of the dark dot decreases. You
should never let the rinse aid get below 1/4 full.
Page 19
Using Your Dishwasher

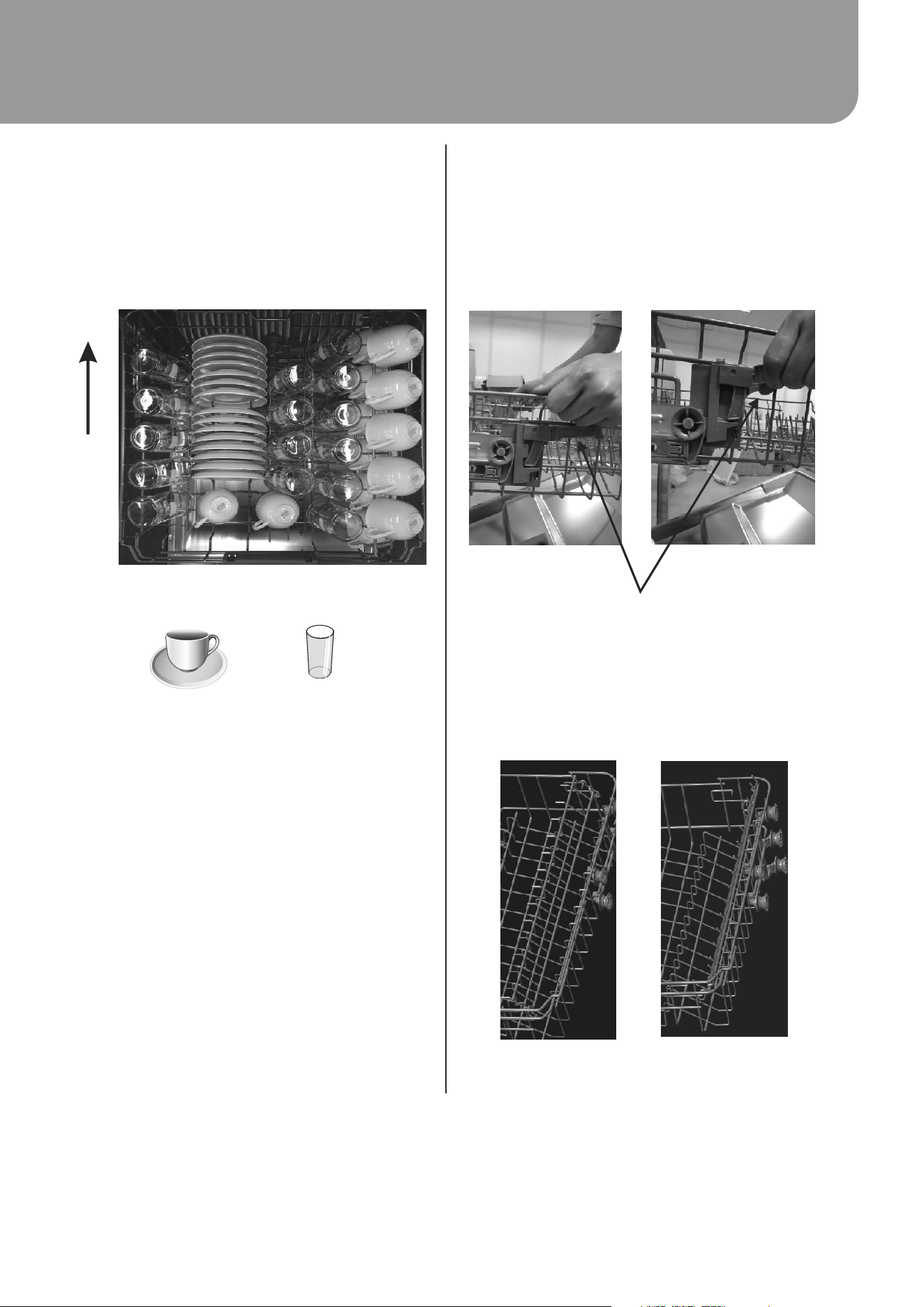

Loading the Upper Basket
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and tea
cup and saucers, as well as plates, small bowls and
shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they do not
get moved by the spray of water.
IN
3
Glasses
Saucers
2
Cups
1
Please be reminded that:
Pots, serving bowls, etc, must always be placed
Ÿ
top down.
Deep pots should be slanted to allow water to
Ÿ
flow out.
Ÿ The Bottom Basket features folding spikes so
that larger or more pots and pans can be loaded.
Folding back the cup shelves
For reduced loads or better stacking, the additional
cup shelves can be folded down if not required as
shown below.
Adjusting the Upper Basket
The height of the upper basket can be adjusted in
order to create more space for large utensils both
for the upper/lower basket. The height of the upper
basket can be adjusted by lifting the handle on
either side of the basket, see pictures below:
Lower position
Upper position
Adjustment Handle
1
3
2
3
1
Page 15
Using Your Dishwasher

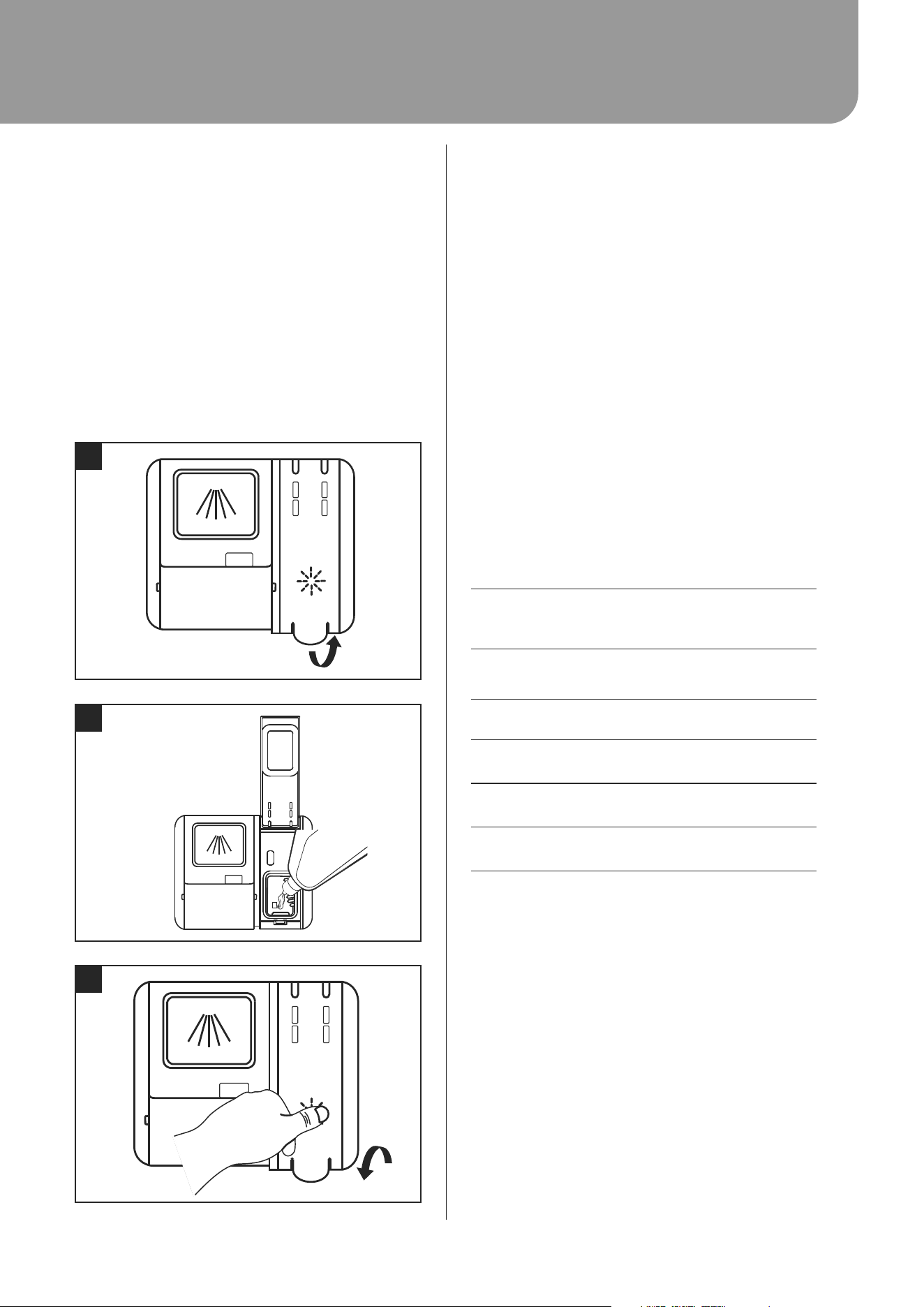

How to fill the Rinse Aid Dispenser
1. Remove the rinse aid reservoir cap by lifting up the
handle.
2. Pour the rinse aid into the dispenser, being careful
not to overfill.
3. Close the cap once reservoir is full.
Be careful not to overfill the dispenser, because this
could cause over sudsing. Wipe away any spills with a
damp cloth. Don't forget to replace the cap before
you close dishwasher door.
ATTENTION! Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess foaming
during the next wash.
1
2
Page 18
Using Your Dishwasher
LOADING THE DISHWASHER BASKET
Recommendation
Consider buying utensils which are identified as
Ÿ
dishwasher-proof.
Use a mild detergent that is described as 'kind to
Ÿ
dishes'. If necessary, seek further information
from the detergent manufacturers.
For particular items, select a program with as low
Ÿ
a temperature as possible.
To prevent damage, do not take glass and cutlery
Ÿ
out of the dishwasher immediately after the
programme has ended.
Suitability of use in the dishwasher
NOT SUITABLE FOR USE
Cutlery with wooden, horn china or mother-of-
Ÿ
pearl handles
Plastic items that are not heat resistant
Ÿ
Older cutlery with glued parts that are not
Ÿ
temperature resistant
Bonded cutlery items or dishes
Ÿ
Pewter or cooper items
Ÿ
Crystal glass
Ÿ
Steel items subject to rusting
Ÿ
Wooden platters
Ÿ
Items made from synthetic fibres
Ÿ
LIMITED SUITABILITY
Some types of glasses can become dull after a
Ÿ
large number of washes
Silver and aluminum parts have a tendency to
Ÿ
discolour during washing
Glazed patterns may fade if machine washed
Ÿ
frequently
Attention before or after Loading the Dishwasher
Baskets.
For best performance of the dishwasher, follow these
loading guidelines. Features and appearance of
baskets and cutlery baskets may vary from your
model.
Scrape off any large food particles. Soften remnants of
burnt food in pans.
It is not necessary to rinse the dishes under running
water. Place objects in the dishwasher in following
way:
1. Items such as cups, glasses, pots/pans, etc. are
faced downwards.
2. Curved items, or ones with recesses, should be
loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip
over.
4. All utensils are placed in the way that the spray
arms can rotate freely during washing.
NOTE: Very small items should not be washed in the
dishwasher as they could easily fall out of the baskets.
Load hollow items such as cups, glasses, pans
Ÿ
etc. With the opening facing downwards so that
water cannot collect in the container or a deep
base.
Dishes and items of cutlery must not lie inside
Ÿ
one another, or cover each other.
To avoid damage to glasses, they must not touch.
Ÿ
Load large items which are most difficult to clean
Ÿ
into the lower basket.
The upper basket is designed to hold more
Ÿ
delicate and lighter dishware such as glasses,
coffee and tea cups.
Long bladed knives stored in an upright position
Ÿ
are a potential hazard!
Long and/or sharp items of cutlery such as
Ÿ
carving knives must be positioned horizontally in
the upper basket.
Please do not overload your dishwasher. This is
Ÿ
important for good results and for reasonable
consumption of energy.
Note: Very small items should not be washed in
Ÿ
the dishwasher as they could easily fall out of the
basket.
3
Adjusting the rinse aid setting
To achieve a better drying performance with limited
rinse aid, the dishwasher is designed to adjust the
consumption by the user.
To adjust, follow the steps below:
1. Power on the dishwasher by plugging in;
2. Within 60 seconds after step 1, press the
Start/Pause button more than 5 seconds,
and then press the Delay Button to enter the set
mode, the rinse aid indicator will blink.
3. Press the Start/Pause button to select the
desired setting according to your using habits,
the setting will change in the following
sequence: D1->D2->D3->D4->D5-> and back
to D1. The dispenser drops the most rinse aid in
level D5 and the least in D1. The factory setting
is D3.
4. Wait 5 seconds or press the power button to
exit the set mode. The new rinse aid setting will
now be set.
D3
Selector
Position
D1
D2
D4
Amount of
Rinse Aid (ml)
D5
3.6
1.2
2.4
4.8
6.0
Using Your Dishwasher
Detergents
Detergents have chemical ingredients that are
necessary to remove dirt, crush dirt and transport it
out of the dishwasher. Most of the commercial
quality detergents are suitable for this purpose.
There are 3 sorts of detergents:
1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine
Normally new pulverised detergent is without
phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to
fill salt in the salt container even when the hardness of
water is only 6 °dH. If detergents without phosphate
are used in the case of hard water often white spots
appear on dishes and glasses. In this case please add
more detergent to reach better results. Detergents
without chlorine do only bleach a little. Strong and
coloured spots will not be removed completely. In this
case please choose a program with a higher
temperature.
Concentrated Detergent
Based on their chemical composition, detergents can
be split in two basic types:
Conventional, alkaline detergents with caustic
Ÿ
components
Low alkaline concentrated detergents with natural
Ÿ
enzymes
The use of “normal” washing programs in combination
with concentrated detergents reduces pollution and is
good for your dishes; these wash programs are
specifically matched to the dirt-dissolving properties
of the enzymes of the concentrated detergent. For this
reason “normal”wash programs in which
concentrated detergents are used can achieve the
same results that can otherwise only be achieved
using “intensive” programs.
Detergent Tablets
Detergent tablets of different brands dissolve at
different speeds. For this reason some detergent
tablets cannot dissolve and develop their full cleaning
power during short programs. Therefore please use
long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each
wash cycle following the instructions provided in the
wash cycle table. Your dishwasher uses less
detergent and rinse aid than Conventional
dishwasher. Generally, only one tablespoon of
detergent is needed for a normal wash load.
Page 16 Page 17
Using Your Dishwasher
1
2
Close the Detergent compartment
If your dishes are only moderately dirty. You may be
able to use less detergent.
Slide the compartment lid by sliding it to the front
Ÿ
and then pressing down.
If you are using detergent in tablet form, read the
Ÿ
manufacturer recommendations on the packaging
in order to determine where the tablets should be
placed inside the dishwasher (eg. in the cutlery
basket, detergent compartment etc;)
Make sure the lid on the detergent compartment is
closed, even if you are using a tablet.
Detergent tablet
Detergent powder
WARNING! Dishwasher detergent is poisonous!
Take care to keep it out of reach of children.
Proper Use of Detergent
Only use detergent specifically made for the use in
Ÿ
dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser
Ÿ
until you're ready to wash dishes.
Please observe the manufacturers dosing and
Ÿ
storage recommendations as stated on the
detergent packaging.
If the dishes are heavily soiled, place an additional
Ÿ
detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the
pre-wash phase.
NOTE: See information about the amount of
detergent for the single programs on ‘Wash Cycle
Table’. Please be aware, that according to the level
soiling and the specific hardness of water differences
are possible.
More heavily soiled items need more detergent.
Always add the detergent just before starting the
dishwasher, otherwise it could get damp and will not
dissolve properly.
Adding detergent to Dishwasher
If the lid is closed: press/slide release button. The lid
Ÿ
will spring open.
Always add the detergent just before starting each
Ÿ
wash cycle.
Only use branded detergent aid for dishwasher.
Ÿ
Adding detergent to Dishwasher
Add detergent or tablet into the larger cavity (A) for
Ÿ
the main wash cycle . For better cleaning result,
especially if you have very dirt items, pour a small
amount of detergent onto the door (B). The
additional detergent will activate during the pre-
wash phase.
3
Using Your Dishwasher
Detergents
Detergents have chemical ingredients that are
necessary to remove dirt, crush dirt and transport it
out of the dishwasher. Most of the commercial
quality detergents are suitable for this purpose.
There are 3 sorts of detergents:
1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine
Normally new pulverised detergent is without
phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to
fill salt in the salt container even when the hardness of
water is only 6 °dH. If detergents without phosphate
are used in the case of hard water often white spots
appear on dishes and glasses. In this case please add
more detergent to reach better results. Detergents
without chlorine do only bleach a little. Strong and
coloured spots will not be removed completely. In this
case please choose a program with a higher
temperature.
Concentrated Detergent
Based on their chemical composition, detergents can
be split in two basic types:
Conventional, alkaline detergents with caustic
Ÿ
components
Low alkaline concentrated detergents with natural
Ÿ
enzymes
The use of “normal” washing programs in combination
with concentrated detergents reduces pollution and is
good for your dishes; these wash programs are
specifically matched to the dirt-dissolving properties
of the enzymes of the concentrated detergent. For this
reason “normal”wash programs in which
concentrated detergents are used can achieve the
same results that can otherwise only be achieved
using “intensive” programs.
Detergent Tablets
Detergent tablets of different brands dissolve at
different speeds. For this reason some detergent
tablets cannot dissolve and develop their full cleaning
power during short programs. Therefore please use
long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each
wash cycle following the instructions provided in the
wash cycle table. Your dishwasher uses less
detergent and rinse aid than Conventional
dishwasher. Generally, only one tablespoon of
detergent is needed for a normal wash load.
Page 16 Page 17
Using Your Dishwasher
1
2
Close the Detergent compartment
If your dishes are only moderately dirty. You may be
able to use less detergent.
Slide the compartment lid by sliding it to the front
Ÿ
and then pressing down.
If you are using detergent in tablet form, read the
Ÿ
manufacturer recommendations on the packaging
in order to determine where the tablets should be
placed inside the dishwasher (eg. in the cutlery
basket, detergent compartment etc;)
Make sure the lid on the detergent compartment is
closed, even if you are using a tablet.
Detergent tablet
Detergent powder
WARNING! Dishwasher detergent is poisonous!
Take care to keep it out of reach of children.
Proper Use of Detergent
Only use detergent specifically made for the use in
Ÿ
dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser
Ÿ
until you're ready to wash dishes.
Please observe the manufacturers dosing and
Ÿ
storage recommendations as stated on the
detergent packaging.
If the dishes are heavily soiled, place an additional
Ÿ
detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the
pre-wash phase.
NOTE: See information about the amount of
detergent for the single programs on ‘Wash Cycle
Table’. Please be aware, that according to the level
soiling and the specific hardness of water differences
are possible.
More heavily soiled items need more detergent.
Always add the detergent just before starting the
dishwasher, otherwise it could get damp and will not
dissolve properly.
Adding detergent to Dishwasher
If the lid is closed: press/slide release button. The lid
Ÿ
will spring open.
Always add the detergent just before starting each
Ÿ
wash cycle.
Only use branded detergent aid for dishwasher.
Ÿ
Adding detergent to Dishwasher
Add detergent or tablet into the larger cavity (A) for
Ÿ
the main wash cycle . For better cleaning result,
especially if you have very dirt items, pour a small
amount of detergent onto the door (B). The
additional detergent will activate during the pre-
wash phase.
3
Page 15
Using Your Dishwasher
How to fill the Rinse Aid Dispenser
1. Remove the rinse aid reservoir cap by lifting up the
handle.
2. Pour the rinse aid into the dispenser, being careful
not to overfill.
3. Close the cap once reservoir is full.
Be careful not to overfill the dispenser, because this
could cause over sudsing. Wipe away any spills with a
damp cloth. Don't forget to replace the cap before
you close dishwasher door.
ATTENTION! Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess foaming
during the next wash.
1
2
Page 18
Using Your Dishwasher
LOADING THE DISHWASHER BASKET
Recommendation
Consider buying utensils which are identified as
Ÿ
dishwasher-proof.
Use a mild detergent that is described as 'kind to
Ÿ
dishes'. If necessary, seek further information
from the detergent manufacturers.
For particular items, select a program with as low
Ÿ
a temperature as possible.
To prevent damage, do not take glass and cutlery
Ÿ
out of the dishwasher immediately after the
programme has ended.
Suitability of use in the dishwasher
NOT SUITABLE FOR USE
Cutlery with wooden, horn china or mother-of-
Ÿ
pearl handles
Plastic items that are not heat resistant
Ÿ
Older cutlery with glued parts that are not
Ÿ
temperature resistant
Bonded cutlery items or dishes
Ÿ
Pewter or cooper items
Ÿ
Crystal glass
Ÿ
Steel items subject to rusting
Ÿ
Wooden platters
Ÿ
Items made from synthetic fibres
Ÿ
LIMITED SUITABILITY
Some types of glasses can become dull after a
Ÿ
large number of washes
Silver and aluminum parts have a tendency to
Ÿ
discolour during washing
Glazed patterns may fade if machine washed
Ÿ
frequently
Attention before or after Loading the Dishwasher
Baskets.
For best performance of the dishwasher, follow these
loading guidelines. Features and appearance of
baskets and cutlery baskets may vary from your
model.
Scrape off any large food particles. Soften remnants of
burnt food in pans.
It is not necessary to rinse the dishes under running
water. Place objects in the dishwasher in following
way:
1. Items such as cups, glasses, pots/pans, etc. are
faced downwards.
2. Curved items, or ones with recesses, should be
loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip
over.
4. All utensils are placed in the way that the spray
arms can rotate freely during washing.
NOTE: Very small items should not be washed in the
dishwasher as they could easily fall out of the baskets.
Load hollow items such as cups, glasses, pans
Ÿ
etc. With the opening facing downwards so that
water cannot collect in the container or a deep
base.
Dishes and items of cutlery must not lie inside
Ÿ
one another, or cover each other.
To avoid damage to glasses, they must not touch.
Ÿ
Load large items which are most difficult to clean
Ÿ
into the lower basket.
The upper basket is designed to hold more
Ÿ
delicate and lighter dishware such as glasses,
coffee and tea cups.
Long bladed knives stored in an upright position
Ÿ
are a potential hazard!
Long and/or sharp items of cutlery such as
Ÿ
carving knives must be positioned horizontally in
the upper basket.
Please do not overload your dishwasher. This is
Ÿ
important for good results and for reasonable
consumption of energy.
Note: Very small items should not be washed in
Ÿ
the dishwasher as they could easily fall out of the
basket.
3
Adjusting the rinse aid setting
To achieve a better drying performance with limited
rinse aid, the dishwasher is designed to adjust the
consumption by the user.
To adjust, follow the steps below:
1. Power on the dishwasher by plugging in;
2. Within 60 seconds after step 1, press the
Start/Pause button more than 5 seconds,
and then press the Delay Button to enter the set
mode, the rinse aid indicator will blink.
3. Press the Start/Pause button to select the
desired setting according to your using habits,
the setting will change in the following
sequence: D1->D2->D3->D4->D5-> and back
to D1. The dispenser drops the most rinse aid in
level D5 and the least in D1. The factory setting
is D3.
4. Wait 5 seconds or press the power button to
exit the set mode. The new rinse aid setting will
now be set.
D3
Selector
Position
D1
D2
D4
Amount of
Rinse Aid (ml)
D5
3.6
1.2
2.4
4.8
6.0
Page 14
Using Your Dishwasher
BEFORE STARTING THE DISHWASHER
The following things should be checked before
starting the dishwasher:
1. That the dishwasher is level and fixed properly.
2. That the inlet valve is open .
3. There is no leakage at the connections of the
conducts.
4. The wires are tightly connected.
5. The power is switched on.
6. The inlet and drain hoses are not knotted or kinked.
7. All packing & print materials should be taken out of
the dishwasher.
PRIOR TO USING FOR THE FIRST TIME
Before using your dishwasher for the first time:
Fill the Rinse Aid Dispenser
The rinse aid is released during the final rinse to
prevent water from forming droplets on your dishes,
which can leave spots and streaks. It also improves
drying by allowing water to roll off the dishes. Your
dishwasher is designed to use liquid rinse aids. The
rinse aid dispenser is located inside the door next to
the detergent dispenser. To fill the dispenser, open the
cap and pour the rinse aid into the dispenser until the
level indicator turns completely black. The volume of
the rinse aid container is approximately 110ml.
Function of the Rinse Aid
Rinse aid is automatically added during the last rinse,
ensuring thorough rinsing, and spot and streak free
drying.
WARNING!
Only use branded rinse aid for dishwashers. Never fill
the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated
below.
Full
3/4 Full
1/2 Full
1/4 Full (Should refill to eliminate spotting)
Empty
C (Rinse-Aid indicator)
When to refill the Rinse Aid Dispenser
If there is no rinse-aid warning light on the control
panel, you can judge the amount of rinse-aid by the
colour of the optical level indicator "C" located next
to the cap. When the rinse-aid container is full, the
whole indicator will be dark. As the rinse-aid
diminishes, the size of the dark dot decreases. You
should never let the rinse aid get below 1/4 full.
Page 19
Using Your Dishwasher
Loading the Upper Basket
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and tea
cup and saucers, as well as plates, small bowls and
shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they do not
get moved by the spray of water.
IN
3
Glasses
Saucers
2
Cups
1
Please be reminded that:
Pots, serving bowls, etc, must always be placed
Ÿ
top down.
Deep pots should be slanted to allow water to
Ÿ
flow out.
Ÿ The Bottom Basket features folding spikes so
that larger or more pots and pans can be loaded.
Folding back the cup shelves
For reduced loads or better stacking, the additional
cup shelves can be folded down if not required as
shown below.
Adjusting the Upper Basket
The height of the upper basket can be adjusted in
order to create more space for large utensils both
for the upper/lower basket. The height of the upper
basket can be adjusted by lifting the handle on
either side of the basket, see pictures below:
Lower position
Upper position
Adjustment Handle
1
3
2
3
1
Using Your Dishwasher
QUICK START GUIDE
For detailed operating method read the corresponding content on the instruction manual.
Compartment A:
For each wash cycle.
Compartment B:
For programmes with pre-wash only.
(Follow the !)User Manual
Mechanical indicator C.
or digital indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a program
T urn on the water tap. Close the door and the machine will start working
after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better. Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Program Buttons until the desire program lights up.
(See the section entitled: Starting a Washing Program)
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appliance was in standby mode, it will power off automatically after 30 minutes without any operation.
If the appliance is switched
off during a wash cycle.
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
Switch on the appliance
Open the door, press the On/Off button to switch on the appliance.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door a little and wait for the spray arms to stop moving. Press the program button ‘<’ or ‘>’
for more than three seconds to cancel the running program.
3. Select a new program
4. Close the door to restart the dishwasher
1. Open the door a little .
2. After the spray arms stop working, you can open the door
completely.
3. Add the forgotten dishes.
4. Close the door.
5. The dishwasher will run after 10 seconds.
WARNING!
Open the door carefully
Hot steam may escape
when the door is opened!
Page 13Page 20
Using Your Dishwasher
Loading the Lower Basket
We suggest that you place large items and the
most difficult to clean items are to be placed into
the lower basket: such as pots, pans, lids, serving
dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on
the side of the racks in order to avoid blocking the
rotation of the top spray arm.
The maximum diameter advised for plates in front
of the detergent dispenser is 19cm in order to not
hamper the opening of it.
IN
6
Soup plates
Dessert dishes
4
5
Dinner plates
IN
4
5
6
56
Folding the spikes in the Lower Basket
For better stacking of pots and pans, the spikes can
be folded down as shown below.
Installation
About the Safety Inlet Hose with Aqua Stop
The Safety Inlet Hose with Aqua Stop consists of
double walls. The hose's system guarantees its
intervention by blocking the flow of water in case of the
inlet hose breaking and when the air space between
the inlet hose itself and the outer corrugated hose is
full of water.
WARNING! In order to avoid water staying in the inlet
hose, please close the hydrant after using.
WARNING! A hose that attaches to a sink spray
can burst if it is installed on the same water line
as the dishwasher. If your sink has one, it is
recommended that the hose be disconnected
and the hole plugged.
How to disconnect the Safety Inlet Hose with
Aqua Stop
1. Turn off the water.
2. Release the water pressure by depressing the
pressure release button. This relieves water
pressure and protects you, and the room, from
severe splashing.
3. Unscrew the Safety Inlet Hose with Aqua Stop from
the faucet.
Cold Water Connection
How to Connect the Safety Inlet Hose with Aqua Stop
The appliance must be connected to the water mains
using new hose-sets. The old hose-sets should not be
reused.
Water pressure must be between 0.04 MPa and
1 MPa. If the pressure is below the minimum, consult
our Service Department for advice.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure
that the water is clear. This precaution is needed to
avoid the risk of the water inlet getting blocked and
damaging the appliance.
1. Pull the Safety Inlet Hose with Aqua Stop completely
out from the storage compartment located at the
rear of dishwasher.
2. Connect the Safety Inlet Hose with Aqua Stop to a
threaded 3/4(inch) connector and make sure that it
is fastened tightly in place.
3. Turn water fully on before starting the dishwasher.
Page 12
Using Your Dishwasher
Damage to glassware and other dishes
Possible Causes
Type of glass or manufacturing process. Chemical
Ÿ
composition of detergent.
Water temperature and duration of dishwasher
Ÿ
program.
Suggested remedy:
Use glassware or porcelain dishes that have been
Ÿ
marked dishwasher-proof by the manufacturer
Use a mild detergent that is described as kind of
Ÿ
dishes If necessary, seek further information from
detergent manufacturers.
Select a program with as low a temperature.
Ÿ
To prevent damage, take glass and cutlery out of
Ÿ
the dishwasher as soon as possible after the
program has ended. as possible after the program
has ended.
Cutlery Basket
Cutlery should be placed in the cutlery rack
separately from each other in the appropriate
positions. Make sure the utensils do not nest
together, this may cause bad performance.
For a top quality clean, place the silverware in the
basket making sure that:
They do not nest together.
Ÿ
Silverware is placed with the male face up.
Ÿ
Long utensils in the middle.
Ÿ
Teaspoons4
Soup spoons
2
Forks
1
Knives
5
3
Dessert spoons
4
1
4
4
5
3
3
3
3
2
2
1
Page 21
Installation
Page 11Page 22
Drain Hose Connection
Insert the drain hose into a drain pipe with a
Ÿ
minimum diameter of 40mm (B), or let it run into the
sink (A), making sure to avoid bending or crimping
it. The top of the hose must be at a height less than
1000mm. The free end of the hose must not be
immersed in water to avoid back flow.
Syphon Connection
Insert the drain hose into a drain pipe with a
Ÿ
minimum diameter of 40mm, or let it run into the
sink, making sure to avoid bending or crimping it.
The top of the hose must be less than 1000mm.
How to Drain Excess Water from Hoses
If the sink is more than 1000mm higher than the
Ÿ
floor, the excess water in the hose cannot be
drained directly into the sink. It will be necessary to
drain excess water from the hose into a bowl or
suitable container that is held outside and lower
than the sink.
MAX 1000mm
A
Counter
Front
Drain hose
NOTE
The top of the hose
must be less than
1000mm.
¦40mm
B
Water Outlet
Connect the water drain hose. The drain hose must
Ÿ
be correctly fitted to avoid water leaks. Ensure that
the water drain hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, make sure to
Ÿ
use a similar drain hose.
It must be no longer than 4 metres; otherwise the
Ÿ
cleaning effect of the dishwasher could be
reduced.
Using Your Dishwasher
STARTING A WASHING PROGRAM
Wash Cycle Table
NOTE: Star ( ) means the need to fill rinse aid into the Rinse Aid Dispenser.
NOTE:
* AS/NZS 2007.1: This program is the test cycle.
The information for comparability test in accordance with AS/NZS 2007.1, as follows:
Capacity: 15 setting
Ÿ
Position Upper basket: Lower Position
Ÿ
Program: ECO
Ÿ
Detergent (Pre/Main): 5g / 28.75g
Ÿ
Rinse aid setting: 6
Ÿ
Open the door slightly 100mm to assist in drying of the dishes after every wash
Ÿ
Detergent
pre/main
Cycle Selection
Information
Program
Running
time(min)
Water
(L)
Energy
(Kwh)
Rinse
Aid
With the Sanitise option
selected, the water temperature
is increased to 70°C for high
temperature sanitisation.
For lightly soiled loads, such
as glasses, crystal and fine
China.
Wash (70°C)
Rinse
Rinse
Rinse(70°C)
Drying
Wash (45 )
Rinse (45°C)
°C
175
20
1.5
0.34 7.5
Description
of Cycle
Wash(65°C)
Rinse
Rinse (65°C)
Drying
90 12.51.15
For lightly soiled plates &
pans that need a quick wash
For lightly soiled crockery
and glass.
130 0.75
13
Pre-wash
Wash (40 °C)
Rinse
Rinse(60°C)
Drying
Hygiene
Glass
90 mins
Party
Heavy
For heavily soiled loads,
such as pots, plates,
glasses and lightly
soiled pans.
Pre-wash(45°C)
Wash (55°C)
Rinse
Rinse (65°C)
Drying
185
1.1 13.5
*AS/NZS 2007.1
For normally soiled loads, such
as pots, plates, glasses and
lightly soiled pans.
Standard daily cycle.
Pre-wash
Wash (45°C)
Rinse(45°C)
Drying
195
0.641
11.8
NOTE: If you notice any detergent residue on your dishes after the wash cycle is complete, reduce the amount of
detergent for the next wash.
Auto
Auto sensing wash, lightly
or heavily soiled crockery,
with or with out dried-on food.
Pre-wash(45°C)
Autowash (45-55°C)
Rinse
Rinse (65°C)
Drying
150
0.9-1.3 11~15
1 piece
5/28.75g
1 piece
33.75g
1 piece
5/28.75g
1 piece
5/28.75g
1 piece
5/28.75g
1 piece
33.75g
13.5
This program provides an
effective cleaning of the
dishwasher itself.
90 1.2 11
Self Clean
Wash (70 )
Rinse
Rinse(70°C)
°C
1 piece
30g
Installation
Securing the Dishwasher
The dishwasher must be secured in place using either
of the following methods:
Normal work surface - Put the installation hook into
Ÿ
the slot of the side panel and secure it to the work
surface with the wood screws (A).
Marble or granite work top - Fix through the side
Ÿ
with the screws (B).
Positioning the Appliance
Position the appliance in the desired location. The
Ÿ
back should rest against the wall behind it, and the
sides, along the adjacent cabinets or walls. The
dishwasher is equipped with water supply and
drain hoses that can be positioned either to the
right or the left sides to facilitate proper installation.
WARNING! Where the dishwasher has ventilation
openings in the base, these openings must not be
obstructed by a carpet.
Levelling
Dishwasher must be level for proper dish rack
Ÿ
operation and wash performance.
Place a spirit level on door and rack track inside the
Ÿ
tub as shown to check that the dishwasher is level.
Level the dishwasher by adjusting the three levelling
Ÿ
legs individually.
When level the dishwasher, please pay attention
Ÿ
not to let the dishwasher tip over.
NOTE: The maximum adjustment height of the feet
Ÿ
is 50 mm.
Page 10 Page 23
Using Your Dishwasher
CONTROL PANEL
UP
DOWN
Check level
Front to Back.
Check level
side to side.
Fit the condensation strip under the work surface of
Ÿ
the cabinet. Ensure that the strip is flush with the
edge of the work surface.
Condensation Strip
1 2 3 4 5
6 7 8 9 10
3
1
Power button: To turn on/off the appliance.
Delay -/+ : Press the ‘+’ button to add the delay
time or press the ‘-’ button to decrease the
delay time. Maximum delay time is 24 hours.
2
Program: Press the ‘<’ or ‘>’ button to select
a program and the corresponding indicator
will be lit.
4
Function: Press the button to select a
function, corresponding indicator will be lit.
5
Alt button: Press the button to select either
upper basket or lower basket loaded and the
response indicator will be lit.
6
Program Indicator:
Auto: For lightly, normally or heavily soiled
crockery with or without dried-on food.
Hygiene: With the Sanitize option selected, the
water temperature is increased to 70 ˚C for
high temperature sanitization.
Heavy: For normally soiled loads, such as pots,
plates, glasses and lightly soiled pans.
ECO - This is standard program, it is suitable to
clean normally soiled tableware and it is the
most efficient program.
Glass - For lightly soiled crockery and glass.
90min - For normally soiled loads that need
quick wash.
Party - For lightly soiled loads, such as glasses,
crystal and fine china.
Self-Cleaning - This program provides an
effective cleaning of the dishwasher itself.
7
Warning Indicator:
Rinse Aid - If the ‘ ‘ indicator is lit, it means
the dishwasher is low on Rinse Aid and
requires a refill.
Water Faucet - If the ‘ ‘ indicator is lit, it
means the water faucet is closed.
8
Screen: Displays remaining time, delay time,
error codes etc;
9
Function Indicator:
Extra Cleaning - Hotter rinse cycle and an
additional cold rinse to wash very dirty, hard to
clean dishes. (It can only be used with Hygiene,
Normal, ECO, Glass, 90min)
Extra-Drying - Hotter rinse cycle to dry dishes
more thoroughly. (It can only be used with
Hygiene, Normal, ECO, Glass, 90min)
Express - Hotter wash cycle and reduced
washing and drying time to reduce the overall
program time by 20min. (It can only be used
with Hygiene, Normal, ECO, Glass, 90min).
Energy Save - Shorter and cooler washing
cycle to save on energy consumption. (It can
only be used with Normal, ECO, Glass, 90min).
10
Alt Indicator:
Upper - When you select Upper, only the upper
rack nozzle is activated. The lower nozzle will
not operate.
Lower - When you select Lower, only the lower
rack nozzle is activated. The upper nozzle will
not operate.
Installation
Page 9
Install the hook on the aesthetic fascia panel and
Ÿ
put the hook into the slot of the outer door of
dishwasher (see below).
After positioning of the panel, fix the panel onto the
Ÿ
outer door by screws and bolts (See following
diagrams).
Remove the four short screws
Tension adjustment of the door
The door springs are set at the factory to the
Ÿ
proper tension for the outer door. If an aesthetic
fascia panel is installed, you will have to adjust the
door spring tension. Rotate the adjusting screw to
drive the adjustor to strain or relax the steel cable
(see below).
Door spring tension is correct when the door
Ÿ
remains horizontal in the fully opened position, yet
rises to a close with the slight lift of a finger.
Page 24
Using Your Dishwasher
FORGET TO ADD A DISH?
A forgotten dish can be added at any time before the
detergent dispenser opens.
1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open
the door completely.
3. Load the forgotten dishes.
4. Close the door.
5. The dishwasher will start running again after 10
seconds.
WARNING! It is dangerous to open the door
when washing, because the hot water may scald
you.
AT THE END OF THE WASH CYCLE
When the working cycle has finished, the buzzer of the
dishwasher will sound for 8 seconds, then stop. Turn
off the appliance using the Power switch button, shut
off the water supply and open the door of the
dishwasher. Wait for a few minutes before unloading
the dishwasher to avoid handling the dishes and
utensils while they are still hot and more susceptible to
breakage. They will also dry better.
Switch off the Dishwasher
The program light is on but is not blinking, only in this
case the program has ended.
1. Switch off the dishwasher by pressing Power
button.
2. Turn off the water tap!
Open the door carefully
Hot dishes are sensitive to knocks. The dishes should
be allowed to cool down around 15 minutes before
removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a
few minutes before removing the dishes. Dishes will
be cooler and the drying will be improved.
Unloading the Dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one.
This will avoid water dripping from the upper Basket
onto the dishes in the lower one.
WARNING! Items will be hot! To prevent damage,
do not take glass and cutlery out of the dishwasher for
around 15 minutes after the program has ended.
TURNING ON THE APPLIANCE
Starting a wash cycle:
1. Draw out the lower and upper basket, load the
dishes and push them back. It is recommended to
load the lower basket first, then the upper one (see
the section entitled “Loading the Dishwasher”).
2. Add the detergent or tablet .
3. Insert the plug into the socket. The power supply is
220-240 VAC / 50 HZ, the specification of the
socket is 10A 250VAC. Make sure that the water
supply is turned on to full pressure.
4. Open the door, press the power button.
5. Press the program button ‘<’ or ‘>’ to select your
desired program, when the program is selected,
the corresponding icon will light up. Then close the
door, the program will begin its cycle.
CHANGE THE PROGRAM
A cycle that is underway can only be modified if it has
only been running for a short time. Otherwise, the
detergent may have already been released, and the
appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be
refilled (see the section entitled "Adding Detergent").
1. Open the door a little to stop the dishwasher, after
the spray arm stops working, you can open the
door completely.
2. Press Program button ‘>’ for more than three
seconds, the appliance will be in stand by mode.
3. You can change the program to the desired cycle
setting.
Fit the four long screws
3 sec
Installation
Page 25Page 8
Cabinet Preparation
Choose a place near the sink to facilitate the
Ÿ
installation of inlet and drain hoses.
Cabinet dimensions less than 5mm between the
Ÿ
top of dishwasher and cabinet and the outer door
aligned to cabinet.
90° 90°
820mm
580mm
80
100
600mm
Electrical, drain
and water supply
line entrances
Space between cabinet
bottom and floor
Cabinet
Dishwasher
Dishwasher
Door
Min. space
of 50mm
Aesthetic Fascia Panel Dimensions and
installation
The aesthetic fascia panel should be processed
Ÿ
according to the diagram below.
Minimum space between the door and adjacent
Ÿ
cabinet when the door is opened is 50mm.
Side View
Front View
Open
Care and Cleaning
Filtering System
The filter prevents larger remnants of food or other
objects from getting inside the pump.
The residue may block the filter, in this case they must
be removed.
The filter system consists of a coarse filter, a flat (Main
filter) and a microfilter (Fine filter).
3
2
1
MAIN FILTER: Food and soil particles trapped
in this filter are pulverized by a special jet on the
lower spray arm and washed down the drain.
COARSE FILTER: Larger items, such as
pieces of bones or glass, that could clog the
drain are trapped in the coarse filter. To
remove an item caught in this filter, gently
squeeze the taps on the top of this filter and
lift it out.
FINE FILTER: This filter holds soil and food
residues in the sump area and prevents it from
being redeposit on the dishes during a cycle.
1
2
3
Filter Assembly
The filter efficiently removes food particles from the
wash water, allowing it to be recycled during the cycle.
For best performance and results, the filter must be
cleaned regularly. For this reason, it is a good idea to
remove the larger food particles trapped in the filter
after each wash cycle by rinsing the semicircular filter
and cup under running water.
To remove the filter device, pull the cup handle in the
upward direction.
WARNING!
The dishwasher must never be used without the
Ÿ
filters.
Improper replacement of the filter may reduce the
Ÿ
performance level of the appliance and damage
dishes and utensils.
1
2
STEP 1: Turn the filter in anti-clockwise direction.
STEP 2: Lift the filter assembly up.
NOTES:
When following this procedure from step 1 to step
Ÿ
2, the filter system will be removed; when following
it from Step 2 to Step 1, the filter system will be
installed.
Inspect the filters for blocking after every time the
Ÿ
dishwasher has been used.
By unscrewing the coarse filter, you can remove the
Ÿ
filter system. Remove any food remnants and clean
the filters under running water.
The entire filter assembly should be cleaned once a
Ÿ
week.
Cleaning the Filter
To clean the coarse filter and the fine filter, use a
cleaning brush. Reassemble the filter parts as shown
in the figures above and reinsert the entire assembly in
the dishwasher, positioning it in its seat and pressing
downwards.
WARNING!
When cleaning the filters, do not knock on them.
Ÿ
Otherwise, the filters could be contorted and the
performance of the dishwasher could be
decreased.
Installation Safety Precautions
Electrical Connection
This appliance should be properly grounded for
Ÿ
your safety. The power cord of this appliance is
equipped with a three-prong plug which mates
with standard three prong wall outlets to minimise
the possibility of electrical shock.
DO NOT UNDER ANY CIRCUMSTANCES CUT
Ÿ
OR REMOVE THE EARTHING CONNECTION
FROM THE POWER CORD SUPPLIED. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
Please look at the rating label to know the rating
Ÿ
voltage and connect the dishwasher to the
appropriate power supply. Use the required fuse
10 amp, time delay fuse or circuit breaker
recommended and provide separate circuit
serving only this appliance.
Ensure the voltage and frequency of the power
Ÿ
being used corresponds to those on the rating
plate. Only insert the plug into an electrical socket
which is earthed properly. If the electrical socket to
which the appliance must be connected is not
appropriate for the plug , replace the socket, rather
than using a adaptors or the like as they could
cause overheating and burns.
The cord should be secured behind the appliance
Ÿ
and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its
Ÿ
own individual electrical outlet which has a voltage
rating that matches the rating label on the
appliance. This provides the best performance and
also prevent overloading house wiring circuits that
could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord.
Always grip the plug firmly and pull straight out
from the receptacle. Repair or replace immediately
all power cords that have become frayed or
otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length or at
either end. When moving the appliance, be careful
not to damage the power cord.
Extension Cord
WARNING: DO NOT USE AN EXTENSION CORD
Ÿ
OR AN ADAPTER PLUG WITH THIS APPLIANCE.
Grounding Instructions
This appliance must be earthed. In the event of a
Ÿ
malfunction or breakdown, earthing will reduce the
risk of electric shock by providing a path of least
resistance for the electric current. This appliance
is equipped with a cord having an equipment-
earthing conductor and an earthing plug. The plug
must be plugged into an appropriate outlet that is
installed and earthed in accordance with all local
standards and requirements.
WARNING
Improper connection of the equipment earthing
Ÿ
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
Ÿ
representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the
Ÿ
appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician install a
proper outlet.
Page 7Page 26
Care and Cleaning
Caring for the Dishwasher
The control panel can be cleaned by using a lightly
dampened cloth. After cleaning, make sure to dry it
thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh
cleaners on any part of the dishwasher.
Cleaning the Door
To clean the edge around the door, you should use
only a soft warm, damp cloth.
To avoid penetration of water into the door lock and
electrical components, do not use a spray cleaner of
any kind.
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for
hard water chemicals will clog the spray arm jets and
bearings.
To remove the upper Innowash spray arm, hold the
nut and rotate the spray arm clockwise to remove it.
WARNING!
Never use a spray cleaner to clean the door panel
Ÿ
as it may damage the door lock and electrical
components.
Abrasive agents or some paper towels should not
Ÿ
be used because of the risk of scratching or leaving
spots on the stainless steel surface.
Protect against Freezing
Please take frost protection measures on the
dishwasher in winter. After washing cycles, please
operate as follows:
1. Turn off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water
inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve.
(Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a
sponge to soak up water in the sump.
NOTE: If your dishwasher cannot work because of
the ice, please contact an authorised service person.
Wash the arms in soapy and warm water and use a
soft brush to clean the jets. Replace them after rinsing
them thoroughly.
To remove the lower spray arm, pull out the spray arm
upward.
Dishwasher Safety Precautions
Before the appliance is used, it must
be properly positioned and installed
as described in this manual, so read
the manual carefully. To reduce the
risk of fire, electrical shock or injury
when using the appliance, follow
basic precaution, including the
following:
DANGER
WARNING
Grounding Instructions
This appliance must be grounded. In the event of a
Ÿ
malfunction or breakdown, grounding will reduce
the risk of an electric shock by providing a path of
least resistance of electric current. This appliance is
equipped with a cord having an equipment-
grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with all
local codes and ordinances.
Improper connection of the equipment-grounding
Ÿ
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
Ÿ
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
When using your dishwasher, you should prevent
Ÿ
plastic items from coming into contact with the
heating element (This instruction is only applicable
to machines with a visual heating element).
Do not wash plastic items unless they are marked
Ÿ
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for
Ÿ
an automatic dishwasher.
Never use soap, laundry detergent, or hand
Ÿ
washing detergent in your dishwasher. Keep these
products out of the reach of children.
Keep children away from detergent and rinse aid,
Ÿ
keep children away from the open door of the
dishwasher, there could still be some detergent left
inside.
This appliance is not intended for use by persons
Ÿ
(including children )with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
Ÿ
do not play with the appliance.
Dishwasher detergents are strongly alkaline, they
Ÿ
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
The door should not be left open, since this could
Ÿ
increase the risk of tripping.
If the supply cord is damaged, it must be replaced
Ÿ
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Remove the door to the washing compartment
Ÿ
when removing an old dishwasher from service or
discarding it.
Please dispose of packing materials properly.
Ÿ
Use the dishwasher only for its intended function.
Ÿ
During installation, the power supply must not be
Ÿ
excessively or dangerously bent or flattened.
Do not tamper with controls.
Ÿ
The appliance is to be connected to the water
Ÿ
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
Ÿ
washed is 15.
The maximum permissible inlet water pressure is
Ÿ
1Mpa.
The minimum permissible inlet water pressure is
Ÿ
0.04Mpa.
Page 27Page 6
WARNING
Do not abuse, sit on, or stand on the door or dish
Ÿ
rack of the dishwasher.
Do not touch the heating element during or
Ÿ
immediately after use. (This instruction is only
applicable to machines with a visual heating
element.)
Do not operate your dishwasher unless all
Ÿ
enclosure panels are properly in place. Open the
door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
Ÿ
door when it is open. The appliance could tip
forward.
When loading items to be washed:
Ÿ
1. Locate sharp items so that they are not likely to
damage the door seal;
2. Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points down or placed in a horizontal position.
Check that the detergent compartment is empty
Ÿ
after completion of the wash cycle.
How to keep your Dishwasher in shape
After every wash, turn off the water supply to the
Ÿ
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
Before cleaning or performing maintenance,
Ÿ
always remove the electrical plug from the socket.
To clean the exterior and rubber parts of the
Ÿ
dishwasher, do not use solvents or abrasive
cleaning products. Only use a cloth with warm
soapy water.
To remove spots or stains from the surface of the
Ÿ
interior, use a cloth dampened with water and a
little vinegar, or a cleaning product made
specifically for dishwashers.
When not in Use for a long time
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
Seals
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent
this from occurring.
Care and Cleaning
Dishwasher Safety Precautions
DANGER
WARNING
CAUTION
Your safety and the safety of others is very important.
Safety messages are displayed in this manual and on
your appliance.
Read and obey these safety messages as they will alert
you to potential hazards and tell you how to reduce the
chance of injury.
Safety Alert Symbol
This symbol alerts you to potential hazards.
Danger
Danger indicates a high level of risk to yourself and others.
Ensure that care is taken to avoid severe injury or even
death.
Warning
Warning indicates a moderate level of risk to yourself, others
and the product. Ensure that care is taken to avoid extensive
product damage or serious injury.
Caution
Caution indicates a level of risk to yourself, others and the
product. Ensure care is taken to avoid moderate product
damage or injuries.
Page 5Page 28
Troubleshooting
Before Calling for Service, review the following troubleshooting tips.
Problem Possible Causes Solution
Fuse blown, or the
circuit breaker tripped
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Spilled rinse-aid
Always wipe up rinse-aid spills immediately.
Hard water minerals
The affected items are
not corrosion resistant.
A spray arm is
knocking against
an item in a basket
Items of crockery
are loose in the
dishwasher
This may be caused
by on-site installation
or the cross-section
of the piping.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent, it may cause foaming or suds.
Interrupt the program, and rearrange the items
which are obstructing the spray arm.
Interrupt the program,
and rearrange the items of crockery.
This has no influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.
Detergent with
colourant was used
Make sure that the detergent is the one without
colourant.
Improper detergent
Make sure the dishwasher is turned on and the door is
closed securely.
Check that the water supply is connected properly and
the water is turned on.
Make sure to close the door properly and latch it.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on
Error code:E1;
Water pressure is low
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged
Kitchen sink clogged
Check drain hose.
Check and empty the filter.
(see section titled " Cleaning The Filter ")
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 3.75 litres of cold water to the bottom tub
of the dishwasher. Close and latch the dishwasher, then
select any cycle. Dishwasher will drain out the water at the
first step. Open the door after the draining has stopped
and check suds have disappeared. Repeat if necessary.
Technical problems
General problems
Noise
Dishwasher
doesn’t start
Water not pumped
from dishwasher
Suds in the tub
Stained tub interior
White film on
inside surface
There are rust
stains on cutlery
Knocking noise
in the dishwasher
Rattling noise
in the dishwasher
Knocking noise
in the water pipes
Items should be corrosion resistant.
De’Longhi’s Safety Precautions
De’Longhi pride themselves on their innovative range
of the highest quality consumer products.
De’Longhi ensures all of its products are 100% safe
through quality design and manufacture. All products
meet or exceed stringent laboratory-tested safety
requirements.
It is necessary for anyone using an electrical appliance
to be safety conscious. The following precautions are
essential for the safe use of an electrical appliance.
Carefully read all of the instructions provided with your
appliance:
Always turn the power off at the power outlet before
Ÿ
you insert or remove a plug. Remove by grasping
the plug, do not pull on the cord.
Always use your appliance from a power outlet of
Ÿ
the voltage (A.C. only) marked on the appliance.
Do not use an appliance for any purpose other than
Ÿ
its intended use.
Do not attempt to repair an electrical appliance.
Ÿ
Return a damaged or malfunctioning appliance to a
qualified service centre for adjustment or repair if
required.
The appliance must be positioned so the AC plug is
Ÿ
accessible.
This appliance is designed exclusively for
Ÿ
household use. All other uses are strictly forbidden.
The appliance is not intended for use by persons
Ÿ
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
If the power cable is damaged, it must be replaced
Ÿ
by the manufacturer, an authorised service centre
or a qualified electrician in order to eliminate all risk.
This appliance is intended to be used in household
Ÿ
and similar applications such as:
- staff kitchen areas in shops, offices and other
working environments;
- farm houses;
- by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments.
Page 29Page 4
Troubleshooting
The dishes were not
loaded correctly.
See notes in " Loading the Dishwasher Baskets ".
Select a more intensive program.
See" Wash Cycle Table ".
Use more detergent, or change your detergent.
Rearrange the items so that the spray can rotate freely.
Clean and/or fit the filter combination correctly.
Clean the spray arm jets. See "Cleaning the Spray
Arms".
Use less detergent if you have soft water and select
a shorter cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Reload the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once the
dishes are barely warm to the touch. Empty the low
basket first. This prevents water from dropping off
dishes in the upper basket.
In a short program the washing temperature is lower.
This also lowers cleaning performance. Choose
a program with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The program was
not powerful enough.
Not enough detergent
was dispensed.
Items are blocking
the path of spray arms.
The filter combination
in the base of wash
cabinet is not clean or
is not correctly fitted.
This may cause
the spray arm jets
to get blocked.
Combination of soft
water and too much
detergent.
Aluminum utensils have
rubbed against dishes.
Dishes blocking
detergent cup.
Improper loading
Too little rinse-aid
Dishes are removed
too soon
Wrong program
has been selected
Use of cutlery with
a low-quality coating
Unsatisfactory washing result
Unsatisfactory
drying results
Problem Possible Causes Solution
The dishes
are not clean
Cloudiness
on glassware
Black or gray
marks on dishes
Detergent left in
dispenser cup
The dishes are
not drying
ERROR CODES
When some malfunctions occur, the appliance will display error codes to warn you:
Codes Meanings Possible Causes
E1 Longer inlet time. Faucets is not opened, or water intake is restricted, or water
pressure is too low.
E3 Not reaching temperature. Malfunction of the heating element.
E4 Overflow. Some element of dishwasher leaks.
E8 Failure of orientation of Open circuit or break of distributary valve.
distributary valve.
ED Communication failure Open circuit or break wiring for the communication.
between main PCB & display PCB
EC Washing control system fail PCB or motor fail
WARNING!
If overflow occurs, turn off the main water supply before calling service.
Ÿ
If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting
Ÿ
the dishwasher.
Parts and Features
Page 3Page 30
Model: DEDW6015INFI
Dimensions:
Height (H) 815mm
Width (W) 598mm
Depth (D1) 550mm (with the door closed)
Depth (D2) 1150mm (with the door opened 90°)
Voltage connected Load: see rating label
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 15 place settings
Components:
1. Top Spray Arm 8. Cup Shelf
2. Cutlery Rack 9. Upper Innowash Spray Arm
3. Upper Basket 10. Lower Spray Arm
4. Inner Pipe 11. Filter Assembly
5. Lower Basket 12. Safety Inlet Hose with Aqua Stop
6. Dispenser 13. Drain Pipe
7. Touch Control Panel 14. Adjuster
13
14 12
2
3
10
6
11
8
4
5
9
W
D1
H
D
2
7
1
Help us Help You
Read this guide carefully, it is intended to help you
operate and maintain your new Dishwasher properly.
Keep it handy to answer your questions. If you don't
understand something or you need more assistance,
please call the De’Longhi Helpline.
To help us provide prompt answers to your queries,
please record your Dishwasher model and serial
numbers. You’ll find them on a plate located on the
rear outside wall of the Dishwasher.
Dishwasher details
Before you call for service
Check the Troubleshooting Section on page 28. It lists
causes of minor operating problems that you can
correct yourself.
360° Water Spray System
The breakthrough innovative spray
arm uses two separate rotating axes
to maximise water spray to all corners
of the dishwasher, ensuring every item
receives an exceptional clean.
Contents
Page 31Page 2
Parts and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
De’Longhi Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . 04
Dishwasher Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 05
Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 07
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08
- Cabinet Preparation
- Aesthetic Fascia Panel Dimensions
- Tension Adjustment of the Door
- Positioning the Appliance
- Levelling
- Securing the Dishwasher
- Drain Hose Connection
- Cold Water Connection
- About the Safety Inlet Hose with Aqua Stop
- How to disconnect the Safety Inlet Hose with Aqua Stop
Using your Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
- Quick start guide
- Before Starting the Dishwasher
- Prior to using for the first time
- Rinse aid & detergent
- Loading the Dishwasher Baskets
- Starting a Washing Program
- Control Panel
- Turning on the Appliance
- Change the Program
- Forget to add a Dish?
- At the end of the Wash Cycle
Care and Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
- Filtering System
- Filter Assembly
- Cleaning the Filter
- Caring for the Dishwasher
- Protect against Freezing
- Cleaning the Spray Arms
- How to keep your Dishwasher in shape
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Help us Help You. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warranty Information
The De’Longhi Dishwasher is warranted against faults
resulting from manufacturing or material defects. The
warranty period for normal domestic installation and use is
two years from the date of purchase. In non-domestic use
De’Longhi limits the voluntary warranty to 6 months.
De’Longhi undertakes to repair or replace the Dishwasher
at our discretion if the product is found to be defective due
to a manufacturing fault during the warranty period.
This warranty excludes any damage caused by misuse,
neglect, shipping accident, or incorrect installation.
Normal wear and tear is also expressly excluded. The
warranty claim is void if no fault is found with the product
or if work is carried out by anyone other than an authorised
De’Longhi Service Agent.
In Australia, this warranty is additional to the conditions
and guarantees which are mandatory as implied under the
Trade Practices Act 1974 and State and Territory
legislation.
NOTE: Warranty is determined by unit serial number and
date of purchase.
How to contact us about a warranty claim
Talk to a De’Longhi representative for further warranty
or product information please call the number in your
country:
Australia
www.delonghicookingappliances.com.au
Phone : 1300 186 709
De’Longhi Dishwasher
USER GUIDE
Please read this user guide carefully and retain for future reference
Model
DEDW6015INFI
07.2020
© 2020 De’Longhi Australia Pty Ltd.
Australia
Elba Appliances Australia
Suite 1, 1107 Botany Road
Mascot NSW 2020
Phone 1300 186 709
www.delonghicookingappliances.com.au
Head Office
Fisher & Paykel Appliances Italy S.p.A.
Via Fabbian Matteo, 7
31030 Borso del Grappa (TV) ITALY
