INSTRUCTION MANUAL

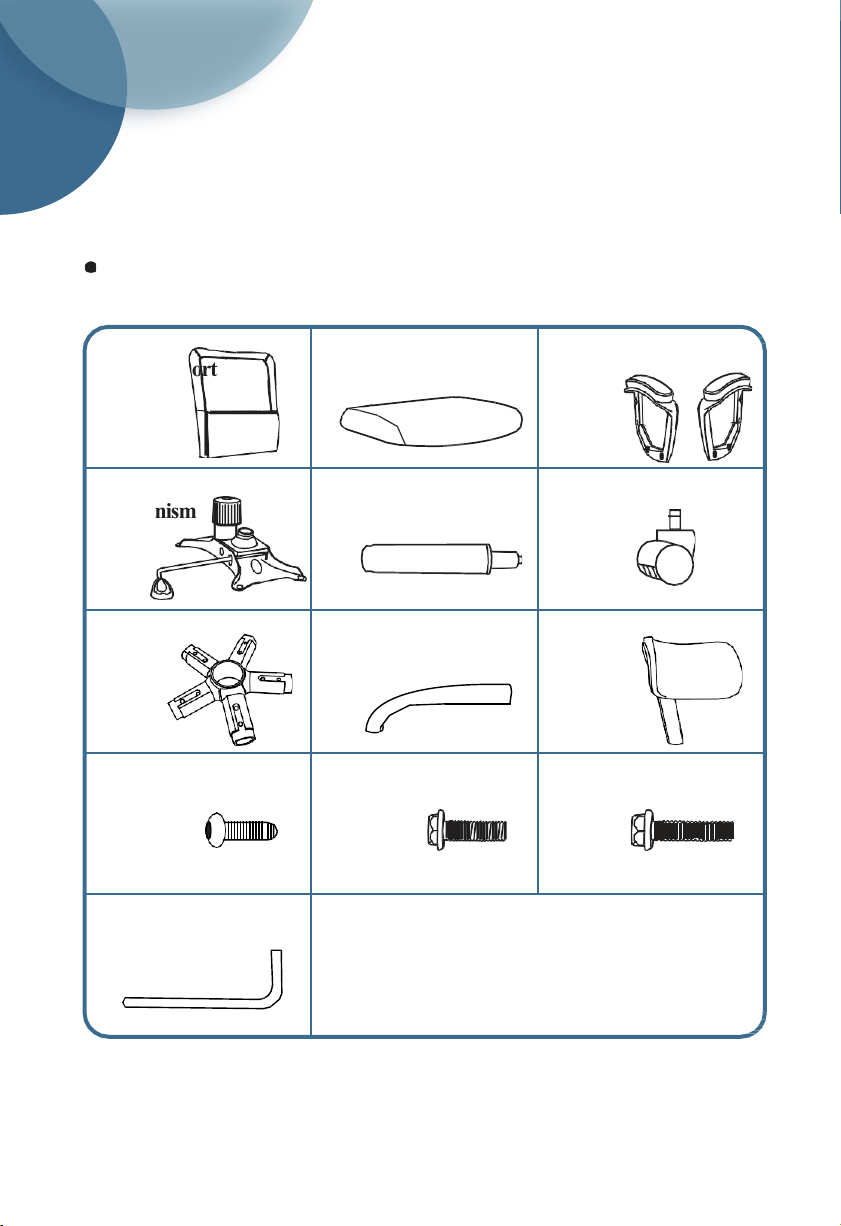

Package List
Without further ado, we kindly suggest you to list all parts needed
for the chair first.
(1)*1
Back Support
(2)*1
Seat Cushion
(3)*2
Armrest
(4)*1
Mechanism
(5)*1
Gas Lift
(6)*5
Casters
(7)*1
Base
(8)*5
Legs
(9)*1
Headrest
(10)*10
Bolts
(11)*4
Bolts
(12)*8
Bolts
(13)*1
Wrench
Assembly Instruction

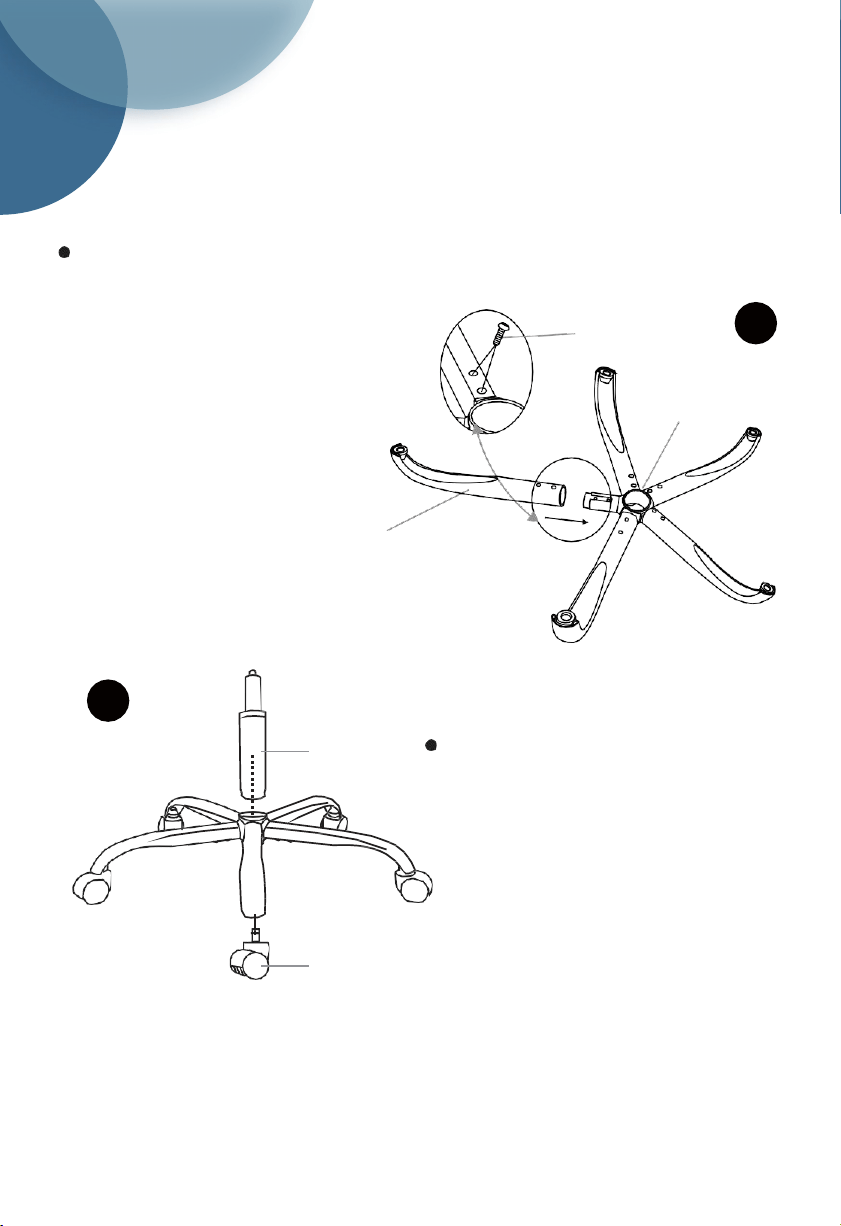

Step 2:
Press the Casters (6) into the holes
at the end of each Base Leg. And
then insert the Gas Lift (5) to the
base.
1
2
(10)×2
Step 1:
Turn the Base (7) upside down,
and then insert the Legs (8) one
by one into the Base.
Next, screw ten Bolts (10) into
the pre-drilled holes with the
Wrench (13) to attach the base
and the legs.
(8)
(7)
(5)
(6)

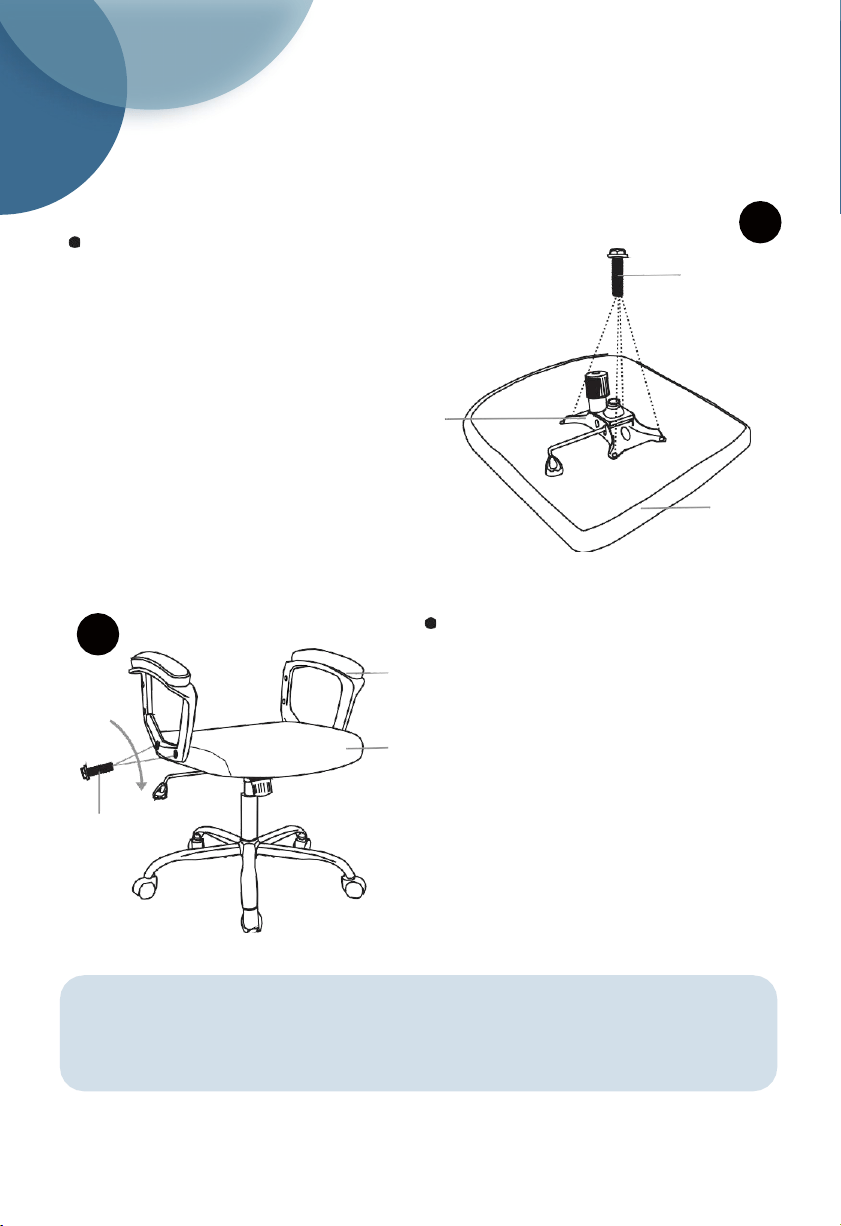

Align the Mechanism (4) over
the pre-drilled holesunderneath
the Seat Cushion (2), make sure
the front of the mechanism is
facing the front of the Seat.
Attach the Mechanism to the Seat
Cushion using Four Bolts (11),
tighten all the bolts with the
Wrench (13), being careful not to
miss-thread the bolts or damaged
the seat.
4
Note 1: The "Front" mark on the Armrests and the "Front" mark on the
Seat Cushion should be in the same direction.
Note 2: Armrests are labeled with an "L" (left) or "R" (right) to show which
side they should be placed on.
Step 4:
Turn the Seat Cushion (2) upright
and align the center hole of the
Seat Plate over the lift, then push
the Seat Cushion down onto the
lift firmly until the connection is
secure.
Attach the Armrest (3) to the Seat
Cushion (2) with Two Bolts (12),
using the Wrench(13).
The installation of the other side
Armrest is thesame.
Step 3:
3
(11)×4
(4)
(2)
50%
(12)
(3)
(2)
5
6
Lay the Back Cushion on
the seat of the chair with the
top of the cushion toward
the front.
Attach the Back Cushion (1)
to the Arms by inserting one
Bolt (12) in the Lower holes
with the Wrench (13).

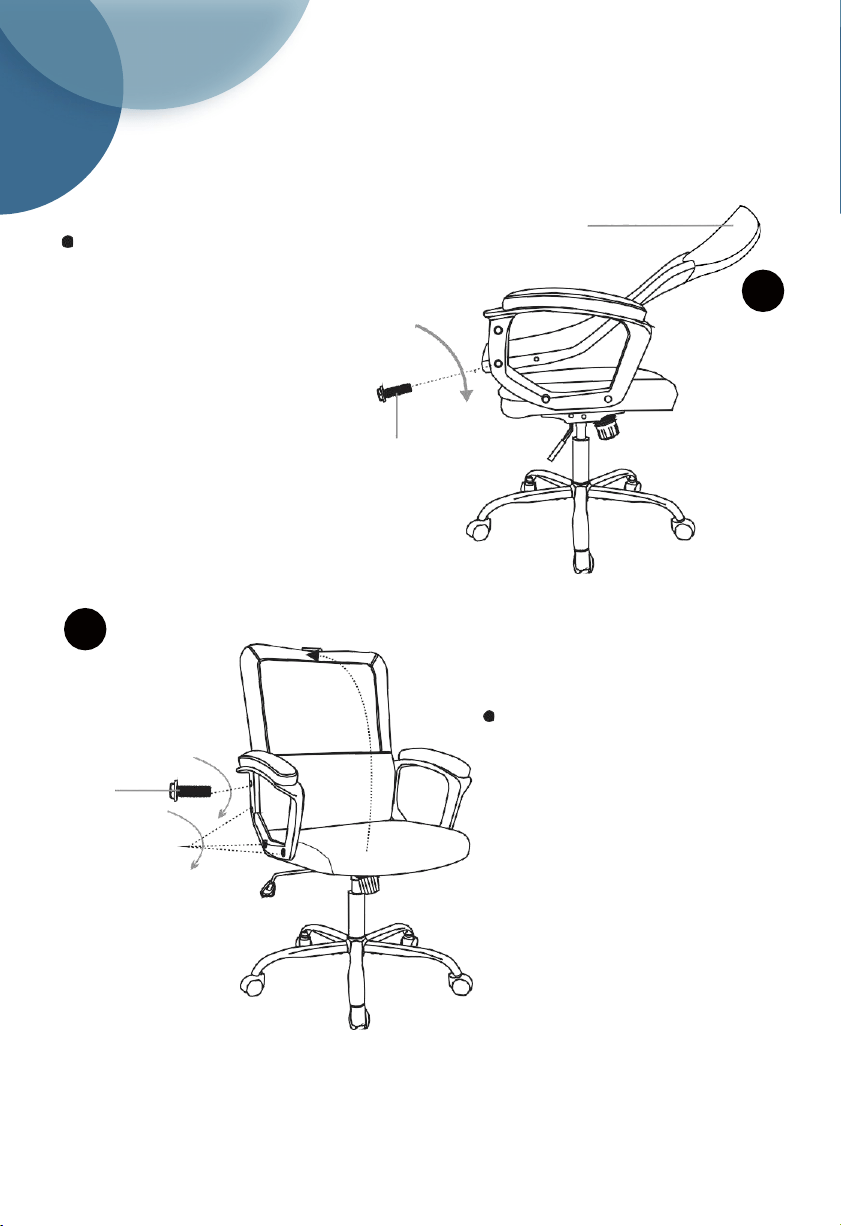

Step 5:
Step 6:
Rotate the back of the chair
up, then secure it with the Bolts
(12) use the Wrench (13).
Adjust the balance on each
side of the chair, and fully
tighten all the bolts at this step.
50%
(1)
(12)
100 %
100%
(12)
7

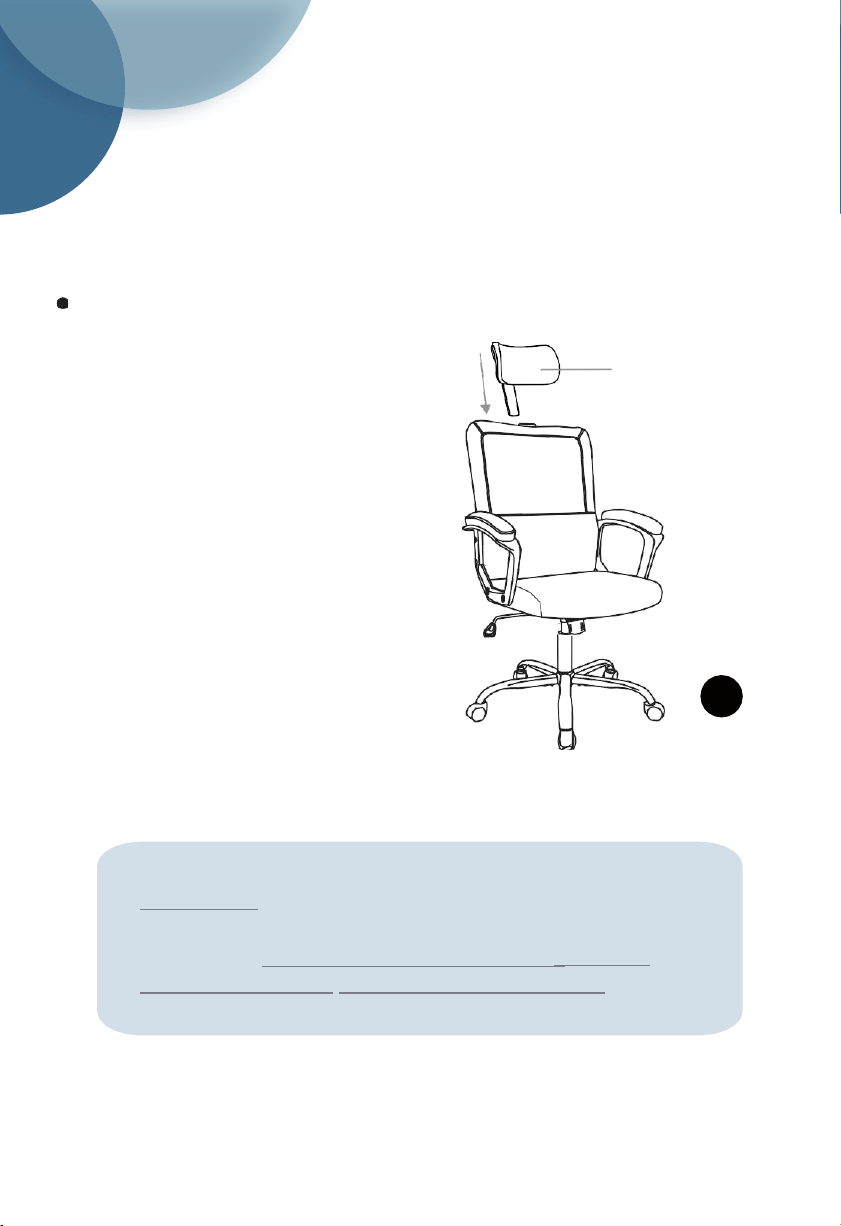

Step 7:
Press the Headrest (9) into the
Headrest Bracket firmly.
CAUTION:
Make sure all bolts and screws are fully tightened before
using chair. Lubricate all moving parts and tighten all
bolts/screws every 6 month or whenever needed.
6
(9)
