[en] Instructions for installation and use
Extractor hood
Table of contents
[en] Instructions for installation and use
Instruction manual
Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com
8 Intended use
Intended use
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised by someone who is responsible for their sa...
Children must not play with the appliance.Cleaning and user maintenance must not be performed by children unless they are over 15 years of age and are supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
This appliance is not designed to be used above gas-burning appliances.
This appliance is not intended for operation with an external clock timer or a remote control.
( Important safety information
Important safety information
: Warning
Danger of suffocation!
: Warning
Risk of fire!
: Warning
Risk of burns!
: Warning
Risk of injury!
: Warning
Risk of electric shock!
Causes of damage
Caution!
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
Risk of damage as a result of incorrect loading of design elements. Do not pull design elements.Do not place objects on the design elements or hang objects from them.
7 Environmental protection
Environmental protection
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
Saving energy
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
1 Operating the appliance
Operating the appliance
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
Note:
Control panel
Symbol
Explanation
Display
Explanation
Setting the fan
Switching on
1. Touch the # symbol.
2. Use the rotary selector to select the fan setting.
Note:
Switching off
Touch the # symbol.
Intensive setting
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
Switching on
Turn the rotary selector until Ëâ or ËÆ is displayed.
Note:
Switching off
If you want to end the intensive mode before the set time has elapsed, turn the rotary selector anti-clockwise.
Fan run-on time
Switching on
Touch the y symbol.
The fan runs at fan setting 1.
The remaining minutes of the run-on time are shown in the display.
After approx. 10 minutes, the fan switches off automatically.
Note:
Switching off
Touch the y symbol.
This immediately stops the fan run-on. The appliance switches to the fan setting that was previously set.
Lighting
The lighting can be switched on and off independently of the fan.
Touch the B symbol.
Setting the brightness
Press and hold the B symbol until the required brightness is reached.
Saturation display
If the metal grease filters or activated charcoal filter are/ is saturated, the corresponding symbols flash once the appliance has been switched off:
If you have not yet done so, the metal grease filters should now be cleaned or the activated charcoal filter replaced. ~ "Cleaning and maintenance" on page 6
The saturation displays can be reset while they are flashing. To do this, touch the E or F symbol.
Switching over the display for the air circulation mode
For air recirculation mode, the electronic controller must be switched over accordingly:
Audible signal
Switching on
Touch and hold the # and y symbols at the same time for approximately three seconds when the fan is switched off. As confirmation, an audible signal sounds and â is shown in the display.
Switching off
Touch and hold the # and y symbols at the same time for approximately three seconds when the fan is switched off. As confirmation, â¹ is shown in the display.
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Risk of injury!
: Warning
Risk of electric shock!
: Warning
Risk of electric shock!
: Warning
Risk of injury!
Cleaning agents
To ensure that the different surfaces are not damaged by using the wrong cleaning product, follow the instructions in the table. Do not use any of the following:
Note:
Note:
Area
Cleaning products

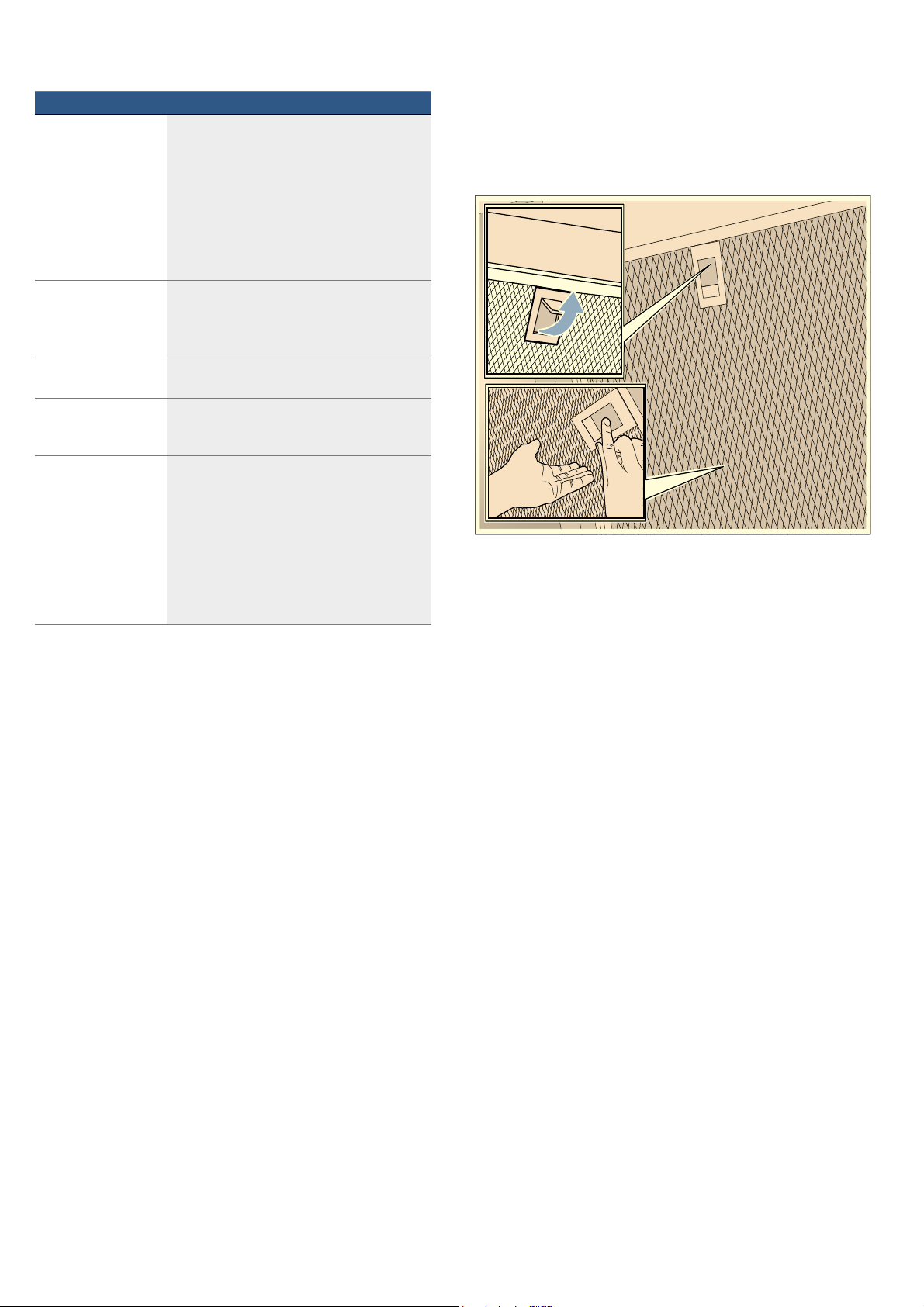

Removing metal grease filter
1. Open the lock and swing down the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
2. Take the metal grease filter out of the holder.
Notes
3. Clean the metal grease filter.
4. Clean the accessible parts of the housing. Clean the inside of the appliance.
: Warning
Risk of injury!
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
: Warning
Risk of fire!
Notes
By hand:
Note:
In the dishwasher:
Note:

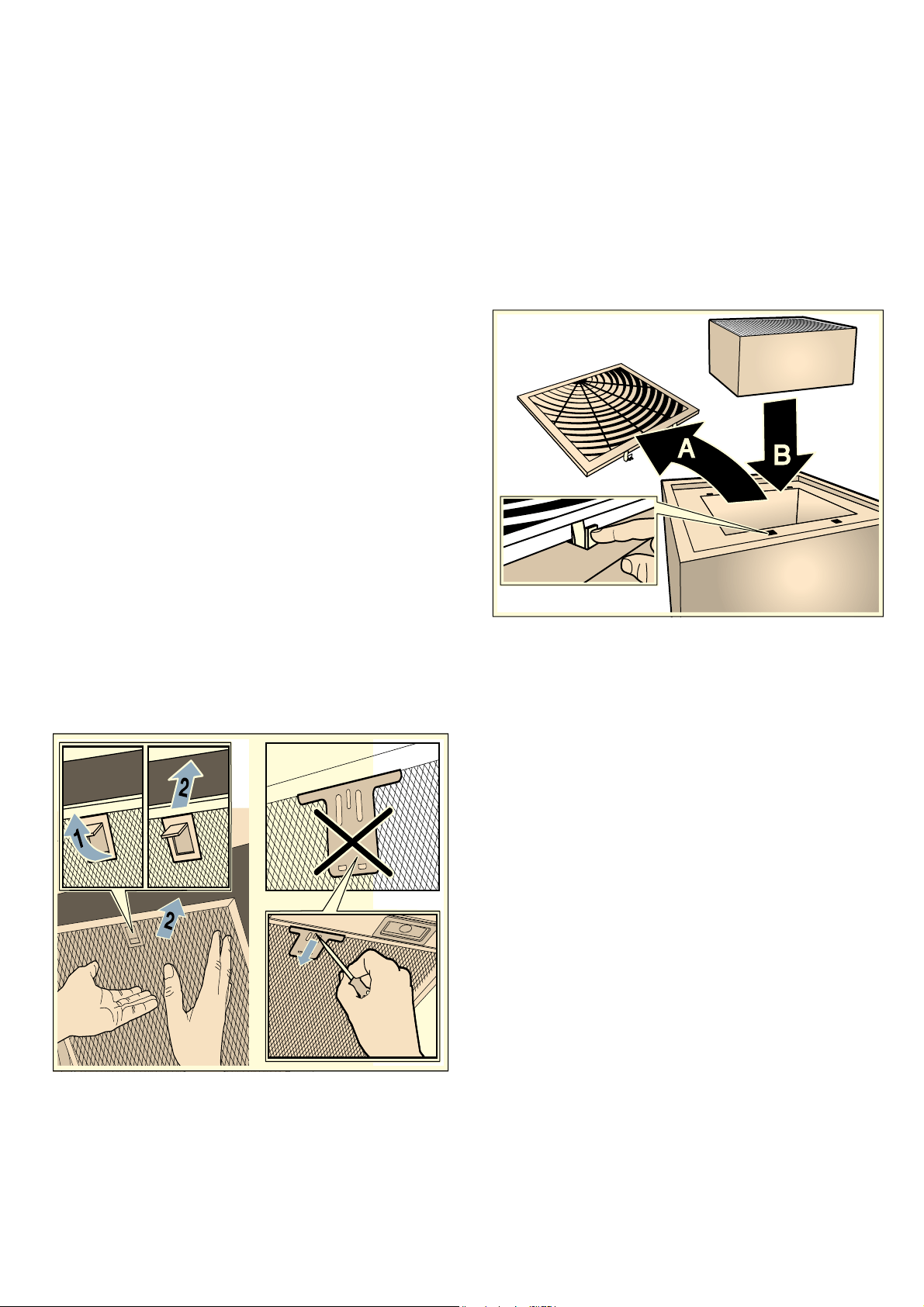

Installing the metal mesh grease filter
1. Insert the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
Note:
2. Swing the metal grease filter up and click it into place.
3. If the metal grease filter has not been inserted correctly, open the lock and reinsert the metal grease filter correctly.
Replacing the activated charcoal filter
Note:
1. Open the cover on the top of the appliance.
2. Remove the old activated charcoal filter and insert the new one.
3. Close the cover.
4. Reset the saturation indicator.~ "Saturation display" on page 6
3 Trouble shooting
Trouble shooting
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
: Warning
Risk of electric shock!
Malfunction table
Problem
Possible cause
Solution
LED lights
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
: Warning
Risk of injury!
4 Customer service
Customer service
When calling us, please quote the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. These numbers can be found on the rating plate on the top of the appliance (to access it, you will need to...
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
E no.
FD no.
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
Please find the contact data of all countries in the enclosed customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
Accessories
(not included in the scope of delivery)
Note:
Note:
Installation instructions
( Important safety information
Important safety information
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
The surfaces of the appliance are easily damaged. Avoid damaging them during installation.
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
: Warning
Risk of fire!
: Warning
Risk of injury!
: Warning
Risk of electric shock!
: Warning
Risk of electric shock!
: Warning
Danger of suffocation!

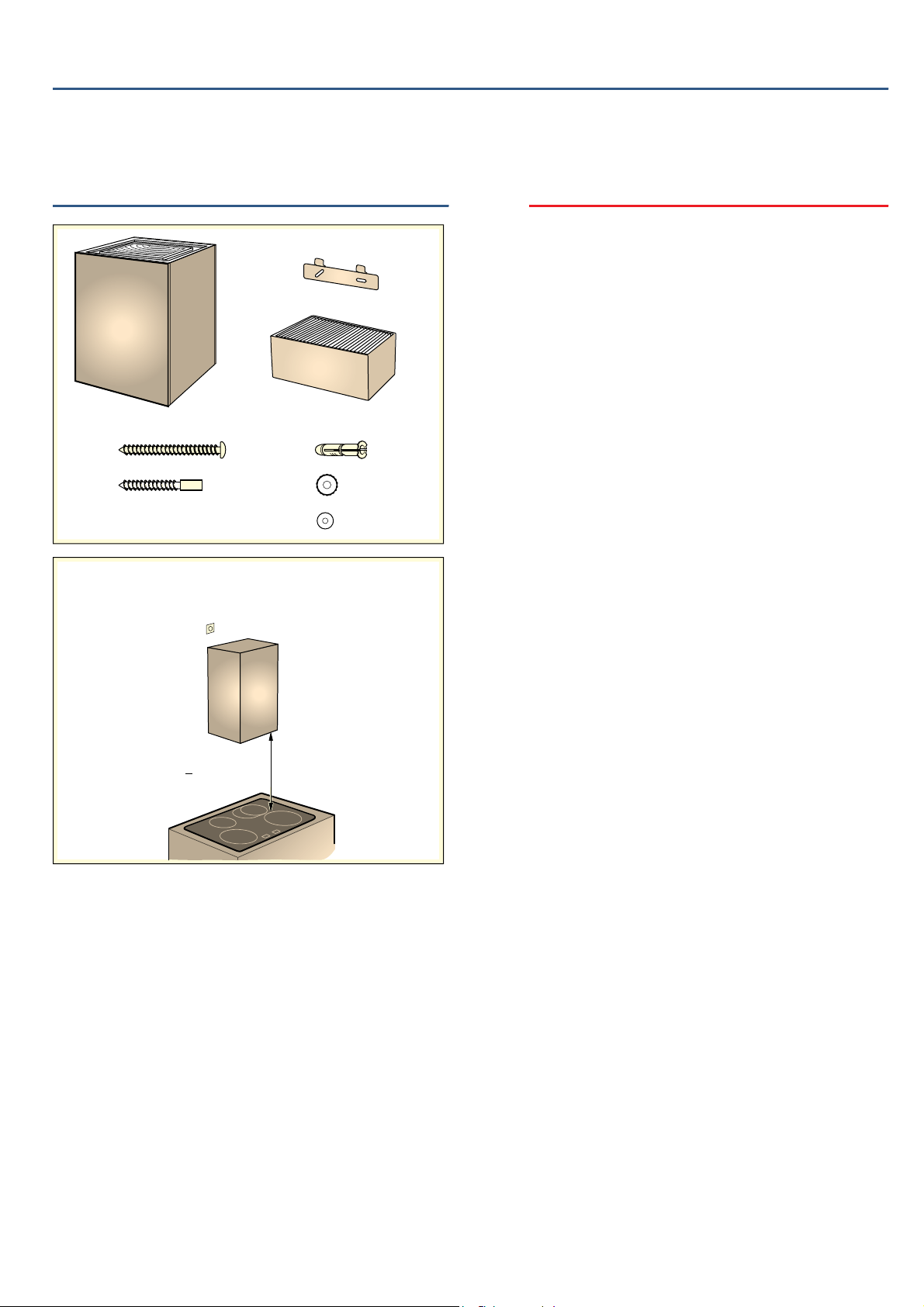

K General information
General information
Checking the wall
Electrical connection
: Warning
Risk of electric shock!
The required connection data can be found on the rating plate inside the appliance; to do this, remove the metal mesh grease filter.
Length of the cable: approx. 1.30 m
This appliance complies with the EC interference suppression regulations.
: Warning
Risk of electric shock!
5 Installation
Installation
Preparing for installation
Caution!

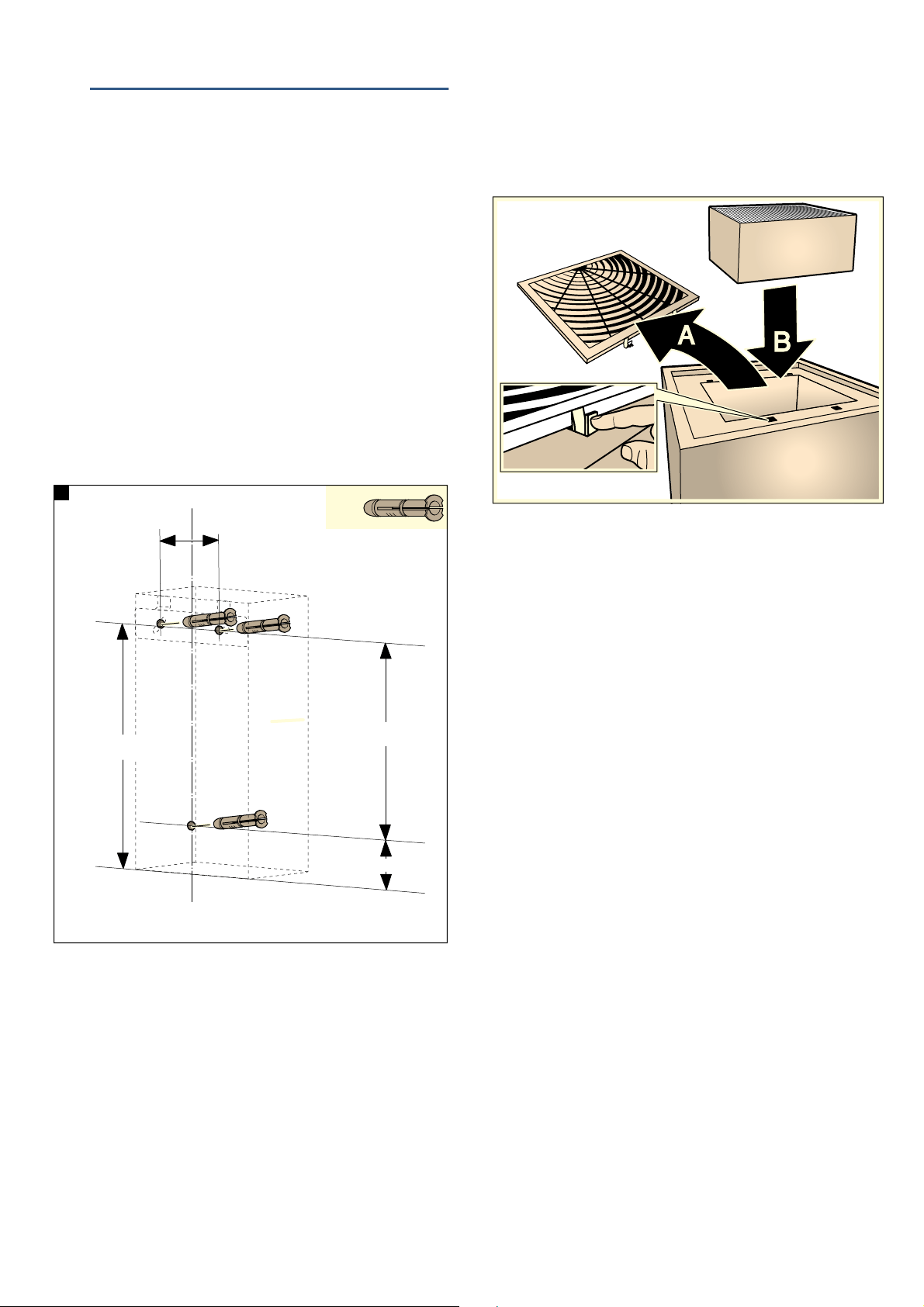

1. Determine where the extractor hood should be positioned and lightly mark where the lower edge of the appliance should be on the wall. Determine where the middle should be based on the hob.
Note:
2. Place the template against the line drawn on the wall. Mark where the screws should be inserted.
3. Drill three 8 mm diameter holes to a depth of 80 mm for fastening the appliance and press in the wall plugs flush with the wall.
Preparing the appliance
1. Remove the activated charcoal filter from the film.
2. Open the cover on the top of the appliance and remove it ¨, insert the activated charcoal filter © and then close the cover.

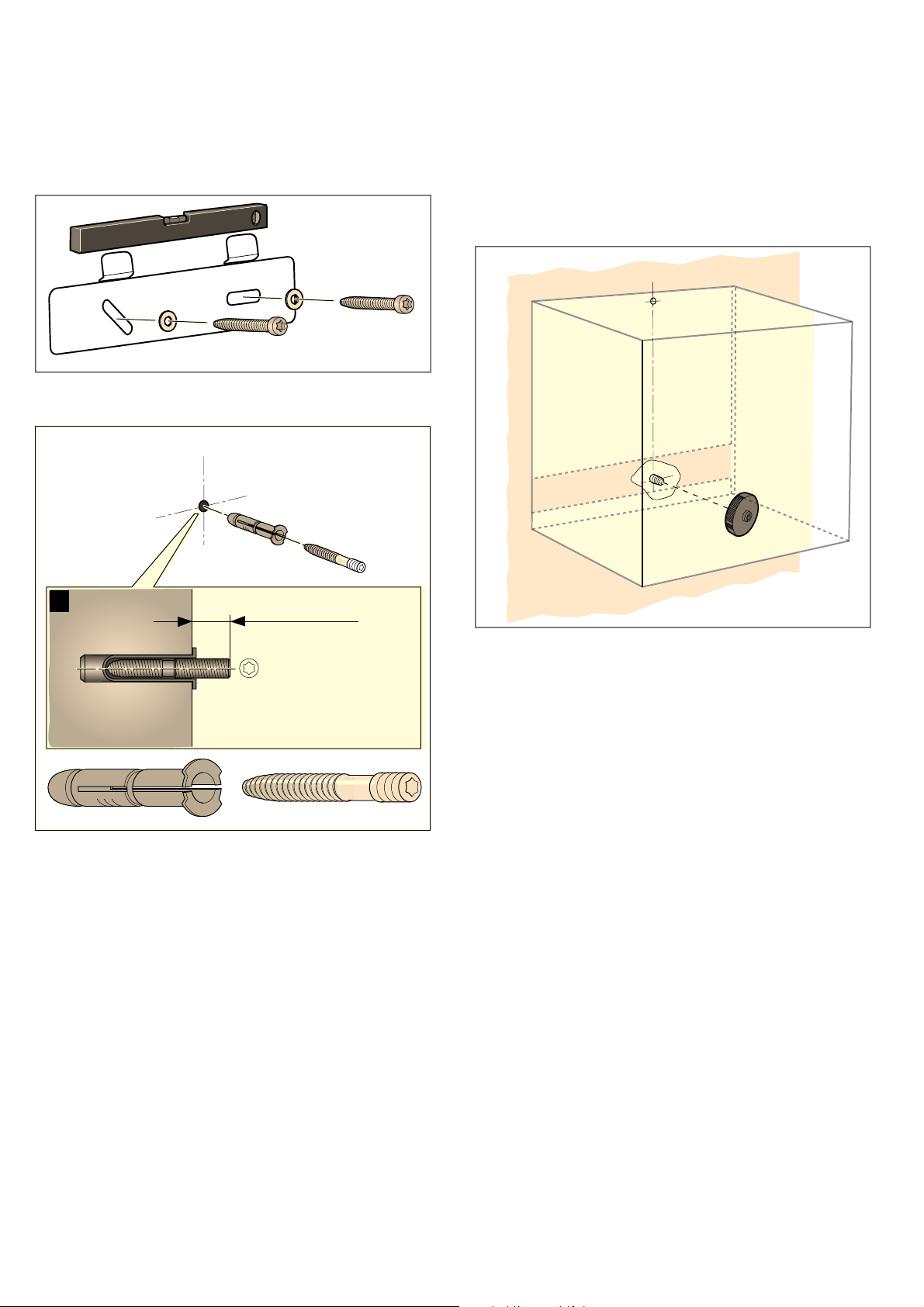

Installation
1. Screw in the mounting supports for the extractor hood until they are hand-tight, use a spirit level to level the appliance and then screw the mounting supports in fully.
2. Screw in the threaded bolt, leaving it protruding out of the wall by 5 - 9 mm.
Hanging the appliance
1. If there is any protective film on the appliance, first remove the protective film from the back and, following installation, remove the rest of the film.
2. Remove the metal grease filter before hanging the appliance.
3. Hang the appliance on the wall.
4. Firmly tighten the knurled nuts.
5. Reinsert the metal grease filter and connect the power supply.
