The Bassbreaker 007 is a versatile 7-watt amp that delivers big,
thick and crunching tone with terrific features and the sound of
pure tube greatness. Bassbreaker guitar amplifiers continue the
acclaimed lineage established by the great Fender Bassman® amp of
the late 1950s, taking classic Bassman design and “breaking” it with
features including unusual-for-Fender circuitry and components,
dark gray tweed covering, refined pointer knobs, and the early
Fender block-letter logo.
With its secret-agent name and distinctive style, the Bassbreaker
007 comes in head and combo models and features a single EL34
output tube for true class “A” operation, a 10” Celestion® Ten Thirty
speaker for tighter rock distortion (combo version), a treble-boost
switch for extra gain and harmonics, and a line output for easy com-
patibility with external recording and sound reinforcement equip-
ment. The Bassbreaker 007 head pairs neatly with the Bassbreaker
BB-112 speaker enclosure.
Register your Bassbreaker 007 online at www.fender.com/product-registration.

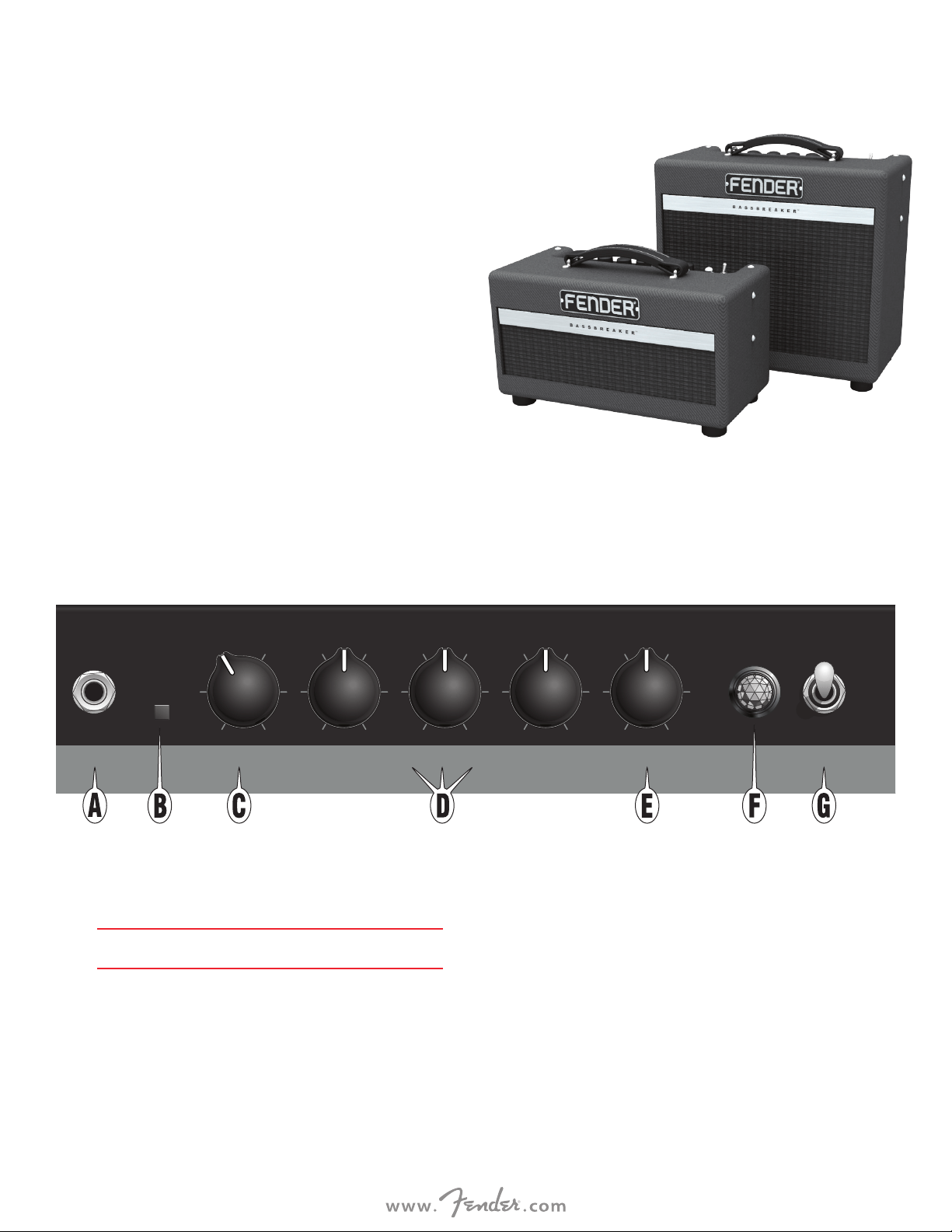

Control Panel
A. INPUT: Plug instrument in here.
B. TREBLE BOOST: Pushbutton boost circuit provides extra gain,
harmonics and high-frequency response.
Optional single-button FOOTSWITCH (L) also activates
TREBLE BOOST.
C. GAIN: Adjusts preamp gain and signal overdrive.
D. BASS, MIDDLE, TREBLE: Tone controls.
E. MASTER: Master volume control; use with GAIN (C) to set
overall volume.
F. POWER INDICATOR: Illuminates when Bassbreaker is on.
G. POWER: Turns Bassbreaker on (up) and off (down).
0 10
0 10 0 10 0 10 0 10
INPUT GAIN BASS MIDDLE TREBLE MASTER POWER
TREBLE
BOOST
FENDER MUSICAL INSTRUMENTS BASSBREAKER 007
TM
INPUT POWER
55W
120V 60Hz
F2A L
250V
FUSE
SPEAKER
OUTPUT
7 WATTS
8Ω MIN
LINE
OUTPUT
COMBO ONLY:
MUTES
INTERNAL SPEAKER
SWITCH
FOOT
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE BACK COVER.
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION:
TO REDUCE THE RISK OF FIRE,
REPLACE FUSE WITH SAME TYPE AND RATING
TYPE: PR 3032
SERIAL NUMBER
WARNING:
MAINTAIN 6" CLEARANCE
FOR VENTILATION.
WARNING:
FENDER AMPLIFIER SYSTEMS ARE
CAPABLE OF PRODUCING VERY
HIGH
SOUND PRESSURE LEVELS WHICH MAY
CAUSE TEMPORARY OR PERMANENT HEARING
DAMAGE. USE CARE WHEN
SETTING AND ADJUSTING VOLUME LEVELS DURING USE.
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.,
CORONA, CA U.S.A.
MADE IN MEXICO
BASSBREAKER 007
TM
フェンダー·
ミュージック(株)
CAUTION: CHASSIS SURFACE HOT
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
AVERTISSEMENT: RISQUE DE CHOC ELECTRIQUE ! NE PAS OUVRIR !
AT TENTION: SUPERFICIE DE CHASSIS CHAUDE
ENGLISH
3

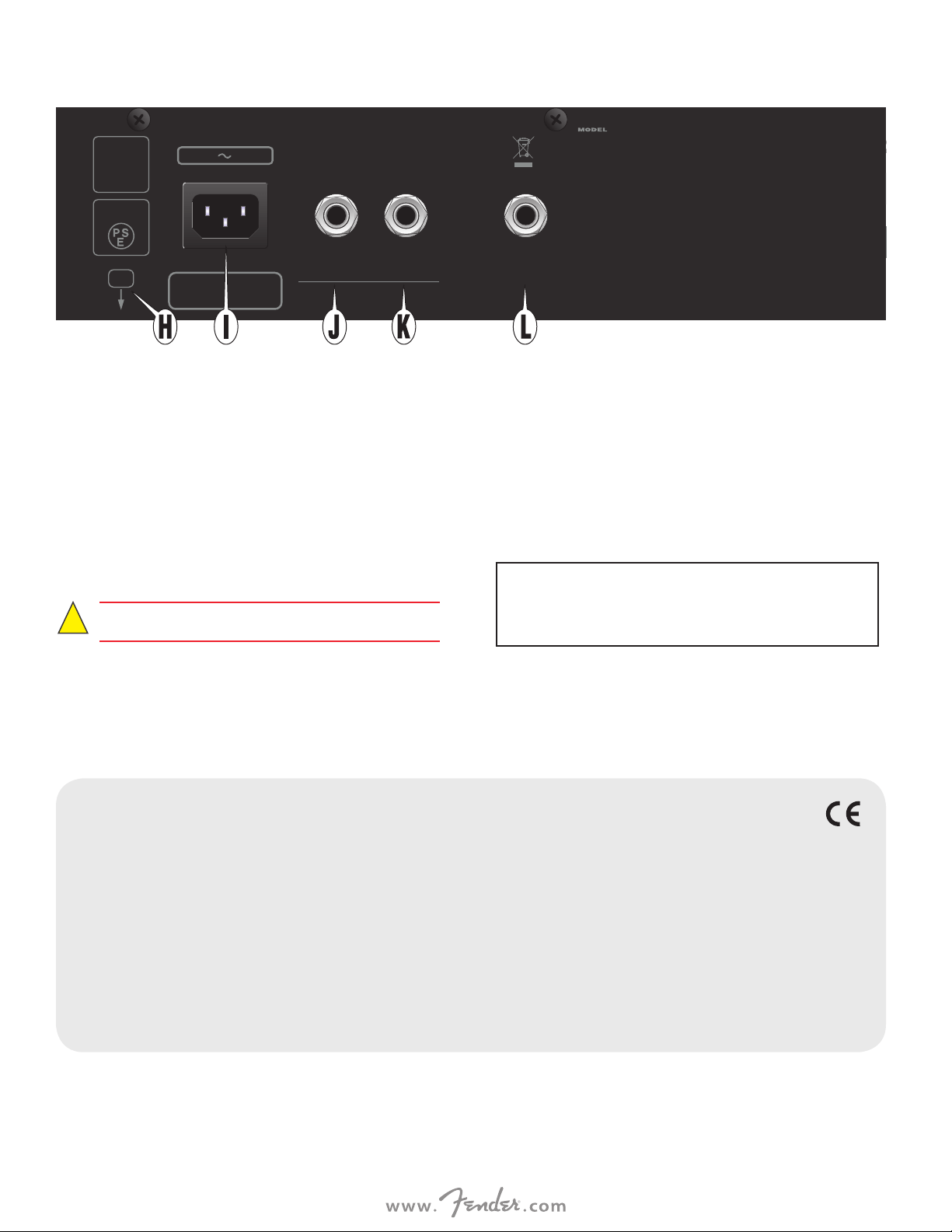

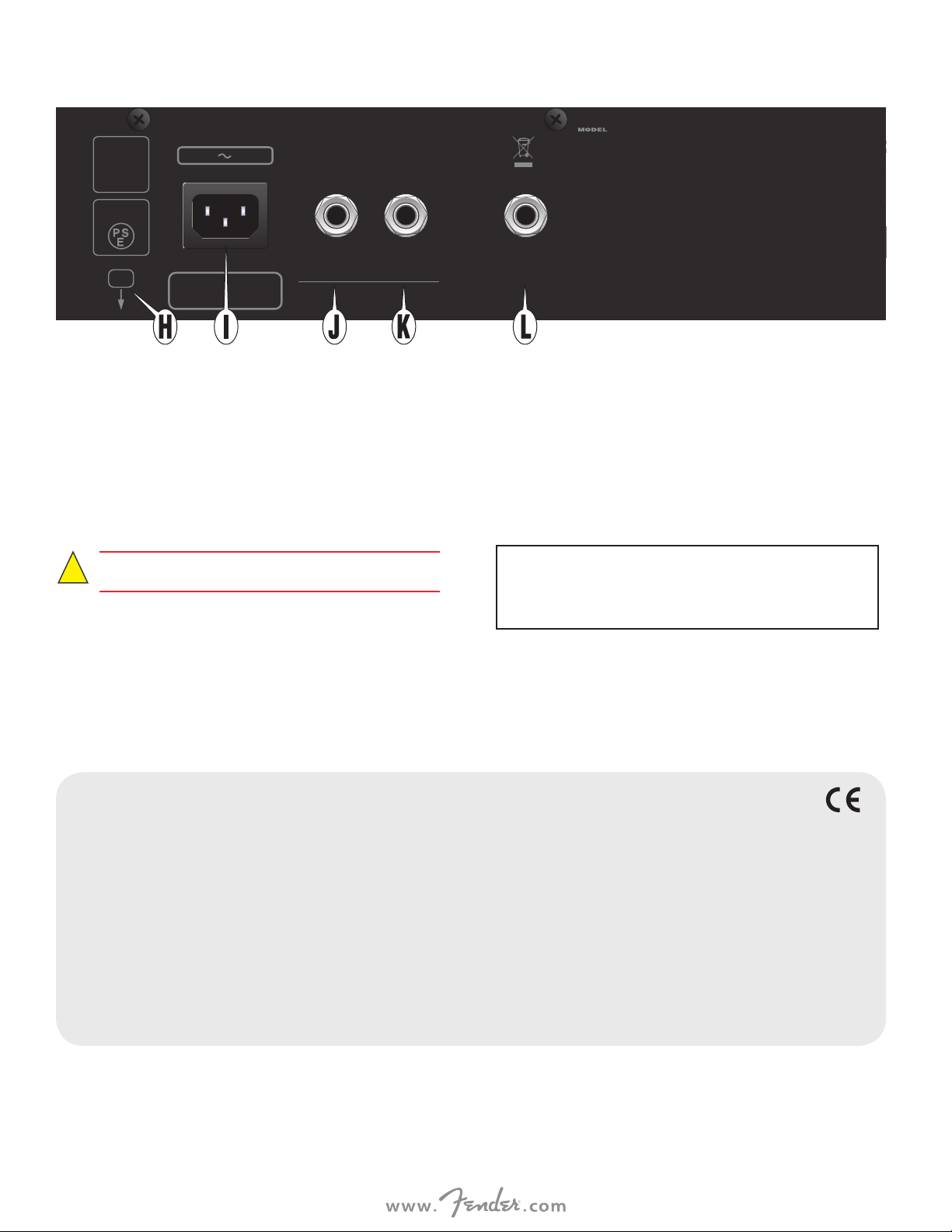

Rear Panel
H. FUSE: Provides electrical over-current protection. With power
disconnected, replace a blown fuse only with one of the type
and rating specified on the amp’s rear panel.
I. IEC POWER INLET: Using the included power cord, connect
to a grounded outlet in accordance with the INPUT POWER
voltage and frequency specified at the power inlet.
J. SPEAKER OUTPUT: Connect external speaker cabinet here (8
minimum). On Bassbreaker 007 combo model, use of this jack
automatically disconnects internal speaker.
!
To avoid damaging the amp, turn it off (G) when changing
speaker connection.
K. LINE OUTPUT: Provides a line-level signal with tone shaping
from the preamp. Power amp distortion, if any, will be included
in this signal, which can be sent to effects devices such as delay
or chorus units and to the effects loop or power amp input of
another amplifier. Signal is also suitable for external recording
interfaces and sound reinforcement equipment (note that this
offers no speaker emulation).
L. FOOTSWITCH: Connect optional single-button TREBLE
BOOST (B) footswitch here.
For questions and troubleshooting, contact a Fender
specialist at:
--- (U.S. toll free)
--- (International)
Specifications
TYPE PR 3032
POWER Requirements: 55 watts Output: 7 watts into 8Ω
INPUT IMPEDANCE 1MΩ
SPEAKER (INTERNAL) One 10” Celestion® Ten Thirty (8Ω, PN 7700223000)
EXTERNAL SPEAKER ENCLOSURE Bassbreaker BB-112 (optional, PN 226700000, contains one 12” 8Ω Celestion® speaker)
TUBES V1: 7025/12AX7A/ECC83 V2: 7025/12AX7A/ECC83 V3: 6BQ5/EL84
LINE OUT Output impedance: 100Ω
ACCESSORIES Single-button footswitch (optional, PN 7706424000) Combo cover (optional, PN 7707881000) Amp head cover (optional, PN 7707882000)
DIMENSIONS (COMBO) Width: 15.81” (40.2 cm) Height: 14.75” (37.5 cm) Depth: 8.5” (21.6 cm)
WEIGHT (COMBO) 25.5 lbs. (11.5 kg)
DIMENSIONS (HEAD) Width: 15.81” (40.2 cm) Height: 8.94” (22.7 cm) Depth: 8” (20.3 cm)
WEIGHT (HEAD) 16.6 lbs. (8 kg)
Product specifications subject to change without notice.
0 10
0 10 0 10 0 10 0 10
INPUT GAIN BASS MIDDLE TREBLE MASTER POWER
TREBLE
BOOST
FENDER MUSICAL INSTRUMENTS BASSBREAKER 007
TM
INPUT POWER
55W
120V 60Hz
F2A L
250V
FUSE
SPEAKER
OUTPUT
7 WATTS
8Ω MIN
LINE
OUTPUT
COMBO ONLY:
MUTES
INTERNAL SPEAKER
SWITCH
FOOT
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE BACK COVER.
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION:
TO REDUCE THE RISK OF FIRE,
REPLACE FUSE WITH SAME TYPE AND RATING
TYPE: PR 3032
SERIAL NUMBER
WARNING:
MAINTAIN 6" CLEARANCE
FOR VENTILATION.
WARNING:
FENDER AMPLIFIER SYSTEMS ARE
CAPABLE OF PRODUCING VERY
HIGH
SOUND PRESSURE LEVELS WHICH MAY
CAUSE TEMPORARY OR PERMANENT HEARING
DAMAGE. USE CARE WHEN
SETTING AND ADJUSTING VOLUME LEVELS DURING USE.
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.,
CORONA, CA U.S.A.
MADE IN MEXICO
BASSBREAKER 007
TM
フェンダー·
ミュージック(株)
CAUTION: CHASSIS SURFACE HOT
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
AVERTISSEMENT: RISQUE DE CHOC ELECTRIQUE ! NE PAS OUVRIR !
AT TENTION: SUPERFICIE DE CHASSIS CHAUDE
El Bassbreaker 007 es un versátil amplificador de 7 watios que
le ofrece un sonido potente y compacto, una amplia gama de
increíbles funciones y toda la grandeza del sonido a válvulas. Los
amplificadores de guitarra Bassbreaker continúan con la larga
tradición establecida con el gran amplificador Fender Bassman®
de finales de los 50, retomando el clásico diseño Bassman y
“reconstruyéndolo” con algunas características que incluyen
circuitos y componentes no habituales en Fender, un recubrimiento
en tweed gris oscuro, mandos de alta calidad y el logo Fender de
los primeros años.
Con su nombre de agente secreto y su estilo tan característico, el
Bassbreaker 007 está disponible tanto en formato combo como
en cabezal y dispone de una única válvula de salida EL34 para
un auténtico funcionamiento de clase “A”, un altavoz Celestion®
Ten Thirty de 10” para una compacta distorsión de tipo rock (en
la versión combo), un interruptor de realce de agudos para una
ganancia y armónicos extra y una salida de línea para una total
compatibilidad con equipos de grabación y refuerzo de sonido
externos. El cabezal Bassbreaker 007 es el compañero ideal del
recinto acústico Bassbreaker BB-112.
Registre online su Bassbreaker 007 en la web www.fender.com/product-
registration.
BASSBREAKER 007
TM
Panel de Control
A. INPUT: Conecte aquí su instrumento.
B. TREBLE BOOST: Pulsador del circuito de realce que le ofrece
una ganancia, armónicos y respuesta de agudos extras.
También puede activar este TREBLE BOOST con el pedal (L)
opcional.
C. GAIN: Ajusta la ganancia del previo y la saturación de señal.
D. BASS, MIDDLE, TREBLE: Controles de tono.
E. MASTER: Control de volumen máster; úselo junto con el
control GAIN (C) para ajustar el volumen global.
F. PILOTO DE ENCENDIDO: Se ilumina cuando el Bassbreaker
está encendido.
G. POWER: Enciende (arriba) y apaga (abajo) el Bassbreaker .
0 10
0 10 0 10 0 10 0 10
INPUT GAIN BASS MIDDLE TREBLE MASTER POWER
TREBLE
BOOST
FENDER MUSICAL INSTRUMENTS BASSBREAKER 007
TM
INPUT POWER
55W
120V 60Hz
F2A L
250V
FUSE
SPEAKER
OUTPUT
7 WATTS
8Ω MIN
LINE
OUTPUT
COMBO ONLY:
MUTES
INTERNAL SPEAKER
SWITCH
FOOT
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE BACK COVER.
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION:
TO REDUCE THE RISK OF FIRE,
REPLACE FUSE WITH SAME TYPE AND RATING
TYPE: PR 3032
SERIAL NUMBER
WARNING:
MAINTAIN 6" CLEARANCE
FOR VENTILATION.
WARNING:
FENDER AMPLIFIER SYSTEMS ARE
CAPABLE OF PRODUCING VERY
HIGH
SOUND PRESSURE LEVELS WHICH MAY
CAUSE TEMPORARY OR PERMANENT HEARING
DAMAGE. USE CARE WHEN
SETTING AND ADJUSTING VOLUME LEVELS DURING USE.
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.,
CORONA, CA U.S.A.
MADE IN MEXICO
BASSBREAKER 007
TM
フェンダー·
ミュージック(株)
CAUTION: CHASSIS SURFACE HOT
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
AVERTISSEMENT: RISQUE DE CHOC ELECTRIQUE ! NE PAS OUVRIR !
AT TENTION: SUPERFICIE DE CHASSIS CHAUDE
ESPAÑOL
4
ESPAÑOL

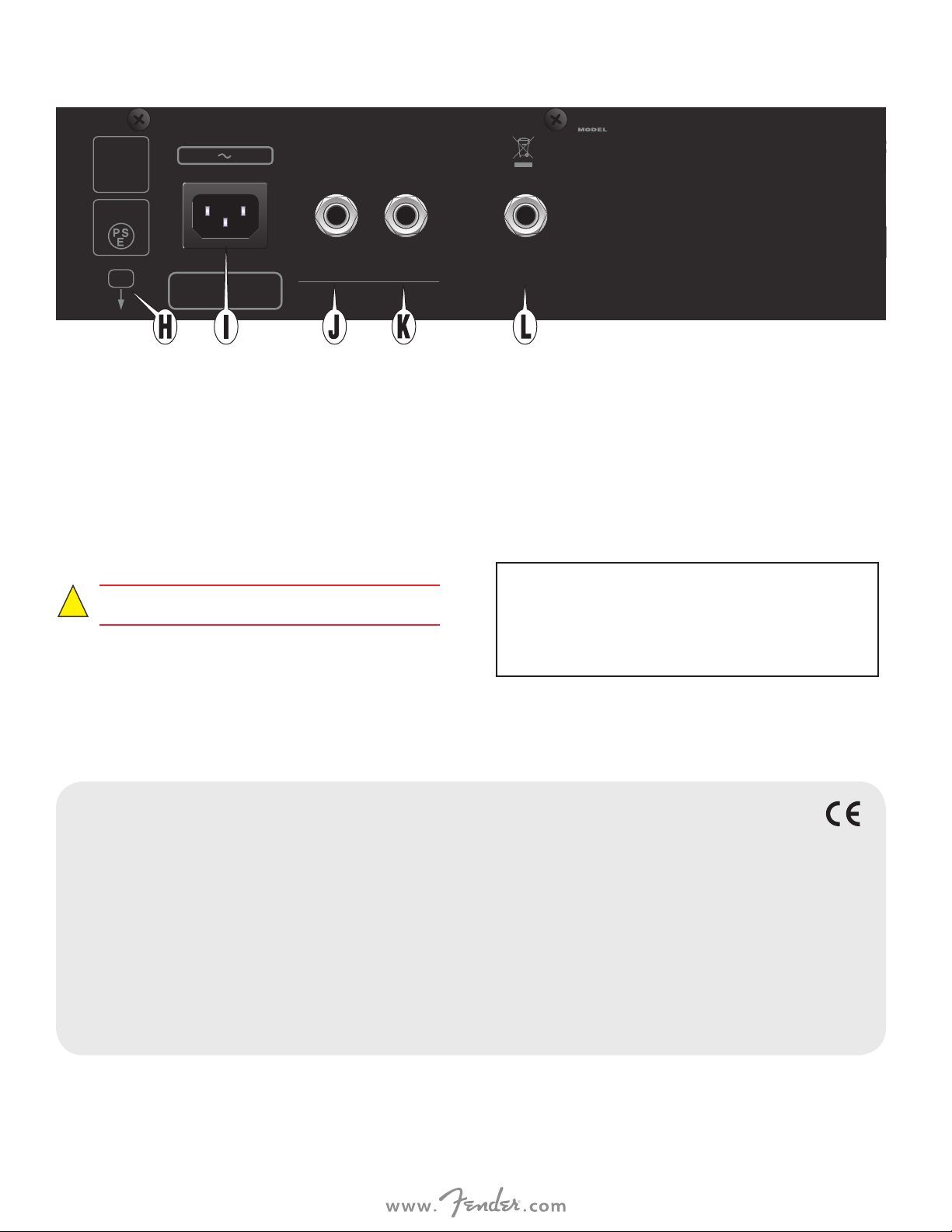

Panel Trasero
H. FUSIBLE: Ofrece protección contra posibles sobretensiones
eléctricas. Si el fusible se quema, apague la unidad y
sustitúyalo únicamente por otro de idénticas características.
I. ENTRADA DE CORRIENTE IEC: Usando el cable de
alimentación incluido, conecte esta unidad a una salida
de corriente con toma de tierra del voltaje y amperaje que
aparecen indicados al lado de esta entrada.
J. SPEAKER OUTPUT: Conecte aquí un recinto acústico
externo (8 mínimo). En el Bassbreaker 007 combo, el uso
de esta toma hace que el altavoz interno sea desconectado
automáticamente.
!
Para evitar daños en el amplificador apague la unidad (G)
cuando cambie las conexiones de los altavoces.
K. LINE OUTPUT: Ofrece una señal con nivel de línea con
modelado tonal desde el previo. Esta señal incluirá la distorsión
de etapa de potencia, si la hay, para su envío a unidades de
efectos como retardos o chorus y al bucle de efectos o la entrada
de etapa de potencia de otro amplificador. También puede
enviar la señal a interfaces de grabación externos y equipos
de refuerzo de sonido (tenga en cuenta que esto no ofrece
simulación de recinto acústico).
L. FOOTSWITCH: Conecte aquí un pedal de un solo botón
opcional para la conmutación TREBLE BOOST (B).
Para cualquier consulta y resolución de problemas,
póngase en contacto con los especialistas de Fender en
los teléfonos:
--- (gratuito dentro de los EE.UU.)
--- (internacional)
Especificaciones Técnicas
REFERENCIA PR 3032
POTENCIA Consumo: 55 watios Salida: 7 watios a 8Ω
IMPEDANCIA DE ENTRADA 1MΩ
ALTAVOZ (INTERNO) Un altavoz Celestion® Ten Thirty de 10” (8Ω, referencia 7700223000)
EXTERNO RECINTO ACÚSTICO Bassbreaker BB-112 (opcional, referencia 226700000, contiene un altavoz Celestion® de 12” y 8Ω)
VÁLVULAS V1: 7025/12AX7A/ECC83 V2: 7025/12AX7A/ECC83 V3: 6BQ5/EL84
SALIDA DE LÍNEA Impedancia de salida: 100Ω
ACCESORIOS Pedal de botón único (opcional, ref. 7706424000) Tapa de combo (opcional, ref. 7707881000) Tapa de cabezal (opcional, ref. 7707882000)
DIMENSIONES (COMBO) Anchura: 40,2 cm (15,81”) Altura: 37,5 cm (14,75”) Profundidad: 21,6 cm (8,5”)
PESO (COMBO) 11,5 kg (25,5 lbs.)
DIMENSIONES (CABEZAL) Anchura: 40,2 cm (15,81”) Altura: 22,7 cm (8,94”) Profundidad: 20,3 cm (8”)
PESO (CABEZAL) 8 kg (16,6 lbs.)
Las especificaciones de este aparato están sujetas a modificaciones sin previo aviso.
0 10
0 10 0 10 0 10 0 10
INPUT GAIN BASS MIDDLE TREBLE MASTER POWER
TREBLE
BOOST
FENDER MUSICAL INSTRUMENTS BASSBREAKER 007
TM
INPUT POWER
55W
120V 60Hz
F2A L
250V
FUSE
SPEAKER
OUTPUT
7 WATTS
8Ω MIN
LINE
OUTPUT
COMBO ONLY:
MUTES
INTERNAL SPEAKER
SWITCH
FOOT
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE BACK COVER.
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION:
TO REDUCE THE RISK OF FIRE,
REPLACE FUSE WITH SAME TYPE AND RATING
TYPE: PR 3032
SERIAL NUMBER
WARNING:
MAINTAIN 6" CLEARANCE
FOR VENTILATION.
WARNING:
FENDER AMPLIFIER SYSTEMS ARE
CAPABLE OF PRODUCING VERY
HIGH
SOUND PRESSURE LEVELS WHICH MAY
CAUSE TEMPORARY OR PERMANENT HEARING
DAMAGE. USE CARE WHEN
SETTING AND ADJUSTING VOLUME LEVELS DURING USE.
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.,
CORONA, CA U.S.A.
MADE IN MEXICO
BASSBREAKER 007
TM
フェンダー·
ミュージック(株)
CAUTION: CHASSIS SURFACE HOT
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
AVERTISSEMENT: RISQUE DE CHOC ELECTRIQUE ! NE PAS OUVRIR !
AT TENTION: SUPERFICIE DE CHASSIS CHAUDE
5
BASSBREAKER 007
TM
Réglages
A. INPUT: Connectez votre instrument à cette entrée.
B. TREBLE BOOST: Ce bouton permet d’activer le treble-booster
pour plus de gain, des harmoniques plus riches et une
meilleure réponse dans les hautes fréquences.
Le PÉDALIER à un contacteur (L) permet également d’activer
la fonction TREBLE BOOST.
C. GAIN: Permet de régler le gain du préampli et la distorsion du
signal.
D. BASS, MIDDLE, TREBLE: Réglages de tonalité.
E. MASTER: Réglage de volume général, à utiliser en conjonction
avec le potentiomètre GAIN (C).
F. VOYANT POWER: Il s’allume lorsque le Bassbreaker est
sous tension.
G. POWER: Permet de mettre le Bassbreaker sous/hors tension.
0 10
0 10 0 10 0 10 0 10
INPUT GAIN BASS MIDDLE TREBLE MASTER POWER
TREBLE
BOOST
FENDER MUSICAL INSTRUMENTS BASSBREAKER 007
TM
INPUT POWER
55W
120V 60Hz
F2A L
250V
FUSE
SPEAKER
OUTPUT
7 WATTS
8Ω MIN
LINE
OUTPUT
COMBO ONLY:
MUTES
INTERNAL SPEAKER
SWITCH
FOOT
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE BACK COVER.
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION:
TO REDUCE THE RISK OF FIRE,
REPLACE FUSE WITH SAME TYPE AND RATING
TYPE: PR 3032
SERIAL NUMBER
WARNING:
MAINTAIN 6" CLEARANCE
FOR VENTILATION.
WARNING:
FENDER AMPLIFIER SYSTEMS ARE
CAPABLE OF PRODUCING VERY
HIGH
SOUND PRESSURE LEVELS WHICH MAY
CAUSE TEMPORARY OR PERMANENT HEARING
DAMAGE. USE CARE WHEN
SETTING AND ADJUSTING VOLUME LEVELS DURING USE.
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.,
CORONA, CA U.S.A.
MADE IN MEXICO
BASSBREAKER 007
TM
フェンダー·
ミュージック(株)
CAUTION: CHASSIS SURFACE HOT
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
AVERTISSEMENT: RISQUE DE CHOC ELECTRIQUE ! NE PAS OUVRIR !
AT TENTION: SUPERFICIE DE CHASSIS CHAUDE
FRANÇAIS
Le Bassbreaker 007 est un ampli polyvalent d’une puissance de 7
watts proposant des caractéristiques incroyables et délivrant le son
puissant et épais typique des amplis à lampes. Les amplis guitare
Bassbreaker sont les dignes héritiers du légendaire ampli Fender
Bassman® sorti à la fin des années 50 : basés sur la même concep-
tion, ils intègrent néanmoins des composants et circuits inédits
pour Fender, sont revêtus de tweed gris foncé et dotés de potentio-
mètres élégants ainsi que d’un logo Fender en lettres moulées.
Avec son nom d’agent secret et son style particulier, le Bassbreaker
007 est proposé en tête seule ou combo. Il est pourvu d’une seule
lampe de sortie EL34 pour un véritable fonctionnement en classe A,
d’un haut-parleur Celestion® Ten Thirty de 10” produisant une dis-
torsion serrée (version combo), d’une fonction treble-booster pour
davantage de gain et d’harmoniques et d’une sortie ligne le rendant
aisément compatible avec tout équipement externe d’enregistre-
ment et de sonorisation. La tête Bassbreaker 007 est le complément
idéal du baffle Bassbreaker BB-112.
Enregistrez votre Bassbreaker 007 en ligne sur www.fender.com/product-registration.
6
FRANÇAIS
Face Arrière
H. FUSIBLE: Protection contre les surtensions. Pour remplacer
le fusible, déconnectez l’appareil de sa source d’alimentation
et utilisez uniquement un fusible de même type dont les
caractéristiques correspondent à celles indiquées sur la face
arrière de l’ampli.
I. EMBASE D’ALIMENTATION: Permet de connecter le
cordon d’alimentation fourni à une prise de courant dont les
caractéristiques correspondent à celles indiquées sur l’ampli.
J. SPEAKER OUTPUT: Permet de connecter une enceinte externe
(8 minimum). Pour le Bassbreaker 007 combo, l’utilisation de
cette embase désactive automatiquement le haut-parleur interne.
!
Pour éviter d’endommager votre ampli, mettez-le hors ten-
sion (G) lorsque vous effectuez la connexion au haut-parleur.
K. LINE OUTPUT: Porte un signal niveau ligne. La distorsion de
l’ampli de puissance et les réglages de l’égalisation affectent
ce signal. Il peut être envoyé vers des effets externes tels
qu’un delay ou chorus puis vers la boucle d’effet ou la section
de puissance d’un autre ampli. Ce signal peut également
être envoyé vers tout équipement d’enregistrement ou de
sonorisation (remarque : cette sortie n’est pas traitée par une
simulation de haut-parleur).
L. FOOTSWITCH: Permet de connecter le pédalier à un contacteur
en option pour activer la fonction TREBLE BOOST (B).
Pour tous problèmes ou questions, contactez un
spécialiste Fender au :
--- (Numéro gratuit aux USA)
--- (International)
Caractéristiques Techniques
TYPE PR 3032
PUISSANCE Nécessaire: 55 watts Sortie: 7 watts dans 8Ω
IMPÉDANCE D’ENTRÉE 1MΩ
HAUT-PARLEUR (INTERNE) 1x Celestion® Ten Thirty 10” (8Ω, PN 7700223000)
EXTERNE BAFFLE Bassbreaker BB-112 (en option, PN 226700000, contient 1x HP Celestion® 8Ω, 12”)
LAMPES V1: 7025/12AX7A/ECC83 V2: 7025/12AX7A/ECC83 V3: 6BQ5/EL84
SORTIE LIGNE Impédance de sortie: 100Ω
ACCESSOIRES Pédalier à un contacteur (en option, PN 7706424000) Housse pour combo (en option, PN 7707881000) Housse pour tête (en option, PN 7707882000)
DIMENSIONS (COMBO) Largeur: 40,2 cm Hauteur: 37,5 cm Profondeur: 21,6 cm
POIDS (COMBO) 11,5 kg
DIMENSIONS (TÊTE) Largeur: 40,2 cm Hauteur: 22,7 cm Profondeur: 20,3 cm
POIDS (TÊTE) 8 kg
Les caractéristiques du produits sont soumises à modification sans préavis.
0 10
0 10 0 10 0 10 0 10
INPUT GAIN BASS MIDDLE TREBLE MASTER POWER
TREBLE
BOOST
FENDER MUSICAL INSTRUMENTS BASSBREAKER 007
TM
INPUT POWER
55W
120V 60Hz
F2A L
250V
FUSE
SPEAKER
OUTPUT
7 WATTS
8Ω MIN
LINE
OUTPUT
COMBO ONLY:
MUTES
INTERNAL SPEAKER
SWITCH
FOOT
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE BACK COVER.
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION:
TO REDUCE THE RISK OF FIRE,
REPLACE FUSE WITH SAME TYPE AND RATING
TYPE: PR 3032
SERIAL NUMBER
WARNING:
MAINTAIN 6" CLEARANCE
FOR VENTILATION.
WARNING:
FENDER AMPLIFIER SYSTEMS ARE
CAPABLE OF PRODUCING VERY
HIGH
SOUND PRESSURE LEVELS WHICH MAY
CAUSE TEMPORARY OR PERMANENT HEARING
DAMAGE. USE CARE WHEN
SETTING AND ADJUSTING VOLUME LEVELS DURING USE.
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.,
CORONA, CA U.S.A.
MADE IN MEXICO
BASSBREAKER 007
TM
フェンダー·
ミュージック(株)
CAUTION: CHASSIS SURFACE HOT
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
AVERTISSEMENT: RISQUE DE CHOC ELECTRIQUE ! NE PAS OUVRIR !
AT TENTION: SUPERFICIE DE CHASSIS CHAUDE
7
BASSBREAKER 007
TM
Painel de Controle
A. ENTRADA: Ligue instrumento aqui.
B. AUMENTO DOS AGUDOS: Botão de aumento de circuito
proporciona ganho extra, harmónicos e resposta de alta
frequência.
Pedal de Botão Opcional de um único botão (L) também acti-
va Aumento dos Agudos.
C. GANHO: Ajusta o ganho de pré-amplificador e ultrapassagem
de sinal.
D. BASS, MIDDLE, TREBLE: Controles de tom.
E. MESTRE: Controle de volume Principal; usar com GAIN (C)
para definir o volume total.
F. INDICADOR DE POTÊNCIA: Acende-se quando o Bassbreaker
está ligado.
G. POTÊNCIA: Liga (para cima) e desliga (para baixo) o
Bassbreaker .
0 10
0 10 0 10 0 10 0 10
INPUT GAIN BASS MIDDLE TREBLE MASTER POWER
TREBLE
BOOST
FENDER MUSICAL INSTRUMENTS BASSBREAKER 007
TM
INPUT POWER
55W
120V 60Hz
F2A L
250V
FUSE
SPEAKER
OUTPUT
7 WATTS
8Ω MIN
LINE
OUTPUT
COMBO ONLY:
MUTES
INTERNAL SPEAKER
SWITCH
FOOT
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE BACK COVER.
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION:
TO REDUCE THE RISK OF FIRE,
REPLACE FUSE WITH SAME TYPE AND RATING
TYPE: PR 3032
SERIAL NUMBER
WARNING:
MAINTAIN 6" CLEARANCE
FOR VENTILATION.
WARNING:
FENDER AMPLIFIER SYSTEMS ARE
CAPABLE OF PRODUCING VERY
HIGH
SOUND PRESSURE LEVELS WHICH MAY
CAUSE TEMPORARY OR PERMANENT HEARING
DAMAGE. USE CARE WHEN
SETTING AND ADJUSTING VOLUME LEVELS DURING USE.
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.,
CORONA, CA U.S.A.
MADE IN MEXICO
BASSBREAKER 007
TM
フェンダー·
ミュージック(株)
CAUTION: CHASSIS SURFACE HOT
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
AVERTISSEMENT: RISQUE DE CHOC ELECTRIQUE ! NE PAS OUVRIR !
AT TENTION: SUPERFICIE DE CHASSIS CHAUDE
PORTUGUÊS
O Bassbreaker 007 é um amplificador versátil de 7 watts que pro-
porciona tom grande, grosso e opressivo com características incrí-
veis e ao som magnífico de tubo puro. Amplificadores de guitarra
Bassbreaker continuam a linha aclamada estabelecida pelo grande
amplificador Fender BASSMAN® do final dos anos 50, tendo o pro-
jeto Bassman clássico e "quebrá-lo" com características, incluindo
circuitos incomuns para-Fender e componentes, cobertura tweed
cinza escuro, maçanetas de ponteiro refinadas, e o antecipado logo-
tipo "block-letter" de Fender.
Com o seu nome de agente-secreto e estilo distinto, o Bassbreaker
007 vem em modelos de cabeça e de combinação e apresenta um
único tubo de saída EL34 para a verdadeira classe "A" operação, a
10 "Celestion Ten Thirty alto-falante para mais apertado distorção
rocha (versão combo), um interruptor de “boost de agudos” para
um gain extra e harmónico, e uma saída de linha para compatibili-
dade fácil com gravação externa e equipamentos de sonorização.
Os Bassbreaker 007 pares de cabeça perfeitamente com a caixa de
som Bassbreaker BB-112.
Registe o seu Bassbreaker 007 online em www.fender.com/product-re-
gistration.
8
PORTUGUÊS
Painel Traseiro
H. FUSÍVEL: Fornece protecção de sobre corrente eléctrica.
Com a alimentação desligada, substituir um fusível queimado
somente com um do tipo e classificação especificada no
painel traseiro do amplificador.
I. PODER DE ENTRADA DO IEC: Usando o cabo de
alimentação, conecte a uma tomada aterrada de acordo com
a tensão de alimentação de entrada e frequência especificada
na entrada de energia.
J. SAÍDA DE ALTO-FALANTE: Liga ao armário alto-falante
externo aqui (no mínimo 8). No modelo de combinação de
Bassbreaker 007, o uso desta tomada desconecta automatica-
mente o alto-falante interno.
!
Para evitar danificar o amplificador, desligue-o (G) quando
mude de ligação das colunas.
K. LINHA DE SAÍDA: Fornece um sinal de nível de linha com
tom moldar a partir do pré-amplificador. Distorção do
amplificador de potência, se houver, serão incluídos neste
sinal, que podem ser enviados para aparelhos de efeitos, tais
como unidades de atraso ou de coro e à entrada de efeitos de
laço ou amplificador de potência de um outro amplificador.
O sinal também é adequado para interfaces de gravação
externa e equipamentos de sonorização (note que este não
oferece emulação de alto-falante).
L. PEDAL: Liga um único botão Treble Boost opcional (B) pedal aqui.
Em caso de dúvidas e resolução de problemas, entre
em contato com um especialista Fender em:
--- (US grátis)
--- (Internacional)
Especificações
TIPO PR 3032
REQUISITOS DE Energia: 55 watts Saída: 7 watts em 8Ω
IMPEDÂNCIA DE ENTRADA 1MΩ
SPEAKER (iNTERNO) Um 10" Celestion Ten Thirty (8Ω, PN 7700223000)
EXTERNO COLUNA DA CAIXA Bassbreaker BB-112 (opcional, PN 226.700.000, contém um 12 "speaker 8Ω Celestion)
TUBOS V1: 7025/12AX7A/ECC83 V2: 7025/12AX7A/ECC83 V3: 6BQ5/EL84
SAÍDA DE LINHA impedância de saída: 100Ω
ACESSÓRIOS Pedal de Botão único (opcional, PN 7706424000) Tampa Combo (opcional, PN 7707881000) Tampa da cabeça do Amp (opcional, PN 7707882000)
DIMENSÕES (COMBO) Largura: 15,81” (40,2 cm) Altura: 14,75” (37,5 cm) Profundidade: 8,5” (21,6 cm)
PESO (COMBO) 25,5 libras (11,5 kg)
DIMENSÕES (CABEÇA) Largura: 15,81” (40,2 cm) Altura: 8,94” (22,7 cm) Profundidade: 8” (20,3 cm)
PESO (CABEÇA) 16,6 libras (8 kg)
As especificações do produto estão sujeitas a alterações sem aviso prévio.
0 10
0 10 0 10 0 10 0 10
INPUT GAIN BASS MIDDLE TREBLE MASTER POWER
TREBLE
BOOST
FENDER MUSICAL INSTRUMENTS BASSBREAKER 007
TM
INPUT POWER
55W
120V 60Hz
F2A L
250V
FUSE
SPEAKER
OUTPUT
7 WATTS
8Ω MIN
LINE
OUTPUT
COMBO ONLY:
MUTES
INTERNAL SPEAKER
SWITCH
FOOT
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE BACK COVER.
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION:
TO REDUCE THE RISK OF FIRE,
REPLACE FUSE WITH SAME TYPE AND RATING
TYPE: PR 3032
SERIAL NUMBER
WARNING:
MAINTAIN 6" CLEARANCE
FOR VENTILATION.
WARNING:
FENDER AMPLIFIER SYSTEMS ARE
CAPABLE OF PRODUCING VERY
HIGH
SOUND PRESSURE LEVELS WHICH MAY
CAUSE TEMPORARY OR PERMANENT HEARING
DAMAGE. USE CARE WHEN
SETTING AND ADJUSTING VOLUME LEVELS DURING USE.
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORP.,
CORONA, CA U.S.A.
MADE IN MEXICO
BASSBREAKER 007
TM
フェンダー·
ミュージック(株)
CAUTION: CHASSIS SURFACE HOT
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
AVERTISSEMENT: RISQUE DE CHOC ELECTRIQUE ! NE PAS OUVRIR !
AT TENTION: SUPERFICIE DE CHASSIS CHAUDE
9
A PRODUCT OF
FENDER MUSICAL INSTRUMENTS CORP.
CORONA, CALIF. U.S.A.
AMPLIFICADOR DE AUDIO
IMPORTADO POR: Fender Ventas de México, S. de R.L. de C.V.
Calle Huerta #279, Int. A. Col. El Naranjo. C.P. 22785. Ensenada, Baja California, México.
RFC: FVM-140508-CI0
Servicio al Cliente: 01(800) 7887395, 01(800) 7887396, 01(800) 7889433
Fender® and Bassbreaker™ are trademarks of FMIC.
Other trademarks are property of their respective owners.
Copyright © 2015 FMIC. All rights reserved. US+5 PN 7706152000 rev. a
有毒有害物质或元素
(Hazardous Substances’ Name)
部件名称
(
Part Name)
铅
(PB)
汞
(Hg)
镉
(Cd)
六价铬
(Cr
6+
)
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
部分电子元件
x o o o o o
部分机器加工金属部件
x o o o o o
部分其他附属部件
x o o o o o
O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 规定的现量要求以下
X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363-2006 规定的现量要求
PART NUMBERS / REFERENCIAS / RÉFÉRENCE / NÚMERO DAS PEÇAS
Bassbreaker 007 Combo Bassbreaker 007 Head
2260000000 (120V, 60Hz) US 2261000000 (120V, 60Hz) US
2260003000 (240V, 50Hz) AU 2261003000 (240V, 50Hz) AU
2260004000 (230V, 50Hz) UK 2261004000 (230V, 50Hz) UK
2260005000 (220V, 50Hz) ARG 2261005000 (220V, 50Hz) ARG
2260009000 (220V, 60Hz) ROK 2261009000 (220V, 60Hz) ROK
2260013000 (240V, 50Hz) MA 2261013000 (240V, 50Hz) MA
