XR Scooter
ELECTRONIC SCOOTER
USER MANUAL
Congratulations
On Your Purchase!
This user manual will help you assemble and operate
your new electric scooter. Be sure to read ALL OF THE
INFORMATION in this manual before riding.
NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE:
It’s very important that you get parental permission
before riding your electric scooter.
ALWAYS wear a helmet when riding your electric scooter.
Make sure your scooter has a full battery before taking it out to ride.
Always be aware of local road laws, and follow them.
Do not ride the scooter under the inuence of drugs or alcohol.
Always respect pedestrians.
Do not ride under wet conditions. The scooter may slide from under your
feet causing injury. Wet conditions may damage the electronics and void the
warranty.
Don’t Ride Until You Read This:
1. Avoid water - The scooter is not waterproof. The electronics may be damaged
due to water and water damage is not covered by our warranty. Riding in wet
conditions is also very dangerous and may result in injury.
2. Abuse - We do not cover physical damage due to negligent care and extreme
riding.
3. Whenever you ride the Gotrax electric scooter, you risk severe injury or even
death from loss of control, collisions, and falls. Use caution and ride at your own
risk.
4. Do not modify the product from the manufacturer’s original design.
5. Keep hands and all body parts away from moving parts while operating the
scooter.
6. Before riding - be sure to check the scooter over and make sure the scooter is
operating correctly before each use.
7. Before riding - be sure to check that the braking system is functioning properly;
also be sure to check that all safety labels are in place and you understand the
safety warnings.
8. Before riding - be sure that any and all axle guards, chain guards, or other
covers or guards supplied by the manufacturer are in place and in serviceable
condition.
9. Before riding - be sure to check that the tires are in good condition, inated
properly, and have sucient tread remaining.
10. Never exceed the 220 lb (100 kg) maximum load rating.
11. The electric scooter should never be used by children under the age of 13.
12. Maximum Speed - Your electric scooter goes the maximum speed of 15.5 mph.
Warning Message
You should nd each of these items in your box:
1. Electric Scooter
2. Console & Handlebars
3. Approved Power Adapter / Charging Unit
4. Allen Wrench
5. Screws
6. Tire Gauge Pipe
7. Safety Pin
Remove all packaging material, then inspect each item for any
accidental damage that may have occurred during shipping.
Unpack
1
2
3
4 5
6
7
UNPACK
You should find each of these items in your G2 box:
1. G2 Scooter
2. G2 Console & Handlebars
3. Gotrax Approved Power Adapter / Charging Unit
4. Allen wrench
5. Screws
Remove all packing material, then inspect each item for any
accidental damage that may have occurred during shipping.
4
3
5
The electric scooter comes partially assembled.

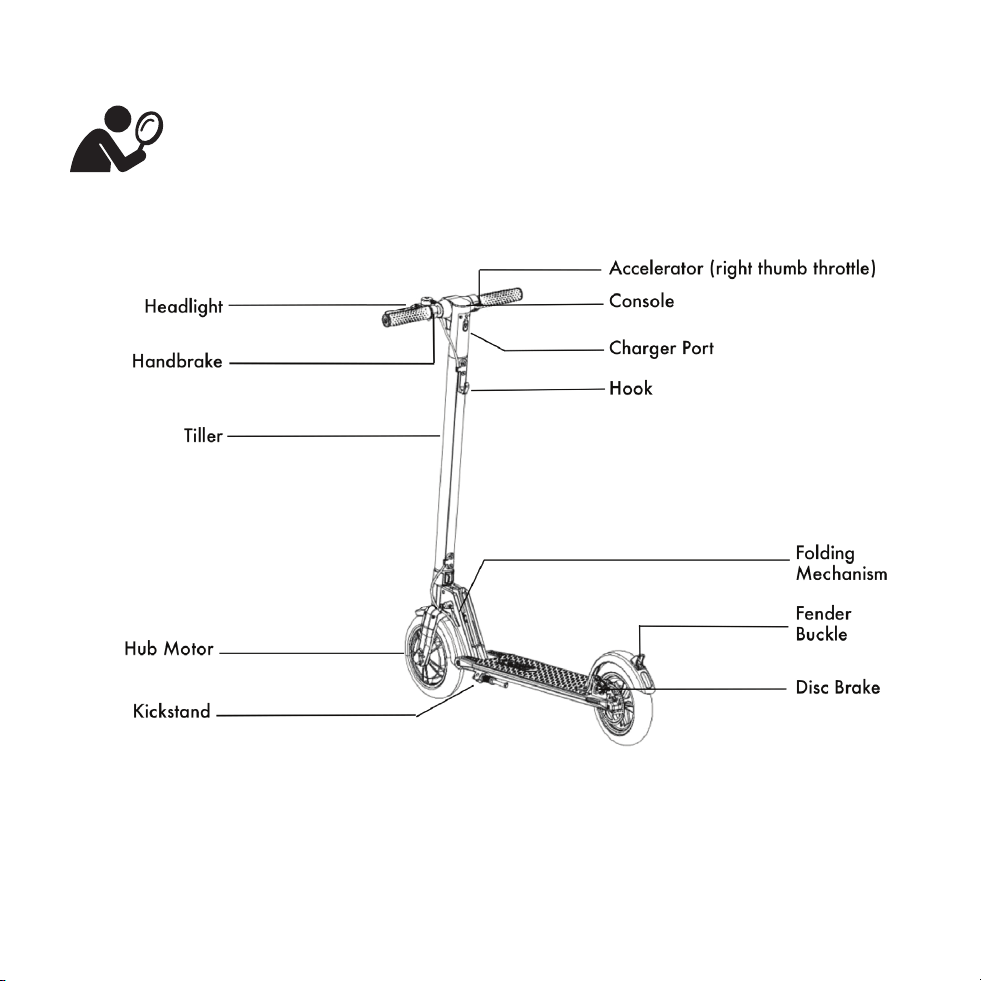

Get To Know Your Scooter
Press down on the rear fender, separate the folding hook
and fender buckle, then lift the tiller upright (as shown in the
gure). Once the scooter is locked in the upright position,
verify by gently trying to fold.
Use an Allen wrench to loosen the screws located at the
hook and detach. Once you’ve removed the hook and
screws, make sure to remove the cover from the top of the
tiller.
Place the console into the top of the tiller.
Assemble Your Scooter
1
2
3
Take the cord that is attached to the hook and bring it to
the front of the tiller. Pull the handbrake towards you and
insert the round metal piece into the opening. String the
small silver cord through the solid piece of the handbrake.
Make sure the metal piece on the red cord is pushed fully
into the handbrake.
Grab the red cord and hook and bring it back behind the
tiller and reattach the hook to the back of the tiller using
the screws and an Allen wrench. ( The red cord should go
around the tiller.)
5
4
Before using the scooter, you must fully charge the battery.
Charge Your Scooter
1. Open the rubber charging port cover.
2. Insert the charging plug into the port.
3. The charger box will have a green light when fully charged and a red light when
charging.
4. When you are done charging be sure cover the charging port to keep it clear of
dust and debris.
5. Charging Time: 4 hours
Charging Requirement: Make sure to charge your scooter in conditions that do not
exceed 104 degrees Fahrenheit or below 32 degrees Fahrenheit.
To power the scooter on, press and hold the red button for 1 second.
To power the scooter o, press and hold the red button for 5 seconds.
To power the headlight on or o, press the red button for 1 second while the
scooter is powered on.
To change between 1st and 2nd gear, press the red button for 2 seconds. The
display screen on the console will switch from the number 1 for 1st gear and number
2 for the 2nd gear.
The console on the scooter displays speed in MPH, battery life, and what gear the
scooter is currently in.
Scooter Console Functions
1. You will want to start riding your electric scooter with one foot on the platform
and one foot on the ground. Use your foot on the ground to push o and at the
same time, press the throttle button to begin movement.
2. Press the handbrake to slow down or stop.
3. The scooters perform best when on a smooth surface e.g. carparks, smooth
roads, footpaths, & bike lanes.
4. Always clean your scooter (wheels, platform, etc.), it’s a machine and it needs to be
maintained.
5. Do not press the throttle while walking with the scooter beside you.
6. Be aware of the terrain you are riding on, watch out for curbs and obstacles!
7. Use the red button to change between gears as you would on a bike, cycle
through them according to the terrain and elevation. First gear equals more
torque for going uphill, Second gear is more speed for straightaways.
8. Cruise Control: To activate the cruise control press the right-hand throttle down
for 10 seconds. To deactivate the cruise control press either the right-hand throttle
or brake button to deactivate the cruise control.
Riding Tips
Before folding the scooter, make sure that the scooter is powered o. .
Folding: Ensure the electric scooter is powered o, hold the tiller and pull out the
spring pin on the right folding panel then rotate the spring pin counterclockwise.
Insert the hook on the tiller into the loop on the rear fender buckle. You may hear a
click which indicates that you were successful in folding and locking the scooter.
Unfolding: Press the rear fender and pull the tiller up to unfold the electric scooter,
the spring pin will insert itself in place within the folding lever to lock the folding
mechanism.
Putting Your Scooter
Away/Folding
1 2
If you regularly clean and maintain your electric scooter, it will extend its life.
Cleaning and storage: If the scooter is dirty, wipe it clean with a soft damp cloth.
Brake Adjustments & Service: If you notice you need brake adjustments or any
service on your scooter, contact our customer service team and we will adjust and
repair your scooter. Do not repair your scooter yourself, this can void your warranty
and you risk damaging the scooter.
Tires: If you notice that the tire pressure is low, please ll to the recommended PSI
on the side of the tire. Recommended PSI: 50
DO NOT use alcohol, gasoline, kerosene, or other corrosive chemical solvents to
clean the scooter. It can severely damage the appearance and structure of the
scooter. Please do not use a pressure washer as it may also cause damage to the
electronics.
Storage: When you’re not using your scooter store in a dry and cool location. Avoid
storing your scooter outdoors because sun exposure can damage it’s appearance
and may cause wear on the life of the battery and tires.
Tightening the Tiller: If you notice that the tiller is loose or wiggles while riding, you
can tighten the screws. Open the plastic cover, and use the Allen wrench to tighten
the screws as shown in the gure below.
Maintenance & Repair
Battery Information
Only use the approved Gotrax power adapter to charge your scooter, others may
cause risk of re & equipment may be damaged.
Improper disposal of used batteries may seriously pollute the environment. Please
comply with local disposal regulations.
Make sure to store your scooter and power adapter in conditions that do not exceed
122 degrees Fahrenheit or below -4 degrees Fahrenheit.
Warning - Risk of Fire - No User Serviceable Parts, The prolonged exposure to UV
Rays, Rain and the Elements may damage the enclosed materials, store indoors
when not in use.
We frequently update our user manuals at gotrax.com, and reserve the rights to
update and change manuals online.
Please contact our customer service team if you are experiencing problems or
need more detailed information. They can be reached at gotrax.com.
For warranty information, please visit us at www.gotrax.com.
Troubleshooting
Warranty
WWW.GOTRAX.COM
#RIDEGOTRAX
GOLABS, INC
GoTrax.com
2201 Luna Rd.
Carrollton, TX 75006
