19 BAR ESPRESSO MAKER
Instruction Manual
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 190166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1 2022-06-03 2:07 PM2022-06-03 2:07 PM
Important Safeguards ......................................................................................................2-3
Additional Important Safeguards .................................................................................. 4-5
Notes on the Plug ................................................................................................................6
Notes on the Cord ................................................................................................................6
Plasticizer Warning ..............................................................................................................7
Electric Power .......................................................................................................................7
The Art of Extracting Espresso and Texturing Milk ........................................................ 7
Getting to Know Your Bella Pro 19 Bar Espresso Maker ...........................................8-10
Safety Warnings ................................................................................................................ 11
Before Using for the First Time ................................................................................. 12-13
Filter Baskets: Pressurized or Non-Pressurized? ...........................................................14
Pull the Perfect Espresso Shot ....................................................................................15-16
Dial In Single or Double Shot Volume ............................................................................17
Texture Milk for Espresso Drinks ................................................................................ 17-18
User Maintenance Instructions ........................................................................................18
Care & Cleaning Instructions ......................................................................................18-19
Descaling ............................................................................................................................20
Storing Instructions ........................................................................................................... 21
Trouble Shooting ..........................................................................................................22-23
Bella Pro Espresso Recipes ....................................................................................... 24-25
Warranty ....................................................................................................................... 26-27
TABLE OF CONTENTS
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 190166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1 2022-06-03 2:07 PM2022-06-03 2:07 PM
2
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
1. READ ALL INSTRUCTIONS BEFORE USING.
2. Do not touch hot surfaces. Use handles or knobs.
3. When in use, the appliance is under pressure and should never be
leftunattended.
4. To protect against re, electric shock and injury to persons, do not
place cord, plugs, or appliance in water or other liquid.
5. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliances by a person
responsible for their safety.
6.
Close supervision is necessary when any appliance is used by
or near children.
7. Unplug from outlet when not in use and before cleaning.
8. Allow Espresso Maker to cool before putting on or taking off parts,
and before cleaning the appliance.
9. Do not operate any appliance with a damaged cord or plug or after
the appliance malfunctions, or has been damaged in any manner.
Contact Consumer Service for examination, repair or adjustment.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 290166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 2 2022-06-03 2:07 PM2022-06-03 2:07 PM
3
10. The use of any accessory not evaluated for use with this appliance
and not recommended by the appliance manufacturer may cause re,
electric shock or injuries to persons.
11. Do not use outdoors.
12. Do not let cord hang over edge of table or counter, or touch hot surfaces.
13. Do not place on or near a hot gas or electric burner, or in a heated oven.
14. If this appliance begins to malfunction during use, press the POWER
button; turn the function control to STAND BY. Then immediately unplug
the cord. Do not use or attempt to repair the malfunctioning appliance.
15. Never use the appliance without water.
CAUTION: Relieve pressure through steam wand before removing cup
or lter basket.
16. Do not use appliance for other than intended use.
17. Be certain lids are securely in place before operating appliance.
18. Scalding may occur if the lids are removed during the brewing cycle.
19. To disconnect, turn any control to “off”, then remove plug from
walloutlet.
20. WARNING: To avoid the risk of injury, do not open the brew chamber
during the brew process.
SAVE THESE INSTRUCTIONS
THIS PRODUCT IS FOR
HOUSEHOLD USE ONLY
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 390166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 3 2022-06-03 2:07 PM2022-06-03 2:07 PM
4
ADDITIONAL IMPORTANT
SAFEGUARDS
WARNING: This appliance generates heat and escaping steam during use.
Proper precautions must be taken to prevent the risk of burns, res,
or other injury to persons or damage to property.
CAUTION: The Espresso Maker must be allowed to cool down sufciently
before adding more water to avoid splattering.
1. All users of this appliance must read and understand this instruction
manual before operating or cleaning this appliance.
2. The cord to this appliance should be plugged into a 120V AC electrical
outlet only.
3. Use water only in this appliance! Do not put any other liquids or food
products in this appliance. Do not mix or add anything to the water
placed in this appliance, except as instructed in the Descaling section
of this instruction manual.
4. DO NOT attempt to move an appliance containing hot liquids. Allow
appliance to cool completely before moving.
5. Keep appliance at least 4 inches away from walls or other objects
during operation.
6. Place the appliance on a surface that is resistant to heat.
7. Prior to connecting or disconnecting plug from wall outlet,
pressthePOWER button; turn the function control to STAND BY.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 490166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 4 2022-06-03 2:07 PM2022-06-03 2:07 PM
5
8. If this appliance falls or accidentally becomes immersed in water or
any other liquid, unplug it immediately. DO NOT REACH INTO THE
WATER! Do not use this appliance after it has fallen into or has become
immersed in water. Contact Consumer Service for examination and
repair.
9. Always use fresh, cool water in your appliance. Warm water or other
liquids, except as described in the Descaling section, may cause
damage to the Espresso Maker.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 590166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 5 2022-06-03 2:07 PM2022-06-03 2:07 PM
6
NOTES ON THE PLUG
This appliance has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug will t in a polarized outlet only
one way. If the plug does not t fully into the outlet, reverse the plug.
If it still does not t, contact a qualied electrician. Do not modify the
plug in any way.
NOTES ON THE CORD
A. A short power-supply cord is to be provided to reduce risks resulting
from becoming entangled in or tripping over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may be used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used:
1. The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of
the appliance;
2. If the appliance is of the grounded type, the extension cord should be
a grounding- type 3-wire cord; and
3. The longer cord should be arranged so that it will not drape over
thecounter top or table top where it can be pulled on by children or
tripped over.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 690166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 6 2022-06-03 2:07 PM2022-06-03 2:07 PM
7
ELECTRIC POWER
If the electrical circuit is overloaded with other appliances, your appliance
may not operate properly. It should be operated on a separate electrical
circuit from other appliances.
PLASTICIZER WARNING
CAUTION: To prevent Plasticizers from migrating to the nish of the
counter top or table top or other furniture, place NON-PLASTIC coasters
or place mats between the appliance and the nish of the counter top
or table top. Failure to do so may cause the nish to darken; permanent
blemishes may occur or stains can appear.
THE ART OF EXTRACTING ESPRESSO AND TEXTURING MILK
Whether you are an experienced coffee artisan and interested in latte
art or a novice to espresso and just want to relax and enjoy a perfect
espresso drink, the Bella Pro 19 Bar Espresso Maker delivers!
Consistency is key when it comes to a good shot of espresso. Optimal
espresso avor is achieved as the brewing temperature is maintained.
Grounds are pre-infused with low, steady water pressure before
extraction. Shot volumes are automatically dispensed and can be adjusted
to taste. The result is a perfectly balanced, rich and avorful espresso
topped with deliciously ne crema. With the Bella Pro 19 Bar Espresso
maker, you can create ne microbubbles using the steam wand to top any
of your espresso based beverages.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 790166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 7 2022-06-03 2:07 PM2022-06-03 2:07 PM
8
Getting to Know Your Bella Pro
19 Bar Espresso Maker
Product may vary slightly from illustration
Figure 1
Heated Die Cast
Warming Plate
71 oz Removable
WaterTank
Function Control Dial
Control Panel
Steam Wand with
Silicone Handle
Brew Head
Portalter with 2 Spouts
Hot Water Dispenser Wand
Silicone Handle
Hot Water Dispenser Wand
with Removable Tip
Steam Wand with
Removable Frothing Tip
FULL Indicator
Removable Drip Tray
Non-Slip Rubber Feet
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 890166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 8 2022-06-03 2:07 PM2022-06-03 2:07 PM
9
Accessories
1 and 2 Cup Pressurized Filter Baskets
1 and 2 Cup Non-Pressurized Filter Baskets
55mm Portalter with 2 Spouts
473 ml. (16 oz.) Stainless Steel Milk
Frothing Pitcher
Measuring Scoop
Solid Heavy Duty Tamper
Cleaning Pin
TOP VIEW
SIDE VIEW
TOP VIEW
SIDE VIEW
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 990166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 9 2022-06-03 2:07 PM2022-06-03 2:07 PM
10
1. POWER Button. Press to turn the Espresso Maker ON. The single shot (
) and double shot
(
) buttons will begin to ash. When the system is up to temperature, all 4 buttons on the
control panel will illuminate.
2. STEAM PREHEAT Button. After espresso shots have been pulled, press to activate the heater
to texturize milk. When pressed, the STEAM PREHEAT button will ash. As temperature is
achieved and steam is built, the button will illuminate.
3. Water / Steam Indicator Lights. As the water dispenser is activated, the water indicator light
will ash. The steam indicator light will illuminate as the pressure is directed to the steam
wand.
4. 19 Bar Pressure Gauge. Displays pre-infusion to espresso pressure range.
5. Single Shot Programmable Button. Press once to initiate a 2 oz. extraction.
Press and hold the button for 3 seconds to adjust and to dial in future single shot volume.
6. Double Shot Programmable Button. Press once to initiate a 4 oz. extraction.
Press and hold the button for 3 seconds to adjust and dial in future double shot volume.
7. Function Control Dial. Once pressure is built and the PREHEAT button is illuminated (stops
ashing), turn the dial to activate the STEAM wand.

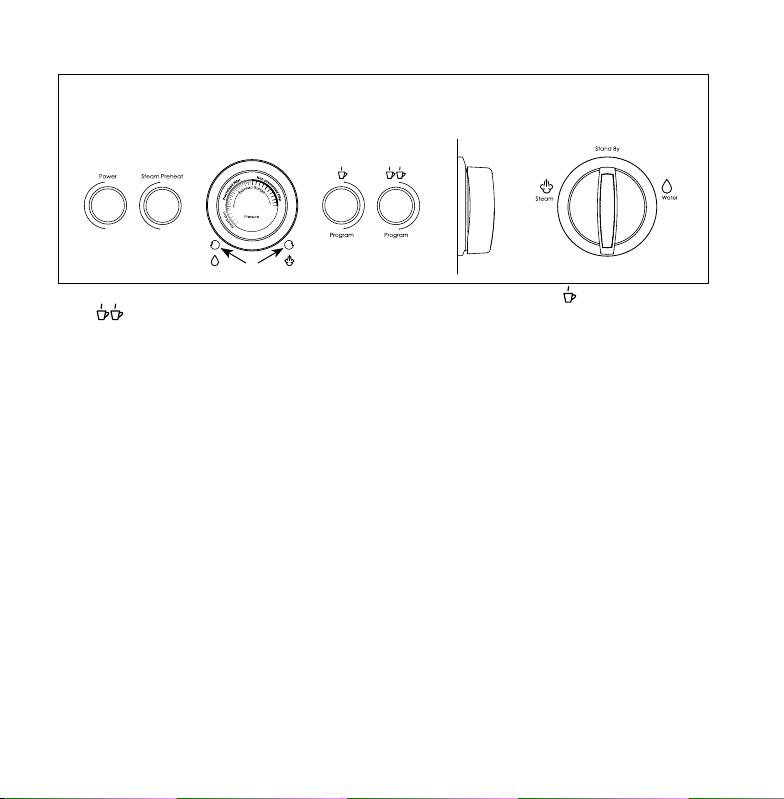

Control Panel
Figure 2
Control Panel
Figure 3
1 5
7
2 4 6
3
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1090166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 10 2022-06-03 2:07 PM2022-06-03 2:07 PM
11
Safety Warnings
• Proper precautions must be made to avoid burns from sprays of hot water or steam.
• Always use the silicone covers and tabs installed on both the steam wand and the water
dispenser to rotate and swing either wand to the perfect position.
• Avoid touching any hot surfaces on the machine or any metal parts of the portalter, lter
basket, water dispenser or steam wand while the Espresso Maker is in use or after it has just
been used to prepare hot beverages.

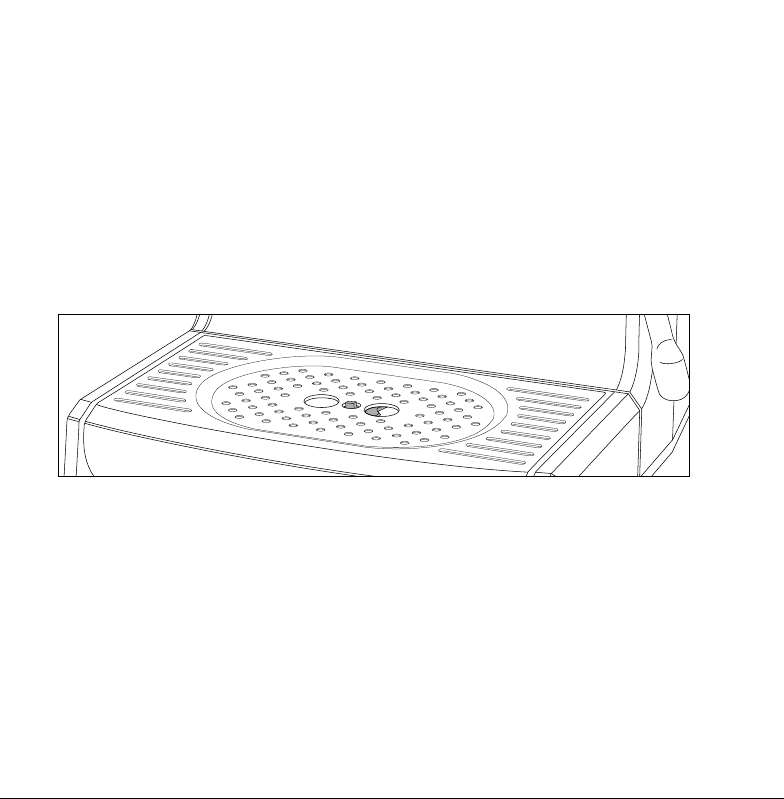

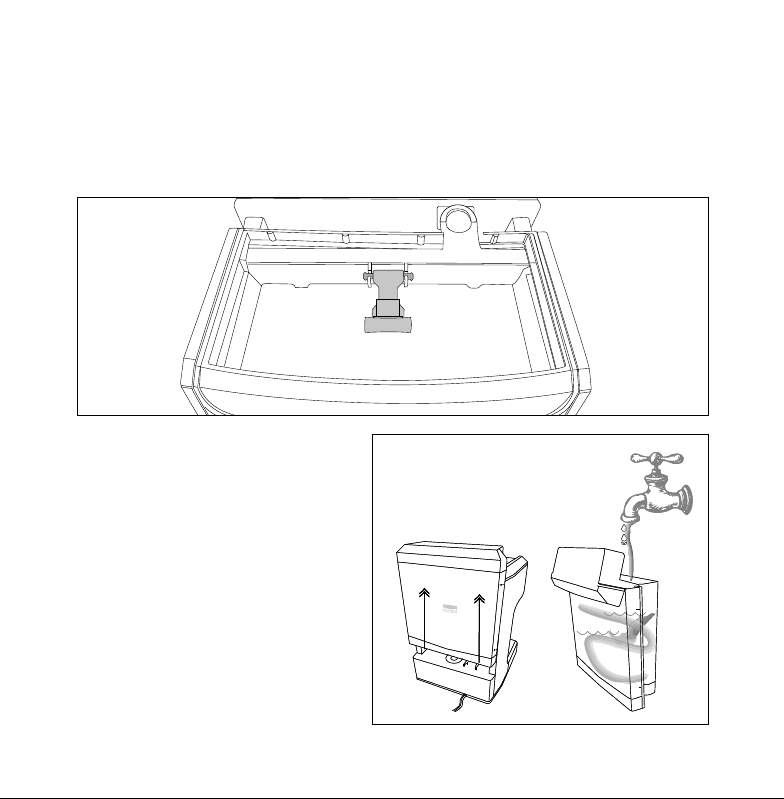

• When too much water has accumulated in the drip tray, the red FULL indicator will rise.
(See Figure 4.) To avoid water spillage, lift the drip plate off the tray.
Slide the drip tray straight out to remove.
Empty water, wipe dry, and reassemble. (See Figure 5.)
Figure 4
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1190166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 11 2022-06-03 2:07 PM2022-06-03 2:07 PM
12
Before Using for the First Time
1. Remove any packaging materials before use. Make sure the Espresso Maker is unplugged.
2. Assemble the Drip Tray. Slide the drip tray in or out to remove for easy cleaning.
3. Line the circular cutout of the FULL bar with the base of the unit; left and right ends should
t snugly in place. (See Figure 5.) Add the drip plate.
4. Fill the Water Tank. Lift and ip open the
lid of the water tank and ll with cold
water, or… grasp the water tank at the
back of the Espresso Maker and lift it up
and off the unit. (See Figure 6.)
5. Fill the water tank with cold water to
the MAX (2.1 liter) mark.
6. Slide the water tank back to its original
position. Lift the lid to close.
7. Pre-Clean and Prime the Pump. Place
the Espresso Maker on a level surface,
withincloseproximity to a sink to
discard water.
MAX
MIN
MAX
MIN
Figure 6
Figure 5
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1290166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 12 2022-06-03 2:07 PM2022-06-03 2:07 PM
13
8. Place any empty (do not add coffee) 2-cup lter basket into the portalter.
Insertandlockinto the brew head following the detailed description in the section:
“Pullingthe PerfectEspresso Shot.” (See Figures 8 and 9.)
9. Center a wide-mouth spouted container or cup under the 2-spout portalter. Placethesteam
wand’s tip into the frothing jug. Place an empty container under the water dispenser.
10. Plug the unit into a 120V AC electrical outlet.
11. Press the POWER button. The single shot (
) and double shot ( ) buttons will begin
to ash. When the system is up to temperature, all4buttons on the control panel will
illuminate.
12. PRESS THE STEAM PREHEAT button, it will begin to ash until the temperature is reached.
Turnthe function control dial to STEAM the steam indicator light will illuminate as the hot
steam purges the line. After MAX 45 seconds, turn the function control dial back to
STAND BY.
13. Turn the function control dial to WATER. Allow water to ll the container, then discard.
Turnthe function control dial to STAND BY.
14. Press the double shot (
) button continually, emptying the hot water, until the entire tank
of water is purged through the system.
15. The pump is now primed, and the Espresso Maker is cleaned. You are ready to pull
theperfect espresso shot.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1390166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 13 2022-06-03 2:07 PM2022-06-03 2:07 PM
14
Filter Baskets: Pressurized or Non-Pressurized?
1. Your Bella Pro Espresso Maker comes with 2 sets of lter baskets. Pressurized lter holders
are double wall construction and have only 1 hole on the bottom. Non-pressurized lter
baskets are thinner, single wall construction with many holes on the bottom. If you are new
to the third wave coffee culture, or if you are not using a dosed coffee grinder, it is best to
use the pressurized baskets.
2. It is best to use pressurized lter baskets when:
• Extracting espresso from pre-measured pods. Insert a single coffee pod into the empty
1cup pressurized lter basket. To avoid water leakage, make sure that no part of the
coffeepod lter hangs over the lip of the lter basket.
• Extracting espresso from pre-ground coffee.
3. Tamping is not critical, but should be consistent when using pressurized lter baskets.
4. Pressurized baskets produce larger bubbles in the crema.
5. Use the non-pressurized lter baskets when:
• Grinding fresh coffee beans.
• Using a special dose coffee grinder.
6. The resulting brew is often less bitter.
7. Tamping is important. Use the
tamper
to apply consistent pressure. A smooth and level
coffee surface is achieved by tamping evenly and rmly with a nal polish or swirl.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1490166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 14 2022-06-03 2:07 PM2022-06-03 2:07 PM
15
Pull the Perfect Espresso Shot
The secret to a perfect espresso shot is all about achieving the perfect balance of acidity,
sweetness, and bitterness. Many factors play a major role: temperature of the water; portalter,
and serving cups is crucial, lter baskets and steaming wand should be clean; coffee beans must
be fresh and perfectly roasted. The neness or coarseness of the grind, dose of ground coffee, and
tamping pressure should be consistent when experimenting to achieve your perfect pull.
1. Place empty cappuccino shot cups onto the warming plate before the pull.
2. Run a blank shot to preheat the cup and portalter.
3. Plug the Espresso Maker into a 120V AC electrical outlet. All indicator lights should be OFF.
4. Fill the water tank with up to 2.1 liters of cold, preferably ltered water, using the markings
onthe tank for reference. Close the lid.
IMPORTANT! Be sure to add enough water for shots plus the rst blank shot.
NOTE: The water tank should always be lled past the MIN (5 oz.) mark.
Never ll the water tank past the MAX (2.1 liter) mark.
5. Choose the appropriate lter basket. (Please see the
detailed description in the previous section: “Filter Baskets:
Pressurized or Non-Pressurized?”) Insert either the 1 or 2
cup, pressurized or non-pressurized lter basket into the
portalter.
(See Figure 7.)
6. Align the portalter handle with the INSERT symbol on the
brew head. (See Figure 8.)
7. Turn handle counter-clockwise (to the right) until the
portalter handle is facing front and lined up with the LOCK.
Make sure the portalter is sealed and locked securely into
the brew head. (See Figure 9.)
8. Center a wide spouted container or cup onto drip plate
under the 2-spout portalter.
9. Press the POWER button to turn the Espresso Maker ON. The
single shot (
) and double shot ( ) buttons will begin to
ash. When the system is up to temperature, all 4 buttons on
the control panel will illuminate.
Figure 8
Figure 9
Figure 7
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1590166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 15 2022-06-03 2:07 PM2022-06-03 2:07 PM
16
10. Press either the single ( ) or double shot ( ) button. The motor will sound. Both spouts will
stream hot water (a blank shot) to warm the espresso cup and portalter and then turn OFF.
11. Remove the portalter from the brew head. Turn the handle
clockwise (to the left) to UNLOCK. The portalter will drop
down from the brew head. (See Figures 10 and 11.)
12. Use the Bella Pro measuring scoop (and scale if desired) to
dose ground espresso coffee and add to the lter basket.
Use the 1 cup lter basket for a single espresso; the 2 cup
lter for a double espresso or 2single espressos at the same
time. (See Figure 12.)
13. Use the tamper to gently press the coffee and pack it. Make
sure the tamper is perfectly dry as any wet spots will result
in channeling. Wipe any loose coffee grounds from the rim
of the portalter to assure a proper t into the brew head.
NOTE: When tamping for a double espresso, only tamp after
the lter basket has been lled. Tamping between measures
may create a layer in the coffee that may hinder extraction.
14. Align the portalter handle with the INSERT symbol on the
brew head and turn counter-clockwise until it is sealed and
securely locked. (See Figures 8 and 9.)
15. Press either the single (
) or double shot ( ) button.
The motor will sound. Both spouts willstream thick, rich espresso. The Bella Pro Espresso
Machine is pre-set to deliver 2 oz. (single) to4oz. (double) shots of espresso, before
automatically turning OFF.
16. Remove the lter basket and discard used coffee puck.
CAUTION: To avoid scalding or burns, do not attempt to remove the portalter handle
during the brewing process, or when any button on the control panel is ashing.
IMPORTANT! Keeping your Espresso Maker clean and thoroughly rinsed is critical in pulling
the perfect shot. Always run water through the brew head and purge the steam wand
aftereach use.
}
}
}
Figure 11
Figure 12
Figure 10
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1690166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 16 2022-06-03 2:07 PM2022-06-03 2:07 PM
17
Dial In Single or Double Shot Volume
1. The Bella Pro Espresso Maker consistently dials in the perfect brew water temperature and
measures the perfect volume for every shot.
2. To adjust volumes for future shots, press and hold the single or double shot programmable
button for 3 seconds to adjust and to dial in future single or double shot volume. Example:
to change the volume on the single shot – press and hold the single shot button for 3
seconds, water will begin to ow. Once you have the desired amount, release the single
shot button to stop water ow. The new volume is now set, and can be re programmed at
any time.
Texture Milk for Espresso Drinks
1. Transition to Steam.
IMPORTANT: Make sure the frothing pitcher is cold before texturing. Refrigerate or run cold
water intothe pitcher before use.
CAUTION: After extracting espresso, the steam wand is hot. Always use the silicone covers
and tabs installed on both the steam wand and the water dispenser to rotate and swing
either wand into the perfect position.
2. Fill the stainless steel frothing pitcher no more than one-third (1/3) full with fresh, cold milk
(skim milk froths best) and place it next to the Espresso Maker.
IMPORTANT: When texturing milk, the volume will double. Do not over-ll the frothing
pitcher.
3. Press the STEAM PREHEAT button. When pressed, the
STEAM PREHEAT button will ash. As temperature is
achieved and steam is built, the button will illuminate solid.
(See Figures 13.)
4. Turn the function control dial to STEAM. Make sure the
steam wand is over the drip tray. Once steam starts to come
out from the wand, and not water you can change the dial
back to STAND BY. (See Figures 14.)
5. Quickly place the tip of the steam wand at the surface of the
milk, and turn the functional control dial back to steam. Place
the frothing pitcher on an angle, and make sure the wand
is around one third from either edge of the frothing pitcher.
Figure 14
Figure 13
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1790166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 17 2022-06-03 2:07 PM2022-06-03 2:07 PM
18
The steam wand should barely break the milk’s surface to create ne microbubbles. Try and
have the steam move the milk around the inside of the frothing pitcher in a circular motion.
Texture the milk until the desired volume is reached. When the milk temperature reaches
between 140-150°F it is ready, or 160°F for extra hot.
6. Turn the function control dial to STAND BY. Drop the pitcher down to remove the steam wand.
7. Pour. After texturing, swirl the milk around for several seconds to incorporate the milk at
the bottom, with the microfoam on top. Tap the frothing pitcher on the counter until the milk
appears shiny and few bubbles remain. Pour textured milk as soon as possible. Swirl the
expresso slightly to break the surface tension of the crema. Slowly introduce the microfoam,
integrating it with the espresso.
8. Wipe the steam wand with a wet kitchen towel and use the silicone tab to swivel the wand
back over the drip tray.
NOTE: To avoid milk build up on and inside and the outside of the steam wand, ensure to
purge the steam wand after every use. Make sure the steam wand is over the drip tray and
turn the function control dial to STEAM – leave on for a few seconds and then turn back to
STAND BY. Clean the outside of the wand with hot water and a soft cloth.
User Maintenance Instructions
This appliance requires little maintenance. It contains no user serviceable parts. Do not try
to repair it yourself. Any servicing requiring disassembly must be performed by a qualied
appliance repair technician.
Care & Cleaning Instructions
CAUTION: NEVER IMMERSE THE ESPRESSO MAKER IN WATER OR ANY OTHER LIQUID.
1. When espresso making is complete, press the POWER button; turn the function control
to STAND BY. Unplug the Espresso Maker from the electrical outlet and allow to cool
completely before cleaning.
CAUTION: The Espresso Maker creates hot water and steam under pressure. To avoid burns
on ngers or hands, always make sure the unit is unplugged and all control panel lights and
buttons are OFF before cleaning. NEVER touch the portalter immediately after brewing or
steaming. Allow all parts to cool thoroughly before touching.
IMPORTANT: The portalter and lter basket should be emptied and rinsed thoroughly with
warm water after every use.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1890166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 18 2022-06-03 2:07 PM2022-06-03 2:07 PM
19
2. Clean the portalter and lter baskets. Grasp the portalter handle rmly and turn clockwise
(to the left) until the handle faces the UNLOCKED position. The portalter will drop down
and out of the unit. (See Figures 10 and 11.)
3. Remove the lter basket and discard used coffee puck.
4. Rinse the portalter and lter baskets immediately after use to remove residual coffee oils.
If necessary, clean the lter basket with a kitchen brush or soak in a cleaning solution for
20minutes. Rinse and dry thoroughly.
5. A cleaning pin has been supplied to ease in the care and cleaning of your Espresso Maker.
Use the smaller end of the cleaning pin to clear holes in the base of the lter baskets.
6. Clean the steam wand and water dispenser. After frothing milk or dispensing hot water, twist to
remove the water dispenser tip and the frothing tip from the steam wand and clean thoroughly.
7. Insert the cleaning pin’s larger wire into both the water dispenser’s and steam wand’s outlet
to clear. Rinse and screw the clean water reservoir tip and frothing tip securely back into
thewands.
8. Remove the drip plate, FULL bar, and slide the drip tray straight out. Empty any collected
water. Dry with a clean cloth and reassemble.
9. Wipe the outside of the Espresso Maker and brew head with a damp cloth.
WARNING: Never use solvents or any detergents that may scratch or damage the surface
ofthe machine.
10. Clean the stainless steel frothing jug, tamper, by hand.
11. No parts of the Bella Pro Espresso Maker should be cleaned in the dishwasher.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 1990166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 19 2022-06-03 2:07 PM2022-06-03 2:07 PM
20
Descaling
Minerals and calcium found in hard-water areas can accumulate and affect the operation of your
machine. Depending on water conditions and frequency of use, your Espresso Maker should be
cleaned with distilled vinegar approximately every 6 months to remove scale.
1. Before cleaning your Espresso Maker, make sure the function control dial is in the
STAND BY position and the appliance has been disconnected from the wall outlet.
2. Fill the water tank with 1 part white vinegar to 3 parts cold water.
3. Attach empty portalter and any lter basket.
4. Plug the Espresso Maker into 120V AC electrical outlet.
5. Center a wide-mouth spouted container or cup under the 2-spout portalter. Place the steam
wand’s tip into the frothing jug. Place an empty container under the water dispenser.
6. Plug the unit into a 120V AC electrical outlet.
7. Press the POWER button. It will begin to ash. When the system is up to temperature,
all4buttons on the control panel will illuminate.
8. Turn the function control dial to STEAM. Allow the hot steam to purge the line for at least
45seconds. Turn the function control dial to WATER. Allow water to ll the empty container,
then discard. Turn the function control dial to STAND BY.
9. Press the double shot (
) button, then empty the hot water, until the entire tank of water
is purged through the system.
10. In hard water environments, it is recommended to repeat this procedure.
11. After descaling, remove the water tank and rell with fresh, cold water.
Repeat steps 7through 9 to thoroughly rinse the Espresso Maker.
WARNING! Never immerse power cord, plug or Espresso Machine in water or any other
liquid. The water tank should never be completely emptied during descaling.
12. When the ow has stopped, press the POWER button. Make sure the all indicator lights
are OFF. Unplug the Espresso Maker from the wall outlet when not in use.
13. Remove portalter, containers or cups and rinse with hot water for next use.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 2090166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 20 2022-06-03 2:07 PM2022-06-03 2:07 PM
21
Storing Instructions
1. Make sure unit is unplugged and fully cooled before storing.
WARNING: Never store Espresso Maker while it is hot or still plugged in.
2. Do not put any stress on cord where it enters unit, as this could cause cord to fray and break.
3. Store the Espresso Maker in its box, in a clean, dry area.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 2190166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 21 2022-06-03 2:07 PM2022-06-03 2:07 PM
22
Trouble Shooting
Problem Possible Cause Solution
Coffee runs
down the
side of the
portalter.
Portalter is not attached correctly, or has
not been tightened sufciently.
Re-insert the portalter into the brew head.
Make sure the handle is facing outward and
is rmly engaged on thebrew head.
Coffee pod is not properly tted inthe lter
basket.
Make sure that no part of the coffee pod
lter hangs over the lip of the lterbasket.
Edge of lter insert is not free of coffee
granules.
Clean around the top edge of the lter and
wipe the brew head with a clean, damp
cloth.
The brew head is dirty. Wipe brew head with a clean, dampcloth.
Brew head rubber seal
is damaged or worn.
Contact Bella Pro Customer Service.
Espresso is
notstreaming
No water in the water tank. Fill tank with water.
Water tank is incorrectly assembled. Press rmly down on the water tank tomake
sure it is correctly positioned.
Brewing lter may be blocked. See “Descaling” section of this Instruction
Manual
The lter basket is blocked, coffee grounds
are too ne or tamped down too hard.
Empty lter basket and rinse under water to
clean. Use the cleaning pin to clear holes in
the base of the Wipe the brew head with a
cloth. Redose the lter with a coarser coffee
grind and tamp with less pressure.
Espresso does
nothave any or
enough crema.
Coffee is old or dry. Use freshly roasted and ground coffee.
Always store ground coffee inan airtight
container.
Coffee not compacted rmly enough. Tamp coffee grounds with more pressure.
Coffee grind is too coarse. Use a ner grind of pre-ground coffee or
grind the coffee beans to a ner texture.
Dose is too small. Increase dose
Coffee is
toocold.
Cups, lter and lter hand are cold. Run a blank shot to pre-heat cups, portalter
and lter baskets.
If making a cappuccino or latte the milk may
not be heated enough.
Ensure that milk is heated properly during
texturing, but DO NOT boil the milk.
No steam from
the steam
nozzle.
Steam nozzle is blocked. See “Care & Cleaning Instructions.”
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 2290166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 22 2022-06-03 2:07 PM2022-06-03 2:07 PM
23
Problem Possible Cause Solution
Not enough
froth when
texturing
Milk is not fresh. Begin again with fresh milk.
Milk temperature is too warm. Make sure that the milk is well refrigerated
before use.
Texturing jug is warm Refrigerate or run cold water into
thejugbefore use.
Steam nozzle is blocked. See “Care & Cleaning Instructions.”
Milk has been boiled. Start again with fresh, chilled milk.
The milk is making large bubbles rather than
microbubbles.
The tip of the steam nozzle should be
positioned just below the surface of the
milk.
Cups are
unevenly lled.
Uneven tamping or obstruction in
thepouring spouts.
Make sure coffee is tamped evenly and
check that both pouring spouts on the
portalter are unobstructed. See “Care &
Cleaning Instructions.”
Espresso tastes
burnt.
Change the type of coffee being used. Experiment with various types and brands
of coffee beans.
Appliance has not been rinsed after
descaling.
Purge a full water tank through the Espresso
Maker before pulling another espresso shot.
Pump makes
an unusually
loud noise.
Not enough water in the tank, or the water
tank is empty.
Fill the water tank. The water tank should
always be lled past the MIN (5 oz.) mark.
NEVER operate the Espresso Maker with an
empty water tank.
Water tank is incorrectly assembled. Press rmly down on the water tank tomake
sure it is correctly positioned.
Machine does
not operate.
Portalter may be blocked. Remove portalter and clean brewing head.
See “Care & Cleaning Instructions.”
Machine blocked by scale buildup. See “Descaling.”
Espresso is the foundation of all café coffee. The Bella Pro 19 Bar Espresso Maker gives you the
freedom to add your personal touch of milk and froth.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 2390166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 23 2022-06-03 2:07 PM2022-06-03 2:07 PM
24
Bella Pro Espresso Recipes
Short Black
A single shot of espresso topped with a stable layer of crema.
Flat White
A single shot of espresso topped with a steamed milk, 1/3 coffee and 2/3 steamed milk.
Yuan Yang (Coffee with Tea)
Yuan Yang is made by making strong black tea in a pot, stirring in evaporated
orsweetenedcondensed milk and coffee, then sweetening to taste.
• 4 small black tea bags, paper and strings removed
• 1 (14-oz) can sweetened condensed milk
• 2 cups Americano Coffee (see recipe following)
Simmer tea and 1 cup water in a 2-qt. saucepan over medium heat for 3 minutes.
Squeeze out and discard tea bags. Stir in milk; boil. Cook, stirring, for 3 minutes.
Stir in Americano coffee; pour into glasses.
Americano or Long Black
A standard espresso shot diluted with hot water, served in a regular coffee cup or mug. Add hot
water before the espresso to maintain the delicate crema.
Café Latté
A single shot espresso with steamed milk, typically served in a glass.
The top layer of microbubbles should be 10mm to seal the coffee.
Cappuccino
Espresso with steamed milk, topped with creamy froth and a dusting of chocolate.
The resulting drink is approximately 2/3 milky coffee, 1/3 microbubbles.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 2490166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 24 2022-06-03 2:07 PM2022-06-03 2:07 PM
25
Café Mocha
Prepared similarly to a cappuccino but with the addition of drinking chocolate.
Stir chocolate into the espresso prior to adding the steamed milk and microbubbles.
Top with whipped cream.
Macchiato
Traditionally served as a short or long espresso with a dash of milk or a small dollop
offrothinthe center of the crema.
Espresso Vodka Cocktail
• 1.5 oz. vodka
• 1/2 oz. freshly squeezed lemon juice
• 1/2 oz. simple syrup
• 2 single espresso shots
• Ice for serving
• Lemon zest for garnish
Add vodka, lemon juice, simple syrup, espresso, and ice to a drink shaker. Shake well.
Pour into a chilled glass and serve over ice. Garnish with lemon zest.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 2590166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 25 2022-06-03 2:07 PM2022-06-03 2:07 PM
Limited Two-Year Warranty
SENSIO Inc. hereby warrants that for
a period of TWO YEARS from the date
of purchase, this product will be free
from mechanical defects in material
and workmanship, and for 90 days in
respect to non-mechanical parts. At its
sole discretion, SENSIO Inc. will either
repair or replace the product found to
be defective, or issue a refund on the
product during the warranty period.
The warranty is only valid for the
original retail purchaser from the date
of initial retail purchase and is not
transferable. Keep the original sales
receipt, as proof of purchase isrequired
to obtain warranty validation. Retail
stores selling this product do not have
the right to alter, modify, or in any way
revise the terms and conditions of the
warranty.
Exclusions:
The warranty does not cover normal
wear of parts or damage resulting
from any of thefollowing: negligent
use of the product, use of improper
voltage or current, improper routine
maintenance, use contrary to the
operating instructions, disassembly,
repair, or alteration by anyone other than
qualied SENSIO Inc. personnel. Also,
the warranty does not cover
Acts of God such as re, oods,
hurricanes, or tornadoes.
SENSIO Inc. shall not be liable for any
incidental or consequential damages
caused by the breach of any express
or implied warranty. Apart from the
extent prohibited by applicable law, any
implied warranty of merchantability or
tness for a particular purpose is limited
in time to the duration of the warranty.
Some states, provinces or jurisdictions
do not allow the exclusion or limitation
of incidental or consequential damages,
or limitations on how long an implied
warranty lasts, and therefore, the above
exclusions or limitations may not apply
to you. The warranty covers specic
legal rights which may vary by state,
province and/or jurisdiction.
26
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 2690166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 26 2022-06-03 2:07 PM2022-06-03 2:07 PM
27
How To Obtain Warranty Service:
You must contact Customer Service at
our toll-free number: 1-866-832-4843.
A Customer Service Representative
will attempt to resolve warranty issues
over thephone. If the Customer Service
Representative is unable to resolve the
problem, you will be provided with a
case number and asked to return the
product to SENSIOInc. Attach a tag to
the product that includes: your name,
address, daytime contact telephone
number, case number, and description of
the problem.
Also, include a copy of the original sales
receipt. Carefully package the tagged
product with the sales receipt, and send
it (with shipping and insurance prepaid)
to SENSIO Inc.’s address. SENSIO Inc.
shall bear no responsibility or liability
for the returned product while in transit
to SENSIO Inc.’s Customer Service
Center.
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 2790166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 27 2022-06-03 2:07 PM2022-06-03 2:07 PM
For customer service questions or comments
1-866-832-4843
bellahousewares.com
Sensio Inc.
New York, NY 10016/USA
90166 R0
90166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 3090166_Bella Pro_19 Bar Espresso Maker_IM_V2.indd 30 2022-06-03 2:07 PM2022-06-03 2:07 PM
